EN INSTRUCTIONS ON MOUNTING AND USE

QR code image containing encoded data, no visible human-readable text

Notes: this remote control is universal but not all features are available on all models.

ON FIRST USE OR IN THE EVENT OF NEEDING TO CHANGE THE REMOTE CONTROL OR THE PRODUCT'S ELECTRONIC COMPONENTS, THE PAIRING PROCEDURE BETWEEN REMOTE CONTROL AND HOOD MUST BE PERFORMED (Valid for all models):

1. Power off the hood for at least 10 seconds
2. Power on the hood again
3. Within the first 5 sec press the lights button T4 and release after the lights have turned on
4. Within the next 5 sec press the motor button T2 and release it when the lights turn off
   Now you need to wait approximately 10 seconds, after which you may use the hood normally.

QR code image containing encoded data, no visible human-readable text

Silhouette of a hand holding a smartphone displaying a QR code (no text or symbols on the device)

I Scan Qr code per la versione completa del manuale.
EN Scan Qr code for the full version of the manual.
DE Scannen Sie den QR-Code für die Vollversion des Handbuchs.
FR Scannez le code Qr pour la version complète du manuel.
NL Scan de Qr-code voor de volledige versie van de handleiding.
ES Escanea el código QR para la versión completa del manual.
PL Zeskanuj kod QR, aby zobaczyć pełną wersję instrukcji.
CZ Naskenujte Qr kód pro plnou verzi manuálu.

Warning symbol with exclamation mark inside a triangle

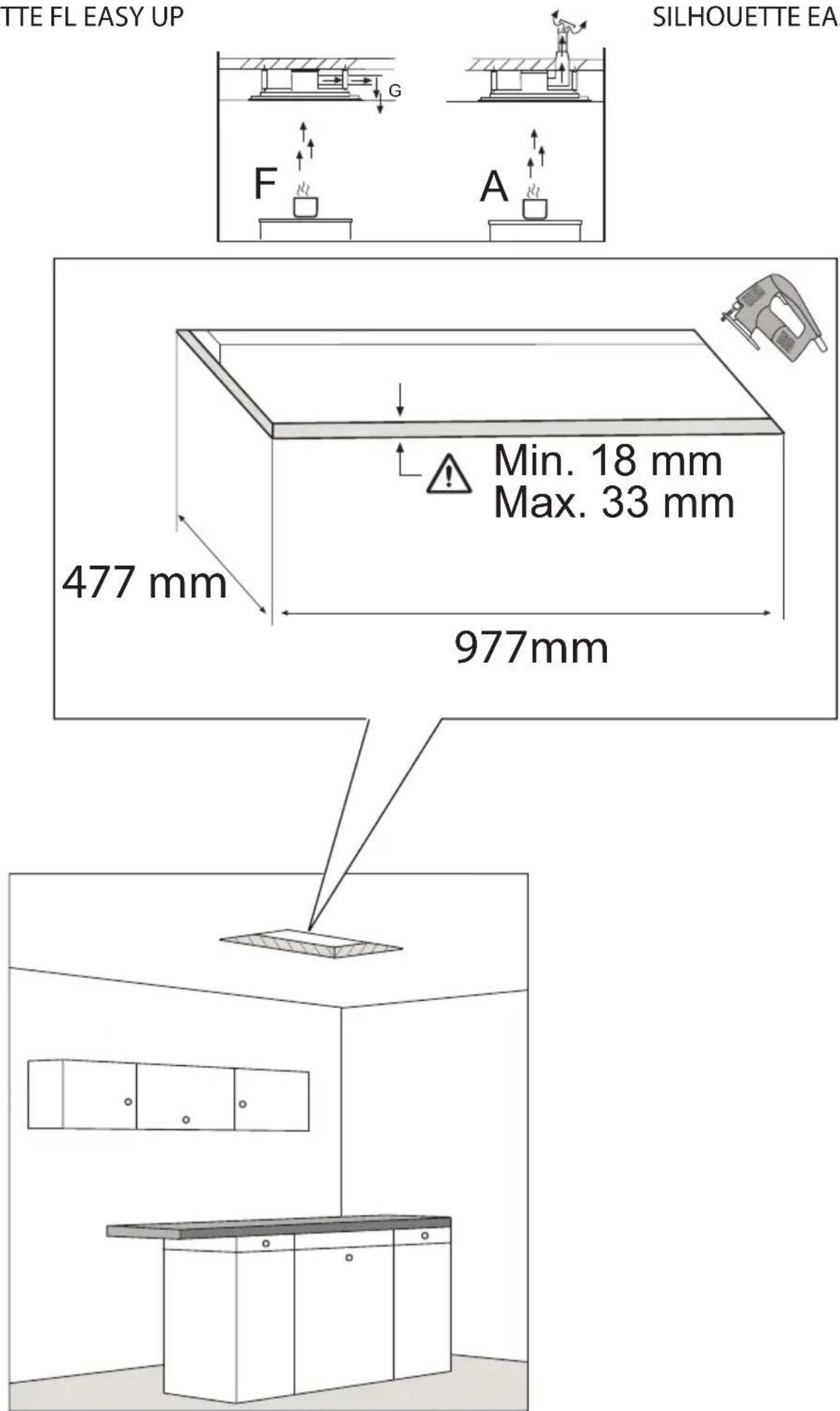

Checking the ceiling for first installation:

- The ceiling must be flat, horizontal and sufficiently solid and strong. • The hood is designed to be installed in a false ceiling. The false ceiling must be solid and have an adequate load capacity for a product weighing max. 30 kg.

Do not install the hood directly in the false ceiling panels, but use a suitable frame or support.

Installation of plasterboard panels:

Attention!: installation must be performed by qualified installers.

Warning symbol with exclamation mark inside triangle

The appliance should not be used by children under 8 years of age and by persons with reduced physical, sensory and mental capabilities, or lack of experience and knowledge, unless they are supervised or have received instructions regarding the safe use of the appliance and are aware of the possible risks. Children must not play with the appliance. Any intended cleaning and maintenance by the user should not be carried out by children unless supervised. The hood should never be used without without the grid properly fitted! Never use the hood without the grill properly fitted!

The accessible components can overheat when the cooktop is in use.

The hood must not be connected to the flues of other appliances that run on gas or other fuels. When the hood is used at the same time as other appliances that run on gas or other fuels, provision must be made for an adequate supply of air. No food must be cooked flambé underneath the hood. The use of an unprotected flame could cause damage to the filters and could cause fires, so should be avoided. When frying food, never leave the pan unattended because the cooking oil could flare up. Please comply with the technical and safety provisions set forth by your local competent authorities regarding the ventilation of hoods.

This appliance conforms to European Directive 2002/96/EC, Waste Electrical and Electronic Equipment (WEEE). Please dispose of this product correctly in the interest of health and the environment.

The symbol 📄 on the product, or on the documents accompanying the product, indicates that this appliance may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal. For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product. If the power cable is damaged you should, in the interest of safety, contact the manufacturer or the manufacturer's technical assistance service to request a replacement, or ask someone who is similarly qualified.

Check also the drawings on the initial pages with the alphabetical and numerical references in the explanatory text. Closely follow the instructions in this manual. We cannot accept liability for any faults, detriment or fire damage to the appliance due to non-compliance with the manual's instructions.

You should affix the hood to a wall of sufficient weight-bearing capacity, so not to one made of plasterboard.

The cooker hood must be placed at a minimum distance of 65 cm from the cooking plane for electric cookers and 65cm for gas or mixed cookers. If the instructions for installation for the gas hob specify a greater distance, this has to be taken into account. Do not tile, grout or silicone this appliance to the wall. Surface mounting only. Do not fix chimney flue to furniture or fly over shelves unless the chimney flue can be easily removed, in case maintenance is ever required.

The cooker hood is provided with an upper air exit B for discharging fumes externally for models including chimney flue C (Suction Version A- exhaust pipe not supplied). If cooking fumes and vapours cannot be externally discharged, the cooker hood can be used in the recirculating version F: the installation of 1 active charcoal filter F allows the recirculation of fumes and vapours through the upper grid G.

Make sure that there is a power socket near the hood and that the system has a 30 mA differential. The mains voltage must be the same as that on the label inside the hood. The hood has a 1250 mm power cable with or without plug: if it does have a plug, connect the hood to an accessible approved socket; or if it does not (connection direct to the mains), fit an approved bipolar switch with a minimum contact opening of no less than 3 mm (accessible). This installation and electrical connection must be executed by a qualified technician.

Product performance test carried out in accordance with standard (EU) No 65/2014-Ref: IEC 61591

Maximum performance is achieved by placing the mobile panels, if any, in the open position.

TLC

T6 T1 T5 T3 T2 T4 T7

T1:+

T2 : On/Off motor

T3 : -

T4: On/Off light

Notes: this remote control is universal but not all features are available on all models.

ON FIRST USE OR IN THE EVENT OF NEEDING TO CHANGE THE REMOTE CONTROL OR THE PRODUCT'S ELECTRONIC COMPONENTS, THE PAIRING PROCEDURE BETWEEN REMOTE CONTROL AND HOOD MUST BE PERFORMED (Valid for all models):

1. Power off the hood for at least 10 seconds
2. Power on the hood again
3. Within the first 5 sec press the lights button T4 and release after the lights have turned on
4. Within the next 5 sec press the motor button T2 and release it when the lights turn off
   Now you need to wait approximately 10 seconds, after which you may use the hood normally.

SHOULD THERE BE ANY MALFUNCTIONS DUE TO INTERFERENCES WITH OTHER REMOTE CONTROLS NEARBY, PERFORM THE PROCEDURE TO CHANGE THE REMOTE CONTROL'S TRANSMISSION CODE (Valid for all models)

The remote control is supplied with default codes. Should you wish to generate new random codes, the following procedure must be performed: press simultaneously the two buttons plus T1 and minus T3 for at least 10 seconds. After the remote control's code has been changed, the pairing procedure must be performed.

Button T2 (On/Off motor): pressing the T2 button turns the motor on or off, acting on the T1(+) or T3 (-) buttons increases or decreases the speed

1° Speed: Green LED
2° Speed: Orange LED
3° Speed: Red LED
4° Speed: flashing red LED (intensive timed for 8 minutes, after which it returns to 3 speed)

Button T4 :On/Off light

Maintenance

Prior to any maintenance operation ensure that the cooker hood is disconnected from the electrical outlet.

Cleaning

The hood must be cleaned frequently both inside (apart from the area behind the grease filter) and outside. Use a cloth moistened with denatured alcohol or neutral liquid detergents. Never use products containing abrasives.

Warning

Failure to carry out the basic standards of the cleaning of the cooker hood and replacement of the filters may cause fire risks. Therefore we recommend observing these instructions.

Anti-grease Filter

must be cleaned once a month, with non abrasive detergents, by hand or in dishwasher on low temperature and short cycle. When washed in a dishwasher, the grease filter may discolour slightly, but this does not affect its filtering capacity.

Charcoal Filter - (only for filter version)

The active charcoal filters F are not washable nor regenerative. It should be changed every 6 months in normal use. The active charcoal filters capture unpleasant cooking odours.

Led Light

If the lighting group LED does not work, please contact the technical service center in order to replace the whole group.

Reducing environmental impact:

To reduce energy consumption, we recommend you always use the lowest suction speed among those suitable for the cooking mode currently active, avoid leaving the appliance running for more than 15 minutes after burner shutdown and switch off the lights if you leave the cooking area.

Warnung

Illustration of two gloves with different bandages and straps (no text or symbols)

IT Per tutte le operazioni di installazione e manutenzione utilizzare guanti da lavoro
EN Always wear work gloves for all installation and maintenance operations
DE Bei allen Installations- und Instandhaltungsarbeiten immer Schutzhandschuhe tragen.
FR Munissez-vous de gants de travail avant d'effectuer toute opération d'installation et d'entretien.
NL Draag bij alle installatie- en onderhoudswerkzaamheden werkhandschoenen.
ES Todas las operaciones de instalación y mantenimiento se deben realizar utilizando guantes de trabajo.
PT Para todas as operações de instalação e manutenção, utilize luvas adequadas para este tipo de atividade
GR Πάντοτε να φοράτε γάντια εργασίας για όλες τις επεμβάσεις εγκατάστασης και συντήρησης.
SV Använd alltid skyddshandskar vid installation och underhåll.
FI Käytä asennus- ja huoltotöissä suojakäsineitä.
NO Ved alle installasjonsprosedyrer og alt vedlikehold av ventilatoren må man bruke arbeidshansker
DA Ved alle installations- og vedligeholdelsesindgreb skal der bæres arbejdshandsker.
PL Wszelkie czynności montażowe i konserwacyjne wykonywać w rękawicach ochronnych.
CZ Při všech instalačních a údržbových pracích používejte pracovní rukavice
SK Pri všetkých inštalačných a údržbárskych prácach používajte ochranné pracovné rukavice.
HU Valamennyi üzembe helyezési és karbantartási művelethez használjon védőkesztyűt
BG за всички операции по инсталиране и техническо обслужване използвайте работни ръкавици.
RO Pentru toate operațiile de instalare și întreținere utilizați mănuși de protecție.
RU Для выполнения всех операций по установке и уходу используйте рабочие перчатки.
ET Kasutage paigaldus- ja hooldustöödel kaitsekindaid.

Model:

SILHOUETTE FL EASY UP

Model:

SILHOUETTE EASY UP

Model: SILHOUETTE FL EASY UP

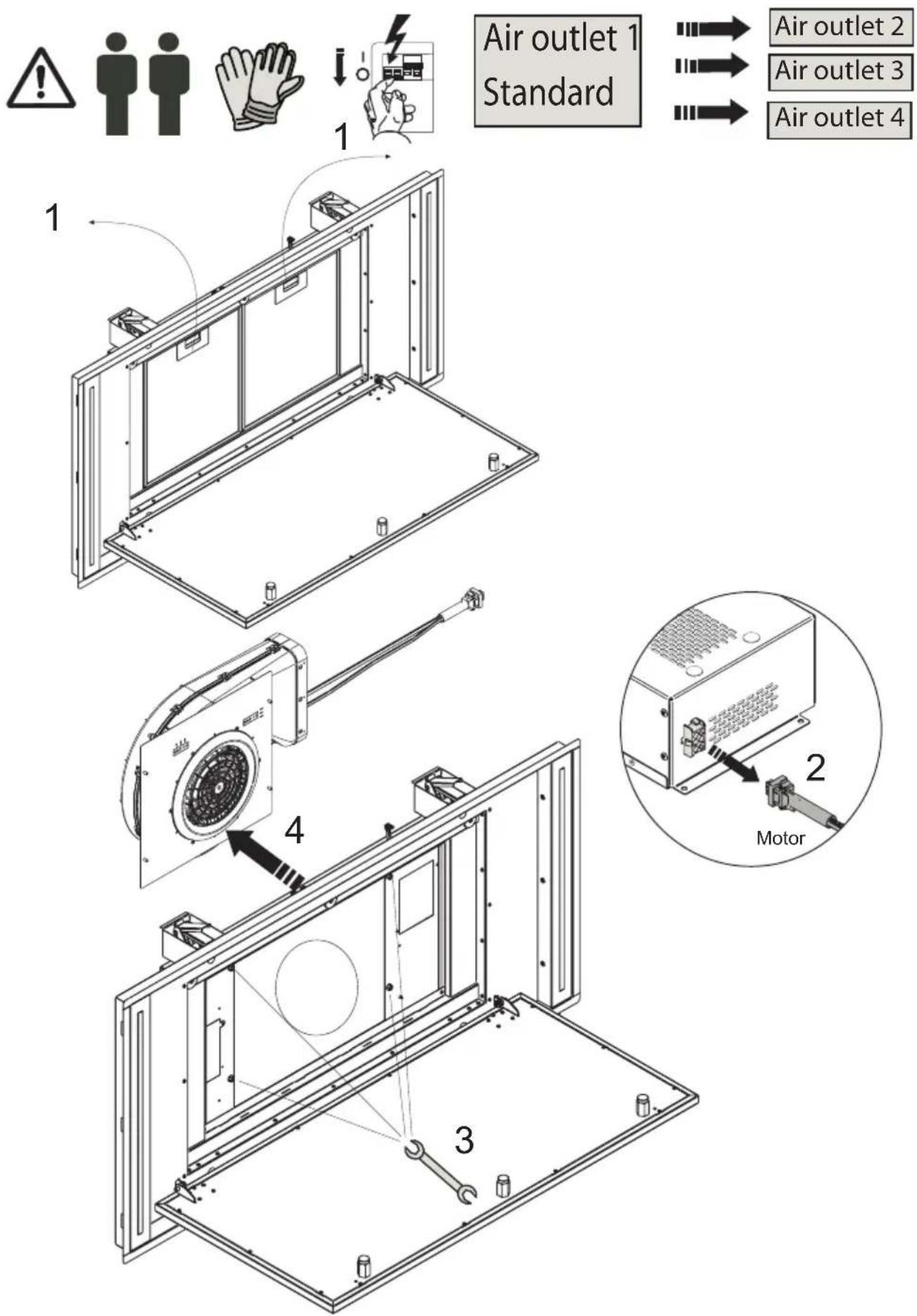

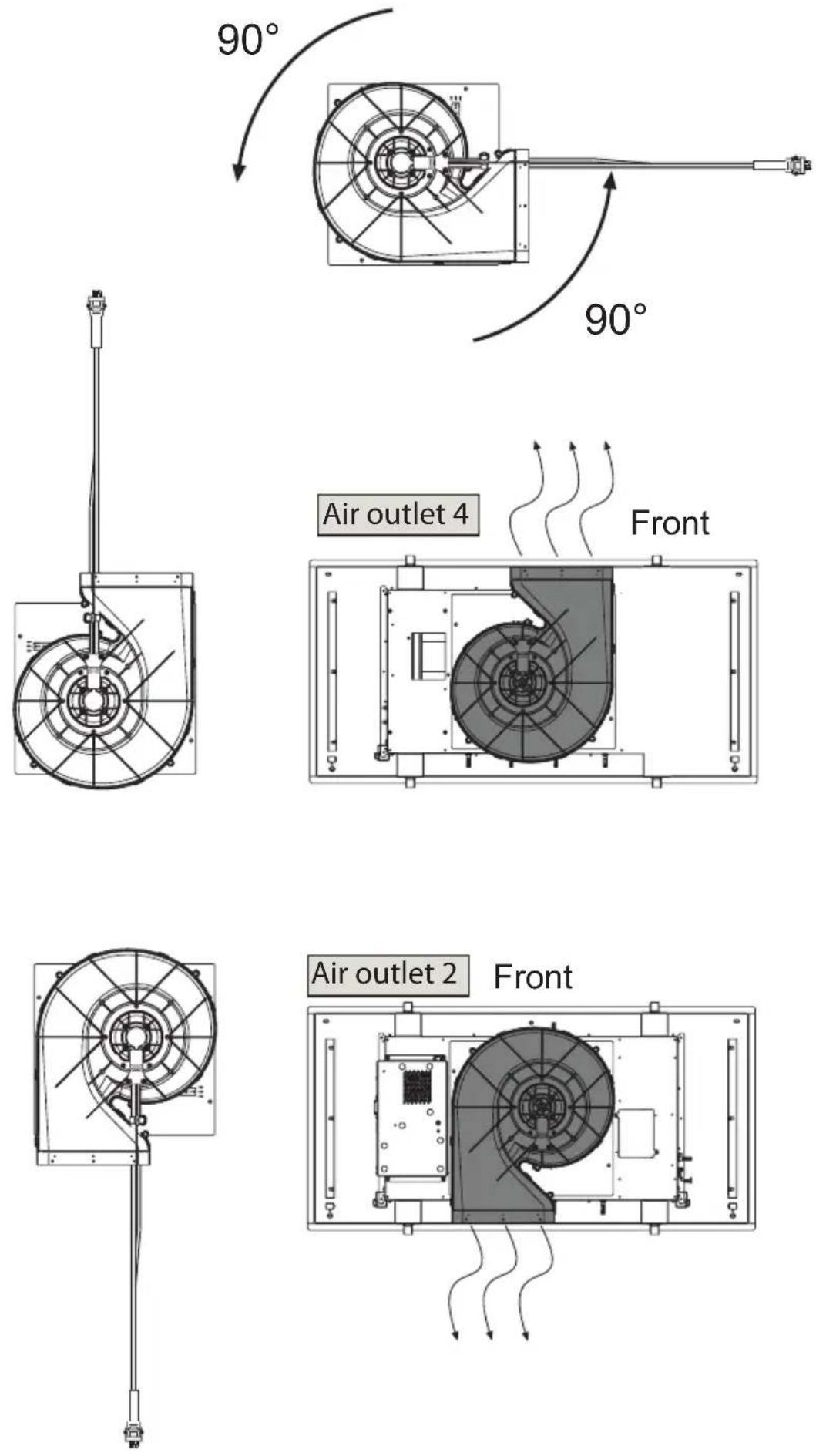

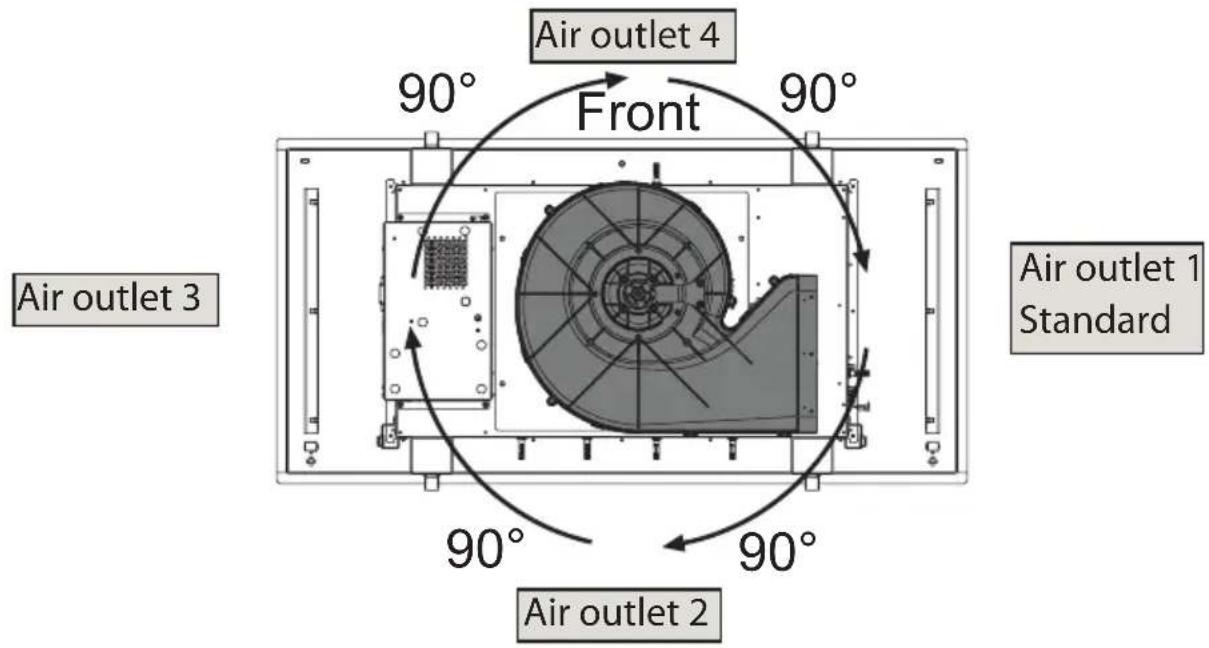

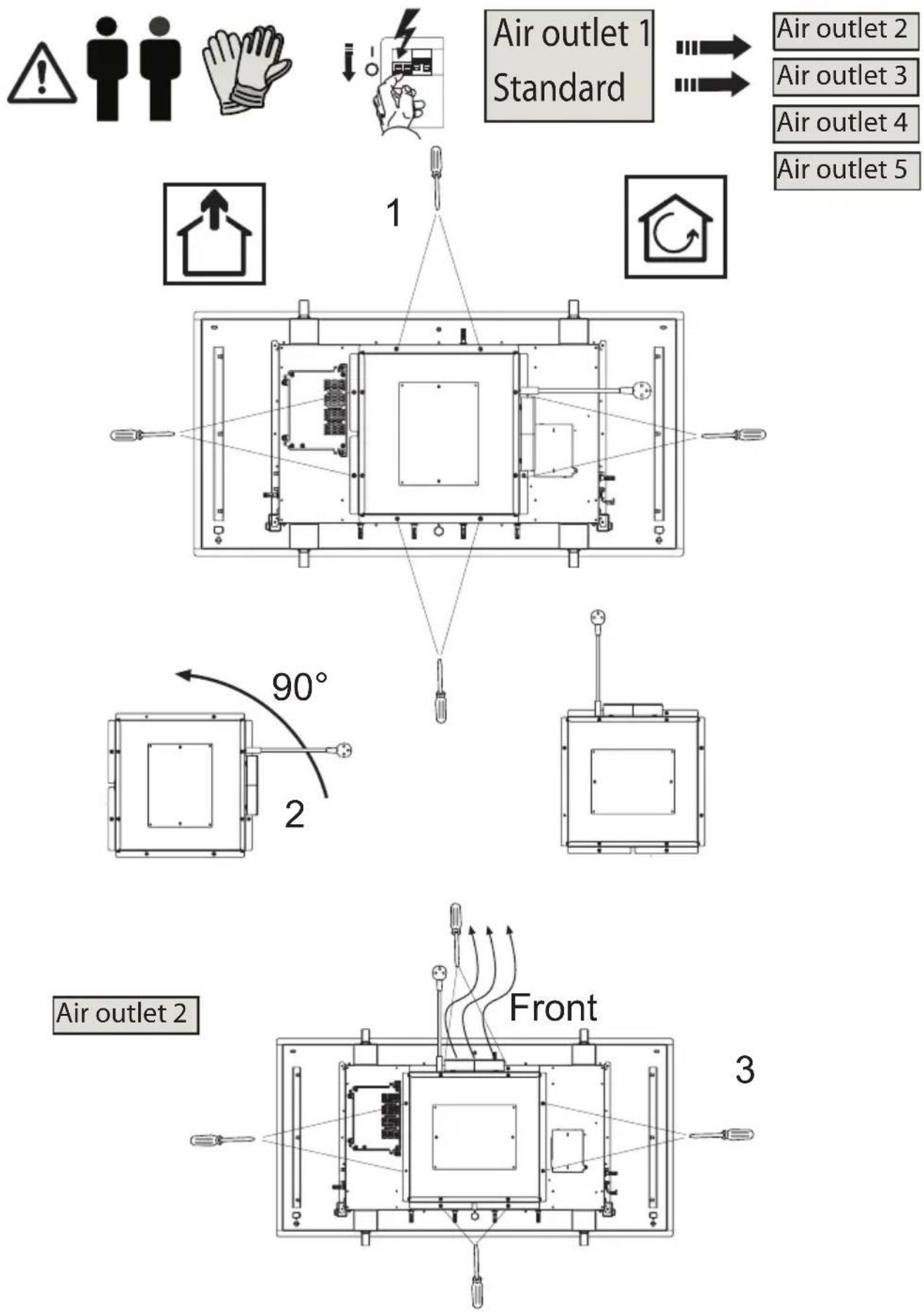

Air outlet 4 90° Front 90° Air outlet 3 Air outlet 2 90° 90° Air outlet 1 Standard

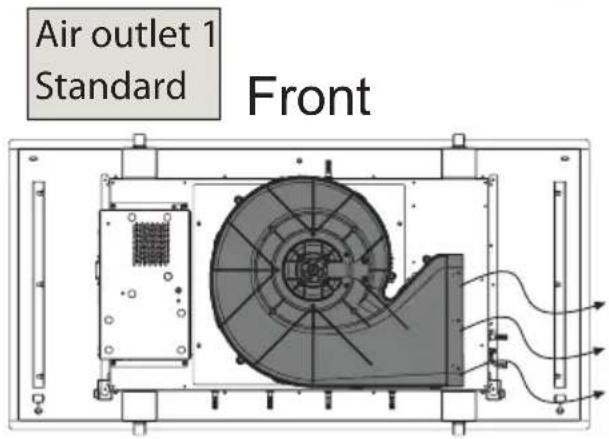

Air outlet 1 Standard Front

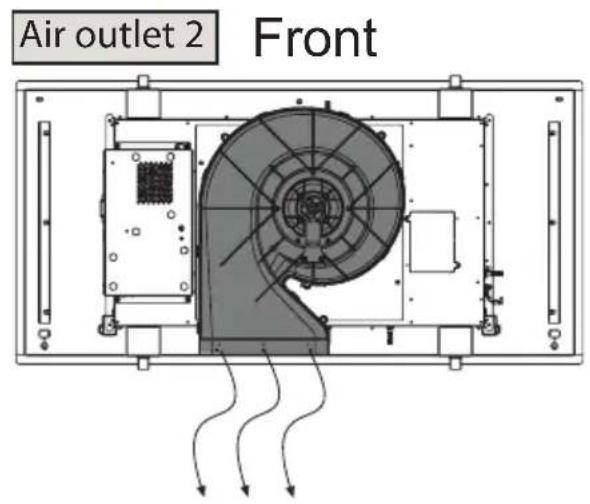

Air outlet 2 Front

Air outlet 3 Front

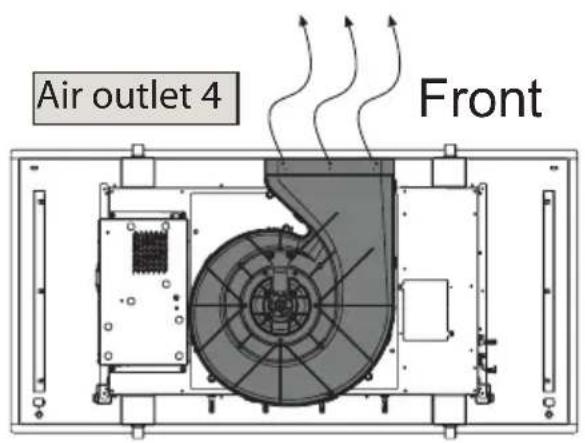

Air outlet 4 Front

Model:

SILHOUETTE FL EASY UP

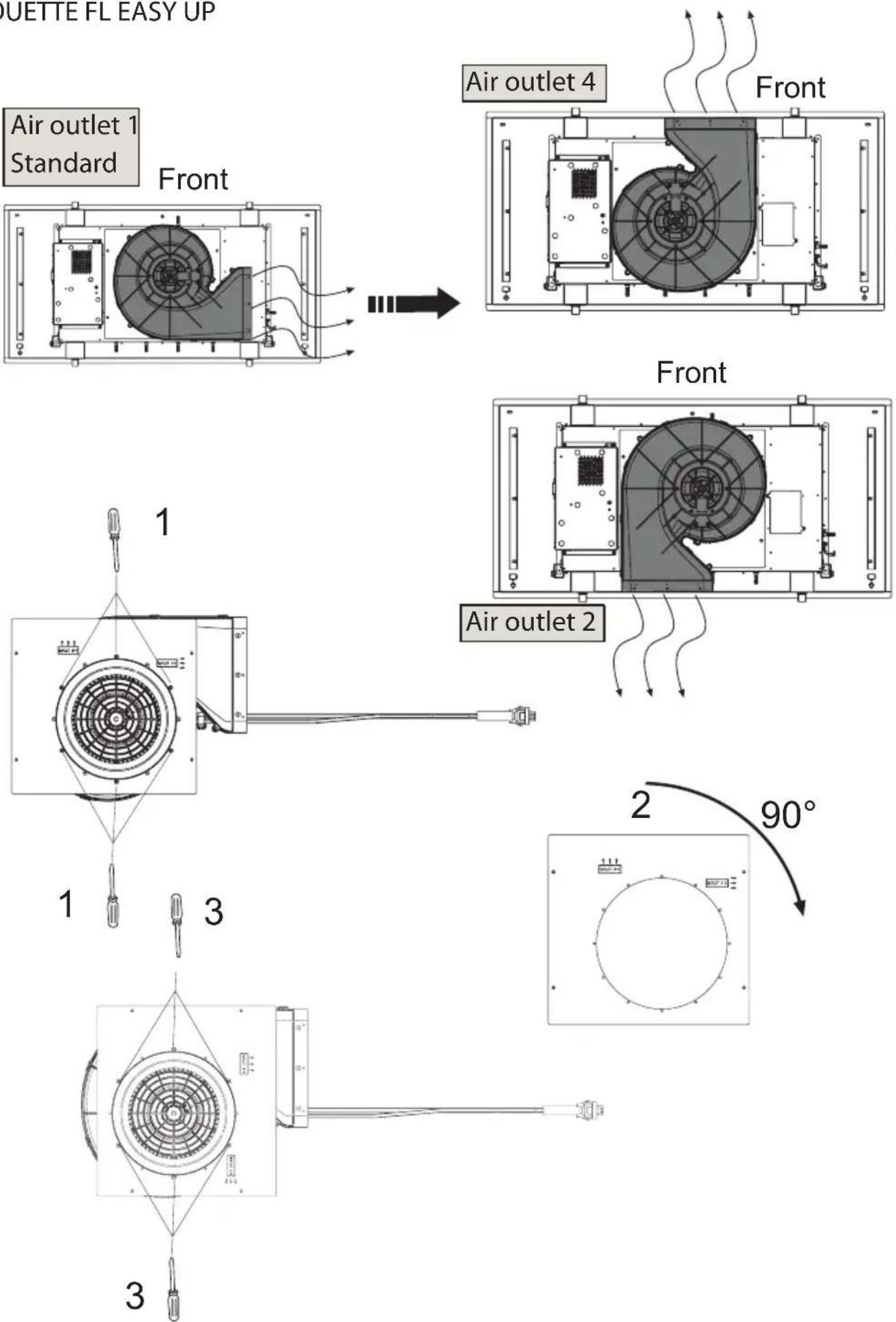

Air outlet 1 Standard 1 2 3 4 Motor Air outlet 2 Air outlet 3 Air outlet 4

Model:

SILHOUETTE FL EASY UP

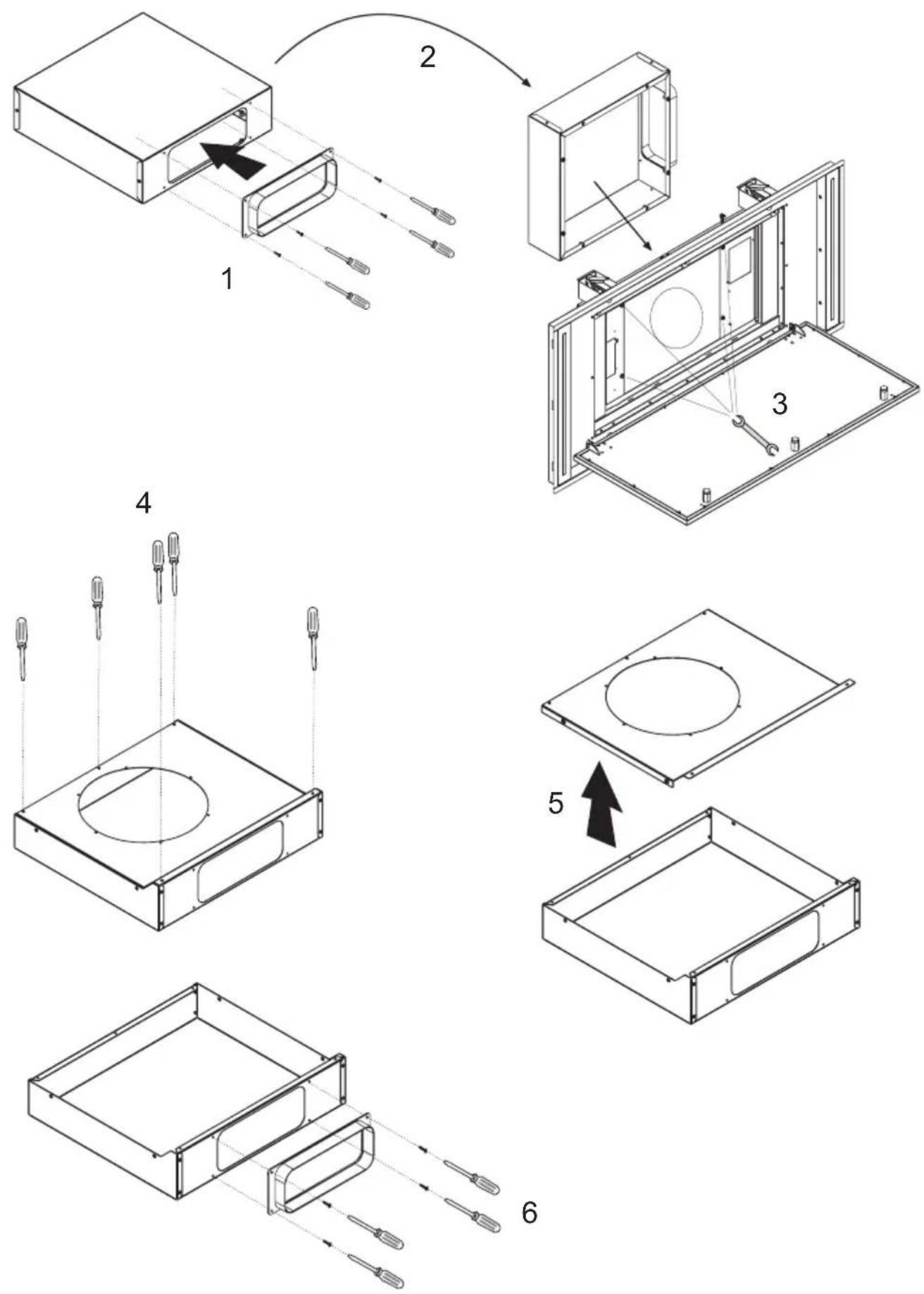

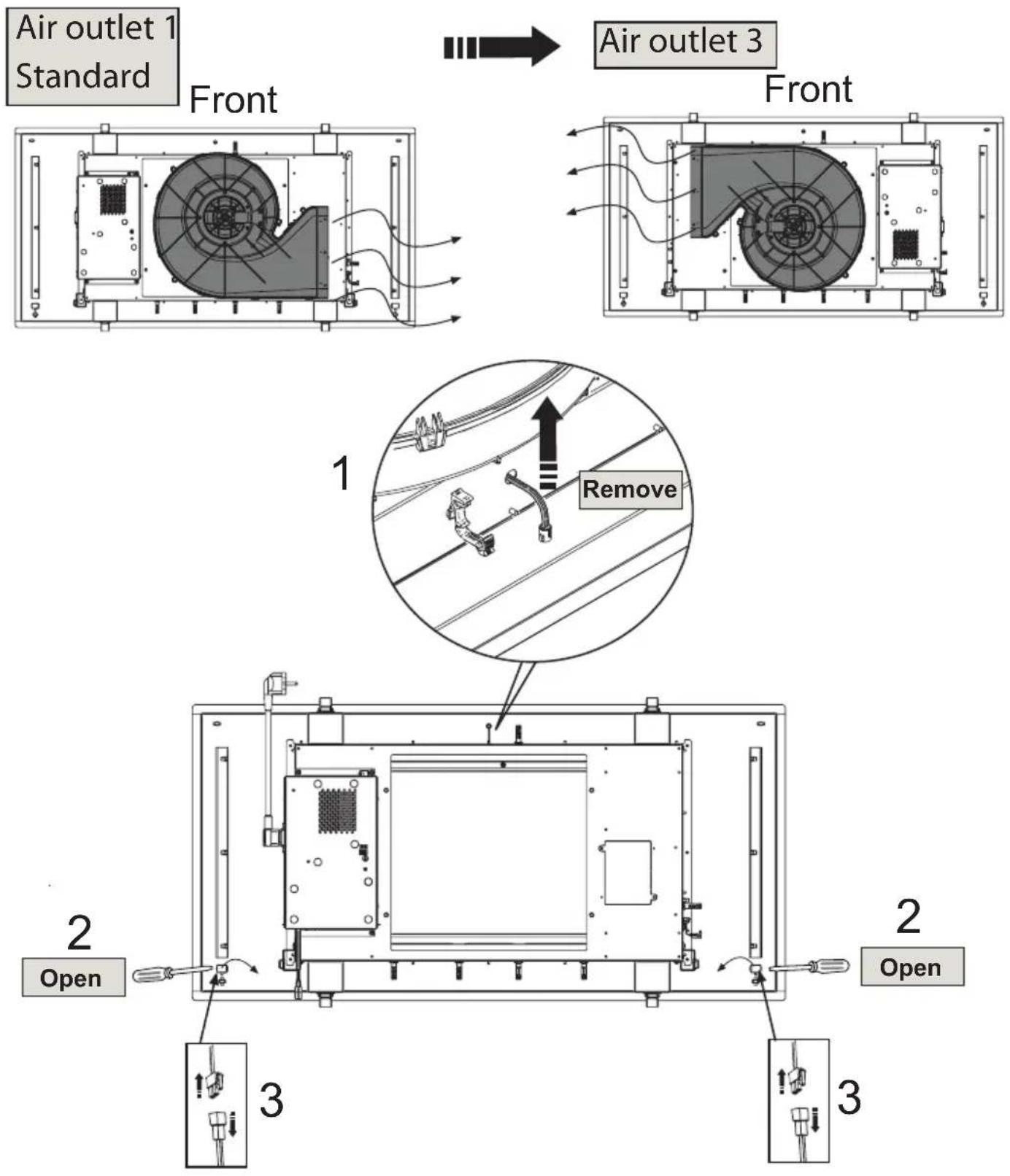

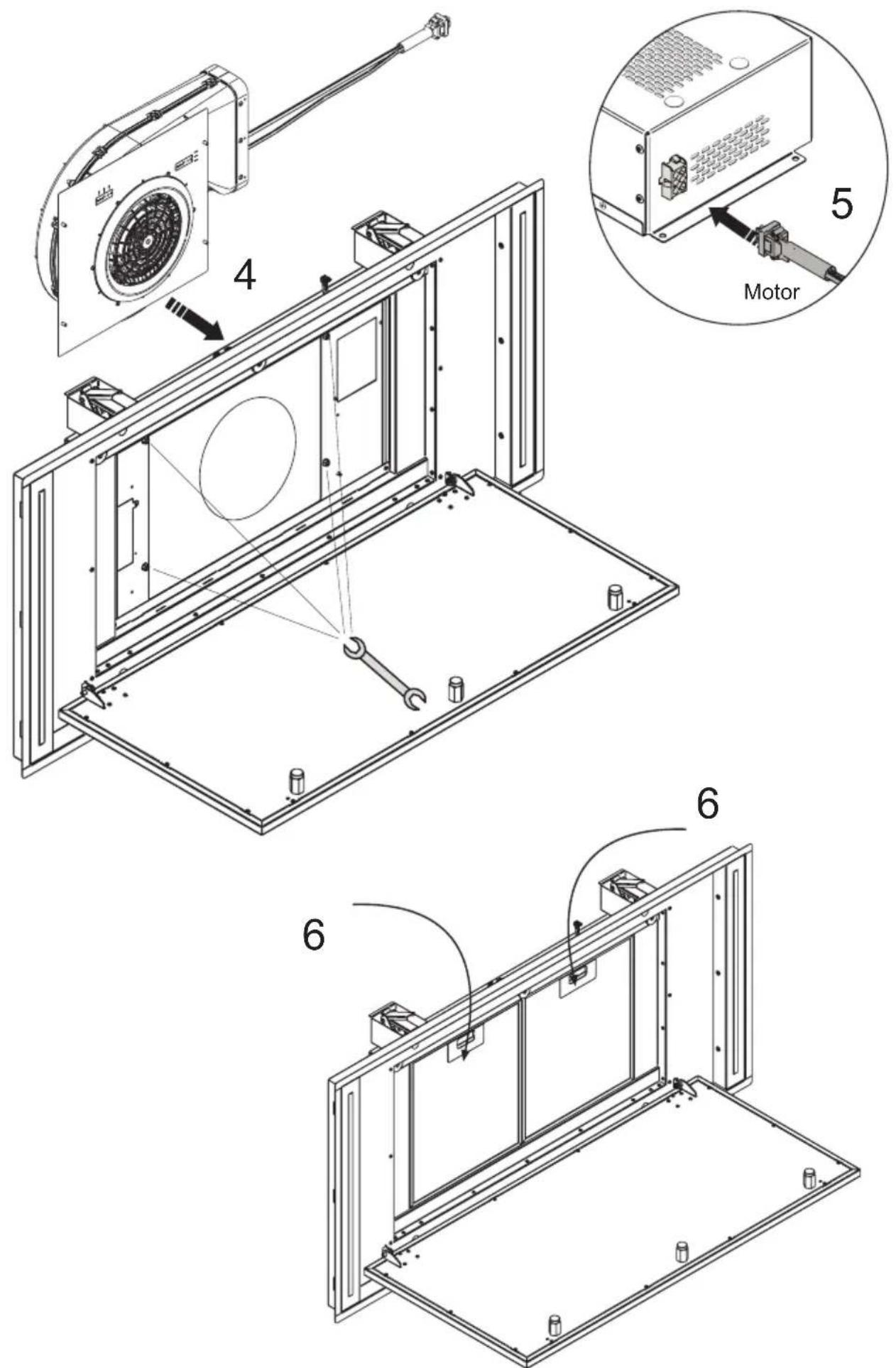

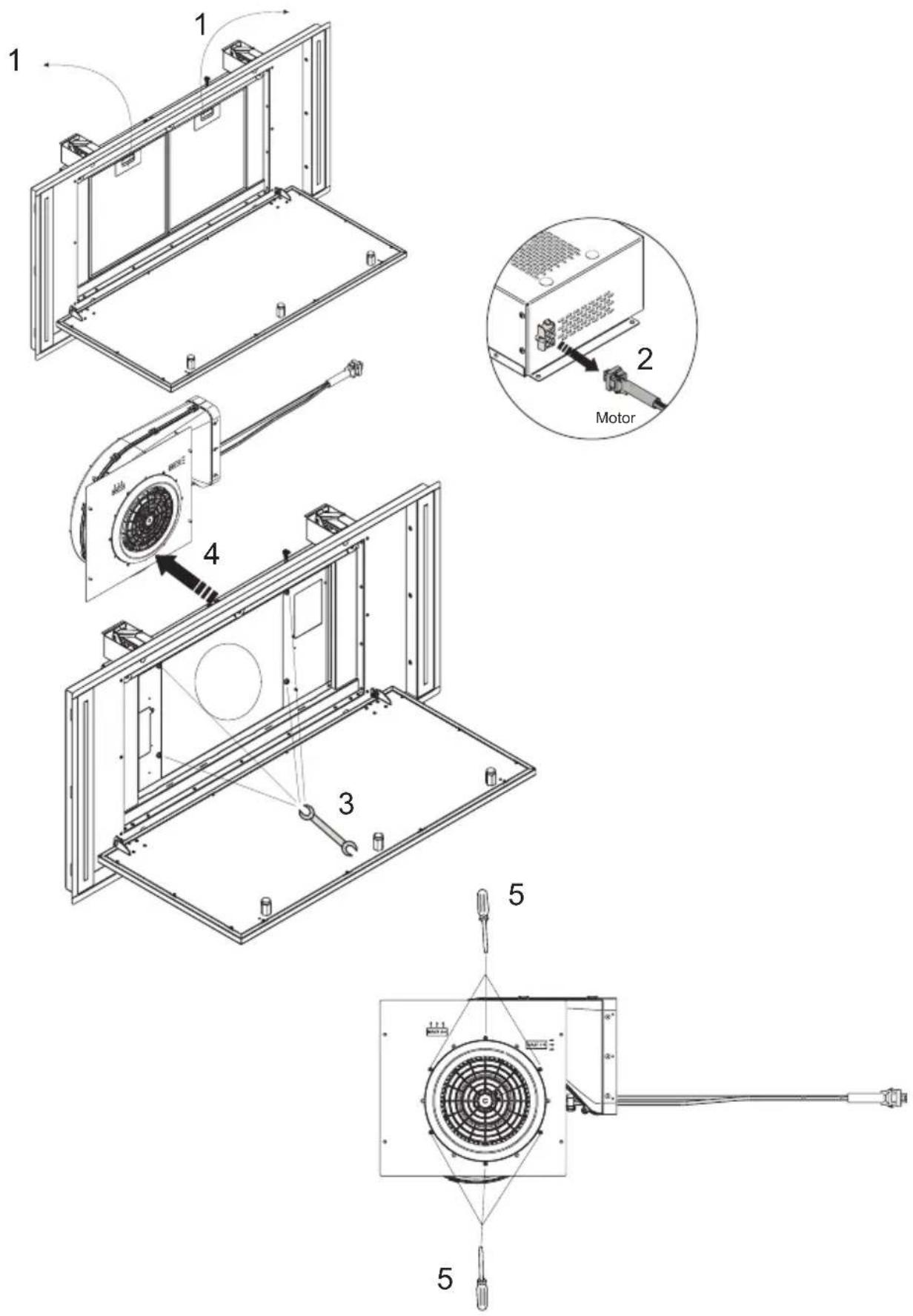

Air outlet 1 Standard Front Air outlet 3 Front 1 Remove 2 Open 3 2 Open 3

Model:

SILHOUETTE FL EASY UP

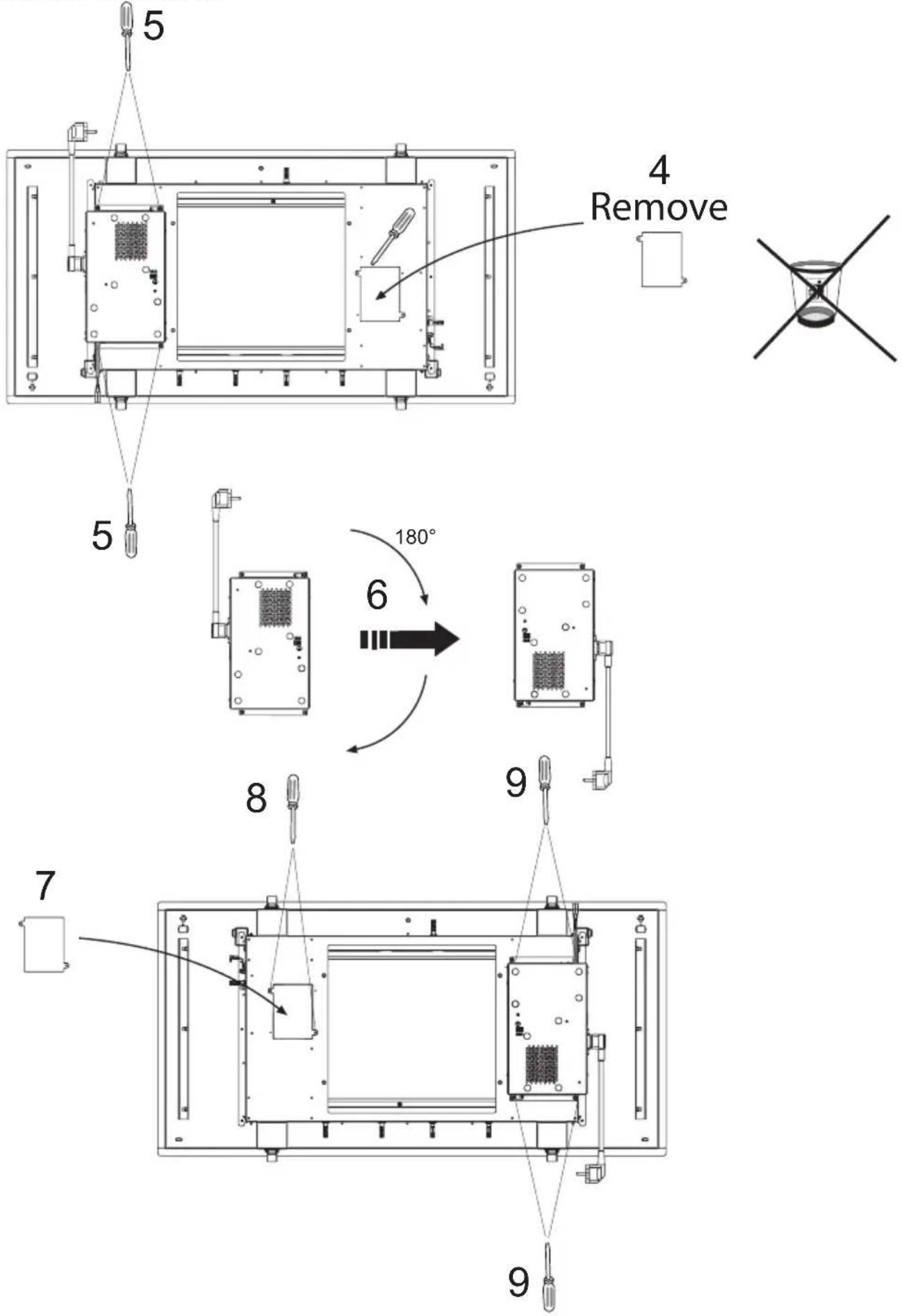

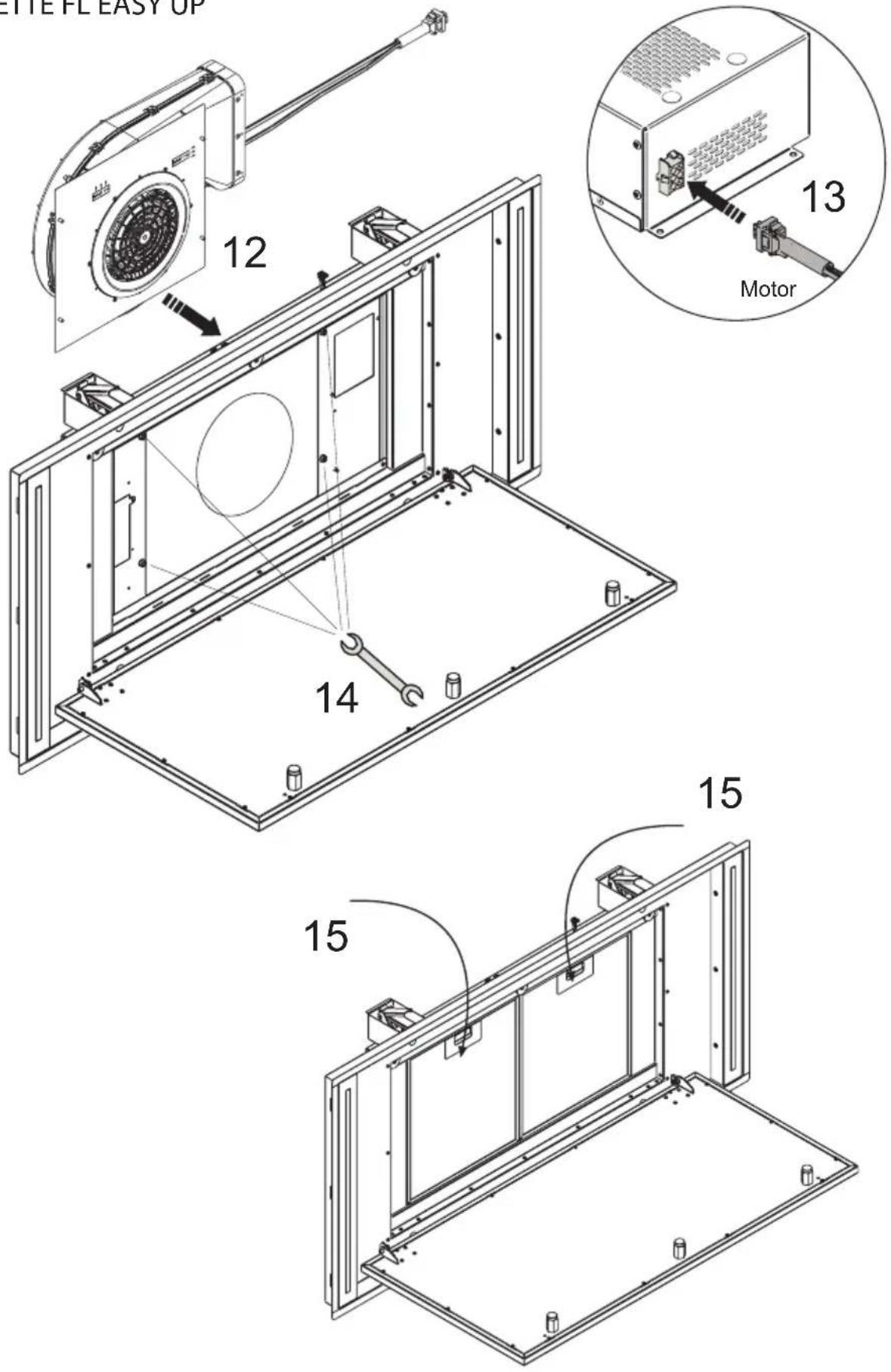

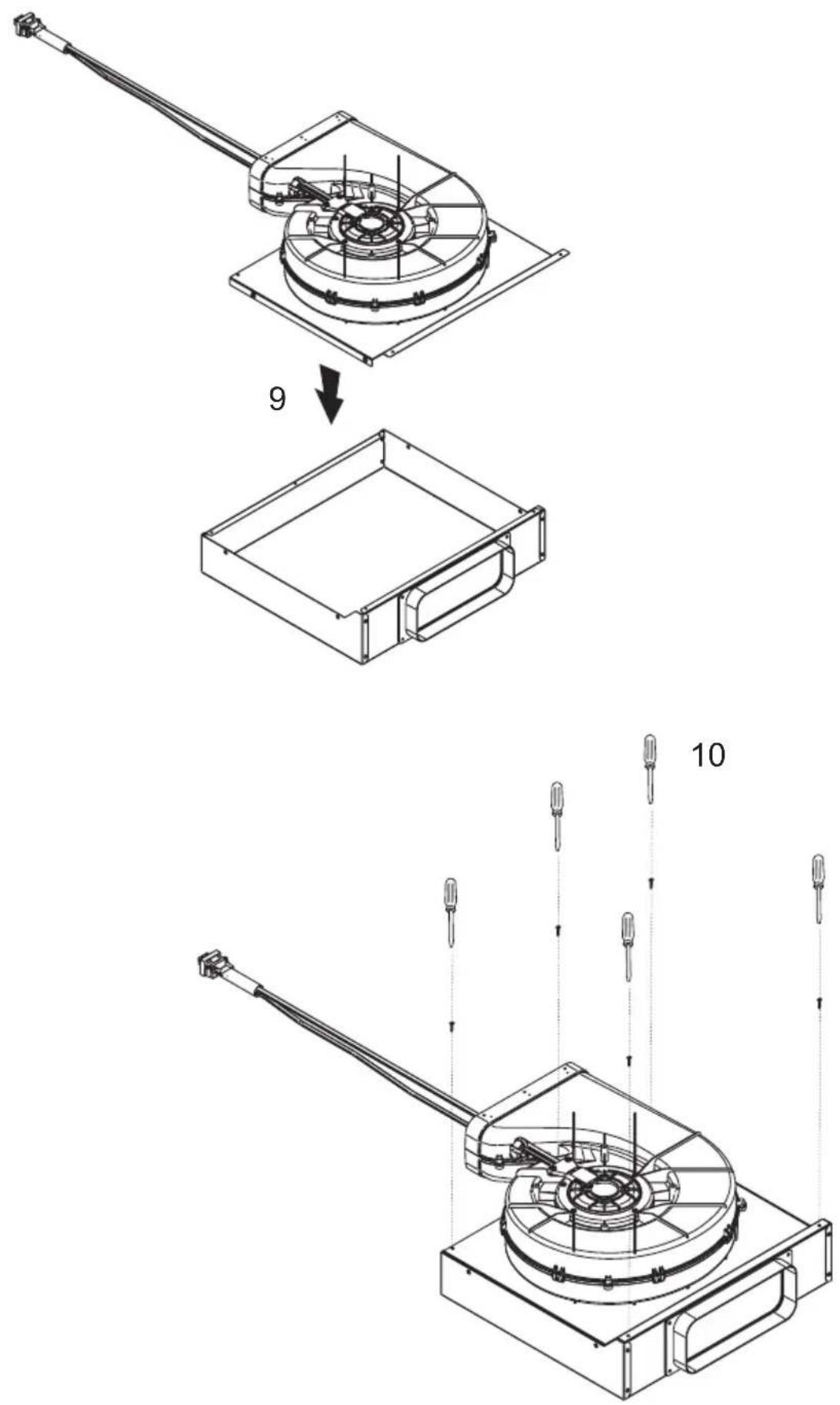

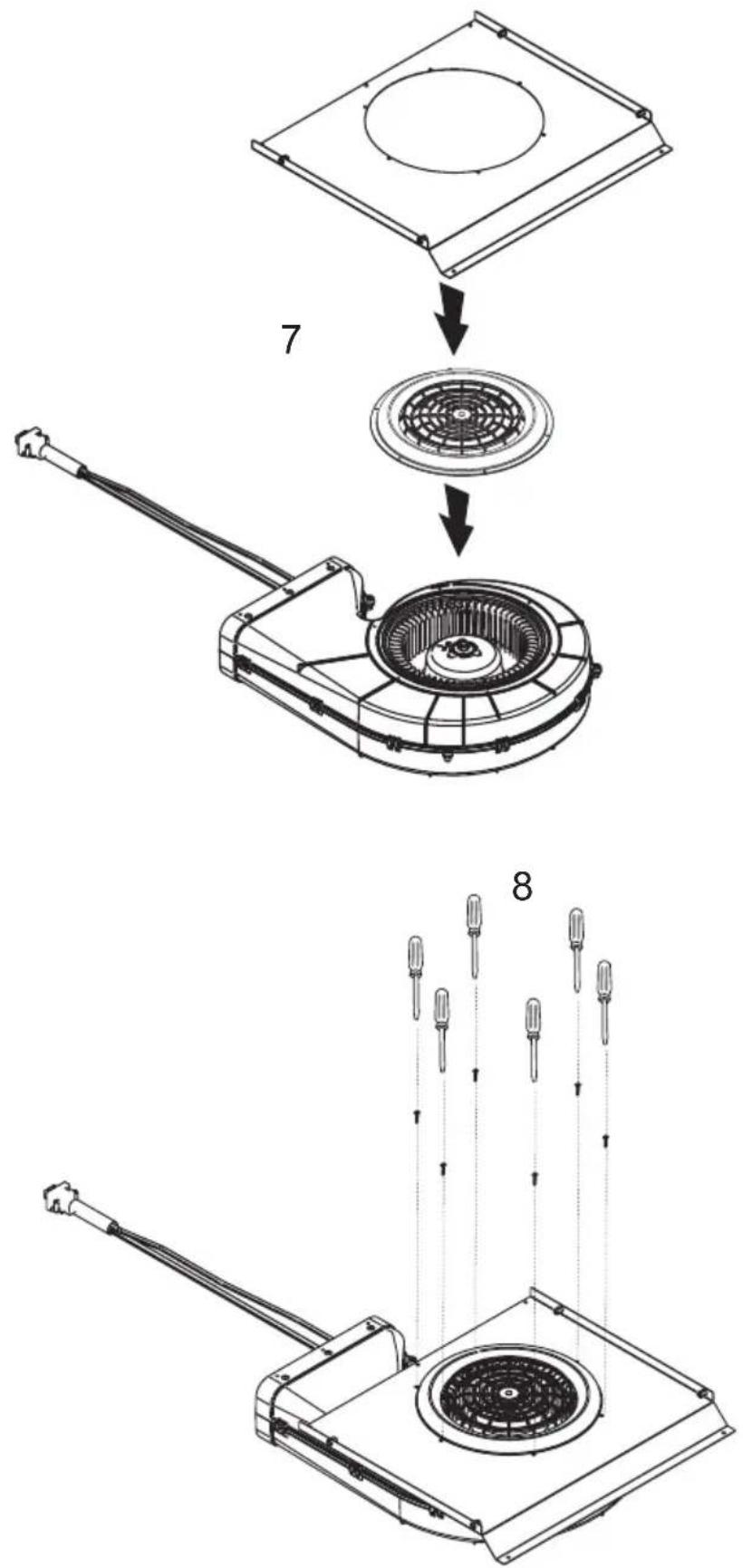

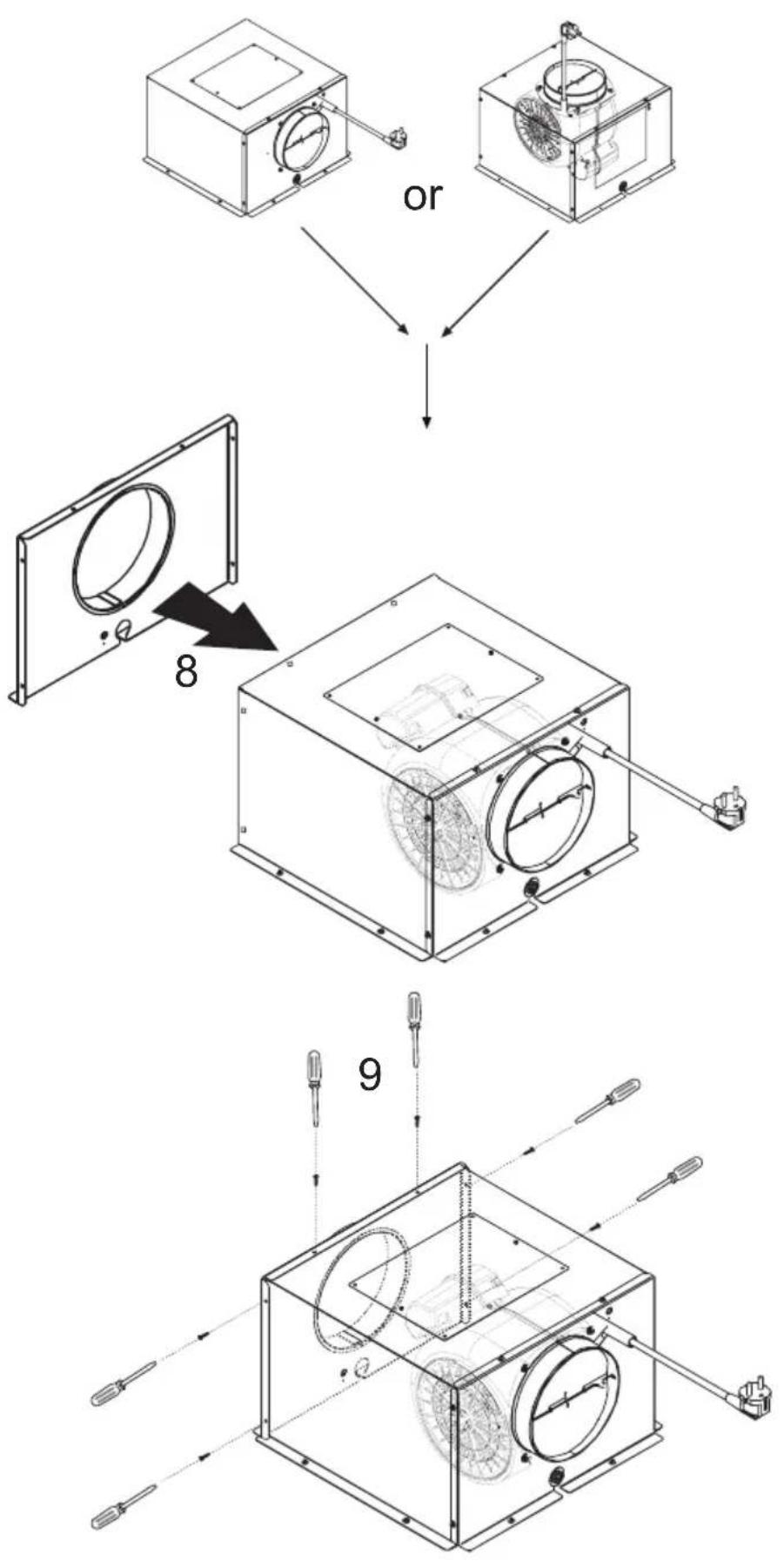

5 4 Remove 5 180° 6 8 9 7 9

Model:

SILHOUETTE FL EASY UP

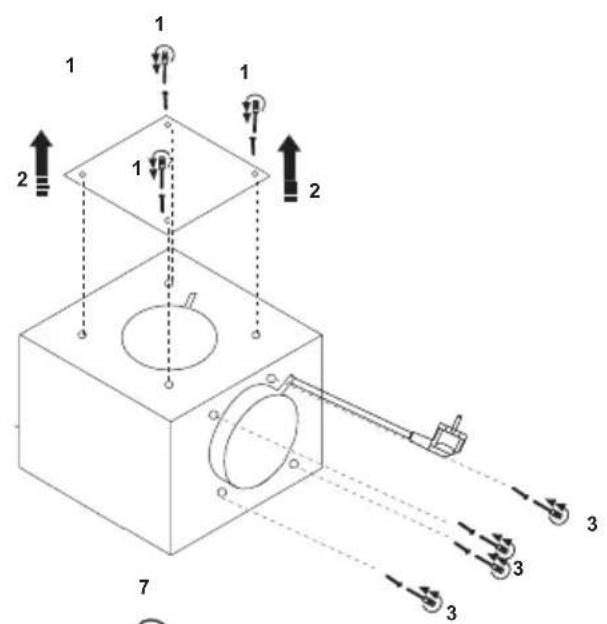

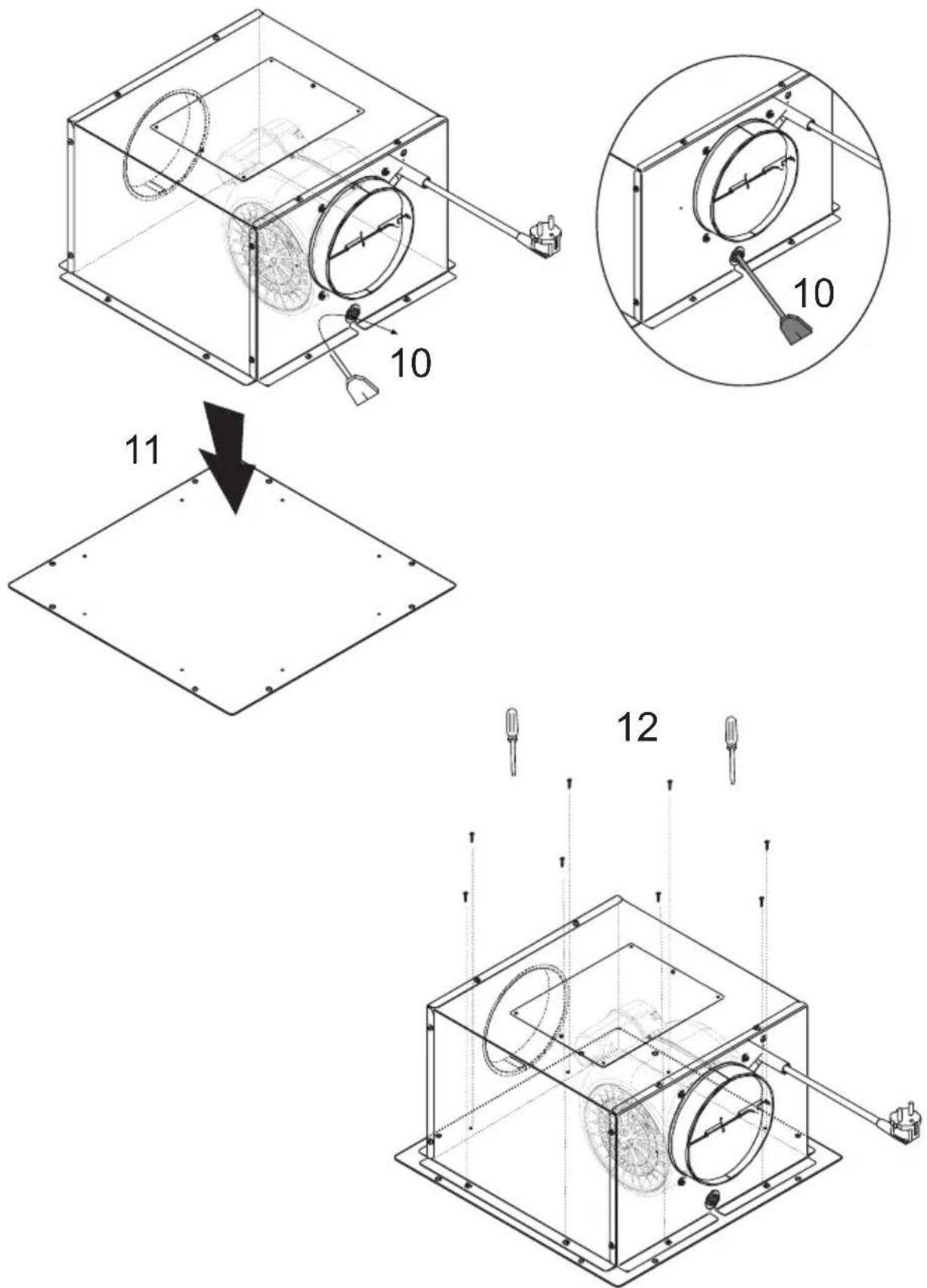

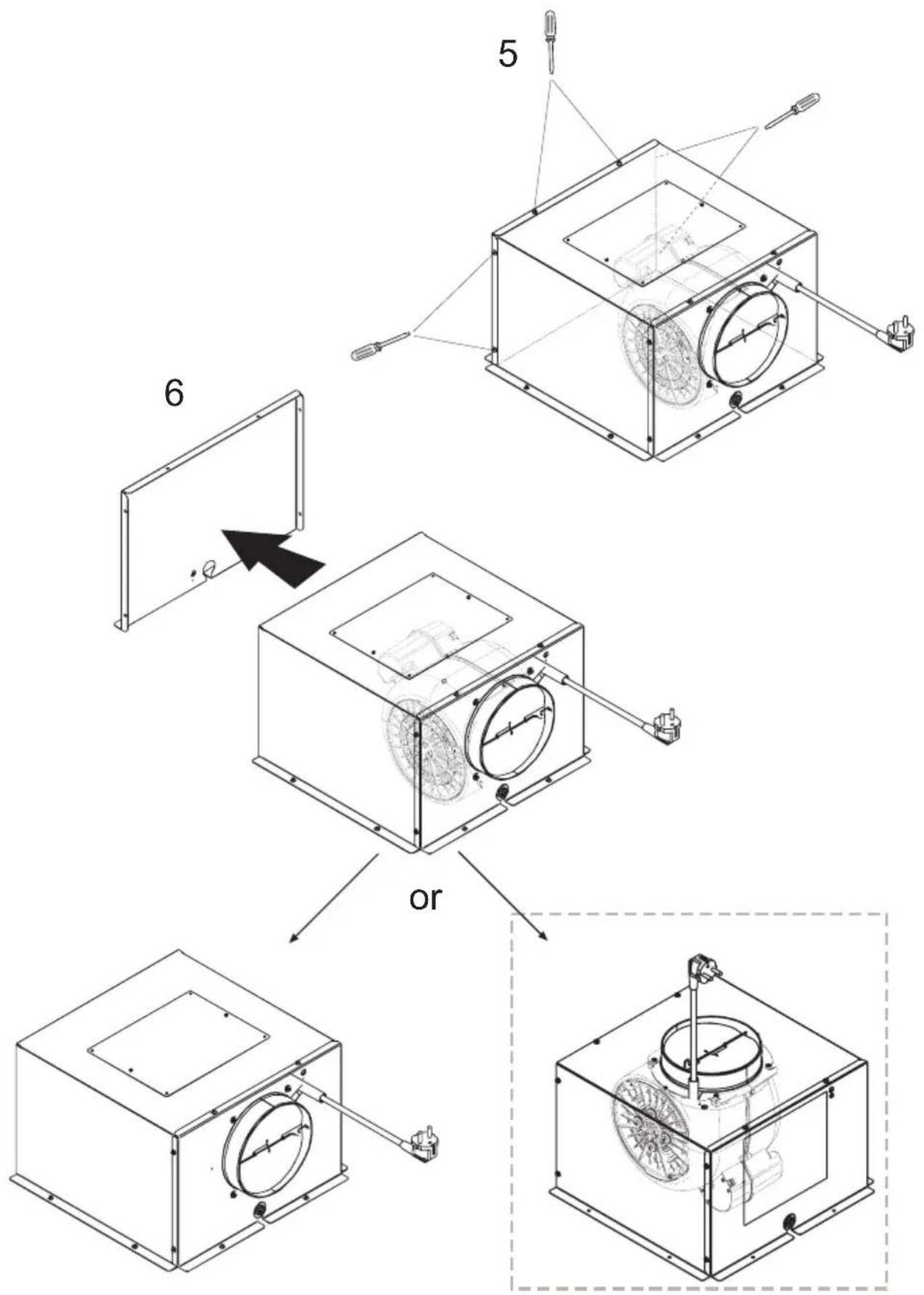

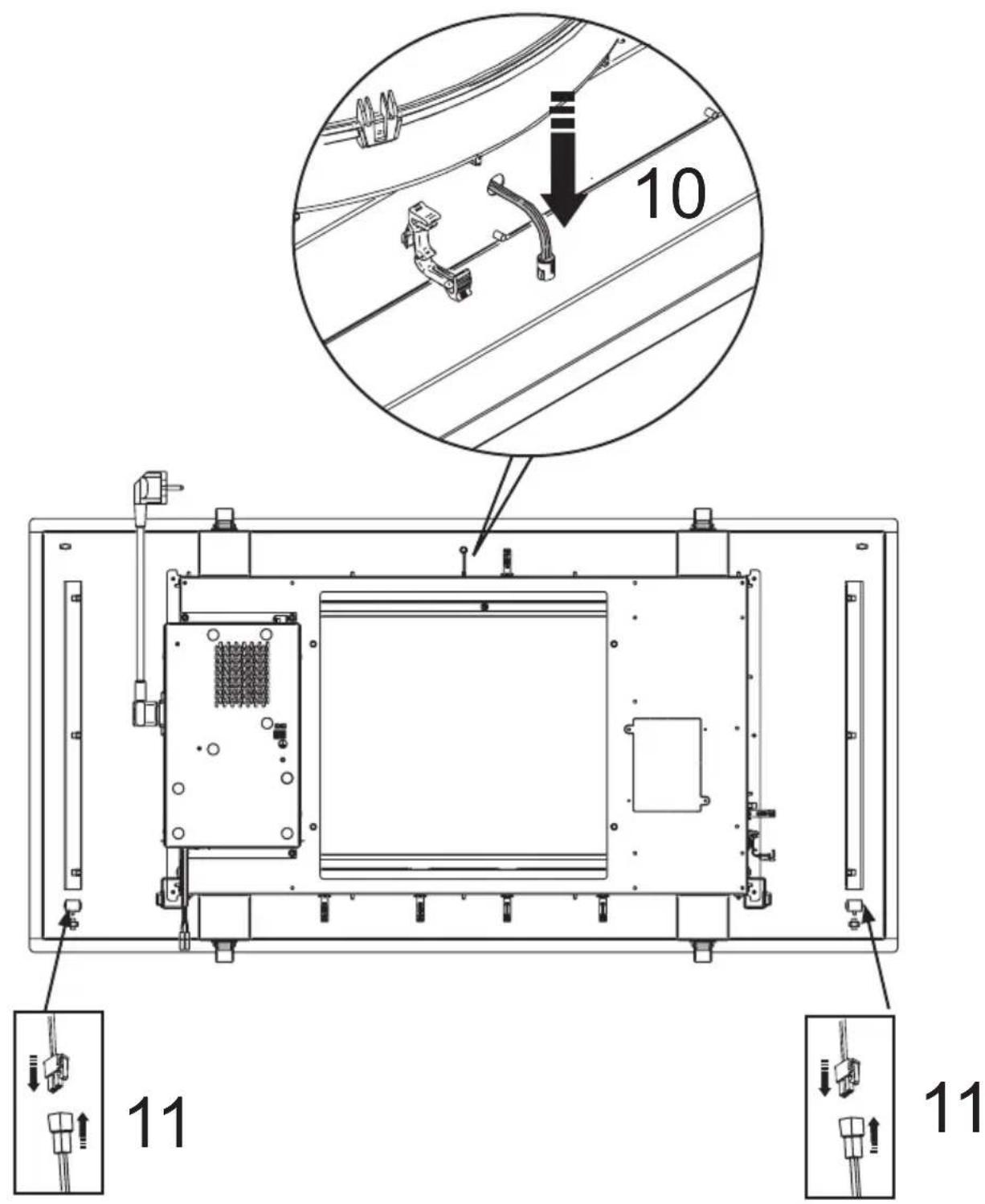

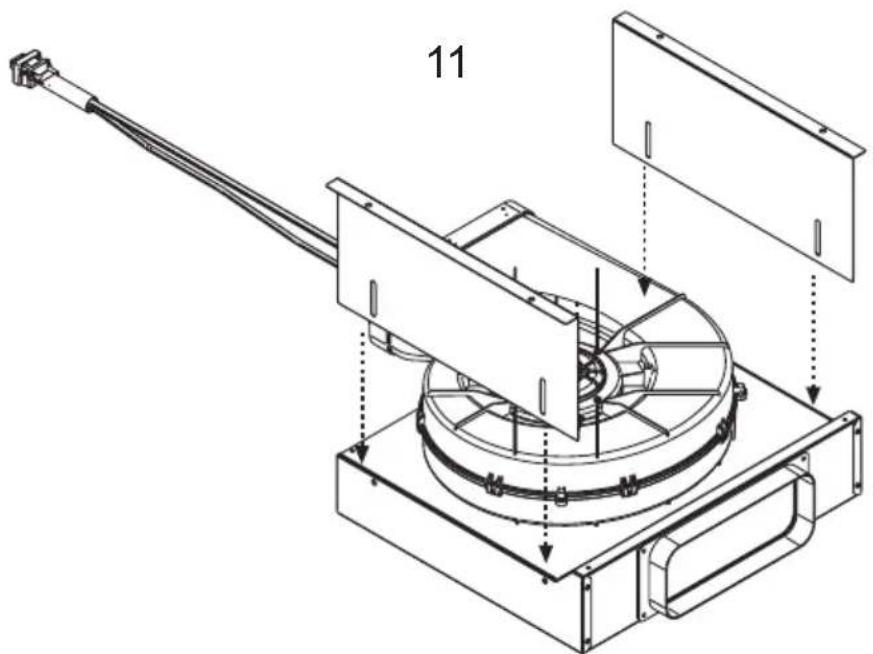

10 11 11

Model:

SILHOUETTE FL EASY UP

Model:

SILHOUETTE FL EASY UP

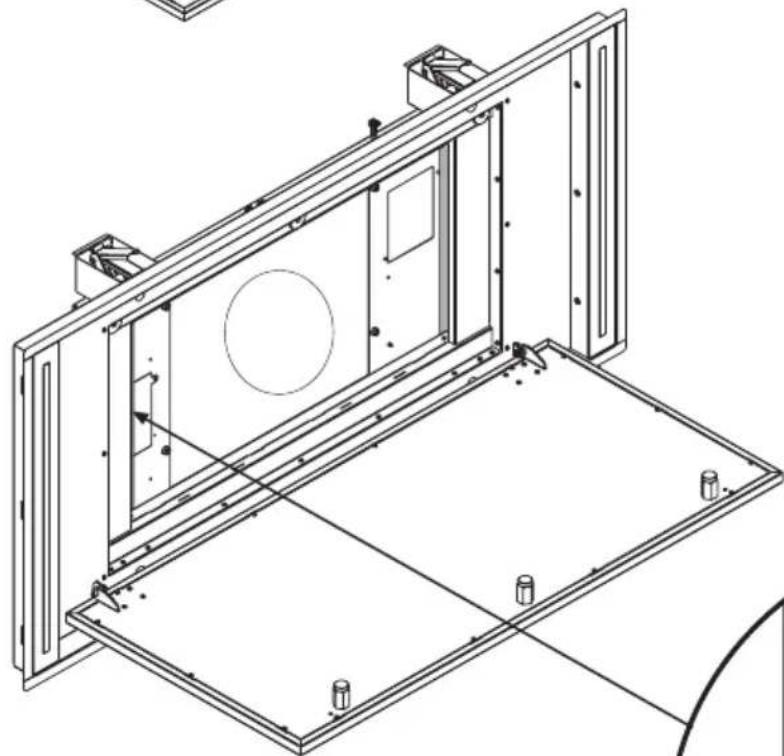

DUETTE FL EASY UP Air outlet 1 Standard Front Air outlet 4 Front 1 3 2 90° Air outlet 2 3

Model:

SILHOUETTE FL EASY UP

Model:

SILHOUETTE FL EASY UP

Model:

SILHOUETTE FL EASY UP

Isometric technical line drawing of a structural frame with internal components and directional arrows (no text or symbols)

Technical line drawing of a structural frame assembly (no text or symbols)

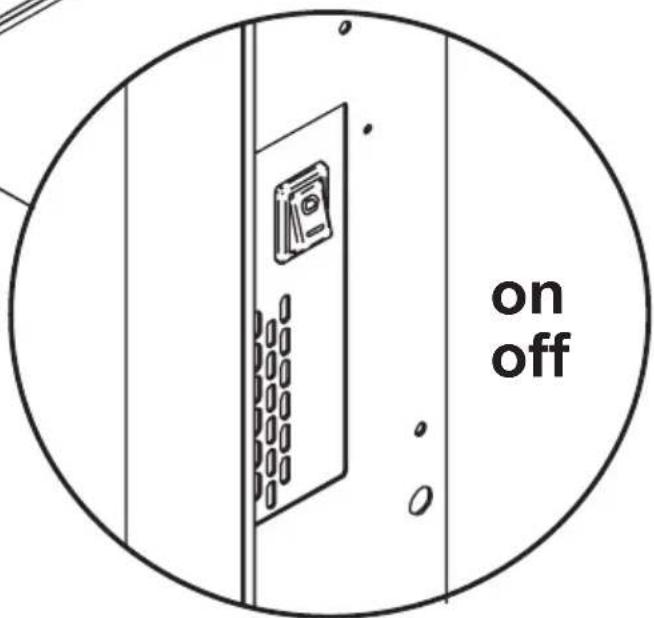

on off

Model:

SILHOUETTE EASY UP


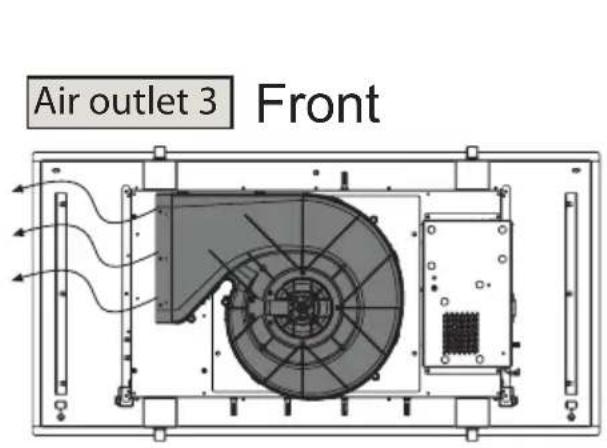

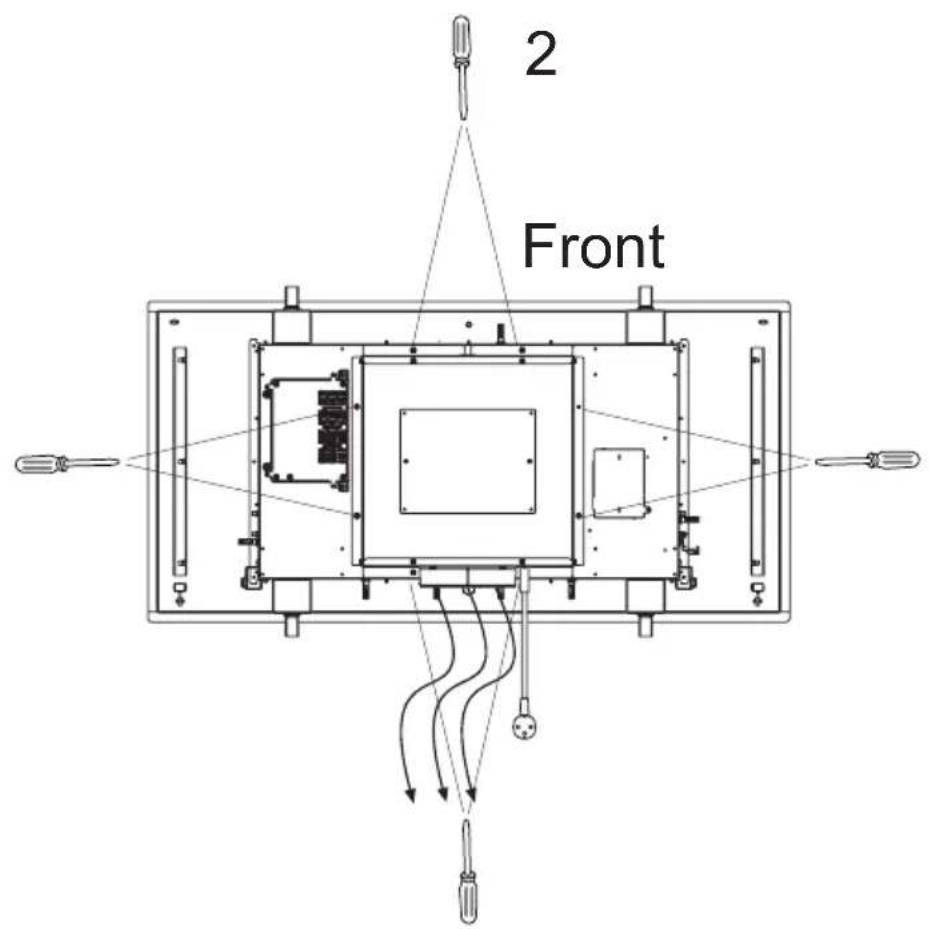

Air outlet 3

Model:

SILHOUETTE EASY UP

1 180°

2 Front

Model:

SILHOUETTE EASY UP

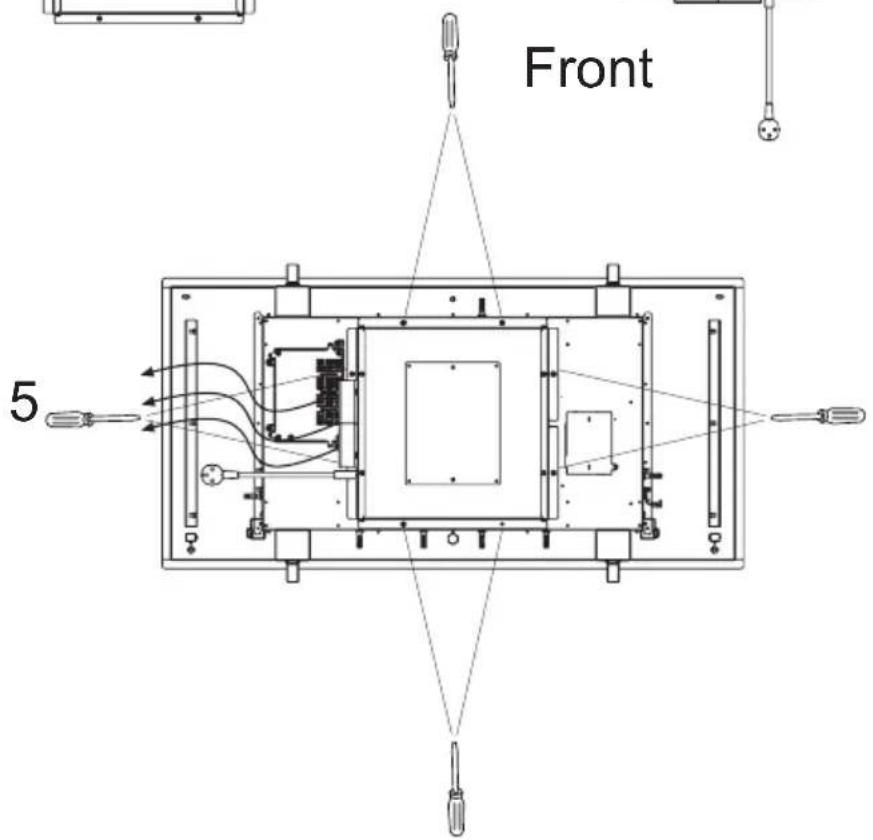

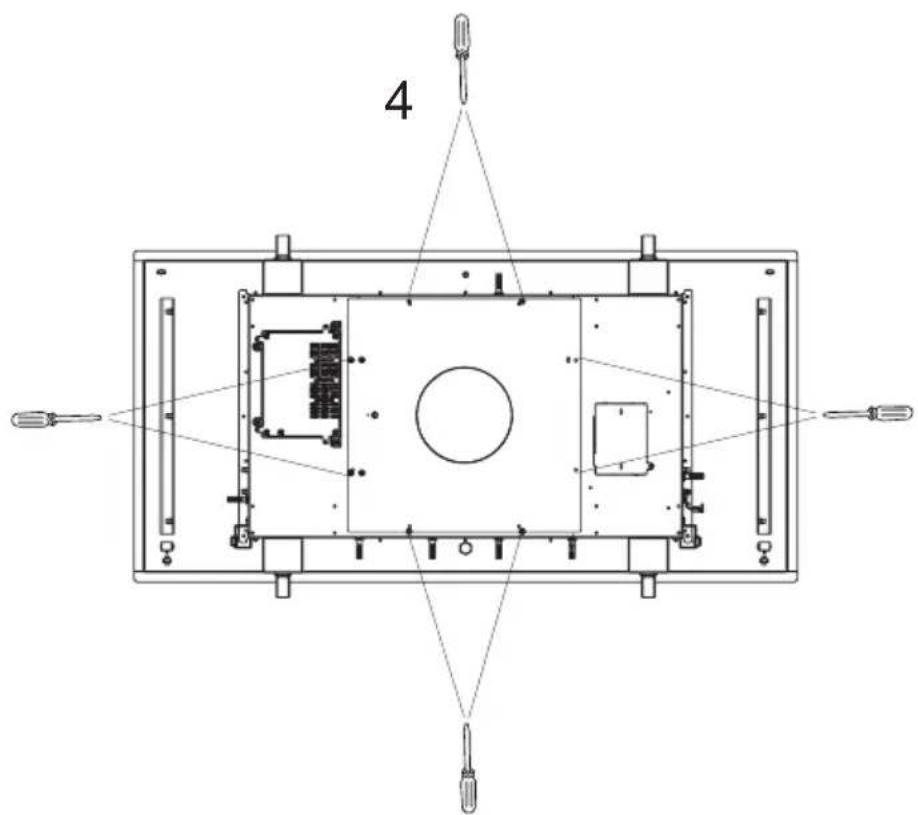

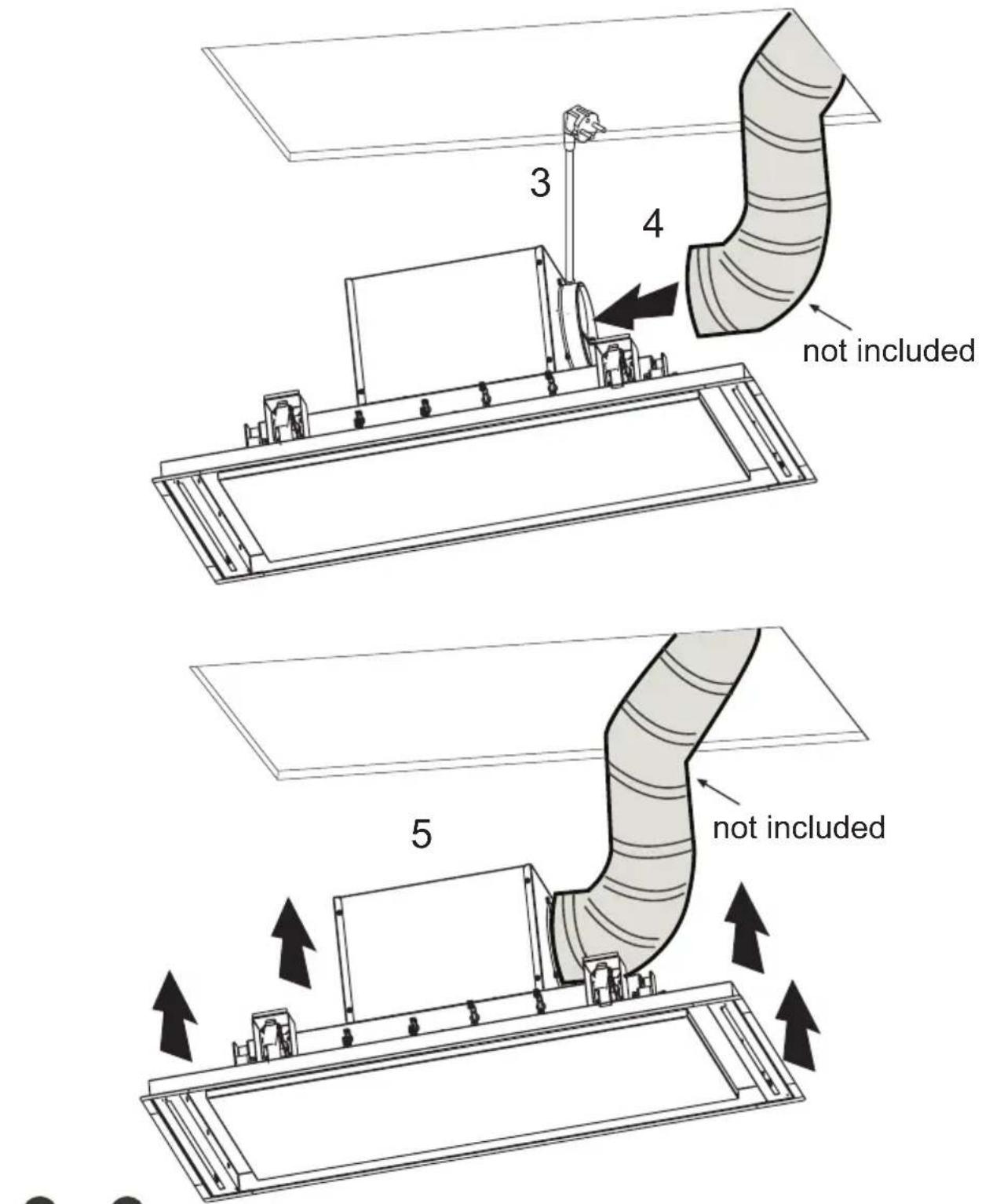

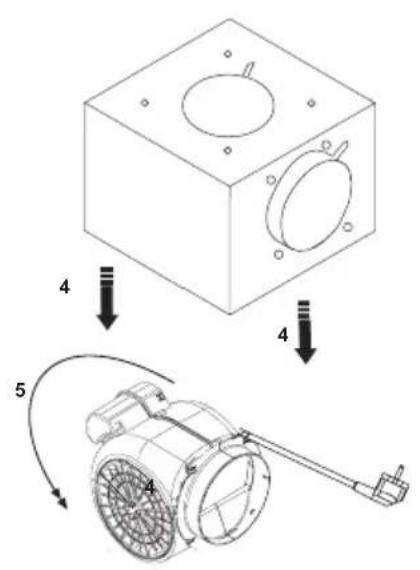

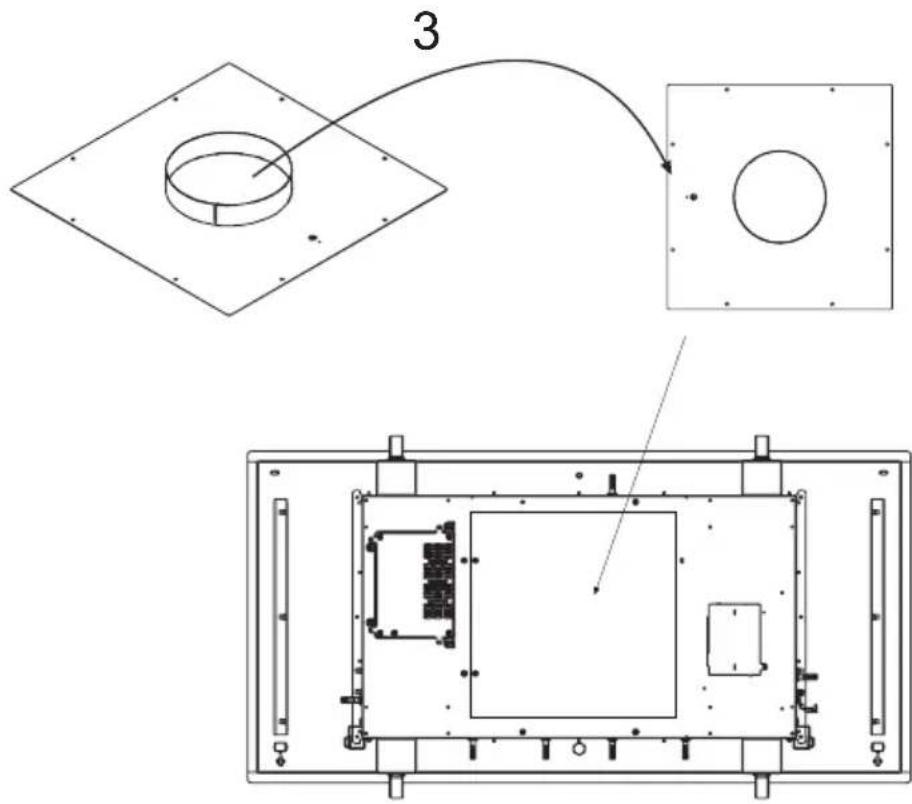

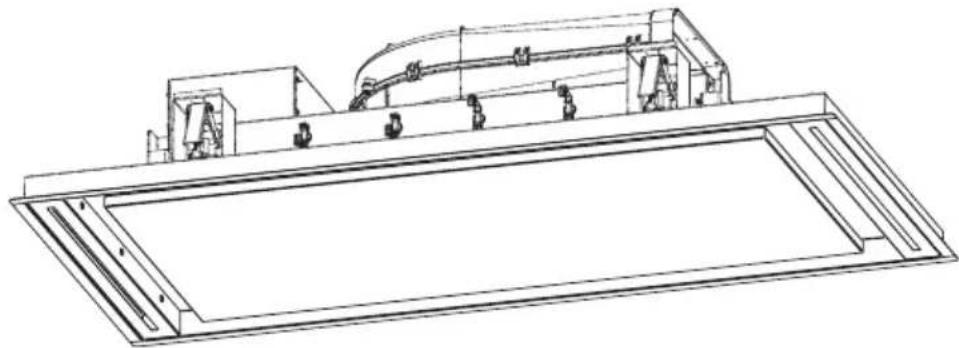

Air outlet 4

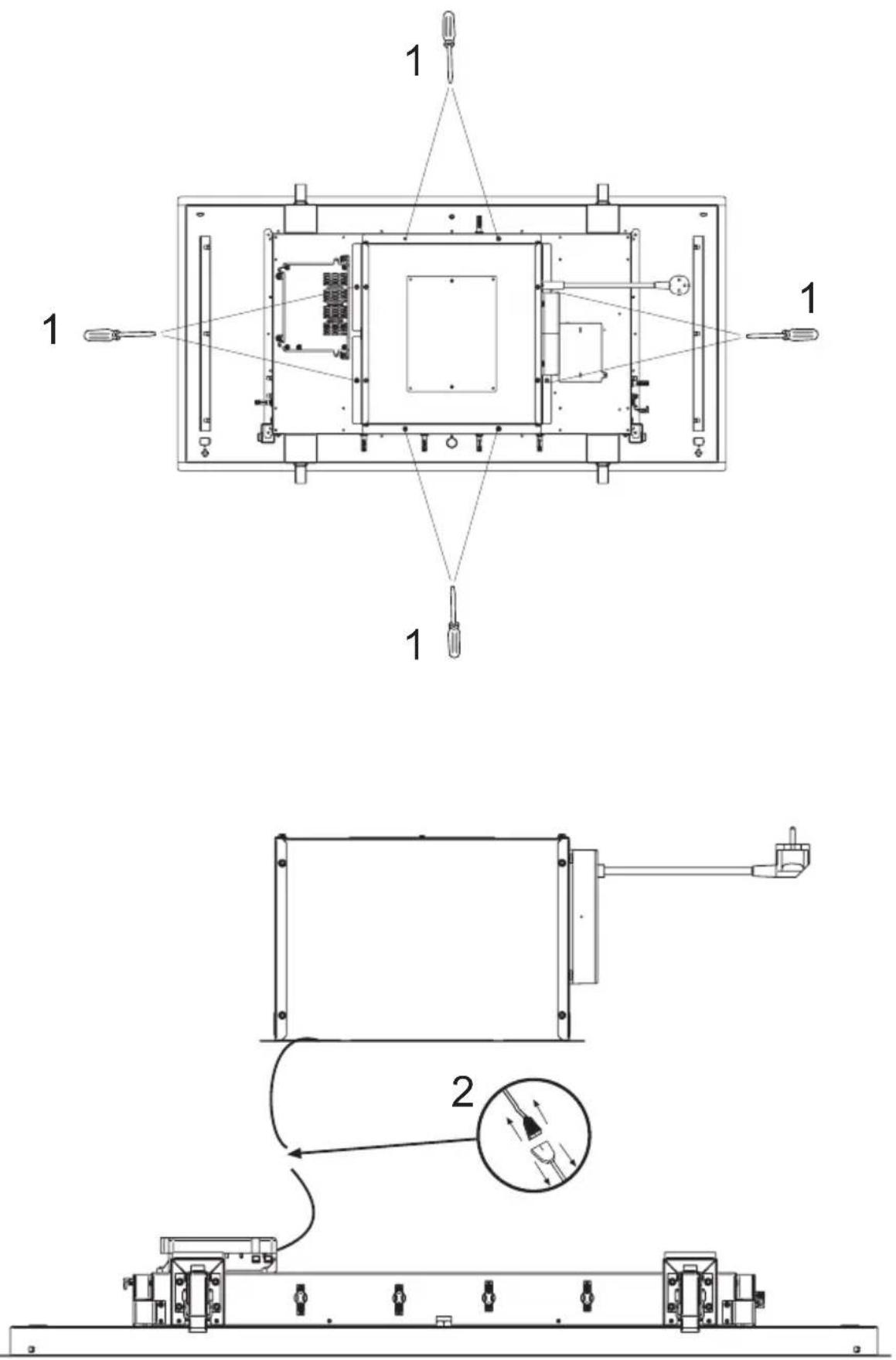

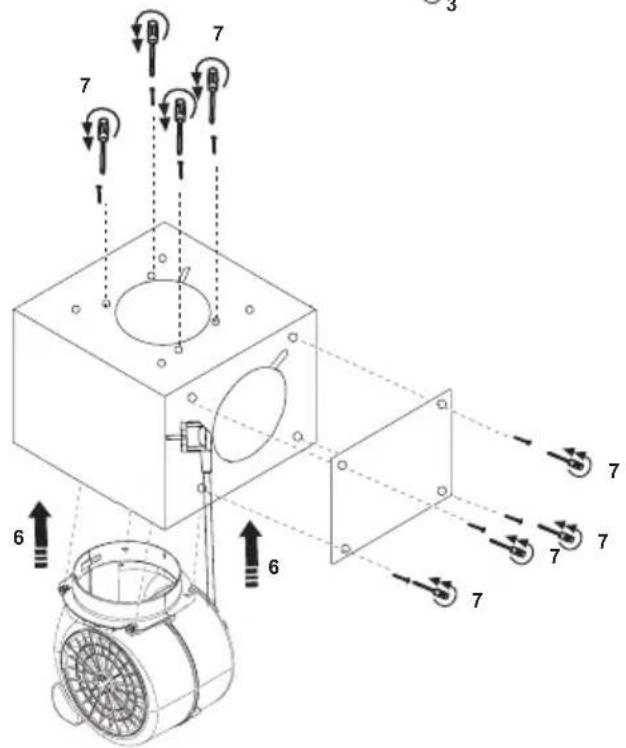

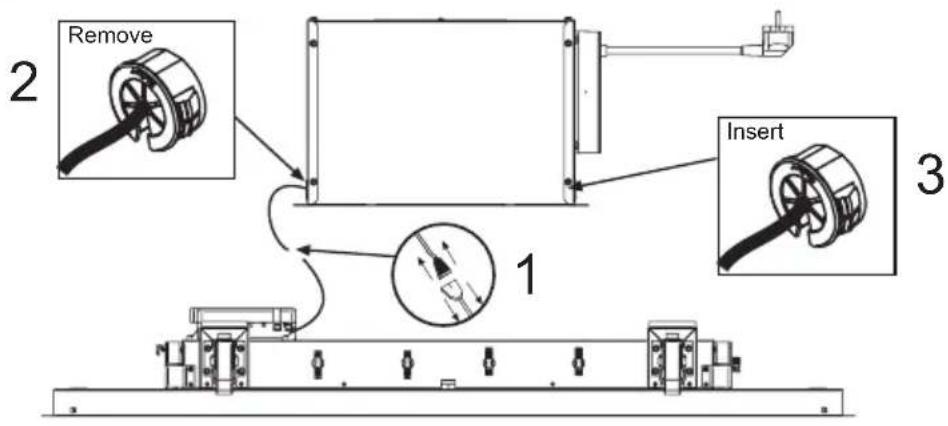

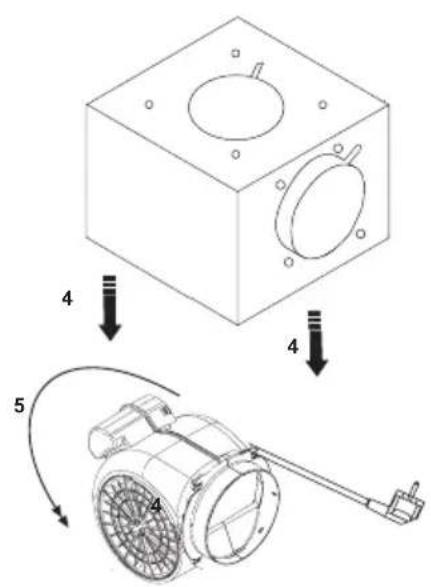

Remove 1 Insert 2 3

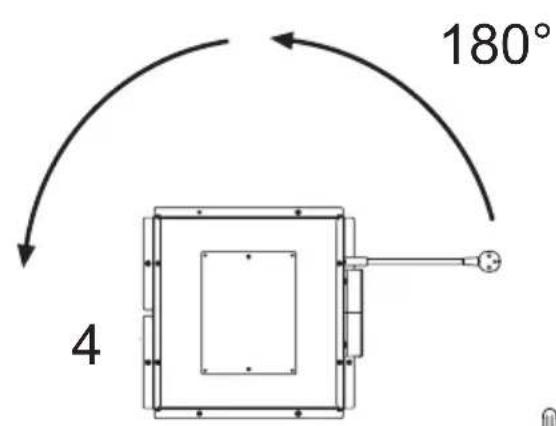

180° 4

Pure technical diagram of a mechanical component with no text or symbols, labeled 'Front' at bottom left (no other text or symbols)

Front 5

Model:

SILHOUETTE EASY UP

Air outlet 5

1

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or force directions.

Technical diagram showing a mechanical assembly with labeled components and directional arrows indicating motion or assembly steps.

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or assembly.

Model:

SILHOUETTE EASY UP

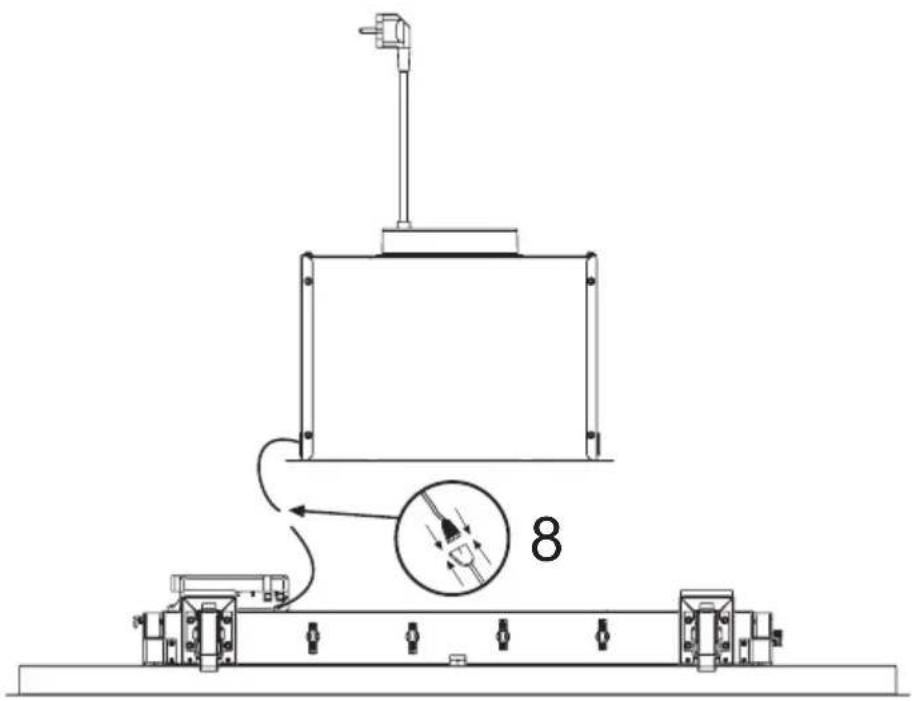

8

9

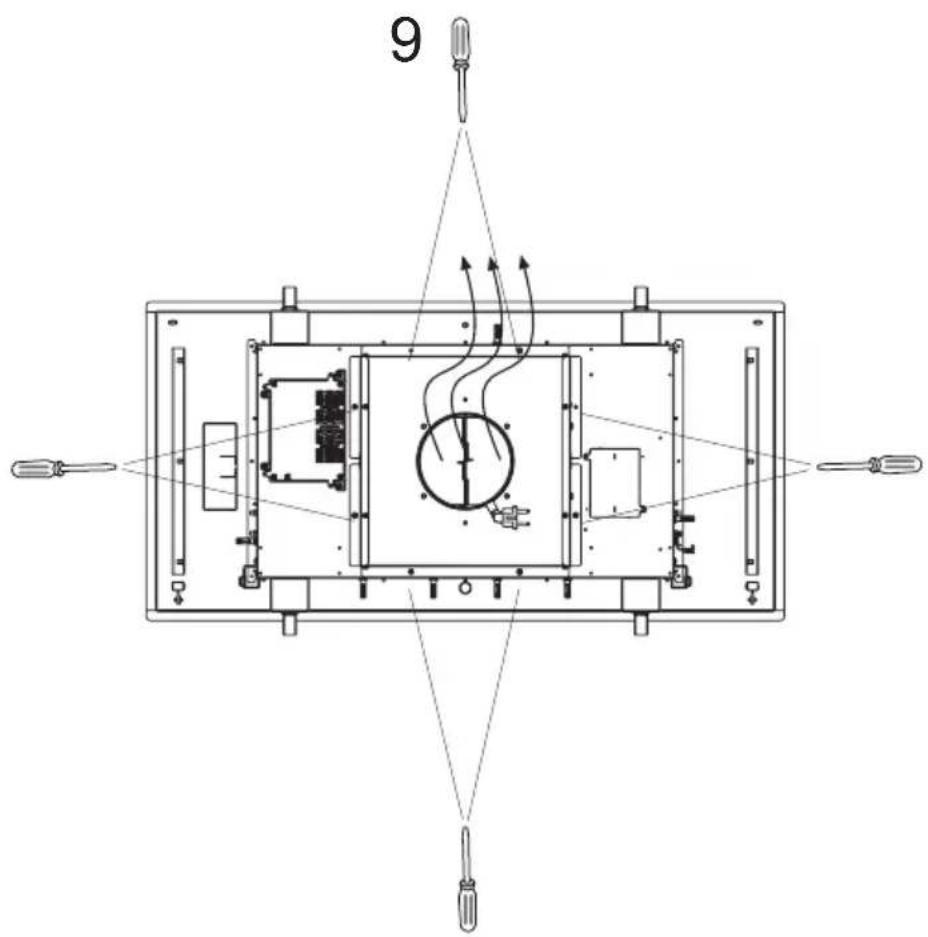

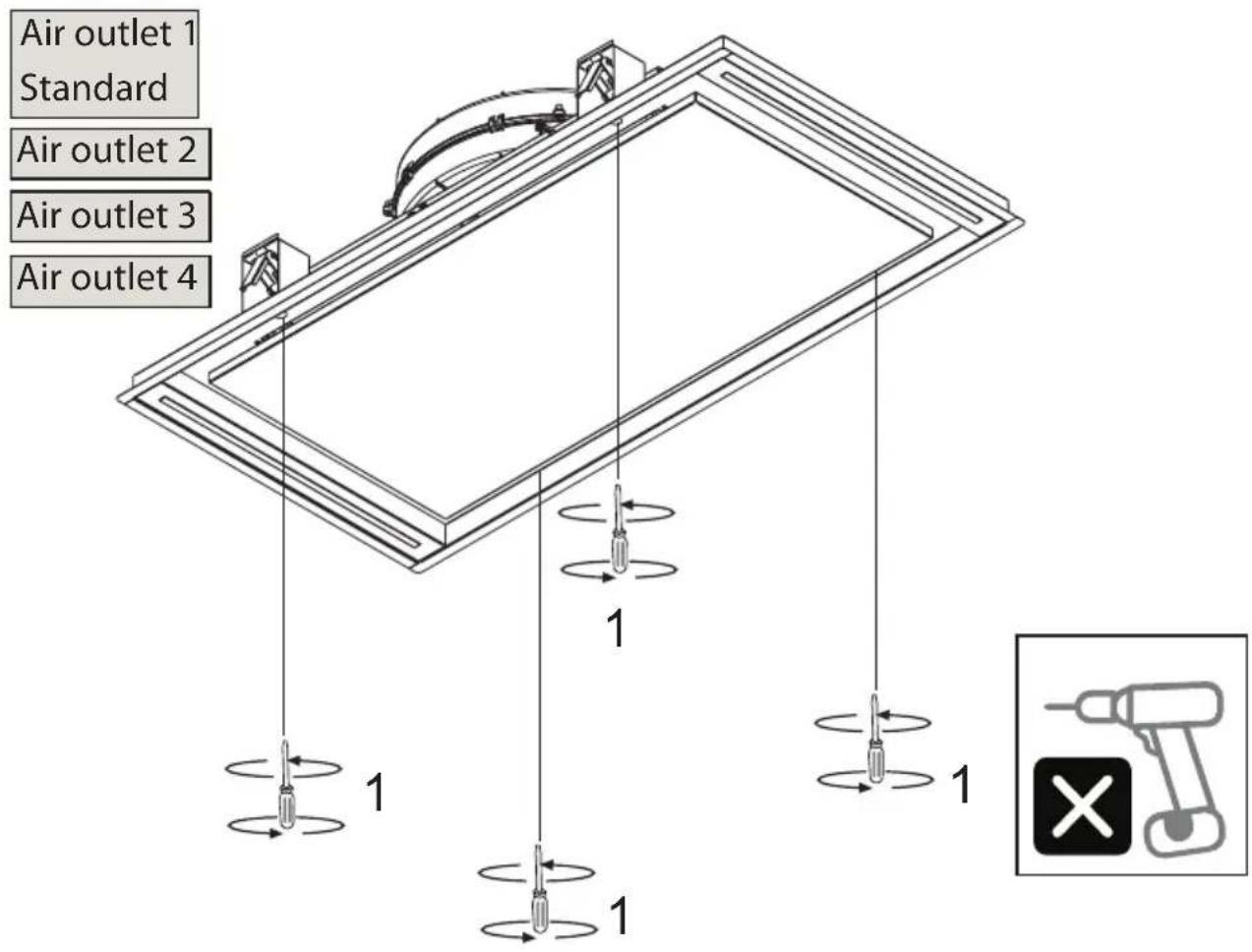

Air outlet 1 Standard Air outlet 2 Air outlet 3 Air outlet 4 1 1 1 1

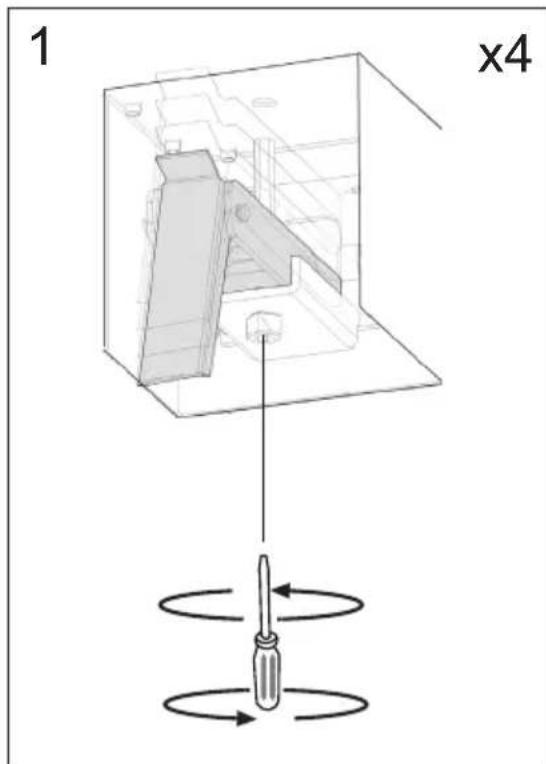

1 x4

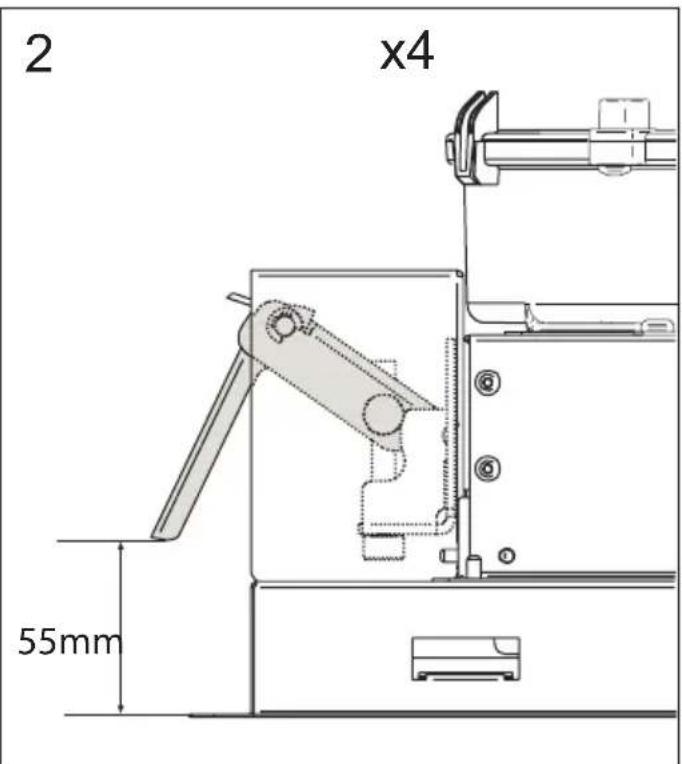

2 x4 55mm

Model:

SILHOUETTE FL EASY UP

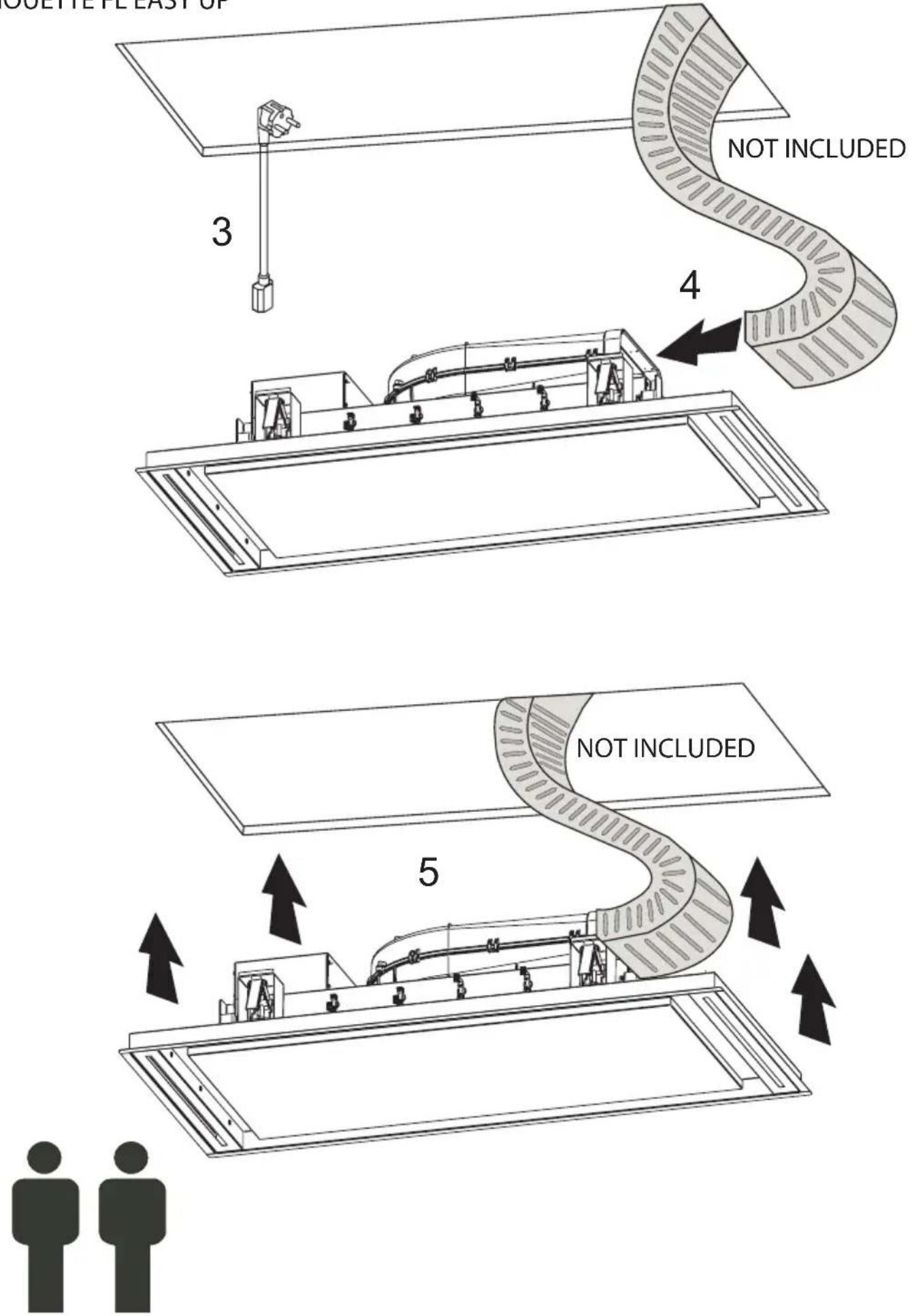

OUTLETLE LAST OF 3 4 NOT INCLUDED 5 NOT INCLUDED

Model:

SILHOUETTE EASY UP

3 4 not included 5 not included

Two identical human silhouette icons side by side, no text or symbols present.

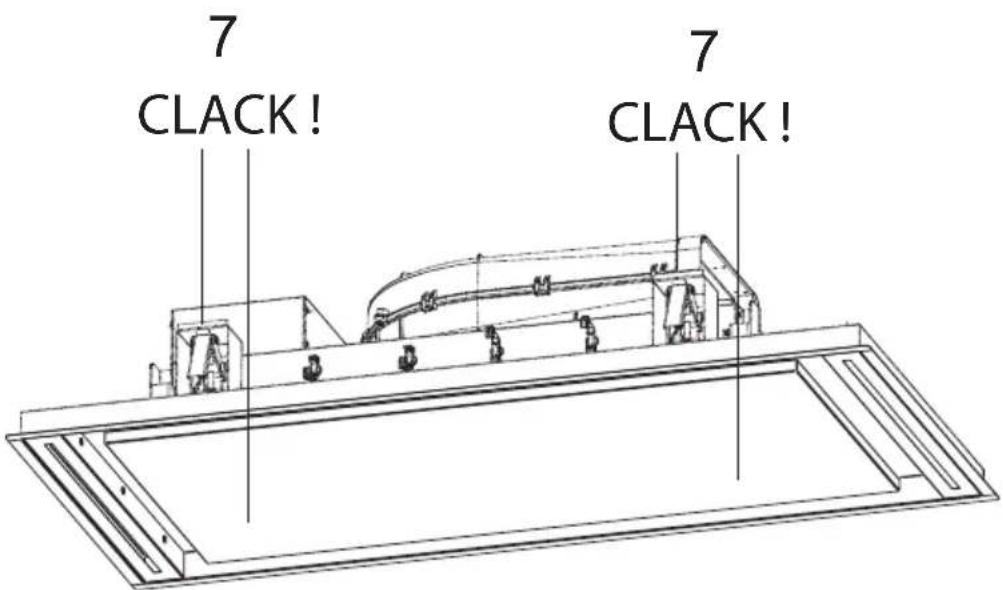

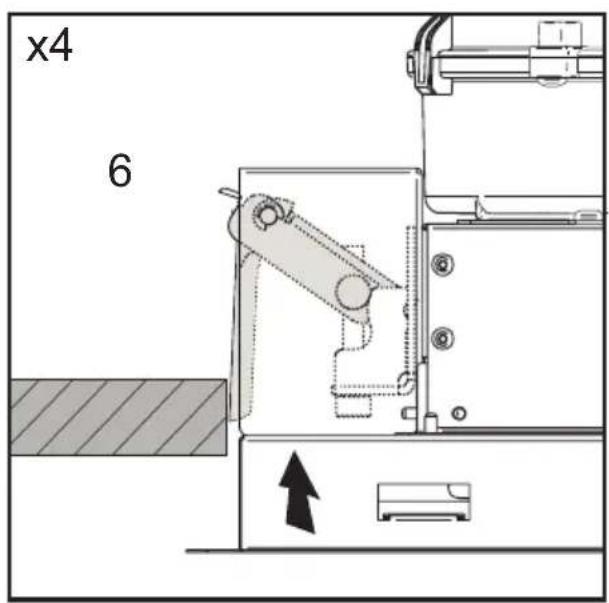

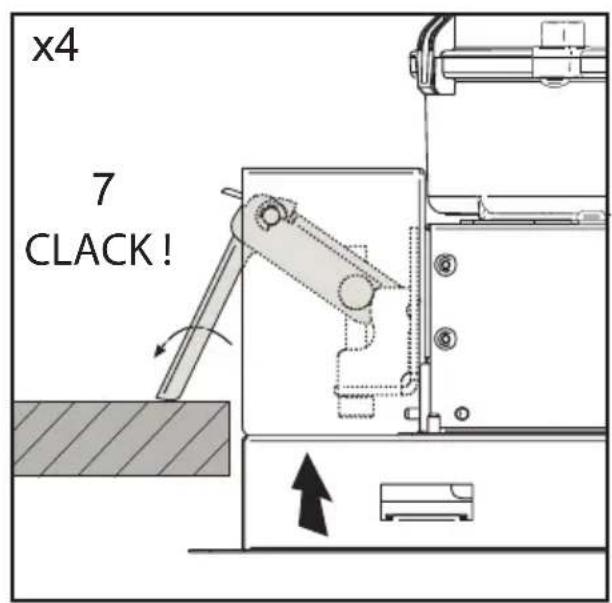

7 CLACK! 7 CLACK!

x4 6

x4 7 CLACK!

Model:

SILHOUETTE FL EASY UP

Model:

SILHOUETTE EASY UP

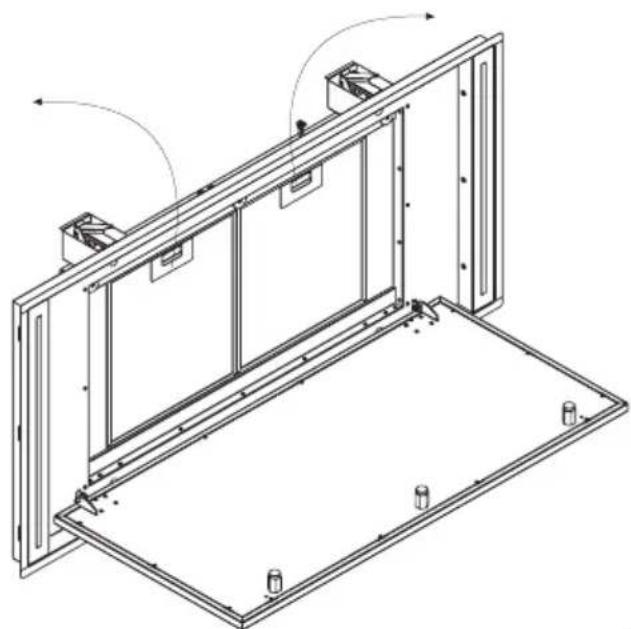

Technical line drawing of a mechanical assembly with mounting brackets and internal components (no text or symbols)

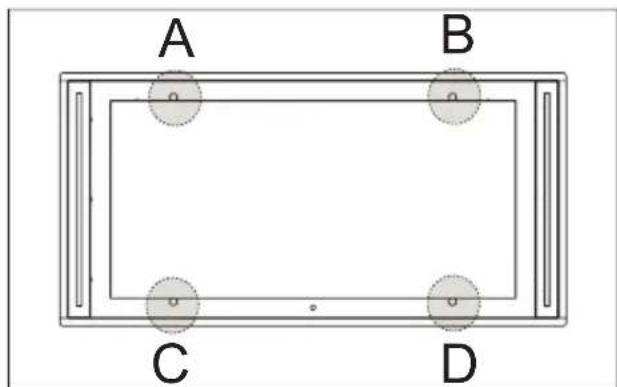

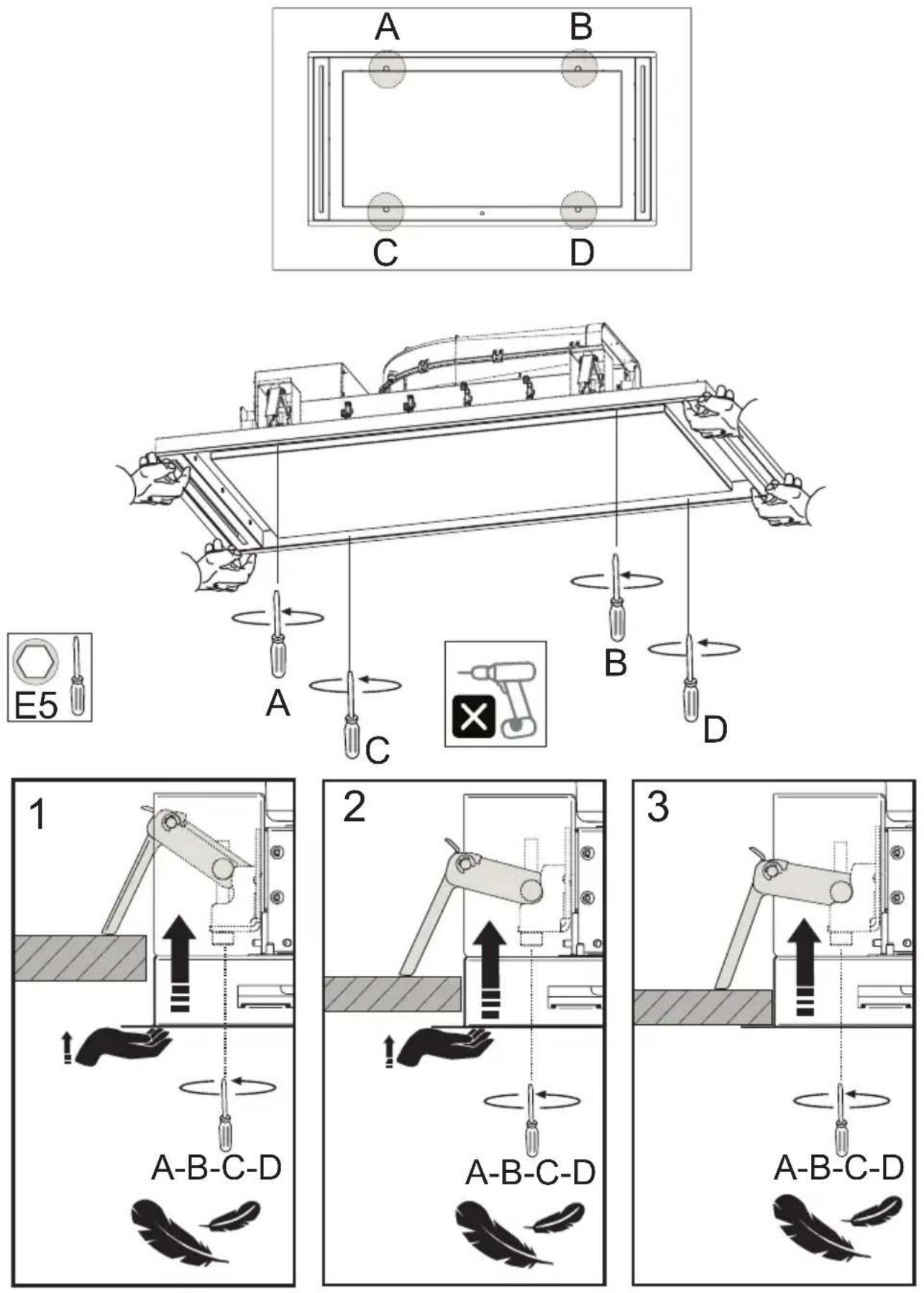

A B C D

Simple diagram showing a top-down view of a circular object with an upward arrow, no text or symbols present.

A-B-C-D

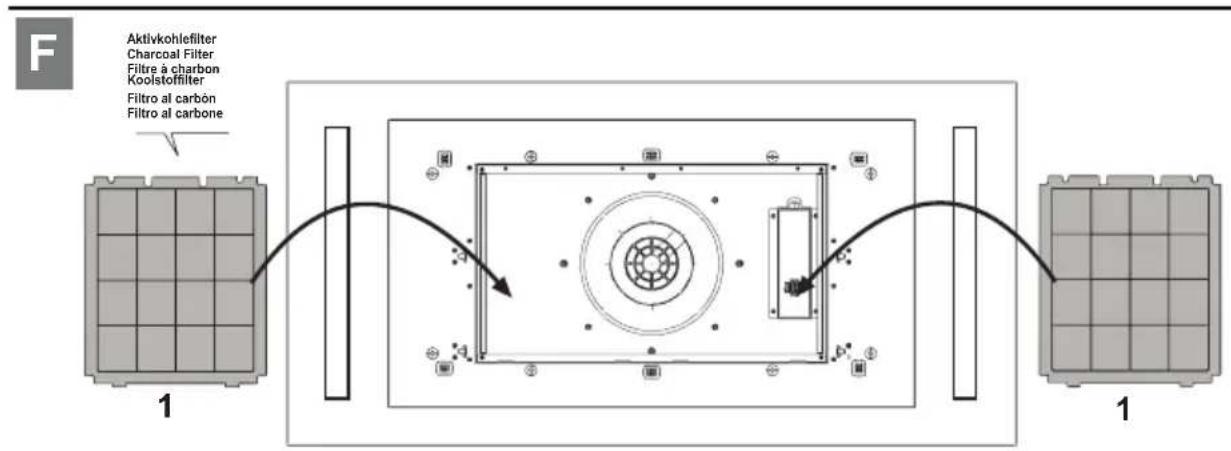

G F A


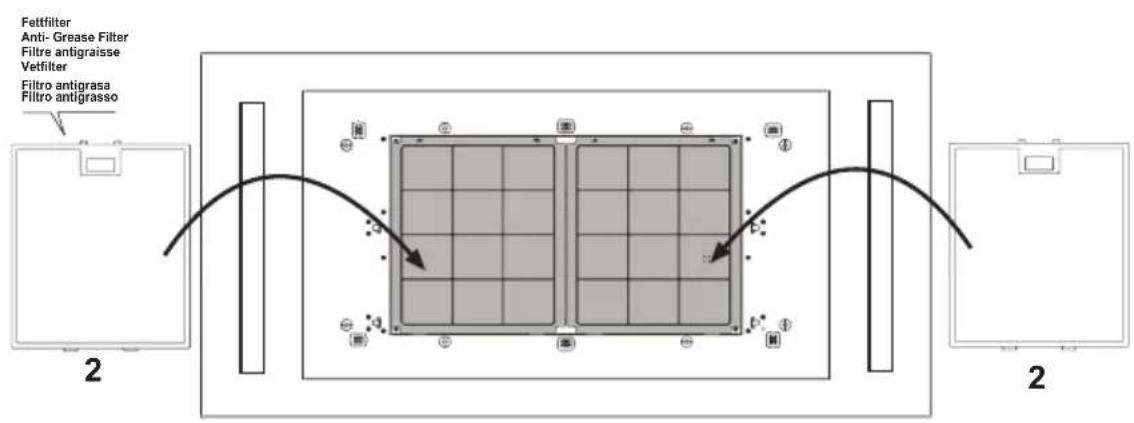

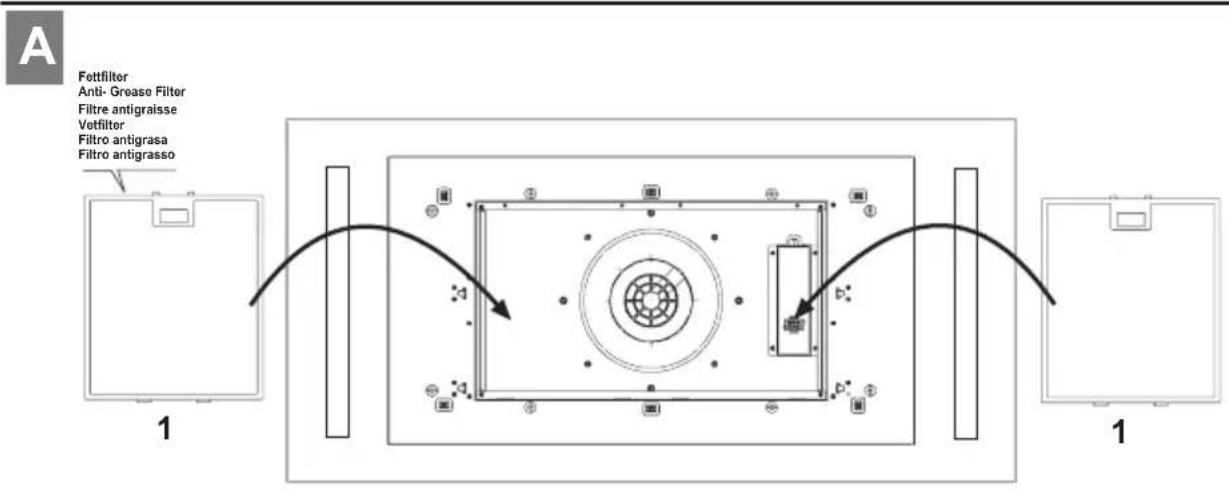

    A["Fetfilter Anti-Grease Filter Filtre antigraisse Vetfilter Filtro antigrasa Filtro antigrasso"] --> B["2"]
    B --> C["1"]
    C --> D["2"]
    D --> E["2"]

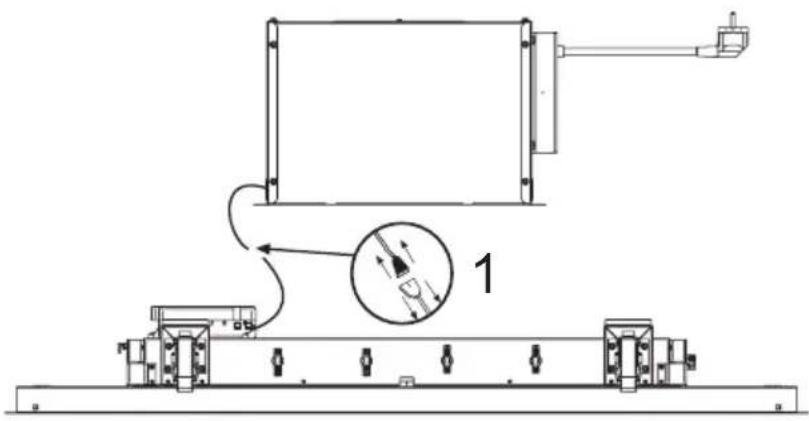

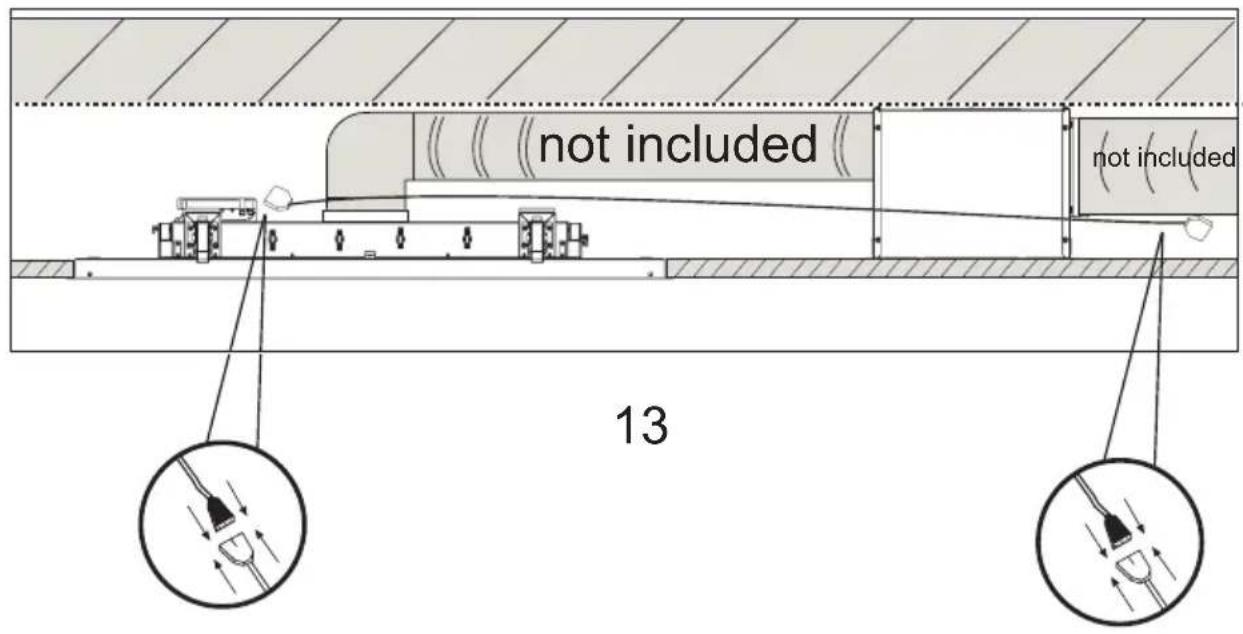

Installation with remote motor

not included

Simple line drawing of a shopping cart icon (no text or symbols)

Two simple line icons: a house with an upward arrow and a house with a circular arrow indicating rotation (no text or symbols)

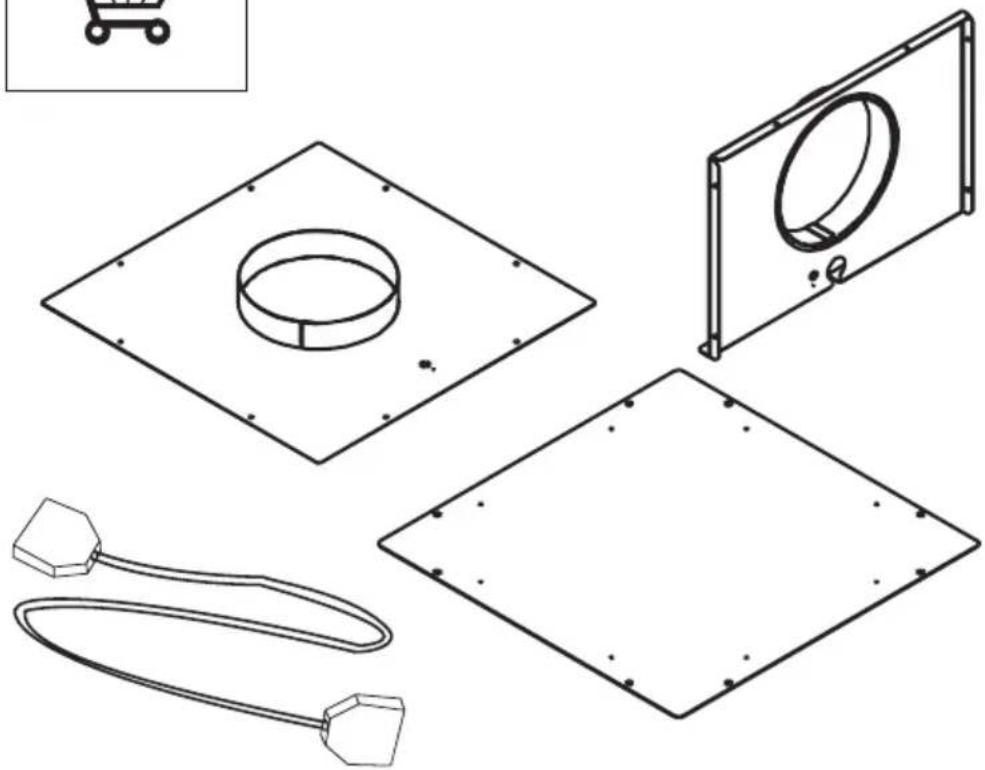

Technical line drawings of mechanical components including a ring, plate, and cable (no text or symbols)

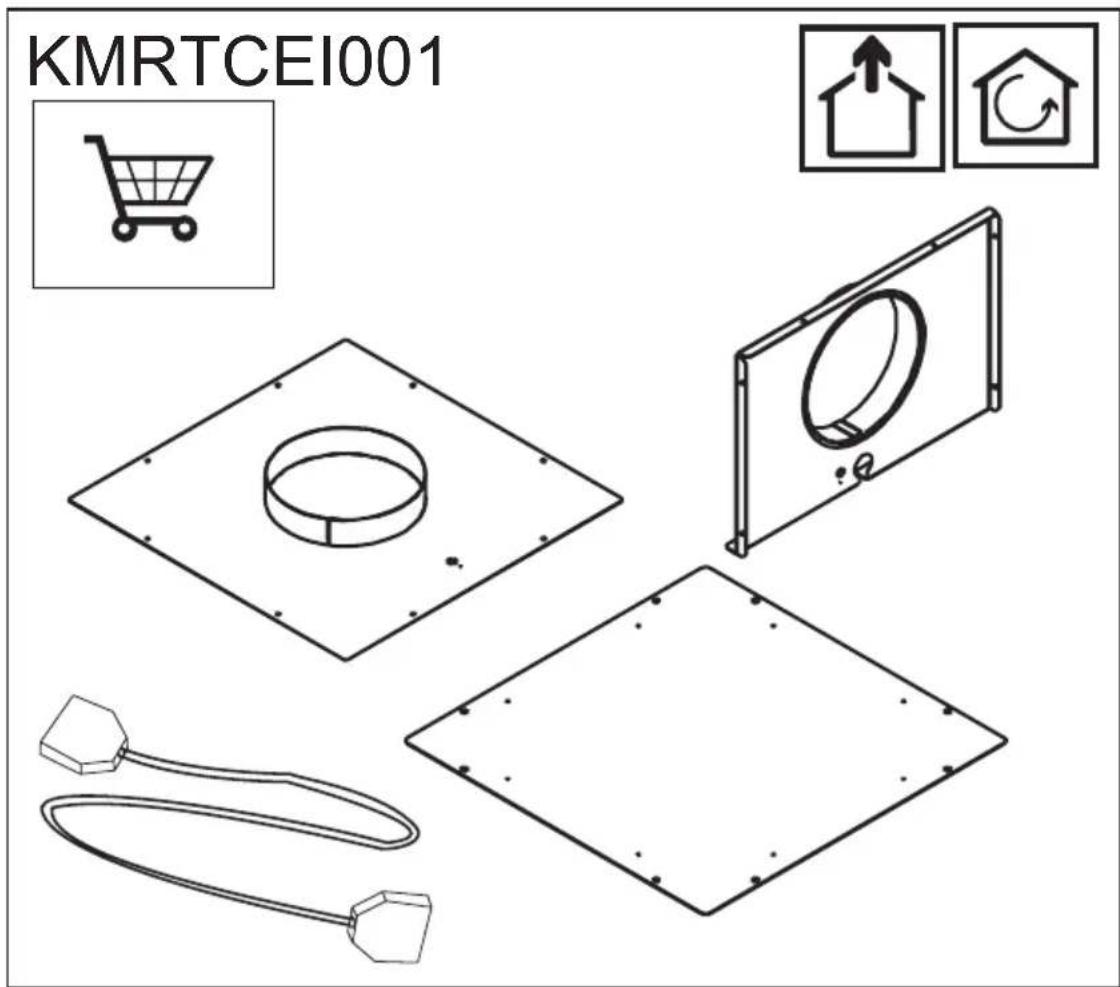

KMRTCEI001

Model:

SILHOUETTE EASY UP

3

4

Model:

SILHOUETTE EASY UP

5 6 or

Technical diagram showing mechanical assembly with labeled components and directional arrows

Model:

SILHOUETTE EASY UP

Model:

SILHOUETTE EASY UP

Model:

SILHOUETTE EASY UP

Simple line drawing of two connected geometric shapes resembling a coiled cable or connector (no text or symbols)

not included not included 13

13

Model:

SILHOUETTE FL EASY UP

Installation with remote motor

not included

KMRBLJCEI001

Simple line drawing of a shopping cart icon (no text or symbols)

Isometric line drawing of a rectangular electronic device with a slot and mounting bracket (no text or symbols)

Simple line drawing of a rectangular panel with two vertical slots and a horizontal base (no text or symbols)

Simple line drawing of a rectangular panel with two vertical slots (no text or symbols)

Pure electrical circuit lines without any symbols

Isometric line drawing of a rectangular metal enclosure or frame structure (no text or symbols)

Model:

SILHOUETTE FL EASY UP

Technical diagram of an air conditioning unit with labeled components and a motor assembly view

Model:

SILHOUETTE FL EASY UP

Model:

SILHOUETTE FL EASY UP

Model:

SILHOUETTE FL EASY UP

Model:

SILHOUETTE FL EASY UP

Technical line drawing of a mechanical device with labeled components (no text or symbols present)

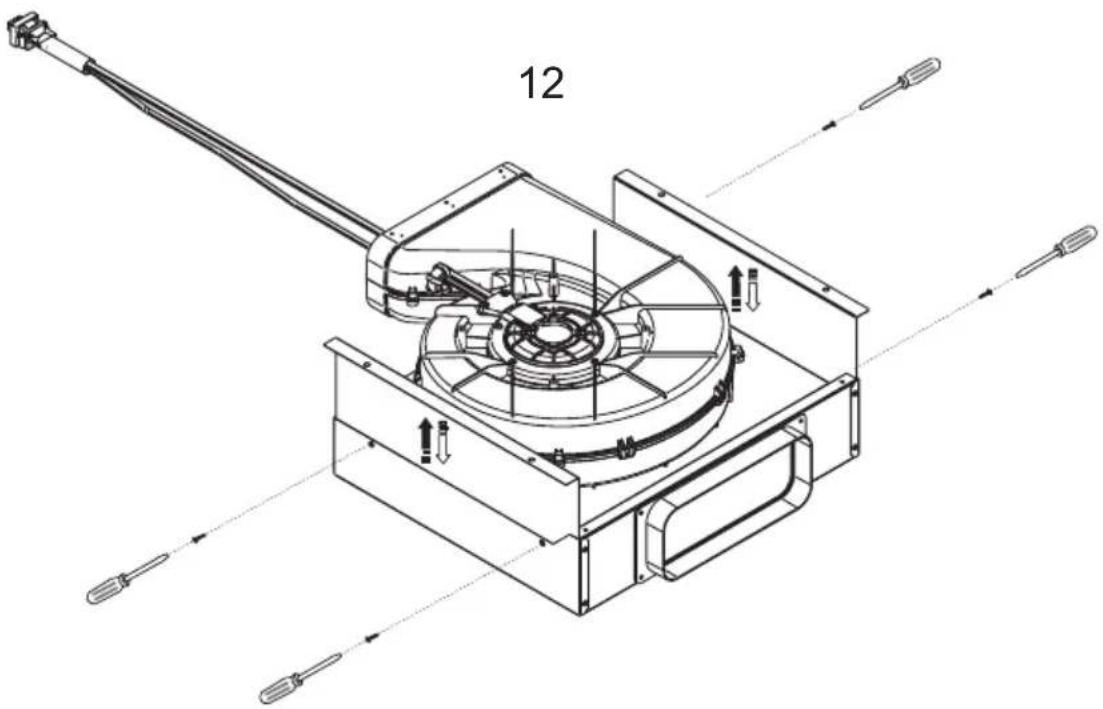

Technical line drawing of a mechanical device with labeled component '12' and directional arrows indicating assembly (no text or symbols beyond label)

Model:

SILHOUETTE FL EASY UP

Accessories

AFC4043001 (1000mm)

Simple line drawing of a rectangular block (no text or symbols)

AFC4043005

AFC4021003

AFCRAC0120994

AFC4043004 (90°)

AFC4043003 (90°)

AFC4043007 (15°)

AFC4043006 AFC4043002

KRASP003

AFCONFRACFP

AFCFCARFP

KRFH6

Technical diagram of a mechanical assembly with no visible text or symbols

AFFCARFPH6

AFCFCAASPC78
