EN INSTRUCTIONS ON MOUNTING AND USE

QR code image containing encoded data, no visible human-readable text

Quick reference guide

A

B

-

C

+

E

F

|

A: Tasto ON/OFF luce

- : Button for decreasing suction speed (power)

+: Button for increasing suction speed (power)

B: Timer button

E: 24-hour function button

F: Filter alarm/reset button

D

A : Taste Licht EIN/AUS

QR code image containing encoded data, no visible human-readable text

Silhouette of a hand holding a smartphone displaying a QR code on screen

EN Scan Qr code for the full version of the manual.

The appliance should not be used by children under 8 years of age and by persons with reduced physical, sensory and mental capabilities, or lack of experience and knowledge, unless they are supervised or have received instructions regarding the safe use of the appliance and are aware of the possible risks. Children must not play with the appliance. Any intended cleaning and maintenance by the user should not be carried out by children unless supervised. The hood should never be used without without the grid properly fitted! Never use the hood without the grill properly fitted!

The accessible components can overheat when the cooktop is in use.

The hood must not be connected to the flues of other appliances that run on gas or other fuels. When the hood is used at the same time as other appliances that run on gas or other fuels, provision must be made for an adequate supply of air. No food must be cooked flambé underneath the hood. The use of an unprotected flame could cause damage to the filters and could cause fires, so should be avoided. When frying food, never leave the pan unattended because the cooking oil could flare up. Please comply with the technical and safety provisions set forth by your local competent authorities regarding the ventilation of hoods.

This appliance conforms to European Directive 2002/96/EC, Waste Electrical and Electronic Equipment (WEEE). Please dispose of this product correctly in the interest of health and the environment.

The symbol 📁 on the product, or on the documents accompanying the product, indicates that this appliance may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal. For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product. If the power cable is damaged you should, in the interest of safety, contact the manufacturer or the manufacturer's technical assistance service to request a replacement, or ask someone who is similarly qualified.

Check also the drawings on the initial pages with the alphabetical and numerical references in the explanatory text. Closely follow the instructions in this manual. We cannot accept liability for any faults, detriment or fire damage to the appliance due to non-compliance with the manual's instructions.

You should affix the hood to a wall of sufficient weight-bearing capacity, so not to one made of plasterboard.

The cooker hood must be placed at a minimum distance of 50 cm from the cooking plane for electric cookers and 65 cm for gas or mixed cookers. If the instructions for installation for the gas hob specify a greater distance, this has to be taken into account. Do not tile, grout or silicone this appliance to the wall. Surface mounting only. Do not fix chimney flue to furniture or fly over shelves unless the chimney flue can be easily removed, in case maintenance is ever required.

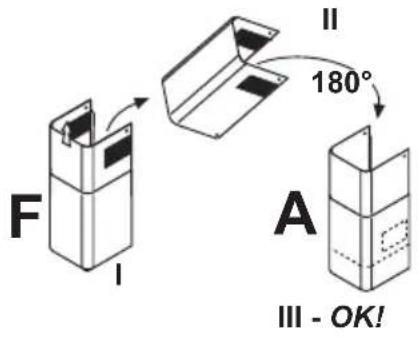

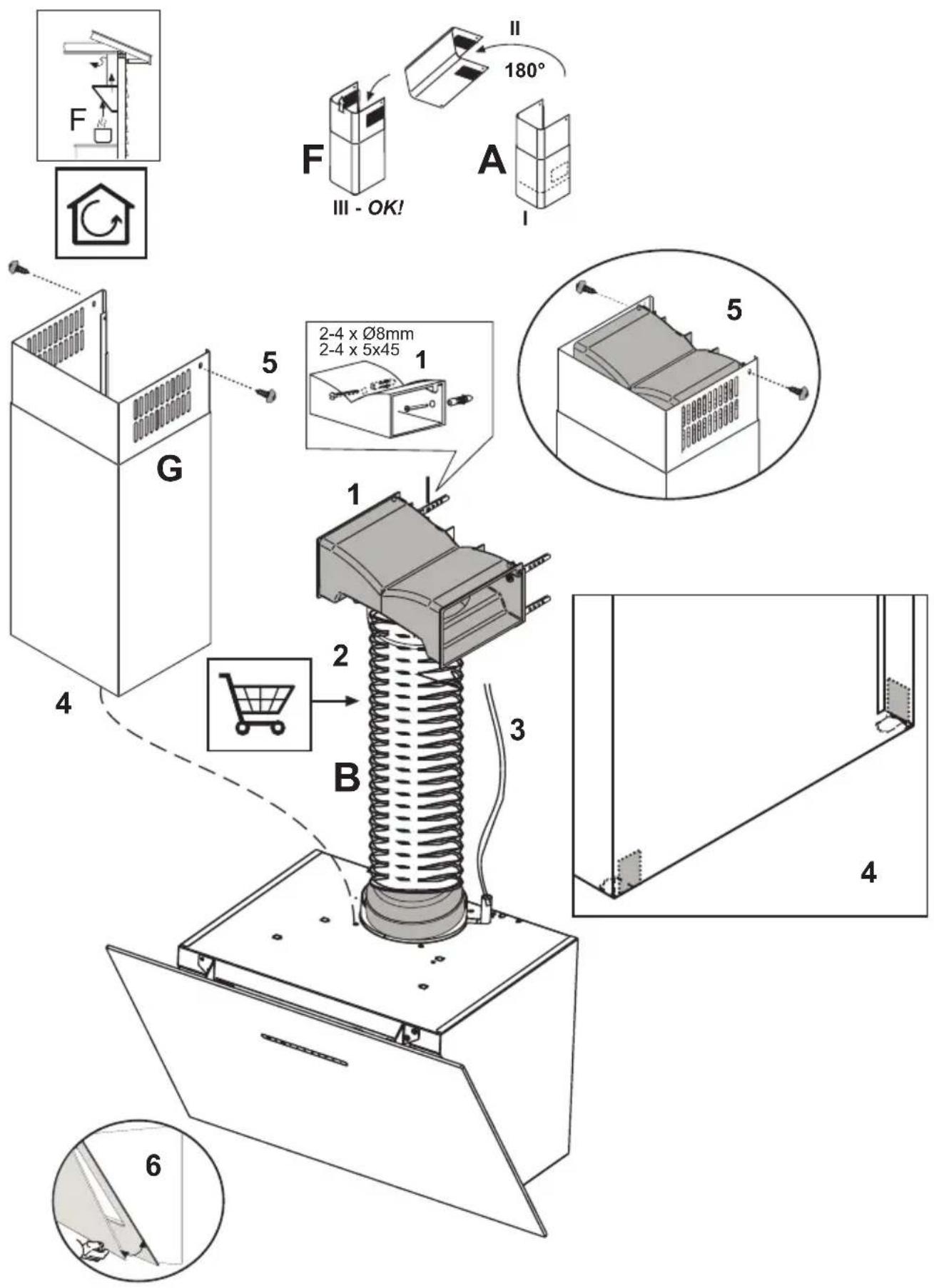

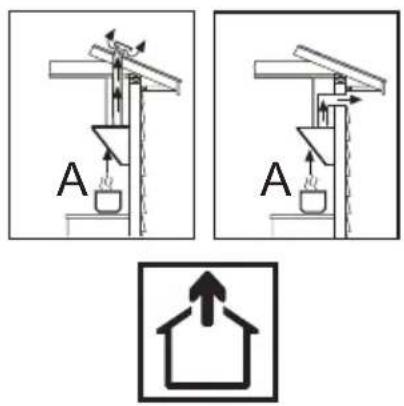

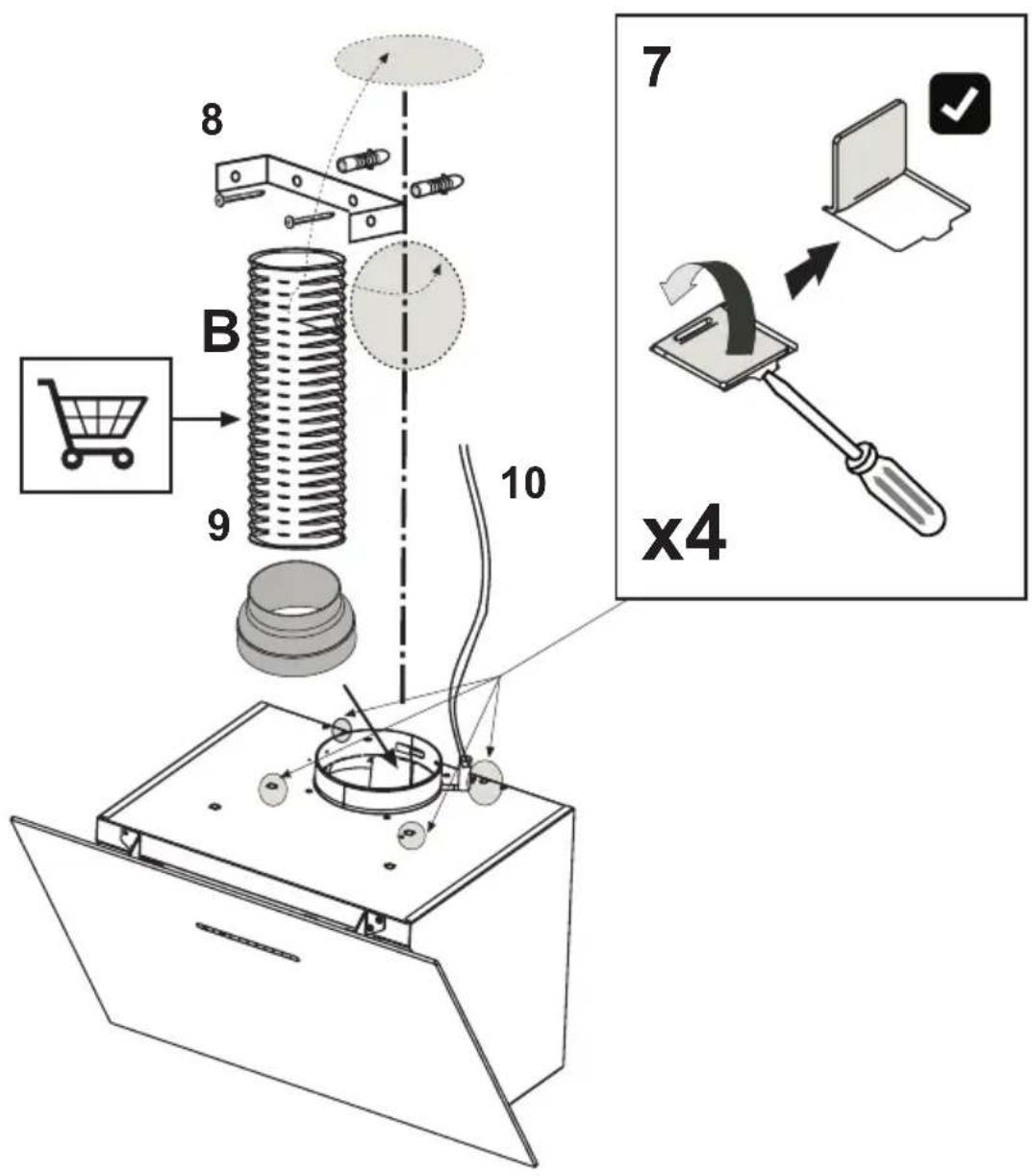

The cooker hood is provided with an upper air exit B for discharging fumes externally for models including chimney flue C (Suction Version A- exhaust pipe not supplied). If cooking fumes and vapours cannot be externally discharged, the cooker hood can be used in the recirculating version F: the installation of 1 active charcoal filter F allows the recirculation of fumes and vapours through the upper grid G.

Make sure that there is a power socket near the hood and that the system has a 30 mA differential. The mains voltage must be the same as that on the label inside the hood. The hood has a 1250 mm power cable with or without plug: if it does have a plug, connect the hood to an accessible approved socket; or if it does not (connection direct to the mains), fit an approved bipolar switch with a minimum contact opening of no less than 3 mm (accessible). This installation and electrical connection must be executed by a qualified technician.

If the cooking top is in use, the cooker hood must always operate.

Product performance test carried out in accordance with standard (EU) No 65/2014-Ref: IEC 61591

Maximum performance is achieved by placing the mobile panels, if any, in the open position.

A B - C + E F

A: Light ON/OFF button: when the button is touched, the hood lights are switched on or off.

Notes: If the product is equipped with the Dimmable Light function, prolonged contact of the button activates the function, the buttons + and - light up; act on + or - to vary the intensity of the lights, hold down button A to confirm.

C: Motor ON/OFF button (4 speeds): when the button is touched, the hood will start, act on + or - to vary the speed. On prolonged contact of the main off button both motor and lights are stopped.

• : Button for decreasing suction speed (power): when the button is touched, the suction speed of the hood decreases.
  +: Button for increasing suction speed (power): when the button is touched, the suction speed of the hood increases.

Button - flashes : 1st speed

Button - steady : 2nd speed

Button + steady : 3rd speed

Button + flashes : 4th speed

The 4th timed intensive speed (I am in suction mode) will last for 5 minutes after which it will revert to 3rd speed.

B: Timer button: when the button is touched, whatever suction speed is selected, the timer function is activated. At the first touch the timer will last 5 minutes, at the second touch 10 minutes and at the third touch 20 minutes. During this phase the button will flash quickly timer 5 min, medium flash 10 min, slow flash 20 min. To reset the timer, press the button a fourth time.

E: 24-hour function button: With the motor off, pressing the button activates the 24-hour recirculation function, the motor runs at first speed for 5 minutes then stops for 25 minutes, and so on for 24 hours.

During the 24-hour mode operation, the button flashes quickly when the motor is on and flashes slowly when the motor is off: to exit this function, press one of the following buttons C. + .

24-hour/Automatic Mode function button: if the product is equipped with the Automatic Mode function, pressing the button with the motor off activates the 24-hour function, pressing the button with the motor on activates the Automatic Mode function, which automatically adjusts the suction speed according to the heat coming from the hob. When the function is active, the buttons + and - flash alternately. To exit the function, press one of the following buttons: C. + :

F: Filter alarm/reset button: prolonged contact of the button resets the warning of metal grease filter saturation (1) and carbon filter replacement (2).

(1) After 40 hours of hood operation, the button will flash slowly, indicating the need to clean the metal grease filters.
(2) After 120 hours of hood operation, the button will flash quickly, indicating the need to replace the activated carbon filters (if the hood has been set to filtering mode).

Setting the suction or filtering mode; pressing the buttons F and the button+ at the same time changes this function from suction (default) to filtering; repeat the procedure to return to the previous function.

F button flashing for 5 seconds : Suction

F button on for 5 seconds :Filtering

Maintenance

Prior to any maintenance operation ensure that the cooker hood is disconnected from the electrical outlet.

Cleaning

The hood must be cleaned frequently both inside (apart from the area behind the grease filter) and outside. Use a cloth moistened with denatured alcohol or neutral liquid detergents. Never use products containing abrasives.

Warning

Failure to carry out the basic standards of the cleaning of the cooker hood and replacement of the filters may cause fire risks. Therefore we recommend observing these instructions.

Anti-grease Filter

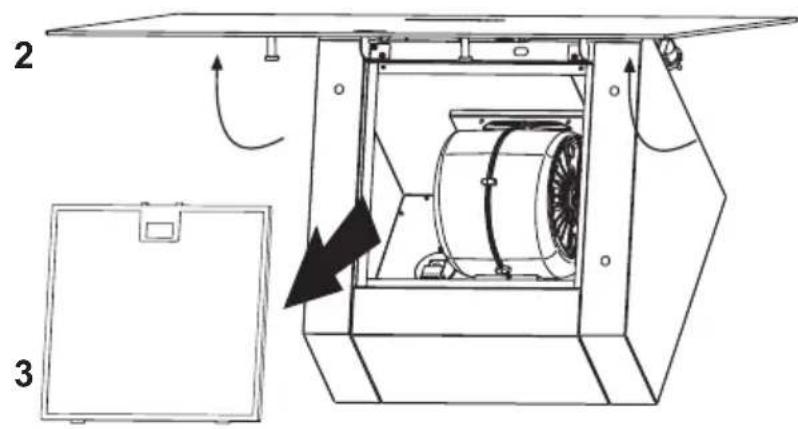

must be cleaned once a month, with non abrasive detergents, by hand or in dishwasher on low temperature and short cycle. When washed in a dishwasher, the grease filter may discolour slightly, but this does not affect its filtering capacity.

Charcoal Filter - (only for filter version)

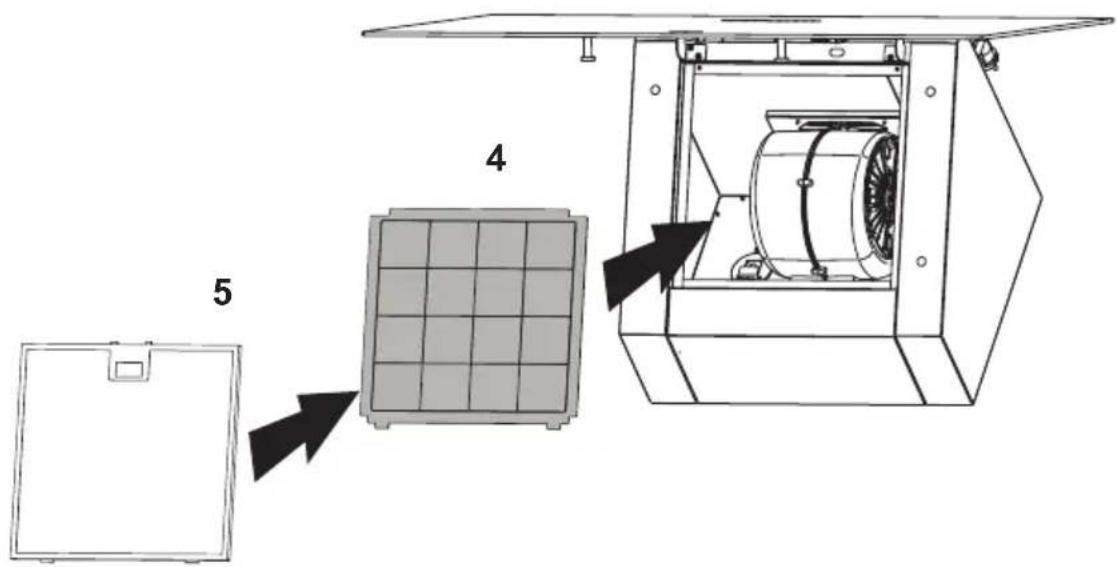

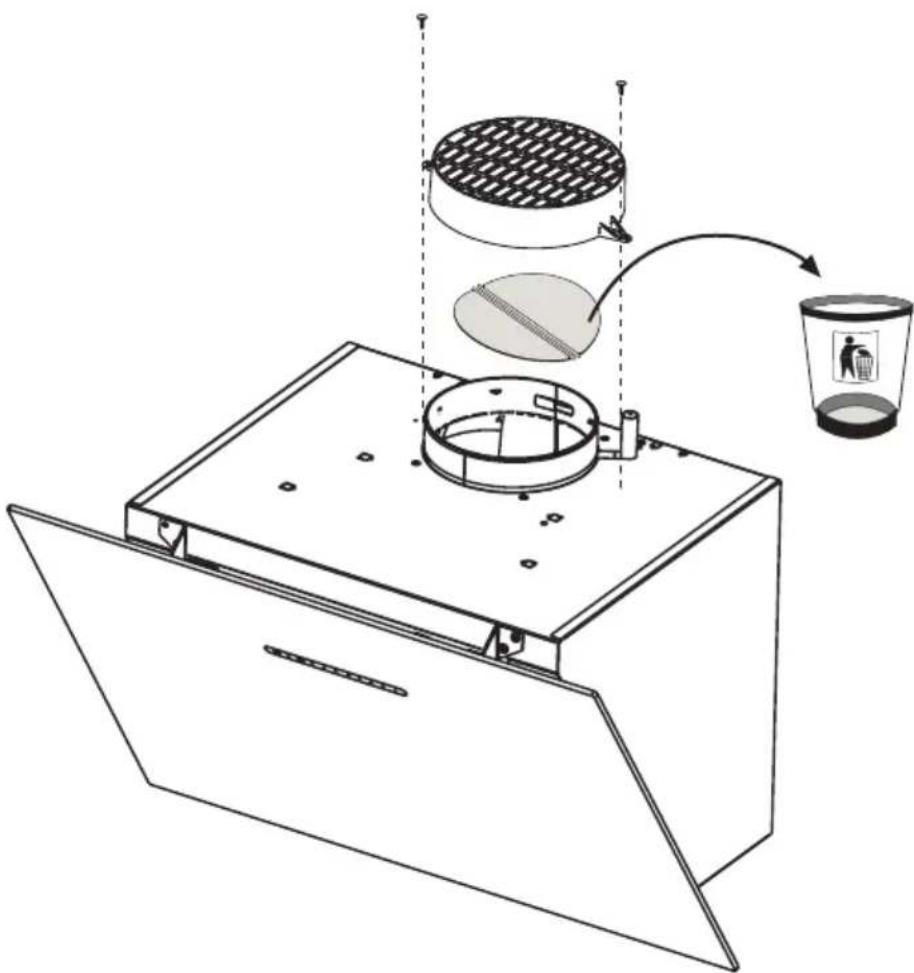

The active charcoal filters F are not washable nor regenerative. It should be changed every 6 months in normal use. The active charcoal filters capture unpleasant cooking odours.

Replacing lightbulbs

Warning! Prior to touching the light bulbs ensure they are cooled down.

Led Light

If the lighting group LED does not work, please contact the technical service center in order to replace the whole group.

Reducing environmental impact:

To reduce energy consumption, we recommend you always use the lowest suction speed among those suitable for the cooking mode currently active, avoid leaving the appliance running for more than 15 minutes after burner shutdown and switch off the lights if you leave the cooking area.

Warnung

Illustration of two gloves with textured soles (no text or symbols)

EN Always wear work gloves for all installation and maintenance operations

Technical diagram of a kitchen appliance with numbered parts and exploded view, including labeled parts 1 through 6.

A A

F I II 180° A III - OK!

F

8 B 9 10 7 x4

A A II 180° F I A III - OK! 12 11 B 12 11

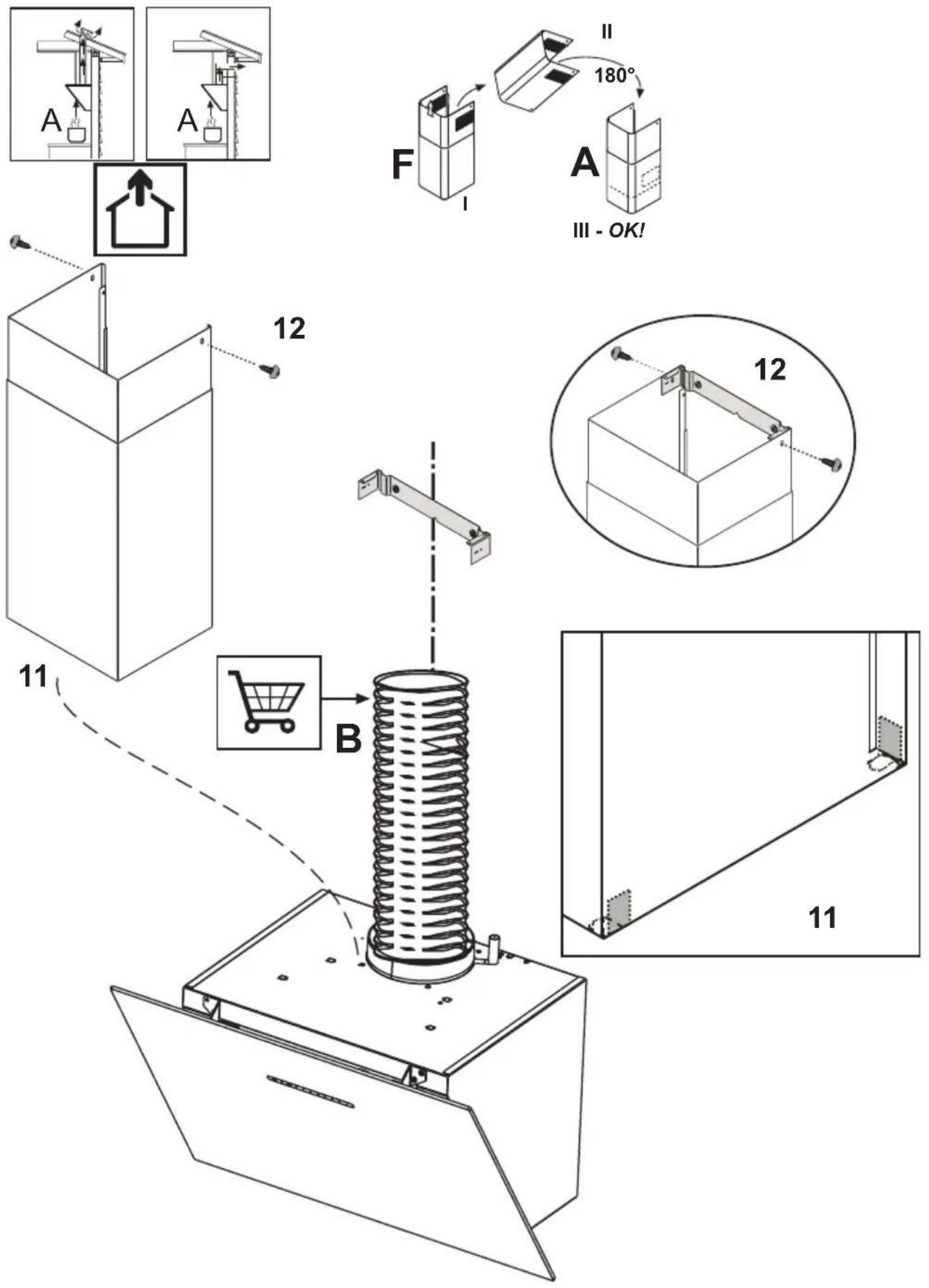

F III - OK! II 180° A I 5 2-4 x Ø8mm 2-4 x 5x45 1 1 2 B 3 4 6

F

Line drawing of a kitchen appliance with a gridded sink, lid, and trash bin (no text or symbols)

F

OPTIONAL

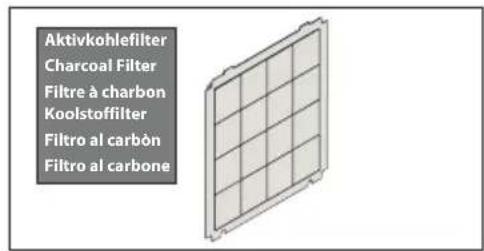

Aktivkohlefilter Charcoal Filter Filtre à charbon Koolstofffilter Filtro al carbòn Filtro al carbone

1 - Turn on the motor at the higher speed

Technical diagram of an industrial machine with labeled components and directional arrows indicating motion or flow.

4 5
