Product type	Recessed hood for false ceiling
Brand	Airforce
Model	Sinergia Easy Up
Maximum weight supported by ceiling	30 kg
Number of motor speeds	6 (including one timed intensive for 8 minutes)
Control type	Wireless remote control (pairing required)
Lighting	LED (except Raffaello model)
Minimum installation distance (electric range)	50 cm
Minimum installation distance (gas or mixed range)	65 cm (or according to cooktop instructions)
Exhaust mode	Ducted (outside) or recirculating (recycling with charcoal filter)
Grease filter	Washable metal (monthly, low-temperature dishwasher possible)
Charcoal filter (recirculating version)	Not washable, replace every 6 months
Power cable length	1250 mm
Required electrical protection	RCD 30 mA
Use with combustion appliance	Max depression 4 Pa, sufficient ventilation mandatory
Exterior and interior maintenance	Cloth with denatured alcohol or neutral detergent (no abrasives)
Child safety	Prohibited for children under 8 without supervision
Environmental compliance	WEEE Directive 2002/96/EC
LED lighting replacement	By technical support service (complete unit)

Frequently Asked Questions - Sinergia Easy Up Airforce

How to install the hood in a false ceiling?

The ceiling must be flat, horizontal, and sturdy. Use a suitable frame or support, do not fix the hood directly into the false ceiling panels. Installation must be carried out by a qualified installer.

How to pair the remote control with the hood?

Turn off the power for 10 seconds, then restore power. Within 5 seconds, press the T4 button (lighting) and release when the lights turn on. Within the next 5 seconds, press T2 (motor) and release when the lights turn off. Wait 10 seconds before normal use.

How to change the remote control code?

Press T1 (+) and T3 (-) simultaneously for at least 10 seconds. Then perform the pairing procedure described in the manual.

At what distance should the hood be installed above the stove?

For an electric cooktop, the minimum distance is 50 cm. For a gas or mixed cooktop, it is 65 cm (or more if specified by the cooktop manufacturer).

How to clean the grease filter?

Clean it once a month with a non-aggressive detergent, by hand or in a dishwasher at low temperature and short cycle. Dishwashing may discolor the filter but does not affect its performance.

When to replace the charcoal filter?

The activated charcoal filter is neither washable nor recyclable. Under normal use, replace it every 6 months to ensure good odor absorption.

What to do if the hood does not work after a power cut?

Perform the remote control pairing procedure: turn off the power for 10 seconds, then follow the steps in the manual (press T4 then T2). If the problem persists, check the power supply and the RCD.

Can I use the hood with a gas stove?

Yes, but respect a minimum distance of 65 cm. Ensure the room is properly ventilated to prevent backflow of combustion gases. The hood must not exhaust air into a flue.

How to reduce the energy consumption of the hood?

Use the lowest suction speed suitable for cooking. Turn off the hood 15 minutes after turning off the burners. Turn off the lighting when leaving the cooking area.

What to do if the LED lighting fails?

The LED lighting must be replaced by the technical support service because the complete unit must be changed. Do not attempt to repair it yourself.

User questions about Sinergia Easy Up Airforce

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

No questions yet. Be the first to ask one.

Download the instructions for your Range hood in PDF format for free! Find your manual Sinergia Easy Up - Airforce and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Sinergia Easy Up by Airforce.

USER MANUAL Sinergia Easy Up Airforce

Airforce

Made in Italy

EN Instructions on Mounting and Use

Warning symbol: exclamation mark inside a triangle.

Checking the ceiling for first installation:

- The ceiling must be flat, horizontal, and sufficiently solid and strong. - The hood is designed to be installed in a false ceiling. The false ceiling must be solid and have an adequate load capacity for a product weighing max. 30 kg.

Do not install the hood directly in the false ceiling panels, but use a suitable frame or support.

Installation of plasterboard panels:

Attention!: installation must be performed by qualified installers.

Only for models:

RAFFAELLO FL EASY UP

RAFFAELLO EASY UP

For any painting of the perimeter panel and/or the hood frame, it is recommended to rely on a professional in the sector.

The details can be painted both with powder and liquid.

Wall paints and temperas are not indicated as they do not adhere to surfaces and are absorbent, inevitably the cooking vapors sucked in by the product would ruin the finish.

Warning symbol: black exclamation mark inside a triangle (no text or numbers).

Notes: this remote control is universal but not all features are available on all models.

On first use, or if you need to change the remote control or the product's electronic components, the pairing procedure between the remote control and the hood must be performed (valid for all models):

Power off the hood for at least 10 seconds.
Power on the hood again.
Within the first 5 seconds, press the lights button T4 and release it after the lights have turned on.
Within the next 5 seconds, press the motor button T2 and release it when the lights turn off. Now you need to wait approximately 10 seconds, after which you may use the hood normally.

Hand holding a smartphone displaying a QR code on screen.

EN: Scan the QR code for the full version of the manual.

The appliance should not be used by children under 8 years of age or by persons with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they are supervised or have received instructions regarding the safe use of the appliance and are aware of the possible risks. Children must not play with the appliance. Any intended cleaning and maintenance by the user should not be carried out by children unless supervised. The hood should never be used without the grid properly fitted! Never use the hood without the grill properly fitted!

The accessible components can overheat when the cooktop is in use.

The hood must not be connected to the flues of other appliances that run on gas or other fuels. When the hood is used at the same time as other appliances that run on gas or other fuels, provision must be made for an adequate supply of air. No food must be cooked flambé underneath the hood. The use of an unprotected flame could cause damage to the filters and could cause fires, so should be avoided. When frying food, never leave the pan unattended because the cooking oil could flare up. Please comply with the technical and safety provisions set forth by your local competent authorities regarding the ventilation of hoods.

This appliance conforms to European Directive 2002/96/EC, Waste Electrical and Electronic Equipment (WEEE). Please dispose of this product correctly in the interest of health and the environment.

The symbol on the product, or on the documents accompanying the product, indicates that this appliance may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal. For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product. If the power cable is damaged you should, in the interest of safety, contact the manufacturer or the manufacturer's technical assistance service to request a replacement, or ask someone who is similarly qualified.

Check also the drawings on the initial pages with the alphabetical and numerical references in the explanatory text. Closely follow the instructions in this manual. We cannot accept liability for any faults, detriment or fire damage to the appliance due to non-compliance with the manual's instructions.

You should affix the hood to a wall of sufficient weight-bearing capacity, so not to one made of plasterboard.

The cooker hood must be placed at a minimum distance of 65 cm from the cooking plane for electric cookers and 65cm for gas or mixed cookers. If the instructions for installation for the gas hob specify a greater distance, this has to be taken into account. Do not tile, grout or silicone this appliance to the wall. Surface mounting only. Do not fix chimney flue to furniture or fly over shelves unless the chimney flue can be easily removed, in case maintenance is ever required.

The cooker hood is provided with an upper air exit B for discharging fumes externally for models including chimney flue C (Suction Version A- exhaust pipe not supplied). If cooking fumes and vapours cannot be externally discharged, the cooker hood can be used in the recirculating version F: the installation of 1 active charcoal filter F allows the recirculation of fumes and vapours through the upper grid G.

Make sure that there is a power socket near the hood and that the system has a 30 mA differential. The mains voltage must be the same as that on the label inside the hood. The hood has a 1250 mm power cable with or without plug: if it does have a plug, connect the hood to an accessible approved socket; or if it does not (connection direct to the mains), fit an approved bipolar switch with a minimum contact opening of no less than 3 mm (accessible). This installation and electrical connection must be executed by a qualified technician.

Product performance test carried out in accordance with standard (EU) No 65/2014-Ref: IEC 61591

Maximum performance is achieved by placing the mobile panels, if any, in the open position.

TLC

T6, T1, T5, T3, T2, T4, T7

T1:+

T2 : On/Off motor

T3 : -

T4: On/Off light

Notes: this remote control is universal but not all features are available on all models.

ON FIRST USE OR IN THE EVENT OF NEEDING TO CHANGE THE REMOTE CONTROL OR THE PRODUCT'S ELECTRONIC COMPONENTS, THE PAIRING PROCEDURE BETWEEN REMOTE CONTROL AND HOOD MUST BE PERFORMED (Valid for all models):

Power off the hood for at least 10 seconds
Power on the hood again
Within the first 5 seconds, press the lights button T4 and release it after the lights have turned on.
Within the next 5 seconds, press the motor button T2 and release it when the lights turn off. Now you need to wait approximately 10 seconds, after which you may use the hood normally.

SHOULD THERE BE ANY MALFUNCTIONS DUE TO INTERFERENCES WITH OTHER REMOTE CONTROLS NEARBY, PERFORM THE PROCEDURE TO CHANGE THE REMOTE CONTROL'S TRANSMISSION CODE (Valid for all models)

The remote control is supplied with default codes. Should you wish to generate new random codes, the following procedure must be performed: press simultaneously the two buttons plus T1 and minus T3 for at least 10 seconds. After the remote control's code has been changed, the pairing procedure must be performed.

Button T2 (On/Off motor): pressing the T2 button turns the motor on or off, acting on the T1(+) or T3 (-) buttons increases or decreases the speed

1° Speed: Green LED

2° Speed: Flashing green LED

3° Speed: Orange LED

4° Speed: Flashing orange LED

5° Speed: Red LED

6° Speed: flashing red LED (intensive timed for 8 minutes, after which it returns to 5 speed)

Button T4 : On/Off light (LED bar).

Note: the Raffaello model is not equipped with light

Maintenance

Prior to any maintenance operation ensure that the cooker hood is disconnected from the electrical outlet.

Cleaning

The hood must be cleaned frequently both inside (apart from the area behind the grease filter) and outside. Use a cloth moistened with denatured alcohol or neutral liquid detergents. Never use products containing abrasives.

Warning

Failure to carry out the basic standards of the cleaning of the cooker hood and replacement of the filters may cause fire risks. Therefore we recommend observing these instructions.

Anti-grease Filter

must be cleaned once a month, with non abrasive detergents, by hand or in dishwasher on low temperature and short cycle. When washed in a dishwasher, the grease filter may discolour slightly, but this does not affect its filtering capacity.

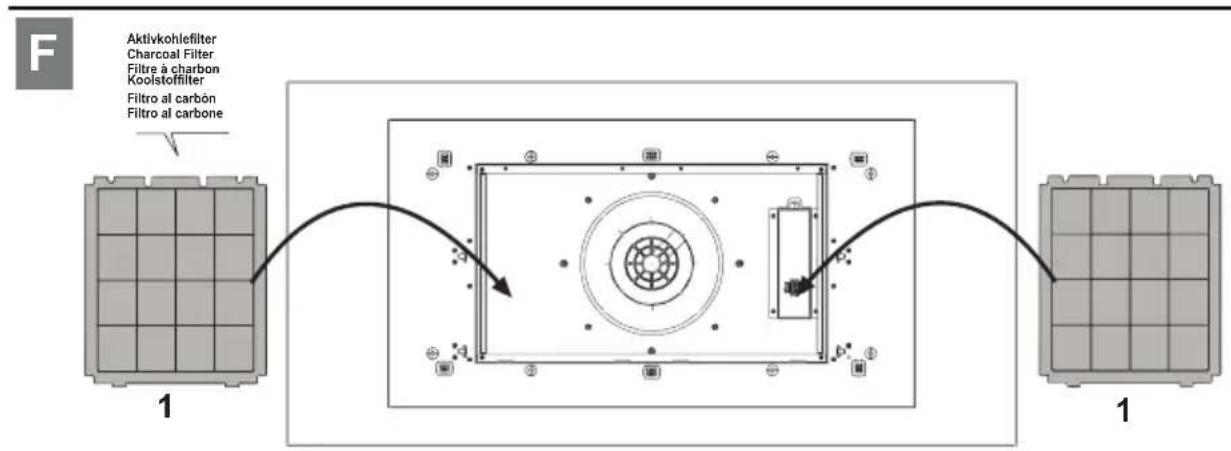

Charcoal Filter - (only for filter version)

The active charcoal filters F are not washable nor regenerative. It should be changed every 6 months in normal use. The active charcoal filters capture unpleasant cooking odours.

Led Light

If the lighting group LED does not work, please contact the technical service center in order to replace the whole group.

Reducing environmental impact:

To reduce energy consumption, we recommend you always use the lowest suction speed among those suitable for the cooking mode currently active, avoid leaving the appliance running for more than 15 minutes after burner shutdown and switch off the lights if you leave the cooking area.

Warning

Button T4: On/Off light (LED bar).

EN Always wear work gloves for all installation and maintenance operations.

Model:

SINERGIA FL EASY UP

RAFFAELLO FL EASY UP

G, F, A

Model:

SINERGIA EASY UP

RAFFAELLO EASY UP

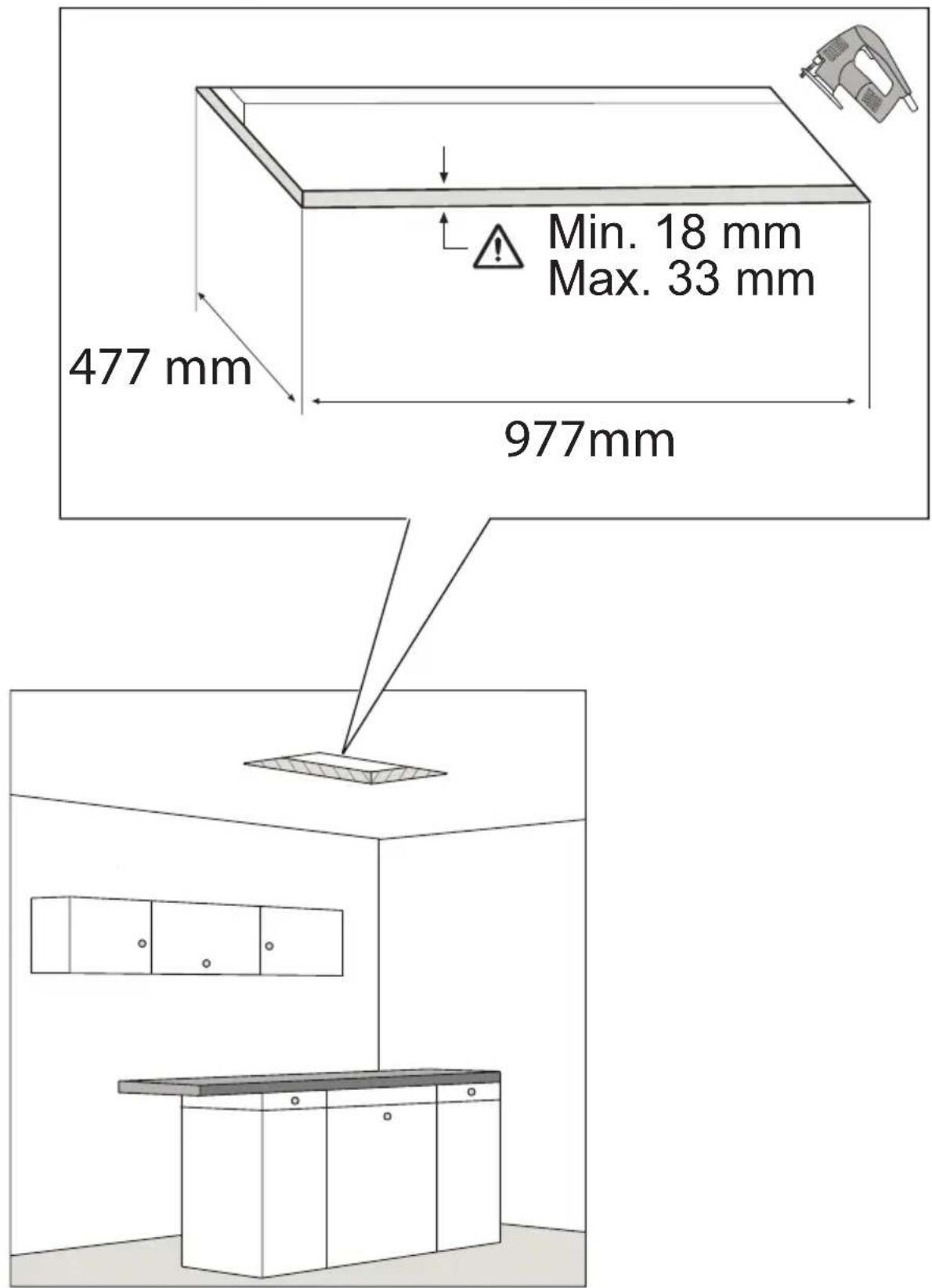

477 mm, Min. 18 mm, Max. 33 mm, 977 mm

Model:

SINERGIA FL EASY UP

RAFFAELLO FL EASY UP

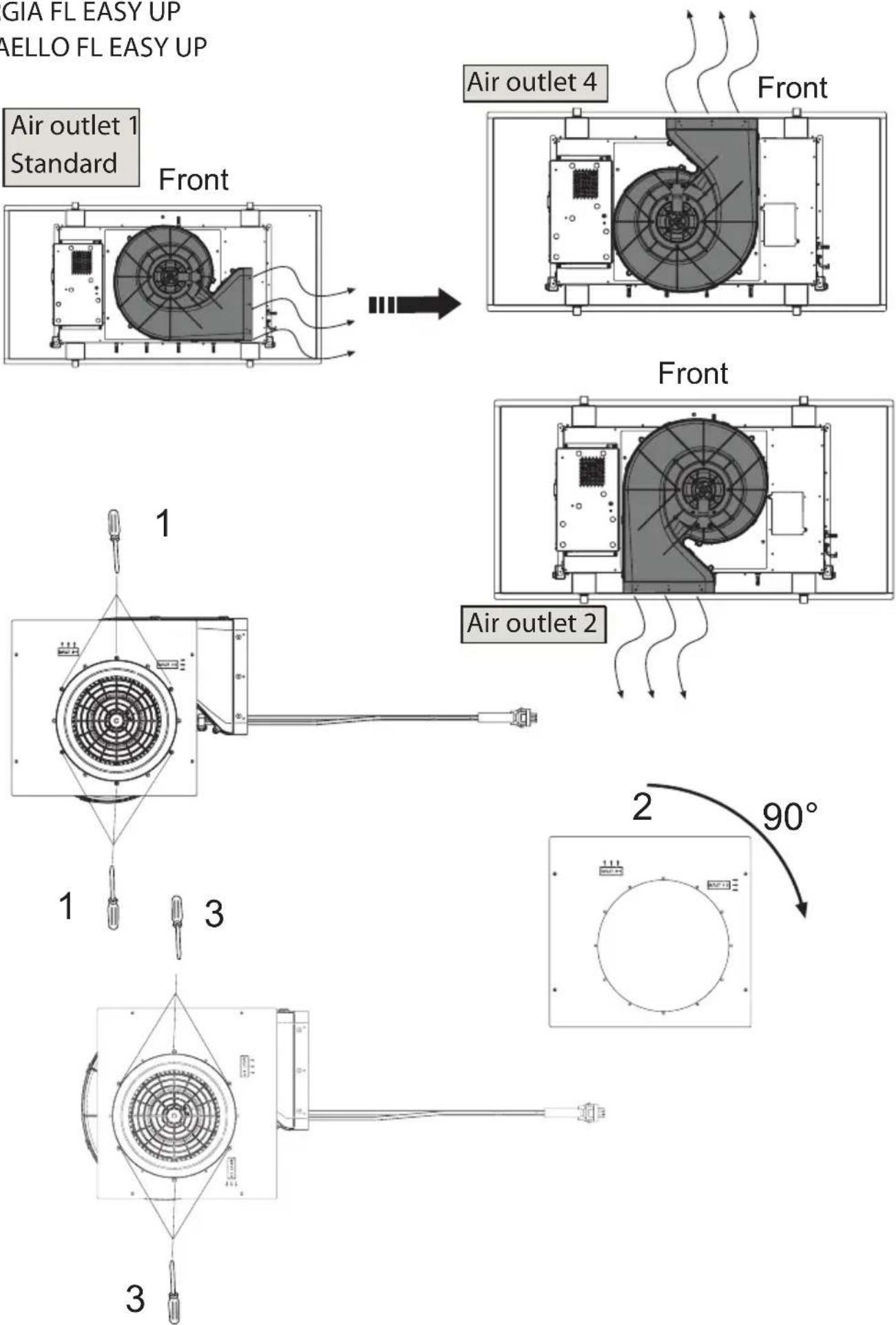

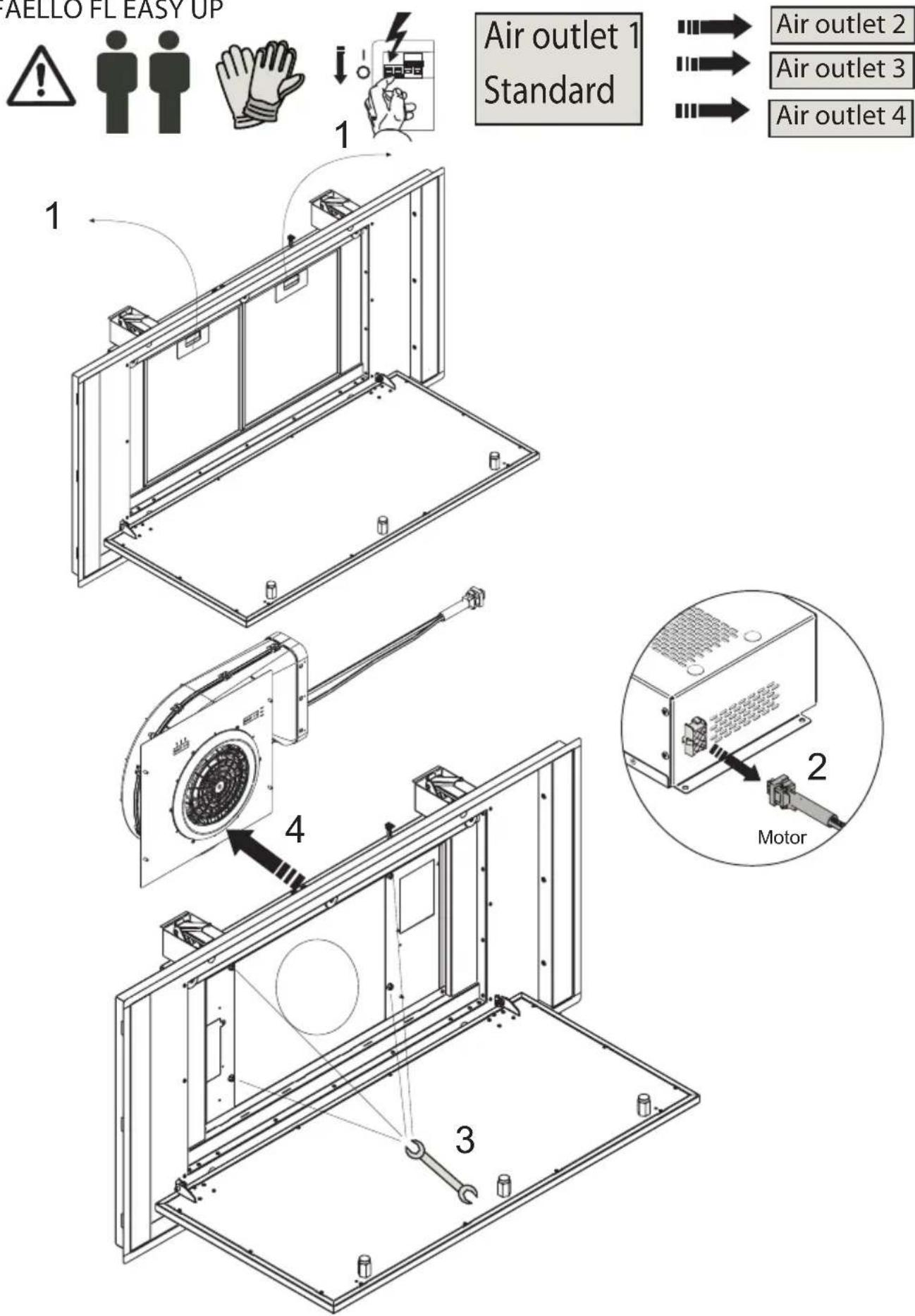

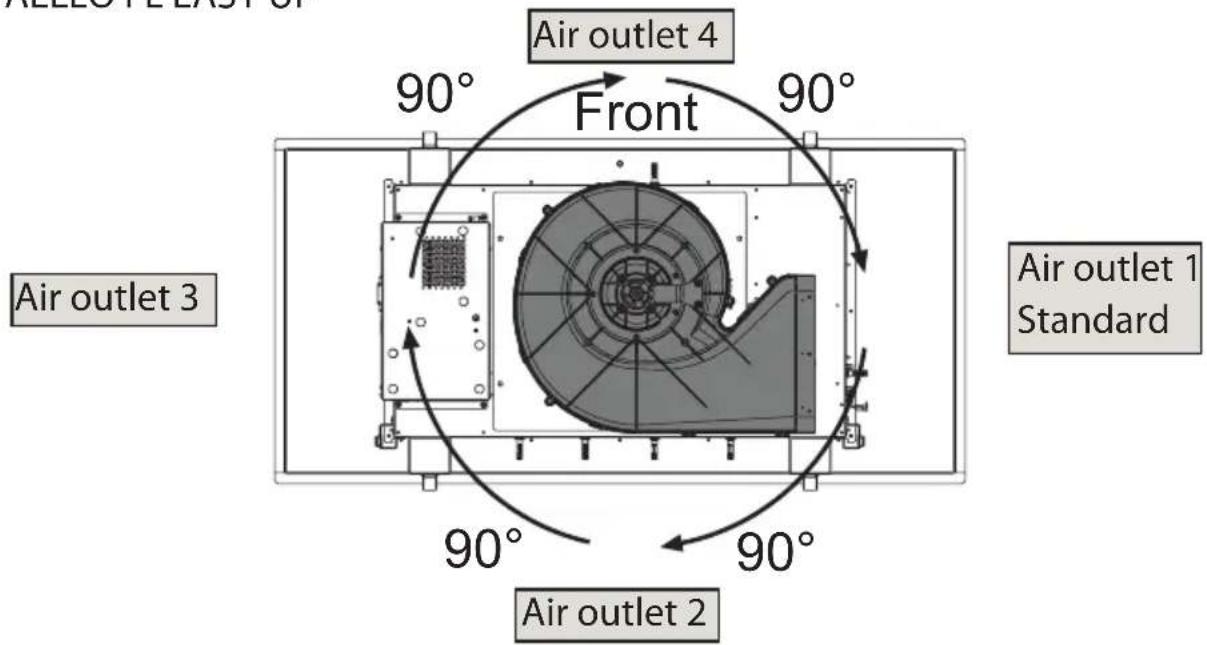

ALLEOATELAST OF, Air outlet 4, 90°, Front, 90°, Air outlet 3, Air outlet 1, Standard, 90°, Air outlet 2, 90°

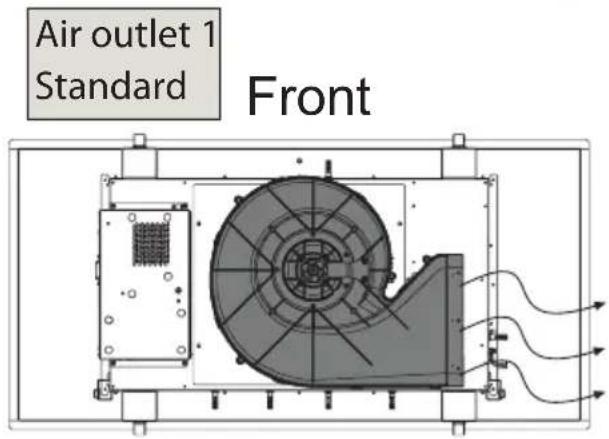

Air outlet 1, Standard Front

Air outlet 2, Front

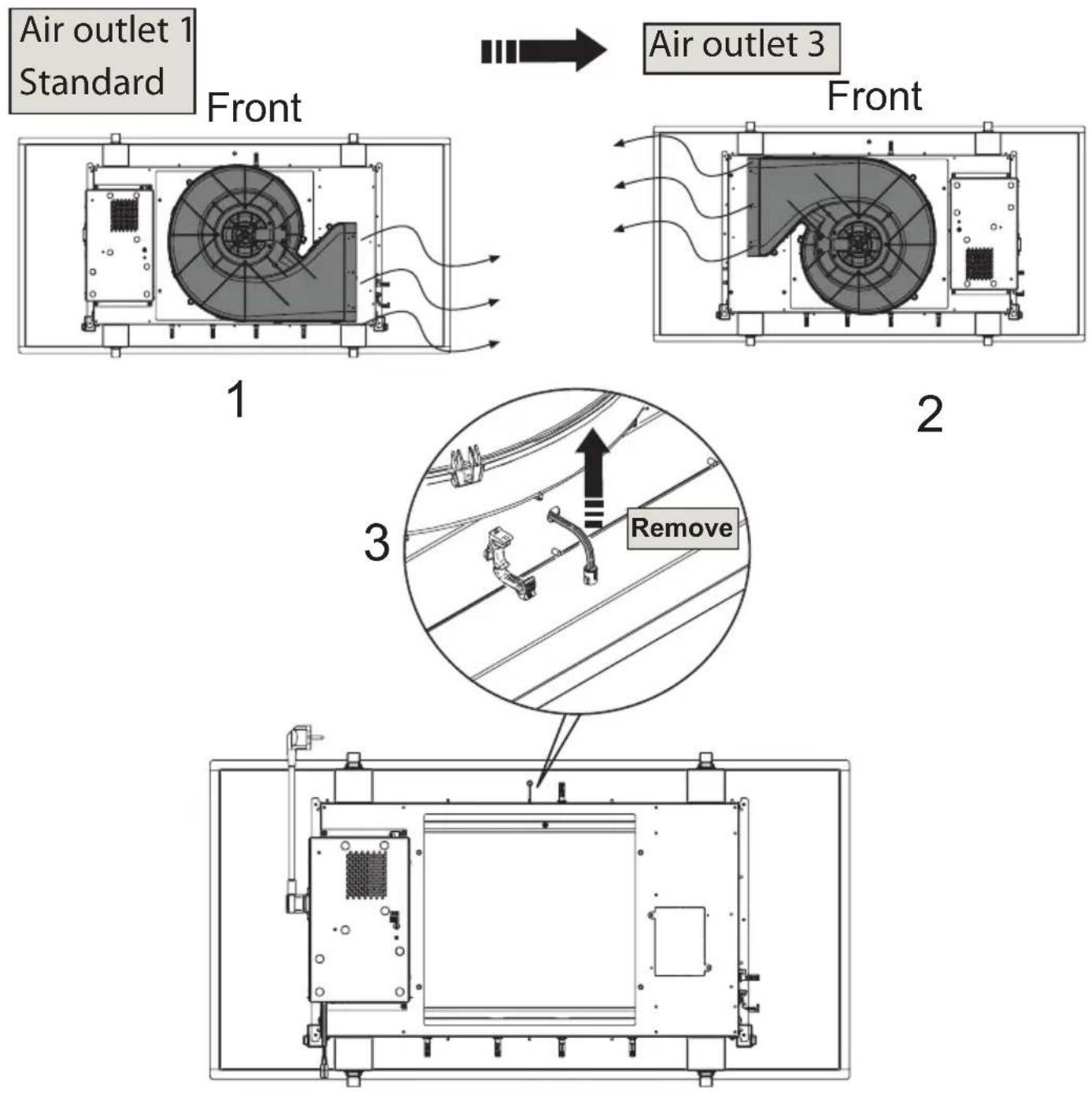

Air outlet 3 Front

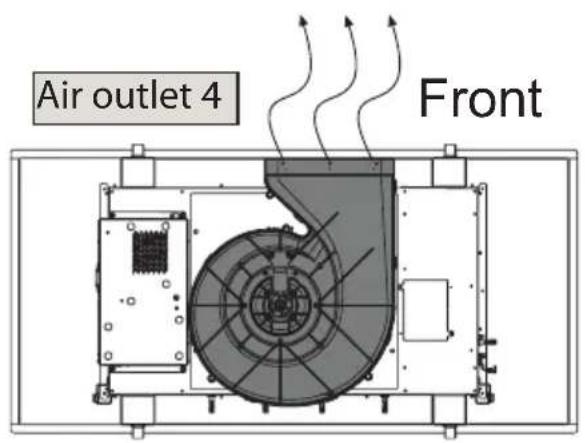

Air outlet 4 Front

Model:

SINERGIA FL EASY UP

RAFFAELLO FL EASY UP

AELLO FL EASY UP Air outlet 1 Standard Air outlet 2 Air outlet 3 Air outlet 4 1 2 Motor 3 4

Model:

SINERGIA FL EASY UP

RAFFAELLO FL EASY UP

Airforce Sinergia Easy Up - Warning - 9

Model:

SINERGIA FL EASY UP

RAFFAELLO FL EASY UP

Airforce Sinergia Easy Up - Warning - 10

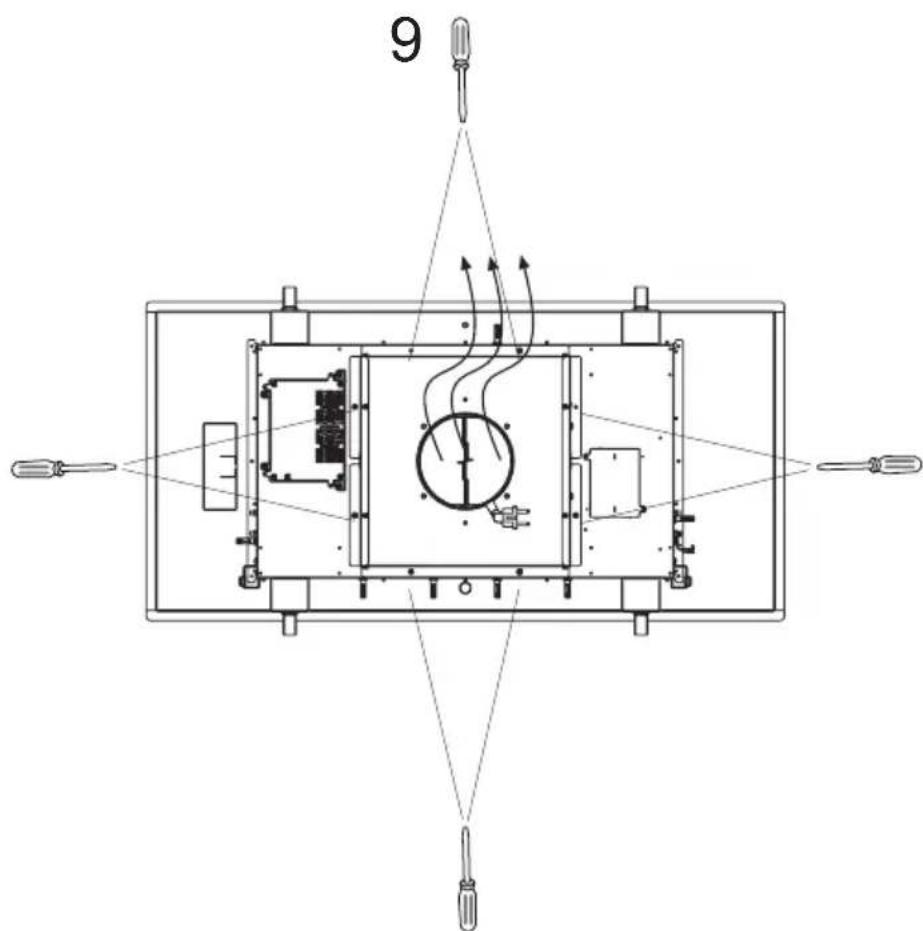

Model:

SINERGIA FL EASY UP

RAFFAELLO FL EASY UP

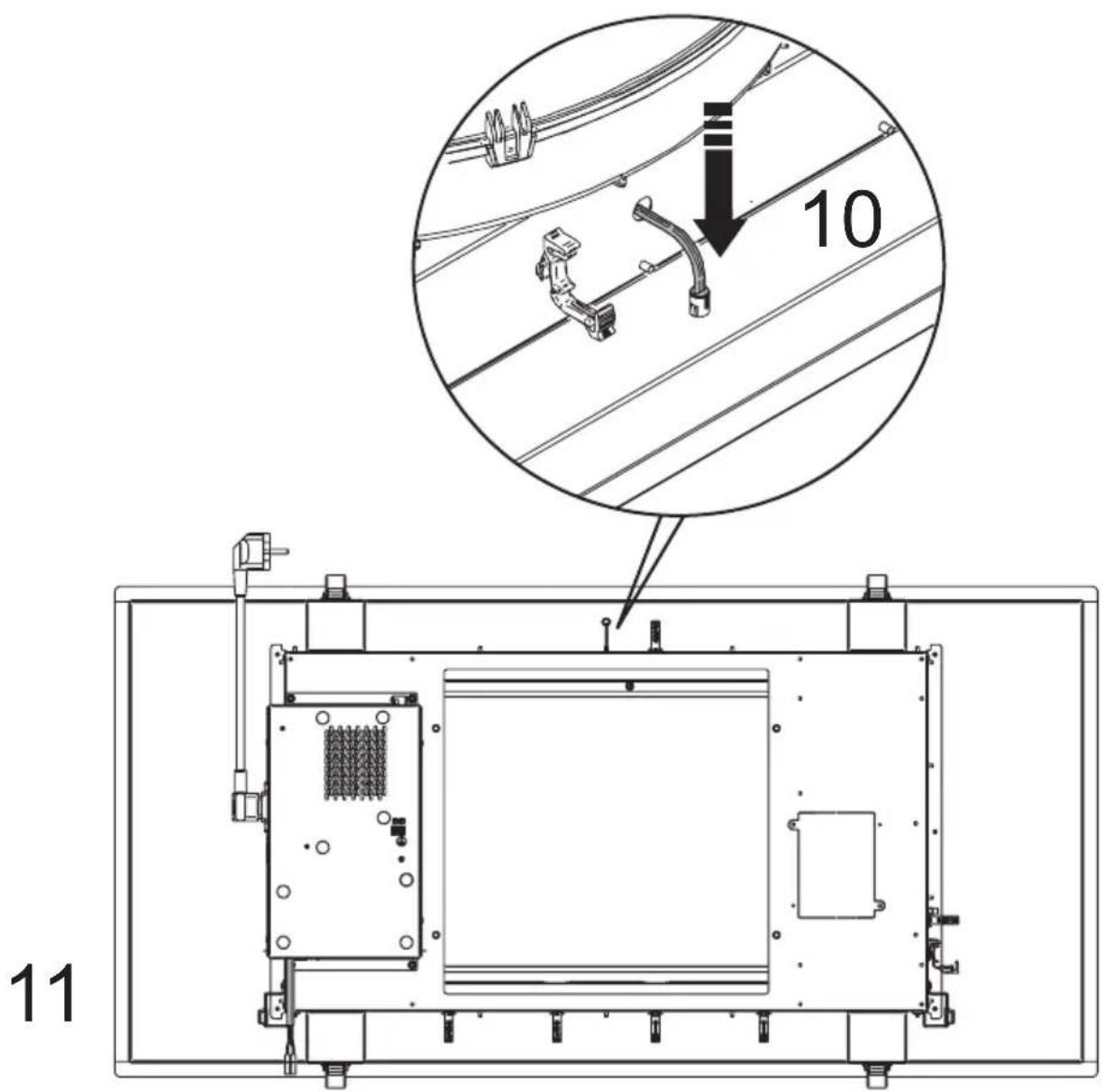

10 11

Model:

SINERGIA FL EASY UP

RAFFAELLO FL EASY UP

Airforce Sinergia Easy Up - Warning - 12

Model:

SINERGIA FL EASY UP

RAFFAELLO FL EASY UP

Airforce Sinergia Easy Up - Warning - 13

Model:

SINERGIA FL EASY UP

RAFFAELLO FL EASY UP

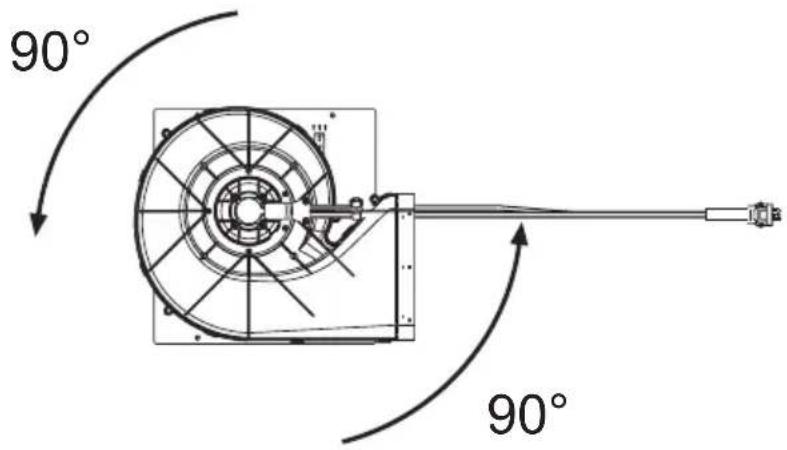

Technical line drawing of a mechanical device with central hub and circular components (no text or symbols)

90° 90°

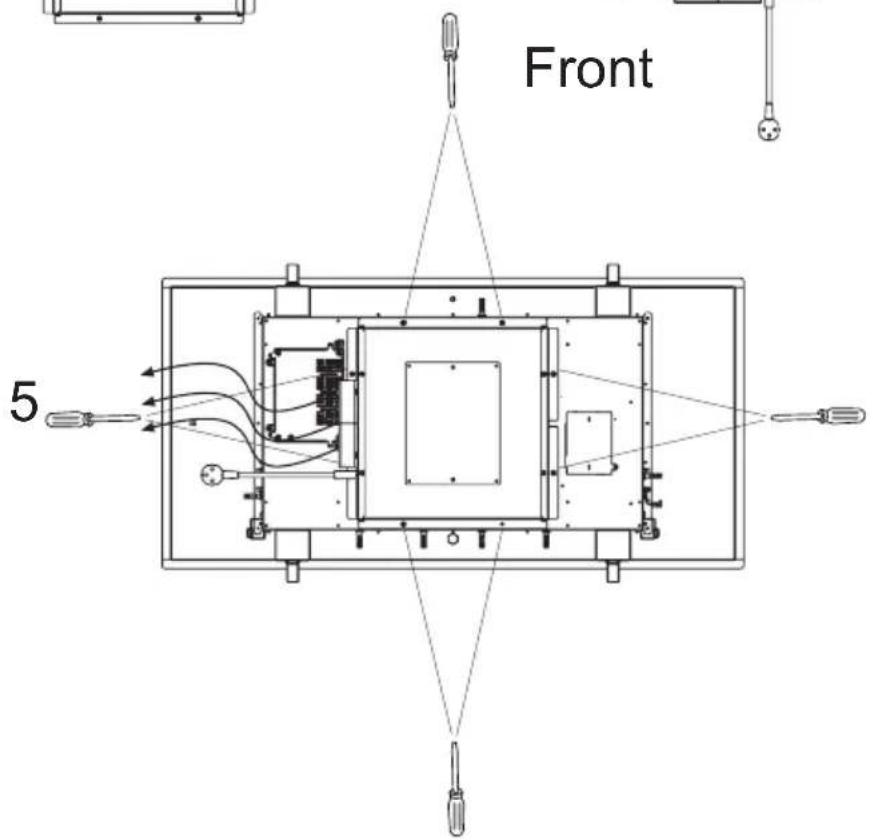

Air outlet 4 Front

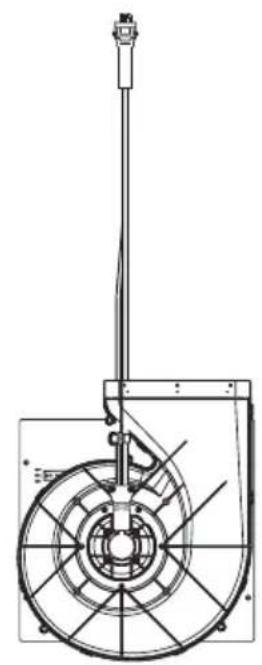

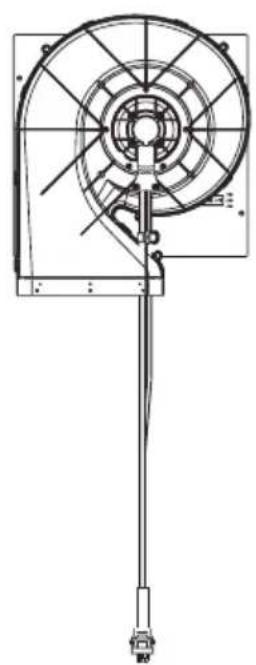

Technical line drawing of a mechanical fan or pump assembly with no visible text or symbols

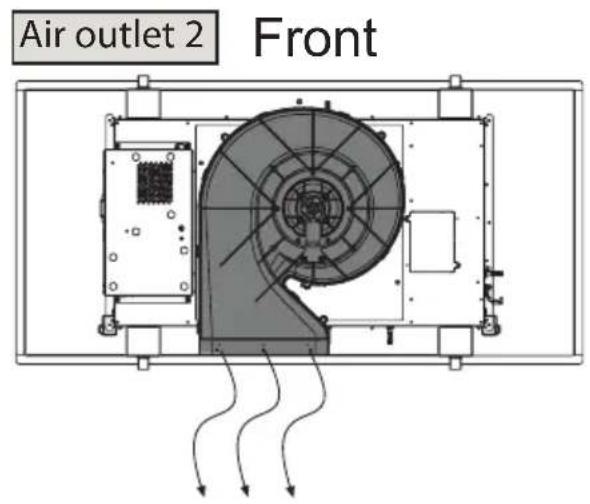

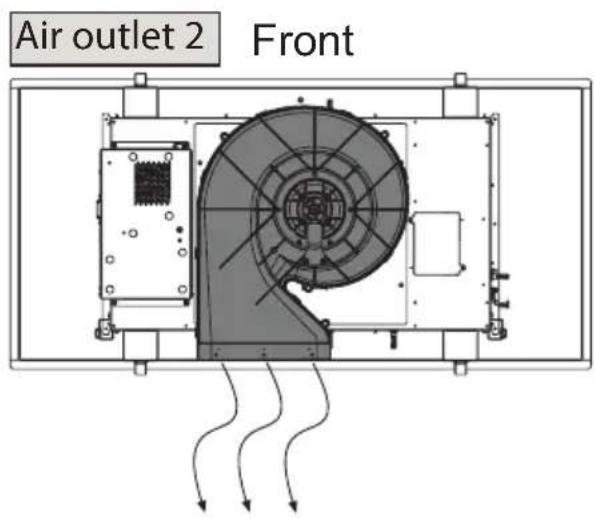

Air outlet 2 Front

Model:

SINERGIA FL EASY UP

RAFFAELLO FL EASY UP

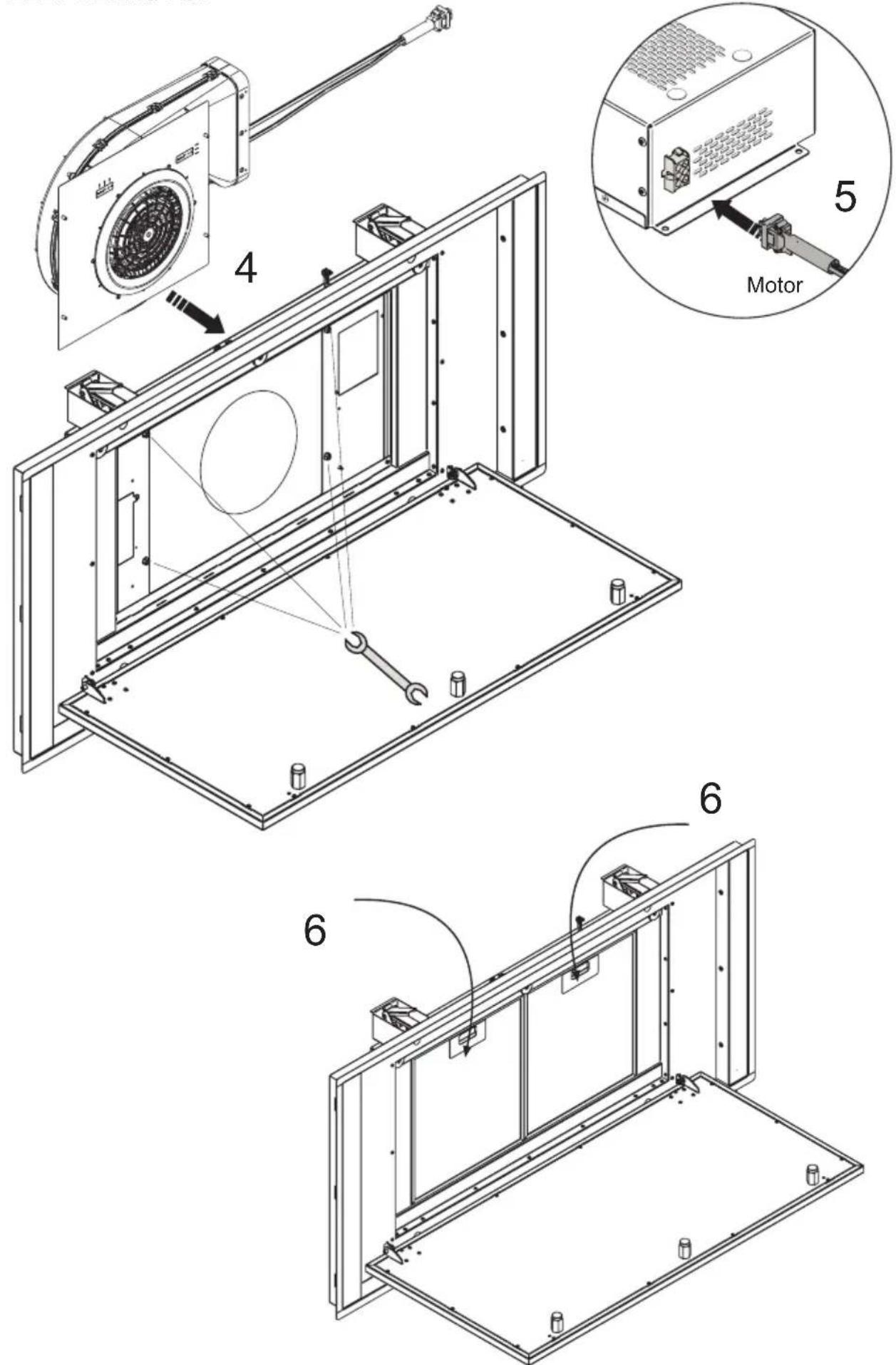

Airforce Sinergia Easy Up - Warning - 19

Model:

SINERGIA FL EASY UP

RAFFAELLO FL EASY UP

Airforce Sinergia Easy Up - Warning - 20

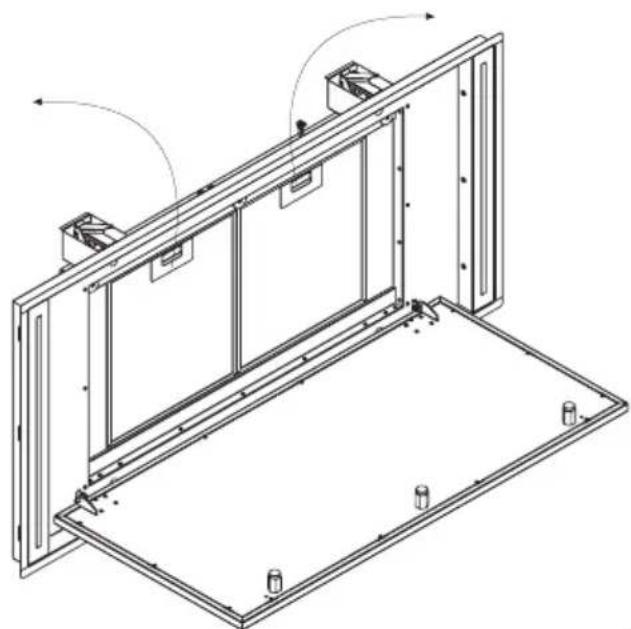

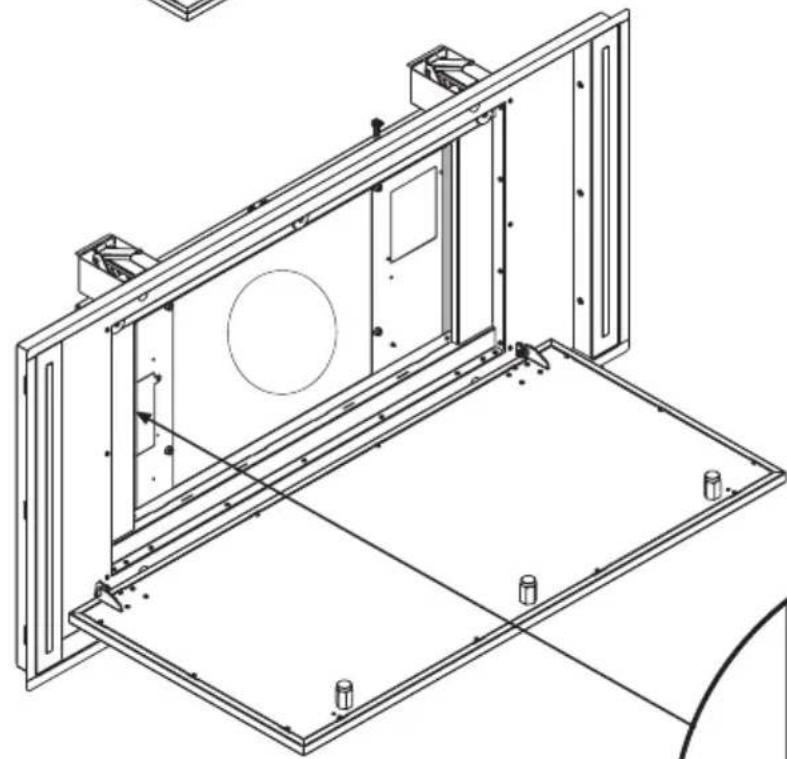

Isometric technical line drawing of a structural frame with internal components and directional arrows (no text or symbols)

Technical line drawing of a mechanical assembly with mounting brackets and internal components (no text or symbols)

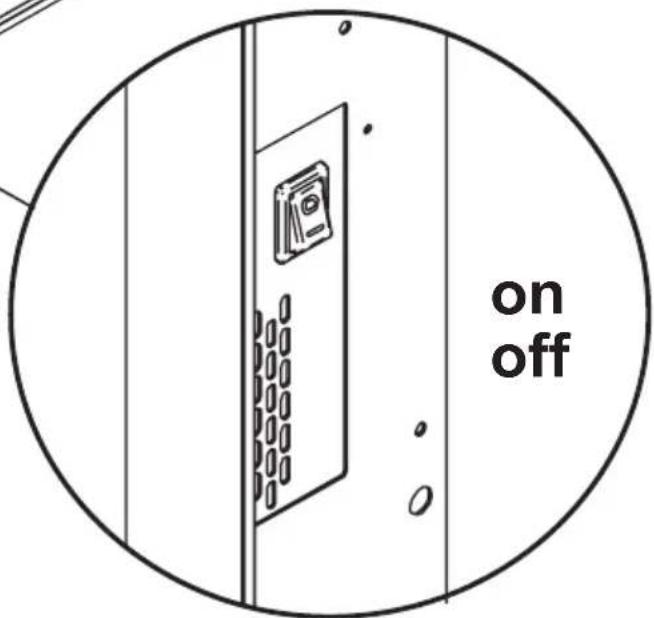

on off

Model:

SINERGIA EASY UP

RAFFAELLO EASY UP

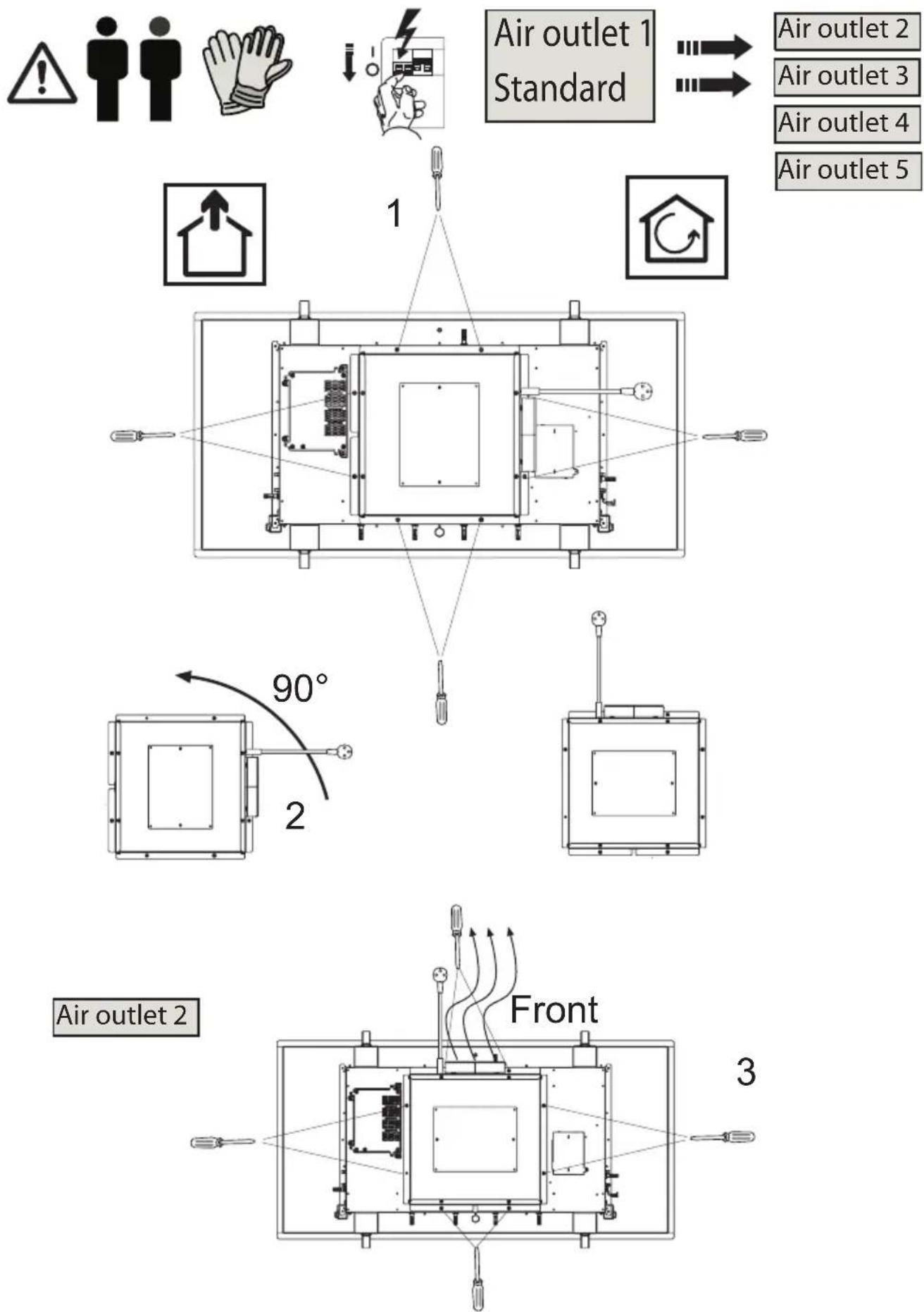

Airforce Sinergia Easy Up - Warning - 24

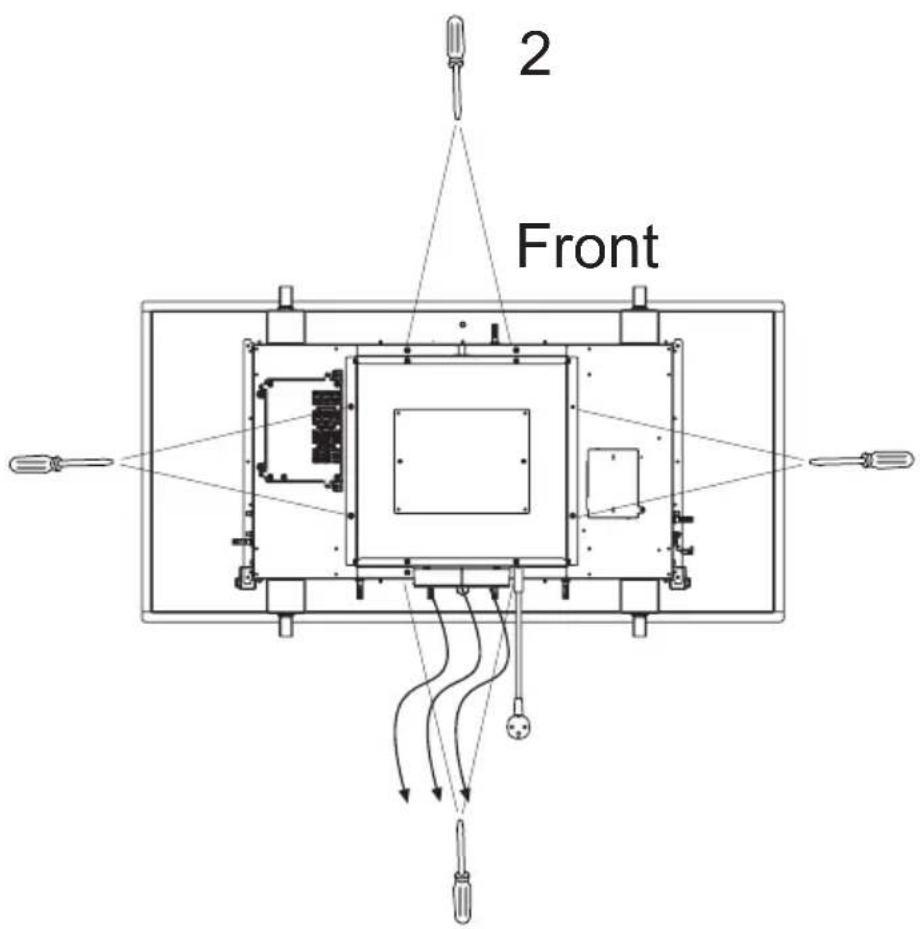

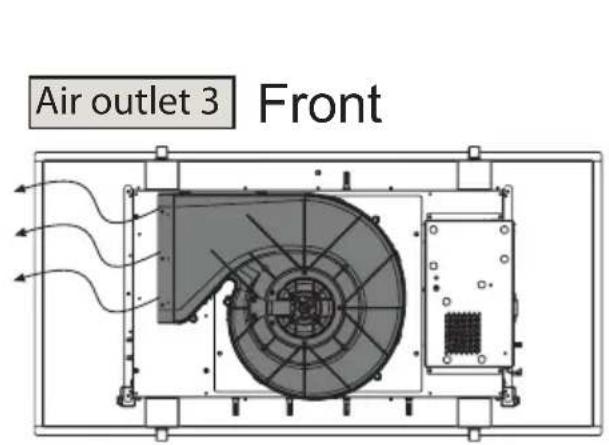

Air outlet 3

Model:

SINERGIA EASY UP

RAFFAELLO EASY UP

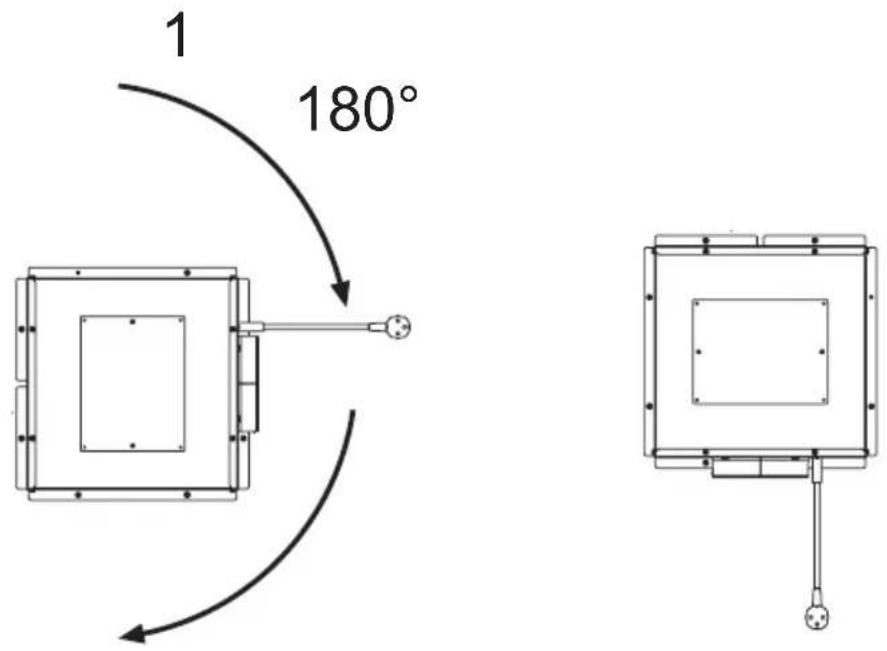

Airforce Sinergia Easy Up - Air outlet 3 - 1

2 Front

Model:

SINERGIA EASY UP

RAFFAELLO EASY UP

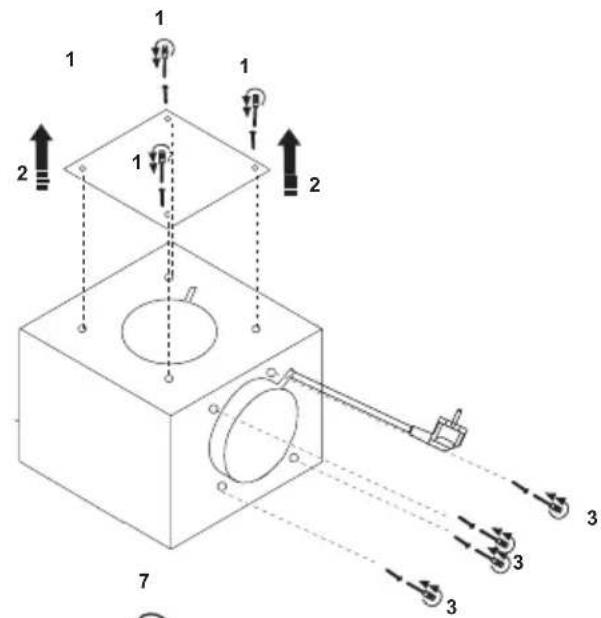

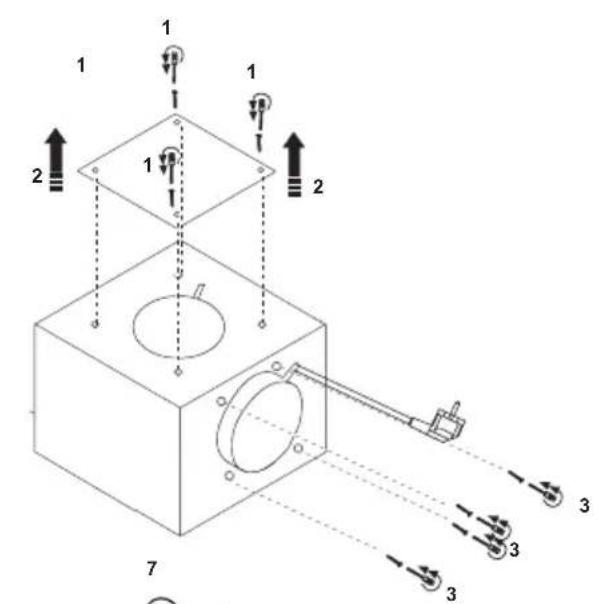

Air outlet 4

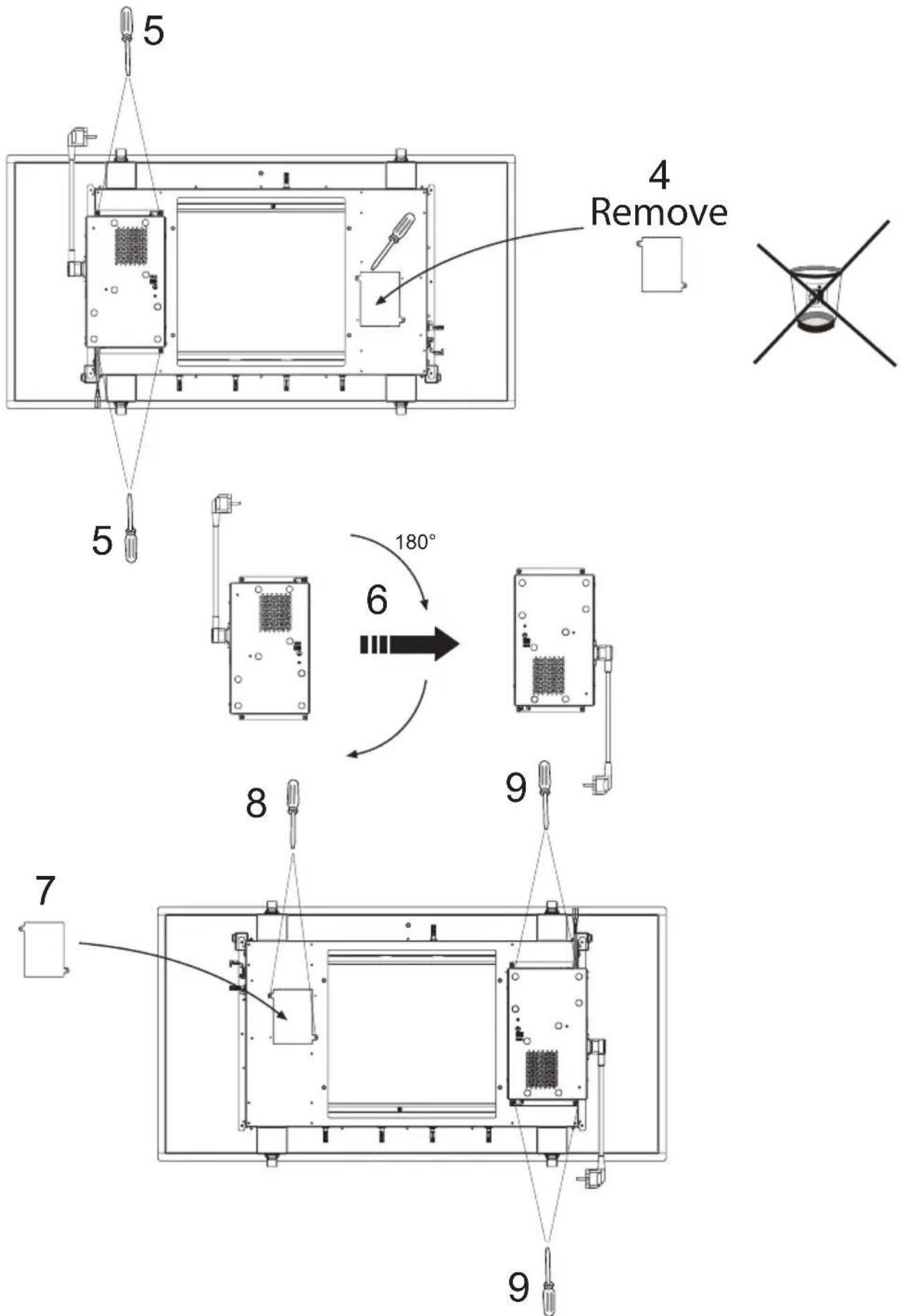

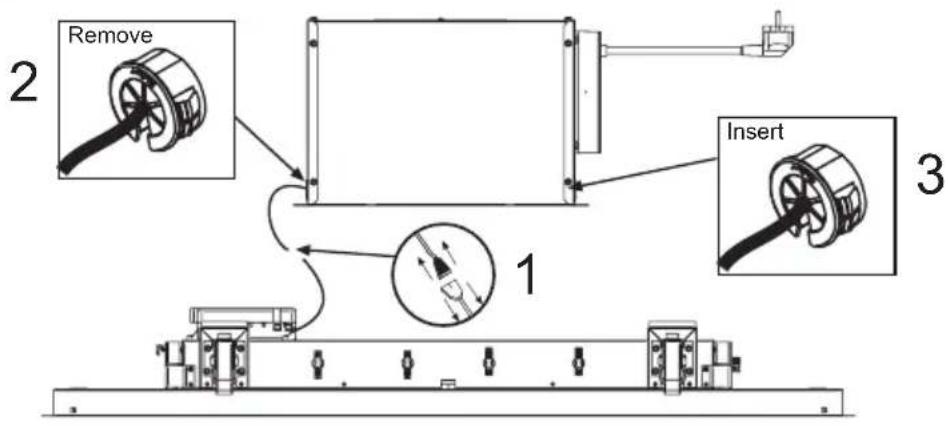

Remove 1 Insert 2 3

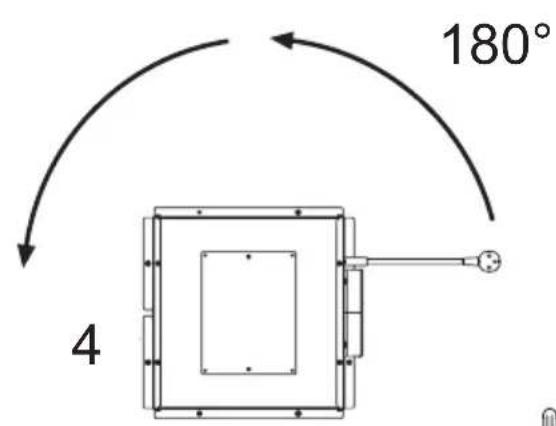

180° 4

Pure technical line drawing of a mechanical component without any text, numbers, or symbols.

Front 5

Model:

SINERGIA EASY UP

RAFFAELLO EASY UP

Air outlet 5

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or force directions.

Technical diagram showing a mechanical assembly with labeled components and directional arrows indicating flow or movement.

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or force directions.

Model:

SINERGIA EASY UP

RAFFAELLO EASY UP

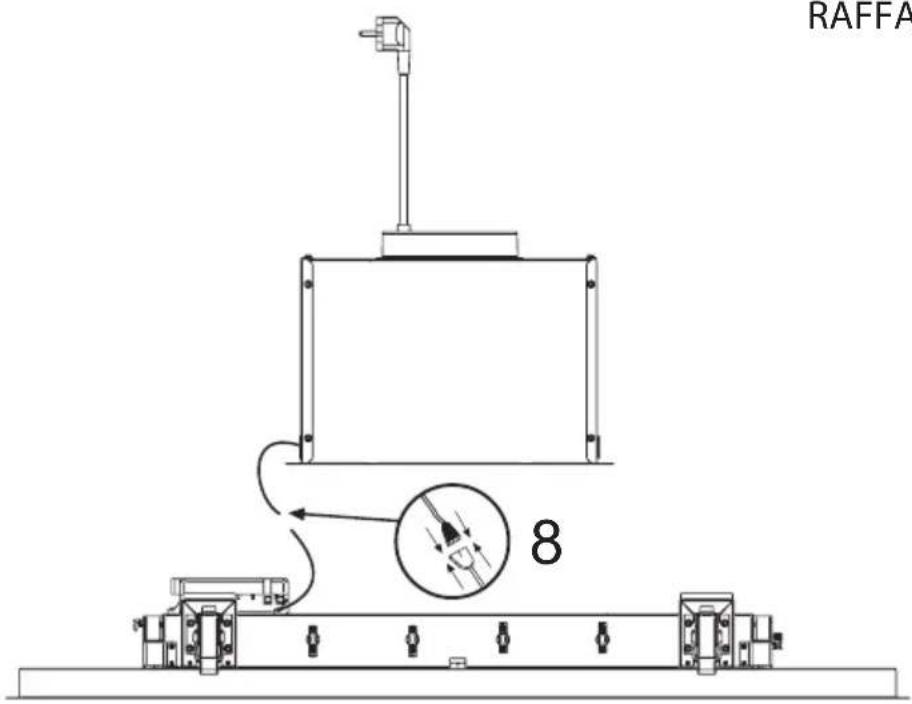

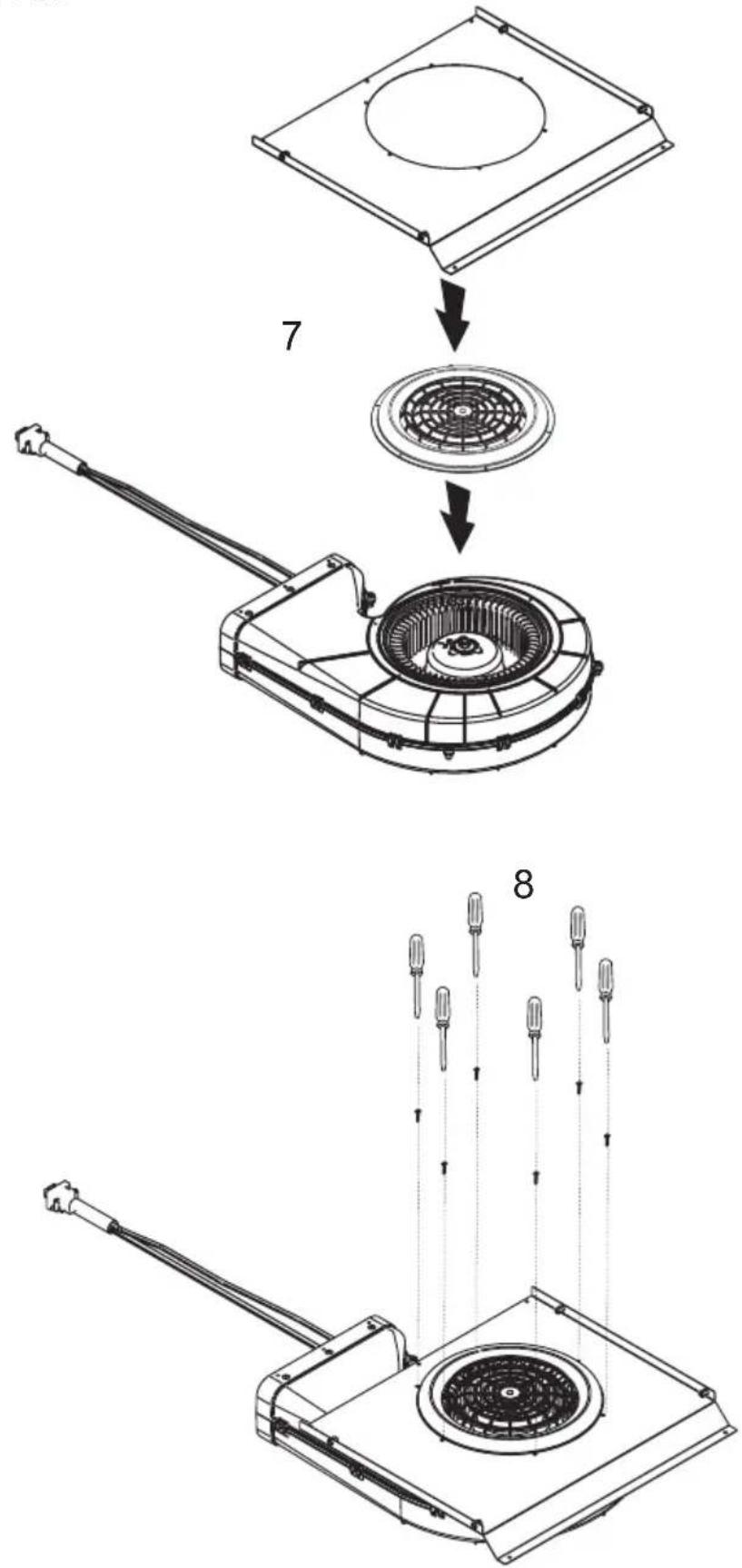

RAFFA 8

Model:

SINERGIA FL EASY UP

RAFFAELLO FL EASY UP

Model:

SINERGIA EASY UP

RAFFAELLO EASY UP

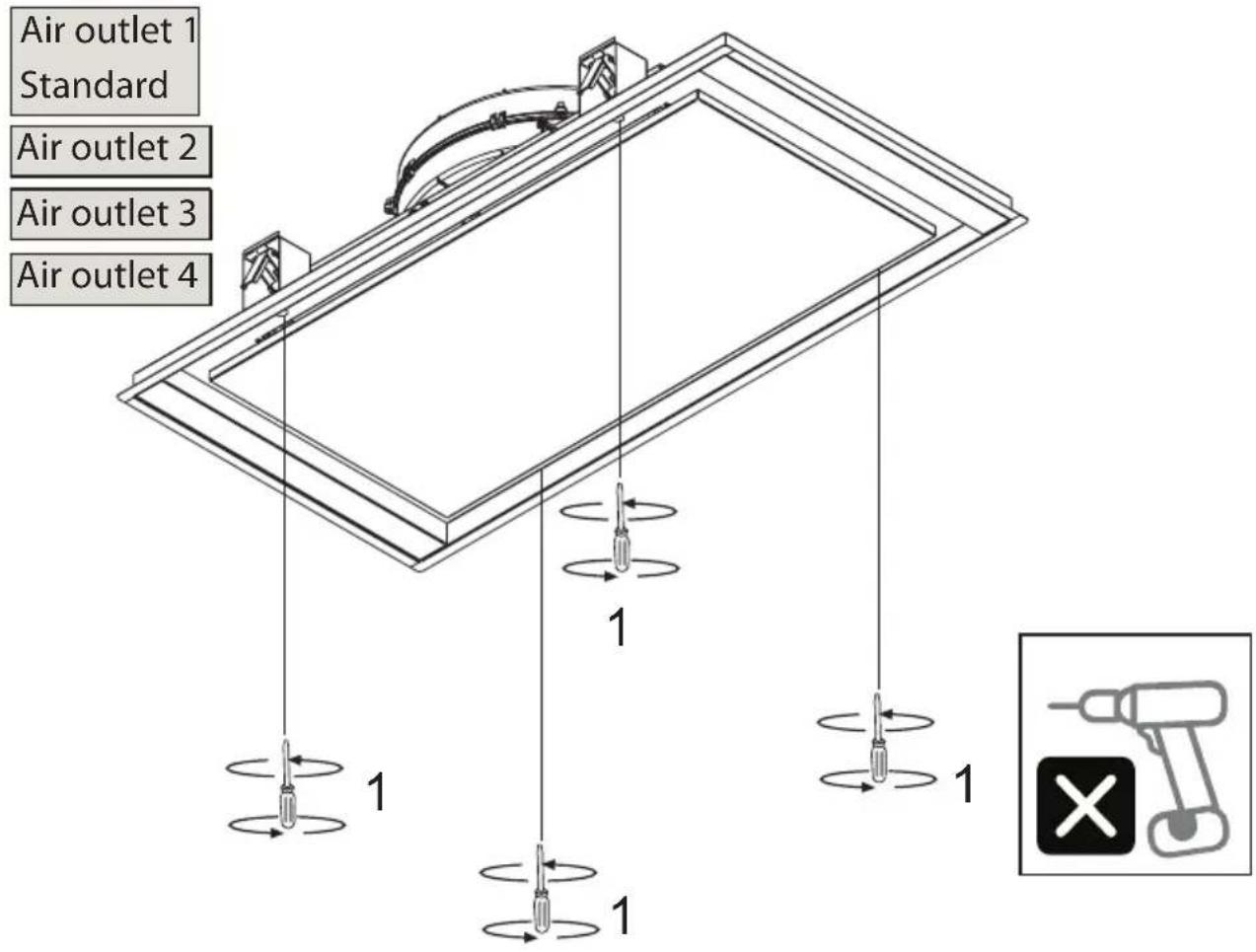

Air outlet 1 Standard Air outlet 2 Air outlet 3 Air outlet 4 1 1 1 1

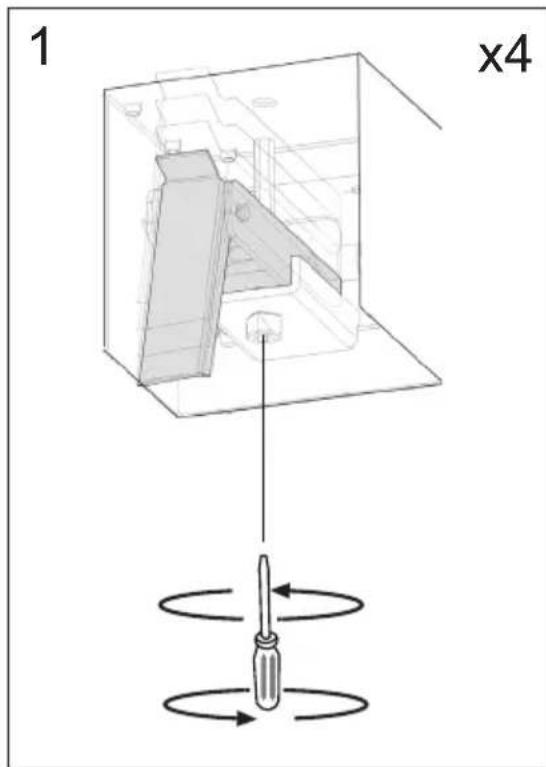

1 x4

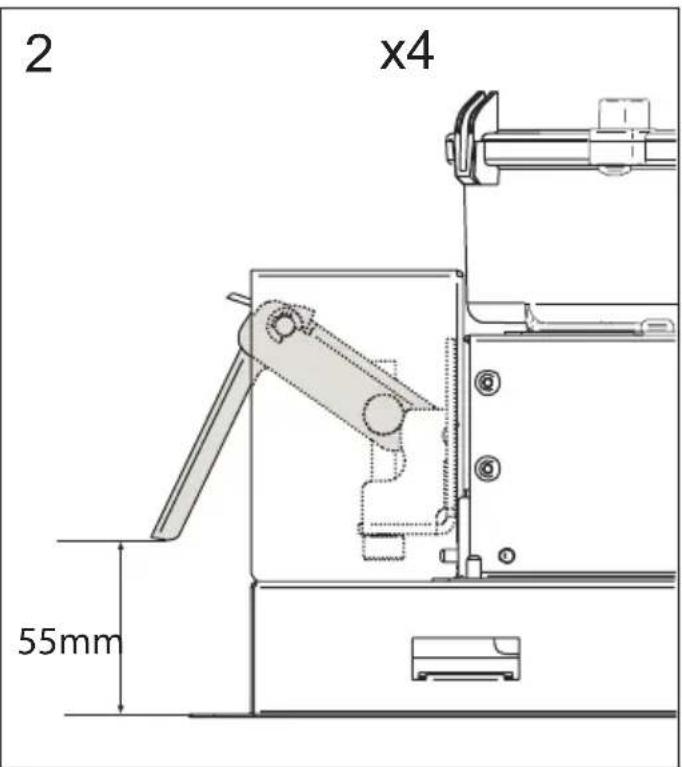

2 x4 55mm

Model:

SINERGIA FL EASY UP

RAFFAELLO FL EASY UP

Airforce Sinergia Easy Up - Air outlet 4 - 14

Model:

SINERGIA EASY UP

RAFFAELLO EASY UP

Airforce Sinergia Easy Up - Air outlet 4 - 15

Model:

SINERGIA FL EASY UP

RAFFAELLO FL EASY UP

Model:

SINERGIA EASY UP

RAFFAELLO EASY UP

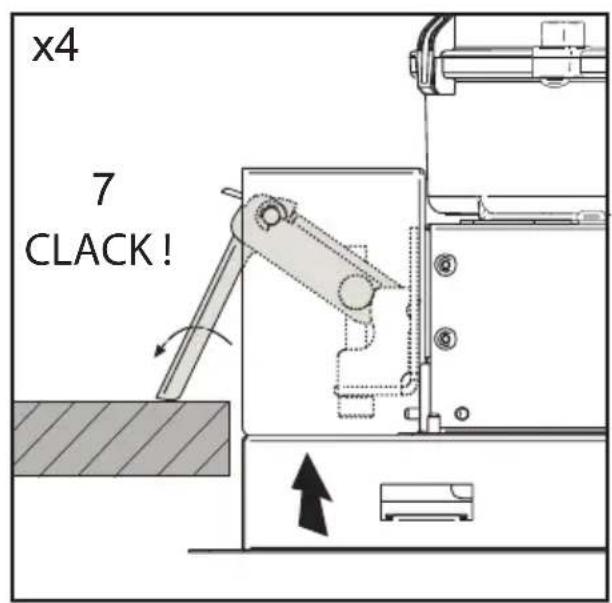

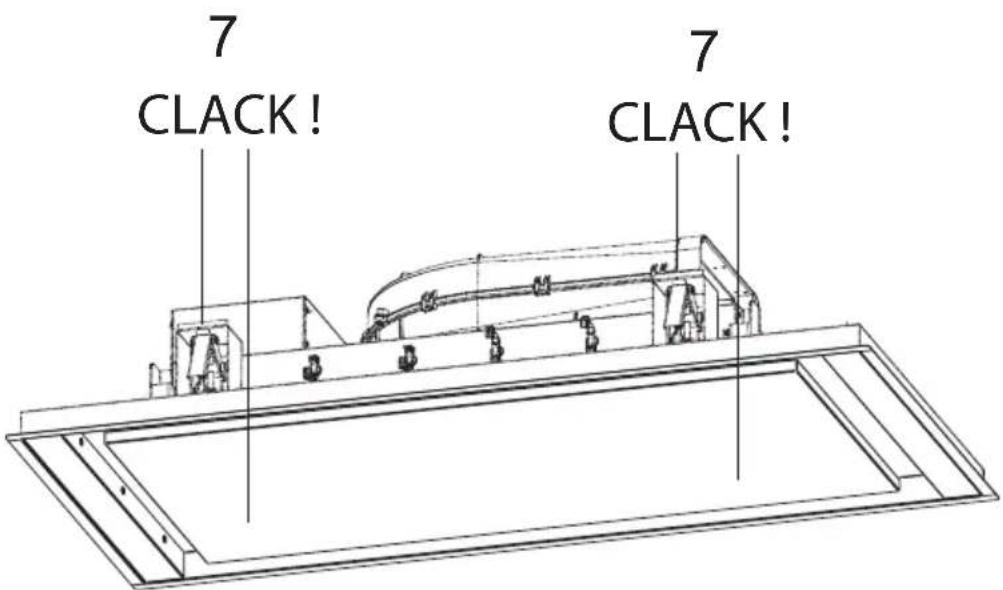

7 CLACK! 7 CLACK!

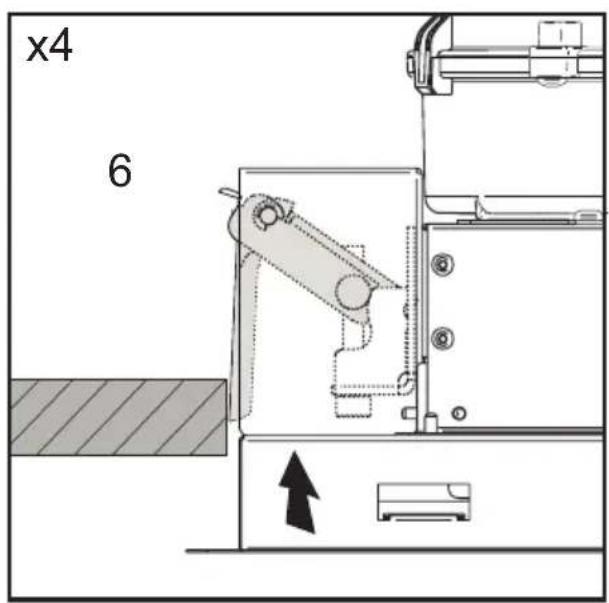

x4 6

x4 7 CLACK!

Model:

SINERGIA FL EASY UP

RAFFAELLO FL EASY UP

Model:

SINERGIA EASY UP

RAFFAELLO EASY UP

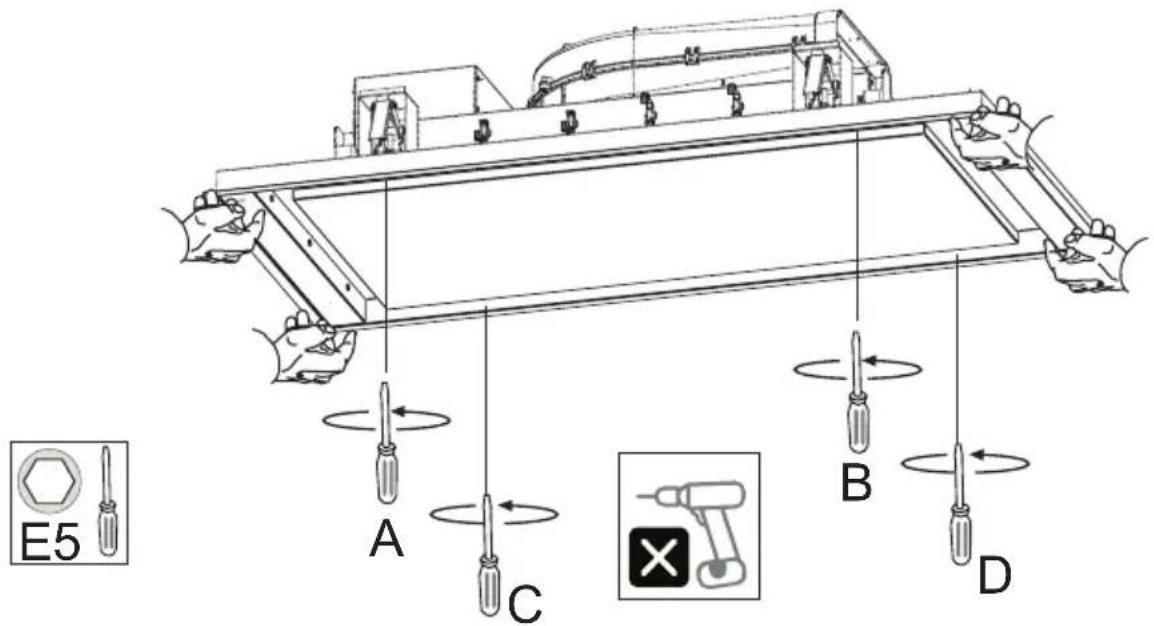

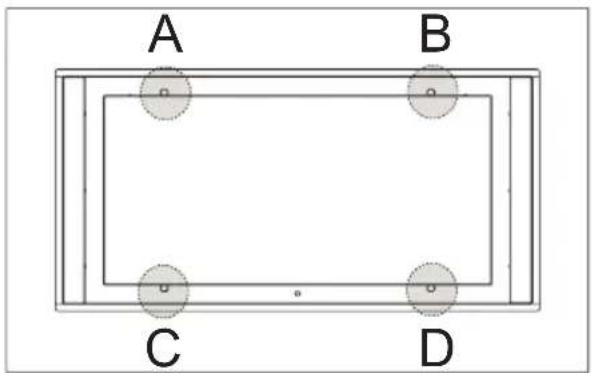

A B C D

E5 A B C D

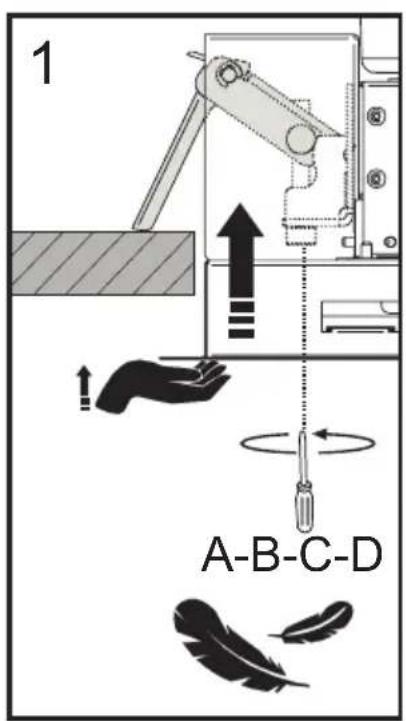

1 A-B-C-D

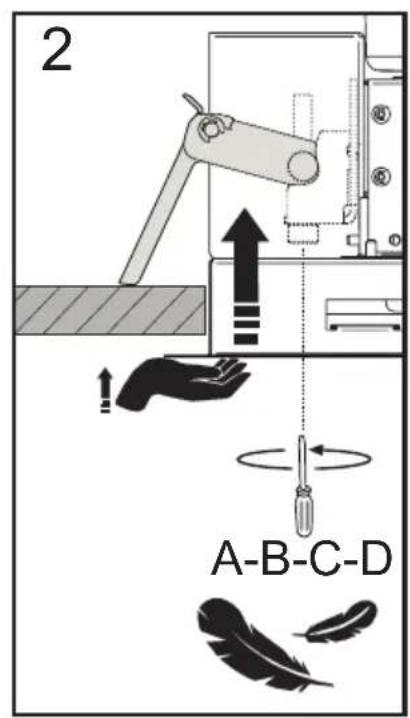

2 A-B-C-D

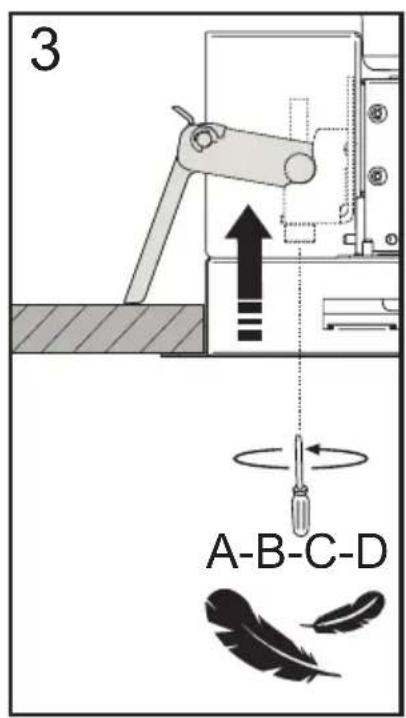

3 A-B-C-D

Model:

SINERGIA FL EASY UP

RAFFAELLO FL EASY UP

Model:

SINERGIA EASY UP

RAFFAELLO EASY UP

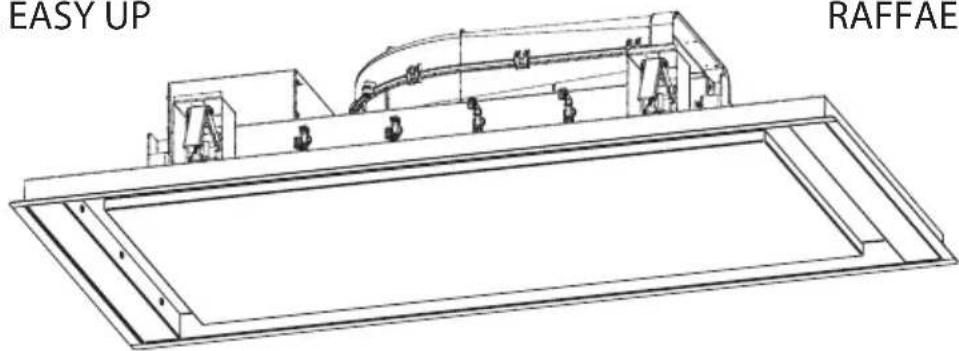

EASY UP RAFFAE

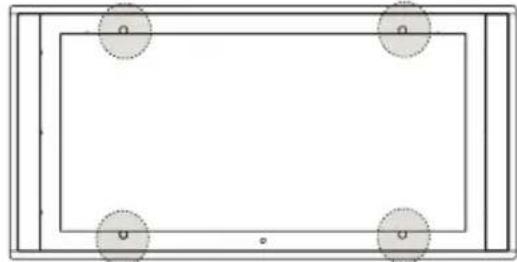

A B Simple geometric diagram with four circles at the corners of a rectangle (no text or symbols).

C D

Simple diagram showing a black arrow pointing upward from two circular shapes (no text or symbols).

A-B-C-D

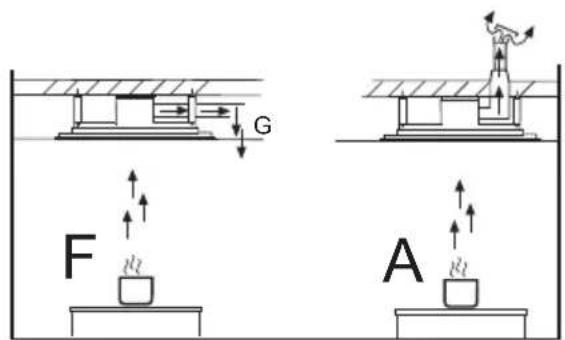

G F A

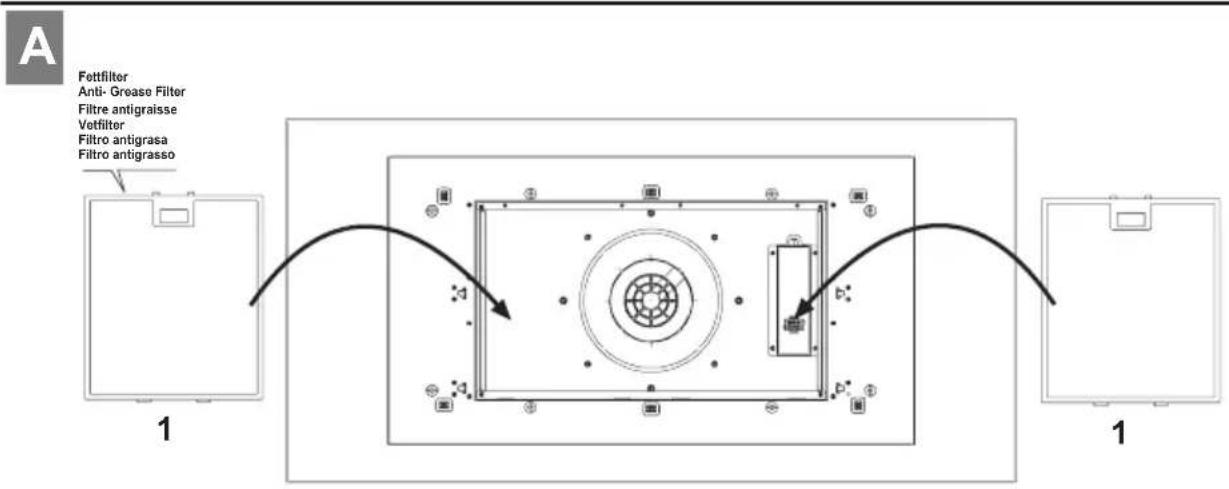

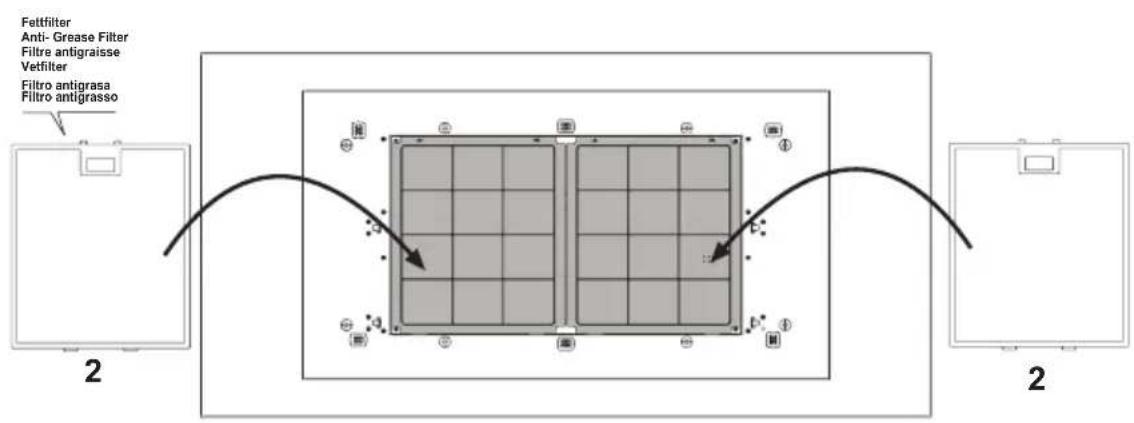

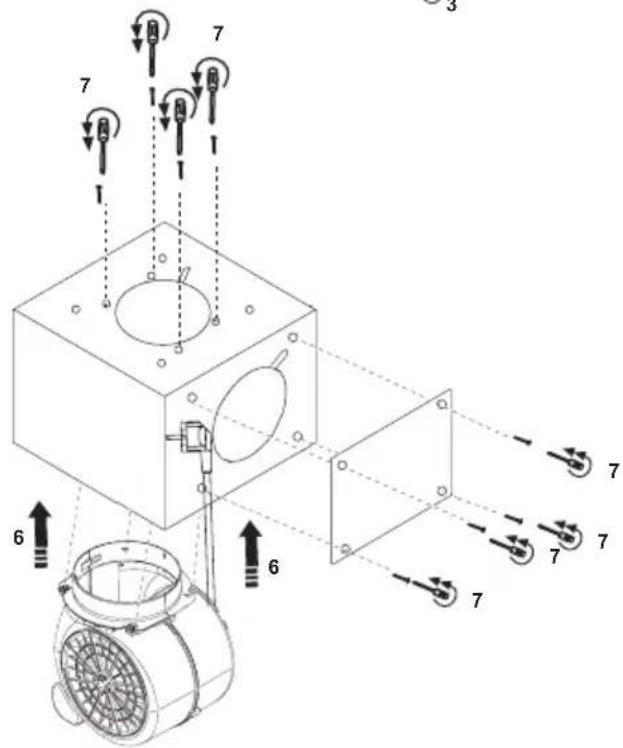

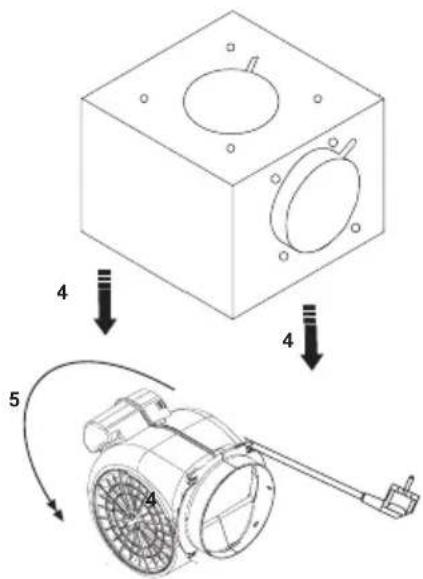

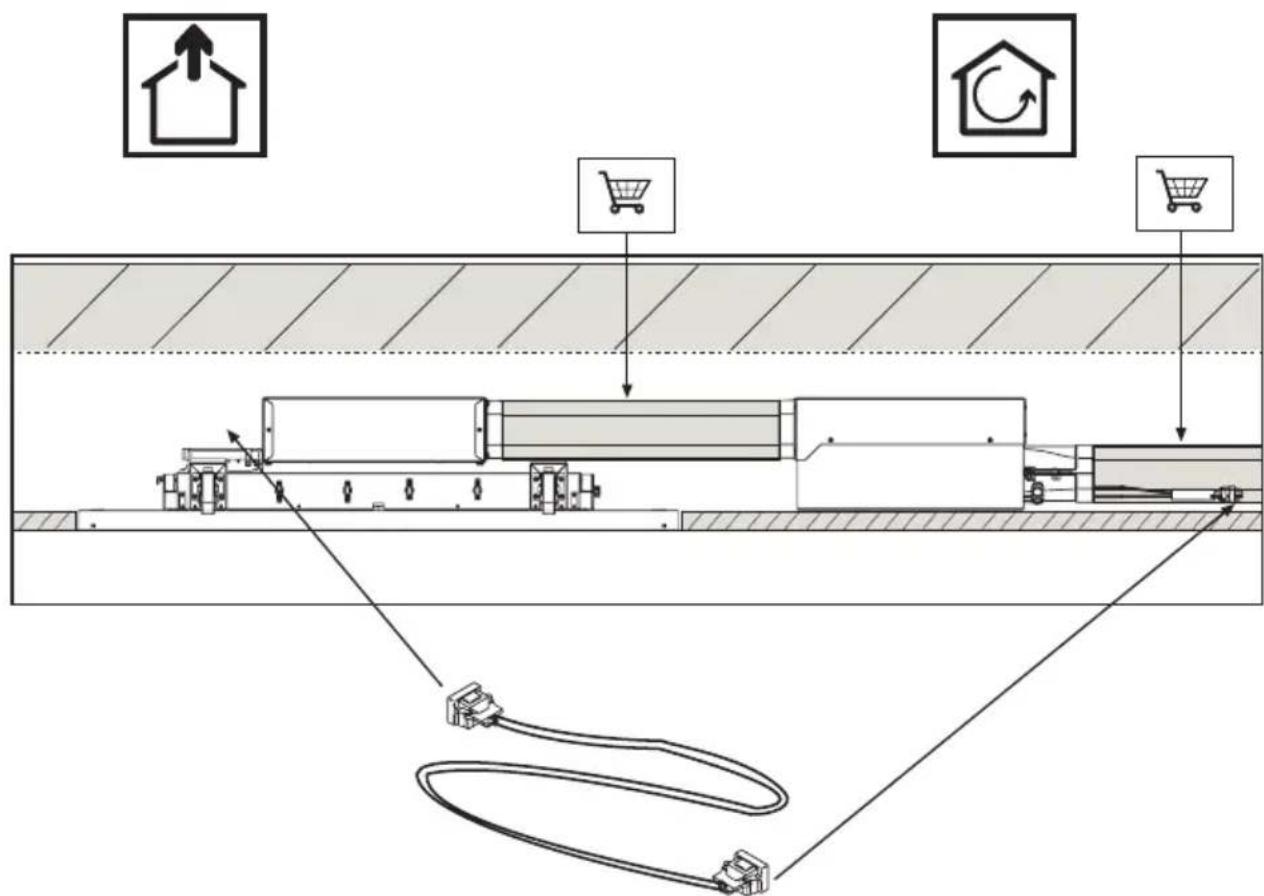

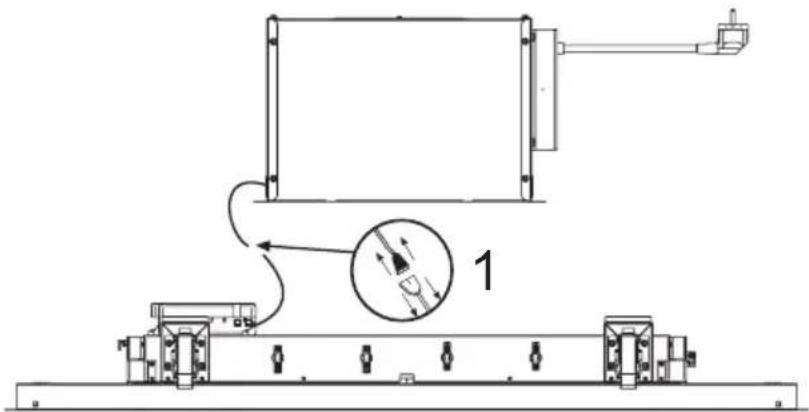

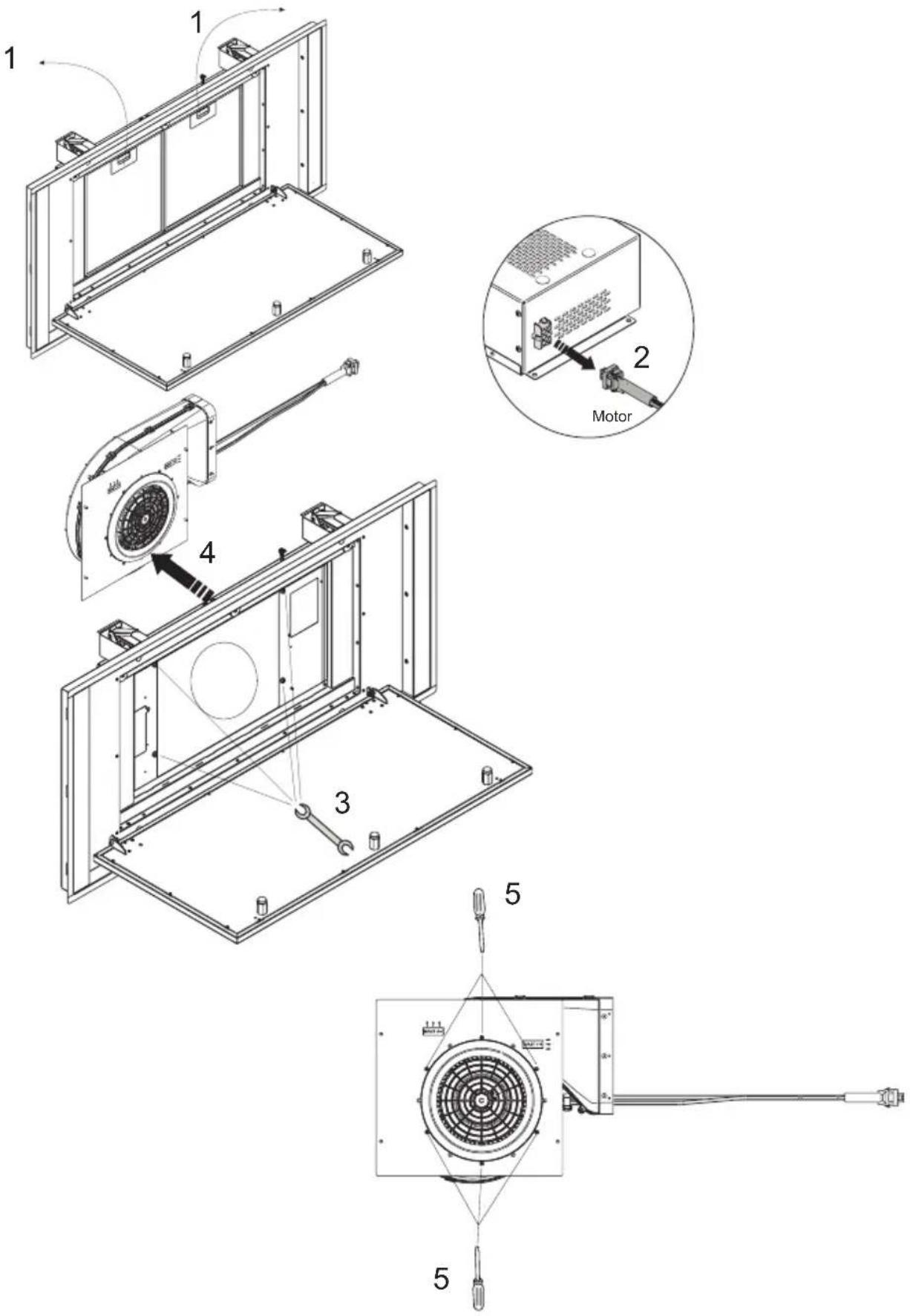

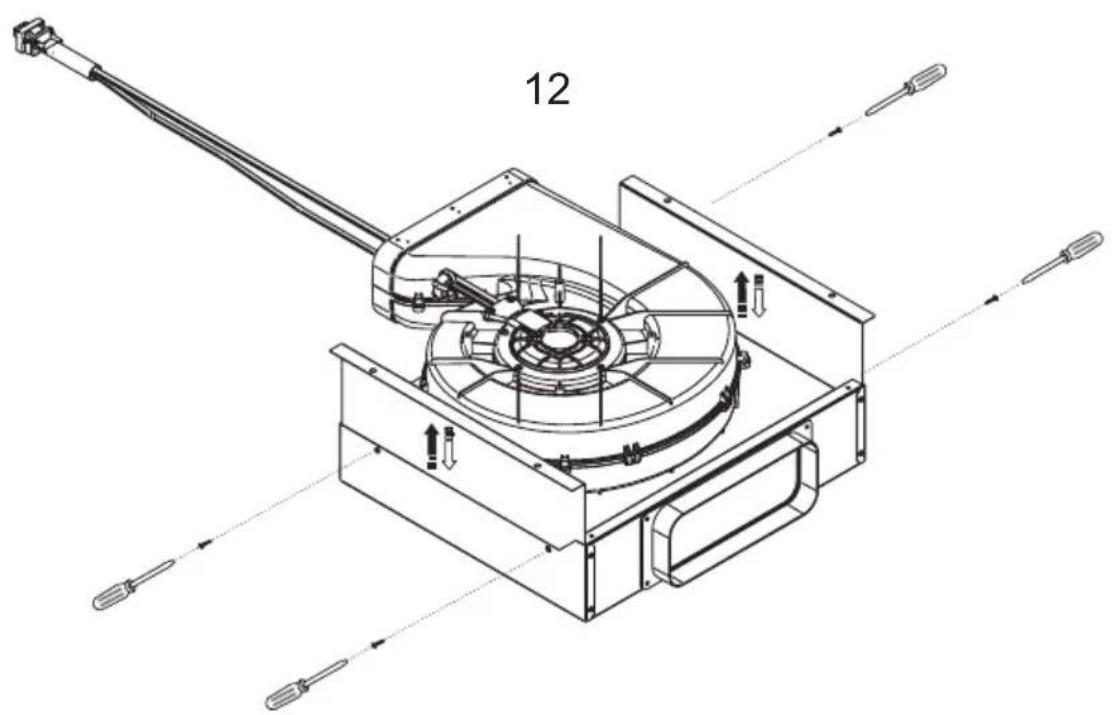

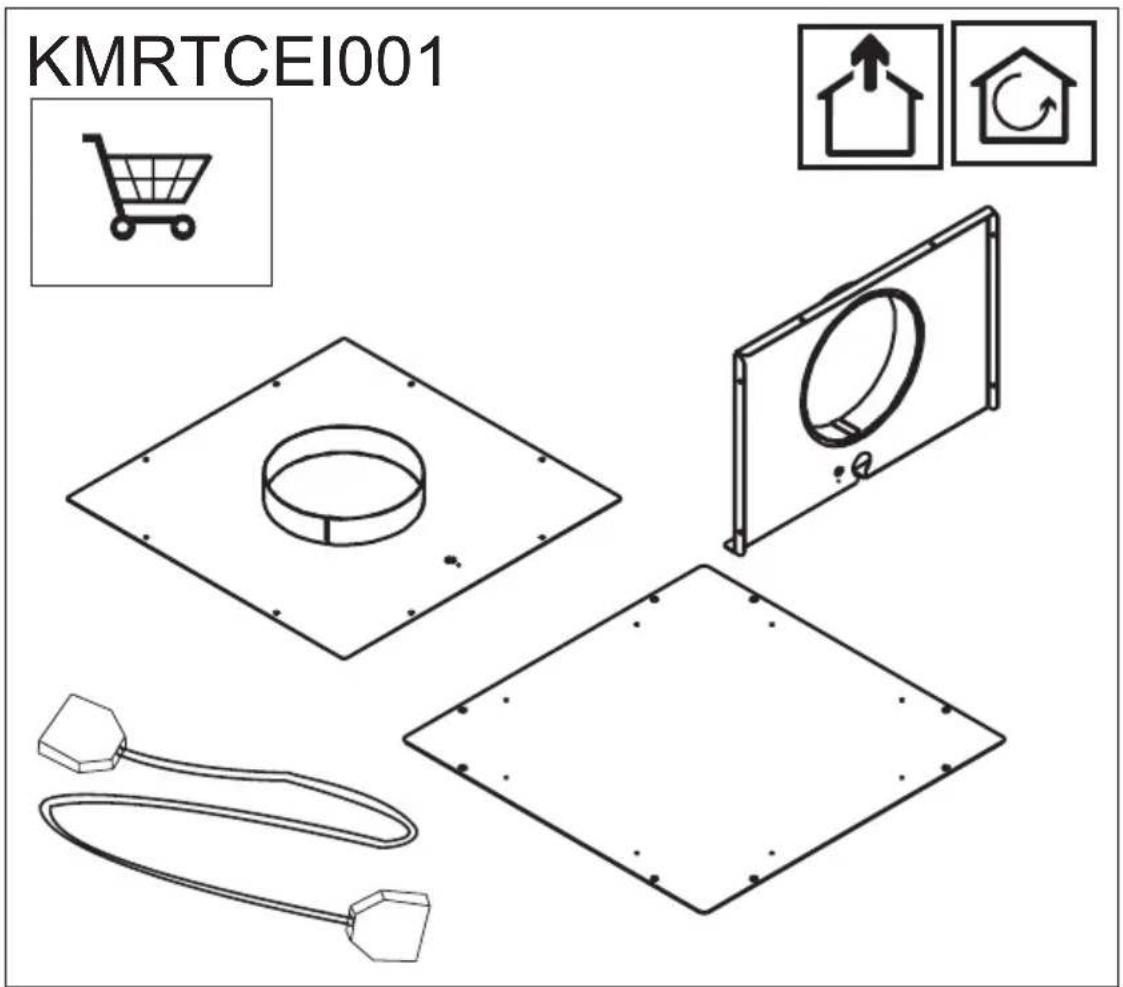

Installation with remote motor

KMRTCEI001

Model:

SINERGIA EASY UP

RAFFAELLO EASY UP

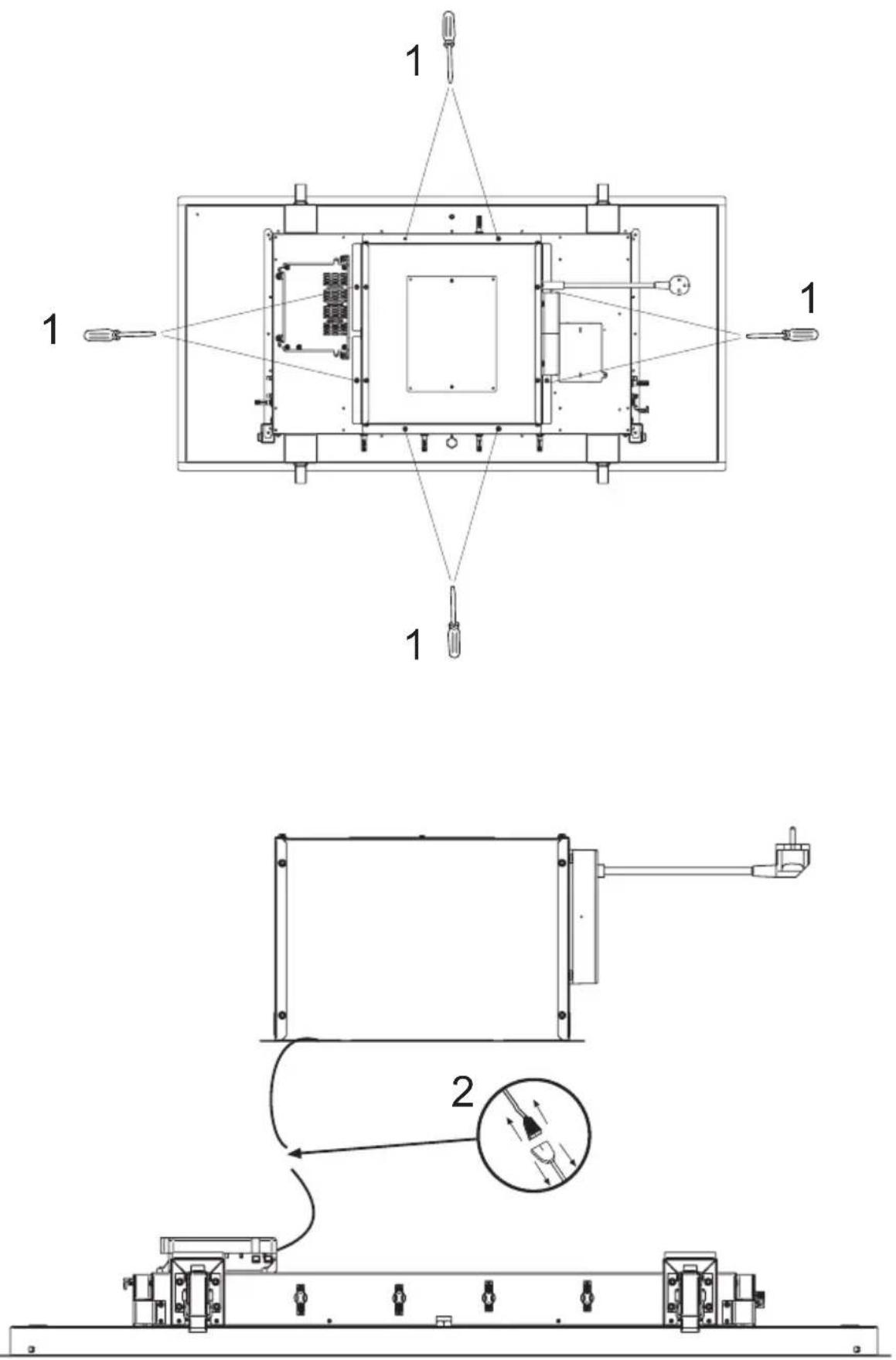

Airforce Sinergia Easy Up - Air outlet 4 - 32

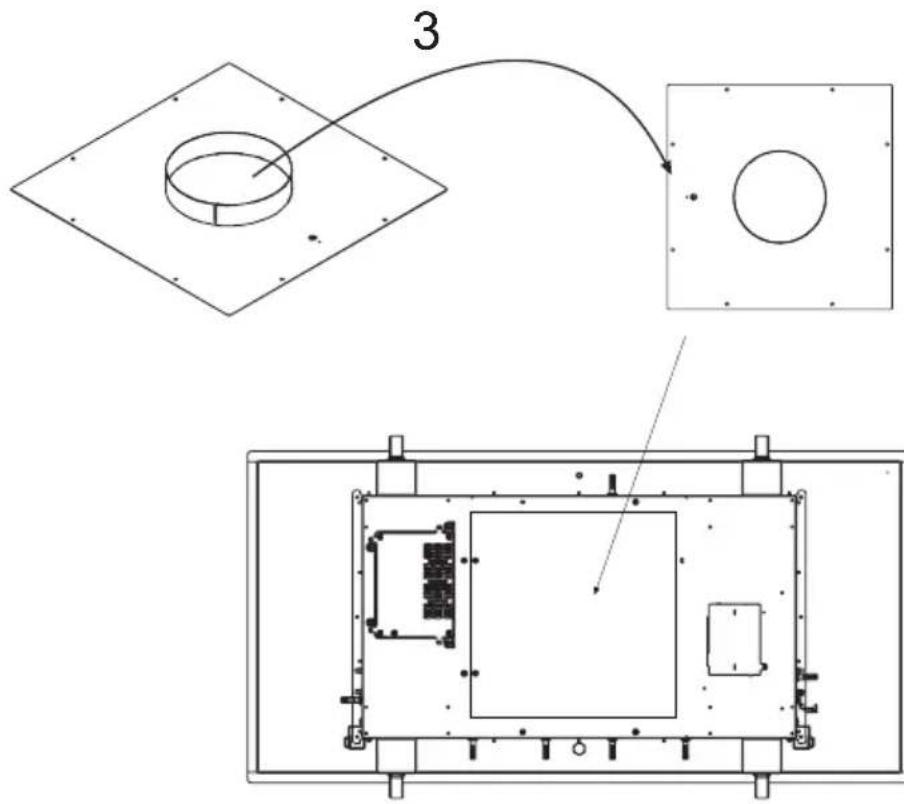

Model:

SINERGIA EASY UP

RAFFAELLO EASY UP

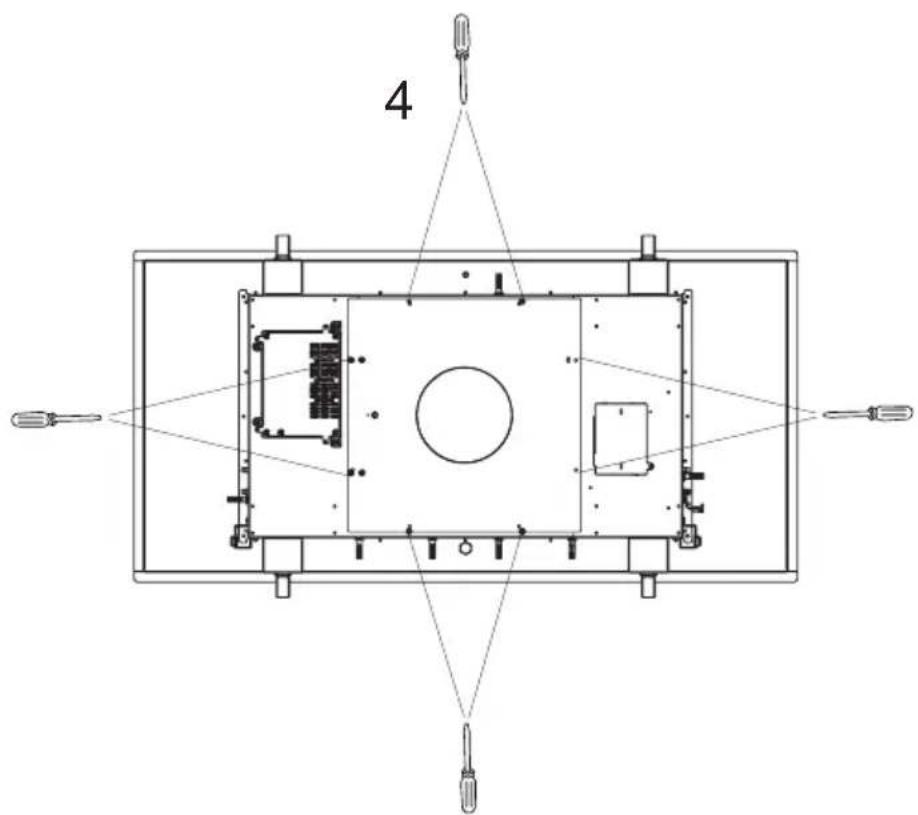

Model:

SINERGIA EASY UP

RAFFAELLO EASY UP

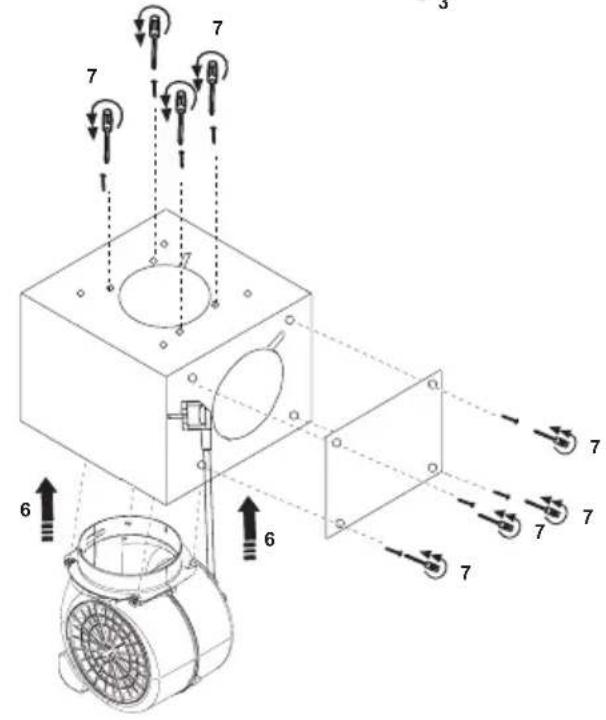

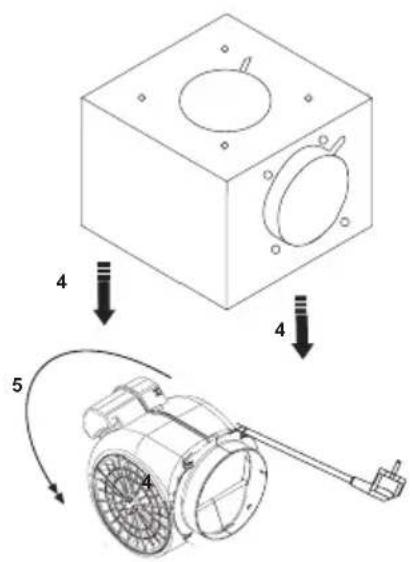

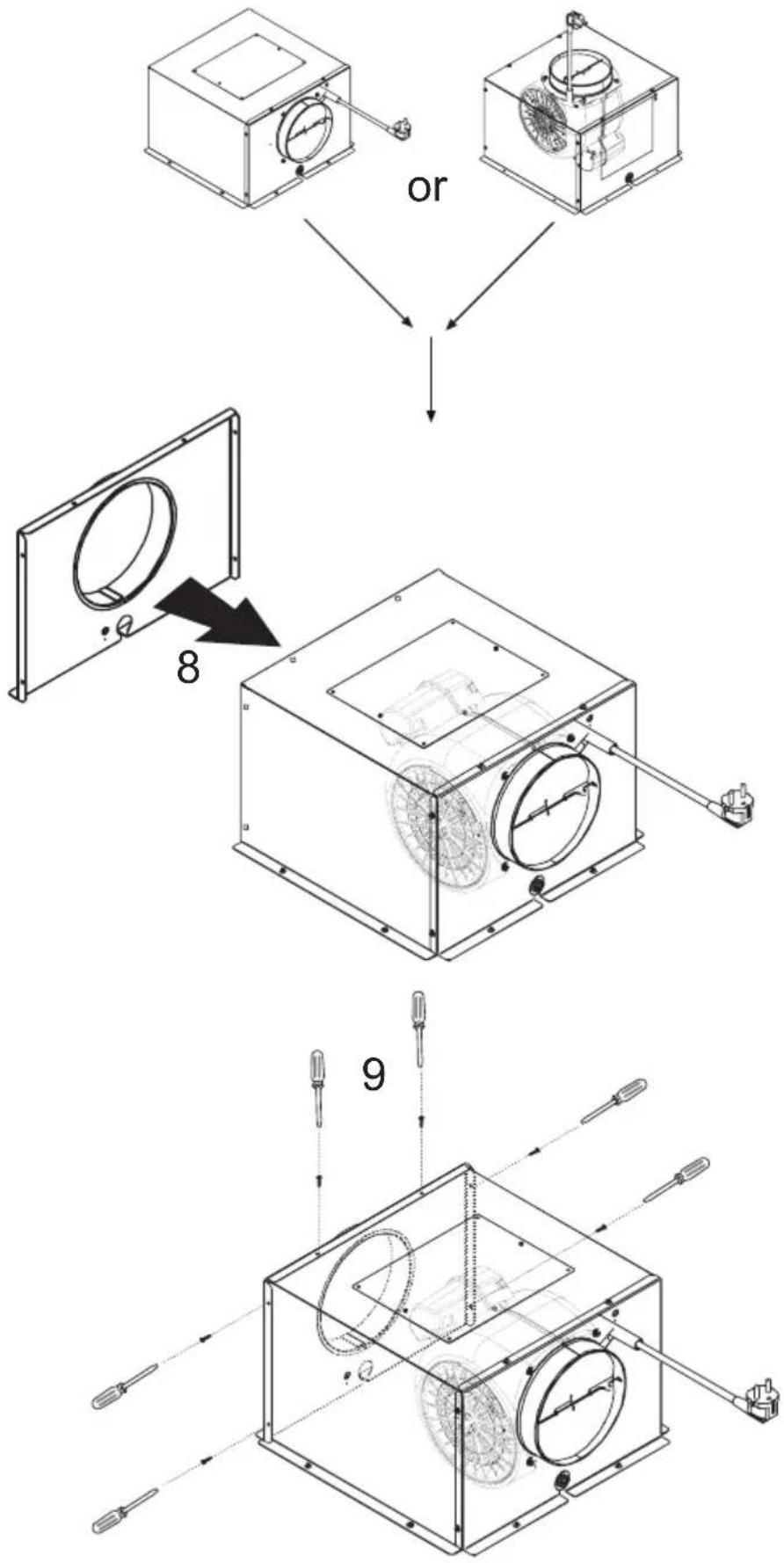

5 6 or

Technical diagram of a mechanical or optical device with labeled components and directional arrows indicating motion or flow.

Technical diagram showing mechanical assembly with labeled components and directional arrows.

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or force directions.

Model:

SINERGIA EASY UP

RAFFAELLO EASY UP

Airforce Sinergia Easy Up - Air outlet 4 - 39

Model:

SINERGIA EASY UP

RAFFAELLO EASY UP

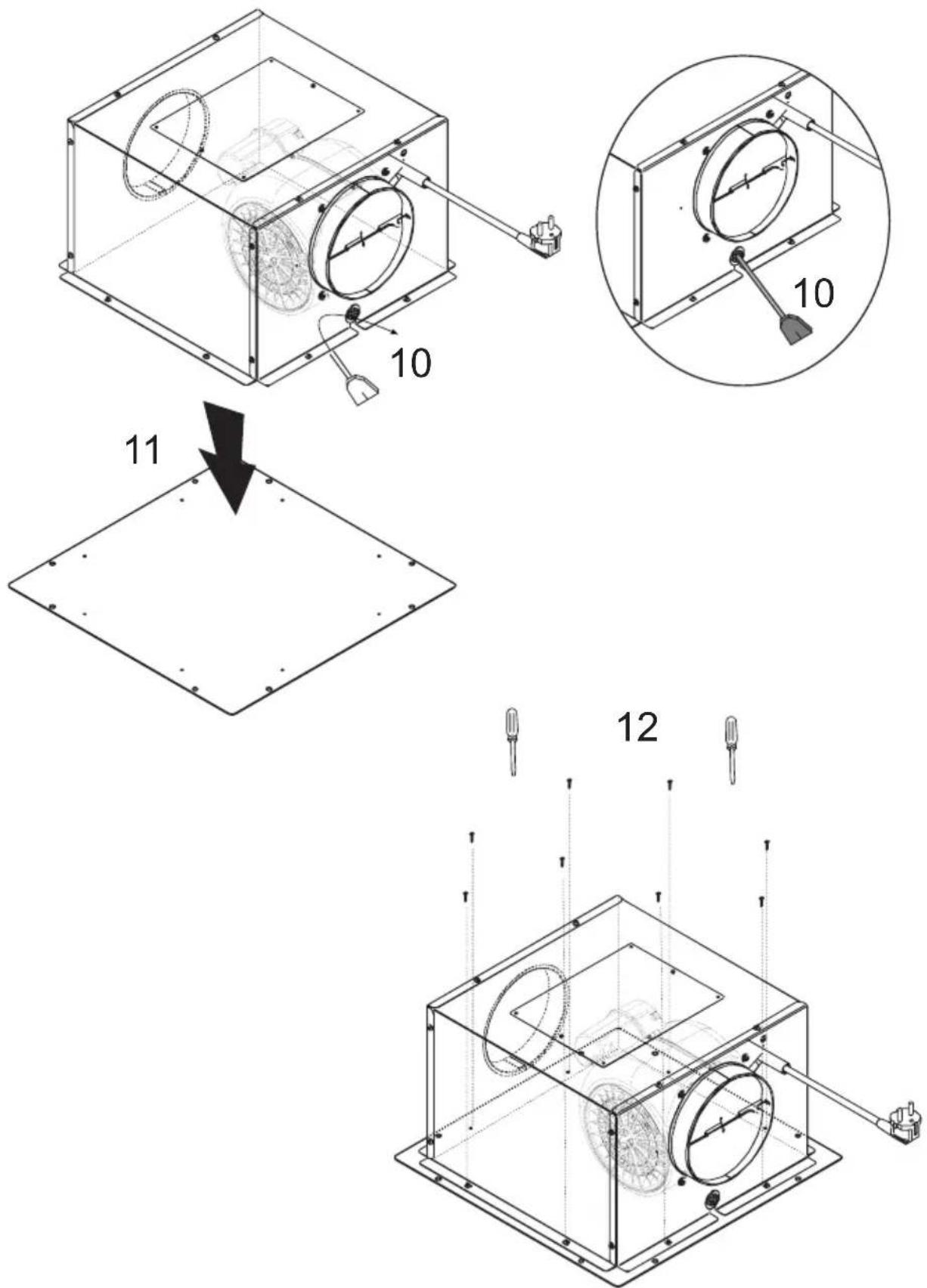

Airforce Sinergia Easy Up - Air outlet 4 - 40

Model:

SINERGIA EASY UP

RAFFAELLO EASY UP

Airforce Sinergia Easy Up - Air outlet 4 - 41

Simple line drawing of two connected geometric shapes with no text or symbols.

Airforce Sinergia Easy Up - Air outlet 4 - 43

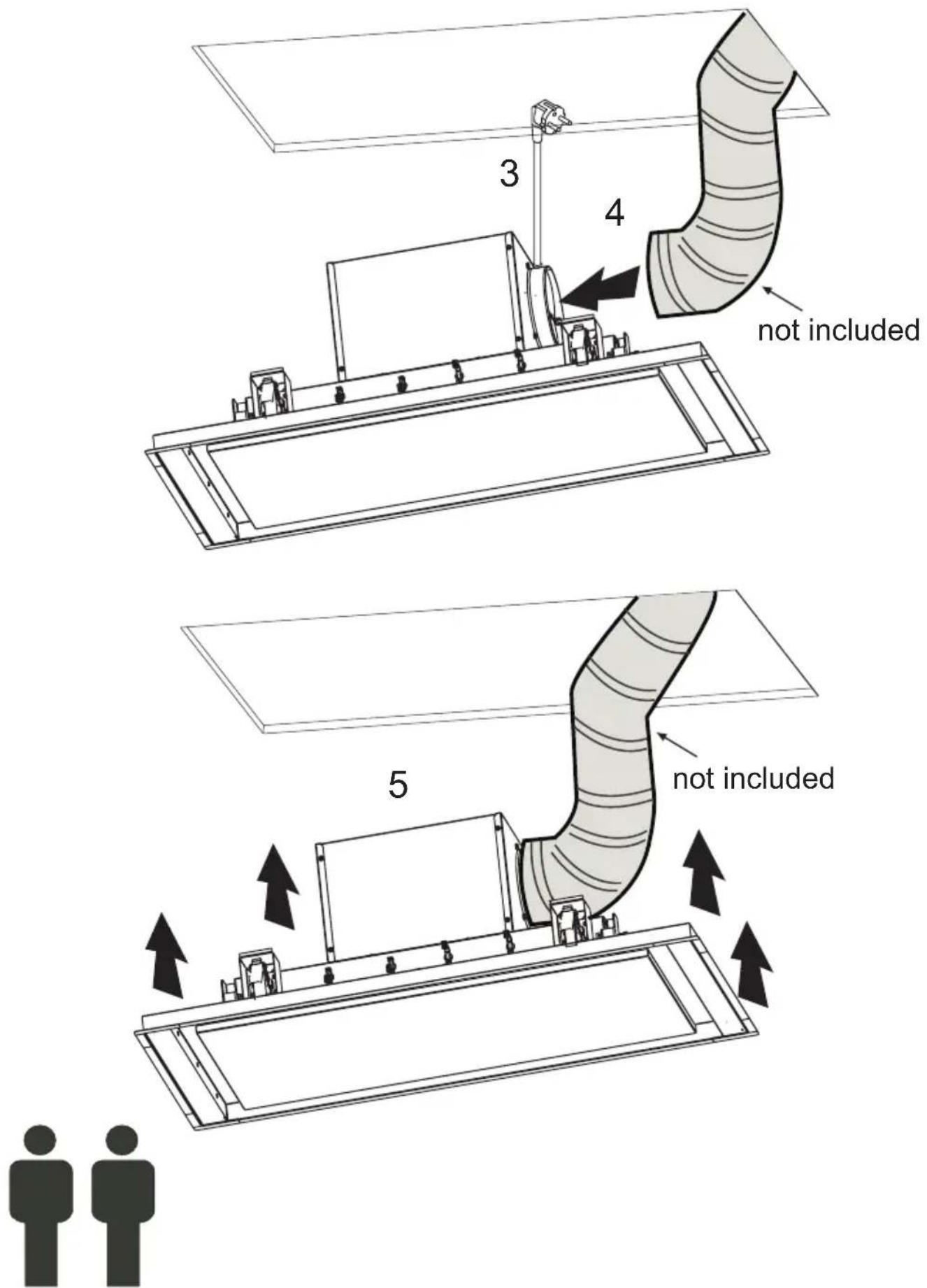

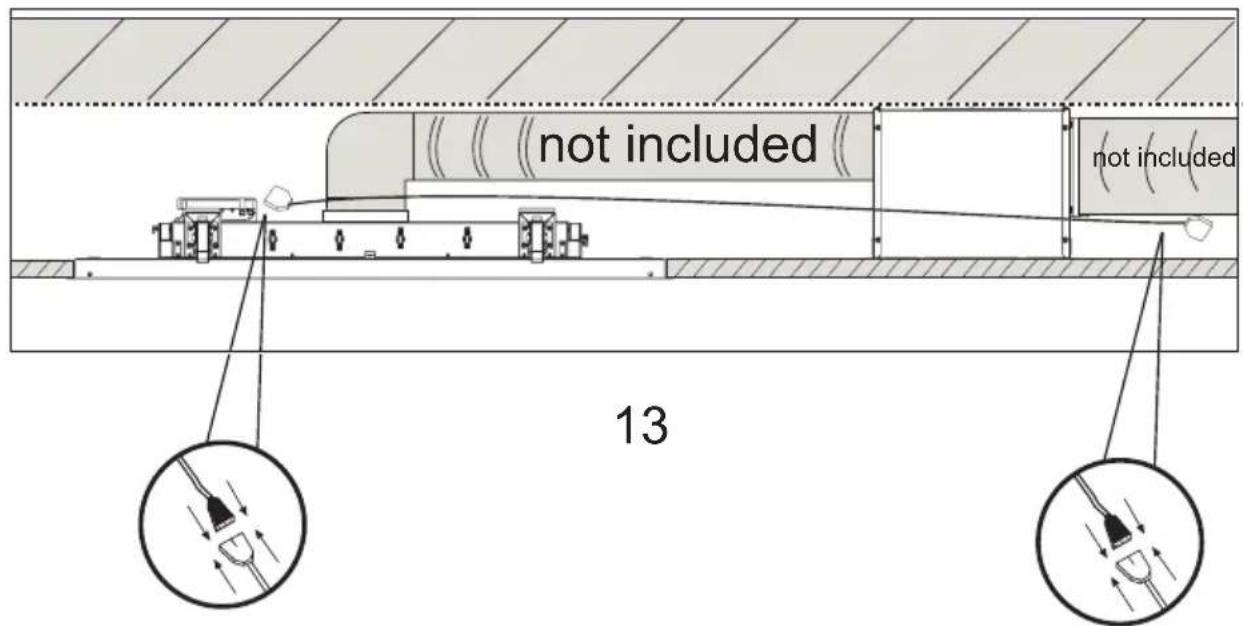

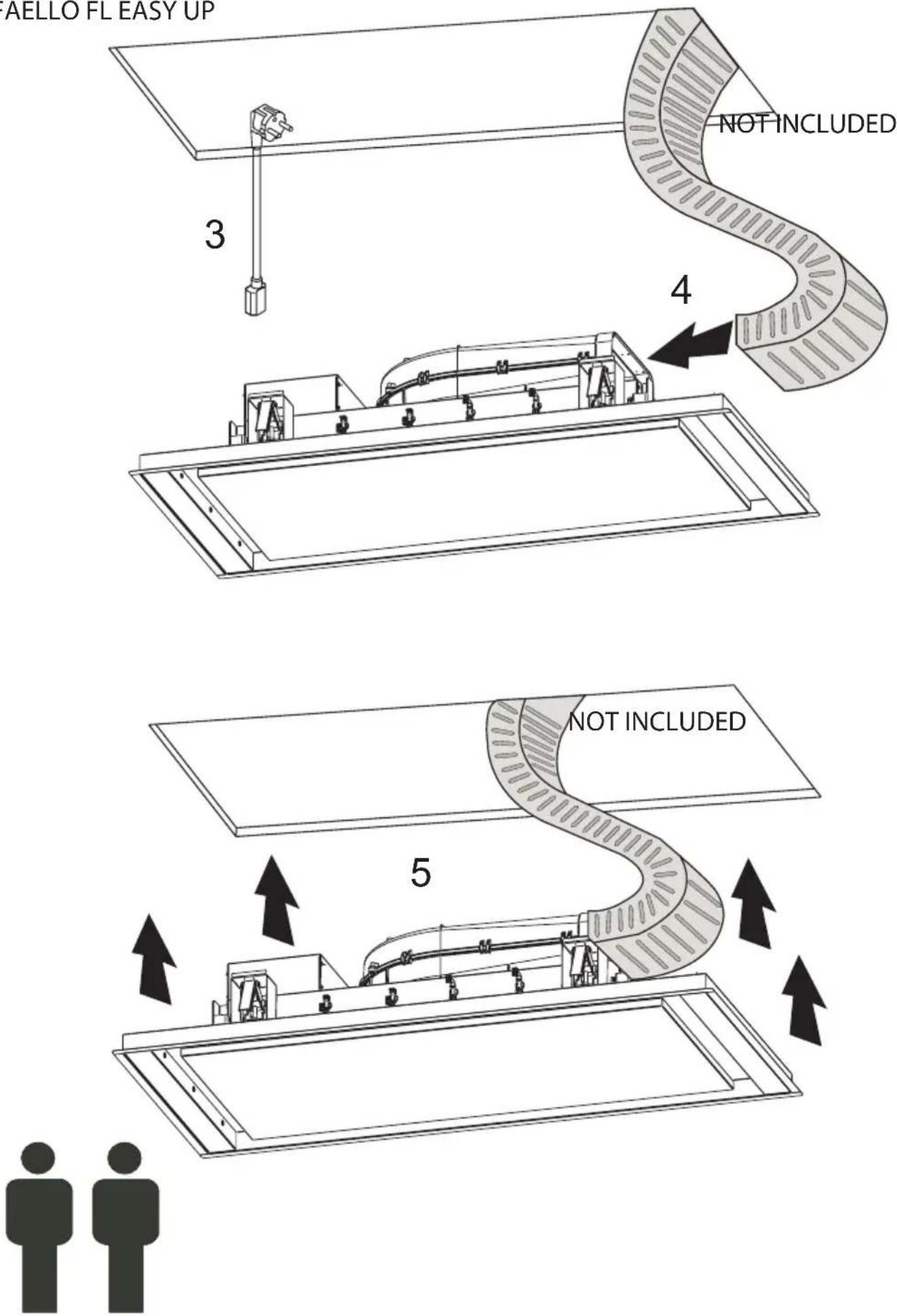

Not included. Not included. 13.

Model:

SINERGIA FL EASY UP

RAFFAELLO FL EASY UP

Installation with remote motor

KMRBLJCEI001 Simple line drawing of a shopping cart icon (no text or symbols).

Two simple line icons: a house with an upward arrow and a house with a circular arrow (no text or symbols).

Airforce Sinergia Easy Up - Air outlet 4 - 47

Isometric line drawing of a rectangular electronic device with a slot and mounting bracket (no text or symbols).

Simple line drawing of a rectangular panel with two vertical lines and a base plate (no text or symbols).

Airforce Sinergia Easy Up - Air outlet 4 - 50

Airforce Sinergia Easy Up - Air outlet 4 - 51

Simple line drawing of a rectangular panel with two side slots and a flat base (no text or symbols).

Pure electrical circuit lines without any symbols.

Isometric line drawing of a rectangular metal frame with mounting holes (no text or symbols).

Model:

SINERGIA FL EASY UP

RAFFAELLO FL EASY UP

Technical diagram of an air conditioning unit with labeled components and a motor assembly view.

Model:

SINERGIA FL EASY UP

RAFFAELLO FL EASY UP

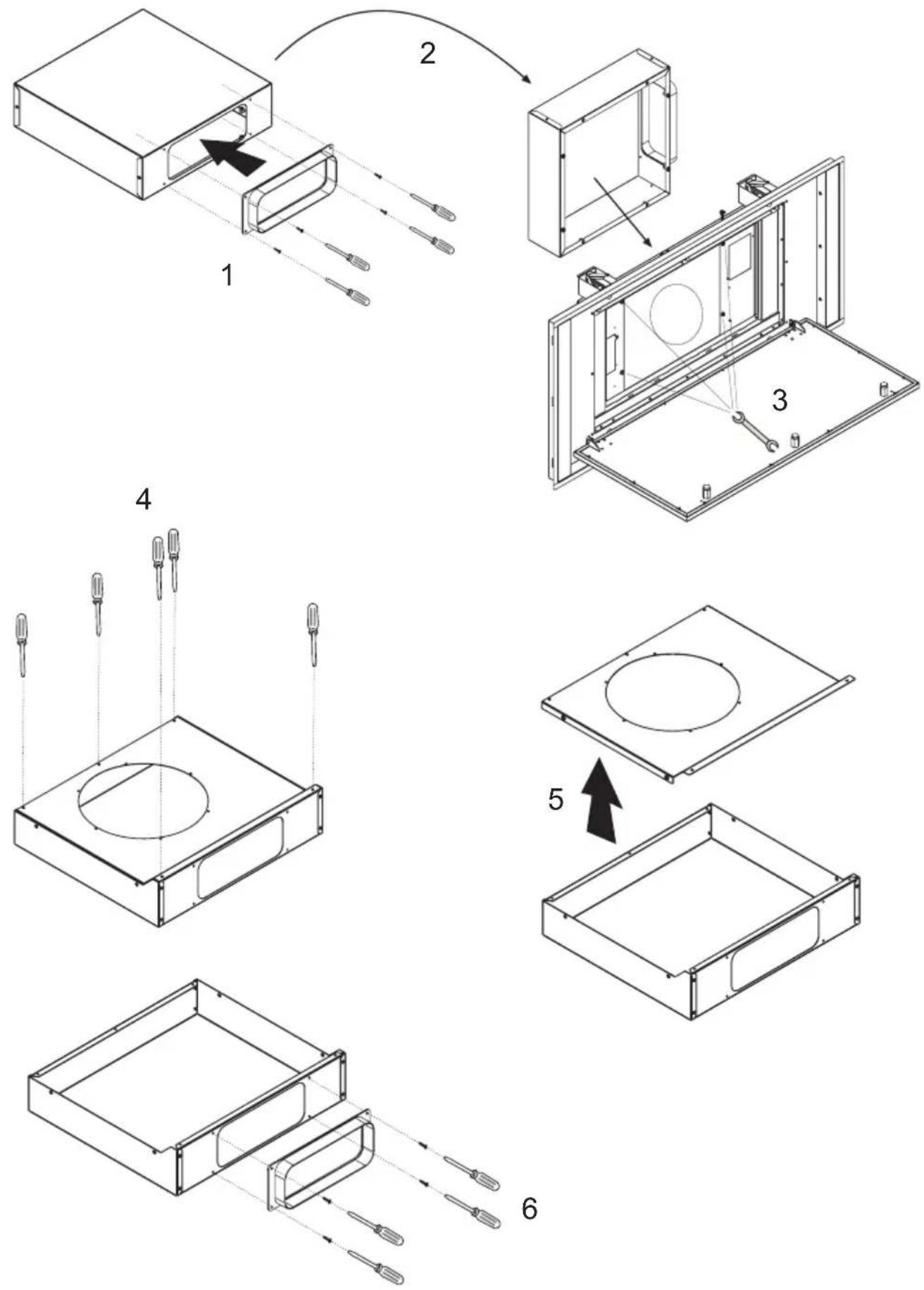

Airforce Sinergia Easy Up - Air outlet 4 - 56

Model:

SINERGIA FL EASY UP

RAFFAELLO FL EASY UP

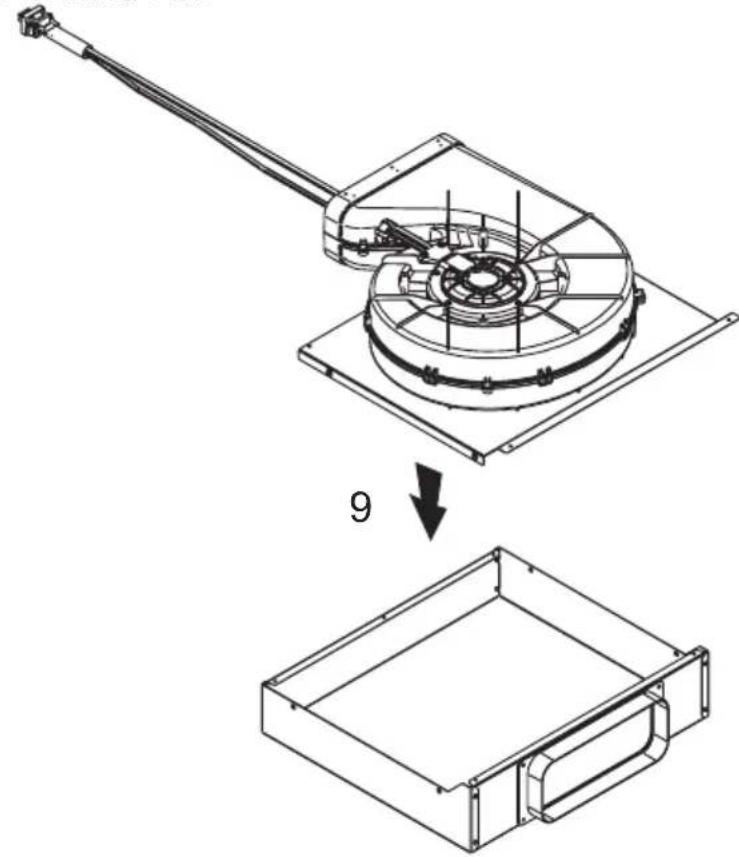

Airforce Sinergia Easy Up - Air outlet 4 - 57

Model:

SINERGIA FL EASY UP

RAFFAELLO FL EASY UP

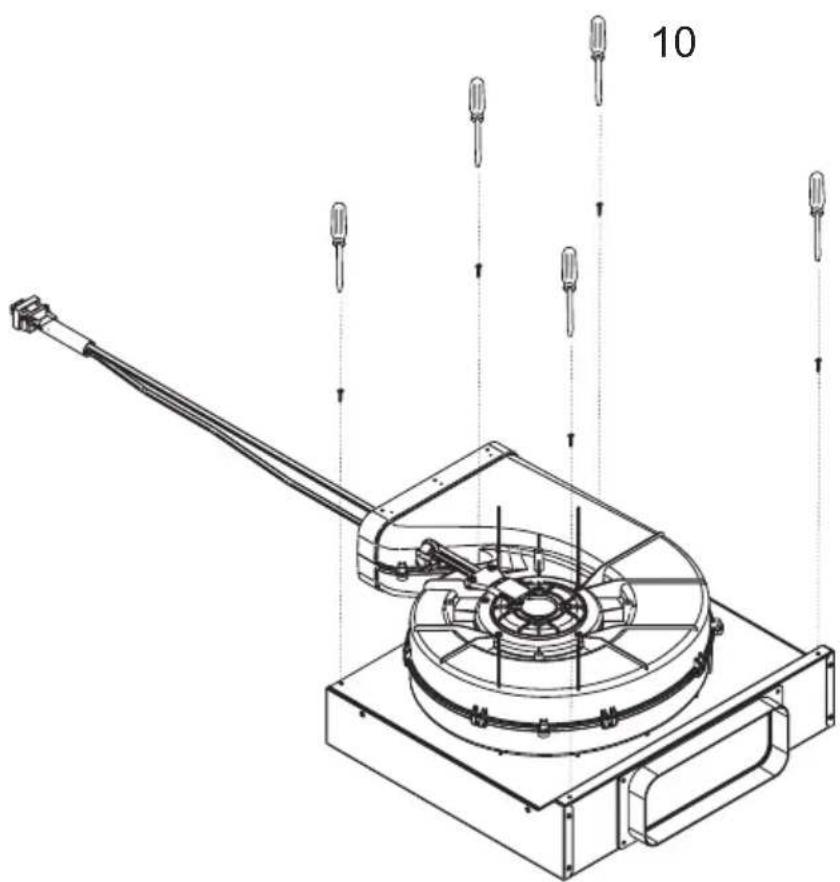

10.

Model:

SINERGIA FL EASY UP

RAFFAELLO FL EASY UP

Technical line drawing of a mechanical device with labeled components (no text or symbols present).

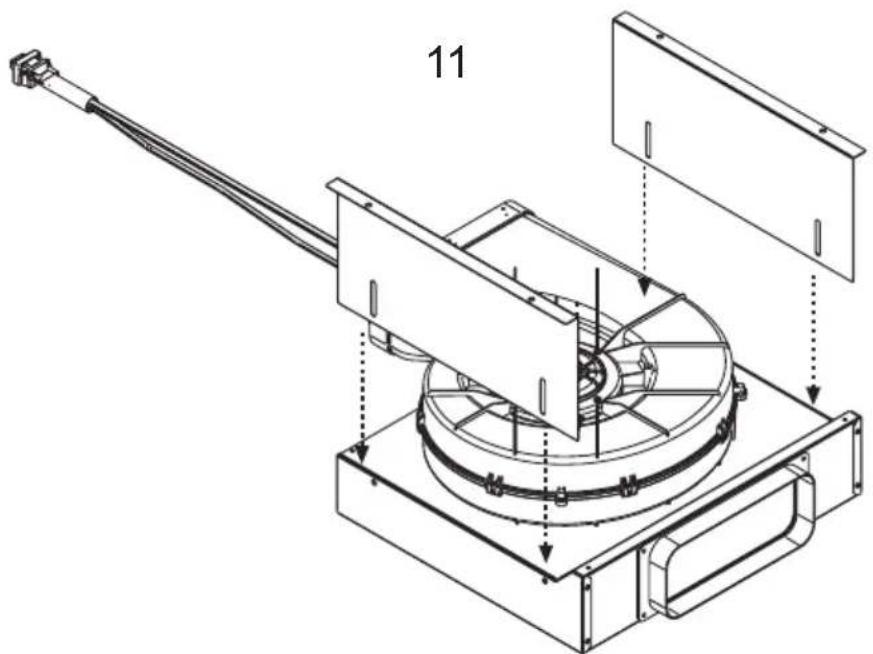

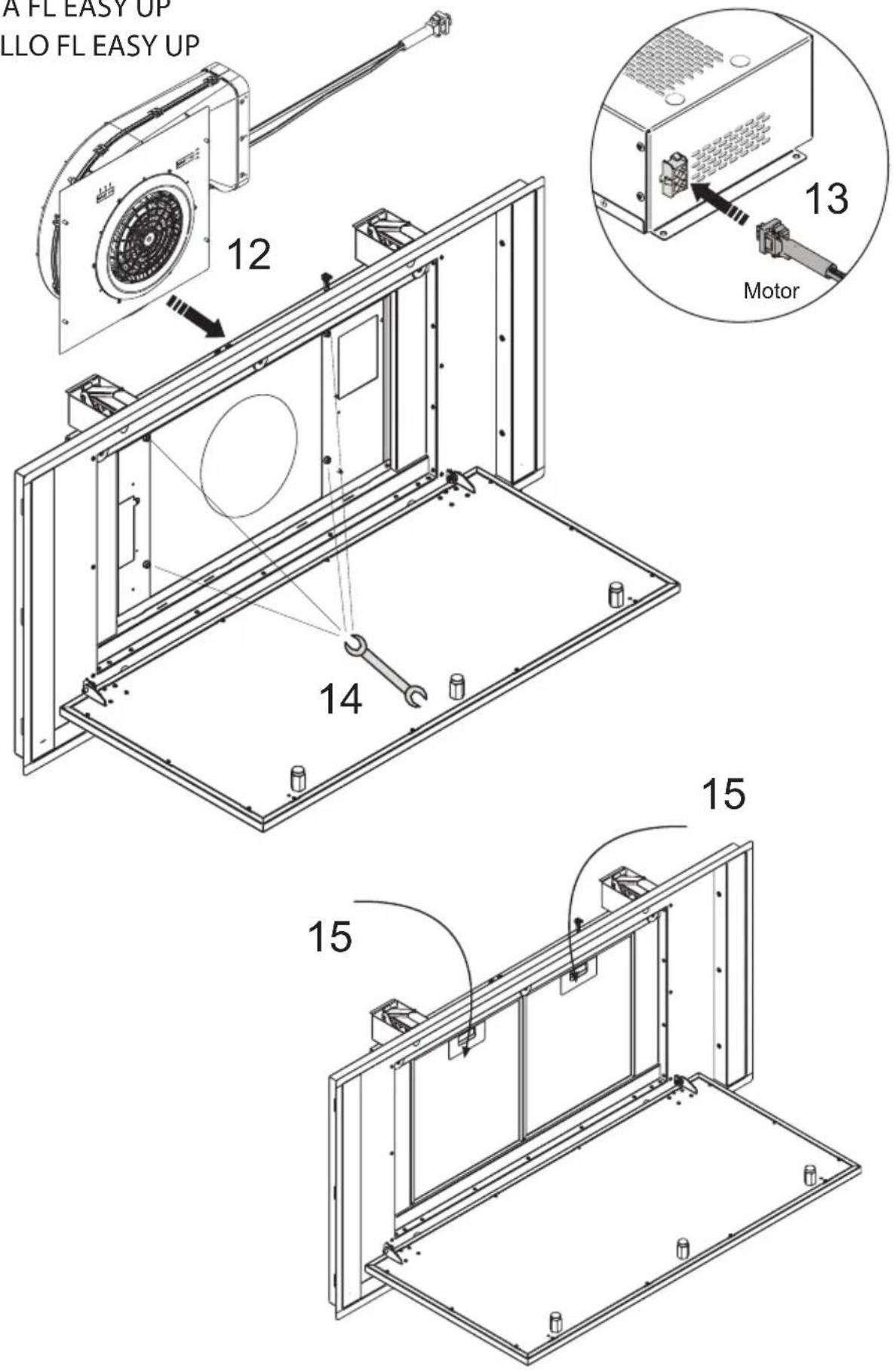

Technical line drawing of a mechanical device with labeled component '12' and directional arrows indicating assembly (no text or symbols beyond label).

Model:

SINERGIA FL EASY UP

RAFFAELLO FL EASY UP

Airforce Sinergia Easy Up - Air outlet 4 - 63

Accessories

AFC4043001 (1000mm) Simple line drawing of a rectangular block (no text or symbols)

AFC4043005 Airforce Sinergia Easy Up - Accessories - 2

AFC4021003 Airforce Sinergia Easy Up - Accessories - 3

AFCRAC0120994 Airforce Sinergia Easy Up - Accessories - 4

AFC4043004 (90°) Airforce Sinergia Easy Up - Accessories - 5

AFC4043003 (90°) Airforce Sinergia Easy Up - Accessories - 6

AFC4043007 (15°) Airforce Sinergia Easy Up - Accessories - 7

AFC4043006 AFC4043002 Airforce Sinergia Easy Up - Accessories - 8

Airforce Sinergia Easy Up - Accessories - 9

KRASP003 Airforce Sinergia Easy Up - Accessories - 10

AFCONFRACFP Airforce Sinergia Easy Up - Accessories - 11

AFCFCARFP Airforce Sinergia Easy Up - Accessories - 12

KRFH6 Technical diagram of a mechanical assembly with no visible text or symbols

AFFCARFPH6

AFCFCAASPC78 Airforce Sinergia Easy Up - Accessories - 14
