Product type	High-pressure cleaner
Brand	Kärcher
Model	K 2 Classic
Usage	Private domestic (cleaning machines, vehicles, buildings, facades, terraces, etc.)
Operating pressure	7.4 MPa (max. 11.0 MPa)
Water flow rate (operating)	5.2 l/min
Water flow rate (maximum)	6.0 l/min
Max. feed water temperature	40 °C
Max. water supply pressure	1.2 MPa
Min. feed flow rate	8 l/min
Power supply	230 V / 50-60 Hz
Current consumption	6 A
Protection type	IPX5
Protection class	II
Main fuse (slow)	10 A
Dimensions (L × W × H)	178 × 219 × 415 mm
Operating weight	4.0 kg
Sound pressure level (LpA)	78 dB(A)
Sound power level (LWA)	93 dB(A)
Hand-arm vibration	< 2.5 m/s²
Included accessories	High-pressure gun, high-pressure hose, dirt blaster lance, high-pressure nozzle lance
Maintenance	Regular cleaning of water inlet strainer; appliance maintenance-free
Safety	Main switch, gun lock, Auto-Stop function
Warranty	Subject to Kärcher warranty conditions

Frequently Asked Questions - K 2 Classic Kärcher

How to use the K 2 Classic high-pressure cleaner for the first time?

Before first use, read the instruction manual and safety instructions. Assemble the parts (water connection coupling). Connect the high-pressure hose to the gun and to the device, connect the garden hose (min. diameter 1/2 inch, min. length 7.5 m) to the water supply connection, then plug in the mains plug. Open the water tap and switch on the device (I/ON). Unlock the gun and press the trigger to start.

What to do if the cleaner does not build up pressure?

Check that the water tap is fully open and the feed flow rate is sufficient. Clean the strainer in the water supply connection (remove it with flat pliers and rinse under running water). Bleed air from the device by operating the gun without a lance for a maximum of 2 minutes. If the problem persists, check the condition of the high-pressure nozzle and remove dirt with a pin.

How to clean the water inlet filter?

Disconnect the coupling of the water supply connection. Using flat pliers, remove the strainer from the coupling. Clean it under running water. Before reinserting, check that it is not damaged. Replace the strainer and screw the coupling back on.

Can I use a standard garden hose?

Yes, the garden hose must be reinforced, with a diameter of at least 1/2 inch (13 mm) and a length of at least 7.5 m. It must be equipped with a standard quick coupler to connect to the supplied coupling. Do not use an Aquastop coupler directly on the device, but you can use it on the tap.

How to bleed air from the device?

Switch on the device (I/ON) without connecting a lance. Press the trigger of the gun and wait until water comes out without air bubbles (maximum 2 minutes). Release the trigger, then connect the lance. The device is then ready for normal operation.

What to do if the device leaks?

A slight water leak is normal (technological). In case of a significant leak, switch off the device and unplug it. Contact an authorized Kärcher after-sales service for diagnosis and repair.

How to store the device after use?

Turn off the water supply, press the trigger for 30 seconds to release pressure, then lock the gun. Switch off the device (0/OFF) and unplug it. Separate the lance from the gun, store the lances in their compartments, disconnect the high-pressure hose from the gun and the device, then coil it. Store the power cable on the device. Store the device in a frost-free room.

Is the cleaner frost-protected?

The device is not frost-protected. For winter storage, completely empty the device and accessories: disconnect the water supply, remove the high-pressure hose, switch on the device (I/ON) for a maximum of 1 minute to expel residual water, then switch it off. Store the device in a frost-free room.

What accessories can I use?

Use only original Kärcher accessories and spare parts. They ensure safe and optimal operation. Information is available at www.kaercher.com. The device comes with a dirt blaster lance (for stubborn dirt) and a high-pressure nozzle lance (for normal tasks).

Where to find spare parts?

Original spare parts are available from authorized Kärcher dealers and on www.kaercher.com. For any warranty work, contact your distributor or the nearest authorized after-sales service, presenting the purchase receipt.

USER MANUAL K 2 Classic Kärcher

Polish 58

Hungarian 62

Czech 65

Slovak 69

Slovenian 72

Romanian 76

Croatian 79

Serbian 83

Greek 87

Russian 90

Ukrainian 95

Kazakh 99

Bulgarian 103

Arabic

A

Contents

H. Jenner Chairman of the Board of Management

S. Reiser Manager Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2022/12/01

Contents

General notes	7
Environmental protection	7
Intended use	8
Accessories and spare parts	8
Scope of delivery	8
Device description	8
Safety devices	8
Symbols on the device	8
Mounting	8
Initial startup	8
Operation	9
Transport	9
Storage	9
Care and service	10
Troubleshooting guide	10
Warranty	10
Technical data	10
EU Declaration of Conformity	10

General notes

Read these original operating instructions and the enclosed safety instructions before using the device for the first time. Proceed accordingly.

Keep both books for future reference or for future owners.

Keep both books for future reference or for future owners.

The packing materials can be recycled. Please dispose of packaging in accordance with the environmental regulations.

The packing materials can be recycled. Please dispose of packaging in accordance with the environmental regulations.

Electrical and electronic devices contain valuable, recyclable materials and often components such as batteries, rechargeable batteries or oil, which - if handled or disposed of incorrectly - can

pose a potential danger to human health and the environment. However, these components are required for the correct operation of the device. Devices marked by this symbol are not allowed to be disposed of together with the household rubbish.

Cleaning work producing in oily waste water, e.g. washing engines, washing undercarriages etc., may only be performed at washing stations with an oil separator. Working with detergents may only be performed on watertight surfaces with connection to the waste water sewage system. Do not allow detergent to enter waterways or the soil.

Notes on the content materials (REACH)

Current information on content materials can be found at: www.kaercher.de/REACH

Intended use

Use the high-pressure cleaner in private households only.

The high-pressure cleaner is intended for cleaning machines, vehicles, buildings, tools, façades, terraces, garden machines etc. using a high-pressure water jet.

Accessories and spare parts

Only use original accessories and original spare parts. They ensure that the appliance will run fault-free and safely.

Information on accessories and spare parts can be found at www.kaercher.com.

Scope of delivery

The scope of delivery for the appliance is shown on the packaging. Check the contents for completeness when unpacking. If any accessories are missing or in the event of any shipping damage, please notify your dealer.

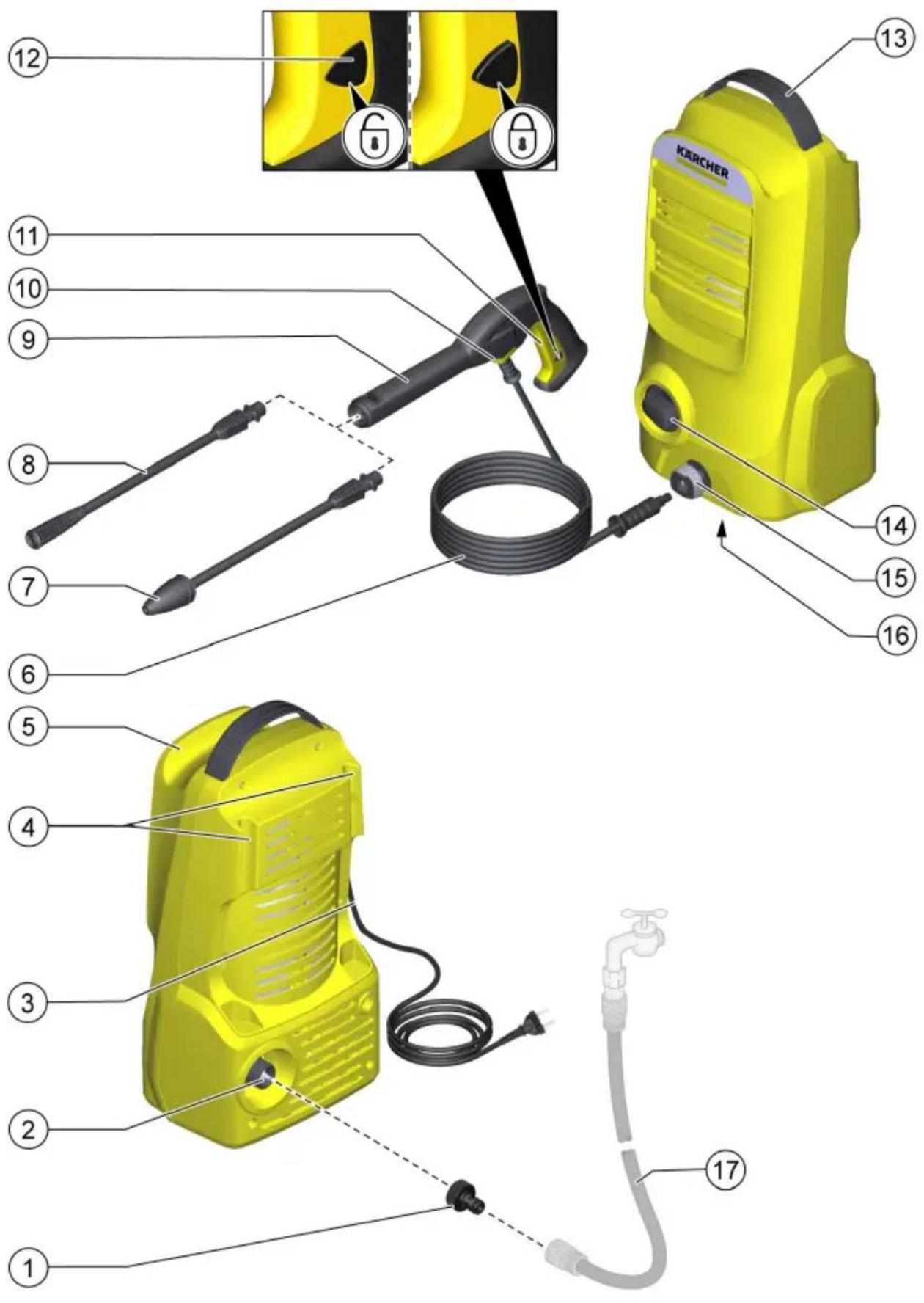

Device description

For the figures, please refer to the graphics page Illustration A

① Water connection coupling ② Water connection with integrated sieve ③ Mains connection cable with mains plug ④ Storage for spray lances ⑤ Storage for high-pressure hose / mains connection cable

⑥ High-pressure hose

⑦ Spray lance with dirt grinder for stubborn soiling

⑧ Spray lance with high-pressure nozzle for normal cleaning tasks

⑨ High-pressure gun

⑩ Clamp for connecting / disconnecting the high-pressure hose

⑪ High-pressure gun lever

⑫ High-pressure gun lock

⑬ Carrying handle

⑭ Trigger "0/OFF" / "I/ON"

15 High-pressure connection

⑯ Type plate

⑰*Garden hose (fabric reinforced, diameter at least 1/2 inch (13 mm), length at least 7.5 m, with commercially available quick coupling)

* additionally required

Safety devices

△CAUTION

Missing or modified safety devices!

Safety devices are provided for your own protection. Do not bypass, remove or render ineffective any safety devices.

Power switch

The power switch prevents unintentional operation of the device.

High-pressure gun lock

The lock locks the lever of the high-pressure gun and prevents the device from starting unintentionally.

Auto-stop function

If the lever of the high-pressure gun is released, the pressure switch turns off the pump and the high-pressure jet stops. The pump switches on again when the lever is pressed.

Symbols on the device

Do not aim the high-pressure jet at persons, animals, live electrical equipment or the device itself.

Protect the device against frost.

The device may not be connected to the public drinking water network.

Mounting

For the figures, please refer to the graphics page.

Fit the supplied loose parts onto the device before starting up the device.

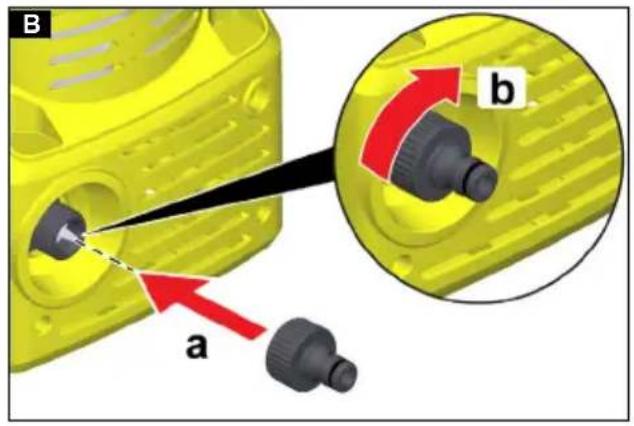

Installing the water connection coupling

1. Screw the water connection coupling onto the water connection on the device. Illustration B

Initial startup

1. Place the device on a flat and level surface.
2. Unwind the high-pressure hose and eliminate any loops and twists.

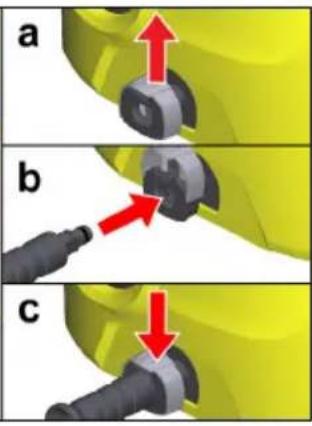

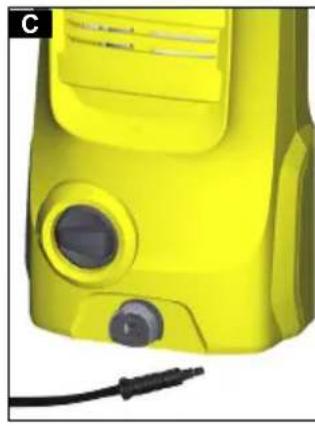

3. Connect the high-pressure hose to the device. a Pull up the clamp on the coupling. b Insert the high-pressure hose into the coupling. c Press down the clamp on the coupling. Illustration C

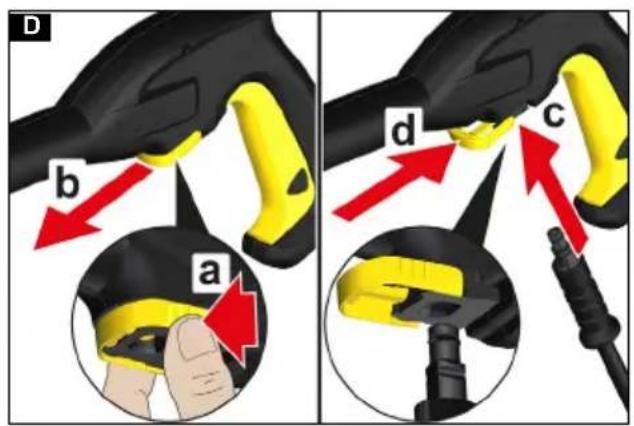

4. Connect the high-pressure hose to the high-pressure gun.

a Squeeze the clamp.

b Pull out the clamp.

c Insert the high-pressure hose.

d Press the clamp in until it latches into place.

Illustration D

1. Check for a secure connection by pulling on the high-pressure hose.
2. Plug the mains plug into a mains socket.

Water supply

For the connection values, see the type plate or chapter Technical data.

Observe the water distribution company regulations.

ATTENTION

Damage through contaminated water

Contamination in the water can damage the pump and the accessories.

KÄRCHER recommends using the KÄRCHER water filter for protection (special accessory, order number 4.730-059).

Connection to the water line

ATTENTION

Hose coupling with Aquastop on the water connection of the device

Damage to the pump

Never use a hose coupling with Aquastop on the water connection of the device.

You can use an Aquastop coupling on the tap.

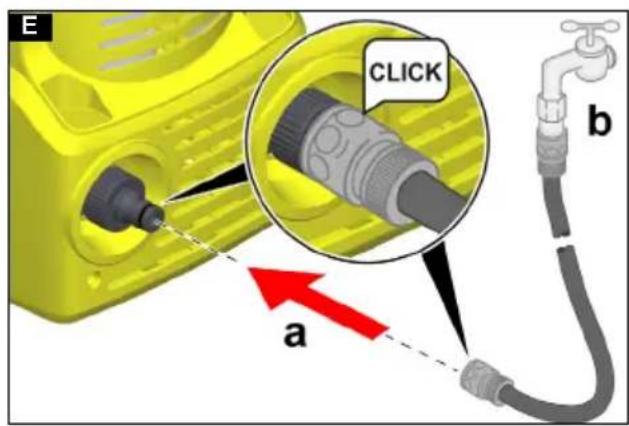

1. Plug the garden hose onto the water connection coupling.
2. Connect the garden hose to the water line.

Illustration E

1. Open the water tap fully.

Operation

ATTENTION

Dry running of pump

Damage to the device

If the device does not build up any pressure within 2 minutes, switch off the device and proceed according to the instructions in chapter Troubleshooting guide.

High-pressure operation

ATTENTION

Damage to painted or sensitive surfaces

Surfaces can be damaged when the jet is too close to the surface or an unsuitable spray lance is used.

Maintain a minimum spray distance of 30 cm when cleaning painted surfaces.

Do not clean car tyres, paint or sensitive surfaces such as wood with the dirt blaster.

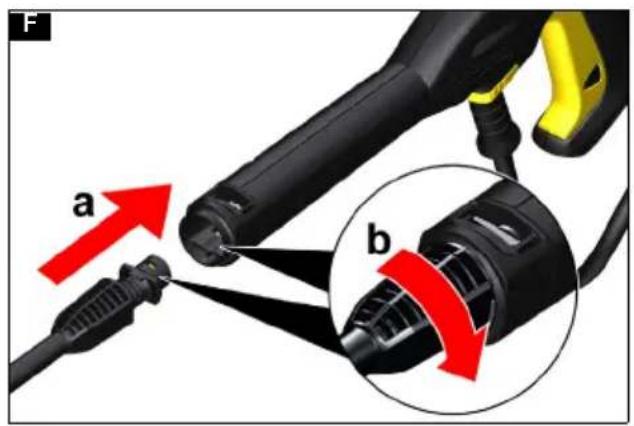

1. Insert a spray lance into the high-pressure gun and lock it by turning it 90°.

1. Switch the device on ("I/ON").
2. Unlock the lever of the high-pressure gun.
3. Press the lever of the high-pressure gun. The device switches on.

Interrupting operation

1. Release the lever of the high-pressure gun. The device switches off when the lever is released. The high pressure in the system is retained.

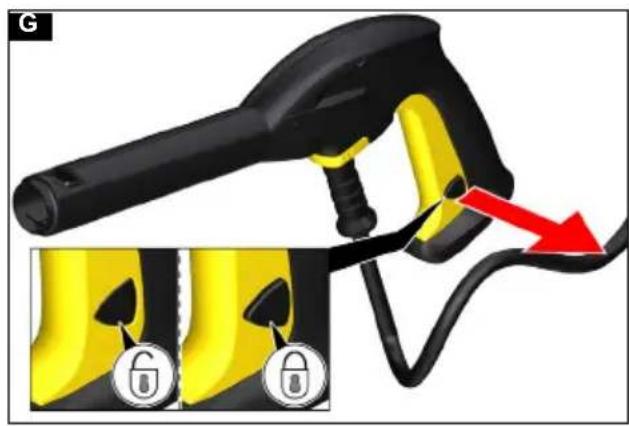

2. Lock the lever of the high-pressure gun. Illustration G
3. Switch the device off "0/OFF" during work breaks longer than 5 minutes.

Ending operation

△CAUTION

Pressure in the system

Injuries from high-pressure water escaping uncontrollably

Only disconnect the high-pressure hose from the high-pressure gun or the device when the system is fully depressurised.

1. Release the lever of the high-pressure gun.
2. Close the water tap.
3. Press the lever of the high-pressure gun for 30 seconds. The pressure still remaining in the system is released.
4. Release the lever of the high-pressure gun.
5. Lock the lever of the high-pressure gun.
6. Disconnect the device from the water supply.
7. Switch off the device "0/OFF".
8. Pull the mains plug out of the outlet.

Transport

△CAUTION

Failure to observe the weight

Risk of injury and damage

Be aware of the weight of the device during transportation.

Carrying the device

1. Lift up the device by the carrying handle, and carry it.

Transporting the device in a vehicle

1. Secure the device against slipping and tipping over.

Storage

△CAUTION

Failure to observe the weight

Risk of injury and damage

Be aware of the weight of the device during storage.

Storing the device

1. Place the device on a level surface.
2. Disconnect the spray lance from the high-pressure gun.
3. Stow both spray lances in the appropriate storage options.
4. Disconnect the high-pressure hose from the high-pressure gun.
5. Disconnect the high-pressure hose from the device.
6. Store the high-pressure hose on the device.
7. Store the high-pressure gun on the device.
8. Stow the mains connection cable on the device.

Observe the additional notes before storing the device for a longer period of time, see chapter Care and service.

Frost protection

ATTENTION

Danger of frost

Incompletely emptied devices can be destroyed by frost.

Completely empty the device and accessories.

Protect the device from frost.

The following requirements must be satisfied:

• The device is disconnected from the water supply. • The high-pressure hose is removed.
• Switch the device on "I/ON".
• Wait for a maximum of 1 minute until no more water escapes from the high-pressure connection.
• Switch off the device.
• Store the device in a frost-protected room, together with all accessories.

Care and service

⚠️DANGER

Danger of electric shock

Injuries due to touching live parts

Switch off the device.

Remove the mains plug.

The device is maintenance-free, i.e. you do not need to perform any maintenance work.

Clean the sieve in the water connection

ATTENTION

Damaged sieve in the water connection

Damage to the device through contaminated water. Check the sieve for damage before inserting it in the water connection.

If necessary, clean the sieve in the water connection.

1. Remove the coupling from the water connection.
2. Pull out the sieve with a pair of flat pliers.
3. Clean the sieve under running water.

1. Insert the sieve into the water connection.
2. Screw the coupling onto the water connection.

Troubleshooting guide

Malfunctions often have simple causes that you can remedy yourself using the following overview. When in doubt, or in the case of malfunctions not mentioned here, please contact your authorised Customer Service.

⚠️DANGER

Danger of electric shock

Injuries due to touching live parts

Switch off the device.

Remove the mains plug.

Device not running

1. Press the lever of the high-pressure gun. The device switches on.
2. Check that the voltage specified on the type plate corresponds to the voltage of the power source.
3. Check the mains connection cable for damage.

The device does not reach required pressure

The water supply is too low.

1. Open the water tap completely.
2. Check the water inlet for sufficient flow rate.

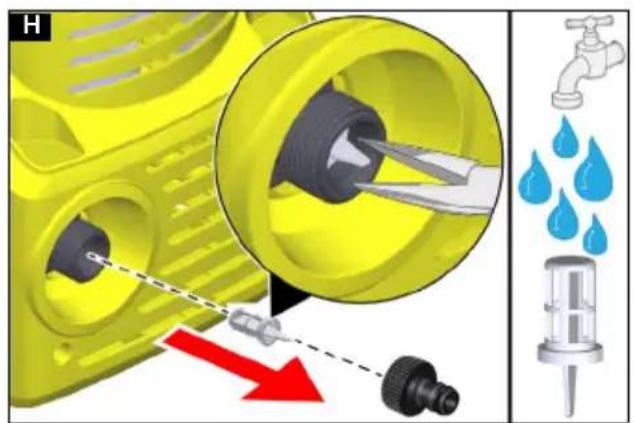

The sieve in the water connection is dirty.

1. Pull out the sieve in the water connection with flat pliers.
2. Clean the sieve under running water. Illustration H

Air is in the device.

1. Vent the device:

a Switch on the device for a maximum of 2 minutes without the spray lance connected.

b Press the high-pressure gun and wait until water comes out of the high-pressure gun without bubbles.

c Connect the spray lance.

Strong pressure fluctuations

1. Cleaning the high-pressure nozzle:

a Remove contamination from the nozzle drill with a needle.

b Rinse the high-pressure nozzle with water from the front.

1. Check the water supply volume.

Device leaking

1. The device leaks a small amount for technical reasons. If the leak is severe, request authorised Customer Service.

Warranty

The warranty conditions issued by our sales company responsible apply in all countries. We shall remedy possible malfunctions on your device within the warranty period free of cost, provided that a material or manufacturing defect is the cause. In a warranty case, please contact your dealer (with the purchase receipt) or the next authorised customer service site.

(See overleaf for the address)

Technical data

Electrical connection

Voltage	V
Phase ~ 1
Frequency Hz 50-60
Current consumption A 6
Degree of protection IPX5
Protection class II
Power protection (slow-blowing)	A 10

Water connection

Feed pressure (max.)	MPa	1,2
Input temperature (max.)	°C	40
Input amount (min.)	l/min	8

Device performance data

Operating pressure	MPa	7,4
Max. permissible pressure	MPa	11,0
Water flow rate	l/min	5,2
Maximum flow rate	l/min	6,0
High-pressure gun recoil force	N	11

Dimensions and weights

Typical operating weight	kg	4,0
Length	mm	178
Width	mm	219
Height	mm	415

Determined values in acc. with EN 60335-2-79

Hand-arm vibration value	m/s2	<2,5
Uncertainty K	m/s2	0,7
Sound pressure level LpA	dB(A)	78
Uncertainty KpA	dB(A)	3
Sound power level LWA + uncertainty KWA	dB(A)	93

Subject to technical modifications.

EU Declaration of Conformity

We hereby declare that the machine described below complies with the relevant basic safety and health requirements in the EU Directives, both in its basic design and construction as well as in the version placed in circulation by us. This declaration is invalidated by any changes made to the machine that are not approved by us.

Product: High-pressure cleaner

Type: 1.673-xxx

Currently applicable EU Directives

2011/65/EU

2000/14/EC

2006/42/EC (+2009/127/EC)

2014/30/EU

Harmonised standards used

EN 60335-1

EN 60335-2-79

EN 62233: 2008

EN 55014-1: 2017 + A11: 2020

EN 55014-2: 1997 + A1: 2001 + A2: 2008

EN 61000-3-2: 2014

EN 61000-3-3: 2013

EN IEC 63000: 2018

Applied conformity evaluation method

2000/14/EG: Annex V

Sound power level dB(A)

Measured: 90

Guaranteed: 93

The signatories act on behalf of and with the authority of the company management.

H. Jenner

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

Documentation supervisor:

S. Reiser

Alfred Kärcher SE & Co. KG

Alfred-Kärcher-Str. 28 - 40

71364 Winnenden (Germany)

Ph.: [phone]

Fax: [phone]

Winnenden, 2022/12/01

Content

2006/42/CE (+2009/127/CE)

2014/30/UE

H. Jenner Chairman of the Board of Management

S. Reiser Manager Regulatory Affairs & Certification

71364 Winnenden (Germany)

Winnenden, 2022/12/01

Indice

H. Jenner Chairman of the Board of Management

S. Reiser Manager Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2022/12/01

2006/42/CE (+2009/127/CE)

2014/30/UE

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2022/12/01

Index

2006/42/EC (+2009/127/EC)

2014/30/EU

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

Winnenden, 2022/12/01

Contents

H. Jenner Chairman of the Board of Management

S. Reiser Manager Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2022/12/01

Contents

2006/42/EC (+2009/127/EC)

2014/30/EU

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

Winnenden, 2022/12/01

Contents

General information 33

Environmental protection 33

H. Jenner Chairman of the Board of Management

S. Reiser Manager Regulatory Affairs & Certification

D-71364 Winnenden (Germany)

Tel: [phone]

Fax: [phone]

Winnenden, 2022/12/01

Contents

General instructions 37

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel: [phone]

Winnenden, 2022/12/01

Contents

General remarks 40

Environmental protection.... 40

2006/42/EC (+2009/127/EC)

2014/30/EU

Harmonised standards used

EN 60335-1

EN 60335-2-79

EN 62233: 2008

EN 55014-1: 2017 + A11: 2020

EN 55014-2: 1997 + A1: 2001 + A2: 2008

EN 61000-3-2: 2014

EN 61000-3-3: 2013

EN IEC 63000: 2018

2000/14/EC: Annex V

Sound power level dB(A)

Measured: 99,

Guaranteed: 93

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Winnenden, 2022/12/01

Contents

2006/42/EC (+2009/127/EC)

2014/30/EU

H. Jenner Chairman of the Board of Management

S. Reiser Manager Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2022/12/01

Table of Contents

General instructions.... 47

Product: High-pressure cleaner

Type: 1.673-xxx

2006/42/EC (+2009/127/EC)

2014/30/EU

H. Jenner Chairman of the Board of Management

S. Reiser Manager Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel: [phone]

Winnenden, 2022/12/01

Contents

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

2006/42/WE (+2009/127/WE)

2014/30/UE

H. Jenner Chairman of the Board of Management

S. Reiser Manager Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Winnenden, 2022/12/01

Table of Contents

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

2006/42/EC (+2009/127/EC)

2014/30/EU

H. Jenner Chairman of the Board of Management

S. Reiser Manager Regulatory Affairs & Certification

Winnenden, 2022/12/01

Contents

General notes.... 69

2006/42/EC (+2009/127/EC)

2014/30/EU

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2022/12/01

Table of Contents

General instructions.... 72

Environmental protection 72

Intended use.... 73

Accessories and spare parts.... 73

Scope of delivery.... 73

Description of the device.... 73

Safety devices 73

Symbols on the device.... 73

Assembly 73

Start-up 73

Operation.... 74

Transport.... 74

Storage 74

⑭ Device switch "0/OFF" / "I/ON"

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

Winnenden, 2022/12/01

Table of contents

Relevant EU Directives

2011/65/EU

2000/14/EU

2006/42/EU (+2009/127/EU)

2014/30/EU

Harmonized standards applied

EN 60335-1

EN 60335-2-79

EN 62233: 2008

EN 55014-1: 2017 + A11: 2020

EN 55014-2: 1997 + A1: 2001 + A2: 2008

EN 61000-3-2: 2014

EN 61000-3-3: 2013

EN IEC 63000: 2018

H. Jenner Chairman of the Board of Management

S. Reiser Manager Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden,

Contents

Opće napomene	79
Zaštita okoliša	80
Namjenska uporaba	80
Pribor i zamjenski dijelovi	80
Sadržaj isporuke	80
Opis uređaja	80
Sigurnosni uređaji	80
Simboli na uređaju	80
Montaža	80
Puštanje u pogon	80
Rad	81
Transport	81
Skladištenje	81
Njega i održavanje	82
Pomoć u slučaju smetnji	82
Jamstvo	82
Tehnički podaci	82
EU izjava o sukladnosti	82

General notes

Before using your device for the first time, read these original operating instructions and the enclosed Safety Notes. Follow

them accordingly.

2006/42/EZ (+2009/127/EZ)

2014/30/EU

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

Authorized representative for documentation:

S. Reiser

Alfred Kärcher SE & Co. KG

Alfred-Kärcher-Str. 28 - 40

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2022/12/01

Table of Contents

General notes....83 Environmental protection 83 Intended use 83 Accessories and spare parts.... 83 Scope of delivery 83 Description of the device 83 Safety devices.... 84 Symbols on the device.... 84 Assembly....84 Commissioning 84 Operation....84 Transport 85 Storage 85 Care and maintenance 85 Troubleshooting 85 Warranty 86 Technical data 86 EU Declaration of Conformity 86

General notes

Before first use, read the original operating instructions and the enclosed safety instructions. Follow

them accordingly.

Keep both booklets for future use or for the next owner.

2006/42/EZ (+2009/127/EZ)

2014/30/EU

Applied harmonized standards

EN 60335-1

EN 60335-2-79

EN 62233: 2008

EN 55014-1: 2017 + A11: 2020

EN 55014-2: 1997 + A1: 2001 + A2: 2008

EN 61000-3-2: 2014

EN 61000-3-3: 2013

EN IEC 63000: 2018

H. Jenner Chairman of the Board of Management

S. Reiser Manager Regulatory Affairs & Certification

Person authorized for documentation:

S. Reiser

Alfred Kärcher SE & Co. KG

Alfred-Kärcher-Str. 28 - 40

71364 Winnenden (Germany)

Tel.: [phone]

Winnenden, 2022/12/01

Contents

H. Jenner Chairman of the Board of Management

S. Reiser Manager Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2022/12/01

Contents

General instructions 90

EN 61000-3-3: 2013 EN IEC 63000: 2018

H. Jenner Chairman of the Board of Management

S. Reiser Manager Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

H. Jenner Chairman of the Board of Management

S. Reiser Manager Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

H. Jenner Chairman of the Board of Management

S. Reiser Manager Regulatory Affairs & Certification

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2022/12/01

Technical data

TOUSILI (LpaQA)
V220-240
1
~1
Hz50-60
A6
ANOG (Hcmaia)
A10
UoJlae (Mya)
MPa1,2
C40
min8
Adaie (Jha)
MPa7,4
MPa
I/min5,2	Kmia (Amdad, Mya)
I/min6,0	Kmia (Amdad Cpuo)
N11	Qoeyarajag mcds (Pnftp agal)
Abead (Oz)
kg4,0	Ozun Tshgil (nmtpi)
178	mm	###
219	mm	###
415	mm	###
EN 60335-2-79 ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ##
2,5>	m/s2	### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ####
0,7	m/s2	K
dB(A)78	LpA	### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ##
dB(A)3	KpA	### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ##
dB(A)93	LWA	### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ####

THANK YOU!

MERCI! DANKE! iGRACIAS!

Register your product and benefit from many advantages.

www.kaercher.com/welcome

Rate your product and tell us your opinion.

www.kaercher.com/dealersearch

Alfred Kärcher SE & Co. KG

Alfred-Kärcher-Str. 28-40

71364 Winnenden (Germany)
