SYMBOLFÖRKLARING

Symbolförklaring

Two abstract black-and-white icons: a circular arrow with 'I' and a curved arrow with 'I', no text or symbols present.

PRESENTATION

Innehåll

SYMBOLFÖRKLARING

Symbolförklaring 2

Two technical line drawings of a mechanical component with no visible text or symbols

Ljuddämpare

Technical line drawing of a mechanical assembly with gears and components (no text or symbols)

Pure mechanical diagram showing a lever and rope assembly without any text, numbers, or symbols

Inställningar

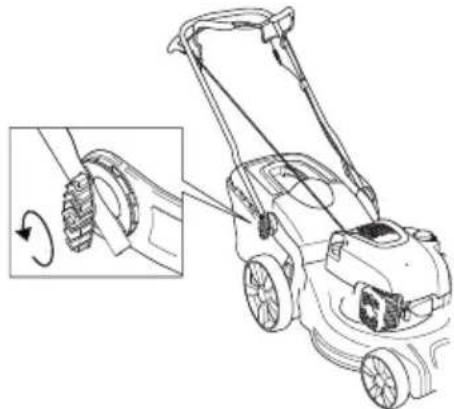

Handtagshöjd

- Lossa de undre vreden.

Line drawing of a lawn mower with a close-up inset showing the blade and wheel (no text or symbols)

Line drawing of a lawn mower with visible blades and wheel rim (no text or symbols)

Line drawing of a car interior showing steering wheel, dashboard, and seat (no text or symbols)

MONTERING OCH INSTÄLLNINGAR

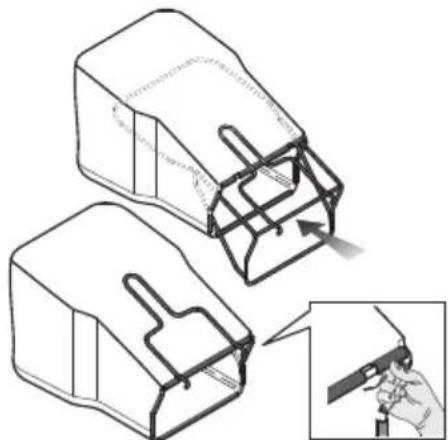

Uppsamlare

Technical diagram showing two views of a mechanical device with labeled parts and directional arrows indicating assembly or installation.

Diagram of a car's front compartment showing valve, handle, and door (no text or labels)

Technical line drawing of two mechanical components with a close-up inset showing a hand holding a tool (no text or symbols)

Technical line drawing of a mechanical device with gears and wheels (no text or symbols)

Illustration of a hand holding a device with a small plug inserted, no visible text or symbols

Påfyllning av olja

Technical line drawing of a mechanical switch or connector with directional arrow (no text or symbols)

Technical line drawing of a mechanical device with a black arrow indicating a specific component (no text or symbols present)

- Dra ut stickkontakten. Dra aldrig i sladden.

Diagram showing two types of recyclable trash bins with recycling symbol and no disposal, likely illustrating waste management or recycling rules.

Line drawing of a lawn mower with a black arrow indicating the blade (no text or symbols present)

Two technical diagrams showing mechanical components with arrows indicating motion or force direction (no text or symbols present)

Technical line drawing of a mechanical device with an inset showing a close-up of the component (no text or symbols present)

Drivning

Two-step diagram showing hands using a tool to adjust or install a device, with no visible text or symbols.

Two technical line drawings of a mechanical component with no visible text or symbols

Allmänt

Technical line drawing of a mechanical component with concentric circles and radial blades (no text or symbols)

Diagram showing a blade under an arch over grass, with arrows indicating direction (no text or symbols)

Line drawing of a mechanical component with two arrows pointing to features (no text or symbols)

Mechanical gear assembly diagram showing rotational motion with no text or symbols

Diagram showing a medical or surgical procedure with an inset close-up of a tool interacting with a device (no text or symbols present)

Two technical line drawings of a mechanical component with no visible text or symbols

Lyddæmper

Technical line drawing of mechanical components including gears, pulleys, and a screw (no text or labels)

Pure mechanical diagram showing a lever and rope assembly without any text, numbers, or symbols

Indstillinger

Styrets højde

Line drawing of a lawn mower with a close-up inset showing the blade being cut (no text or symbols)

Line drawing of a lawn mower with visible blades and wheel (no text or symbols)

Line drawing of a car interior showing steering wheel, dashboard, and seat (no text or symbols)

SAMLING OG JUSTERINGER

Opsamler

Technical line drawing of a mechanical clamp or bracket with an arrow indicating direction (no text or symbols)

Line drawing of a mechanical device with a black arrow indicating a specific component (no text or symbols present)

Diagram showing two waste sorting bins with recycling symbols and a recycling symbol, indicating disposal or recycling rules.

Line drawing of a lawn mower with a black arrow indicating the blade (no text or symbols present)

Two technical diagrams showing mechanical components with arrows indicating motion or force direction (no text or symbols)

Technical line drawing of a mechanical device with an inset showing a close-up of a component (no text or symbols present)

Drev

- Tryk fremdriftsstangen ind imod styret for at starte drevet.

Two-step diagram showing a hand holding a tool and a close-up of a magnifying glass (no text or symbols)

Two technical line drawings of a mechanical component with no visible text or symbols

Generelt

Technical line drawing of a mechanical component with concentric circles and radial blades (no text or symbols)

Diagram showing a curved structure above grass, with arrows indicating direction (no text or symbols)

- Sørg for, at kniven centreres korrekt på akslen.

Line drawing of a mechanical component with two arrows pointing to features (no text or symbols)

Mechanical gear assembly diagram showing rotational motion with no text or symbols

Diagram of a medical or surgical procedure showing a tool interacting with a device, with an inset illustrating the motion of rotation around a central component (no text or labels present)

Diagram showing a cable or cable clamp mechanism with a downward arrow and label '自住' indicating the location.

Luftfilter

Two technical line drawings of a mechanical clamp or bracket assembly, showing no text or symbols.

Äänenvaimennin

Technical line drawing of mechanical components including gears, springs, and a tool (no text or symbols)

Pure mechanical diagram showing a lever and rope assembly without any text, numbers, or symbols

Asetukset

Kahvan korkeus

- Irrota alemmat nupit.

Line drawing of a lawn mower with a close-up inset showing the blade being cut (no text or symbols)

Line drawing of a lawn mower with visible blades and wheel rim (no text or symbols)

Line drawing of a car's side view showing steering wheel, dashboard, and seat components (no text or symbols)

ASENNUS JA SÄÄDÖT

Kerääjä

Technical diagram showing two views of a mechanical device with labeled parts and directional arrows indicating assembly or installation.

Diagram of a car interior showing dashboard, steering wheel, and dashboard lock (no text or labels)

Technical line drawing of two mechanical components with a magnified inset showing a hand holding a tool (no text or symbols)

Technical line drawing of a mechanical assembly or vehicle component (no text or symbols visible)

Illustration of a hand inserting a plug into a device component (no text or symbols visible)

Öljyn täyttö

Technical line drawing of a mechanical clamp or connector with an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical device with a black arrow indicating a specific component (no text or symbols present)

Diagram showing two bins with a recycling symbol and crossed-out lines, indicating no disposal or recycling.

Line drawing of a lawn mower with a black arrow indicating the blade (no text or symbols present)

Technical line drawing of two mechanical components with arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical device with an inset showing a close-up of a cable or connector (no text or symbols present)

Veto

Two-step diagram showing hands holding a tool and a magnifying glass (no text or symbols)

Technical line drawing of two mechanical components with no visible text or symbols

Yleistä

Technical line drawing of a mechanical component with concentric circles and radial blades (no text or symbols)

Diagram showing a curved structure above grass, with arrows indicating direction (no text or symbols)

Line drawing of a mechanical component with two arrows pointing to circular features (no text or symbols)

Mechanical gear assembly diagram showing rotational motion with no text or symbols

Diagram of a medical or surgical procedure showing a tool interacting with a device, with an inset illustrating the motion of rotation around a central component (no text or labels present)

Technical line drawing of two mechanical components with no visible text or symbols

Lyddemper

ADVARSEL! Bruk aldri en maskin uten lyddemper eller med defekt lyddemper. En defekt lyddemper kan øke lydnivået og brannfaren betraktelig. Ha verktøy for brannslokking tilgjengelig.

Technical line drawing of mechanical components including gears, pulleys, and a screw (no text or labels)

Pure mechanical diagram showing a lever and rope assembly without any text, numbers, or symbols

Inställningar

Håndtakets høyde

• Løsne de nedre knottene.

Line drawing of a lawn mower with a close-up inset showing the blade and wheel (no text or symbols)

Line drawing of a lawn mower with visible blades and wheel (no text or symbols)

Line drawing of a car with two arrows indicating mechanical or electrical components (no text or symbols present)

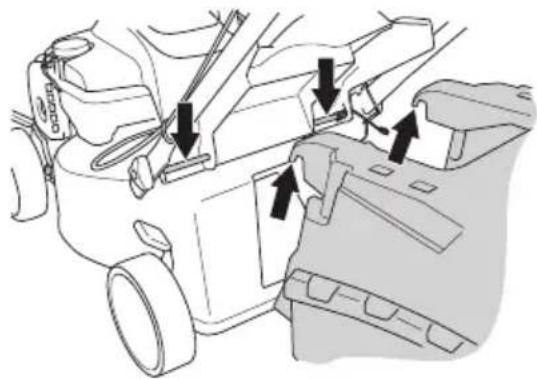

Oppsamler

Technical illustration of a mechanical device with two views showing internal components and directional arrows (no text or symbols)

- Fest krokene i de øvre krokene i chassiset.

Diagram of a car's front compartment showing structural components and directional arrows (no text or labels)

Technical illustration of two mechanical components with a close-up inset showing a hand holding a tool (no text or symbols present)

Technical line drawing of a vehicle's internal components, including wheels and a handle (no text or symbols)

Illustration of a hand holding a device with a plug inserted, no text or symbols visible

Påfylling av olje

Technical line drawing of a mechanical clamp or connector with directional arrow (no text or symbols)

- Koble til batteriladeren og la batteriet lades i maks. 24 timer.

Line drawing of a mechanical device with a black arrow pointing to a component (no text or symbols)

Diagram showing two waste sorting methods with recycling symbol and no disposal, indicating no disposal or recycling.

Line drawing of a lawn mower with a tool inserted, showing no text or symbols

- Motorbremsebøylen må holdet mot håndtaket när motoren startes.

Two technical diagrams showing mechanical components with arrows indicating motion or force direction (no text or symbols present)

Technical line drawing of a mechanical device with an inset showing a close-up of a component (no text or symbols present)

Drift

Two-step diagram showing a hand holding a tool and a close-up of a magnifying glass (no text or symbols)

Technical line drawing of two mechanical components with curved arms and a central circular component (no text or symbols)

Generelt

Technical line drawing of a mechanical component with concentric circles and radial blades (no text or symbols)

Diagram showing a blade under an arch over grass, with arrows indicating direction (no text or symbols)

- Kontroller at klipperen sentreres riktig på akselen.

Line drawing of a mechanical component with two arrows pointing to features (no text or symbols)

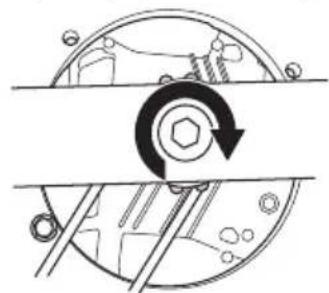

- Monter skiven og skru bolten ordentlig fast. Bolten skal trekkes til med et moment på 45-60 Nm.

Mechanical gear assembly diagram showing rotational motion with no text or symbols

Diagram showing a medical or surgical procedure with an inset close-up of a tool interacting with a device (no text or symbols present)

Diagram showing a mechanical or electrical component with a downward arrow and labeled component 'B7.1'

Luftfilter

WARNING! The machine can be a dangerous tool if used incorrectly or carelessly, which can cause serious or fatal injury to the operator or others.

Please read the operator's manual carefully and make sure you understand the instructions before using the machine.

Keep people and animals well away from the working area.

Prevent unintentional starting by removing the ignition cable from the spark plug.

Watch out for thrown objects and ricochets.

Warning: rotating cutter. Keep hands and feet clear.

Warning: rotating parts. Keep hands and feet clear.

This product is in accordance with applicable EC directives.

Noise emission to the environment according to the European Community's Directive. The machine's emission is specified in the Technical data chapter and on the label.

Never use the machine indoors or in spaces lacking proper ventilation. Exhaust fumes contain carbon

monoxide, an odourless, poisonous and highly dangerous gas.

Risk of explosion

Always shut off the engine before refuelling.

Hot surface.

Clutch

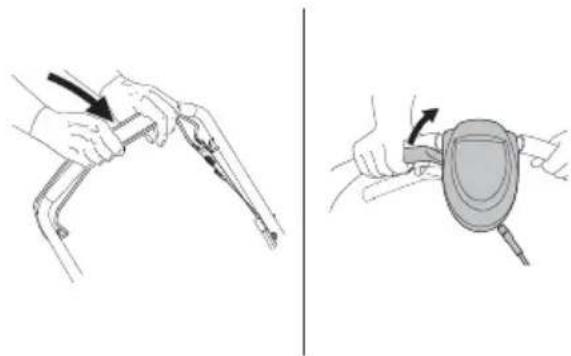

Propulsion bar - disengaged

Propulsion bar - engaged

Propel

Engine

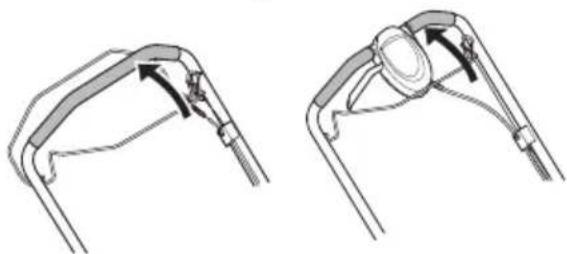

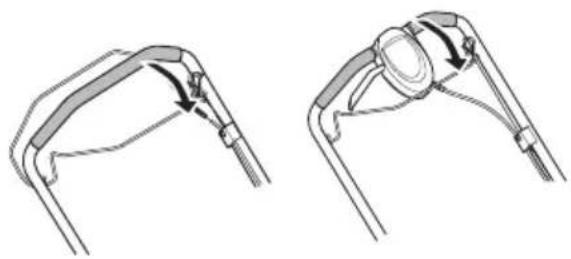

Engine brake handle - disengaged

Engine brake handle - engaged

Explanation of warning levels

The warnings are graded in three levels.

WARNING!

WARNING! Used if there is a risk of serious injury or death for the operator or damage to the surroundings if the instructions in the manual are not followed.

IMPORTANT!

IMPORTANT! Used if there is a risk of injury to the operator or damage to the surroundings if the instructions in the manual are not followed.

CAUTION!

CAUTION! Used if there is a risk of damage to materials or the machine if the instructions in the manual are not followed.

Contents Dear Customer,

KEY TO SYMBOLS

Key to symbols 62

Explanation of warning levels 62

PRESENTATION

Contents 63

Dear Customer, 63

PRESENTATION

What is what on the lawn mower? 64

MACHINE'S SAFETY EQUIPMENT

General 65

ASSEMBLING AND ADJUSTMENTS

General 66

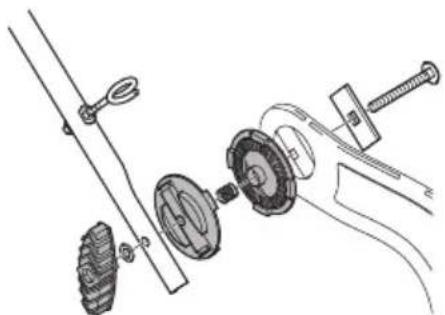

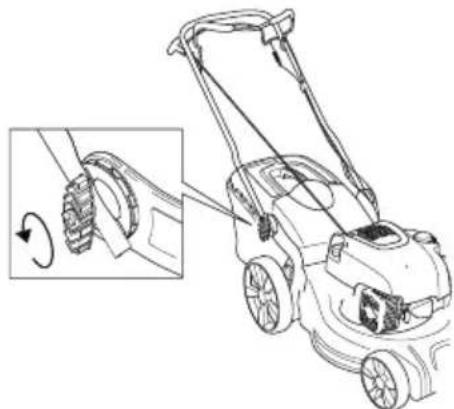

Handle 66

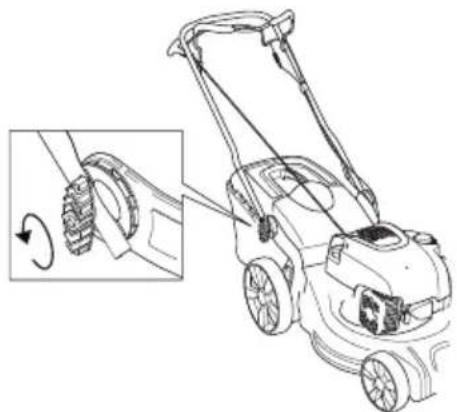

Cutting height 66

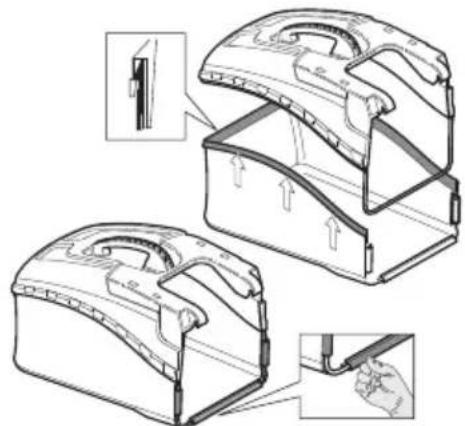

Catcher 67

Mulcher insert 67

Filling with oil 67

FUEL HANDLING

General 68

Fuel 68

Fueling 68

Transport and storage 68

BATTERY HANDLING

Battery 69

Transport and storage 69

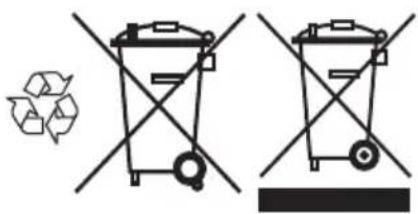

Disposal of the battery, battery charger and machine 69

OPERATING

Personal protective equipment 70

General safety precautions 70

Basic working techniques 71

Transport and storage 71

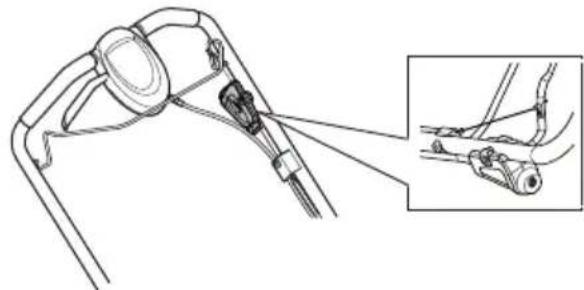

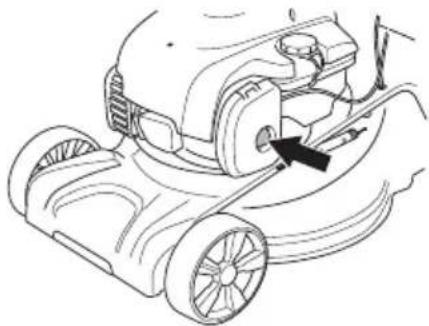

Starting and stopping 72

MAINTENANCE

General 73

Maintenance schedule 73

General inspection 73

Spark plug 75

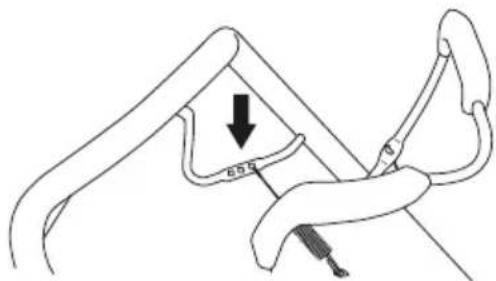

Adjusting the clutch wire 75

Air filter 75

Oil change 75

Fuel system 75

TECHNICAL DATA

Technical data 76

Congratulations on your choice to buy a Husqvarna product! Husqvarna is based on a tradition that dates back to 1689, when the Swedish King Karl XI ordered the construction of a factory on the banks of the Husqvarna River, for production of muskets. The location was logical, since water power was harnessed from the Huskvarna River to create the water-powered plant. During the more than 300 years in existence, the Husqvarna factory has produced a lot of different products, from wood stoves to modern kitchen appliances, sewing machines, bicycles, motorcycles etc. In 1956, the first motor driven lawn mowers appeared, followed by chain saws in 1959, and it is within this area Husqvarna is working today.

Today Husqvarna is one of the leading manufacturers in the world of forest and garden products, with quality as our highest priority. The business concept is to develop, manufacture and market motor-driven products for forestry and gardening, as well as for the building and construction industry. Husqvarna's aim is also to be at the front edge for ergonomics, usability, security and environmental protection. That is the reason why we have developed many different features to add to our products within these areas.

We are convinced that you will appreciate with great satisfaction the quality and performance of our product for a very long time to come. The purchase of one of our products gives you access to professional help with repairs and service whenever this may be necessary. If the retailer who sells your machine is not one of our authorised dealers, ask for the address of your nearest service workshop.

It is our wish that you will be satisfied with your product and that it will be your companion for a long time. Think of this operator's manual as a valuable document. By following its content (usage, service, maintenance, etc), the life span and the second-hand value of the machine can be extended. If you sell this machine, make sure that the operator's manual is passed on to the buyer.

Thank you for using a Husqvarna product.

Husqvarna AB has a policy of continuous product development and therefore reserves the right to modify the design and appearance of products without prior notice.

PRESENTATION

LC 146SPE LC 146S LC 146SP LC 351V 18 2 2 2 1 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 20

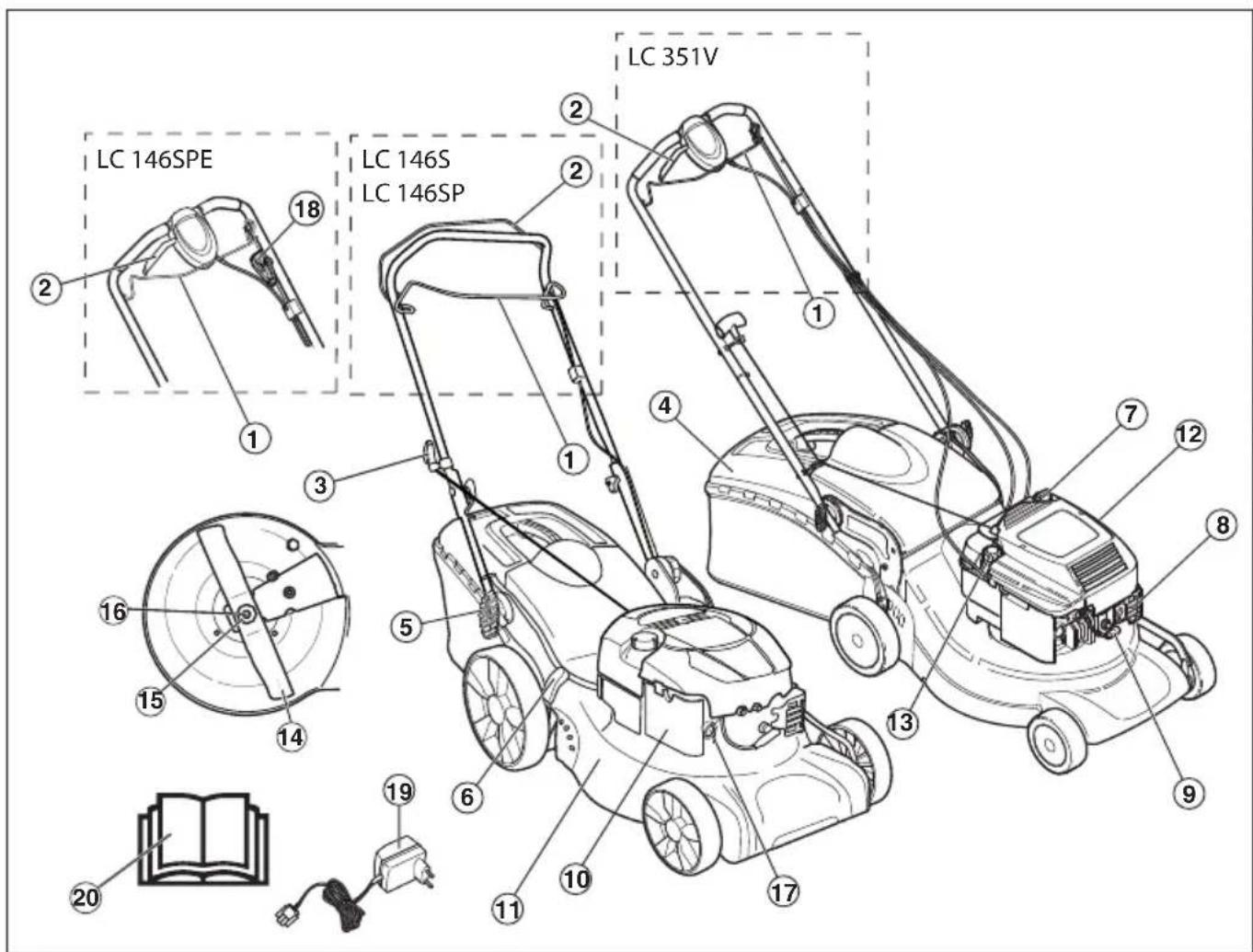

What is what on the lawn mower?

1 Engine brake handle
2 Propulsion bar
3 Starter handle
4 Catcher
5 Handle, handle height

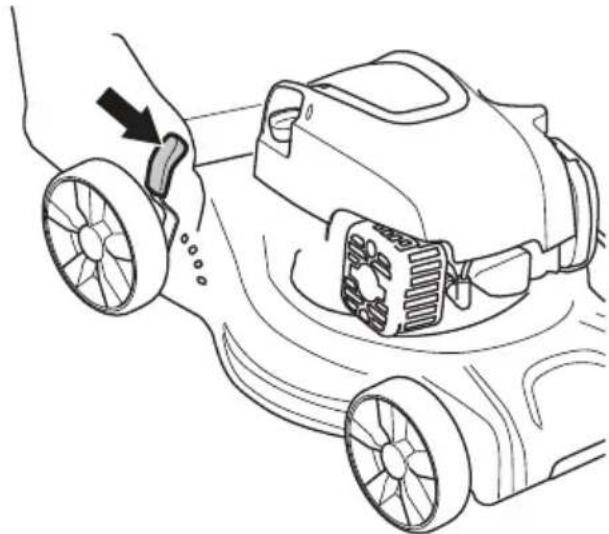

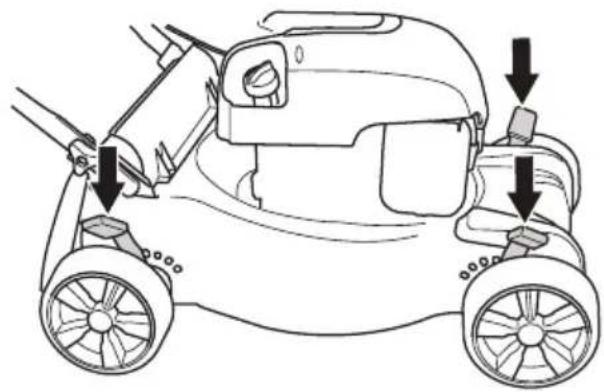

6 Cutting height control
7 Dipstick/oil filler
8 Muffler
9 Spark plug
10 Air filter

11 Cutting cover
12 Water connector
13 Refuelling
14 Cutter
15 Spring washer
16 Cutter bolt
17 Primer diaphragm (LC 146SP)
18 Ignition key (LC 146SPE)
19 Battery charger (LC 146SPE)
20 Operator's manual

MACHINE'S SAFETY EQUIPMENT

General

This section describes the machine's safety equipment, its purpose, and how checks and maintenance should be carried out to ensure that it operates correctly.

WARNING! Never use a machine that has faulty safety equipment! If your machine fails any checks contact your service agent to get it repaired.

Do not modify this product or use it if it appears to have been modified by others. Prevent unintentional starting by removing the ignition cable from the spark plug.

Cutting cover

- The cutting cover is designed to reduce vibration and to reduce the risk of cuts.

Checking the cutting cover

- Make sure the cutting cover is not damaged and that there are no visible defects such as cracks.

Engine brake handle

- The engine brake is designed to stop the engine. When the grip on the engine brake handle is released the engine should stop.

Checking the engine brake handle

Apply full throttle and then release the brake handle. The engine brake should always be adjusted so that the engine stops within 3 seconds.

Technical line drawing of two mechanical components with arrows indicating motion (no text or symbols)

Muffler

WARNING! Never use a machine without a muffler, or with a faulty muffler. A damaged muffler may substantially increase the noise level and the fire hazard. Keep fire fighting equipment handy.

The muffler gets very hot during and after use. This also applies during idling. Be aware of the fire hazard, especially when working near flammable substances and/or vapours.

- The muffler is designed to keep noise levels to a minimum and to direct exhaust fumes away from the user.

Inspecting the muffler

- Check regularly that the muffler is complete and secured correctly.

ASSEMBLING AND ADJUSTMENTS

General

IMPORTANT! Prevent unintentional starting by removing the ignition cable from the spark plug.

Handle

Assembly

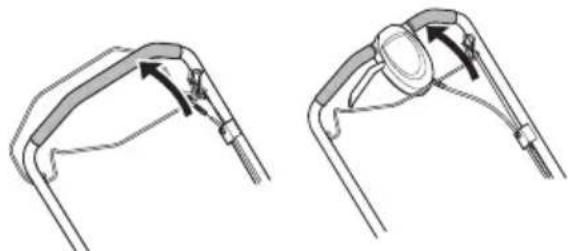

Top handle

Place the handlebar's tubular construction in direct opposite to the lower part of the handlebar. Tighten the knobs properly.

Technical line drawing of a mechanical assembly with gears and components (no text or symbols)

Use enclosed straps to secure cables to the handle. Do not overstretch cables when mounting.

Pure mechanical diagram showing a lever and rope assembly without any text, numbers, or symbols

Settings

Handle height

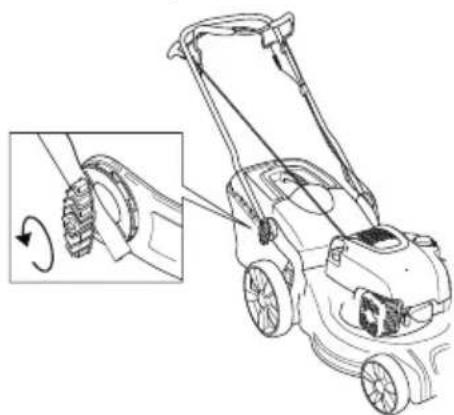

- Loosen the lower knobs.

Line drawing of a lawn mower with a close-up inset showing the blade being cut (no text or symbols)

- Adjust the height. Tighten the knobs properly.

Cutting height

NOTICE! Do not set the cutting height too low as there is a risk that the cutters might hit ground with unevenness.

Move the lever to the back for higher cutting height and to the front for lower cutting height.

Line drawing of a lawn mower with a hand adjusting the wheel (no text or symbols)

LC 146SP has 3 controls. Set the same height on all three control points.

Line drawing of a car with mechanical components and directional arrows indicating motion (no text or symbols)

ASSEMBLING AND ADJUSTMENTS

Catcher

- Assemble the catcher and secure the frame by using the quick-action clips.

Technical diagram showing two views of a mechanical device with labeled parts and directional arrows indicating assembly or installation.

- Attach the hooks in the upper edge of the chassis.

Diagram of a car interior showing engine compartment with arrows indicating parts (no text or symbols present)

- Fit the bagger bottom in the discharge hole.

LC 146S

A fabric collector is included with the LC 146S.

Technical line drawing of two mechanical components with a close-up inset showing a hand holding a tool (no text or symbols)

- Place the frame into the fabric collector.

- The collector's handle situated on the frame must be placed over the collector bag.

- Secure the frame by using the quick-action clips.

- Attach the hooks in the upper edge of the chassis. Fit the bagger bottom in the discharge hole.

Mulcher insert

- Raise the discharge guard to mount / dismount the mulch plug.

Technical line drawing of a mechanical device with no visible text or symbols

Hook the spring in the frame.

Illustration of a hand holding a device with a plug inserted, no text or symbols visible

Filling with oil

- The oil tank is empty at delivery. Fill the oil slowly. See instructions under the heading Maintenance. The engine oil should be changed the first time after 5 hours running time.

General

WARNING! Running an engine in a confined or badly ventilated area can result in death due to asphyxiation or carbon monoxide poisoning.

Fuel and fuel fumes are highly inflammable and can cause serious injury when inhaled or allowed to come in contact with the skin. For this reason observe caution when handling fuel and make sure there is adequate ventilation.

The exhaust fumes from the engine are hot and may contain sparks which can start a fire. Never start the machine indoors or near combustible material!

Do not smoke and do not place any hot objects in the vicinity of fuel.

Fuel

NOTICE! The machine is equipped with a four-stroke engine. Make sure that there is always sufficient oil in the oil tank.

Petrol

• Use good quality unleaded or leaded petrol.
• The lowest octane recommended is 90 (RON). If you run the engine on a lower octane grade than 90 so-called knocking can occur. This gives rise to a high engine temperature, which can result in serious engine damage.
• Use low-emission petrol, also known as alkylate petrol, if it is available.

Engine oil

NOTICE! Check the oil level before starting the lawn mower. A too low oil level can cause serious damage to the engine. See instructions in the section "Maintenance".

- The engine oil should be changed the first time after 5 hours running time. Refer to Technical Data for recommendations on which oil type to use. Never use oil intended for two-stroke engines.

Fueling

WARNING! Always stop the engine and let it cool for a few minutes before refuelling.

Use a petrol can at all times to avoid spillage.

When refuelling, open the fuel cap slowly so that any excess pressure is released gently.

Clean the area around the fuel cap.

Tighten the fuel cap carefully after refuelling. Negligence may lead to the start of a fire.

Move the machine at least 3 m from the refuelling point before starting it.

Never start the machine:

• If you have spilled fuel or engine oil on the machine. Wipe off the spill and allow the remaining fuel to evaporate.
• If you have spilled fuel on yourself or your clothes, change your clothes. Wash any part of your body that has come in contact with fuel. Use soap and water.
• If the machine is leaking fuel. Check regularly for leaks from the fuel cap and fuel lines.

Transport and storage

• Store and transport the machine and fuel so that there is no risk of any leakage or fumes coming into contact with sparks or open flames, for example, from electrical machinery, electric motors, electrical relays/ switches or boilers.
• When storing and transporting fuel always use approved containers intended for this purpose.

Long-term storage

- When storing the machine for long periods the fuel tank must be emptied. Contact your local petrol station to find out where to dispose of excess fuel.

Battery (LC 146SPE)

General

WARNING! Risk of electric shock and short circuiting. Use approved and intact wall sockets. Make sure that the cable is not damaged. Replace cable if it appears to be damaged in any way.

The battery must be charged before using it the first time. Regularly check that the battery charger and the battery are intact.

Bear in mind that:

• Charge the battery using the battery charger supplied.
• The charger must be connected to a grounded outlet socket.
• Charge the battery for max. 24 hours.
• Do not charge the battery in direct sunlight.
• Do not charge at temperatures below +5^ C.
• The machine must be charged in a dry and well-ventilated area, protected from water, damp, oil and grease.
• Never charge the machine in the vicinity of flammable substances or gases.

Charging the battery

• Connect the battery charger to the voltage and frequency specified on the rating plate.
• Put the electric plug in a earthed socket-outlet.
• Open the cover on the electric starter

Technical line drawing of a mechanical clamp or connector with directional arrow (no text or symbols)

- Connect the battery charger and charge the battery for max. 24 hours.

Line drawing of a mechanical device with a black arrow indicating direction (no text or symbols)

- Pull out the plug. Never jerk the power supply cable to disconnect it from the wall socket.

Transport and storage

• For commercial transports e.g. by third parties, forwarding agents, special requirement on packing and labeling must be observed.
• For preparation of the item being shipped, consulting an expert for hazardous material is required. Please also observe possibly more detailed national regulations.
• Tape or mask off open contacts and pack up the battery in such a manner that it cannot move around in the packing.
• Secure the machine during transport.
  • Always remove the battery for storage or transport.
• Store the battery and the battery charger in a dry, moisture-free and frost-free space.
• Do not store the battery in places where static electricity can occur. Never store the battery in a metal box.
• Store the battery and the battery charger where the temperature is between 5 °C and 45 °C and never in direct sunlight.
• Store the battery charger only in an enclosed and dry space. Store the equipment in a lockable area so that it is out of reach of children and unauthorized persons.
• Ensure the machine is cleaned and that a complete service is carried out before long-term storage.

Disposal of the battery, battery charger and machine

Symbols on the product or its packaging indicate that this product cannot be handled as domestic waste. It must instead be submitted to an appropriate recycling station for the recovery of electrical and electronic equipment.

By ensuring that this product is taken care of correctly, you can help to counteract the potential negative impact on the environment and people that can otherwise result through the incorrect waste management of this product. For more detailed information about recycling this product, contact your municipality, your domestic waste service or the shop from where you purchased the product.

Two identical diagrams of waste sorting bins with no text or symbols, one marked with a recycling symbol (no text or labels present)

OPERATING

Personal protective equipment

You must use approved personal protective equipment whenever you use the machine. Personal protective equipment cannot eliminate the risk of injury but it will reduce the degree of injury if an accident does happen. Ask your dealer for help in choosing the right equipment.

Always wear:

• Use ear muffs if the noise level exceeds 85 db.
• Sturdy, non-slip boots or shoes.
• Heavy, long pants. Do not wear shorts, sandals or go barefoot.
• Gloves must be worn when required, for example when fitting, inspecting or cleaning cutting attachments.

General safety precautions

This section describes basic safety directions for using the machine. This information is never a substitute for professional skills and experience.

• Please read the operator's manual carefully and make sure you understand the instructions before using the machine.
• Keep in mind that the operator is responsible for accidents or hazards occurring to other people or their property.
• The machine must be kept clean. Signs and stickers must be fully legible.

Always use common sense

It is not possible to cover every conceivable situation you can face. Always exercise care and use your common sense. If you get into a situation where you feel unsafe, stop and seek expert advice. Contact your dealer, service agent or an experienced user. Do not attempt any task that you feel unsure of!

WARNING! This machine produces an electromagnetic field during operation. This field may under some circumstances interfere with active or passive medical implants. To reduce the risk of serious or fatal injury, we recommend persons with medical implants to consult their physician and the medical implant manufacturer before operating this machine.

WARNING! The machine can be a dangerous tool if used incorrectly or carelessly, which can cause serious or fatal injury to the operator or others.

Never allow children or other persons not trained in the use of the machine to use or service it.

The machine should not be used by people with reduced physical or mental capacities or people who are unsuitable for health reasons to operate the machine, without supervision of a person responsible for their safety.

Never allow anyone else to use the machine without first ensuring that they have read and understood the contents of the operator's manual.

Never use the machine if you are fatigued, while under the influence of alcohol or drugs, medication or anything that could affect your vision, alertness, coordination or judgement.

WARNING! Unauthorized modifications and/or accessories may lead to serious injury or death to the user or others. Under no circumstances may the design of the machine be modified without the permission of the manufacturer.

Do not modify this product or use it if it appears to have been modified by others.

Never use a machine that is faulty. Carry out the checks, maintenance and service instructions described in this manual. Some maintenance and service measures must be carried out by trained and qualified specialists.

Always use genuine accessories.

OPERATING

Work area safety

• Branches, twigs, stones, etc. should be removed from the lawn before you start to mow.
• Objects hitting against the cutting attachment could be thrown and cause damage to people and objects. Keep people and animals well away.
• Never use the machine in bad weather, for instance in fog, in rain, damp or in wet locations, strong winds, intense cold, risk of lightning, etc. Working in bad weather is tiring and can lead to dangerous conditions, e.g. slippery surfaces.
• Observe your surroundings to ensure that nothing can affect your control of the machine.
• Beware of roots, stones, twigs, pits, ditches etc. Tall grass can hide obstacles.
• Mowing slopes can be dangerous. Do not use the lawn mower on very steep slopes. The lawn mower should not be used on inclines greater than 15 degrees.
• On sloping ground you should work along the slope. It is much easier to work along a slope than it is to work up and down it.
• Be careful when you are approaching hidden corners and objects that could block your view.

Work safety

• A lawn mower is only designed to mow lawns. All other use is forbidden.
• Wear personal protective equipment. See instructions under the "Personal protective equipment" heading.
• Do not start a lawn mower unless the cutter and all covers are fitted correctly. Otherwise the cutter could come loose and cause personal injuries.
• Make sure the cutter does not hit foreign objects such as stones, roots or the like. This can make the cutter dull and bend the engine shaft. A bent axle gives imbalance and heavy vibration, which results in a great risk of the cutter becoming loose.
• The brake handle must never be permanently anchored in handle when the machine is running.
• Place the lawn mower on firm, flat surface and start it. Make sure that the cutter cannot come into contact with the ground or other objects.
  • Always place yourself behind the machine. Allow all the wheels to remain on the ground and keep both hands on the handle when mowing. Keep your hands and feet away from the rotating blades.
• Do not tilt the machine when the engine is running.
• Pay particular attention when pulling the machine towards you during work.

• Never lift up the lawn mower or carry it around when the engine is running. If you must lift the lawn mower, first switch off the engine and disconnect the ignition lead from the spark plug.

• Do not mow the lawn while walking backwards.

• The engine should be switched off when moving over ground that is not to be mowed. For example, gravel paths, stone, shingle, asphalt, etc.
• Never run with the machine when it is running. You should always walk with the lawn mower.
• Shut down the engine before changing the cutting height. Never make adjustments with the engine running.
• Never leave the machine unsupervised with the motor running. Turn off the motor. Ensure the cutting attachment has stopped rotating.
• If any foreign object is hit or if vibrations occur stop the machine immediately. Disconnect the HT lead from the spark plug. Check that the machine is not damaged. Repair any damage.

Basic working techniques

• Always cut with a sharp blade for optimal results. A dull blade gives an uneven cut and the grass becomes yellow on the surface of the cut.
• Never mow more than 1/3 of the length of the grass. This especially applies during dry periods. Mow first with the cutting height set high. Then check the result and lower to an appropriate height. If the grass is really long, drive slowly and mow twice if necessary.
• Cut in different directions each time in order to avoid stripes in the lawn.

Transport and storage

• Secure the equipment during transportation in order to avoid transport damage and accidents.
• Store the equipment in a lockable area so that it is out of reach of children and unauthorized persons.
• Store the machine and its equipment in a dry and frost proof place.
• For transport and storage of fuel, see the section "Fuel handling".

OPERATING

Starting and stopping

Before starting

WARNING! Please read the operator's manual carefully and make sure you understand the instructions before using the machine.

Wear personal protective equipment. See instructions under the "Personal protective equipment" heading.

• Keep people and animals well away from the working area.
• Perform daily maintenance. See instructions in the section "Maintenance".
• Ensure the ignition lead sits correctly on the spark plug.

Starting

Manual Start (LC 146S, LC 146SP, LC 351V)

Model LC 146SP has manual choke (primer diaphragm). If the lawn mower is being started for the first time press on the fuel pump five times. After that you should press on the fuel pump three times when starting a cold engine.

Line drawing of a lawn mower with a black arrow indicating the blade (no text or symbols present)

- The engine brake handle must be held against the handlebar when the engine is started.

Two technical line drawings of a mechanical component with arrows indicating motion or assembly (no text or symbols)

• Position yourself behind the machine.
• Grip the starter handle, slowly pull out the cord with your right hand until you feel some resistance (the starter pawls grip). Pull with force to start the engine. Never twist the starter cord around your hand.

Electric Start (LC 146SPE)

LC 146SPE is equipped with electric start. Press and hold down the electronic start until the engine starts. The engine brake handle must be held against the handlebar when the engine is started.

Technical line drawing of a mechanical device with an inset showing a close-up of the component (no text or symbols present)

Drive

- Push the propulsion bar in towards the handle in order to start the drive.

Two-step diagram showing hand tool application: one to handle a tool, the other to hold a device (no text or symbols present)

- Before pulling the machine towards you, disengage the drive and push the machine forward approx. 10 cm.

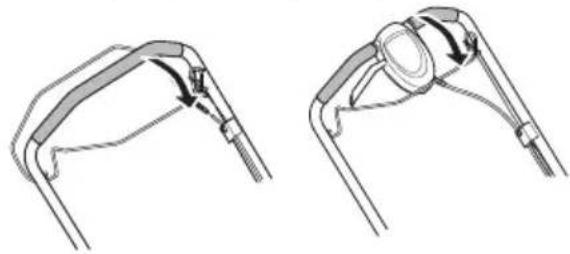

Stopping

- Stop the engine by releasing the engine brake handle.

Two technical line drawings of a mechanical component with no visible text or symbols

MAINTENANCE

General

WARNING! The user must only carry out the maintenance and service work described in this Operator's Manual. More extensive work must be carried out by a service workshop.

Switch off the engine before carrying out any checks or maintenance. Prevent unintentional starting by removing the ignition cable from the spark plug.

The life span of the machine can be reduced and the risk of accidents can increase if machine maintenance is not carried out correctly and if service and/or repairs are not carried out professionally. If you need further information please contact your nearest service workshop.

CAUTION! When the machine is tilted, make sure the air filter always is placed in the highest position.

• Always use genuine accessories.

Maintenance schedule

In the maintenance schedule you can see which parts of your machine that require maintenance, and with which intervals it should take place. The intervals are calculated based on daily use of the machine, and may differ depending on the rate of usage.

Before starting	Weekly maintenance	Monthly maintenance
General inspection	Spark plug Air filter
External cleaning	Muffler* Fuel system
Oil level
Cutting equipment
Cutting cover*
Adjusting the clutch wire
Engine brake handle*

*See instructions in the section "Machine's safety equipment".

General inspection

- Check that nuts and screws are tight.

External cleaning

• Brush leaves, grass and the like off of the lawn mower.
• Do not use a high pressure washer to clean the machine.
• Never flush water directly on the engine.
• Clean the air intake on the starter. Check the starter and starter cord.
• When cleaning under the cutting deck, turn the machine with the spark plug upwards. Empty the fuel tank.

Oil level

The lawn mower should stand on flat ground when you check the oil level. Check the oil level with the dipstick on the oil filler cap.

• Remove the oil cap and wipe the dipstick clean.
• Put the dipstick back in.
• If the oil level is low, fill using engine oil up to the upper level on the dipstick.

MAINTENANCE

Cutting equipment

• Check the cutting attachment for damage or cracks. A damaged cutting attachment should always be replaced.
  • Always ensure the cutter is well ground and balanced correctly.

CAUTION! The blades should be balanced after sharpening. Balancing, replacing or sharpening the blades should be conducted by a service workshop. Damaged blades should be replaced when hitting obstacles that result in a breakdown. Let the service centre assess whether the blade can be sharpened or must be replaced.

Replacing the blades

WARNING! Always wear heavy-duty gloves when servicing and maintaining the cutting equipment. The cutters are very sharp and cuts can occur very easily.

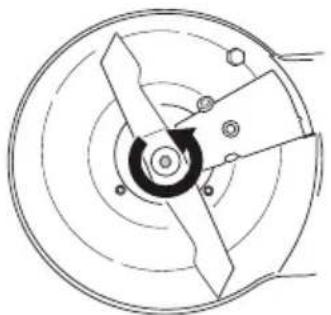

Dismantling

- Unscrew the bolt holding the cutter.

Technical line drawing of a mechanical component with concentric circles and radial blades (no text or symbols)

- Remove the old blade. Make sure the blade bracket is free of damage. Also check that the cutter bolt is undamaged and that the engine shaft is not bent.

Assembly

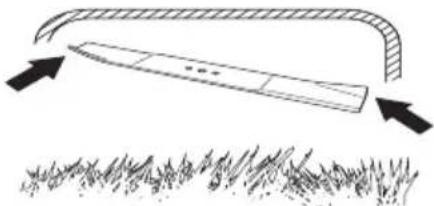

- The blade must be mounted with the angled ends pointing up towards the cover.

Diagram showing a blade under an arch with arrows indicating direction, above grass (no text or symbols)

• Make sure the cutter centres correctly on the shaft.

Line drawing of a mechanical component with two arrows pointing to features (no text or symbols)

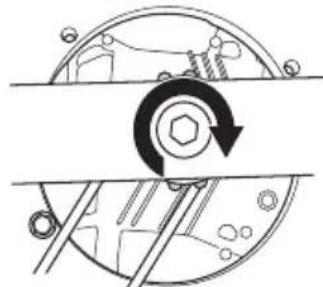

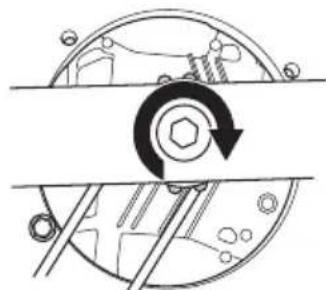

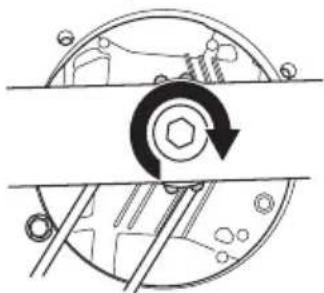

- Fit the washer and tighten the bolt correctly. The bolt should be tightened with a torque of 45-60 Nm.

Mechanical gear assembly diagram showing rotational motion with no text or symbols

• Pull the blade around by hand and make sure it rotates freely.
• Test run the machine.

IMPORTANT!

Always exercise care and use your common sense. Avoid all situations which you consider to be beyond your capability. If you still feel uncertain about operating procedures after reading these instructions, you should consult an expert before continuing. Contact an authorised service workshop.

Always use genuine parts. For more information, see the "Technical data" section.

MAINTENANCE

Spark plug

NOTICE! Always use the recommended spark plug type! Use of the wrong spark plug can damage the piston/cylinder.

- If the machine is low on power, difficult to start or runs poorly at idle speed: always check the spark plug first before taking other steps.

- If the spark plug is dirty, clean it and check that the electrode gap is 0.5 mm. Replace if necessary.

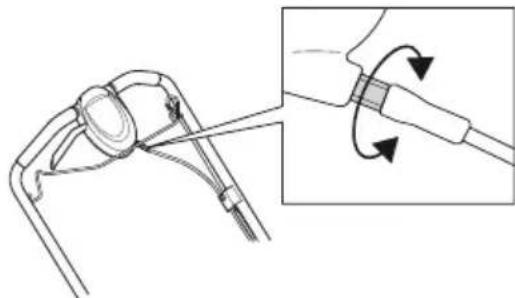

Adjusting the clutch wire

- Finely adjust the wire using the adjuster screw.

Diagram showing a medical or surgical procedure with an inset close-up of a tool interacting with a device (no text or symbols present)

- Roughly adjust the cluch wire when the fine adjustment is not enough.

- Roughly adjust the clutch wire by attaching it to the different brackets on the clutch bar. Then adjust the wire finely.

自立盘

Air filter

• Remove the air filter cover and take out the filter.
• An air filter that has been in use for a long time cannot be cleaned completely. The filter must therefore be replaced with a new one at regular intervals. A damaged air filter must always be replaced.
• When reassembling, make sure that the filter completely seals against the filter holder.

Clean the paper filter

- Clean the filter by knocking the filter against a flat surface. Never use solvent with petroleum, for example, kerosene, or compressed air to clean the filter.

Cleaning the foam plastic filter

- Remove the foam plastic filter. Wash the filter well in tepid soapy water. After cleaning, rinse the filter well in clean water. Squeeze out and allow the filter to dry. NOTE! High pressure compressed air can damage the foam. After cleaning the filter should be oiled using engine oil. Wipe away excess oil by pressing a clean cloth against the filter.

Oil change

• Empty the fuel tank.
• Unscrew the oil filler cap.
• Place a suitable vessel to collect the oil in.
• Drain the oil by tipping the engine so that the oil runs out through the filler pipe. When the machine is tilted, make sure the air filter always is placed in the highest position. Ask where you can dispose of surplus engine oil at your local petrol station.
• Fill with new engine oil of a good quality. See instructions in the section "Technical data".

Fuel system

• Check that the fuel cap and its seal are not damaged.
• Check the fuel hose. Replace if necessary.

TECHNICAL DATA

Technical data

	LC 146S LC 146	SP LC 146SPE LC 351V
Engine
Engine manufacturer	Briggs & Stratton	Briggs & Stratton	Briggs & Stratton	Briggs & Stratton
Cylinder displacement, cm^3	140 190 190 161
Speed, rpm 2900 2900 2900 2900
Nominal engine output, kW (see note 1) 2,1	2,5 2,6 2,6
Ignition system
Spark plug NGK BPR6ES NGK BPR6ES NGK BPR6ES NGK - BPR6ES
Electrode gap, mm 0,5 0,5 0,5 0,5
Fuel and lubrication system
Fuel tank capacity, litre 0.8 0,9 0,9 1,0
*Engine oil	SAE 30/SAE 10W-30	SAE 30/SAE 10W-30	SAE 30/SAE 10W-30	SAE 30/SAE 10W-30
Weight
Machine with empty tanks, kg	31,5	30,0	35,4	41,7
Noise emissions (see note 2)
Sound power level, measured dB (A)	94	95	95	96
Sound power level, guaranteed L_WA dB (A)	95	95	95	98
Sound levels (see note 3)
Sound pressure level at the operators ear, dB(A)	80	80	80	82
Vibration levels, a_hveq (see note 4)
Handle, m/s^2	5,0 5,0 5,0 5,0
Cutting system
Cutting height, mm	30-90	30-90	30-90	28-75
Cutting width, cm	46	46	46	51
Cutter	Combi	Combi	Combi	Combi
Article number	5811889-10	5811889-10	5811889-10	5041133-10
Bagger capacity, litre	55	50	50	60

Note 1: The power rating of the engine indicated is the average net output (at specified rpm) of a typical production engine for the engine model measured to SAE standard J1349/ISO1585. Mass production engines may differ from this value. Actual power output for the engine installed on the final machine will depend on the operating speed, environmental conditions and other values.
Note 2: Noise emissions in the environment measured as sound power ( L_WA ) in conformity with EC directive 2000/14/EC.
Note 3: Noise pressure level according to ISO 5395. Reported data for noise pressure level has a typical statistical dispersion (standard deviation) of 1.2 dB(A).
Note 4: Vibration level according to ISO 5395. Reported data for vibration level has a typical statistical dispersion (standard deviation) of 0.2 m/s^2 .
*Use engine oil of quality SF, SG, SH, SJ or higher. See the viscosity chart in the engine manufacturer's manual and select the best viscosity based on the expected outside temperature.

EXPLICATION DES SYMBOLES

Attention: projections et ricochets.

Silhouette of a car with an arrow and a mechanical component below (no text or symbols)

Two technical line drawings of a mechanical clamp or bracket assembly, showing internal components and motion arrows (no text or symbols)

Silencieux

Technical line drawing of a mechanical assembly with gears and components (no text or symbols)

Simple line drawing of a mechanical lever with a curved handle and a hanging hook, no text or symbols present.

Paramètres

Line drawing of a lawn mower with a close-up inset showing the blade being cut (no text or symbols)

Line drawing of a lawn mower with visible blades and wheel (no text or symbols)

Line drawing of a car's front wheel assembly with arrows indicating fastening or disassembly (no text or symbols)

Collecteur

Technical illustration of a mechanical device with two views showing internal components and a close-up of the handle (no text or symbols present)

Diagram of a car's front compartment showing structural components and directional arrows (no text or labels)

Technical line drawing of two mechanical components with a close-up inset showing a hand holding a tool (no text or symbols)

Line drawing of a vehicle's front wheel assembly (no text or symbols)

Illustration of a hand holding a tool interacting with a device component (no text or symbols visible)

Remplissage d'huile

Technical line drawing of a mechanical component with directional arrow (no text or symbols)

Line drawing of a mechanical device with a black arrow indicating a specific component (no text or symbols present)

Diagram showing two waste sorting bins with recycling symbols, indicating disposal or recycling process.

Line drawing of a lawn mower with a black arrow indicating the blade (no text or symbols present)

Two technical line drawings of a mechanical component with arrows indicating motion or assembly (no text or symbols)

Technical line drawing of a mechanical device with an inset showing a close-up of a bracket (no text or symbols present)

Entraînement

Two-step diagram showing hands using a tool to lift a cable or cable, with no text or symbols present.

Technical line drawing of two mechanical components with no visible text or symbols

Généralités

Technical line drawing of a mechanical component with concentric circles and radial blades (no text or symbols)

Diagram showing a blade under an arch over grass, with arrows indicating direction (no text or symbols)

Line drawing of a mechanical component with two arrows pointing to features (no text or symbols)

Mechanical gear assembly diagram showing rotational motion with no text or symbols

Diagram showing a medical or surgical procedure with an inset close-up of a tool interacting with a device (no text or symbols present)

Two technical line drawings of a mechanical component with no visible text or symbols

Geluiddemper

Technical line drawing of mechanical components including gears, pulleys, and a screw (no text or labels)

Pure mechanical diagram showing a lever mechanism with no text or symbols

Instellingen

Hoogte handgreep

Line drawing of a lawn mower with a close-up inset showing the blade being cut (no text or symbols)

Line drawing of a lawn mower with visible blades and wheel rim (no text or symbols)

Line drawing of a car interior showing steering wheel, dashboard, and seat with directional arrows indicating movement (no text or symbols)

MONTAGE EN AFSTELLINGEN

Opvangbak

Technical illustration of a mechanical tool kit with two views showing internal components and a close-up of the handle (no text or symbols present)

Diagram of a car's front compartment showing engine, dashboard, and steering wheel (no text or labels)

Technical illustration of two mechanical components with a magnified inset showing a hand holding a tool (no text or symbols present)

Technical line drawing of a mechanical assembly with gears and a housing (no text or symbols)

Illustration of a hand inserting a component into a device (no text or symbols visible)

Olie bijvullen

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Line drawing of a mechanical device with a black arrow pointing to a component (no text or symbols)

Diagram showing two crossed bins with recycling symbols, indicating no waste or non-recyclable disposal.

Line drawing of a lawn mower with a tool inserted, showing no text or symbols

Two technical line drawings of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with an inset showing a close-up of the component (no text or symbols present)

Aandrijving

Two-step diagram showing hand tool application: one to handle a tool, the other to hold a device (no text or symbols present)

Technical line drawing of two mechanical components with no visible text or symbols

Algemeen

Technical line drawing of a mechanical component with concentric circles and radial blades (no text or symbols)

Diagram showing a curved structure above grass, with arrows indicating direction (no text or symbols)

Line drawing of a mechanical component with two arrows pointing to features (no text or symbols)

Mechanical gear assembly diagram showing rotational motion with no text or symbols

Diagram of a medical or surgical procedure showing a tool interacting with a device, with an inset illustrating the motion of rotation around a central component (no text or labels present)

Diagram showing a mechanical or electrical component with a downward arrow and label 'B25' indicating a specific section.

Luchtfilter

Warning symbol: triangle with exclamation mark above an open book (no text or symbols present)

Frizione

Two technical line drawings of a mechanical component with no visible text or symbols

Marmitta

Technical line drawing of mechanical components including gears, pulleys, and a clamp (no text or symbols)

Simple line drawing of a mechanical assembly with no text or symbols

Impostazioni

Altezza impugnatura

- Allentare le manopole inferiori.

Line drawing of a lawn mower with a close-up inset showing the blade and wheel (no text or symbols)

Line drawing of a lawn mower with visible blades and wheel (no text or symbols)

Line drawing of a car with two side-mounted sensors and directional arrows indicating movement (no text or symbols)

Collettore

Technical illustration of a mechanical device with two views showing internal components and directional arrows (no text or symbols)

Diagram of a car's front bumper and dashboard assembly with arrows indicating parts (no text or symbols)

Technical illustration of two mechanical components with a close-up inset showing a hand holding a tool (no text or symbols present)

Technical line drawing of a mechanical assembly or vehicle component (no text or symbols visible)

Agganciare la molla al telaio.

Illustration of a hand using a tool to adjust or install a device component (no text or symbols visible)

Rabbocco dell'olio

Technical line drawing of a mechanical clamp or connector with directional arrow (no text or symbols)

Line drawing of a mechanical device with a black arrow pointing to a component (no text or symbols)

Diagram showing two waste sorting bins with recycling symbol and no text labels

Avviamento manuale (LC 146S, LC 146SP, LC 351V)

Line drawing of a lawn mower with a black arrow indicating the blade (no text or symbols present)

Two technical diagrams showing mechanical components with arrows indicating motion or force direction (no text or symbols present)

Technical line drawing of a mechanical device with an inset showing a close-up of a bracket (no text or symbols present)

Trasmissione

Two-step diagram showing hands using a tool to lift a cable or cable, with no text or symbols present.

Technical line drawing of two mechanical components with no visible text or symbols

Generalità

Technical line drawing of a mechanical component with concentric circles and radial blades (no text or symbols)

Diagram showing a blade under an arch over grass, with arrows indicating direction (no text or symbols)

Line drawing of a aircraft wing with two directional arrows indicating movement or force (no text or symbols)

Mechanical gear assembly diagram showing rotational motion with no text or symbols

Diagram of a medical or surgical procedure showing a tool interacting with a device, with an inset illustrating the motion of rotation (no text or labels present)

Two technical line drawings of a mechanical component with no visible text or symbols

Silenciador

Technical line drawing of a mechanical assembly with gears and components (no text or symbols)

Pure mechanical diagram showing a lever and rope assembly without any text, numbers, or symbols

Ajustes

Line drawing of a lawn mower with a close-up inset showing the blade being cut (no text or symbols)

Line drawing of a lawn mower with visible blades and wheel rim (no text or symbols)

Line drawing of a car's side view showing steering wheel, dashboard, and seat components (no text or symbols)

Recogedor

Technical diagram showing two views of a mechanical device with labeled parts and directional arrows indicating assembly or installation.

Diagram of a car's front compartment showing structural components and directional arrows (no text or labels)

Technical illustration of two mechanical components with a close-up inset showing a hand holding a tool (no text or symbols present)

Technical line drawing of a mechanical assembly with gears and a housing (no text or symbols)

Illustration of a hand inserting a component into a device (no text or symbols visible)

Repostado de aceite

Technical line drawing of a mechanical clamp or connector with directional arrow (no text or symbols)

Line drawing of a mechanical device with a black arrow pointing to a cable or connector (no text or symbols)

Two identical diagrams of a trash bin with no visible text, numbers, or symbols.

Line drawing of a lawn mower with a black arrow indicating the blade (no text or symbols present)

Two mechanical diagrams showing a lever mechanism with arrows indicating motion (no text or symbols present)

Technical line drawing of a mechanical device with an inset showing a close-up of a bracket (no text or symbols present)

Transmisión

Two-step diagram showing hand tool application: one to handle a tool, the other to press a device (no text or symbols present)

Technical line drawing of two mechanical components with no visible text or symbols

Generalidades

Technical line drawing of a mechanical component with concentric circles and radial blades (no text or symbols)

Diagram showing a blade under an arch over grass, with arrows indicating direction (no text or symbols)

Line drawing of a aircraft wing with directional arrows indicating movement or force (no text or symbols)

Mechanical assembly diagram showing a rotating component with bolt holes and shafts (no text or labels)

Diagram of a medical or surgical procedure showing a tool interacting with a device, with an inset illustrating the motion of the movement (no text or symbols present)

Diagram showing a mechanical assembly with a downward arrow labeled '右翼' indicating a force or direction.

Filtro de aire

Technical line drawing of two mechanical components with no visible text or symbols

Schalldämpfer

Technical line drawing of a mechanical assembly with gears and components (no text or symbols)

Pure mechanical diagram showing a lever mechanism with no text or symbols

Einstellungen

Griffhöhe

Line drawing of a lawn mower with a close-up inset showing the blade being cut (no text or symbols)

Line drawing of a lawn mower with visible blades and wheel (no text or symbols)

Line drawing of a car with arrows indicating parts of the side, showing steering wheel and dashboard (no text or symbols)

Grasfangbox

Technical illustration of a mechanical device with two views showing internal components and a close-up of the handle (no text or symbols present)

Mechanical assembly diagram showing a vehicle's front wheel and side-mounted components with arrows indicating motion direction (no text or labels)

Technical line drawing of two mechanical components with a close-up inset showing a hand holding a tool (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Illustration of a hand inserting a plug into a device component (no text or symbols visible)

Auffüllen von Öl

Technical line drawing of a mechanical clamp or connector with an arrow indicating direction (no text or symbols)

Line drawing of a mechanical device with a black arrow pointing to a component (no text or symbols)

Diagram showing two types of waste sorting bins with recycling symbols, indicating no disposal or recycling.

Line drawing of a lawn mower with a black arrow indicating the blade (no text or symbols present)

Two technical line drawings of a mechanical component with arrows indicating motion or assembly (no text or symbols)

Technical line drawing of a mechanical device with an inset showing a close-up of a component (no text or symbols present)

Antrieb

Two-step diagram showing a hand holding a tool and a close-up of a magnifying glass (no text or symbols)

Technical line drawing of two mechanical components with curved arms and fasteners (no text or symbols)

Allgemeines

Technical line drawing of a mechanical component with concentric circles and radial blades (no text or symbols)

Diagram showing a blade under an arch over grass, with arrows indicating direction (no text or symbols)

Line drawing of a mechanical component with two arrows pointing to features (no text or symbols)

Mechanical assembly diagram showing a rotating component with gears and shafts (no text or labels)

Medical procedure diagram showing a laparoscopic insertion into a cable with directional arrows (no text or labels)

Diagram of a climbing rope with a downward arrow indicating force or movement (no text or symbols present)

Luftfilter

a 0 I 0 I

Two technical line drawings of a mechanical component with no visible text or symbols

Silenciador

Technical line drawing of a mechanical assembly with gears and components (no text or symbols)

Pure mechanical diagram showing a lever and rope assembly without any text, numbers, or symbols

Configurações

Altura do punho

- Desaperte os manípulos inferiores.

Line drawing of a lawn mower with a close-up inset showing the blade being cut (no text or symbols)

Line drawing of a lawn mower with a hand adjusting the wheel (no text or symbols)

Line drawing of a car's front view showing steering wheel, dashboard, and seat components (no text or symbols)

Technical diagram showing two views of a mechanical device with labeled parts and directional arrows indicating assembly or installation.

Diagram of a vehicle's engine compartment showing structural components and directional arrows (no text or labels)

Technical illustration of two mechanical components with a close-up inset showing a hand holding a tool (no text or symbols present)

Technical line drawing of a vehicle's internal components, including wheel, dashboard, and gear assembly (no text or labels)

Encaixe a mola na estrutura.

Illustration of a hand inserting a component into a device (no text or symbols visible)

Technical line drawing of a mechanical clamp or bracket with an arrow indicating direction (no text or symbols)

Line drawing of a mechanical device with a black arrow indicating direction (no text or symbols)

Diagram showing two crossed bins with recycling symbols, indicating no waste or disposal.

Line drawing of a lawn mower with a tool inserted, showing no text or symbols

Two technical line drawings of a mechanical component with arrows indicating motion or assembly (no text or symbols)

Technical line drawing of a mechanical device with an inset showing a close-up of the component (no text or symbols present)

Accionamento

Two-step diagram showing hands using a tool to lift a device, with no visible text or symbols.

Technical line drawing of two mechanical components with no visible text or symbols

MANUTENÇÃO

Noções gerais

Technical line drawing of a mechanical component with concentric circles and radial blades (no text or symbols)

Diagram showing a blade under an arch with arrows indicating direction, above grass (no text or symbols)

Line drawing of a aircraft wing with directional arrows indicating movement or force (no text or symbols)

Mechanical gear assembly diagram showing rotational motion with no text or symbols

Medical procedure diagram showing a laparoscopic insertion into a cable with directional arrows (no text or labels)

Diagram of a mechanical assembly with a downward arrow and labeled component (no readable text or symbols)

Filtro de ar

Diagram showing various mechanical or electrical component symbols with labels 'I' and '0', likely representing circuit or mechanical components.

Содержание

ПОЯСНЕНИЕ СИМВОЛОВ

Technical line drawing of two mechanical components with no visible text or symbols

Глушитель

Technical line drawing of mechanical components including gears, pulleys, and a screw (no text or labels)

Pure mechanical diagram showing a lever mechanism with no text or symbols

Настройки

Высота рукоятки

Line drawing of a lawn mower with a close-up inset showing the blade being cut (no text or symbols)

Line drawing of a lawn mower with visible blades and wheel (no text or symbols)

Line drawing of a car interior showing steering wheel, dashboard, and seat with directional arrows indicating movement (no text or symbols)

Сборник

Technical illustration of a mechanical device with two views showing internal components and a close-up of the handle (no text or symbols present)

Technical line drawing of a vehicle's front bumper and dashboard assembly (no text or symbols)

Technical line drawing of two mechanical components with a close-up inset showing a hand holding a tool (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Illustration of a hand holding a tool interacting with a device component (no text or symbols visible)

Заливание масла

Pure mechanical component diagram without any text, numbers, or symbols

Line drawing of a mechanical device with a lever and cable, no text or symbols present

Diagram showing two bins with recycling symbols and a magnifying glass, indicating no disposal or recycling.

Line drawing of a lawn mower with a black arrow indicating the blade (no text or symbols present)

Two technical diagrams showing mechanical components with arrows indicating motion or force direction (no text or symbols present)

Technical line drawing of a mechanical device with an inset showing close-up detail (no text or symbols)

Two-step diagram showing a hand holding a tool and a close-up of the device being held, with no visible text or symbols.

Two technical line drawings of a mechanical component with no visible text or symbols

Общие сведения

Technical line drawing of a mechanical component with concentric circles and radial blades (no text or symbols)

Diagram showing a blade under an arch with arrows indicating direction, above grass (no text or symbols)

Line drawing of a aircraft wing with directional arrows indicating movement or force (no text or symbols)

Mechanical assembly diagram showing a rotating component with no visible text or symbols

Diagram showing a mechanical device with a close-up inset illustrating the rotation of a cable or cable joint (no text or symbols present)

Two technical line drawings of a mechanical clamp or bracket assembly, showing no text or symbols.

Kipufogódob

Technical line drawing of a mechanical assembly with gears and components (no text or symbols)

Simple line drawing of a mechanical linkage or cable assembly with no text or symbols

Beállítások

Line drawing of a lawn mower with a close-up inset showing the blade being cut (no text or symbols)

Line drawing of a lawn mower with visible blades and wheel (no text or symbols)

Line drawing of a car interior showing steering wheel, dashboard, and seat (no text or symbols)

Technical diagram showing two views of a mechanical device with labeled parts and directional arrows indicating assembly or installation.

Diagram of a car interior showing engine compartment with arrows indicating parts (no text or symbols present)

Technical illustration of two mechanical components with a close-up inset showing a hand holding a tool (no text or symbols present)

Technical line drawing of a vehicle's internal components, possibly a vehicle or engine, with no visible text or symbols.

Illustration of a hand holding a device with a small plug inserted, no visible text or symbols

Feltöltés olajjal

Technical line drawing of a mechanical clamp or connector with an arrow indicating direction (no text or symbols)

Line drawing of a mechanical device with a curved cable and directional arrow (no text or symbols)

Diagram showing two crossed bins with recycling symbols, indicating no waste or disposal restrictions.

Line drawing of a lawn mower with a black arrow indicating the blade (no text or symbols present)

Two technical diagrams showing mechanical components with arrows indicating motion or force direction (no text or symbols present)

Technical line drawing of a mechanical device with an inset showing a close-up of the component (no text or symbols present)

Meghajtó

Two-step diagram showing hand tool manipulation: one with arrow indicating direction, the other with magnified view (no text or symbols)

Technical line drawing of two mechanical components with no visible text or symbols

KARBANTARTÁS

Technical line drawing of a mechanical component with concentric circles and radial blades (no text or symbols)

Diagram showing a curved structure above grass, with arrows indicating direction (no text or symbols)

Line drawing of a aircraft wing with directional arrows indicating movement or force (no text or symbols)

Mechanical gear assembly diagram showing rotational motion with no text or symbols

Medical procedure diagram showing a laparoscopic insertion into a cable with directional arrows (no text or labels)

Diagram showing a cable clamp mechanism with a downward arrow indicating motion or force direction, labeled '右下角' (Right side).

Levegőszűrő

Technical line drawing of two mechanical components with no visible text or symbols

Tłumik

Technical line drawing of a mechanical assembly with gears and components (no text or symbols)

Pure mechanical diagram showing a lever and connecting rod with no text or symbols

Ustawienia

Wysokość uchwytu

Line drawing of a lawn mower with a close-up inset showing the blade being cut (no text or symbols)

Line drawing of a lawn mower with visible blades and wheel (no text or symbols)

Line drawing of a car's front wheel assembly with arrows indicating fastening or locking mechanism (no text or symbols)

Kolektor

Technical illustration of a mechanical device with two views showing internal components and a close-up of the handle (no text or symbols present)

Diagram of a car's front compartment showing engine, dashboard, and seat components with arrows indicating parts (no text or labels)

Technical line drawing of two mechanical components with a magnified inset showing a hand holding a tool (no text or symbols present)

Technical line drawing of a vehicle's internal components, including wheel, dashboard, and engine (no text or symbols)

Illustration of a hand inserting a plug into a device component (no text or symbols visible)

Uzupełnianie oleju

Akumulator (LC 146SPE)

Uwagi ogólne

Technical line drawing of a mechanical clamp or connector with directional arrow (no text or symbols)

Line drawing of a mechanical device with a black arrow indicating direction (no text or symbols)

Diagram showing two crossed bins with recycling symbols, indicating no waste or non-recyclable disposal.

Line drawing of a lawn mower with a black arrow indicating the blade (no text or symbols present)

Two technical diagrams showing mechanical components with arrows indicating motion or force direction (no text or symbols present)

Technical line drawing of a mechanical device with an inset showing a close-up of a bracket (no text or symbols present)

Naped

Two-step diagram showing hands using a tool to lift a cable or cable, with no text or symbols present.

Technical line drawing of two mechanical components with no visible text or symbols

Uwagi ogólne

Technical line drawing of a mechanical component with concentric circles and radial blades (no text or symbols)

Diagram showing a blade under an arch over grass, with arrows indicating direction (no text or symbols)

Line drawing of a mechanical component with two arrows pointing to features (no text or symbols)

Mechanical gear assembly diagram showing rotational motion with no text or symbols

Medical procedure diagram showing a laparoscopic insertion into a catheter with an inset illustrating the insertion mechanism (no text or labels present)

Diagram showing a mechanical or electrical component with a downward arrow and labeled component 'B0.0'

Filtr powietrza

Two technical line drawings of a mechanical component with arrows indicating motion or assembly (no text or symbols)

Summuti

Technical line drawing of a mechanical assembly with gears and components (no text or symbols)

Pure mechanical diagram showing a lever and rope assembly without any text, numbers, or symbols

Seaded

Käepideme körgus

Line drawing of a lawn mower with a close-up inset showing the blade being cut (no text or symbols)

Line drawing of a lawn mower with visible blades and wheel (no text or symbols)

Line drawing of a car's front wheel assembly with propellers and steering wheel (no text or symbols)

KOKKUPANEK JA REGULEERIMINE

Koguja

Technical illustration of a two-part mechanical device with internal components and a close-up view of the handle (no text or symbols)

Diagram of a car's front compartment showing valve, handle, and door (no text or labels)

Technical line drawing of two mechanical components with a magnified inset showing a hand holding a tool (no text or symbols)

Technical line drawing of a vehicle's front wheel assembly (no text or symbols)

Illustration of a hand holding a device with a small plug inserted, no visible text or symbols

Õli lisamine

Technical line drawing of a mechanical switch or connector with an arrow indicating direction (no text or symbols)

Line drawing of a mechanical device with a black arrow pointing to a component (no text or symbols)

Diagram showing two waste sorting bins with recycling symbol and no text labels

Line drawing of a lawn mower with a black arrow indicating the blade (no text or symbols present)

Technical line drawing of two mechanical components with arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical device with an inset showing a close-up of a bracket (no text or symbols present)

Ajam

Two-step diagram showing hands using a tool to lift a cable or cable, with no text or symbols present.

Technical line drawing of two mechanical components with no visible text or symbols

Üldised näpunäited

Technical line drawing of a mechanical component with concentric circles and radial blades (no text or symbols)

Diagram showing a curved structure above grass, with arrows indicating direction (no text or symbols)

Line drawing of a mechanical component with two arrows pointing to features (no text or symbols)

- Paigalda seib ja kruvi polt korralikult kinni. Polt tuleb pingutada pingutusmomendiga 45–60 Nm.

Mechanical gear assembly diagram showing rotational motion with no text or symbols

Diagram of a medical or surgical procedure showing a tool interacting with a device, with an inset illustrating the motion of rotation around a central component (no text or labels present)

Diagram of a mechanical device with a downward arrow indicating motion or force (no text or symbols present)

Öhufilter

Warning symbol: triangle with exclamation mark above open book (no text or symbols present)

Sankaba

Diagram showing various mechanical or electrical component symbols with labels 'I' and 'O', likely representing circuit or mechanical components.

PRISTATYMAS

Turinys Gerbiamas kliente!

SUTARTINIAI ŽENKLAI

Two technical line drawings of a mechanical component with no visible text or symbols

Duslintuvas

Technical line drawing of a mechanical assembly with gears and components (no text or symbols)

Simple line drawing of a mechanical assembly with no text or symbols

Nustatymai

Rankenos aukštis

- Atsukite apatines rankenèles.

Line drawing of a lawn mower with a close-up inset showing the blade being cut (no text or symbols)

Line drawing of a lawn mower with visible blades and wheel (no text or symbols)

Line drawing of a car's front wheel assembly with arrows indicating fastening or locking mechanism (no text or symbols)

Technical diagram showing two views of a mechanical device with labeled parts and directional arrows indicating assembly or movement.

Diagram of a car's front compartment showing engine, dashboard, and seat components with arrows indicating parts (no text or labels)

Technical line drawing of two mechanical components with a close-up inset showing a hand holding a tool (no text or symbols)

Technical line drawing of a vehicle's front wheel assembly (no text or symbols)

Prikabinkite spyruoklę rème.

Illustration of a hand using a tool to adjust or install a device with a control panel (no text or symbols visible)

Alyvos užpylimas

Akumuliatorius (LC 146SPE)

Bendra informacija

Technical line drawing of a mechanical clamp or connector with directional arrow (no text or symbols)

Line drawing of a mechanical device with a black arrow pointing to a component (no text or symbols)

Diagram showing two waste sorting bins with recycling symbols and a no-smoking symbol, indicating disposal or recycling rules.

Line drawing of a lawn mower with a black arrow indicating the blade (no text or symbols present)

Two technical line drawings of a mechanical component with arrows indicating motion or assembly (no text or symbols)

Technical line drawing of a mechanical device with an inset showing a close-up of a component (no text or symbols present)

Pavara

Two-step diagram showing a hand holding a tool and a magnifying glass, both without any text or symbols.

Technical line drawing of two mechanical components with no visible text or symbols

Bendra informacija

Technical line drawing of a mechanical component with concentric circles and radial blades (no text or symbols)

Diagram showing a blade under an arch over grass, with arrows indicating direction (no text or symbols)

Line drawing of a mechanical component with two arrows pointing to features (no text or symbols)

Mechanical gear assembly diagram showing rotational motion with no text or symbols

Diagram of a medical device with an inset showing a cable being inserted into a connector (no text or labels present)

Diagram of a mechanical device with a downward arrow and labeled component (no text or symbols)

Oro filtras

Two technical line drawings of a mechanical component with no visible text or symbols

Tlmič výfuku

Technical line drawing of mechanical assembly with gears and components (no text or symbols)

Pure mechanical diagram showing a lever and rope assembly without any text, numbers, or symbols

Nastavenia

Výška rukoväti

Line drawing of a lawn mower with a close-up inset showing the blade being cut (no text or symbols)

Line drawing of a lawn mower with visible blades and wheel rim (no text or symbols)

Line drawing of a car interior showing steering wheel, dashboard, and seat (no text or symbols)

MONTÁŽ A NASTAVENIA

Zberač

Technical diagram showing two views of a mechanical device with labeled parts and directional arrows indicating assembly or installation.

Diagram of a car's front compartment showing engine, dashboard, and seat components with arrows indicating assembly or movement (no text or labels)

Technical line drawing of two mechanical components with a magnified inset showing a hand holding a tool (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Illustration of a hand inserting a component into a device (no text or symbols visible)

Plnenie olejom

Technical line drawing of a mechanical clamp or connector with directional arrow (no text or symbols)

- K batérii pripojte nabíjačku a nabíjajte maximálne 24 hodín.

Line drawing of a mechanical device with a handle and cable, no text or symbols present

Diagram showing two crossed bins with recycling symbols, indicating no disposal or recycling process.

Line drawing of a lawn mower with a black arrow indicating the blade (no text or symbols present)

Two mechanical diagrams showing a lever mechanism with arrows indicating motion (no text or symbols present)

Technical line drawing of a mechanical device with an inset showing a close-up of the component (no text or symbols present)

Pohon

- Stlačte pohonnú lištu smerom k rukoväti, aby ste spustili pohon.

Two-step diagram showing hand tool application: one to handle a tool, the other to hold a device (no text or symbols present)

Technical line drawing of two mechanical components with no visible text or symbols

Všeobecné

Technical line drawing of a mechanical component with concentric circles and radial blades (no text or symbols)

Diagram showing a curved structure with arrows pointing to a rectangular object on grass (no text or symbols)

Line drawing of a mechanical component with two arrows pointing to features (no text or symbols)

Mechanical gear assembly diagram showing rotational motion with no text or symbols

• Rukou potočte nožom a uistite sa, že sa volne otača.
• Skúšobne spustite motor.

DÔLEŽITÉ!

Diagram showing a medical procedure with an inserted cable and a magnified view of the cable being inserted (no text or labels present)

Warning symbol and open book icon, indicating caution or education

Sklopka

Ročica pogona - izklopljen

Ročica pogona - vklopljen

Pogon

Motor

Ročica motorne zavore - izklopljen

Ročica motorne zavore - vklopljen

Razlaga stopenj varnosti

Technical line drawing of two mechanical components with no visible text or symbols

Dušilec

Technical line drawing of mechanical components including gears, springs, and a tool (no text or symbols)

Pure mechanical diagram showing a lever and rope assembly without any text, numbers, or symbols

Nastavitve

Višina ročice

- Odvijte spodnja gumba

Line drawing of a lawn mower with a close-up inset showing the blade and wheel (no text or symbols)

- Prilagodite višino. Pravilno zategnite gumba.

Višina reza

PREVIDNO! Ne nastavite prenizke višine reza, ker obstaja tveganje, da rezila udarijo ob neenakomerna pobočja.

Line drawing of a lawn mower with visible blades and wheel (no text or symbols)

Side view diagram of a car showing steering wheel, dashboard, and steering wheel (no text or symbols)

MONTAŽA IN REGULIRANJE

Zbiralnik

- Namestite prestreznik in pritrdite okvir s zatiči za hitro namestitev.

Technical illustration of a mechanical device with two views showing internal components and directional arrows (no text or symbols)

Diagram of a car's front compartment showing structural components and directional arrows (no text or labels)

- Namestite dno košare v luknjo za odlaganje.

LC 146S

LC 146S je priložen tekstilni zbiralnik.

Technical illustration of two mechanical components with a close-up inset showing a hand holding a tool (no text or symbols present)

Technical line drawing of a vehicle's front wheel assembly (no text or symbols)

Vzmet zataknite za okvir.

Illustration of a hand holding a device with a tool inserted, no visible text or symbols

Dolivanje olja

Technical line drawing of a mechanical clamp or connector with directional arrow (no text or symbols)

Line drawing of a mechanical device with a black arrow pointing to a cable or connector (no text or symbols)

- Vtikač iztaknite iz vtičnice. Napajalnega kabla nikoli ne potegnite sunkovito.

Prevoz in shranjevanje

Diagram showing two waste sorting bins with recycling symbols, indicating no disposal or recycling.

Line drawing of a lawn mower with a black arrow indicating the blade (no text or symbols present)

Two technical line drawings of a mechanical component with arrows indicating motion or assembly (no text or symbols)

• Postavite se za stroj.
• Primate zaganjalno ročico, počasi povlecite vrvico z desno roko, dokler ne začutite odpora (zaganjač začne prijemati). Močno povlecite, da zaženete motor. Vžigalne vrvice nikoli ne navijajte okoli zapestja.

Električni zagon (LC 146SPE)

LC 146SPE je opremljen z električnim zagonom. Pritisnite in pridržite stikalo za elektronski zagon, dokler se motor ne zažene. Ob zagonu motorja morate ročico motorne zavore držati ob ročaju.

Technical line drawing of a mechanical device with an inset showing a close-up of a component (no text or symbols present)

Pogon

Two-step diagram showing a hand holding a tool and a magnifying glass, both without any text or symbols.

Two technical line drawings of a mechanical component with no visible text or symbols

Splošno

Technical line drawing of a mechanical component with concentric circles and radial blades (no text or symbols)

- Odstranite staro rezilo. Zagotovite, da zavora rezila ni poškodovana. Preverite tudi, ali je vijak rezila nepoškodovan in ali motorna gred ni upognjena.

Montaža

- Rezilo mora biti nameščeno tako, da so nagnjene strani rezila obrnjene navzgor, proti pokrovu.

Diagram showing a curved structure with arrows pointing to grass at the base (no text or symbols)

- Rezilo mora biti pravilno usredinjeno na gredi.

Line drawing of a mechanical component with two arrows pointing to features (no text or symbols)

- Montirajte podložko in jo pravilno zategnite. Vijak morate priviti z momentom 45–60 Nm.

Mechanical gear assembly diagram showing rotational motion with no text or symbols

• Z roko obrnite rezilo in preverite, ali se prosto vrti.
• Preizkusno zaženite stroj.

POMEMBNO!

Medical procedure diagram showing a laparoscopic insertion into a needle with directional arrows (no text or labels)

Diagram of a mechanical assembly with a downward arrow indicating a process or movement (no text or symbols present)

Zračni filter

Technical line drawing of two mechanical components with no visible text or symbols

Tlumič výfuku

Technical line drawing of mechanical components including gears, springs, and a motor (no text or labels)

Pure mechanical diagram showing a lever and rope assembly without any text, numbers, or symbols

Nastavení

Výška rukojeti

Line drawing of a lawn mower with a close-up inset showing the blade being cut (no text or symbols)

Line drawing of a lawn mower with visible blades and wheel rim (no text or symbols)

Line drawing of a car interior showing steering wheel, dashboard, and seat with directional arrows indicating movement (no text or symbols)

KOMPLETACE A SEŘÍZENÍ

Sběrač

Technical diagram showing two views of a mechanical device with labeled parts and directional arrows indicating assembly or installation.

Diagram of a car interior showing engine compartment with arrows indicating parts (no text or symbols present)

Technical line drawing of two mechanical components with a close-up inset showing a hand holding a tool (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Hand inserting a component into a device (no text or symbols visible)

Plnění oleje

Technical line drawing of a mechanical switch or connector with directional arrow (no text or symbols)

Simple line drawing of a mechanical device with an arrow indicating direction (no text or symbols)

Diagram showing two crossed bins with recycling symbols, indicating no disposal or recycling.

Line drawing of a lawn mower with a tool inserted, showing no text or symbols

Two technical line drawings of a mechanical component with arrows indicating motion or assembly (no text or symbols)

Technical line drawing of a mechanical device with an inset showing a close-up of a cable or connector (no text or symbols present)

Provoz

Two-step diagram showing hand tool application: one to handle a tool, the other to press a device (no text or symbols present)

Technical line drawing of two mechanical components with no visible text or symbols

Všeobecně

Technical line drawing of a mechanical component with concentric circles and radial blades (no text or symbols)

Diagram showing a curved structure with arrows pointing to a rectangular object on grass (no text or symbols)

Line drawing of a mechanical component with two arrows pointing to features (no text or symbols)

Mechanical gear assembly diagram showing rotational motion with no text or symbols

Diagram showing a medical or surgical procedure with an inset close-up of a tool interacting with a device (no text or symbols present)

Technical line drawing of two mechanical components with no visible text or symbols

Σιγαστήρας

Technical line drawing of a mechanical assembly with gears and components (no text or symbols)

Pure mechanical diagram showing a lever mechanism with no text or symbols

Ρυθμίσηις

'Υψος λαθής

Line drawing of a lawn mower with a close-up inset showing the blade and wheel (no text or symbols)

Line drawing of a lawn mower with visible blades and wheel (no text or symbols)

Side view diagram of a car with two wheels and a handle, showing mechanical components and directional arrows (no text or symbols)

Στήριγμα

Technical illustration of a mechanical device with two views showing internal components and a close-up of the handle (no text or symbols present)

Diagram of a car's front wheel assembly showing steering wheel, dashboard, and engine components (no text or labels)

Technical line drawing of two mechanical components with a close-up inset showing a hand holding a tool (no text or symbols)

Technical line drawing of a mechanical device with gears and wheels (no text or symbols)

Line drawing of a hand inserting a component into a vehicle chassis (no text or symbols)

Γέμισμα λαδιού

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Line drawing of a mechanical device with a black arrow indicating direction (no text or symbols)

Diagram showing two waste sorting bins with recycling symbols and crossed-out compartments, indicating disposal or recycling process.

Line drawing of a lawn mower with a black arrow indicating the blade (no text or symbols present)

Two technical line drawings of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with an inset showing a close-up of a bracket (no text or symbols present)

Σκανδάλη γκαζιού

Two-step diagram showing hands using a tool to lift a cable or cable, with no text or symbols present.

Two technical line drawings of a mechanical clamp or bracket assembly (no text or symbols)

Γηνικά

Technical line drawing of a mechanical component with concentric circles and radial blades (no text or symbols)

Diagram showing a curved structure above grass with arrows indicating direction (no text or symbols)

Line drawing of a aircraft wing with two directional arrows indicating movement or force (no text or symbols)

Mechanical assembly diagram showing a rotating component with arrows indicating motion (no text or labels)

Medical procedure diagram showing a laparoscopic cable insertion into a device (no text or labels)

Diagram of a mechanical assembly with a downward arrow and forceps, no text or symbols present

Φίλτρο αέρα
