Plasma TVuser manual

1968-04342K-01

Thank you for purchasing this Samsung product. To receive more complete service, please register your product at

www.samsung.com/register

Model Serial No.

Digital TV notice

1. Functionalities related to Digital TV (DVB) are only available in countries/areas where DVB-T (MPEG2 and MPEG4 AVC) digital terrestrial signals are broadcasted or where you are able to access to a compatible DVB-C (MPEG2 and MPEG4 AAC) cable-TV service. Please check with your local dealer the possibility to receive DVB-T or DVB-C signal.
2. DVB-T is the DVB European consortium standard for the broadcast transmission of digital terrestrial television and DVB-C is that for the broadcast transmission of digital TV over cable. However, some differentiated features like EPG (Electric Programme Guide), VOD (Video On Demand) and so on, are not included in this specification. So, they cannot be workable at this moment.
3. Although this TV set meets the latest DVB-T and DVB-C standards, as of [August, 2008], the compatibility with future DVB-T digital terrestrial and DVB-C digital cable broadcasts cannot be guaranteed.
4. Depending on the countries/areas where this TV set is used some cable-TV providers may charge an additional fee for such a service and you may be required to agree to terms and conditions of their business.
5. Some Digital TV functions might be unavailable in some countries or regions and DVB-C might not work correctly with some cable service providers.
6. For more information, please contact your local Samsung customer care centre.

The reception quality of TV may be affected due to differences in broadcasting method between the countries. Please check the TV performance in the local SAMSUNG Authorized Dealer, or the Samsung Call Centre whether it can be improved by reconfiguring TV setting or not.

User Instructions

Screen Image retention
Do not display a still image (such as on a video game) on the plasma display panel for more than several minutes as it can cause screen image retention. This image retention is also known as "screen burn". To avoid such image retention, reduce the degree of brightness and contrast of the screen when displaying a still image.
Heat on the top of the Plasma TV

The top side of the product may be hot after long periods of use as heat dissipates from the panel through the vent hole in the upper part of the product.

This is normal and does not indicate any defect or operation failure of the product. However, children should be prevented from touching the upper part of the product.

The product is making a "cracking" noise.
A "cracking" noise may occur when the product contracts or expands due to a change in the surrounding environment such as temperature or humidity. This is normal and not a defect of the unit.
Cell Defects

The PDP uses a panel consisting of 1,226,880(SD-level) to 6,221,000(FHD-level) pixels which require sophisticated technology to produce. However, there may be a few bright or dark pixels on the screen. These pixels will have no impact on the performance of the product.

• Avoid operating the TV at temperatures below 41^ (5^)
• A still image displayed too long may cause permanent damage to the PDP Panel.

Watching the Plasma TV in 4:3 format for a long period of time may leave traces of borders displayed on the left, right and centre of the screen caused by the difference of light emission on the screen. Playing a DVD or a game console may cause similar effects to the screen. Damages caused by the above effect are not covered by the Warranty.

After-images on the Screen.
Displaying still images from Video games for longer than a certain period of time may produce partial after-images. To prevent this effect, reduce the "brightness" and "contrast" when displaying still images for a long time.
Warranty

Warranty does not cover any damage caused by image retention. Burn-in is not covered by the warranty.

Contents

Getting Started

4 Accessories
5 Using the TV's Controller (Panel Key)
6 Viewing the Remote Control
7 Initial Setup
8 Connections
9 Changing the Input Source

Basic Features

10 Using the INFO button (Now & Next guide)
10 Using Channel menu
12 Retuning Channels
14 Changing the Preset Picture Mode
15 Changing the Picture Options
16 Changing the Preset Sound Mode
16 Adjusting Sound Settings

Preference Features

18 Executing initial setup
18 Setting the Time
18 Using the Sleep Timer
18 Setting the On/Off Timer
19 LockingProgramme
19 Economical Solutions
20 Other Features
22 Support Menu

Advanced Features

23 Using the Media Contents
23 Connecting a USB Device
24 Screen Display
27 Media Contents - Additional Functions

Other Information

29 Teletext Feature
30 Installing the Wall Mount
31 Securing the TV to the Wall
31 To avoid the TV from falling
31 Anti-theft Kensington Lock
32 Troubleshooting
35 Licence
35 Storage and Maintenance
36 Specifications
37 Index

Check the Symbol!

TOOLS

This function can be used by pressing the TOOLS button on the remote control.

NOTE One-Touch Button

An administration fee may be charged if either

(a) an engineer is called out at your request and there is no defect in the product

(i.e. where you have failed to read this user manual)

(b) you bring the unit to a repair centre and there is no defect in the product

(i.e. where you have failed to read this user manual)

The amount of such administration charge will be advised to you before any work or home visit is carried out.

Getting Started

Accessories

Please make sure the following items are included with your TV. If any items are missing, contact your dealer.
The items' colours and shapes may vary depending on the models.
Cables not included in the package contents can be purchased separately.

Remote Control & Batteries (AAA x 2) Power Cord
Owner's Instructions Cleaning Cloth
Warranty Card / Safety Guide (Not available in some locations)

Ferrite Core (3EA)

Ferrite Core for Power Cord: The ferrite cores are used to shield the cables from interference. When connecting a cable, open the ferrite core and clip it around the cable near the plug as shown in the figure.

A Maximum distance between the ferrite core and the end of the cord inserted in the TV: 3/4 inches
B Maximum distance between the ferrite core and the other end of the cord inserted in the AC outlet: 3/4 inches

Power Cord

Ferrite Core: The ferrite cores are used to shield the cables from interference. When connecting a cable, open the ferrite core and clip it around the cable near the plug as shown in the figure.

Aerial Cable (sold separately)

Securing the Installation Space

Keep the required distances between the product and other objects (e.g. walls) to ensure proper ventilation.

Failing to do so may result in fire or a problem with the product due to an increase in the internal temperature of the product.

When using a stand or wall-mount, use parts provided by Samsung Electronics only.
If you use parts provided by another manufacturer, it may result in a problem with the product or an injury due to the product falling.
The appearance may differ depending on the product.
careful when you contact the TV because some parts can be somewhat hot.

Installation with a stand. Installation with a wall-mount.

Using the TV's Controller (Panel Key)

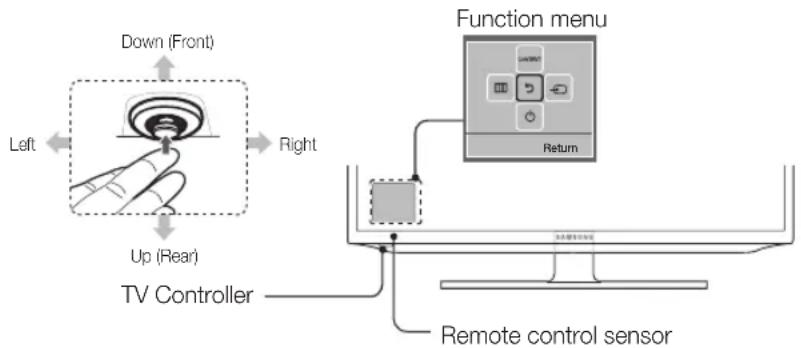

TV Controller is a multi directional button that helps navigate without remote control.

Some functions which require a PIN code may not be available.
The product colour and shape may vary depending on the model.
Exts the menu when pressing the controller more than 1 second.
When selecting the function by moving the controller to the up/down/left/right directions, be sure not to press the controller. If you press it first, you cannot operate it to move the up/down/left/right directions.

Power on Turns the TV on by pressing the controller in standby mode.

Adjusting the volume Adjusts the volume by moving the controller from side to side when the power is on.

Selecting a channel Selects a channel by moving the controller up and down when the power is on.

Using the function menu

Using the Menu

Selecting the Source

Selecting the Contents Home

Power Off

Press the controller when the power is on, then the function menu screen appears. If you press it again, the function menu screen disappears.

Selects the MENU(III) by moving the controller in the function menu screen. The OSD(On Screen Display) of your TV's feature appears.

Selects the Source() by moving the controller in the function menu screen. The Source list screen appears.

Selects the Contents Home(CONTENT) by moving the controller in the function menu screen. The Contents Home main screen appears.

Selects the Power Off() to turn the TV off by moving the controller in the function menu screen.

Standby mode

Do not leave your TV in standby mode for long periods of time (when you are away on a holiday, for example). A small amount of electric power is still consumed even when the power button is turned off. It is best to unplug the power cord.

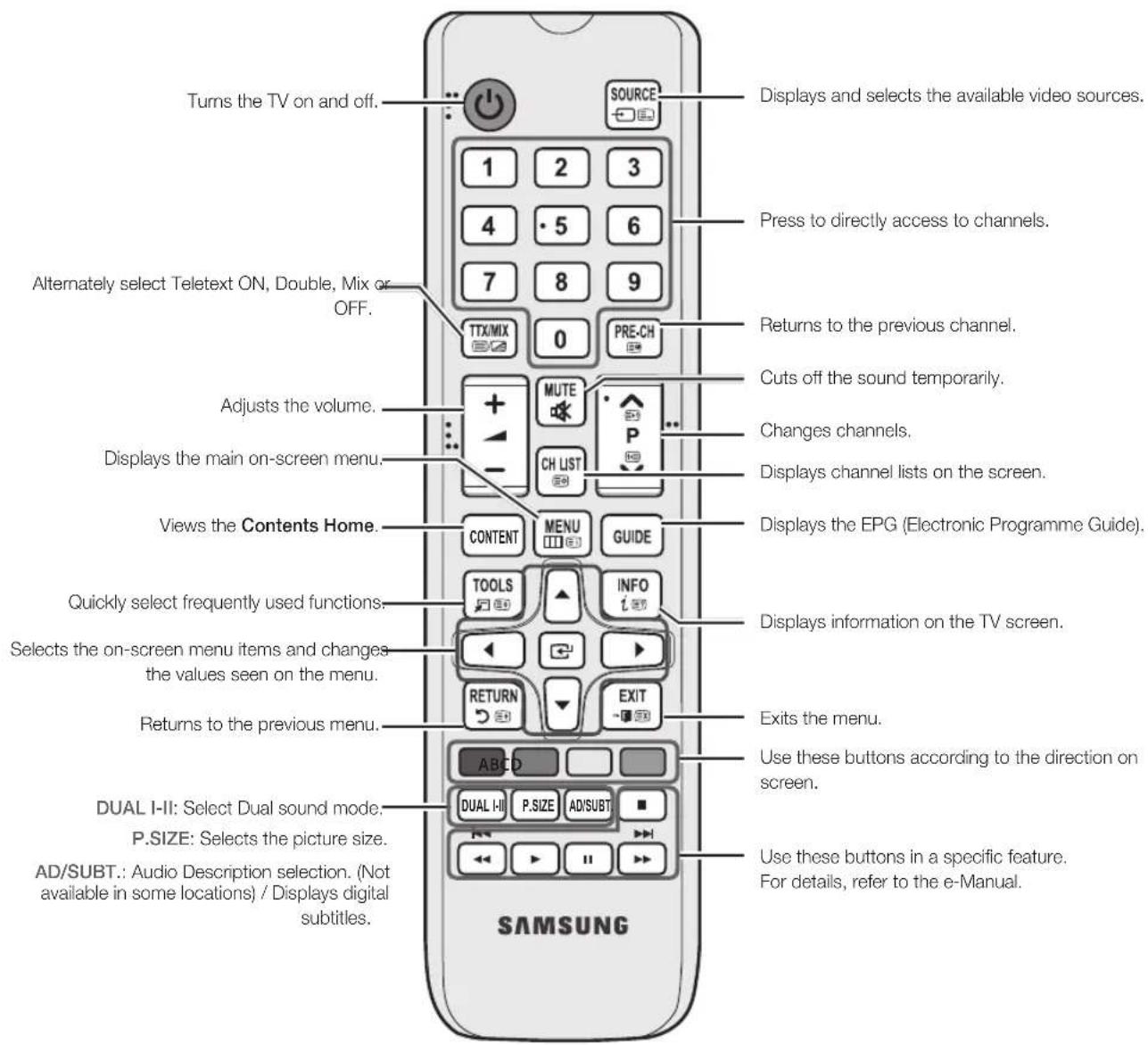

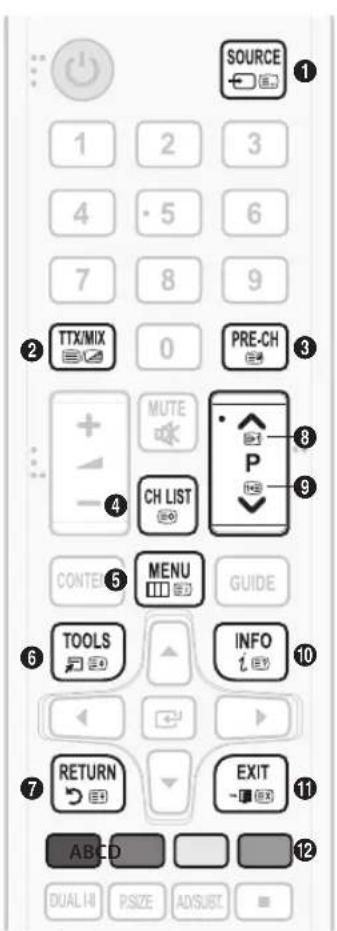

Viewing the Remote Control

This is a special remote control for the visually impaired persons and has Braille points on the Power, Channel, and Volume buttons.

Installing batteries (Battery size: AAA)

Initial Setup

When the TV is initially powered on, a sequence of on-screen prompts will assist in configuring basic settings. Press the POWER button. Setup is available only when the source is set to TV.

1. Menu Language: Selecting a menu language

Press the or button, then press the ENTER button.

Select the desired OSD (On Screen Display) language.

1. Use Mode: Selecting Store Demo or Home Use

Press the or button, then press the ENTER button.

Select the Home Use mode. Store Demo mode is for retail environments.

When pressing TV controller, the function menu screen appears. Select the MENU(Ⅲ) and press it more than 5 seconds using the controller. The Store Demo mode is set.

Cancel the Store Demo by selecting Source() and pressing it more than 5 seconds.

Store Demo is only for shop display. If you select it, several functions are not able to use. Please select Home Use when you watch at home.

1. Country (Depending on the country): Selecting a country

Press the or button, then press the ENTER button.

Select the appropriate country.

After selecting the country in the country menu, some models may proceed with an additional option to setup the pin number.

1. Auto Tuning (Step 1): Selecting how you watch your TV

Let's find and store channels on your TV. Do you need to search for channels?

• Yes, I need to.: Memorises all of the available channels using RF cable.
  No, I don't need to: You don't need to use Auto Tuning to find channels.

• Auto Tuning (Step 2): Selecting a search options

Select the desired broadcasting signal and antenna source. Press the / / button, then press the ENTER button.

When setting the antenna source to Cable, a step appears allowing you to assign numerical values (channel frequencies) to the channels. For more information, refer to

Channel Auto Tuning.

Some channel may not be transmitted to this television. It depends on Broadcasting signal gain or specification.
Press the ENTER button at any time to interrupt the memorisation process.

1. Clock: Setting the Clock Mode

2. Auto: Set the current time automatically.

3. Manual: Allows you to manually set the current date and time.

4. Time Zone (Depending on the country): Setting your Time Zone

This step is only available when the clock mode is set to Auto.

• Auto: Set the time zone automatically.
• Manual: Set the time zone manually.

If you selected Manual, you can select whether to turn DST (Daylight Savings Time) On or Off. (Depending on the country)

1. Setup Complete

Press the ENTER button.

The completed settings are displayed.

If You Want to Reset This Feature...

Select System - Setup (Initial Setup). Enter your 4 digit PIN number. The default PIN number is "0-0-0-0". If you want to change the PIN number, use the Change PIN function. You should do Setup (MENU System) again at home although you did in shop.

If you forget the PIN code, press the remote control buttons in the following sequence in Standby mode, which resets the PIN to "0-0-0-0": MUTE 8 2 4 POWER (on)

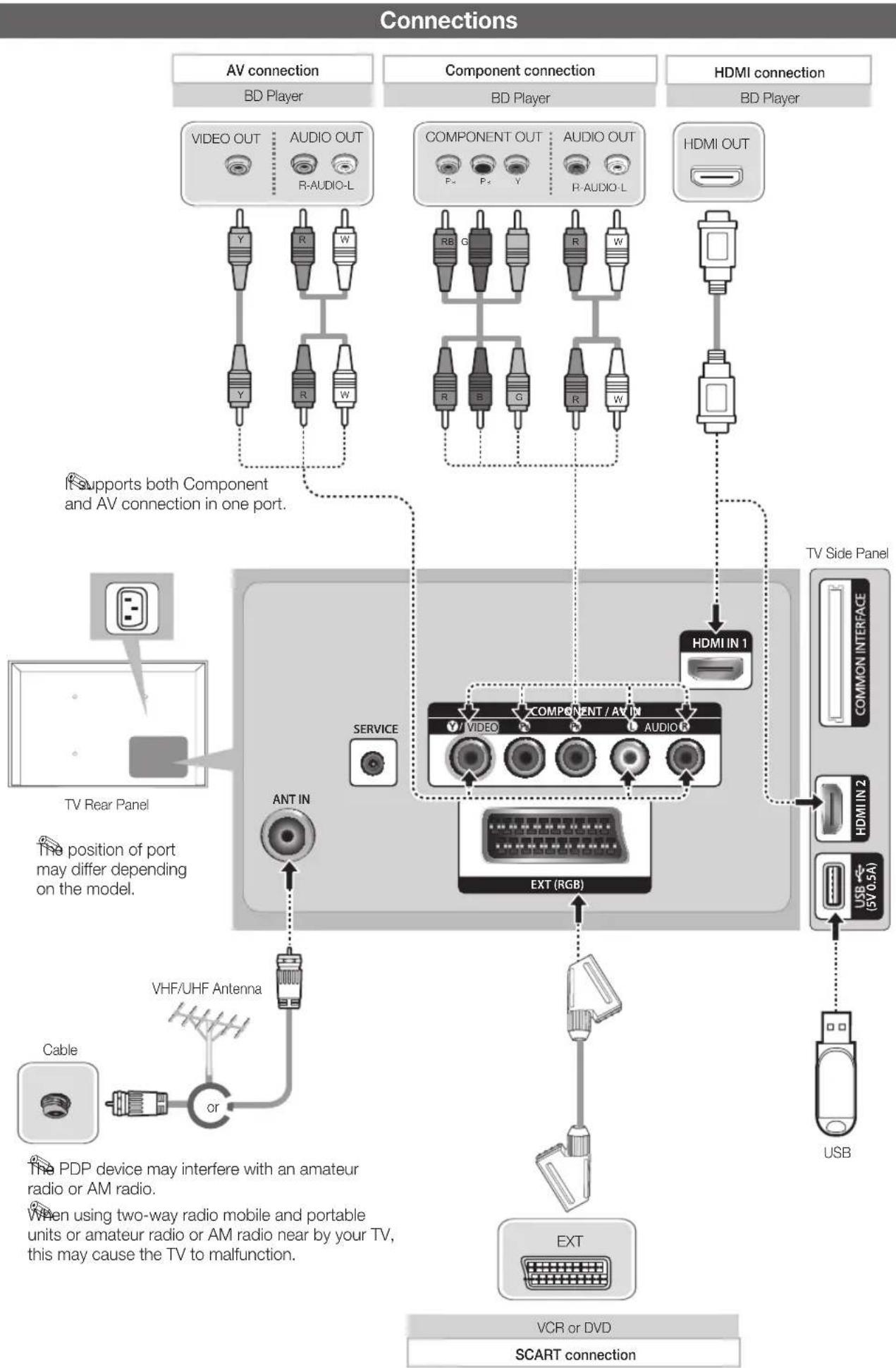

Getting Started

Connector for service only.

NOTE

The interlace mode is not supported.
The set might operate abnormally if a non-standard video format is selected.
PC(D-Sub) and PC/DVI AUDIO IN input are not supported.
DIGITAL AUDIO OUT(OPTICAL) is not supported.

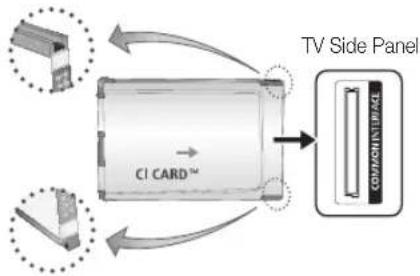

Connecting to a COMMON INTERFACE slot (Your TV viewing Card Slot)

To watch paid channels, the "CI or CI+ CARD" must be inserted.

If you do not insert the "CI or CI+ CARD", some channels will display the message "Scrambled Signal".
- The pairing information containing a telephone number, the "CI or CI+ CARD" ID the Host ID and other information will be displayed in about 2~3 minutes. If an error message is displayed, please contact your service provider.
- When the configuration of channel information has finished, the message "Updating Completed" is displayed, indicating the channel list is updated.

NOTE

• You must obtain a "CI or CI+ CARD" from a local cable service provider.
• When removing the "CI or CI+ CARD", carefully pull it out with your hands since dropping the "CI or CI+ CARD" may cause damage to it.
• Insert the "CI or CI+ CARD" in the direction marked on the card.
  The location of the COMMON INTERFACE slot may be different depending on the model.
• "CI or CI+ CARD" is not supported in some countries and regions; check with your authorized dealer.
  If you have any problems, please contact a service provider.
• Insert the "CI or CI+ CARD" that supports the current antenna settings. The screen will be distorted or will not be seen.

Changing the Input Source

Source

TV/Ext./HDMI1/HDMI2/AV/Component

Use to select TV or other external input sources such as DVD / Blu-ray players / cable box / STB satellite receiver connected to the TV.

1. Press the SOURCE button.
2. Select a desired external input source.

In the displaying Source list, connected inputs will be highlighted.

Ext. always stays activated.

Press the TOOLS button.

Edit Name

You can set an external input sources name you want.

Information

You can see detailed information about the connected external device.

Channel Menu

Using the INFO button (Now & Next guide)

The display identifies the current channel and the status of certain audio-video settings.

The Now & Next guide shows daily TV programme information for each channel according to the broadcasting time.

When you press the A (Information) button, you can see the details of the programme.

Scroll to view information for a desired programme while watching the current channel.
Scroll , to view information for other channels. If you want to move to the currently selected channel, press the ENTER button.

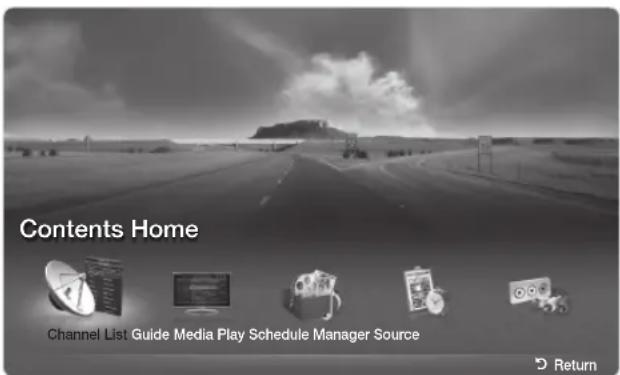

Using Channel menu

UIII Support Contents Home ENTER

Press the CONTENT button to select the desired menu.

Each screen will be displayed.

Channel List

You can view channel information, All, TV, Radio, Data/ Other, Analogue or Favourites 1-5.

When you press the CH LIST button on the remote control, Channel List screen will be displayed at once.

All: Shows all currently available channels.
TV: Shows all currently available TV channels.
Radio: Shows all currently radio channels.
Data/Other: Shows all currently available MHP or other channels.
Analogue: Shows all currently available analogue channels.
Favourites 1-5: Shows all favourite channels.

If you want to view favourite channels you added, press the CH LIST button and use (Ch. Mode) button to move Favourites 1-5.

g the control buttons with the Channel List.

(Tools): Displays the option menu.

(Ch. Mode / Channel): Move to the All, TV, Radio, Data/Other, Analogue or Favourites 1-5.

When you select the Programme View in (Tools) menu, you can move to other channels using (Channel) button.

Watch / Information): Watches the channel you selected. / Displays details of the selected programme.

(Page): Move to next or previous page.

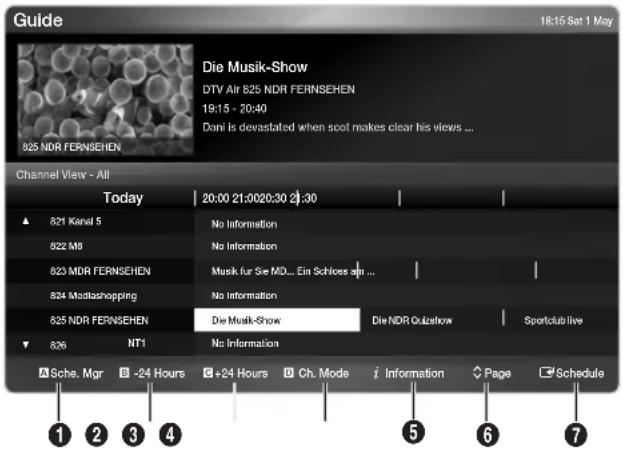

How to use Schedule Viewing in Channel List

(digital channels only)

When you set the Schedule Viewing in Channel List, you can only set the programme in Programme View.

1. Press the CH LIST button, then select a desired digital channel.
2. Press TOOLS button, and then select the Programme View. The programme list for that channel appears.
3. Press the / buttons to select the desired programme, then press the ENTER (Information) or INFO button.
4. Select Schedule Viewing, then press the ENTER button when done.

You want to cancel Schedule Viewing, follow steps 1 through 3. Select Cancel schedule.

Using Option Menu TOOLS

Set each channel using the Channel List menu options (Programme View, Edit Favourites, Lock/Unlock, Edit Channel Name, Edit Channel Number, Delete, Information, Change Aerial, Edit Mode).

Option menu items may differ depending on the channel status.

1. Select a channel and press the TOOLS button.
2. Select a function and change its settings.

Programme View: Displays the programme when digital channel is selected.
Edit Favourites: Set channels you watch frequently as favourites. Add or delete the selected channel in Favourites 1-5.

1. Select the Edit Favourites, then press the ENTER button.
2. Press the ENTER button to select Favourites 1-5, then press the OK button.

One favourite channel can be added in several of favourites among Favourites 1-5.

• Lock/Unlock: Lock a channel so that the channel cannot be selected and viewed.

This function is available only when the Channel Lock is set to On.
The PIN input screen appears. Enter your 4-digit PIN. Change the PIN using the Change PIN option.

Edit Channel Name (analogue channels only): Assign your own channel name.
Edit Channel Number: Edit the number by pressing the number buttons desired.

Some area may not be able to support Edit Channel Name and Edit Channel Number function.

Delete: You can delete a channel to display the channels you want.
Information: Displays details of the selected programme.
Change Aerial: Switches to Air or Cable.

Edit Mode: You can select desired channels and edit it.

Using Option Menu TOOLS

Set each channel using the menu options (Edit Favourites, Lock/Unlock, Delete, Deselect, Select All).

1. Press the TOOLS button in Channel List screen, then select the Edit Mode. A check box appears to the left of the channel.
2. Press the / buttons to select the desired channel, then press the ENTER button. The (√) mark indicates the channel you've selected.

You can select more than one channel.

Press the ENTER again to deselect the channel.

1. Press the TOOLS button, then select a function and change its settings.
2. Edit Favourites: Set the selected channels you watch frequently as favourites.

The Edit Favourites screen has five groups (Favourites 1, Favourites 2, etc.). You can add a favourite channel to any one of the groups. Press the / buttons to select a group.

• Lock/Unlock: Lock a channel so that the channel cannot be selected and viewed.

This function is available only when the Channel Lock is set to On.

The PIN input screen appears. Enter your 4-digit PIN. Change the PIN using the Change PIN option.

• Delete: You can delete a channel to display the channels you want.
  Deselect: Deselect the selected channels.
• Select All: Select all the channels in the channel list.

Basic Features

Guide

The EPG (Electronic Programme Guide) information is provided by broadcasters. Using programme schedules provided by broadcasters, you can specify programmes you want to watch in advance so that the channel automatically changes to the selected programme channel at the specified time. Programme entries may appear blank or out of date depending on a channel status.

1 A Red (Sche. Mgr): Moves to the reserved programmes in Sche. Mgr.
Green (-24 Hours):Viewing the list of programmes to be broadcasted before 24 hours.
3 Yellow (+24 Hours): Viewing the list of programmes to be broadcasted after 24 hours.
4 Blue (Ch. Mode): Select the type of channels you want to display on the Channel List window. (All, TV, Radio, Data/Other, Favourites 1-5)
±bi (Information): Displays details of the selected programme.
(3) (Page): Move to previous or next page.
Watch / Schedule

• When selecting the current programme, you can watch the selected programme.
• When selecting the future programme, you can reserve to watch the selected programme. To cancel the schedule, press the ENTER button again and select Cancel schedule.

Schedule Manager

You can set a desired channel to be displayed automatically at the intended time. In addition, you can view, modify or delete a channel you have reserved to watch. Set the current time first to use this function.

Using Option Menu

Set each channel using the menu options (Cancel schedule, Edit Schedule, Schedule manually, View Guide).

1. Press the TOOLS button to select the Schedule manually.

You can press the A (Schedule manually) directly on the Schedule Manager screen.

1. Press the / / or number buttons to set the Antenna, Channel, Repeat, Date, Start Time.

Aerial: Select the desired broadcasting signal.
- Channel: Select the desired channel.
- Repeat: Select Once, Manual, Sat~Sun, Mon~Fri or Everyday to set at your convenience. If you select Manual, you can set the day you want.

The () mark indicates the day you've selected.

Date: You can set the desired date.
It is available when you select Once in Repeat.

• Start Time: You can set the start time you want.

If you want to edit or cancel the schedule, select the reserved schedule on the Reserved Programmes. Press the TOOLS button, then select the Edit Schedule or Cancel schedule.
If you select the View Guide, you can see the Guide screen.

Retuning Channels

Aerial (Air / Cable)

TOOLS

MENUI Channel Aerial ENTER

Before your television can begin memorising the available channels, you must specify the type of signal source that is connected to the TV (i.e. an Air or Cable system).

Country

depending on the country

MENU Channel Country ENTER

The PIN input screen appears. Enter your 4 digit PIN number.

Digital Channel: Change the country for digital channels.
Analogue Channel: Change the country for analogue channels.

Auto Tuning

depending on the country

UIII

0

Channel

→A

uto Tuning

→EN

ITER

Scans for a channel automatically and stores in the TV.

Automatically allocated programme numbers may not correspond to actual or desired programme numbers. If a channel is locked, the PIN input window appears.

Auto Tuning

Air / Cable: Select the aerial source to memorise. Digital & Analogue / Digital / Analogue: Select the channel source to memorise.

When Aerial Source is set to Air or Cable:

When selecting Cable Digital & Analogue or Digital: Provide a value to scan for cable channels.

Operator Selection (depending on the country): Selects a provider of cable services.
Search Mode (Full / Network / Quick): Scans for all channels with active broadcast stations and stores them in the TV.

If you select Quick, you can set up the Network, Network ID, Frequency, Modulation and Symbol Rate manually by pressing the button on the remote control.

Network (Auto / Manual): Selects the Network ID setting mode among Auto or Manual.
Network ID: When Network is Manual, you can set up Network ID using the numeric buttons.
Frequency: Displays the frequency for the channel. (differs in each country)
Modulation: Displays available modulation values.
Symbol Rate: Displays available symbol rates.

Cable Search Option

Depending on the country & cable channels only) Sets additional search options such as the frequency and symbol rate for a cable network search.

Start Frequency / Stop Frequency: Set the start or stop frequency (differs in each country).

Symbol Rate: Displays available symbol rates.

Modulation: Displays available modulation values.

Manual Tuning

U

Channel Manual Tuning ENTER

Scans for a channel manually and stores in the TV.

channel is locked, the PIN input window appears.

According to the channel source, Manual Tuning may be supported.

When Aerial Source is set to Air or Cable:

Digital Channel Tuning: Scans for a digital channel manually and stores in the TV. Press the New button to search the digital channels. When scanning has finished, a channel is updated in the channel list.

• When selecting Aerial Air: Channel, Frequency, Bandwidth
• When selecting Aerial Cable: Frequency, Modulation, Symbol Rate

Analogue Channel Tuning: Scans for an analogue channel. Press the New button to search the channels by adjusting the Programme, Colour System, Sound System, Channel, Search.

Channel mode

• P (programme mode): When tuning is complete, the broadcasting stations in your area have been assigned to the position numbers from P0 to P99. You can select a channel by entering the position number in this mode.
  C (aerial channel mode) / S (cable channel mode): These two modes allow you to select a channel by entering the assigned number for each aerial broadcasting station or cable channel.

Basic Features

Transfer Channel List

(dependently on the country)

NU Channel Transfer Channel List ENTER

Imports or exports the channel map. You should connect a USB storage to use this function.

The PIN number input screen appears. Enter your 4-digit PIN number.

Import from USB: Import channel list from USB.
Export to USB: Export channel list to USB.

Fine Tune

(analogue channels only)

NU Channel Fine Tune ENTER

If the signal is weak or distorted, fine tune the channel manually.

tuned channels are marked with an asterisk **.

To reset the fine-tuning, select Reset.

Edit Channel Number (Disable / Enable)

depending on the country

NU Channel Edit Channel Number ENTER

Use this to change channel number. When channel number is changed, channel information is not updated automatically.

Picture Menu

Changing the Preset Picture Mode

NUNU Picture Picture Mode ENTER

Picture Mode TOOLS

Select your preferred picture type.

Dynamic: Suitable for a bright room.
Standard: Suitable for a normal environment.
Movie: Suitable for watching movies in a dark room.

Cell Light / Contrast / Brightness / Sharpness / Colour / Tint (G/R)

Your television has several setting options for picture quality control.

NOTE

In analogue TV, Ext., AV modes of the PAL system, the Tint (G/R) function is not available.
- Settings can be adjusted and stored for each external device connected to the TV.
- Lowering picture brightness reduces power consumption.

Screen Adjustment

NU→Picture→ScreenAdjustment→ ENTER

Set the various picture options such as picture size and aspect ratio.

Picture Size: Your cable box/satellite receiver may have its own set of screen sizes as well. However, we highly recommend you use 16:9 mode most of the time.

Auto Wide: Automatically adjusts the picture size to the 16:9 aspect ratio.

16:9: Sets the picture to 16:9 wide mode.

Wide Zoom: Magnifies the picture size more than 4:3.

Adjusts the Position by using , buttons.

Zoom: Magnifies the 16:9 wide pictures vertically to fit the screen size.

Adjusts the Zoom or Position by using , button.

4:3: Sets the picture to basic (4:3) mode.

not watch in 4:3 format for a long time. Traces of borders displayed on the left, right and centre of the screen may cause image retention (screen burn) which are not covered by the warranty.

Screen Fit: Displays the full image without any cut-off when HDMI (720p / 1080i / 1080p) or Component (1080i / 1080p) signals are inputted.

Position: Adjust the picture position. It is only available in Screen Fit or Wide Zoom.
- Zoom/Position: Adjust the picture size and position. It is only available in Zoom.

NOTE

After selecting Screen Fit in HDMI (1080i / 1080p) or Component (1080i / 1080p) mode, you may need to centre the picture:

1. Press the or button to select Position.
2. Press the ENTER button.
3. Press the , , or button to move the picture.

Depending on the input source, the picture size options may vary.
If you want to reset the position you adjusted, select Reset in the Position screen. The picture will be set to its default position.
- The available items may differ depending on the selected mode.
- Settings can be adjusted and stored for each external device connected to an input on the TV.
If you use the Screen Fit function with HDMI 720p input, 1 line will be cut at the top, bottom, left and right as in the overscan function.

4:3 Screen Size (16:9 / Wide Zoom / Zoom / 4:3):

Available only when picture size is set to Auto Wide. You can determine the desired picture size at the 4:3 WSS (Wide Screen Service) size or the original size. Each European country requires different picture size.

Changing the Picture Options

Advanced Settings

UIII Picture Advanced Settings

ENTERC

(available in Standard / Movie mode)

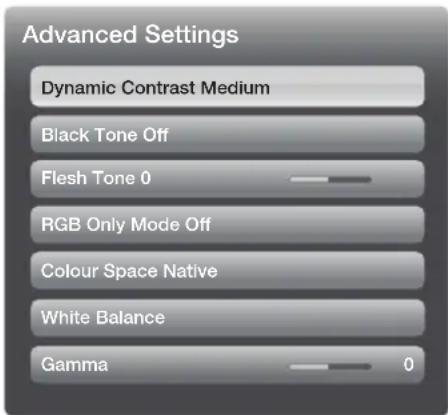

You can adjust the detailed setting for the screen including colour and contrast.

Dynamic Contrast (Off / Low / Medium / High): Adjust the screen contrast.
Black Tone (Off / Dark / Darker / Darkest): Select the black level to adjust the screen depth.
Flesh Tone: Adjust the flesh tone colour.
RGB Only Mode (Off / Red / Green / Blue): Displays the Red, Green and Blue colour for making fine adjustments to the hue and saturation.
Colour Space (Auto / Native): Adjust the range of colours available to create the image.
White Balance: Adjust the colour temperature for a more natural picture.

R-Offset / G-Offset / B-Offset: Adjust each colour's (red, green, blue) darkness.

R-Gain / G-Gain / B-Gain: Adjust each colour's (red, green, blue) brightness.

Reset: Resets the White Balance to its default settings.

Gamma: Adjust the primary colour intensity.

U→Picture→Picture Options→ENTER

Colour Tone (Cool / Standard / Warm1 / Warm2)

Warm1 or Warm2 will be deactivated when the picture mode is Dynamic.
Settings can be adjusted and stored for each external device connected to an input on the TV.

Digital Noise Filter (Off / Low / Medium / High / Auto

/ Auto Visualisation): If the broadcast signal received by your TV is weak, you can activate the Digital Noise

Filter feature to reduce any static and ghosting that may appear on the screen.

When the signal is weak, try other options until the best picture is displayed.

Auto Visualisation: When changing analogue channels, displays signal strength.

Only available for analogue channels.
When the INFO button is pressed, the signal strength bar is displayed.
When bar is green, you are receiving the best possible signal.

MPEG Noise Filter (Off / Low / Medium / High /

Auto): Reduces MPEG noise to provide improved picture quality.

HDMI Black Level (Low / Normal): Selects the black level on the screen to adjust the screen depth.
Available only in HDMI mode (RGB signals).
Film Mode (Off / Auto1 / Auto2): Sets the TV to automatically sense and process film signals from all sources and adjust the picture for optimum quality.
Available in TV mode, AV, Component (480i / 1080i) and HDMI (1080i).
If the screen does not seem natural, change its option to Off / Auto1 / Auto2 in Film Mode.

Reset Picture (Yes / No)

UIII Picture Reset Picture ENTER

Resetss your current picture mode to its default settings.

Changing the Preset Sound Mode

Sound Mode TOOLS

NU Sound Sound Mode ENTER

Standard: Selects the normal sound mode.
Music: Emphasizes music over voices.
Movie: Provides the best sound for movies.
Clear Voice: Emphasizes voices over other sounds.
Amplify: Increase the intensity of high-frequency sound to allow a better listening experience for the hearing impaired.

Adjusting Sound Settings

Sound Effect

NU Sound Sound Effect ENTER

Use the up and down arrow keys to select an option, and then press ENTER.

SRS TruSurround HD (Off / 10:59)

(standard sound mode only)

This function provides a virtual 5.1 channel surround sound experience through a pair of speakers using HRTF (Head Related Transfer Function) technology.

SRS TruDialog (Off / On)

(standard sound mode only)

This function allows you to increase the intensity of a voice over background music or sound effects so that dialogue can be heard more clearly.

Equaliser

(standard sound mode only)

Use Equaliser to customize sound setting for each speaker.

Balance: Adjusts the balance between the right and left speaker.

100Hz / 300Hz / 1kHz / 3kHz / 10kHz (Bandwidth Adjustment): Adjusts the level of specific bandwidth frequencies.

Reset: Resets the equaliser to its default settings.

NU Sound Broadcast Audio Options ENTER

Audio Language

(digital channels only)

Change the default value for audio languages.

The available language may differ depending on the broadcast.

Audio Format

(digital channels only)

When sound is emitted from both the main speaker and the audio receiver, a sound echo may occur due to the decoding speed difference between the main speaker and the audio receiver. In this case, use the TV Speaker function.

Audio Description

not available in all locations) (digital channels only) This function handles the Audio Stream for the AD (Audio Description) which is sent along with the Main audio from the broadcaster.

Audio Description (Off / On): Turn the audio description function on or off.

Volume: Adjust the audio description volume.

Additional Settings

NU Sound Additional Settings ENTER

DTV Audio Level (MPEG / HE-AAC) (digital channels only): This function allows you to reduce the disparity of a voice signal (which is one of the signals received during a digital TV broadcast) to a desired level.

According to the type of broadcast signal, MPEG / HE-AAC can be adjusted between -10dB and 0dB.

To increase or decrease the volume, adjust between the range 0 and -10 respectively.

Dolby Digital Comp (Line / RF): This function minimizes signal disparity between a dolby digital signal and a voice signal (i.e. MPEG Audio, HE-AAC, ATV Sound).

Select Line to obtain dynamic sound, and RF to reduce the difference between loud and soft sounds at night time.

Line: Set the output level for signals greater or less than -31dB (reference) to either -20dB or -31dB.

RF: Set the output level for signals greater or less than -20dB (reference) to either -10dB or -20dB.

Speaker Settings

NUNU Sound Speaker Settings ENTER

Auto Volume (Off / Normal / Night)

To equalize the volume level on each channel, set to Normal.

Night: This mode provides an improved sound experience compared to Normal mode, making almost no noise. It is useful at night.

To use the volume control on the source device connected to the TV, set Auto Volume to Off on the TV. Otherwise, a change to the volume control of the source device may not be applied.

Reset Sound (Yes / No)

NUNU Sound ResetSound ENTER

Reset all sound settings to the factory defaults.

Selecting the Sound Mode TOOLS

ALI-II ENTER

When you set to Dual I-II, the current sound mode is displayed on the screen.

	Audio Type	Dual I-II Default
A2 Stereo	Mono Mono Automatic		change
	Stereo	Stereo ↔ Mono
	Dual	Dual I ↔ Dual II	Dual I
NICAM Stereo	Mono Mono Automatic		change
	Stereo	Mono ↔ Stereo
	Dual	Mono → Dual I \ Dual II✓	Dual I

The stereo signal is weak and an automatic switching occurs, then switch to the mono.

Only activated in stereo sound signal.

Only available when the Source is set to TV.

Preference Features

System Menu

Executing initial setup

Setup

NU System Setup ENTER

Configure the channels and the time when setting up the TV for the first time or when resetting the unit.

Setting the Time

Time

NU System Time ENTER

The current time will appear every time you press the INFO button.

Clock: Setting the clock is for using various timer features of the TV.

If you disconnect the power cord, you have to set the clock again.

Clock Mode: Set up the current time manually or automatically.

Auto: Set the current time automatically using the time from a digital channel.

The aerial must be connected in order to set the time automatically.

• Manual: Set the current time manually.

Depending on the broadcast station and signal, the auto time set up may not be correct. In this case, set the time manually.

Clock Set: Set the Date and Time.

Available only when Clock Mode is set to Manual.

You can set the Date and Time directly by pressing the number buttons on the remote control.

Time Zone (depending on the country): Select your time zone.

This function is only available when the Clock Mode is set to Auto.
When selecting Manual in Time Zone, GMT and DST will be activated.

Using the Sleep Timer

NU System Time Sleep Timer

TER

Sleep Ti TcLs:Automatically shuts off the TV after a preset period of time. (30, 60, 90, 120, 150 and 180 minutes).

Cancel Sleep Timer, select Off.

Setting the On/Off Timer

NUO System Time On Timeror>Off

er→ENTER

On Timer 1 / On Timer 2 / On Timer 3: Three different on timer settings can be made. You must set the clock first.

Setup: Select Off, Once, Everyday, Mon~Fri, Mon~Sat, Sat~Sun or Manual to set at your convenience. If you select Manual, you can set up the day you want to activate the timer.
The mark indicates the day you've selected.
Time: Set the hour and minute.
Volume: Set the desired volume level.
Source: Select TV or USB content to be played when the TV is turned on automatically. (USB can be selected only when a USB device is connected to the TV)
Aerial (when the Source is set to TV): Select ATV or DTV.
- Channel (when the Source is set to TV): Select the desired channel.

Music / Photo (when the Source is set to USB): Select a folder in the USB device containing music or photo files to be played when the TV is turned on automatically.

NOTE

If there is no music file on the USB device or the folder containing a music file is not selected, the timer function does not operate correctly.
- When there is only one photo file in the USB device, the slide show will not play.
If a folder name is too long, the folder cannot be selected.
Each USB you use is assigned its own folder. When using more than one of the same type of USB, make sure the folders assigned to each USB have different names.
It is recommended that you use a USB memory stick and a multi card reader when using On Timer.
The On Timer function may not work with USB devices with a built-in battery, MP3 players, or PMPs made by some manufacturers because these devices take a long time to be recognized.

Off Timer 1 / Off Timer 2 / Off Timer 3: Three different off timer settings can be made. You must set the clock first.

Setup: Select Off, Once, Everyday, Mon~Fri, Mon~Sat, Sat~Sun or Manual to set at your convenience. If you select Manual, you can set up the day you want to activate the timer.

mark indicates the day you've selected.

Time: Set the hour and minute.

LockingProgramme

Security

NU System Security ENTER

PIN input screen appears before the setup screen.
After your 4-digit PIN. Change the PIN using the change PIN option.

• Channel Lock (Off / On): Lock channels in Channel menu to prevent unauthorized users, such as children, from watching unsuitable programme.
  Available only when the Source is set to TV.
  Programme Rating Lock (depending on the country): Prevent unauthorized users, such as children, from watching unsuitable programme with a user-defined 4-digit PIN code. If the selected channel is locked, the
  symbol will be displayed.
  The items of Programme Rating Lock differs depending on the country.
  Change PIN: Change your password required to set up the TV.

Economical Solutions

Eco Solution

NU System Eco Solution ENTER

Energy Saving (Off / Low / Medium / High / Picture Off) TOOLS: This adjusts the brightness of the TV in order to reduce power consumption. If you select Picture Off, the screen is turned off, but the sound remains on. Press any button except volume button to turn on the screen.

No Signal Power Off (Off / 15 min / 30 min / 60 min): To avoid unnecessary energy consumption, set how long you want the TV to remain on if it's not receiving a signal.
Auto Power Off (Off / On): The TV will be automatically turned off when no user operation is received for 4 hours.

Preference Features

Other Features

Language

U System Language ENTER

Menu Language: Set the menu language.

Teletext Language (depending on the country): Set a desired language for teletext.

English is the default in cases where the selected language is unavailable in the broadcast.

Preferred Language (Primary Audio / Secondary Audio / Primary Subtitle / Secondary Subtitle / Primary Teletext / Secondary Teletext): Select a language, which will be the default language when a channel is selected.

Primary Teletext and Secondary Teletext may not be supported in some locations.

Subtitle

UIII System Subtitle ENTER

Use this menu to set the Subtitle mode.

Subtitle (Off / On): Switches subtitles on or off.
Subtitle Mode (Normal / Hearing Impaired): Sets the subtitle mode.
Subtitle Language: Sets the subtitle language.

The programme you are watching does not support the Hearing Impaired function, Normal automatically activates even if the Hearing Impaired mode is selected.

English is the default in cases where the selected language is unavailable in the broadcast.

Screen Burn Protection

NU System Screen Burn Protection TERC

To reduce the possibility of screen burn, this unit is equipped with screen burn prevention technology. The Time setting allows you to programme the time between movement of the picture in minutes.

Pixel Shift (Off / On): Using this function, you can minutely move pixels on the PDP in horizontal or vertical direction to minimize after image on the screen.

Optimum condition for pixel shift

	Item TV /	HDMI
Horizontal 0~4 3
Vertical 0~4 3
Time (minute) 1~4 min 4 min

Pixel Shift value may differ depending on the motor size (inches) and mode.

function is not available in the Screen Fit tool.

Auto Protection Time (Off / 10 min / 20 min / 40 min

/1 hour): If the screen remains idle with a still image for a certain period of time defined by the user, the screen saver is activated to prevent the formation of ghost images on the screen.

• Scrolling: This function removes after-images on the screen by moving all the pixels on the PDP according to a pattern. Use this function when there are remaining after images or symbols on the screen, especially when you displayed a still image on the screen for a long time.

The after-image removal function has to be executed for a long time (approximately 1 hour) to effectively remove after-images on the screen. If the after-image is not removed after performing the function, repeat the function again.

Press any key on the remote control to cancel this feature.

Side Grey (Light / Dark): When you watch TV with the screen ratio set to 4:3, the screen is prevented from any damage by adjusting the white balance on both extreme left and right sides.

UIII System General ENTER

Game Mode (Off / On): When connecting to a game console such as PlayStation™ or Xbox™, you can enjoy a more realistic gaming experience by selecting game mode.

NOTE

• Precautions and limitations for game mode
• To disconnect the game console and connect another external device, set Game Mode to Off in the setup menu.

If you display the TV menu in Game Mode, the screen shakes slightly.

Game Mode is not available in TV mode.
After connecting the game console, set Game Mode to On. Unfortunately, you may notice reduced picture quality.
- If Game Mode is On: - Picture Mode is set to Standard and Sound Mode is set to Movie.

Panel Lock (Off/On): Lock or unlock all the keys on the panel.
- Boot Logo (Off / On): Display Samsung logo when the TV is turned on.

DivX® Video On Demand

UIII System DivX © Video On Demand

ER

Shows the registration code authorized for the TV. If you connect to the DivX web site and register with 10-digit registration code, you can download the VOD activation file. Once you play it using Videos, the registration is completed.

For more information on DivX® VOD, visit http://vod.divx.com.

Common Interface

NU System Common Interface

ENTER

• CI Menu: This enables the user to select from the CAM-provided menu. Select the CI Menu based on the menu PC Card.
  Application Info: View information on the CAM inserted into the CI slot and on the "CI or CI+ CARD" which is inserted into the CAM. You can install the CAM anytime whether the TV is on or off.

• Purchase a CI CAM module at your nearest dealer or by phone.

• Firmly insert the "CI or Cl+ CARD" into the CAM in the direction of the arrow.
• Insert the CAM with the "CI or CI+ CARD" into the common interface slot, in the direction of the arrow so that it aligns parallel with the slot.
• Check if you can see a picture on a scrambled signal channel.

Preference Features

Support Menu

Support Menu

Self Diagnosis

NU Support Self Diagnosis ENTER

Self Diagnosis might take few seconds, this is part of the normal operation of the TV.

Picture Test (Yes / No): Use to check for picture problems.
Sound Test (Yes / No): Use the built-in melody sound to check for sound problems.
Signal Information: (digital channels only) HDTV channel's reception quality is either perfect or the channels are unavailable. Adjust your aerial to increase signal strength.
- Reset: Reset all settings to the factory defaults except network settings.

The PIN input screen appears before the setup screen.
Enter your 4-digit PIN. Change the PIN using the Change PIN option.

Software Upgrade

NU Support Software Upgrade ENTER

Software Upgrade can be performed by downloading the latest firmware from "www.samsung.com" to a USB memory device.

Current Version-the software already installed in the TV.

Installing the Latest Version

• By USB: Insert a USB drive containing the firmware upgrade file, downloaded from "www.samsung.com" into the TV. Please be careful not to disconnect the power or remove the USB drive until upgrades are complete. The TV will be turned off and on automatically after completing the firmware upgrade. When software is upgraded, video and audio settings you have made will return to their default settings. We advise you to write down your settings so that you can easily reset them after the upgrade.

By Channel: Upgrade the software using the broadcasting signal.

The function is selected during the software transmission period, software will be automatically searched and downloaded.
The time required to download the software is determined by the signal status.

Alternative Software: Replace the current software with the alternative.

Standby Mode Upgrade (Off / 1 hour later / 2 hours later / 00:00 / 02:00 / 12:00 / 14:00): A manual upgrade will be automatically performed at selected time. Since the power of the unit is turned on internally, the screen may be turned on slightly for the product. This phenomenon may continue for more than 1 hour until the software upgrade is complete.

Contact Samsung

NUI Support Contact Samsung TERC

View this information when your TV does not work properly or when you want to upgrade the software. You can find information regarding our call centres, and how to download products and software.

Contents Home

NUO Support Contents Home ENTER

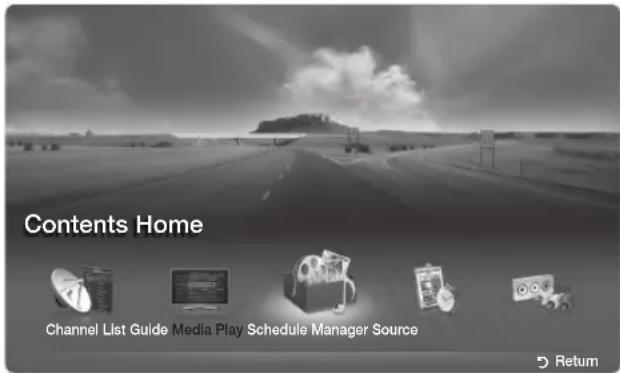

You can enjoy useful and various contents.

Media Play

Using the Media Contents

Enjoy photos, music and movie files saved on a USB Mass Storage Class (MSC) device.

1. Press the CONTENT button to select Media Play.
2. Press / button to select desired menu (Videos, Photos, Music), then press the ENTER button.
3. Press / button to select desired device, then press the ENTER button again.

Connecting a USB Device

1. Turn on your TV.
2. Connect a USB device containing photo, music and movie files to the USB port on the side of the TV.
3. When USB is connected to the TV, popup window appears. You can select the Videos, Photos or Music directly.

It might not work properly with unlicensed multimedia files.
Need-to-Know List before using Media Contents
MTP (Media Transfer Protocol) is not supported.
The file system supports NTFS (Read Only), FAT16 and FAT32.
Certain types of USB Digital camera and audio devices may not be compatible with this TV.
Media Contents only supports USB Mass Storage Class (MSC) devices. MSC is a Mass Storage Class Bulk-Only Transport device. Examples of MSC are Thumb drives, Flash Card Readers (USB HUB are not supported). Devices should be connected directly to the TV's USB port.
Before connecting your device to the TV, please back up your files to prevent them from damage or loss of data. SAMSUNG is not responsible for any data file damage or data loss.
The HDD (Hard Disk Drive) connected to USB is not supported.
- Do not disconnect the USB device while it is loading.
The higher the resolution of the image, the longer it takes to display on the screen.
The maximum supported JPEG resolution is 15360 × 8640 pixels.
- For unsupported or corrupted files, the "Not Supported File Format" message is displayed.
MP3 files with DRM that have been downloaded from a non-free site cannot be played. Digital Rights Management (DRM) is a technology that supports the creation, distribution and management of the content in an integrated and comprehensive way, including the protection of the rights and interests of the content providers, the prevention of the illegal copying of contents, as well as managing billings and settlements.
- A USB device that requires high power (more than 500mA or 5V) may not be supported.
If the TV has been no input during time set in Auto Protection Time, the Screensaver will run.
The power-saving mode of some external hard disk drives may be released automatically when connected to the TV.

Advanced Features

If a USB extension cable is used, the USB device may not be recognized or the files on the device may not be read.
If a USB device connected to the TV is not recognized, the list of files on the device is corrupted or a file in the list is not played, connect the USB device to the PC, format the device and check the connection.
If a file deleted from the PC is still found when Media Contents is run, use the "Empty the Recycle Bin" function on the PC to permanently delete the file.
Media Contents only supports sequentialJPEG format.
The scene search and thumbnail functions are not supported in the Videos.
If the number of files and folders saved on a USB storage device is approximately over 4000, the files and folders may not appear and some folders may not be opened.

Disconnecting a USB Device

Method 1: Using the SOURCE button.

1. Press the SOURCE button.
2. Select a desired USB device, and then press the TOOLS button. The Tools menu appears.
3. Select Safely Remove USB Device, and then wait until the selected USB device is disconnected. You can remove a USB device from the TV.

Method 2: Using the Media Play home screen.

1. Go to Media Play home screen.
2. Select any category, and then press the ENTER button.
3. Select a desired USB device, and then press the TOOLS button. The Tools menu appears.
4. Select Safely Remove USB Device, and then wait until the selected USB device is disconnected. You can remove a USB device from the TV.

To remove a USB device from the TV, we recommend use Safely Remove USB Device function.

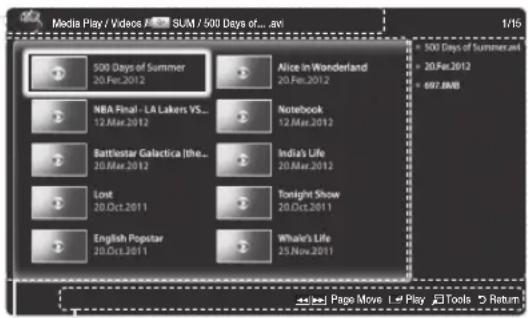

Screen Display

Move to the desired file using the / / buttons and then press the ENTER or Play button. The screen may differ depending on the way to enter the screen.

Information: You can ascertain the selected device name, contents mode, folder/file name, page.

Information:

You can ascertain the name, size and created date of the selected file.

File List Section:

You can confirm the files and groups that are sorted by category.

Operation Buttons:

Play: Plays the selected file.
- Tools: Displays the option menu.
- Return: Move to the previous step.
Page Move: Move to up or down page.

Playing Video

1. Press the / / button to select the desired video in the file list.

2. Press the ENTER button or Play button.

The selected file name is displayed on the top with its playing time.
If video time information is unknown, play time and progress bar are not displayed.
During video playback, you can search using and button.
- You can use (←) (REW) and (→) (FF) buttons during playback.

In this mode, you can enjoy movie clips contained on a Game, but you cannot play the Game itself.

Supported Subtitle Formats

External

Name File extension
MPEG-4 timed text .txt
SAMI .smi
SubRip .srt
Subscriber .sub
Micro DVD .sub or .txt
SubStation Alpha .ssa
Advanced SubStation Alpha .ass
Powerdivx .psb

Internal

Name Container	Format
Xsub	AVI	Picture Format
SubStation Alpha	MKV	Text Format
Advanced SubStation Alpha	MKV	Text Format
SubRip	MKV	Text Format
MPEG-4 Timed text	MP4	Text Format

Advanced Features

Supported Video Formats

File Extension	Container Video Code Resolution		Frame rate (fps)	Bit rate (Mbps)	Audio Codec
*.avi	DivX 3.11/4.x/5.x/6.x	1920 x 1080	6~30	30	AC3 LPCM ADPCM (IMA, MS) AAC HE-AAC WMA DD+ MPEG (MP3) DTS Core G.711(A-Law, μ-Law)
*.mkv
*.asf
*.wmv	H.264 BP/MP/HP
*.mp4
*.3gp	Motion JPEG	640 x 480 8
*.vro
*.mpg
*.mpeg	Window Media Video v9	1920 x 1080 30
*.ts
*.tp	MPEG2
*.trp
*.mov	MPEG1
*.flv
*.vob
*.svi
*.m2ts
*.mts
*.divx

Other Restrictions

Video content will not play, or not play correctly, if there is an error in the content or the container.
Sound or video may not work if the contents have a standard bit rate/frame rate above the compatible Frame/sec listed in the table.
If the Index Table is in error, the Seek (Jump) function is not supported.
Some USB/digital camera devices may not be compatible with the player.
The menu can be displayed late if the video is over 10Mbps(bit rate).

Video decoder Audio decoder
Supports up to H.264, Level 4.1H.264 FMO / ASO / RS, VC1 SP / MP / AP L4 and AVCHD are not supported.GMC is not supported.	WMA supports up to 10 Pro 5.1 channel and M2 profile. (LBR mode of M0 is not supported)WMA lossless audio is not supported.

Photos

Viewing a Photo (or Slide Show)

1. Press the / / / button to select the desired photo in the file list.
2. Press the ENTER button.

During the slide show, all files in the file list will be displayed in order.
When you press the (Play) button in the file list, slide show will be started immediately.
During the slide show, you can adjust the slide show speed using (REW) or (FF) button.
you can move to other file using or button.

Music files can be automatically played during the slide show if the Background Music On is set.

Supported Photo Formats

File Extension	Type	Resolution
*.jpg	JPEG	15360 X 8640
*.bmp	BMP	1920 X 1080
*.mpo	MPO	15360 X 8640

Playing Music

1. Press the / / button to select the desired Music in the file list.

2. Press the ENTER button or Play button.

3. You can use (REW) and (FF) buttons during playback.

Only displays the files with supported music file extension. Other file extensions are not displayed, even if they are saved on the same USB device.
The sound is abnormal when playing music files, adjust the Equaliser in the Sound menu. (An over-modulated music file may cause a sound problem.)
Using the playback menu

Press the / button to select the desired menu.

• Play / Pause: You can start or stop a music. Alternatively, the or button on the remote.
• Repeat Mode (Off / One Song / All): You can play music files repeatedly.
  Shuffle Mode (Off / On): You can play the music randomly.
  Sound Mode (Standard / Music / Movie / Clear Voice / Amplify): You can adjust the sound setting.

Supported Music Formats

File Extension Type	Codec Remark
*.mp3 MPEG MPEG1 Audio Layer 3
*.m4a	MPEG4 AAC
*.mpa
*.aac
*.3ga
*.flac	FLAC	FLAC	Seek is not supported. Supports up to 2ch.
*.ogg	OGG	Vorbis	Supports up to 2ch.
*.wma	WMA	WMA	WMA supports up to 10 Pro 5.1 channel and M2 profile. (LBR mode of M0 is not supported)

Media Contents - Additional Functions

Playing the selected Videos/Music/Photos files

1. Press the TOOLS button at each main screen and select Play selection.
2. Select the desired files.

The check box appears to the left of the selected files.

1. Press the button to select Play.

You can select or deselect all files pressing the Select All / Deselect All.

Advanced Features

Videos/Music/Photos Play Option menu

During playing a file, press the TOOLS button.

Category Operation	on Videos Photos Music
Title Search You can move the other file directly.	✓
Time Search	You can search the video using and button at one minute interval or entering the number directly.It may not be supported depending on the input source.	✓
Repeat Mode You can play movie files repeatedly.	✓
Picture Size You can adjust the picture size to your preference.	✓
Picture Mode You can adjust the picture setting.	✓	✓
Sound Mode You can adjust the sound setting.	✓	✓
Audio Language You can change the audio language if the video has more than one language.	✓
Subtitle You can set subtitles on/off.	✓
Subtitle Settings You can play the video with subtitles. This function only works if the subtitles are the same file name as the video.	✓
Start Slide Show / Stop Slide Show	You can start or stop a slide show.		✓
Slide Show Speed You can select the slide show speed during the slide show.		✓
Background Music On / Background Music Off	You can set on/off background music when watching a slide show.		✓
Background Music Setting	You can select background music when watching a slide show.		✓
Zoom	You can zoom into images in full screen mode.		✓
Rotate	You can rotate images in full screen mode.		✓
Edit playlist	You can edit the play list when playing the desired music.			✓
Play selection	Select and play multiple files.			✓
Information	You can see detailed information about the played file.	✓✓	✓

Teletext Feature

The index page of the Teletext service gives you information on how to use the service. For Teletext information to be displayed correctly, channel reception must be stable. Otherwise, information may be missing or some pages may not be displayed.

You can change Teletext pages by pressing the numeric buttons on the remote control.

(mode): Selects the Teletext mode (LIST/FLOF). If pressed during LIST mode, switches the mode to List save mode. In List save mode, you can save a Teletext page into a list using the () (store) button.
Teletext on/mix/off): Activates the Teletext mode for the current channel. Press the button twice to overlap the Teletext mode with the current broadcasting screen. Press it one more time to exit teletext.
3 (sub-page): Displays the available sub-page.
( store): Stores the Teletext pages.
(5) (index): Displays the index (contents) page at any time while you are viewing Teletext.
(6) (size): Displays the teletext on the upper half of the screen in double-size. To move the text to the lower half of the screen, press it again. For normal display, press it once again.
(3) (hold): Holds the display at the current page, in the case that there are several secondary pages that follow automatically. To undo, press it again.
3 (page up): Displays the next Teletext page.
9 (page down): Displays the previous Teletext page.
10 (reveal): Displays the hidden text (answers to quiz games, for example). To display the normal screen, press it again.
Ex (cancel): Shrinks the Teletext display to overlap with the current broadcast.
Colour buttons (red, green, yellow, blue): If the FASTEXT system is used by the broadcasting company, the different topics on a Teletext page are colour-coded and can be selected by pressing the coloured buttons. Press the colour corresponding to the topic of your choice. A new colourcoded page is displayed. Items can be selected in the same way. To display the previous or next page, press the corresponding coloured button.

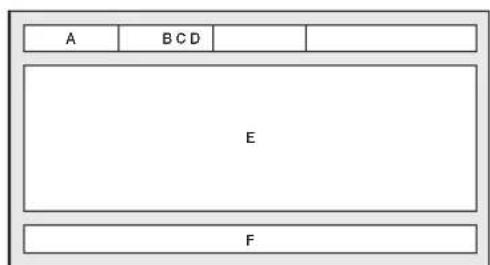

The Teletext pages are organized according to six categories

Part Contents
A	Selected page number.
B	Broadcasting channel identity.
C	Current page number or search indications.
D	Date and time.
E	Text.
F	Status information. FASTEXT information.

Other Information

Installing the Wall Mount

The wall mount kit (sold separately) allows you to mount the TV on the wall. For detailed information on installing the wall mount, see the instructions provided with the wall mount. Contact a technician for assistance when installing the wall mount bracket. We do not advice you to do it yourself.

Samsung Electronics is not responsible for any damage to the product or injury to yourself or others if you select to install the TV on your own.

Wall Mount Kit Specifications (VESA)

Wall mount kit is not supplied but sold separately.

Install your wall mount on a solid wall perpendicular to the floor. When attaching to other building materials, please contact your nearest dealer. If installed on a ceiling or slanted wall, it may fall and result in severe personal injury.

NOTE

• Standard dimensions for wall mount kits are shown in the table below.
• When purchasing our wall mount kit, a detailed installation manual and all parts necessary for assembly are provided.
• Do not use screws that do not comply with the VESA standard screw specifications.
  Do not use screws longer than the standard dimension, as they may cause damage to the inside of the TV set.
• For wall mounts that do not comply with the VESA standard screw specifications, the length of the screws may differ depending on their specifications.
• Do not fasten the screws too strongly, this may damage the product or cause the product to fall, leading to personal injury. Samsung is not liable for these kinds of accidents.
  Samsung is not liable for product damage or personal injury when a non-VESA or non-specified wall mount is used or the consumer fails to follow the product installation instructions.
• Do not exceed 15 degrees tilt when mounting this TV.

inches VESA Spec. (A * B) Standard Screw Quantity
43~51 400 X 400	M8
60~64 600 X 400

Do not install your Wall Mount Kit while your TV is turned on. It may result in personal injury due to electric shock.

Securing the TV to the Wall

Caution: Pulling, pushing, or climbing onto the TV may cause the TV to fall. In particular, ensure that your children do not hang over or destabilize the TV; doing so may cause the TV to tip over, resulting in serious injuries or death. Follow all safety precautions provided on the included Safety Flyer. For added stability, install the anti-fall device for safety purposes, as follows.

To avoid the TV from falling

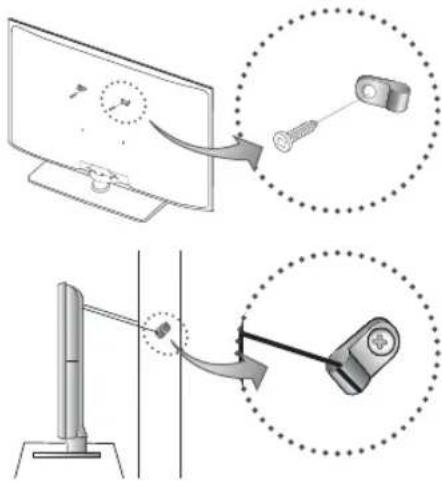

1. Put the screws into the clamps and firmly fasten them onto the wall. Confirm that the screws have been firmly installed onto the wall.

You may need additional material such as an anchor depending on the type of wall.

Since the necessary clamps, screws, and string are not supplied, please purchase these additionally.

1. Remove the screws from the centre back of the TV, put the screws into the clamps, and then fasten the screws onto the TV again.

Screws may not be supplied with the product. In this case, please purchase the screws of the following specifications.

1. Connect the clamps fixed onto the TV and the clamps fixed onto the wall with a strong string and then tie the string tightly.

NOTE

Install the TV near to the wall so that it does not fall backwards.
It is safe to connect the string so that the clamps fixed on the wall are equal to or lower than the clamps fixed on the TV.
- Untie the string before moving the TV.

1. Verify all connections are properly secured. Periodically check connections for any sign of fatigue for failure. If you have any doubt about the security of your connections, contact a professional installer.

Anti-theft Kensington Lock

The Kensington Lock is not supplied by Samsung. It is a device used to physically fix the system when using it in a public place. The appearance and locking method may differ from the illustration depending on the manufacturer. Refer to the manual provided with the Kensington Lock for additional information on proper use.

find a “ ” icon on the rear of the TV. A kensington slot is beside the “ ” icon.

position and colour may differ depending on the model.

To lock the product, follow these steps:

1. Wrap the Kensington lock cable around a large, stationary object such as desk or chair.
2. Slide the end of the cable with the lock attached through the looped end of the Kensington lock cable.
3. Insert the locking device into the Kensington slot on the product.
4. Lock the lock.

use are general instructions. For exact instructions, see the or manual supplied with the locking device.

locking device has to be purchased separately.

Troubleshooting

If the TV seems to have a problem, first try this list of possible problems and solutions. If none of these troubleshooting tips apply, visit "www.samsung.com", then click on Support, or call Samsung customer service centre.

Issues Solutions	and Explanations
Picture Quality	First of all, please perform the Picture Test and confirm that your TV is properly displaying test image.(go to MENU - Support - Self Diagnosis - Picture Test) If the test image is properly displayed, the poor picture may caused by the source or signal.
The TV image does not look as good as it did in the store.	If you have an analogue cable/set top box, upgrade to a digital set top box. Use HDMI or Component cables to deliver SD (Standard definition) picture quality.Cable/Satellite subscribers: Try digital stations from the channel line up.Aerial connection: Try digital stations after performing Auto tuning.Adjust the Cable/Set top box video output resolution to 480p.Make sure you are watching the TV at the minimum recommended distance based on the size and definition of the signal.
The picture is distorted:macroblock error, small block,dots, pixelization	Compression of video contents may cause picture distortion especially in fast moving pictures such as sportsand action movies.Low signal level or bad quality can cause picture distortion. This is not a TV issue.Mobile phones used close to the TV (cca up to 1m) may cause noise in picture on analogue and digital TV.
Colour is wrong or missing.	If you're using a component connection, make sure the component cables are connected to the correctIncorrect or loose connections may cause colour problems or a blank screen.
There is poor colour or brightness.	Adjust the Picture options in the TV menu. (go to Picture Mode / Colour / Brightness / Sharpness)Adjust Energy Saving option in the TV menu. (go to MENU - System - Eco Solution - Energy Saving)Try resetting the picture to view the default picture settings. (go to MENU - Picture - Reset Picture)
There is a dotted line on the edge of the screen.	If the picture size is set to Screen Fit, change it to 16:9.Change cable/satellite box resolution.
The picture is black and white.	If you are using an AV composite input, connect the video cable (yellow) to the Green jack of component1 on the TV.
When changing channels, the picture freezes or is distorted or delayed.	If connected with a cable box, please try to reset the cable box. Reconnect the AC cord and wait until the cable box reboots. It may take up to 20 minutes.Set the output resolution of the cable box to 480p.
Sound Quality	First of all, please perform the Sound Test to confirm that your TV audio is properly operating. (go to MENU - Support - Self Diagnosis - Sound Test)If the audio is ok, the sound problem may be caused by the source or signal.
There is no sound or the sound is too low at maximum volume.	Please check the volume of the device (Cable/Sat Box, DVD, Blu-ray etc) connected to your TV.
The picture is good but there is no sound.	If you are using an external device, make sure the audio cables are connected to the correct audio inputon the TV.If you are using an external device, check the device's audio output option (ex. you may need to changecable box's audio option to HDMI when you have a HDMI connected to your TV).Reboot the connected device by reconnecting the device's power cable.
The speakers are making an inappropriate noise.	Check the cable connections. Make sure a video cable is not connected to an audio input.For aerial or cable connections, check the signal strength. Low signal level may cause sound distortion.
No Picture, No Video
The TV will not turn on.	Make sure the AC power cord is securely plugged in to the wall outlet and the TV.Make sure the wall outlet is working.Try pressing the POWER button on the TV to make sure the problem is not the remote. If the TV turns on,refer to "The remote control does not work" below.

Issues Solutions and Explanations

The TV turns off automatically. ·Ensure the Sleep Timer is set to Off in the Time menu. ·Make sure the AC power cord is plugged in securely to the wall outlet and the TV. ·When watching TV from an aerial or cable connection, the TV will turn off after 10 ~ 15 minutes if there is no signal.

There is no picture/video. ·Check cable connections (remove and reconnect all cables connected to the TV and external devices). ·Set your external device's (Cable/Set top Box, DVD, Blu-ray etc) video outputs to match the connections to the TV input. For example, if an external device's output is HDMI, it should be connected to an HDMI input on the TV. ·Make sure your connected devices are powered on. ·Be sure to select the TV's correct source by pressing the SOURCE button on the remote control. ·Reboot the connected device by reconnecting the device's power cable.

Aerial (Air/Cable) Connection

The TV is not receiving all channels. ·Make sure the Aerial cable is connected securely. ·Please try Setup (Initial setup) to add available channels to the channel list. Go to MENU - System - Setup (Initial setup) and wait for all available channels to be stored. ·Verify the Aerial is positioned correctly.

The picture is distorted: macro block error small block, dots, pixelization ·Compression of video contents may cause picture distortion, especially on fast moving pictures such as sports and action movies. ·A low signal can cause picture distortion. This is not a TV issue.

Others

The picture will not display in full screen. ·HD channels will have black bars on either side of the screen when displaying up scaled SD (4:3) contents. ·Black bars on the top and bottom will appear during movies that have aspect ratios different from your TV. ·Adjust the picture size options on your external device or TV to full screen.

Plasma TV is making humming noise. ·Plasma TVs typically make a soft humming sound. This is normal. It's caused by the electrical charges that are used to create the images on the screen. ·If the humming sound is loud, you may have set the brightness on the TV too high. Try setting the brightness lower. ·You can also have loud humming if the back of your Plasma TV is too close to a wall or other hard surface. Also try rerouting your connection cables. ·Improper installation of wall mount can create excessive noise.

Image Retention (Burn In) Issue. ·To minimize the possibility of screen burn, this unit is equipped with Pixel Shift screen burn reduction technology. Pixel Shift lets you set the picture so it moves slightly up and down (Vertical Line) and side to side (Horizontal Dot). The regular, slight movement of the picture reduces screen burn in.

The remote control does not work. ·Replace the remote control batteries with the poles (+/-) in the right direction. ·Clean the sensor's transmission window on the remote. ·Try pointing the remote directly at the TV from 5~6 feet away.

The cable/set top box remote control doesn't turn the TV on or off, or adjust the volume. ·Programme the Cable/Set top box remote control to operate the TV. Refer to the Cable/Set top box user manual for the SAMSUNG TV code.

A "Mode Not Supported" message appears. ·Check the supported resolution of the TV, and adjust the external device's output resolution accordingly.

There is a plastic smell from the TV. ·This smell is normal and will dissipate over time.

The TV Signal Information is unavailable in the Self Diagnosis Test menu. ·This function is only available with digital channels from an Aerial / RF / Coax connection.

Other Information

Issues Solutions and Explanations

TV is tilted to the right or left side. Remove the stand base from the TV and reassemble it.

There are difficulties assembling the stand base. Make sure the TV is placed on a flat surface. If you can not remove the screws from the TV, please use magnetized screw driver.

The Channel menu is grey out (unavailable). The Channel menu is only available when the TV source is selected.

Your settings are lost after 30 minutes or every time the TV is turned off. If the TV is in the Store Demo mode, it will reset audio and picture settings every 30 minutes. Change the settings from Store Demo mode to Home Use mode in the Setup (Initial setup) procedure. Press the SOURCE button to select TV mode, and go to MENU → System → Setup (Initial setup)→ ENTER.

You have intermittent loss of audio or video. Check the cable connections and reconnect them. Loss of audio or video can be caused by using overly rigid or thick cables. Make sure the cables are flexible enough for long term use. If mounting the TV to the wall, we recommend using cables with 90 degree connectors.

You see small particles when you look closely at the edge of the frame of the TV. This is part of the product's design and is not a defect.

You turned the TV off 45 minutes ago, and it turned on again. It is normal. The TV operates the OTA (Over The Aerial) function itself to upgrade firmware downloaded whilst your watching TV.

The message "Scrambled Signal" or "Weak or No Signal" appears. If you are using a CAM CARD (CI/CI+), check that it is installed into the common interface slot. If there is still a problem, pull the CAM CARD out of the TV and insert it into the slot again.

There are recurrent picture/sound issues. Check and change the signal/source.

A reaction may occur between the rubber cushion pads on the base stand and the top finish of some furniture. To prevent this, use felt pads on any surface of the TV that comes in direct contact with furniture.

The message "This file may not be playable properly." appears. This may appear because of high bit rate of content. Content generally will play but could experience some playability issue.

You can keep your TV as optimum condition to upgrade the latest firmware on web site (www.samsung.com Support Downloads) by USB.

TheaterSound

TheaterSound, SRS and symbol are trademarks of SRS Labs, Inc. TheaterSound technology is incorporated under license from SRS Labs, Inc.

Srs TheaterSoundTM provides the most immersive surround sound experience from the TVs built-in speakers, while maintaining steady volume and delivering rich bass and clear dialog.

DIGITAL PLUS

PULSE

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

dtts

2.0 Channel

Manufactured under license under U.S. Patent Nos: 5,956,674; 5,974,380; 6,487,535 & other U.S. and worldwide patents issued & pending. DTS, the Symbol & DTS and the Symbol together are registered trademarks & DTS 2.0 Channel is a trademark of DTS, Inc. Product includes software. © DTS, Inc. All Rights Reserved.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

DivX Certified® to play DivX® video up to HD 1080p, including premium content.

ABOUT DVX VIDEO: DivX® is a digital video format created by DivX, LLC, a subsidiary of Rovi Corporation. This is an official DivX Certified® device that plays DivX video. Visit divx.com for more information and software tools to convert your files into DivX videos. ABOUT DVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod.divx.com for more information on how to complete your registration. Covered by one or more of the following U.S. patents : 7,295,673; 7,460,668; 7,515,710; 7,519,274 DivX®, DivX Certified® and associated logos are trademarks of Rovi Corporation or its subsidiaries and are used under license.

Open source licence notice

In the case of using open source software, Open Source Licences are available on the product menu. Open Source Licence Notice is written only English.

Storage and Maintenance

remove the attached sticker on the TV screen, clean the residues and then watch TV.

The exterior and screen of the product can get scratched during cleaning. Be sure to wipe the exterior and screen carefully using the cloth provided or a soft cloth to prevent scratches.

Do not spray water directly onto the product. Any liquid that goes into the product may cause a failure, fire, or electric shock.

Clean the product with a soft cloth dapped in a small amount of water. Do not use a flammable liquid (e.g. benzene, thinners) or a cleaning agent.

Other Information

Specifications
Display Resolution	852 X 480
Environmental Considerations
Operating Temperature	10°C to 40°C (50°F to 104°F)
Operating Humidity	10% to 80%, non-condensing
Storage Temperature	-20°C to 45°C (-4°F to 113°F)
Storage Humidity	5% to 95%, non-condensing
TV System	Analogue: B/G, D/K, L, I (Depending on your country selection) Digital: DVB-T/DVB-C
Colour/Video System	Analogue: PAL, SECAM, NTSC-4.43, NTSC-3.58, PAL60 Digital: MPEG-2 MP@ML, MPEG-4, H.264/AVC MP@L3, MP@L4.0, HP@L4.0
Sound System	BG, DK, L, NICAM, MPEG1, DD, DD+, HEAAC
HDMI IN	Video: 1080 24p, 1080p, 1080i, 720p, 576p, 480p Audio: 2Ch Linear PCM 32/44.1/48kHz, 16/20/24bits.
Model Name	PS43E400
Screen Size	43 inches
Sound (Output)	10W X 2
Dimensions (W x H x D)
Body	1010.1 X 621.0 X 56.0 (mm)
With stand	1010.1 X 675.1 X 262.0 (mm)
Weight
Without Stand	14.1 kg
With Stand	15.3 kg

Design and specifications are subject to change without prior notice.
For information about power supply, and more about power consumption, refer to the label attached to the product.
Typical power consumption is measured according to IEC 62087 Ed.2

Index

A Aerial 12

Auto Tuning 13

G Game Mode 21

Guide 12

Time 18

B Black Tone 15

Broadcast Audio Options 17

K Kensington Lock 31

USB 23

C Channel Lock 19

Colour Tone 16

Common Interface 21

Contents Home 10

Media Play 23

Music 27

V Videos 25

W White Balance 15

D Digital Noise Filter 16

Dolby Digital Comp 17

Dynamic Contrast 15

P Photos 26

Picture Mode 14

Picture Size 14

E Eco Solution 19

Edit Channel Name 11

Edit Channel Number 11

EPG 12

Equaliser 16

R Retuning Channels 12

RGB Only Mode 15

F Favourites 10

Film Mode 16

Fine Tune 14

S Schedule Manager 12

Screen Burn Protection 20

Security 19

Self Diagnosis 22

Sleep Timer 18

Software Upgrade 22

Sound Mode 16

Speaker Settings 17

Subtitle 20

TV/Ext./HDMI1/HDMI2/AV/Composant

Menu Channel (Canal)

If you want to use the following functions, please use the following functions.
if you want to use the following functions, please use the following functions.
if you want to use the following functions, please use the following functions.

SRS TruDialog (Arret / Active)

Installation du support mural

TheaterSound, SRS and symbol are trademarks of SRS Labs, Inc. TheaterSound technology is incorporated under license from SRS Labs, Inc.

Srs TheaterSoundTM provides the most immersive surround sound experience from the TVs built-in speakers, while maintaining steady volume and delivering rich bass and clear dialog.

DIGITAL PLUS

PULSE

Manufactured under license under U.S. Patent Nos: 5,956,674; 5,974,380; 6,487,535 & other U.S. and worldwide patents issued & pending. DTS, the Symbol & DTS and the Symbol together are registered trademarks & DTS 2.0 Channel is a trademark of DTS, Inc. Product includes software. © DTS, Inc. All Rights Reserved.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

DivX Certified® to play DivX® video up to HD 1080p, including premium content.

ABOUT DVX VIDEO: DivX® is a digital video format created by DivX, LLC, a subsidiary of Rovi Corporation. This is an official DivX Certified® device that plays DivX video. Visit divx.com for more information and software tools to convert your files into DivX videos. ABOUT DVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod.divx.com for more information on how to complete your registration. Covered by one or more of the following U.S. patents : 7,295,673; 7,460,668; 7,515,710; 7,519,274 DivX®, DivX Certified® and associated logos are trademarks of Rovi Corporation or its subsidiaries and are used under license.

TheaterSound, SRS and symbol are trademarks of SRS Labs, Inc. TheaterSound technology is incorporated under license from SRS Labs, Inc.

SRS TheaterSound™ provides the most immersive surround sound experience from the TVs built-in speakers, while maintaining steady volume and delivering rich bass and clear dialog.

DIGITAL PLUS

PULSE

Manufactured under license under U.S. Patent Nos: 5,956,674; 5,974,380; 6,487,535 & other U.S. and worldwide patents issued & pending. DTS, the Symbol & DTS and the Symbol together are registered trademarks & DTS 2.0 Channel is a trademark of DTS, Inc. Product includes software. © DTS, Inc. All Rights Reserved.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

DivX Certified® to play DivX® video up to HD 1080p, including premium content.

ABOUT DVX VIDEO: DivX® is a digital video format created by DivX, LLC, a subsidiary of Rovi Corporation. This is an official DivX Certified® device that plays DivX video. Visit divx.com for more information and software tools to convert your files into DivX videos. ABOUT DVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod.divx.com for more information on how to complete your registration. Covered by one or more of the following U.S. patents : 7,295,673; 7,460,668; 7,515,710; 7,519,274 DivX®, DivX Certified® and associated logos are trademarks of Rovi Corporation or its subsidiaries and are used under license.

23 Using the Media Contents
23 Connecting a USB Device
24 Screen Display
27 Media Contents - Additional Functions

Other Information

29 Teletext Feature
30 Installing the Wall Mount
31 Securing the TV to the Wall
31 To avoid the TV from falling
31 Anti-theft Kensington Lock
32 Troubleshooting
35 Licence
35 Storage and Maintenance
36 Specifications
37 Index

Verifique o*simbolo!

TOOLS

SRS TruSurround HD (Desligado / Liga TACLS)

TheaterSound, SRS and symbol are trademarks of SRS Labs, Inc. TheaterSound technology is incorporated under license from SRS Labs, Inc.

Srs TheaterSoundTM provides the most immersive surround sound experience from the TVs built-in speakers, while maintaining steady volume and delivering rich bass and clear dialog.

Manufactured under license under U.S. Patent Nos: 5,956,674; 5,974,380; 6,487,535 & other U.S. and worldwide patents issued & pending. DTS, the Symbol & DTS and the Symbol together are registered trademarks & DTS 2.0 Channel is a trademark of DTS, Inc. Product includes software. © DTS, Inc. All Rights Reserved.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

ABOUT DVX VIDEO: DivX® is a digital video format created by DivX, LLC, a subsidiary of Rovi Corporation. This is an official DivX Certified® device that plays DivX video. Visit divx.com for more information and software tools to convert your files into DivX videos. ABOUT DVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod.divx.com for more information on how to complete your registration. Covered by one or more of the following U.S. patents : 7,295,673; 7,460,668; 7,515,710; 7,519,274 DivX®, DivX Certified® and associated logos are trademarks of Rovi Corporation or its subsidiaries and are used under license.
