Thank you for choosing Midea! Before using your new Midea product, please read this manual thoroughly to ensure that you know how to operate the features and functions that your new appliance offers in a safe way.

CONTENTS

THANK YOU LETTER 01

SPECIFICATIONS 02

PRODUCT OVERVIEW 03

PRODUCT INSTALLATION 04

OPERATION INSTRUCTIONS 12

CLEANING AND MAINTENANCE 15

TROUBLESHOOTING 17

SPECIFICATIONS

Product model MRT21D2B\*\*

Total Storage Volume 20.5 cu.ft.

Rated Voltage 115V\~/60Hz

Rated Current 2A

Overall Dimension (H x W x D) 66.6 in x 29.7 in x 32.7 in

EN

PRODUCT OVERVIEW

Names of components

Technical diagram of a refrigerator internal compartments with numbered labels pointing to different sections

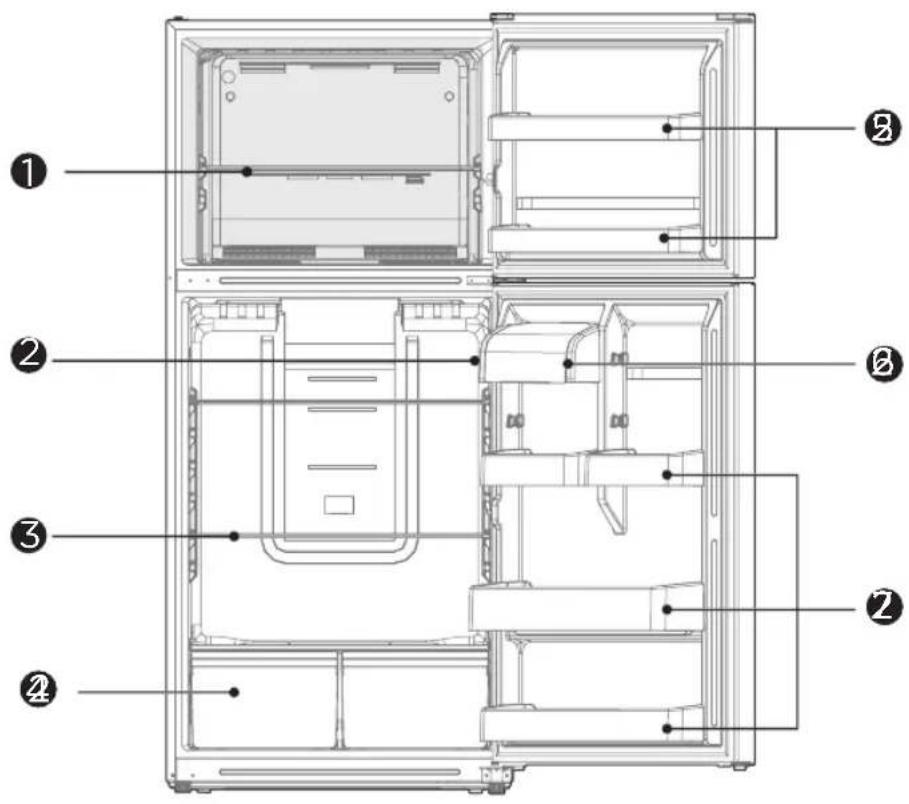

1 Freezer glass shelf 5 Freezer door tray
2 Display control 6 Dairy box
3 Refrigerator shelf Refrigerator door tray
4 Fruits and vegetables box

ATTENTION

The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor.

When the refrigerator is powered on for the initial time, storing too much food may adversely affect the cooling effect of the refrigerator.

Do not block the air outlet during food storage, which may adversely affect the cooling effect.

If the temperature in fridge compartment is cold, please adjust the switcher to the weaker position. If the temperature in fridge compartment is not cold enough, please adjust the switcher to the strong position.

PRODUCT INSTALLATION

Install Instruction

Finding a suitable location

• This refrigerator is designed to be free standing only, and should not be recessed or built-in.
• The refrigerator should be placed in a well-ventilated indoor place; the ground shall be flat and sturdy.
• Keep away from heat and avoid direct sunlight. Do not place the refrigerator in moist or watery places to prevent rust or reduction of insulating effect.

Dimensions and Clearances

- Too small of a distance from adjacent items may result in the degradation of freezing capability and increased electricity costs. Allow over 100 mm of clearance from each adjacent wall when installing the appliance.

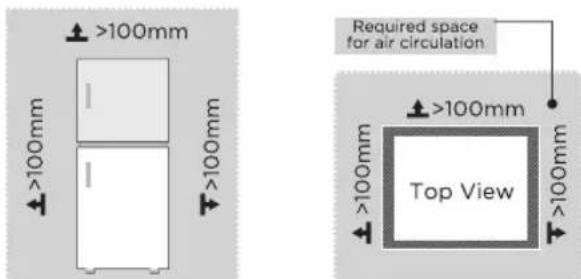

>100mm >100mm >100mm >100mm >100mm Top View Required space for air circulation

Providing a proper power supply

• Check your local power source. This refrigerator requires a AC115 V, 60 Hz power supply.
• Use a receptacle that accepts the grounding prong. The power cord is equipped with a 3-prong (grounding) plug which mates with a standard 3-prong (grounding) wall outlet to minimize the possibility of electric shock hazard from this refrigerator.

CAUTION

The refrigerator should always be plugged into its own individual electrical outlet which has a voltage rating that matches the rating plate.

Never unplug your refrigerator by pulling on the power cord. Always grip the plug firmly and pull straight out from the outlet.

Start to use

• The refrigerator shall stay for half an hour before connecting power when it is firstly started.
• The refrigerator shall run 2 to 3 hours before loading fresh or frozen foods; the refrigerator shall run for more than 4 hours in summer in advance considering that the ambient temperature is high.

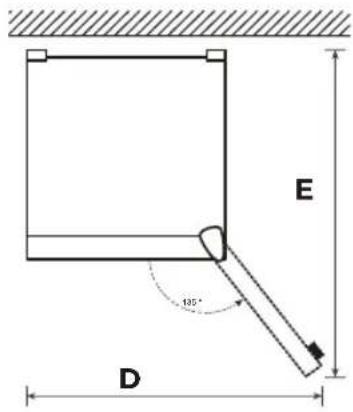

Space requirement diagram (when the door is open and when the door is closed)

B A

C1 C

E 125° D

EN

Width	Overall Height	Depth	Depth Only Cabinet	Door Open 135° Width	Door Open 135° Depth
A B C C1 D E
755 1692 830 734 1275 1395

Notice: All dimensions in mm

Door right-left change

Based on the location where you plan to use your refrigerator, you may find it more convenient to reverse the position of the door.

CAUTION

CAUTION: To avoid injury to yourself or your property, we recommend that someone assist you during the door reversal process.

Preparing to reverse the door position

You will need: A standard screwdriver, a Phillips screwdriver, and the included Allen wrench.

• Make sure that your refrigerator is unplugged and empty.
• Have someone available to assist you in the process.
• Keep all of the parts you remove to reuse them later.

Parts included with the hinge kit:

Center left hinge Left top hinge cover

Top left hinge

I eft door self-closing Upper door self-locking block

Hole caps

Parts already mounted on the door (as shipped):

Center right hinge Right top hinge cover

Top right hinge

Right door self-closing Upper door self-locking block

Hole caps

Door block

Lower door self-locking block

Step

1. Unplug your refrigerator and remove all food from the door shelves.
2. Remove the cover plate and the top hinge cover, then unscrew and remove the top hinge. Keep the screws to reuse.
3. When the user removes the top hinge cover, note that the hinge cover can not be directly removed, there is a sensor wiring harness connected to the box on the inside side of the hinge cover, it needs to be slowly dismantled, and then take out the sensor wiring harness from the inside side of the hinge cover, and attach the cover on finally.

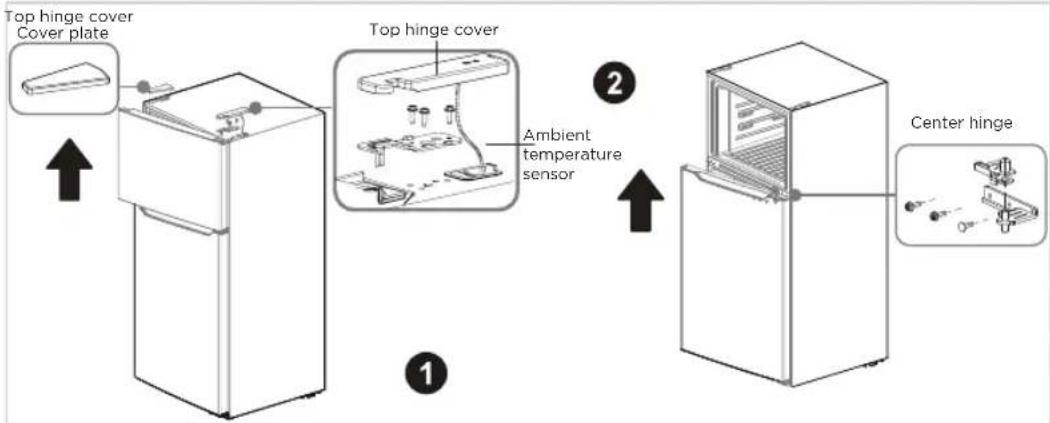

Top hinge cover Cover plate Top hinge cover Ambient temperature sensor Center hinge

ATTENTION

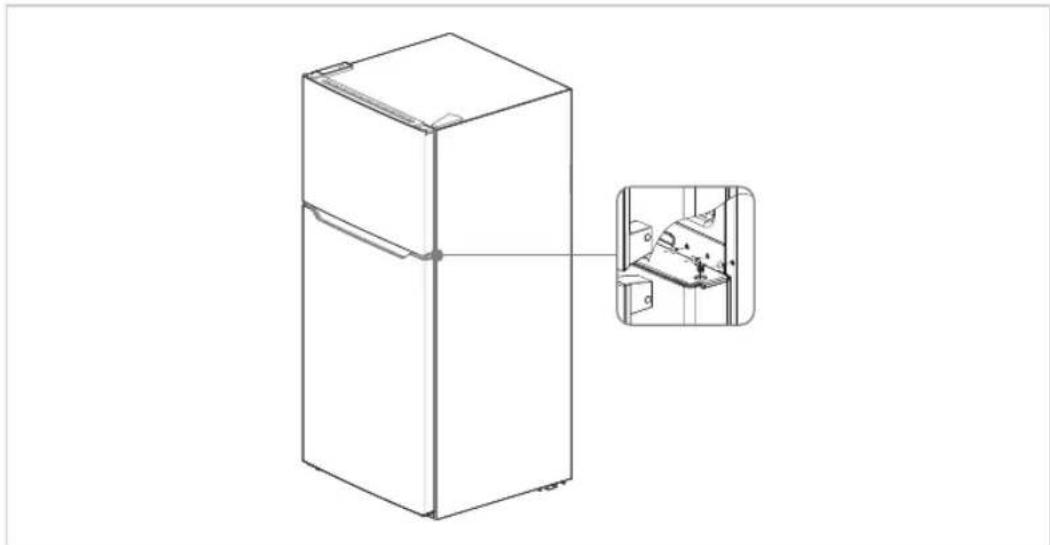

Images show a refrigerator that opens on the left side. Your refrigerator may open on the right side.

When you remove the cover plate, be careful not to damage the ambient temperature sensor located under the plate. Remove it from the cover pin and leave it in position.

1. Lift the freezer door up and away from your refrigerator.
2. Unscrew the three screws holding the center hinge, remove the hinge, then lift the refrigerator door up and away from your refrigerator. Save the screws to reuse and store the hinge in a safe place in case you need to reverse the door position again.
3. Remove the adjusting foot and screw installed on the bottom hinge before removing the bottom hinge.

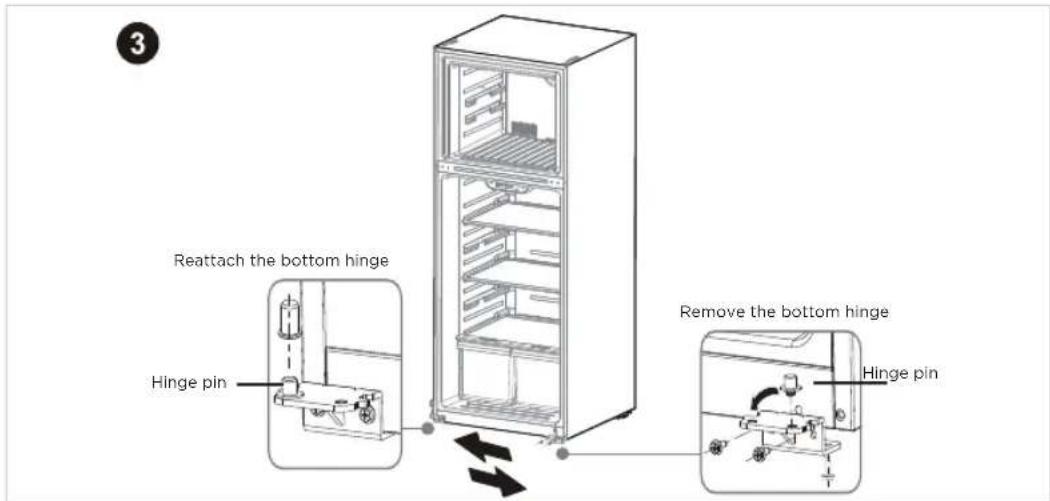

3 Reattach the bottom hinge Hinge pin Remove the bottom hinge Hinge pin

1. Unscrew the screws holding the bottom hinge, then remove the bottom hinge from the refrigerator.
2. Unscrew the hinge pin from the bottom hinge and reattach it to the other hole in the hinge pin, then secure the bottom hinge to the opposite side of the refrigerator using the screws you removed previously. Remove the hole caps and plastic bushings from the top of the freezer and refrigerator doors. Save them for the next step.
3. Insert the hole caps and plastic bushings into the opposite sides (from where you removed them) of the freezer and refrigerator doors.

4

Hole caps Plastic bushings

5

Plastic bushings Hole caps

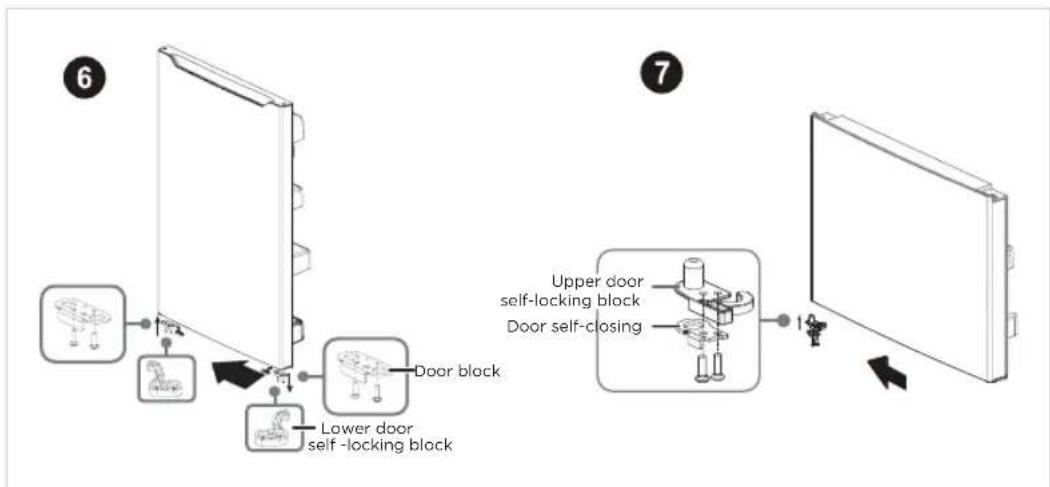

1. Remove the door block from the bottom of the refrigerator door and attach it to the other side.
2. Attach the upper door self-locking block and the door self-closing to the side of the freezer door where the hinge will be. Use the parts from the hinge kit.

1. Remove the old upper door self-locking block and the door self-closing (do not remove the parts attached in step 10). Store in a safe place in case you need to reverse the door position again.

2. Attach the refrigerator door to the bottom hinge, then attach the center hinge to the refrigerator. Use the center hinge from the hinge kit (not the piece removed in step 4).

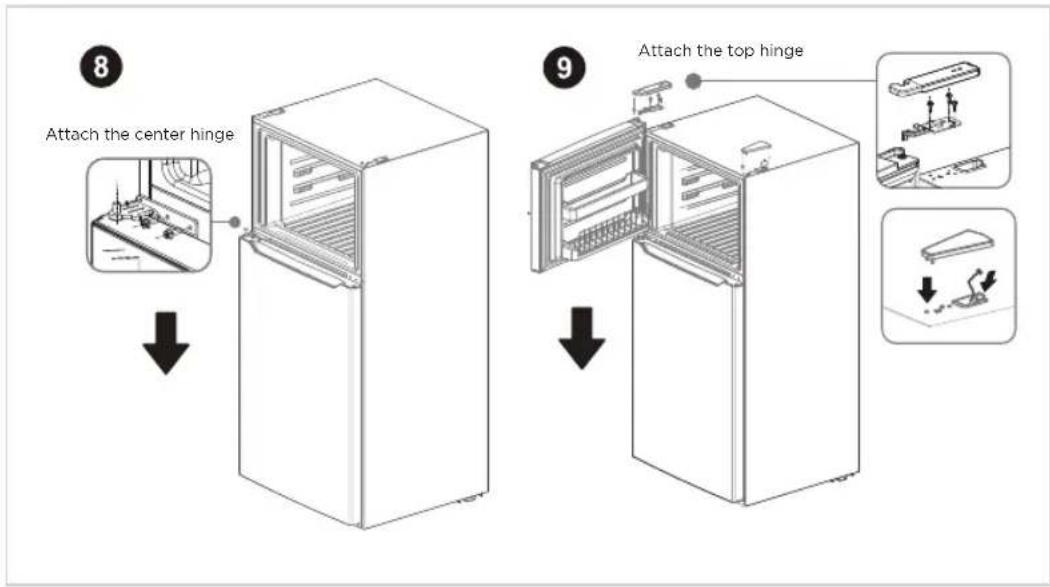

8 Attach the center hinge 9 Attach the top hinge

1. Put the freezer door onto the center hinge, then attach the top hinge (from the hinge kit) to the top of refrigerator. Cover the hinge with the top hinge cover (from the hinge kit) and cover the screw holes on the top with the cover plate you previously removed.

2. Add covers to the screw holes and hinge pivot.

Line drawing of a refrigerator with an inset close-up showing the exterior portion of the cabinet (no text or symbols)

Leveling feet

To avoid vibration, the unit must be leveled.

If required, adjust the leveling screws to compensate for the uneven floor.

The front should be slightly higher than the rear to aid in door closing.

Leveling screws can be turned easily by tipping the cabinet slightly.

Turn the leveling screws counterclockwise to raise the unit, clockwise to lower it.

Moving the appliance

1. Remove all food from inside the appliance.
2. Pull the power plug out, insert and fix it into the power plug hook at the rear or on top of the appliance.
3. Tape parts such as shelves and the door handle to prevent from falling off while moving the appliance.
4. Move the appliance with more than two people carefully. When transporting the appliance over a long distance, keep the appliance upright.
5. After installing the appliance, connect the power plug into a socket outlet to switch on the appliance.

EN

ATTENTION

Precautions before operation: Before making changes the refrigerator must be disconnected from power. precautions should be taken to prevent any personal injury.

Changing the light

- Any replacement or maintenance of the LED lamps is intended to be made by the manufacturer, its service agent or similar qualified person.

Connecting the appliance

After installing the appliance, connect the power plug into a socket outlet.

ATTENTION

After connecting the power supply cord (or plug) to the outlet, wait 2 or 3 hours before you put food into the appliance. If you add food before the appliance has cooled completely, your food may spoil.

Tips for energy saving

• Do not place the appliance near cookers, radiators or other heat sources. If the ambient temperature is high, the compressor will run more frequently and for longer, resulting in increased energy consumption.
• Ensure that there is sufficient ventilation at the base of the appliance, on the sides of the appliance and at the back of the appliance. Never cover ventilation openings.
• Please also observe the spacing dimensions in the chapter "Installation".
• The arrangement of drawers, shelves and racks as shown in the illustration offers the most efficient use of energy and should therefore be retained as far as possible. All drawers and shelves should remain in the appliance to keep the temperature stable and save energy.
• To obtain a larger storage space (e.g. for large refrigerated/frozen goods), the middle drawers can be removed. The top and bottom drawers and shelves should be removed last if necessary.
• An evenly filled refrigerator/freezer compartment contributes to optimal energy use. Therefore, avoid empty or half-empty compartments.
• Allow warm food to cool before placing it in the refrigerator/freezer. Food that has already cooled down increases energy efficiency.
• Allow frozen food to defrost in the refrigerator. The coldness of the frozen food reduces the energy consumption in the refrigerator compartment and thus increases the energy efficiency.
• Open the door only as briefly as necessary to minimise cold loss. Opening the door briefly and closing it properly reduces energy consumption.
• The door seals of your appliance must be perfectly intact so that the doors close properly and energy consumption is not increased unnecessarily.

OPERATION INSTRUCTIONS

Control Panel

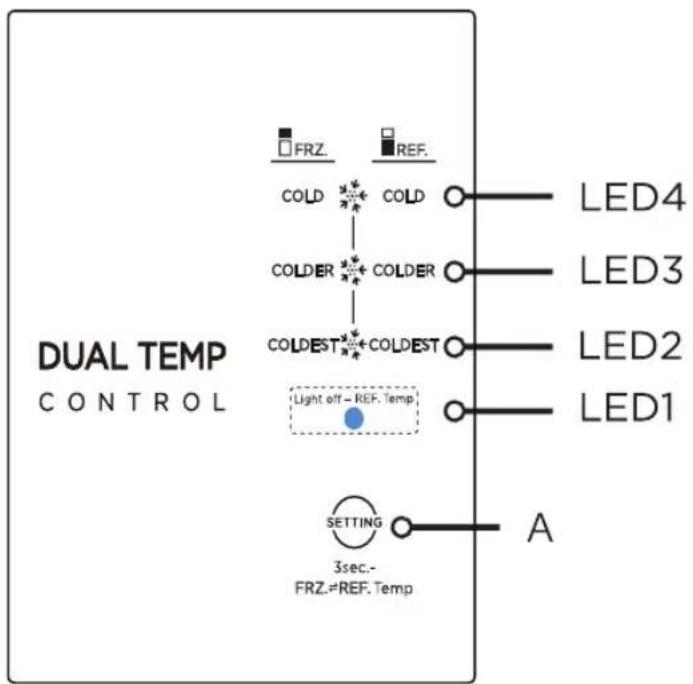

DUAL TEMP CONTROL FRZ. REF. COLD COLD COLDER COLDER COLDEST COLDEST Light off - REF. Temp A LED4 LED3 LED2 LED1 SETTING 3sec.- FRZ.#REF. Temp

EN

Key

A Setting Button

Display

When power is first turned on, the indicator light is off and the refrigeration temperature can be adjusted.

ATTENTION

The actual control panel may differ from model to model.

Operating instructions

Refrigerator and Freezer setting

• Press and hold the temperature setting button SETTING for 3 seconds, when the freezer compartment indicator light is on, the freezer temperature can be adjusted.
• Press and hold the temperature setting button SETTING again for 3 seconds to switch to the refrigeration compartment.
  • Each time the temperature setting button A is pressed once, the temperature setting changes one time.
• After the temperature setting has been completed, the refrigerator will run according to the set value after 15 seconds. The order is as follows:

COLD COLDER COLDEST

Note: The temperature of each gear is within ±2 of the set temperature, and the actual situation is slightly different according to the load situation.

Fault indication

The following warnings appearing on the display indicate corresponding faults of the refrigerator. Although the refrigerator can still cool when the following faults tips, please call after-service team for better usage experience.

Fault Code Fault Description
LED1/LED2 flashing	Refrigerator temperature sensor faults
LED1/LED3 flashing	Freezing frost sensor faults
LED1/LED4 flashing	Ambient temperature sensor faults
LED2/LED4 flashing	Freezer temperature sensor faults

Shelf humidity control

- The movement of the paddle to the middle is wet, and the movement of the paddle to both sides is dry.

Dryy Cuor DRY ← → WET WET ← → DRY

Tips on storing food

Freezer compartment

• The freezer is designated for the storage of food frozen at very low temperature, long-term storage of frozen food, and for the production of ice.
• Only use the shelves in the door of the freezer to store frozen food, not for storing hot food designated for freezing.
• Do not put fresh and frozen food next to each other. The frozen food may thaw.
• When freezing fresh food (such as meat, fish or chopped meat), cut them into parts that can be used at the same time.
• Storing frozen food: instructions are usually stated on the packages, which must be followed. If there is no information on the packaging, food should not be stored for longer than three months from the date of purchase.
• When purchasing frozen food, make sure that it was frozen at a suitable temperature and that the packaging is not damaged.
• Frozen food should be kept in suitable packages to retain the quality and should be returned to the freezer compartment as soon as possible.
• If a package of frozen food shows moisture or abnormal bulging, it is probable that it was stored at the wrong temperature and the content is spoiled.
• The storage period for frozen food depends on the room temperature, the thermostat setting, the frequency of opening the door of the freezer, the type of food and the time of transporting the product from the shop to the household. Always follow the instructions printed on the packaging and never exceed the maximum storage time stated on the package.

Refrigerating compartment

• To reduce moisture and subsequent ice build-up, never put liquid into the refrigerator in unsealed containers. Frost tends to concentrate in the coolest parts of the evaporator. Storing uncovered liquids results in a more frequent need for defrosting.
• Never put warm foods in the refrigerator. These should first cool down at room temperature and then be placed so as to ensure adequate air circulation in the refrigerator.
• Foods or food containers should not touch the back wall of the refrigerator because they could freeze to the wall. Do not keep regularly opening the door of the refrigerator.
• Meat and clean fish (packed in a package or plastic foil) can be placed in the refrigerator, which can be used in 1–2 days.
• Fruit and vegetables without packaging can be placed in the part designated for fresh fruit and vegetables.

ATTENTION

The optimal temperature setting of each compartment depends on the ambient temperature. Above optimal temperature is based on the ambient temperature of 25 °C.

CLEANING AND MAINTENANCE

Defrosting

- The refrigerator is made based on the air-cooling principle and thus has automatic defrosting function. Frost formed due to change of season or temperature may also be manually removed by disconnection of the appliance from power supply or by wiping with a dry towel.

Cleaning of door tray

• According to the direction arrow in the figure below, use both hands to squeeze the tray, and push it upward, then you can take it out.
  • After washing the tray having been taken out, you can adjust its installing height in accordance with your requirement.

Illustration of hands holding a rectangular object with arrows indicating movement or force (no text or symbols)

Cleaning of glass shelf

• As the innermost part of the refrigerator liner where contacting the shelves has a backstop, you shall raise the shelves upward, then you can be able to take it out.
• Adjust or clean the shelves according to your requirement.

Illustration of a hand holding a flat surface with two upward arrows indicating force or movement (no text or symbols present)

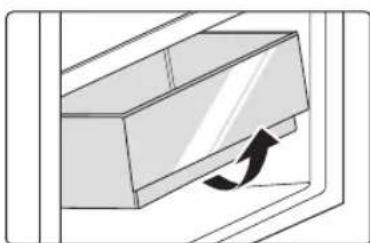

Cleaning of the Fruits and vegetables box

1. Remove the contents of the drawer. Hold the handle of the Fruits and vegetables box and pull it out completely until it stops.
2. Lift the Fruits and vegetables box up and remove it by pulling it out.

Diagram of a door handle with an arrow indicating direction (no text or symbols)

ATTENTION

Soft towels or sponge dipped in water and non-corrosive neutral detergents are suggested for cleaning. The freezer of shall be finally cleaned with clean water and dry cloth. Open the door for natural drying before the power is turned on. Do not use hard brushes, clean steel balls, wire brushes, abrasives, such as toothpastes, organic solvents (such as alcohol, acetone, banana oil, etc.), boiling water, acid or alkaline items clean refrigerator considering that this may damage the fridge surface and interior.

Stop using

Power failure:

In case of power failure, even if it is in summer, foods inside the appliance can be kept for several hours; during the power failure, the times of door opening shall be reduced, and no more fresh food shall be put into the appliance.

Long-time nonuse:

The appliance shall be unplugged and then cleaned; then the doors are left open to prevent odor.

Moving:

Before the refrigerator is moved, take all objects inside out, fix the glass partitions, vegetable holder, freezing chamber drawers and etc. with tape, and tighten the leveling feet; close the doors and seal them with tape. During moving, the appliance shall not be laid upside down or horizontally, or be vibrated; the inclination during movement shall be no more than 45^ .

ATTENTION

The appliance shall run continuously once it is started. Generally, the operation of the appliance shall not be interrupted; otherwise the service life may be impaired. Foods can be preserved for a couple of hours even in summer in case of power failure; it is recommended to reduce the frequency of opening door.

TROUBLESHOOTING

The following simple issues can be handled by the user. Please call the after-sale service department if the issues are not solved.

Problem Possible reason
Failed operation	·Check whether the appliance is connected to power or whether the plug is in well contact
	·Check whether the voltage is too low
	·Check whether there is a power failure or partial circuits have tripped
Odor	·Odorous foods shall be tightly wrapped
	·Check whether there is any rotten food
	·Clean the inside of the refrigerator
Long-time operation of the compressor	·Long operation of the refrigerator is normal in summer
	·When the ambient temperature is high it is not suggestible having too much food in the appliance at the same time
	·Food shall get cool before being put into the appliance
	·The doors are opened too frequently
Light fails to get lit	·Check whether the refrigerator is connected to power supply and whether the illuminating light is damaged
	·Have the light replaced by a specialist
Door can not be properly closed	·The door is stuck by food packages
	·Too much food is placed
	·The refrigerator is tilted
Loud noises	·Check whether the floor is level and whether the refrigerator is placed stably
	·Check whether accessories are placed at proper locations

EN

Problem Possible reason
Door seal fails to be tight	Remove foreign matters on the door seal
	Heat the door seal and then cool it for restoration (or blow it with an electrical drier or use a hot towel for heating)
Water pan overflows	There is too much food in the chamber or food stored contains too much water, resulting in heavy defrosting
	The doors are not closed properly, resulting in frosting due to entry of air and increased water due to defrosting
Hot housing	Heat dissipation of the built-in condenser via the housing, which is normal when housing becomes hot due to high ambient temperature, storage of too much food or shutdown of the compressor is shut down, provide sound ventilation to facilitate heat dissipation
Surface condensation	Condensation on the exterior surface and door seals of the refrigerator is normal when the ambient humidity is too high. Just wipe the condensate with a clean towel.
Abnormal noise	Buzz: The compressor may produce buzzes during operation, and the buzzes are loud particularly upon start or stop. This is normal.Creak: Refrigerant flowing inside of the appliance may produce creak, which is normal.

Pure horizontal and vertical lines forming a symmetrical pattern without any text, numbers, or symbols

Blank white image with no visible content, text, or symbols.

Blank white image with no visible content, text, or symbols.

Blank white image with no visible content, text, or symbols.

Blank white image with no visible content, text, or symbols.

Blank white image with no visible content, text, or symbols.

Blank white image with no visible content, text, or symbols.

Blank white image with no visible content, text, or symbols.

Blank white image with no visible content, text, or symbols.

Blank white image with no visible content, text, or symbols.

Blank white image with no visible content, text, or symbols.

Blank white image with no visible content, text, or symbols.

Blank white image with no visible content, text, or symbols.

Blank white image with no visible content, text, or symbols.

Blank white image with no visible content, text, or symbols.

Blank white image with no visible content, text, or symbols.

Blank white image with no visible content, text, or symbols.

Blank white image with no visible content, text, or symbols.

Blank white image with no visible content, text, or symbols.

Completely blank white image with no visible content, text, or symbols.

Completely blank white image with no visible content, text, or symbols.

Completely blank white image with no visible content, text, or symbols.

Completely blank white image with no visible content, text, or symbols.

Completely blank white image with no visible content, text, or symbols.

Completely blank white image with no visible content, text, or symbols.

Completely blank white image with no visible content, text, or symbols.

Completely blank white image with no visible content, text, or symbols.

Completely blank white image with no visible content, text, or symbols.

Completely blank white image with no visible content, text, or symbols.

Completely blank white image with no visible content, text, or symbols.

Completely blank white image with no visible content, text, or symbols.

Completely blank white image with no visible content, text, or symbols.

Completely blank white image with no visible content, text, or symbols.

Two isolated horizontal lines, one solid black and one outlined, on a white background (no text or symbols)

Blank white image with no visible content, text, or symbols

1

2

3

Completely blank white image with no visible content, text, or symbols.

LETTRE DE REMERCIEMENT

Technical diagram of a refrigerator internal structure with numbered labels pointing to different compartments

INSTALLATION DU PRODUIT

Line drawing of a refrigerator with a close-up inset showing the exterior door and front panel (no text or symbols)

Pieds réglables

Humidity Control SEC SEC HUMIDE HUMIDE

Illustration of hands holding a rolled-up document or scroll with arrows indicating movement (no text or symbols)

Diagram showing a device interacting with a surface, with two upward arrows indicating direction (no text or symbols present)

Diagram of a door handle with an arrow indicating clockwise motion (no text or symbols)

ATTENTION

Dimensiones generales (Alt x An x Prof) 66.6 in x 29.7 in x 32.7 in

Technical diagram of a refrigerator internal compartments with numbered labels pointing to different sections

>100mm >100mm >100mm

Line drawing of a refrigerator with an inset close-up showing the interior portion of the refrigerator (no text or symbols)

Illustration of hands holding a rolled-up document or scroll, with arrows indicating direction (no text or symbols present)

Diagram showing a device interacting with a surface, with two upward arrows indicating direction (no text or symbols present)

Diagram of a door handle with an arrow indicating clockwise motion (no text or symbols)

ATENCIÓN

make yourself at home
