USER MANUAL SS-10795 Sogo

SOGO Simmerdelight X40 rice cooker with black lid and control knob (no visible text or symbols on body)

OLLA DE COCCIÓN LENTA ELÉCTRICA ELECTRIC SLOW COOKER CUISIER MIJOTEUR ÉLECTRIQUE FOGÃO LENTO ELÉTRICA FORNELLO LENTO ELETTRICO ELEKTRISCHER LANGSAMER KOCHER

Caution: please read and preserve these important instructions This manual can be downloaded from our website, www.sogo.es in the following languages. SPANISH, CATALAN, ENGLISH, FRENCH, PORTUGUESE, GERMAN, ITALIAN AND MORE

ÍNDICE

1. Important Note P. 12

2. Symbol definitions P. 12

3. Safety instructions for the user P. 12

I. General precautions during the use of electrical equipment P. 12
II. Restrictions on use to avoid personal injury P. 13
III. Product use restrictions due to poor condition or breakdown P. 15
IV. Restrictions on use when used with children and elders P. 16
V. IMPORTANT WARNING P. 16
VI. Instructions to follow while using the device P. 17

1. Technical specifications P. 19
2. Parts description P. 19
3. Instructions for use P. 19
4. Cleaning and maintenance P. 20
5. Declaration of conformity P. 58
6. Responsibility of disposal, details of the manufacturer and after-sales service P. 59

ÍNDICE

• Always read the instruction book carefully before using.
- This manual can be downloaded from our web page www.sogo.es
- Keep these instructions for future reference.

2. Symbol definitions

1

GENERAL PRECAUTIONS

1- Important information and useful hinds on use
2- Warning against dangerous situations in terms of life and property
3- Warning against fire risk
4- Warning against hot surfaces
5- Cautions while using electrical and electronic equipment.

3. Safety instructions for the user

1.

GENERAL PRECAUTIONS

General precautions during the use of electrical equipment

• Do not use the appliance for any other purpose than described in this manual.
• Do not use or store the appliance outdoors.
  • Always place the appliance on to the flat and even surface.
• This product is intended for indoor, non-industrial, non-commercial and only for household use. Do not use the item outdoors or for any other purpose. Misuse

or improper handling may cause problems in the appliance and cause injury to the user.

• The unit must be used only for the intended purposes. No liability is accepted for damages arising from improper use or wrong handling.
• Ensure that the voltage indicated on the nameplate matches the mains voltage before plugging in the appliance.
  • Always remove the plug from the power socket when the appliance is not in use. Do not leave the appliance unattended when switched on.
• Close supervision is necessary when any appliance is being used by or near children.
• Before cleaning or storing your appliance, always unplug the appliance from the power supply and let it cool down.
• The device is not completely disconnected from the power source, even after it has been turned off. To disconnect it completely, disconnect it from the mains plug.
• The appliances are not intended to be operated by means of an external timer or separate remote-control system.

II.

Restrictions on use to avoid personal injury

• Do not let the appliance operate unattended.
• Do not place or operate this appliance near water sources.

- Do not place or operate the appliance and its power cord on or near hot surfaces (e.g., stove plates) or open flames.

- Do not leave the power cord hanging from sharp edges and keep away from hot objects and flames. Do not wind the cord around the appliance and do not bend it.

- Neither immerse the housing, which contains electrical components and the heating elements in water, nor rinse it under the tap.

- Never use accessories that are not recommended by the manufacturer.

- The use of accessories not recommended or sold by the appliance manufacturer may result in fire, electric shock or injury to persons.

- When you want to remove the plug from the wall contact, please do this at the plug itself and not by pulling on the cable or the appliance itself.

- To avoid electric shock, make sure your hands are dry before plugging or unplugging.

- Do not use the device with wet hands, on damp floors or when the atmosphere is humid, there is a risk of electric shock.

- While using the appliance, make sure that the power cord must not be caught or crushed.

- Do not let the motor unit, cord or plug get wet to protect against risk of electric shock.

- Be careful, while handling electrical appliances, as the surface of the heating

element is subject to residual heat after use. Any misuse may cause potential injury to the user and may damage the appliance.

- Do not touch the outer surface of the appliance as it can get very hot during operation. Instead, use the handle or mitts.

III. ⚠️ Product use restrictions due to poor condition or breakdown

• Never immerse the appliance or the plug-in water or any other liquid. In the event of the appliance falling in water, disconnect immediately from the mains supply and take it to an authorized service agent for repair before reusing.
• Do not use the appliance if it has fallen on the floor, if there are visible signs of damage or if it has a leak.
• Do not use the appliance if the cable or plug is damaged. In case of the cord be damaged, it must be replaced only by the manufacturer, its service agent or similarly qualified persons in order to avoid Hazard.
• In case of appliance malfunction, or if it has been damaged in any manner, return the appliance to the nearest authorized service facility for examination, repair or adjustment.
• In case of hardware problems, do not attempt to repair the product yourself. Repairs should only be carried out by qualified technicians.

IV. Restrictions on use when used with children and elders

• The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Children should be supervised to ensure that they do not play with the appliance.
• Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
• Keep the appliance and its cord out of reach of children less than 8 years.
• Do not allow the children to use the appliance without supervision.

V. ⚠️ IMPORTANT WARNING

• To avoid a circuit overload when using this product, do not operate another high-wattage product on the same electrical circuit.
• A short power supply cord is provided with this product. An extension cord is not recommended for use with this product, but

if one must be used:

• The marked electrical rating of the cord must be at least as great as that of the product.
• Arrange the extension cord so that it does not hang where it can be tripped over or pulled unintentionally.

VI. ⚠️! Instructions to follow while using the device

• Unplug from the socket when not in use, before putting on or taking off attachments, and before cleaning.
• Extreme caution must be used when moving the slow cooker when it contains hot
• Do not switch on the slow cooker if the ceramic pot is empty.
• Allow lid and ceramic pot to cool down first before cleaning with water.
• Never touch the outer enclosure of the slow cooker during its operation or before it cools. Use the handles or knobs. Do not touch hot surfaces. Use oven gloves or a cloth when removing lid or handling contents.
• Never cook directly in the base unit. Use the ceramic pot.
• Do not use ceramic pot or glass lid if cracked or chipped.
• Do not leave the slow cooker connected to the socket outlet when not in use.
• Do not switch on the slow cooker when it is upside down or laid on its side.
• The glass lid and ceramic pot are fragile.

Handle them with care.

• The temperature of accessible surfaces may be high when the appliance is operating
• Do not place anything on top of the appliance to prevent from any type of burn cause of hot surface.
• ⚠️ WARNING: Do not touch hot surfaces.
• WARNING: This equipment shall be used with CAUTION as this electrical appliance contains a heating function. Surface of this appliance is also different from other functional surfaces which can produce high temperatures. Since temperatures are differently perceived by different persons The equipment must be touch only at intended handles and gripping surfaces with the help of heat protectors like gloves or similar type of clothing. Otherwise let it for sufficient time cool down before touching the hot surfaces.

CLEANING AND MAINTENANCE

Kindly refer to the cleaning and maintenance section for details on how to clean surfaces which comes in the contact of food.

4. TECHNICAL SPECIFICATIONS

Voltage Power	Frequency Capacity
AC 230-240V 260W	50 Hz 5.5L

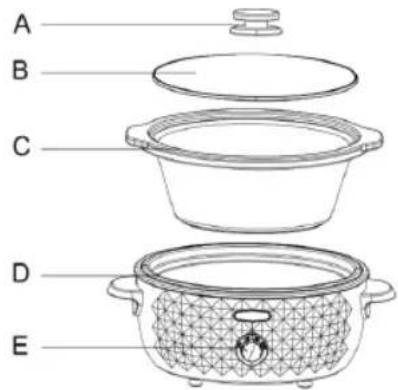

5. PARTS DESCRIPTION

A. Lid Knob
B. Glass lid
C. Stoneware cooking bowl
D. Heating base
E. Setting selector
F. Power indicator

A B C D E

6. INSTRUCTIONS FOR USE

• Place the cooker base on a dry, level, heat resistant surface, away from the edge of the work surface. Do not use on the floor.
• Place food and other ingredients into the ceramic pot, and place the pot into the base. Cover with the glass lid.
• If you need to precook or brown foods prior to slow cooking, this must be done in a pan. Do not try to brown or pre-cook food in the slow cooker.
• Set the control knob the OFF position before plugging the unit into the main socket. Plug in your slow cooker and turn the setting selector to the High or Low cooking temperature.
  NOTE: The WARM setting is ONLY for keeping food warm, which has already been cooked. DO NOT cook on the WARM setting. We do not recommend using the WARM setting for more than 4 hours.
• Switch off and unplug the slow cooker after cooking and remove the ceramic pot using oven gloves.
• If desired, you can manually switch to the WARM setting when your food has been cooked.
• To avoid over or under-cooking, always fill the stoneware 12 to 34 full and conform to the recommended cooking times.
  • To prevent spill over, do not overfill the stoneware and do not fill the stoneware more than 34 full.
  • Always cook with the lid on for the recommended time. Do not remove the lid during the first two hours of cooking to allow the heat to build up efficiently.
  • Always wear oven gloves when handling the lid or stoneware.
• Unplug when cooking has finished and before cleaning.
• The removable stoneware is ovenproof and microwave safe. DO NOT use the removable stoneware on a gas or electric hob or under a grill. The lid is NOT ovenproof or microwave safe.
• CAUTION: Be careful not to touch the base unit after cooking as it remains hot.

About slow cooking

- Slow cooking has always been the best way to prepare a nutritious hot meal with minimum preparation and maximum free time away from the kitchen.

• Traditionally slow cooking has centered on soups and casseroles but with this ceramic pot you can also produce most modern family meals and dinner party dishes. This pot is convenient as well as looking good enough to take straight to the table for serving. (Always place the ceramic pot on a heat proof mat or surface).

- This method of cooking is ideal for preparing tougher cuts of meat, giving them the long, gentle simmering that ensures that they become tender and full of flavor.

Suitable foods for slow cooking & preparation

Most foods are suited to slow cooking methods; however there are a few guidelines that need to be followed.

• Cut root vegetables into small, even pieces, as they take longer to cook than meat. They should be gently sautéed for 2-3 minutes before slow cooking. Ensure that root vegetables are always placed at the bottom of the pot and all ingredients are immersed in the cooking liquid.

• Trim all excess fat from meat before cooking, since the slow cooking method does not allow fat to evaporate.

• If adapting an existing recipe from conventional cooking, you may need to cut down on the amount of liquid used. Liquid will not evaporate from the slow cooker to the same extent as with conventional cooking.

• Never leave uncooked food at room temperature in the slow cooker.
• Do not use the slow cooker to reheat food.
• Uncooked red beans must be soaked and boiled for at least 10 minutes at high temperature in a different cooking pot to remove toxins before use in a health cooker.
• Authentic stoneware is fired at high temperatures; therefore the ceramic pot may have minor surface blemishes and the glass lid may rock slightly due to these imperfections. Low heat cooking does not produce steam so there will be little heat loss. Due to normal wear and tear through the products life, the outer surface may start appearing “crazed”.
• Do not put the ceramic pot or glass lid in an oven, freezer, and microwave or on a gas/ electrical hob.
• Do not subject the ceramic pot to sudden changes in temperature. Adding cold water to a very hot pot could cause it to crack.
• Do not allow the pot to stand in water for a long time (You can leave water in the pot to soak).
• There is an area on the base of the ceramic pot that has to remain unglazed for manufacturing purposes. This unglazed area is porous and will soak up water when immersed in it. This should be avoided.
• Do not switch the cooker on when the ceramic pot is empty or out of the base.

Tips for slow cooking

• The slow cooker pot must be at least half full for best results.

- Slow cooking retains moisture. If you wish to reduce moisture in the cooker, remove the lid after cooking and turn the control to high (if set to low or auto) and simmer for 30 to 45 minutes.

- The lid is not a sealed fit. Don't remove unnecessarily as the built up heat will escape. Each time you remove the lid, allow an additional 10 minutes to the cooking time.

- If cooking soups, leave a 5 cm space between the top of the cook pot and the food surface to allow simmering.

- Many recipes demand all day cooking, if you do not have time to prepare food that morning prepare it the night before and store the food in a covered container in the refrigerator. Transfer the food to the ceramic pot and add liquid/gravy. Select the setting low, high or auto.

- Most meat and vegetable recipes require 8-10 hours on low and 4-6 hours on high.

- Some ingredients are not suitable for slow cooking. Pasta, seafood, milk, and cream should be added towards the end of the cooking time. Many things can affect how quickly a recipe will cook, water and fat content, initial temperature of the food and the size of the food.

- Food cut into small pieces will cook more quickly. A degree of ‘trial and error’ will be required to fully optimize the potential of your slow cooker.

- Root vegetables usually take longer to cook than meat, so try and arrange vegetables in the lower half of the pot.

• After food is cooked, switch cooker off and leave covered with the lid. There will be enough heat in the ceramic pot to keep warm for 30 minutes. If you require longer to keep warm switch to the low setting.

- All food may be covered with a liquid, gravy or sauce. In a separate pan or jug prepare your liquid, gravy or sauce and completely cover the food in the ceramic pot.

- Pre-browning meat and onions in a pan to seal in the juices also reduces the fat content before adding to the ceramic pot. This improves the flavor but is not necessary if time is limited.

- When cooking joints of meat, ham, and poultry etc the size and shape of the joint is important. Try to keep the joint in the lower 2/3 of the pot and fully cover with water. If necessary, cut in two pieces. Joint weight should be kept within the maximum limit.

7. CLEANING AND MAINTENANCE

Always make sure the slow cooker is unplugged and in the OFF position before storing away or cleaning. Make sure the unit has cooled down completely before cleaning.

• The stoneware insert is dishwasher safe or can also be cleaned with warm soapy water. To remove any foods that have been cooked onto the bottom of the pot, simply soak overnight in soapy water and rinse the next day.
• The exterior of the slow cooker can be wiped with a damp cloth and dried. DO NOT use harsh abrasive cleaner or scouring pad to clean any part of the slow cooker as this will damage the surface.

Warning: never submerge the entire slow cooker into water or any other liquid or this may damage the slow cooker.

1. IMPORTANT:

DÉCLARATION DE CONFORMITÉ

DECLARATION OF CONFORMITY

This device complies with EU Low Voltage Directive 2014/35/EC.

Electromagnetic Compatibility Directive 2014/30/EU. Directive 2015/863/EU on the restriction of the use of certain hazardous substances in electrical.

Directive 2009/125/EC on the eco-design requirements applicable to energy-related products.

This symbol on the product or on the packaging indicates that this product can't be disposed as normal rubbish or household waste. All the electrical, electronic equipment's and battery-operated units must recycle in proper manner and according to the local municipal laws. You can recycle them by taking them to government authorized disposal centres or specialized bins which you can find in any nearby big super markets, electronics or electro domestics products stores or malls who have these types of facilities available.

Designed by: SOGO based on European quality standards
Imported by: Sanysan Appliances S.L, NIF: B98753056, C/ Barcas 2, 2, 46002 Valencia, Spain
Product manufactured in CHINA. After-sales service: www.sogosat.com [e-mail] / 0034 902 222 161
