Product type	Built-in gas hob
Brand	CANDY
Model	PG2D750/1 SQX
Dimensions (W x D)	745 x 510 mm
Electrical supply	220-240 V / 50 Hz
Gas supply	Natural gas (G20) or LPG (G30/G31) adaptable
Number of burners	5
Burner types	Auxiliary, Semi-rapid, Rapid, Ultra-rapid, Double crown
Total gas power (G20 20 mbar)	11.25 kW
Safety device	Thermocouple (automatic shut-off in case of extinguishing)
Ignition	Integrated electronic
Worktop material	Stainless steel (chrome-plated grates and burners)
Additional functions	Removable grill (accessory), additional electric plate (depending on model)
Maintenance	Clean with soapy water, dry thoroughly, avoid abrasives
Installation safety	Minimum distance of 70 cm from the hood, 200 cm² ventilation required
Gas adaptation	Injectors supplied for G20, G25, G30, G31, GZ350
Warranty	Warranty certificate included, technical support available
Spare parts availability	Injectors, grates, burners, knobs available on request

Frequently Asked Questions - PG2D750/1 SQX CANDY

How to ignite a burner on the CANDY PG2D750/1 SQX hob?

Press the corresponding knob and turn it counterclockwise to the maximum position (small star). For models with electronic ignition, press the ignition button. If the flame does not ignite within 5 seconds, close the gas and repeat the operation.

What to do if the burner flame goes out accidentally?

Immediately close the control knob. Wait at least 1 minute before relighting the burner. If your hob is equipped with a thermocouple, hold the knob pressed for 5-6 seconds after ignition to activate the safety.

How to adapt the hob to another type of gas (LPG, butane, etc.)?

Remove the grate and burner, then use a 7 mm hex key to unscrew the injector. Replace it with the injector suitable for the desired gas (refer to the consumption table). Then adjust the minimum flame by acting on the adjustment screw of the valve.

How to clean the burners and grates?

Clean the burners with soapy water, then dry them thoroughly before replacing them. Use a special product for aluminum alloys to restore their shine. Never use abrasives, corrosive products, or steam cleaners.

What distance must be maintained between the hob and an extractor hood?

The minimum distance between the hob and any element (hood, other appliance) is 70 cm. Also ensure a space of at least 15 cm between the edges of the hob and the side walls of the cabinet.

Can you use copper or convex-bottomed pans?

No, use only flat-bottomed containers with a diameter suitable for the burner (see diameter table in the manual). Convex or concave bottoms disrupt cooking and can be dangerous.

How to adjust the minimum flame on a burner?

Turn on the burner at the minimum position, remove the control knob, then with a small screwdriver, turn the adjustment screw (on the valve stem): clockwise to reduce the flow, counterclockwise to increase it. The flame should be 3 to 4 mm.

What to do if the gas smells abnormal or the hob does not work?

Check that the power plug is properly connected and the gas supply is open. If the smell persists, close the gas, touch nothing, and call technical support. Use a soapy solution to detect leaks.

Can you install the hob above an oven?

Yes, but if the oven does not have a cooling system, you must create openings of at least 300 cm² in the cabinet to ensure good air circulation. For 75 cm hobs, only so-called 'ventilated' ovens are allowed underneath.

How to use the grill accessory supplied with the hob?

Place the grill directly over the pan supports (see fig. 9 of the manual). It is designed to be in direct contact with food: do not use a pan on it. Handle it with the handle, as it reaches high temperatures.

USER MANUAL PG2D750/1 SQX CANDY

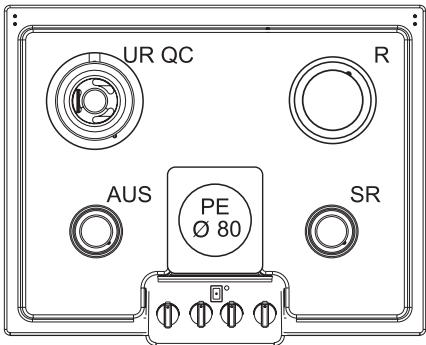

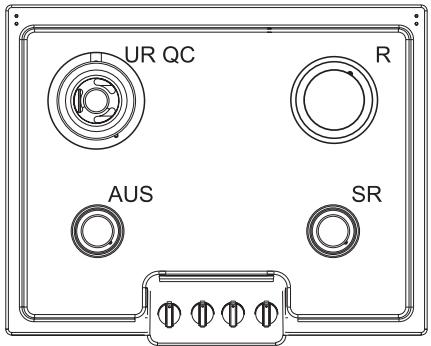

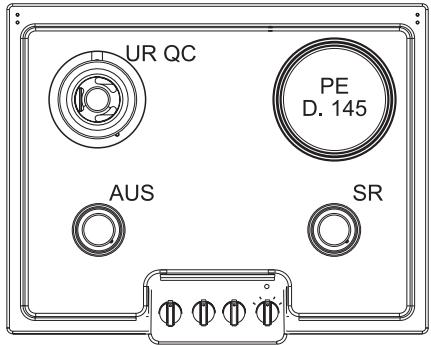

• Manufacturer setting

IE cat. II2H3+

GB cat. II2H3 +

A

B

C

D

This appliance has been designed for non-professional, i.e. domestic, use.

UR-QC

INSTRUCTIONS FOR THE INSTALLER INSTALLATION

The Purchaser is responsible for the installation of the hob. The Manufacturer does not accept any responsibility for any damage or loss resulting from incorrect installation, and as such this will not be covered by the Manufacturer's Guarantee.

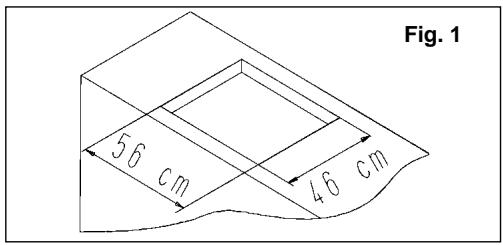

The hob may be installed in any worktop which is heat resistant to a temperature of 100^ , and has a thickness of 25 - 45 mm. The dimensions of the insert to be cut out of the worktop are in shown in Fig. 1.

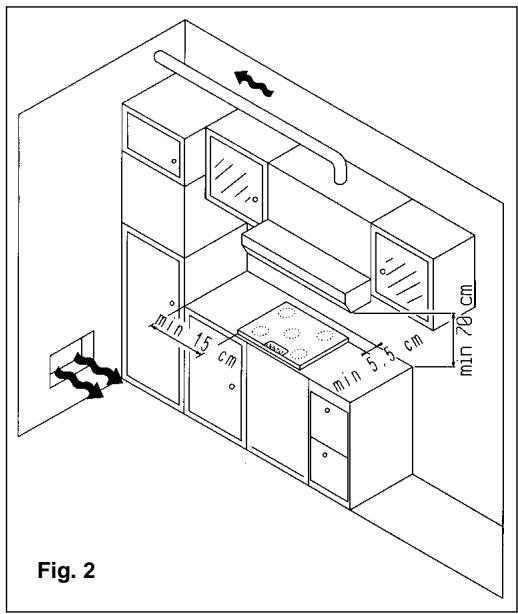

If the Hob is fitted next to a cabinet on either side, the distance between the Hob and the cabinet must be at least 15 cm (see Fig. 2); while the distance between the hob and the rear wall must be at least 5,5 cm.

The distance between the hob and any other unit or appliance above it (e.g. An extractor hood) must be no less than 70 cm (fig.2).

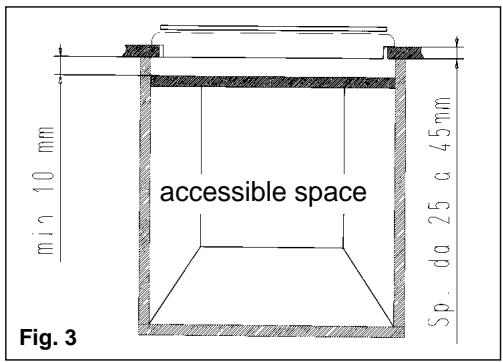

When there is an accessible space between the built-in hob and the cavity below, a dividing wall made of insulating material should be inserted (wood or a similar material) (fig. 3).

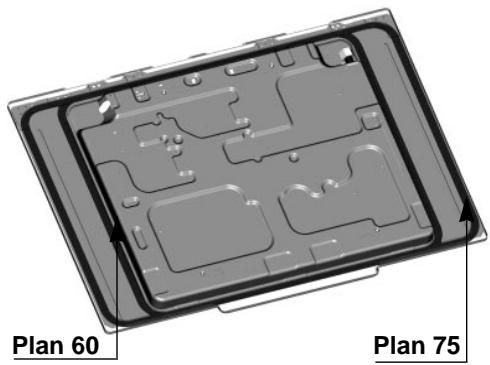

Important - The diagram below shows how the sealant should be applied.

The Hob unit is fitted by attaching the Fixing

Clamps supplied, using the holes at the base of the unit.

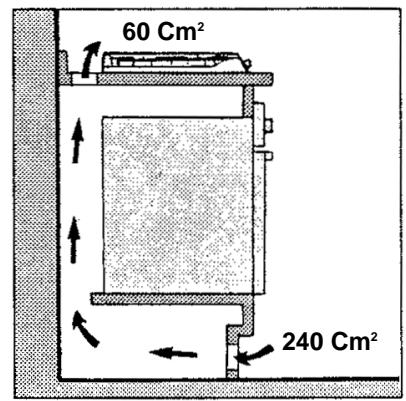

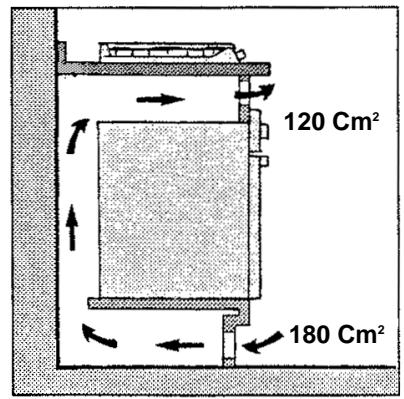

If a hob of 60~cm is fitted above an oven which is not equipped with fan cooling system it is recommended that openings are created within the built in furniture to ensure correct air circulation.

The size of these openings must be at least 300cm^2 and placed as shown in fig. 4. When a 75~cm hob is fitted over a built in oven, the latter must be fan cooled.

FIG. 4

FOR U.K. ONLY

INSTRUCTIONS FOR THE INSTALLER

The following information is intended for qualified and competent persons only who will ensure that your appliance is installed correctly. All current legislation concerning the installation of Gas appliances must be observed by the installer*

• For the U.K. only - By law, the gas installation/commissioning must be carried out by a «Corgi», registered installer.

This appliance must be installed in accordance with applicable regulations and should only be used in well-ventilated locations. Before using this appliance carefully study the instruction book.

Suitable location

A gas-powered cooking appliance produces heat and humidity in the area in which it is installed. For this reason you should ensure good ventilation either by keeping all natural air passages open or by installing an extractor hood with an exhaust flue. Intensive and prolonged use of the appliance may require extra ventilation, such the opening of a window or an increase in speed of the electric fan, if you have one.

If a hood cannot be installed, an electric fan should be fitted to an outside wall or window as long there are air vents in the area.

The electric fan should be able to carry out a complete change of air in the kitchen 3-5 times every hour. The installer should follow the relevant national standards.

ELECTRICAL CONNECTION (FOR U.K. ONLY)

Warning - this appliance must be earthed

This appliance is designed for domestic use only. Connection to the mains supply must be made by a competent electrician, ensuring that all current regulations concerning such installations are observed.

The appliance must only be connected to a suitably rated spur point, a 3 pin 13 amp plug/socket is not suitable. A double pole switch must be provided and the circuit must have appropriate fuse protection. Further details of the power requirement of the individual product will be found in the users' instruction and on the appliance rating plate. In the case of built-in product you are advised, should you wish to use a longer cable than the one supplied, that a suitably rated heat resistant type must be used. The wiring must be connected to the mains supply as follows:

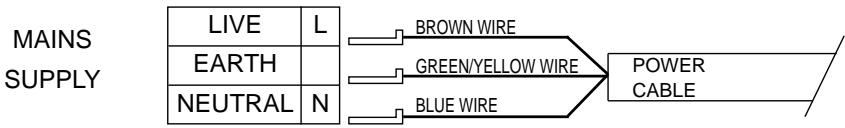

CONNECT

TO SPUR TERMINAL

Green & Yellow

Wire Earth Connection

Blue Wire

Neutral Connection

Brown Wire

Live Connection

Note: We do not advocate the use of earth leakage devices with electric cooking appliances installed to spur points because of the «nuisance tripping» which may occur. You are again reminded that the appliance must be correctly earthed, the manufacturer declines any responsibility for any event occurring as a result of incorrect electrical installation.

Declaration of compliance: This equipment, in the parts intended to come into contact with food, complies with the regulations laid down in EEC directives 89/109.

This appliance complies with directive 89/336/EEC, 73/23/EEC, 90/396/EEC and the following changes.

GAS CONNECTION (FOR U.K. ONLY)

The labels on the Hob indicate the types of gas that can be used.

It is possible to use other types of gas after carrying out simple modifications.

Warning: If gas can be smelt in the vicinity of this appliance turn off the gas supply to the appliance and call the engineer directly. Do not search for a leak with a naked flame.

ELECTRICAL CONNECTION

Check the data on the rating plate, located on the outside of the unit, to ensure that the supply and input voltage are suitable.

Before connection, check the earthing system.

By Law, this appliance must be earthed. If this regulation is not complied with, the Manufacturer will not be responsible for any damage caused to persons or property. If a plug is not already attached, fit a plug appropriate to the load indicated on the rating plate. The earth wire is coloured yellow/green. The plug should always be accessible.

Where the Hob is connected direct to the electricity supply, a circuit breaker must be fitted with at least a 3 mm contact spacing when in the open position.

If the power supply cord is damaged this is to be replaced by a qualified engineer so as to prevent any potential risk.

The earth wire ( green a yellow coloured) must be at least 10mm longer than the live and neutral wires.

The section of the cable used must be of the correct size in relation to the absorbed power of the hob.

Please check rating plate for the power details and ensure that the power supply cord is of the type H05RR-F, H05VV-F, H05V2V2-F.

GAS CONNECTION

These instructions are for Fitters qualified for installation of equipment in line with the relevant national standard. All work must be carried out with the electricity supply disconnected.

The rating plate on the hob shows the type of gas with which it is designed to be used. It is possible to use other types of gas after carrying out some simple modifications.

(See the instructions in the following paragraphs).

connection to the mains gas supply or gas cylinder should be carried out according to the relevant national standards, after having checked that it is regulated for the type of gas with which it will be supplied. If it is not correctly regulated follow the instructions in the paragraph entitled «Adoption for different types of gas». For liquid gas (cylinder gas) use pressure regulators which comply with the relevant national standards.

N.B.: for safe operation, economic use of energy and to ensure greater durability of the appliance, make sure that the supply pressure conforms with the values shown in the table on page 44.

Use only pipes, washers and sealing washers which comply with the relevant national standards.

When connecting the hob to the gas supply via use of flexible hoses please ensure that the maximum distance covered by the hose does not exceed 2 metres.

N.B.: carry out a final check for leaks on the pipework using a soapy solution.

Never use a flame. Also, make sure that the flexible pipe cannot come into contact with a moving part of the cabinet (eg, a drawer) and that it is not situated where it could be damaged.

To prevent any potential damage to the hob please carry out the installation following this sequence:

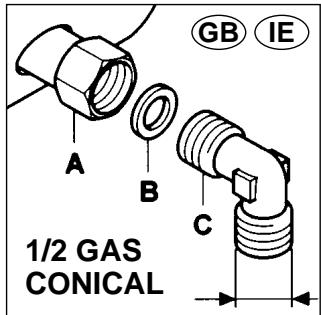

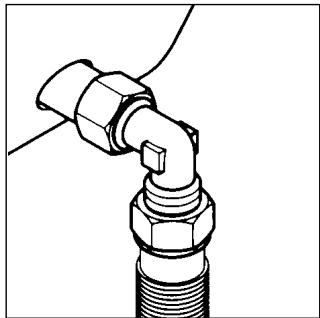

A) As illustrated, assemble parts in sequence:
A) fixed pipe
B) washer
C) Elbow fitting with tapered thred connection

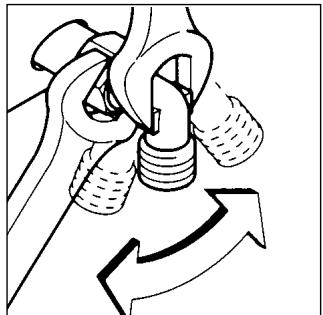

2) Tighten the joints with the Spanners, remembering to twist the pipes into position.

3) Attach fitting C to mains gas supply using rigid copper pipe or flexible steel pipe.

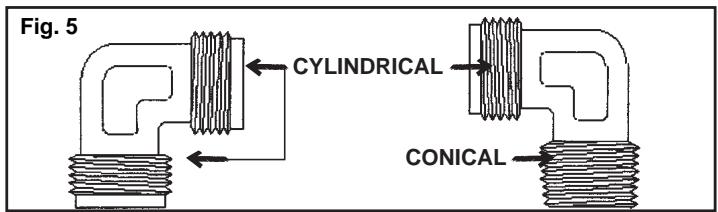

For some models a conic link is furnished to outfit for the installation in the countries where this type of link is obligatory; in the following figures it is pointed out how to recognize the different types of links. In every case the cylindrical part of the link has to be connected to the hob.

ADAPTING THE HOB TO DIFFERENT TYPES OF GAS

To adapt the Hob for use with different types of gas, carry out the following instructions:

remove the grids and burners
insert on hexagonal spanner (7 mm) into the burner support (Fig. 6)
- unscrew the injector and replace it with one suitable for the gas to be used (see Table of gas consumption)

Fig. 6

Table of gas consumption
1 W 0,860 Kcal/h

	G20 G25	G30 G31	GZ 350	G20 20mbar G31 37mbar		G30 28-30mbar GZ350 13mbar				G20 25mbar G30 36mbar				G25 25mbar G31 30mbar
Working burner	ø gas jet 1/100 mm	ø gas jet 1/100 mm	ø gas jet 1/100 mm	Qn kW	Qmin W	I/h G20	I/h GZ350	g/h G30	g/h G31	Qn kW	Qmin W	I/h G20	g/h G30	Qn kW	Qmin W	I/h G25	g/h G31
little	76	50	104	1	230	95	132	73	71	1,2	260	114	87	0,9	230	100	64
large	101	66	132	1,75	360	167	232	127	125	2	410	190	145	1,6	360	177	114
medium	118	80	160	2,5	530	238	331	182	179	2,8	620	267	204	2,25	530	255	161
maxi	144	94	190	3,5	700	333	463	254	250	4	830	381	291	3,2	700	354	229
double ring	141	96	191	3,5	1750	333	463	254	250	4	1900	381	291	3,2	1750	354	229

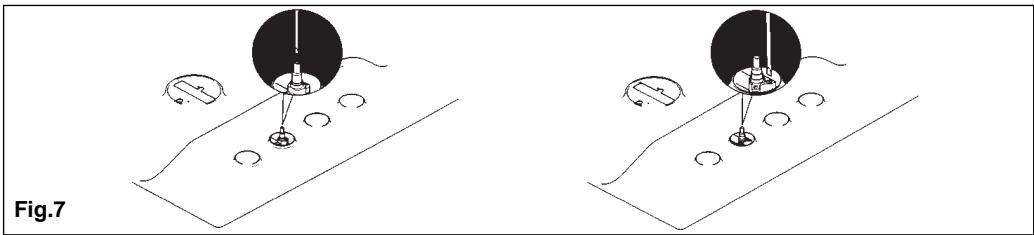

REGULATING THE MINIMUM FLAME

After lighting the burners, turn the control knob to the minimum setting and then remove the knob (this can easily be removed by apply a gentle pressure).

Using a small «Terminal» type screwdriver the regulating screw can be adjusted as in Fig. 7. Turning the screw clockwise reduces the gas flow, whilst turning it anticlockwise increases the flow - Use this adjustment to obtain a flame of approximately 3 to 4mm in length and then replace the control knob.

When the gas supply available is LPG (Bottle gas)- the screw to set the idle flame must be turned (clockwise) to the end stop.

Screws regulating (for different models)

When you have carried out the new gas regulation, replace the old gas rating plate on your appliance with one (supplied with hob) suitable for the type of gas for which it has been regulated.

USE OF HOB USER INSTRUCTIONS

This appliance must only be used for the purpose for which it is intended, domestic cooking, and any other use will be considered improper and could therefore be dangerous. The Manufacturer will not be responsible for any damage or loss resulting from improper use.

To ignite the burners, place a lighted taper close to the burner, press in and turn the control knob anti-clockwise.

If the burners have not been used for a couple of days, wait for a few seconds before lighting the burner, this will allow any air present in the pipes to escape.

For appliances fitted with electronic ignition carry out the following:

• push in and turn the knob anticlockwise to the symbol.

• ignite the burner by pressing the sparker button.

For hobs fitted with automatic ignition simply push in and turn the knob to the symbol.

The ignition system will continue to generate sparks as long as the gas tap is being pressed.

If the burner is not ignited within 5 seconds, turn the knob to the 0 position and repeat the operation.

For models fitted with a safety tap (which cuts-off the flow of gas if the flame is accidentally extinguished) the burners are ignited ad described above, but care must be taken to keep the knob pressed in for 5 or 6 seconds after the flame is ignited.

ATTENTION: Prior to switching on the gas hob ensure that the burners and burner caps are correctly placed within their position.

GENERAL ADVICE

For the best results, the flat-bottomed pans size should match the gas burner size as follows. See fig. pag. 37-38.

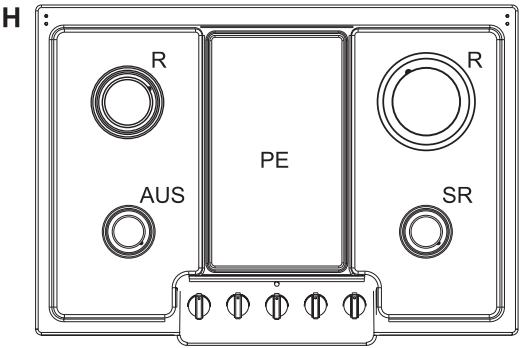

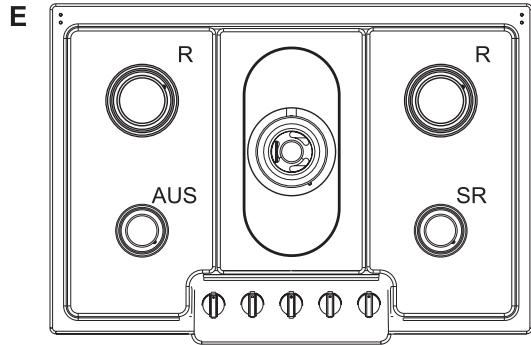

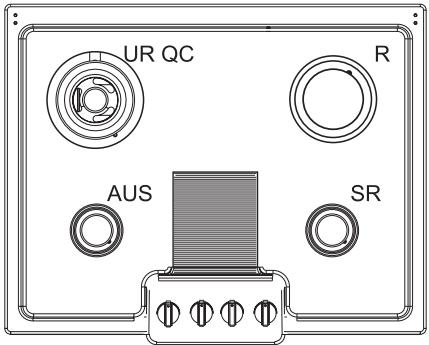

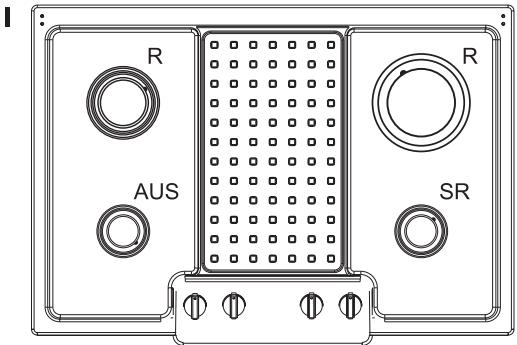

Hob type	Burner type	Ø pan / pot (cm)
A;B;C;D;E;H;I.	R/H front burner	12÷18
A;B;C;D;E;H;I.	L/H front burner	10÷18
A;B;D;E;H.I.	R/H rear burner	18÷24
A;B;C;D;	L/H rear burner	24÷26
E;H;I.	L/H rear burner	18÷24
E	Central burner	24÷28
H	Central radiant plate CX	do not overhang the radiant plate

For smaller containers the gas burner should be regulated so that the flame does not overlap the base of the pan. Vessels with concave or convex base should not be used. WARNING: If a burner is accidentally extinguuehed, turn the knob to the off position and do not attempt to re-ignite if for at least 1 minute.

To protect the glass lid from damage and in the interests of safety, the burners/plates must be turned off and the burner/pan support/plate area must be cool before closing the lid down.

If over the years the gas taps become stiff to turn it is necessary to lubricate them. Such operation must be carried out only by qualified Service Engineers.

Some model are equipped with a small steak griddle. This is only to be used over the little burner.

The hobs equipped with the additional small electric ring ( 80 mm ) also feature a cast iron frame to be used only in conjunction with the electric ring. The cast iron frame must not be used over the gas burners.

Warning use the electric ring/hotplate only after reading the paragraph related to choice of pans specifically with reference to "Use of electric hotplates".

STRUCTIONS FOR USE OF GRIDDLE

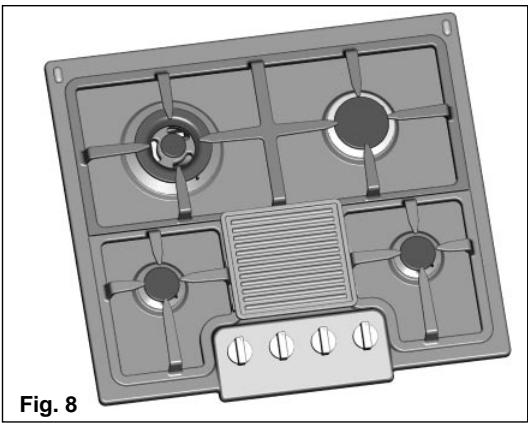

Fig 8 - resting position

When not in use the griddle must be placed as shown in fig 8.

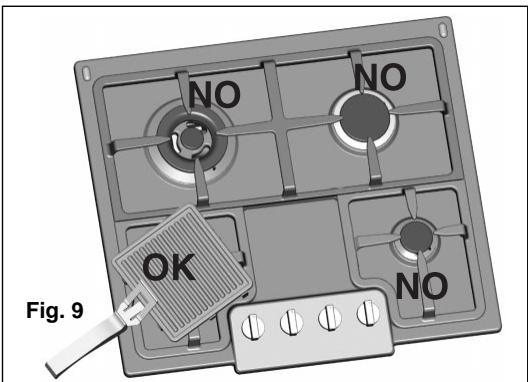

Fig 9 - Positioning of griddle when in use

• The correct positioning, as shown in fig. 9, is achieved by locating the griddle positively to the pan support.
• The griddle has been designed only for direct contact with foodstuffs, do not utilize pans or coffemakers etc. on this implementation.
• WARNING: The griddle reaches high temperatures during usage. It is therefore essential only to utilize the handling tool has shown (fig. 9).

USE OF ELECTRIC HOTPLATES OR CERAMIC ELEMENTS.

For the best use of the electric hotplates and to minimise energy consumption, the following recommendations should be noted.

power setting	food stuff	No. setting rapid hotplate	No. setting ce- ramic element
OFF		0	0
VERY LOW	Warming dishes & melting butter and chocolate	1
LOW	Simmering, sauscs, stews, milk puddings, poached eggs	2	1
MODERATE	Vegetables, frozen foods, boiling water	3	2
MEDIUM	Fresh Vegetables, pasta, fish, pancakes.	4	3
HIGH	Omelettes, steaks	5	4
VERY HIGH	Chops	6

The light indicates the hotplate is on irrespective of the power setting.

In the vetroceramic hobs a residual heat indicator light comes on and remains lit till the hob plate is cooled down.

A neon indicator light adjacent to the control knob will glow when the electric plate is in use.

The additional electric hotplate/ring ( 80 mm ) where featured is turned on and off by pressing 0/1 button, this hotplate has a fixed heat setting.

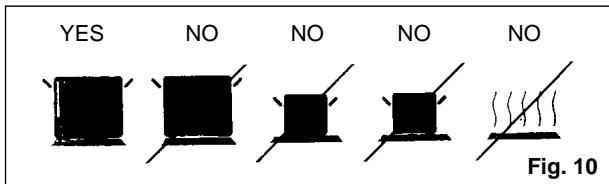

Only pans which have smooth flat bases should be used on the electric hotplates. The size of the pan should be as close as possible to the diameter of the hotplate, and never smaller (see Fig. 10). The base of the pan should be dry and spillages should be avoided. Empty pans should not be left on the plates, nor should the plates left switched on without a pan.

(Ceramic hobs or similar): "WARNING - should any crack appear on the surface turn the appliance off to prevent potential electric shock.

MAINTENANCE AND CLEANING

Before cleaning the Hob, ensure the appliance has cooled down. Remove the plug from the socket or (if connected directly) switch off the electricity supply.

When cleaning the enamelled, varnished or chrome sections, use warm soapy water or a non caustic detergent. For stainless steel use an appropriate cleaning solution.

Hotplates should only be cleaned with a cotton cloth coated with vaseline or seed oil.

Never use abrasives, corrosive detergents, bleaching agents or acids. Avoid any acid or alkaline substances (lemon, juice, vinegar etc.) on the enamelled, varnished or stainless steel sections.

The burners can be cleaned with soapy water. To restore their original shine, use a household stainless steel cleaner. After cleaning, dry the burners and replace.

It is important the Burners are replaced correctly.

(For all hobs): "WARNING - do not use steam cleaners to clean the hobs".

Chromed grids and burners

Chromed grids and burners have the tendency to dark with the use.

This is a normal and inevitable phenomenon, but it doesn't jeopardize absolutely the functionality of the hob.

In anycase from our after sales service centre the spare parts are available.

COVER

The cover is available as optional accessory.

It is not possible to close the lid with the steak griddle placed over a burner.

WARNING - Before closing the cover, to protect it from excessive temperature changes, always wait until the burners or plates have completely cooled down.

WARNING - should any spillage occur on the lid ensure the liquid spilt is wiped off the lid before opening the lid and cause the liquid to reach any electric part.

AFTERCARE

Before calling out a Service Engineer please check the following:

that the plug is correctly inserted and fused;

that the gas supply is not faulty.

If the fault cannot be identified:

switch off the appliance — do not tamper with it — call the Aftercare Service Centre.

The Manufacturer will not be responsible for any inaccuracy resulting from printing or transcript errors contained in this brochure. We reserve the right to carry out modifications to products as required, including the interests of consumption, without prejudice to the characteristics relating to safety or function.

This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE).

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

The symbol on the product indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment.

Disposal must be carried out in accordance with local environmental regulations for waste disposal.

For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Tab. 1

PLACAS ENCASTRÁVEIS		A	B	C	D	E	H	I
Queimadores/Zonas de calor		4 a gas	4 a gas	3 a gas	4 a gas	5 a gas	4 a gas	4 a gas
		-	1 electr.	1 electr.	-	-	1 electr.	-
Modelos		PL 03/PL 04	PL 03/PL 04	PL 03/PL 04	PL 03/PL 04	PL 73/PL 74	PL 73/PL 74	PL 73/PL 74
Dispositivo de segurânia em caso de apagamento de chama		- / si	- / si	- / si	- / si	- / si	- / si	- / si
Queimador pouco	AUS Ø 50 mm	1	1	1	1	1	1	1
Queimador duplo	DQ Ø 135 mm	1	1	1	1	1	-	-
Queimador ultra rápido	UR Ø 110 mm	1	1	1	1	1	-	-
Queimador semi rápido	SR Ø 75 mm	1	1	1	1	1	1	1
Queimador rápido	R Ø 100 mm	1	1	-	1	2	2	2
Zona para grelhar 174x160		-	-	-	-	-	-	-
Zona para grelhar 229x379		-	-	-	-	-	-	-
Chapa eletrónica	ø80	PE	-	1	-	-	-	-
Chapa eletrónica	Ø145	PE	-	-	1	-	-	-
Chapa eletrónica	160x265	PE	-	-	-	-	1	-
Tipo e potência de gás:
G20 mbar*	(METHANE)	8,75 kW	8,75 kW	6,25 kW	8,75 kW	11,25 kW	7,75 kW	7,75 kW
G30 28-30mbar	(GLP)	636 g/h	636 g/h	454 g/h	636 g/h	818 g/h	636 g/h	636 g/h
Classe de instalação		3	3	3	3	3	3	3
Voltagem/Frequência V/Hz		220-240/50	220-240/50	220-240/50	220-240/50	220-240/50	220-240/50	220-240/50
Potência eletrica		-	450W	1400W	-	-	2000 W	-
Ignião electrónica		si	si	si	si	si	si	si
Dimensões do produit L x P (mm)		590x510	590x510	590x510	590x510	745x510	745x510	745x510
