HEAVY DUTY RACK ACCESSORIES INSTALLATION SAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."

These words mean:

DANGER

You can be killed or seriously injured if you don't immediately follow instructions.

WARNING

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

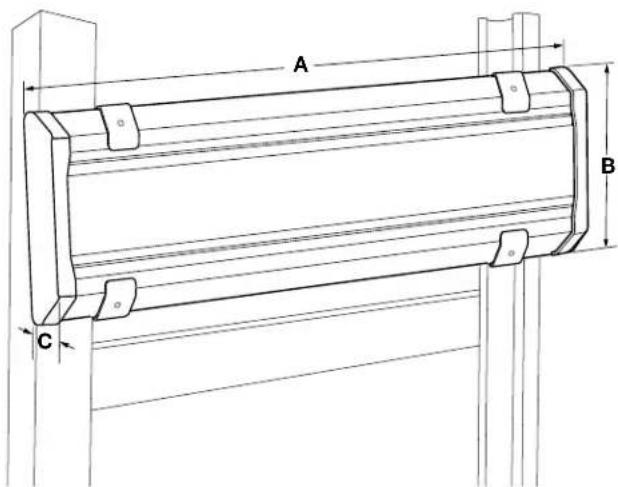

HEAVY DUTY RACK GEARTRACK® PACK DIMENSIONS

A B C

Track without Hooks

GAGP24WRHY

A 24.25"(61.6 cm)

B 6.25"(15.9 cm)

C 0.75"(1.91 cm)

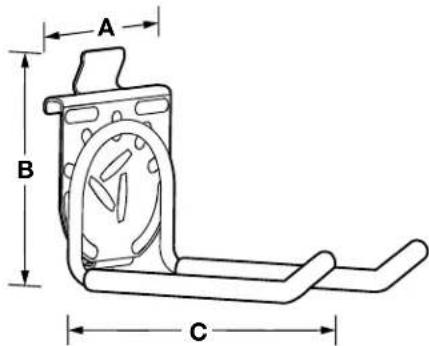

A B C

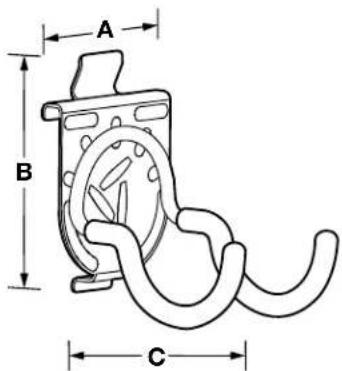

Twin Hook Scoop Hook L Hook

A B C

A B C

Hooks

	Twin Scoop L
A	2.75"(7.0 cm) 2	75"(7.0 cm) 1.0"(2.54 cm)
B	4.25"(10.8 cm)	4.25"(10.8 cm) 3.9"(9.91 cm)
C	6.5"(16.5 cm) 4	25"(10.8 cm) 4.1"(10.4 cm)

PARTS

P2 P3 P4 P1

P6

P7

P8

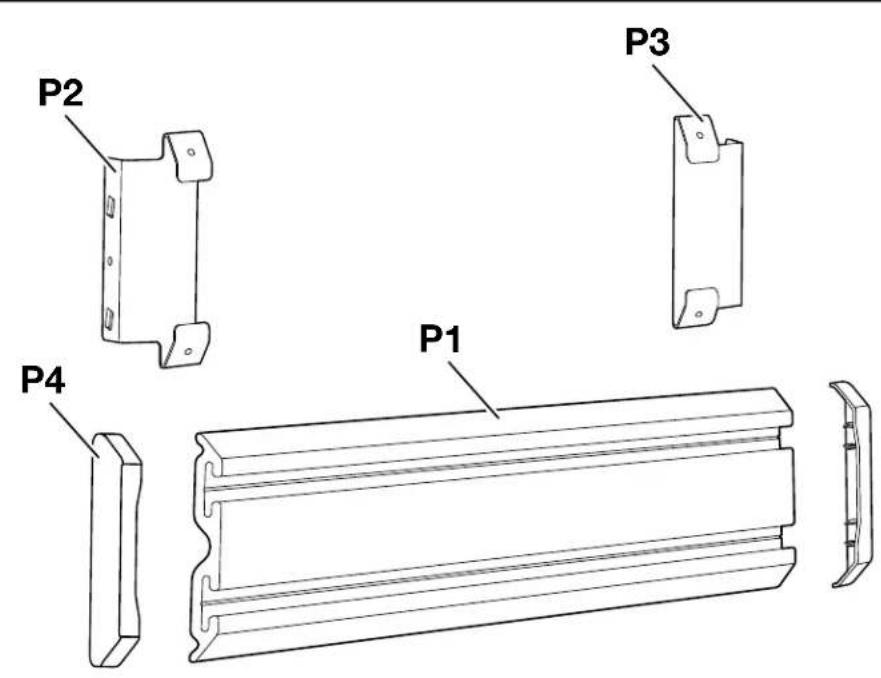

P1. GearTrack ® Channel (1)
P2. Left Hand Bracket (1)
P3. Right Hand Bracket (1)
P4. End Caps (2)
P5. Screws (2)
P6. Twin Hook (1)
P7. Scoop Hook (1)
P8. L Hook (1)

HEAVY DUTY RACK GEARTRACK® PACK INSTALLATION INSTRUCTIONS

Tools and Parts

Gather the required tools and parts before starting installation. Read and follow the instructions provided with any tools listed here.

Tools Needed

■ Phillips Head Screwdriver
■ Drill and 3/32" drill bit

Parts Supplied

■ 2 screws

Heavy Duty Rack GearTrack® Pack Use Requirements

■ Maximum weight limit is 75 lbs (34 Kg) per linear ft (30.48 cm) for Rack GearTrack® Channels.
■ Do not use the hanging cabinets or wall GearBoxes on the Rack GearTrack®. This GearTrack® is only intended for any hook with a maximum claim load of 50lbs.

Unpack

■ Remove all parts from their packaging, and dispose of/recycle all packaging materials.

1. Hand brackets in desired position


Technical line drawing of two vertical metal beams with labeled components LH and RH (no text or symbols beyond labels)

• Put Left and Right Hand brackets in desired position on the end of your 24" (60.9 cm) or 18" (45.7 cm) deep rack. (use the following # for rack models - GARS774XEG, GARS604TEG, GARS484TEG)

2a. Install GearTrack® Channels (for model 24")

Technical line drawing of a structural bracket with an arrow indicating direction, mounted on a post (no text or symbols present)

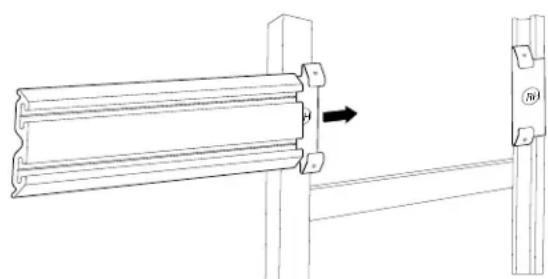

■ Install GearTrac® Channels into the side of one bracket and then sliding through to other bracket.

■ Ensure that the ends of the GearTrack Channels are level with the ends of the rack.

2b. Install GearTrack® Channels (for model 18")

18"

GearTrack® Channel is provided at 24" (60.9 cm) length, but can be cut to size for the 18" (45.7 cm) deep rack. If necessary, cut the channel to length, making sure the cut is square.

1. Install Ends Caps


Pure diagram of two symmetrical mechanical or electrical components with arrows indicating direction (no text or symbols)

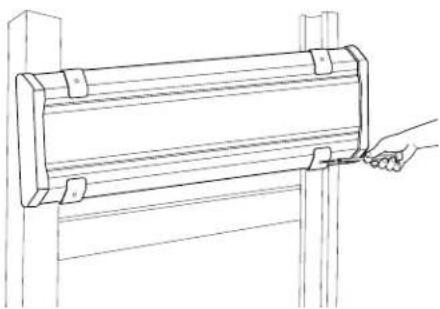

■ Install provided end caps on each side of the GearTrack Channel.

1. Bracket holes


Line drawing of a hand holding a metal rack with multiple supports (no text or symbols)

• Drill two 3/32" pilot holes in either the top or bottom holes of the brackets and GearTrack® Channels.
  NOTE: Screws can be attached to either bottom or top of the brackets based on the preference.

• Hang desired hook


Technical line drawing of a mechanical frame with pulleys and connectors (no text or symbols)

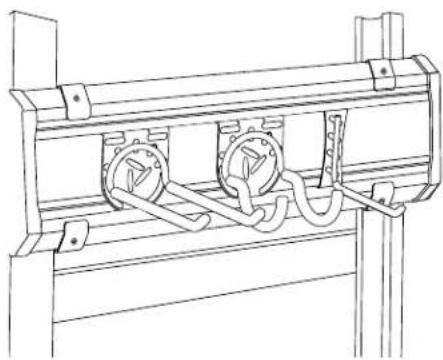

■ Hang desired hooks provided.

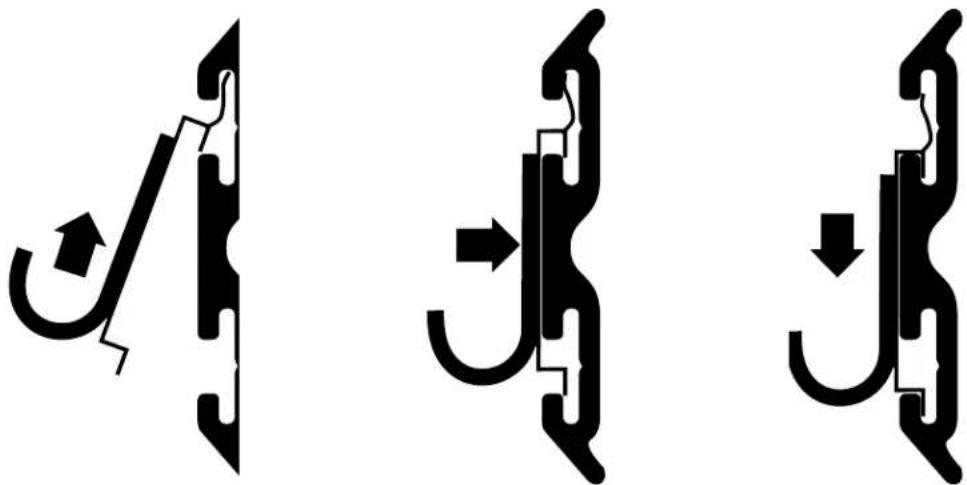

HOOKS INSTALLATION TO RACK GEARTRACK® CHANNELS

Three abstract black-and-white line drawings of mechanical or architectural components, no text or symbols present.

AVAILABLE HOOKS - SOLD SEPARATELY

Parts Maximum Weight Limit
Claw Hook, Dual Hook, Big Hook, Utility Hook 50 lbs	(22.7 kg)
Horizontal Bike Hook 25 lbs (11.3 kg) for each hook and 50 lbs (22.7 kg) for the pair
Deep Hook, Wide Hook, Vertical Bike Hook 30 lbs (13.6 kg)
Tool Hook, Cradle Hook, Twin Hook, S Hook, Scoop Hook	25 lbs (11.3 kg)
Fishing Pole Hook 20 lbs (9.1 kg)
J & L Hook, Loop Hook 5 lbs (2.2 kg)
Storage Bin Holder 50 lbs (22.7 kg)
24" (60.96 cm) Mesh Basket 35 lbs (15.87 kg)
18" (45.7 cm) Wire Basket 35 lbs (15.87 kg)

Simple line drawing of a rectangular frame with two side handles (no text or symbols)

Line drawing of a mechanical clamp or bracket with a handle and base plate (no text or symbols)

Isometric line drawing of a rectangular frame with labeled dimensions A, B, and C (no text or symbols beyond labels)

RACK SHELF LINER INSTALLATION INSTRUCTION

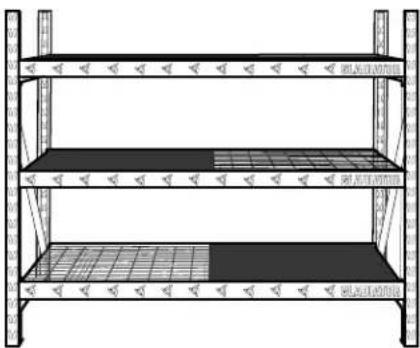

Shelf Liners Use Requirements

■ Intended for use with Gladiato Heavy Duty Racks. There are many benefits to registering your product. Find out more and register your product online at www.gladiatorgarageworks.com. Consumers in Canada can call: 1-800-807-6777.

Diagram of three stacked metal shelving units with diagonal braces and a grid pattern, no text or symbols present.

Install Shelf Liners

1. Unpack Shelf Liners and dispose of/recycle all packaging materials.
2. Set the Liners at desired location and shelf.
3. To reduce the amount of liner sliding on the wire shelf, push provided tabs at the front and back of the liner under the lip of the main horizontal beams.

WARRANTY

For warranty information:

In U.S.A. call 1-866-342-4089 or visit our website at

www.GladiatorGW.com

In Canada call 1-800-807-6777 or visit our website at

www.gladiatorgarageworks.ca
