USER MANUAL GANA24HWMX Gladiator

TABLE OF CONTENTS/TABLE DES MATIÈRES/TABLA DE CONTENIDOS

WORKTOP SAFETY 2

DIMENSIONS 2

INSTALLATION INSTRUCTIONS .....3

WARRANTY......4

SÉCURITÉ DU PLAN DE TRAVAIL ... 5

DIMENSIONS ....5

INSTRUCTIONS D'INSTALLATION...6

GARANTIE 7

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."

These words mean:

DANGER

You can be killed or seriously injured if you don't immediately follow instructions.

WARNING

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

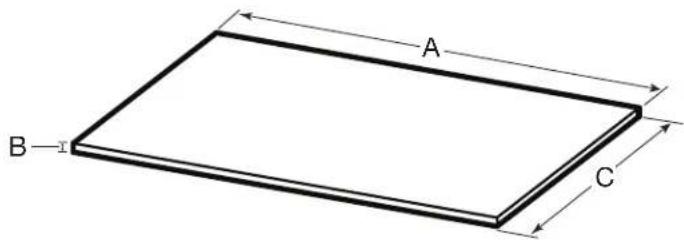

DIMENSIONS

3D rendering of a rectangular industrial cabinet with a vertical slot and textured panel (no text or symbols visible)

	GANA24HWMX
A 24"	(60.8 cm)
B 0.79"	(2.0 cm)
C 16.2"	(41.1 cm)

A B C

Technical line drawing of a mechanical device with meshed panels and a central vertical component (no text or symbols)

INSTALLATION INSTRUCTIONS

Tools and Parts

Gather the required tools and parts before starting installation.

Tools Needed:

■ #2 Phillips Head Screwdriver(Not included)

Parts Supplied:

■Worktop (1)

■M6 x 12 Screw (4)

Worktop Use Requirements

■Intended for use with Gladiator® Flex 24" 2-Door Base

Cabinet and Flex 24" 1-Drawer 2-Door Base Cabinet.

There are many benefits to registering your product. Find out more and register your product online at

www.gladiatorgarageworks.com. Consumers in Canada

can call: 1-800-807-6777

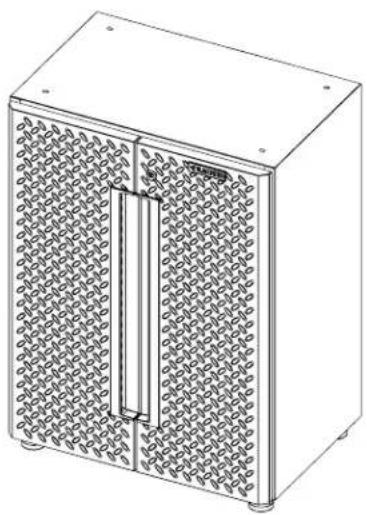

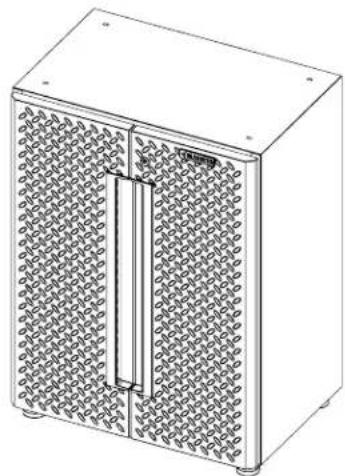

Install Worktop for Flex 24" 2-Door Base Cabinet

Technical line drawing of a rectangular industrial cabinet with perforated panels and a side door (no text or symbols)

1. Unpack worktop and dispose of/recycle all packaging materials.

2. Position one Gladiator ^® Flex 24" 2-Door Base Cabinet without the mat.

NOTE: If you have installed casters on the cabinet, lock the casters.

1. Set the worktop onto the top of the cabinet.

NOTE: Ensure the locations of 4 nuts in the worktop match the holes in the cabinet's top.

1. Fix the worktop and the cabinet's top with 4 screws .Tighten securely.

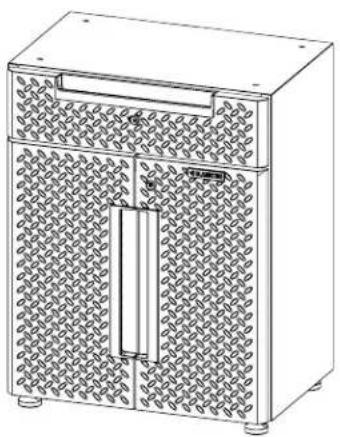

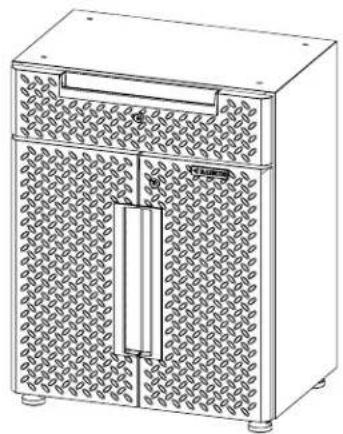

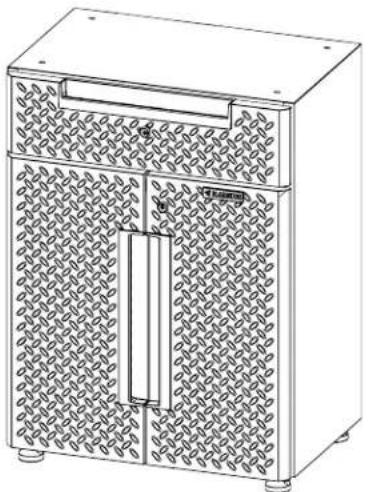

Install Worktop for Flex 24" 1-Drawer 2-Door Base Cabinet

Technical line drawing of a mechanical device with diamond-patterned panels and a central door (no text or symbols)

1. Unpack worktop and dispose of/recycle all packaging materials.

2. Position one Gladiator® Flex 24" 1-Drawer 2-Door without the mat.

NOTE: If you have installed casters on the cabinet, lock the casters.

1. Remove the drawer - Empty the drawer. Pull the drawer out until it stops. There are two black release levers, one on each side of the drawer. Pull up the black release lever on one side, while pushing down the black release lever on the other side. While holding the levers in the positions as instructed below, pull the drawer outward until it is released from the drawer slides.

2. Set the worktop onto the top of the cabinet.

NOTE: Ensure the locations of 4 nuts in the worktop match the holes in the cabinet's top.

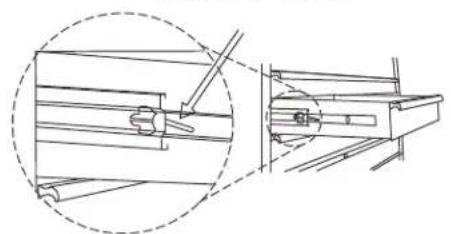

Push down - one side

Technical line drawing of a mechanical assembly with cross-sectional view (no text or symbols)

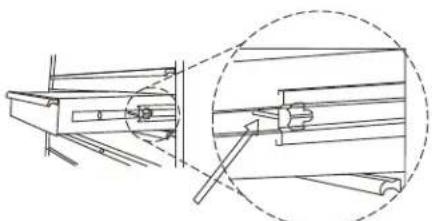

Pull up – other side

Technical line drawing of a mechanical assembly with an inset close-up showing a bracket detail (no text or symbols)

1. Fix the worktop and the cabinet's top with 4 screws. Tighten securely.

2. Install the drawer - Extend the drawer slides from the cabinet. Insert the brackets on each side of the drawer into the slots in the slides, ensuring that they are properly positioned. Once properly inserted, completely close the drawer to set the slides in their proper positions.

FLEX WORKTOP LIMITED WARRANTY

ATTACH YOUR RECEIPT HERE. PROOF OF PURCHASE IS REQUIRED TO OBTAIN WARRANTY SERVICE.

Please have the following information available when you call the Customer eXperience Center:

■Name, address, and telephone number

■Model number and serial number

■A clear, detailed description of the problem

■ Proof of purchase, including dealer or retailer name and address

IF YOU NEED SERVICE:

1. Before contacting us to arrange service, please determine whether your product requires repair. Some questions can be addressed without service. Please take a few minutes to review the instructions or visit www.gladiatorgarageworks.com.

2. All warranty service is provided exclusively by our authorized Gladiator ^® GarageWorks Service Providers. In the U.S. and Canada, direct all requests for warranty service to:

Gladiator ^® GarageWorks Customer eXperience Center

In the U.S.A., call 1-866-342-4089. In Canada, call 1-800-807-6777.

If outside the 50 United States or Canada, contact your authorized Gladiator® GarageWorks dealer to determine whether another warranty applies.

ONE YEAR LIMITED WARRANTY

WHAT IS COVERED

WHAT IS NOT COVERED

ONE YEAR LIMITED WARRANTY (WORK SURFACE ONLY - LABOR NOT INCLUDED)

For one year from the original date of purchase, when this product is installed and maintained according to instructions attached to or furnished with the product, Gladiator® GarageWorks will, at its sole option, provide factory specified replacement parts to correct defects in materials or workmanship that existed when the product was purchased or replace the product (excludes shipping or freight fees). If replaced, your product will be covered by the remaining one-year limited warranty of the original unit.

YOUR SOLE AND EXCLUSIVE REMEDY UNDER THE LIMITED WARRANTY SHALL BE PRODUCT REPAIR OR REPLACEMENT AT OUR DISCRETION AS PROVIDED HEREIN. This limited warranty is valid in the United States and Canada and applies only when the product is used in the country in which it was purchased. This limited warranty is effective from the date of the original consumer purchase. Proof of original purchase date is required to obtain service or replacement under this limited warranty.

1. In-home service including, but not limited to, service calls to correct the installation of any Gladiator® GarageWorks products or to instruct you on how to use or install them.
2. Damage resulting from improper handling or shipping of products, or products damaged by accident, alteration, misuse, abuse, fire, flood, improper installation, acts of God, neglect, corrosion, modification or mishandling.
3. All travel, transportation, shipping or freight fees to deliver replacement products or to return defective product.
4. Factory specified replacement parts or product replacement when your product is used in other than normal, single-family household use, such as a commercial environment or when it is used in a manner contrary to published user or operator instructions and/or installation instructions.
5. Cosmetic damage including scratches, dings, dents or cracks that do not affect the structural or functional capability of the product.
6. Any labor costs during the warranty period.
   The cost of repair or replacement under these excluded circumstances shall be borne by the customer.

DISCLAIMER OF IMPLIED WARRANTIES

IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW. Some states and provinces do not allow limitations on the duration of implied warranties of merchantability or fitness, so this limitation may not apply to you. This warranty gives you specific legal rights, and you also may have other rights that vary from state to state or province to province.

DISCLAIMER OF REPRESENTATIONS OUTSIDE OF WARRANTY

Gladiator® GarageWorks makes no representations about the quality, durability, or need for service or repair of this product other than the representations contained in this warranty.

LIMITATION OF REMEDIES; EXCLUSION OF INCIDENTAL AND CONSEQUENTIAL DAMAGES

YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR OR REPLACEMENT AS PROVIDED HEREIN. GLADIATOR® GARAGEWORKS SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, so these limitations and exclusions may not apply to you. This warranty gives you specific legal rights, and you also may have other rights that vary from state to state or province to province.

05/17

Keep this book and your sales slip together for future reference. You must provide proof of purchase or installation date for in-warranty service.

Write down the following information about your Gladiator ^® product to better help you obtain assistance or service if you ever need it. You will need to know your complete model number and serial number. You can find this information on the model and serial label located on the back of the product.

Dealer name ____

Address

Phone number

Model number ____

Serial number ____

Purchase date ____

SÉCURITÉ DU PLAN DE TRAVAIL

Technical line drawing of a rectangular industrial cabinet with a vertical slot and textured panel (no text or symbols)

	GANA24HWMX
A 24 po (60,8 cm)
B 0,79 po (2,0 cm)
C 16,2 po (41,1 cm)

A B—1 C

Technical line drawing of a mechanical device with perforated panels and a central door (no text or symbols)

INSTRUCTIONS D'INSTALLATION

Outils et pièces

Technical line drawing of a two-compartment industrial cabinet with perforated panels and a central vertical slot (no text or symbols)

Technical line drawing of a stainless steel industrial cabinet with diamond-patterned panels and a door (no text or symbols)

Technical line drawing of a mechanical assembly with an inset close-up showing a bracket detail (no text or symbols)

Technical line drawing of a two-door industrial cabinet with perforated top panel and side door (no text or symbols)

	GANA24HWMX
A 24"	(60,8 cm)
B 0.79"	(2,0 cm)
C 16.2"	(41,1 cm)

A B C

Technical line drawing of a two-door industrial cabinet with perforated panels and a central door (no text or symbols)

Technical line drawing of a two-door industrial cabinet with perforated panels and a side door (no text or symbols)

Technical line drawing of a stainless steel cabinet with diamond-patterned panels and a double door (no text or symbols)
