Product Type	Overhead Storage Rack
Brand	Gladiator
Model	GALS44M2KG
Dimensions (L x W x H)	48 in x 48 in x (23 in min - 37.8 in max) from ceiling
Maximum Load Capacity	500 lb (227 kg)
Installation Type	Ceiling mount on wood joists
Material	Steel
Color	Gray (as per product photo)
Number of Shelves	1 section of 4 ft x 4 ft (assembled from 2 sections of 2 ft x 4 ft)
Recommended Height Above Floor	80 in minimum (for standard door clearance)
Ceiling Support Spacing	24 in between supports (parallel or perpendicular configuration)
Height Adjustment System	EZ Connect positioning rods (tool-free adjustment, by hole increments)
Number of Vertical Posts	4 corners + 2 shelf connection supports
Included Hardware	M8 cap screws, lag screws, square nuts, EZ Connect rods
Required Tools (not included)	Electric drill, 1/2 inch socket wrench, 6 mm hex key, stud finder, measuring tape, step ladder, pencil, masking tape
Number of People Required for Installation	At least 2 people to lift and position the rack
Recommended Use	Garage, for lightweight items overhead
Maintenance	Wash with mild detergent and warm water, soft cloth; check tightness annually
Warranty	Limited warranty (contact Gladiator: USA 1-866-342-4089, Canada 1-800-807-6777)
Product Registration	Recommended at www.gladiatorgarageworks.com

Frequently Asked Questions - GALS44M2KG Gladiator

What is the maximum weight capacity of the GALS44M2KG rack?

The maximum weight capacity for the 4 ft x 4 ft model is 500 lb (227 kg). Never exceed this limit.

What are the exact dimensions of the rack?

The rack measures 48 in x 48 in (122 cm x 122 cm) in area. The height under the ceiling is adjustable from 23 in to 37.8 in (58.4 cm to 96 cm).

How do I install the overhead storage rack?

Installation requires at least two people. First, attach the ceiling brackets to the wood joists (max spacing 24 in). Assemble the rack on the ground, then attach the vertical posts. Lift the rack and connect it to the ceiling brackets using the EZ Connect rods. Tighten all screws.

What type of ceiling is required?

This product is designed for installation on traditional wood joists (standard framing). It is not suitable for concrete, metal, or suspended ceilings.

Can the rack be adjusted in height after installation?

Yes, thanks to the EZ Connect system. Remove the positioning rods, adjust the rack to the desired height (between 23 in and 37.8 in from the ceiling), then re-insert the rods. Two people are required.

How do I clean the rack?

Wash with mild detergent and warm water using a soft cloth. Do not use abrasive products or solvents. Check the tightness of screws once a year.

What tools are needed for assembly?

You will need an electric drill, a 3/16 in drill bit (included), a 1/2 in socket or open-end wrench, a 6 mm hex key (included), a stud finder, a measuring tape, a step ladder, a pencil, and masking tape.

Is a warranty included?

Yes, a limited warranty is provided. For more information, contact Gladiator at 1-866-342-4089 (USA) or 1-800-807-6777 (Canada), or visit www.gladiatorgarageworks.com.

Can I use this rack to store heavy items?

It is designed for lightweight items overhead (e.g., boxes, seasonal decorations). Respect the 500 lb capacity and do not exceed the indicated load to avoid any risk of falling.

What if I lost the assembly instructions?

You can download the instructions for free in PDF format from the site notice-facile.com by entering the reference GALS44M2KG. The instructions are also available in several languages.

USER MANUAL GALS44M2KG Gladiator

PARTS 2 FT X 4 FT....4

PARTS 2 FT X 8 FT....5

PARTS 4 FT X 4 FT....6

ASSEMBLY INSTRUCTIONS......7

Unpack the Overhead GearLoft™

Storage Rack....7

Tools and Parts 7

Overhead GearLoft™ Storage Rack

Use Requirements ....7

Assembling the Rack 8

Installing the Overhead GearLoft™

Storage Rack....11

Storage Rack Care....11

Registering Your Product......11

WARRANTY....11

SÉCURITÉ DE L'ÉTAGÈRE DE

RANGEMENT SURELEVÉE

GEARLOFT™ 12

DIMENSIONS ......13

PIÈCES 2 PI X 4 PI....14

PIÈCES 2 PI X 8 PI....15

PIÈCES 4 PI X 4 PI....16

INSTRUCTIONS D'ASSEMBLAGE...17

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."

These words mean:

DANGER

You can be killed or seriously injured if you don't immediately follow instructions.

WARNING

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

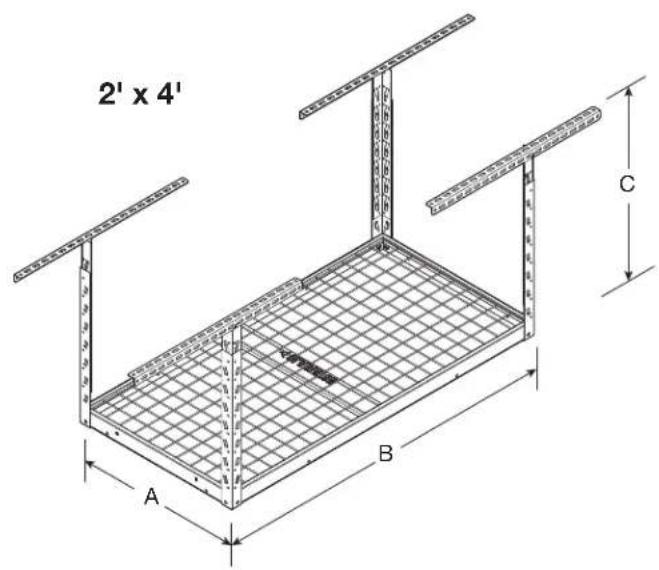

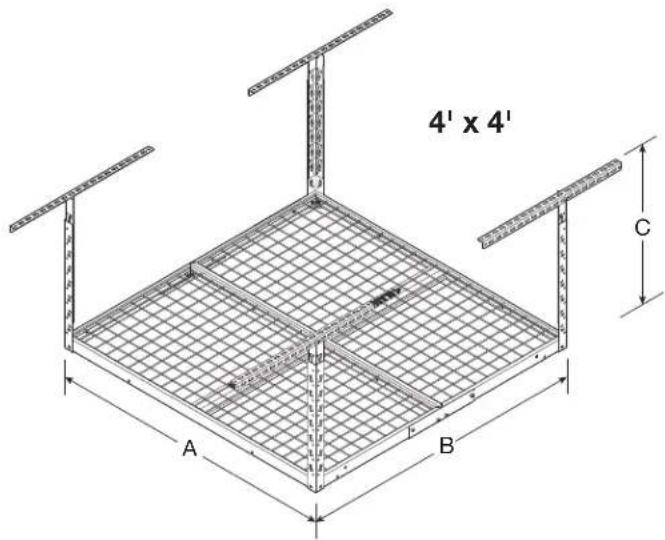

DIMENSIONS

MODEL	GALS24M1KG GALS24M1KW	GALS28M2KG GALS28M2KW	GALS44M2KG GALS44M2KW
A 24" (61 cm) 24" (61 cm) 48" (122 cm)
B 48" (122 cm) 96" (244 cm) 48" (122 cm)
C 23" (58.4 cm) min. and 37.8" (96 cm) max.		23" (58.4 cm) min. and 37.8" (96 cm) max.	23" (58.4 cm) min. and 37.8" (96 cm) max.

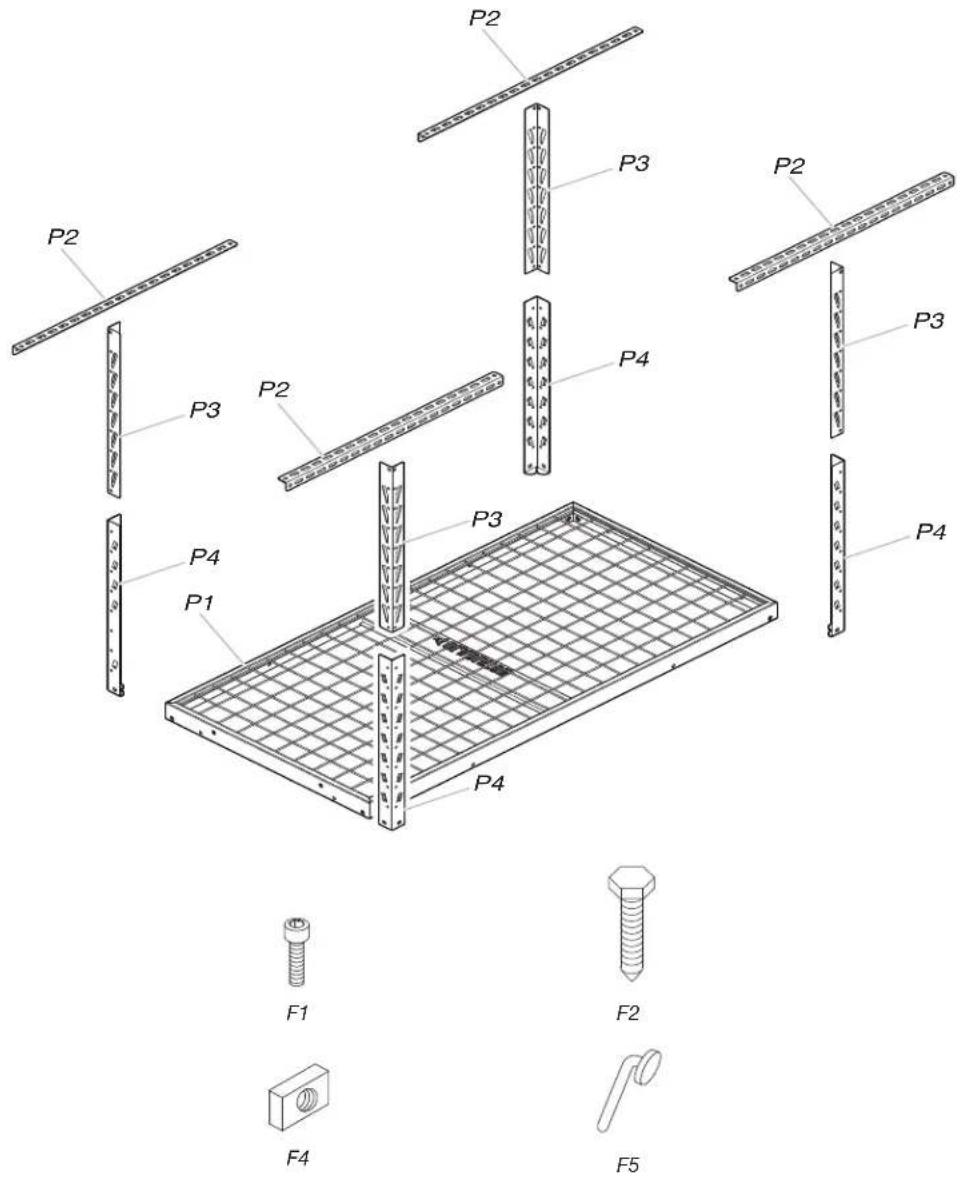

PARTS - 2 FT X 4 FT
GALS24M1KG GALS24M1KW

Label Description Quantity
P1 2' x 4' rack section 1
P2 Ceiling bracket 4
P3 Vertical corner support - upper 4
P4 Vertical corner support - lower 4
F1 M8 -	1.25 x 12 socket-head cap screw 12
F2 5/16' x 3" lag bolt 8
F4	M8 - 1.25 rectangular nut	4
F5	EZ Connect locking pin	4

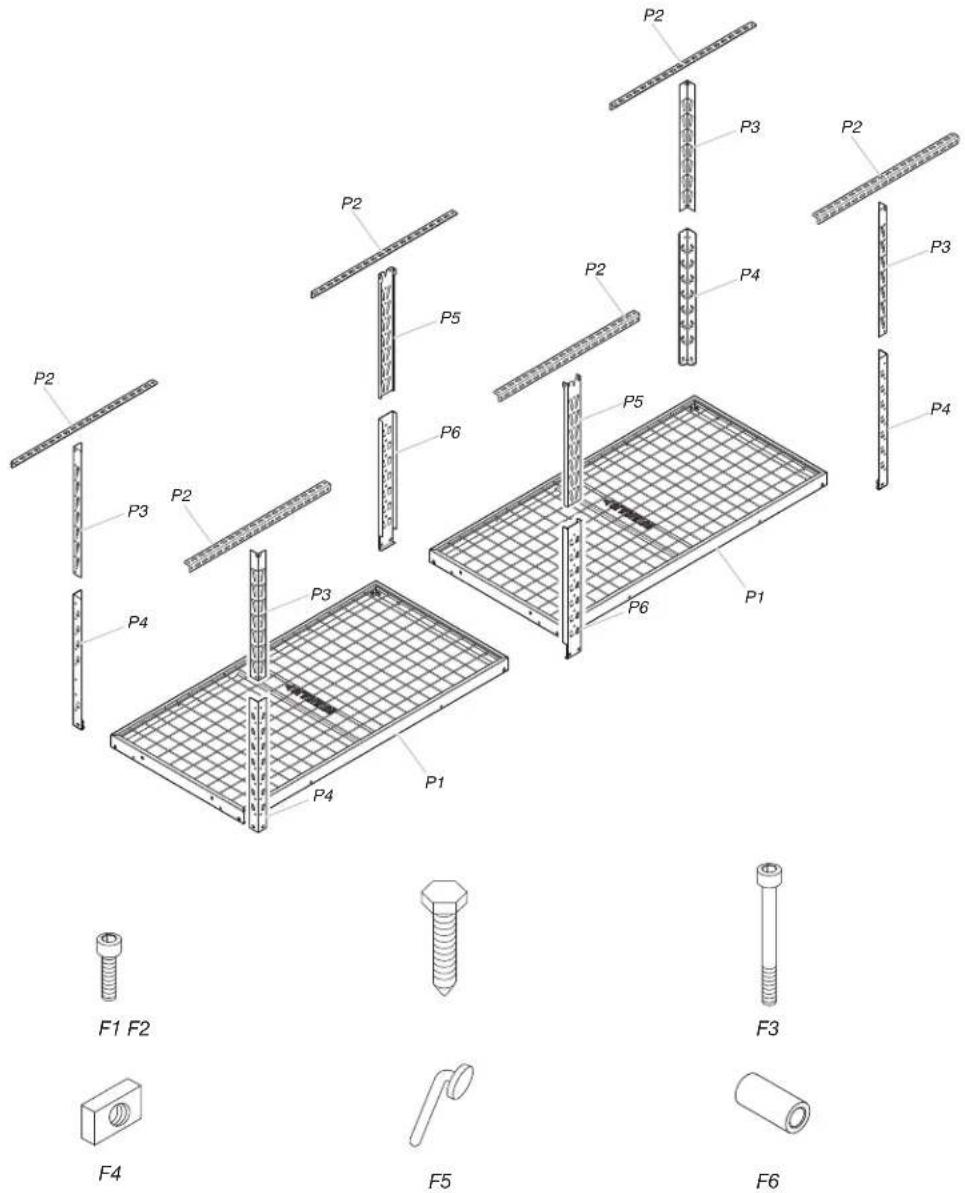

PARTS - 2 FT X 8 FT
GALS28M2KG GALS28M2KW

Label Description Quantity
P1 2' x 4' rack section 2
P2 Ceiling bracket 6
P3 Vertical corner support - upper 4
P4 Vertical corner support - lower 4
P5 Vertical center support - upper 2
P6 Vertical center support - lower 2
F1 M8 - 1.25 x 12 socket-head cap screw 22
F2	5/16" x 3" lag bolt	12
F3 M8 - 1.25 x 75 socket-head cap screw 2
F4	M8 - 1.25 rectangular nut	10
F5	EZ Connect locking pin	6
F6	Spacer	4

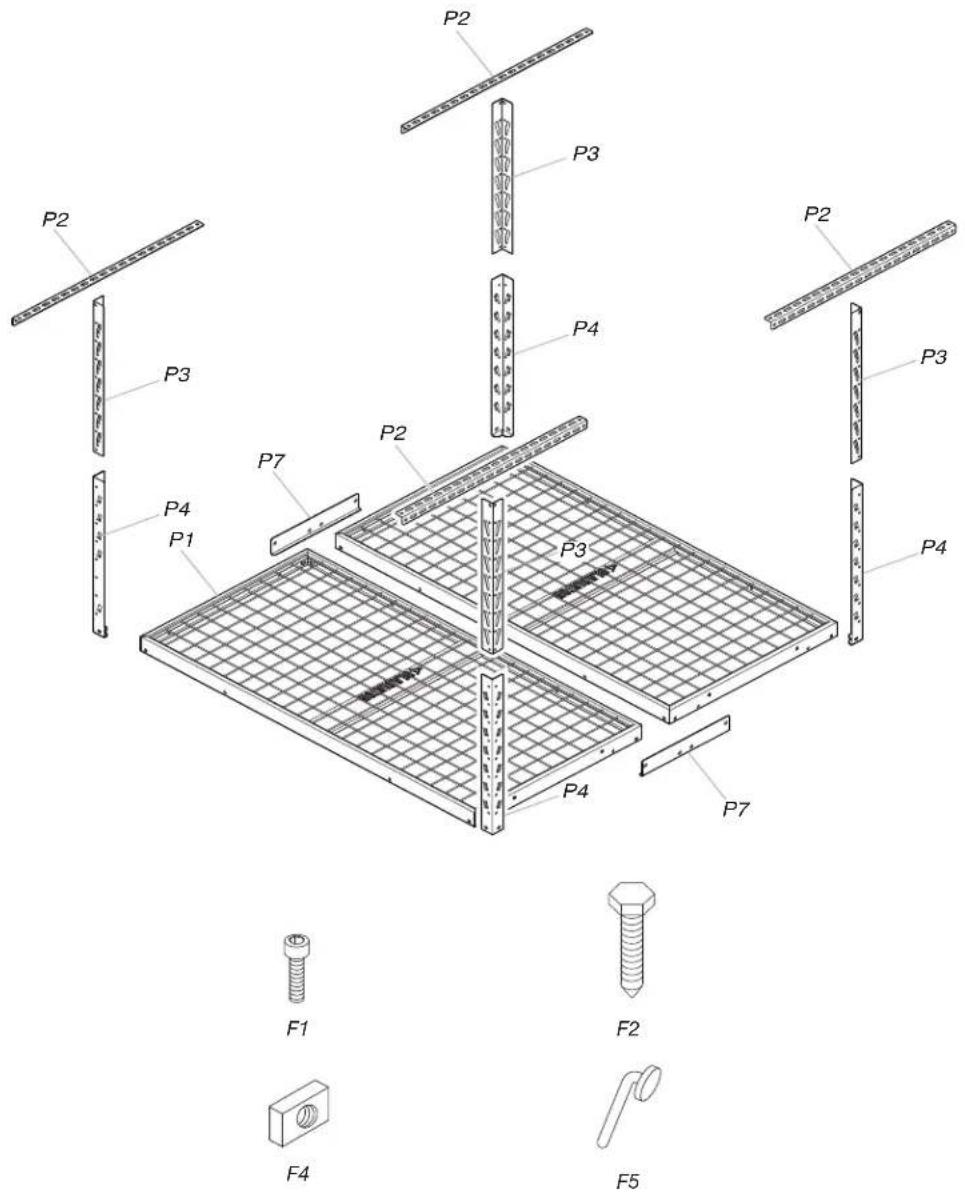

PARTS - 4 FT X 4 FT
GALS44M2KG GALS44M2KW

Label Description Quantity
P1 2' x 4' rack section 2
P2 Ceiling bracket 4
P3 Vertical corner support - upper 4
P4 Vertical corner support - lower 4
P7 Rack connection bracket 2
F1 M8 - 1.25 x 12 socket-head cap screw 22
F2 5/16" x 3" lag bolt 8
F4	M8 - 1.25 rectangular nut	6
F5	EZ Connect locking pin	4

ASSEMBLY INSTRUCTIONS

Unpack the Overhead GearLoft™ Storage Rack

1. Unpack the rack sections, support sections, ceiling brackets and all hardware. Verify contents. See "Parts."
2. Dispose of all packaging materials properly.

Tools and Parts

■Install Overhead GearLoft™ Storage Rack according to manufacturer's instructions and any local codes.
■Only use provided fasteners. Do not use an alternate form of mounting. Do not alter or modify any components included with this product.
■Gather the required tools and parts before starting assembly.
■Read entire manual before starting assembly.

WARNING

Excessive Weight Hazard

Use two or more people to move storage rack.

Failure to do so can result in back or other injury.

Tools Needed

■Electric drill
■Drill bit (3/16") - included
■1/2" socket wrench and/or 1/2" open end wrench
■6 mm hex wrench - included
■Stud finder (If ceiling has drywall covering joists/rafters)
■Tape measure
■Step stool or step ladder
■Pencil / Marker
■Masking tape

Overhead GearLoft™ Storage Rack Use Requirements

1. Intended for garage use, installed into a wood framed/traditional wood structure type dwelling.
2. To be used for storing lightweight items overhead and out of the way.
3. Recommended to be positioned 80" minimum above floor (standard door opening height).
4. Check for clearance of all doors, vehicles, or any items to be positioned under the storage rack.
5. The maximum weight of all items combined on the rack not to exceed:

2 ft x 4 ft - 350 lbs.
2 ft x 8 ft - 500 lbs.
4 ft x 4 ft - 500 lbs.

Assembling the Rack

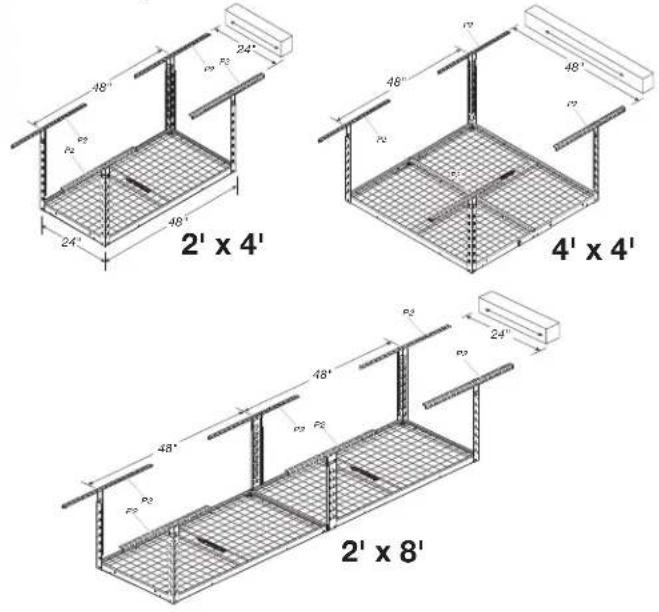

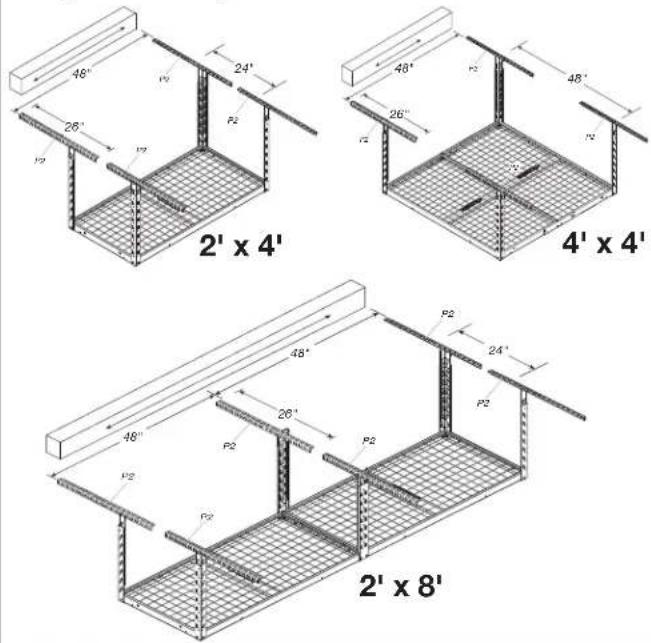

1. Determine the ceiling bracket locations

Parallel layout

Perpendicular layout

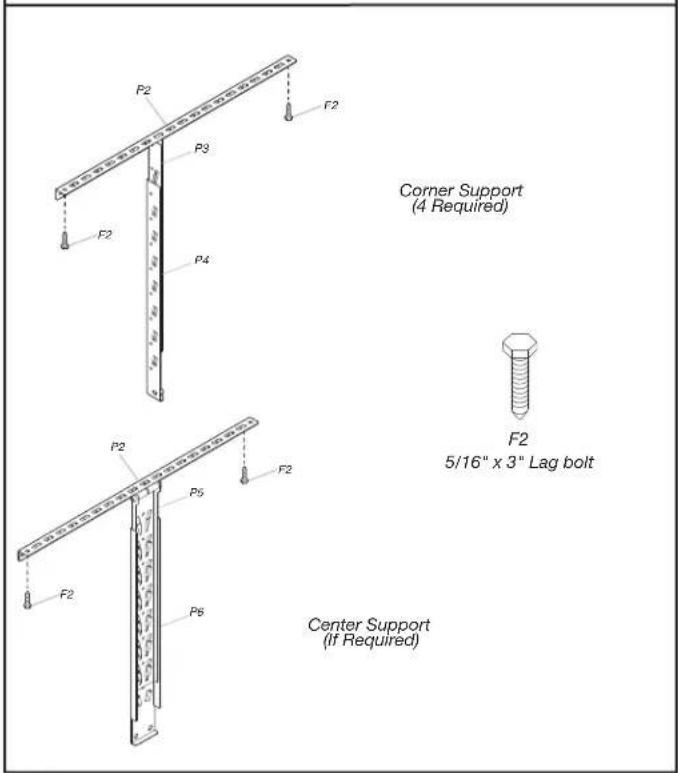

2. Attach the ceiling brackets

Using the provided drill bit (3/16"), drill all pilot holes in the center of the joists/rafters. Two lag bolts must be used on each bracket, one on each side of the vertical support. Mount the ceiling brackets (P2) using 5/16" x 3" lag bolts (F2) (8 or 12).

The storage rack ceiling brackets can be positioned parallel or perpendicular to the wood ceiling joists/rafters. Determine the application required for your desired installation. If drywall covers the joists, use a stud finder to determine the joist/rafter locations and mark with masking tape. For applications requiring installation of the brackets perpendicular to the joists/rafters, the maximum distance between them is 24". The brackets included allow for a 24" maximum span. See figure for typical ceiling layouts. Mark the location of the ceiling brackets on the joists/rafters or drywall, making sure the vertical supports can be positioned between the lag bolts used to attach the brackets. Position the center of the brackets on a 24"/48" grid as required.

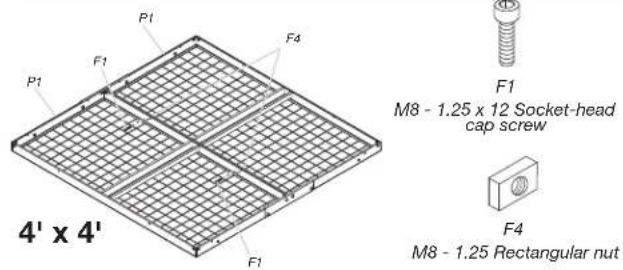

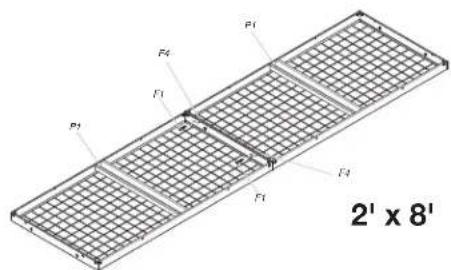

1. Connect the racks (4' x 4', 2' x 8')


Lay two rack sections upside down on the floor. Assemble the rack sections (P1) together using M8 - 1.25 x 12 socket-head cap screws (F1) (2) and M8 - 1.25 Rectangular nuts (F4) (2).

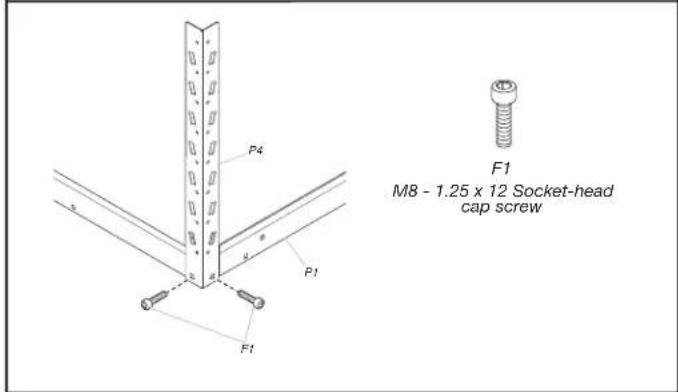

1. Attach lower corner supports


Attach the four lower corner supports (P4) to the rack corners using M8 - 1.25 x 12 socket-head cap screws (F1) (8).

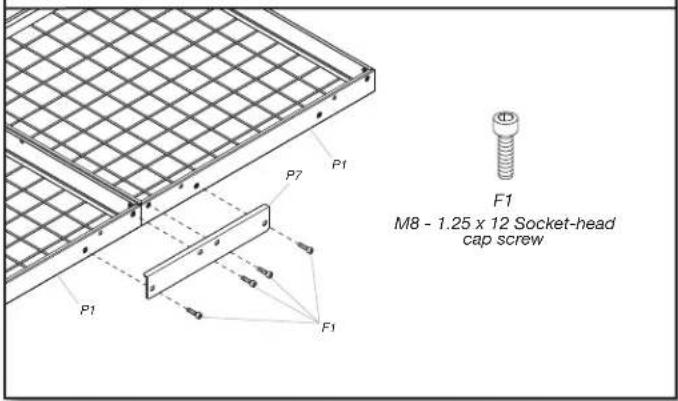

1. Attach the rack brackets (4' x 4')


Attach the rack connection brackets (P7) to both sides of the two bolted-together rack sections using M8 - 1.25 x 12 socket-head cap screws (F1) (8).

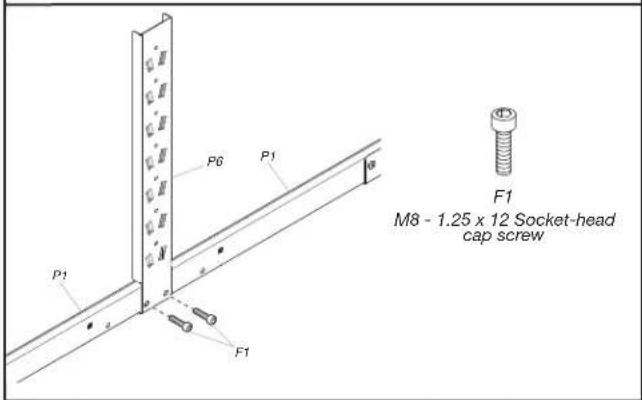

1. Attach lower center supports (2' x 8')


Attach the two lower center supports (P6) to the rack assembly using M8 - 1.25 x 12 socket-head cap screws (F1) (4).

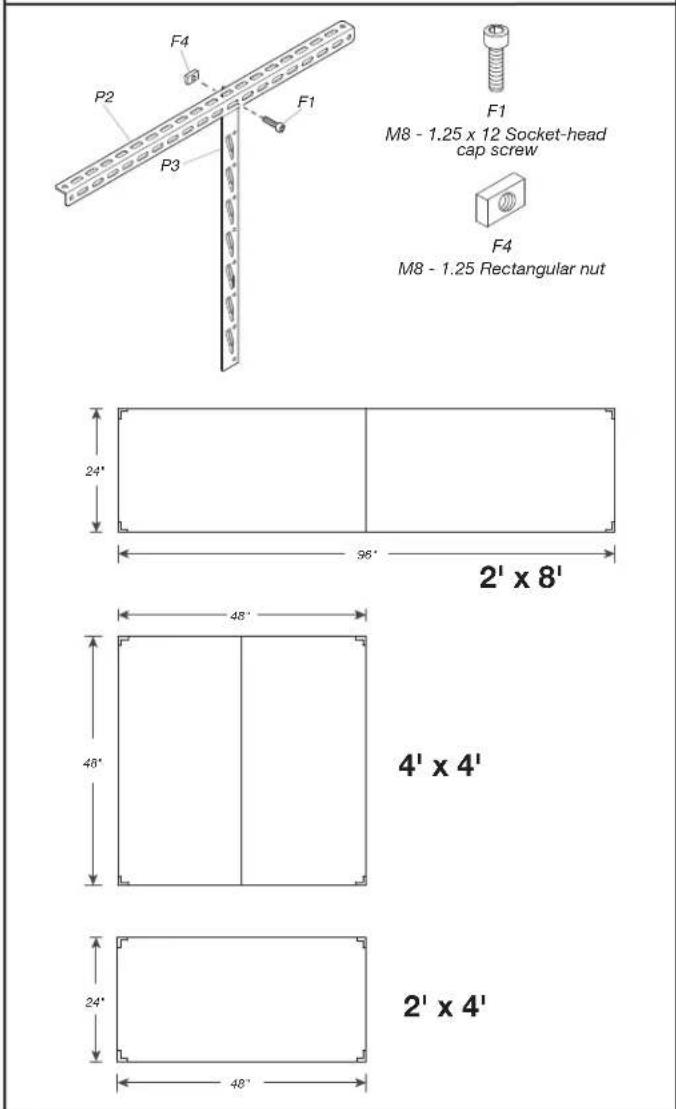

1. Attach upper corner supports


Attach the upper corner support (P3) to the ceiling brackets using M8 - 1.25 x 12 (F1) (4) and M8 - 1.25 rectangular nuts (F4) (4). Make sure they are positioned on the 24"/48" layout as required.

1. Attach upper center supports (2' x 8')


Attach the upper center supports (P5) to the ceiling brackets using one of the methods detailed above, depending on ceiling bracket mounting approach.

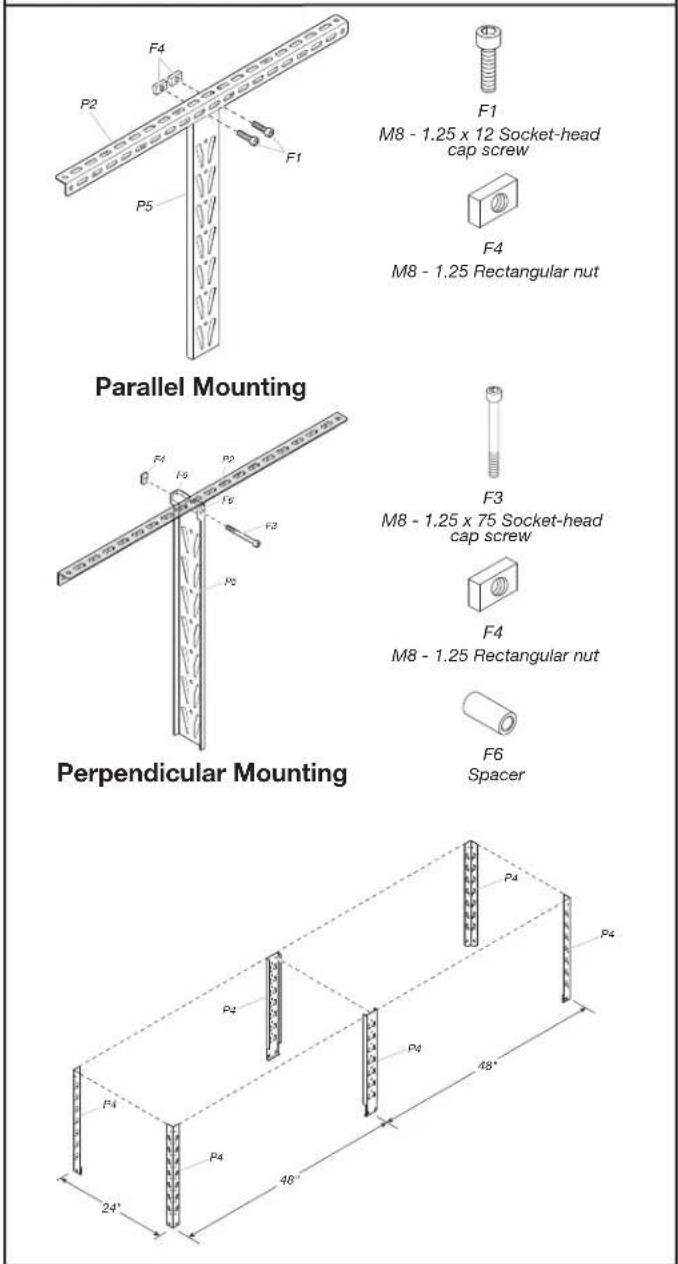

Parallel Mounting

Attach supports using M8 - 1.25 x 12 socket-head cap screws (F1) (2) and M8 - 1.25 rectangular nuts (F4) (2) on each upper center support.

Perpendicular Mounting

Attach supports using M8 - 1.25 x 75 socket-head cap screws (F3), M8 - 1.25 rectangular nuts (F4) and spacer (F6) (2) on each upper center support. Verify that all of the upper supports are properly spaced. They should be on a 24"/48" pattern as shown in the figure.

Installing the Overhead GearLoft™ Storage Rack

WARNING

Excessive Weight Hazard

Use two or more people to move storage rack.

Failure to do so can result in back or other injury.

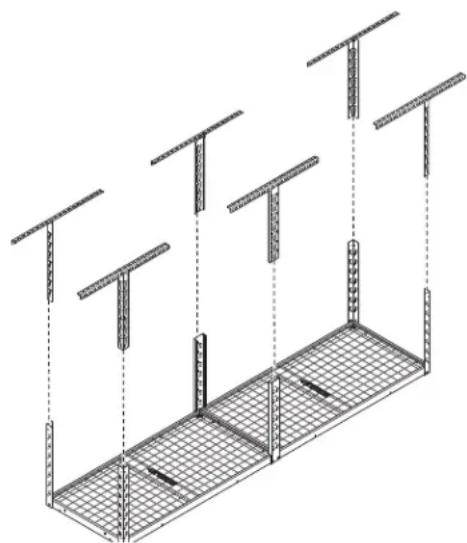

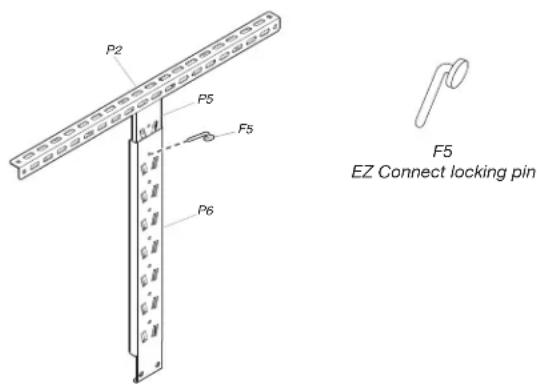

1. Attach the EZ Connect supports


Using two or more people, the rack system can be easily lifted and positioned overhead. The EZ Connect feature allows for positioning 23" to 37.8" from the ceiling. Lift the rack into place and connect the lower supports to the upper supports. Make sure the rack supports are facing the same way and the rack is level.

1. Complete the assembly


Make sure all bolts and screws are tight. Once the rack is in the desired location below the ceiling, place an EZ Connect locking pin (F5) in a hole on each of the corner and center supports to lock/retain them together. The pins go through both upper and lower supports.

NOTE: The rack system can be repositioned up or down by removing all locking pins and relocating the EZ Connect position on the supports. Use two or more people to relocate the rack and replace the EZ Connect locking pins (F5).

Storage Rack Care

■ Wash storage rack with a mild liquid detergent and warm water using a soft, clean cloth.

■Check fastener tightness annually.

Registering Your Product

There are many benefits of registering your product. Find out more and register your product online at www.gladiatorgarageworks.com. In the USA, call 1-866-342-4089. Consumers in Canada can call 1-800-807-6777.

WARRANTY

For warranty information:

In the U.S.A. call 1-866-342-4089 or visit our website at

www.gladiatorgarageworks.com

In Canada call 1-800-807-6777 or visit our website at

www.gladiatorgarageworks.ca

SÉCURITÉ DE L'ÉTAGÈRE DE RANGEMENT SURÉLEVÉE GEARLOFT™

www.gladiatorgarageworks.com

www.gladiatorgarageworks.ca

SEGURIDAD DE LA ESTANTERÍA DE ALMACENAMIENTO GEARLOFT™ EN ALTURA

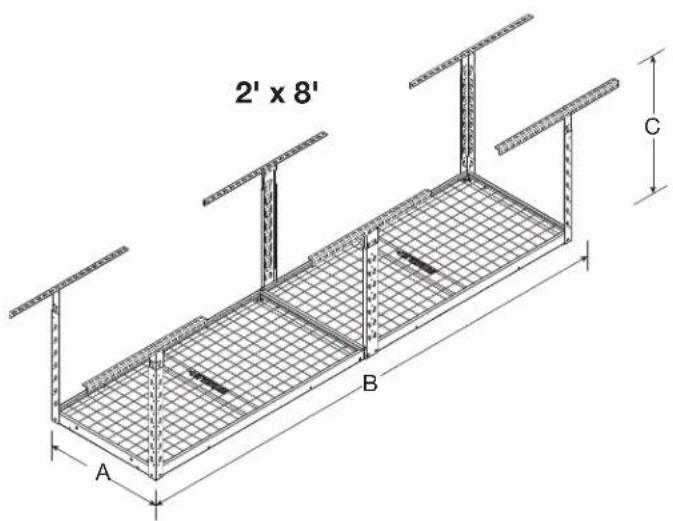

MODELO	GALS24M1KG GALS24M1KW	GALS28M2KG GALS28M2KW	GALS44M2KG GALS44M2KW
A 24" (61 cm) 24" (61 cm) 48" (122 cm)
B 48" (122 cm) 96" (244 cm) 48" (122 cm)
C 23" (58,4 cm) mín. y 37,8" (96 cm) máx.		23" (58,4 cm) mín. y 37,8" (96 cm) máx.	23" (58,4 cm) mín. y 37,8" (96 cm) máx.

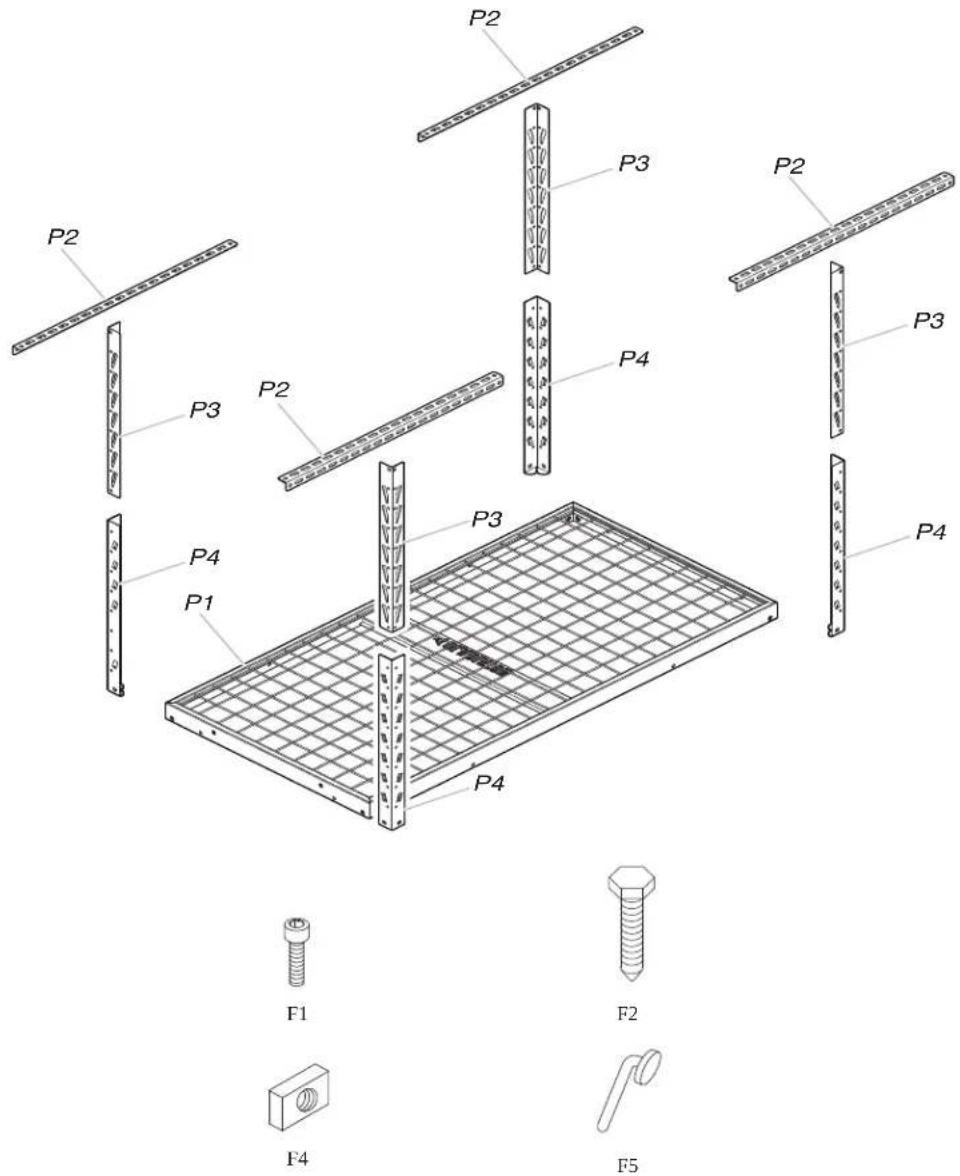

PIEZAS - 2 PIES X 4 PIES
GALS24M1KG GALS24M1KW

www.gladiatorgarageworks.com

www.gladiatorgarageworks.ca

^® / ^TM ©2024 Gladiator. All rights reserved. Used under license in Canada.
