Product Type	Overhead Garage Storage Shelf
Brand	Gladiator
Model	GALS28M2KG
Shelf Dimensions (W x D)	2 ft x 8 ft (61 cm x 244 cm)
Ceiling Clearance (Adjustable)	From 23 in to 37.8 in (58.4 cm to 96 cm) from ceiling
Maximum Weight Capacity	500 lb (227 kg)
Material	Steel
Finish	Powder Coated
Mounting Type	Ceiling mount on wood joists (max center 24 in)
Number of Shelf Sections	2 sections of 2 ft x 4 ft assembled
Ceiling Brackets Included	6 brackets
Vertical Supports	4 corner brackets (upper/lower) + 2 center brackets (upper/lower)
Height Adjustment System	EZ Connect Positioning Rods
Recommended Number of People for Installation	At least 2 people
Tools Required	Power drill, 3/16 in bit, 1/2 in socket wrench, 6 mm hex key, stud finder, tape measure, stepladder, pencil, masking tape
Maintenance	Clean with mild detergent and warm water; check screw tightness annually
Warranty	See manual or contact customer service
Intended Use	Indoor (garage); overhead storage of light items
Country of Origin	Not specified in manual (estimated: USA or China)

Frequently Asked Questions - GALS28M2KG Gladiator

What is the maximum weight capacity of the GALS28M2KG shelf?

The maximum weight capacity is 500 lb (227 kg) for the 2 ft x 8 ft model.

What tools do I need to assemble the shelf?

The required tools are: a power drill, a 3/16 in bit (included), a 1/2 in socket or open-end wrench, a 6 mm hex key (included), a stud finder, a tape measure, a stepladder, a pencil, and masking tape.

How many people are needed for installation?

At least two people are needed to move and install the shelf due to its weight.

Can I install this shelf on a drywall ceiling?

Yes, but you must use a stud finder to locate the wood joists behind the drywall and attach the ceiling brackets directly into the joists. Do not attach only to the drywall.

How do I adjust the height of the shelf after installation?

Remove all EZ Connect Positioning Rods, reposition the shelf to the desired height (between 23 in and 37.8 in from the ceiling), then reinsert the rods into the corresponding holes. At least two people are required.

How do I maintain the shelf?

Clean with mild detergent and warm water using a soft cloth. Check the tightness of all screws annually.

What is the warranty on this product?

The warranty is mentioned in the manual. For more information, contact customer service: in the US 1-866-342-4089, in Canada 1-800-807-6777, or visit www.gladiatorgarageworks.com.

Can I use this shelf outdoors?

No, this shelf is designed for indoor use only (garage). Outdoor use may cause rust or damage.

Are the shelf dimensions exact in centimeters?

Yes, the dimensions are 61 cm x 244 cm (2 ft x 8 ft) for the shelf surface. The ceiling clearance is adjustable from 58.4 cm to 96 cm.

Is the hardware included in the box?

Yes, all necessary hardware is provided: cap screws, lag screws, square nuts, EZ Connect Positioning Rods, shims (depending on model). Check the parts list in the manual.

USER MANUAL GALS28M2KG Gladiator

PARTS 2 FT X 4 FT....4

PARTS 2 FT X 8 FT....5

PARTS 4 FT X 4 FT....6

ASSEMBLY INSTRUCTIONS......7

Unpack the Overhead GearLoft™

Storage Rack....7

Tools and Parts 7

Overhead GearLoft™ Storage Rack

Use Requirements ....7

Assembling the Rack 8

Installing the Overhead GearLoft™

Storage Rack....11

Storage Rack Care....11

Registering Your Product......11

WARRANTY....11

SÉCURITÉ DE L'ÉTAGÈRE DE

RANGEMENT SURELEVÉE

GEARLOFT™ 12

DIMENSIONS ......13

PIÈCES 2 PI X 4 PI....14

PIÈCES 2 PI X 8 PI....15

PIÈCES 4 PI X 4 PI....16

INSTRUCTIONS D'ASSEMBLAGE...17

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."

These words mean:

DANGER

You can be killed or seriously injured if you don't immediately follow instructions.

WARNING

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

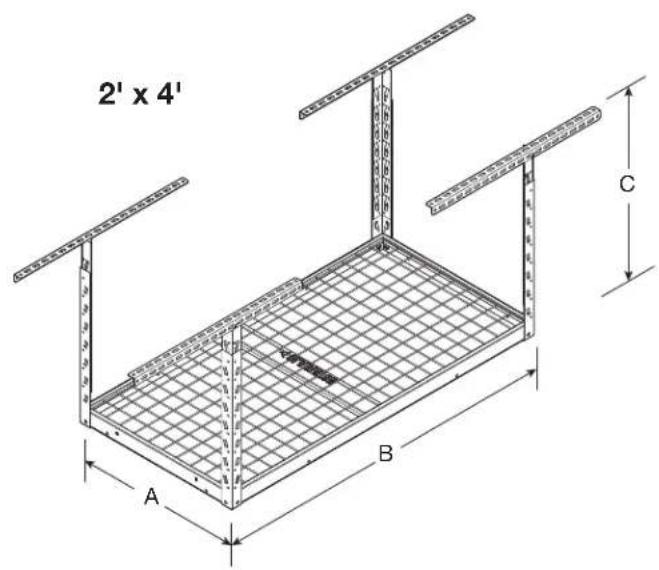

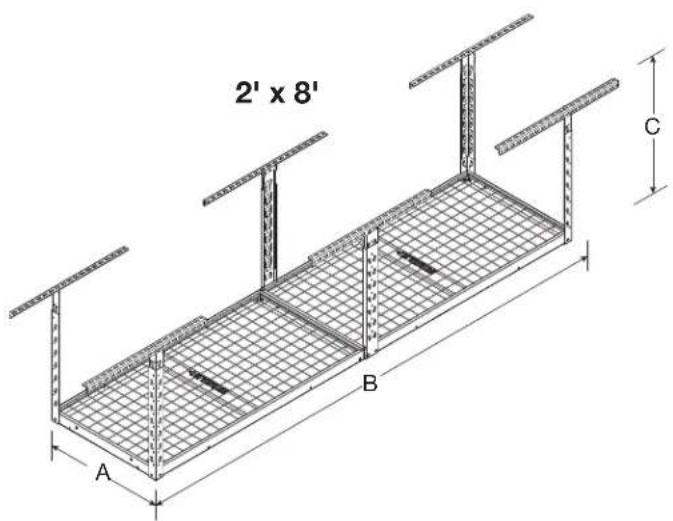

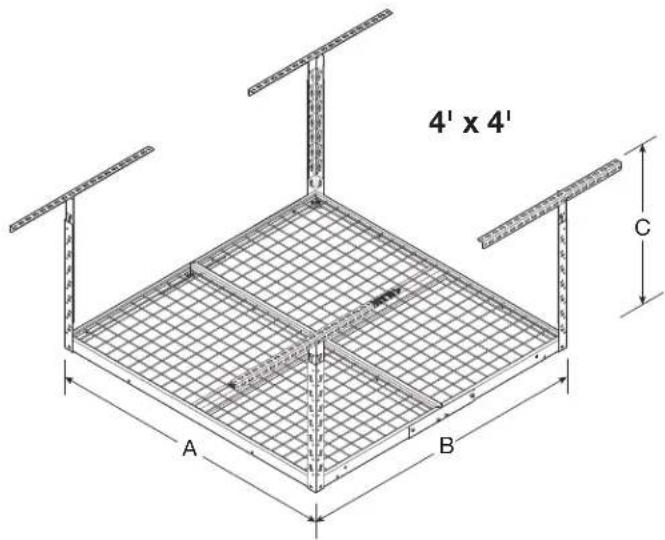

DIMENSIONS

MODEL	GALS24M1KG GALS24M1KW	GALS28M2KG GALS28M2KW	GALS44M2KG GALS44M2KW
A 24" (61 cm) 24" (61 cm) 48" (122 cm)
B 48" (122 cm) 96" (244 cm) 48" (122 cm)
C 23" (58.4 cm) min. and 37.8" (96 cm) max.		23" (58.4 cm) min. and 37.8" (96 cm) max.	23" (58.4 cm) min. and 37.8" (96 cm) max.

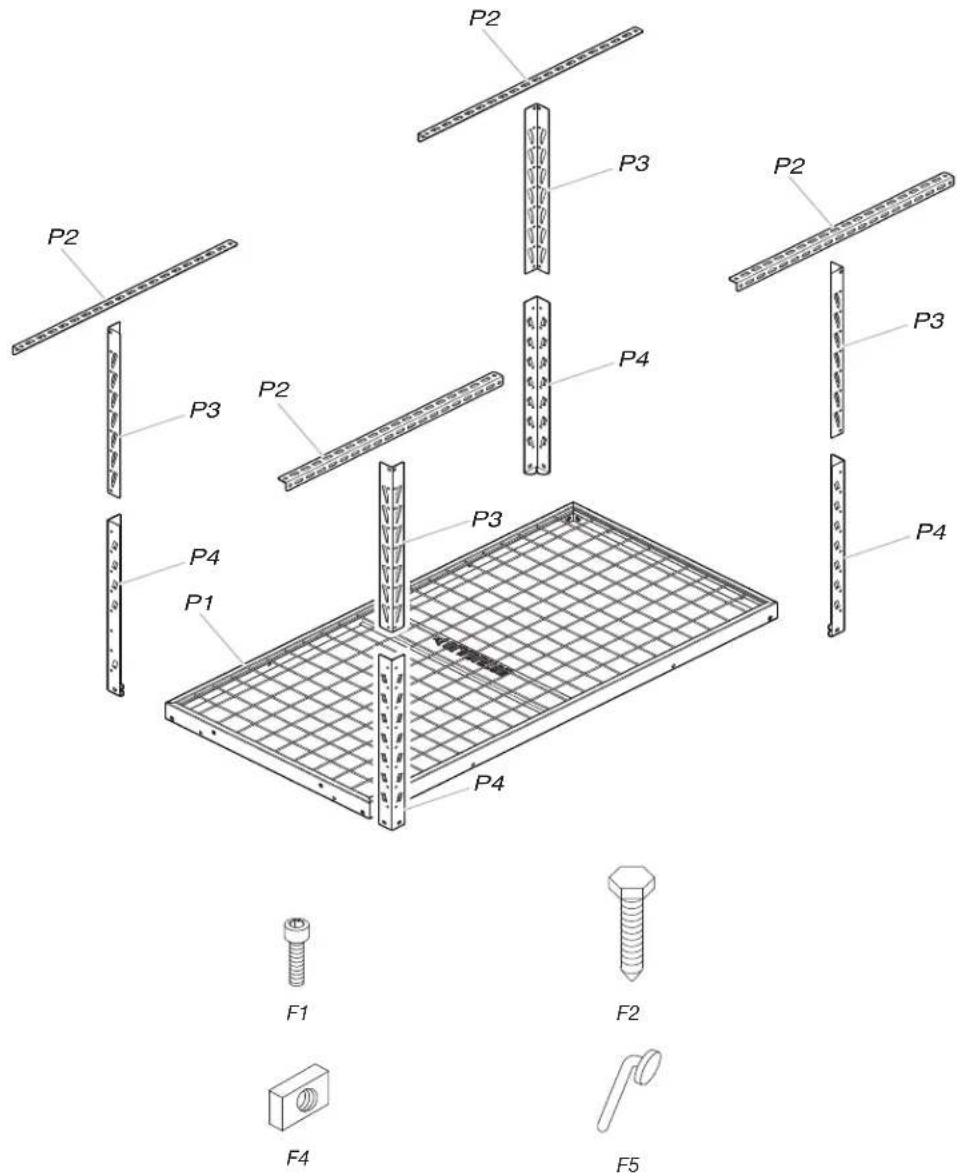

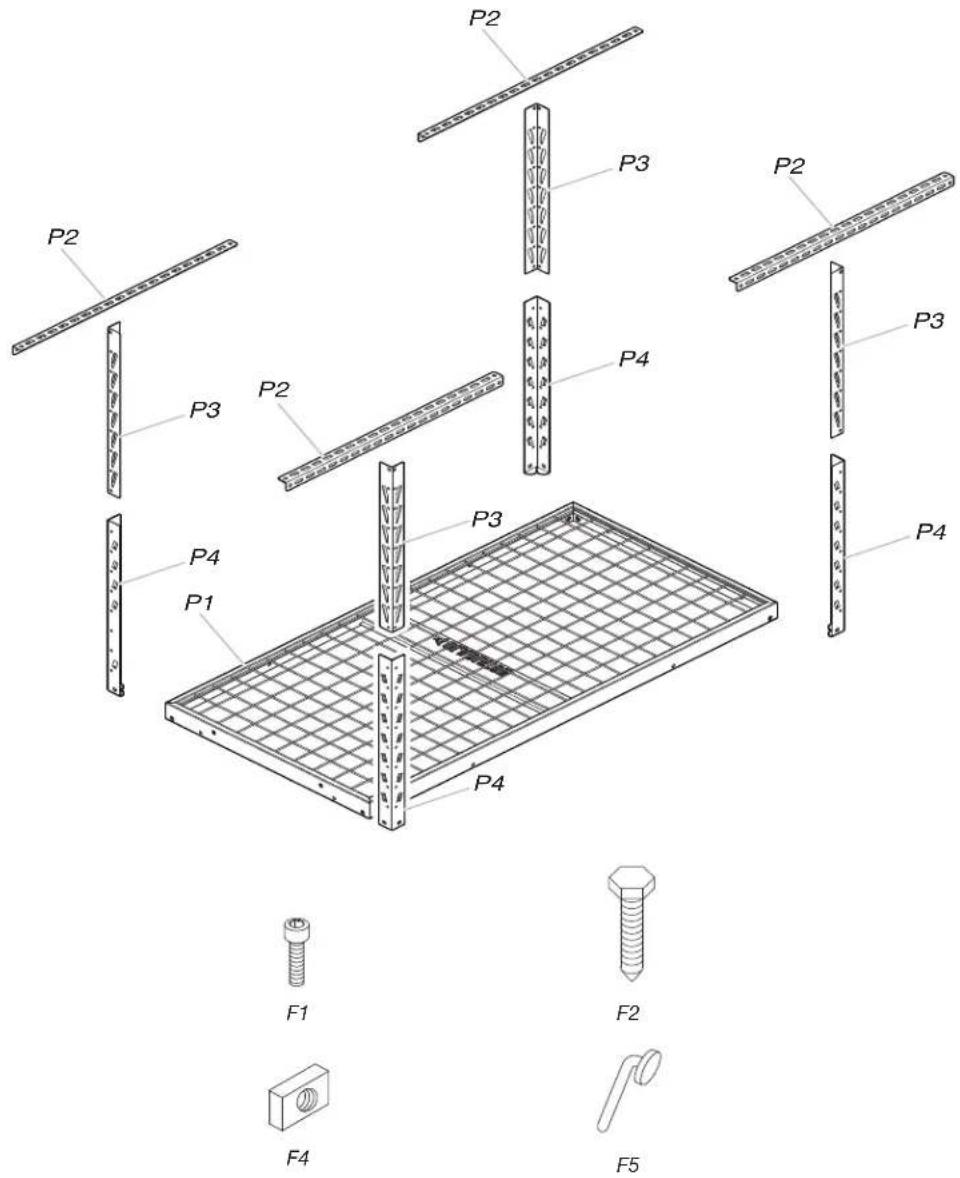

PARTS - 2 FT X 4 FT
GALS24M1KG GALS24M1KW

Label Description Quantity
P1 2' x 4' rack section 1
P2 Ceiling bracket 4
P3 Vertical corner support - upper 4
P4 Vertical corner support - lower 4
F1 M8 -	1.25 x 12 socket-head cap screw 12
F2 5/16' x 3" lag bolt 8
F4	M8 - 1.25 rectangular nut	4
F5	EZ Connect locking pin	4

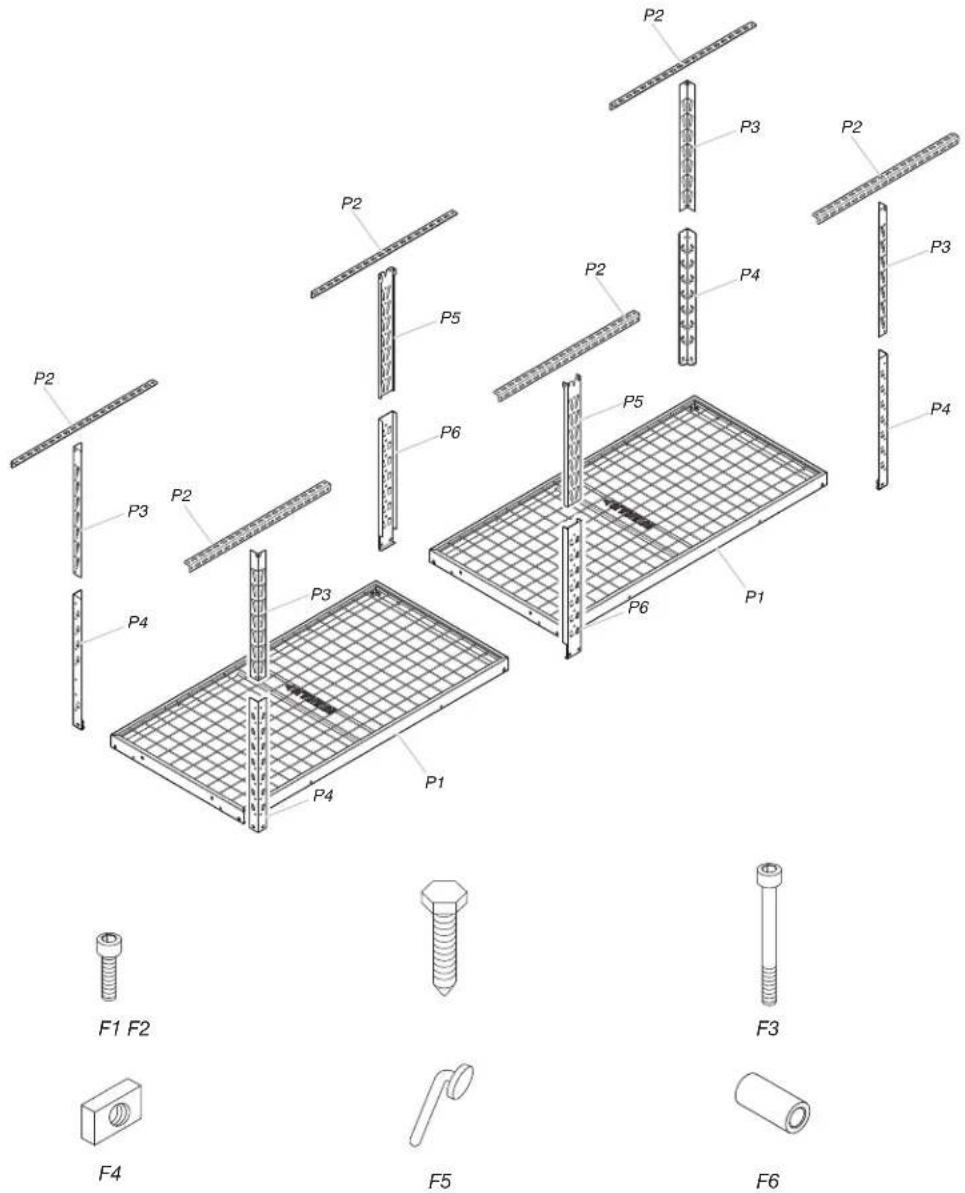

PARTS - 2 FT X 8 FT
GALS28M2KG GALS28M2KW

Label Description Quantity
P1 2' x 4' rack section 2
P2 Ceiling bracket 6
P3 Vertical corner support - upper 4
P4 Vertical corner support - lower 4
P5 Vertical center support - upper 2
P6 Vertical center support - lower 2
F1 M8 - 1.25 x 12 socket-head cap screw 22
F2	5/16" x 3" lag bolt	12
F3 M8 - 1.25 x 75 socket-head cap screw 2
F4	M8 - 1.25 rectangular nut	10
F5	EZ Connect locking pin	6
F6	Spacer	4

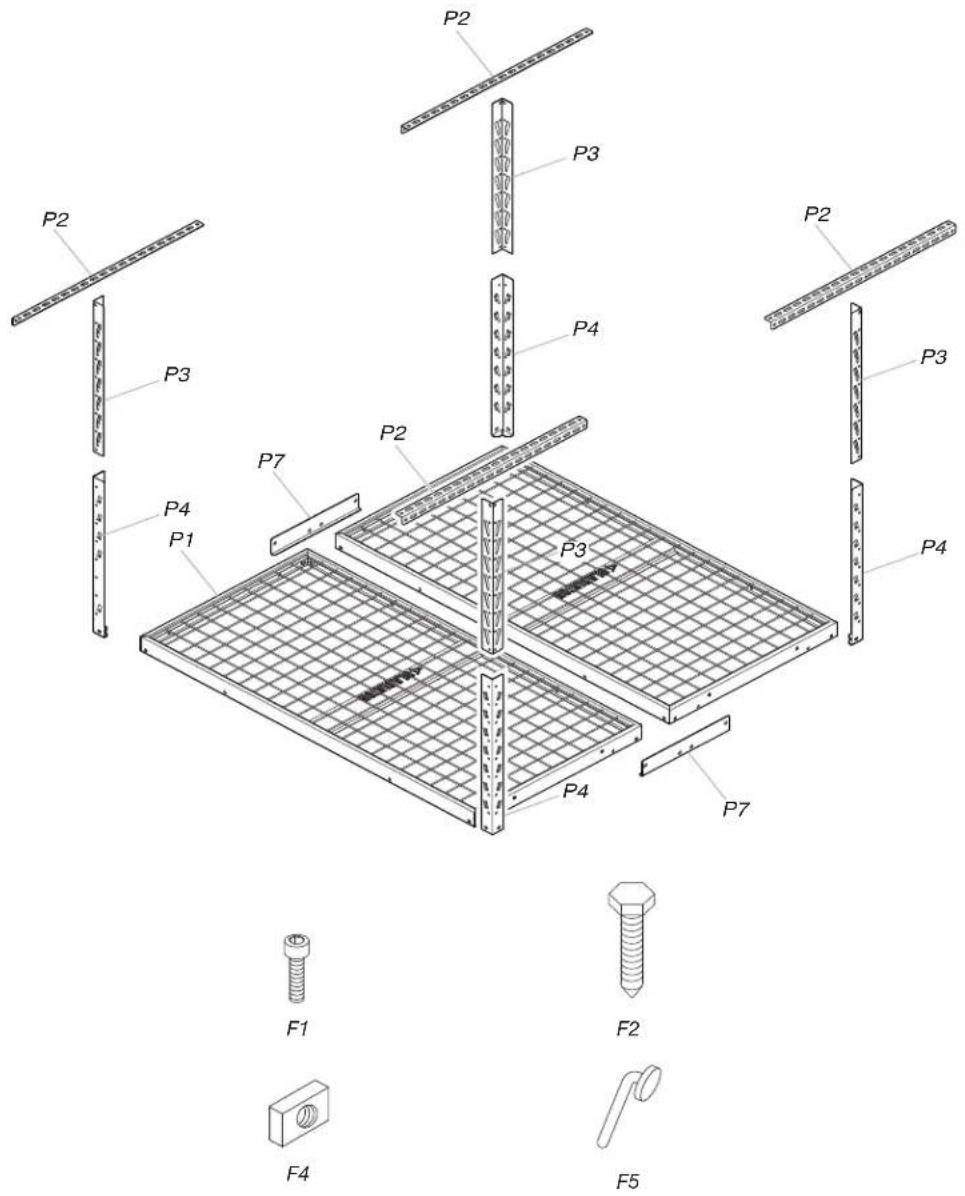

PARTS - 4 FT X 4 FT
GALS44M2KG GALS44M2KW

Label Description Quantity
P1 2' x 4' rack section 2
P2 Ceiling bracket 4
P3 Vertical corner support - upper 4
P4 Vertical corner support - lower 4
P7 Rack connection bracket 2
F1 M8 - 1.25 x 12 socket-head cap screw 22
F2 5/16" x 3" lag bolt 8
F4	M8 - 1.25 rectangular nut	6
F5	EZ Connect locking pin	4

ASSEMBLY INSTRUCTIONS

Unpack the Overhead GearLoft™ Storage Rack

1. Unpack the rack sections, support sections, ceiling brackets and all hardware. Verify contents. See "Parts."
2. Dispose of all packaging materials properly.

Tools and Parts

■Install Overhead GearLoft™ Storage Rack according to manufacturer's instructions and any local codes.
■Only use provided fasteners. Do not use an alternate form of mounting. Do not alter or modify any components included with this product.
■Gather the required tools and parts before starting assembly.
■Read entire manual before starting assembly.

WARNING

Excessive Weight Hazard

Use two or more people to move storage rack.

Failure to do so can result in back or other injury.

Tools Needed

■Electric drill
■Drill bit (3/16") - included
■1/2" socket wrench and/or 1/2" open end wrench
■6 mm hex wrench - included
■Stud finder (If ceiling has drywall covering joists/rafters)
■Tape measure
■Step stool or step ladder
■Pencil / Marker
■Masking tape

Overhead GearLoft™ Storage Rack Use Requirements

1. Intended for garage use, installed into a wood framed/traditional wood structure type dwelling.
2. To be used for storing lightweight items overhead and out of the way.
3. Recommended to be positioned 80" minimum above floor (standard door opening height).
4. Check for clearance of all doors, vehicles, or any items to be positioned under the storage rack.
5. The maximum weight of all items combined on the rack not to exceed:

2 ft x 4 ft - 350 lbs.
2 ft x 8 ft - 500 lbs.
4 ft x 4 ft - 500 lbs.

Assembling the Rack

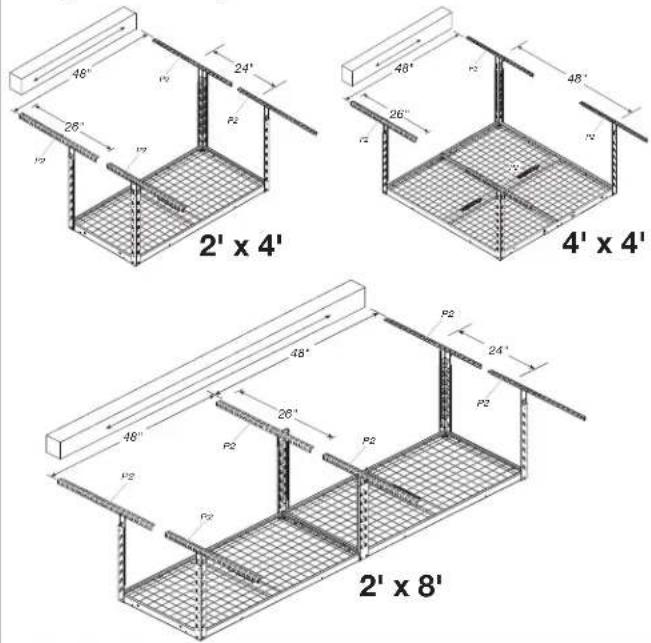

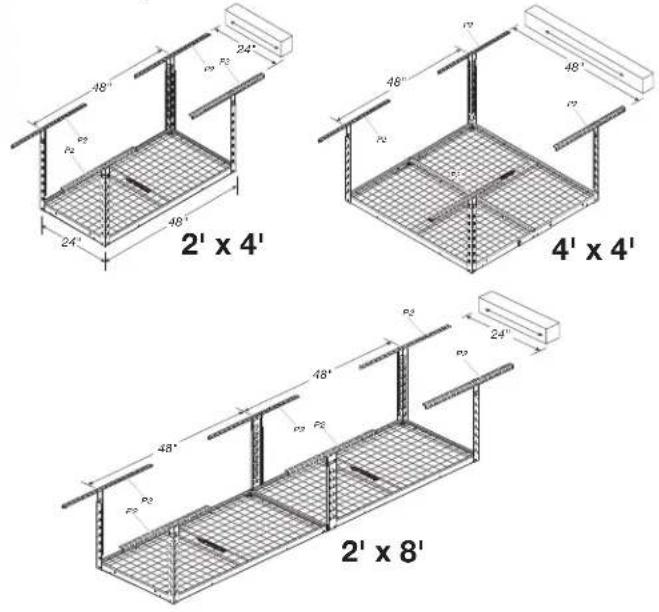

1. Determine the ceiling bracket locations

Parallel layout

Perpendicular layout

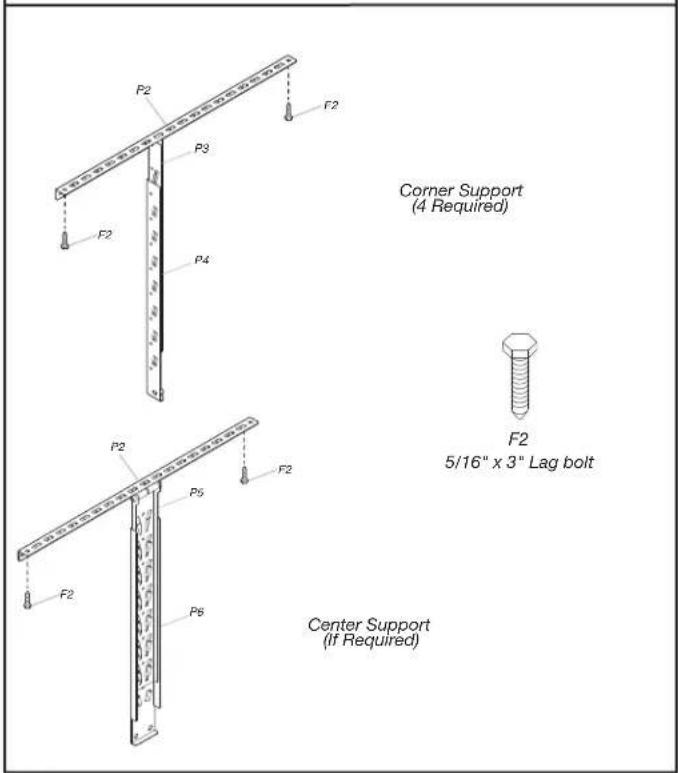

2. Attach the ceiling brackets

Using the provided drill bit (3/16"), drill all pilot holes in the center of the joists/rafters. Two lag bolts must be used on each bracket, one on each side of the vertical support. Mount the ceiling brackets (P2) using 5/16" x 3" lag bolts (F2) (8 or 12).

The storage rack ceiling brackets can be positioned parallel or perpendicular to the wood ceiling joists/rafters. Determine the application required for your desired installation. If drywall covers the joists, use a stud finder to determine the joist/rafter locations and mark with masking tape. For applications requiring installation of the brackets perpendicular to the joists/rafters, the maximum distance between them is 24". The brackets included allow for a 24" maximum span. See figure for typical ceiling layouts. Mark the location of the ceiling brackets on the joists/rafters or drywall, making sure the vertical supports can be positioned between the lag bolts used to attach the brackets. Position the center of the brackets on a 24"/48" grid as required.

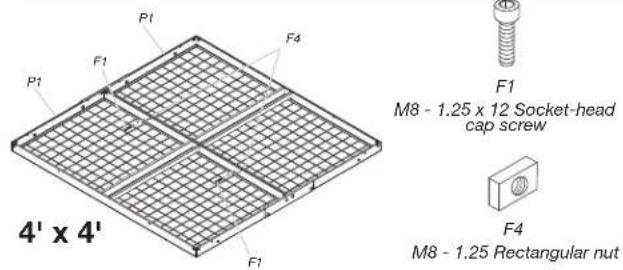

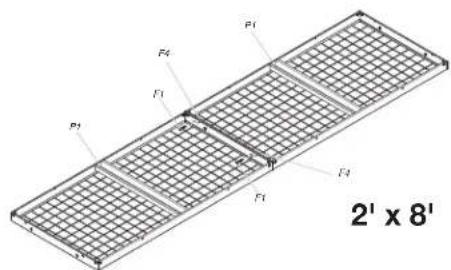

1. Connect the racks (4' x 4', 2' x 8')


Lay two rack sections upside down on the floor. Assemble the rack sections (P1) together using M8 - 1.25 x 12 socket-head cap screws (F1) (2) and M8 - 1.25 Rectangular nuts (F4) (2).

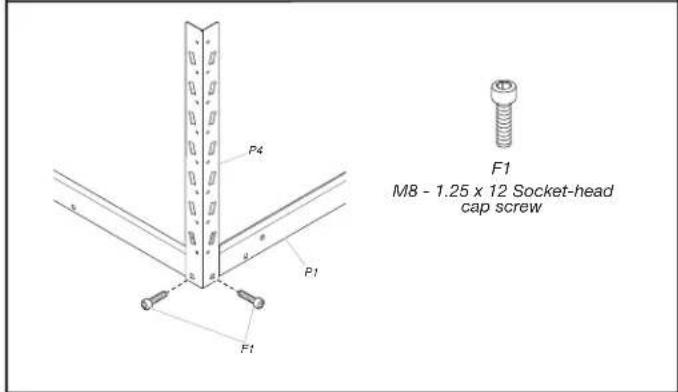

1. Attach lower corner supports


Attach the four lower corner supports (P4) to the rack corners using M8 - 1.25 x 12 socket-head cap screws (F1) (8).

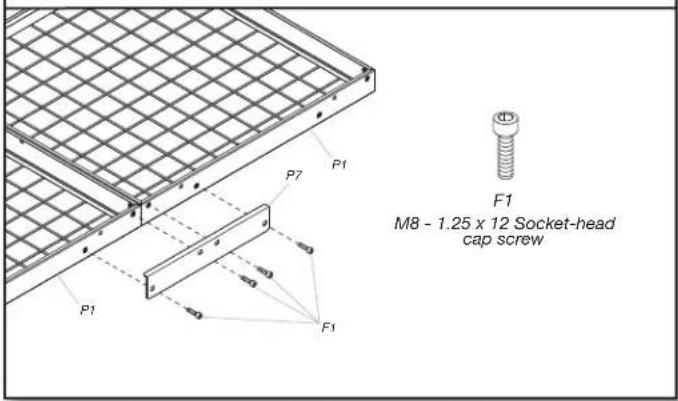

1. Attach the rack brackets (4' x 4')


Attach the rack connection brackets (P7) to both sides of the two bolted-together rack sections using M8 - 1.25 x 12 socket-head cap screws (F1) (8).

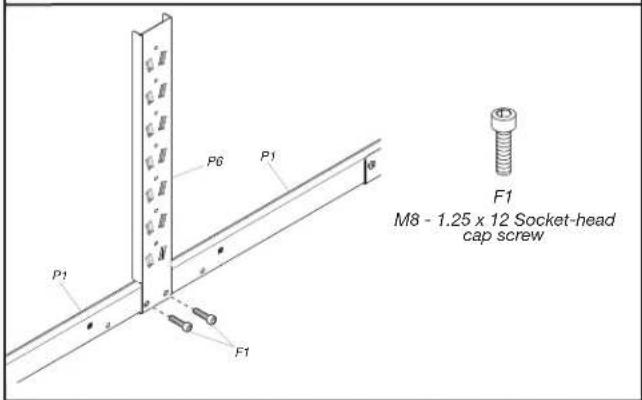

1. Attach lower center supports (2' x 8')


Attach the two lower center supports (P6) to the rack assembly using M8 - 1.25 x 12 socket-head cap screws (F1) (4).

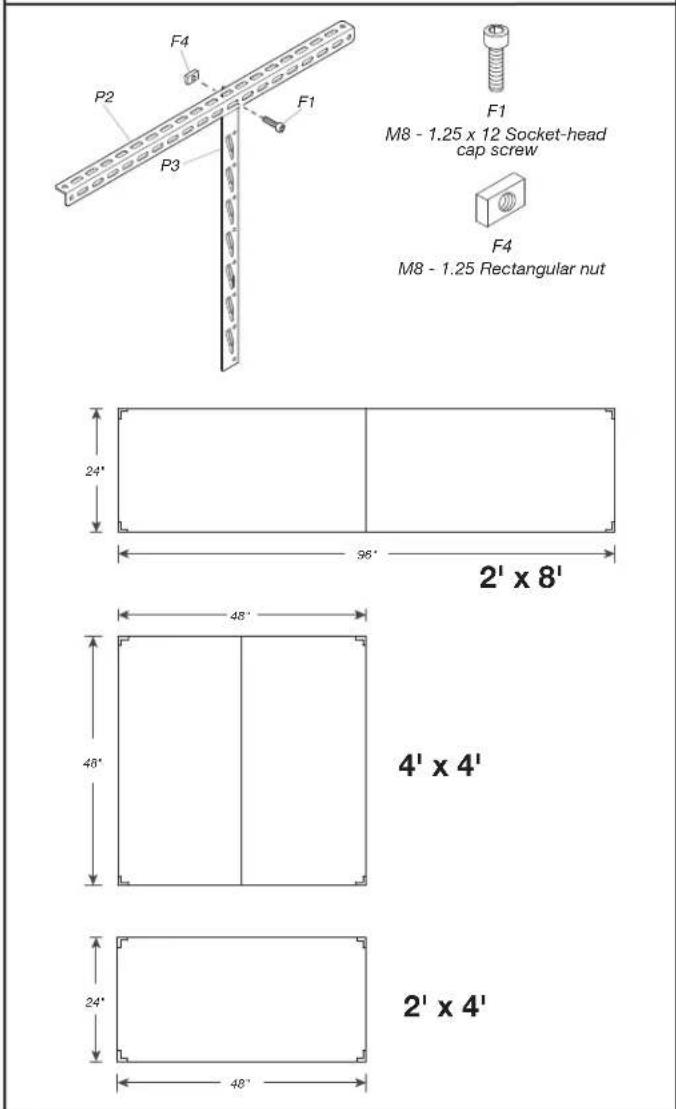

1. Attach upper corner supports


Attach the upper corner support (P3) to the ceiling brackets using M8 - 1.25 x 12 (F1) (4) and M8 - 1.25 rectangular nuts (F4) (4). Make sure they are positioned on the 24"/48" layout as required.

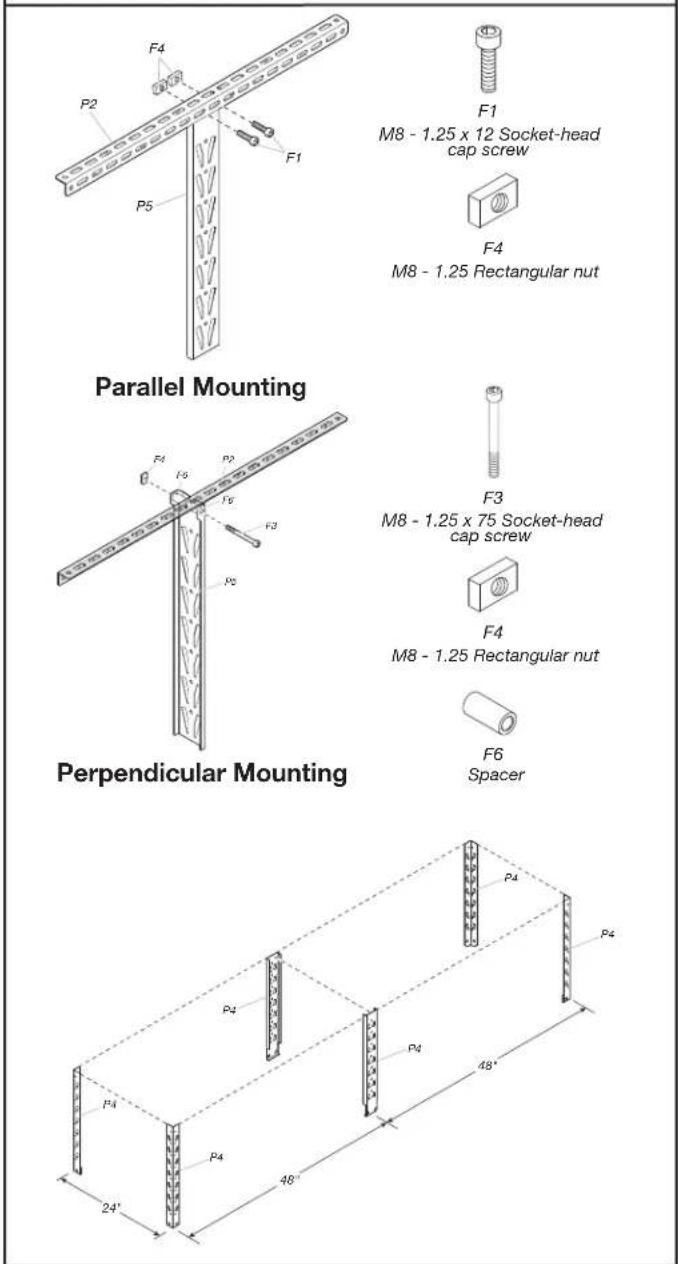

1. Attach upper center supports (2' x 8')


Attach the upper center supports (P5) to the ceiling brackets using one of the methods detailed above, depending on ceiling bracket mounting approach.

Parallel Mounting

Attach supports using M8 - 1.25 x 12 socket-head cap screws (F1) (2) and M8 - 1.25 rectangular nuts (F4) (2) on each upper center support.

Perpendicular Mounting

Attach supports using M8 - 1.25 x 75 socket-head cap screws (F3), M8 - 1.25 rectangular nuts (F4) and spacer (F6) (2) on each upper center support. Verify that all of the upper supports are properly spaced. They should be on a 24"/48" pattern as shown in the figure.

Installing the Overhead GearLoft™ Storage Rack

WARNING

Excessive Weight Hazard

Use two or more people to move storage rack.

Failure to do so can result in back or other injury.

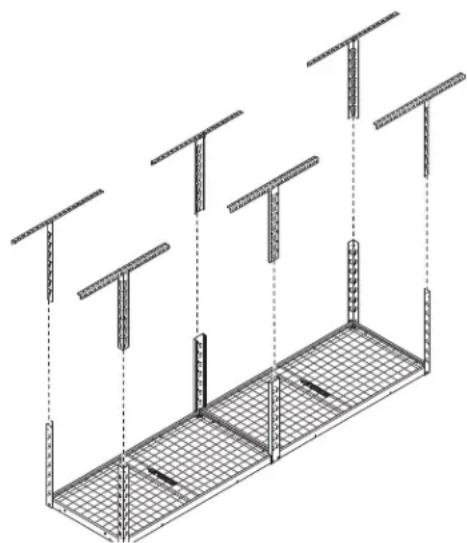

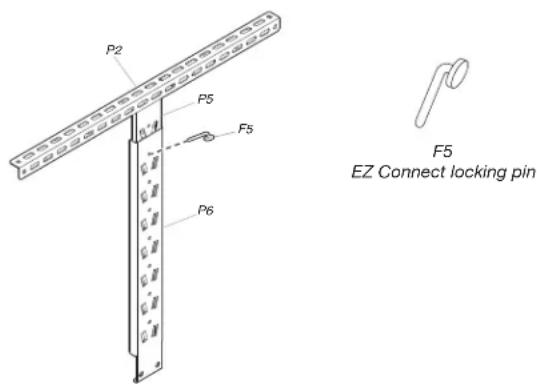

1. Attach the EZ Connect supports


Using two or more people, the rack system can be easily lifted and positioned overhead. The EZ Connect feature allows for positioning 23" to 37.8" from the ceiling. Lift the rack into place and connect the lower supports to the upper supports. Make sure the rack supports are facing the same way and the rack is level.

1. Complete the assembly


Make sure all bolts and screws are tight. Once the rack is in the desired location below the ceiling, place an EZ Connect locking pin (F5) in a hole on each of the corner and center supports to lock/retain them together. The pins go through both upper and lower supports.

NOTE: The rack system can be repositioned up or down by removing all locking pins and relocating the EZ Connect position on the supports. Use two or more people to relocate the rack and replace the EZ Connect locking pins (F5).

Storage Rack Care

■ Wash storage rack with a mild liquid detergent and warm water using a soft, clean cloth.

■Check fastener tightness annually.

Registering Your Product

There are many benefits of registering your product. Find out more and register your product online at www.gladiatorgarageworks.com. In the USA, call 1-866-342-4089. Consumers in Canada can call 1-800-807-6777.

WARRANTY

For warranty information:

In the U.S.A. call 1-866-342-4089 or visit our website at

www.gladiatorgarageworks.com

In Canada call 1-800-807-6777 or visit our website at

www.gladiatorgarageworks.ca

SÉCURITÉ DE L'ÉTAGÈRE DE RANGEMENT SURÉLEVÉE GEARLOFT™

www.gladiatorgarageworks.com

www.gladiatorgarageworks.ca

SEGURIDAD DE LA ESTANTERÍA DE ALMACENAMIENTO GEARLOFT™ EN ALTURA

MODELO	GALS24M1KG GALS24M1KW	GALS28M2KG GALS28M2KW	GALS44M2KG GALS44M2KW
A 24" (61 cm) 24" (61 cm) 48" (122 cm)
B 48" (122 cm) 96" (244 cm) 48" (122 cm)
C 23" (58,4 cm) mín. y 37,8" (96 cm) máx.		23" (58,4 cm) mín. y 37,8" (96 cm) máx.	23" (58,4 cm) mín. y 37,8" (96 cm) máx.

PIEZAS - 2 PIES X 4 PIES
GALS24M1KG GALS24M1KW

4' × 4'
