LITOSFÄR 905.466.90 - Battery charger IKEA - Free user manual and instructions

Product type	Battery charger
Brand	IKEA
Model	LITOSFÄR 905.466.90
Number of charging slots	8
Compatible battery types	Rechargeable Ni-MH, types HR6/AA or HR03/AAA
Minimum required capacities	AA: 1000 mAh, AAA: 500 mAh
Input voltage	100-240 VAC, 0.09 A
Output voltage	AA: 1.5 V, 0.24 A × 8; AAA: 1.5 V, 0.12 A × 8
Charging technology	Individual delta minus/delta zero voltage detection, trickle charge, timer, temperature sensors
Charge indicator	Bi-color LED per slot (steady white: charged, blinking white: charging, blinking red: error)
Storage compartment	Yes, in the lid (can hold up to 8 additional AA and 4 AAA batteries)
Wall mounting	Possible via two keyhole slots on the back
Usage	Indoor only
Cleaning and care	Unplug before cleaning, use a damp cloth, do not immerse
Safety	Do not open, do not repair yourself, do not recharge non-rechargeable or damaged batteries

Frequently Asked Questions - LITOSFÄR 905.466.90 IKEA

What types of batteries can I charge with the LITOSFÄR?

This charger is designed for rechargeable Ni-MH batteries of type AA (HR6) and AAA (HR03) with a minimum capacity of 1000 mAh for AA and 500 mAh for AAA. Do not attempt to recharge non-rechargeable batteries.

How many batteries can I charge at the same time?

You can charge up to 8 batteries simultaneously, each slot being independent. AA and AAA batteries can be mixed.

What does the blinking white LED mean?

The blinking white LED indicates that the battery is charging. Once charging is complete, the LED becomes steady white.

What to do if the red LED blinks?

A red blinking indicates an error: the battery may be non-rechargeable, damaged, at a temperature outside the range (0-40°C), or inserted incorrectly (reversed polarity). Remove and check the battery.

Can I leave batteries in the charger after charging?

Yes, the charger switches to trickle charge mode automatically. Batteries can remain in the slots without discharging.

How to clean the LITOSFÄR charger?

Always unplug the charger before cleaning. Use a damp cloth (no solvents) and never immerse the charger in water.

Can the charger be mounted on the wall?

Yes, the LITOSFÄR has two keyhole slots on the back for wall mounting. Make sure to secure it firmly.

How long does it take to charge batteries?

The duration depends on capacity, residual charge level, battery age, and ambient temperature. Expect approximately a few hours; new batteries require 2 to 3 cycles for optimal performance.

Is it safe to leave the charger plugged in permanently?

It is recommended to unplug the charger from the outlet when not in use to save energy and avoid any risk. The charger switches to trickle mode, but safety is ensured by sensors.

What to do if the charger does not work?

First check the power outlet and cable. Make sure you are using compatible rechargeable batteries. If the problem persists, do not attempt to repair the device yourself; contact IKEA or a professional.

USER MANUAL LITOSFÄR 905.466.90 IKEA

Simple line drawing of a rectangular object with a vertical rod and attached cable (no text or symbols)

Diagram of an electrical connector with battery pack and cable, showing internal components (no text or labels)

Typical charging time(H)		1-8 pcs
	AA/HR6 2450mAh	11h
	AA/HR6 1900mAh	8.5h
	AAA/HR03 900mAh	8h
	AAA/HR03 750mAh	7h

English 4

Français 8

Español 14

English

Warning:

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved by a person responsible for their safety. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

CAUTION

• Disconnect the charger from the power outlet before cleaning or when it is not used.
• Use damp cloth when cleaning the charger. Do

not immerse into water.

• Risk of Injury. Risk of Electric Shock. Indoor use only.
• Charge only Ni-MH type rechargeable batteries with minimum capacity 500mAh (AAA) or 1000mAh (AA).
  • DO NOT TRY TO CHARGE NON-RECHARGEABLE BATTERIES.
• Do not try to charge damaged batteries.

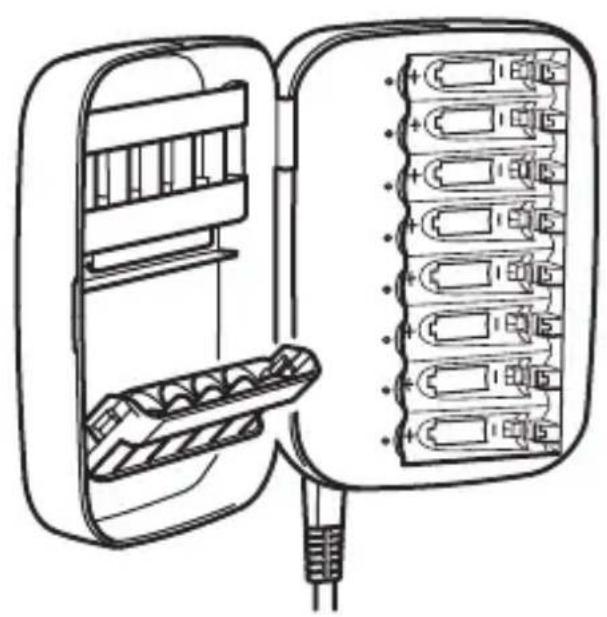

Product features

• 8 individual charging slots.
- Charge and store up to 8 pieces of rechargeable batteries.
• Each slot can fit both HR6/AA or HR03/AAA rechargeable battery.
- Charge is terminated by individual minus delta or zero delta voltage detection (-dV/dT or 0dV/dT)
• After batteries are fully charged and the charger remains powered, it will go into trickle charging.

Batteries can be stored in the charging slots without discharging.
- Safety by separate safety timer and temperature sensors.
• Non-rechargeable and damaged batteries detection.
- Charging status with 2 color LED indicator for each slot.
- Store up to 8 HR6/AA batteries and 4 HR03/AAA additional batteries in the storage compartment inside the lid. HR6/AA storage slots can also fit HR03/AAA batteries.
• Possible to wall mount the charger by the two key holes located on the back.

Operating instructions

• Connect the provided power cord with charger and plug it into the power outlet.
• Insert the batteries into the charging slots according to the polarity indications (+/-)

• The LED indicator status: White LED pulsing on:
Charging in progress White LED steady on: Charging complete Red LED flashing: Error -inserted batteries are non-rechargeable, damaged, have too high or too low temperature or the batteries are not connected in accordance with polarity indications

- The charger must be connected to power outlet for the trickle charging to work during storage.

- Disconnect the charger from the power outlet before cleaning or when it is not used.

Good to know

- Brand new batteries need 2 to 3 times of charging and usage cycles to optimize the battery performance.

- It is normal for batteries to become hot during charging and they will gradually cool down after charging is finished.

• Charging time may vary based on different battery capacities, remaining charge, battery age and temperature in the surrounding area.
• Charger operating temperature: 0°C to 40°C.

Keep this manual for future use.

PRODUCT SERVICING

Do not attempt to repair this product yourself, as opening or removing covers may expose you to dangerous voltage points or other risks.

Technical data

Model: E2032 LITOSFÄR
Input: 100-240VAC, 0.09A
Output: AA 1.5V, 0.24A x 8 AAA 1.5V, 0.12A x 8

Recommended battery types:

LADDA rechargeable battery AA,
LADDA rechargeable battery AAA

CONFORMS TO UL STD.1310 CERTIFIED TO CSA STD.
C22.2 NO.223-M91

Manufacturer: IKEA of Sweden AB

Address:

Box 702, SE-343 81

Älmhult, SWEDEN

This device complies with Part 15 of the FCC Rules/Innovation Science and Economic Development Canada's licence-exempt RSS standard(s). Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation of the device.

WARNING:

Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

NOTE:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Indoor use only

The crossed-out wheeled bin symbol indicates that the item should be disposed of separately from household waste. The item should be handed in for recycling in accordance with local environmental regulations for waste disposal. By separating a marked item from household waste, you will help reduce the volume of waste sent to incinerators or land-fill and minimize any potential negative impact on human health and the environment. For more information, please contact your IKEA store.

Français

ATTENTION:

RÉPARATION DU PRODUIT
