USER MANUAL BRAUNIT 104.497.54 IKEA

Design and Quality IKEA of Sweden

English 4

Français 14

Español 25

GOOD TO KNOW

• It is normal for the battery to become hot during charging and it will gradually cool down after charging.
• Charging time may vary depending on remaining charge, battery age and ambient temperature.
• Battery storage temperature: -20°C to 25°C (-4°F to 77°F)
• Charger operation temperature: 0°C to 45°C (32°F to 113°F).

• Disconnect the battery from the power outlet before cleaning or when it is not used.

• Battery should not be left discharged for a longer period.

• Battery should not be charged while in contact with flammable material like textiles.
• This battery can only be used with IKEA products.

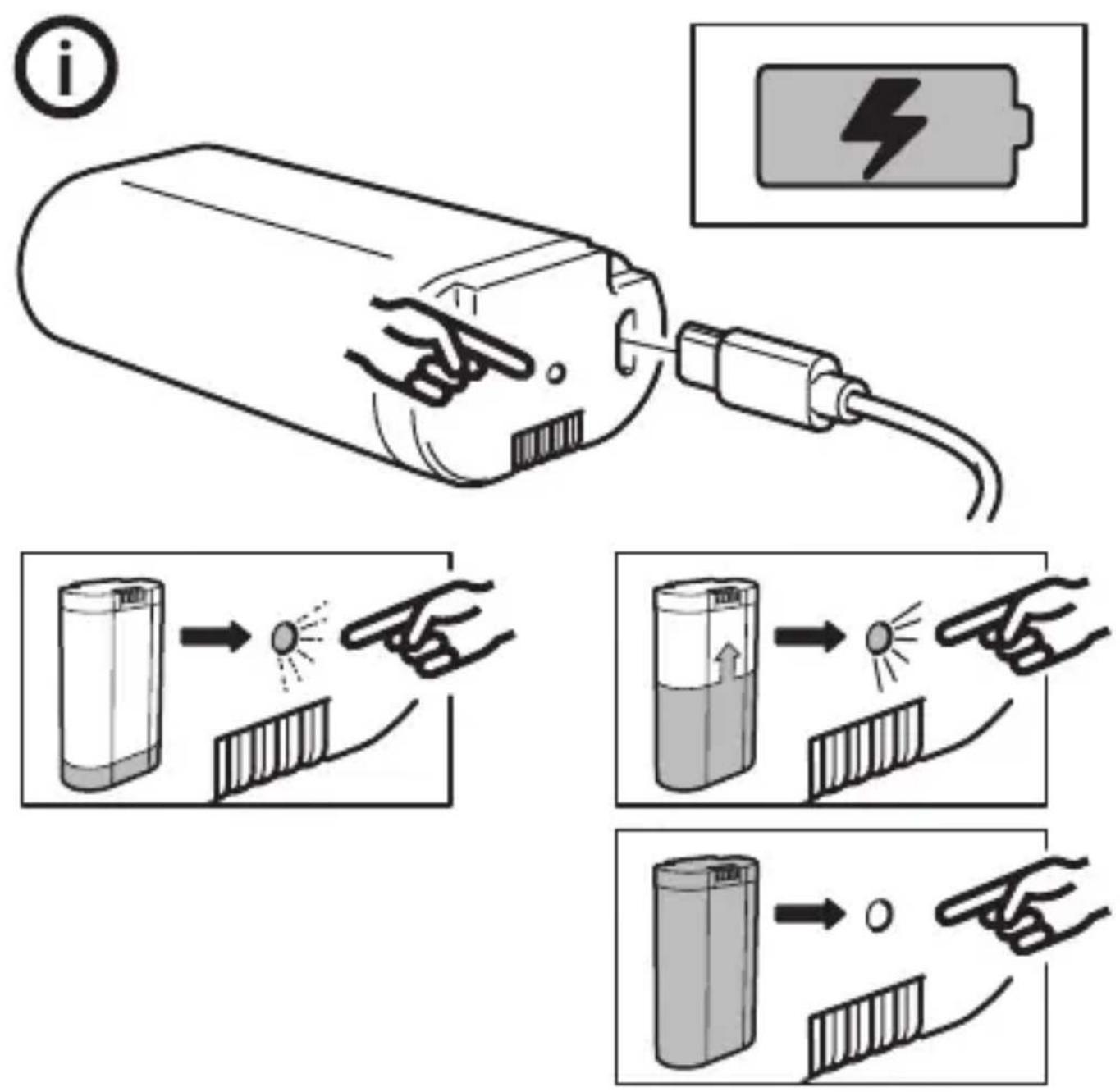

The LED indicator status:

LED On: Charging in progress

LED Off: Charging complete

LED flashing: Error

CAUTION

• Do not modify, disassemble, open, drop, crush, puncture, or shred battery.
• Do not expose the battery to rain or water.
• Risk of fires and burns. Do not open, crush, heat above 140°F (60°C), or incinerate.
• Keep battery away from open flame or sunlight to prevent heat build-up.
• Keep battery away from high voltage devices.
• This product is not a toy, keep away from children. Ensure that all persons who use this product read and follow these warnings and instructions.

7

• Do not short-circuit the battery or its cells.
• In the event of a cell leaking, do not allow the liquid to come in contact with the skin or eyes.

CARE INSTRUCTION

To clean the unit, wipe with a soft cloth moistened with a little mild detergent. Use another soft dry cloth to wipe dry.

NOTE!

Never use abrasive cleaners or chemical solvents since this can damage the product.

Product servicing

Do not attempt to repair this product yourself, as opening or removing covers may expose you to dangerous voltage points or other risks.

Keep this manual for future use.

TECHNICAL DATA

Type: ICBL7.2-18-USB-A1

Capacity: 2600mAh/18.72Wh

Input: DC 5.0V, 1.0A (Micro USB)

DC 8.4V, 2.0A (4 pin connector)

Output: DC 7.2V, 2.0A

For indoor use only

Rechargeable Li-Ion battery cell inside.

This device conforms to UL STD. 2054

Manufacturer: IKEA of Sweden AB

Address:

Box 702, SE-343 81 Älmhult, SWEDEN

This device complies with Part 15 of the FCC Rules.

This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation Science and Economic Development Canada's licence-exempt RSS standard(s).

Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation of the device.

WARNING:

Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

NOTE:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference

to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

The crossed-out wheeled bin symbol indicates that the item should be disposed of separately from household waste. The item should be handed in for recycling in accordance with local environmental regulations for waste disposal. By separating a marked item from household waste, you will help reduce the volume of waste sent to incinerators or land-fill and minimize any potential negative impact on human health and the environment. For more information, please contact your IKEA store.

BON À SAVOIR

Type : ICBL7,2-18-USB-A1

Capacité: 2600mAh/18,72Wh

Entrée : 5.0V CC, 1.0A (Micro USB)

8.4V CC, 2.0A

Fabricant : IKEA of Sweden AB

Adresse :

Box 702, SE-343 81 Älmhult, SUÈDE

TIPO: ICBL7.2-18-USB-A1

© Inter IKEA Systems B.V. 2018

AA-2132505-4
