USER MANUAL TJUGO 104.351.77 IKEA

Design and Quality IKEA of Sweden

AAA AAA AAA AA AA AA AA AA

~ 12h ~ 10h

1-8x

-

AA/HR6, 2450mAh

AAA/HR03, 900mAh

\~ 12h

\~ 10h

English 4

Français 8

Español 13

The appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazard involved. Children shall not play with the appliance, Cleaning and user maintenance shall not be made by children without supervision.

Charger features

• Charge and store 1 to 8 pieces of HR6/AA and/or 1 to 8 pieces of HR03/AAA rechargeable batteries.
• 8 charging channels.
• Charge is terminated by individual minus delta or zero delta voltage sensors (-dV/dT or 0dV/dT).
• Safety by separate safety timer and temperature sensor.
  • After fully charged batteries, charger will go into trickle charging, enables batteries to be stored in the charger.

• Non-rechargeable and damaged batteries detection.
- Charging status with LED indicator.

Operating instructions

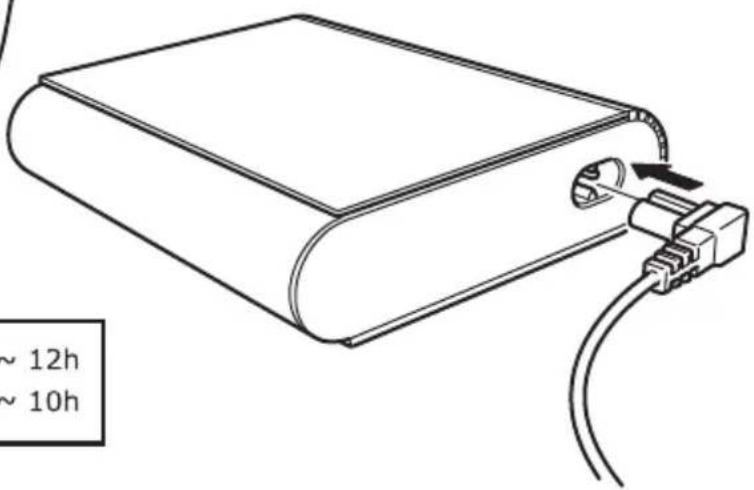

• Connect the provided power cord with charger and plug it into the power outlet.

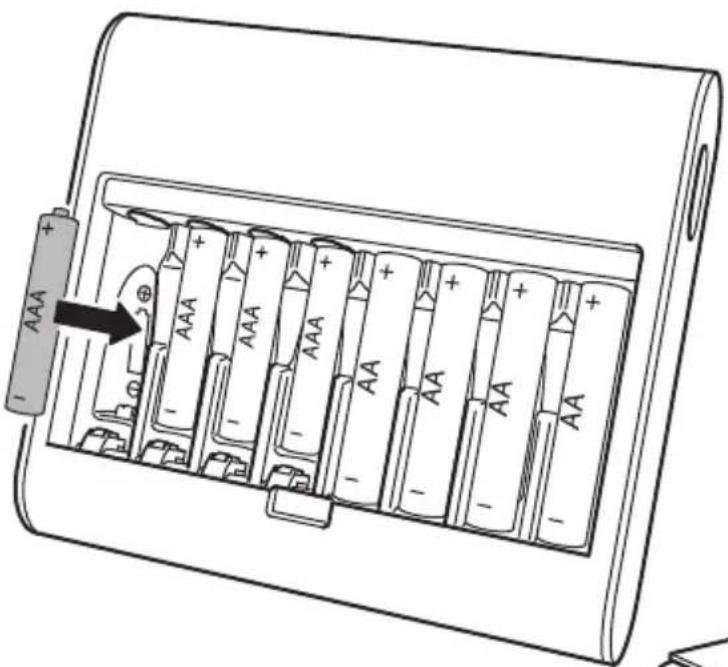

• Insert the batteries into the charging slots correctly according to the polarity indications (+/-) see pic 1.
• The LED indicator status: White LED flashing: Charging in progress

White LED On: Charging complete Red Led flashing: Error

- The Red LED indicator will flash if non-rechargeable batteries or damaged batteries are inserted into the charger by mistake.

Good to know

• Brand new batteries need 2 to 3 times of charging and usage cycles to optimize the battery performance.
• It is normal for batteries to become hot during charging and they will gradually cool down after charging.
• Charging time may vary based on different battery capacities.
• Charging time may vary depending on remaining charge, battery age and ambient temperature.
• Battery storage temperature: -20°C to 25°C (4°F to 77°F).
• Charger operation temperature: 0^ to 40^ (32°F to 104°F).

Disconnect the charger from the power outlet before cleaning or when it is not used.

Use damp cloth when cleaning the charger. Do not immerse into water.

Caution recommendation:

see label of charger.

Keep this manual for future use.

Product servicing

Do not attempt to repair this product yourself, as opening or removing covers may expose you to dangerous voltage points or other risks.

TECHNICAL DATA

Model: E1820 TJUGO

Input: 100-240VAC, 50/60Hz, 0.11A

Output: AA 8 x 1.5V, 0.21A

AAA 8 x 1.5V, 0.11A

Recommended battery types:

Ni-MH AA max 2450mAh,

AAA max 900mAh

CONFORMS TO UL STD.1310 CERTIFIED TO CSA STD. C22.2 NO.223-M91.

CAUTION:

Risk of Injury. Risk of Electric Shock. Indoor use only. Charge only Ni-MH type rechargeable batteries. DO NOT USE NON-RECHARGEABLE BATTERIES.

If the supply cord is damaged, replace it with a new cord set type-approved for your country.

Manufacturer: IKEA of Sweden AB

Address:

Box 702, SE-343 81 Älmhult, SWEDEN

This device complies with Part 15 of the FCC Rules/Innovation Science and Economic Development Canada's licence-exempt RSS standard(s).

Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation of the device.

WARNING:

Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

NOTE:

This equipment has been tested and found to comply with the limits for

a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the

equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

The crossed-out wheeled bin symbol indicates that the item should be disposed of separately from household waste. The item should be handed in for recycling in accordance with local environmental regulations for waste disposal. By separating a marked item from household waste, you will help reduce the volume of waste sent to incinerators or land-fill and minimize any potential negative impact on human health and the environment. For more information, please contact your IKEA store.

Fabricant : IKEA of Sweden AB

Adresse :

Box 702, SE-343 81 Älmhult, SUÈDE
