USER MANUAL SS 1401 L Eibenstock

Abstract geometric logo with stylized letter 'E' inside a hexagon (no text or symbols)

Original Operating Instructions

Exterior view of a black EIBENSTOCK vacuum cleaner (no visible text or symbols on body)

SS 1401 L

A

Mechanical device with a central shaft and mounting base (no visible text or symbols)

Diagram of a vacuum cleaner with numbered parts indicating airflow direction and component labels

Diagram showing a device with labeled parts and directional arrows, including numbered callouts ③ and ④.

Diagram of a vacuum cleaner with numbered parts indicating internal components and airflow direction

6

Technical diagram of a vacuum cleaner with labeled parts and directional arrows indicating assembly or maintenance.

Line drawing of a vacuum cleaner with handle and control panel (no text or symbols)

B

Two black arrows pointing upward and right, one with a square outline showing a branching structure (no text or symbols)

Diagram showing two electrical socket symbols with labeled arrows and connection points

Diagram of a vacuum cleaner with numbered parts indicating airflow direction and component placement

5 6

Diagram of a vacuum cleaner with numbered parts indicating internal components and directional arrows

Line drawing of a hand inserting a plug into a device component (no text or symbols)

Diagram showing two electrical components with labeled parts and directional arrows, including numbered callouts 10 and 11.

B

Diagram showing a transformation of a T-shaped object with arrows indicating direction, from left to right (no text or symbols)

Diagram of a welding torch with directional arrows indicating motion, no text or symbols present

C

Simple black-and-white diagram showing a bird dropping water into the water surface (no text or symbols)

Diagram showing two electrical components with labeled parts and directional arrows, likely illustrating a circuit or connection.

Diagram of a vacuum cleaner with numbered parts indicating airflow direction

Illustration of a mechanical device with a numbered component and a close-up of its part (no text or symbols present)

Diagram of a vacuum cleaner with numbered parts indicating internal components and directional arrows

⑧ ⑧

Simple line drawing of an airplane with a water droplet falling into the air (no text or symbols)

D

Abstract black arrow symbol pointing upward, no text or labels present

Pure diagram of a mechanical component with arrows indicating direction (no text or symbols)

1

Diagram of a device with labeled ports and an arrow pointing to port 2

③ ④ ↓ 3x

E

Pure diagram of a mechanical component with arrows indicating direction (no text or symbols)

Technical diagram of a mechanical component with labeled parts and an arrow indicating direction, marked as figure 1.

1 2

3

F

Simple line drawing of a mechanical component with a handle and base (no text or symbols)

Diagram showing three labeled steps of a mechanical or electrical component with directional arrows indicating flow or movement.

Illustration of two mechanical connectors with a numbered circle and arrow indicating rotation (no text or symbols)

⑤

Diagram showing cable connection to a device with labeled component 6 and directional arrows indicating cable routing.

7 AUTO

⑧ 1 0

G

Diagram of a cylindrical object with internal ribbed structure and two curved arrows indicating rotation (no text or symbols)

Diagram showing three-step installation of a vacuum cleaner with labeled parts and directional arrows.

Diagram of a mechanical device with numbered parts and directional arrows indicating assembly or operation.

Technical diagram of a mechanical device with numbered parts and directional arrows indicating assembly or operation.

Technical diagram showing two views of a vacuum cleaner with numbered callouts indicating component placement.

G

Simple line drawing of a curved object with an arrow indicating rotation or movement (no text or symbols)

Diagram showing two electrical socket symbols with numbered labels and directional arrows indicating connection or movement.

Diagram of a vacuum cleaner with numbered parts indicating airflow direction and component placement

Diagram illustrating a recycling or disposal process with labeled items and directional arrows indicating steps.

Diagram illustrating a mechanical or electrical component with numbered parts and directional arrows indicating motion or flow.

Diagram of a vacuum cleaner with numbered parts indicating internal components and airflow direction

H

Warning sign depicting a construction worker laying bricks, symbolizing hazard or failure

Handwritten signature or scribble in cursive script

General Manager Head of Engineering

15.09.2014

Translation of the original instructions from German.

A Important safety instructions

Before using the vacuum cleaner, always read the operating instructions and keep them readily available.

Purpose and intended use

Besides the operating instructions and the binding accident prevention regulations valid in the country of use, observe recognised regulations for safety and proper use.

The appliance must

– only be used by persons, who have been instructed in its correct usage and explicitly commissioned with the task of operating it
– only be operated under supervision

The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge.

Children should be supervised to ensure that they do not play with the appliance.

The vacuum cleaner is equipped with a socket that can be used to connect electric tools. The vacuum cleaner is switched on and off with the electric tools connected. Use the socket on the vacuum cleaner for the purpose defined in the operating instructions only.

Maximum permitted power consumption of the electric tools to be connected: see section „Technical Data“.

The vacuum cleaners described in this operating manual are suitable for

– extracting in conjunction with electric tools that generate dust
- sucking up dust and liquids
– commercial use, e.g. on construction sites, in hotels, schools, hospitals, factories, shops, offices and rental businesses.
- separation of dust with an exposure limit of greater than 1mg / m^3 , (dust class L). Please observe regulations valid in your country.

The following materials should not be picked up by the vacuum cleaner

– hot materials (burning cigarettes, hot ash, etc.)
- flammable, explosive, aggressive liquids (e.g. petrol, solvents, acids, alkalis, etc.)
- flammable, explosive dust (e.g. magnesium dust, etc.)

The appliance must

– be operated indoors, operated outdoors only for short periods
– be protected against UV radiation

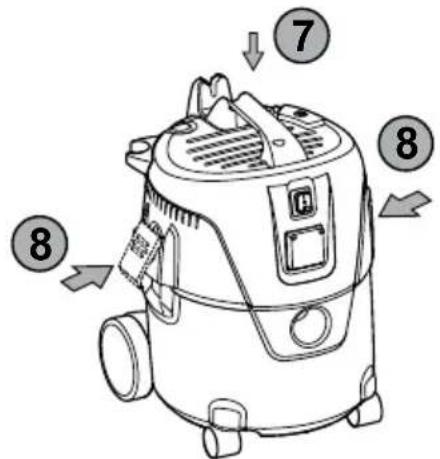

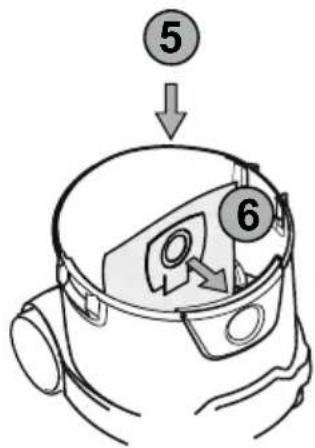

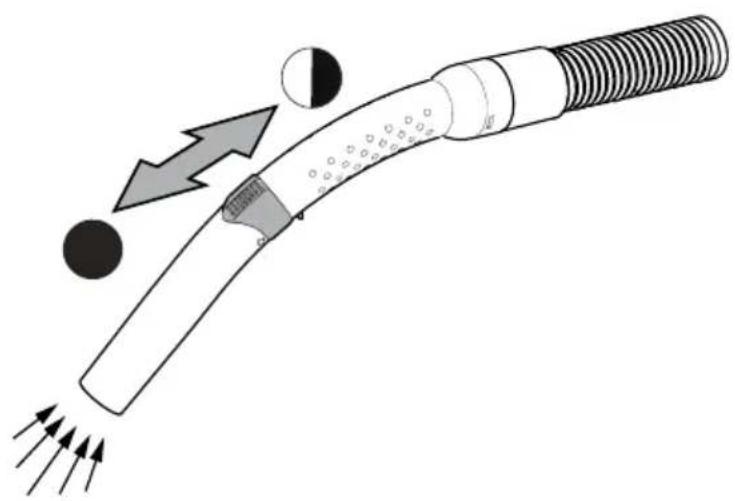

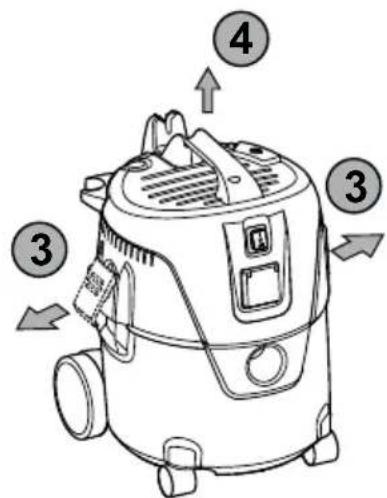

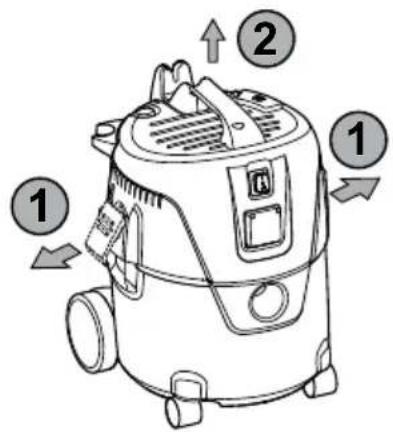

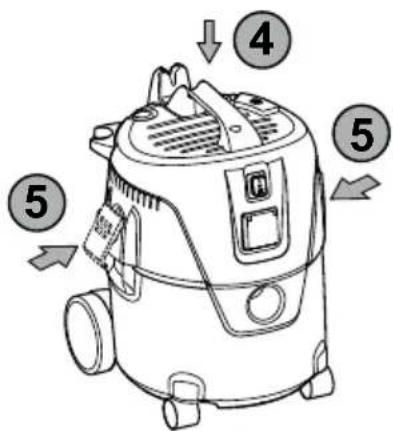

B Before start-up

Ensure that the voltage shown on the rating plate corresponds to the voltage of the local mains power supply. It is recommended that the vacuum cleaner should be connected via a residual current circuit breaker.

Inspect power cord regularly to detect signs of damage, e.g. cracks or ageing. If the power cord is damaged, it must be replaced by Eibenstock-Service or an electrician to avoid danger before use of the vacuum cleaner is continued. Use only the type of power cord specified in the operating manual.

As an extension lead, only use the version specified by the manufacturer or one of a higher quality.

When using an extension lead, check the minimum cross-sections of the cable:

Cable length C	Cross section
	< 16 A < 25	A
up to 20 m 1,5	mm ^2	2,5 mm ^2
20 to 50 m 2,5	mm ^2	4,0 mm ^2

Only use the appliance if it is in undamaged condition. Never use the vacuum cleaner without a filter, or if the filter is damaged.

When dust removers are used, the rate at which air is exchanged in the room must be adequate if the exhaust air from the vacuum cleaner is blown into the room (please observe regulations valid in your country).

Before starting work, the operating staff must be informed on

– use of the vacuum cleaner
– risks associated with the material to be picked up
– safe disposal of the picked up material

Operation

	Switch position Function
	I	On
	0 Off
		Auto-On/Off

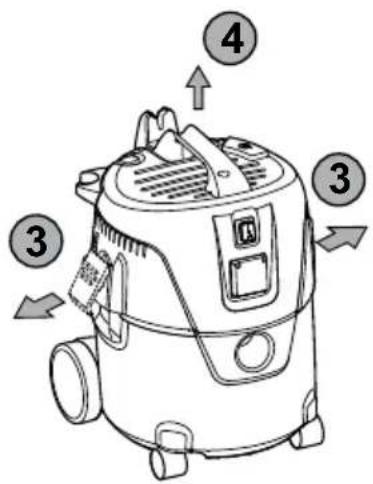

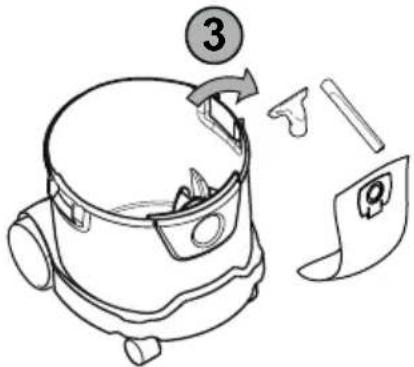

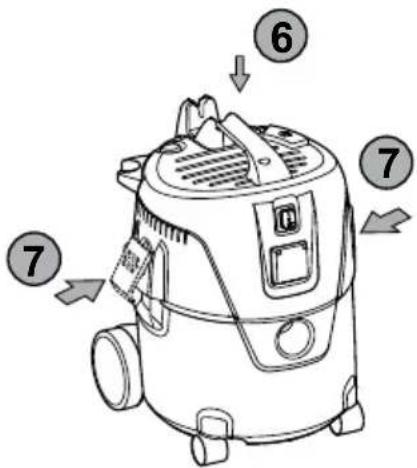

© Picking up liquids

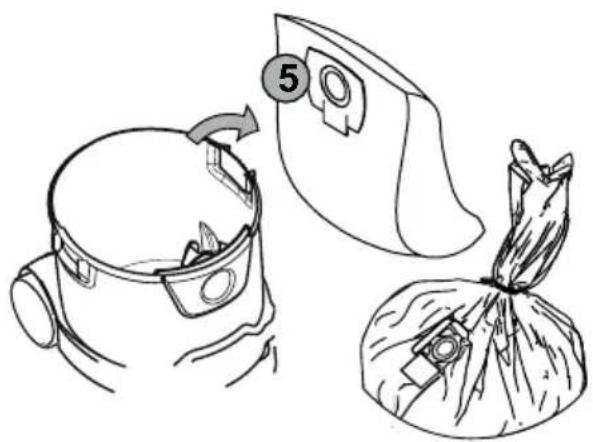

Before liquids are picked up, always remove the filter bag. Check that the float works properly. For this purpose, remove the filter and check the float located in the filter holder for ease of movement by swinging / moving the upper section of the vacuum cleaner. If foam develops or liquid emerges, stop work immediately and empty the dirt tank.

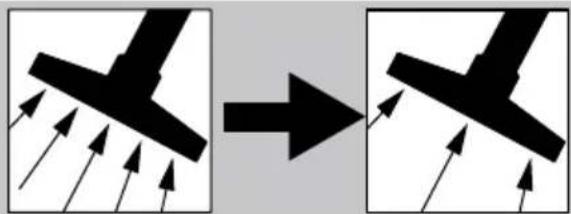

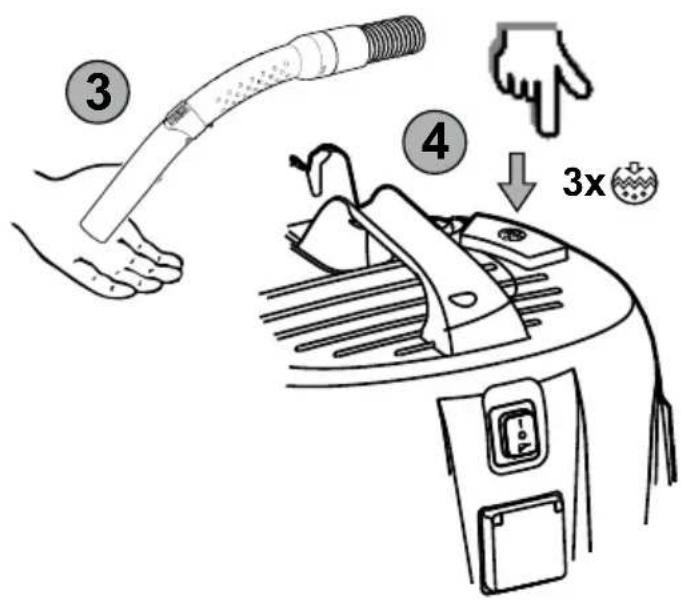

D Cleaning the filter element

If suction performance drops:

1. Switching on the vacuum cleaner.
2. Close the nozzles or suction hose opening with the palm of your hand.
3. Press the button to start filter cleaning for at least three times for two seconds each. The resulting stream of air removes attached dust from the slats of the filter elements.
4. If the suction power is too low after filter cleaning: replace filter.

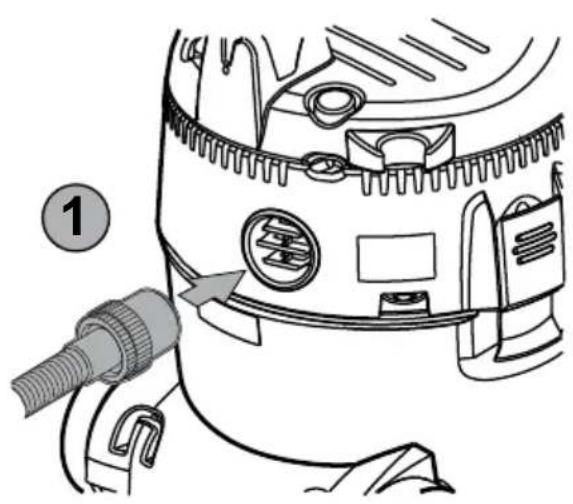

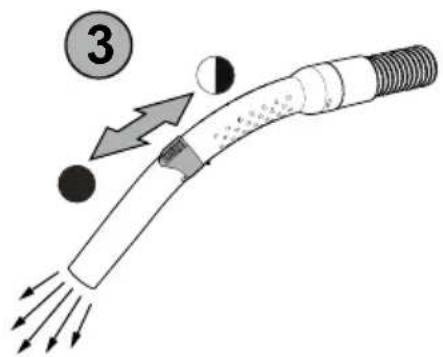

E Blower function

The cleaner has a blower function to clean inaccessible places or to dry the surface of wet items.

Do not direct the air into rooms in an uncontrolled manner. When using the blower function, always use a clean hose. Stirred-up dust can be hazardous to health. Do not use the blower function in closed rooms.

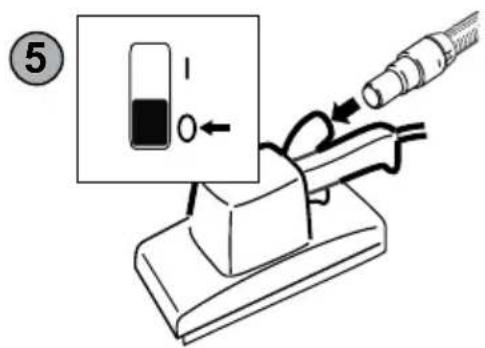

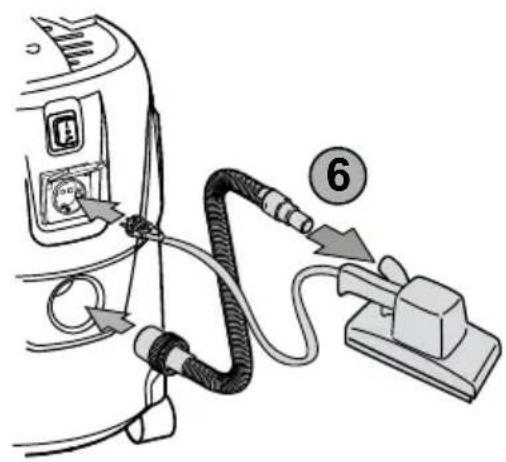

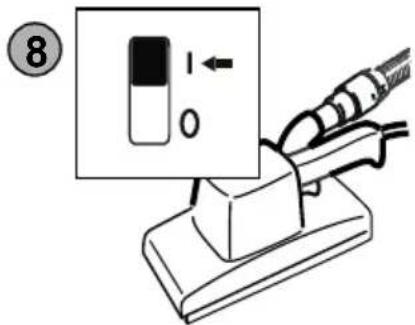

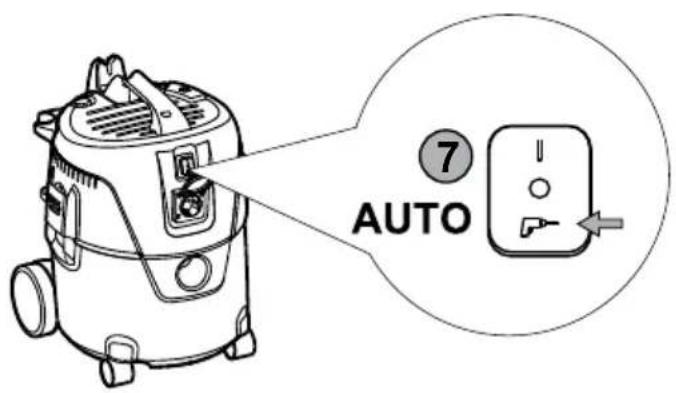

F Connecting electrical appliances

Use the socket on the vacuum cleaner for the purpose defined in the operating instructions only.

Before plugging an appliance into the appliance socket:

1. Switch off the vacuum cleaner.
2. Switch off the appliance to be connected.

CAUTION! Follow the operating instructions and safety instructions for appliances connected to the power tool socket.

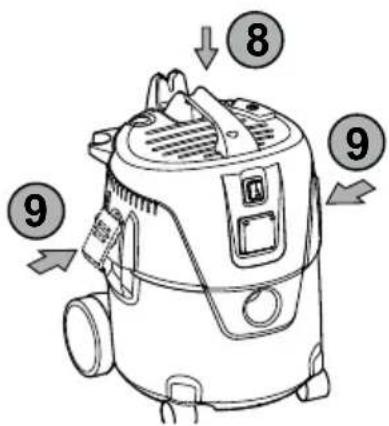

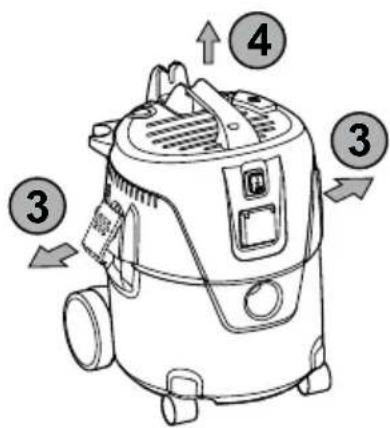

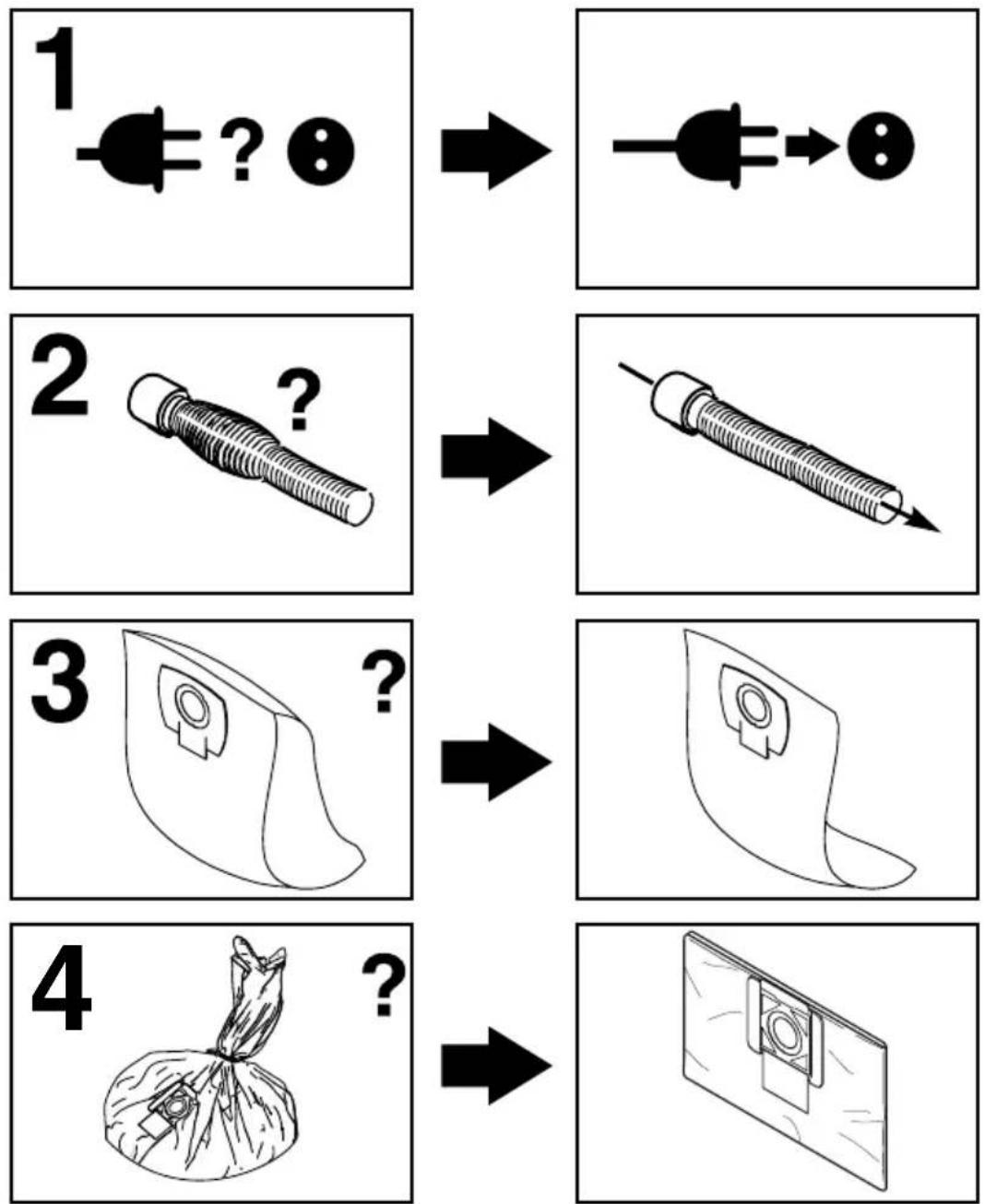

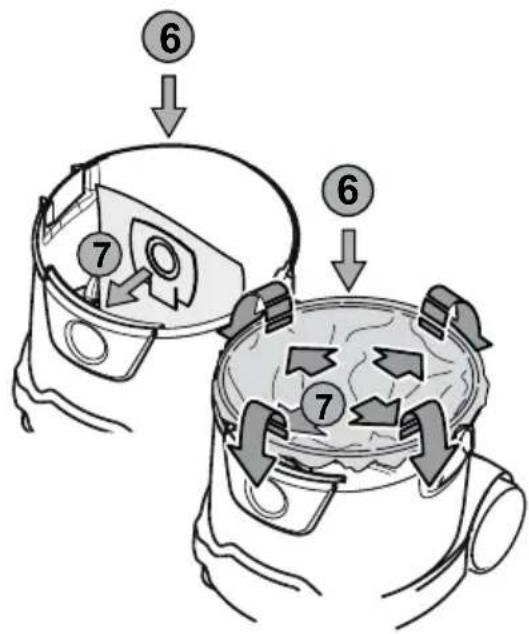

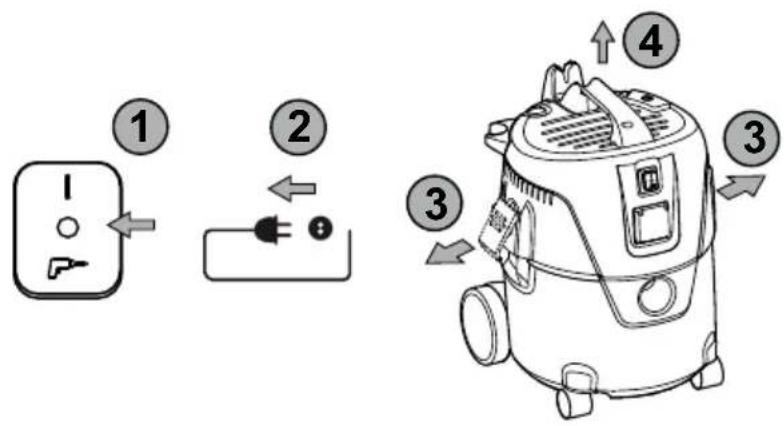

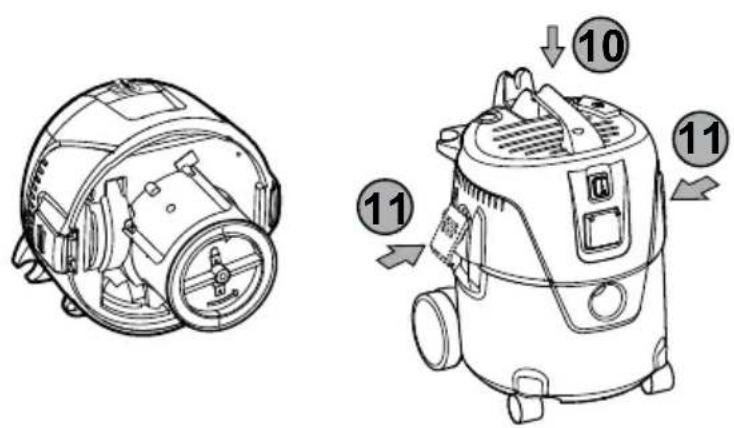

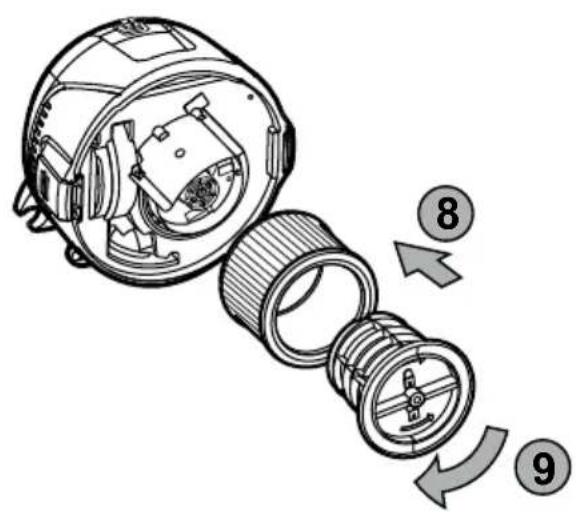

G + H Maintenance, cleaning and repair

Only carry out maintenance work described in the operating instructions. Always pull out the mains plug before cleaning and maintenance of the vacuum cleaner. Never spray water on to the upper section of the vacuum cleaner. Danger for persons, risk or short-circuiting.

The use of non-genuine spare parts and accessories can impair the safety of the appliance. Only use spare parts and accessories from Eibenstock.

During maintenance and cleaning, handle the vacuum cleaner in such a manner that there is no danger for maintenance staff or other persons.

In the maintenance area

– use filtered compulsory ventilation
- wear protective clothing
– clean the maintenance are so that no harmful substances get into the surroundings

A dust test must be performed at least once every year by Eibenstock service or a trained person. This test includes, for example, whether there is damage to the filter, the vacuum cleaner is sealed to the air and the control equipment works properly.

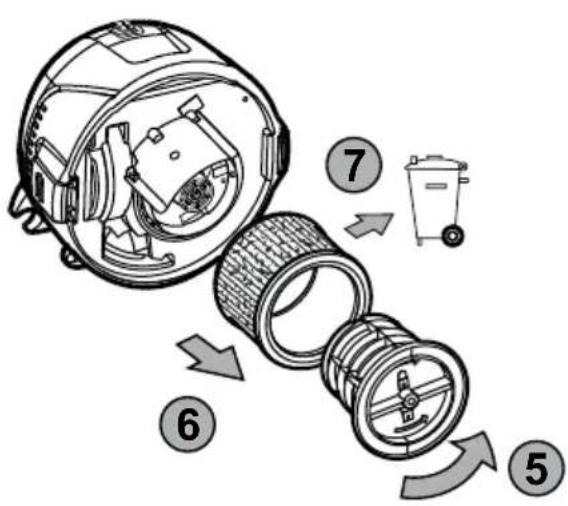

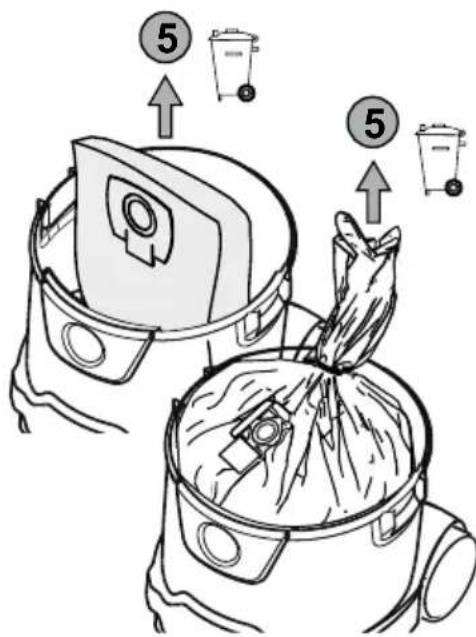

Disposal of filter elements, filter bags and disposal bags

Discard filter elements, filter bags and disposal bags in accordance with the national regulations.

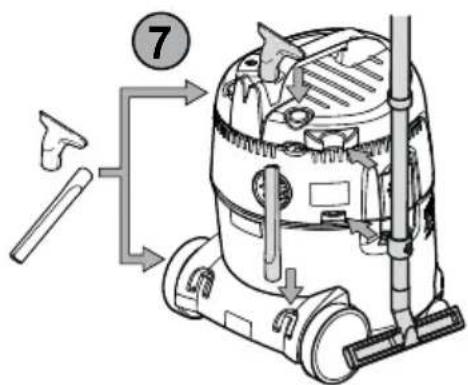

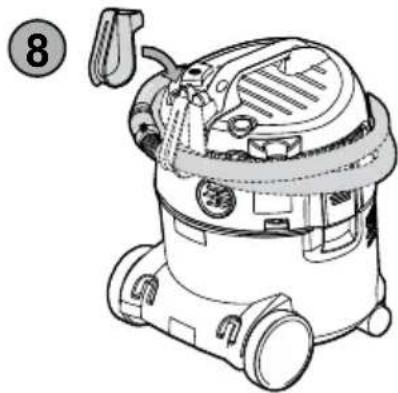

Transport

Before transporting the dirt tank, close all the locks. Do not tilt the cleaner if there is liquid in the dirt tank. Do not use a crane hook to lift the cleaner.

Storage

The appliance must be stored in a dry place and protected from frost.

Recycling the vacuum cleaner

As specified in European Directive 2012/19/EC on old electrical and electronic appliances, used electrical goods must be collected separately and recycled ecologically. Contact your local authorities or your nearest dealer for further information.

Guarantee

Our general conditions of business are applicable with regard to the guarantee. Subject to change as a result of technical alterations.

Spare parts and accessories

Description Order no.
Filter element 35322
Fleece filter bag (5 pcs.) 35323
Disposal bag (5 pcs.) 35324

Eibenstock SS 1401 L

EC declaration of conformity

We hereby declare that the machine described below complies with the relevant basic safety and health requirements of the EU Directives, both in its basic design and construction as well as in the version put into circulation by us. This declaration shall cease to be valid if the machine is modified without our prior approval.

Product Wet and dry vacuum cleaner

Type SS 1401 L

Relevant EU Directives

2006/42/EG, 2004/108/EG, 2011/65/EU

Applied harmonized standards

EN 60335-2-69, EN 55014-1:2006, EN 55014-2:2001, EN 61000-3-2:2006, EN 61000-3-3:2008, EN 62233:2008

Applied national standards and technical specifications:

Authorised Documentation Representative:

Handwritten signature or scribble in cursive script

General Manager Head of Engineering

15.09.2014

		EU CH
Mains Voltage V 230
Mains frequency Hz 50
Fuse A 16 10
Power consumption (max.) Watt 1250
Power consumption IEC Watt 1000
Connected load for appliance socket Watt 100-2600	100-1300
Total connected load	Watt	3000	2300
Air flow rate	m3/h (l/min) 216 (3600)
Vacuum	hPa (mbar)	210 (210)
Sound pressure level at a distance of 1 m, ISO 3744, EN 60704-2-1	dB(A)	72 ±2
Sound level	dB(A)	64 ±2
Hand-Arm-Vibration	m/s2< 2,5
Power cord:Length	m	5
Power cord:Type		H05VV-F 3G-1,5	H05VV-F 3G-1,0
Protection class		1
Type of protection (splash water protected)		IP24
Radio interference level		EN 55014-1
Dust class		L
Tank volume	I	25
Width	mm	377
Depth	mm	387
Height	mm	506
Weight incl. accessories (net, most common application)	kg	8
