USER MANUAL B150M Gaming Pro MSI

Thank you for purchasing the MSI® B150M GAMING PRO motherboard. This User Guide gives information about board layout, component overview, BIOS setup and software installation.

Contents

Safety Information....2

Specifications....3

Rear I/O Panel 5

LAN Port LED Status Table 5

Audio 7.1-channel Configuration....5

Overview of Components 6

CPU Socket....7

DIMM Slots 8

PCI_E1\~3: PCIe Expansion Slots....8

SATA1\~6: SATA 6Gb/s Connectors....9

JFP1, JFP2: Front Panel Connectors....9

JPWR1\~2: Power Connectors 10

JUSB1\~2: USB 2.0 Connectors ....10

JUSB3: USB 3.1 Gen1 Connector....11

JAUD1: Front Audio Connector....11

JCOM1: Serial Port Connector....11

CPUFAN1, SYSFAN1\~2: Fan Connectors 12

JTPM1: TPM Module Connector....13

JCI1: Chassis Intrusion Connector 13

JLPT1: Parallel Port Connector....14

JBAT1: Clear CMOS (Reset BIOS) Jumper....14

EZ Debug LED: Debug LED indicators....14

BIOS Setup 15

Entering BIOS Setup....15

Resetting BIOS 16

Updating BIOS....16

Software Description....17

Installing Windows ^® 7/8.1/10....17

Installing Drivers....17

Installing Utilities....17

Safety Information

• The components included in this package are prone to damage from electrostatic discharge (ESD). Please adhere to the following instructions to ensure successful computer assembly.
• Ensure that all components are securely connected. Loose connections may cause the computer to not recognize a component or fail to start.
• Hold the motherboard by the edges to avoid touching sensitive components.

- It is recommended to wear an electrostatic discharge (ESD) wrist strap when handling the motherboard to prevent electrostatic damage. If an ESD wrist strap is not available, discharge yourself of static electricity by touching another metal object before handling the motherboard.

- Store the motherboard in an electrostatic shielding container or on an anti-static pad whenever the motherboard is not installed.

- Before turning on the computer, ensure that there are no loose screws or metal components on the motherboard or anywhere within the computer case.

- Do not boot the computer before installation is completed. This could cause permanent damage to the components as well as injury to the user.

- If you need help during any installation step, please consult a certified computer technician.

- Always turn off the power supply and unplug the power cord from the power outlet before installing or removing any computer component.

• Keep this user guide for future reference.
• Keep this motherboard away from humidity.

- Make sure that your electrical outlet provides the same voltage as is indicated on the PSU, before connecting the PSU to the electrical outlet.

- Place the power cord such a way that people can not step on it. Do not place anything over the power cord.

• All cautions and warnings on the motherboard should be noted.

- If any of the following situations arises, get the motherboard checked by service personnel:

• Liquid has penetrated into the computer.
  The motherboard has been exposed to moisture.

- The motherboard does not work well or you can not get it work according to user guide.

The motherboard has been dropped and damaged.
The motherboard has obvious sign of breakage.

- Do not leave this motherboard in an environment above 60^ C ( 140^ F), it may damage the motherboard.

Specifications

CPU	Supports 6th Gen Intel® CoreTM i3/i5/i7 processors, and Intel® Pentium® and Celeron® processors for Socket LGA1151
Chipset Intel	® B150 Chipset
Memory	2x DDR4 memory slots, support up to 32GBSupports DDR4 2133 MHzDual channel memory architecture* Please refer www.msi.com for more information on compatible memory.
Expansion Slots	1x PCIe 3.0 x16 slot2x PCIe 3.0 x1 slots
Onboard Graphics	1x HDMprt, supports a maximum resolution of 4096x2160@24Hz, 2560x1600@60Hz1x DVI-D port, supports a maximum resolution of 1920x1200@60Hz1x VGA port, supports a maximum resolution of 1920x1200@60Hz
Storage	Intel® B150 Chipset6x SATA 6Gb/s ports
USB	Intel®150 Chipset8x USB 3.1 Gen1 (SuperSpeed USB) ports (6 ports on the back panel, 2 ports available through the internal USB connector)4x USB 2.0 (High-speed USB) ports available through the internal USB connectors)
Audio	RealteALC887 Codec7.1-Channel High Definition Audio
LAN 1x Intel I219V	Gigabit LAN controller
Back Panel Connectors	1x PS/2 keyboard port1x PS/2 mouse port6x USB 3.1 Gen1 ports1x DVI-D port1x HDMprt1x VGA port1x LAN (RJ45) port3x audio jacks

Continued on next page

Continued from previous page

Internal Connectors	1x 24-pin ATX main power connector1x 4-pin ATX 12V power connector6x SATA 6Gb/s connectors2x USB 2.0 connectors (supports additional 4 USB 2.0 ports1x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)1x 4-pin CPU fan connector2x 4-pin system fan connectors1x Front panel audio connector2x Front panel connectors1x TPM module connector1x Serial port connector1x Parallel port connector1x Chassis Intrusion connector1x Clear CMOS jumper
I/O Controller NUVOTON NCT6793D Controller Chip
Hardware Monitor	CPU/System temperature detectionCPU/System fan speed detectionCPU/System fan speed control
Form Factor	m-ATX Form Factor9.6 in. x 8.1 in. (24.3 cm x 20.6 cm)
BIOS Features	1x 64 Mb flashUEFI AMI BIOSACPI 5.0, PnP 1.0a, SM BIOS 2.8Multi-language
Software	DriversCOMMAND CENTERLIVE UPDATE 6FAST BOOTSUPER CHARGERGAMING APPM-CLOUDRAMDISKInt® Small Business BasicsGAMING LAN MANAGERSteelSeriesEngine 3Open Broadcaster SoftwareInt® Extreme Tuning UtilityNorto SecurityGoogle Chrom, Google Toolbar, Google DriveCPU-Z

Rear I/O Panel

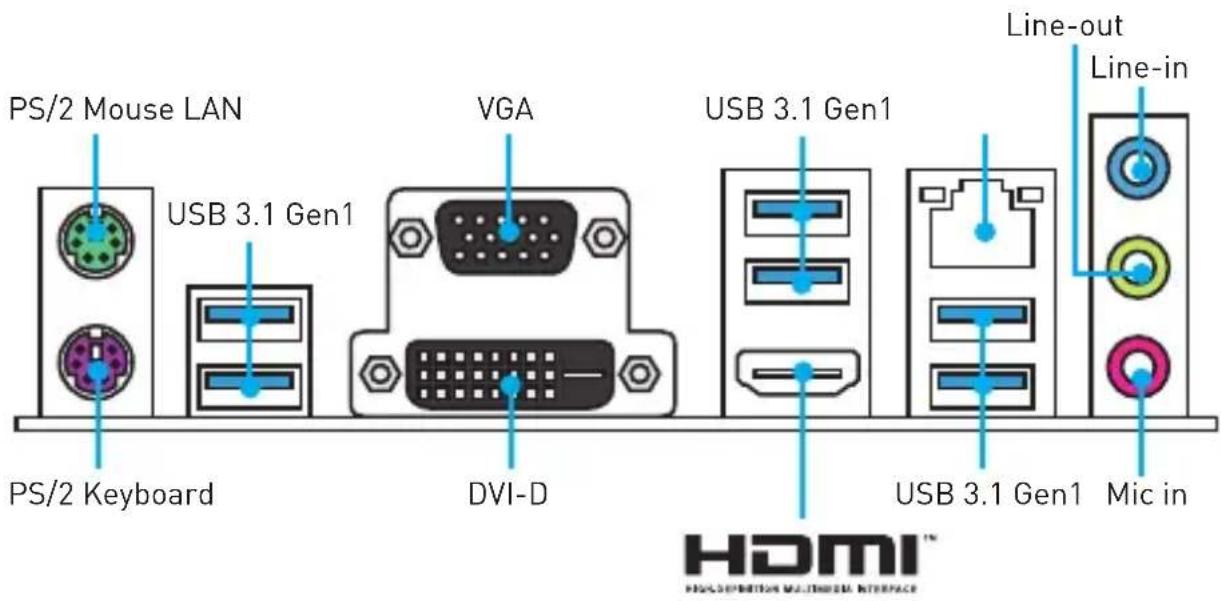

PS/2 Mouse LAN USB 3.1 Gen1 VGA USB 3.1 Gen1 Line-out Line-in PS/2 Keyboard DVI-D USB 3.1 Gen1 Mic in HDMI™ HOLDENITION MULTIMINICAL INTERFACE

LAN Port LED Status Table

Audio 7.1-channel Configuration

To configure 7.1-channel audio, you have to connect front audio I/O module to JAUD1 connector and follow the below steps.

1. Click on the Realtek HD Audio Manager > Advanced Settings to open the dialog below.

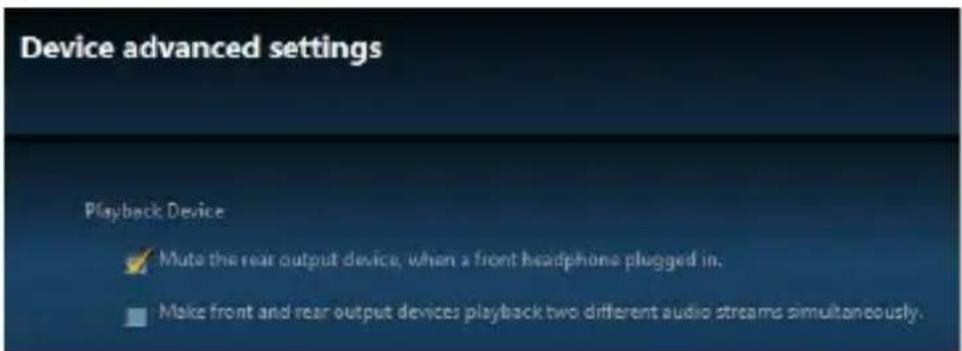

Device advanced settings Playback Device ✓ Muto the rear output device, when a front headphone plugged in. ■ Make front and rear output devices playback two different audio streams simultaneously.

1. Select Mute the rear output device, when a front headphone plugged in.

2. Plug your speakers to audio jacks on rear and front I/O panel. When you plug into a device at an audio jack, a dialogue window will pop up asking you which device is current connected.

Overview of Components

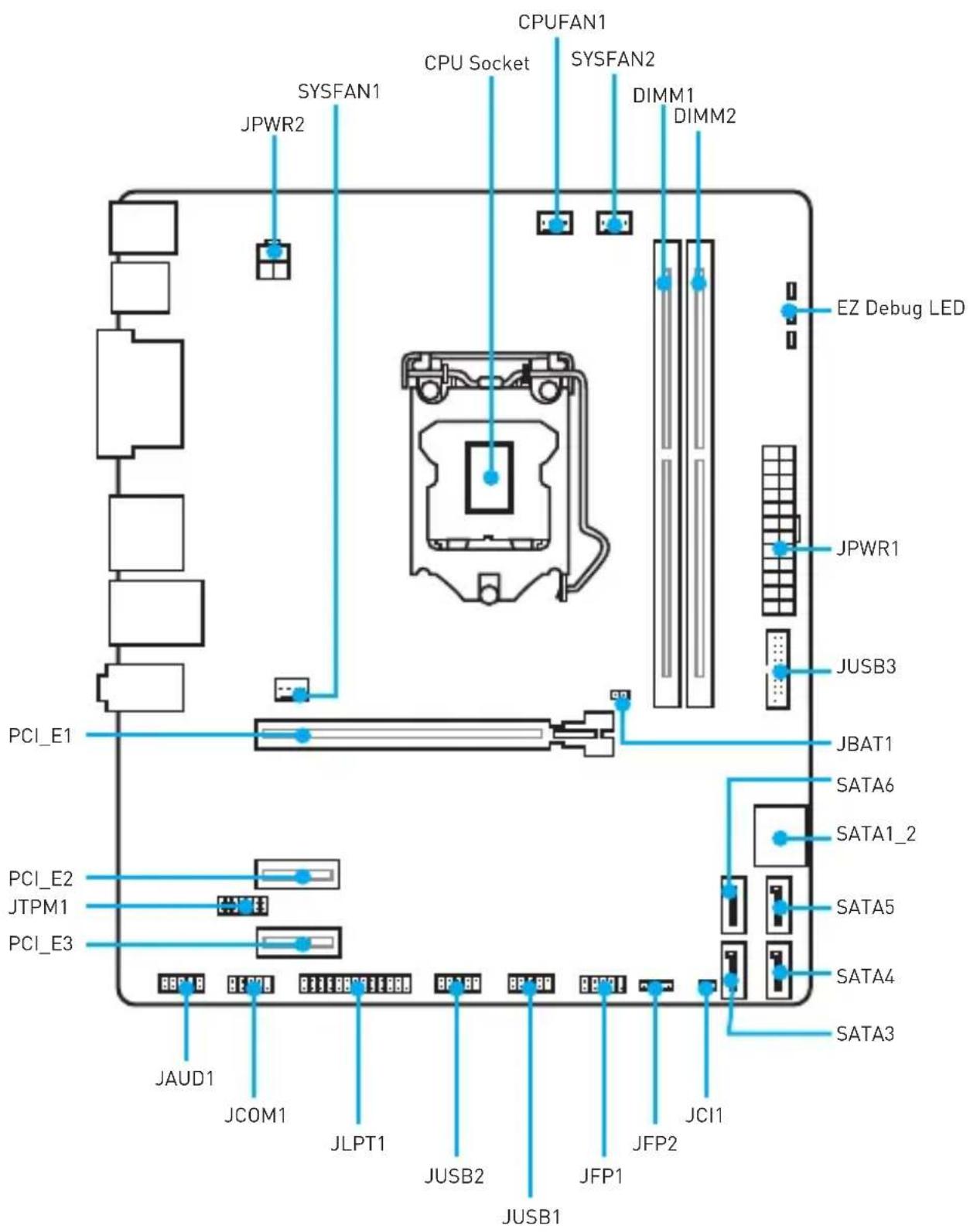

CPUFAN1 SYSFAN2 CPU Socket JPYWR2 JPWR1 DIMM1 DIMM2 EZ Debug LED JPYWR2 JUSB3 PCI_E1 JBAT1 SATA6 JCOM1 JLPT1 JUSB2 JFP1 JCI1 JCPLE1 JCPLE2 JTPM1 JCPLE3 JCAUD1 JCOM1 JLPT1 JUSB2 JFP2 JCPLE4 JCPLE5 JCPLE6 JCPLE7 JCPLE8 JCPLE9 JCPLE10 JCPLE11 JCPLE12 JCPLE13 JCPLE14 JCPLE15 JCPLE16 JCPLE17 JCPLE18 JCPLE19 JCPLE20 JCPLE21 JCPLE22 JCPLE23 JCPLE24 JCPLE25 JCPLE26 JCPLE27 JCPLE28 JCPLE29 JCPLE30 JCPLE31 JCPLE32 JCPLE33 JCPLE34 JCPLE35 JCPLE36 JCPLE37 JCPLE38 JCPLE39 JCPLE40 JCPLE41 JCPLE42 JCPLE43 JCPLE44 JCPLE45 JCPLE46 JCPLE47 JCPLE48 JCPLE49 JCPLE50

CPU Socket

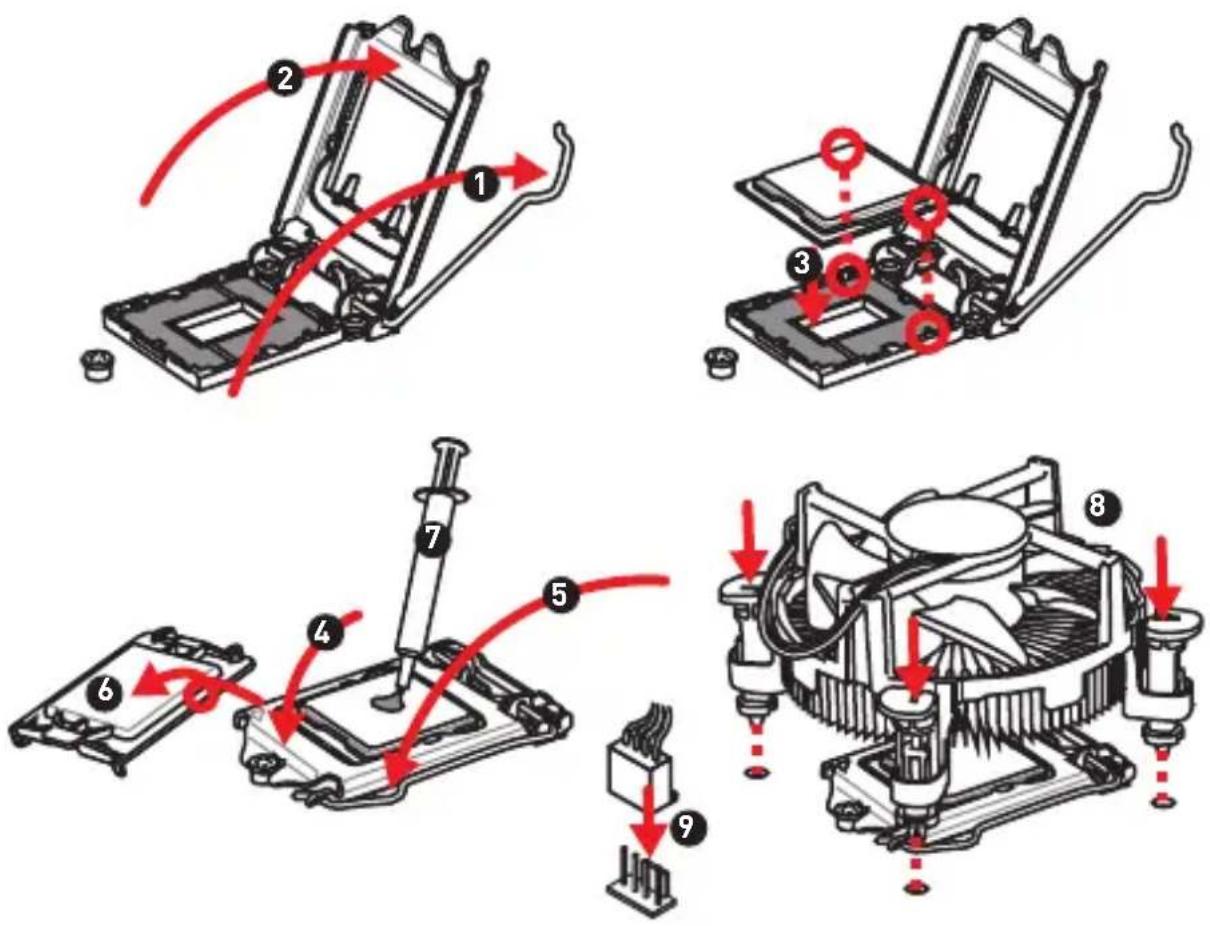

Please install the CPU into the CPU socket as shown below.

Technical diagram showing mechanical assembly steps with numbered components and red arrows indicating motion direction

Important

Always unplug the power cord from the power outlet before installing or removing the CPU.

Please retain the CPU protective cap after installing the processor. MSI will deal with Return Merchandise Authorization (RMA) requests if only the motherboard comes with the protective cap on the CPU socket.

When installing a CPU, always remember to install a CPU heatsink. A CPU heatsink is necessary to prevent overheating and maintain system stability.

Confirm that the CPU heatsink has formed a tight seal with the CPU before booting your system.

Overheating can seriously damage the CPU and motherboard. Always make sure the cooling fans work properly to protect the CPU from overheating. Be sure to apply an even layer of thermal paste (or thermal tape) between the CPU and the heatsink to enhance heat dissipation.

Whenever the CPU is not installed, always protect the CPU socket pins by covering the socket with the plastic cap.

If you purchased a separate CPU and heatsink/ cooler, Please refer to the documentation in the heatsink/ cooler package for more details about installation.

DIMM Slots

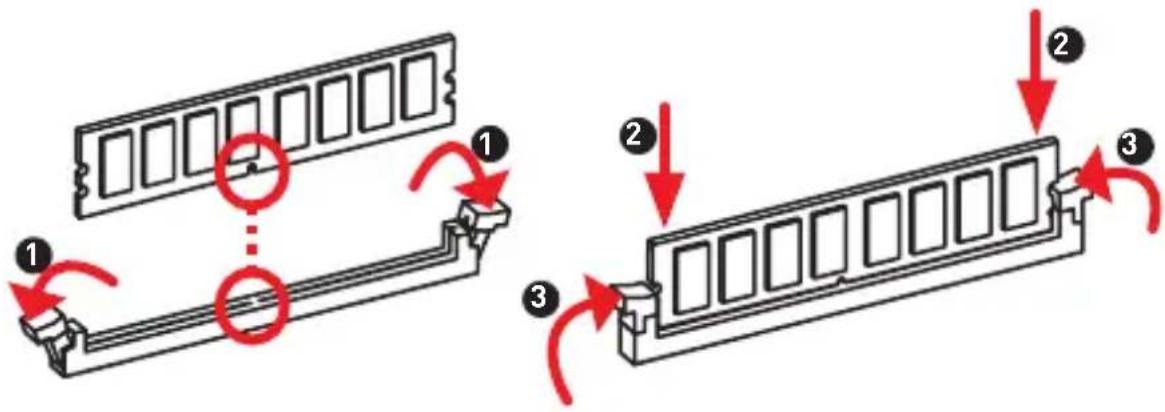

Please install the memory module into the DIMM slot as shown below.

Diagram illustrating three-step assembly of a RAM module, showing pin states and rotation directions with numbered annotations.

Important

Due to chipset resource usage, the available capacity of memory will be a little less than the amount of installed.

Please note that the maximum capacity of addressable memory is 4GB or less for 32-bit Windows OS due to the memory address limitation. Therefore, we recommended that you to install 64-bit Windows OS if you want to install more than 4GB memory on the motherboard.

PCI\_E1\~3: PCIe Expansion Slots

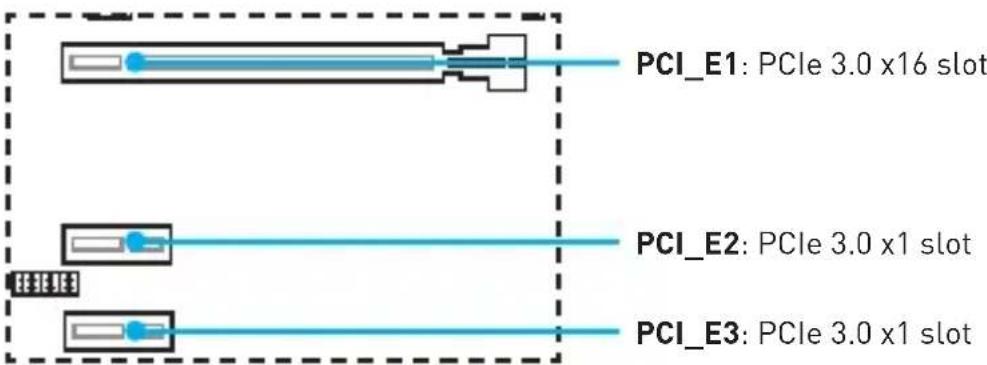

PCI_E1: PCIe 3.0 x16 slot PCI_E2: PCIe 3.0 x1 slot PCI_E3: PCIe 3.0 x1 slot

Important

When adding or removing expansion cards, always turn off the power supply and unplug the power supply power cable from the power outlet. Read the expansion card's documentation to check for any necessary additional hardware or software changes.

SATA1\~6: SATA 6Gb/s Connectors

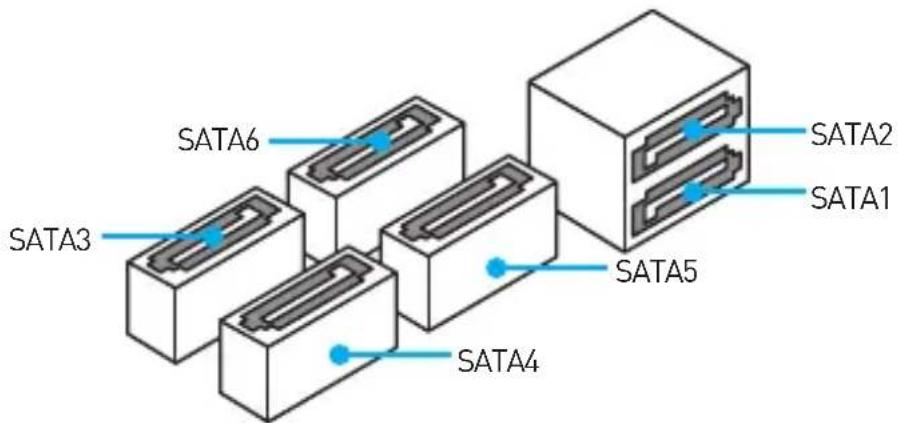

These connectors are SATA 6Gb/s interface ports. Each connector can connect to one SATA device.

SATA6 SATA3 SATA5 SATA4 SATA2 SATA1

Important

Please do not fold the SATA cable at a 90-degree angle. Data loss may result during transmission otherwise.

SATA cables have identical plugs on either sides of the cable. However, it is recommended that the flat connector be connected to the motherboard for space saving purposes.

JFP1, JFP2: Front Panel Connectors

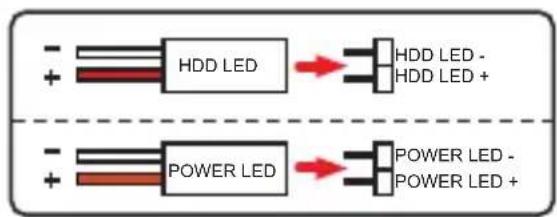

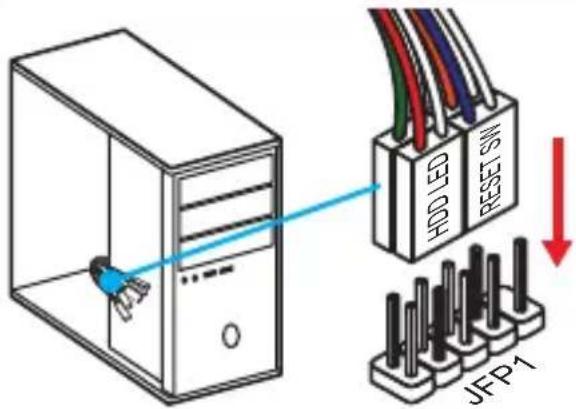

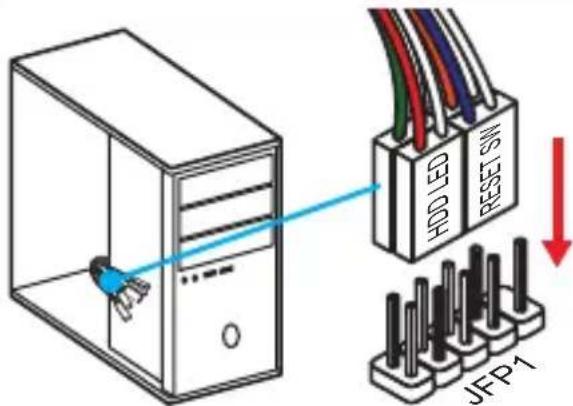

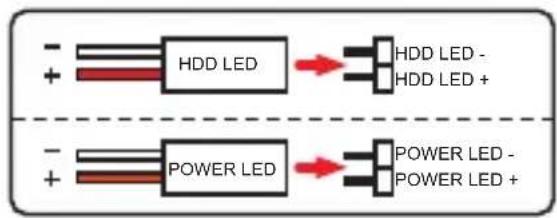

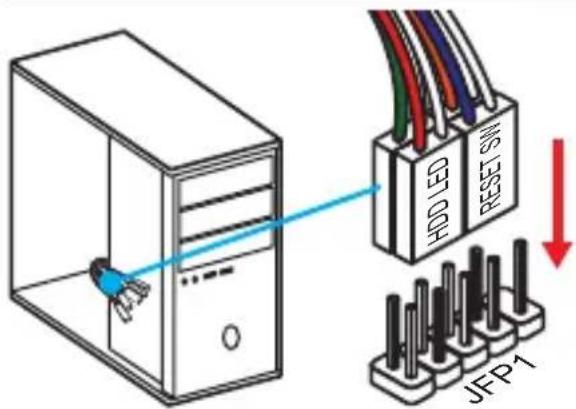

These connectors connect to the switches and LEDs on the front panel.

	1 H	DD LED + 2 Power LED	+
	3 H	DD LED - 4 Power LED	-
	5 R	Reset Switch 6 Power Switch
	7 R	Reset Switch 8 Power Switch
	9 R	Reserved 10 No Pin

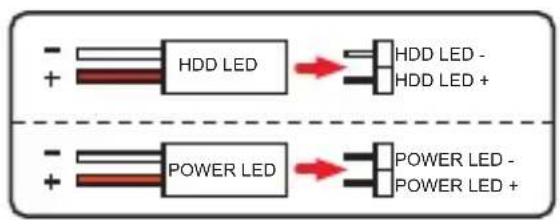

Diagram showing server connection to JFP1 connector with cable color coding and red arrow indicating direction

HDD LED HDD LED - HDD LED + POWER LED POWER LED - POWER LED +

1JFP2	1	Speaker - 2	Buzzer +
	3	Buzzer -	4 Speaker +

JPWR1\~2: Power Connectors

These connectors allow you to connect an ATX power supply.

12 JPWR11	1 +3.3V 13 +3.3V
	2 +3.3V 14 -12V
	3 Ground 15 Ground
	4 +5V 16 PS-ON#
	5 Ground 17 Ground
	6 +5V 18 Ground
	7 Ground 19 Ground
	8 PWR OK 20 Res
	9 5 VSB 21 +5V
	10 +12V 22 +5V
	11 +12V 23 +5V
	12 +3.3V 24 Ground

JPWR2	1 Ground 3 +12V
	2 Ground 4 +12V

Important

Make sure that all the power cables are securely connected to a proper ATX power supply to ensure stable operation of the motherboard.

JUSB1\~2: USB 2.0 Connectors

These connectors allow you to connect USB 2.0 ports on the front panel.

	1	VCC	2	VCC
	3 USB0- 4 USB1-
	5 USB0+ 6 USB1+
	7 Ground 8 Ground
	9 No Pin 10			NC

Important

• Note that the VCC and Ground pins must be connected correctly to avoid possible damage.
• In order to recharge your iPad, iPhone and iPod through USB ports, please install MSI® SUPER CHARGER utility.

JUSB3: USB 3.1 Gen1 Connector

This connector allows you to connect USB 3.1 Gen1 ports on the front panel.

	1 Power 11 USB2.0+
	2 USB3_RX_DN 12 USB2.0-
	3 USB3_RX_DP 13 Ground
	4 Ground 14 USB3_TX_C_DP
	5 USB3_TX_C_DN 15	USB3_TX_C_DN
	6 USB3_TX_C_DP	16 Ground
	7 Ground 17 USB3_RX_DP
	8 USB2.0- 18 USB3_RX_DN
	9 USB2.0+	19	Power
	10 Ground 20 No Pin

Important

Note that the Power and Ground pins must be connected correctly to avoid possible damage.

JAUD1: Front Audio Connector

This connector allow you to connect audio jacks on the front panel.

	1	MIC L	2	Ground
	3	MIC R	4	NC
	5 Head Phone R 6			MIC Detection
	7	SENSE_SEND 8		No Pin
	9	Head Phone L	10	Head Phone Detection

JCOM1: Serial Port Connector

This connector allows you to connect the optional serial port with bracket.

	1	DCD	2	SIN
	3	SOUT	4	DTR
	5	Ground	6	DSR
	7	RTS	8	CTS
	9	RI	10	No Pin

CPUFAN1, SYSFAN1\~2: Fan Connectors

Fan connectors can be classified as PWM (Pulse Width Modulation) Mode and Voltage Mode. PWM Mode fan connectors provide constant 12V output and adjust fan speed with speed control signal. Voltage Mode fan connectors control fan speed by changing voltage. Therefore, when you plug a 3-pin (Non-PWM) fan to a PWM Mode fan connector, the fan speed will be always maintained at 100%, and that could be noisy.

There are two ways to manage fan speed. One is to go to BIOS > Advanced > Hardware Monitor. The other is to use COMMAND CENTER application.

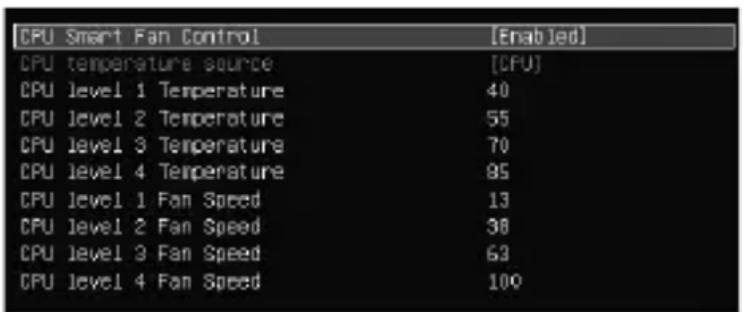

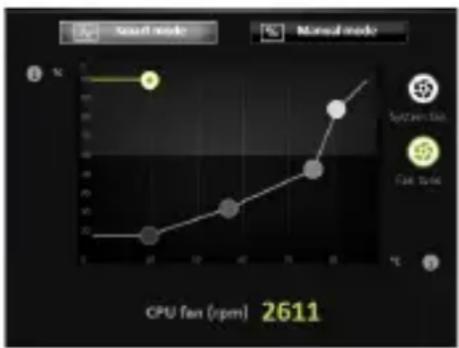

CPU Smart Fan Control [Enabled] CPU temperature source [CPU] CPU level 1 Temperature 40 CPU level 2 Temperature 55 CPU level 3 Temperature 70 CPU level 4 Temperature 95 CPU level 1 Fan Speed 13 CPU level 2 Fan Speed 38 CPU level 3 Fan Speed 63 CPU level 4 Fan Speed 100

BIOS > Advanced > Hardware Monitor

COMMAND CENTER

BIOS Hardware Monitor sub-menu allows you to set the temperature levels and the corresponding fan speed levels.

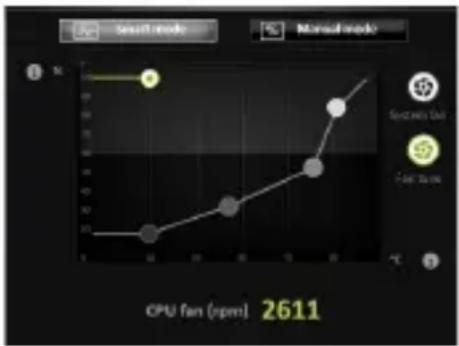

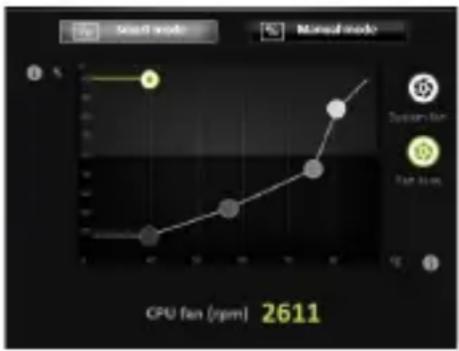

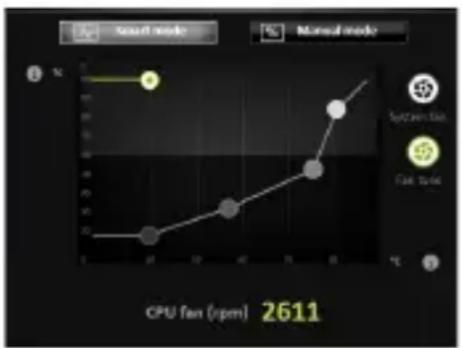

COMMAND CENTER offers gradient points of the fan speed that allow you to adjust fan speed in relation to CPU temperature.

JTPM1: TPM Module Connector

This connector is for TPM (Trusted Platform Module). Please refer to the TPM security platform manual for more details and usages.

	1 LPC Clock 2 3V Standby power
	3 LPC Reset 4 3.3V Power
	5 LPC address & data pin0 6 Serial IRQ
	7 LPC address & data pin1 8 5V Power
	9 LPC address & data pin2 10 No Pin
	11 LPC address & data pin3 12	Ground
	13 LPC Frame 14	Ground

JCI1: Chassis Intrusion Connector

This connector allows you to connect the chassis intrusion switch cable.

Normal

(default)

Trigger the chassis

intrusion event

Using chassis intrusion detector

1. Connect the JCI1 connector to the chassis intrusion switch/ sensor on the chassis.
2. Close the chassis cover.
3. Go to BIOS > Security > Chassis Intrusion Configuration.
4. Set Chassis Intrusion to Enabled.
5. Press F10 to save and exit and then press the Enter key to select Yes.
6. Once the chassis cover is opened again, a warning message will be displayed on screen when the computer is turned on.

Resetting the chassis intrusion warning

1. Go to BIOS > Security > Chassis Intrusion Configuration.
2. Set Chassis Intrusion to Reset.
3. Press F10 to save and exit and then press the Enter key to select Yes.

JLPT1: Parallel Port Connector

This connector allows you to connect the optional parallel port with bracket.

1 RSTB# 2 AFD# 3 PRND0
4 ERR# 5 PRND1 6 PINIT#
7 PRND2 8 LPT_SLIN# 9 PRND3
10	Ground	11 PRND4	12 Ground
13	PRND5	14 Ground	15 PRND6
16	Ground	17 PRND7	18 Ground
19 ACK# 20 Ground		21 BUSY
22	Ground	23	PE	24	Ground
25	SLCT	26	No Pin

JBAT1: Clear CMOS (Reset BIOS) Jumper

There is CMOS memory onboard that is external powered from a battery located on the motherboard to save system configuration data. If you want to clear the system configuration, set the jumpers to clear the CMOS memory.

Keep Data (default)

Clear CMOS/ Reset BIOS

Resetting BIOS to default values

1. Power off the computer and unplug the power cord
2. Use a jumper cap to short JBAT1 for about 5-10 seconds.
3. Remove the jumper cap from JBAT1.
4. Plug the power cord and power on the computer.

EZ Debug LED: Debug LED indicators

These LEDs indicate the status of the motherboard.

CPU - indicates CPU is not detected or fail.
DRAM - indicates DRAM is not detected or fail.
VGA - indicates GPU is not detected or fail.

BIOS Setup

The default settings offer the optimal performance for system stability in normal conditions. You should always keep the default settings to avoid possible system damage or failure booting unless you are familiar with BIOS.

Important

BIOS items are continuous update for better system performance. Therefore, the description may be slightly different from the latest BIOS and should be held for reference only. You could also refer to the HELP information panel for BIOS item description.

The pictures in this chapter are for reference only and may vary from the product you purchased.

Entering BIOS Setup

Please refer the following methods to enter BIOS setup.

• Press Delete key, when the Press DEL key to enter Setup Menu, F11 to enter Boot Menu message appears on the screen during the boot process.

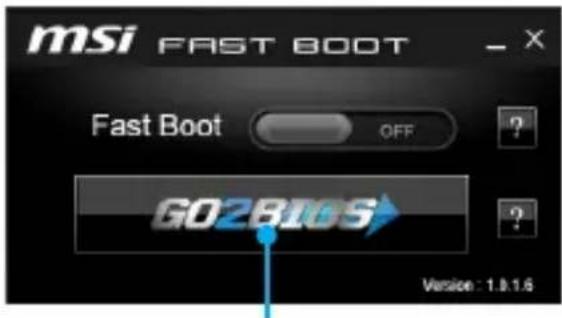

• Use MSI FAST BOOT application. Click on G02BIOS button and choose OK. The system will reboot and enter BIOS setup directly.

msi FAST BOOT Fast Boot OFF GO2BIOS Version: 1.8.1.6

Click on GO2BIOS

Function key

Key Function Key Function
F1 General Help F4 Enter CPU Specifications	menu
F5 Enter Memory-Z menu F6 Load optimized defaults
F10 Save Change and Reset* F12		Take a screenshot and save it to USB flash drive (FAT/ FAT32 format only).

* When you press F10, a confirmation window which provides the modification information appears. Select between Yes or No to confirm your choice.

Resetting BIOS

You might need to restore the default BIOS setting to solve certain problems. There are several ways to reset BIOS:

• Go to BIOS and press F6 to load optimized defaults.
• Short the Clear CMOS jumper on the motherboard.

Important

Please refer to the Clear CMOS jumper section for resetting BIOS.

Updating BIOS

Updating BIOS with M-FLASH

Before updating:

Please download the latest BIOS file that matches your motherboard model from MSI website. And then save the BIOS file into the USB flash drive.

Updating BIOS:

1. Insert the USB flash drive that contains the update file into the computer.
2. Reboot the system, and then press Del key to enter the BIOS Setup during POST.
3. Go to BIOS > M-FLASH > Select one file to update BIOS and ME, select a BIOS file to perform the BIOS update process.
4. After the flashing process is 100% complete, the system will reboot.

Updating the BIOS with Live Update 6

Before updating:

Make sure the LAN driver is already installed and the internet connection is set properly.

Updating BIOS:

1. Install and launch MSI LIVE UPDATE 6.
2. Select Manual scan.
3. Check MB BIOS box and click on Scan button.
4. Select the MB BIOS and click on icon to download and install the latest BIOS file.
5. Click Next and choose In Windows mode. And then click Next and Start to start updating BIOS.
6. After the flashing process is 100% completed, the system will restart automatically.

Software Description

Installing Windows ^® 7/8.1/10

1. Power on the computer.
2. Insert the Windows ^® 7/8.1/10 disc into your optical drive.
   Note: Due to chipset limitation, during the Windows ^® 7 installation process, USB optical drives and USB pen drives are not supported.
3. Press the Restart button on the computer case.
4. For windows 8.1/10, skip this step. For Windows 7, access the BIOS menu Advanced > Windows OS Configuration > Windows 7 Installation and set the item to enabled, save changes and restart.
   Note: It is suggested to plug in your USB Keyboard/USB Mouse to the leftmost USB port when installing Windows 7.
5. Press F11 key during the computer POST (Power-On Self Test) to get into Boot Menu.
6. Select your optical drive from the Boot Menu.
7. Press any key when screen shows Press any key to boot from CD or DVD... message.
8. Follow the instructions on the screen to install Windows ^® 7/8.1/10.

Installing Drivers

1. Start up your computer in Windows ^® 7/8.1/10.
2. Insert MSI ^® Driver Disc into your optical drive.
3. The installer will automatically appear and it will find and list all necessary drivers.
4. Click Install button.
5. The software installation will then be in progress, after it has finished it will prompt you to restart.
6. Click OK button to finish.
7. Restart your computer.

Installing Utilities

Before you install utilities, you must complete drivers installation.

1. Insert MSI ^® Driver Disc into your optical drive.
2. The installer will automatically appear.
3. Click Utilities tab.
4. Select the utilities you want to install.
5. Click Install button.
6. The utilities installation will then be in progress, after it has finished it will prompt you to restart.
7. Click OK button to finish.
8. Restart your computer.

NOTE

SATA1\~6: SATA 6Gb/s 커넥터....9

JUSB3: USB 3.1 Gen1 커넥터....11

Device advanced settings Playback Device ✓ Muto the rear output device, when a front headphone plugged in. ■ Make front and rear output devices playback two different audio streams simultaneously.

Technical diagram showing mechanical assembly steps with numbered components and red arrows indicating motion direction

중요사항

Diagram illustrating three-step assembly of a RAM module with labeled components and red arrows indicating motion.

중요사항

	1 H	DD LED + 2 Power LED	+
	3 H	DD LED - 4 Power LED	-
	5 R	Reset Switch 6 Power Switch
	7 R	Reset Switch 8 Power Switch
	9 R	Reserved 10 No Pin

Diagram showing server connection to JFP1 connector with cable color coding and red arrow indicating direction

HDD LED HDD LED - HDD LED + POWER LED POWER LED - POWER LED +

1JFP2	1	Speaker - 2	Buzzer +
	3	Buzzer -	4 Speaker +

JPWR1\~2: 전원 커넥터

	1 Power 11 USB2.0+
	2 USB3_RX_DN 12 USB2.0-
	3 USB3_RX_DP 13 Ground
	4 Ground 14 USB3_TX_C_DP
	5 USB3_TX_C_DN 15	USB3_TX_C_DN
	6 USB3_TX_C_DP	16 Ground
	7 Ground 17 USB3_RX_DP
	8 USB2.0- 18 USB3_RX_DN
	9 USB2.0+	19	Power
	10 Ground 20 No Pin

중요사항

	1	MIC L	2	Ground
	3	MIC R	4	NC
	5 Head Phone R 6			MIC Detection
	7	SENSE_SEND 8		No Pin
	9	Head Phone L	10	Head Phone Detection

JCOM1: 시리얼 포트 커넥터

CPU Smart Fan Control [Enabled] CPU temperature source [CPU] CPU level 1 Temperature 40 CPU level 2 Temperature 55 CPU level 3 Temperature 70 CPU level 4 Temperature 95 CPU level 1 Fan Speed 13 CPU level 2 Fan Speed 38 CPU level 3 Fan Speed 63 CPU level 4 Fan Speed 100

BIOS > Advanced > Hardware Monitor

COMMAND CENTER

TPM (Trusted Platform Module)

1 LPC Clock 2 3V Standby power

3 LPC Reset 4 3.3V Power

2 14 5 LPC address & data pin0 6 Serial IRQ

7 LPC address & data pin1 8 5V Power

1 13 9 LPC address & data pin2 10 No Pin

11 LPC address & data pin3 12 Ground

13 LPC Frame 14 Ground

JCI1: □□ □□ □□□

Device advanced settings Playback Device ✓ Mute the rear output device, when a front headphone plugged in. ■ Make front and rear output devices playback two different audio streams simultaneously.

Technical diagram illustrating the step-by-step assembly of a mechanical device, showing numbered components and red arrows indicating motion.

Important

Diagram illustrating three-step assembly of a RAM module with labeled components and red arrows indicating motion.

Important

	1 H	DD LED + 2 Power LED	+
	3 H	DD LED - 4 Power LED	-
	5 R	Reset Switch 6 Power Switch
	7 R	Reset Switch 8 Power Switch
	9	Reserved	10	No Pin

Diagram showing server connection to JFP1 connector with color-coded wires and a blue arrow indicating direction

HDD LED HDD LED - HDD LED + POWER LED POWER LED - POWER LED +

1JFP2	1	Speaker -	2	Buzzer +
	3	Buzzer -	4	Speaker +

	1 Power 11 USB2.0+
	2 USB3_RX_DN 12 USB2.0-
	3 USB3_RX_DP 13 Ground
	4 Ground 14 USB3_TX_C_DP
	5 USB3_TX_C_DN	15	USB3_TX_C_DN
	6 USB3_TX_C_DP	16 Ground
	7 Ground 17 USB3_RX_DP
	8 USB2.0- 18 USB3_RX_DN
	9 USB2.0+	19	Power
	10 Ground 20 No Pin

Important

	1	MIC L	2	Ground
	3	MIC R	4	NC
	5 Head Phone R 6			MIC Detection
	7	SENSE_SEND 8		No Pin
	9	Head Phone L	10	Head Phone Detection

CPU Smart Fan Control [Enabled] CPU temperature source [CPU] CPU level 1 Temperature 40 CPU level 2 Temperature 55 CPU level 3 Temperature 70 CPU level 4 Temperature 85 CPU level 1 Fan Speed 13 CPU level 2 Fan Speed 38 CPU level 3 Fan Speed 63 CPU level 4 Fan Speed 100

BIOS > Advanced > Hardware Monitor

COMMAND CENTER

SATA1\~6: SATA 6Gb/s Anschlüsse....10

JFP1, JFP2: Frontpanel-Anschlüsse ....10

JPWR1\~2: Stromanschlüsse....11

JUSB1\~2: USB 2.0 Anschlüsse ....11

JUSB3: USB 3.1 Gen1 Anschluss....12

Device advanced settings Playback Device ✓ Mute the rear output device, when a front headphone plugged in. ■ Make front and rear output devices playback two different audio streams simultaneously.

Technical diagram illustrating the step-by-step assembly of a mechanical device, showing numbered components and red arrows indicating motion.

Wichtig

Diagram illustrating three-step assembly of a RAM module with labeled components and red arrows indicating motion.

Wichtig

Pure electrical circuit lines without any symbols

SATA1\~6: SATA 6Gb/s Anschlüsse

JFP1, JFP2: Frontpanel-Anschlüsse

	1 H	DD LED + 2 Power LED	+
	3 H	DD LED - 4 Power LED	-
	5 R	Reset Switch 6 Power Switch
	7 R	Reset Switch 8 Power Switch
	9 R	Reserved 10 No Pin

Diagram showing server connection to JFP1 connector with color-coded wires and a blue arrow indicating direction

HDD LED HDD LED - HDD LED + POWER LED POWER LED - POWER LED +

1JFP2	1	Speaker - 2	Buzzer +
	3	Buzzer -	4 Speaker +

JPWR1\~2: Stromanschlüsse

JUSB1\~2: USB 2.0 Anschlüsse

	1 Power 11 USB2.0+
	2 USB3_RX_DN 12 USB2.0-
	3 USB3_RX_DP 13 Ground
	4 Ground 14 USB3_TX_C_DP
	5 USB3_TX_C_DN 15	USB3_TX_C_DN
	6 USB3_TX_C_DP 16	Ground
	7 Ground 17 USB3_RX_DP
	8 USB2.0- 18 USB3_RX_DN
	9 USB2.0+	19	Power
	10 Ground 20 No Pin

Wichtig

	1	MIC L	2	Ground
	3	MIC R	4	NC
	5 Head Phone R 6			MIC Detection
	7	SENSE_SEND 8		No Pin
	9	Head Phone L	10	Head Phone Detection

CPU Smart Fan Control [Enabled] CPU temperature source [CPU] CPU level 1 Temperature 40 CPU level 2 Temperature 55 CPU level 3 Temperature 70 CPU level 4 Temperature 85 CPU level 1 Fan Speed 13 CPU level 2 Fan Speed 38 CPU level 3 Fan Speed 63 CPU level 4 Fan Speed 100

BIOS > Advanced > Hardware Monitor

COMMAND CENTER

Device advanced settings Playback Device ✓ Mute the rear output device, when a front headphone plugged in. ■ Make front and rear output devices playback two different audio streams simultaneously.

Technical diagram illustrating the step-by-step assembly of a mechanical device, labeled with numbered components and red arrows indicating motion.

Внимание!

Diagram illustrating three-step assembly of a RAM module with labeled components and red arrows indicating motion.

Внимание!

JFP1	1 H	DD LED + 2 Power LED	+
	3 H	DD LED - 4 Power LED	-
	5 R	Reset Switch 6 Power Switch
	7 R	Reset Switch 8 Power Switch
	9 R	Reserved 10 No Pin

Diagram showing server connection to JFP1 connector with cable color coding and red arrow indicating direction

HDD LED HDD LED - HDD LED + POWER LED POWER LED - POWER LED +

1JFP2	1	Speaker - 2	Buzzer +
	3	Buzzer -	4 Speaker +

	1 Power 11 USB2.0+
	2 USB3_RX_DN 12 USB2.0-
	3 USB3_RX_DP 13 Ground
	4 Ground 14 USB3_TX_C_DP
	5 USB3_TX_C_DN 15	USB3_TX_C_DN
	6 USB3_TX_C_DP 16	Ground
	7 Ground 17 USB3_RX_DP
	8 USB2.0- 18 USB3_RX_DN
	9 USB2.0+	19	Power
	10 Ground 20 No Pin

Внимание!

1 9	1	MIC L	2	Ground
	3	MIC R	4	NC
	5 Head Phone R 6			MIC Detection
	7	SENSE_SEND 8		No Pin
	9	Head Phone L	10	Head Phone Detection

CPU Smart Fan Control [Enabled] CPU temperature source [CPU] CPU level 1 Temperature 40 CPU level 2 Temperature 55 CPU level 3 Temperature 70 CPU level 4 Temperature 85 CPU level 1 Fan Speed 13 CPU level 2 Fan Speed 38 CPU level 3 Fan Speed 63 CPU level 4 Fan Speed 100

BIOS > Advanced > Hardware Monitor

COMMAND CENTER

Device advanced settings Playback Device ✓ Mute the rear output device, when a front headphone plugged in. ■ Make front and rear output devices playback two different audio streams simultaneously.

CPU CPUFAN1 SYSFAN1 JPWR2 JSPFAN1 CPU 底座 SYSFAN2 DIMM1 DIMM2 EZ Debug LED JPWR1 JUSB3 PCI_E1 JBAT1 SATA6 JCAPD1 JCOM1 JLPT1 JUSB2 JFP1 JCI1 PCI_E2 JTPM1 PCI_E3 JUAD1 JUSB1 JCPB1 JCPB2 JCPB3 JCPB4 JCPB5 JCPB6 JCPB7 JCPB8 JCPB9 JCPB10 JCPB11 JCPB12 JCPB13 JCPB14 JCPB15 JCPB16 JCPB17 JCPB18 JCPB19 JCPB20 JCPB21 JCPB22 JCPB23 JCPB24 JCPB25 JCPB26 JCPB27 JCPB28 JCPB29 JCPB30 JCPB31 JCPB32 JCPB33 JCPB34 JCPB35 JCPB36 JCPB37 JCPB38 JCPB39 JCPB40 JCPB41 JCPB42 JCPB43 JCPB44 JCPB45 JCPB46 JCPB47 JCPB48 JCPB49 JCPB50

CPU 底座

Technical diagram showing mechanical assembly steps with numbered components and red arrows indicating motion direction

注意

Diagram illustrating three-step assembly of a RAM module with labeled components and red arrows indicating motion.

注意

JFP1	1 H	DD LED + 2 Power LED	+
	3 H	DD LED - 4 Power LED	-
	5 R	Reset Switch 6	Power Switch
	7 R	Reset Switch 8	Power Switch
	9	Reserved	10	No Pin

Diagram showing server connection to JFP1 connector with cable color-coded pins and a blue arrow indicating direction

- HDD LED -> HDD LED - + HDD LED + - POWER LED -> POWER LED - + POWER LED +

1JFP2	1	Speaker -	2	Buzzer +
	3	Buzzer -	4	Speaker +

JPWR1\~2: 电源接口

	1 Power 11 USB2.0+
	2 USB3_RX_DN 12 USB2.0-
	3 USB3_RX_DP 13 Ground
	4 Ground 14 USB3_TX_C_DP
	5 USB3_TX_C_DN 15	USB3_TX_C_DN
	6 USB3_TX_C_DP	16 Ground
	7 Ground 17 USB3_RX_DP
	8 USB2.0- 18 USB3_RX_DN
	9 USB2.0+	19	Power
	10 Ground 20 No Pin

注意

	1	MIC L	2	Ground
	3	MIC R	4	NC
	5 Head Phone R 6			MIC Detection
	7	SENSE_SEND 8		No Pin
	9	Head Phone L	10	Head Phone Detection

JCOM1: 串行端头接口

此接口允许您连接可选串行端口可用插槽。

	1	DCD	2	SIN
	3	SOUT	4	DTR
	5	Ground	6	DSR
	7	RTS	8	CTS
	9	RI	10	No Pin

CPUFAN1, SYSFAN1\~2: 风扇接口

CPU Smart Fan Control [Enabled] CPU temperature source [CPU] CPU level 1 Temperature 40 CPU level 2 Temperature 55 CPU level 3 Temperature 70 CPU level 4 Temperature 95 CPU level 1 Fan Speed 13 CPU level 2 Fan Speed 38 CPU level 3 Fan Speed 63 CPU level 4 Fan Speed 100

BIOS > Advanced > Hardware Monitor

COMMAND CENTER

JUSB3:USB 3.1 Gen1 接頭.....11

JAUD1:前置音效插孔....11

JCOM1:序列埠接頭....11

CPUFAN1, SYSFAN1\~2: 風扇電源接頭.....12

JTPM1:TPM 模組接頭....13

JCI1:機殼開啟接頭....13

JLPT1: 平行埠接頭 14

JBAT1: 清除 CMOS (重設 BIOS) 跳線....14

EZ 除錯 LED:除錯 LED 指示燈....14

BIOS 設定 15

進入 BIOS 設定....15

重設 BIOS....16

更新 BIOS....16

軟體說明....17

安裝 Windows® 7/8.1/10....17

安裝驅動程式....17

安裝公用程式....17

安全說明

Device advanced settings Playback Device ✓ Mute the rear output device, when a front headphone plugged in. ■ Make front and rear output devices playback two different audio streams simultaneously.

Technical diagram showing mechanical assembly steps with numbered instructions and red arrows indicating motion direction.

重要

Diagram illustrating three-step assembly of a RAM module with labeled components and red arrows indicating motion.

重要

JFP1	1 H	DD LED + 2 Power LED	+
	3 H	DD LED - 4 Power LED	-
	5	Reset Switch 6	Power Switch
	7	Reset Switch 8	Power Switch
	9	Reserved	10	No Pin

Diagram showing server connection to JFP1 connector with color-coded cable and pin stack

HDD LED HDD LED - HDD LED + POWER LED POWER LED - POWER LED +

1JFP2	1	Speaker -	2	Buzzer +
	3	Buzzer -	4 Speaker +

JPWR1\~2: 電源接頭

	1 Power 11 USB2.0+
	2 USB3_RX_DN 12 USB2.0-
	3 USB3_RX_DP 13 Ground
	4 Ground 14 USB3_TX_C_DP
	5 USB3_TX_C_DN	15	USB3_TX_C_DN
	6 USB3_TX_C_DP	16 Ground
	7 Ground 17 USB3_RX_DP
	8 USB2.0- 18 USB3_RX_DN
	9 USB2.0+	19	Power
	10 Ground 20 No Pin

重要

	1	MIC L	2	Ground
	3	MIC R	4	NC
	5 Head Phone R 6			MIC Detection
	7	SENSE_SEND 8		No Pin
	9	Head Phone L	10	Head Phone Detection

JCOM1: 序列埠接頭

您可利用此接頭連接含支架的選用序列埠。

	1	DCD	2	SIN
	3	SOUT	4	DTR
	5	Ground	6	DSR
	7	RTS	8	CTS
	9	RI	10	No Pin

[CPU Smart Fan Control [Enabled] CPU temperature source [CPU] CPU level 1 Temperature 40 CPU level 2 Temperature 55 CPU level 3 Temperature 70 CPU level 4 Temperature 85 CPU level 1 Fan Speed 13 CPU level 2 Fan Speed 38 CPU level 3 Fan Speed 63 CPU level 4 Fan Speed 100

BIOS > Advanced > Hardware Monitor

COMMAND CENTER

Device advanced settings Playback Device ✓ Mute the rear output device, when a front headphone plugged in. ■ Make front and rear output devices playback two different audio streams simultaneously.

Technical diagram showing mechanical assembly steps with numbered components and red arrows indicating motion direction

注意

Diagram illustrating three-step assembly of a RAM module with labeled components and red arrows indicating motion.

注意

	1 H	DD LED + 2 Power LED	+
	3 H	DD LED - 4	Power LED -
	5	Reset Switch 6	Power Switch
	7	Reset Switch 8	Power Switch
	9	Reserved	10	No Pin

Diagram showing a server connected to JFP1 connectors with wiring, indicating data transfer or connection point.

HDD LED HDD LED - HDD LED + POWER LED POWER LED - POWER LED +

1JFP2	1	Speaker -	2	Buzzer +
	3	Buzzer -	4 Speaker +

JPWR1\~2: 電源コネクター

	1 Power 11 USB2.0+
	2 USB3_RX_DN 12 USB2.0-
	3 USB3_RX_DP 13	Ground
	4	Ground	14 USB3_TX_C_DP
	5	USB3_TX_C_DN	15 USB3_TX_C_DN
	6	USB3_TX_C_DP	16 Ground
	7	Ground	17 USB3_RX_DP
	8 USB2.0- 18 USB3_RX_DN
	9	USB2.0+	19 Power
	10	Ground	20 No Pin

注意

	1	MIC L	2	Ground
	3	MIC R	4	NC
	5 Head Phone R 6			MIC Detection
	7	SENSE_SEND 8		No Pin
	9	Head Phone L	10	Head Phone Detection

JCOM1: シリアルポートコネクター

CPU Smart Fan Control [Enabled] CPU temperature source [CPU] CPU level 1 Temperature 40 CPU level 2 Temperature 55 CPU level 3 Temperature 70 CPU level 4 Temperature 95 CPU level 1 Fan Speed 13 CPU level 2 Fan Speed 38 CPU level 3 Fan Speed 63 CPU level 4 Fan Speed 100

BIOS > Advanced > Hardware Monitor

COMMAND CENTER

FCC Compliance Statement

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

Caution: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Tested to comply with FCC standards FOR HOME OR OFFICE USE

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

[1] This device may not cause harmful interference, and [2] this device must accept any interference received, including interference that may cause undesired operation.

CE Conformity

CE Hereby, Micro-Star International CO., LTD declares that this device is in compliance with the essential safety requirements and other relevant provisions set out in the European Directive.

C-Tick Compliance

N1996

B급 기기(가정용 방송통신기자재)

Batteries, battery packs, and accumulators should not be disposed of as unsorted household waste. Please use the public collection system to return, recycle, or treat them in compliance with the local regulations.

Taiwan:

廢電池請回收

For better environmental protection, waste batteries should be collected separately for recycling or special disposal.

California, USA:

The button cell battery may contain perchlorate material and requires special handling when recycled or disposed of in California.

For further information please visit:

http://www.dtsc.ca.gov/hazardouswaste/perchlorate/

CAUTION: There is a risk of explosion, if battery is incorrectly replaced.

Replace only with the same or equivalent type recommended by the manufacturer.

Chemical Substances Information

In compliance with chemical substances regulations, such as the EU REACH Regulation (Regulation EC No. 1907/2006 of the European Parliament and the Council), MSI provides the information of chemical substances in products at:

http://www.msi.com/html/popup/csr/evmtprtt_pcm.html

WEEE (Waste Electrical and Electronic Equipment) Statement

ENGLISH

To protect the global environment and as an environmentalist, MSI must remind you that... Under the European Union ("EU") Directive on Waste Electrical and Electronic Equipment, Directive 2002/96/EC, which takes effect on August 13, 2005, products of "electrical and electronic equipment" cannot be discarded as municipal wastes anymore, and manufacturers of covered electronic equipment will be obligated to take back such products at the end of their useful life. MSI will comply with the product take back requirements at the end of life of MSI-branded products that are sold into the EU. You can return these products to local collection points.

DEUTSCH

This product complies with the "India E-waste (Management and Handling) Rule 2011" and prohibits use of lead, mercury, hexavalent chromium, polybrominated biphenyls or polybrominated diphenyl ethers in concentrations exceeding 0.1 weight % and 0.01 weight % for cadmium, except for the exemptions set in Schedule 2 of the Rule.

Environmental Policy

• The product has been designed to enable proper reuse of parts and recycling and should not be thrown away at its end of life.
• Users should contact the local authorized point of collection for recycling and disposing of their e products.
• Visit the MSI website and locate a nearby distributor for further recycling information.

Users may also reach us at [e-mail] for information regarding proper Disposal, Take-back, Recycling, and Disassembly of MSI products.

Copyright

msi Micro-Star Int'l Co., Ltd. Copyright © 2016 All rights reserved.

The material in this document is the intellectual property of Micro-Star Int'l Co., Ltd. We take every care in the preparation of this document, but no guarantee is given as to the correctness of its contents. Our products are under continual improvement and we reserve the right to make changes without notice.

Technical Support

If a problem arises with your system and no solution can be obtained from the user guide, please contact your place of purchase or local distributor. Alternatively, please try the following help resources for further guidance.

• Visit the MSI website for technical guide, BIOS updates, driver updates, and other information: http://www.msi.com
• Register your product at: http://register.msi.com

Trademark Recognition

All product names used in this manual are the properties of their respective owners and are acknowledged.

Revision History

Version 1.0, 2015/10, For H110M GAMING.

Version 1.1, 2015/11, For ECO.

Version 1.2, 2016/01, For B150M GAMING PRO.
