Battery and Charging

The MOZA Mini-P has a built-in lithium battery. Fully charge the battery before first use. The LED power indicator blinks when the battery level is less than 20%. Charge it with an universal USB-C cable, Mini-P can be charged through a phone charger and mobile power supplier. The charging stops automatically when the battery is fully charged.

Notes:

1. Please do not over-charge or over-discharge the battery. Otherwise the battery will be damaged.
2. Recharge and discharge the battery every 3 months to keep it intact if it is left unused for a long time.

Contacts

Official Website Sina Weibo WeChat

Twitter Facebook YouTube

Instagram

MOZA Genie Download

IOS Android

Tutorial

Firmware Upgrade and Calibration YouTube QR

Firmware Upgrade and Calibration WeChat QR

GUDSEN

INVENTED FOR VIDEO

Shenzhen Gudsen Technology Co., Ltd Web: www.gudsen.com

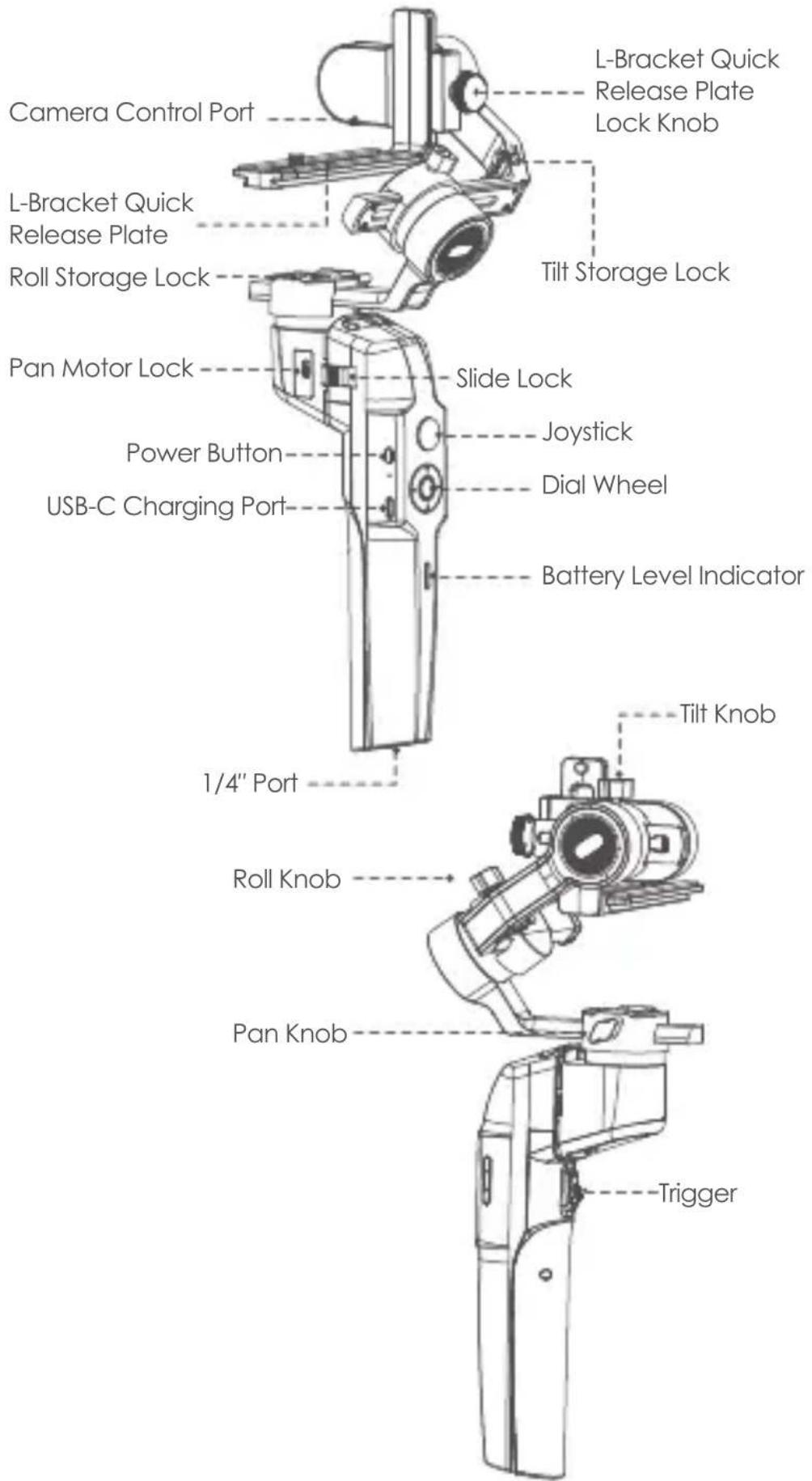

Camera Control Port L-Bracket Quick Release Plate Lock Knob L-Bracket Quick Release Plate Roll Storage Lock Pan Motor Lock Power Button USB-C Charging Port Slide Lock Joystick Dial Wheel Battery Level Indicator 1/4" Port Roll Knob Pan Knob Tilt Knob Trigger L-Bracket Quick Release Plate Lock Knob Tilt Storage Lock

Mini-P Installation

- Expanding and Folding the Mini-P main body

a. Folded Status

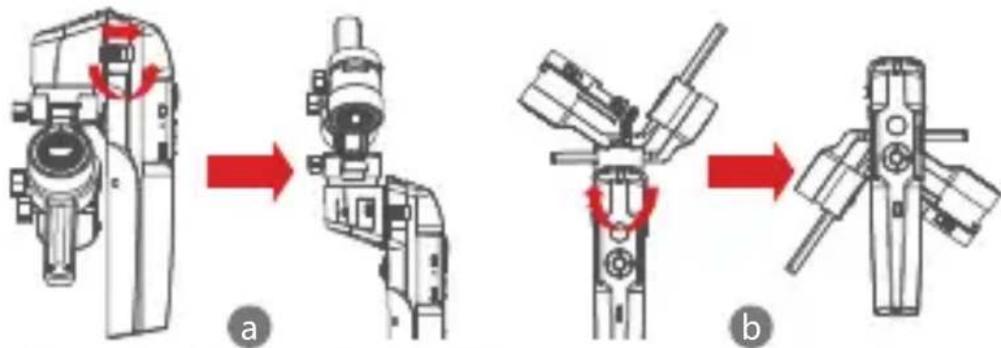

Slide the slide lock and rotate the gimbal 180° anticlockwise. Then it locks automatically.

b. Expanded Status

Slide the slide lock and rotate the gimbal 180° clockwise. Then it locks automatically.

Technical diagram showing mechanical assembly steps labeled a and b, with red arrows indicating motion direction.

• Storage and Expand the Mini-P

Mini-P is equipped with three axes storage lock for gimbal storage, to protect from constant movement.

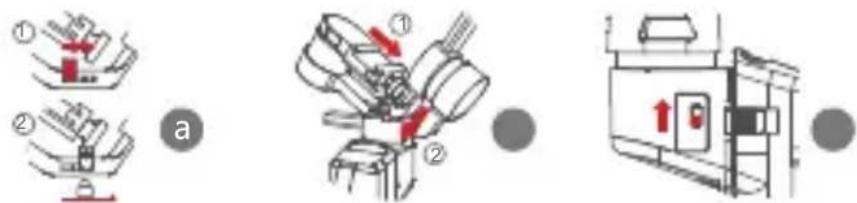

a. Slide the tilt storage lock on the roll arm(Picture a), slide the tilt arm downwards(Picture b), place the L-Bracket lock knob into the tilt storage lock groove, then the tilt motor storage is complete.

b. Slide the roll arm downwards, place the roll arm between the 2 bosses on the silicone sleeve of the pan motor (Picture b), then the roll motor storage is complete.

c. Slide the pan motor lock upwards(Picture c) then the pan motor storage is complete.

Reverse the above steps to expand the gimbal

Technical diagram showing three stages of a mechanical assembly: tool positioning, assembly, and machine operation.

- Attaching the Tripod

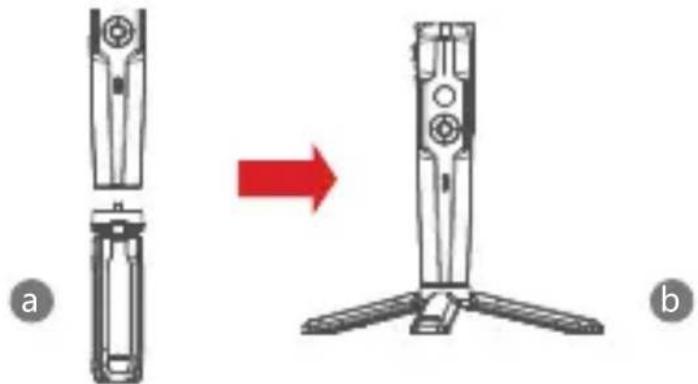

a. Screw the tripod tightly into the 1/4" hole at the bottom of the gimbal.

b. Extend the three support feet, place the gimbal on a flat surface

Diagram showing a device being processed from a left-side component to a right-side assembly, with no visible text or symbols.

- Mounting the Camera

Horizontal Mounting

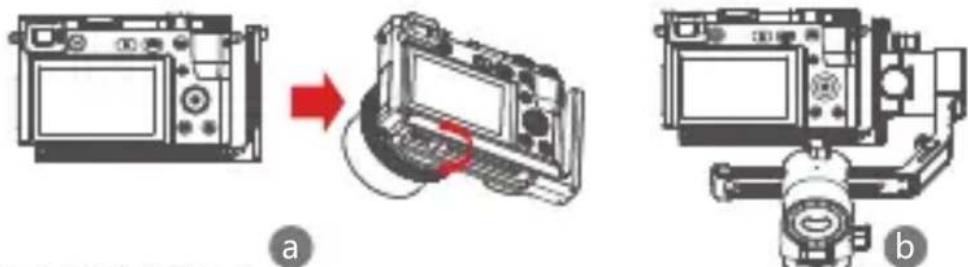

a. Place the longer side of the L-Bracket under the camera, and secure the camera with a 1/4"screw.

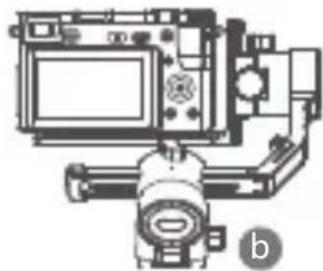

b. Loosen the L-Bracket quick release plate lock knob, slider the shorter side of the L-Bracket quick release plate into center of the quick-release base, then lock the knob.

Vertical Mounting

a. Place the longer side of the L-Bracket under the camera to secure it, and lock the camera with a 1/4"screw.
b. Loosen the L-Bracket quick release plate lock knob, slider the longer side of the L-Bracket quick release plate into center of the quick-release base, then lock the knob.

Technical line drawing of a vintage mechanical device with no visible text or symbols

• Mounting the Mobile Phone

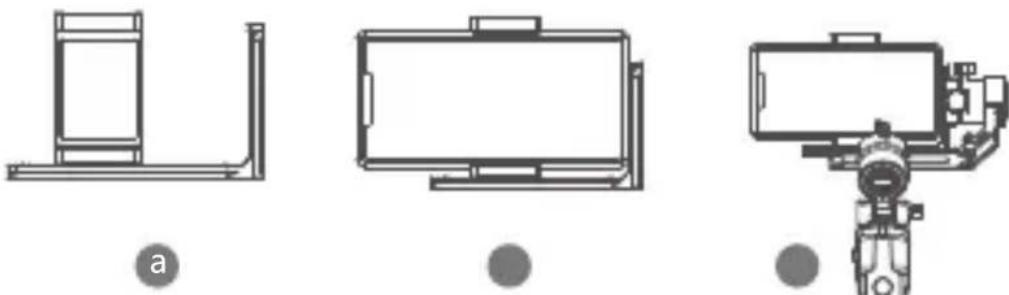

a. Fix the phone holder on the longer side of the L-Bracket quick release plate with 1/4"screw, Make sure the side with clips is backward
b. Put the phone in the phone holder, ensure that the clips do not touch the power key or volume key;
c. Loosen the L-Bracket quick release plate lock knob, slider the shorter side of the L-Bracket quick release plate into center of the quick-release base, then lock the knob.

Note: Please hold your phone or camera tightly when loosening the L-Bracket quick release plate lock knob and removing the L-Bracket quick release plate. Preventing the mobile phone or camera from falling to the ground.

Balancing

a. Loosen the tilt knob, and adjust the tilt arm back and forth until the lens is horizontally forward, then lock the knob.
b. Rotate the camera until the lens is facing up, loosen the L-Bracket quick release plate lock knob, and adjust the L-Bracket quick release plate back and forth until the lens is straight up (leveled), then lock the knob.

Mechanical assembly diagram showing a valve and actuator mechanism (no text or labels)

Mechanical assembly diagram showing a valve mechanism with red directional arrows (no text or labels)

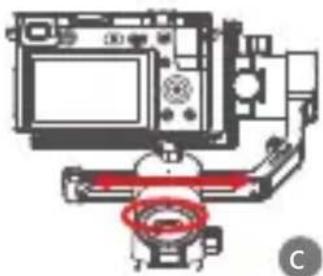

c. Loosen the roll knob, adjust the roll arm left and right until the roll arm remains horizontal, then lock the knob; The camera or phone should be leveled and can be positioned in any direction (up or down) and it stays there.

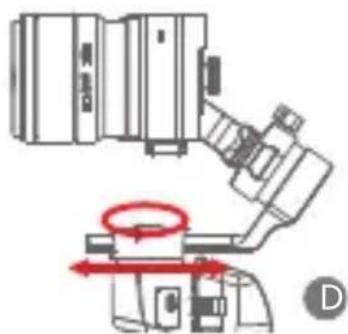

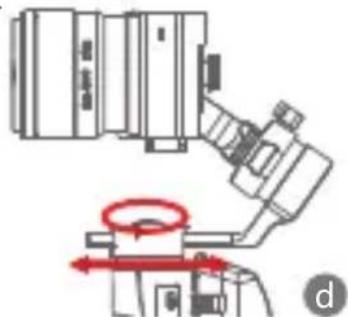

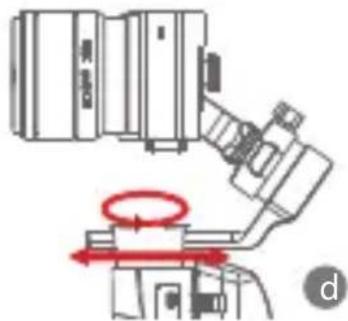

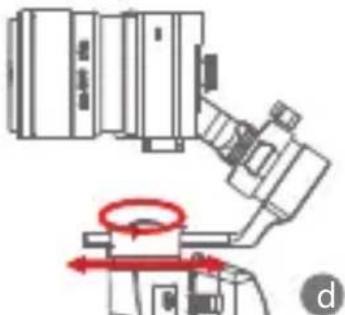

d. Hold the stabilizer horizontally and make the pan arm parallel to the ground, then loosen the pan knob, adjust the pan arm left and right until the pan arm remains horizontal, and then lock the knob. Your camera or phone should be leveled and can be move to any direction (tilt, pan, roll) and stays on that position without hands holding it.
