USER MANUAL KS1500 SCHEPPACH

Günzburger Straße 69

D-89335 Ichenhausen

Verehrter Kunde,

Homepage: https://www.scheppach.com/de/service

Explanation of the symbols on the device

	Read the operating and safety instructions before start-up and follow them!
	Wear eye protection!
	Wear hearing protection!
	If dust builds up, wear respiratory protection!
	Protection class II
CE	The product complies with the applicable European directives.

Table of contents: Page:

1. Introduction 20
2. Device description (Fig. 1 - 9). 20
3. Scope of delivery 20
4. Proper use 20
5. Safety information 21
6. Residual risks 23
7. Technical data 23
8. Unpacking 24
   9.Before commissioning 24
9. Commissioning 24
10. Working instructions 25
11. Maintenance 26
12. Storage 26
13. Electrical connection 26
14. Disposal and recycling 27
15. Troubleshooting 28
16. Declaration of conformity 43

1. Introduction

Manufacturer:

Scheppach GmbH

Günzburger Straße 69

D-89335 Ichenhausen

Dear customer,

We hope your new tool brings you much enjoyment and success.

Note:

In accordance with the applicable product liability laws, the manufacturer of this device assumes no liability for damage to the device or caused by the device arising from:

• Improper handling,
• Failure to comply with the operating instructions.
• Repairs carried out by third parties, unauthorised specialists.
• Installing and replacing non-original spare parts,
  Application other than specified,
• Failure of the electrical system in the event of the electrical regulations and VDE provisions 0100, DIN 13 / VDE0113 not being observed.

Please consider:

Read through the complete text in the operating manual before installing and commissioning the device.

The operating manual is intended to help the user to become familiar with the machine and take advantage of its application possibilities in accordance with the recommendations.

The operating instructions include important instructions for the safe, proper and economic operation of the machine, for avoiding danger, for minimising repair costs and downtimes and for increasing the reliability and extending the service life of the machine.

In addition to the safety instructions in this operating manual, you must also observe the regulations applicable to the operation of the machine in your country. Keep the operating manual package with the machine at all times and store it in a plastic cover to protect it from dirt and moisture. They must be read and carefully observed by all operating personnel before starting the work. The machine may only be used by personnel who have been trained to use it and who have been instructed with respect to the associated hazards. The required minimum age must be observed.

In addition to the safety instructions in this operating manual and the separate regulations of your country,

the generally recognised technical rules relating to the operation of such machines must also be observed.

We accept no liability for accidents or damage that occur due to a failure to observe this manual and the safety instructions.

2. Device description (Fig. 1 - 9)

1. Handle
2. Grinding disc cover
3. Screws for grinding disc cover
4. Grinding disc
5. Adjusting screw for depth stop
6. Chain guide rail
7. Tightening lever
8. Scale
9. Locking nut
10. Grinding base
11. Chain tensioning unit
12. Adjusting screw for chain stop
13. Chain stop
14. Cable holder
15. Mains cable
16. Grinding head
17. On/off switch
18. Knurled nut

3. Scope of delivery

• Chain sharpener
• Handle (1)
• Chain tensioning unit (11)
• Adjusting screw for depth stop (5)
• Adjusting screw for chain tensioning unit (12)
• Operating manual

4. Proper use

The chain sharpener is suitable for sharpening saw chains.

The machine may only be used in the intended manner.

Any use beyond this is improper. The user/operator, not the manufacturer, is responsible for damages or injuries of any type resulting from this.

An element of the intended use is also the observance of the safety instructions, as well as the assembly instructions and operating information in the operating manual.

Persons who operate and maintain the machine must be familiar with it and must be informed about potential dangers.

In addition, the applicable accident prevention regulations must be strictly observed.

Other general occupational health and safety-related rules and regulations must be observed.

The liability of the manufacturer and resulting damages are excluded in the event of modifications of the machine.

The machine may only be operated with original parts and original accessories from the manufacturer.

The safety, operating and maintenance specifications of the manufacturer, as well as the dimensions specified in the technical data, must be observed.

Please observe that our equipment was not designed with the intention of use for commercial or industrial purposes. We assume no guarantee if the equipment is used in commercial or industrial applications, or for equivalent work.

The device is intended for use by adults. Children over the age of 16 may use the tool except under supervision.

The manufacturer is not liable for damage caused by an improper use or incorrect operation of this device.

5. Safety information

General power tool safety warnings

WARNING: Read all safety warnings, instructions, illustrations and specifications provided with this electric tool.

Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) Work area safety

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.

b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.

b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3) Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

b) Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

4) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

c) Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

h) Keep handles and grasping surfaces dry, clean and free from oil and grease.

Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

5) Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Further safety instructions

• Never use damaged accessory tools. Check tool attachments such as grinding discs for chipping and cracks before each use. Once you have checked and used the tool attachment, ensure that you and all other persons in the vicinity remain outside the plane of the rotating tool attachment and allow the device to run for 1 min. at the maximum speed. Damaged tool attachments usually break during this test period.

• The maximum speed of the accessory tool used must be at least as high as the maximum speed specified for the power tool. Accessories which rotate faster than the maximum permissible rate can break and throw pieces into the air.

• Keep yourself and people nearby out of the plane of the rotating grinding disc. The protective hood is intended to protect the operator from fragments and accidental contact with the grinding wheel.

• Grinding bodies may only be used for the recommended applications. For example: Never grind on the side surfaces of the grinding discs. Grinding on the side surfaces can cause the grinding disc to break and fly apart.

Always use undamaged clamping flanges of the correct size and shape for the grinding disc selected by you. Suitable flanges support the grinding disc and reduce the danger of the grinding disc breaking.

• The external diameter and thickness of the accessory tool used must comply with the dimensions of the power tool. Incorrectly dimensioned accessory tools cannot be sufficiently shielded or controlled.
• Grinding discs and flanges must fit exactly on your electrical tool's grinding spindle. Insertion tools that do not fit exactly on your electrical tool's grinding spindle rotate unevenly, vibrate very strongly and can cause a loss of control.
• Wear personal protective equipment. Depending on application, use face shield, safety goggles or safety glasses. Where appropriate, wear a dust mask, hearing protection, protective gloves or a special apron that will keep small grinding and material particles away from you. Eye protection must protect against flying debris generated by various applications. Dust or breathing masks must filter the dust generated during use. Prolonged exposure to high intensity noise may cause hearing loss.
• Ensure that other people remain at a safe distance from your workspace. Anyone who enters the workspace must wear personal protective equipment. Fragments of workpiece or of a broken accessory may fly away and cause injury beyond immediate area of operation.
• Keep the power cable away from rotating insertion tools. If you lose control of the device, the connection cable can be severed or caught and your arm pulled into the rotating tool attachment.
• Clean the ventilation slits of your power tool regularly. The engine fan draws dust into the housing and a strong accumulation of metal dust can cause electrical hazards.
• Do not use the electric tool in the vicinity of combustible materials. Do not use the electric tool if it is on a flammable surface such as wood. Sparks could ignite these materials.
• Do not use any accessory tools which require liquid coolant. The use of water or other coolants may result in an electric shock.
• Keep mains cables and extension cables away from the grinding disc. In case of damage or cutting, immediately pull the mains plug out of the socket. Do not touch the lead until it is disconnected from the mains. There is a danger of electric shock.
• The replacement of the plug or the connection cable must always be carried out by the manufacturer of the electric tool or its customer service in order to avoid hazards.

Warning! This power tool generates an electromagnetic field during operation. This field can impair active or passive medical implants under certain conditions. In order to prevent the risk of serious or deadly injuries, we recommend that persons with medical implants consult with their physician and the manufacturer of the medical implant prior to operating the power tool.

6. Residual risks

The machine has been built according to the state-of-the-art and the recognised technical safety requirements. However, individual residual risks can arise during operation.

• Health hazard due to electrical power, with the use of improper electrical connection cables.
• Furthermore, despite all precautions having been met, some non-obvious residual risks may still remain.
• Residual risks can be minimised if the "Safety information" and the "Proper use" together with the operating manual as a whole are observed.
• Avoid accidental starting of the machine: the operating button may not be pressed when inserting the plug in an outlet. Use the tool attachment that is recommended in this operating manual. This is how to ensure that your machine provides optimum performance.
• Keep your hands away from the work area, when the machine is in operation.

7. Technical data

Rated voltage 220 - 240 V~ / 50Hz

Power consumption *S215min85W

Idle speed 5000 rpm

Adjustment angle 35^ - 0^ - 35^

Grinding disc (inner) 22mm

Grinding disc (outer) 104mm

Grinding disc thickness 3.2mm

Protective insulation II

Weight

2.1 kg

*S2 15min: The machine may be operated at maximum power for 15 min. Then, the machine must be brought to a standstill for a period of time so that it is not allowed to heat up.

Noise level

The noise values have been determined in accordance with EN 62841.

Sound pressure level LpA	65.5 dB
Uncertainty KpA	3 dB
Sound power level LWA	78.5 dB
Uncertainty KWA	3 dB

Wear hearing protection.

Excessive noise can result in a loss of hearing.

Keep the noise level and vibration to a minimum!

• Only use devices which are free of defects.
• Maintain and clean the device at regular intervals.
• Adapt your working methods to the device.
• Do not overload the device.
• Have the device checked if necessary.
• Switch the device off if it is not in use.

8. Unpacking

• Open the packaging and carefully remove the device.
• Remove the packaging material, as well as the packaging and transport safety devices (if present).
• Check whether the scope of delivery is complete.
• Check the device and accessory parts for transport damage. In the event of complaints the carrier must be informed immediately. Later claims will not be recognised.
• If possible, keep the packaging until the expiry of the warranty period.
• Familiarise yourself with the product by means of the operating instructions before using for the first time.
• With accessories as well as wearing parts and replacement parts use only original parts. Replacement parts can be obtained from your dealer.
• When ordering please provide our article number as well as type and year of manufacture for your equipment.

WARNING!

The device and the packaging material are not children's toys! Do not let children play with plastic bags, films or small parts! There is a danger of choking or suffocating!

9. Before commissioning

Fitting the handle (Fig. 2)

• Screw the handle (1) onto the grinding head (16).

Fit the adjusting screw for the depth stop (Fig. 2)

• Turn the depth stop set screw (5) through the threaded hole on the top of the unit.

Fitting the chain tensioning unit (Fig. 3)

• Loosen the locking nut (9) of the chain tensioning unit (11).
• Place the chain tensioning unit (11) on the grinding base (10) and screw it tight with the locking nut (9).

Fitting the adjusting screw for the chain stop (Fig. 3)

• Turn the chain stop set screw (12) through the threaded hole on the side of the chain tensioning unit (11).

Fitting of the chain sharpener on a workbench (Fig. 4)

The device must be firmly attached to a workbench or table for safe handling.

The grinding base (10) must protrude over the edge of the table. Use both fixing points for this purpose. However, make sure that the recess for the saw chain and the access to the locking nut (9) remain free.

Tip: In addition, we recommend a rubber pad for noise and vibration reduction (not included in the scope of delivery).

Place the device in a place that meets the following conditions:

non-slip
- vibration-free
even
clean and dry
- free from tripping hazards
- adequate lighting conditions

10. Commissioning

Switching on and off (Fig. 8)

• To switch on, press the on/off switch (17) (position "I"), the device starts up.
• To switch off, press the on/off switch (17) (position "0"), the device switches off.

11. Working instructions

Before starting work, note the following:

• Workplace tidy?
  Is the chain sharpener firmly mounted on a workbench?
• You may not put the device into operation before this operating manual is read, have observed all the specified notes and the device is fitted as described!

Working with the chain sharpener

Always keep your hands at a safe distance from the rotating grinding disc.

• Do not use damaged grinding discs or those that have changed shape.
• Do not work until the grinding disc has reached maximum speed.
  Only saw chains that can be safely placed and guided may be processed.

Sharpening of saw chains

Before any setting on the device:

• Shutting down the device
• Wait until the grinding disc is at a standstill
• Pull out the mains plug

Grinding all cutting links (Fig. 5 - 7)

To grind a cutting edge of the cutting links, proceed as follows:

1. Set the sharpening angle: By loosening the locking nut (9), turn the chain tensioning unit (11) to the required sharpening angle on the scale (8) and tighten the locking nut (9) again (Fig. 5).
   The cutting edges of the cutting links are normally ground at an angle of between 30 and 35 degrees. For exact details, contact your saw chain manufacturer.
2. Release the tightening lever (7) and place the saw chain in the chain guide bar (6). The cutting edges must face the grinding disc (4) (Fig. 6).
3. Fold down the chain stop (13) and pull the saw chain back until the cutting link to be sharpened rests against the chain stop (13) (Fig. 6).
4. For exact alignment, pull the grinding head (16) against the cutting link. Adjust the distance by means of the adjusting screw for chain stop (12) so that the grinding disc (4) touches the cutting link. In addition, regulate the grinding depth with the adjusting screw for chain stop (12). (Fig. 6)

5. Tighten the tightening lever (7) saw chain is fixed (Fig. 6).

6. Adjust the depth stop using the depth stop adjusting screw (5) so that the grinding disc (4) touches the tooth base (Fig. 7). Attention!

Do not set the depth stop too low, otherwise there is a danger of the chain breaking during operation.

1. Switch on the device and carefully sand the cutting edge of the cutting link by moving the handle (1) on the grinding head (2) downwards.
2. To transport the chain onwards, switch the device off. Release the tightening lever (7) and fix the next chain link in the chain guide bar (6) using the adjusted chain stop (13) and the tightening lever (7).
   Attention!

First sharpen the teeth on one side of the chain. Then adjust the sharpening angle and sharpen the teeth on the other side.

Attention!

Mark the first cutting link, e.g. with a chalk line. This way you avoid sharpening cutting links twice.

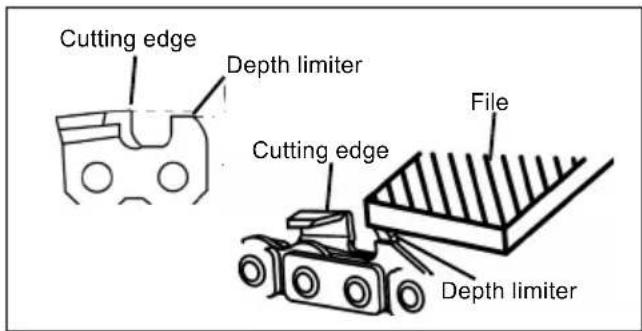

Setting the depth gauge distance

If all the cutting links' cutting edges are sharpened, your saw chain is sharp, but it may not cut.

Therefore, there must always be a depth gauge distance (= distance between depth gauge and cutting edge). As a rule, it is 0.5 - 0.8mm For exact details, contact your saw chain manufacturer.

Too great a depth gauge distance increases the risk of kick-back when sawing.
If the depth gauge distance is too small, you may have to file off the distance with a file according to the specifications of your saw chain.
Make sure you round off the front edge of the depth gauge with a file. The original shape of the cutting link must be preserved.

12. Maintenance

Warning! Pull out the mains plug before carrying out any adjustments, maintenance or repair work!

General maintenance tasks

• Keep protective devices, air vents and the motor housing as free of dust and dirt as possible. Rub the device clean with a clean cloth or blow it off with compressed air at low pressure.
• We recommend that you clean the device directly after every use.
• Clean the device at regular intervals using a damp cloth and a little soft soap. Do not use any cleaning products or solvents; they could attack the plastic parts of the device. Make sure that no water can penetrate the device interior.

Changing the grinding disc (Fig. 9)

• Do not use damaged grinding discs or those that have changed shape.

• Do not use any grinding discs that do not correspond to the characteristics specified in this operating manual.

• Loosen the three screws for grinding disc cover (3) and remove the grinding disc cover (2).

• Unscrew the knurled nut (18) by hand.
• Remove the grinding disc (4) from the mounting.
• Place the new grinding disc (4) on the holder and screw on the knurled nut (18) by hand.
• Screw the grinding disc cover (2) back on. Attention!

The knurled nut (18) must not be tightened too much to avoid breaking the grinding disc and nut.

1. Before the first work and after each grinding disc change, carry out a test run of at least 30 seconds without load. Switch off the device immediately if the disc runs out of round, there is considerable vibration or abnormal noises are heard.

Service information

With this product, it is necessary to note that the following parts are subject to natural or usage-related wear, or that the following parts are required as consumables.

Wearing parts*: Abrasives, carbon brushes

• may not be included in the scope of supply!

Connections and repairs

Connections and repair work on the electrical equipment may only be carried out by electricians.

Please provide the following information in the event of any queries:

Type of current for the motor
Data of machine type plate
Data of motor type plate

Spare parts and accessories can be obtained from our service centre. To do this, scan the QR code on the cover page.

13. Storage

Store the device and its accessories in a dark, dry and frost-free place that is inaccessible to children. The optimum storage temperature lies between 5 and 30^ Store the power tool in its original packaging. Cover the electric tool to protect it from dust or moisture. Store the operating manual with the power tool.

14. Electrical connection

The electrical motor installed is connected and ready for operation. The connection complies with the applicable VDE and DIN provisions.

The customer's mains connection as well as the extension cable used must also comply with these regulations.

Damaged electrical connection cable

The insulation on electrical connection cables is often damaged.

This may have the following causes:

• Pressure points, where connection cables are passed through windows or doors.

• Kinks where the connection cable has been improperly fastened or routed.

• Places where the connection cables have been cut due to being driven over.
  Insulation damage due to being ripped out of the wall outlet.

• Cracks due to the insulation ageing.

Such damaged electrical connection cables must not be used and are life-threatening due to the insulation damage.

Check the electrical connection cables for damage regularly. Ensure that the connection cables are disconnected from electrical power when checking for damage.

Electrical connection cables must comply with the applicable VDE and DIN provisions. Only use connection cables of the same designation.

The printing of the type designation on the connection cable is mandatory.

For single-phase AC motors, we recommend a fuse rating of C 16A or K 16A for machines with a high starting current (from 3000 watts)!

Connection type X

If the mains connection cable of this device is damaged, it must be replaced by a special connection cable which can be obtained from the manufacturer or its service department.

15. Disposal and recycling

Notes for packaging

The packaging materials are recyclable. Please dispose of packaging in an environmentally friendly manner.

Notes on the electrical and electronic equipment act [ElektroG]

Waste electrical and electronic equipment does not belong in household waste, but must be collected and disposed of separately!

• Used batteries or rechargeable batteries that are not installed permanently in the old appliance must be removed non-destructively before disposal. Their disposal is regulated by the battery law.

• Owners or users of electrical and electronic devices are legally obliged to return them after use.

• The end user is responsible for deleting their personal data from the old device being disposed of!

• The symbol of the crossed-out dustbin means that waste electrical and electronic equipment must not be disposed of with household waste.

• Waste electrical and electronic equipment can be handed in free of charge at the following places:

• Public disposal or collection points (e.g. municipal works yards)

• Points of sale of electrical appliances (stationary and online), provided that dealers are obliged to take them back or offer to do so voluntarily.

• Up to three waste electrical devices per type of device, with an edge length of no more than 25 centimetres, can be returned free of charge to the manufacturer without prior purchase of a new device from the manufacturer or taken to another authorised collection point in your vicinity.
  Further supplementary take-back conditions of the manufacturers and distributors can be obtained from the respective customer service.

• If the manufacturer delivers a new electrical appliance to a private household, the manufacturer can arrange for the free collection of the old electrical appliance upon request from the end user. Please contact the manufacturer's customer service for this.

These statements only apply to devices installed and sold in the countries of the European Union and which are subject to the European Directive 2012/19/EU. In countries outside the European Union, different regulations may apply to the disposal of waste electrical and electronic equipment.

16. Troubleshooting

The following table shows fault symptoms and describes remedial measures in the event of your machine failing to work properly. If you cannot localise and rectify the problem with this, please contact your service workshop.

Fault Possible cause Remedy
Chain sharpener does not run	No power or power failure Check	Check power supply, socket, fuse
	Extension cable faulty	Check extension cable, replace defective cable immedi- diately
	Mains plug, engine or switch faulty	Have the engine or switch checked or repaired by a licensed electrician or replaced with original parts.
Chain sharpener grinds with interruptions	Extension cable faulty	Check extension cable, replace defective cable immedi- diately
	Internal fault Please contact	customer service for this
	On/off switch defective Please	contact customer service for this
Grinding disc becomes hot	Grinding disc is blunt or defective	Replace grinding disc
Engine hums, grinding disc stays stationary	Grinding disc jammed Remove	object
Unusual vibrations	Grinding disc is defective	Replace grinding disc

Günzburger Straße 69

D-89335 Ichenhausen

Cher client,

EU Declaration of Conformity

2000/14/EG_2005/88/EG

Annex V

Annex VI Noise: measured LwA = xx dB; guaranteed LwA = xx dB P = xx KW; L/∅ = cm Notified Body: Notified Body No.:

2016/1628/EU

Emission. No:

2006/42/EG

Annex IV Notified Body: Notified Body No.: Certificate No.:

Standard references:

EN 62841-1:2015/A11:2022; PPP 58094B:2022;

EN IEC 55014-1:2021; EN IEC 55014-2:2021; EN IEC 61000-3-2:2019/A1:2021; EN 61000-3-3:2013/A2:2021

This declaration of conformity is issued under the sole responsibility of the manufacturer.

The object of the declaration described above fulfils the regulations of the directive 2011/65/EU of the European Parliament and Council from 8th June 2011, on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

Subject to change without notice

Documents registrar: Dawid Hudzik

Günzburger Str. 69, D-89335 Ichenhausen

Garantie DE

Apparent defects must be notified within 8 days from the receipt of the goods. Otherwise, the buyer's rights of claim due to such defects are invalidated. We guarantee for our machines in case of proper treatment for the time of the statutory warranty period from delivery in such a way that we replace any machine part free of charge which provably becomes unusable due to faulty material or defects of fabrication within such period of time. With respect to parts not manufactured by us we only warrant insofar as we are entitled to warranty claims against the upstream suppliers. The costs for the installation of the new parts shall be borne by the buyer. The cancellation of sale or the reduction of purchase price as well as any other claims for damages shall be excluded.

Garantie FR
