USER MANUAL SCC301 0901 Armor All

Black and white photo of a portable vacuum cleaner with a visible brand logo (no text or symbols on the device itself)

EN

P. 02

FR

P. 17

ES

P. 32

- Model No.

Read and understand this manual before use. Keep this manual for future reference.

POUR GARANTIR VOTRE SÉCURITÉ

Important Safety Instructions .... 3

Double Insulation Instructions 5

Unpacking & Checking Carton Contents 6

General Assembly Instructions....7

Operation 8

Maintenance 11

Troubleshooting 13

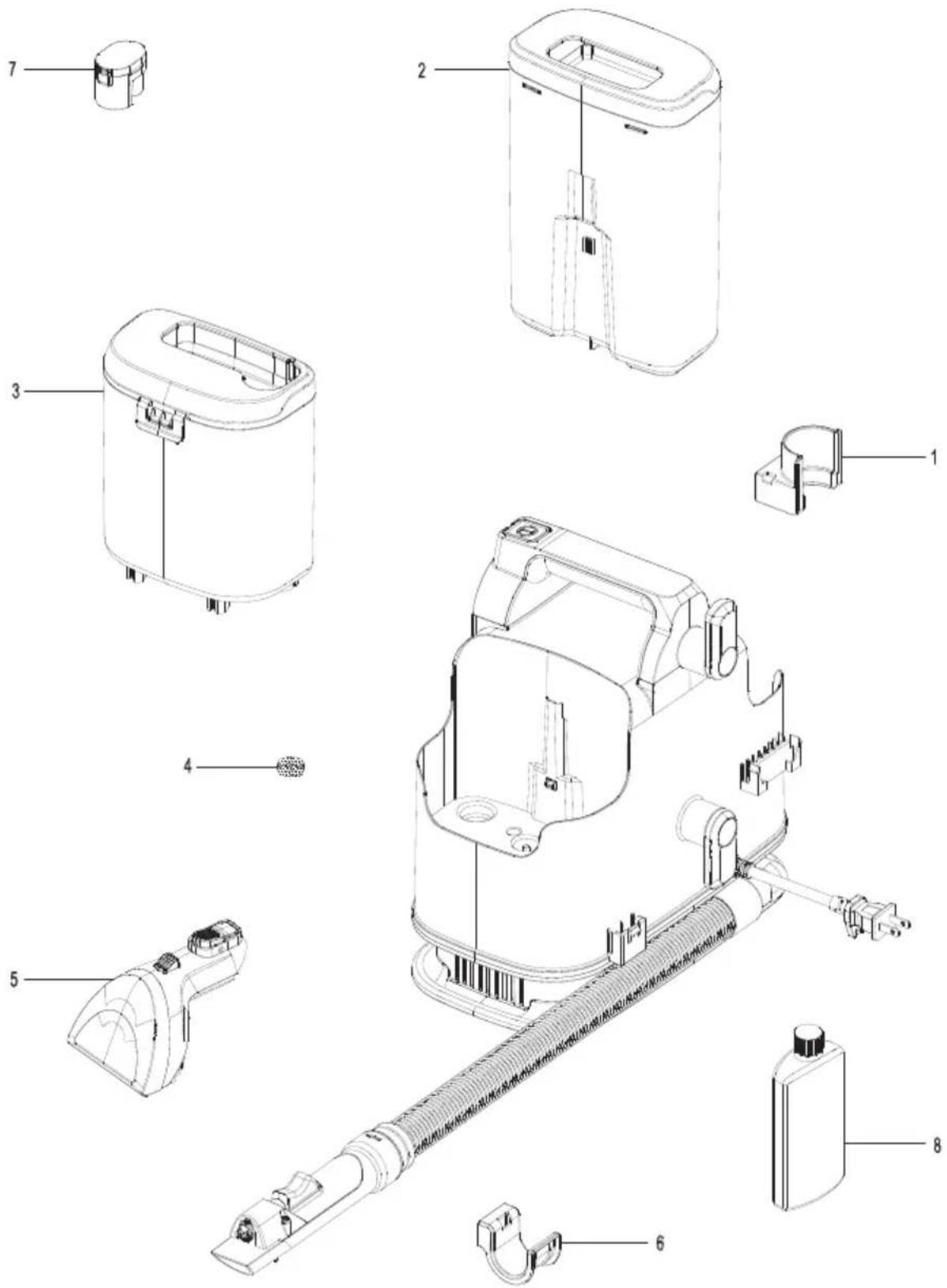

Exploded View 15

Parts List 16

Thank you for purchasing this Armor All ^® spot cleaner. Feel confident that with our Armor All ^® spot cleaner you are obtaining a high-quality product engineered for optimal performance. This spot cleaner is capable of picking up liquids.

FOR YOUR SAFETY: CAREFULLY READ AND UNDERSTAND ALL INSTRUCTIONS.

WARRANTY

We take pride in producing a high-quality, durable product. This cleaner carries a limited two (2) year warranty against defects in workmanship and materials from date of purchase (or, for deliveries in the State of California, two years from the date of delivery), under normal household use. Please keep your receipt as proof of purchase. This warranty gives you specific legal rights, and you may have other rights, which vary from state to state. For customer service please call 1-866-384-8432.

Not Covered by Warranty:

• Any part that has become inoperative due to misuse, negligence, direct/indirect abuse, accidents, improper maintenance, repairs or alterations;
• Consumables such as filters and accessories;
• Normal wear and tear of parts and attachments, such as nozzles or filters;
• Normal deterioration of the exterior finish due to use or exposure;
• Any product where serial number/data label is tampered with or removed;
• Any product purchased from an unauthorized retailer.

EN

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical appliance, basic precautions should always be followed, including the following:

READ ALL INSTRUCTIONS BEFORE USING THIS SPOT CLEANER.

Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY:

• Use your spot cleaner only as described in this Operator's Manual. Use only manufacturer's recommended attachments.
• Fully assemble before operating.
• Operate spot cleaner only at voltage specified on data plate.
• Do not leave spot cleaner when plugged in. Unplug from outlet when not in use and before performing maintenance.
• Do not expose to rain. Store indoors.
• Do not immerse. Use only on carpet moistened by cleaning process.
• Do not allow it to be used as a toy. Close attention is necessary when used by or near children.
• Do not use it with a damaged cord or plug. If spot cleaner is not working as it should, has been dropped, damaged, left outdoors, or dropped in water, immediately discontinue use and call Customer Service at 1-866-384-8432 for assistance.
• Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not run spot cleaner over cord. Keep cord away from heated surfaces.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• Do not handle plug or spot cleaner with wet hands.
• Do not put any objects into openings.
• Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce air flow.
• Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
• Turn off all controls before unplugging.
• Use extra care when cleaning on stairs. To avoid personal injury or damage, and to prevent the spot cleaner from falling, always place spot cleaner at bottom of stairs or on floor. Do not place spot cleaner on stairs or furniture, as it may result in injury or damage.
• Do not put on chairs, tables, etc. Keep on floor.
• Do not use spot cleaner to pick up flammable or combustible liquids (gasoline, cleaning fluid, perfumes, etc.), or use in areas where they may be present. The

fumes from these substances can create a fire hazard or explosion.

• To reduce the risk of health hazards from vapors or dusts, do not vacuum toxic materials.
• Do not use or store near hazardous materials.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
• Do not use spot cleaner without tanks in place.
• Do not clean over floor electrical outlets.
• Do not use the spot cleaner to pick up sharp hard objects, small toys, pins, paper clips, etc. They may damage the spot cleaner or dust cup.
• Do not use sharp objects to clean out hose as they can cause damage.
• To help prevent matting and re-soiling, avoid contact with carpets until they are dry. Keep children and pets away from carpets until they are completely dry.
• Do not store the spot cleaner with solution in tanks.
• This spot cleaner is provided with double insulation. Use only identical replacement parts. See DOUBLE INSULATION INSTRUCTIONS.
• You are responsible for making sure that your spot cleaner is not used by anyone unable to operate it properly.

CAUTION: TO REDUCE THE RISK OF INJURY FROM MOVING PARTS - UNPLUG BEFORE SERVICING.

WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK - UNPLUG BEFORE CLEANING OR SERVICING.

SAVE THESE INSTRUCTIONS

For Household Use Only

DOUBLE INSULATION INSTRUCTIONS

This Spot Cleaner is double insulated, eliminating the need for a separate grounding system. Use only identical replacements parts. Read the instructions for Servicing Double-Insulated Spot Cleaner before servicing. Use this spot cleaner as described in this manual.

Observe the following warnings that appear on the motor housing of your spot cleaner.

DOUBLE INSULATED - GROUNDING NOT REQUIRED - WHEN SERVICING USE ONLY IDENTICAL REPLACEMENT PARTS.

WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK - DO NOT EXPOSE TO RAIN. STORE INDOORS.

WARNING: FOR YOUR OWN SAFETY, READ AND UNDERSTAND THE OPERATOR'S MANUAL. DO NOT RUN UNATTENDED. DO NOT PICK UP HOT ASHES, COALS, TOXIC, FLAMMABLE OR OTHER HAZARDOUS MATERIALS. DO NOT USE AROUND EXPLOSIVE LIQUIDS OR VAPORS.

WARNING: DOUBLE-INSULATED WET/DRY VACUUMS ARE EQUIPPED WITH TWO INSULATION SYSTEMS INSTEAD OF GROUNDING. THEY DO NOT INCORPORATE GROUNDING MEANS, NOR SHOULD SUCH A FEATURE BE ADDED. SERVICING A DOUBLE-INSULATED SPOT CLEANER REQUIRES EXTREME CARE AND KNOWLEDGE OF THE SYSTEM AND SHOULD BE DONE ONLY BY QUALIFIED SERVICE PERSONNEL. REPLACEMENT PARTS FOR A DOUBLE-INSULATED SPOT CLEANER MUST BE IDENTICAL TO THE PARTS THEY REPLACE. YOUR DOUBLE-INSULATED SPOT CLEANER IS MARKED WITH THE WORDS 'DOUBLE INSULATED' AND THE SYMBOL (SQUARE WITHIN A SQUARE) MAY ALSO BE MARKED ON THE APPLIANCE.

UNPACKING & CHECKING CARTON CONTENTS

A

Simple line drawing of a cylindrical object with a bow and textured base (no text or symbols)

B

C

D

E

F

G

Remove all contents from the carton. Check each item against the carton contents list.

Carton Contents List:

Key Description

Qty.

A Spot Cleaner ....1
B Tool Storage Holder....1
C Hose Storage Holder....1
D Tough Stain Nozzle....1
E Hose Cleaning Tool....1
F Cleaning Solution....1
G Operator's Manual....1

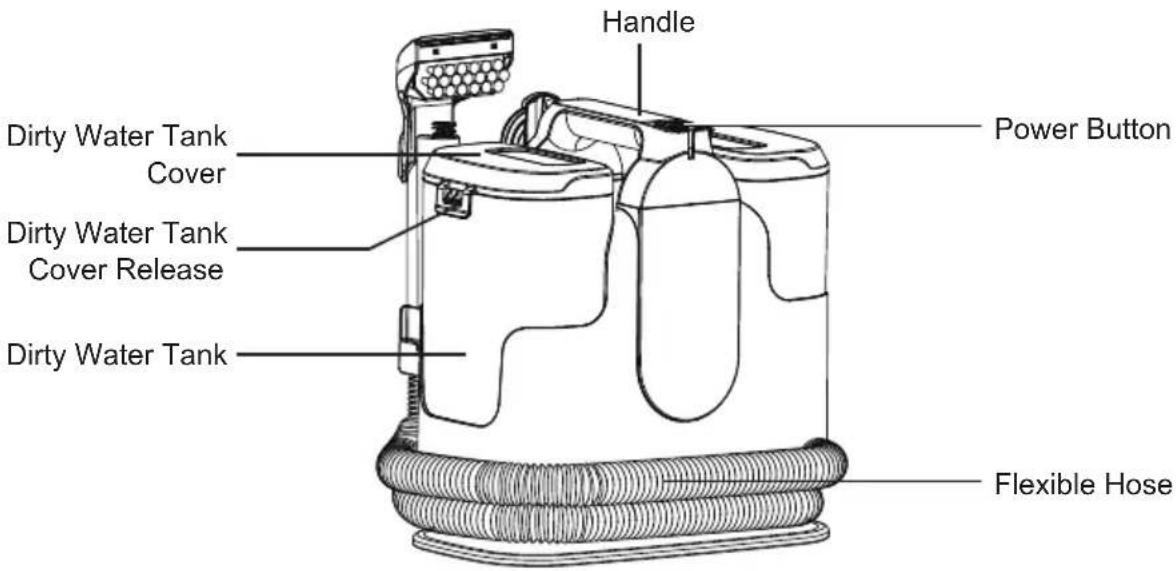

Handle Dirty Water Tank Cover Dirty Water Tank Cover Release Dirty Water Tank Power Button Flexible Hose

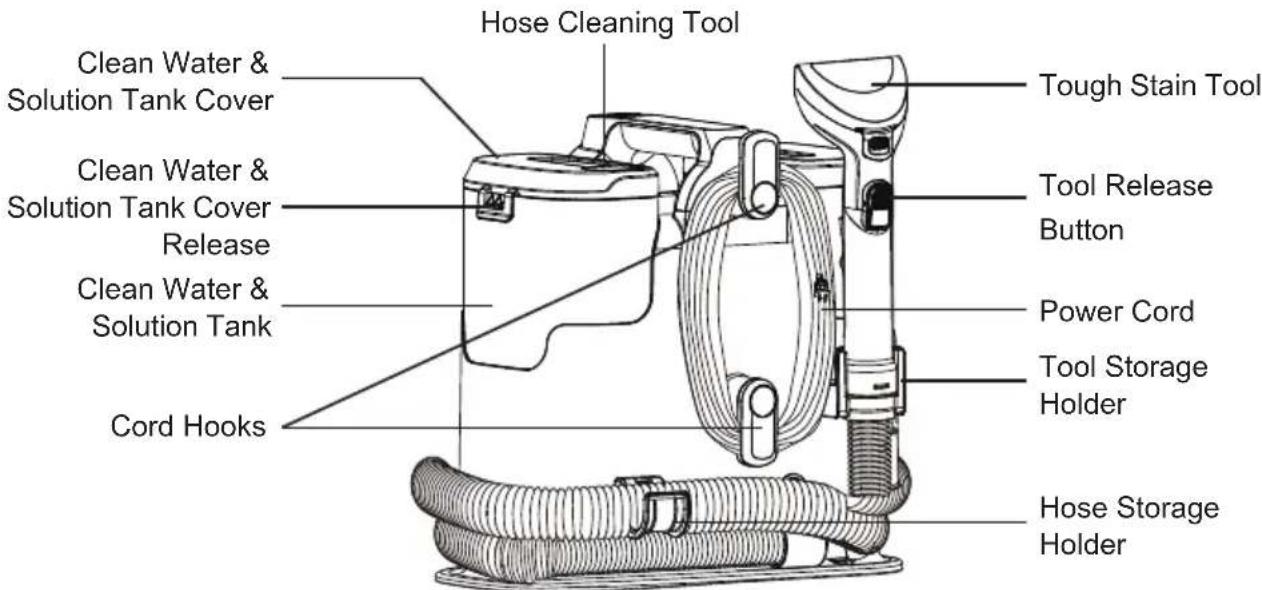

Hose Cleaning Tool Clean Water & Solution Tank Cover Clean Water & Solution Tank Cover Release Clean Water & Solution Tank Cord Hooks Tough Stain Tool Tool Release Button Power Cord Tool Storage Holder Hose Storage Holder

GENERAL ASSEMBLY INSTRUCTIONS

Mechanical assembly diagram showing two stages of a device with no visible text or symbols

Diagram showing two mechanical or electrical setups with no visible text, numbers, or symbols.

Diagram showing a gun being pushed into a firearm with an arrow indicating motion (no text or symbols)

Illustration of a portable cleaning device with hoses and a central hose, showing motion arrows (no text or symbols)

Technical diagram showing mechanical assembly with labeled parts (no text or symbols present)

UNPACKING YOUR SPOT CLEANER & GENERAL ASSEMBLY

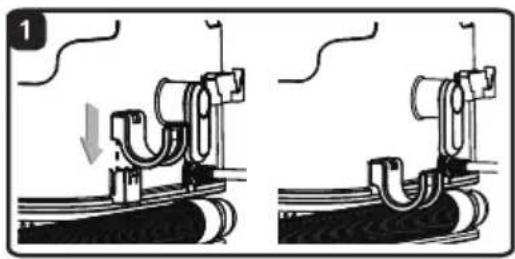

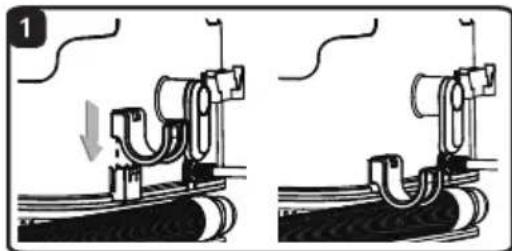

1. Align the hose storage holder with the slot as shown. Slide down the hose storage holder until it is secured into place (Fig. 1).

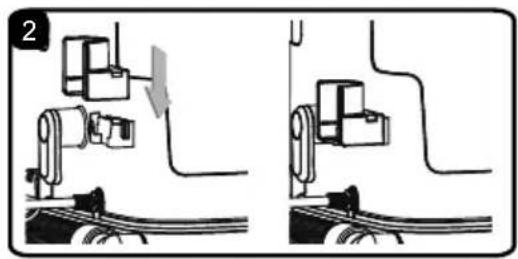

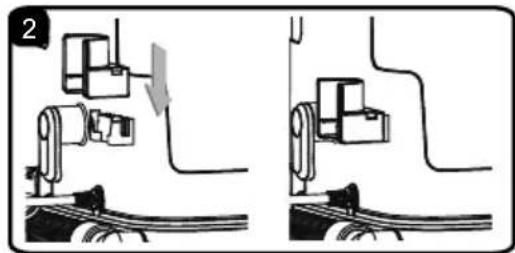

2. Align the tool storage holder with the slot as shown. Slide down the tool storage holder until it is secured into place (Fig. 2).
3. Slide the tough stain tool onto the end of the hose until it clicks into place (Fig. 3).

To remove: Press the tool release button and pull away the tool.

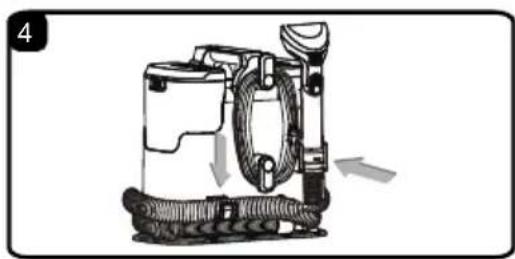

1. Put the flexible hose onto the hose storage holder. Snap the end of the hose with the tool installed into the tool storage holder when not in use (Fig. 4).

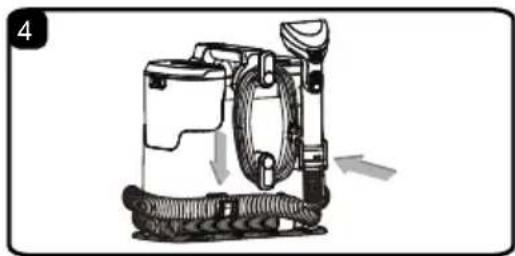

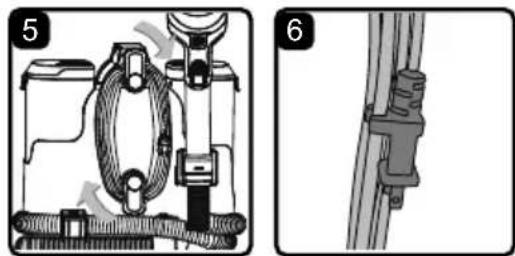

2. Make sure both cord hooks are in the proper position as shown. Wrap the power cord loosely around the cord hooks (Fig. 5).

NOTE: Make sure to wrap the power cord around the lower cord hook first, and then around the upper cord hook to avoid damaging the power cord.

1. Lock power cord plug onto the power cord (Fig. 6).

WARNING: WRAPPING THE CORD TOO TIGHTLY WITH EXCESSIVE STRESS ON THE CORD MAY CAUSE CORD DAMAGE. A DAMAGED CORD IS AN ELECTRICAL SHOCK HAZARD AND COULD CAUSE PERSONAL INJURY OR DAMAGE.

POLARIZED PLUG

To reduce the risk of electrical shock, this appliance has a polarized plug (one blade wider than the other). This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install the proper outlet. Do not change the plug in any way. Double insulation ☐ eliminates the need for the three-wire grounded power cord and grounded power supply system.

OPERATION

Diagram showing a mechanical device with labeled parts and an arrow indicating motion, likely illustrating a machining or assembly process.

Simple line drawing of a washing machine with four legs and a side panel (no text or symbols)

3 ③ ②

Technical line drawing of a portable water heater with side and top views (no text or symbols)

Simple line drawing of a kitchen appliance with a scroll wheel (no text or symbols)

FILLING THE CLEAN WATER & SOLUTION TANK

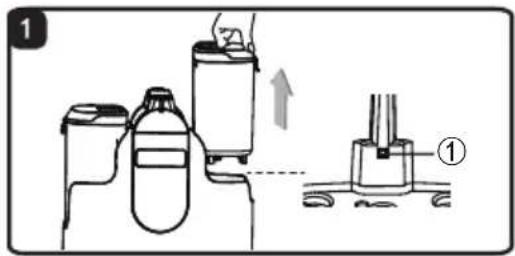

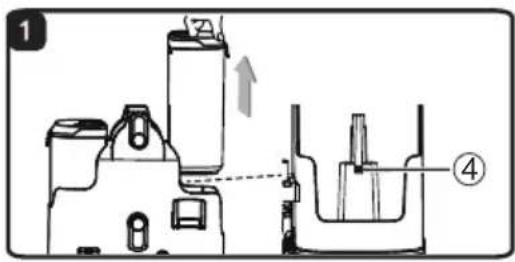

1. Lift up the clean water tank from the side of the unit. A security latch (①) is positioned to keep the clean water tank in position to avoid unintentional release. The latch will automatically release when the tank is pulled upwards (Fig. 1).
2. Remove the clean water tank cover by undoing the clean water tank cover release (Fig. 2).

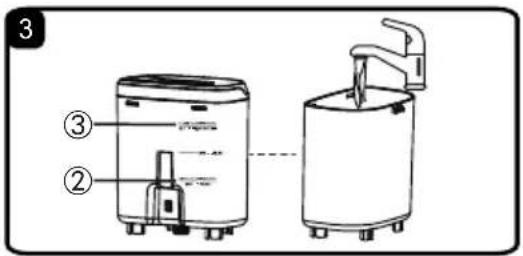

3. Fill the tank with room temperature water to the desired cleaning area fill lines. For a small job, add 3 caps full of cleaning solution to the tank. For a large job, add 6 caps full of cleaning solution (Fig. 3).

Room Temperature Water Cleaning Solution
SMALL CLEANING AREA - 0.8L/0.2G Liquid (2)	3 caps
LARGE CLEANING AREA - 1.6L/0.4G Liquid (3)	6 caps

Do not exceed filling the clean water tank over the maximum fill line indicated on the clean water tank.

CAUTION: DO NOT FILL WITH WATER ABOVE 104°F (40°C).

NOTE: An 8 oz. (236ml) bottle of cleaning solution is provided with this spot cleaner. Ensure the cleaning solution and water are mixed correctly. Once the sample is depleted, a high-quality low-foaming cleaning solution is recommended for use with this appliance to prevent internal component damage.

NOTE: Using more than the recommended amount of cleaning solution may cause excessive foaming. KEEP OUT OF REACH OF CHILDREN. Do not ingest. In case of eye contact, thoroughly flush with cold water. If irritation persists, consult a physician.

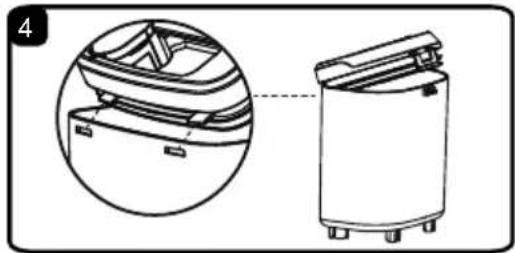

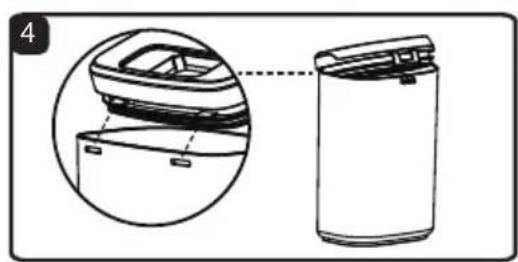

1. Insert the locking tabs into the slots of the clean water tank first and then secure the clean water tank cover back into place until a click is heard (Fig. 4 & 5).
2. Slide the clean water tank back onto the unit. The security latch will automatically secure once the clean water tank is in position. A click will be heard when correctly installed.

Mechanical assembly diagram showing a clamping device with no visible text or symbols

Illustration of a plug with a shield and arrow indicating direction (no text or symbols)

Line drawing of a mechanical device with a handle and lever mechanism (no text or symbols)

Diagram of a firearm with an arrow indicating movement or force direction (no text or symbols present)

Diagram of a mechanical device with directional arrows indicating motion (no text or symbols)

USING THE SPOT CLEANER

IMPORTANT! Before using the spot cleaner, thoroughly vacuum the area to be cleaned. Always test a small hidden area for color and pile distortion.

Test Colorfastness - Gently rub surface with a dampened white cloth containing cleaning solution. Wait 10 minutes and check for color removal with a white paper towel. If the color changes, do not use.

NOTE: To prevent staining, please use plastic, wax paper, or aluminum foil to protect wood or metal surfaces from possible water spray.

To protect the wooden floors underneath rugs, place protective material (e.g. plastic) underneath them before cleaning.

NOTE: Always refer to and follow the manufacturers care guidelines before using spot cleaning solution and spot cleaner.

1. Unwrap the hose from the unit. Make sure the tough stain nozzle is attached securely.

NOTE: The tough stain nozzle can be used for cleaning carpet stains, furniture and other hard-to-reach surfaces.

1. Turn the cord hooks inward from either side to release the power cord (Fig. 1).

2. Detach the power cord plug from the power cord. Plug the power cord plug into an outlet located near the floor (Fig. 2).

3. Press the power button to turn the spot cleaner on (Fig. 3).

4. Hold the tool about 1 inch over the stain to be cleaned. Squeeze the spray trigger to spray a generous amount of cleaning solution over the soiled area. Use the brush on the tool to agitate stains by scrubbing in a back-and-forth motion (Fig. 4).

5. To lift away the stain, apply downward pressure on the front of the cleaning tool and pull the tool backward slowly to vacuum up excess dirty liquids. Repeat as necessary (Fig. 5).

6. Empty the dirty water tank when the dirty liquid reaches the "Max Fill" line and there is a loss in suction. See instructions in the EMPTYING THE DIRTY WATER TANK section (page 10).

7. Once you have completed cleaning, press the power button; unplug the power cord plug from the outlet.

8. Turn the cord hooks to the proper position and wrap the cord loosely around the cord hooks.

Technical diagram showing a mechanical assembly with labeled components and directional arrow indicating motion or force

Simple line drawing of a cylindrical container with a lid and handle, no text or symbols present.

Illustration of a hand holding a rectangular object with an arrow indicating rotation (no text or symbols)

Diagram showing a device with a close-up view of its internal components, no text or symbols present

Simple line drawing of a cylindrical trash bin with an arrow indicating left motion (no text or symbols)

Diagram of a mechanical device with a downward arrow indicating motion (no text or symbols present)

EMPTYING THE DIRTY WATER TANK

WARNING: ALWAYS UNPLUG POWER CORD FROM ELECTRICAL OUTLET BEFORE PERFORMING ANY SERVICE ON SPOT CLEANER.

Empty the dirty water tank when the dirty liquid reaches the "Max Fill" line and there is a loss in suction. During normal use, debris may accumulate in the dirty water tank. In order to keep the spot cleaner functioning properly, rinse out the dirty water tank with clean water after each use.

1. Lift up the dirty water tank from the side of the unit. A security latch (④) is positioned to keep the dirty water tank in position to avoid unintentional release. The latch will automatically release when the tank is pulled upwards (Fig. 1).
2. Remove the dirty water tank cover by undoing the dirty water tank cover release (Fig. 2).
3. Empty the tank into a sink or toilet. Rinse the tank thoroughly with clean water. If continuing to use after emptying the dirty water tank, be sure to dry the outside of the tank before reinstalling (Fig. 3).

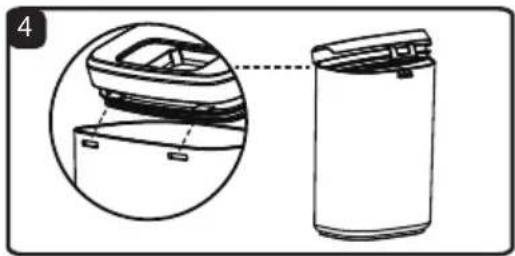

4. Insert the locking tabs into the slots of the dirty water tank first and then secure the dirty water tank cover back into place until a click is heard (Fig. 4 & 5).
5. Reinstall the dirty water tank back onto the unit. The security latch will automatically secure the dirty water tank in position. A click will be heard when correctly installed (Fig. 6).

WARNING: THE MOTOR NOISE CHANGES TO A HIGHER PITCH WHEN THE DIRTY WATER TANK IS FULL OR BLOCKED. STOP THE SPOT CLEANER IMMEDIATELY AND EMPTY THE DIRTY WATER TANK.

MAINTENANCE

Diagram of a firearm being adjusted with arrows indicating motion (no text or symbols)

2 ⑤

Diagram of a hand holding a small object with an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

5 ⑥

WARNING: TO REDUCE THE RISK OF SHOCK, TURN OFF AND DISCONNECT THE POWER CORD BEFORE PERFORMING ANY SERVICE OR MAINTENANCE.

CLEANING EXTERIOR AND ATTACHMENTS

1. Turn off and unplug spot cleaner. DO NOT drip water on spot cleaner.
2. To clean exterior, or to reduce static electricity and dust build-up, wipe outer surface with a clean damp, and soft cloth. Wipe dry after cleaning.

CLEANING THE TOUGH STAIN NOZZLE

It is recommended to clean the tough stain nozzle with water after each use.

1. Press the tool release button to remove the tool from the hose (Fig. 1).

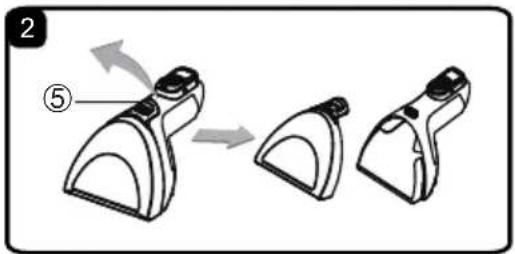

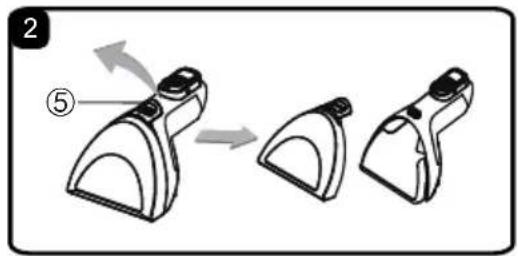

2. Pull up the cover release tab (⑤) on the nozzle to remove the cover (Fig. 2).
3. Rinse thoroughly with clean water. Allow the parts to dry before storing.
4. Reinstall the nozzle cover and then insert back into place until a click is heard.

HOSE CLEANING TOOL

1. Remove the clean water tank and fill with warm water (Max 104°F (40°C)).
2. Attach the hose cleaning tool to the flexible hose. Ensure the tough stain nozzle is removed (Fig. 3).
3. Make sure both the clean water and dirty water tanks are secured on the unit.
4. Press the power button to turn the spot cleaner on and hold the spray trigger for 30 seconds. The clean water will rush through the flexible hose, effectively cleaning and removing any trapped dirt and debris in the hose which may build up over time. Repeat as needed. Let the machine run for 5-10 seconds before turning off (Fig. 4).
5. Turn off and unplug spot cleaner.

CLEANING THE FILTER GRILL

1. Remove the dirty water tank from the side of the unit.
2. Remove any dirt and debris from the filter grill (⑥) as shown (Fig. 5).

STORAGE

WARNING: WRAPPING THE CORD TOO TIGHTLY PUTS STRESS ON THE CORD AND CAN CAUSE CORD DAMAGE. A DAMAGED CORD IS AN ELECTRICAL SHOCK HAZARD AND COULD CAUSE PERSONAL INJURY OR DAMAGE.

1. Replace flexible hose and attachments in storage position.
2. Wrap the power cord loosely around the cord hooks. Attach plug retainer clip onto the power cord.
3. Empty the clean water tank (if necessary). Rinse it out before replacing it on the unit. Open the clean water tank cover to allow it to air dry.
4. Empty the dirty water tank then rinse, clean and dry before placing back on the unit.
5. Store the spot cleaner in a dry and cool indoor area.

REPAIRS

Repairs for this spot cleaner should be performed only by qualified service person using only identical replacement parts.

TROUBLESHOOTING

WARNING: DISCONNECT ELECTRICAL SUPPLY BEFORE PERFORMING MAINTENANCE TO THE SPOT CLEANER. FAILURE TO DO SO COULD RESULT IN ELECTRICAL SHOCK OR PERSONAL INJURY.

PROBLEM POSSIBLE CAUSE SOLUTION
The spot cleaner is not operational.	Unplugged at power outlet. Plug in firmly to suitable power outlet.
	Defective power outlet.	Check with a good appliance. Be sure the power cord plug is fully plugged into an electrical outlet.
	The motor is damaged.	Call customer service at 1-866-384-8432 for assistance.
Poor pick-up performance.	Dirty water tank is not installed correctly.	Check the dirty water tank for correct installation. Ensure it is installed in place.
	Dirty water tank is full. Empty the dirty water tank.
	The flexible hose is clogged.	Clean the hose.
	Float valve is activated. Empty the dirty water tank.
Water escapes from the spot cleaner.	Dirty water tank is full. Empty the dirty water tank.
	Dirty water tank is not installed correctly.	Check the dirty water tank for correct installation. Ensure it is installed in place.
	Clean water tank is not installed correctly.	Check the clean water tank for correct installation. Ensure it is installed in place.
No solution spraying out.	Clean water tank is empty. Fill the clean water tank.
	Clean water tank is not installed correctly.	Check the clean water tank for correct installation. Ensure it is installed in place.
Hose nozzle will not spray after filling the clean water tank.	Air is trapped in the pump and hose.	Turn on the spot cleaner. If hose does not spray, prime the pump by lowering the hose down to the floor and hold the trigger for up to 1 minute.
Motor noise becomes high-pitched.	Dirty water tank is full. Empty the	dirty water tank.
	The flexible hose is clogged. Clean the hose.
	The float in the dirty water tank has been activated.	Empty and clean the dirty water tank.

EXPLODED VIEW

Exploded view diagram of a smart appliance with numbered parts for identification

PARTS LIST

Part Part	Number Description Quantity	Quantity
1 67100	8101 Tool Storage Holder 1	1
2 67101	8101 Dirty Water Tank 1
3 67101	8102 Clean Water & Solution Tank 1
4 67100	4117 Filter 1
5 67101	3107 Tough Stain Nozzle	1
6 67100	8104 Hose Storage Holder 1
7	671011104	Hose Cleaning Tool	1
8		Cleaning Solution	1

SOMMAIRE

SECTION

PAGE

Garantie 17

Line drawing of a mechanical component with a bow and textured base (no text or symbols)

B

C

D

E

F

G

INSTRUCTIONS RELATIVES AU MONTAGE GÉNÉRAL

Mechanical assembly diagram showing two stages of a mechanical clamp or bracket (no text or symbols present)

Diagram showing two mechanical setups with a device and wiring, no text or symbols present

Diagram showing a gun being inserted into a firearm with an arrow indicating motion (no text or symbols)

Diagram of a mechanical device with rotating components and directional arrows indicating motion (no text or symbols)

Mechanical assembly diagram showing a coiled spring and housing (no text or symbols)

Close-up of a mechanical clamp or bracket assembly with no visible text or symbols

DÉBALLAGE DU NETTOYEUR DE TACHES ET ASSEMBLAGE GÉNÉRAL

Diagram showing a mechanical device with labeled parts and an arrow indicating motion, likely illustrating a machining or assembly process.

Simple line drawing of a washing machine with four legs and a side panel (no text or symbols)

3 ③ ②

Technical line drawing of a portable air conditioner unit with side and top views (no text or symbols)

Simple line drawing of a washing machine with a curved arrow indicating rotation (no text or symbols)

REMLISSAGE DU RÉSERVOIR D'EAU PROPRE ET DE SOLUTION

Mechanical assembly diagram showing a clamping device with no visible text or symbols

Illustration of a plug with a shield and directional arrows indicating electrical or mechanical operation (no text or symbols)

Line drawing of a mechanical device with a handle and lever mechanism (no text or symbols)

Diagram of a firearm with an arrow indicating movement (no text or symbols present)

Diagram of a mechanical device with directional arrows indicating motion (no text or symbols)

UTILISATION DU NETTOYEUR DE TACHES

Technical diagram showing a mechanical assembly with labeled parts and directional arrow indicating motion or force

Simple line drawing of a cylindrical container with a lid and handle, no text or symbols present.

Illustration of a hand holding a rectangular object with an arrow indicating rotation (no text or symbols)

Diagram showing a device with a lid and its side view, no text or symbols present

Simple line drawing of a cylindrical trash bin with a handle and arrow indicating left motion (no text or symbols)

Diagram of a mechanical device with a downward arrow indicating motion (no text or symbols present)

VIDANGE DU RÉSERVOIR D'EAU SALE

AVERTISSEMENT: DÉBRANCHEZ TOUJOURS LE CORDON D'ALIMENTATION DE LA PRISE ÉLECTRIQUE AVANT D'EFFECTUER TOUT ENTRETIEN OU TOUTE RÉPARATION SUR LE NETTOYEUR DE TACHES.

Diagram of a firearm being adjusted with arrows indicating motion (no text or symbols)

2 ⑤

Diagram of a mechanical component with an arrow indicating direction (no text or symbols)

Diagram of a firearm with an arrow indicating movement or force direction (no text or symbols present)

5 ⑥

AVERTISSEMENT : POUR RÉDUIRE LE RISQUE DE DÉCHARGE ÉLECTRIQUE, ÉTEIGNEZ ET DÉBRANCHEZ LE CORDON D'ALIMENTATION AVANT D' EFFECTUER TOUT ENTRETIEN OU TOUTE MAINTENANCE.

Exploded view diagram of a smart appliance with numbered parts for identification

LISTE DES PIÈCES

Line drawing of a mechanical component with a bow and textured base (no text or symbols)

B

C

D

E

F

G

Technical diagram of a medical or laboratory device with labeled parts, showing tubing and components.

Boquilla para manchas difíciles

Mechanical assembly diagram showing two stages of a mechanical clamp or bracket (no text or symbols present)

Diagram showing two mechanical setups with a valve and connecting rod, no text or symbols present

Diagram showing a gun being inserted into a firearm with an arrow indicating motion (no text or symbols)

Illustration of a cleaning or cleaning device with a hose and circular components, showing motion arrows (no text or symbols)

Mechanical assembly diagram showing a coiled spring and housing (no text or symbols)

Close-up of a mechanical clamp or bracket assembly with no visible text or symbols

DESEMPAQUETANDO SU LIMPIADOR DE MANCHAS Y ENSAMBLADO GENERAL

Diagram showing a mechanical device with labeled parts and an arrow indicating motion, likely illustrating a process or assembly.

Line drawing of a portable kitchen appliance with a side panel and wheels (no text or symbols)

3 ③ ②

Technical line drawing of a portable air conditioner unit with side and top views (no text or symbols)

Simple line drawing of a washing machine with a curved arrow indicating rotation (no text or symbols)

Technical diagram of a mechanical assembly with no visible text or symbols

Illustration of a plug with a magnified view showing internal components, surrounded by directional arrows (no text or symbols)

Line drawing of a mechanical component with a handle and base (no text or symbols)

Diagram of a firearm with an arrow indicating motion (no text or symbols present)

Diagram of a hand holding a device with directional arrows indicating motion (no text or symbols)

Technical diagram showing a mechanical assembly with labeled components and directional arrow indicating motion or force

Simple line drawing of a cylindrical container with a lid and handle, no text or symbols present.

Illustration of a hand holding a rectangular object with an arrow indicating rotation (no text or symbols)

Diagram showing a device with a lid and its side view, no text or symbols present

Simple line drawing of a cylindrical trash bin with a handle and arrow indicating left motion (no text or symbols)

Diagram of a mechanical device with a downward arrow indicating motion (no text or symbols present)

Diagram of a firearm being adjusted with arrows indicating motion (no text or symbols)

2 ⑤

Diagram of a mechanical component with an arrow indicating direction (no text or symbols)

Diagram of a firearm with an arrow indicating movement or force direction (no text or symbols present)

5 ⑥

Exploded view diagram of a smart air purifier with numbered components for identification

LISTA DE PARTES
