RCSS-020E - Electric kitchen appliance Royal Catering - Free user manual and instructions

Product type	Electric sausage stuffer
Brand	Royal Catering
Model	RCSS-020E
Capacity	20 L
Dimensions (L x D x H)	510 x 440 x 815 mm
Weight	44.45 kg
Power supply	230 V ~ 50 Hz
Rated power	300 W
Number of filling tubes	4
Control	On/off switch, piston direction reverser, speed adjustment
Operation	Piston descends with pedal, manual return
Tank material	Stainless steel
Cleaning	Unplug, remove cylinder for cleaning
Safety	Automatic stop at end of stroke, immersion protection
Spare parts	Piston, rod, tank, nozzles, pedal, switches
Intended use	Filling sausage casings
Included accessories	4 filling tubes, pedal

Frequently Asked Questions - RCSS-020E Royal Catering

How to start the RCSS-020E sausage stuffer?

Plug in the device, turn the REVERSE switch to UP to raise the piston, then place the meat into the tilted cylinder. Return the cylinder upright, turn the switch to DOWN and press the pedal to lower the piston.

How to adjust the piston speed?

Use the speed adjustment knob: turn clockwise to increase speed, counterclockwise to decrease. Adjust according to the consistency of the filling.

What to do if the piston does not descend?

Check that the REVERSE switch is set to DOWN and the pedal is pressed. If the piston remains stuck, ensure that the cylinder is not overfilled and the meat is not too firm. Unplug and inspect the mechanism.

How to clean the device?

Unplug the machine. Carefully remove the stainless steel cylinder and wash it with warm soapy water. Wipe the rest of the device with a damp cloth. Never immerse the motor or pedal.

What accessories are supplied with the RCSS-020E?

The device comes with 4 filling tubes of different diameters, a pedal, and an instruction manual.

What is the maximum capacity of the cylinder?

The cylinder has a capacity of 20 liters, suitable for semi-professional sausage production.

How to replace a filling tube?

Unscrew the front ring nut to release the current tube, then screw on the appropriate new filling tube. Tighten the nut by hand.

What to do in case of meat jam?

Immediately stop the machine by releasing the pedal. Turn the REVERSE switch to UP to raise the piston, remove the cylinder and clear the meat blocking the nozzle.

Is the device safe for prolonged use?

Yes, the RCSS-020E is designed for heavy-duty use. It has an automatic stop at end of stroke and an emergency switch. Follow safety instructions: do not immerse, unplug after use.

Where to find spare parts for this model?

Spare parts (piston rod, tank, nozzles, pedal, switches) are available from Royal Catering after-sales service or from specialized kitchen equipment websites.

USER MANUAL RCSS-020E Royal Catering

Abstract white line drawing of a stylized creature or mythical creature on a dark blue background (no text or symbols)

DE	Produktname	Elektrischer Wurstfüller
EN	Product name	Electric sausage stuffer
PL	Nazwa produktu	Elektryczna nadziewarka do kielbas
CZ	Název výrobku	Elektrický plnič klobás
FR	Nom du produit	Poussoir à saucisses électrique
IT	Nome del prodotto	Insaccatrice elettrica per salsicce
ES	Nombre del producto	Embutidora de salchichas eléctrica
HU	Termék neve	Elektromos kolbásztöltő
DA	Produktnavn	Elektrisk pølsestopper
FI	Tuotteen nimi	Sähköinen makkaratäytin
NL	Productnaam	Elektrische worstenstopper
NO	Produktnavn	Elektrisk pølsestapper
SE	Produktnamn	Elektrisk korvstoppare
PT	Nome do produto	Enchedora de salsichas elétrica
SK	Názov produktu	Elektrický plnič klobás
BG	Име на продукта	Електрическа машина за пълнене на наденици
EL	Όνομα προϊόντος	Ηλεκτρική μηχανή γεμίσματος λουκάνικων
HR	Naziv proizvoda	Električna punilica za kobasice
LT	Produkto pavadinimas	Elektrinė dešru kimšimo mašina
RO	Numele produsului	Maşină electrică de umplut cârnați
SL	Ime izdelka	Električni polnilnik klobas
DE Modell | EN Product model | PL Model produktu | CZ Model výrobku | FR Modèle | IT Modello | ES Modelo | HU Modell | DA Model | FI Tuotteen malli | NL Productmodel | NO Produktmodell | SE Produktmodell | PT Modelo do produto | SK Model | BG Модел на продукт | EL Movtélo προϊόντος | HR Model proizvoda | LT: Gaminio modelis | RO: Model de produs | SL: Model izdelka		RCSS-020E RCSS-025E RCSS-030E
DE Hersteller | EN Manufacturer | PL Producent | CZ Výrobce | FR Fabricant | IT Produttore | ES Fabricante | HU Termelő | DA Producent | FI Valmistaja | NL Producent | NO Produsent | SE Tillverkare | PT Fabricante | SK Výrobca | BG Производител | EL Κατασκευαστής | HR Proizvođač | LT Gamintojas | RO Producător | SL Proizvajalec		expondo Polska sp. z o.o. sp. k.
DE Anschrift des Herstellers | EN Manufacturer Address | PL Adres producenta | CZ Adresa výrobce | FR Adresse du fabricant | IT Indirizzo del produttore | ES Dirección del fabricante | HU A gyártó címe | DA Producentens adresse | FI Valmistajan osoite | NL Adres producent | NO Produsentens adresse | SE Tillverkarens adress | PT Endereço do fabricante | SK Adresa výrobcu | BG Адрес на производителя | EL: Διεύθυνση κατασκευαστή | HR Adresa proizvođača | LT Gamintojo adresas | RO Adresa producătorului | SL Naslov proizvajalca		ul. Nowy Kisielin – Innowacyjna 7, 66-002 Zielona Góra | Poland, EU

Metallic cylindrical container with three legs and a side outlet, labeled '1' (no text or symbols on the device itself)

1

Vordere Ringmutter

This User Manual has been translated for your convenience using machine translation. Reasonable efforts have been made to provide an accurate translation; however, no automated translation is perfect nor is it intended to replace human translators. The official User Manual is the English version. Any discrepancies or differences created in the translation are not binding and have no legal effect for compliance or enforcement purposes. If any questions arise related to the accuracy of the information contained in the User Manual, please refer to the English version of those contents which is the official version.

Technical data

Parameter description	Parameter value
Product name	Electric sausage stuffer
Model	RCSS-020E	RCSS-025E	RCSS-030E
Rated voltage [V~] / Frequency [Hz]	230 / 50
Rated power [W]	300	350	400
Capacity [L]	20	25	30
Filling tubes [Pc]	4
Dimensions [Width x Depth x Height; mm]	510 x 440 x 815	515 x 435 x 920	510 x 440 x 995
Weight [kg]	44.45	46.35	47.8

Important Safety Precautions:

When using electrical appliances, basic safety precautions should always be followed:

1. Read all instructions before using this appliance.
2. Do not operate the appliance if the cord, plug, or appliance is damaged or malfunctioning.
3. To protect against electrical shock, do not immerse the foot switch, cord, plug, or stuffer in water or other liquids.
4. This appliance is not intended for use by children.
5. Keep fingers and hands clear of all moving parts.
6. Unplug the appliance when not in use or before cleaning.

How to Use:

1. Place the foot pad in a dry location.
2. Connect the appliance to electrical power.
3. Turn the reverse switch to the "UP" position to move the piston to the top.
4. Tilt the cylinder and place the meat inside.
5. Return the cylinder back onto the frame.
6. Turn the REVERSE switch to the "DOWN" position and press the foot pad to start the piston moving down.
7. Adjust the speed using the speed switch (knob) if the piston is moving too fast or slow.
8. While filling the casing, remove your foot from the foot pad to stop the piston.
9. When the piston reaches the bottom of the cylinder, the appliance will automatically stop. Then, turn the REVERSE switch to "UP" to raise the piston back to the top.
10. Repeat the process starting at step No.4 if more filling is required.

How to Clean:

1. Unplug the machine before cleaning.
2. Remove the cylinder carefully for cleaning.

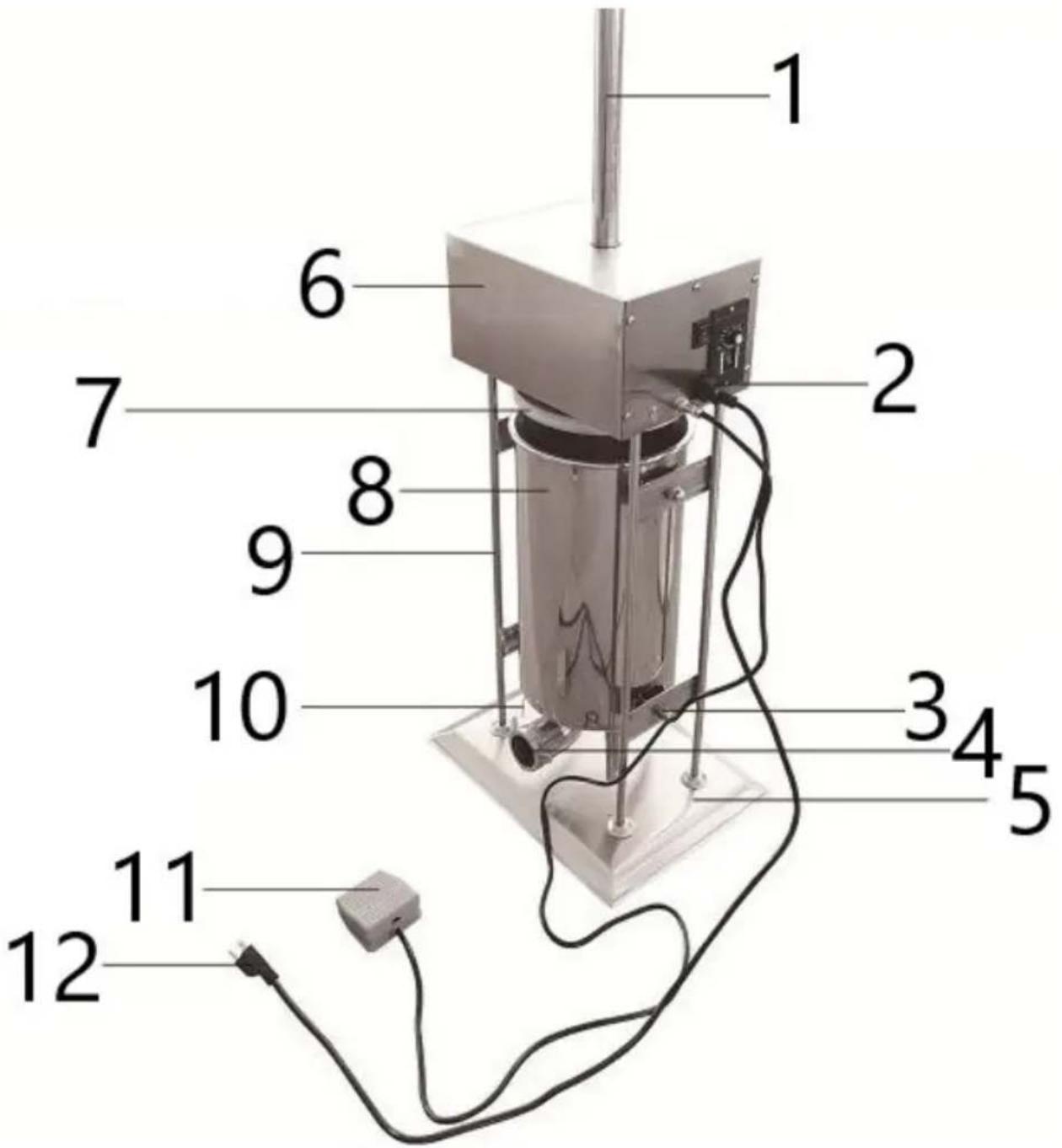

1.	Plunger Shaft	2.	Power cord
3.	Canister Fastener	4.	Emema Nozzle
5.	Stuffer Base	6.	Motor Housing Cover
7.	Pluger	8.	Stainless Steel Canister
9.	Canister Support	10.	Canister support
11	Foot Pedal	12.	Plug

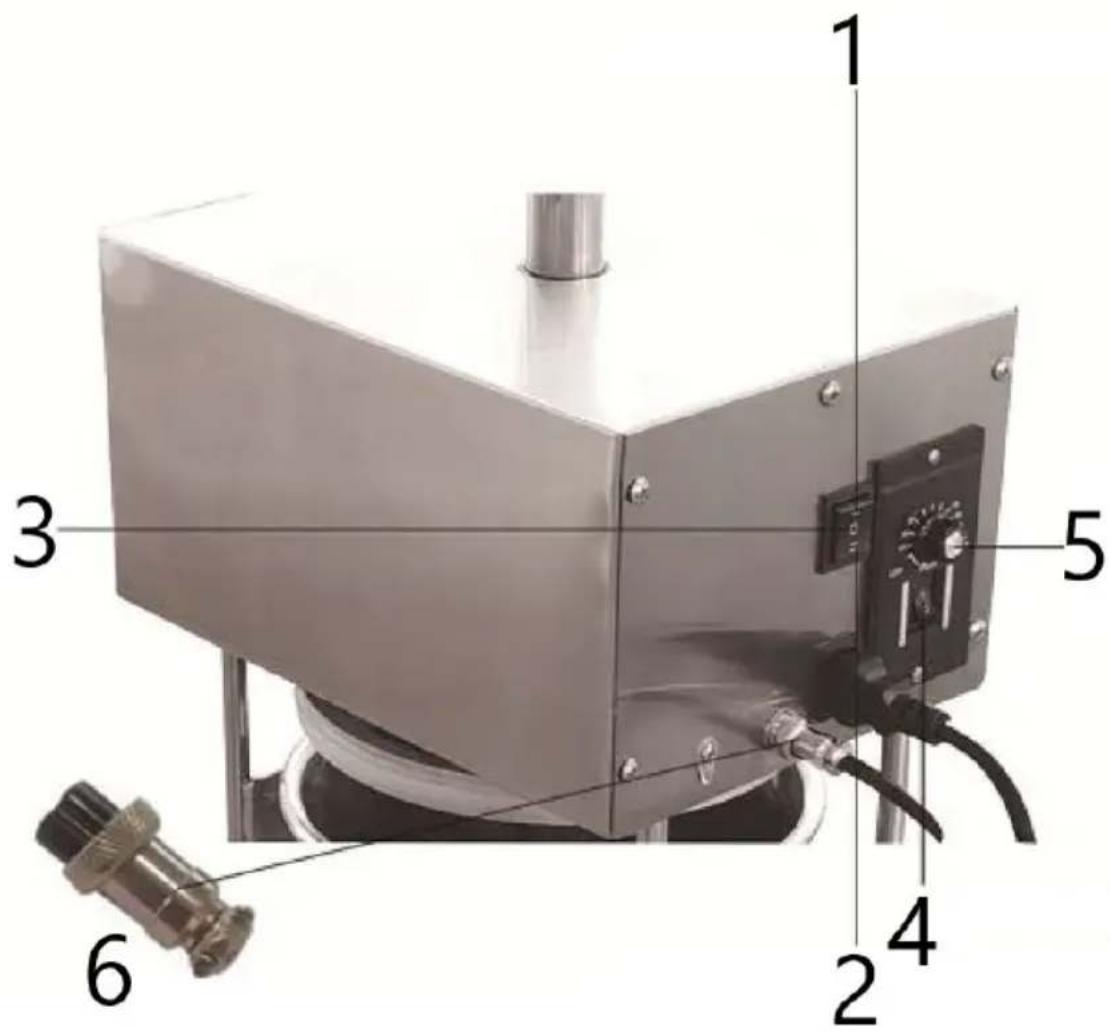

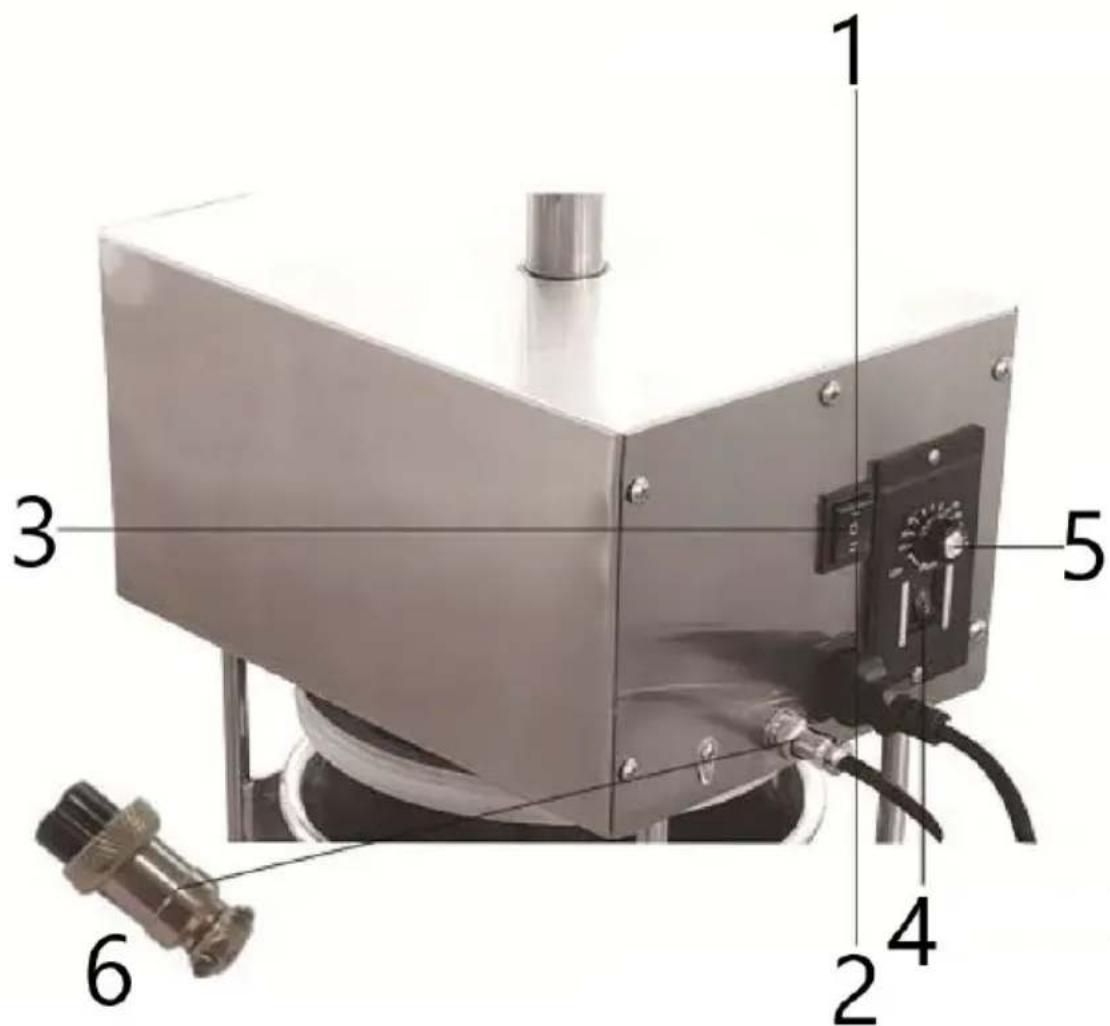

1	Plunger Shaft Raise I
2	Plunger Shaft Down II
3	Stop
4	Power Switch
5	Speed adjustmentClockwise: FastCounter-Clockwise: Slow
6	Plug without joint Foot Pad

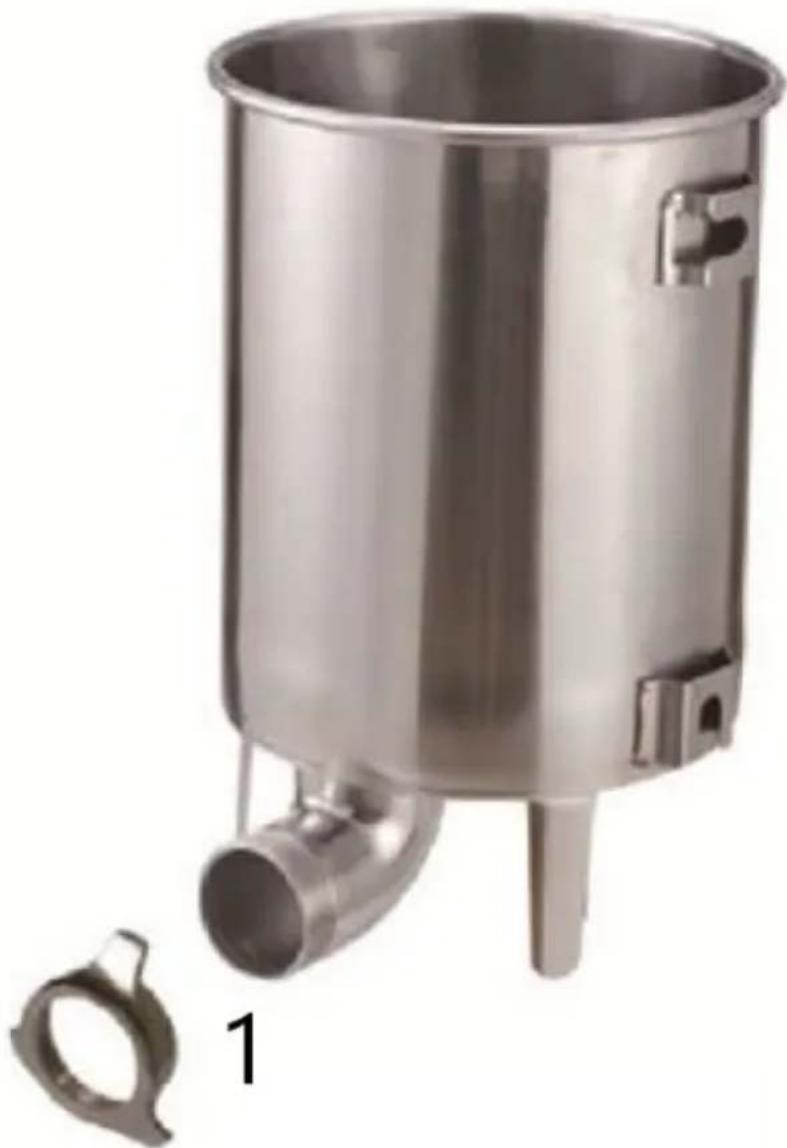

Metallic cylindrical container with three legs and a side outlet, labeled '1' (no text or symbols on the container itself)

1

Front Ring Nut

Metallic cylindrical container with three legs and a side outlet, labeled '1' (no text or symbols on the device itself)

Metallic cylindrical container with three legs and a side outlet, labeled '1' (no text or symbols on the device itself)

Metallic cylindrical container with three legs and a side outlet, labeled '1' (no text or symbols on the device itself)

1

Metallic cylindrical container with three legs and a side outlet, labeled '1' (no text or symbols on the device itself)

1

Ghiera anteriore

Metallic cylindrical container with three legs and a side outlet, labeled '1' (no text or symbols on the device itself)

1

Tuerca de anillo delantera

Metallic cylindrical container with three legs and a side outlet, labeled '1' (no text or symbols on the device itself)

1

Első gyúrúanya

Metallic cylindrical container with three legs and a side outlet, labeled '1' (no text or symbols on the device itself)

1

Forreste ringmøtrik

Metallic cylindrical container with three legs and a side outlet, labeled '1' (no text or symbols on the device itself)

1

Eturenkaan mutteri

Metallic cylindrical container with three legs and a side outlet, labeled '1' (no text or symbols on the device itself)

1

Voorste ringmoer

1.	Stempelaksel	2.	Strømkabel
3.	Beholderfeste	4.	Emema munnstykke
5.	Stuffer Base	6.	Motorhusdeksel
7.	Plugger	8.	Beholder i rustfritt stål
9.	Beholderstøtte	10.	Beholderstøtte
11	Fotpedal	12.	Støpsel

1	Stempelakselheving I
2	Stempelaksel ned II
3	Stoppe
4	Strømbryter
5	HastighetsjusteringMed klokken: RaskMot klokken: Sakte
6	Plugg uten felles fotpute

Metallic cylindrical container with three legs and a side outlet, labeled '1' (no text or symbols on the device itself)

1

Fremre ringmutter

1.	Kolvskaft	2.	Nätsladd
3.	Kapselfäste	4.	Emema munstycke
5.	Stuffbas	6.	Motorkåpa
7.	Plugger	8.	Kanister i rostfritt stål
9.	Kapselstöd	10.	Kapselstöd
11	Fotpedal	12.	Plugg

Metallic cylindrical container with three legs and a side outlet, labeled '1' (no text or symbols on the device itself)

1

Främre ringmutter

Metallic cylindrical container with three legs and a side outlet, labeled '1' (no text or symbols on the device itself)

1

Porca de anel frontal

1.	Piestový hriadel'	2.	Napájací kábel
3.	Upevnenie na kanister	4.	Tryska Emema
5.	Stuffer Base	6.	Kryt skrine motora
7.	Pluger	8.	Kanister z nehrdzavejúcej ocele
9.	Podpora nádoby	10.	Podpora nádoby
11	Nožný pedál	12.	Zástrčka

Metallic cylindrical container with three legs and a side outlet, labeled '1' (no text or symbols on the device itself)

Predná kruhová matica

1
