USER MANUAL T2 True Wireless KLIPSCH

ESTABLISHED 1946 • USA Klipsch EXCEPTIONAL QUALITY

Two horizontal lines with endpoints, no text or symbols present

Pure geometric lines forming a symmetrical V-shape (no text or symbols)

POWER

SOUS TENSION / HORS TENSION • ENCENDIDO / APAGADO • EIN / AUS • ACCESO / SPENTO • LIGAR / DESLIGAR

·开/关·電源

Kipah

###

HOLD 3 SECONDS

Appuyer pendant 3 secondes • Mantenga oprimido durante 3 segundos • Stummschaltung 3 Sekunden gedrückt halten • Tenere premuto per 3 secondi • Manter pressionado por 3 segundos • 保持 3 秒 • 3秒間押します

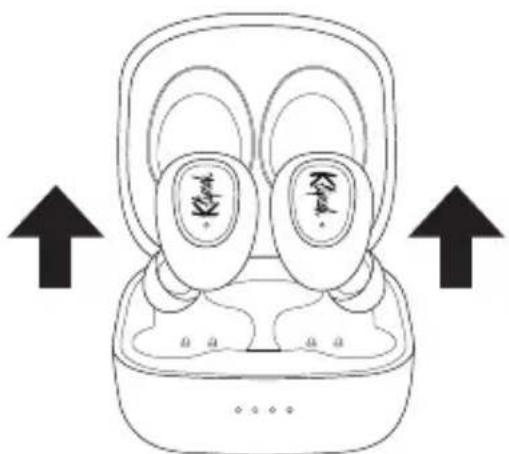

OR

OU

O BIEN

ODER

OPPURE

OU

12

或

または

Line drawing of a smart earbuds with two ears and a back panel, showing bidirectional arrows (no text or symbols)

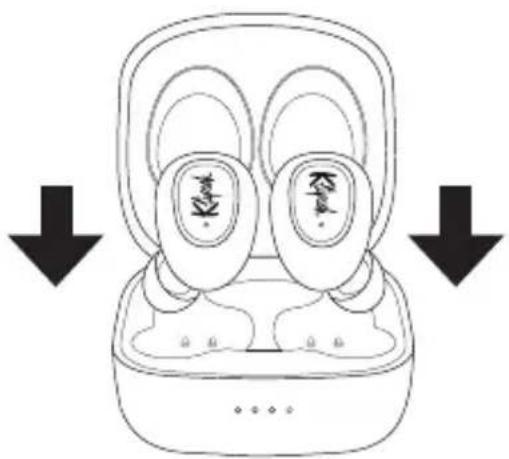

ON OFF

Line drawing of a wireless earbuds with two ear cutouts and a base, showing two black downward arrows pointing to the sides (no text or symbols)

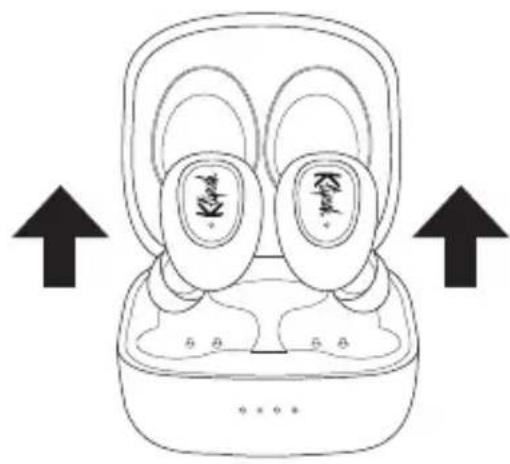

PAIRING

APPAIRAGE • VINCULACIÓN • VERBINDUNG • ASSOCIAZIONE • PAREAMENTO • 配対 • ペアリング

Line drawing of a wireless earbuds with two earbuds and a charging case, showing upward arrows (no text or symbols)

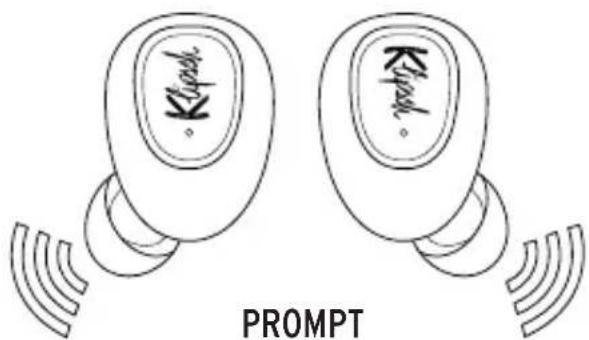

Kipah Kipah PROMPT

Invite vocale • Aviso • Tonsignal • prompt audio • Aviso • 提示 • プロンプ

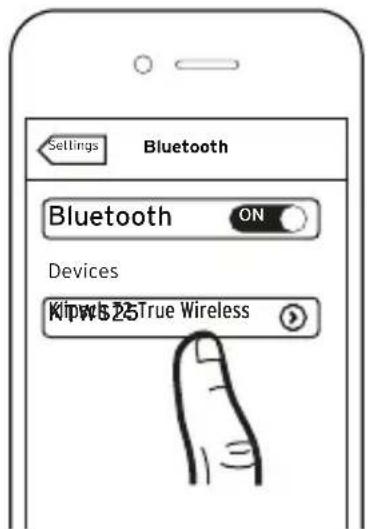

Settings Bluetooth Bluetooth ON Devices Kipwls25True Wireless

L R ● ▶II ● ▶II ● ● ← ● ● →I ● ● ● —◀) ● ● +◀)

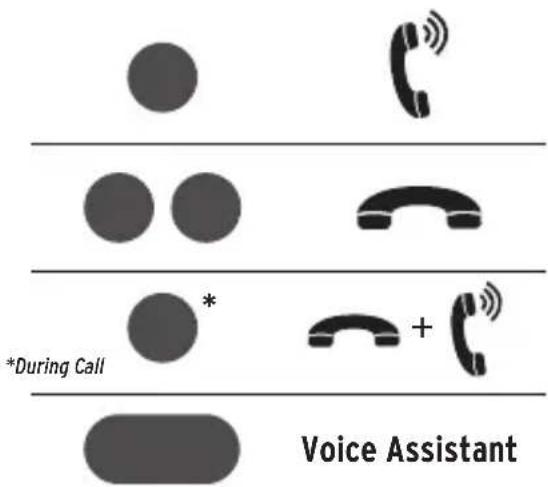

CALL HANDLING

* During Call Voice Assistant

Call Handling

Gestion des appels

Procesamiento de

llamadas

Anrufabwicklung

Gestione chiamate

Administração de

chamadas

通话处理

着信处理

During Call

Pendant un appel

Durante la llamada

Während des Anrufs

Durante la chiamata

Durante a chamada

通话期间

通話中

Short PressAppui brefPulso cortoKurz drückenPressione brevePressionar rapidamente短按短<押す

Double PressDouble appuiPulso dobleDoppelt drückenDoppia pressionePressionar duas vezes按两次2回押す

Long PressAppui longPulso largoLang drückenPressione lungaManter pressionado长按長押し

Voice AssistantAssistance vocaleAsistente de vozSprachassistentAssistente vocaleAssistente de voz语音助手音声 アシスト

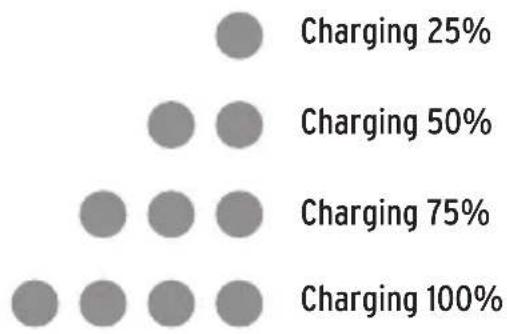

STATUS INDICATORS

Line drawing of an open wireless earbuds with two egg-shaped cutouts (no text or symbols)

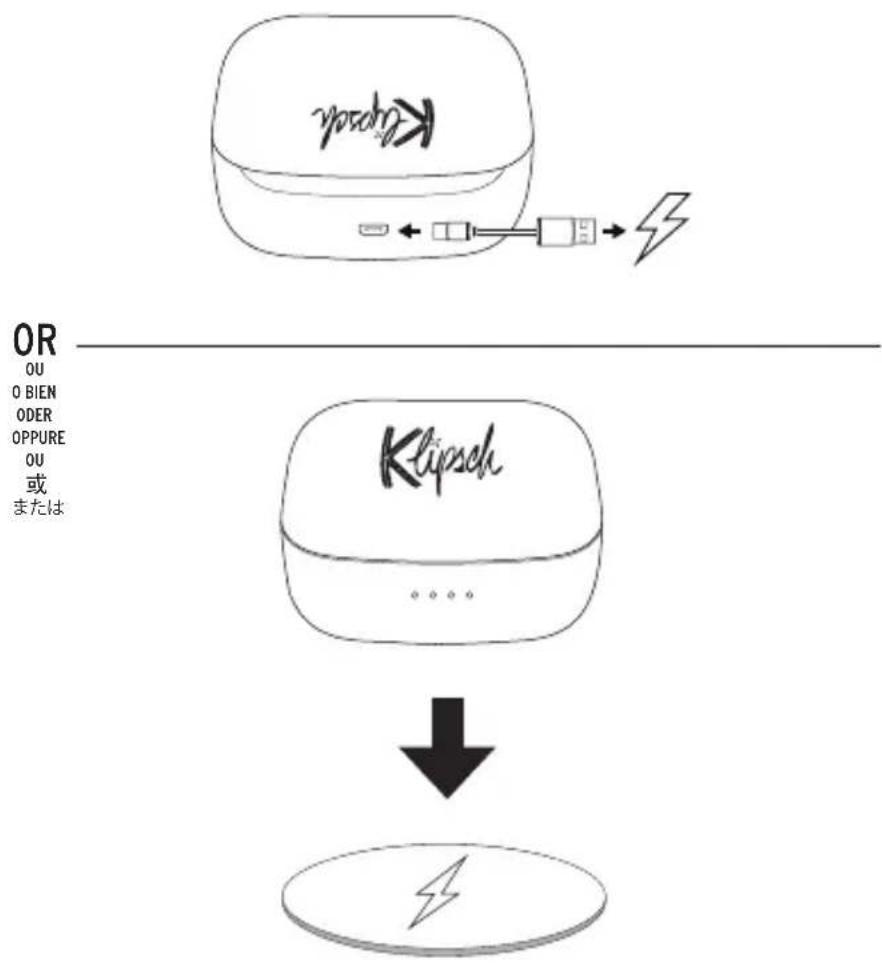

CHARGING

CHARGE BATTERIE • CARGA DE LA PILA • AKKULADESTAND • CARICA BATTERIA • CARGA DA BATERIA • 电池充电 • 充電

Line drawing of a pair of earbuds with earphones and buttons, no text or symbols present

HOLD 3 SECONDS

Bluetooth Forget this Device

HOLD 8 SECONDS

Line drawing of a pair of earbuds in a charging case (no text or symbols)

IMPORTANT SAFETY INFORMATION

1. READ these instructions.

2. KEEP these instructions.

3. HEED all warnings.

4. FOLLOW all these instructions.

5. DO NOT use this apparatus near water or moisture.

6. If you hear ringing or experience pain or discomfort in your ears during or after using any in-ear audio product, that is a sign you are listening too loud.

When your ears are exposed to high volumes (in excess of 85dB) for over an hour, you may be permanently damaging your hearing.

1. TURN DOWN your listening device's volume to zero before you insert the Klipsch headphones and turn on the device. Once you have the headphones on, gradually increase the volume to a comfortable, moderate volume.

2. DO NOT install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

3. ONLY USE attachments/accessories specified by the manufacturer.

4. REFER all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

5. NEVER operate a motor vehicle while listening to or wearing your headphones. Not only dangerous,

it is illegal in many places.

1. NEVER operate heavy machinery while listening to or wearing your headphones.

2. We don't recommend you use the headphones while riding a bicycle, running, or walking in heavy traffic areas.

WARNING:

Except in case of emergency, Klipsch recommends you do not use these headphones or headsets (headphones plus microphone) as aviation communication equipment as they are not engineered for many environmental conditions common in commercial or non-commercial aircraft (including, but not limited to: altitude, temperature, noise conditions, unpressurized aircraft, etc.) resulting in possible interference to critical communications.

The Occupational Safety Health Administration (OSHA) has issued headphone usage recommendations for maximum daily exposure and sound pressure levels (measured in decibels (dB)). A decibel is a unit of measure of sound, and decibels increase exponentially as sound gets louder. For example, conversational speech is typically around 60dB, and a rock concert in a stadium is often about 110dB.

COMPLIANCE INFORMATION

EU COMPLIANCE INFORMATION

Eligible to bear the CE mark; Conforms to European Union Low Voltage Directive 2006/95/EC; European Union EMC Directive 2014/53/EU; European Union RoHS Directive 2011/65/EU; European Union WEEE Directive 2002/96/EC; European Union Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) Directive 1907/2006.

WEEE NOTICE

Note: This mark applies only to countries within the European Union (EU) and Norway.

This appliance is labeled in accordance with European Directive 2012/19/EU concerning waste electrical and electronic equipment

(WEEE). This label indicates that this product should not be disposed of with household waste. It should be deposited at an appropriate facility to enable recovery and recycling.

FCC AND CANADA EMC COMPLIANCE INFORMATION

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

OSHA GUIDELINES FOR NOISE EXPOSURE LIMITS

Sound Pressure Level	Recommended Maximum Exposure Per Day
90dB 8 Hours
92dB 6 Hours
95dB 4 Hours
97dB 3 Hours
100dB 2 Hours
102dB 1.5 Hours
105dB 1 Hours
110dB 30 Minutes
115dB 15 Minutes or less
120dB Avoid as damage may occur

FCC RADIATION EXPOSURE STATEMENT

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

Approved under the verification provision of FCC Part 15 as a Class B Digital Device.

Caution: Changes or modifications not expressly approved by the manufacturer could void the user's authority to operate this device.

Caution: To comply with the limits of the Class B digital device, pursuant to Part 15 of the FCC rules, this device is to comply with Class B limits. all peripherals must be shielded and grounded. Operation with non-certified peripherals or non-shielded cables my result in interference to radio or reception.

This Class B digital apparatus complies with Canadian ICES-003.

WIRELESS TRANSMITTER COMPLIANCE INFORMATION

This device complies with ISEDC licence-exempt RSS standard (s)Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

PRODUCT REGISTRATION

Register your product online at www.klipsch.com/register

• Klipsch will keep you up-to-date on new products and promotions.
• Your personal information will never be resold.
• This registration information is not used for warranty purposes. Please retain your receipt for warranty claims.

ENGLISH - WARRANTY - U.S.

Klipsch Group, Inc, (KGI) warrants to the original retail purchaser that this product is to be free from defective materials and workmanship for a period of two (2) year from the date of purchase, if it is properly used and maintained. This warranty period is not extended if we repair or replace the product. If this product proves defective in either material or workmanship, KGI, at its option, will (a) repair the product, or (b) replace the product, at no charge for parts or labor. If the product model is no longer available and cannot be repaired effectively or replaced with an identical model, KGI at its sole option may replace the unit with a current model of equal or greater value. In some cases, modification to the mounting surface may be required where a new model is substituted. KGI assumes no responsibility or liability for such modification. To obtain a repair or replacement under the terms of this warranty, please return to dealer first, if possible, and the dealer will direct you accordingly for repairs or replacement. You will be required to submit a copy of the original receipt.

Return shipping for exchanges/repairs is the sole responsibility of the original retail purchaser.

Limitations:

• This limited warranty does not cover failure of the product resulting from improper installation, misuse, abuse, accident, neglect, mishandling, or wear from ordinary use or environmental deterioration.
• This limited warranty does not cover cosmetic damage, including paint damage, or consequential damage to other components or premises which may result for any reason from the failure of the product.
• This limited warranty is null and void for products not used in accordance with KGI's instructions.
• This limited warranty is null and void for products with altered or missing serial numbers and for products not purchased from an authorized dealer.
• This limited warranty terminates if you sell or otherwise transfer this product to another party.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE, JURISDICTION TO JURISDICTION OR COUNTRY TO COUNTRY. KGI'S RESPONSIBILITY FOR MALFUNCTIONS AND DEFECTS IN HARDWARE IS LIMITED TO REPLACEMENT OR REPAIR AS SET FORTH IN THIS WARRANTY STATEMENT. ALL EXPRESS AND IMPLIED WARRANTIES FOR THE PRODUCT, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN TIME TO THE TERM OF THIS WARRANTY. SOME STATES, JURISDICTIONS OR COUNTRIES DO NOT ALLOW THE EXCLUSION OF CERTAIN IMPLIED WARRANTIES OR CONDITIONS, OR LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY OR CONDITION LASTS, SO THIS LIMITATION MAY NOT APPLY TO YOU. KGI DOES NOT ACCEPT LIABILITY FOR SPECIAL, INDIRECT, CONSEQUENTIAL OR INCIDENTAL DAMAGES, INCLUDING WITHOUT LIMITATION, ANY LIABILITY FOR THIRD PARTY CLAIMS AGAINST YOU FOR DAMAGES OR FOR PRODUCTS NOT BEING AVAILABLE FOR USE. THE MAXIMUM LIABILITY FOR WHICH KGI MAY BE RESPONSIBLE WILL BE NO MORE THAN THE AMOUNT YOU PAID FOR THE PRODUCT THAT IS THE SUBJECT OF THE CLAIM. SOME STATES, JURISDICTIONS OR COUNTRIES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF SPECIAL, INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.

WARRANTY OUTSIDE THE U.S.

The Warranty on this product shall comply with applicable law when sold to a consumer outside of the United States. To obtain any applicable warranty service, please contact the dealer from which you purchased this product, or the distributor that supplied this product.

SPECIFICATIONS

Bluetooth 5.0

A2DP Codecs: SBC, AAC

Range: up to 10m (33 ft.)

Charging Case Input Rating: 5V DC, 0.5A

CONSIGNES DE SÉCURITÉ IMPORTANTES

INFORMATIONS DE CONFORMITÉ

INFORMATIONS DE CONFORMITÉ UE

INFORMATIONS DE CONFORMITÉ FCC ET CEM CANADA REMARQUE

Two horizontal lines with endpoints, no text or symbols present

Pure geometric lines forming a symmetrical V-shape (no text or symbols)

Two horizontal lines with endpoints, no text or symbols present

Pure geometric lines forming a symmetrical V-shape (no text or symbols)

Klipsch®

KEEPERS OF THE SOUND

KLIPSCH.COM

3502 Woodview Trace • Indianapolis, IN 46268 • 1-800-KLIPSCH Designed and engineered in Indianapolis, IN by Klipsch, USA.

©2020, Klipsch Group, Inc. is a wholly-owned subsidiary of Vox International Corporation. Klipsch and Keepers of the Sound are trademarks of Klipsch Group Inc., registered in the U.S. and other countries. Product of China.

V01-200824
