Product Type	Over-Ear Headphones
Brand	Klipsch
Model	Reference Over-Ear
Dimensions (L x W x H)	20 x 18 x 9 cm
Weight	300 g
Power	Passive (detachable audio cable)
Transducer Type	Dynamic, neodymium magnet
Frequency Response	20 Hz – 20 kHz
Impedance	32 Ω
Sensitivity	98 dB/mW
Detachable Cable	Yes, 3.5mm jack
Replaceable Ear Pads	Yes, memory foam
Adjustable Headband	Yes, padded
Main Features	High-fidelity audio reproduction, prolonged listening comfort
Care and Cleaning	Clean with a soft, dry cloth; avoid any liquid
Safety	Moderate volume usage recommended to protect hearing
Spare Parts and Repairability	Replaceable cable and ear pads; repair possible by a professional
Included Accessories	Airplane adapter, carrying case, extra cable

Frequently Asked Questions - Reference Over-Ear KLIPSCH

How to connect the Reference Over-Ear headphones?

Use the included audio cable with a 3.5mm jack. Plug it into the headphone jack of your device (smartphone, computer, etc.).

Can I replace the headphone cable?

Yes, the cable is detachable and can be replaced with a standard 3.5mm jack cable. Contact Klipsch customer service for a replacement cable.

Are the ear pads replaceable?

Yes, the memory foam ear pads are removable and replaceable. You can order replacement ear pads from Klipsch.

How to clean my Klipsch headphones?

Gently wipe the surfaces with a soft, dry cloth. Never use chemicals or liquids. For the ear pads, remove them and clean separately.

Are these headphones compatible with a headphone amp?

Yes, with an impedance of 32 Ω, they can be used with most headphone amps, smartphones, and computers without issue.

What is the warranty for the Reference Over-Ear headphones?

Klipsch generally offers a 2-year warranty. Check the full manual or official website for specific details for your region.

Are the headphones foldable for transport?

Yes, the Reference Over-Ear headphones fold at the headband for compact storage in the included case.

Can I use these headphones with an airplane adapter?

Yes, an airplane adapter is included in the box for in-flight use.

What to do if the sound is distorted or one side does not work?

First check the cable connection. If the problem persists, try another cable. If unchanged, contact customer service for repair.

How to optimize comfort during long listening sessions?

Adjust the headband to rest comfortably on your head. The memory foam ear pads conform to your ears. Take regular breaks.

USER MANUAL Reference Over-Ear KLIPSCH

Klipsch®

REFERENCE

OVER-EAR BLUETOOTH® OWNER'S MANUAL

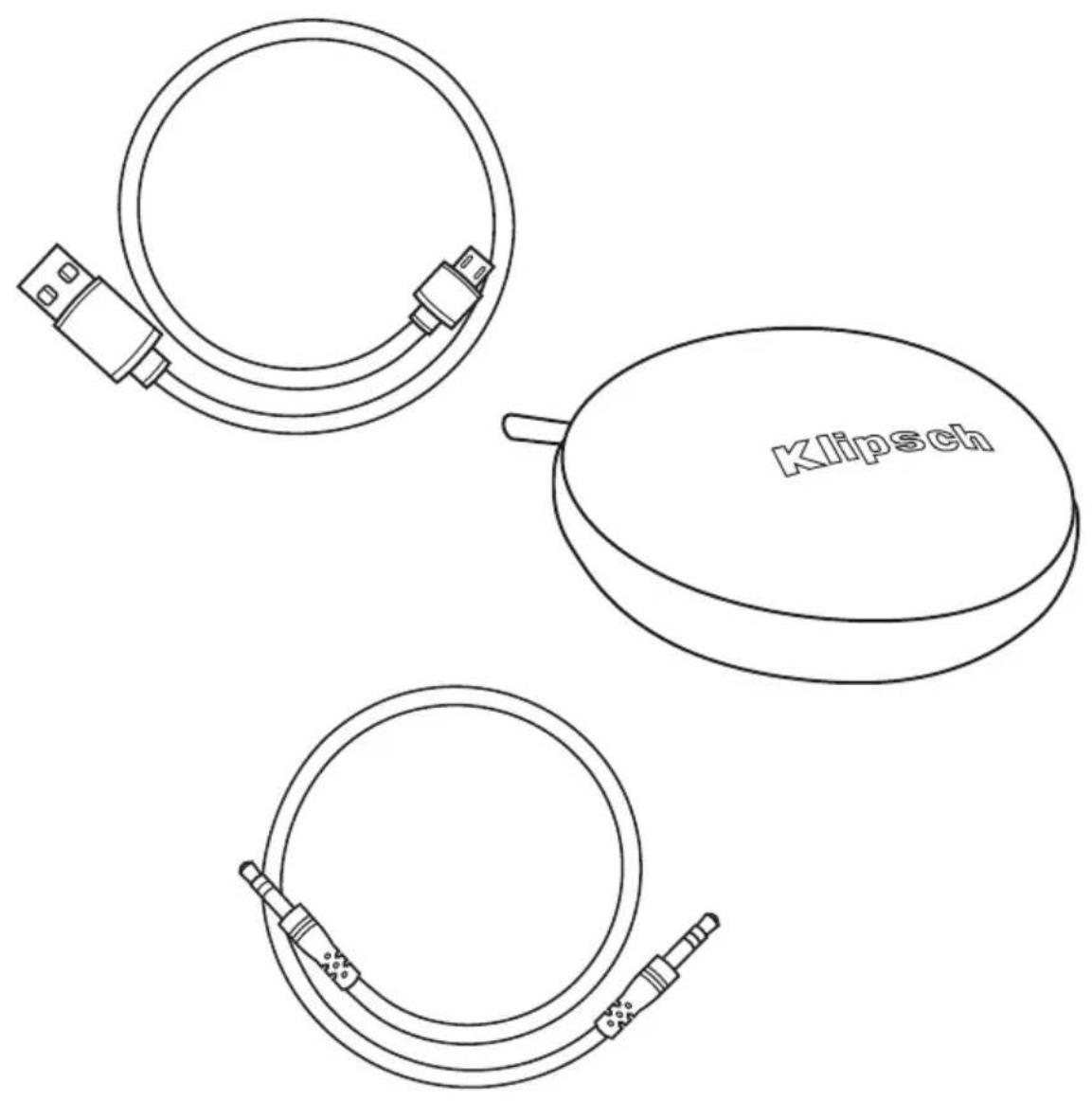

INSIDE CONTENU CONTENIDO INHALT CONTENUTO CONTEÚDO 目录

IMPORTANT SAFETY INFORMATION

1. READ these instructions.
2. KEEP these instructions.
3. HEED all warnings.
4. FOLLOW all these instructions.
5. DO NOT use this apparatus near water or moisture.
6. If you hear ringing or experience pain or discomfort in your ears during or after using any in-ear audio product, that is a sign you are listening too loud. When your ears are exposed to high volumes (in excess of 85dB) for over an hour, you may be permanently damaging your hearing.
7. Turn down your listening device's volume to zero before you insert the Klipsch headphones and turn on the device. Once you have the headphones on, gradually increase the volume to a comfortable, moderate volume.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9. ONLY USE attachments/accessories specified by the manufacturer.
10. REFER all servicing to qualified service

personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

1. NEVER operate a motor vehicle while listening to or wearing your headphones. Not only dangerous, it is illegal in many places.

2. NEVER operate heavy machinery while listening to or wearing your headphones.

3. We don't recommend you use the headphones while riding a bicycle, running, or walking in heavy traffic areas.

WARNING:

Except in case of emergency, Klipsch recommends you do not use these headphones or headsets (headphones plus microphone) as aviation communication equipment as they are not engineered for many environmental conditions common in commercial or non-commercial

aircraft (including, but not limited to: altitude, temperature, noise conditions, unpressurized aircraft, etc.) resulting in possible interference to critical communications.

The Occupational Safety Health Administration (OSHA) has issued headphone usage recommendations for maximum daily exposure and sound pressure levels (measured in decibels (dB)). A decibel is a unit of measure of sound, and decibels increase exponentially as sound gets louder. For example, conversational speech is typically around 60dB, and a rock concert in a stadium is often about 110dB.

OSHA GUIDELINES FOR NOISE EXPOSURE LIMITS

Sound Pressure Level	Recommended Maximum Exposure Per Day
90dB 8 Hours
92dB 6 Hours
95dB 4 Hours
97dB 3 Hours
100dB 2 Hours
102dB 1.5 Hours
105dB 1 Hours
110dB 30 Minutes
115dB 15 Minutes or less
120dB	Avoid as damage may occur

EU COMPLIANCE INFORMATION

Eligible to bear the CE mark; Conforms to European Union Low Voltage Directive 2006/95/EC; European Union EMC Directive 2004/108/EC; European Union RoHS Directive 2002/95/EC; European Union WEEE Directive 2002/96/EC; European Union Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) Directive 2006/121/EC.

WEEE NOTICE

Note: This mark applies only to countries within the European Union (EU) and Norway.

This appliance is labeled in accordance with European Directive 2002/96/EC concerning waste electrical and electronic equipment (WEEE). This label indicates that this product should not be disposed of with household waste. It should be deposited at an appropriate facility to enable recovery and recycling.

FCC AND CANADA EMC COMPLIANCE INFORMATION

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not in-stalled and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver.

Approved under the verification provision of FCC Part 15 as a Class B Digital Device.

Caution: Changes or modifications not expressly approved by the manufacturer could void the user's authority to operate this device.

Caution: To comply with the limits of the Class

B digital device, pursuant to Part 15 of the FCC rules, this device is to comply with Class B limits. all peripherals must be shielded and grounded. Operation with non-certified peripherals or non-shielded cables my result in interference to radio or reception.

This Class B digital apparatus complies with Canadian ICES-003.

WIRELESS TRANSMITTER COMPLIANCE INFORMATION

The term "IC:" before the radio certification number only signifies that Industry Canada technical specifications were met. This device complies with part 15 of the FCC rules and the applicable Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

PRODUCT REGISTRATION

Register your product online at www.klipsch.com/register

- Klipsch will keep you up-to-date on new products and promotions.

• Your personal information will never be resold.
• This registration information is not used for warranty purposes. Please retain your receipt for warranty claims.

GETTING STARTED

1. Turn on the headset by pressing the Power/Pair button for 2 seconds. The headset will automatically go to pairing mode and the status indicator will begin pulsing BLUE.
2. Connect to "Klipsch Over-Ear BT" from your device.
3. Once connected, the headset will periodically blink BLUE.

Note: The headset will automatically pair to the last device connected to it when turned on.

TURNING OFF

Press the Power/Pair button for 5 seconds to turn the headset off.

CHARGING

Use the included Micro-USB cable to charge the headset from your computer or USB wall adapter (not included). The status indicator will glow RED until the headset is charged, at which point it will turn off.

ADDITIONAL FEATURES

1. The headset can be connected to an audio source using the direct connect audio cable. Note: When the audio cable is connected the Bluetooth function and controls are disabled.
2. You can mute the microphone by pressing and holding "Volume Up" and "Volume Down" simultaneously during a call.
3. You can access voice control by pressing and holding Play/Pause.
4. You can reject a second incoming call by pressing and holding Play/Pause.

SPECIFICATIONS

Bluetooth ^® 4.0

A2DP Codecs: SBC, aptX®, AAC

Range: up to 10m (33 feet)

Input rating: 5V DC, 0.5A

STATUS INDICATOR

PAIRING

FEATURE	LED COLOR	LED INDICATOR
StandbyRed
DiscoverableBlue
ConnectedBlue

CHARGING

FEATURE

LED COLOR

LED INDICATOR

Charging Red ON

Fully Charged Red Omm

USE

FEATURE	LED COLOR	LED INDICATOR
Low Battery Red
Incoming Call Blue

CONSIGNES DE SÉCURITÉ IMPORTANTES

INFORMATIONS DE CONFORMITÉ UE

INFORMATIONS DE CONFORMITÉ FCC ET CEM CANADA

Codecs A2DP : SBC, aptX®, AAC

Codecs A2DP: SBC, aptX®, AAC

Alcance: Hasta 10 m (33 pies)

Voltaje nominal de entrada: 5 V CC, 0.5 A

INDICADOR DE ESTADO

SINCRONIZACIÓN

EntdeckbarBlau

VerbundenBlau

AUFLADEN

Codec A2DP: SBC, aptX®, AAC

RilevabileBlu

CollegatoBlu

CARICA

FUNZIONE COLORE DEL LED INDICATORE LED

Codecs A2DP: SBC, aptX®, AAC

RECURSO COR DO LED INDICADOR LED

RECURSO COR DO LED INDICADOR LED

RECURSO COR DO LED INDICADOR LED

Bateria fraca

Vermelho

重要安全信息

来电 蓝色

Klipsch®

KEEPERS OF THE SOUND

KLIPSCH.COM

3502 Woodview Trace • Indianapolis, IN 46268 • 1-800-KLIPSCH

Designed and engineered in Indianapolis, IN by Klipsch, US

Made for

iPod

iPhone

iPad

©2014, Klipsch Group, Inc. is a wholly-owned subsidiary of Vox International Corporation. Klipsch and Keepers of the Sound are trademarks of Klipsch Group Inc., registered in the U.S. and other countries. Product of China. iPad, iPhone, iPod, iPod classic, iPod nano, iPod shuffle, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries. iPad mini is a trademark of Apple Inc. "Made for iPod," "Made for iPhone," and "Made for iPad" mean that an electronic accessory has been designed to connect specifically to iPod, iPhone, or iPad, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod, iPhone, or iPad may affect wireless performance.
