USER MANUAL FRIDGE MINIBAR 50 Create

Simple line drawing of a rectangular frame with four corner supports (no text or symbols)

FRIDGE MINIBAR NEVERA MINIBAR

USER MANUAL

CREATE CREATE CREATE ATE CREATE CREATE CRE CREATE CREATE CREATE ATE CREATE CREATE CRE CREATE CREATE CREATE ATE CREATE CREATE CRE CREATE CREATE CREATE ATE CREATE CREATE CRE CREATE CREATE CREATE ATE CREATE CREATE CRE CREATE CREATE CREATE ATE CREATE CREATE CRE CREATE CREATE CREATE ATE CREATE CREATE CRE CREATE CREATE CREATE ATE CREATE CREATE CRE CREATE CREATE CREATE ATE CREATE CREATE CRE CREATE CREATE CREATE ATE CREATE CREATE CRE CREATE CREATE CREATE ATE CREATE CREATE CRE CREATE CREATE CRE CREATE CREATE CRE ATE CREATE CRE

CREATE CREATE CREATE ATE CREATE CREATE CRE CREATE CREATE CREATE ATE CREATE CREATE CRE CREATE CREATE CREATE ATE CREATE CREATE CRE CREATE CREATE CREATE ATE CREATE CREATE CRE CREATE CREATE CREATE ATE CREATE CREATE CRE CREATE CREATE CREATE ATE CREATE CREATE CRE CREATE CREATE CREATE ATE CREATE CREATE CRE CREATE CREATE CREATE ATE CREATE CREATE CRE CREATE CREATE CREATE ATE CREATE CREATE CRE CREATE CREATE CREATE ATE CREATE CREATE CRE CREATE CREATE CREATE ATE CREATE CREATE CRE CREATE CREATE CRE CREATE CREATE CRE CREATE CREATE CRE CREATE CREATE CRE

INDEX

ENGLISH

Security instructions 6

Parts list 7

Installation 7

Operation 7

Troubleshooting 8

Cleaning and maintenance 8

PORTUGUÊS

Thank you for choosing our fridge. Before using the appliance, and to ensure the best use, carefully read these instructions.

The safety precautions enclosed herein reduce the risk of death, injury and electrical shock when correctly adhered to. Keep the manual in a safe place for future reference, along with the completed warranty card, purchase receipt and package. If applicable, pass these instructions on to the next owner of the appliance. Always follow basic safety precautions and accident prevention measures when using an electrical appliance. We assume no liability for customer failing to comply with these requirements.

SECURITY INSTRUCTIONS

When using any electrical appliance, basic safety precautions should always be observed.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children should not play with this appliance.

- This type of refrigerator is widely used in places such as hotels, offices, students dormitories and house. It adopts high efficiency compressor and classic structural distribution. It enjoys the advantages of low electricity consumption, freezing capability and easy use.

Caution: When defrosting, never use any sharp or metallic objects to remove the frost on the surface of the evaporator as this will damage the evaporator.

- Do not store bottled beverage in the freezing compartment, so as to prevent it from being broken and damaging the refrigerator.

- Replug the electric power again at an interval of over ten minutes.

- It must be checked that the voltage used should be the same as the rated voltage before using the refrigerator.

- The power plug should have its own separated socketin order to prevent the electric wire from being overheated by other plugs.

- Do not splash water on to the refrigerator. Otherwise it may cause malfunctions of the refrigerator or electric shock.

- Do not store flammable materials such as alcohol, gasoline, LP gas and glue in the refrigerator.

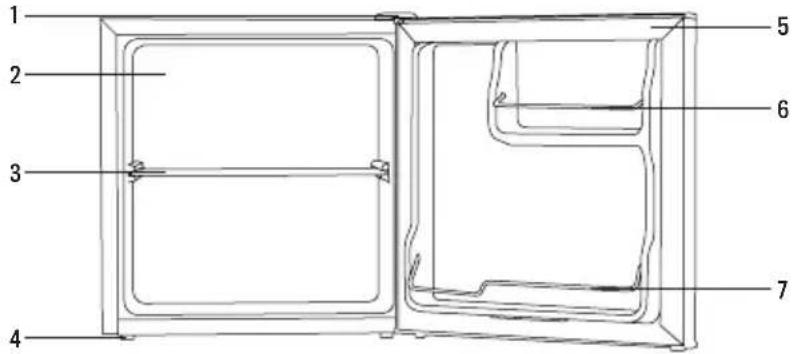

PARTS LIST

FRONTALREAR

1 2 3 4 5 6 7

1. Hinge

2. Paws

3. Fridge body

4. Door

5. Shelf

6. Top shelf

Simple line drawing of a door frame with a small inset showing a button labeled '①' and a number 8 pointing to the left side (no text or symbols beyond basic markings)

1. Door bottom shelf

2. Thermostat

INSTALLATION

- Do not tilt the refrigerator for more than 45^ from upright when moving it. Do not apply force to any part such as the condenser, the door and its handle in order to prevent the refrigerator from deforming, or else its performance will be influenced.

- Ensure that there is enough space around the refrigerator in order to let it work well.

- The refrigerator should be kept away from high temperature, sunshine or humid conditions.

OPERATION

1. When operating the refrigerator for the first time, set the thermostatic dial at 3, connect the electric wire and run it without loading any food. Usually this takes 2 or 3 hours. Then set the thermostatic dial at the desired setting and place food into the refrigerator.

2. The temperature of the refrigerator can be adjusted by turning the thermostatic dial. Setting the thermostatic dial at 3 - 4 is the most suitable for general operation. When the thermostatic dial number is higher, the refrigeration capability is stronger.

3. Do not put too much food in the refrigerator. Open the door less in order to maintain the temperature of the refrigerator and save on electricity consumption.

4. The refrigerator can defrost automatically. Defrost the freezer whenever the layer of frost on the surface reaches 3 or 4 mm. When defrosting, remove all food, set the thermostat at 0 position and open the door. After the frost has melted, discard the water and dry up the interior of the refrigerator. It can be then restarted by turning its thermostat to the desired setting.

5. When the ambient temperature is less than 10^ C, turn on the compensate switch in order to avoid the compressor being off for long time. When the ambient temperature is over 10^ C, please turn off the compensate switch to save energy. This is an optional function only for some models.

PROBLEMSOLUTION
The refrigerator does not operate.	Ensure:· the electric power is supplied and the voltage is normal,· the fuse is not burned out,· the power plug is plugged firmly into the socket.
The refrigerator is not cool enough.	Ensure:· the thermostat is at the correct setting,· there is enough space around the refrigerator,· the door is not open too frequently and for too long,· the refrigerator is not under direct sunlight or placed near a heat source,· there is not too much food or hot food in the refrigerator.
The food in the refrigerator is frozen.	Ensure:· the thermostat is at the correct setting,· there is not too much food in the refrigerator.
The refrigerator operates too noisily.	Ensure:· the refrigerator is properly leveled,· the refrigerator is not touching objects around it,· the containers or solid packages stored inside are not touching each other.

- During the period of high humidity, moisture may form on the surface of the refrigerator. It is not a malfunction. You may just wipe it up yourself. If your refrigerator is still not functioning properly after making the above checks, please contact with the maintenance service department without any delays.

CLEANING AND MAINTENANCE

• When cleaning the refrigerator, disconnect the electric wire. Rub it carefully with a piece of cloth soaked with neutral cleanser, then wipe it clean with fresh water.
• Never use acids, chemical solution, thinner, gasoline or the likes to clean the refrigerator because they may damage the painting cover and plastic parts of it.

In compliance with Directives: 2012/19/EU and 2015/863/EU on the restriction of the use of dangerous substances in electric and electronic equipment as well as their waste disposal. The symbol with the crossed dustbin shown on the package indicates that the product at the end of its service life shall be collected as separate waste. Therefore, any products that have reached the end of their useful life must be given to waste disposal centres specialising in separate collection of waste electrical and electronic equipment, or given back to the retailer at the time of purchasing new similar equipment, on a one for one basis. The adequate separate collection for the subsequent start-up of the equipment sent to be recycled, treated and disposed of in an environmentally compatible way contributes to preventing possible negative effects on the environment and health and optimises the recycling and reuse of components making up the apparatus. Abusive disposal of the product by the user involves application of the administrative sanctions according to the laws.
