Product type	Range hood
Brand	Pando
Model	ES
Usage	Domestic
Power supply	220-240 V / 50 Hz
Motor	External (V.2450 or V2350)
Exhaust type	Rigid or flexible duct (diameter not specified)
Minimum installation height (gas cooking)	65 cm
Maximum recommended height (floor to hood)	2.5 m
Lighting	LED (replacement by authorized professional)
Main material	Stainless steel
Filters	Washable metal (details not provided)
Power cord	Included
Included accessories	Exhaust tube 5 m (depending on motorization)
Stainless steel maintenance	Specific product INOX PANDO Ref. 1059
Repairability	By authorized technical service only
Environmental standards	WEEE Directive (2002/96/EC)
Warranty	Manufacturer (subject to conditions, excluding aesthetic damage and improper installation)
Installation	Reserved for qualified professionals

Frequently Asked Questions - ES Pando

What is the minimum installation height for the Pando ES hood?

The minimum distance between the cooking surface and the bottom of the hood is 65 cm for gas cooking. If the hob specifies a greater distance, follow that.

How do I clean the hood filters?

The metal filters can be cleaned in the dishwasher or by hand with a mild degreaser. Avoid abrasive products that could damage them.

How do I replace the LED lighting?

Replacement of LED lights is reserved for authorized technical service due to risk of electric shock. Do not attempt to do it yourself.

What should I do if the hood is not drawing properly?

Check that the filters are clean, the exhaust duct is not blocked, and the room has sufficient air intake (ventilation grille).

Can I use the hood in recirculation mode?

The manual does not specify this option. Typically, a charcoal filter is required for recirculation. Contact Pando technical service for compatibility.

How do I install the Pando ES hood?

Installation must be carried out by a qualified professional. Follow safety distances, electrical standards, and use the supplied accessories.

What is the warranty on the hood?

The manufacturer warranty applies but does not cover aesthetic damage (scratches, impacts) occurring during installation or breakdowns due to unstable power supply.

How do I clean the stainless steel surface?

Use the specific product INOX PANDO Ref. 1059 which cleans, polishes, and protects without scratching. Avoid abrasive sponges.

What should I do if the motor is noisy?

Ensure the hood is securely mounted and the ducts are not in contact with vibrating surfaces. If the noise persists, contact technical service.

Can I use the hood without an exhaust duct?

No, the hood is designed to exhaust air to the outside. For recirculation use, a charcoal filter is required (not supplied).

USER MANUAL ES Pando

EN - User and installation Manual.

ES 60-70-90

Quality Management System

UNE-EN ISO 9001:2015

ES19/86566

ES-Espanol

The symbol on the product or its packaging indicates that this product cannot be disposed of like normal domestic waste. The product must be handed over at a collection point for recycling electrical and electronic equipment. If you ensure that this product is correctly disposed of, you will help to avoid the possible negative environmental and public health effects that could arise from incorrect disposal. For more detailed information about recycling this product, please contact your city authorities, the domestic waste service or the establishment where you purchased it. This electrical appliance is marked in compliance with European Directive 2002/96/EC on electrical and electronic appliance waste (WEEE).

EN - INTRODUCTION

Firstly, we would like to thank you for your confidence in our firm when you chose a Pando extractor hood.

This manual and its annexes are a guide for the correct installation, usage and maintenance of your new Extractor Hood.

To learn everything about your hood, we recommend you read these instructions carefully from beginning to end and keep them for future reference.

Before starting the installation process read with care this installation manual and the attached user's manual, There are also instructions for the correct installation of the product.

Installation should only be carried out by qualified professionals, professional installers or the official technical service. The manual or installation guide must be read with care before starting the installation process.

When opening the packaging, check that all the components are in perfect state and all the accessories are present. If this is not the case, contact the dealer and do not install. Once installed, any damage to the exterior such as scratches, dents, stains, etc. will not be covered by the guarantee.

The manufacturer will not be held liable for any possible inaccuracies due to printing or trans- cription errors in this manual The manufacturer reserves the right to incorporate modifications considered useful or necessary into the products, which will not alter their essential functional and safety characteristics.

EN - RECOMMENDATIONS TO BEAR IN MIND BEFORE INSTALLATION.

VERY IMPORTANT!

DO NOT REMOVE THE PROTECTIVE PLASTIC FROM THE HOOD UNTIL IT IS COMPLETELY INSTALLED, IF THIS PLASTIC IS NOT PRESENT IN AREAS THAT COULD HAVE A RISK OF DAMAGE DURING INSTALLATION, IT IS RECOMMENDED TO APPLY PROTECTIVE MATERIALS AGAINST IMPACT, SCRATCHES AND CONTACT WITH CORROSIVE AGENTS.

TAKE ESPECIAL CARE DURING THE INSTALLATION IF OTHER WORK IS ALSO IN PROGRESS, BECAUSE PAINT, SILICON, PLASTER AND OTHER MATERIALS COULD CONTAIN CORROSIVE CHEMICALS THAT MAY DAMAGE THE PRODUCT, IN THESE CASES IT IS RECOMMENDED TO ADEQUATELY PROTECT THE HOOD, BY FOR EXAMPLE, HERMETICALLY COVERING AREAS THAT Could Be Affected With PLASTIC.

THIS WILL AVOID DAMAGE TO THE OUTSIDE OF THE APPLIANCE, SOMETHING THAT WILL NOT BE COVERED BY THE GUARANTEE.

EN - SAFETY INSTRUCTIONS

• If the hood is to be used at the same time as gas fuelled or other fuelled appliances (not applicable to appliances exclusively designed to blow air into the room) the room must be properly ventilated.

• The exhausted air must not be led through a conduit that is used for exhausting fumes from other appliances using gas or other fuels (not applicable to devices destined exclusively to discharge the air inside the room).

• The minimum distance between the surface of the cooktop and the lower edge of the hood must be 65~cm if the extractor hood is fitted over gas cooker. If the installation instructions of the gas cooker indicate a greater distance, this must be followed.

• Regulations regarding air evacuation must be respected.

• If the hood does not have a power cable with a plug, or other means for disconnection from the mains, with a separation of all poles to ensure total disconnection under category III conditions of overvoltage, means for disconnection of the fixed installation must be incorporated in accordance with installation regulations.

EN - AFETY INSTRUCTIONS

• Once the appliance has been delivered, within 24h, remove the packaging and check that it is in good state, visually inspecting the general state of the outside. If any anomaly or damage is observed, do not install and immediately inform the dealer or installer within 24h of reception.

• This hood has been designed for normal domestic use. It must not be used for industrial, professional, or any other use different from what it has been designed for.

• Pando will not be held liable for consequences or damages resulting from incorrect installation or misuse of the appliance.

• Do not try to alter any of the characteristics of this appliance, this could be dangerous and will automatically render the guarantee void.

• It must be possible and accessible for the user to disconnect the appliance from the mains after installation. The power plug should be easily accessible, if this is not the case, a switch for electrical disconnection, compliant with electrical installation regulations, must be fitted.

• Take special care when perforating walls or ceilings and ensure that there are no hidden electrical cables, pipes, metal beams, etc., as perforating them could cause great damage, short circuits or the transmission of noise and vibrations.

• IMPORTANT: Before connecting the appliance to the mains, make sure the current is first turned off (differential or circuit breaker on the general electrical panel of the house).

• Hood and conduit installation must comply with regulations on ventilation of closed spaces. More specifically, the exhausted air must not be led through a conduit that is used for exhausting fumes from other appliances using gas or other fuels (central heating installations, etc.).

• Negative pressure in the premises must not exceed 0.04 mbar. This will allow the hood to operate in optimum conditions. To achieve this, it is necessary to have a permanent entry of fresh air to avoid air stagnation, it is recommended to have a ventilation grille for this purpose. Doors and windows are not enough.

EN - SAFETY INSTRUCTIONS

• Attention! When the hood is in operation "in suction" at the same time as a heating system that depends on ambient air (gas, oil, coal boiler, chimney, etc.), take special care to avoid the hood absorbing air needed for combustion, this could cause dangerous accumulations of carbon monoxide in the premises or home, which could be deadly. If the extractor hood is installed together with a combustion appliance such as a boiler, chimney or local heating, the manufacturers of these appliances must be contacted to ensure optimum and risk-free operation.

• Electrical power supply must be stable and meet the electrical requirements of the appliance (see the nameplate of the appliance). If the power supply is unstable, with variations in voltage, current, surges and cuts, electrical storms, etc., the hood could malfunction and even be damaged, in which case repairs will not be covered by the guarantee. If any of these things happen, disconnect the hood and contact an electrician or your electrical company to solve the problem.
• To avoid hazards, it is forbidden to manipulate the appliance. If the power cable is damaged it must be replaced by the manufacturer through an authorised technical service. Any repairs that involve manipulating the appliance or its components must only be done by an authorised technical service.
• Improper and unauthorised handling of the hood, as well as modifying, cutting or perforating the body, structure, motor or wiring of the hood are expressly forbidden. In case of any of the above, the guarantee will be automatically void and the manufacturer will not be held liable for any possible harm or damages.
• The hood is an electrical appliance for fume extraction and must not be used as a support for objects or utensils.
• The LED lamps con not be manipulated by the user as there are risks of electric shock, handling, maintenance or replacement is a task reserved exclusively for official technical assistance service or authorized specialist installer.
• With the aim of constantly improving our products, we reserve the right to modify their functional characteristics or their appearance.

EN - Features and recommendations for ceiling-mounted hoods.

QUALITY ASSURANCE:

In order to ensure that your project does not come up against any unexpected difficulties, to ensure the product works successfully.

FORM OF THE CEILING:

The "ideal" ceiling to install these hood units must be completely unobstructed and flat over all of its surface. If for design reasons you choose to have different heights or steps in the ceiling, it must be ensured that the

suction losses (you must send us a plan to determine whether the surrounding ceiling is suitable).

CEILING HEIGHT:

The recommended distance between the floor and the hood is a maximum of 2.50m . For greater heights consult our Technical Division.

POSITION OF THE HOOD:

The hood must be centred over the cooking area.

AIR INTAKE GRILLE:

To ensure optimum suction by the hood it is essential that the kitchen has a constant inward flow of air; a ventilation grille at floor level is the perfect solution for this.

INSTALLING THE FLUE PIPE:

We strongly recommend that you use S.E.C. System® fume extractor flue pipes from Pando, as these considerably improve convenience in use and the soundproofing of the unit.

INCLUDED:

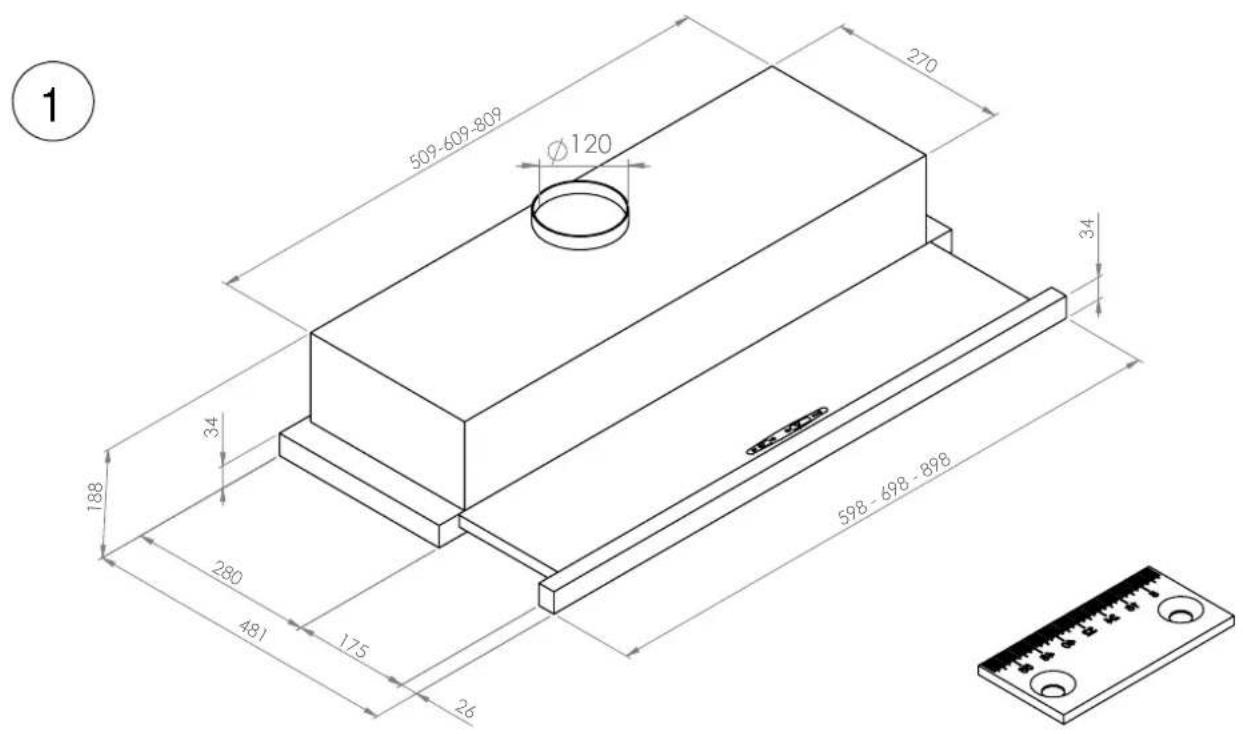

All units with V.2450 Exterior and V.2350 Roof motors come with 5 m of S.E.C. System® fume extractor flue with interior Ø 203 mm and exterior Ø 253 mm as standard.

EN-It must be taken into account and provide that the hood and peripherals must have easy and safe access for possible maintenance or repair tasks of the official Pando technical service (SAT). The guarantee will NOT cover the costs and means necessary for access to a product that does not meet these conditions. In the event that the product is not easily accessible or safe, a criterion that will be issued by SAT in its initial inspection, it will be the responsibility of the client to place the means and assume the necessary costs so that the SAT can perform the intervention adequately.

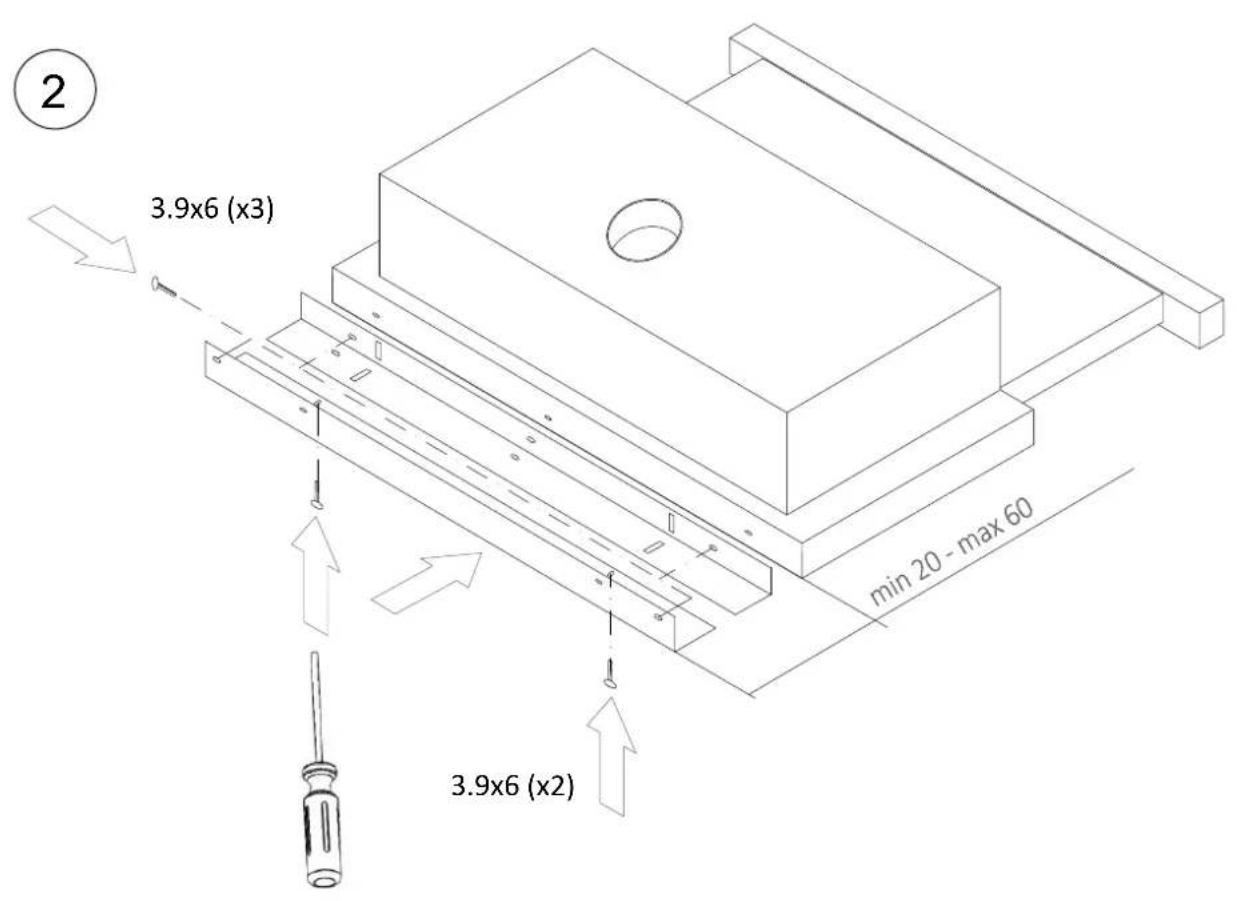

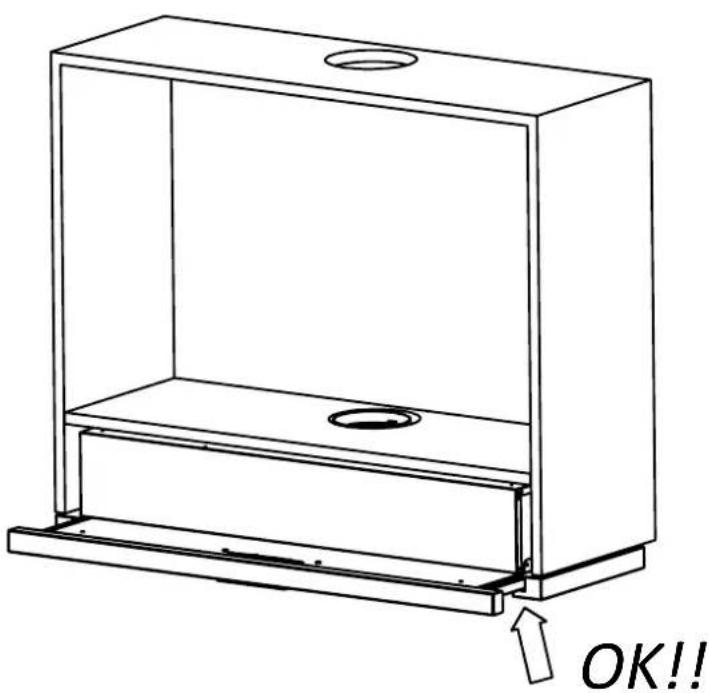

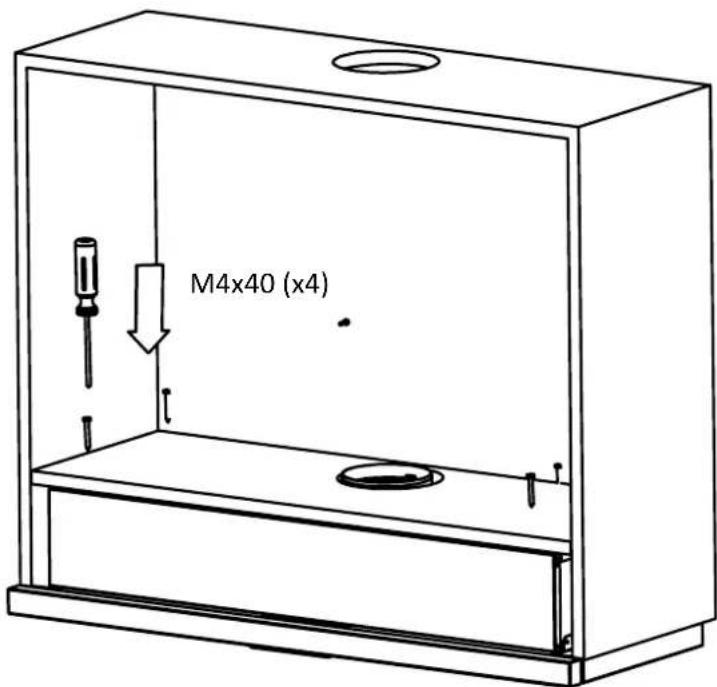

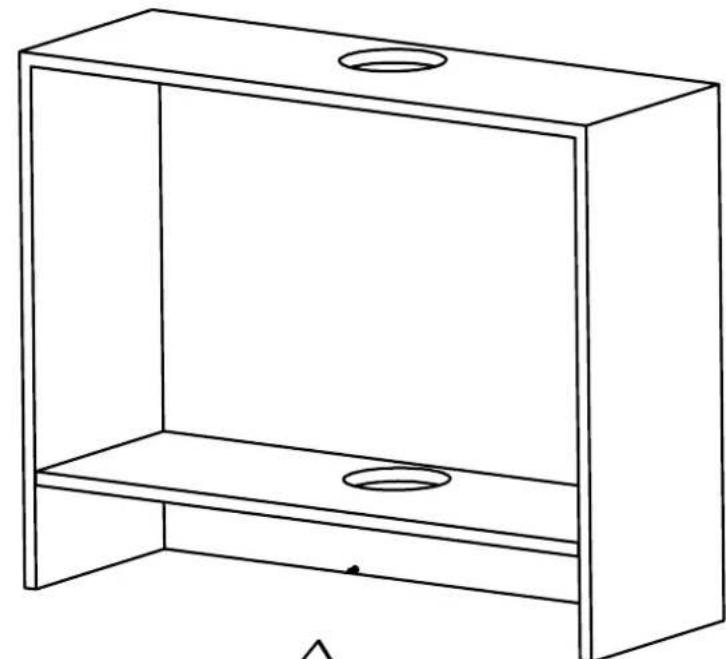

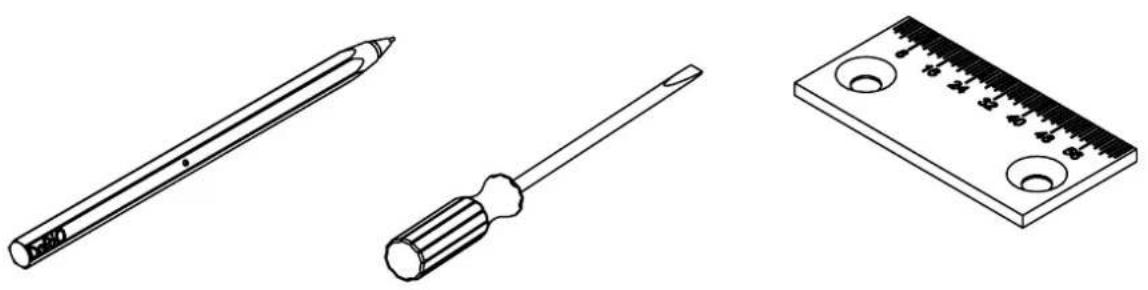

HERRAMIENTAS NECESARIAS / FERRAMENTAS NECESSARIAS / LES OUTILS NÉCESSAIRES / TOOLS NEEDLE

3

4

5

6

7

MANTENIMIENTO / MANUTENÇA / MAINTENANCE / MAINTENANCE

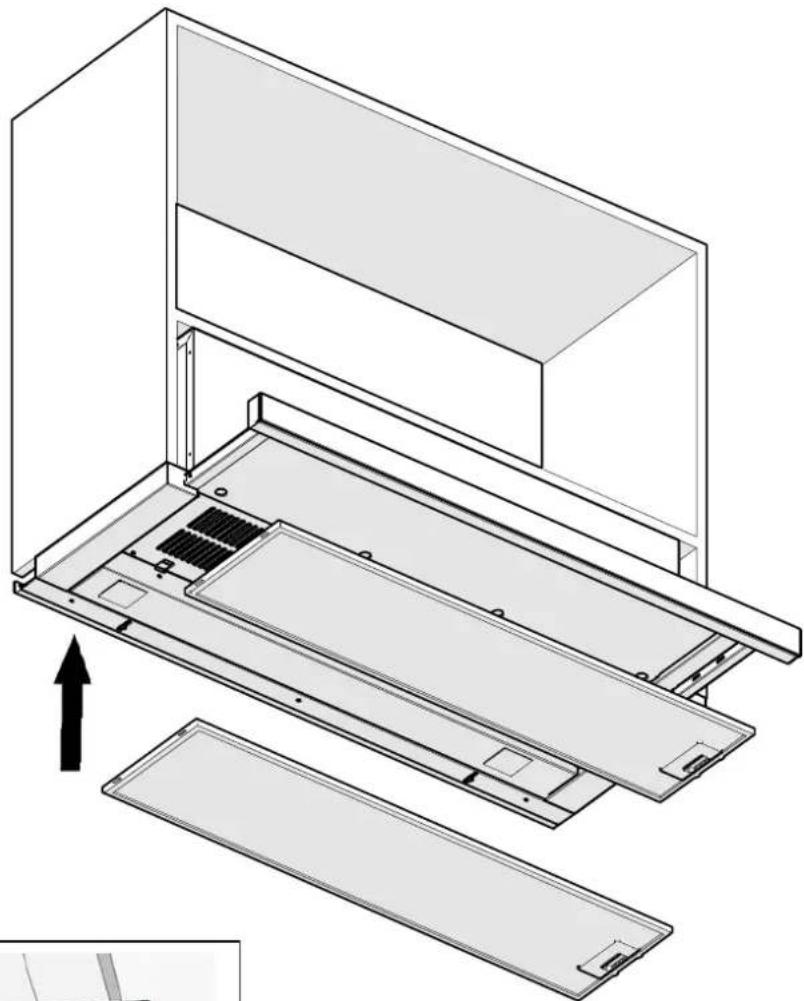

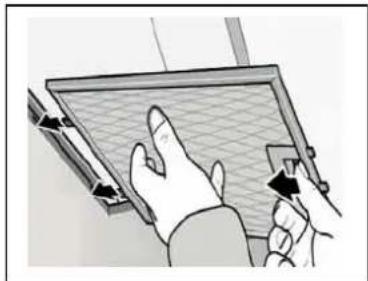

FILTRO ALUMINIO

FILTRO ALUMINIO

FILTRED'ALUMINIUM

ALUMINIUM FILTER

MANTENIMIENTO / MANUTENÇA / MAINTENANCE / MAINTENANCE (OPCIONAL / OPCIONAL / EN OPTION / OPTIONAL)

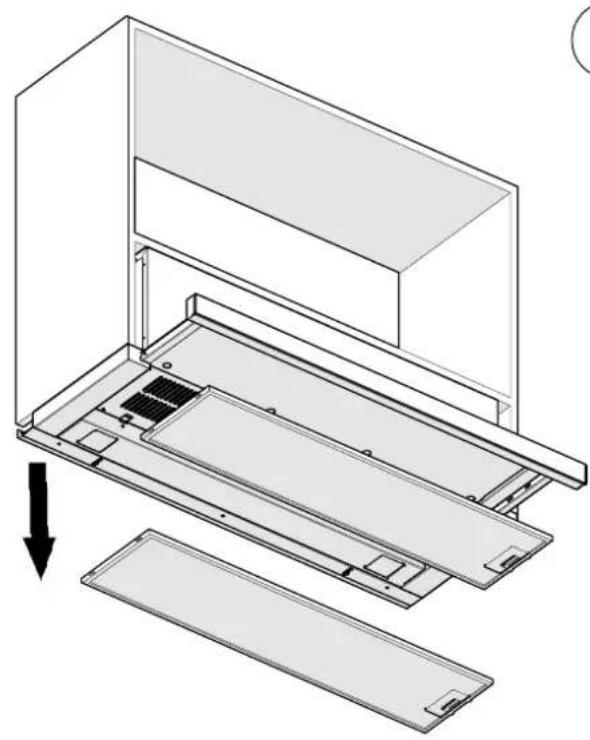

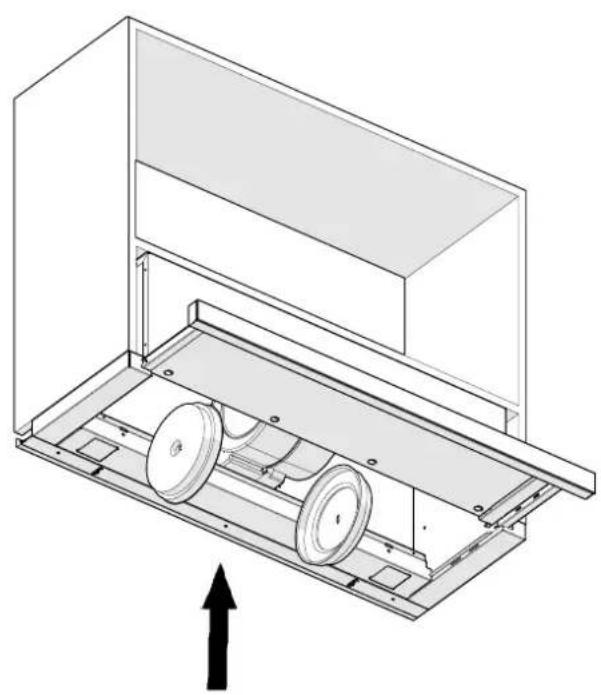

FILTROS DE CARBON ACTIVO (FCA)

FILTROS DE CARVAO ATIVO (FCA)
FILTRES A CHARBON ACTIF (FCA)
ACTIVE CARBON FILTERS (FCA)

1
2

3

MANTENIMIENTO / MANUTENÇA / MAINTENANCE / MAINTENANCE (OPCIONAL / OPCIONAL / EN OPTION / OPTIONAL)

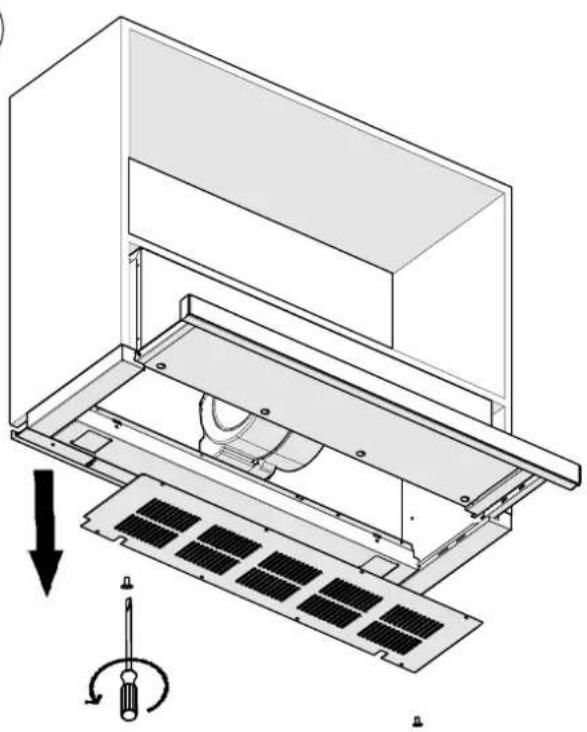

FILTROS DE CARBON ACTIVO (FCA)

FILTROS DE CARVAO ATIVO (FCA)

FILTRES A CHARBON ACTIF (FCA)

ACTIVE CARBON FILTERS (FCA)

4
5

MANTENIMIENTO / MANUTENÇA / MAINTENANCE / MAINTENANCE

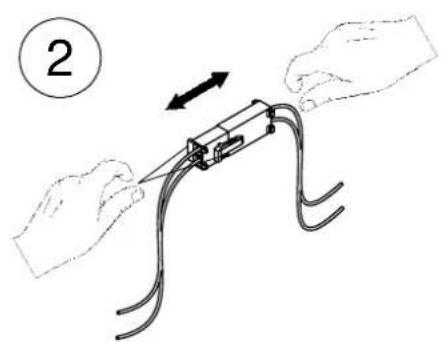

ILUMINATION Y CHARACTERISTICAS LED

ILUMINACAO E CARATERISTICA LED

ECLAIRAGE ET CARACTERISTIQUES LED

LED LIGHTING AND FEATURES

1

LED 1.3W, 12vDC

JATTENCIón!

LED-type lamps involve a complex manipulation in addition to an aerial connection of an internal connector that involves the risk of electric shock. Therefore, this type of manipulation must be done by the Pando technical assistance service or by a qualified and authorized professional installer. The manufacturer is not responsible for any damage caused by improper handling of led lamps by unauthorized personnel.

NOTAS/NOTAS/REMARQUES/NOTES:

NOTAS/NOTAS/REMARQUES/NOTES:

NOTAS/ NOTAS/ REMARQUES/ NOTES:

EXCLUSIVE PRODUCT CLEANER, POLISH AND STAINLESS PROTECTOR

INOX PANDO, Reference 1059.

PROPERTIES:

Degreaser especially recommended for polishing stainless steel surfaces, with its complex formula based on paraffin it leaves an invisible film that acts as a protector and makes it shine.

APPLICATIONS:

Cleans, polishes and evens out stainless steel surfaces of extractor hoods and stainless steel kitchen furniture.
