Technical data

Parameter description Parameter value
Product name	Manual awning
Model	UNI_SA_01	UNI_SA_02	UNI_SA_03
Height [m]	2 – 3.1	2 – 3.1	2 – 3.1
Dimensions [width x depth x height; mm]	2500 x 1250 x 3050	3000 x 1260 x 3050	3500 x 1250 x 3050
Weight [kg]	7.1	7.7	8.65

1. General description

The user manual is designed to assist in the safe and trouble-free use of the device. The product is designed and manufactured in accordance with strict technical guidelines, using state-of-the-art technologies and components. Additionally, it is produced in compliance with the most stringent quality standards.

DO NOT USE THE DEVICE UNLESS YOU HAVE THOROUGHLY READ AND UNDERSTOOD THIS USER MANUAL.

To increase the product life of the device and to ensure trouble-free operation, use it in accordance with this user manual and regularly perform maintenance tasks. The technical data and specifications in this user manual are up to date. The manufacturer reserves the right to make changes associated with quality improvement. The device is designed to reduce noise emission risks to a minimum, taking into account technological progress and noise reduction opportunities.

Legend

Read instructions before use.

WARNING! or CAUTION! or REMEMBER! Applicable to the given situation.

(general warning sign)

ATTENTION! Hand crush hazard!

ATTENTION! Suspended weight!

PLEASE NOTE! Drawings in this manual are for illustration purposes only and in some details may differ from the actual product.

2. Usage safety

ATTENTION! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in serious injury or even death.

The terms "device" or "product" are used in the warnings and instructions to refer to: Manual awning

2.1. Safety in the workplace

a) Make sure the workplace is clean and well lit. A messy or poorly lit workplace may lead to accidents. Try to think ahead, observe what is going on and use common sense when working with the device.
b) If you are unsure about whether the product is operating correctly or if you find damage, please contact the manufacturer's service centre.
c) Children or unauthorised persons are forbidden to enter a work station. A distraction may result in loss of control over the device.
d) Please keep this manual available for future reference. If this device is passed on to a third party, the manual must be passed on with it.
e) Keep packaging elements and small assembly parts in a place not available to children.

Remember! When using the device, protect children and other bystanders.

2.2. Personal safety

a) Do not use the device when tired, ill or under the influence of alcohol, narcotics or medication which can significantly impair the ability to operate the device.
b) The device is not designed to be handled by persons (including children) with limited mental and sensory functions or persons lacking relevant experience and/or knowledge unless they are supervised by a person responsible for their safety or they have received instruction on how to operate the device.
c) Whe n working with the device, use common sense and stay alert. Temporary loss of concentration while using the device may lead to serious injuries.
d) Do not overestimate your abilities. When using the device, keep your balance and remain stable at all times. This will ensure better control over the device in unexpected situations.
e) The device is not a toy. Children must be supervised to ensure that they do not play with the device.

2.3. Safe device use

a) Keep the device in perfect technical condition. Before each use check for general damage, especially check moving components for cracked parts or elements, and for any other conditions which may impact the safe operation of the device. If damage is discovered, hand over the device for repair before use.
b) T o ensure the operational integrity of the device, do not remove factory-fitted guards and do not loosen any screws.
c) When transporting and handling the device between the warehouse and the destination, observe the occupational health and safety principles for manual transport operations which apply in the country where the device will be used.
d) C lean the device regularly to prevent stubborn grime from accumulating.
e) The device is not a toy. Cleaning and maintenance may not be carried out by children without supervision by an adult person.
f) It is forbidden to interfere with the structure of the device in order to change its parameters or construction.
g) Do not overload the device.
h) Do not use the device in heavy rain, wind or snow.

ATTENTION! Despite the safe design of the device and its protective features, and despite the use of additional elements protecting the operator, there is still a slight risk of accident or injury when using the device. Stay alert and use common sense when using the device.

3. Use guidelines

The product is a cover for the balcony, terrace, which is installed to protect against UV radiation or other weather conditions.

The product is intended for home use only.

The user is liable for any damage resulting from unintended use of the device.

3.1. Preparing for use / Device use

Do not erect in adverse weather conditions.

Carelessness causes fire keep open flames away from covers.

Dismantle between uses.

Allow to dry before storing.

Do not use in windy conditions.

Always use on flat level ground.

Protect from severe weather conditions.

This product is not intended for use as a permanent structure.

Always remove roof in windy conditions.

This standing awning is only showerproof and should not be left up in heavy rain.

3.2. Assembling the device

Please note: The illustrations of this product can be found on the last page of the instruction manual (pp. xxx).

3.3. Cleaning and maintenance

a) Use only non-corrosive cleaners to clean the surface.
b) After cleaning the device, all parts should be dried completely before using it again.
c) Store the unit in a dry, cool place, free from moisture and direct exposure to sunlight.
d) The device must be regularly inspected to check its technical efficiency and spot any damage.
e) Use a soft, damp cloth for cleaning.
f) Do not use sharp and/or metal objects for cleaning (e.g. a wire brush or a metal spatula) because they may damage the surface material of the appliance.
g) Do not clean the device with an acidic substance, agents of medical purposes, thinners, fuel, oils or other chemical substances because it may damage the device.

A2 A1 A1 H A2 A1

4

J A1 J

5

J A1 H

6

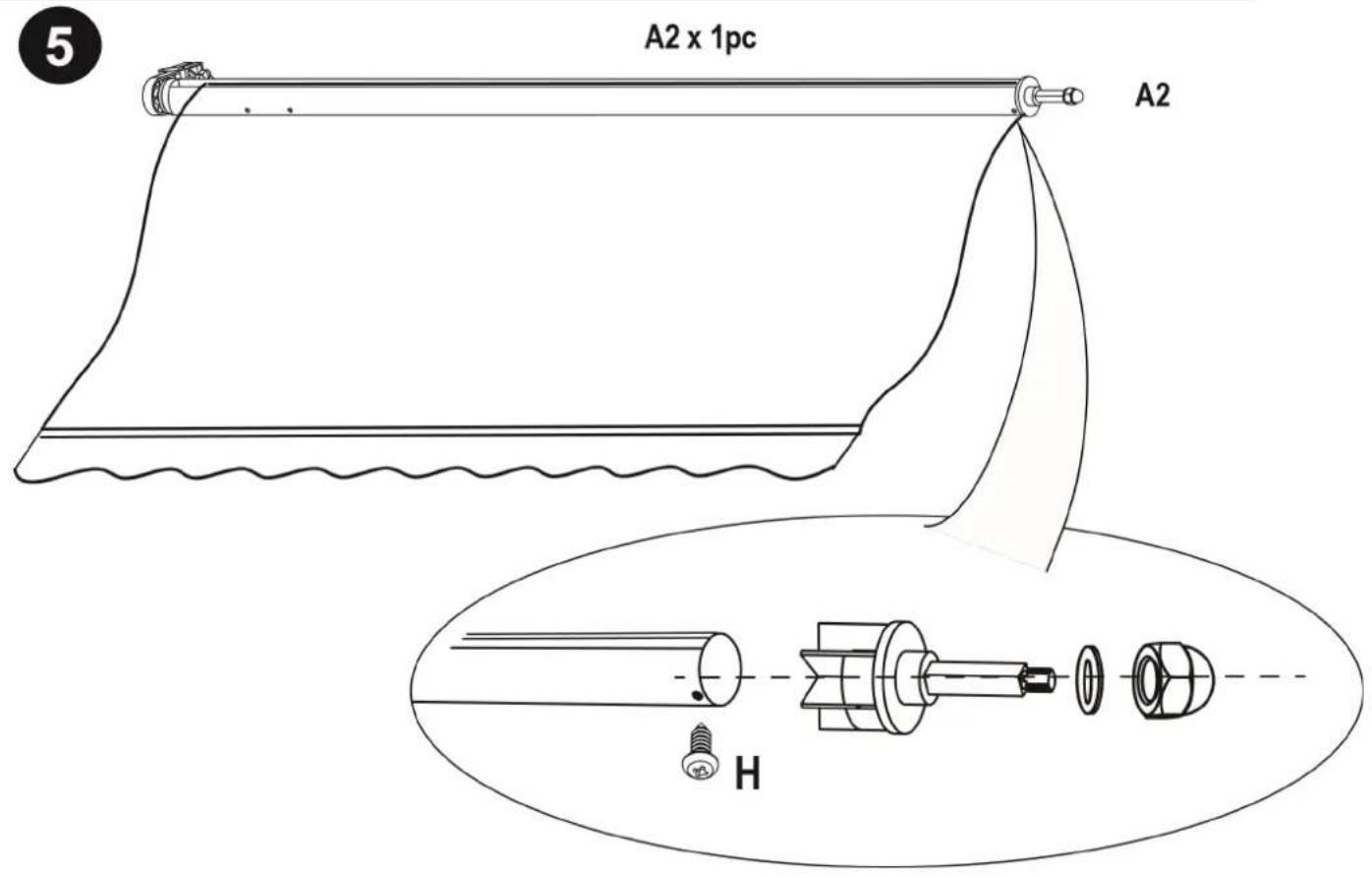

F B1 E B1 E C B3 C

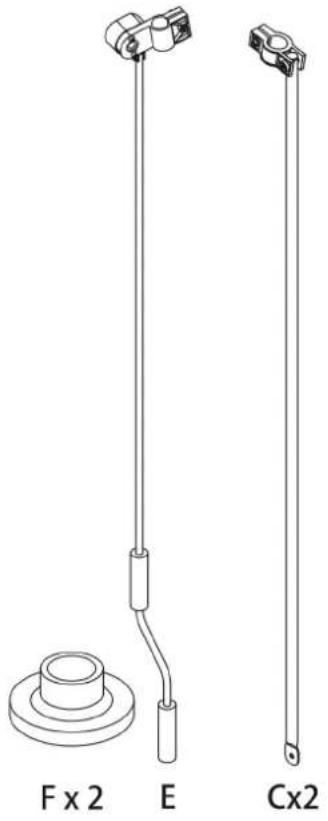

Technical line drawing of two vertical mechanical components labeled F x 2, E, and Cx2, with no visible text or symbols on the parts themselves.

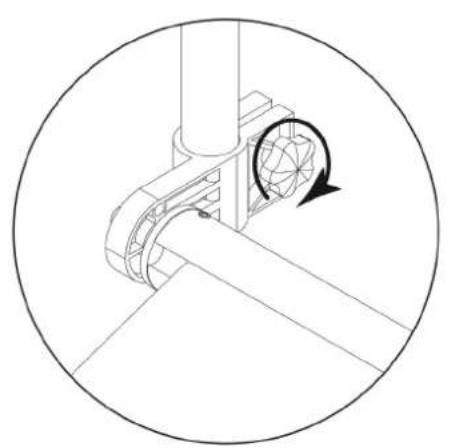

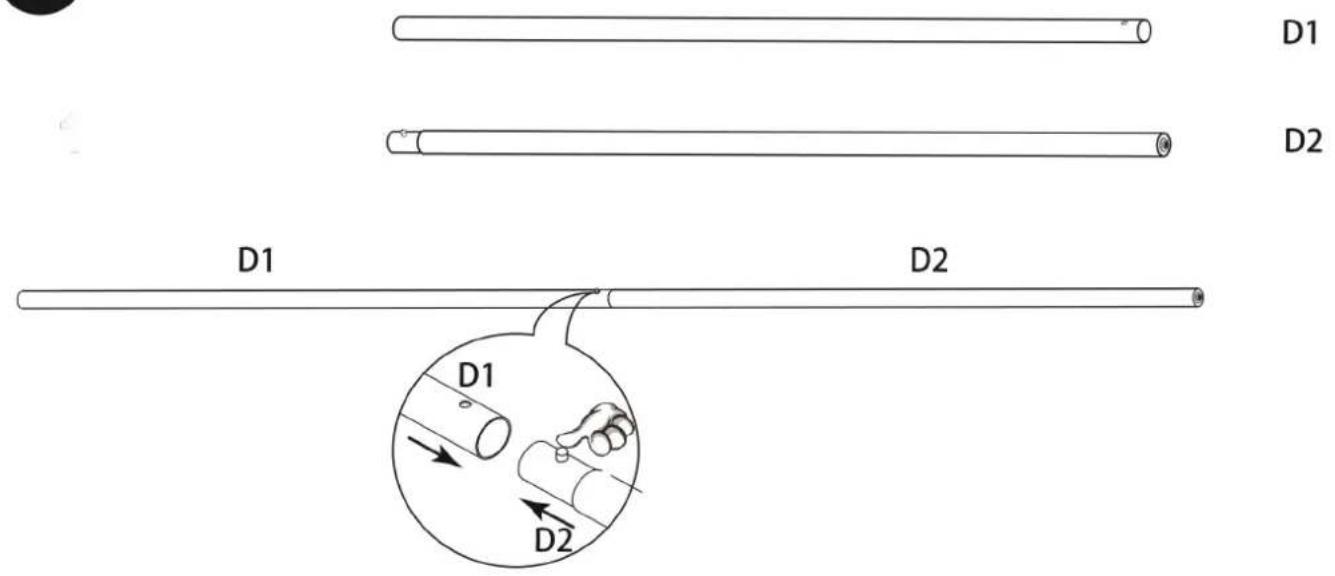

B3 x 2 B2 x 2 B1 x 2

9 J G x 2

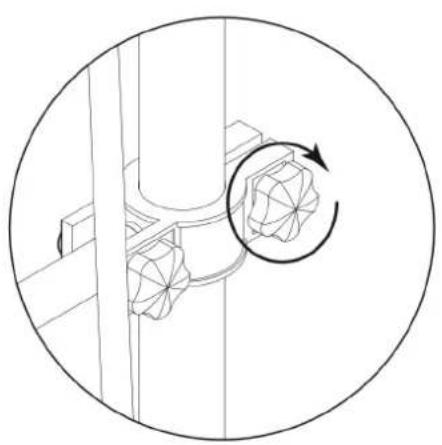

10

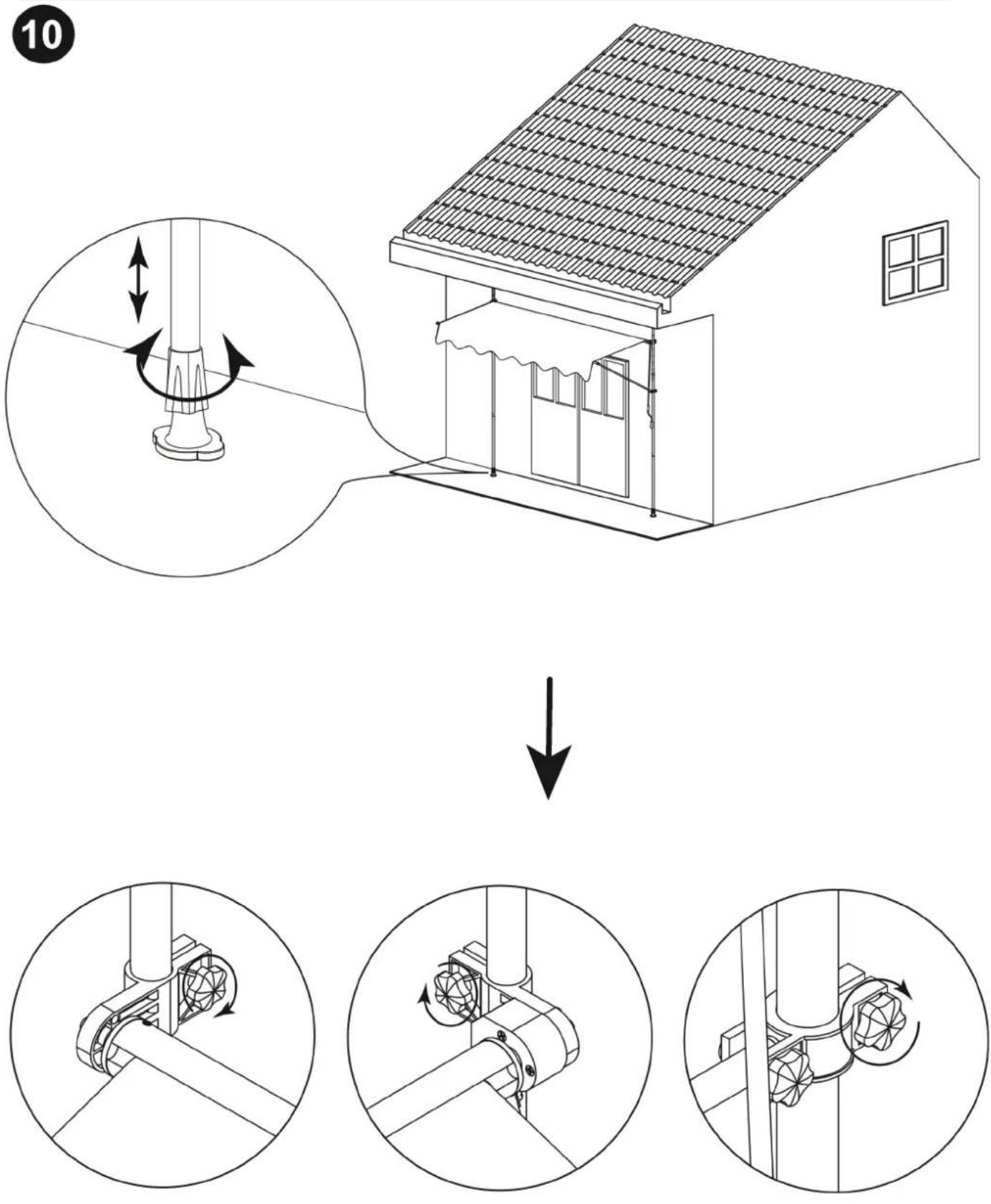

Diagram illustrating the structural change of a house with a pole and roof, showing rotation and clearance direction.

Technical line drawing of a mechanical assembly with a rotating component (no text or symbols)

Technical diagram of a mechanical assembly with rotating component (no text or symbols)

Technical line drawing of a mechanical assembly with two circular components and a rotation arrow (no text or symbols)

11

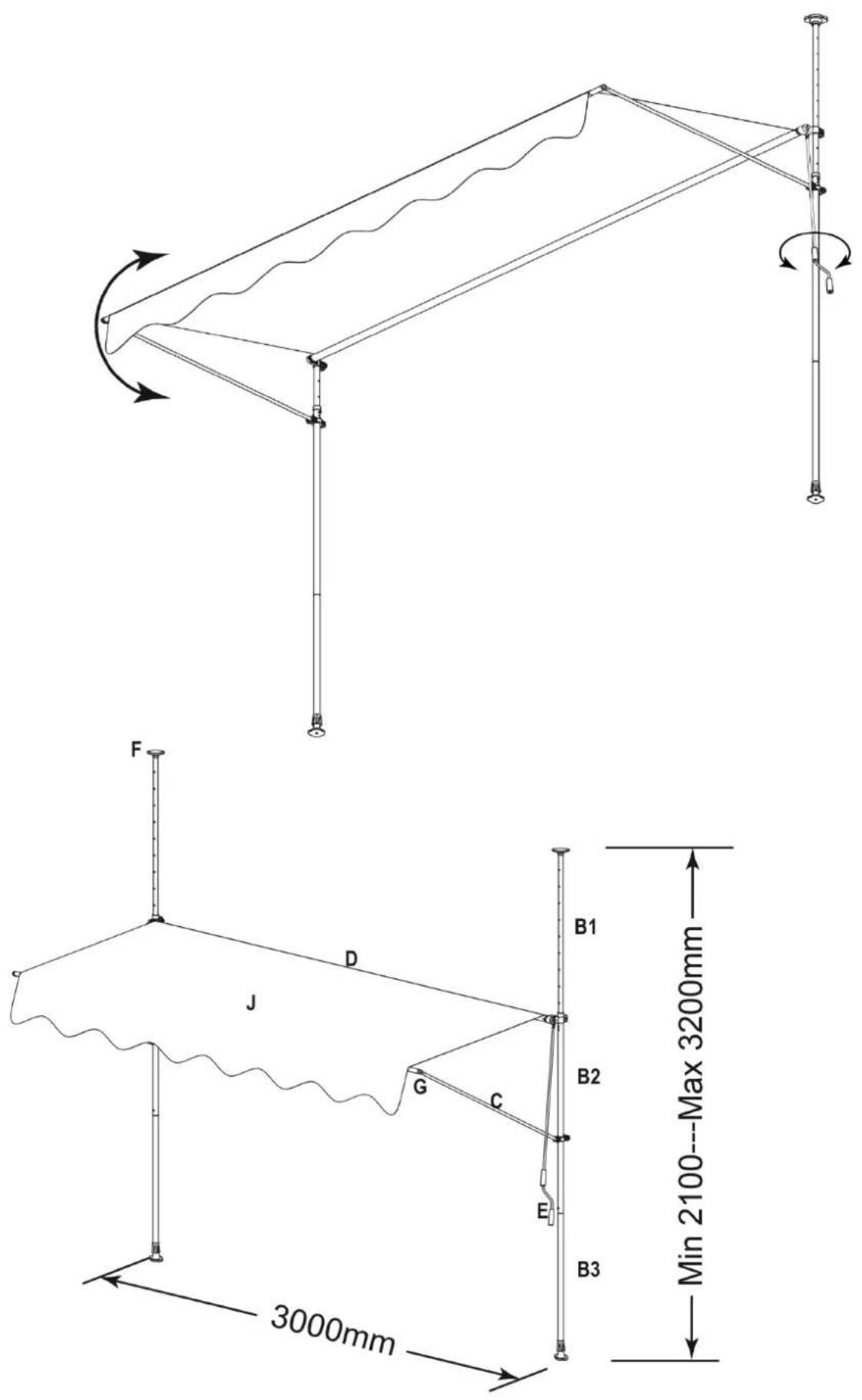

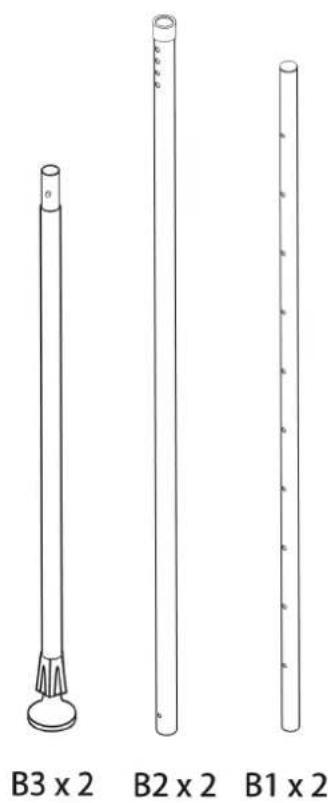

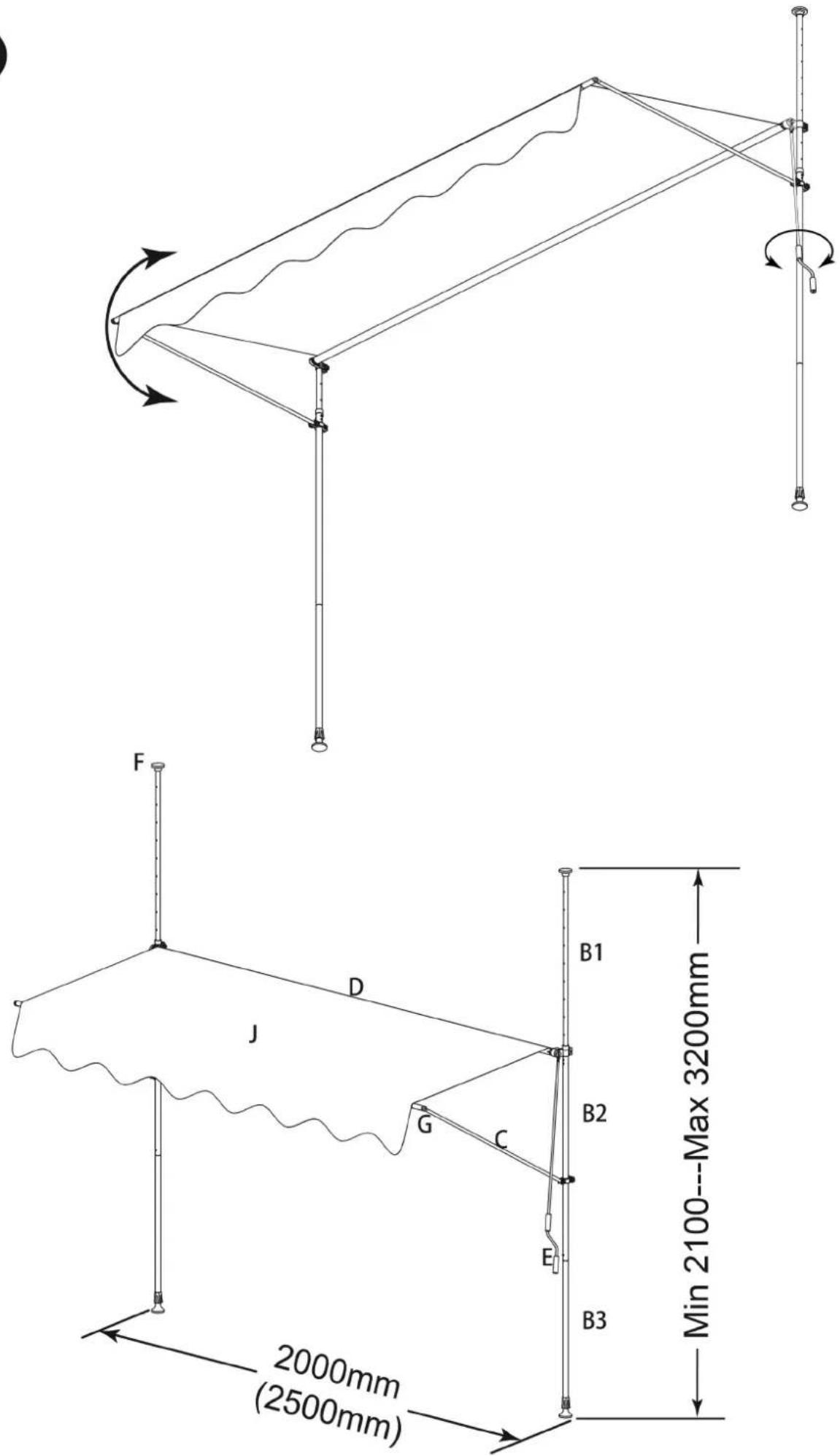

Min 2100---Max 3200mm 2000mm (2500mm) B1 B2 B3 F D J G C E

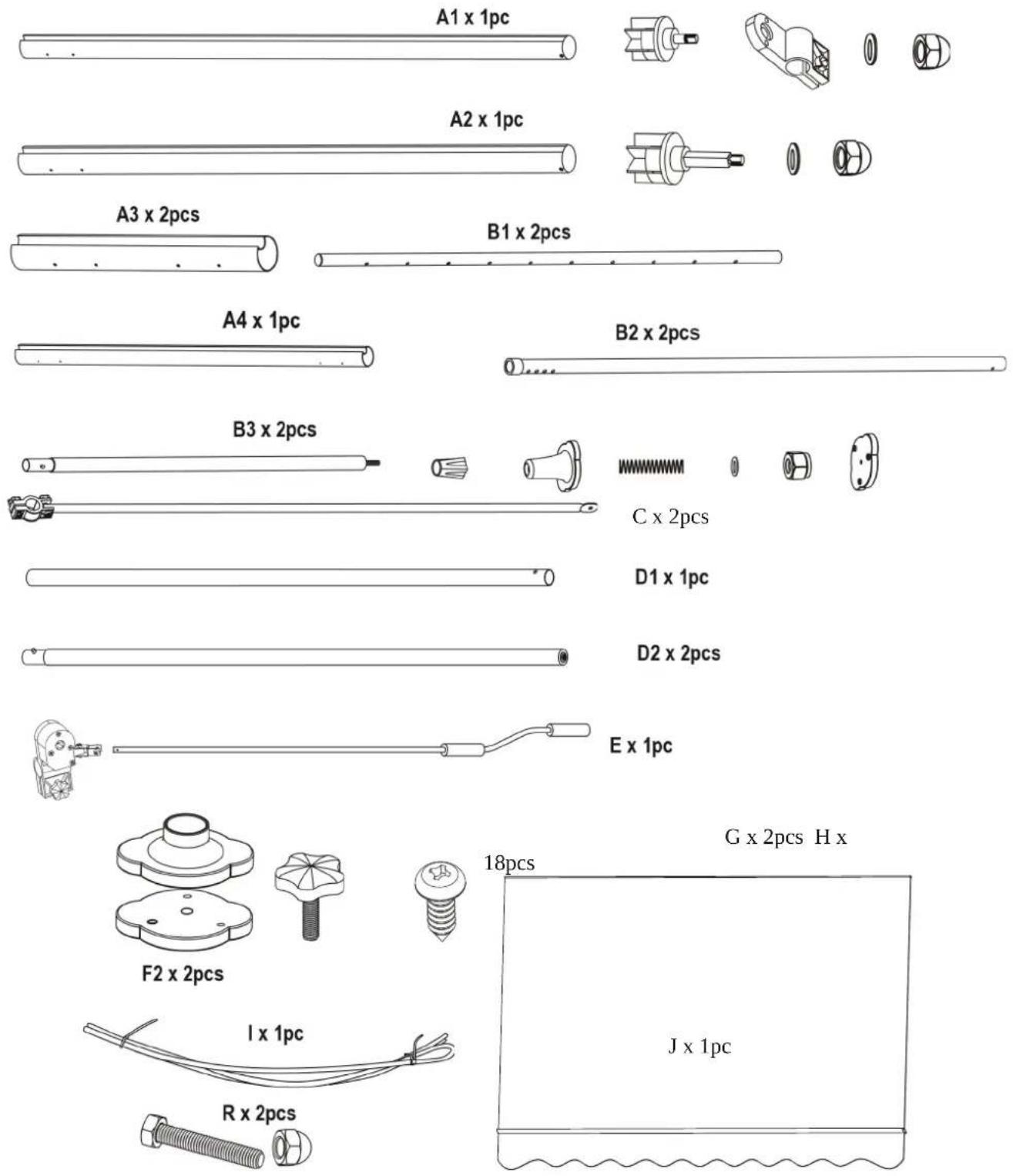

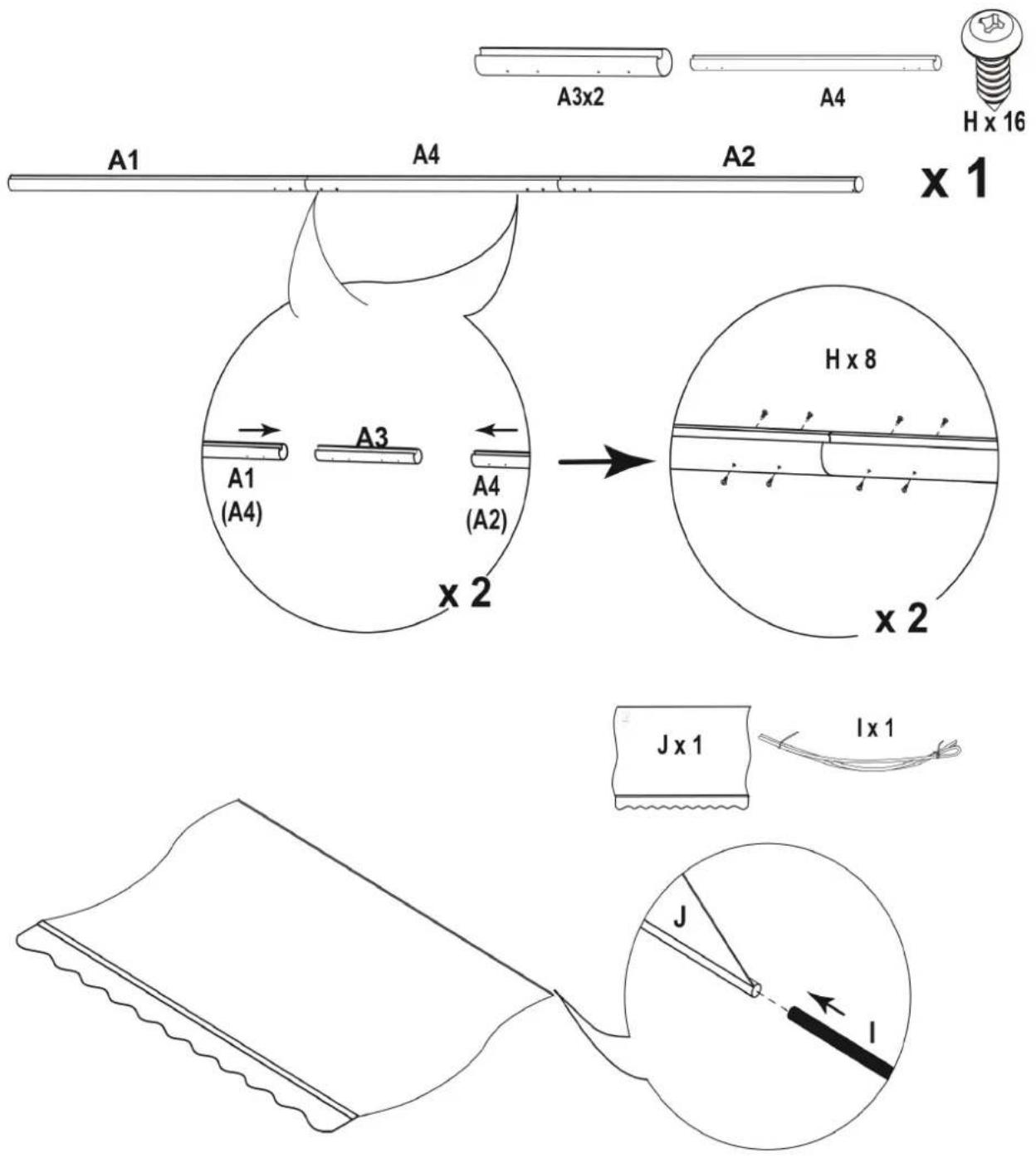

A3x2 A4 H x 16 A1 A4 A2 x 1 H x 8 A1 (A4) A3 A4 (A2) x 2 x 2 J x 1 I x 1 J I

3

A1 J

4

A1 H

A1 x 1pc

A2 x 1pc 5 A2 H

6

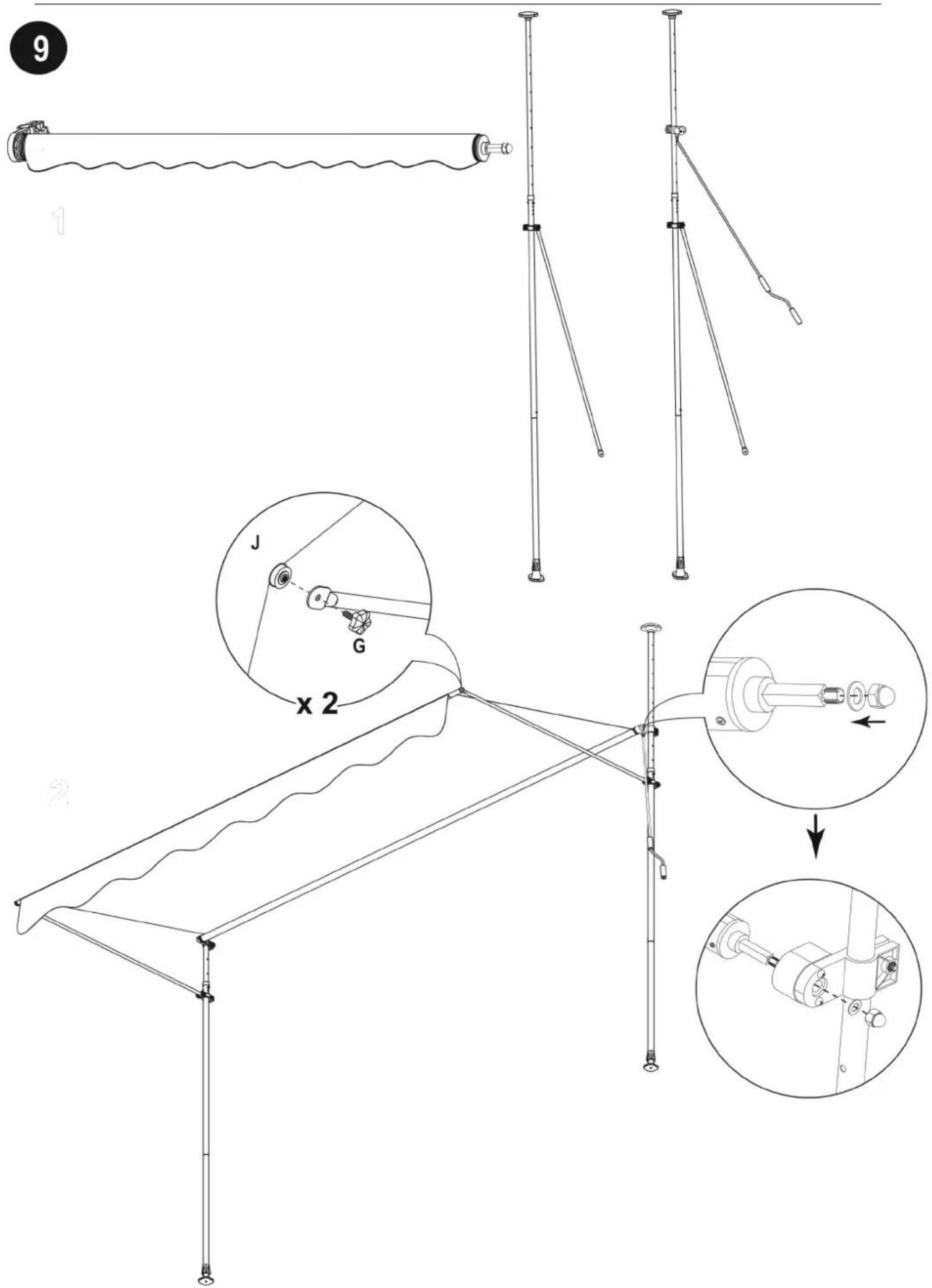

Diagram of a mechanical scroll with two rollers, one rolling down and the other wading down, showing motion direction (no text or symbols)
