Product Type	Bagless Canister Vacuum
Model	Kenmore DC5070, Series 500
Power Supply	120 V, 60 Hz, polarized plug
Suction Power	Adjustable via handle suction control
Brush Type	Power Brush with Hair Eliminator® (automatic hair removal)
Handle Switch	3 positions: Off / Hard Floor (low suction, slow brush roll) / Carpet (high suction, fast brush roll)
Dust Cup Capacity	Approximately 2 liters (estimate)

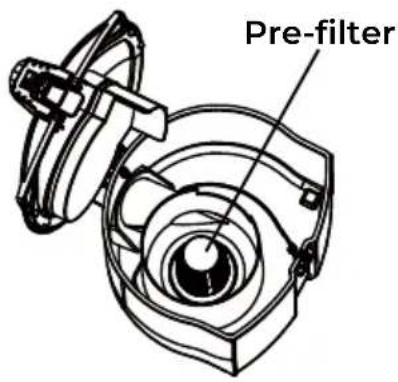

Filters	Pre-filter, foam filter, felt filter, HEPA cartridge exhaust filter
Filter Maintenance	Clean pre-filter regularly, wash foam/felt filters with cold water every 3 months, replace HEPA once a year
Thermal Protection	Built-in protection device: automatic shut-off in case of overheating, 50-minute cooling time

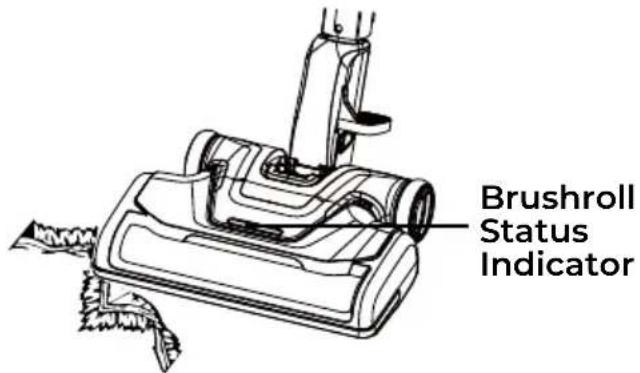

Brush Roll Overload Protection	Red light indicator and motor shut-off if blocked; resets after removing obstruction
Bypass Valve	Opens to provide cooling air if obstruction occurs
Cord Rewind	Automatic with button, hold plug during rewinding
Cord Length	Approximately 8 meters (estimate)
Included Accessories	Crevice tool, combination brush, adjustable telescopic wand, onboard storage on canister
Weight	Approximately 6 kg (estimate)
Warranty	1 year limited (consumables excluded: filters, belt)
Use	Household only
Customer Service	US: 1-877-531-7321, Canada: 1-844-608-3081 (Mon-Fri 8am-5pm ET)

Frequently Asked Questions - DC5070 KENMORE

My Kenmore DC5070 vacuum won't start, what should I do?

First check that it is plugged in. Press the power button, then set the handle switch to Floor or Carpet. If the problem persists, the motor may have overheated: unplug and let it cool for 50 minutes. Also check the circuit breaker or fuse in your home.

How do I clean the HEPA filter on my vacuum?

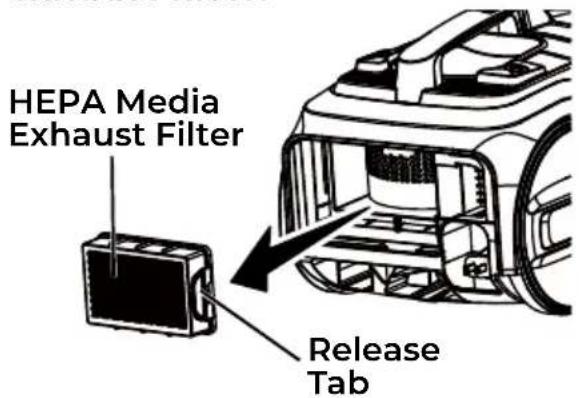

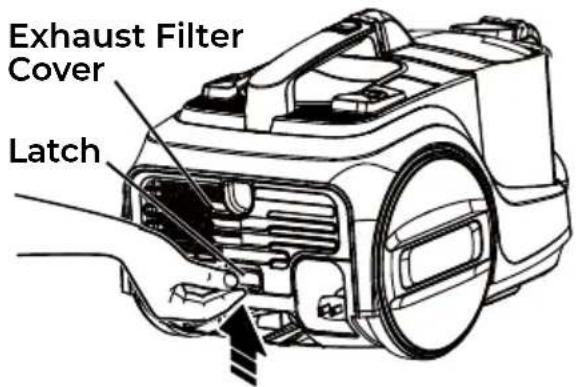

The HEPA cartridge exhaust filter cannot be washed; it must be replaced once a year. To access it, lift the filter cover latch on the canister, remove the cover, press the tab to remove the old filter, then insert the new one until it clicks. Make sure the cover is securely closed.

Why won't my vacuum's brush roll turn?

Make sure the handle switch is set to Floor or Carpet (not Off). Ensure the electrical connections on the hose and wand are fully inserted. If the brush is blocked, turn off and unplug the vacuum, then remove the obstruction. A red indicator signals an overload: clear the blockage and restart.

How do I empty the dust cup on the Kenmore DC5070?

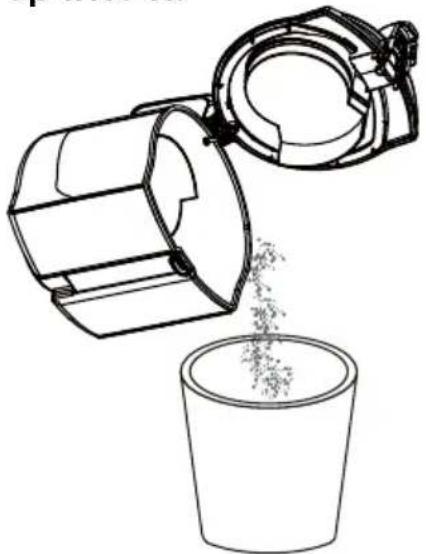

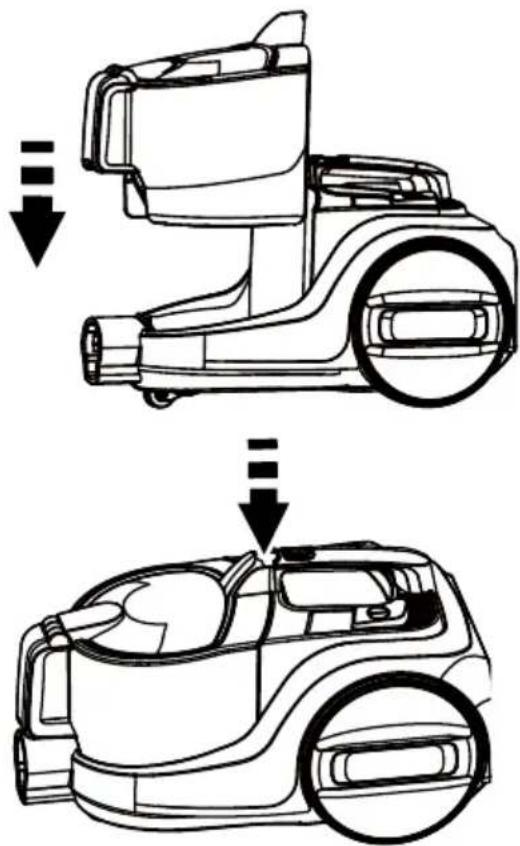

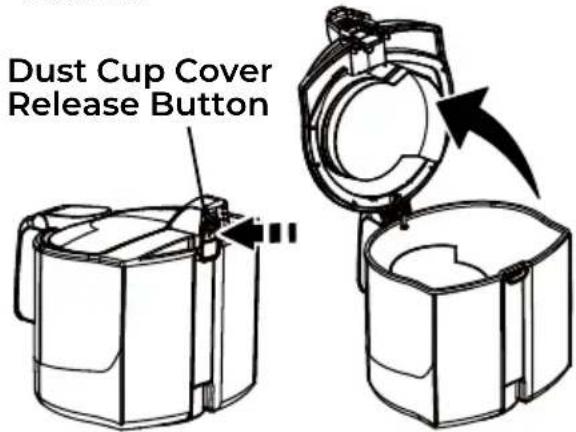

Turn off and unplug the vacuum. Push the release latch to the right and lift the handle to remove the cup. Press the cover release button, open it, and empty the contents into a trash can. Shake the cup to dislodge debris from the pre-filter. Close the cover until it clicks, then reinstall the cup by pressing firmly.

My vacuum has weak suction, what should I check?

Empty the dust cup if full. Clean or replace the filters (foam, felt, HEPA). Make sure the suction control on the handle is closed (slid to the left). Check for blockages in the hose, wand, brush, or canister. If the hose is punctured, contact customer service.

How do I clean the foam and felt filters?

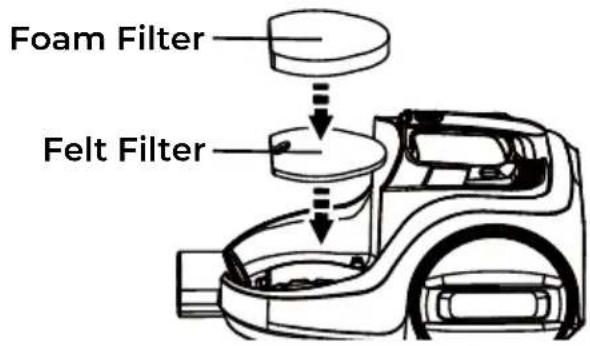

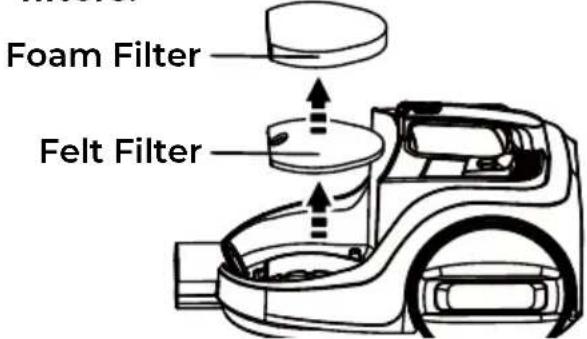

Remove the dust cup, then the foam and felt filters. Wash them in cold water only, without detergent. Squeeze them by hand, do not twist, and let them air dry for 24 hours before reinstalling. Never install them damp and do not wash them in a dishwasher.

What to do if the power cord does not rewind?

Clean the cord with a damp cloth to remove dirt that may hinder rewinding. Gently pull the cord to free it, then press the rewind button while holding the plug. Avoid letting the plug whip around to prevent injury.

The vacuum lifts carpets or pushes too hard, how to adjust?

Open the suction control by sliding it to the right to reduce suction power. This will prevent lifting lightweight carpets or making movement difficult. Adjust according to floor type.

How to maintain the Hair Eliminator power brush?

The brush roll is designed to automatically remove hair and pet fur during vacuuming. To clean stubborn wraps, simply continue vacuuming. If the brush becomes blocked, turn off and unplug, remove the obstruction manually, being careful of sharp edges. Do not touch the brush while it is rotating.

Where to find replacement parts for the Kenmore DC5070?

Replacement parts (filters, crevice tool, combination brush) are available by contacting customer service at 1-877-531-7321 (USA) or 1-844-608-3081 (Canada). Refer to the parts list in the manual with model numbers. The warranty does not cover filters and belts.

USER MANUAL DC5070 KENMORE

500 Series Bagless Canister Vacuum with Hair Eliminator® Nozzle

Aspiradora con contenedor sin bolsa Serie 500 con boquilla Hair Eliminator®

Vacuum Cleaner Help Line:

1-877-531-7321 (US) / 1-844-608-3081 (CA)

8:00am - 5:00pm EST, M-F

www.kenmorefloorcare.com

TABLE OF CONTENTS

Before Using Your New Vacuum Cleaner....2

Packing List 2

Important Safety Instructions ....3-4

Vacuum Cleaner Warranty.... 5

Parts and Features.... 6-8

Assembly Instructions 9-10

Operating Instructions....10-15

Performance/Safety Features....16-17

Vacuum Maintenance and Care....18-23

Troubleshooting....24-25

Requesting Assistance or Service......Back Cover

BEFORE USING YOUR NEW VACUUM CLEANER

Read this Use & Care Guide. It will help you assemble and operate your new Kenmore vacuum cleaner in the safest and most effective way.

For more information about vacuum cleaner care and operation, call the Vacuum Cleaner Help Line at 1-877-531-7321 (US) / 1-844-608-3081 (CA). You will need the complete model and serial numbers when requesting information.

Your vacuum cleaner's model and serial numbers are located on the Model and Serial Number Plate. Use the space below to record the model number and serial number of your new Kenmore vacuum cleaner.

Model No.

Serial No. ____

Date of Purchase ____

Keep this book and your sales check (receipt) in a safe place for future reference.

PACKING LIST

Your KENMORE BAGLESS CANISTER VACUUM CLEANER is packaged with the following parts and components included separately in the carton:

1 Canister Vacuum Cleaner (with Crevice Tool and Combination Brush) 1 Handle & Hose Assembly 1 Telescopic Wand 1 Use & Care Guide

1 Motorized Nozzle with Hair Eliminator®

IMPORTANT SAFETY INSTRUCTIONS

Read all instructions in this guide before assembling or using your vacuum cleaner.

WARNING!

Your safety is important to us. To reduce the risk of fire, electrical shock, injury to persons or damage when using your vacuum cleaner, follow basic safety precautions including the following:

• Use your vacuum cleaner only as described in this Use & Care Guide. Use only manufacturer's recommended attachments.
• Disconnect electrical supply before servicing or cleaning out the brushroll area. Failure to do so could result in the brushroll unexpectedly starting, causing personal injury from moving parts.
• Do not leave vacuum cleaner when plugged in. Unplug from outlet when not in use and before performing maintenance.
• To reduce the risk of electrical shock - Do not use outdoors or on wet surfaces.
• Do not allow to be used as a toy. Close attention is necessary when used by or near children.
• Do not use with a damaged cord or plug. If vacuum cleaner is not working as it should, has been dropped, damaged, left outdoors, or dropped in water, immediately discontinue use and call 1-877-531-7321 (US) / 1-844-608-3081 (CA) for assistance.
• Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around

sharp edges or corners. Do not run vacuum cleaner over cord. Keep cord away from heated surfaces.

• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• Do not handle plug or vacuum cleaner with wet hands.
• Do not put any objects into openings.
• Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce air flow.
• Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
• Turn off all controls before unplugging.
• Use extra care when cleaning on stairs.
• Do not put on chairs, tables, etc. Keep the vacuum on the floor.
• Do not use vacuum cleaner to pick up flammable or combustible liquids (gasoline, cleaning fluid, perfumes, etc.), or use in areas where they may be present. The fumes from these substances can create a fire hazard or explosion.

IMPORTANT SAFETY INSTRUCTIONS

• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
• Do not use vacuum cleaner without dust cup and/or filters in place.
• Always change the dust cup after vacuuming carpet cleaners or freshener, powders, and fine dust. These products clog the filters, reduce airflow and can cause damage to the vacuum cleaner. Failure to clean the dust cup could cause permanent damage to the vacuum cleaner.

• Do not use the vacuum cleaner to pick up sharp hard objects, small toys, pins, paper clips, etc. They may damage the vacuum cleaner.

• Do not operate the vacuum cleaner without the exhaust filter or filter door in place.

• The hose contains electrical wires. Do not use when damaged, cut, or punctured. Replace hose if cut or worn. Do not pick up sharp objects.
• Always turn off and unplug vacuum cleaner before connecting or disconnecting either hose, wand, or motorized nozzle.
• Hold plug when rewinding onto cord reel. Do not allow plug to whip when rewinding.
• You are responsible for making sure that your vacuum cleaner is not used by anyone unable to operate it properly.

SAVE THESE INSTRUCTIONS

Proper assembly and safe use of your vacuum cleaner are your responsibility. Your vacuum cleaner is intended for Household use. Read this Use & Care Guide carefully for important use and safety information. This guide contains safety statements under warning and caution symbols.

VACUUM CLEANER WARRANTY

LIMITED WARRANTY

FOR ONE YEAR from the date of sale (or, for deliveries in the State of California, one year from the date of delivery), this product is warranted against defects in material or workmanship.

WITH PROOF OF SALE a defective product will be replaced free of charge.

The Kenmore brand is used under license. Direct all claims for warranty service to: 1-877-531-7321 (US) / 1-844-608-3081 (CA).

This warranty does not cover filters or belts, which are expendable parts that can wear out from normal use within the warranty period.

This warranty is void if this product is ever used for anything other than private household purposes. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Cleva North America, Inc., Greenville SC 29607

PARTS AND FEATURES

It is important to know your vacuum cleaner's parts and features to ensure its proper and safe use. Review these before using your vacuum cleaner.

REPLACEMENT PARTS

Item Part No.(US) Part No.(CA)
Foam Filter 591047105 591047105
Felt Filter 591047106 591047106

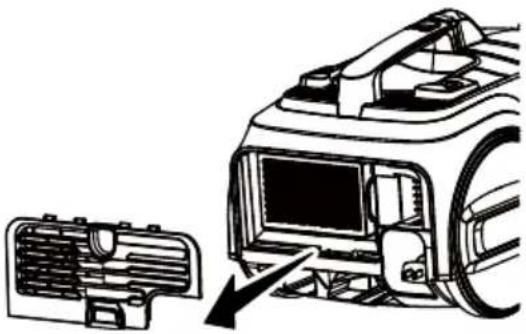

HEPA Media Exhaust Filter 591047102 591047102
Crevice Tool 561065101 561065101
Combination Brush 561016200 561016200

To order a replacement part, call 1-877-531-7321 (US) / 1-844-608-3081 (CA).

PARTS AND FEATURES

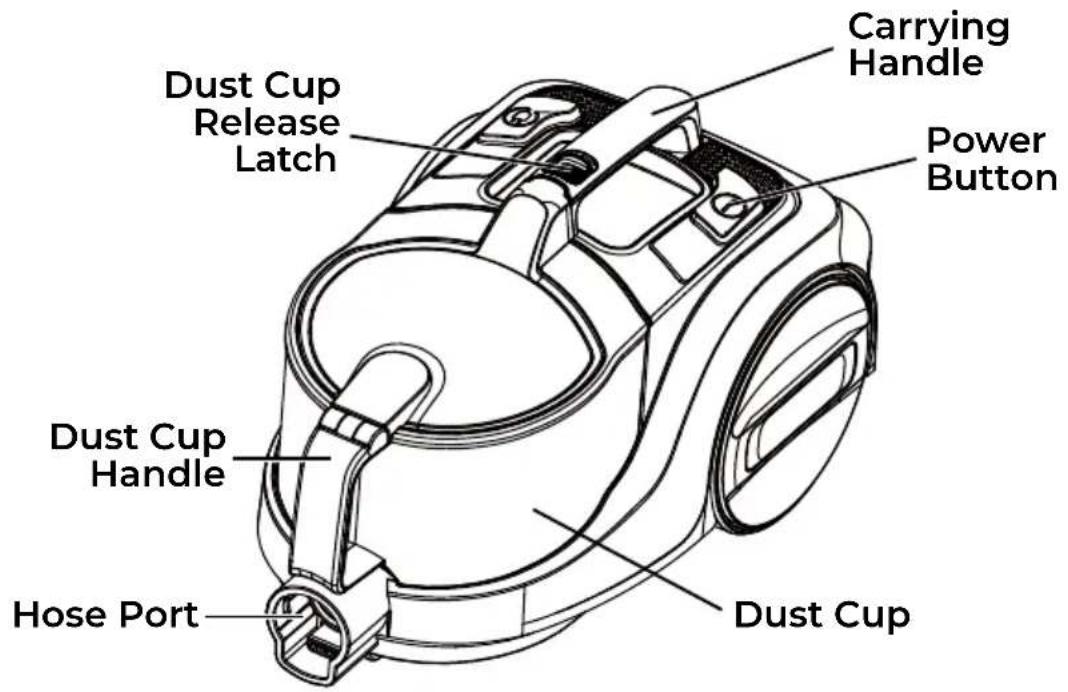

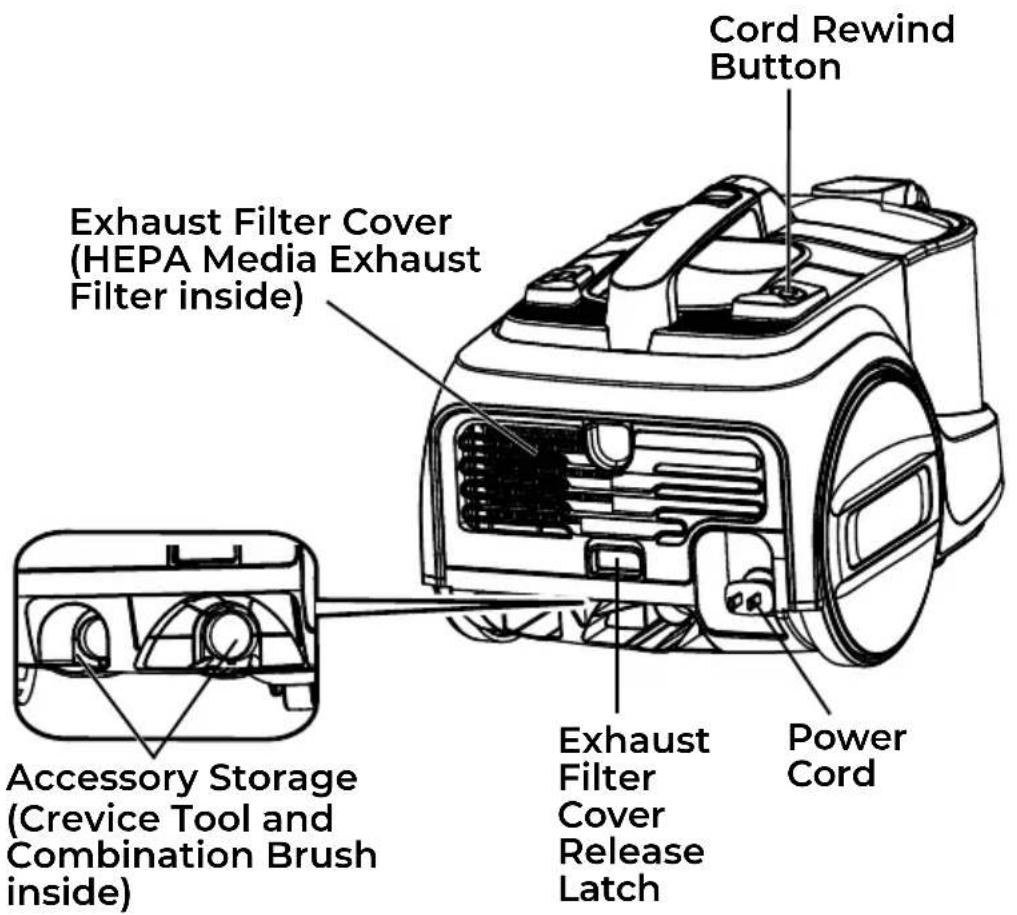

CANISTER

PARTS AND FEATURES

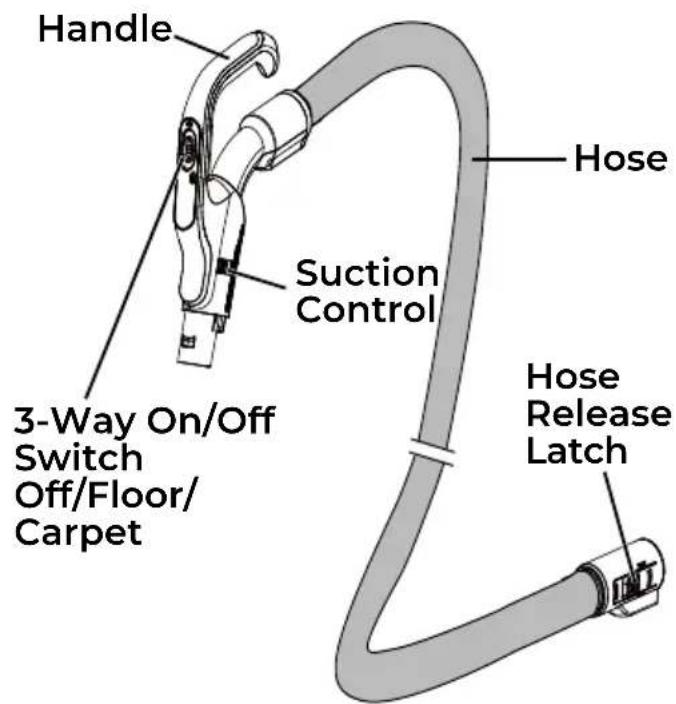

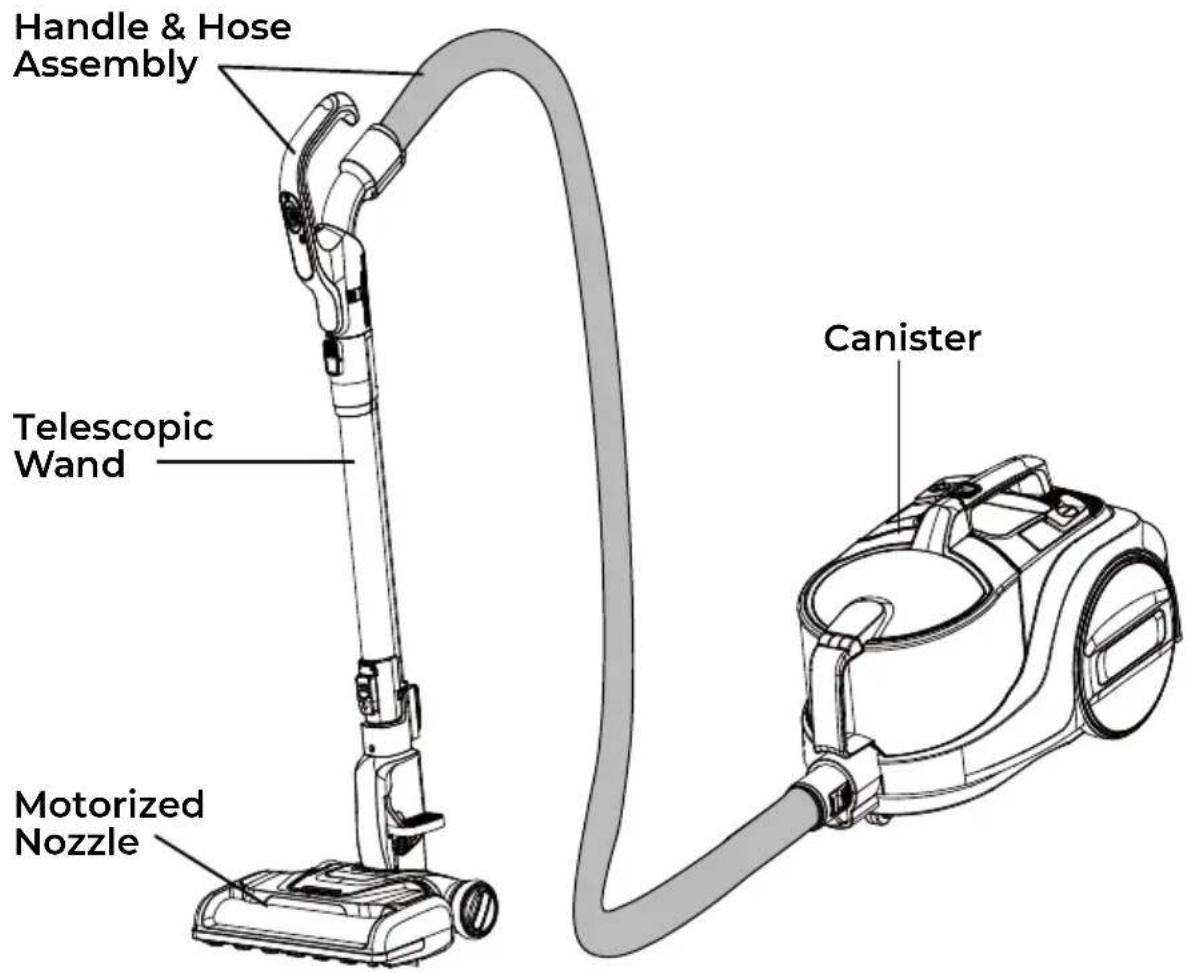

HANDLE & HOSE ASSEMBLY TELESCOPIC WAND

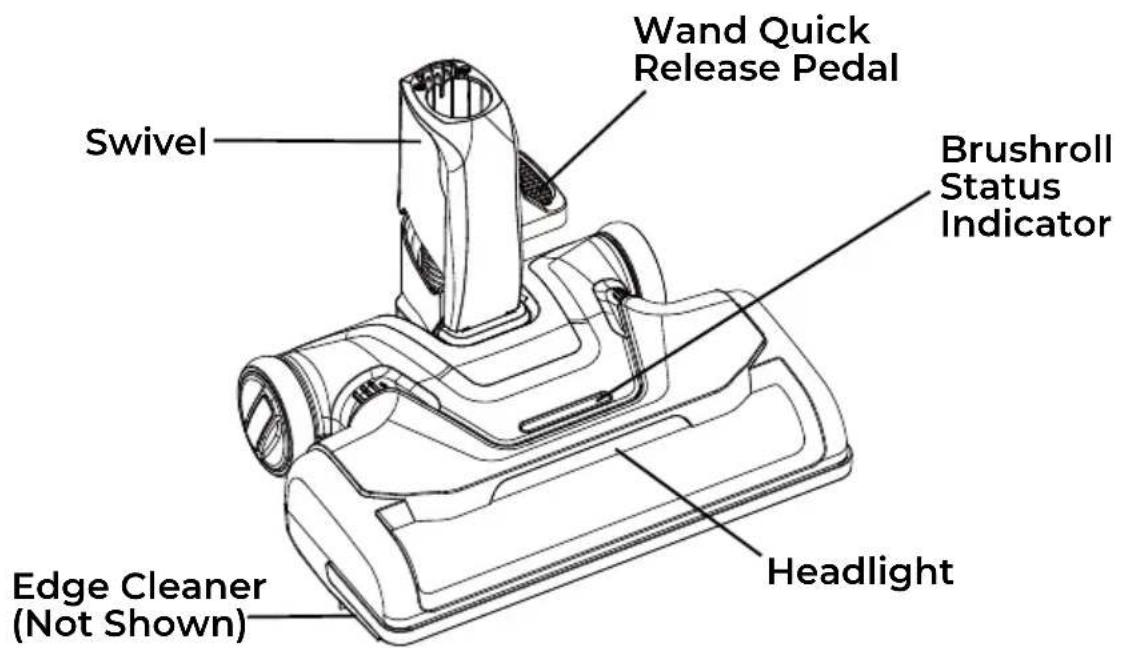

MOTORIZED NOZZLE

Please pay special attention to these hazard alert boxes, and follow any instructions given. WARNING statements alert you to such hazards as fire, electric shock, burns and personal injury. CAUTION statements alert you to such hazards as personal injury and/or property damage.

ASSEMBLY INSTRUCTIONS

Before assembling the vacuum cleaner, check the PACKING LIST (page 2). Use this list to verify that you have received all the components of your new Kenmore Bagless Canister Vacuum Cleaner.

WARNING

Electrical Shock Hazard DO NOT plug into electrical supply until assembly is complete. Failure to do so could result in electrical shock or injury.

MOTORIZED NOZZLE

Align the telescopic wand and insert onto the motorized nozzle until the wand locks into place. A noticeable "click" should be heard.

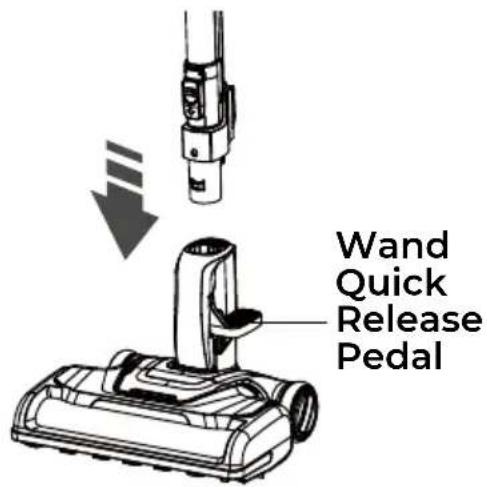

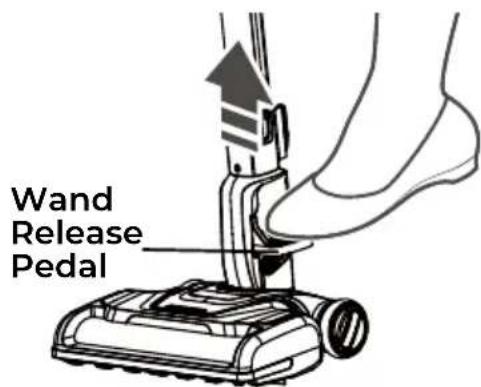

To remove: Press the wand quick release pedal and pull telescopic wand out of the motorized nozzle.

HANDLE & HOSE ASSEMBLY

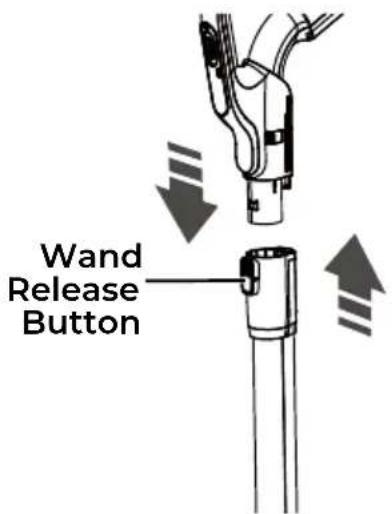

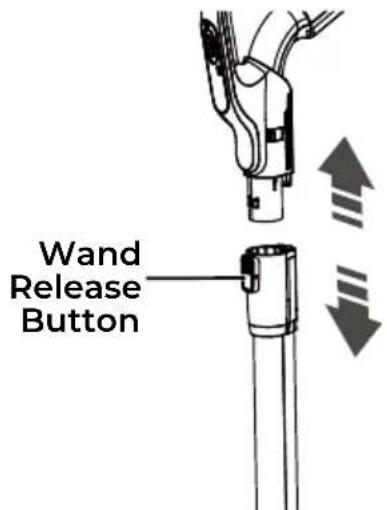

Insert handle into the telescopic wand until lock button snaps in place. Be sure the hose is not twisted.

To remove: Press the wand release button and pull up on handle.

To store: Disconnect hose from wand and canister to prevent stress on hose during storage. Store hose in a loosely coiled position so the hose covering is not stressed.

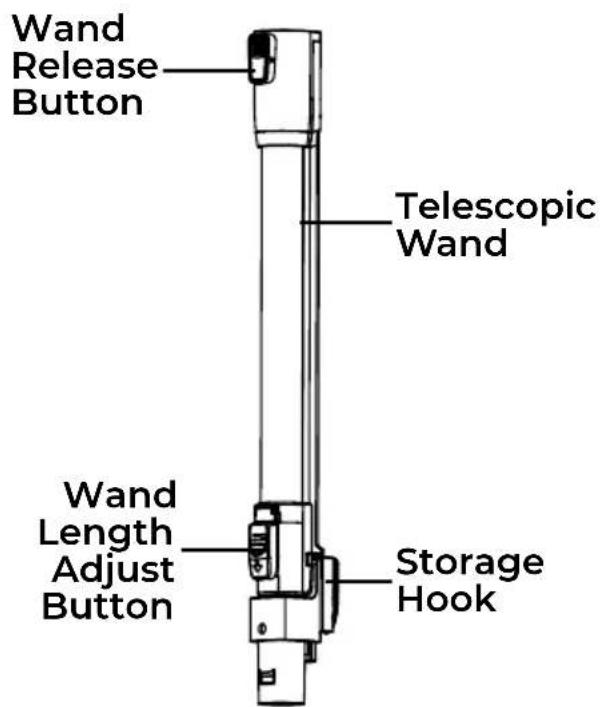

TELESCOPIC WAND

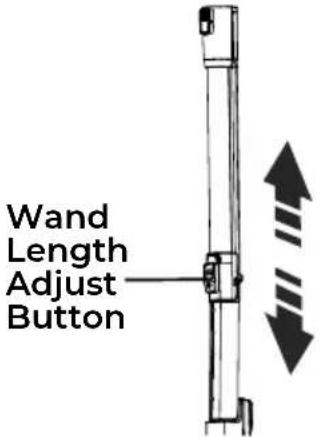

The wand length is adjustable and requires no assembly. To adjust, simply push down on the wand adjust button and slide the upper wand to the desired height.

ASSEMBLY INSTRUCTIONS

NOTE: When adjusting the wand length you may have to hold the motorized nozzle with your hand or foot.

HOSE

Align and insert the hose into the canister until it snaps into place.

To remove: Press both hose release latches and pull out hose.

ATTACHMENTS

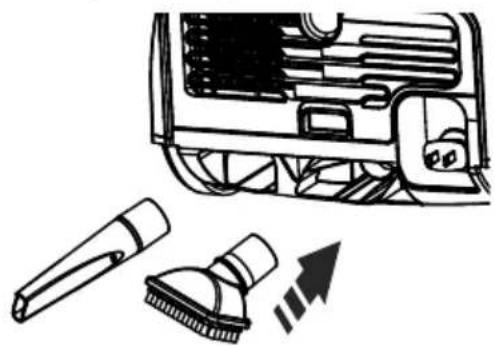

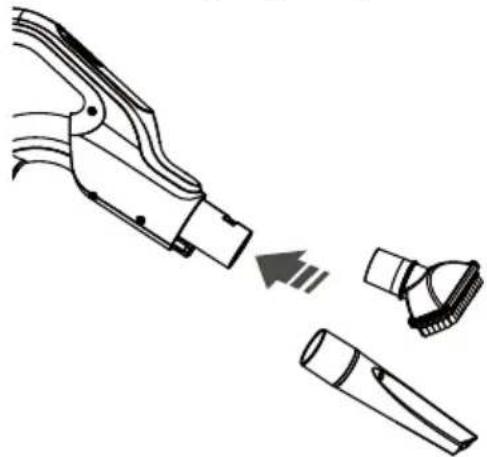

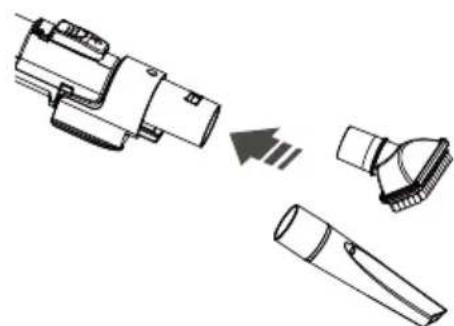

Insert the crevice tool and combination brush into the accessory storage as shown.

Line drawing of a cleaning device with a brush and brush tip, showing internal components and an upward arrow (no text or symbols)

OPERATING INSTRUCTIONS

CAUTION

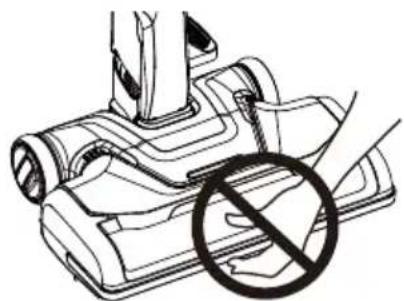

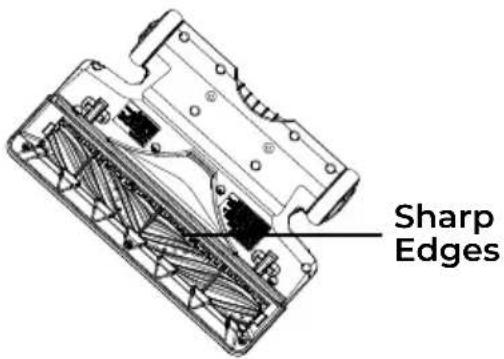

Moving parts! To reduce the risk of personal injury, DO NOT touch the brushroll when vacuum cleaner is on. Contacting the brushroll while it is rotating can cut, bruise or cause other injuries. Disconnect electrical supply before servicing or cleaning the vacuum cleaner. Use caution when operating near children or pets.

Line drawing of a vacuum cleaner with a circular prohibition symbol (no text or labels)

HOW TO START

WARNING

Personal Injury and Product Damage Hazard

• DO NOT place hands or feet under the vacuum cleaner at any time.
• DO NOT plug in if the switch is in ON position. Personal injury or property damage could occur.
• ALWAYS turn off the vacuum cleaner before unplugging.
- The cord moves rapidly when rewinding. Keep children away and provide a clear path when rewinding the cord to prevent personal injury.
• DO NOT use outlets above counters. Damage from cord to items in surrounding area could occur.
- When any abnormality/failure occurs, stop using the product immediately and disconnect the power plug.

NOTE: To reduce the risk of electric shock, this vacuum cleaner has a polarized plug; one blade is wider than the other. This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install the proper outlet. Do not change the plug in any way.

WARNING

Personal Injury and Product Damage Hazard

• DO NOT run over power cord with motorized nozzle. Personal injury or product damage could result.
- DO NOT pull plug from wall by the power cord. If there is damage to the cord or plug, personal injury or property damage could result.

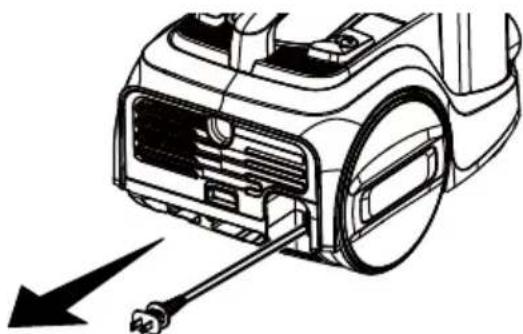

1. Pull cord out of canister to desired length. The cord will not rewind until the cord rewind button is pushed.

Technical line drawing of a car interior showing a valve and screwdriver inserted into the dashboard (no text or symbols)

1. Plug the polarized power cord into a 120 Volt outlet located near the floor.

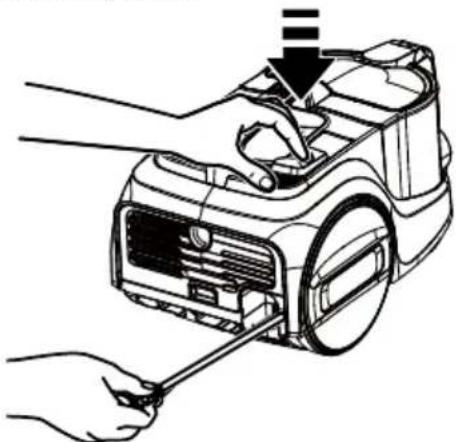

To rewind: Turn off and unplug the vacuum cleaner. Hold the plug while rewinding to prevent damage or injury from the moving cord. Push the cord rewind button.

Illustration of hands using a screwdriver to adjust or install a car interior (no text or symbols visible)

HOW TO START

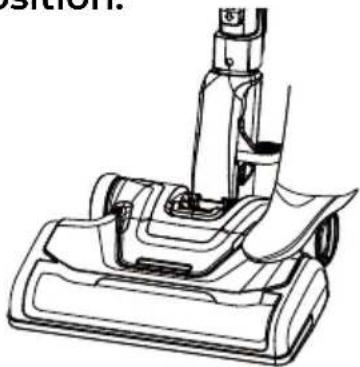

1. Release the handle by placing a foot on the nozzle and pulling back to change handle position.

Line drawing of a vacuum cleaner with handle and mounting bracket (no text or symbols)

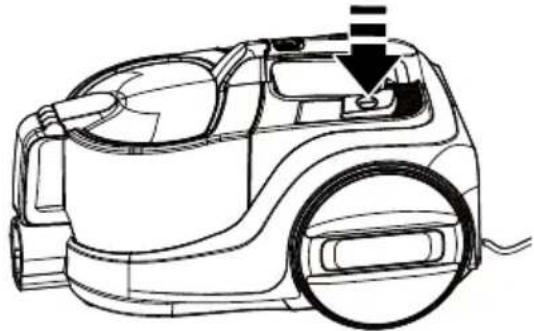

1. Press the power button to turn on the canister motor. The vacuum cleaner begins suction.

Line drawing of a car interior with a downward arrow indicating a component (no text or symbols present)

1. Select a position on the handle 3-way On/Off switch.

OFF

The motorized nozzle motor is off. The brushroll will not spin.

HARDFLOOR

Turn on the motorized nozzle motor with low suction. The brushroll will start to spin slowly.

CARPET

Turn on the motorized nozzle motor with high suction. The brushroll will spin quickly.

CAUTION

DO NOT leave the motorized nozzle running in one spot for any length of time. Damage to carpet may occur.

CAUTION

Product Damage Hazard Use care if the motorized nozzle and wand is left in the upright position as it may tip over easily. Property damage can occur if tipped.

VACUUMING TIPS

SUGGESTED SWEEPING PATTERN

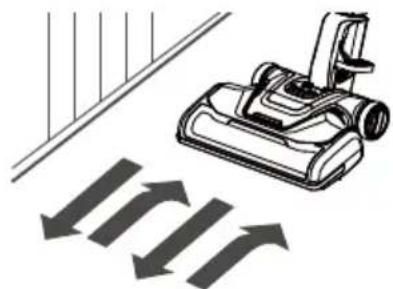

For best cleaning action, the motorized nozzle should be pushed straight away from you and pulled straight back. At the end of each pull stroke, the direction of the motorized nozzle should be changed to point into the next section to be cleaned.

This pattern should be continued across the carpet with slow, gliding motions.

NOTE:

Fast, jerky strokes do not provide complete cleaning.

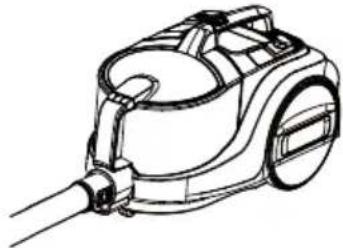

Illustration of a vacuum cleaner with directional arrows indicating airflow or movement (no text or symbols)

VACUUMING TIPS

The hose swivel allows the hose to turn without moving the canister. This is helpful for cleaning in small areas.

Check hose for twisting before pulling canister.

Line drawing of a vacuum cleaner device with handle and control panel (no text or symbols)

STAIRS

WARNING

Personal Injury Hazard

Use care if canister is placed on stairs. It may fall, causing personal injury or property damage.

CAUTION

Product Damage Hazard

Do not pull on the hose to move the canister from one stair to the next. When finished cleaning in one area use the handle grip on the canister to move the vacuum cleaner to a new location for further cleaning.

Carpeted stairs need to be vacuumed regularly. For best cleaning results, fully close the suction control.

Suction Control

Illustration of a hand using a handheld tool to interact with a mechanical device (no text or symbols visible)

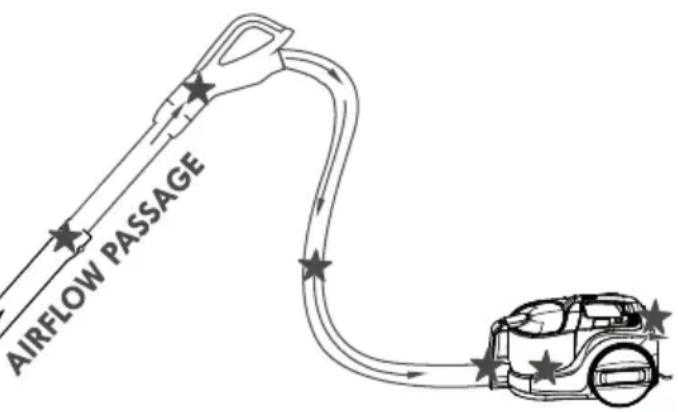

For best cleaning results, keep the airflow passage open. Check each assembly area in REMOVING CLOGS (page 18) occasionally for clogs. Turn off and unplug vacuum cleaner from outlet before checking.

EDGE CLEANER

Active brush edge cleaners are on both sides of the motorized nozzle.

Guide either side of the motorized nozzle along base-boards or next to furniture to help remove dirt trapped at carpet edges.

Technical line drawing of a mechanical component or bracket assembly (no text or symbols)

MOTORIZED NOZZLE STORAGE

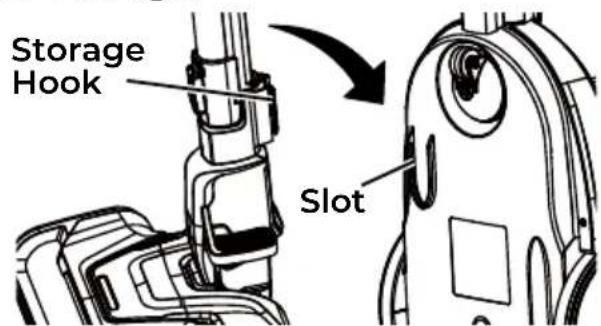

The wand has a U-shaped storage hook that slides into the U-shaped slot on the canister. The storage hook allows the wand and motorized nozzle to be stored with the canister to conserve storage space. The canister must be stored on end for this feature to be used.

To attach the motorized nozzle, the wand will slip out of the slot as it is lifted up for use and will slide into the slot as it is lowered for storage.

ATTACHMENTS

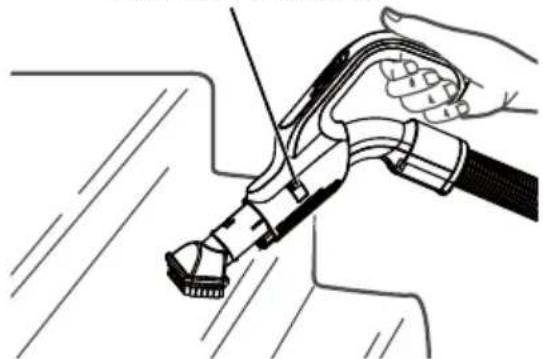

CAUTION

DO NOT attach or remove handle or telescopic wand while vacuum cleaner is ON. This could cause sparking and damage the electrical contacts or electronic controls.

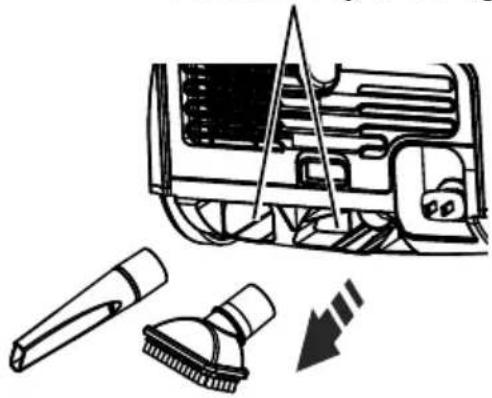

ATTACHMENT STORAGE

This canister is equipped with an on-board storage area for attachments.

Accessory Storage

Diagram of a car interior showing a brush and cleaning tool, with no visible text or symbols

ATTACHMENTS ON HANDLE

NOTE: If the motorized nozzle is attached, turn vacuum cleaner off before removing handle from wand.

1. Press wand release button and pull up on handle.

1. Slide attachments into handle as needed. See ATTACHMENT USE TABLE (page 15).

Diagram of a hair accessory with a connector and two separate parts, showing a directional arrow (no text or symbols)

ATTACHMENTS ON WAND

1. To remove the telescopic wand from the motorized nozzle, lock wand in upright position.
2. Press wand quick release pedal with foot and pull the wand straight up and out of the motorized nozzle.

1. Slide attachments into wand as needed. See ATTACHMENT USE TABLE (page 15).

Technical illustration of a mechanical device with three views showing internal components (no text or symbols)

ATTACHMENTS

CREVICE TOOL

Use crevice tool for cleaning in tight spaces such as furniture, between cushions, and stairs. See ATTACHMENT USE TABLE (page 15).

COMBINATION BRUSH

Use the combination brush without the brush for greater suction on furniture cushions or stairs.

Use combination brush with brush for cleaning loose surfaces such as drapes. See ATTACHMENT USE TABLE (page 15).

ATTACHMENT USE TABLE

		CLEANING AREA
ATTACHMENT		Furniture1	Cushions1	Drapes1		Floors Floors/Rug	detepraCeraBneewteBWallsStairs
Crevice Tool		√	√		√
Combination Brush		√			√	√		√
Motorized Nozzle						√2	√

1. Always clean attachments before using on fabrics.
2. 3-way On/Off switch should be in HARDFLOOR position.

PERFORMANCE/SAFETY FEATURES

WARNING

Personal Injury Hazard To avoid accidental brushroll starting, always turn off and unplug the vacuum cleaner before cleaning the brushroll area. Failure to do so can result in personal injury.

HAIR ELIMINATOR® BRUSHROLL

For best performance, the motorized nozzle is equipped with a hair eliminator® brushroll, which prevents build-up of hair, string and other debris on the brushroll. To remove any hair wrapped around the brushroll, simply continue vacuuming, allowing the brushroll to automatically remove the hair wrap and send it to the dust cup.

CAUTION

Moving parts! To reduce the risk of personal injury, DO NOT touch the brushroll when vacuum is on. Contacting the brushroll while it is rotating can cut, bruise or cause other injuries.

BRUSHROLL RESET

The brushroll has built-in protection against motor damage should the brushroll jam. If the brushroll slows down or stops, the brushroll overload protector shuts off the brushroll motor and the brushroll status indicator emits a red light. The vacuum cleaner suction motor will continue to run.

To correct problem: Turn off and unplug the vacuum cleaner, remove obstruction, then turn on the vacuum cleaner again. The brushroll status indicator will be off.

NOTE: Once the brushroll motor shuts down, clear jam from brushroll and then restart the vacuum cleaner. If the problem persists, call 1-877-531-7321 (US) / 1-844-608-3081 (CA) for assistance.

SUCTION CONTROL

The suction control allows you to change the vacuum suction for different fabrics and carpet weights. Note that for best cleaning results, the suction control valve must be fully closed.

PERFORMANCE/SAFETY FEATURES

• Slide to right to open the suction control and decrease suction. Opening the control decreases suction for draperies and lightweight rugs.
• Slide to left to close the suction control and increase suction. Closing the control increases suction for upholsteries, carpets, and bare floors.

Simple line drawing of a vehicle with a right-pointing arrow (no text or symbols)

Decrease Suction

Simple line drawing of a vehicle with a cylindrical component and an arrow pointing left (no text or symbols)

Increase Suction

THERMAL PROTECTOR

This vacuum cleaner has a thermal protector which automatically trips to protect the vacuum cleaner from overheating. If a clog prevents the normal airflow to the motor, the thermal protector turns the motor off automatically. This allows the motor to cool in order to prevent possible damage to the vacuum cleaner.

To correct problem: Turn off and unplug vacuum cleaner to allow the vacuum cleaner to cool and the thermal protector to reset. Check for and remove clogs, if necessary. Also check and clean or replace any clogged filters. Wait approximately fifty (50) minutes and plug the vacuum cleaner in and turn back on to see if the motor protector has reset.

If the canister motor does not resume operation after the reset procedure described above, call 1-877-531-7321 (US) / 1-844-608-3081 (CA) for assistance.

BY-PASS VALVE

This vacuum cleaner has a By-Pass Valve which prevents motor overheating and damage. The valve opens to provide cooling air when a clog prevents normal air flow to the vacuum cleaner suction motor. You will notice a change of sound as air rushes through the valve opening.

To correct problem: remove any clogs, check and replace filters if needed, check and empty dust cup if needed.

NOTE: The By-Pass Valve may open when using attachments or when cleaning new carpet due to reduced airflow or air path is blocked, caused by the attachments themselves or by new carpet lint filling the dust cup quickly.

VACUUM MAINTENANCE AND CARE

Always follow all safety precautions when performing maintenance to the vacuum cleaner.

WARNING

Electrical Shock and Personal Injury Hazard

Always turn off and unplug vacuum cleaner before performing maintenance to the vacuum cleaner. Failure to do so could result in electrical shock or personal injury from vacuum cleaner suddenly starting.

WARNING

There are sharp edges inside to prevent hair entanglement. Do not put any part of the body into the motorized nozzle during maintenance.

REMOVING CLOGS

The vacuum cleaner creates suction that picks up dirt. Rapidly moving air carries the dirt to the dust cup through the airflow passages. The dust cup lets the air pass through, while it traps the dirt.

For best cleaning results, keep the airflow passage open. Check the starred (★) areas occasionally for clogs. Turn off and unplug vacuum cleaner from outlet before checking.

TO CHECK FOR CLOGS:

• Check dust cup and empty if full. See EMPTYING DUST CUP (page 19-20).
• Check pre-filter, foam and felt filters, and HEPA media exhaust filter and clean or replace if dirty. See PRE-FILTER CLEANING (page 21), FOAM AND

FELT FILTERS CLEANING (page 21) and HEPA MEDIA EXHAUST FILTER CHANGING (page 22-23).

- Check motorized nozzle for obstructions in the brushroll area. Carefully remove any obstruction.

REMOVING CLOGS

If the vacuum cleaner still has poor suction, do the following:

1. Connect the hose to the canister and turn vacuum cleaner on. Check the end of the hose for suction. If there is good suction on the hose handle, there is no clog in the hose. If the suction is bad, remove any dirt or debris in the hose and handle.

2. Connect hose handle to wand. Check the end of the wand for suction. If there is good suction at the end of the wand, there is no clog in the wand. If the suction is bad, remove any dirt or debris in the wand.

3. Check the motorized nozzle swivel. Remove any dirt or debris.

CLEANING EXTERIOR AND ATTACHMENTS

1. Turn off and unplug vacuum cleaner. DO NOT drip water on vacuum cleaner.
2. To clean exterior, or to reduce static electricity and dust build-up, wipe outer surface with a clean, soft cloth that has been dipped in a solution of mild liquid detergent and water, then wrung dry. Wipe dry after cleaning.

CAUTION

Do not use attachments if they are wet. Attachments used in dirty areas, such as under a refrigerator, should not be used on other surfaces until they are washed. They could leave marks.

EMPTYING DUST CUP

NOTE: For best performance, empty dust cup after every use. Never operate vacuum cleaner without dust cup and filters in place.

1. Turn off and unplug the vacuum cleaner.

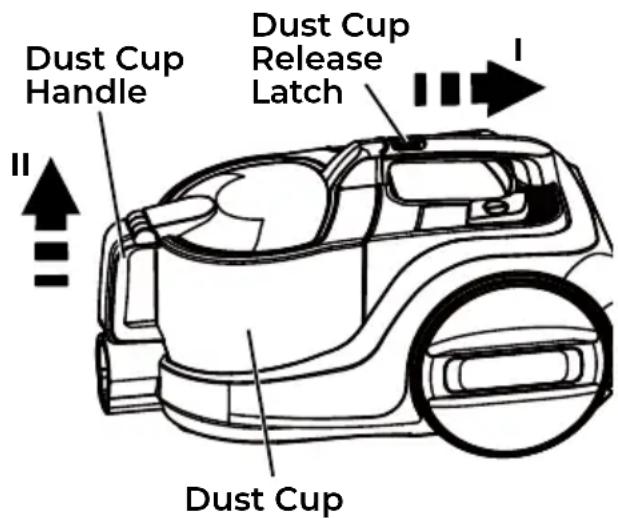

2. Move and hold the dust cup release latch to the right. Lift the dust cup handle up to remove the dust cup out of the vacuum cleaner.

EMPTYING DUST CUP

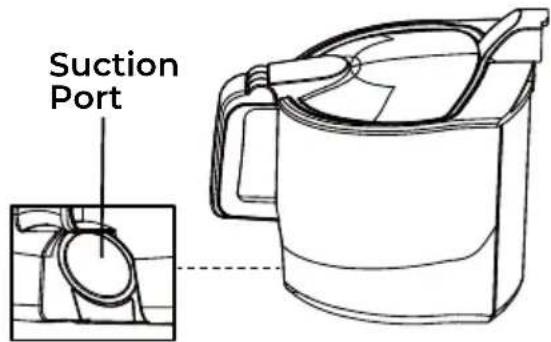

1. Remove any clogs that might be located in the suction port.

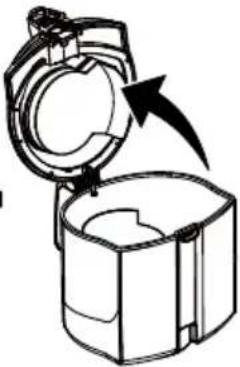

1. Press the dust cup cover release button, and open the cover. The cover can be locked in the vertical position. A noticeable "click" should be heard.

1. Position dust cup over a waste receptacle. Allow contents to drop into it.

Line drawing of a bucket pouring liquid into a cup (no text or symbols)

1. Shake the dust cup to release any debris that might hang in the pre-filter.

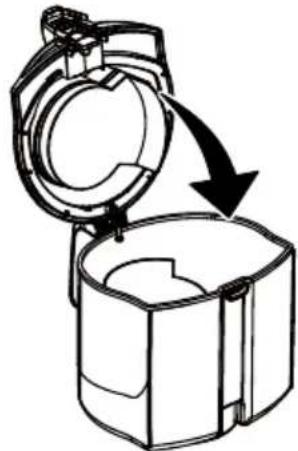

2. After the dust cup is empty of debris, close the dust cup cover. A noticeable "click" should be heard.

Diagram of a mechanical device with an open lid and internal cavity, showing a downward arrow indicating rotation (no text or symbols present)

1. Reinstall the dust cup back into the vacuum cleaner. Press on the top of the dust cup to lock the dust cup in place as shown. A noticeable "click" should be heard.

Line drawing of a car interior showing top and side views of a vacuum cleaner (no text or symbols)

PRE-FILTER CLEANING

The pre-filter is located inside the dust cup. Clean the pre-filter as needed to optimize suction power.

1. Remove the dust cup. Open the dust cup cover and empty the dust cup as outlined in the EMPTYING DUST CUP (page 19-20).
2. Clean pre-filter by gently tapping over a trash container. Tap on several sides to ensure best cleaning.

1. Reinstall the dust cup. See installation instructions in the EMPTYING DUST CUP (page 20).

FOAM AND FELT FILTERS CLEANING

It is recommended to clean the foam and felt filters with cold water every three months.

NOTE: When the cleaning of filters no longer restores vacuum cleaner suction to full power, or the filters are worn or broken, replace the filters. To purchase filters, call 1-877-531-7321 (US) / 1-844-608-3081 (CA).

Regularly clean and replace the filters to keep the vacuum's suction power optimal.

1. Remove the dust cup as outlined in the EMPTYING DUST CUP (page 19).
2. Remove the foam and felt filters.

1. Wash with cold water only, DO NOT use detergent or soap. Squeeze by hand and allow to air dry. Allow all filters to dry 24 hours before putting back into vacuum cleaner.

NOTE: DO NOT operate without foam and felt filters installed.

DO NOT wash in the dishwasher.

DO NOT install foam and felt filters if damp.

1. Replace foam and felt filters into the vacuum cleaner.

1. Reinstall the dust cup. See installation instructions in the EMPTYING DUST CUP (page 20).

HEPA MEDIA EXHAUST FILTER CHANGING

It is recommended to replace the HEPA media exhaust filter annually.

WARNING

Fire and/or Electrical Shock Hazard

Do not operate with a clogged exhaust filter or without the exhaust filter installed. Do not operate without filter cover installed.

HEPA MEDIA EXHAUST FILTER

The HEPA media exhaust filter cartridge must be replaced when dirty. Replace the filter when the entire surface area is covered evenly. The filter CANNOT be washed as it will lose its dust trapping ability.

NOTE: See REPLACEMENT PARTS for part number and purchase details (page 6).

1. Push latch up to release the exhaust filter cover from slot in canister.

1. Pull the filter cover outward to remove from the filter chamber in the canister.

Diagram showing a car front panel with a close-up of its internal components, no text or symbols present.

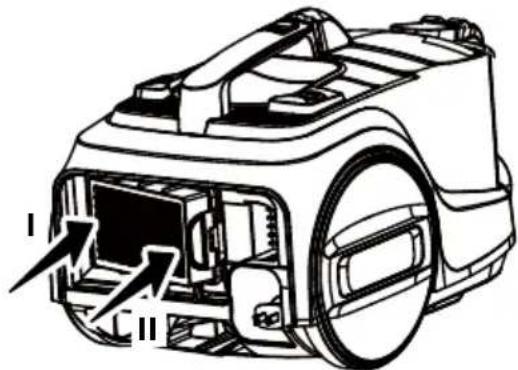

1. Press the release tab and remove the HEPA media exhaust filter.

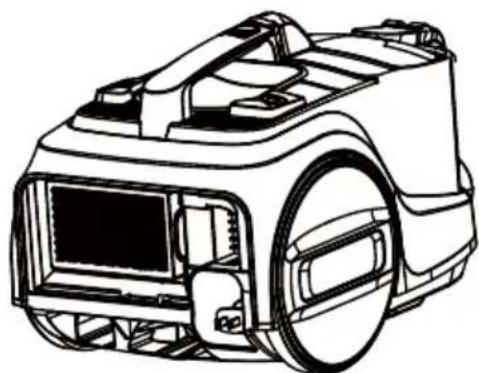

1. Insert the new HEPA media exhaust filter into the canister until a click is heard.

Technical line drawing of a car interior showing engine, dashboard, and air vent (no text or symbols)

Line drawing of a robotic car with visible engine, wheels, and camera (no text or symbols)

HEPA MEDIA EXHAUST FILTER CHANGING

1. To replace the exhaust filter cover, place the four tabs on the filter cover into the canister.

2. Rotate the filter cover down until it snaps into place.

Tabs

TROUBLESHOOTING

Review this table to find do-it-yourself solutions for minor performance problems. Any service needed, other than maintenance described in this Use & Care Guide, should be performed by a qualified service agent.

WARNING

Always turn off and unplug vacuum cleaner before performing maintenance to the vacuum cleaner. Failure to do so could result in electrical shock or personal injury.

PROBLEM POSSIBLE CAUSE SOLUTION
Vacuum cleaner won't start.	Unplugged at wall outlet.	Plug in firmly. Press the power button. Then move the On/Off switch to FLOOR or CARPET position.
	The power button is not pressed to start the vacuum cleaner.	Press the power button. Then move the On/Off switch to FLOOR or CARPET position.
	The vacuum is overheated.	Unplug the power cord and let the vacuum cool down for 50 minutes.
	Tripped circuit breaker/blown fuse at household service panel.	Reset circuit breaker or replace fuse.
	The motor is damaged.	Call 1-877-531-7321 (US) / 1-844-608-3081 (CA) for assistance.
	Loose hose electrical connections.	Reconnect hose ends.
Poor job of dirt pick-up.	Full or clogged dust cup.	Empty and clean the dust cup.
	Clogged airflow passages.	Clear airflow passages.
	Dirty filters.	Clean/change filters.
	Suction control is open.	Just control.
	Hole in hose.	Call 1-877-531-7321 (US) / 1-844-608-3081 (CA) for assistance.
	The brushroll is worn.	Call 1-877-531-7321 (US) / 1-844-608-3081 (CA) for assistance.
	The foam and felt filters are dirty or worn.	Clean the foam and felt filters. Replace if they are worn or broken. Follow instructions on page 21.
	Dust cup is installed incorrectly.	Reinstall the dust cup. See EMPTYING DUST CUP (page 20).

TROUBLESHOOTING

Brushroll does not turn.	The On/Off switch is not in FLOOR or CARPET position.	Move the On/Off switch to FLOOR or CARPET position.
	Loose hose or wand electrical connections.	Check connections, reconnect hose or wand ends.
	Motorized nozzle connections unplugged.	Plug in firmly.
	Brushroll is jammed.	Remove obstruction. Follow instructions on page 16.
	Thermal protector in the motorized nozzle is activated.	Turn off and unplug the vacuum. Check and remove obstruction. Wait the motorized nozzle to cool down, and then restart.
Vacuum cleaner picks up moveable rugs, or the motorized nozzle pushes too hard.	Suction too strong. Open the suction control.
Light won't work.	Loose hose or wand electrical connections.	Check connections, reconnect hose or wand ends.
	Burned out light bulb.	Call 1-877-531-7321 (US) / 1-844-608-3081 (CA) for assistance.
Cord won't rewind.	Dirty power cord. Clean the power cord.
	Cord jammed. Pull out cord and rewind.
Vacuum cleaner leaves marks on carpet.	Wrong vacuuming pattern.	See VACUUMING TIPS (page 12-13).
	Suction too strong. Open the suction control.

TABLA DE CONTENIDOS

Cleva North America, Inc., Greenville SC 29607

PIEZAS Y CARACTERÍSTICAS

Diagram of a car interior showing dashboard, air vent, and brush (no text or symbols)

INSTRUCCIONES DE USO

PRECAUCIÓN

Line drawing of a vacuum cleaner with a circular no-smoking symbol (no text or labels)

CÓMO COMENZAR

ADVERTENCIA

Diagram of a car's front-mounted engine compartment with a cable inserted, showing no text or symbols

Illustration of hands using a screwdriver to adjust or install a vehicle (no text or symbols visible)

CÓMO COMENZAR

Line drawing of a vacuum cleaner with attached blade and handle (no text or symbols)

Line drawing of a vacuum cleaner with a circular vent and handle, showing internal components and airflow direction (no text or symbols)

Illustration of a vacuum cleaner next to three directional arrows indicating airflow or movement (no text or symbols present)

Line drawing of a vacuum cleaner device with handle and hose (no text or symbols)

ESCALERAS

ADVERTENCIA

Illustration of a hand using a handheld tool to interact with a mechanical device (no text or symbols visible)

Technical line drawing of a mechanical component with no visible text or symbols

ALMACENAMIENTO DE LA BOQUILLA MOTORIZADA

Diagram of a car interior showing dashboard, airbrush, and brush tip (no text or symbols)

ACCESORIOS

ACCESORIOS EN LA MANILLA

Technical line drawing of a handheld vacuum cleaner with three exploded views (no text or symbols)

ACCESORIOS EN LA VARA

Diagram showing three mechanical components with an arrow indicating a transformation or assembly (no text or symbols present)

HERRAMIENTA PARA HENDIDURAS

Simple line drawing of a vehicle with a right-pointing arrow (no text or symbols)

Reducir la succión

Simple line drawing of a container with an arrow pointing left and three dots below (no text or symbols)

Aumentar la succión

PROTECTOR TÉRMICO

TPARA REVISAR SI HAY TAPONES:

Diagram of a mechanical device with an open lid and internal casing, showing a downward arrow indicating motion (no text or symbols present)

Technical line drawing of a vacuum cleaner with two views showing internal components and directional arrows (no text or symbols)

LIMPIEZA DEL PREFILTRO

Technical line drawing of a car interior showing front panel and rear door assembly (no text or symbols)

Technical line drawing of a car interior showing engine, dashboard, and exhaust components (no text or symbols)

Line drawing of a car's front body and rear wheel assembly (no text or symbols)

Line drawing of a car's front and rear engine compartment showing airflow direction (no text or symbols)

Cleva North America, Inc., Greenville SC 29607

PIÈCES ET FONCTIONNALITÉS

Diagram of a car interior showing dashboard, air vent, and brush (no text or labels)

INSTRUCTIONS D'UTILISATION

ATTENTION

Line drawing of a mechanical device with a prohibition symbol (no text or labels)

COMMENT DÉMARRER

AVERTISSEMENT

Technical line drawing of a car's front-mounted engine with a sensor inserted, showing no text or symbols

Illustration of hands using a screwdriver to adjust or install a car interior (no text or symbols visible)

Line drawing of a vacuum cleaner's base assembly (no text or symbols)

Line drawing of a vacuum cleaner's front view showing the engine compartment and wheel (no text or symbols)

Line drawing of a car interior showing dashboard and seat area (no text or symbols)

RANGEMENT DU ÉLECTRO-BROSSE

Diagram of a car interior showing dashboard, steering wheel, and brush (no text or symbols)

ACCESSOIRES SITUÉS SUR LA POIGNÉE

Technical line drawing of a handheld vacuum cleaner with attached components (no text or symbols)

ACCESSOIRES SITUÉS SUR LA TIGE

ACCESSOIRES

Diagram of a mechanical device with three views showing a transformation or assembly process (no text or symbols)

SUCEUR PLAT

Line drawing of a vacuum cleaner device with attached blades and handle (no text or symbols)

Simple line drawing of a vehicle with an arrow pointing right (no text or symbols)

Simple line drawing of a container with an arrow pointing left and three dots below (no text or symbols)

POUR VÉRIFIER LA PRÉSENCE DE CONGESTIONS :

Line drawing of a cylindrical container with a handle and arrow indicating direction (no text or symbols)

Diagram of a mechanical device with an open lid and internal components, showing a directional arrow (no text or symbols)

Diagram of a mechanical device with an open lid and internal casing, showing a curved arrow indicating rotation (no text or symbols present)

Technical line drawing of a vacuum cleaner with two views showing mechanical components and motion arrows (no text or symbols)

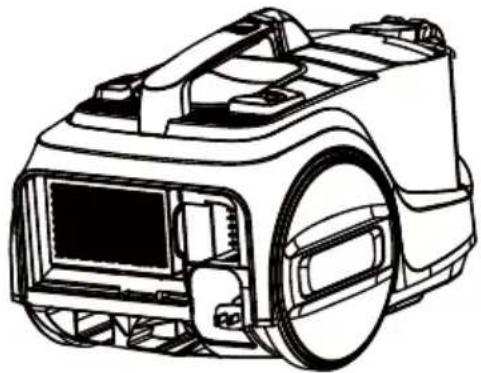

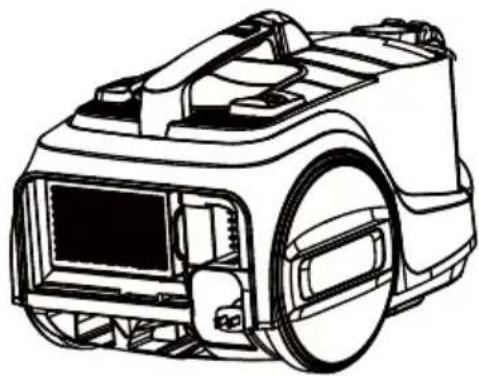

NETTOYAGE DU PRÉ-FILTRE

Technical line drawing of a car front panel with a close-up view of the internal components (no text or symbols)

Technical line drawing of a car interior showing engine, dashboard, and exhaust components (no text or labels)

Line drawing of a robotic vacuum cleaner (no text or symbols)

Line drawing of a car's front engine compartment showing internal components and airflow direction (no text or symbols)

DÉPANNAGE
