USER MANUAL WOI5S8HM1SBA WHIRLPOOL

THANK YOU FOR BUYING A WHIRLPOOL PRODUCT In order to receive a more complete assistance, please register your product on www.register10.eu

Before using the appliance carefully read the Safety Instruction.

PLEASE SCAN THE QR CODE ON YOUR APPLIANCE IN ORDER TO REACH MORE INFORMATION

Diagram of a 3D printer with a QR code overlay, no text or symbols present

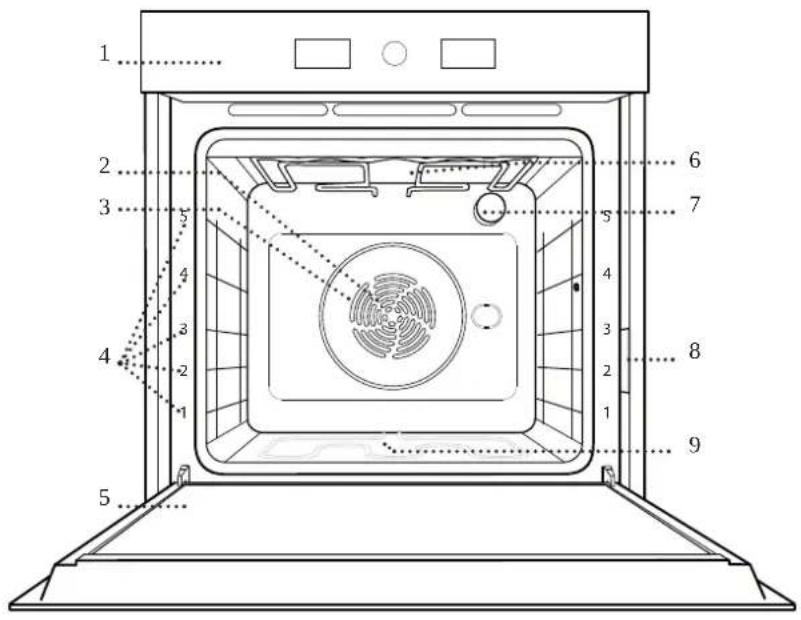

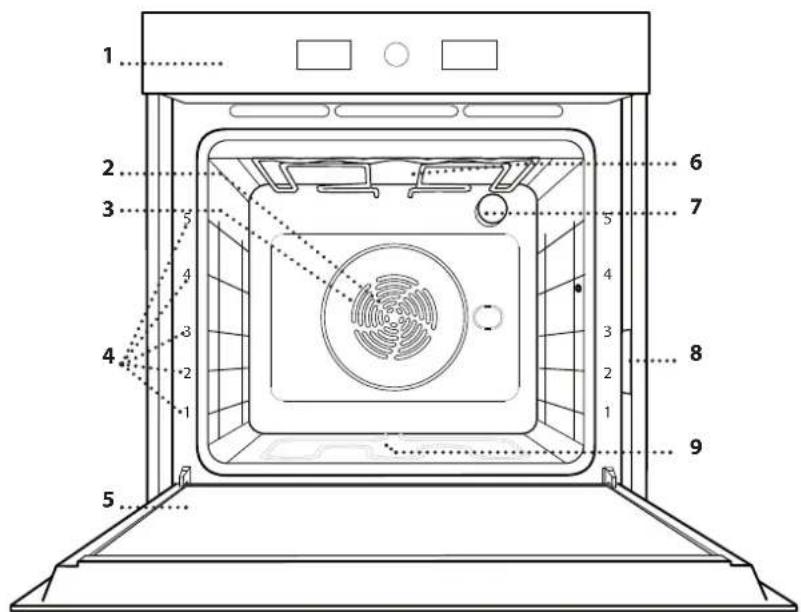

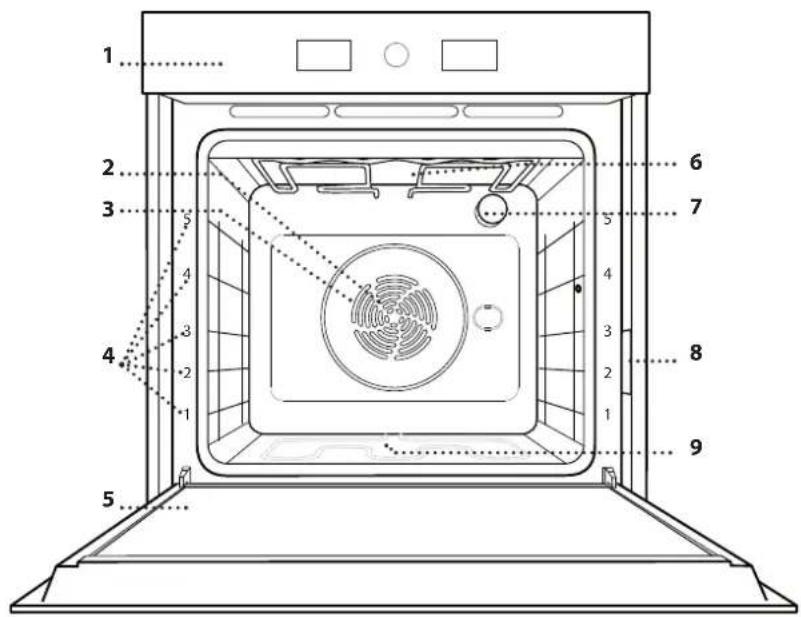

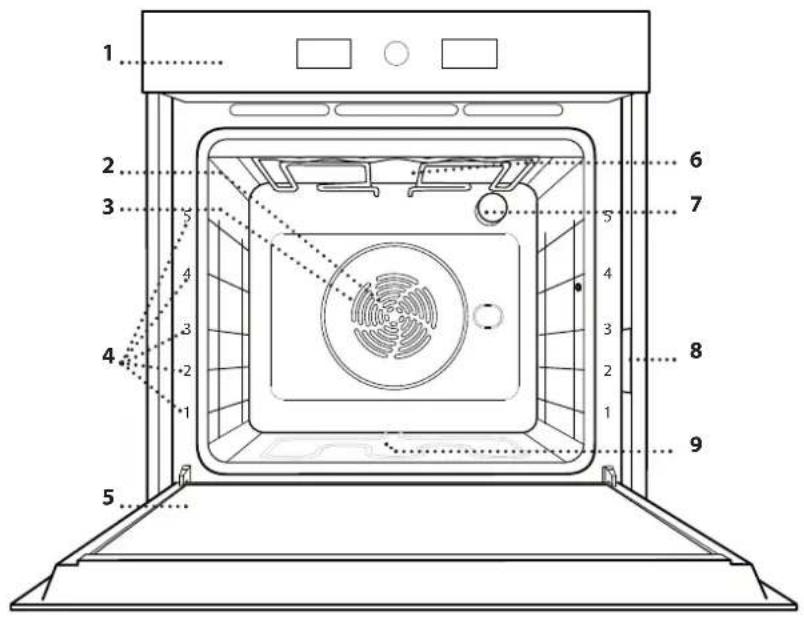

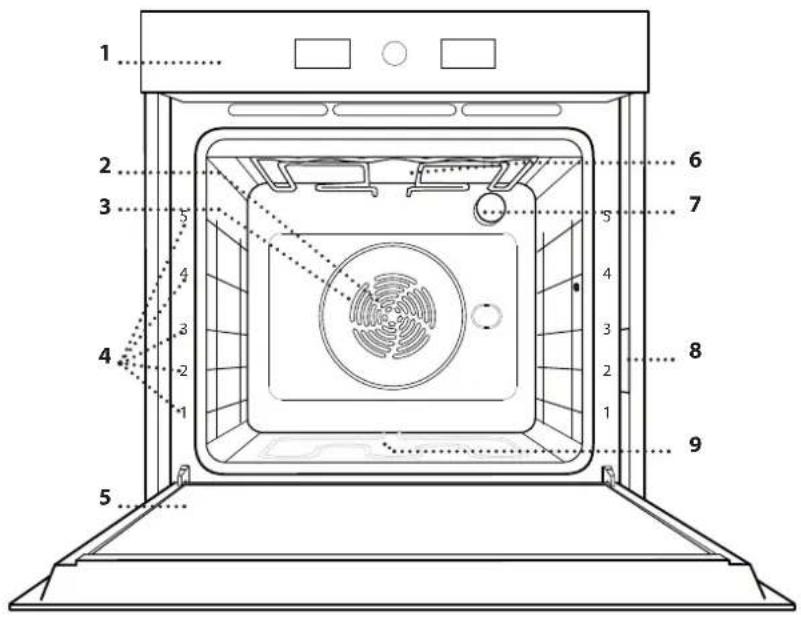

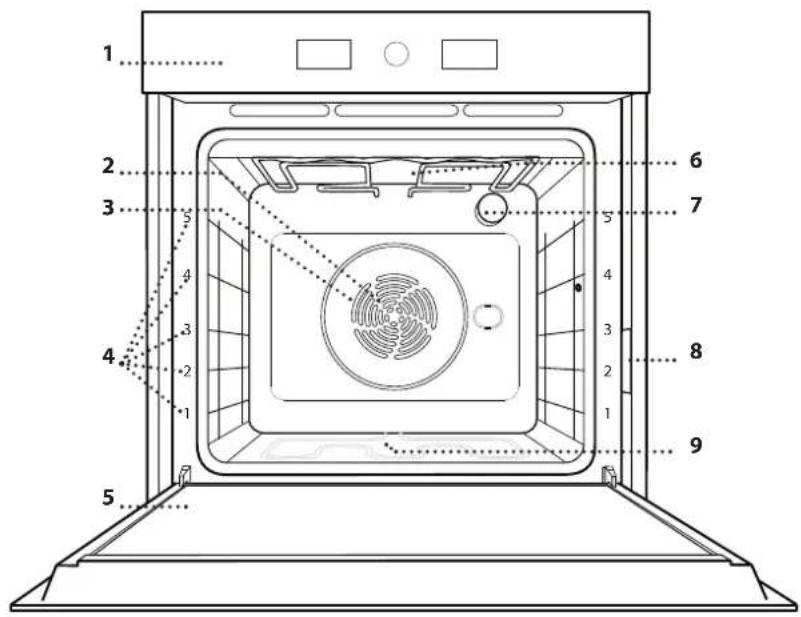

PRODUCT DESCRIPTION

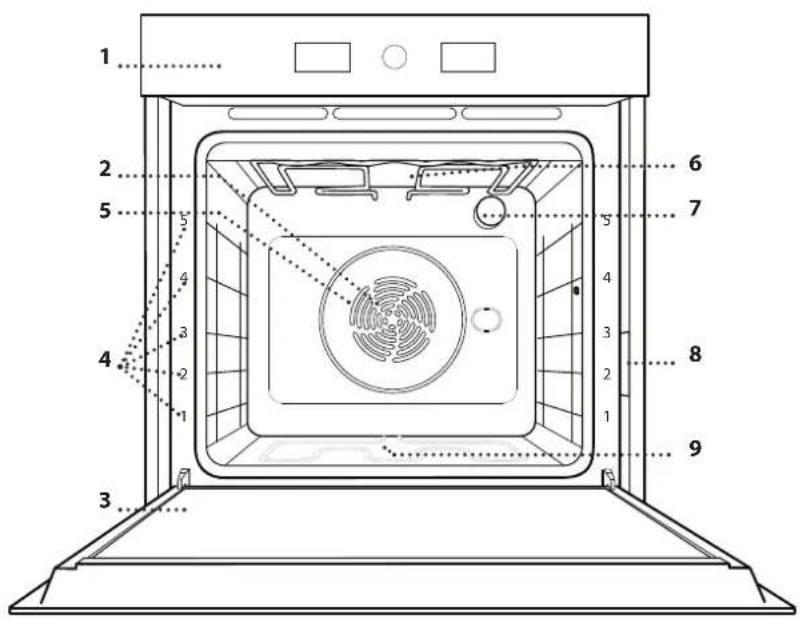

1 2 3 4 5 6 7 8 9 1 2 3 4 5 6 7 8 9

1. Control panel
2. Fan
3. Circular heating element (non-visible)
4. Shelf guides (the level is indicated on the front of the oven)
5. Door
6. Upper heating element/grill
7. Lamp
8. Identification plate (do not remove)
9. Lower heating element (non-visible)

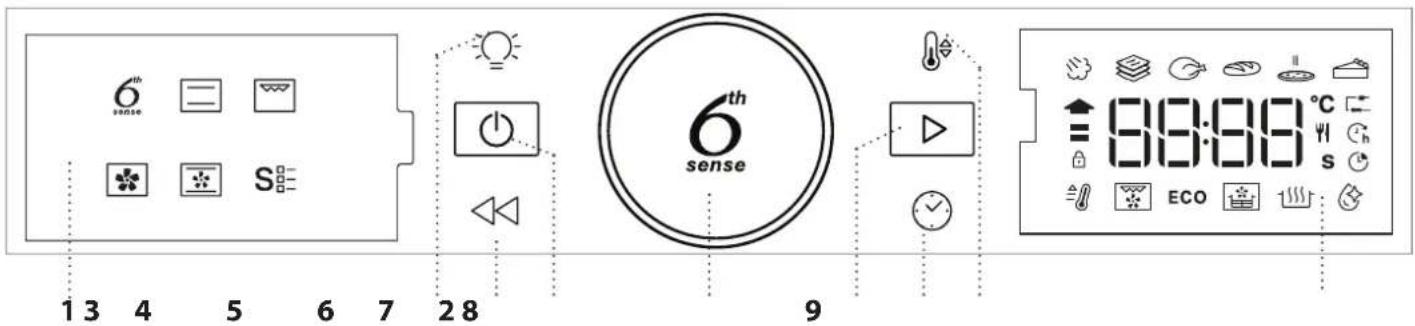

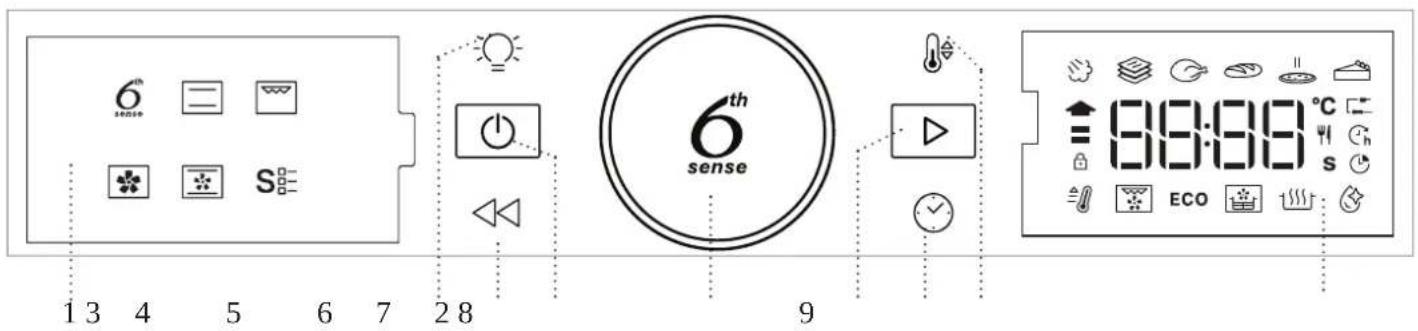

CONTROL PANEL

6th sense S 13 4 5 6 7 28 9 6th sense ECO 8:8:89 °C s

1. LEFT HAND DISPLAY

2. LIGHT

For switching the lamp on/off.

3. BACK

For returning to the previous screen. During cooking, allows settings to be changed.

4. ON/OFF

For switching the oven on and off and for stopping an active function at any time.

5. ROTARY KNOB

Turn this to navigate through the functions and adjust all of the cooking parameters. Press to select, set, access or confirm functions or parameters and eventually start the cooking program.

6. START

For starting functions and confirming settings.or a set value.

7. TIME

For setting the time as well as setting or adjusting the cooking time.

8. TEMPERATURE

For setting the temperature.

9. RIGHT-HAND DISPLAY

ACCESSORIES

Use to cook food or as a support for pans, cake tins and other ovenproof items of cookware.	Use as an oven tray for cooking meat, fish, vegetables, focaccia, etc. or position underneath the wire shelf to collect cooking juices.	Use for cooking all bread and pastry products, but also for roasts, fish en papillotte, etc.	To facilitate inserting or removing accessories.
AIR FRY TRAY *	The number and the type of accessories may vary depending on which model is purchased.Other accessories can be purchased separately; for orders and information contact the after sales service.* Available only in certain models
To be used when cooking foods with Air Fry function, with a baking tray positioned at a lower level to collect possible crumbs and drip. It can be cleaned in the dishwasher.

INSERTING THE WIRE SHELF AND OTHER ACCESSORIES

Insert the wire shelf horizontally by sliding it across the shelf guides, making sure that the side with the raised edge is facing upwards.

Other accessories, such as the drip tray and the baking tray, are inserted horizontally in the same way as the wire shelf.

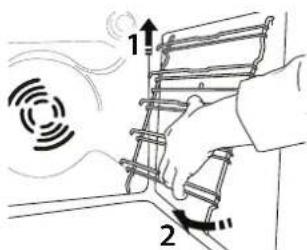

REMOVING AND REFITTING THE SHELF GUIDES

• To remove the shelf guides, lift them up and pull the lower parts out of their lodgings: The shelf guides can now be removed.
  • To refit the shelf guides, first fit them back into their upper seating. Keeping them held up, slide them into the cooking compartment, then lower them into position in the lower seating.

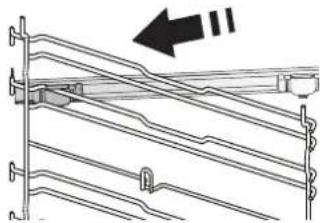

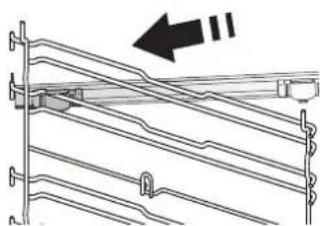

FITTING THE SLIDING RUNNERS (IF PRESENT)

Pure mechanical assembly diagram showing diagonal braces and mounting brackets without any text or symbols

Remove the shelf guides from the oven and remove the protective plastic from the sliding runners.

Fasten the upper clip of the runner to the shelf guide and slide it along as far as it will go. Lower the other clip into position.

Mechanical assembly diagram showing a rotating component with a curved arrow indicating motion (no text or symbols)

To secure the guide, press the lower portion of the clip firmly against the shelf guide. Make sure that the runners can move freely. Repeat these steps on the other shelf guide on the same level.

Please note: The sliding runners can be fitted on any level.

FUNCTIONS

6TH SENSE

These allow automatic selection of the cooking method and the best temperature range for all types of food (Lasagna, Meat, Fish, Vegetables, Cakes & Pastries, Salt cakes, Bread, Pizza). To get the best from this function, follow the indications on the cooking table.

STEAM+

The Steam+ function allows to obtain excellent performances thanks to the presence of steam in the cooking cycle. This function suggests the ideal temperature for cooking a wide range of recipes; The cooking times and the water quantity (100 / 200 ml) of the main dishes are shown in the relative cooking table that you can find online.

Always activate the steam function when the oven is cold, and after pouring drinking water into the bottom of the cavity.

Note: The advised water quantity exceeds the cavity embossment capacity, but the bottom of the oven is designed to manage the advised excess water efficiently.

CASSEROLE

This function suggests the best temperature and cooking method for pasta dishes.

MEAT

This function suggests the best temperature and cooking method for meat.

BREAD

This function automatically suggests the best temperature and cooking method for all types of bread.

• 🌐 PIZZA

This function allows you to cook great homemade pizza, in less than 10 minutes like in a restaurant. The dedicated cooking cycle works at temperature level above 300 degree Celsius, delivering pizza soft inside, crunchy on the edges and with a perfectly even browning.

Combining this function with the Pizza Stone WPro accessory and preheating for 30 minutes can bake a pizza in 5-8 min. (For orders and information contact the after sales service or www.whirlpool.eu.)

- PASTRY

This function suggests the best temperature and cooking method for all types of cake.

CONVENTIONAL

For cooking any kind of dish on one shelf only.

GRILL

For grilling steaks, kebabs and sausages, cooking vegetables au gratin or toasting bread. When grilling meat, we recommend using a drip tray to collect the cooking juices: Position the tray on any of the levels below the wire shelf and add 500 ml of drinking water.

FORCED AIR

For cooking different foods that require the same cooking temperature on several shelves at the same time. This function can be used to cook different foods without odours being transferred from one food to another. Consult the cooking table for correct level combination selection.

CONVECTION BAKE

For cooking meat, baking cakes with fillings on one shelf only.

SPECIAL FUNCTIONS

FAST PREHEAT

For preheating the oven quickly.

TURBO GRILL

For roasting large joints of meat (legs, roast beef, chicken). We recommend using a drip tray to collect the cooking juices: Position the pan on any of the levels below the wire shelf and add 500 ml of drinking water.

• ECO ECO CYCLE \*

For cooking stuffed roasting joints and fillets of meat on a single shelf. When this Eco Cycle is in use, the light will remain switched off during cooking. To use the Eco Cycle and therefore optimise power consumption, the oven door should not be opened until the food is completely cooked.

AIR FRY/CONVECT ROAST

Using dedicated air fry tray (provided with some models) allows you to cook French fries, chicken nuggets and more using less oil, resulting pleasantly crispy. Heating elements cycle to properly heat the cavity, while the fan circulates hot air. Position the food on the Air Fry tray in a single layer and follow Air Fry Cooking Table instructions for best performances.

Alternatively, this function can be used to get great roasting results on meat and poultry, potatoes and vegetables, according to the cooking table recommendation. These recipes can be prepared using standard baking tray.

RISING

For optimal proving of sweet or savoury dough. To maintain the quality of proving, do not activate the function if the oven is still hot following a cooking cycle.

SMART CLEAN

The action of the steam released during this

special low-temperature cleaning cycle allows dirt and food residues to be removed with ease. Pour 200 ml of drinking water on the bottom of the oven and only activate the function when the oven is cold.

* Function used as reference for the energy efficiency declaration in accordance with Regulation (EU) No. 65/2014

FIRST TIME USE

1. SET THE TIME

You will need to set the time when you switch on the oven for the first time.

The two digits for the hour will start flashing: Turn the knob to set the hour and press Ⓞ to confirm.

The two digits for the minutes will start flashing. Turn the knob to set the minutes and press ⚫ to confirm. Please note: To change the time at a later point, press and hold ☺ for at least one second while the oven is off and repeat the steps above.

You may need to set the time again following lengthy power outages.

2. SETTINGS

If required, you can change the default unit of measurement, temperature (°C) and rated current (16 A). With the oven off, press and hold ⏻ for at least 5 seconds.

Turn the selection knob to select the unit of measurement, then press confirm.

16 A

Turn the selection knob to select the rated current, then press to confirm.

Please note: The oven is programmed to consume a level of electrical power that is compatible with a domestic network that has a rating of more than 3 kW (16 A): If your household uses a lower power, you will need to decrease this value (13 A).

3. HEAT THE OVEN

A new oven may release odours that have been left behind during manufacturing: This is completely normal.

Before starting to cook food, we therefore recommend heating the oven with it empty in order to remove any possible odours. Remove any protective cardboard or transparent film from the oven and remove any accessories from inside it. Heat the oven to 200 °C for around one hour, ideally using a function with air circulation (e.g. "Forced Air" or "Convection Bake").

Follow the instructions for setting the function correctly.

Please note: It is advisable to air the room after using the appliance for the first time.

DAILY USE

1. SELECT A FUNCTION

When the oven is off, only the time is shown on the display. Press and hold ⏻ to switch the oven on. Turn the rotary knob to view the main functions available on the left-hand display. Select one and press ⏻

To select a sub-function (where available), select the main function and then press to confirm and go to the function menu.

Turn the rotary knob to select from amongst the subfunctions available on the right-hand display and then press confirm.

2. SET THE FUNCTION

After having selected the function you require, you can change its settings. The display will show the settings that can be changed in sequence.

When the °C/°F icon flashes on the display, turn the knob to change the value, then press to confirm and continue to alter the settings that follow (if possible).

You can also set the grill level (3 = high, 2 = medium, 1 = low) at the same time.

Please note: Once the function has started, you can change the temperature or the grill level by pressing 🎨 or by turning the knob directly.

DURATION

When the icon flashes on the display, use the adjustment knob to set the cooking time you require and then press to confirm.

You do not have to set the cooking time if you want to manage cooking manually: Press ☑ to confirm and start the function. In this case, you cannot set the end cooking time by programming a delayed start.

Please note: You can adjust the cooking time that has been set during cooking by pressing Turn the knob to change the hour and press to confirm.

SETTING THE END COOKING TIME/DELAYED START

In many functions, once you have set a cooking time you can delay starting the function by programming its end time. Where you can change the end time, the display will show the time the function is expected to finish while the C _h icon flashes.

If necessary, turn the knob to set the time you want cooking to end, then press to confirm and start the function.

Place the food in the oven and close the door: The function will start automatically after the period of time that has been calculated in order for cooking to finish at the time you have set.

Please note: Programming a delayed cooking start time will disable the oven preheating phase: The oven will reach the temperature your require gradually, meaning that cooking times will be slightly longer than those listed in the cooking table.

During the waiting time, you can use the knob to change the programmed end time.

Press 🏠 or to change the temperature and cooking time settings. Press 🏠 confirm when finished.

3. ACTIVATE THE FUNCTION

Once you have applied the settings you require, press ▶ to activate the function.

You can press and hold ⏻ at any time to pause the function that is currently active.

4. PREHEATING

Some functions have an oven preheating phase: Once the function has started, the display indicates that the preheating phase has been activated.

Once this phase has finished, an audible signal will sound and the display will indicate that the oven has reached the set temperature.

At this point, open the door, place the food in the oven, close the door and start cooking by pressing ▶

Please note: Placing the food in the oven before

preheating has finished may have an adverse effect on the final cooking result.

Opening the door during the preheating phase will stop pause it.

The cooking time does not include a preheating phase.

You can always change the temperature you want the oven to reach using the knob.

5. END OF COOKING

An audible signal will sound and the display will indicate that cooking is complete.

To extend the cooking time without changing the settings, turn the knob to set a new cooking time and press ▶.

6. 6 ^TH SENSE FUNCTIONS

SMART CLEAN

To activate the "Smart Clean" function, with the oven cold, distribute 200 ml of water on the bottom of the oven cavity, then close the oven door.

Access special functions S _i and turn the knob to select from menu. then press to confirm.

Press ▶ to start immediately the cleaning cycle, or press Ⓞ to set the end time/start delayed.

At the end of the cycle, let the oven colling down

and remove any residual water in the oven and start cleaning using a sponge moistened with hot water (cleaning could be compromised if delayed by more than 15 minutes).

Please note: The duration and temperature of cleaning cycle cannot be set.

7. KEYLOCK

To lock the keypad, press and hold ◀ for at least five seconds.

Do this again to unlock the keypad.

Please note: This function can also be activated during cooking. For safety reasons, the oven can be switched off at any time by pressing Ⓤ.

.NOTES

• Do not cover the inside of the oven with aluminium foil.
• Never drag pots or pans across the bottom of the oven as this could damage the enamel coating.
• Do not place heavy weights on the door and do not hold on to the door.
• Due to the higher temperature of the Pizza cycle it is expected to experience slightly higher cooling fan noise.

USEFUL TIPS

HOW TO READ THE COOKING TABLE

The table lists the best function, accessories and level to use to cook different types of food. Cooking times start from the moment food is placed in the oven, excluding preheating (where required). Cooking temperatures and times are approximate and depend on the amount of food and the type of accessory used. Use the lowest recommended settings to begin with and, if the food is not cooked enough, then switch to higher settings. Use the accessories supplied and preferably dark-coloured metal cake tins and baking trays. You can also use Pyrex or stoneware pans and accessories, but bear in mind that cooking times will be slightly longer.

COOKING DIFFERENT FOODS AT THE SAME TIME

Using the "Forced Air" function, you can cook different foods which require the same cooking temperature at the same time (for example: fish and vegetables), using different shelves. Remove the food which requires a shorter cooking time and leave the food which requires a longer cooking time in the oven.

MEAT

Use any kind of oven tray or pyrex dish suited to the size of the piece of meat being cooked. For roast joints, it is best to add some stock to the bottom of the dish, basting the meat during cooking for added flavour. Please note that steam will be generated during this operation. When the roast is ready, let it rest in the oven for another 10-15 minutes, or wrap it in aluminium foil.

When you want to grill meat, choose cuts with an even thickness all over in order to achieve uniform cooking results. Very thick pieces of meat require longer cooking times. To prevent the meat from burning on the outside, lower the position of the wire shelf, keeping the food farther away from the grill. Turn the meat two thirds of the way through cooking. Take care when opening the door as steam will escape.

To collect the cooking juices, we recommend placing a dripping pan filled with half a litre of drinking water directly underneath the wire shelf on which the food is placed. Top-up when necessary.

DESSERTS

Cook delicate desserts with the conventional function on one shelf only.

Use dark-coloured metal baking pans and always place them on the wire shelf supplied. To cook on more than one shelf, select the forced air function and stagger the position of the cake tins on the shelves, aiding optimum circulation of the hot air.

To check whether a leavened cake is cooked, insert a wooden toothpick into the centre of the cake. If the toothpick comes out clean, the cake is ready.

If using non-stick baking pans, do not butter the edges as the cake may not rise evenly around the edges.

If the item "swells" during baking, use a lower temperature next time and consider reducing the amount of liquid you add or stirring the mixture more gently.

For desserts with moist fillings or toppings (such as cheesecake or fruit tarts), use the "Convection bake" function. If the base of the cake is soggy, lower the shelf and sprinkle the bottom of the cake with breadcrumbs or biscuit crumbs before adding the filling.

RISING

It is always best to cover the dough with a damp cloth before placing it in the oven. Dough proving time with this function is reduced by approximately one third compared to proving at room temperature (20-25°C). The rising time for pizza starts at around one hour for 1 kg of dough.

AIR FRY COOKING TABLE

RECIPE FUNCTION			SUGGESTED QUANTITY	PREHEAT	TEMPERATURE (°C)	DURATION (MIN.)	SHELF AND ACCESSORIES
FROZEN FOOD	Frozen French Fries 650 - 850g	Yes 200 - 30					4 2
	Frozen Chicken Nugget 500g	Yes 200 - 20					4 2
	Fish Sticks 500g Yes	270 - 20					4 2
	Onion Rings		500g Yes	200 15 - 20			4 2
VEGETABLES	Fresh Breaded Zucchini 400g	Yes 200 - 20					4 2
	Homemade Fries		300 - 800 g	Yes	200	20 - 40	4 2
	Mixed Vegetables		300 - 800 g	Yes	200	20 - 30	4 2
MEAT AND FISH	Chicken Breasts		1 - 4 cm	Yes	200	20 - 40	4 2
	Chicken Wings		200 - 1500 g	Yes	220	30 - 50	4 2
	Breaded Cutlet		1 - 4 cm	Yes	220	20 - 50	4 2
	Fish Fillet		1 - 4 cm	Yes	220	15 - 25	4 2

For cooking fresh or homemade foods, spread a thin layer of oil across the food surface.
In order to guarantee uniform cooking results, mix food halfway through the recommended cooking time.

FUNCTIONS	Air Fry
ACCESSORIES	Air Fry tray Oven tray or cake tray on wire shelf	Drip tray / Baking tray or oven tray on wire shelf

COOKING TABLE

RECIPE FUNCTION PREHEAT TEMPERATURE (°C) COOK TIME (Min.) LEVEL AND ACCESSORIES
Leavened cakes / Sponge cakes		- 170 30 - 50		2
		Yes 160 30 - 50		2
		Yes 160 30 - 50		4 1
Filled cakes(cheesecake, strudel, apple pie)		- 160 - 200 30 - 85		3
		Yes	160 - 200 35 - 90	4 1
Cookies / Small cakes		-	160 - 170	20 - 40
		Yes	150 - 160	20 - 40
		Yes	150 - 160	20 - 40
Choux buns		- 180 - 200 30 - 40		3
		Yes	180 - 190	35 - 45
		Yes	180 - 190	35 - 45*
Meringues		Yes	90	110 - 150
		Yes	90	130 - 150
		Yes	90 140 - 160*
Pizza (Thin, thick, focaccia)		Yes	310	7-12
		Yes	220 - 240 20 - 40
		Yes	220 - 240	25 - 50*
Bread loaf 0,5 kg		- 180 - 220 50 - 70		2
Small bread		- 180 - 220 30 - 50		3
Bread		Yes	180 - 220 30 - 60
Frozen pizza		Yes 250 10 - 15		2
		Yes 250	10 - 20
Savoury pies(vegetable pie, quiche)		Yes	180 - 190 45 - 60
		Yes	180 - 190 45 - 60
		Yes	180 - 190	45 - 70*
Vols-au-vent / Puff pastry crackers		Yes	190 - 200 20 - 30
		Yes	180 - 190 20 - 40
		Yes	180 - 190	20 - 40*

FUNCTIONS	Conventional	Grill	Turbo Grill	Forced Air	Convect Bake	ECO
AUTOMATIC FUNCTIONS	Casserole	Meat	Bread	Pizza function	Pastry
ACCESSORIES	Wire shelf	Oven tray or cake tray on wire shelf	Drip tray / Baking tray or oven tray on wire shelf	Drip tray / Baking tray	Drip tray with 500 ml of water

RECIPE FUNCTION PREHEAT TEMPERATURE (°C) COOK TIME (Min.) LEVEL AND ACCESSORIES
Lasagne / Flans		- 190 - 200 40 - 80		3
Baked pasta / Cannelloni - 190 - 200 25 - 60				3
Lamb / Veal / Beef / Pork 1 kg - 190 - 200 60 - 90				3
Chicken / Rabbit / Duck 1 kg - 200 - 230 50 - 80				3
Turkey / Goose 3 kg - 190 - 200 90 - 150				2
Baked fish / en papillote (fillets, whole)		Yes	180 - 200	40 - 60	3
Stuffed vegetables (tomatoes, courgettes, aubergines)		Yes	180 - 200 50 - 60		2
Toast		-	3 (High)	3 - 6	5
Fish fillets / Steaks		-	2 (Mid)	20 - 30***	4 3
Sausages / Kebabs / Spare ribs / Hamburgers		-	2 - 3(Mid - High)	15 - 30***	5 4
Roast chicken 1-1.3 kg		-	2 (Mid)	55 - 70**	2 1
Roast beef rare 1 kg		-	2 (Mid)	35 - 50**	3
Leg of lamb / Shanks		-	2 (Mid)	60 - 90**	3
Roast potatoes		-	2 (Mid)	35 - 55**	3
Vegetable gratin		-	3 (High)	10 - 25	3
Complete meal: Fruit tart (level 5) / lasagna (level 3) / meat (level 1)		Yes	190 40 - 120*		5 3 1
Lasagna & Meat		Yes	200	50 - 120*	4 1
Meat & Potatoes		Yes	200	45 - 120*	4 1
Fish & Vegetables		Yes	180	30 - 50	4 1
Stuffed roasting joints		-	200	80 - 120*	3
Cuts of meat (rabbit, chicken, lamb)		-	200	50 - 120*	3

* Estimated length of time: dishes can be removed from the oven at different times depending on personal preference.
** Turn food two thirds of the way through cooking (if necessary).
*** Turn food halfway through cooking.

Please note: Dynamic Menu "Pastry Cakes" function uses upper and lower heating elements only, without forced air circulation. It doesn't require preheating.

FUNCTIONS						ECO
	Conventional	Grill	Turbo Grill	Forced Air	Convect Bake	ECO
AUTOMATIC FUNCTIONS
	Casserole	Meat	Bread		Pizza function	Pastry
ACCESSORIES
	Wire shelf	Oven tray or cake tray on wire shelf	Drip tray / Baking tray or oven tray on wire shelf		Drip tray / Baking tray	Drip tray with 500 ml of water

STEAM+ COOKING TABLE

FOOD RECIPE		QUANTITY	TIME(MIN.)	ACCESSORIES WATER
BREAD	Small breads 80-100 g 30 - 45			3	100 ml
	Sandwich loaf in tin 300-500 g 40 - 60			3
	Bread 500g-2 kg 50 - 100			3
	Baguettes 200-300 g 30 - 45			3
PASTRIES	Cookies one tray 25 - 35			3
	Muffin	30-60 g	25 - 45	3
	Sponge Cake	500-700 g 30 - 50		2
	Tart	one tray	35 - 55	2
MEAT	Roast	1 kg	60 - 110	3	200 ml
	Ribs	500g-1,5 kg	50 - 75	3
	Chicken	1-1,5 kg	55 - 80	3
	Chicken/Turkey	3 kg	100 - 140	3
FISH	Fillet Steak	0.5-2 cm	15 - 25	3
	Fillet Steak	2-4 cm	20 - 35	3
	Whole Fish	300-600 g	20 - 30	3
	Whole Fish	600-1200 g	25 - 45	3
VEGETABLES	Roasted Potatoes	0.5-1.5 kg	45 - 60	3
	Stuffed Peppers	1-2 kg	35 - 55	3
	Roasted Broccoli	0.3-1 kg	30 - 50	3
	Roasted Zucchini	0.5-1.5 kg	30 - 50	3

Start the STEAM+ function only when the oven is cold. Opening the door and topping up the water during cooking may have an adverse effect on the final cooking result.

ACCESSORIES
	Air Fry tray	Oven tray or cake tray on wire shelf	Drip tray / Baking tray or oven tray on wire shelf

MAINTENANCE AND CLEANING

Make sure that the oven has cooled down before carrying out any maintenance or cleaning.

Do not use steam cleaners.

Do not use wire wool, abrasive scourers or abrasive/corrosive cleaning agents, as these could damage the surfaces of the appliance.

Wear protective gloves.

The oven must be disconnected from the mains before carrying out any kind of maintenance work.

EXTERIOR SURFACES

• Clean the surfaces with a damp microfibre cloth. If they are very dirty, add a few drops of pH-neutral detergent. Finish off with a dry cloth.
• Do not use corrosive or abrasive detergents. If any of these products inadvertently comes into contact with the surfaces of the appliance, clean immediately with a damp microfibre cloth.

INTERIOR SURFACES

• After every use, leave the oven to cool and then clean it, preferably while it is still warm, to remove any deposits or stains caused by food residues. To dry any condensation that has formed as a result of cooking foods with a high water content, leave the oven to cool completely and then wipe it with a cloth or sponge.
- Activate the "Smart Clean" function for optimum

CLEANING THE CATALYTIC PANELS

(ONLY IN SOME MODELS)

This oven is equipped with special catalytic panels that facilitate cleaning of the cooking compartment thanks to their special self-cleaning coating, which is highly porous and able to absorb grease and grime. These panels are fitted to the shelf guides: When repositioning and then refitting the shelf guides, make sure that the hooks at the top are slotted into the appropriate holes in the panels.

cleaning of the internal surfaces. (Only in some models).

• Clean the glass in the door with a suitable liquid detergent.
• The oven door can be removed to facilitate cleaning.
• Dry out the bottom profile below the door of the oven if water residues are present after a cooking cycle.

ACCESSORIES

Soak the accessories in a washing-up liquid solution after use, handling them with oven gloves if they are still hot. Food residues can be removed using a washing-up brush or a sponge.

Do not clean Food Probe and Meat Probe (if present) in the dishwasher. Air Fry tray (if present) can be cleaned in the dishwasher.

To make best use of the catalytic panels' self-cleaning properties, we recommend heating the oven to 200 °C for around one hour using the "Convection Bake" function. The oven must be empty during this time. Then leave the appliance to cool down before removing any remaining food residues using a nonabrasive sponge.

Please note: Using corrosive or abrasive cleaning agents, stiff brushes, pan scourers or oven sprays could damage the catalytic surface and compromise its self-cleaning properties.

Please contact our After-sales Service if you require replacement panels.

REPLACING THE LAMP

1. Disconnect the oven from the power supply.
2. Unscrew the cover from the light, replace the bulb and screw the cover back on the light.
3. Reconnect the oven to the power supply.

Please note: 40 W/230 \~ V type G9, T300°C halogen bulbs.

The bulb used in the product is specifically designed for domestic appliances and is not suitable for general room lighting within the home. (EC Regulation 244/2009) Light bulbs are available from our After-sales Service.

If using halogen bulbs, do not handle them with your bare hands as your fingerprints could cause damage. Do not use the oven until the light cover has been refitted.

REMOVING AND REFITTING THE DOOR

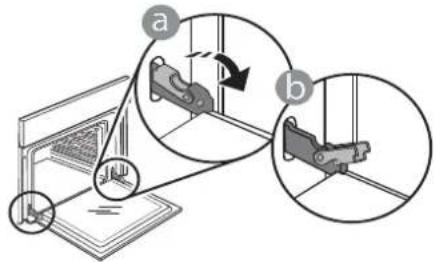

1. To remove the door, open it fully and lower the catches until they are in the unlock position.

Diagram illustrating mechanical assembly steps with labeled components and directional arrows

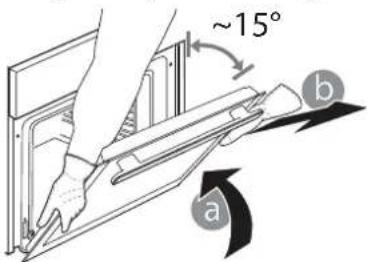

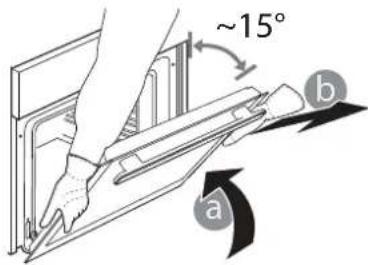

1. Close the door as much as you can.

Take a firm hold of the door with both hands – do not hold it by the handle.

Simply remove the door by continuing to close it while pulling it upwards at the same time until it is released from its seating. Put the door to one side, resting it on a soft surface.

~15° a b

1. Refit the door by moving it towards the oven, aligning the hooks of the hinges with their seating and securing the upper part onto its seating.

2. Lower the door and then open it fully.

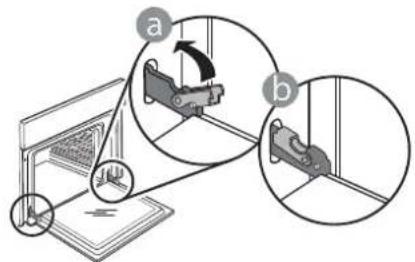

Lower the catches into their original position: Make sure that you lower them down completely.

Diagram illustrating mechanical assembly steps with labeled components a and b, showing motion directions and component placement.

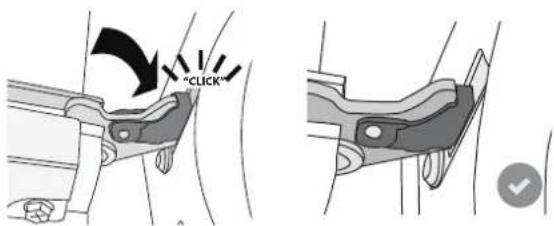

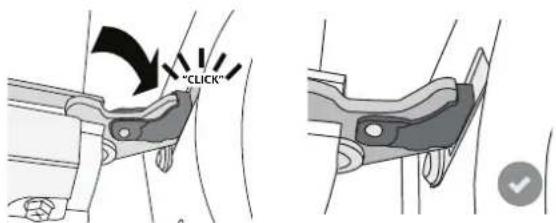

Apply gentle pressure to check that the catches are in the correct position.

"CLICK"

1. Try closing the door and check to make sure that it lines up with the control panel. If it does not, repeat the steps above: The door could become damaged if it does not work properly.

LOWER THE TOP HEATING ELEMENT

(ONLY IN SOME MODELS)

1. Remove the lateral shelf guides.

Diagram illustrating a mechanical or electrical process with labeled components and directional arrows, including symbols like '1' and '2'.

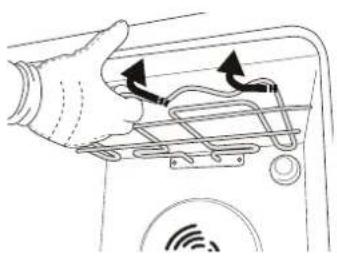

1. Pull the heating element out a little and lower it.

Hand holding a device with attached cables and a circular sensor icon (no text or symbols)

Hand holding a device with two arrows pointing to a component, no visible text or symbols

1. To reposition the heating element, lift it up, pulling it slightly towards you, making sure it comes to rest on the lateral supports.

Diagram of a hand holding a device with two arrows indicating connection points (no text or symbols present)

TROUBLESHOOTING

Problem Possible cause Solution

The oven is not working.	Power cut.Disconnection from the mains.	Check for the presence of mains electrical power and whether the oven is connected to the electricity supply.Turn off the oven and restart it to see if the fault persists.
The display shows the letter “F” followed by a number.	Software problem.	Contact the Call Center and state the number following the letter “F”.
The display shows unclear text and appears to be broken.	Another language set.	Contact the Call Center..
Cooking cycle with probe ended without evident cause or error F3E3 is printed on the screen.	Food Probe is not properly connected.	Check connection of the food probe.

Policies, standard documentation and additional product information can be found by:

• Using the QR code in your appliance
- Visiting our website docs.whirlpool.eu/docs
• Alternatively, contact our After-sales Service (See phone number in the warranty booklet). When contacting our After-sales Service, please state the codes provided on your product's identification plate.

®/TM/© 2025 Whirlpool. Produced under license.

БЛАГОДАРИМ ВИ, ЧЕ ЗАКУПИХТЕ ПРОДУКТ НА WHIRLPOOL

Diagram of a 3D printer with a QR code overlay, no text or symbols present

ОПИСАНИЕ НА УРЕДА

1 2 3 4 5 6 7 8 9 1 2 3 4 5 6 7 8 9

6th sense S 13 4 5 6 7 28 9 6th sense ECO 8:8:89 °C s

1. ЛЯВ ДИСПЛЕЙ

2. ОСВЕТЛЕНИЕ

Metallic rectangular grid pattern with uniform square cutouts, no text or symbols visible

Pure mechanical assembly diagram showing diagonal metal rods and a hanging hook, without any text or symbols

Mechanical assembly diagram showing a rotating component with a curved arrow indicating motion (no text or symbols)

Simple line drawing of a rectangular panel with mounting holes and a central square hole (no text or symbols)

Illustration of a hand installing or adjusting a ladder-like structure with a sensor icon (no text or symbols)

Diagram illustrating mechanical assembly steps with labeled components and directional arrows

Diagram illustrating mechanical assembly steps with labeled components a and b, showing motion directions and component placement.

Diagram of a laptop with a QR code overlay, no text or symbols present

POPIS PRODUKTU

1 2 3 4 5 6 7 8 9 3 4 5 6 7 8 9

6th sense S 13 4 3 6 7 28 9 6th sense ECO 9:39:09 °C s

1. LEVÝ DISPLEJ

2. SVĚTLO

Exterior view of a rectangular metal grate or filter structure (no text or symbols visible)

Technical line drawing of a mechanical assembly with no visible text or symbols

Mechanical assembly diagram showing a rotating component with directional arrow (no text or labels)

Simple line drawing of a rectangular panel with mounting flanges and a central square hole (no text or symbols)

Illustration of a hand using a ladder to lift a device (no text or symbols visible)

Diagram illustrating mechanical assembly steps with labeled components and directional arrows

Diagram illustrating mechanical assembly steps with labeled components a and b, showing motion directions and component placement.

Diagram illustrating a mechanical or electrical process with labeled components and directional arrows, including symbols like '1' and '2'.

Diagram of a hand holding a device with a sensor icon and directional arrows indicating motion (no text or symbols)

Hand holding a cable with two arrows pointing to it, next to a circular device with a sensor icon (no text or symbols)

Diagram of a hand holding a device with cable and sensor icons, no text or symbols present

ODSTRAŇOVÁNÍ ZÁVAD

TAK FORDI DU HAR K∅BT ET WHIRLPOOL PRODUKT

Diagram of a 3D printer with a QR code overlay, no text or symbols present

PRODUKTBESKRIVELSE

1 2 3 4 5 6 7 8 9 1 2 3 4 5 6 7 8 9

6th sense S 13 4 5 6 7 28 9 6th sense ECO 9:30:31°C s

1. VENSTRE DISPLAY

2. LYS

RIST DRYPBAKKE BRADEPANDE * GLIDESKINNER *

Simple line drawing of a rectangular plate with horizontal slats (no text or symbols)

Simple line drawing of a square plate with dashed edges and a small bracket at the bottom right (no text or symbols)

Simple line drawing of a rectangular frame with rounded corners and a small bracket at the bottom right (no text or symbols)

Two metallic cylindrical metal rods with flanged ends, no text or symbols visible

Exterior view of a rectangular metal grate or filter structure (no text or symbols visible)

INDSÆT RIST OG ANDET TILBEH∅R

Pure mechanical assembly diagram showing diagonal braces and mounting brackets without any text or symbols

Mechanical assembly diagram showing a rotating component with directional arrow (no text or labels)

Diagram illustrating mechanical assembly steps with labeled components and directional arrows

Diagram illustrating mechanical assembly steps with labeled components a and b, showing motion directions and component placement.

Diagram illustrating a mechanical or electrical process with labeled components and directional arrows, including symbols like '1' and '2'.

Hand holding a device with attached cables and a circular sensor icon (no text or symbols)

Hand holding a device with two arrows pointing to a component (no text or symbols visible)

Diagram of a hand holding a device with two arrows indicating connection points (no text or symbols present)

FEJLFINDING

DANKE, DASS SIE SICH FÜR EIN WHIRLPOOL PRODUKT ENTSCHIEDEN HABEN

Diagram of a 3D printer with a QR code overlay, no text or symbols present

PRODUKTBESCHREIBUNG

1 2 3 4 5 6 7 8 9 1 2 3 4 5 6 7 8

6th sense S 1 3 4 5 6 7 2 8 6th sense 9 8:9:8:8 °C ECO

1. LINKES DISPLAY

2. LICHT

Pure mechanical assembly diagram showing diagonal braces and a double-headed arrow (no text or symbols)

Mechanical assembly diagram showing a rotating component with directional arrow (no text or labels)

Simple line drawing of a rectangular panel with mounting flanges and a central square hole (no text or symbols)

Illustration of a hand operating a ladder-like device with a smoke symbol nearby (no text or symbols present)

Diagram illustrating mechanical assembly steps with labeled components a and b, showing motion directions and component placement.

Diagram illustrating a mechanical assembly with labeled parts (a) and (b), showing a device with internal components and directional arrows.

Diagram illustrating a hand holding a device with labeled parts and directional arrows, possibly indicating motion or signal flow.

Hand holding a device with cables and a sensor icon, no visible text or symbols

Diagram showing hand holding a device with two arrows pointing to a component, and a circular sensor icon below.

Diagram of a hand holding a device with arrows indicating motion or signal flow, no text or symbols present

LÖSEN VON PROBLEMEN

Diagram of a laptop with a QR code overlay, no text or symbols present

ΠΕΡΙΓΡΑΦΗ ΠΡΟΪΟΝΤΟΣ

1 2 3 4 5 6 7 8 9 1 2 3 4 5 6 7 8 9

6th sense S 13 4 5 6 7 28 9 6th sense ECO 8:8:89 °C s

1. ΑΡΙΣΤΕΡΗ ΟΘΟΝΗ

2. ΦΩΣ

Exterior view of a rectangular metal grate or filter structure (no text or symbols visible)

Pure mechanical assembly diagram showing diagonal braces and a double-headed arrow (no text or symbols)

Mechanical assembly diagram showing a rotating component with directional arrow (no text or labels)

Simple line drawing of a rectangular metal plate with mounting flanges (no text or symbols)

Illustration of a hand operating a ladder-like device with a sensor emitting signals (no text or symbols)

Diagram illustrating mechanical assembly steps with labeled components and directional arrows

Diagram illustrating mechanical assembly steps with labeled components a and b, showing motion directions and component placement.

Diagram illustrating a hand holding a device with labeled parts and directional arrows, possibly indicating motion or signal flow.

Hand holding a device with attached cables and a circular sensor icon (no text or symbols)

Diagram showing a hand holding a device with two arrows pointing to it, indicating a process or operation.

Diagram of a hand holding a device with arrows indicating motion or signal flow (no text or symbols)

Diagram of a 3D printer with a QR code overlay, no text or symbols present

6th sense S 13 4 5 6 7 28 9 6th sense ECO 9:30:31°C s

1. PANTALLA DE LA IZQUIERDA

2. LUZ

Exterior view of a rectangular metal grate or filter structure (no text or symbols visible)

Pure mechanical assembly diagram showing diagonal braces and a double-headed arrow (no text or symbols)

Mechanical assembly diagram showing a rotating component with directional arrow (no text or labels)

Simple line drawing of a rectangular metal plate with mounting flanges (no text or symbols)

Illustration of a hand using a ladder to lift a device, with motion lines indicating speed (no text or symbols)

Diagram illustrating mechanical assembly steps with labeled components and directional arrows

Diagram illustrating mechanical assembly steps with labeled components and directional arrows

Diagram illustrating airflow or heat transfer process with labeled components 1 and 2, showing hand holding a ladder-like structure.

1. Extraiga ligeramente la resistencia y bájela.

Hand holding a device with a sensor icon and directional arrows indicating motion (no text or symbols)

Hand holding a device with a sensor icon and two arrows pointing to the cable (no text or symbols present)

Diagram of a hand holding a device with two arrows indicating connection or movement (no text or symbols present)

Diagram of a 3D printer with a QR code overlay, no text or symbols present

TOOTE KIRJELDUS

1 2 3 4 5 6 7 8 9 1 2 3 4 5 6 7 8 9

6th sense S 1 3 4 5 6 7 2 8 6th sense 9 ECO 8:8:89°C s

1. VASAKPOOLNE NÄIDIK

2. VALGUSTUS

Exterior view of a rectangular metal grate or filter structure (no text or symbols visible)

Technical line drawing of a mechanical assembly with no visible text or symbols

Mechanical assembly diagram showing a rotating component with a curved arrow indicating rotation (no text or labels)

Conventional (Tavaline)

Grill (Grill)

Turbo Grill

Sundõhk

Convect Bake

ECO

AUTOMAAT-

FUNKTSIOONID

Vormiroog

Liha

Leib

Simple line drawing of a rectangular metal plate with mounting flanges (no text or symbols)

Illustration of a hand using a ladder to lift a device, with motion lines indicating speed (no text or symbols)

Diagram of a 3D printer with a QR code overlay, no text or symbols present

TUOTTEEN KUVAUS

1 2 3 4 5 6 7 8 9 1 2 3 4 5 6 7 8 9

6th sense S 13 4 5 6 7 28 9 6th sense ECO 8:8:89 °C s

1. VASEN NÄYTTÖ

2. VALO

Rectangular metal grate with grid pattern, no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Mechanical assembly diagram showing a rotating component with directional arrow (no text or labels)

6. 6 ^TH SENSE -TOIMINNOT

SMART CLEAN

KYPSENNYSTAULUKON LUKEMINEN

ERI RUOKIEN KYPSENNYS SAMANAIKAISESTI

AIR FRY -KYPSENNYSTAULUKKO

Technical drawing of a rectangular mechanical component with mounting flanges and a central square hole (no text or symbols)

Illustration of a hand using a ladder to lift a vehicle, with motion lines indicating speed (no text or symbols)

Diagram illustrating mechanical assembly steps with labeled components a and b, showing motion directions and component placement.

Diagram illustrating mechanical assembly steps with labeled components and directional arrows

Diagram illustrating a mechanical or electrical process with labeled components and directional arrows, including symbols like '1' and '2'.

Diagram of a hand holding a device with attached cables and a circular sensor icon (no text or symbols)

Hand holding a device with arrows pointing to a component, no visible text or symbols

Diagram of a hand holding a device with two arrows indicating connection points (no text or symbols present)

VIANETSINTÄ

MERCI D'AVOIR CHOISI UN PRODUIT WHIRLPOOL

Diagram of a 3D printer with a QR code overlay, no text or symbols present

DESCRIPTION DU PRODUIT

1 2 3 4 5 6 7 8 9 1 2 3 4 5 6 7 8 9

6th sense S 13 4 5 6 7 28 9 6th sense ECO 8:8:89 °C s

1. ÉCRAN DE GAUCHE

2. LAMPE

Exterior view of a rectangular metal grate or filter structure (no text or symbols visible)

Pure mechanical assembly diagram showing diagonal metal rods and a curved bracket with an arrow indicating direction (no text or symbols)

Mechanical assembly diagram showing a rotating shaft and housing with directional arrows (no text or labels)

Simple line drawing of a rectangular panel with mounting holes and a central square hole (no text or symbols)

Illustration of a hand installing or adjusting a ladder on an electrical panel (no text or symbols visible)

Diagram illustrating mechanical assembly steps with labeled components a and b, showing motion directions and component placement.

Diagram illustrating mechanical assembly steps with labeled components a and b, showing motion directions and component placement.

Diagram showing a hand holding a device with labeled parts and motion indicators, including '1' and '2' annotations.

Line drawing of a hand holding a device with cables and a circular sensor icon (no text or symbols)

Hand holding a car door with a sensor icon and two arrows pointing to the handle (no text or symbols present)

Diagram of a hand holding a device with two arrows indicating cable or connection (no text or symbols present)

DÉPANNAGE

ZAHVALJUJEMO VAM NA KUPOVINI PROIZVODA WHIRLPOOL

Kako bismo vam mogli pružiti potpuniju pomoć, registrirajte svoj proizvod na adresi www.register10.eu

Pažljivo pročitajte sigurnosne upute prije upotrebe uređaja.

SKENIRAJTE QR KOD NA SVOM UREĐAJU DA BISTE DOBILI VIŠE INFORMACIJA

Diagram of a printer with a QR code overlay, no text or symbols present

OPIS PROIZVODA

1 2 3 4 5 6 7 8 9 1 2 3 4 5 6 7 8 9

6th sense S 13 4 5 6 7 28 9 6th sense ECO 9:38:39 °C s

1. LIJEVI ZASLON

2. SVJETLO

Pure mechanical assembly diagram showing diagonal braces and mounting brackets without any text or symbols

Uklonite vodilice rešetki iz pećnice i uklonite zaštitnu plastiku s kliznih vodilica. Pričvrstite gornju kopču vodilice na vodilicu rešetke i do kraja je klizno pomaknite. Donju kopču spustite u položaj.

Vodilicu učvrstite tako da čvrsto pritisnete donji dio kopče na vodilicu rešetke. Provjerite mogu li se vodilice slobodno pomicati. Ove korake ponovite na drugoj vodilici rešetke na istoj razini.

Mechanical assembly diagram showing a rotating component with a curved arrow indicating motion (no text or symbols)

Simple line drawing of a rectangular metal plate with mounting flanges (no text or symbols)

Illustration of a hand using a ladder to lift a vehicle (no text or symbols visible)

Kako biste na najbolji način iskoristili svojstva samočišćenja katalitičkih ploča preporučujemo da pećnicu oko jedan sat zagrijavate na 200 °C pomoću funkcije „Konvekcijsko pečenje“. Za to vrijeme pećnica mora biti prazna. Zatim pustite da se uređaj ohladi prije no što uklonite ostatke jela neabrazivnom spužvom.

Napomena: Upotreba nagrizajućih ili abrazivnih sredstava za čišćenje, hrapavih četki, sredstva za ribanje ili raspršivača za čišćenje pećnice mogla bi oštetiti katalitičku površinu i uništiti njena svojstva samočišćenja.

Obratite se našem postprodajnom servisu ako trebate zamjenske ploče.

ZAMJENA ŽARULJE

Diagram illustrating mechanical assembly steps with labeled components and directional arrows

1. Zatvorite vrata koliko god to možete. Čvrsto uhvatite vrata s obje ruke; ne držite ih za ručku. Vrata jednostavno skinite tako da ih nastavljate zatvarati dok ih istovremeno vučete prema gore dok se ne otpuste iz ležišta. Stavite vrata sa strane, oslanjajući ih na meku površinu.

~15° a b

1. Ponovno postavite vrata pomičući ih prema pećnici, poravnavajući kuke šarki s ležištima i učvršćujući gornji dio na njegovo ležište.

2. Spustite vrata pa ih otvorite do kraja. Šarke spustite u njihov početni položaj: provjerite jeste li ih do kraja spustili.

Diagram illustrating mechanical assembly steps with labeled components and directional arrows

Diagram illustrating a mechanical or electrical device with labeled parts and directional arrows, likely illustrating signal or motion paths.

1. Izvucite grijač i malo ga spustite.

Hand holding a device with attached cables and a circular sensor icon (no text or symbols)

Hand holding a device with two arrows pointing to it, no visible text or symbols

1. Za ponovno namještanje grijača, podignite lagano ga povlačeći prema sebi i provjerite je li sjeo na bočne nosače.

Diagram of a hand holding a device with two arrows indicating connection or movement, no text or symbols present

RJEŠAVANJE PROBLEMA

Problem Mogući uzrok Rješenje
Pećnica ne radi.	Nestalo je struje.Došlo je do isključenja iz mreže.	Provjerite ima li struje u mreži i je li pećnica ukopčana u struju.Isključite i ponovno uključite pećnicu kako biste provjerili javlja li se kvar i dalje.
Ako zaslon pokazuje slovo „F“ iza kojeg slijedi broj.	Softverski problem.	Obratite se dežurnom pozivnom centru i navedite broj iza slova „F“.
Tekst na zaslonu nije jasan i čini se da je u kvaru.	Postavljen je neki drugi jezik.	Obratite se pozivnom centru.
Ciklus kuhanja sa sondom završio je bez jasnog uzroka ili se na zaslonu prikazuje pogreška F3E3.	Sonda za hranu nije ispravno priključena.	Provjerite priključak sonde za hranu.

Pravila, standardne dokumente i dodatne informacije o proizvodu možete pronaći tako da:

• Koristeći QR kod na Vašem uređaju
- Posjetite naše web-mjesto docs.whirlpool.eu/docs
- Možete i kontaktirati naš postprodajni servis (broj telefona potražite u knjižici jamstva). Kada se obraćate našem postprodajnom servisu navedite kodove navedene na identi kacijskoj pločici proizvoda.

®/TM/© 2025 Whirlpool. Proizvedeno prema licenci.

KÖSZÖNJÜK, HOGY A WHIRLPOOL TERMÉKÉT VÁLASZTOTTA

Diagram showing a 3D printer with a QR code inserted into it, likely illustrating a scanning process or authentication.

TERMÉKLEÍRÁS

1 2 3 4 5 6 7 8 9 1 2 3 4 5 6 7 8

13 4 5 6 7 28 9 6th sense 6th sense 9 ECO 8:8:89 °C s

1. BAL OLDALI KIJELZÖ

2. VILÁGÍTÁS

Pure mechanical assembly diagram showing parallel rods and a hanging weight (no text or symbols)

Mechanical assembly diagram showing a curved arrow indicating motion or force direction (no text or symbols)

Technical drawing of a rectangular mechanical component with mounting flanges and a central square hole (no text or symbols)

Illustration of a hand using a ladder to lift a device (no text or symbols visible)

Diagram illustrating mechanical assembly steps with labeled components and directional arrows

Diagram illustrating mechanical assembly steps with labeled components a and b, showing motion directions and component placement.

Diagram illustrating a mechanical or electrical process with labeled components and directional arrows, including symbols like '1' and '2'.

Diagram of a hand holding a device with attached cables and a circular sensor icon (no text or symbols)

Hand holding a device with two arrows pointing to it, no text or symbols present

Diagram of a hand holding a device with two arrows indicating cable or connection (no text or symbols present)

A PROBLÉMÁK MEGOLDÁSA

Diagram showing a 3D printer with a QR code inserted into it, no text or symbols present.

6th sense S 13 4 5 6 7 28 9 6th sense ECO 9:30:31°C s

1. PARTE SINISTRA DEL DISPLAY

2. LAMPADA

Pure mechanical assembly diagram showing diagonal braces and mounting brackets without any text or symbols

Mechanical assembly diagram showing a rotating shaft and housing (no text or symbols)

(SOLO IN ALCUNI MODELLI)

Technical drawing of a rectangular metal plate with mounting flanges (no text or symbols)

Illustration of a hand installing or adjusting a ladder inside a vehicle (no text or symbols visible)

Diagram illustrating mechanical assembly steps with labeled components and directional arrows

Diagram illustrating mechanical assembly steps with labeled components a and b, showing motion directions and component placement.

(SOLO IN ALCUNI MODELLI)

Diagram illustrating a mechanical or electrical process with labeled components and directional arrows, including symbols like '1' and '2'.

Diagram of a hand holding a device with attached cables and a circular sensor icon (no text or symbols)

Hand holding a device with two arrows pointing to a component, no visible text or symbols

Diagram of a hand holding a device with two arrows indicating connection points (no text or symbols present)

Diagram of a 3D printer with a QR code overlay, no text or symbols present

GAMINIO APRAŠYMAS

1 2 3 4 5 6 7 8 9 1 2 3 4 5 6 7 8 9

6th sense S 13 4 5 6 7 28 9 6th sense ECO 8:8:89 °C s

1. KAIRYSIS EKRANAS

2. LEMPUTÉ

Pure mechanical assembly diagram showing diagonal braces and a double-headed arrow (no text or symbols)

Mechanical assembly diagram showing a rotating component with directional arrow (no text or labels)

KEPIMAS ORE/KONVEKCINIS KEPSNYS

Simple line drawing of a rectangular panel with mounting holes and a central square hole (no text or symbols)

Illustration of a hand using a ladder to lift a vehicle, with motion lines indicating speed (no text or symbols)

Diagram illustrating mechanical assembly steps with labeled components a and b, showing motion directions and component placement.

1. Uždarykite dureles.

Dureles láikykite tvirtai abiem rankom – nelaikykite suème už rankenos.

Diagram illustrating mechanical assembly steps with labeled components a and b, showing motion directions and component placement.

Diagram illustrating a mechanical or electrical process with labeled components and directional arrows, including a circular signal pattern and numbered parts 1 and 2.

Hand holding a device with attached cables and a circular sensor icon (no text or symbols)

Hand holding a device with arrows pointing to a circular component (no text or symbols visible)

Diagram of a hand holding a device with a curved cable and sensor icon, no text or symbols present

TRIKČIŲ ŠALINIMAS

Diagram of a 3D printer with a QR code overlay, no text or symbols present

IZSTRĀDĀJUMA APRAKSTS

1 2 3 4 5 6 7 8 9 1 2 3 4 5 6 7 8 9

6th sense S 13 4 5 6 7 28 9 6th sense ECO 9:30:31°C s

1. DISPLEJS KREISAJÄ PUSË

2. APGAISMOJUMS

4. IESLÊGTS/IZSLÊGTS

Pure mechanical assembly diagram showing diagonal braces and a double-headed arrow (no text or symbols)

Mechanical assembly diagram showing a rotating shaft and housing with a curved arrow indicating motion (no text or symbols)

Simple line drawing of a rectangular metal plate with mounting flanges (no text or symbols)

Illustration of a hand installing or adjusting a ladder on a device (no text or symbols visible)

Diagram illustrating mechanical assembly steps with labeled components and directional arrows

Diagram illustrating a mechanical device with labeled parts (a) and (b), showing motion directions and component placement.

Diagram illustrating a mechanical or electrical system with labeled components and directional arrows, including symbols like '1' and '2'.

1. Nedaudz izvelciet uz āru sildelementu un nolaidiet to.

Diagram of a hand holding a device with cables and sensors, no text or symbols present

Hand holding a device with two arrows pointing to a component (no text or symbols visible)

Diagram of a hand holding a device with two curved arrows indicating motion or connection (no text or symbols present)

PROBLÉMU RISINĀŠANA

Diagram of a 3D printer with a QR code overlay, no text or symbols present

PRODUCTBESCHRIJVING

1 2 3 4 5 6 7 8 9 1 2 3 4 5 6 7 8 9

6th sense S 1 3 4 5 6 7 2 8 6th sense 9 8:9:8:8 °C ECO

1. LINKER DISPLAY

2. LAMP

Simple line drawing of a rectangular plate with horizontal lines and a grid pattern (no text or symbols)

Simple line drawing of a square plate with dashed edges and a separate curved bracket (no text or symbols)

Simple line drawing of a rectangular frame with rounded corners and a small bracket at the bottom right (no text or symbols)

Two metallic cylindrical metal rods with flanged ends, no text or symbols visible

Metallic tray with grid pattern, no visible text or symbols

Pure mechanical assembly diagram showing diagonal braces and a double-headed arrow (no text or symbols)

Remove the shelf guides from the oven and remove the protective plastic from the sliding runners.

Mechanical assembly diagram showing a rotating component with a curved arrow indicating motion (no text or symbols)

Turn the selection knob to select the rated current, then press to confirm.

When the °C/°F icon flashes on the display, turn the knob to change the value, then press to confirm and continue to alter the settings that follow (if possible).

If necessary, turn the knob to set the time you want cooking to end, then press to confirm and start the function.

Simple line drawing of a rectangular metal plate with mounting flanges and a central square hole (no text or symbols)

Illustration of a hand using a ladder to lift a device, with motion lines indicating airflow (no text or symbols)

Diagram illustrating mechanical assembly steps with labeled components and directional arrows

Diagram illustrating mechanical assembly steps with labeled components a and b, showing motion directions and component placement.

Diagram illustrating airflow or signal transmission with labeled components and directional arrows

Hand placing a device into a rack with a circular sensor icon (no text or symbols visible)

Hand holding a device with wires and a circular sensor icon, no text or symbols present

Diagram of a hand holding a device with arrows indicating motion or signal flow (no text or symbols present)

PROBLEEMOPLOSSING

TAKK FOR AT DU KJ∅PTE ET WHIRLPOOL-PRODUKT

Diagram of a 3D printer with a QR code overlay, no text or symbols present

PRODUKTBESKRIVELSE

1 2 3 4 5 6 7 8 9 1 2 3 4 5 6 7 8 9

6th sense S 13 4 5 6 7 28 9 6th sense ECO 8:8:89 °C s

1. VENSTRE DISPLAY

2. LYS

Simple line drawing of a rectangular plate with horizontal slats (no text or symbols)

Simple line drawing of a rectangular tray with dashed lines and a separate curved bracket (no text or symbols)

Simple line drawing of a rectangular frame with evenly spaced notches and a small curved line at the bottom right (no text or symbols)

Two metallic cylindrical metal rods with flanges, shown from different angles (no text or symbols)

Exterior view of a rectangular metal grate or filter structure (no text or symbols visible)

SETTE INN GLIDESKINNENE (HVIS TIL STEDE)

Pure mechanical assembly diagram showing diagonal braces and a double-headed arrow (no text or symbols)

TRADISJONELL STEKING

HURTIGFORVARMING FREMSPOLING

For hurtig forvarming av ovnen.

TURBO GRILL

VEDLIKEHOLD OG RENHOLD

Simple line drawing of a rectangular metal plate with mounting flanges (no text or symbols)

Illustration of a hand using a ladder to lift a vehicle, with motion lines indicating speed (no text or symbols)

Diagram illustrating mechanical assembly steps with labeled components and directional arrows

Diagram illustrating mechanical assembly steps with labeled components a and b, showing motion directions and component placement.

Diagram illustrating a mechanical or electrical process with labeled components and directional arrows, including symbols like '1' and '2'.

1. Trekk varmeelementet litt ut og senk det.

Diagram of a hand holding a device with attached cables and a circular sensor icon (no text or symbols)

Hand holding a device with two arrows pointing to a component (no text or symbols visible)

Diagram of a hand holding a device with two arrows indicating connection points (no text or symbols present)

PROBLEML∅SNING

Diagram of a 3D printer with a QR code overlay, no text or symbols present

OPIS PRODUKTU

1 2 3 4 5 6 7 8 9 1 2 3 4 5 6 7 8 9

6th sense S 13 4 5 6 7 28 6th sense 9 ECO 8:8:89 °C s

1. WYŚWIETLACZ Z LEWEJ STRONY

2. ŚWIATŁO

Pure mechanical assembly diagram showing diagonal metal rods and a bracket with an arrow indicating direction (no text or symbols)

miejscu.

Mechanical assembly diagram showing a rotating component with directional arrow (no text or labels)

At this point, open the door, place the food in the oven, close the door and start cooking by pressing ▶

To extend the cooking time without changing the settings, turn the knob to set a new cooking time and press ▶

6. FUNKCJE 6 ^TH SENSE

FUNKCJA SMART CLEAN

Simple line drawing of a rectangular metal plate with mounting holes and a central square hole (no text or symbols)

Illustration of a hand installing or adjusting a ladder inside an electrical panel (no text or symbols visible)

Diagram illustrating mechanical assembly steps with labeled components and directional arrows

Diagram illustrating mechanical assembly steps with labeled components a and b, showing motion directions and component placement.

Diagram illustrating a mechanical or electrical device with labeled components and signal waves, showing hand positioning and motion indicators.

Diagram of a hand holding a device with attached cables and a circular sensor icon (no text or symbols)

Hand holding a device with wires and a circular sensor icon, no visible text or symbols

Diagram of a hand holding a device with arrows indicating motion or signal flow (no text or symbols present)

ROZWIĄZYWANIE PROBLEMÓW

Diagram showing a 3D printer with a QR code inserted into the front panel, likely for scanning or data entry.

6th sense S 13 4 5 6 7 28 6th sense 9 ECO ECO

1. VISOR ESQUERDO

2. ILUMINAÇÃO

Para acender/desligar a luz.

3. RETROCEDER

Simple line drawing of a rectangular metal tray with vertical slats (no text or symbols)

Simple line drawing of a square plate with dashed inner edges and a separate curved bracket at the bottom (no text or symbols)

TABULEIRO PARA ASSAR *

Line drawing of a rectangular electronic device with mounting holes and a small bracket at the bottom right (no text or symbols)

CALHAS DESLIZANTES*

Two metallic cylindrical metal bars with flanges, no text or symbols visible

Metallic rectangular grid pattern with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Mechanical assembly diagram showing a rotating component with directional arrow (no text or symbols)

FUNCTIONS (FUNÇÕES)

6TH SENSE

Simple line drawing of a rectangular panel with mounting holes and a central square (no text or symbols)

Illustration of a hand installing or adjusting a ladder on a vehicle chassis (no text or symbols visible)

REMOVER E REPOR A PORTA

Diagram illustrating a mechanical assembly process with labeled steps a and b, showing tool positioning and alignment.

Diagram illustrating mechanical assembly steps with labeled components a and b, showing motion directions and component placement.

Diagram illustrating a mechanical or electrical device with labeled components and signal wave pattern

Line drawing of a hand holding a device with attached cables and sensors (no text or symbols)

Hand holding a device with wires and a circular sensor icon, no visible text or symbols

Diagram of a hand holding a device with two arrows indicating connection or movement, no text or symbols present

VĂ MULȚUMIM CĂ AȚI ACHIZIȚIONAT UN PRODUS WHIRLPOOL

Diagram of a 3D printer with a QR code overlay, showing internal structure and no readable text or symbols.

DESCRIEREA PRODUSULUI

1 2 5 4 3 2 1 3 6 7 4 3 2 1 8 9

6th sense S 15 4 3 6 7 28 6th sense 9 ECO 31:39 °C s

1. AFIŞAJUL DIN STÂNGA

2. LUMINĂ

Technical line drawing of a mechanical assembly with no visible text or symbols

Mechanical assembly diagram showing a rotating component with directional arrows (no text or labels)

Simple line drawing of a rectangular metal plate with mounting holes (no text or symbols)

Illustration of a hand using a ladder to lift a vehicle (no text or symbols visible)

Diagram illustrating mechanical assembly steps with labeled components and directional arrows

Diagram illustrating a mechanical assembly with labeled parts (a) and (b), showing a press or clamp mechanism.

Diagram illustrating a mechanical or electrical device with labeled components and signal waves, showing hand positioning and motion indicators.

Line drawing of a hand holding a device with attached cables and sensors (no text or symbols)

Hand holding a device with wires and a circular sensor icon, no visible text or symbols

Diagram of a hand holding a device with two arrows indicating directional flow or movement, no text or symbols present.

REMEDIEREA DEFECTIUNILOR

Diagram of a 3D printer with a QR code overlay, showing no text or symbols on the device itself.

OPIS SPOTREBIČA

1 2 3 4 5 6 7 8 9 1 2 3 4 5 6 7 8

6th sense S 1 3 4 5 6 7 2 8 6th sense 9 ECO ECO

1. DISPLEJ NA L'AVEJ STRANE

2. SVETLO

Zapnutie/vypnutie svetla.

3. SPÄT

Simple line drawing of a rectangular plate with vertical slats (no text or symbols)

NÁDOBA NA ODKVAPKÁVANIE

Simple line drawing of a square frame with a small curved bracket on the right side (no text or symbols)

PLECH NA PEČENIE* POSUVNÉ BEŽCE *

Line drawing of a rectangular electronic device with mounting holes and a small bracket at the bottom (no text or symbols)

Two metallic cylindrical metal bars with flanges, no text or symbols visible

Exterior view of a rectangular metal grate or filter structure (no text or symbols visible)

Technical line drawing of a mechanical assembly with no visible text or symbols

Mechanical assembly diagram showing a rotating component with a curved arrow indicating motion (no text or symbols)

TEPLOTA / ÚROVEŇ PARY

Diagram illustrating mechanical assembly steps with labeled components and directional arrows

Diagram illustrating mechanical assembly steps with labeled components a and b, showing motion directions and component placement.

Diagram illustrating a mechanical or electrical device with labeled components and signal wave pattern

Line drawing of a hand holding a device with attached cables and sensors (no text or symbols)

Hand holding a device with wires and a circular sensor icon, no visible text or symbols

Diagram of a hand holding a device with two arrows indicating connection or movement, no text or symbols present

RIEŠENIE PROBLÉMOV

Diagram of a 3D printer with a QR code overlay, showing no text or symbols on the device itself.

Pred uporabo aparata pozorno preberite varnostna navodila.

OPIS IZDELKA

1 2 3 4 5 6 7 8 9 1 2 3 4 5

6th sense S 13 4 5 6 7 28 6th sense 9 ECO 89:88 °C s

1. LEVI PRIKAZOVALNIK

2. LUČ

Diagram illustrating mechanical assembly steps with labeled components and directional arrows

Diagram illustrating mechanical assembly steps with labeled components a and b, showing motion directions and component placement.

Z nežnim pritiskom preverite, ali sta zaporna vzvoda v pravilnem položaju.

"CLICK"

Diagram illustrating a hand holding a device with labeled parts and directional arrows, possibly indicating signal or motion paths.

1. Grelnik nekoliko izvlecite in ga postavite nižje.

Hand placing a cable or cable component into a device (no text or symbols visible)

Hand holding a device with two arrows pointing to it, no text or symbols visible

1. Grelnik nazaj v položaj namestite tako, da ga dvignete, rahlo povlečete k sebi in preverite, da je naslonjen na stranske nosilce.

Diagram of a hand holding a device with arrows indicating motion or signal flow (no text or symbols)

ODPRAVLJANJE TEŽAV

Diagram showing a 3D printer with a QR code inserted into the front panel, likely illustrating a scanning process or authentication.

OPIS PROIZVODA

1 2 3 4 5 6 7 8 9 1 2 3 4 5 6 7 8 9

1. Kontrolna tabla
2. Ventilator
3. Kružni grejač (nije vidljiv)
4. Vođice (nivo je prikazan na prednjem delu pećnice)
5. Vrata
6. Gornji grejač / roštilj
7. Sijalica
8. Pločica za identifikaciju (ne uklanjajte je)
9. Donji grejni element (nije vidljiv)

KONTROLNA TABLA

6th sense S 1 3 4 5 6 7 2 8 6th sense 9 ECO ECO

1. LEVI DISPLEJ

2. SVETLO

1. DISPLEJ SA DESNE STRANE

DODACI

ŽIČANA REŠETKA	PLEH ZA SAKUPLJANJE MASNOĆE	PLEH ZA PEČENJE* KLIZNE VOĐICE*	VOĐICE*
Koristi se za pripremu hrane ili kao držač za šerpe, kalupe za kolače i drugo posuđe za pripremu hrane u pećnici.	Koristi se kao pleh za pečenje mesa, ribe, povrća, fokače itd. ili je možete postaviti ispod žičane rešetke ako želite da prikupite saft od pečenja.	Koristi se za pečenje svih vrsta hleba i peciva, kao i pečenja, ribe u sopstvenom soku itd.	Da bi olakšale postavljanje ili uklanjanje dodataka.
PLEH ZA PRŽENJE VAZDUHOM*
Koristi se za pripremu hrane pomoću funkcije prženja vazduhom, tako što je pleh za pečenje postavljen na niži nivo radi prikupljanja mogućih mrvica ili masnoće. Može se prati u mašini za pranje sudova.	Količina i vrsta dodataka može se razlikovati u zavisnosti od kupljenog modela. Ostali pribor se može kupiti zasebno; za porudžbine i informacije, obratite se postprodajnom servisu.* Dostupno samo na određenim modelima

STAVLJANJE REŠETKI I DRUGIH DODATAKA

Technical line drawing of a mechanical assembly with no visible text or symbols

biste pričvrstili vodicu, donji deo žabice pričvrstite za nju. Vodite računa da se klizači slobodno kreću. Ponovite ove korake na drugoj vodici na istom nivou.

SMART CLEAN (PAMETNO ČIŠĆENJE)

Simple line drawing of a rectangular panel with mounting holes and a central square hole (no text or symbols)

Illustration of a hand installing or adjusting a ladder inside a device (no text or symbols visible)

Za najbolje korišćenje funkcije samočišćenja katalitičkih ploča, preporučujemo grejanje rerne na 200 °C oko sat vremena pomoću funkcije „Konvekciono Pečenje“. Tokom ovog procesa, pećnica mora biti prazna. Zatim ostavite uređaj da se ohladi pre nego što neabrazivnim sunderom skinete sve ostatke hrane.

Obratite pažnju na sledeće: Korišćenje korozivnih ili abrazivnih deterdženata, čvrstih četki, živce za sudove ili spreja za čišćenje pećnice može da ošteti katalitičku površinu i ugrozi njene karakteristike samočišćenja. Kontaktirajte postprodajni centar ako je potrebna zamena ploča.

ZAMENA LAMPICE

1. Isključite pećnicu iz struje.
2. Odvrnite poklopac lampe, zamenite sijalicu i vratite poklopac.
3. Ponovo priključite rernu na električnu mrežu.
   Obratite pažnju na sledeće: halogene sijalice od 40 W / 230 V, tip G9, T300.

Sijalica koja se koristi u ovom uređaju je posebno dizajnirana za kućne aparate i nije pogodna za sobno osvetljenje u domaćinstvu. (EC regulativa 244/2009) Sijalice su dostupne u našem postprodajnom servisu.

Diagram illustrating a mechanical assembly or disassembly process with labeled steps a and b, showing tool positioning and alignment.

1. Zatvorite vrata koliko god je moguće. Čvrsto držite vrata sa obe ruke – ne držite ih za dršku. Jednostavno skinite vrata tako što ćete nastaviti da ih zatvarate dok ih istovremeno povlačite nagore i oslobađate iz njihovog ležišta. Položite vrata da leže na jednoj strani, na mekanoj površini.

~15° a b

1. Ponovo postavite vrata tako što ćete ih podići ka pećnici, poravnajte kuke šarki sa ležištem i postavite gornji deo vrata u njihovo ležište.

2. Spustite vrata, a potom ih potpuno otvorite. Spustite kvačice na njihovu prvobitnu poziciju: Proverite da li ste ih spustili potpuno.

Diagram illustrating mechanical assembly steps with labeled components and directional arrows

Nežno ih pritisnite kako biste se uverili da su kvačice u dobrom položaju.

"CLICK"

1. Pokušajte da zatvorite vrata i proverite da li su u istoj ravni sa kontrolnom tablom. Ukoliko nisu, ponovite gore opisane korake: Vrata se mogu oštetiti ukoliko nisu nameštena kako treba.

SPUŠTANJE GORNJEG GREJAČA

(SAMO KOD NEKIH MODELA)

1. Uklonite bočne vodice.

1

1. Ukoliko želite da promenite položaj grejnog elementa, povucite ga malo prema sebi, vodeči računa pri tome da leži na bočnim osloncima.

2

TACK FÖR ATT DU HAR KÖPT EN PRODUKT FRÅN WHIRLPOOL

Pure mechanical assembly diagram showing diagonal metal rods and a bracket, without any text or symbols

Mechanical assembly diagram showing a rotating component with directional arrows (no text or labels)

Technical line drawing of a rectangular component with mounting flanges and a central square hole (no text or symbols)

Illustration of a hand using a ladder to lift a vehicle (no text or symbols visible)

Diagram illustrating mechanical assembly steps with labeled components and directional arrows

Diagram illustrating mechanical assembly steps with labeled components a and b, showing motion directions and component placement.

Diagram illustrating a mechanical or electrical component with labeled parts 1 and 2, showing motion patterns and directional arrows.

Hand holding a device with a cable and sensor icon, no visible text or symbols

Hand holding a device with two arrows pointing to the handle (no text or symbols visible)

Diagram of a hand holding a device with arrows indicating motion or signal flow (no text or symbols)

FELSÖKNING

®/TM/© 2025 Whirlpool. Producerad under licens.

Diagram showing a 3D printer with a QR code inserted into the front panel, likely for scanning or data entry.

ОПИС ВИРОБУ

1 2 3 4 5 6 7 8 9 1 2 3 4 5 6 7 8 9

6th sense S 13 4 5 6 7 28 6th sense 9 ECO 88:89 °C s

1. ЛІВИЙ ДИСПЛЕЙ

2. СВІТЛО

Exterior view of a rectangular metal grate or filter structure (no text or symbols visible)

Technical line drawing of a mechanical assembly with no visible text or symbols

Mechanical assembly diagram showing a rotating component with directional arrow (no text or labels)

Turn the selection knob to select the unit of measurement, then press to confirm.

At this point, open the door, place the food in the oven, close the door and start cooking by pressing ▶

Simple line drawing of a rectangular panel with mounting holes and a central square hole (no text or symbols)

Illustration of a hand installing or adjusting a ladder on a device (no text or symbols visible)

Diagram illustrating a mechanical assembly with labeled parts (a) and (b), showing motion directions and component placement.

Diagram illustrating mechanical assembly steps with labeled components a and b, showing motion directions and component placement.

Diagram illustrating a mechanical or electrical system with labeled components and directional arrows, including a circular signal pattern and two numbered parts.

Hand inserting a cable into a device (no text or symbols visible)

Diagram showing a hand holding a device with two arrows pointing to it, indicating a process or operation.

Diagram of a hand holding a device with arrows indicating motion or signal flow, no text or symbols present

Diagram of a 3D printer with a QR code overlay, showing no text or symbols on the device itself.

6th sense S 1 3 4 5 6 7 2 8 6th sense 9 ECO 8:0:0:0°C s

Technical diagram of a mechanical assembly with diagonal braces and a directional arrow (no text or symbols)

Mechanical assembly diagram showing a rotating component with directional arrow (no text or labels)

Simple line drawing of a rectangular panel with mounting flanges and a central square hole (no text or symbols)

Illustration of a hand using a ladder to lift a device, emitting sound waves (no text or symbols)

(244/2009) ت Winning from the purpose of the purpose.

Diagram illustrating mechanical assembly steps with labeled components and directional arrows

Mechanical component diagram showing a lever mechanism with a checkmark indicator (no text or symbols present)

1. hoالGlafalwavfucinl###d##m#ca#th#e#o#o#he#n##k#.O#n

lm###y##c##d##h##b####p##d##d##d##d##d##d##d##d##d##d##d##d##d##d##d##d##d##d##d##d##d##d##d##d##d##d##d##d##d##d##d##d##d##d##d##d##d##d##d##d##d##d##d##d##d##d##d##d##d##d##ed

m###y

Hand holding a device panel with a circular icon and signal waves (no text or symbols)

Hand holding a device with two arrows pointing to a component, no visible text or symbols

Diagram illustrating a mechanical or electrical system with labeled components and directional arrows, including a circular signal pattern and a numbered component.

Diagram of a hand inserting cables into a device panel with signal waves (no text or symbols)
