USER MANUAL YWMMS3230SW WHIRLPOOL

MICROWAVE OVEN HOOD COMBINATION OWNER'S MANUAL MANUEL DE L'UTILISATEUR DE L'ENSEMBLE FOUR À MICRO-ONDES/HOTTE

Table of Contents/Table des matières

MICROWAVE OVEN SAFETY....2

Microwave Oven Safety 2

MICROWAVE OVEN MAINTENANCE AND CARE....4

General Cleaning....4

INSTALLATION INSTRUCTIONS 4

REQUIREMENTS......4

Tools and Parts 4

Parts Supplied....5

Location Requirements 6

Product Dimensions 6

Installation Dimensions 6

Electrical Requirements 7

INSTALLATION 7

Prepare Microwave Oven Hood Combination....7

Separate Cardboard Templates (On some models) 8

Find the Installation Template (On some models) 8

Installation Types 8

Find the Wall Stud(s) 9

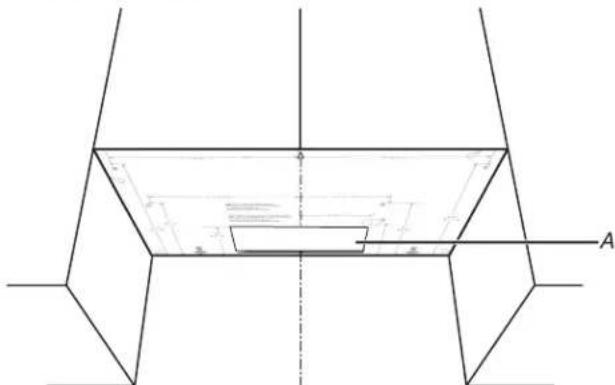

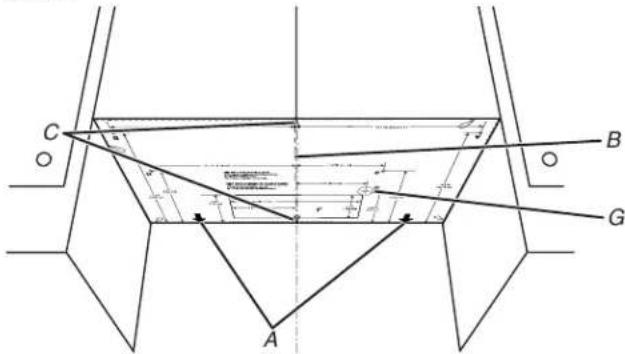

Mark and Drill Upper Cabinet.... 10

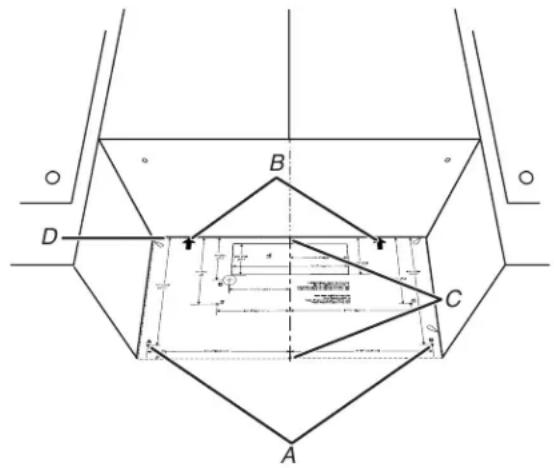

Mark and Drill Rear Wall 11

Attach Mounting Plate to Wall 11

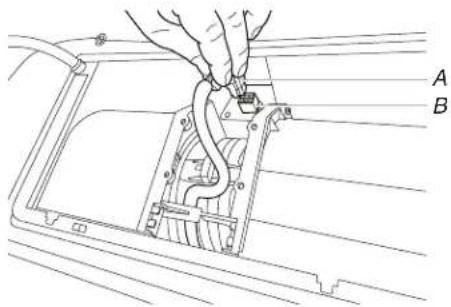

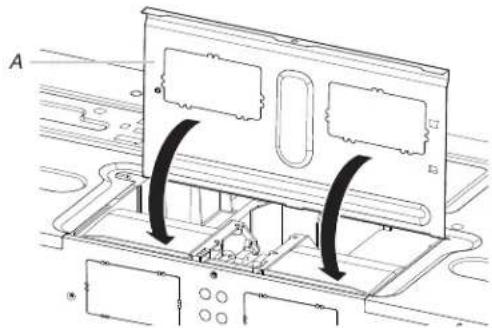

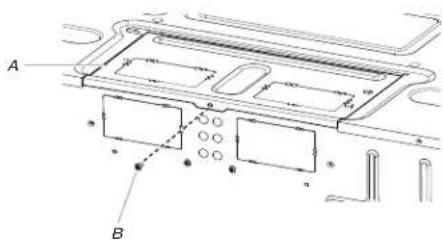

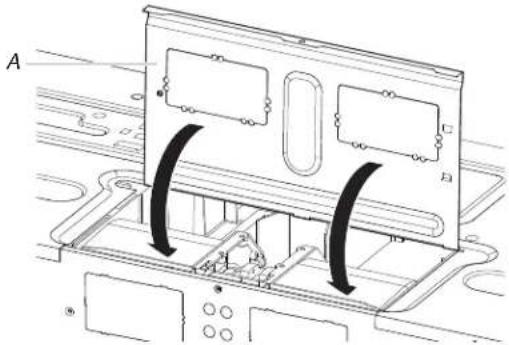

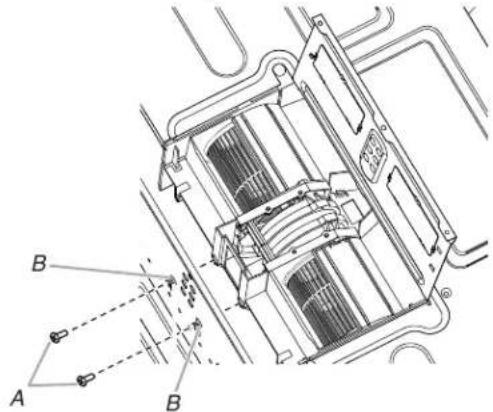

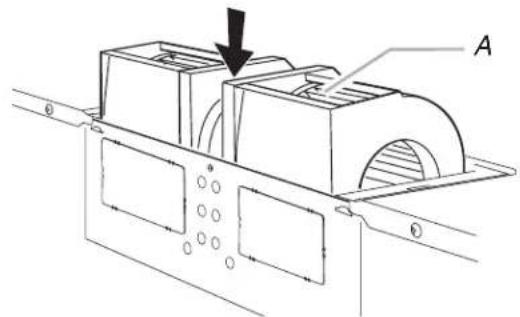

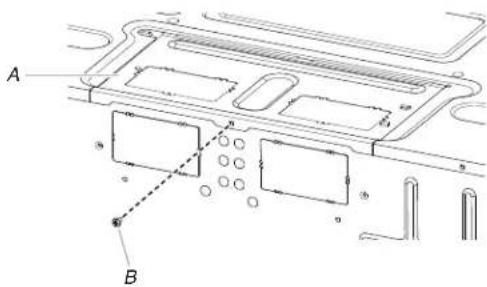

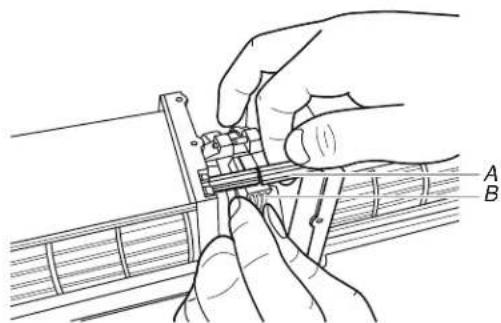

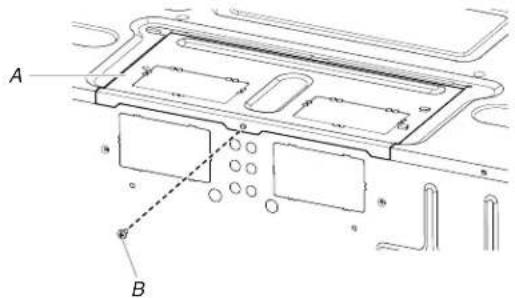

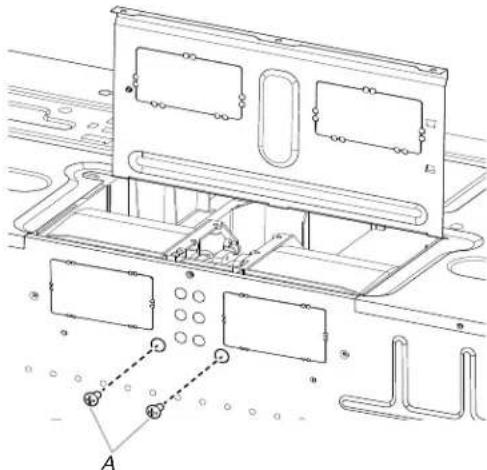

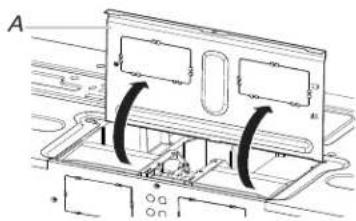

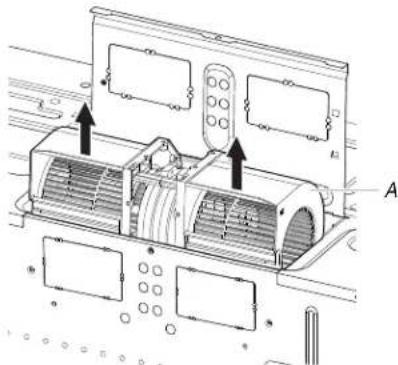

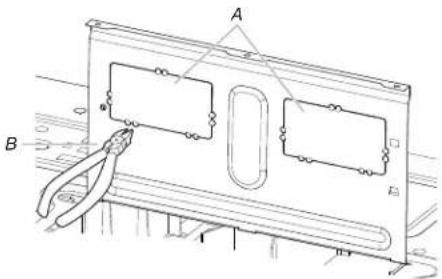

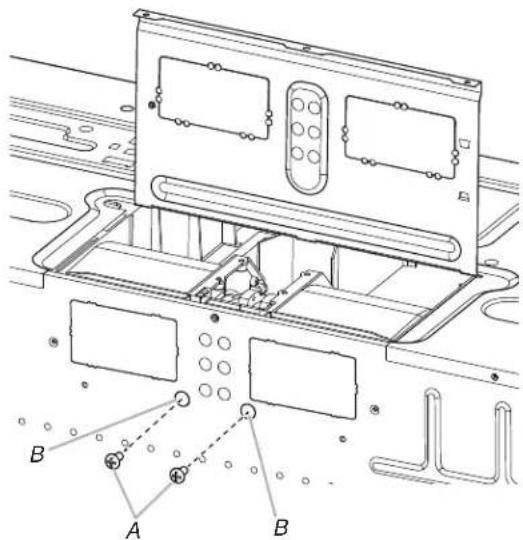

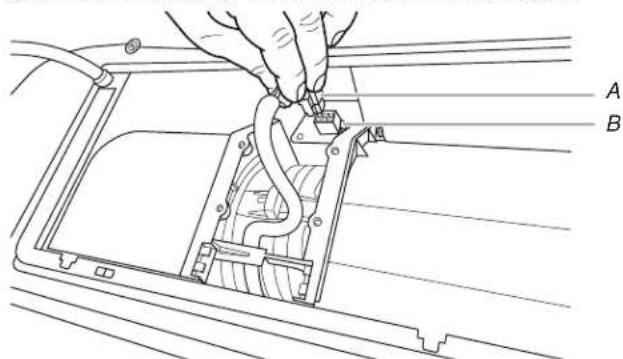

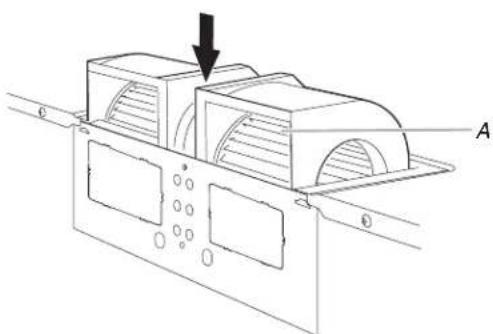

Rotate Blower Motor.... 12

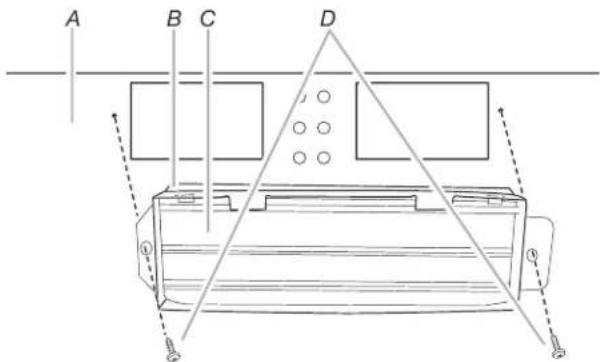

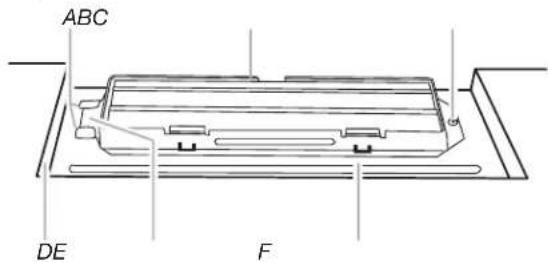

Install Damper Assembly 15

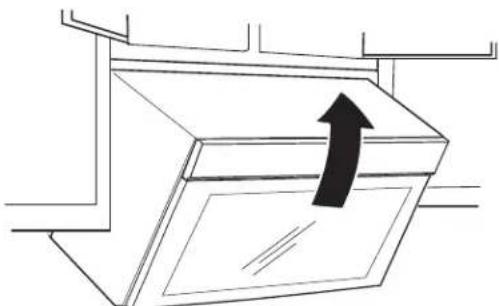

Install the Microwave Oven 16

Complete Installation 17

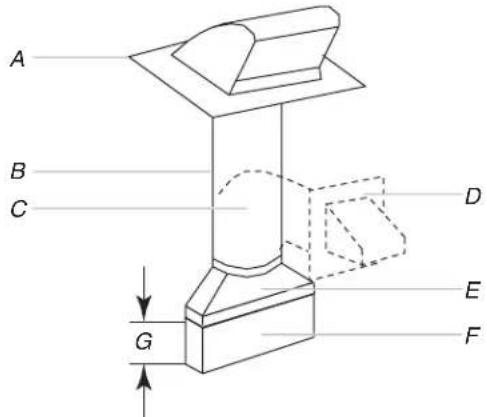

VENTING DESIGN SPECIFICATIONS.... 17

SÉCURITÉ DU FOUR À MICRO-ONDES 20

Black and white barcode image with vertical lines and dots

W11737968A

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING." These words mean:

DANGER

WARNING

You can be killed or seriously injured if you don't immediately follow instructions.

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

IMPORTANT SAFETY INSTRUCTIONS

When using electrical appliances basic safety precautions should be followed, including the following:

WARNING: To reduce the risk of burns, electric shock, fire, injury to persons, or exposure to excessive microwave energy:

• Read all instructions before using the appliance.
• Read and follow the specific "PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY" found in this manual.
  This appliance must be grounded. Connect only to properly grounded outlet. See "GROUNDING INSTRUCTIONS" found in this section.
  ■ Install or locate this appliance only in accordance with the provided Installation Instructions.
  ■ Some products such as whole eggs and sealed containers - for example, closed glass jars - are able to explode and should not be heated in this oven.
  ■ Use this appliance only for its intended use as described in the manual. Do not use corrosive chemicals or vapors in this appliance. This type of oven is specifically designed to heat, cook, or dry food. It is not designed for industrial or laboratory use.
  ■ HOT CONTENTS CAN CAUSE SEVERE BURNS. DO NOT ALLOW CHILDREN TO USE THE MICROWAVE. Use caution when removing hot items.
  ■ Do not operate this appliance if it has a damaged cord or plug, if it is not working properly, or if it has been damaged or dropped.
  ■ This appliance should be serviced only by qualified service personnel. Contact nearest authorized service facility for examination, repair, or adjustment.
  ■ Do not cover or block any openings on the appliance.
• Do not store this appliance outdoors. Do not use this product near water – for example, near a kitchen sink, in a wet basement, near a swimming pool, or similar locations.
  ■ Do not immerse cord or plug in water.
• Keep cord away from heated surfaces.
  ■ Do not let cord hang over edge of table or counter.
  ■ Do not use replacement parts that have not been recommended by the manufacturer (e.g. parts made at home using a 3D printer).
  ■ See door surface cleaning instructions in the “Microwave Oven Maintenance and Care” section.

■ Liquids, such as water, coffee, or tea are able to be overheated beyond the boiling point without appearing to be boiling. Visible bubbling or boiling when the container is removed from the microwave oven is not always present. THIS COULD RESULT IN VERY HOT LIQUIDS SUDDENLY BOILING OVER WHEN THE CONTAINER IS DISTURBED OR A UTENSIL IS INSERTED INTO THE LIQUID.
■ Do not operate any heating or cooking appliance beneath this appliance.
■ Do not mount unit over or near any portion of a heating or cooking appliance.
■ Do not mount over a sink.
■ Do not store anything directly on top of the appliance surface when the appliance is in operation.
■ Clean Ventilating Hoods Frequently - Grease should not be allowed to accumulate on hood or filter.
■ When flaming foods under the hood, turn the fan on.
■ Suitable for use above both gas and electric cooking equipment.
■ Intended to be used above ranges with maximum width of d 36" (91.44 cm).
■ Use care when cleaning the vent-hood filter. Corrosive cleaning agents, such as lye-based oven cleaners, may damage the filter.
■ To reduce the risk of fire in the oven cavity:
- Do not overcook food. Carefully attend appliance when paper, plastic, or other combustible materials are placed inside the oven to facilitate cooking.
- Remove wire twist-ties from paper or plastic bags before placing bag in oven.
- If materials inside the oven ignite, keep oven door closed, turn oven off, and disconnect the power cord, or shut off power at the fuse or circuit breaker panel.
- Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils, or food in the cavity when not in use.

SAVE THESE INSTRUCTIONS

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

(a) Do not attempt to operate this oven with the door open (c)Do not operate the oven if it is damaged. It is particularly open-door operation can result in harmful exposure to important that the oven door close properly and that there is microwave energy. It is important not to defeat or tamper with damage to the: the safety interlocks. (1) Door (bent)
(b) Do not place any object between the oven front face and t(2) Hinges and latches (broken or loosened), door or allow soil or cleaner residue to accumulate on sealing. Door seals and sealing surfaces surfaces.

(d) The oven should not be adjusted or repaired by anyone except properly qualified service personnel.

IMPORTANT: Before cleaning, make sure all controls are off and the microwave oven is cool. Always follow label instructions on cleaning products.

Soap, water, and a soft cloth or sponge are suggested first, unless otherwise noted.

STAINLESS STEEL AND BLACK STAINLESS STEEL (on some models)

NOTE: To avoid damage to stainless steel surfaces, do not use soap-filled scouring pads, abrasive cleaners, Cooktop Cleaner, steel-wool pads, gritty washcloths, or abrasive paper towels. Damage may occur to stainless steel surfaces, even with one-tim or limited use.

Rub in direction of grain to avoid damaging.

Cleaning Method:

■ Affresh ^®† Stainless Steel Cleaners Part Number W10355016 (not included) or affresh ^® Stainless Steel Cleaning Wipes Part Number W1055049 (not included): See the Quick Start Guide for ordering information.

■ Vinegar for hard water spots.

MICROWAVE OVEN DOOR EXTERIOR

Cleaning Method:

■ Glass cleaner and a soft cloth or sponge: Apply glass cleaner to soft cloth or sponge, not directly on panel.

■ Affresh ^® Kitchen Appliance Cleaners Part Number W10355010 (not included): See “Online Ordering Information” section from Quick Start Guide to order.

NONSTICK CAVITY COATING (on some models)

To avoid damage to the microwave oven cavity, do not use metal or sharp utensils or scrapers or any type of abrasive cleanser or scrubbers.

To avoid damage to the microwave oven cavity, do not use soap-filled scouring pads, abrasive cleaners, steel-wool pads, gritty washcloths, or some paper towels.

On stainless steel models, rub in direction of grain to avoid damaging.

The area where the microwave oven door and frame touch when closed should be kept clean.

Cleaning Method:

Average soil

■ Mild, nonabrasive soaps and detergents: Rinse with clean water and dry with soft, lint-free cloth.

Heavy soil

■ Mild, nonabrasive soaps and detergents: Heat 1 cup (250 mL) of water for 2 to 5 minutes in microwave oven. Steam will soften soil. Rinse with clean water and dry with soft, lint-free cloth.

Odors

■ Lemon juice or vinegar: Heat 1 cup (250 mL) of water with 1 tablespoon (15 mL) of either lemon juice or vinegar for 2 to 5 minutes in microwave oven.

GREASE FILTERS

■ Mild cleanser and scouring pad
■ Dishwasher

INSTALLATION INSTRUCTIONS d REQUIREMENTS

e s t o o l s and P a r t s

Tools Needed

■ Measuring tape
■ Pencil
■ Scissors
■ Masking tape or thumbtacks
Drill

No. 2 Phillips screwdriver

■ Stud finder

■ No. 3 Phillips screwdriver for 1/4-20 x 3" (76 mm) bolts

■ 3/16" (5 mm), 3/8" (10 mm), 5/8" (16 mm) drill bits

■ 3/4" (19 mm) hole saw

■ Keyhole saw

■ Diagonal wire cutting pliers

■ 7/16" (11 mm) socket wrench (or box wrench) for 1/4" x 2" (6.4 mm x 51 mm) lag screws

■ 1 1/2" (38 mm) diameter hole drill bit for wood or metal cabinet

■ Caulking gun and weatherproof caulking compound

■ Duct tape.

Materials Needed

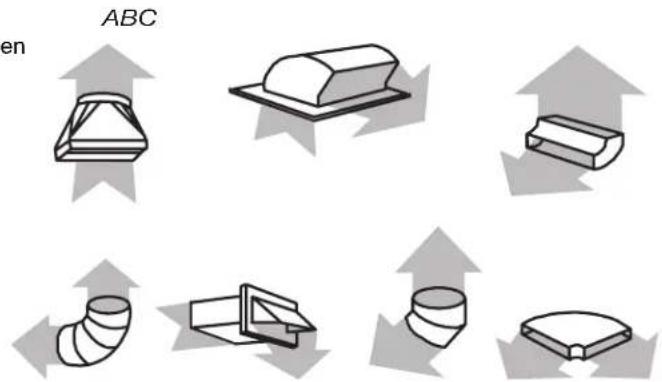

■ Standard fittings for wall or roof venting. See the "Venting Design Specifications" section.

Parts Supplied

Part Drawing Description	Qty Where can find?
Screw Pack		3/16-24 x 3" round-head bolts	2	A. Outer foam in the carton box
		1/4-20 x 3" flat-head bolts	2
		Washers 2
		3/16" toggle nuts 2
		1/4" x 2" lag screws 2
		#6 x 3/8" Sheet metal screws	2
		Power supply cord bushing	1
Damper		Damper for wall or roof venting	1
Literature Pack		Literature 1
Mounting Plate		Mounting plate 1

Check local codes. Check existing electrical supply. See "Electrical Requirements".

It is recommended that all electrical connections be made by a licensed, qualified electrical installer.

NOTE:

■ The hardware items listed here are for wood studs. For other types of wall structures, be sure to use appropriate fasteners.
■ Be sure to purchase only Whirlpool factory-certified parts and accessories for your appliance. Your installation may require additional parts. To order, see the "Online Ordering Information" section of the Quick Start Guide.

Location Requirements

Check the opening where the microwave oven will be installed. The location must provide:

■ Minimum installation dimensions. See the "Installation Dimensions" illustration.
■ Minimum one 2" x 4" (5.1 x 10.2 cm) wood wall stud and minimum 3/8" (1 cm) thickness drywall or plaster/lath within cabinet opening.
■ Support for weight of 150 lbs (68 kg) which includes microwave oven and items placed inside the microwave oven and upper cabinet.
■ Grounded electrical outlet inside upper cabinet. See the "Electrical Requirements" section.

NOTE:

If installing the microwave oven near a left sidewall, make sure there is at least 6" (15.2 cm) of clearance between the wall and the microwave oven so that the door can open fully.
■ Some models have a pocket handle. If installing the microwave near a right side wall, make sure there is at least 3" (7.6 cm) of clearance between wall and microwave oven so you can grab the handle integrated inside the door.
■ Some cabinet and building materials are not designed to withstand the heat produced by the microwave oven for cooking. Check with your builder or cabinet supplier to make sure that the materials used will not discolor, delaminate, or sustain other damages.

Special Requirements

For Wall Venting Installation Only:

■ Cutout must be free of any obstructions so that the vent fit properly and the damper blade opens freely and fully.

For Roof Venting Installation Only:

If you are using a rectangular-to-round transition piece, the 3" (7.6 cm) clearance needs to exist above the microwave oven so that the damper blade can open freely and fully. See "Rectangular to Round Transition" illustration in the "Venting Design Specifications" section.

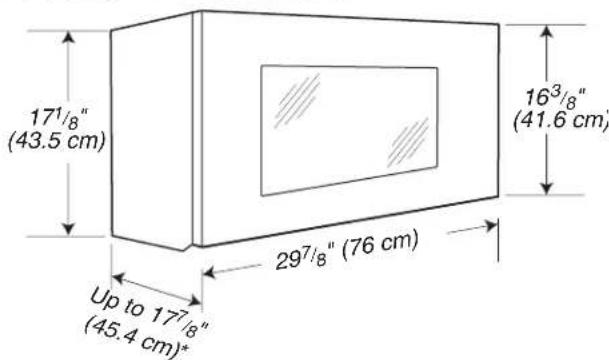

Product Dimensions

17½" (43.5 cm) 29½" (76 cm) Up to 17½" (45.4 cm)* 16³/₈" (41.6 cm)

*Overall depth of product will vary slightly depending on door design.

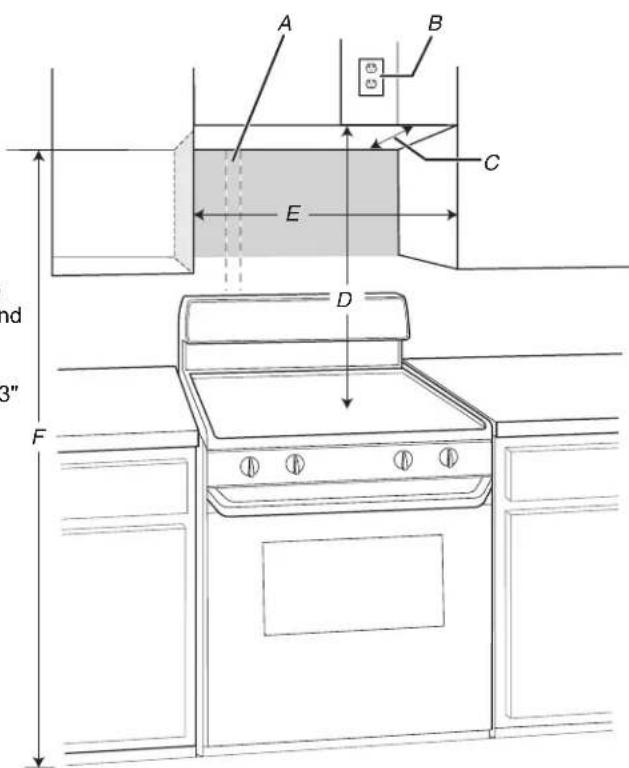

Installation Dimensions

NOTE: The grounded 3 prong outlet must be inside the upper cabinet. See the "Electrical Requirements" section.

A B C E D F nd 3" F

A. 2" x 4" (5.1 cm x 10.2 cm) wall stud
B. Grounded 3 prong outlet
C. 12" (30.5 cm) minimum, 14" (35.6 cm) maximum*

D. 30" (76.2 cm) typical**

E. 30" (76.2 cm) minimum

F. 66" (167.6 cm) minimum

Exact dimensions may vary depending on type of range/cooktop below.

*Upper cabinet and side cabinet depth: 12" (30.5 cm) minimum, 14" (35.6 cm) maximum*

**30" (76.2 cm) is typical for 66" (167.6 cm) installation height.

A B C

D B E

A. 12" (30.5 cm) to 14" (35.6 cm) depth of cabinet
B. Cabinet
C. Mounting plate
D. 14" (35.6 cm) to 15" (38.1 cm) depth of cabinet
E. Bump out mounting kit

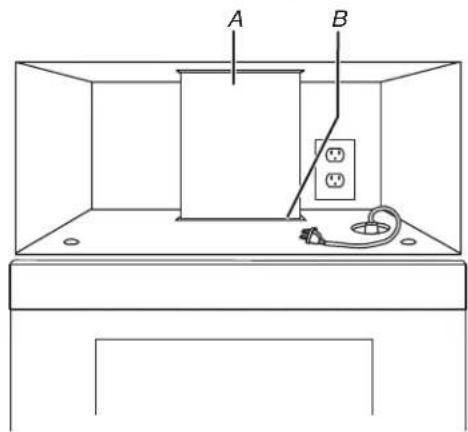

NOTE: To ensure good performance, do not obstruct top vent airflow. If cabinets are larger than 14" (35.6 cm) but no more than 15" (38.1 cm), use the bump out mounting kit replacing the mounting plate from the wall. The bump out mounting kit (part # W11185746) is not provided but can be purchased from Whirlpool.

To order, see the "Online Ordering Information" section of the Quick Start Guide.

For cabinets with other dimension's, we suggest selecting other Whirlpool Products.

Electrical Requirements

WARNING

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

GROUNDING INSTRUCTIONS

For a grounded, cord-connected appliance:

This appliance must be grounded. In the event of a malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current. This appliance is equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.

WARNING: Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or serviceman if you are in doubt as to whether the appliance is properly grounded. Do not modify the plug provided with the appliance: if it will not fit the outlet, have a proper outlet installed by a qualified electrician.

SAVE THESE INSTRUCTIONS

an

This device complies with Industry Canada ICES-001.

INSTALLATION

Prepare Microwave Oven Hood Combination

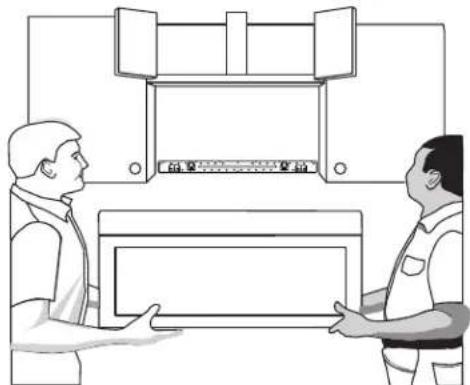

WARNING

Excessive Weight Hazard

Use two or more people to move and install or uninstall appliance.

Failure to do so can result in back or other injury.

1. To avoid possible damage to the work surface, cover the work surface.
2. Separate cardboard template from the carton box, see the "Separate cardboard template" section for details.
3. Remove the screw pack from the outer foam in the carton.
4. Remove the damper from the outer foam in the carton.
5. Remove the literature pack from the outer foam in the carton.
6. Remove shipping materials, tape and film from microwave.
7. Remove the mounting plate from the outer foam in the carton.
8. Tape the microwave oven door closed so that the door does not swing open while the microwave oven is being handled.

Observe all governing codes and ordinances.

Required:

■ A 120 V, 60 Hz, AC only, 15 A or 20 A electrical supply with a fuse or circuit breaker.

Recommended:

■ A time-delay fuse or time-delay circuit breaker.

■ A separate circuit serving only this microwave oven.

Separate Cardboard Templates (On Installation Types

some models)

This microwave oven is designed for adaptation to the following three types of ventilation, choose one type before installation.

Depending on your model, some models use the individual paper wall template and paper upper cabinet template for installation, then you can skip this section.

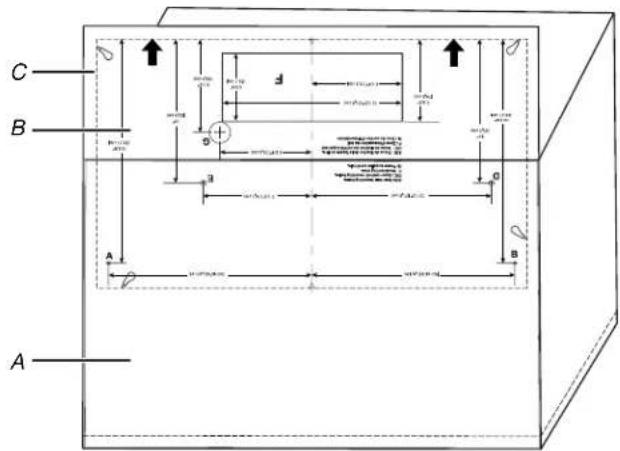

1. Cut along the dotted line to separate the cardboard template from the backside of the carton box. Set the cardboard template to the side and refer to it during the "Mark Rear Wall" and "Prepare Upper Cabinet" parts of installation.

C B A

A. Backside of the carton box
B. Cardboard template (Including Rear Wall template and Upper Cabinet template)
C. Dotted line

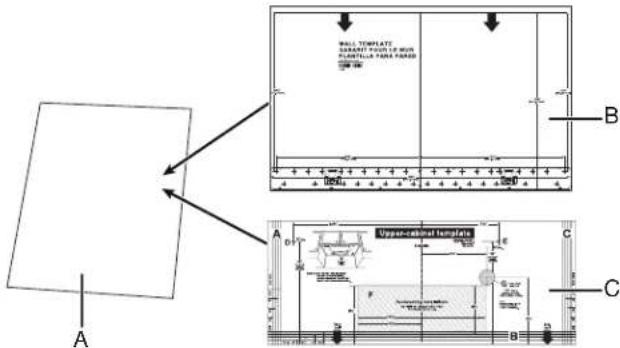

Find the Installation Template (On some models)

For some model, the paper wall template and upper cabinet template are provided for installation. Find them in the literature pack before install the microwave oven, the literature pack is located outer foam in the carton box, see the "Parts Supplied" section for details.

A B C WALL TEMPLATT ARANT PANTS OF HOURS FROSTILLA FARE FLOWER 100mm 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 A B C F G H I J K L M N O P Q R S T U V W X Y Z A B C

A. Literature pack
B. Wall template
C. Upper cabinet template

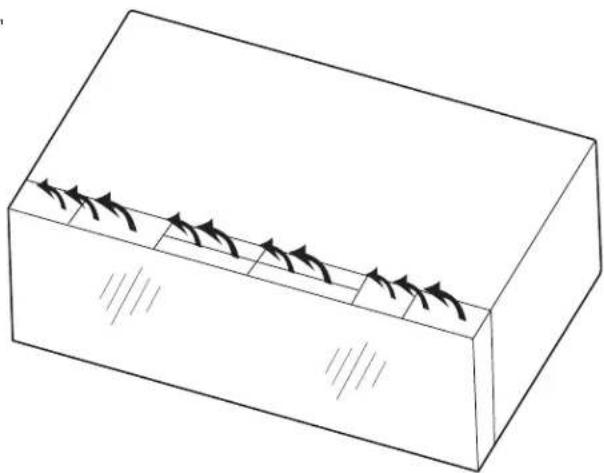

Recirculation
(Factory Default Setting)

Isometric line drawing of a rectangular block with internal arrows indicating flow or force (no text or symbols)

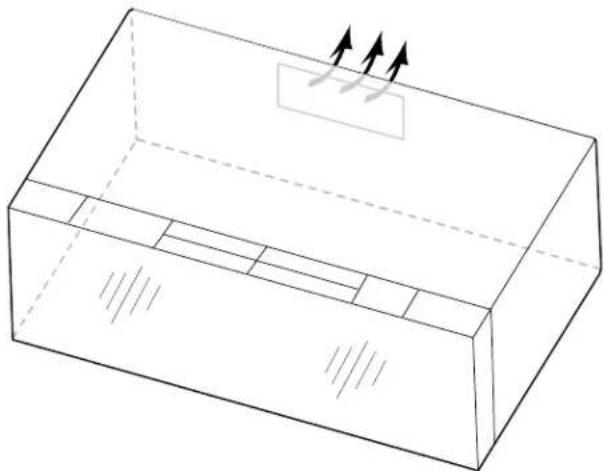

Wall Venting

Isometric line drawing of a rectangular box with internal compartments and three upward-pointing arrows indicating flow or force (no text or symbols)

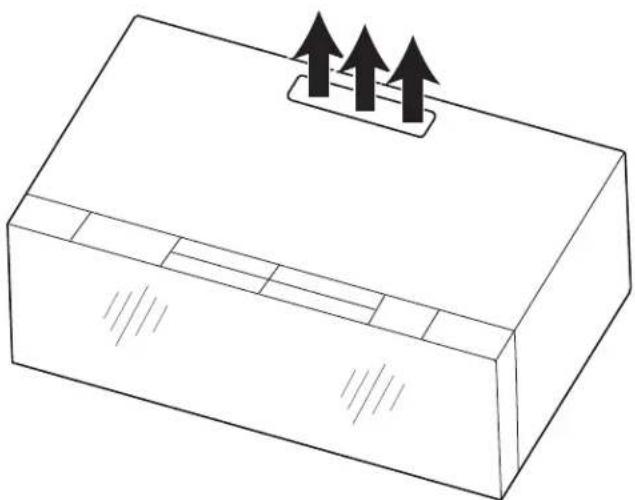

Roof Venting

Isometric line drawing of a rectangular box with three upward-pointing arrows on top (no text or symbols)

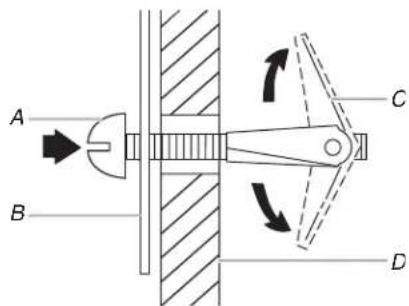

Find the Wall Stud(s)

NOTE: If no wall studs exist within the cabinet opening, do not install the microwave oven.

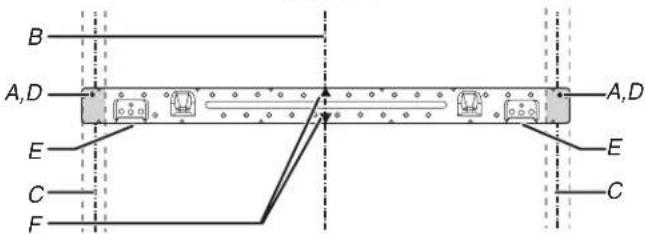

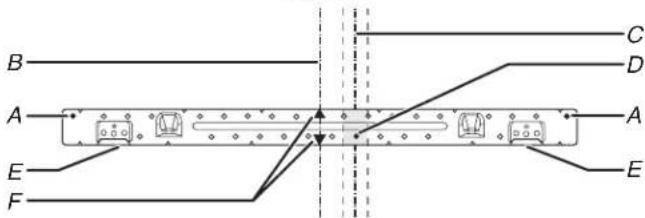

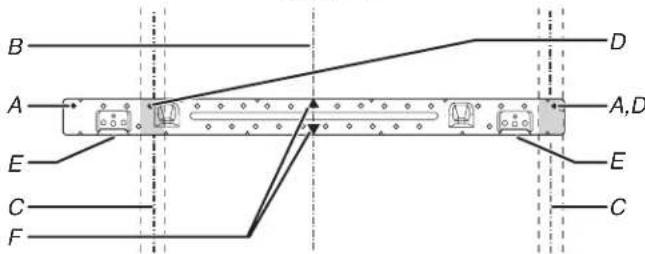

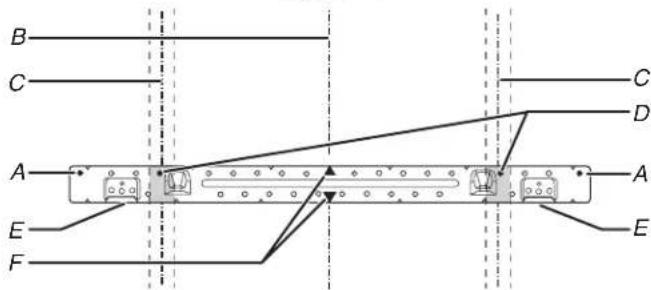

See illustrations in "Possible Wall Stud Configurations."

1. Using a stud finder, locate the edges of the wall stud(s) within the opening.
2. Mark the center of each stud, and draw a plumb line down each stud center. See illustrations in "Possible Wall Stud Configurations."

Possible Wall Stud Configurations

These depictions show examples of preferred installation configurations with the mounting plate.

No Wall Studs at End Holes
Figure 1

B C A E F C D A E

A. End holes (on mounting plate)

D. Holes for lag screws

B. Cabinet opening vertical centerline

E. Support tabs

C. Wall stud centerlines 30" (76.2 cm) minimum

F. Mounting plate center markers

No Wall Studs at End Holes
Figure 2

B A E F C D A E

NOTE: If wall stud is within 6" (15.2 cm) of the vertical centerline (see the "Mark Rear Wall" section), only recirculation or roof venting installation can be done.

A. End holes (on mounting plate)

D. Holes for lag screws

B. Cabinet opening vertical centerline

E. Support tabs

C. Wall stud centerlines

F. Mounting plate center markers

Wall Stud at End Holes
Figure 3

B A E C F D A,D E C

A. End holes (on mounting plate)

D. Holes for lag screws

B. Cabinet opening vertical centerline

E. Support tabs

C. Wall stud centerlines

F. Mounting plate center markers

Wall Stud at End Holes
Figure 4

B A,D A,D E C F E C

A. End holes (on mounting plate)

D. Holes for lag screws

B. Cabinet opening vertical centerline

E. Support tabs

C. Wall stud centerlines Holes for lag screws

F. Mounting plate center markers

Mark and Drill Upper Cabinet

1. Disconnect power to outlet.

2. Remove all contents from upper cabinet.

3. Using a tape, measure clearly and mark the vertical centerline of the opening. Make sure it aligns with the vertical wall centerline. Use a pencil to draw the centerlines on the upper cabinet and wall.

A B

A. Upper Cabinet Centerline

B. Wall Centerline

NOTE: The cardboard template or upper cabinet template is fit for depth of 12" to 14" (30.5 cm to 35.6 cm) cabinet installation, if cabinets are larger than 14" (35.6 cm), and up to 15" (38.1 cm), using the bump out mounting kit, replacing the mounting plate supplied with the product. The bump out mounting kit (part#- W11185746) is not provided. To order, see the "Online Ordering Information" section of the Quick Start Guide.

Technical diagram showing a 3D geometric structure with labeled points A, B, C, and G, including dimension lines and annotations.

A. Arrows to wall

B. Upper cabinet centerline

C. Center marks on cardboard template or upper cabinet template

1. Placing the cardboard template or upper cabinet template against the bottom of the upper cabinet. Make sure the cardboard template or upper cabinet template centerline aligns with the centerline on the upper cabinet which drew in step 3. And the Arrows to wall (A) must be against the rear wall so that the holes cut into the upper cabinet align with the holes in the top of the microwave oven.

NOTE: If the wall behind the microwave oven (as installed) has a partial wall covering (for example, tile back splash), be sure the "Rear Wall" arrows align to the thickest part of the rear wall (for example, the thickness of the tiles rather than the drywall).

1. Using a drill and the 3/4" (1.9 cm) hole saw cut out the power cord hole power supply hole (G on cardboard template or upper cabinet template).

2. Drill two mounting nut holes (B), which are 3/8" (10 mm) holes at points "D" and "E" on the cardboard template or upper cabinet template. These are for two 1/4-20 x 3" bolts and washers used to secure the microwave oven to the upper cabinet.

B A

A. Power cord hole (G)
B. Mounting nut holes (D and E)

NOTE: If upper cabinet is metal, the supply cord bushing needs to be installed around the supply cord hole as shown.

A B

A. Metal cabinet

B. Power supply cord bushing

1. Using a keyhole saw, cut out the rectangular roof venting cutout area. Skip this step if for recirculation venting or wall venting installation.

Pure technical line drawing of a 3D geometric structure with no text, numbers, or symbols

A. Roof Venting Cutout Area

Mark and Drill Rear Wall

The microwave oven must be installed on a minimum of 1 wall stud, preferably 2, using a minimum of 1 lag screw, preferably 2. See "Find the Wall Stud(s)" section for find the wall studs.

Align the center markers on the cardboard template or wall template, to the centerline on the wall, making sure it is level, and that the top of the cardboard template or wall template is butted up against the back edge of the upper cabinet. (See following NOTE before making marks).

1. Attach the cardboard template or wall template to wall, Align the center markers on the cardboard template or wall template, to the centerline on the wall, making sure it is level, and that the top of the cardboard template or wall template is butted up against the back edge of the upper cabinet. (See following NOTE before making marks).

NOTE: If the front edge of the upper cabinet is lower than the back edge, lower the cardboard template or wall template so that its top is level with the front edge of the cabinet.

A C D B

A. Rear wall
B. Cardboard template or wall template
C. Top of cardboard template or wall template must align with front edge of cabinet.
D. Front edge of the upper cabinet

1. Drill holes at A (A and B marks on the cardboard template or wall template), if the Wall studs are not located A and B hole, do not drill A and B hole, and follow the below instruction

B D C A

A. A and B holes
B. Arrows to upper cabinet
C. Center marks on cardboard template or wall template
D. Back edge of upper cabinet

1. In addition to being installed on at least 1 wall stud, the mounting plate must attach to the wall at both end holes. If the end holes are not over wall studs, use two 3/16-24 x 3" round head bolts with toggle nuts; if 1 end hole is over a wall stud, use 1 lag screw and one 3/16-24 x 3" round-head bolt with toggle nut; or if both end holes are over wall studs, use 2 lag and screws. Following are 3 installation configurations.

^1 Installation for No Wall Studs at End Holes (Figures 1 and 2 in Find the Wall Stud(s) section)

1. Drill 5/8" (1.6 cm) holes through the wall at both end holes marked in Step 3 of the "Mark Rear Wall."
2. Drill 3/16" (5 mm) hole(s) into the wall stud(s) at the hole(s) marked in step 6 of the "Mark Rear Wall." Refer to figures 1 and 2 in "Possible Wall Stud Configurations" in the "Locate Wall Studs(s)" section.

Installation for Wall Stud at One End Hole (Figure 3 in Find the Wall Stud(s) section)

1. Drill a 3/16" (5 mm) hole into the wall stud at the end hole marked in Step 3 of the "Mark Rear Wall."
2. If installing on a second wall stud, drill a 3/16" (5 mm) hole into the wall stud at the other hole marked in Step 6 of the "Mark Rear Wall." Refer to Figure 3 in "Possible Wall Stud Configurations" in the "Locate all Stud(s)" section.

3. Drill a 5/8" (1.6 cm) hole through the wall at the other end. Installation for Wall Studs at Both End Holes (Figure 4 in Find the Wall Stud(s) section)

4. Drill 3/16" (5 mm) holes into the studs at the end holes marked in Step 3 of the "Mark Rear Wall."

5. Using a keyhole saw, cut out the rectangular wall venting cutout area. Skip this step if for recirculation venting or roof venting installation.

A b a b c d e f g h i j k l m n o p q r s t u v w x y z

A. Wall Venting Cutout Area

Attach Mounting Plate to Wall

1. Position mounting plate on the wall.
2. Secure the mounting plate to the wall at both end holes drilled into the wall studs and/or drywall using either 3/16-24 x 3" round-head bolts and toggle nuts or 1/4 x 2" lag screws. Refer to illustrations in "Possible Wall Stud Configurations" in the "Locate Wall Stud(s)" section, and the following sections "No Wall Studs at End Holes (Figures 1 and 2 in Find the Wall Stud(s) section)" or "Wall Stud at One End Hole (Figure 3 in Find the wall Stud(s) section)".
3. Insert lag screws into both end holes.
4. Check alignment of mounting plate, making sure it is level.
5. Secure the two end hole screws.

Installation for No Wall Studs at End Holes

(Figures 1 and 2 in Find the Wall Stud(s) section).

NOTE: The mounting plate must be secured to the wall on at least 1 wall stud as well as at both ends.

1. With the support tabs of the mounting plate facing forward, insert 3/16-24 x 3" round-head bolts through both end holes mounting plate.

2. Start toggle nuts on bolts from the back of the mounting plate. Leave enough space for the toggle nuts to go through the v and to open.

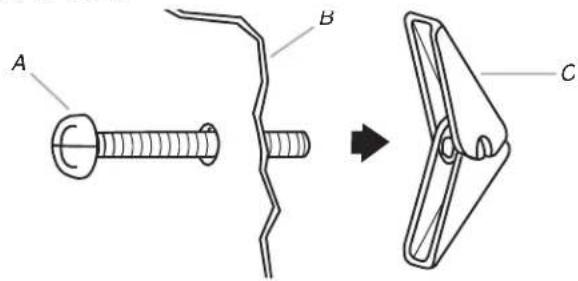

A B C

A. 3/16-24 x 3" round-head bolt
B. Mounting plate
C. Spring toggle nut

1. Position mounting plate on the wall.

2. Push the 2 bolts with toggle nuts through the drywall, and finger tighten the bolts to make sure toggle nuts have opened against drywall.

A B C D

A. 3/16-24 x 3" round-head bolt
B. Mounting plate
C. Spring toggle nut
D. Drywall

1. Insert lag screw(s) into the hole(s) drilled into wall stud(s) in Step 2 of "Installation for No Wall Studs at End Holes" in the "Drill Holes in Rear Wall" section.
2. Check alignment of mounting plate, making sure it is level.
3. Securely tighten all lag screws and bolts.

Wall Stud at One End Hole (Figure 3 in Find the Wall Stud(s) section)

1. With the support tabs of the mounting plate facing forward, insert a 3/16-24 x 3" round-head bolt through the end hole that fits over the 5/8" (16 mm) hole drilled in step 3 of "Installation for Wall Stud at One End Hole" in the "Drill Holes in Rear Wall" section.
2. Start a toggle nut on the bolt from the back of the mounting plate. Leave enough space for the toggle nut to go through the wall and to open.
3. Position mounting plate on the wall.

4. Push the bolt with toggle nut through the drywall, and finger tighten the bolt to make sure toggle nut has opened against drywall.

5. Insert a lag screw into the remaining end hole.

if installing on a second wall stud, insert a lag screw into the other hole drilled in Step 2 of "Installation for Wall Stud at One End Hole" in the "Drill Holes in Rear Wall" section. Check alignment of mounting plate, making sure it is level.

1. Securely tighten the lag screw(s) and bolt.

Wall Studs at Both End Holes (Figure 4)

1. Position mounting plate on the wall.

2.1 Insert lag screws into both end holes.
3. Check alignment of mounting plate, making sure it is level.
4. Securely tighten the lag screws.

Rotate Blower Motor

This section include wall and roof venting installation, both venting installation need rotate blower motor, select one ventilation type before install the microwave oven. And follow the propriated instruction to rotate the blower motor. If for recirculation installation, no need to rotate the blower motor, this section can be skip.

Rotate Blower Motor for Wall Venting Installation

1. Remove screws attaching damper plate to back of microwave oven, set the screws aside.

Technical diagram of a vehicle chassis with labeled components A and B, showing structural layout and component positioning.

A. Damper plate
B. Screw

1. Turn and hold the damper plate vertically as shown.

A

A. Damper plate

1. Remove 2 blower screws attaching blower motor to the microwave oven, and set aside.

Technical line drawing of an electronic device casing with mounting brackets and wiring (no text or symbols)

A. Blower screws

1. Disconnect the blower motor wire from the connector.

Technical diagram showing a hand connecting components labeled A and B to a mechanical or electrical component.

A. Blower motor wire
B. Connector

1. Lift blower motor out of microwave oven, and set aside.

Technical diagram of a car air conditioner unit with labeled components and airflow indicators

A. Blower motor

1. Using diagonal wire cutting pliers, gently snip out the rectangular damper vent covers at the perforations.

Technical line drawing of a mechanical assembly with labeled components A and B (no text or symbols beyond labels)

A. Diagonal wire cutting pliers
B. Rectangular damper vent cover

1. Hold the blower motor wire, put the wire through the blower motor bridge.

Technical diagram showing hands installing or adjusting a mechanical component with labeled parts A and B

A. Blower motor bridge
B. Blower motor wire

1. Lower blower motor back into the microwave oven. Exhaust ports face the back of the microwave oven.

Technical line drawing of a mechanical component with mounting holes and a downward arrow indicating force or direction (no text or symbols)

A. Exhaust Port

1. Reconnect the blower motor wire into the connector.

Technical diagram showing a hand inserting a component into a car intake manifold, labeled with points A and B.

A. Blower motor wire
B. Connector

1. Reattach the 2 blower screws into the recessed holes in the13. Secure damper plate with 2 screws removed in Step 1. back of the microwave.

Technical diagram of an electronic device with labeled components A and B, showing internal layout and connections.

A. Screws
B. Holes

1. Check to make sure the 2 screws are secured properly in the blower motor screw holes, so that the motor cannot move.

Technical diagram of a mechanical or electrical component with labeled parts A and B, showing internal structure and connections.

A. Screws
B. Blower motor screw holes

1. Return the damper plate to its original horizontal position.

A

A. Damper plate

A B

A. Damper plate
B. Screw

WARNING

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

1. Plug in the microwave oven. Check if the vent fan runs with abnormal sounds, go back through the steps to see which step was skipped.

Rotate Blower Motor for Roof Venting Installation

1. Repeat Steps 1 to 5 from "Wall Venting Installation Only."
2. Using diagonal wire cutting pliers, gently snip out the rectangular vent covers on the damper plate at the perforations.

Technical diagram showing a mechanical assembly with labeled components A and B, including a pliers and a U-shaped component.

A. Rectangular vent covers
B. Diagonal wire cutting pliers

1. Lower blower motor back into microwave oven. Exhaust ports face the top of microwave oven.

Technical diagram showing a mechanical assembly with labeled component A and directional arrow indicating motion or force.

A. Exhaust port

IMPORTANT: If blower motor is not positioned with flat side facing the back of the microwave oven (as shown), performance will be poor.

1. Reconnect the blower motor wire into the connector.
2. Reattach the 2 blower screws into the recessed holes in the back of the microwave.
3. Check to make sure the 2 screws are secured properly in the blower motor screw holes, so that the motor cannot move.
4. Return the damper plate to its original horizontal position.

Technical diagram of a device chassis with labeled components and directional arrows indicating movement (no text or symbols present)

A. Damper plate

1. Secure damper plate with screw removed in Step 1.

A B

A. Damper plate
B. Screw

1. Repeat Step 14 from "Wall Venting Installation Only."

Install Damper Assembly

If for recirculation installation, no need to install the damper assembly, this section can be skip. And save it for future use.

Install Damper (For Wall Venting)

1. Find the damper in outer foam in the carton.
2. Check that damper blade moves freely, and opens fully.
3. Position the damper assembly on the back of the microwave oven so that the damper blade hinge is at the top, and the damper blade opens away from the microwave oven.

A B C D

A. Back of microwave oven
B. Damper assembly
C. Damper blade D. #6 x 3/8" Sheet metal screws (in the screw pack)

1. Secure damper assembly with two #6 x 3/8" sheet metal screws, see above illustration.

Install Damper (For Roof Venting)

1. Find the damper in outer foam in the carton.
2. Check that damper blade moves freely and opens fully.
3. Insert damper assembly through the cabinet cutout so that the long tab of the damper assembly slides under the raised tabs of the damper plate. Then secure with #6 x 3/8" sheet metal screw.

NOTE: The screw cannot be installed if the damper assembly is not positioned as shown.

ABC DE F

A. Raised tabs
B. Damper assembly
C. #6 x 3/8" Sheet metal screws
D. Upper cabinet cutout
E. Long tab
F. Damper plate

Install the Microwave Oven

WARNING

Excessive Weight Hazard

Use two or more people to move and install or uninstall appliance.

Failure to do so can result in back or other injury.

IMPORTANT: The control side of the microwave oven is the heavy side. Handle the microwave oven gently.

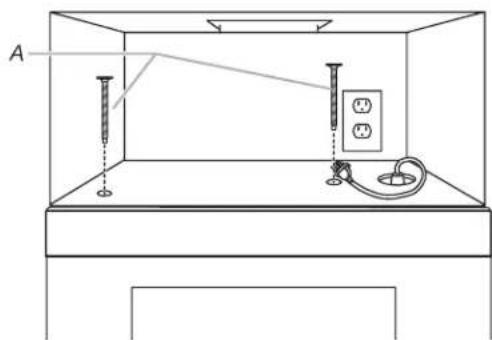

1. Place a washer on each 1/4-20 x 3" (7.6 cm) flat-head bolt and place inside upper cabinet near the 3/8" (9.5 mm) holes.

2. Make sure the microwave oven door is closed and taped shut.

Illustration of two workers exchanging a device with a mechanical device in the background (no text or symbols visible)

1. Using 2 or more people, lift microwave oven and hang it on support tabs at the bottom of mounting plate.

NOTE: To avoid damage to the microwave oven, do not grip or use the door or while the microwave oven is being handle

Technical diagram showing a mechanical assembly with labeled components A and B, likely for engineering or manufacturing documentation.

A. Mounting plate

B. Support tabs

1. With front of microwave oven still tilted, thread power supply cord through the power supply cord hole in the bottom of the upper cabinet.

Simple line drawing of a ceiling-mounted cabinet with an upward arrow indicating motion (no text or symbols)

1. Rotate microwave oven up toward upper cabinet.

NOTE: If venting through the wall, make sure the damper assembly fits easily into the vent in the wall cutout.

1. Push microwave oven against mounting plate and hold in.

NOTE: If microwave oven does not need to be adjusted, skip steps 7 through 9.

1. If adjustment is required, rotate microwave oven downward. Using 2 or more people, lift microwave oven off of mounting plate and set aside on a covered surface.

2. Loosen mounting plate screws. Adjust mounting plate and re-tighten screws.

3. Repeat steps 3 through 6.

4. With the microwave oven centered, and with at least one person holding it in place, insert bolts through upper cabinet into microwave oven. Tighten bolts until there is no gap between upper cabinet and microwave oven.

NOTE:

■ Some upper cabinets may require bolts longer or shorter than 3" (7.6 cm). Longer or shorter bolts are available at most hardware stores.

■ Overtightening bolts may warp the top of the microwave oven. To avoid warping, wood filter blocks (installer to provide) may be added. The blocks must be the same thickness as the space between the upper cabinet bottom and the microwave oven.

A

A. Bolts

■ Avoid damage to the mounting nut, screw the bolts into the mounting nut holes around 15–20 mm by hand first, make sure the bolts thread in properly. Then tighten with tools.

A 15-20 mm B

A. Bolt
B. Mounting Nut

1. Connect vent to damper assembly.

A B

A. Vent

B. Damper assembly (under vent) Compact

Complete Installation

WARNING

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

1. Plug microwave oven into grounded 3 prong outlet.

2. Reconnect power.

3. Check the operation of microwave oven by placing 1 cup (250 mL) of water on the turntable and programming cook time of 1 minute at 100% power. Test vent fan and exhaust by operating the vent fan.

4. If the microwave oven does not operate:

■ Check that a household fuse has not blown, or that a circuit breaker has not tripped. Replace the fuse or reset the circuit breaker. If the problem continues, call an electrician.
■ Check that the power supply cord is plugged into a grounded 3 prong outlet.

1. See the Quick Start Guide for more informations.

The installation is now complete.

Save this owner manual for future use.

A

A. 12^7/_8 " (33 cm) is the height from the highest point of the stove to the bottom of the microwave oven.

VENTING DESIGN SPECIFICATIONS

This section is intended for architectural designer and builder/contractor reference only.

NOTES:

■ Vent materials needed for installation are not provided with microwave hood combination.
■ We do not recommend using a flexible metal vent.
■ To avoid possible product damage, be sure to vent air outside, unless using recirculation installation. Do not vent exhaust air into concealed spaces, such as spaces within walls or ceilings, attics, crawl spaces or garages.

For optimal venting installation, we recommend:

■ Using roof or wall caps that have backdraft dampers.
Using a rigid metal vent.
■ Using the most direct route by minimizing the length of the vent and number of elbows to provide efficient performance.
■ Using uniformly sized vents.
■ Using duct tape to seal all joints in the vent system.
■ Using caulking compound to seal exterior wall or roof opening around cap.
■ Not installing 2 elbows together, for optimal hood performance.
If venting through the wall, be sure that there is proper clearance within the wall for the damper to open fully.

If venting through the roof, and rectangular-to-round transition is used, be sure there are at least 3" (7.6 cm) of clearance between the top of the microwave oven and the transition piece. See "Rectangular-to-Round Transition" illustration.

Simple line drawing of a mechanical device with a lever and base (no text or symbols)

A

Simple line drawing of a 3D object resembling a folded paper or stand (no text or symbols)

B

Simple line drawing of a mechanical device with a cylindrical component and directional arrows (no text or symbols)

C

D

A. Roof venting

B. Roof cap

C. Wall venting

D. Wall cap

Rectangular-to-Round Transition

NOTE: The minimum 3" (7.6 cm) clearance must exist between the top of the microwave oven and the rectangular-to-round transition piece so that the damper can open freely and fully.

DEFG

A. Rectangular-to-round transition piece: 34 " x 10" to 6" = 5 ft (8.3 x 25.4 cm to 15.2 cm = 1.5 m)

B. Roof cap: 3 ^1/4 " x 10" = 24 ft (8.3 x 25.4 cm = 7.3 m)
C. 90° elbow: 3/4" x 10" = 25 ft (8.3 x 25.4 cm = 7.6 m)
D. 90^ elbow: 6" = 10 ft (15.2 cm = 3 m)
E. Wall cap: 3/4" x 10" = 40 ft (8.3 x 25.4 cm = 12.2 m)
F. 45^ elbow: 6" = 5 ft (15.2 cm = 1.5 m)
G. 90° flat elbow: 34^ x 10" = 10 ft (8.3 x 25.4 cm = 3 m)

Recommended Vent Length

A 3 ^1/4 " x 10" (8.3 x 25.4 cm) rectangular or 6" (15.2 cm) round vent should be used.

The total length of the vent system including straight vent, elbow(s), transitions and wall or roof caps must not exceed the equivalent of 140 ft (42.7 m) for either type of vent. See the "Recommended Standard Fittings" section for equivalent lengths.

For best performance, use no more than three 90° elbows.

A B C D E F G

A. Roof cap
B. 6" (152 mm) minimum diameter round vent
C. Elbow (for wall venting only)
D. Wall cap
E. 3^1/4 " x 10" to 6" (8.3 x 25.4 cm to 15.2 cm) a
rectangular-to-round transition piece
F. Vent extension piece, at least 3" (7.6 cm) high
G. 3" (7.6 cm)

Recommended Standard Fittings

NOTE: The minimum 3" (7.6 cm) clearance must exist between the top of the microwave oven and the rectangular-to-round transition piece so that the damper can open freely and fully.

To calculate the length of the system you need, add the equivalent lengths of each vent piece used in the system. See the following examples:

3 ^1/4 "x 10" (8.3 x 25.4 cm) vent system = 73 ft (22.2 m) total

A D B E C

A. One 3/4" x 10" (8.3 x 25.4 cm) 90° elbow= 25 ft (7.6 m)
B. 1 wall cap = 40 ft (12.2 m)
C. 2 ft (0.6 m) + 6 ft (1.8 m) straight = 8 ft (2.4 m)
D. 6 ft (1.8 m)
E. 2 ft (0.6 m)

6" (152 mm) vent system = 73 ft (22.2 m) total

A E B F C D

A. Two 90° elbows = 20 ft (6.1 m)
B. 1 wall cap = 40 ft (12.2 m)
C. 1 rectangular-to-round transition piece = 5 ft (1.5 m)
D. 2 ft (0.6 m) + 6 ft (1.8 m) straight = 8 ft (2.4 m)
E. 6 ft (1.8 m)
F. 2 ft (0.6 m)

If the existing vent is round, a rectangular to round transition piece must be used. In addition, a rectangular 3" (7.6 cm) extension vent between the damper assembly and rectangular to round transition piece must be installed to keep the damper from sticking.

SÉCURITÉ DU FOUR À MICRO-ONDES

17½″ (43.5 cm) 16³/₈″ (41.6 cm) 29½″ (76 cm) Up to 17½″ (45.4 cm)*

Isometric line drawing of a rectangular block with internal arrows indicating flow or force (no text or symbols)

Isometric line drawing of a rectangular box with internal compartments and three upward-pointing arrows indicating motion or force (no text or symbols)

Isometric line drawing of a rectangular box with three upward-pointing arrows on top (no text or symbols)

Illustration 1 B C A E F C D A E

Illustration 2 B A E F C D A E

B A E C F D A,D E C

B A,D E C F A,D E C

E. Pattes de support

Technical diagram of a mechanical or structural assembly with labeled points A, B, C, and G, showing geometric dimensions and annotations.

Technical line drawing of a 3D geometric structure with labeled point A (no text or symbols beyond label)

Technical diagram of a device casing with internal components and directional arrows indicating motion (no text or symbols)

A. Plaque de support du clapet

Technical line drawing of a mechanical assembly with brackets and mounting holes (no text or symbols)

Technical diagram showing hands connecting a component to a vehicle's side panel, labeled with points A and B.

Technical diagram of a car air conditioner unit with labeled components and airflow indicators

Technical diagram showing a mechanical assembly with labeled components A and B, likely illustrating a cutting or mounting process.

A. Pince coupante

Technical diagram showing hands installing or adjusting a mechanical component with labeled parts A and B

Technical line drawing of a mechanical component with labeled section A and an arrow indicating direction (no text or symbols beyond labels)

Technical diagram of an electronic device with labeled components A, B, and internal compartments, showing wiring connections.

A. Vis
B. Trous

Technical diagram of a vehicle air intake system with labeled components A and B

A B C D E F G H I J K L M N O P Q R S T U V W X Y Z

A. Plaque de support du clapet

Technical diagram showing a mechanical assembly with labeled components A and B, including a tool inserted into a component.

Technical line drawing of a mechanical assembly with labeled component A (no text or symbols beyond label)

Technical diagram of a computer monitor with labeled components and directional arrows indicating movement (no text or symbols present)

A. Plaque de support du clapet

Technical diagram of a mechanical or electrical component with labeled parts A and B, showing internal components and motion indicators.

Technical diagram showing two workers exchanging a device with a labeled component, likely illustrating a mechanical or industrial process.

Technical diagram showing a mechanical assembly with labeled components A and B, likely illustrating a component or assembly.

A. Plaque de montage
B. Pattes de support

Simple line drawing of a ceiling-mounted cabinet with an upward arrow indicating airflow or movement (no text or symbols)

Line drawing of a laboratory setup with labeled components (no text or symbols)

A. Vis

Simple line drawing of a mechanical setup with a lever and base, no text or symbols present

A

Simple line drawing of a desk with a book on top (no text or symbols)

B

Simple line drawing of a mechanical device with a spring and lever (no text or symbols)

C

D

A B C D E F G

Diagram showing six 3D mechanical parts with directional arrows indicating movement or assembly (no text or symbols present)

DEFG
