USER MANUAL WCS7A9PHTSBAF WHIRLPOOL

THANK YOU FOR BUYING A WHIRLPOOL PRODUCT

In order to receive a more complete assistance, please register your product on www.register10.eu

Before using the appliance carefully read the Safety Instruction.

PLEASE SCAN THE QR CODE ON YOUR APPLIANCE IN ORDER TO REACH MORE INFORMATION

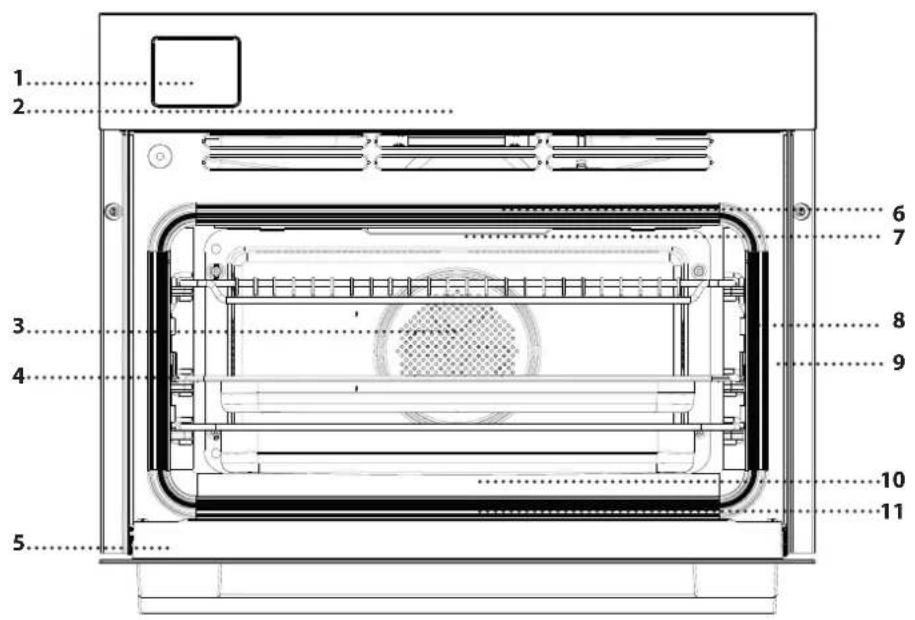

PRODUCT DESCRIPTION

1. 2. 3. 4. 5. 6 7 8 9 10 11

1. Extractable drawer
2. Control panel
3. Cavity Fan (not visible)
4. Shelf guides (the level is indicated on the front of the oven)
5. Door
6. Upper heating element/grill
7. Lamp
8. Food probe insert point (if present)
9. Identification plate (do not remove)
10. Lower heating element (not visible)
11. Drip tray (not visible)

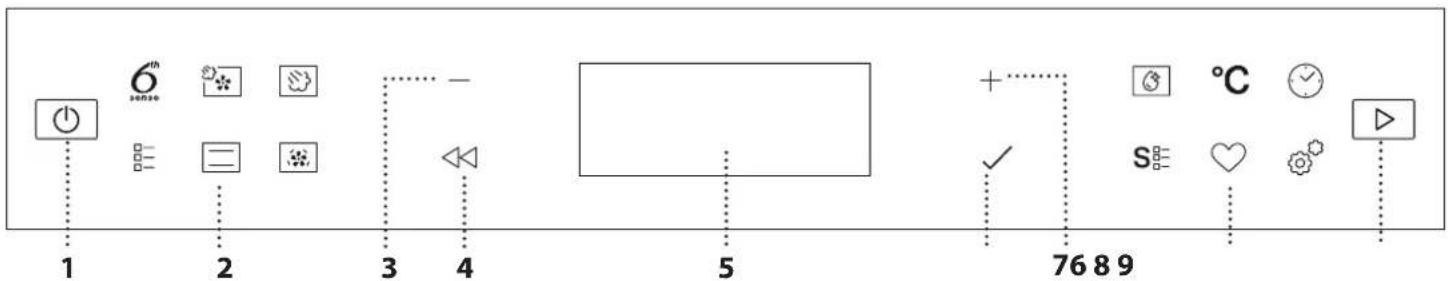

CONTROL PANEL DESCRIPTION

1 2 3 4 5 76 8 9 6" sense - + ✓ S °C ♥ ♥ ♥ ♥

1. ON / OFF

For switching the oven on and off and for stopping an active function.

1. MENU / FUNCTIONS DIRECT ACCESS

For quick access to the functions and menu.

1. NAVIGATION BUTTON MINUS

For scrolling through a menu and decreasing the settings or values of a function.

1. BACK

For returning to the previous screen.

During cooking, allows settings to be changed.

1. DISPLAY

2. CONFIRM

For confirming a selected function or a set value.

1. NAVIGATION BUTTON PLUS

For scrolling through a menu and increasing the settings or values of a function.

1. OPTIONS / FUNCTIONS DIRECT ACCESS

For quick access to the functions, settings and favorites.

1. START

For starting a function using the specified or basic settings.

ACCESSORIES

Before purchasing other accessories that are available on the market, make sure that they are heat-resistant and suitable for steaming.

Make sure that there is a gap of at least 30 mm between the top of any container and the walls of the cooking compartment in order to allow steam to flow sufficiently.

WIRE SHELF BAKING TRAY

Simple line drawing of a rectangular grid with vertical lines, no text or symbols present

Use to cook food or as a support for pans, cake tins and other ovenproof items of cookware.

Simple line drawing of a square frame with dashed border (no text or symbols)

Use as an oven tray for cooking meat, fish, vegetables, focaccia, etc. or position underneath the wire shelf to collect cooking juices.

STEAM TRAY

This makes it easier for steam to circulate, which helps cook the food evenly. Place the drip tray on the level below to collect the cooking juices.

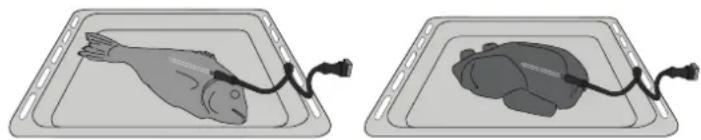

FOOD PROBE

To accurately measure the core temperature of food during cooking. It can be used for meat and fish.

INSERTING THE WIRE SHELF AND OTHER ACCESSORIES

Insert the wire shelf onto the level you require by holding it tilted slightly upwards and resting the raised rear side (pointing upwards) down first.

Then slide it horizontally along the runners as far as possible.

Other accessories, like the baking tray, are to be inserted horizontally, letting them slide on the runners.

FUNCTIONS

6 ^th SENSE FUNCTIONS

With the 6^th Sense functions, simply select the type and weight or the quantity of the food items to obtain the best results. The oven will automatically calculate the optimum settings and continue to change them as cooking progresses. To use at best this function, follow the indications on the relative cooking table. Due to food variability, the cooking duration is set on an average grade. We always recommend to check the internal doneness of food and in case prolong the cooking time to achieve proper doneness. Some automatic cycles give the possibility of previously setting a cooking level lower or higher than the default (see the Doneness paragraph in the Daily Use section).

6 ^th SENSE COOK TABLE

For cooking several kind of dishes and foods and achieving optimal results in the easiest and quickest way. To get the best from this function, follow the indications on the relative cooking table.

CATEGORY FOOD		WEIGHT/THICKNESS/PORTIONS/PIECES	NOTE ACCESSORIES
PASTA & CEREALS	Lasagna 600 g - 2.0 kg		Prepare according to your favorite recipe. Pour bechamel sauce on top and sprinkle with cheese to get perfect browning	1
	Rice 100 - 500 g		Add water and rice into a heat proof container. Use one and half cups of water for each cup of rice. For good results is suggested not to open the door	21
	Spelt 100 - 500 g		Add water and spelt into a heat proof container. Use one and half cups of water for each cup of spelt. For good results is suggested not to open the door	21
	Barley 100 - 500 g		Add water and barley into a heat proof container. Use one and half cups of water for each cup of barley. For good results is suggested not to open the door	21
	Dumpling 1 batch		Distribute evenly in the steam tray, for good results is suggested not to open the door	21
MEAT	Roast Beef -		Brush with oil and rub with salt and pepper. Season with garlic and herbs as you prefer. At the end of cooking let it rest for at least 15 minutes before carving.	2
	Burger Patties 1 - 3cm		Brush with oil and sprinkle with salt before cooking. Use wire shelf on level 2 and baking tray with one cup of water on level 1 to collect foods essudates. To get perfect results, during cooking you will be asked to turn food.	12
	Roast Beef - Slow cooking	-	Brush with oil and rub with salt and pepper. Season with garlic and herbs as you prefer. At the end of cooking let it rest for at least 15 minutes before carving.	2
	Roast Pork -		Brush with oil and rub with salt and pepper. Season with garlic and herbs as you prefer. At the end of cooking let rest for at least 15 minutes before carving.	2
	Sausages & Wurstel	400 g - 1.5 kg	Distribute evenly on the wire shelf. Pierce the sausages with a fork to prevent burst-ing. Use wire shelf on level 2 and baking tray with one cup of water on level 1 to collect foods essudates.	11
	Pork Ribs 400 g - 1.5 kg		Brush with oil and season as you prefer. Rub with salt and pepper. Distribute evenly on the wire shelf. Use wire shelf on level 2 and baking tray with one cup of water on level 1 to collect foods essudates.	11
	Roast Chicken 800 g - 2,5 kg		Brush with oil and season as you prefer. Rub with salt and pepper. Insert into the oven with the breast side up.	2
	Poultry Breast Steamed	1 - 4 cm	Distribute evenly in the steam tray, for good results is suggested not to open the door.	21
	Poultry Pieces 1 batch		Brush with oil and season as you prefer. Distribute evenly on the wire shelf. Use wire shelf on level 2 and baking tray with one cup of water on level 1 to collect foods essudates.	21

ACCESSORIES						78.9.85
	Wire shelf	Heathproof tray on wire shelf	Drip tray /Baking tray	Heath-proof container	Food Probe	Steam tray

CATEGORY FOOD		WEIGHT/THICKNESS/PORTIONS/PIECES	NOTE ACCESSORIES
FISH	Roasted Whole Fish	- Brush with oil and season as you prefer.		2+
	Steamed Whole Fish	-	Season as you prefer, for good results is suggested not to open the door.	2 118.8.9f + +
	Fish Steak Roasted	200 - 800 g Brush with oil and season as you prefer.		2
	Fish Fillets Steamed	0.5 - 3 cm	Distribute evenly in the steam tray, for good results is suggested not to open the door.	2 118.8.9f + +
	Steamed Mussels	500 g - 2.0 kg	Distribute evenly in the steam tray, for good results is suggested not to open the door.	2 118.8.9f + +
	Steamed Shrimps	500 g - 1.5 kg	Distribute evenly in the steam tray, for good results is suggested not to open the door.	2 118.8.9f + +
	Steamed Ocopus	-	Place in the center of steam tray, for good results is suggested not to open the door.	2 118.8.9f + +
VEGETABLES	Roasted Potatoes	400 g - 1.5 kg	Cut in pieces, season with oil, salt and flavor with herbs before placing into the oven.	2
	Stuffed Vegetables	600 g - 2,0 kg	Scoop out the vegetable and fill with a mixture of the vegetable flesh itself, minced meat and shredded cheese. Season with garlic, salt and flavor with herbs as you prefer.	2
	Potatoes Gratin	400 g - 1.5 kg	Slice and place into a large container. Sea-son with salt, pepper and pour over cream. Sprinkle cheese on top.	1
	Potatoes Whole	50 - 200 g	The weight refers to the single potato. To have uniform cooking in each potato, it is advisable to choose them all of similar size. Distribute the potatoes in their skins evenly in the steam tray, for good results is suggested not to open the door.	2 118.8.9f + +
	Potatoes Pieces Steamed	400 g - 1.0 kg	Cut in pieces. Distribute evenly in the steam tray, for good results is suggested not to open the door.	2 118.8.9f + +
	Roots Vegetables Steamed	200 g - 1.0 kg	Cut in pieces. Distribute evenly in the steam tray, for good results is suggested not to open the door.	2 118.8.9f + +
	Soft Vegetables Steamed	400 g - 1.0 kg	Cut in pieces. Distribute evenly in the steam tray, for good results is suggested not to open the door.	2 118.8.9f + +
	Fruit Pieces Steamed	400 g - 1.5 kg	Cut in pieces. Distribute evenly in the steam tray, for good results is suggested not to open the door.	2 118.8.9f + +
	Vegetables Steamed [frozen]	400 g - 1.5 kg	Distribute evenly in the steam tray, for good results is suggested not to open the door.	2 118.8.9f + +
SALTY BAKERY	Sandwich Loaf	400 g - 1.0 kg	Prepare dough according to your favorite recipe for a light bread. Form into a loaf container before rise. Use the oven's dedi-cated rise function.	1
	Pizza 400 g	- 1.2 kg	Prepare pizza dough according to your favorite recipe. Leave it to rise using the oven's dedicated function. Roll out the dough into a lightly greased baking tray. Add topping as you prefer.	2
	Pizza [frozen]	250 g - 1.2 kg	Take out from packaging and distribute evenly on the wire shelf.	1
	Salty Cake 800 g	- 1.5 kg	Line a pie dish for 8-10 portions with a pas-try and pierce it with a fork, Fill the pastry according to your favorite recipe.	1

ACCESSORIES

Wire shelf

Heathproof tray on wire shelf

Drip tray /Baking tray

Heath-proof container

Food Probe

Steam tray

CATEGORY FOOD		WEIGHT/THICKNESS/PORTIONS/PIECES	NOTE ACCESSORIES
SWEET BAKERY	Sponge Cake 400 g - 1.2 kg		Prepare a fatless sponge cake batter. Pour into lined and greased baking pan.	1......+
	Marble Cake 400 g - 1.2 kg		Prepare a marble cake batter according to your favorite recipe. Pour into lined and greased baking pan.	1......+
	Muffins 1 batch		Prepare a batter for 16-18 pieces accord-ing to your favorite recipe and fill in paper moulds. Distribute evenly on the baking tray.	2
	Cookies 1 batch		Prepare the biscuit cookies as you prefer and let cool down. Stretch evenly the dough and shape as you prefer. Lay the cookies on a baking tray.	2
	Brownies 800 g - 1.5 kg		Prepare according to your favorite recipe. Spread batter on the baking pan covered with baking paper.	1......+
	Strudel 1 batch		Prepare a mix of diced apple, pine nuts, cinnamon and nutmeg. Put some butter in a pan, sprinkle with sugar and cook for 10-15 minutes. Roll it into a pastry and fold the external part.	2
	Apple Pie 800 g - 1.5 kg		Line a pie dish with the pastry and sprinkle the bottom with bread crumbs to absorb the juice from the fruit. Fill with chopped fresh fruit mixed with sugar and cinnamon. Roll out the pastry scraps to make a lid, seal the edges and brush with egg.	1......+
DESSERTS	Baked Apples 1 batch		Remove the core and fill with marzipan or cinnamon, sugar and butter.	2
	Caramel Flan 1 batch		Distribute cups with flan evenly in the steam tray, for good results is suggested not to open the door.	2 118.8.8f +
EGGS	Chicken Eggs 50 - 80 g		The weight refers to the single egg. To have uniform cooking in each egg, it is advisable to choose them all of similar size. Distribute evenly in the steam tray, for good results is suggested not to open the door. If the eggs will be eaten cold, rinse them immediately in cold water.	2 118.8.8f +
	Quail Eggs 1 batch		Distribute evenly in the steam tray, for good results is suggested not to open the door. If the eggs will be eaten cold, rinse them immediately in cold water.	2 118.8.8f +

STEAM + AIR

Combining the properties of steam with those of the forced air, this function allows you to cook dishes pleasantly crispy and browned outside, but at the same time tender and succulent inside. To achieve the best cooking results, we recommend to select a HIGH steam level for fish cooking, MEDIUM for meat and LOW for bread and desserts. Recommended accessories: Baking tray / Wire rack

PURE STEAM

For cooking natural and healthy dishes using steam to preserve the food's natural nutritional value. This function is particularly suited to cooking vegetables, fish and fruit, and also for blanching. Unless otherwise indicated, remove all packaging and protective film before placing the food in the oven Recommended accessories: Steam tray at level 2 and Baking tray at level 1

Cooking with steam generates a lot of humidity inside the oven. This is a completely normal phenomenon that does not compromise the correct functioning of the appliance. At the end of each cooking period we recommend using the Fast Dry cycle to eliminate humidity from the oven.

Alternatively we suggest to:

1. let the appliance cool down;

2. carefully dry the cooking compartment and the accessories including drip tray placed behind the door just below the door gasket used with a soft cloth or absorbent paper;

3. leave the door open for the time necessary for the cooking compartment to dry completely.

☐— OTHER FUNCTIONS MENU ☐—

TRADITIONAL FUNCTIONS

FAST PREHEAT

For quickly preheating the oven before a cooking cycle. Wait for the function to finish before placing food inside the oven. Once preheating has finished, the oven will select the "Forced Air" function automatically.

Required accessories: wire shelf with pan or baking tray

GRILL

For browning, grilling and gratins. We recommend turning the food during cooking.

Recommended accessories: wire shelf

For perfect results, combining the grill and oven air convection. We recommend turning the food during cooking.

Recommended accessories: wire shelf

CONVECTION BAKE

For cooking meat, baking cakes and pies with fillings on one shelf only. To achieve best results this function have the preheating phase: wait the end of preheat to insert the food.

Required accessories: wire shelf with pan or baking tray

CONVENTIONAL

For perfectly cooking and browning both on the top and bottom any kind of dish on one shelf only. To achieve best results this function have the preheating phase: wait the end of preheat to insert the food.

Required accessories: baking tray or wire shelf and heatproof container.

FOOD TEMP. (°C) DURATION (min)

Cupcake / Smallcake	160 20 - 25
Cookies 165 15 - 20

FORCED AIR

For cooking sweets and meats with hot air circulation. To achieve best results this function have the preheating phase: wait the end of preheat to insert the food. Is possible to use it for cooking different foods that require the same cooking temperature on several shelves at the same time. This function can be used to cook different foods without odours being transferred from one food to another. Required accessories: baking tray or wire shelf and heatproof container.

CLEANING FUNCTIONS

STEAM SELF CLEAN

The action of water vapor released during this special cycle of cleaning by means of a low temperature, facilitates removal of grime. Activate the function when the oven is at room temperature.

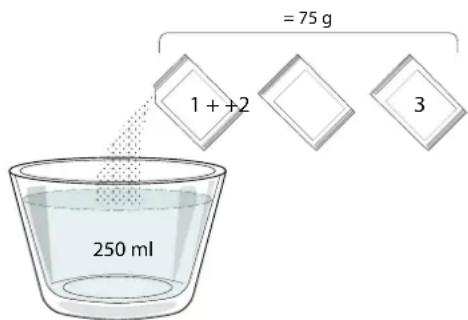

DESCALE

For removing limescale deposits from the boiler. We recommend using this function at regular intervals. If yo do not, a message will appear on the display reminding you to clean the oven.

FAST DRY

After a steam cycle, the oven will automatically suggest you to start the fast dry cycle to help to remove the moisture from the cavity. If you desire, you can start a fast dry cycle from the cleaning menu. Follow the instructions on the display. Clean the drip tray below the door with a soft cloth of absorbent paper to remove the water drops.

□-SPECIAL FUNCTIONS

KEEP WARM

For keeping just-cooked food hot and crisp, including meat, fried foods or cakes.

RISING

For optimal proving of sweet or savoury dough. To maintain the quality of proving, do not activate the function if the oven is still hot following a cooking cycle.

Required accessories: wire shelf and heatproof container.

YOGURT

For making yoghurt.

Required accessories: wire shelf and heatproof container.

DEHYDRATION

To dehydrate fruits and vegetables. Cut in thin slices and place directly on wire shelf.

Required accessories: wire shelf

MAXI-COOKING

For cooking large joints of meat (above 2.5 kg). It is advisable to turn the meat over during cooking, to obtain even browning on both sides. It is best to baste the meat every now and again to prevent it from drying out.

Required accessories: baking tray at level 2.

DISINFECTION

For disinfecting baby bottles or jars using steam. Insert the baking tray on level 1 and the steam tray on level 2, place the items on it, with sufficient space in between to allow steam to reach all parts.

STEAM DEFROST

For defrosting any kind of food. Place foods such as meat and fish without package or wrappings, on the steam tray on level 2. Place the baking tray on the level 1 to collect the thawing water. For best results, do not defrost the food completely but allow the process to finish during standing time. We recommend keeping bread wrapped up to prevent it from becoming too soft.

STEAM REHEAT

For reheating ready-made food that is either frozen, chilled or at room temperature. This function uses steam to gently reheat food without drying it out, thus enabling it to retain its original flavour. Standing time improves the result. We recommend placing smaller or thinner pieces of food in the middle and larger or thicker pieces around the outside. If using the steamer tray, place the baking tray below it to collect any liquid running out of the food.

ECO CYCLE

For cooking roasted meat and fish, leavening cakes, tarts and biscuits on a single shelf. When this ECO function is in use, the light will remain switched off during cooking. To use the ECO cycle and therefore optimise power consumption, the oven door should not be opened until the food is completely cooked.

Required accessories: wire shelf with pan or baking tray.

COOK 3

For cooking different foods that require the same cooking temperature on three levels at the same time without mixing flavors and smells.

This function can be used to cook cookies, tarts, frozen pizzas and to prepare a complete meals. The oven does have to be preheated.

COOKIES

Use this function to cook three trays of similar shortbread biscuits to maximize results. The function includes a preheat. Take the three trays out of the oven at the same time.

TART

Use this function to cook three trays of similar tarts to maximize results. The function includes a preheat. Take the three trays out of the oven at the same time.

PIZZA (frozen)

Use this function to cook three trays of similar frozen pizzas to maximize results. The function includes a preheat. Take the three trays out of the oven at the same time.

COOK 3 MENU 1

This cycle is designed to cook a complete meat-based meal and a dessert. The oven requires preheating. Example of complete meal Prepare a fruit tart according to your preferences in a round pan to be placed on the wire shelf at level 3. Prepare a lasagna according to your preferences (1.5-2kg) in a pan to be placed on the wire shelf at level two. Prepare 6-10 chicken drumsticks with diced potatoes (500-800g) directly in the baking tray to be placed on level 1. After preheating, bake all the dishes at the same time. After 50-60 minutes take out the tart, after 60-70 minutes take out the lasagna, after 80-90 minutes take out the chicken with potatoes.

COOK 3 MENU 2

This cycle is designed to cook a complete fish or vegetarian meal and a dessert. The oven requires preheating.

Example of complete meal

Prepare a fruit tart according to your preferences in a round pan to be placed on the wire shelf at level 3. Prepare pesto lasagna or cannelloni according to your preference (1.5-2kg) in a metal or pyrex tray to be placed on the wire shelf at level two. Prepare fish fillets in foil (700-900g) with sliced vegetables (600-900g) directly in the baking tray to be placed on level 1. After preheating, bake all the dishes at the same time. After 45-55 minutes take out the tart, after 55-65 minutes take out the lasagna, after 60-70 minutes take out the fish with vegetables.

°C TEMPERATURE To adjust the ten

To adjust the temperature or the grill level manually during cooking.

MINUTEMINDER

For keeping time without activating a function.

FAVORITES

For retrieving the list of 9 favorite functions.

SETTINGS

For adjusting the oven settings.

When "ECO" mode is active the brightness of the display will be reduced to save energy and lamp switches off after 1 minute.

When "DEMO" is "On" all commands are active and menus available but the oven doesn't heat up. To deactivate this mode, access "DEMO" from "SETTINGS" menu and select "Off".

By selecting "FACTORY RESET", the product switches off and then it returns to first switch on. All settings will be deleted.

FIRST TIME USE

1. SELECT THE LANGUAGE

You will need to set the language and the time when you switch on the appliance for the first time: "English" will show on the display.

English .1

Press or to scroll through the list of available languages and select the one you require.

Press to confirm your selection.

Please note: The language can subsequently be changed by selecting "LANGUAGE" in "SETTINGS" menu, available by pressing 🔒

2. SET THE TIME

After selecting the language, you will need to set the current time: The two digits for the hour will flash on the display.

12:00 CLOCK

Press + or — to set the correct hour and press √: The two digits for the minutes will flash on the display. Press + or — to set the minutes and press √ to confirm.

Please note: You may need to set the time again following lengthy power outages. Select "CLOCK" in "SETTINGS" menu, available by pressing 🔒

3. SET THE POWER CONSUMPTION

The oven is programmed to consume a level of electrical power that is compatible with a domestic network that has a rating of more than 3 kW (16): if your household uses a lower power, you will need to decrease this value (13).

POWER 16

Press to enter "SETTINGS" menu, then select

DAILY USE

1. SELECT A FUNCTION

Press ⏻ to switch on the oven: the display will show the last running main function or the main menu. The functions can be selected by pressing the icon for one of the main functions or by scrolling through a menu: To select an item from a menu (the display will show the first available item), press + or — to select the desired one, then press √ to confirm.

2. SET THE FUNCTION

After having selected the function you require, you can change its settings. The display will show the settings that can be changed in sequence. Pressing ◀◀ allows you to change the previous setting again.

"POWER" and select desired power setting.

Press + or to select 16 "High" or 13 "Low" and press √ to confirm.

4. SET THE WATER HARDNESS LEVEL

In order to allow the oven to work efficiently, and to guarantee that it regularly prompts the user to perform Descale cycle when needed, it is important to set the correct water hardness level. To set it, switch on the oven by pressing Ⓐ, press ⚙ Settings and use navigation buttons + and to select "WATER HARDNESS". Press to confirm. Use navigation buttons + and to select the correct level for the water of your area, based on the following table:

Press √ to confirm.

For Water Hardness level, "Hard" is preset.

WATER HARDNESS LEVELS TABLE
Level		°dH German degrees	°fH French degrees	°Clark English degrees
1	Very soft	0-6	0-10	0-7
2	Soft	7-11	11-20	8-14
3	Mid	12-16	21-29	15-20
4	Hard	17-34	30-60	21-42
5	Very hard	35-50	61-90	43-62

5. HEAT THE OVEN

A new oven may release odours that have been left behind during manufacturing: This is completely normal.

Before starting to cook food, we therefore recommend heating the oven with it empty in order to remove any possible odours. Remove any protective cardboard or transparent film from the oven and remove any accessories from inside it. Heat the oven to 200 °C for around one hour, ideally using a function with air circulation (e.g. "Forced Air" or "Convection Bake").

Please note: It is advisable to air the room after using the appliance for the first time.

When the value flashes on the display, press + or — to change it, then press √ to confirm and continue with the settings that follow (if possible). In the same way, it is possible to set the grill level: There are three defined power levels for grilling: 3 (high), 2 (mid), 1 (low). In "Forced Air + Steam" function, you can select the amount of steam from the following values: STEAM 1, STEAM 2.

Once the function has been activated, the temperature/grill level can be changed tapping on °C button, then using + or to adjust it.

DURATION

180°C DURATION

When the 📊 on flashes on the display, press + or to set the cooking time you require and then press √ to confirm. You do not have to set the cooking time if you want to manage cooking manually (untimed): Press √ or 📊 confirm and start the function. By selecting this mode, you cannot program a delayed start.

Please note: You can adjust the cooking time that has been set during cooking by pressing :press or to — amend it and then press to confirm.

END TIME (START DELAY)

In many functions, once you have set a cooking time you can delay starting the function by programming its end time. The display shows the end time while the icon flashes.

0:50 180°C END TIME

Press + or — to set the time you want cooking to end, then press √ to confirm and activate the function. Place the food in the oven and close the door: The function will start automatically after the period of time that has been calculated in order for cooking to finish at the time you have set.

Please note: Programming a delayed cooking start time will disable the oven preheating phase: The oven will reach the temperature your require gradually, meaning that cooking times will be slightly longer than those listed in the cooking table. During the waiting time, you can press or to amend the programmed end time or press to change other settings. By pressing, order to visualize information, it is possible to switch between end time and duration.

.6 ^TH SENSE

These functions automatically select the best cooking mode, temperature and duration to cook, roast or bake all the dishes available.

When required, simply indicate the characteristic of food to obtain an optimal result.

WEIGHT / HEIGHT (ROUND-TRAY-LAYERS)

6 KiloGRAMS Kg 1.2

To set the function correctly, follow the indications on the display, when prompted, and press + or to set the required value then press √ to confirm. DONENESS

In some 6^th Sense functions it is possible to adjust the doneness level.

When prompted, press dr to select the desired level between rare (-1) and well done (+1). Press √ or to confirm and start the function.

. COOKING WITH STEAM

By selecting the "Forced Air + Steam" inside the Manual Functions or one of the several 6^th Sense dedicated recipes it is possible cook any kind of food thanks to the use of the steam. Steam spreads more quickly and more evenly through food compared to just the hot air typical of Conventional Functions: this reduce cooking times, locking in food's precious nutrients and ensuring you obtain excellent, truly delicious results with all your recipes. Through the complete duration of the steam cooking the door must be kept closed.

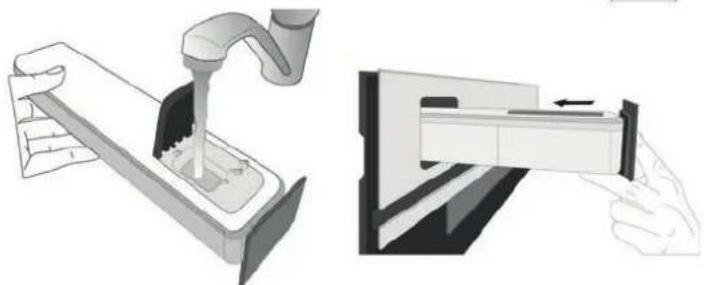

To proceed with steam cooking, it will be necessary to provide water to the boiler located inside the oven using the extractable drawer on the control panel. When requested on the display with "ADD WATER" indications, extract the drawer, open drawer's lid and fill it with water until the level requested on the display. Close the drawer by pushing it carefully towards the panel until completely closed. After the drawer insertion, press START to proceed with the cooking cycle. The drawer must always remain closed, except for water filling.

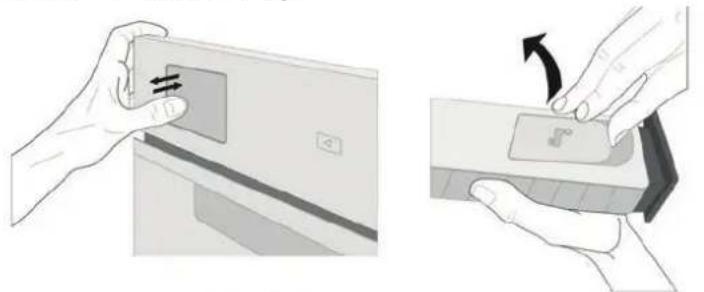

Illustration showing two hands inserting a device into a panel, with no visible text or symbols

Illustration of a hand using a tool to lift a component, showing the process from left to right (no text or symbols present)

After the first filling, in case of longer cooking cycles, once water will have ran out, it could be necessary to add it again, in order to complete the cycle: the oven will prompt it in case it is needed.

Avoid to fill the drawer when the oven is switched off or up to it is requested from the display. We suggest emptying the drawer after the cooking steam cycle.

3. START THE FUNCTION

At any time, if the default values are those desired or once you have applied the settings you require, press to activate the function.

During the delay phase, by pressing ▶ the oven will ask if you want to skip this phase, starting immediately the function.

Please note: Once a function has been selected, the display will recommend the most suitable level for each function. At any time you can stop the function that has been activated by pressing .

If the oven is hot and the function requires a specific maximum temperature, a message will shown on the display. You can either select a different function or wait for a complete cooling.

4. PREHEATING

Some functions have an oven preheating phase: Once the function has started, the display indicates that the preheating phase has been activated.

Once this phase has finished, an audible signal will sound and the display will indicate that the oven has reached the set temperature, requiring to "ADD FOOD". At this point, open the door, place the food in the oven, close the door.

Please note: Placing the food in the oven before preheating has finished may have an adverse effect on the final cooking result. Opening the door during the preheating phase will stop pause it.

The cooking time does not include a preheating phase. You can always change the temperature you want the oven to reach using + or .—

5. TURN OR CHECK FOOD

Some 6th Sense functions will require the food to be turned during cooking.

An audible signal will sound and the display shows the action to be done. Open the door, do the action prompted by the display and close the door. In the same way, at 10% of time before the end of cooking, the oven prompts you to check the food.

An audible signal will sound and the display shows the action to be done. Check the food, close the door. Please note: Press ▶ skip these actions. Otherwise, if no action is done after a certain time the oven will continue the cooking.

6. END OF COOKING

An audible signal will sound and the display will indicate that cooking is complete.

Press to continue cooking in manual mode (untimed) or press + to extend the cooking time by setting a new duration. In both cases, the cooking parameters will be retained.

.FAVORITES

Once cooking is complete the display will prompt you to save the function in a number between 1 and 10 on your list of favorites.

If you would like to save a function as a favorite and store the current settings for future use, press √ otherwise, to ignore the request press ◀.

Once has been pressed, press the or to select the number position, then press to confirm.

Please note: If the memory is full or the number chosen has already been taken, the oven will ask you to confirm overwriting the previous function.

To call up the functions you have saved at a later time, press ♥: The display will show your list of favorite functions.

Press or to select the function, confirm by pressing √, and then press to activate.

.CLEANING FUNCTIONS

STEAM SELF CLEAN

Press ⚙️ to show "Smart Clean" on the display.

0:35 Smart Clean

Press to activate the function: the display will prompt you to do all actions needed to obtain the best cleaning results: Follow the indications and then press √ when done. Once you have done all steps, when required press ▶ to activate the cleaning cycle.

Please note: It is recommended to do not open the oven door during the cleaning cycle to avoid a loss of water vapor that could get an adverse effect on the final cleaning result. An appropriate message will start flashing on the display once the cycle has finished. Leave the oven to cool and then wipe and dry the interior surfaces with a cloth or sponge.

.DRAIN

The drain function allows the water to be drained in order to prevent stagnation in the boiler. This product has been developed in order to automatically run a drain cycle once cooking has been stopped/has ended.

Approximately 30min after the stop/end of cooking, the oven will automatically drain the system, moving the residual water in the drawer (be careful not to remove the drawer after cooking). Once done, the drawer can be extracted and emptied. We recommend emptying the drawer as soon as the drain is completed.

.DESCALE

This special function, activated at regular intervals, allows you to keep the steam system in the best condition. Once the function is started, follow all the steps indicated on the display. The average duration of the full function is around 100 minutes. Descale can be initiated anytime by the entering the then selecting the "CLEANING FUNCTIONS" menu and the Descale function. The display will show you when it is time to run a Descale cycle. The number of hours of steam cycles that must pass before the Decale messages are shown depends on the water hardness level set on the appliance and on the selected steam functions, proportionally with the amount of steam generated. The descaling procedure can also be performed whenever the user desires a deeper cleaning of the internal steam circuit. Before to run the descaling phase, the appliance will check if some residual water is contained into the boiler, and a Drain cycle could be performed, if needed. In this case, you will have to empty the drawer after the Drain cycle, before continuing with the Descale Phase.

Please note: to ensure that the water is cold, it is not possible to perform this activity before 40 minutes have elapsed from the last cycle (or the last time the product was powered). During this waiting time, the display will show the following feedback "WATER IS HOT".

» PHASE 1/2: DESCALING (70 MIN)

When display will show , please pour the descaling solution in the drawer. For best results in descaling, we recommend filling the tank with a solution composed of 75 g of the specific WPRO product and 250 ml of drinking water. WPRO descaler is the suggested professional product for the maintenance of the best performance of your steam function in the oven. For orders and information contact the after sales service or www.whirlpool.eu.

Beko Europe will not be held responsible for any damage caused by the use of other cleaning products available on the market. Once the descaling solution is poured inside the drawer, press ▶ to start the main descaling process. The descaling phases do not need you to stay in front of the appliance. After each phase is completed, an acoustical feedback will be played and the display will show instructions to proceed with the next phase.

= 75 g 1 + +2 3 250 ml

Once the descaling phase has been completed, the boiler will be drained: the descaling solution used during this phase will be poured

into the extractable drawer. At the end of the drain, drawers has to be extracted and emptied.

» PHASE 2/2: RINSING (30 MIN.)

To remove descale residuals from the drawer and the steam circuit, rinse cycle has to be done. When display shows fill the tank with 0,25 L of drinking water, then press ▶ to start the rinsing. Do not turn off the oven until all the steps required by the function have been completed.

Please note: if needed from the system, it could be requested to emty the drawer and to repeat this operation.

When Descale procedure is completed drawer has to be extracted and emptied, it is suggested to dry the cavity from potential water residuals. It will be then possible to use all the steam functions.

Please note: during the Descale cycle, some noise could potentially be heard since the oven pumps are activated in order to guarantee the optimal descale efficiency.

Once the maintenance cycle has started, do not remove the drawer unless requested by the appliance.

Please note: After the boiler gets filled by the descaling solution and the display shows "DESCALING PHASE 1/2", the cycle should not be interrupted, otherwise the entire descaling cycle must be repeated before being able to run any steam function.

. MINUTEMINDER

When the oven is switched off, the display can be used as a timer. To activate this function, make sure that the oven is switched off. Press and hold ⏻ icon for 5 seconds: The ⏻ icon will flash on the display. Press + or to set the length of time you require and then press √ to activate the timer.

An audible signal will sound and the display will indicate once the minuteminder has finished counting down the selected time.

Please note: The minuteminder does not activate any of the cooking cycles. Press or to change the time set on the timer.

Once the minuteminder has been activated, you can also select and activate a function.

Press ⏻ to switch on the oven and then select the function you require. Once the function has started, the timer will continue to count down independently without interfering with the function itself.

Please note: During this phase, it isn't possible to see the minuteminder (only the icon will be displayed), that will continue counting down in background. To retrieve the minuteminder screen press to stop the function that is currently active.

. KEYLOCK

To lock the keypad, press and hold for at least

five seconds. Do this again to unlock the keypad.

0:30 180°C KEYLOCK

Please note: This function can also be activated during cooking. For safety reasons, the oven can be switched off at any time by pressing.

. USING THE PROBE (IF PRESENT)

Using the probe enables you to measure the core temperature of the meat during cooking to ensure that it reaches the optimum temperature. The temperature of the oven varies according to the function that you have selected, but cooking is always programmed to finish once the specified temperature has been reached. Once you have inserted the probe, an audible signal is activated and "Probe Plugged" appears on the display.

1:20 70°C PROBE PLUGGED

Select the function you require from those that are compatible (Steam, Forced Air + Steam, Turbo Grill, Forced Air, Convection Bake, Maxi Cooking, Eco Cycle, 6 ^th Sense functions): The display prompts to set the target temperature of the probe: Press + or — to set it and press √ to set the following cooking parameters.

As cooking is programmed to finish once the required temperature has been reached, it is not possible to set the cooking time or set a specific time for cooking to end. The light will remain switched on until the probe is removed.

If the probe is removed, the display inform to plug it correctly; in case the probe is still not inserted correctly, the cycle will continue for about 10 minutes cooking before canceling it.

An audible signal will sound and the display will indicate when the probe has reached the required temperature.

[ ]= - : - - 90°C END

Please note: To change the settings subsequently, press + or for the probe temperature or press for other settings. An audible signal and a message will tell you if use of the probe is not compatible with the action done. If this is the case, remove the probe.

Place the food in the oven and connect the plug by inserting it into the connection provided on the righthand side of the oven's cooking compartment. Make sure that the cable does not touch the top heating element during cooking.

MEAT: Insert the probe deep into the meat, avoiding bones or fatty areas. For poultry, insert the probe lengthways into the centre of the breast, avoiding hollow areas.

FISH (whole): Position the tip in the thickest part, avoiding the thorns.

Two illustrations of a fish inside a tray, one with a cable and the other with a bandaged body (no text or symbols)

Fish Meat

CLEANING AND MAINTENANCE

Make sure that the oven has cooled down before carrying out any maintenance or cleaning. Do not use steam cleaners.

Do not use wire wool, abrasive scourers or abrasive/corrosive cleaning agents, as these could damage the surfaces of the appliance.

Wear protective gloves. The oven must be disconnected from the mains before carrying out any kind of maintenance work.

EXTERIOR SURFACES

• Clean the surfaces with a damp microfibre cloth. If they are very dirty, add a few drops of pH-neutral detergent. Finish off with a dry cloth.
• Do not use corrosive or abrasive detergents. If any of these products inadvertently comes into contact with the surfaces of the appliance, clean immediately with a damp microfibre cloth.

INTERIOR SURFACES

• After every use, leave the oven to cool and then clean it, preferably while it is still warm, to remove any deposits or stains caused by food residues. To dry any condensation that has formed as a result of cooking foods with a high water content, leave the oven to cool completely and then wipe it with a cloth or sponge.

• Activate the "Diamond Clean" function for optimum cleaning of the internal surfaces. (Only in some models).

• Clean the glass in the door with a suitable liquid detergent.

• The oven door can be removed to facilitate cleaning.

ACCESSORIES

Soak the accessories in a washing-up liquid solution after use, handling them with oven gloves if they are still hot. Food residues can be removed using a washing-up brush or a sponge.

Do not clean Food Probe and Meat Probe (if present) in the dishwasher.

Air Fry tray (if present) can be cleaned in the dishwasher.

WATER DRAWER MAINTENANCE

Caution: The water drawer is not suitable for dishwasher use: risk of damage!

At the end of each cooking cycle with steam, after about 30 min the oven automatically performs a drain

cycle lasting about one minute, thus transferring all the water in the system to the extractable drawer. Note: Avoid to leave the water in the system more than 2 days. In order to completely remove the water inside or clean the internal surfaces, you can open the water drawer:

1. Push towards the top the back flap to remove the water drawer top cover.

2. Once the cleaning is done, you can close the drawer by inserting the two front flaps inside the front openings and pushing down the back side. Use only room temperature water when filling the water drawer: hot water may affect the operation of the steam system. Use only drinking water.

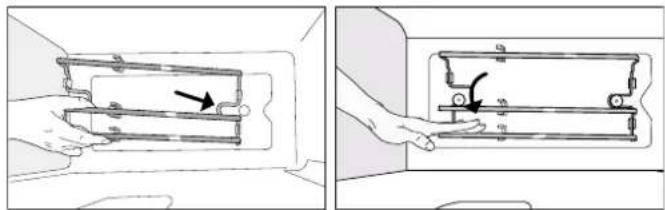

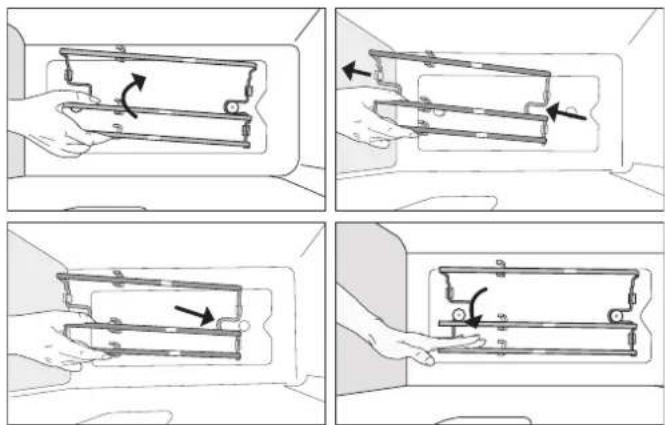

REMOVING AND REFITTING THE LADDER RACKS

There are two ladder racks on both sides of the oven cavity, anchored on two button-shaped supports. The ladder racks are removable to make cleaning more convenient.

1. To remove the ladder racks, firmly grip the external part of the guide, and pull it upwards to extract it from the frontal support while rotating on the rear support, then slide out the whole part from the cavity.

2. To reposition the ladder racks, slide the back part on the back support. Then, once slipped, by pivoting the rear support, pull the assy down until the ladder rack hooks on the frontal support.

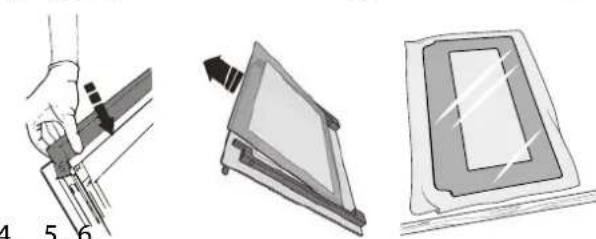

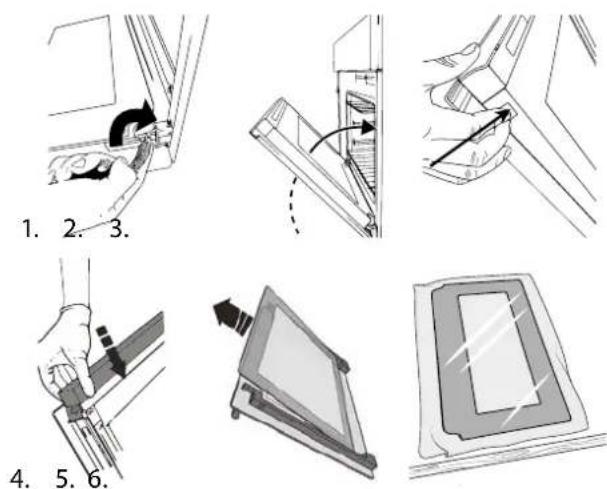

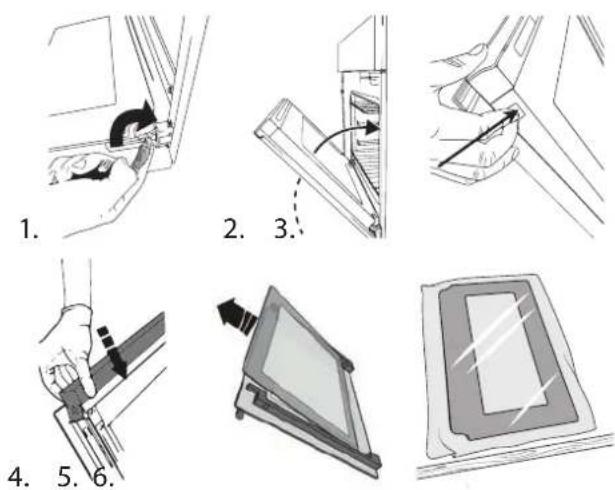

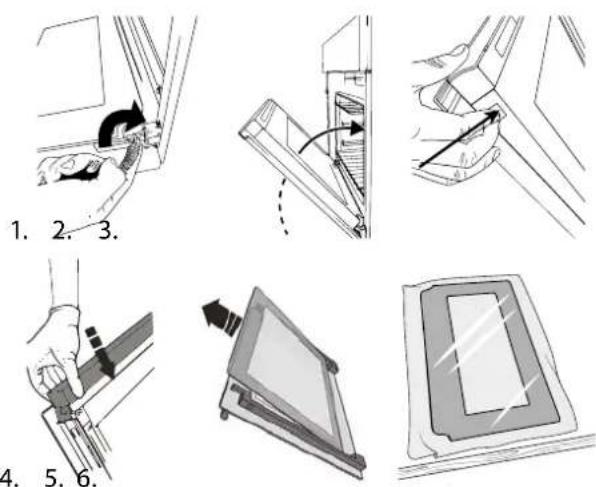

CLEAN THE INTERNAL GLASS OF THE DOOR

1. Open the oven door completely and activate hinge stopper on both sides.

2. Then close the door until it stops in a safe position.

3. Simultaneously press the two retaining clips.

4. Remove the upper edge of the door by pulling it towards you.

5. Lift and firmly hold the inner glass with both hands and remove it.

6. Place it on a soft surface before cleaning it. Do not remove intermediate glass from the door assembly.

BOILER

To ensure that the oven always works at optimum performance and to help prevent the build-up of limescale deposits over time, we recommend using the "Descale" function regularly. After a long

period of non-use of the "Steam" functions, it is highly suggested to activate a cooking cycle with the empty oven by filling completely the tank.

REPLACING THE LAMP

For the replacement of the lamp, contact the after sales service.

Technical line drawing of two mechanical components with no visible text or symbols

Four-panel diagram showing hand positioning of a mechanical component with arrows indicating rotation (no text or symbols)

1. 2. 3. 4. 5. 6.

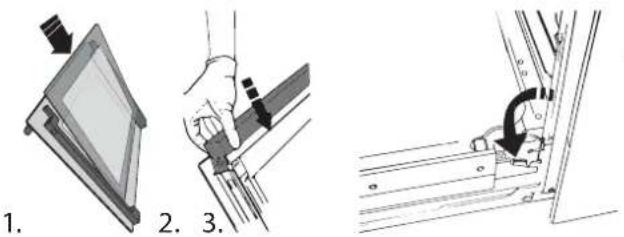

HOW TO REPOSITION THE DOOR GLASS

1. Insert inner glass after cleaning into the door assembly with glossy side towards the oven cavity.

2. Insert the upper edge of the door and gently press until it snaps in place

3. Remove hinge stopper on both sides and then close the door.

1.

TROUBLESHOOTING

Problem Possible cause Solution

The display shows letter ‘F’ followed by a number or letter different from F4E1.	Oven failure.	Contact the Call Center and state the number following the letter ‘F’.
The display shows F4E1.	Food probe is not properly connected.	Check if the probe is connected correctly, if yes but the problem persists, please contact Call Center.
The display shows unclear text and appears to be broken.	Another language set. Contact the Call Center
The oven makes noises, even when it is switched off.	Cooling fan active.	Open the door or hold and wait until the cooling process has finished.
The oven does not heat up.	When “DEMO” is “On” all commands are active and menus available but the oven doesn’t heat up.DEMO appears on display every 60 seconds.	Access “DEMO” from “SETTINGS” and select “Off”.
The oven display shows F8E8 (or inability to use the Steam function because of failure F8E8)	Excessive pollution of the water and steam system.	Fill the drawer with clean water and then run the cleaning/descale function. After the process is completed, restart the descaling process using the target solution with the descaler and then carry out the process again.If error F8E8 still appears, contact the nearest service center.

Policies, standard documentation and additional product information can be found by:

• Using the QR code in your appliance

- Visiting our website docs.whirlpool.eu/docs

- Alternatively, contact our After-sales Service (See phone number in the warranty booklet). When contacting our After-sales Service, please state the codes provided on your product's identification plate.

TM/© 2024 Whirlpool. Produced under license.

DANKE, DASS SIE SICH FÜR EIN WHIRLPOOL-PRODUKT ENTSCHIEDEN HABEN

1 2 3 4 5 76 8 9 6th sense - + ✓ S= °C S== ♥ ● ●

1. ON / OFF

Simple line drawing of a rectangular frame with diagonal lines inside, no text or symbols present.

Simple line drawing of a square frame with rounded corners and small square cutouts at the top (no text or symbols)

Deutsch .1

UHR 12:00

[ ] 6 DONENESS

Four-step diagram illustrating a procedure for inserting or removing a device into a container, with no visible text or symbols.

Two illustrations of a fish inside a tray, one with a cable and the other with a bandaged dish (no text or symbols)

Fisch Fleisch

Four-panel diagram showing hand positioning of a mechanical component with arrows indicating rotation (no text or symbols)

1. 2. 3. 4. 5. 6.

ERNEUTES ANBRINGEN DES TÜRGLASES

MERCI D'AVOIR CHOISI UN PRODUIT WHIRLPOOL

1 2 3 4 5 76 8 9 6th sense ← ← + ···· ✓ S °C S ♥ ● ● ▶

1. ON/OFF

1. ACCÈS DIRECT AUX OPTIONS / FONCTIONS

Simple line drawing of a rectangular grid with vertical lines, no text or symbols present

Simple line drawing of a square frame with rounded corners and small square cutouts at the top (no text or symbols)

Cupcake / Smallcake 160 20 - 25

Biscuits 165 15 - 20

CHALEUR PULSÉE

[ ] 6 DONENESS

Four-panel illustration showing hands performing a mechanical or cleaning operation: pressing a component, moving a package, pouring liquid into a drain, and finally adjusting a tray (no text or symbols)

Two illustrations of a fish inside a tray, one with a band and the other with a band (no text or symbols)

Poisson Viande

NETTOYAGE ET ENTRETIEN

Technical diagram showing four steps of a mechanical device with directional arrows indicating rotation or movement.

1. 2. 3. 4. 5. 6.

COMMENT REPOSITIONNER LA VITRE DE LA PORTE

1 2 3 4 5 76 8 9 6th sense - + ✓ S °C S ♥ ♥ ● ▶

1. AAN / UIT

Simple line drawing of a rectangular frame with diagonal lines inside, no text or symbols present.

Simple line drawing of a square frame with rounded corners and small square cutouts at the top (no text or symbols)

12:00 KLOK

VERMOGEN 16

Four-panel illustration showing hands performing a manual task: pressing a component, moving a device, pouring liquid into a tank, and inserting a drawer (no text or symbols present)

[ ] 100 180°C TURN FOOD

Two illustrations of a fish inside a tray, one with a cable and the other with a coiled rod (no text or symbols)

Vis Vlees

REINIGEN EN ONDERHOUD

Four-panel diagram showing hand positioning of a mechanical device with arrows indicating movement (no text or symbols)

HET BINNENGLAS VAN DE DEUR REINIGEN

6th sense 1 2 3 4 5 76 8 9 + ···· ✓ S °C S= = ♥ ● ● ●

1. ON / OFF

Pure 3D wireframe diagram of a rectangular grid structure with no text or symbols

Simple line drawing of a square frame with dashed border (no text or symbols)

Cupcake / Smallcake 160 20 - 25

Galletas 165 15 - 20

AIRE FORZADO

12:00 RELOUT

[ ] 6 DONENESS

Four-panel illustration showing hands performing a manual task: adding a card, adjusting a component, pouring liquid into a container, and finally adding a drawer (no text or symbols present)

PREHEATING 180°C

Two illustrations of a fish inside a tray, one with a cable and the other with a bandaged body (no text or symbols)

Pescado Carne

LIMPIEZA Y MANTENIMIENTO

Two technical diagrams showing a hand holding a mechanical component, with arrows indicating motion direction (no text or symbols present)

Two technical diagrams showing a hand holding a device inside a cabinet, with no visible text or symbols.

1. 2. 3.

Illustration showing three steps of a mechanical or architectural installation: hand holding a tool, angled view, and rectangular panel (no text or symbols)
