USER MANUAL SKSFD3623SD SIGNATURE

Scan to see the online manual.

SIGNATURE

KITCHEN SUITE

OWNER'S MANUAL

FRENCH DOOR REFRIGERATOR

Read this owner's manual thoroughly before operating the appliance and keep it handy for reference at all times.

ENGLISH

SKSFD3623*D

MFL69497057

Rev.01_060424

www.signaturekitchensuite.com

Copyright © 2024 Signature Kitchen Suite. All Rights Reserved.

Pure geometric diagram with intersecting lines and circles, no text or symbols present

2

TABLE OF CONTENTS

3 IMPORTANT SAFETY INSTRUCTIONS

3 READ ALL INSTRUCTIONS BEFORE USE

3 W A R N I N G 6 C A U T I O N

7 PRODUCT OVERVIEW

7 Product Features

10 INSTALLATION

10 Before Installing
11 Choosing the Proper Location

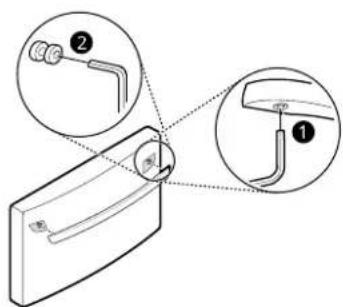

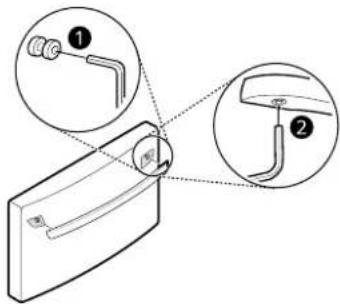

13 Removing/Assembling Handles

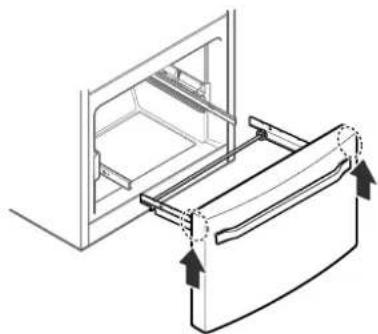

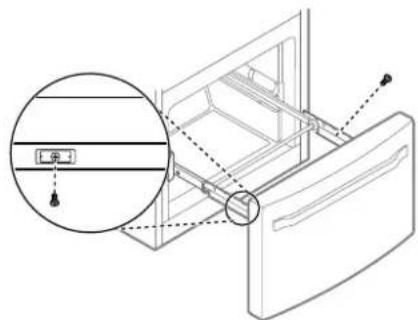

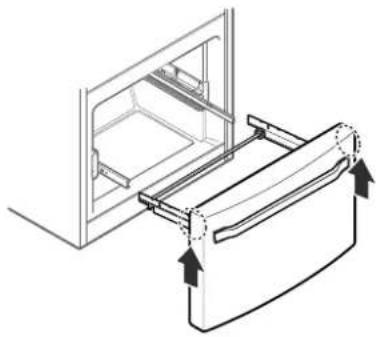

14 Removing/Assembling Doors and Drawers
19 Connecting Refrigerator to Water Supply
21 Leveling and Door Alignment
22 Turning on the Power

23 OPERATION

23 Before Use
24 Control Panel
27 Sabbath Mode
27 Ice and Water Dispenser
28 In-Door Ice Bin
29 Automatic Icemaker
32 Storing Food
33 Crisper Drawers
34 Glide'N'Serve
35 Refrigerator Shelves
36 Door Bins
36 Durabase
23 Before Use
24 Control Panel
27 Sabbath Mode
27 Ice and Water Dispenser
29 Automatic Icemaker
32 Storing Food
33 Crisper Drawers
34 Glide,N.Serve
35 Refrigerator Shelves
36 Door Bins
36 Durabase

37 SMART FUNCTIONS

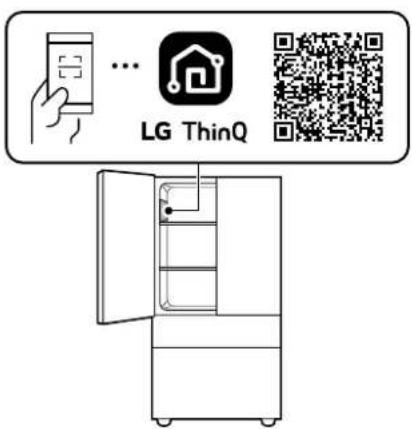

37 LG ThinQ Application
39 Smart Grid Function
40 Smart Diagnosis ^TM Feature
37 LG ThinQ Application
39 Smart Grid Function
40 Smart Diagnosis ^TM Feature

42 MAINTENANCE

42 Cleaning
43 Air Filter
43 Water Filter
42 Cleaning
43 Air Filter
43 Water Filter

48 TROUBLESHOOTING

48 FAQs
49 Before Calling for Service
48 FAQs
49 Before Calling for Service

58 LIMITED WARRANTY

58 USA
60 Canada

37 SMART FUNCTIONS

48 TROUBLESHOOTING

Pure geometric diagram with intersecting lines and circles, no text or symbols present

IMPORTANT SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USE

Safety Messages

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and follow all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or injure you and others. All safety messages will follow the safety alert symbol and either the word WARNING or CAUTION.

These words mean:

WARNING

You may be killed or seriously injured if you do not follow instructions.

CAUTION

You may be injured or cause damage to the product if you do not follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what may happen if the instructions are not followed.

WARNING

WARNING

• To reduce the risk of explosion, fire, death, electric shock, scalding or injury to persons when using this product, follow basic precautions, including the following:

Installation

• To reduce the risk of injury to persons, adhere to all industry recommended safety procedures including the use of long-sleeved gloves and safety glasses.

- Never attempt to operate this appliance if it is damaged, malfunctioning, partially disassembled, or has missing or broken parts, including a damaged cord or plug.

- Only connect this product to a dedicated grounded electrical outlet rated for use with this product (115 V, 60 Hz, AC only). It is the user's responsibility to replace a standard 2-prong wall outlet with a standard 3-prong wall outlet.

- Do not use an outlet that can be turned off with a switch. Do not use an extension cord.

- The appliance must be positioned for easy access to a power source.

- When moving the refrigerator, be careful not to roll over or damage the power cord.

- Contact an authorized service center when installing or relocating the refrigerator.

- Do not, under any circumstances, cut or remove the third (ground) prong from the power cord.

- Keep packing materials out of the reach of children. Packaging material can be dangerous for children. There is a risk of suffocation.

- Do not install the refrigerator in a damp or dusty place where insulation on electrical parts may deteriorate.

- Do not place the refrigerator in direct sunlight or expose it to the heat from heating appliances such as stoves or heaters.

4 IMPORTANT SAFETY INSTRUCTIONS

• Do not bend or pinch the power cord excessively or place heavy objects on it.
• When positioning the appliance, ensure the supply cord is not trapped or damaged.
• Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

Operation

• This appliance is intended to be used in household and similar applications such as:

• staff kitchen areas in shops, offices and other working environments;
• farm houses and by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments;
• catering and similar non-retail applications.

- This appliance is not for use in portable or mobile installations, such as marine or RV uses, where it will be in motion while operating.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

- This product is not to be used for special purposes such as the storage of medicine or test materials or for use on ships, etc.

- DO NOT allow children to climb, stand, or hang on the refrigerator doors or on the shelves in the refrigerator. They could damage the refrigerator and seriously injure themselves.

- Do not allow children to climb into the refrigerator. They could be trapped and suffocated.

• Children should be supervised to ensure that they do not play with the refrigerator.

- Keep fingers out of pinch point areas; clearances between the doors and cabinets are necessarily small. Be careful closing doors when children are nearby.

- Do not touch frozen food or the metal parts in the freezer compartment with wet or damp hands. Doing so may cause frostbite.

- Do not refreeze frozen food that has thawed completely. Doing so may result in a serious health hazard.

- Do not use an adapter plug or plug the power plug into a multi-outlet extension cord.

- If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

- Do not operate the refrigerator or touch the power cord with wet hands.

- Do not modify or extend the power cord.

- Do not use an uncertified power outlet. Do not plug appliance into a damaged wall outlet.

- Do not put hands, feet or other objects into the air vents or bottom of the refrigerator. Doing so could result in personal injury or electric shock.

- In the event of a gas leak (propane/LPG), ensure the area is adequately ventilated and contact an authorized service center before resuming use. Do not touch the refrigerator or power cord of the refrigerator.

- Disconnect the power cord immediately and contact an authorized service center if there is a strange noise, odor, or smoke coming from the appliance.

- Do not use any fuse (such as copper, steel wire, etc.) other than a standard fuse.

- Do not put animals inside the appliance.

- Do not place heavy or fragile objects, liquid filled containers, combustible substances, or flammable objects (such as candles and lamps) on the appliance.

- If connected to a circuit protected by fuses, use time delay fuse.

- Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

- Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

• Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• Do not damage the refrigerant circuit.
  • This appliance incorporates an earth connection for functional purposes.
• Connect to potable water supply only.
• If connected to a water supply, connect to a potable water supply only.
• Fill with potable water only.
• If using an icemaker or dispenser water tank, make sure to fill it with potable water only.

Maintenance

• Do not use a hair dryer to dry the inside of the refrigerator.
• Do not light a candle to remove odors in the refrigerator.
• In the event of a refrigerant leak, move flammable objects away from the refrigerator. Ensure the area is adequately ventilated and contact an authorized service center.
• Keep flammable materials and vapors, such as gasoline, away from the refrigerator.
• Unplug the power plug before cleaning or repairing the refrigerator.
• The refrigerator and freezer compartment lights are interior LED lighting, and service should be performed by a qualified technician.
• Unplug the power plug immediately in the event of a blackout or thunderstorm.
• Turn the power off if water or dust penetrates into the refrigerator. Call a service agent.
• Do not store glass containers or soda in the freezer compartment. Contents may expand when frozen, break the container and cause injury.
• Do not store, disassemble or repair the appliance yourself or allow unqualified personnel to do so.

Disposal

• Risk of child entrapment. Junked or abandoned refrigerators are dangerous, even if they are sitting for only a few days. When disposing of the refrigerator, remove the packing materials from the door or take off the doors but leave the shelves in place so that children may not easily climb inside.
• If disposing of a refrigerator, make sure the refrigerant and insulation foam are removed for proper disposal by a qualified servicer. If you release the refrigerant or throw away the insulation foam, you may be fined or imprisoned in accordance with the relevant environmental law. Insulation foam contains flammable blowing gas.
• When discarding the appliance, remove the door gasket while leaving the shelves and bins in place, and keep children away from the appliance.

Grounding Instructions

• Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or service personnel if you are in doubt whether the appliance is properly grounded. Do not modify the plug provided with the appliance; if it will not fit the outlet, have a proper outlet installed by a qualified electrician.
• Have a certified electrician check the wall outlet and wiring for proper grounding.
• Never unplug the appliance by pulling on the power cord. Always grip the plug firmly and pull straight out from the outlet. Failure to do so may damage the power cord, resulting in a risk of fire and electric shock.

6 IMPORTANT SAFETY INSTRUCTIONS

Risk of Fire and Flammable Materials

This symbol alerts you to flammable materials that can ignite and cause a fire if you do not take care.

This appliance contains a small amount of isobutane refrigerant (R600a), which is combustible. When transporting and installing the appliance, care should be taken to ensure that no parts of the refrigerating circuit are damaged. Refrigerant squirting out of the pipes could ignite or cause an eye injury. If a leak is detected, avoid any naked flames or potential sources of ignition and air out the room in which the appliance is standing for several minutes.

In order to avoid the creation of a flammable gas air mixture if a leak in the refrigerating circuit occurs, the size of the room in which the appliance may be sited depends on the amount of refrigerant used. The room must be 10.8 square feet (1 square meter) in size for every 8g of R600a refrigerant inside the appliance. The amount of refrigerant in your particular appliance is shown on the identification plate inside the appliance. Never start up an appliance showing any signs of damage. If in doubt, consult your dealer.

CAUTION

CAUTION

- To reduce the risk of minor or moderate injury to persons, malfunction, or damage to the product or property when using this product, follow basic precautions, including the following:

Installation

• Do not install the refrigerator where there may be a danger of the unit falling.
• The refrigerator must be properly installed in accordance with the Installation Instructions.
• This appliance is not recommended for use at altitudes above 6562 ft (2000 m).

Operation

• Do not use aerosols near the refrigerator.
• This appliance is intended to be used only in domestic and similar applications.
• Do not strike or apply excessive force to any glass surface. Do not touch glass surfaces if they are cracked or broken. You may be injured.
• Do not overfill or pack items too tightly into door bins. Doing so may cause damage to the bin or personal injury if items are removed with excessive force.

Maintenance

• Do not use strong detergents like wax or thinners for cleaning. Clean with a soft cloth.
• Remove foreign objects (such as dust and water) off the prongs of the power plug and contact areas. Do not use a wet or damp cloth when cleaning the plug.
• Do not spray water directly on the inside or outside of the refrigerator.
• Do not clean glass shelves or covers with warm water when they are cold. They may break if exposed to sudden temperature changes.

SAVE THESE INSTRUCTIONS

PRODUCT OVERVIEW

Product Features

The images in this guide may be different from the actual components and accessories, which are subject to change by the manufacturer without prior notice for product improvement purposes.

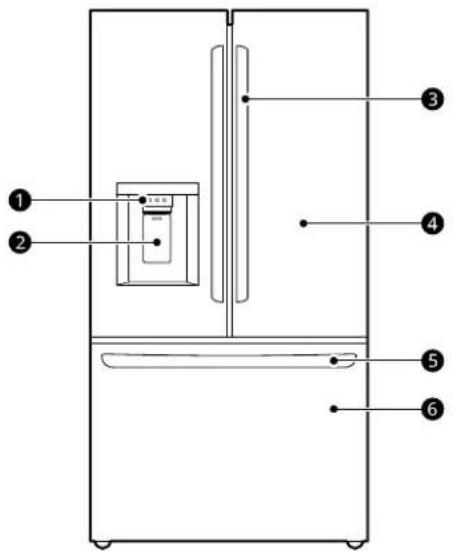

Exterior

† This feature is only available on some models.

Diagram of a refrigerator with numbered parts labeled for identification

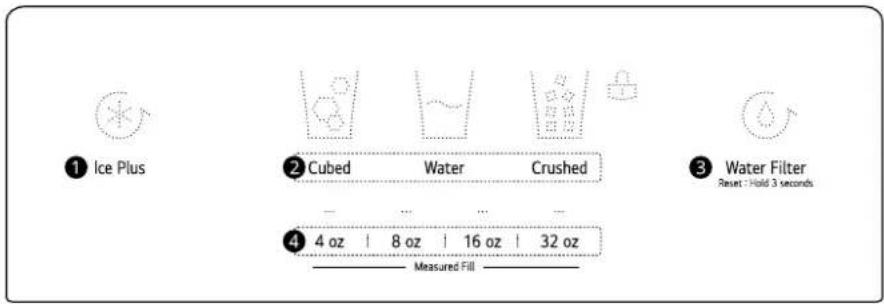

a Dispenser Control Panel

Sets the dispenser mode.

b Filtered Water and Ice Dispenser

Dispenses purified water and ice.

c Handle

Opens and closes the refrigerator door.

d Refrigerator

Fresh food compartment

e SmartPull ™ Handle ^†

Easily opens the freezer door.

f Freezer

Frozen food compartment

8 PRODUCT OVERVIEW

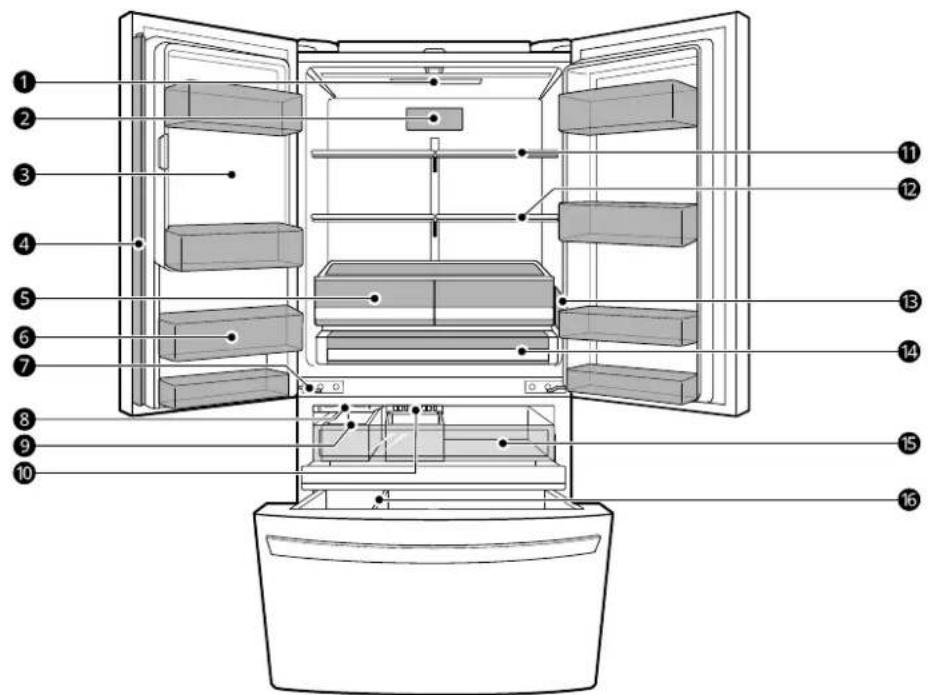

Interior

† This feature is only available on some models.

Labeled diagram of an open refrigerator interior with numbered parts for identification

①LED Interior Lighting

Lights up the inside of the refrigerator.

②Air Filter

Reduces odors inside the refrigerator compartment.

③In-Door Icemaker (Refrigerator)

Automatically produces and stores ice.

④Door Mullion

Prevents the cold air in the refrigerator from escaping when the doors are closed.

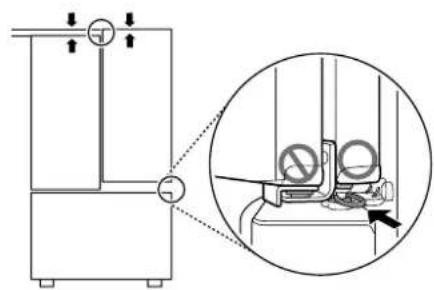

CAUTION

- To reduce the risk of scratching the door or breaking the center door mullion, make sure that the folding door mullion is folded in before closing the left-hand door.

• The door alarm will sound every 30 seconds if the door remains open longer than one minute.

⑤Humidity Controlled Crisper ^†

Helps vegetables and fruit to stay crisp and controls humidity.

⑥Fixed Door Bin

Stores chilled food or drinks.

⑦Auto-Closing Hinge

The refrigerator doors and freezer drawers close automatically when pushed slightly. (The door only closes automatically when it is open at an angle of less than 30^ .)

⑧Automatic Icemaker A (Freezer)

Produces ice automatically.

9Ice Bin

Stores ice from the automatic icemaker. If a large amount of ice is needed, transfer the ice from the icemakers to another ice storage bin in the freezer.

⑩Automatic Icemaker B (Freezer) ^†

Produces ice automatically.

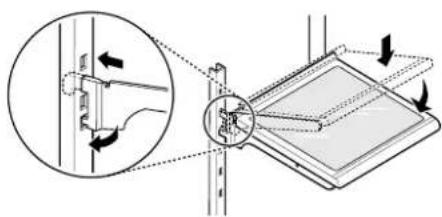

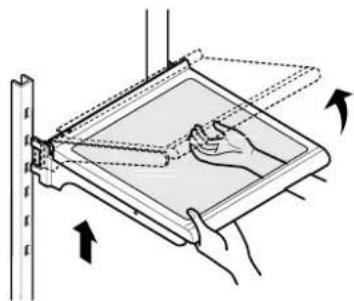

⑪Adjustable Refrigerator Shelf

The refrigerator shelves are adjustable to meet individual storage needs.

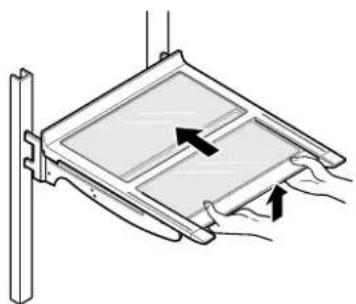

⑫Folding Shelf ^†

Store taller items, such as gallon containers or bottles, by pushing the front half of the shelf underneath the back half of the shelf.

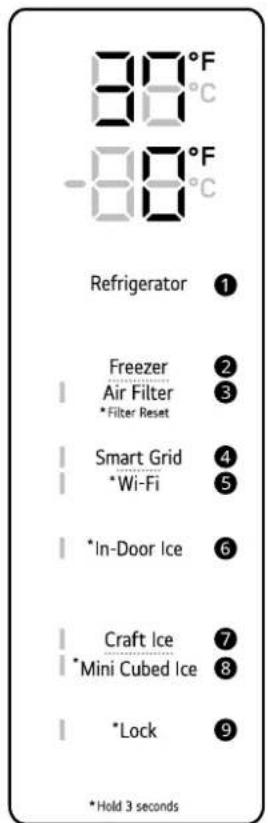

Control Panel

Sets the refrigerator and freezer temperatures or other functions.

14 Glide'N'Serve

Stores food items at a different temperature than the regular refrigerator area.

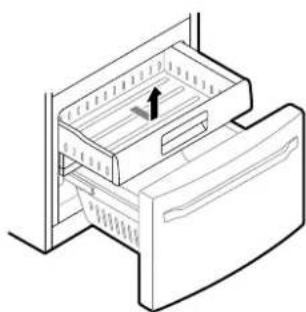

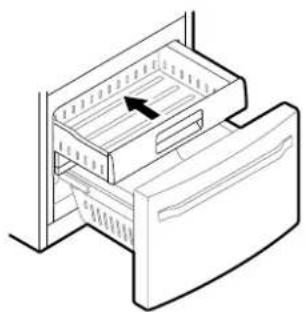

⑮Pullout Drawer

Provides extra storage within the freezer compartment.

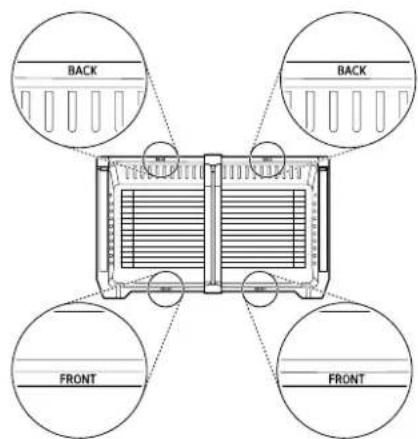

⑯Durabase and Durabase Divider

Provides storage for large frozen food items.

Product Specifications

The appearance and specifications listed in this manual may vary due to constant product improvements.

Electrical requirements: 115 V, 60 Hz

Min. / Max. water pressure: 20 - 120 psi (138 - 827 kPa)

Model Description Net weight
SKSFD3623*D Counter-depth, French Door Refrigerator, Bottom Freezer 298 Ib (135 kg)

Pure geometric diagram with intersecting lines and circles, no text or symbols present

10 INSTALLATION

INSTALLATION

Before Installing

Installation Overview

Please read the following installation instructions first after purchasing this product or transporting it to another location.

① Unpacking the Refrigerator
② Choosing the Proper Location
③Disassembling/Assembling
④Connecting the Water Line
⑤Leveling and Door Alignment

WARNING

- Connect to potable water supply only.

Unpacking the Refrigerator

WARNING

• Use two or more people to move and install the refrigerator. Failure to do so can result in back injury or other injury.
  • The refrigerator is heavy. Protect the floor when moving the refrigerator for cleaning or service. Always pull the refrigerator straight out when moving it. Do not wiggle or walk the refrigerator when trying to move it, as floor damage could occur.
• Keep flammable materials and vapors, such as gasoline, away from the refrigerator. Failure to do so can result in fire, explosion, or death.

NOTE

• Remove tape and any temporary labels from your refrigerator before using. Do not remove any warning labels, the model and serial number label, or the Tech Sheet that is located under the front of the refrigerator.
  • To remove any remaining tape or glue, rub the area briskly with your thumb. Tape or glue residue can also be easily removed by rubbing a small amount of liquid dish soap over the adhesive with your fingers. Wipe with warm water and dry.
• Do not use sharp instruments, rubbing alcohol, flammable fluids, or abrasive cleaners to remove tape or glue. These products can damage the surface of your refrigerator.
• Reinstall or adjust shelves as needed. Refrigerator shelves are installed in the shipping position. Reinstall shelves according to your individual storage needs.

Choosing the Proper Location

Water

The refrigerator must be located where a water supply can be connected for the automatic icemaker.

NOTE

• The water pressure must be 20 - 120 psi (138 - 827 kPa). If the refrigerator is installed in an area with low water pressure (below 20 psi or 138

kPa), you can install a booster pump to compensate for the low pressure.

Electricity

Use an individual, grounded outlet: 115 Volts, 60 Hz, AC, 15 amps minimum.

WARNING

• Do not overload house wiring and cause a fire hazard by plugging in multiple appliances in the same outlet with the refrigerator.
• To reduce the risk of electric shock, do not install the refrigerator in a wet or damp area.

Flooring

To avoid noise and vibration, the unit must be installed and leveled on a solidly constructed floor. If required, adjust the leveling legs to compensate for the unevenness of the floor.

NOTE

• Installing on carpeting, soft tile surfaces, a platform or weakly supported structure is not recommended.

Ambient Temperature

Install this appliance in an area where the temperature is between 55 °F (13 °C) and 110 °F (43 °C).

If the temperature around the appliance is too low or high, cooling ability may be adversely affected.

The internal temperatures could be affected by the location of the appliance, the ambient temperature, the frequency of door opening and other factors.

12 INSTALLATION

Dimensions and Clearances

• Check the dimensions of the appliance and the installation path to ensure there is sufficient room to move the refrigerator through doors or narrow openings.
• If an opening is too narrow to fit the refrigerator through, remove the refrigerator doors. See Removing/Assembling the Doors and Drawers in this manual.
• The installation location chosen for the refrigerator should allow space behind the unit for connections and airflow and space in front to open the doors and drawers.
• Too small of a distance from adjacent items may result in lowered freezing capability and increased electricity consumption charges. Allow at least 24 inches (610 mm) in front of the refrigerator to open the doors, and at least 2 inches (50.8 mm) between the back of the refrigerator and the wall.

A B C D

E F G H

- Dimension/Clearance SKSFD3623*D
A Depth without Handle 29 1/8" (739 mm)
B Width 35 3/4" (908 mm)
C Height to Top of Case 68 7/8" (1750 mm)
D Height to Top of Hinge 70 1/4" (1785 mm)
E Back Clearance 2" (50 mm)
F Depth without Door	24 3/4" (628 mm)
G	Depth with Handle	31 11/16" (805 mm)
H	Depth (Total with Freezer Drawer Open)	49" (1242 mm)
I	Depth (Total with Door Open 90°)	43 5/8" (1106 mm)

Removing/Assembling Handles

These instructions are for models which ship with the handles assembled. For models shipped with the handles disassembled, follow the instructions included in the handle package.

- Tools Needed

• Units shipped with disassembled handles: 3/32" and 1/4" Allen wrenches only
• Units shipped with assembled handles: 3/32", 1/8" and 1/4" Allen wrenches

When moving the refrigerator through a narrow opening, removing the doors is preferred. If you must remove the handles, be very careful not to scratch the doors.

The appearance of the handles may vary from what is shown.

CAUTION

• When assembling or disassembling the refrigerator handles, grasp the handle firmly to avoid dropping it.
• Do not swing the handle into nearby people or animals.
• Make sure that the set screws are in place and the handle footprints at the ends of the handles are aligned correctly over the mounting fasteners on the doors. The set screws should be loose enough to allow the handle footprints to slide down into place over the mounting fasteners on the door.
• Make sure that there is not a gap between the door and handle after assembling the handle.

Removing Refrigerator Handles

1 Loosen the set screws ① with a 3/32 in. Allen wrench and remove the handle.
2 If needed, loosen the mounting fasteners ② that connect the refrigerator door and handle using a 1/4 in. Allen wrench, and remove the mounting fasteners.

Diagram showing two views of a door handle with labeled parts, including a close-up view and detail annotations.

Assembling Refrigerator Handles

1 If needed, reassemble the mounting fasteners ① on the door with a 1/4 in. Allen wrench.
2 Place the handle on the door by fitting the handle footprints over the mounting fasteners and tightening the set screws ② with a 3/32 in. Allen wrench.

Diagram showing two views of a device with labeled parts, including a close-up view of the main component.

Removing Freezer Drawer Handles

1 Loosen the set screws ① located on the lower side of the handle with a 3/32 in. Allen wrench and remove the handle.
- For models shipped with the handles assembled, use a 1/8 in. Allen wrench.
2 Loosen the mounting fasteners ② with a 1/4 in. Allen wrench, and remove the mounting fasteners.

Diagram illustrating a mechanical assembly with labeled parts and directional arrows indicating motion or assembly.

Assembling Freezer Drawer Handles

1 Assemble the mounting fasteners ① at both ends of the handle with a 1/4 in. Allen wrench.

14 INSTALLATION

2 Place the handle on the door by fitting the handle footprints over the mounting fasteners and tightening the set screws ② with a 3/32 in. Allen wrench.

- For models shipped with the handles assembled, use a 1/8 in. Allen wrench.

Diagram showing two mechanical components with numbered callouts, likely illustrating a process or assembly step.

Removing/Assembling Doors and Drawers

If the entrance door is too narrow for the refrigerator to pass through, remove the refrigerator doors and move the refrigerator sideways through the doorway.

WARNING

• Use two or more people to remove and install the refrigerator doors and drawers.
• Disconnect the electrical supply to the refrigerator before installing.
• Do not put hands, feet or other objects into the air vents or bottom of the refrigerator.
• Be careful when handling the hinge and hinge lever.
• Remove food and bins before detaching the doors and drawers.
• Do not hold the handle when removing or replacing the doors and drawers as the handle may come off.

- Tools Needed

• Phillips screwdriver
• Flat-head screwdriver

Removing the Hinge Cover

Remove the screws from the hinge cover at the top of the refrigerator. Lift the hook (not visible),

located at the bottom of the front side of the cover with a flat-head screwdriver.

Technical line drawing of a metal bracket with three bolt holes (no text or symbols)

Removing the Left Refrigerator Door

1 The water supply is connected to the upper right part of the rear surface of the refrigerator. Remove the clip in the joint area. Hold the water supply connection and gently push the collet ① to detach the water supply line as shown.

Diagram showing electrical connections with labeled components and directional arrows, including a magnified inset of two insulating wires.

NOTE

• Disassembling/Assembling the Water Lines

Technical diagram of a mechanical assembly with numbered components labeled 2 through 5

② Collet ③ Tube ④ Insert line ⑤ Clip

2 Pull out the water supply lines ⑥. Disconnect all the wire harnesses ⑦. Unscrew the ground wire ⑧.

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or movement.

Pure geometric diagram with intersecting lines and circular shapes, no text or symbols present

3 Rotate the hinge lever ⑨ counterclockwise. Lift the top hinge ⑩ free of the hinge lever latch ⑪.

CAUTION

- When lifting the hinge free of the latch, be careful that the door does not fall forward.

Technical diagram showing mechanical assembly with numbered components and directional arrows indicating motion or force

4 Lift the door from the middle hinge pin and remove the door.

CAUTION

- Place the door, inside facing up, on a nonscratching surface.

Technical diagram showing a mechanical assembly with a bracket and a connector, no text or symbols present

Removing the Right Refrigerator Door

1 Detach all the wire harnesses ①. Unscrew the ground wire ②.

NOTE

• The number of wire harnesses may vary depending on the model.
  • Ground wire is only present on some models.

Diagram showing cable installation with labeled components and directional arrows indicating movement or connection.

ENGLISH

2 Rotate the hinge lever ③ clockwise. Lift the top hinge ④ free of the hinge lever latch ⑤.

CAUTION

- When lifting the hinge free of the latch, be careful that the door does not fall forward.

Diagram of a robotic arm with labeled parts and directional arrows indicating movement or force

3 Lift the door from the middle hinge pin and remove the door.

CAUTION

- Place the door, inside facing up, on a nonscratching surface.

Technical diagram showing a mechanical assembly with a bracket and mounting bracket, no text or symbols present

Removing Freezer Drawers

WARNING

- Use two or more people to remove and install the refrigerator doors and freezer drawer.

Pure geometric diagram with intersecting lines and circular shapes, no text or symbols present

16 INSTALLATION

WARNING

• Be careful of sharp hinges on both sides of the drawer.
• When you lay the drawer down, be careful not to damage the floor.
• Do not sit or stand on the freezer drawer.
• To prevent accidents, keep children and pets away from the drawer. Do not leave the drawer open. If the Durabase® storage bin is removed from the freezer drawer, there is sufficient space for a small child or pet to crawl inside.

1 Pull the drawer open to full extension.

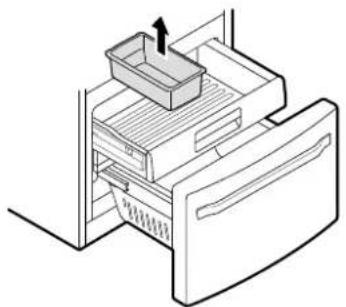

2 Gently lift and pull out the ice bin(s).

Line drawing of a refrigerator with an open drawer and a plastic container on top (no text or symbols)

NOTE

• The number of ice bins may vary depending on the model.
  3 Lift the front of the drawer up, then pull it straight out.

Line drawing of a refrigerator interior showing drawer, storage tray, and handle (no text or symbols)

4 Remove the Durabase basket from the rails. Remove the screws from the rails at both ends.

电

5 Grip both sides of the drawer and pull it up to remove it from the rails.

CAUTION

- Do not hold the handle when removing or replacing the drawer. The handle may come off, causing personal injury.

Technical line drawing of a refrigerator with handle and side panel, showing internal compartments and mounting points (no text or symbols)

6 Hold both rails and push them in simultaneously.

Diagram showing two hands holding a tool inside a rectangular frame, with arrows indicating direction (no text or symbols)

Assembling Freezer Drawers

1 Pull out both rails simultaneously, until they are fully extended.

Line drawing of two hands holding a tool inside a storage unit (no text or symbols)

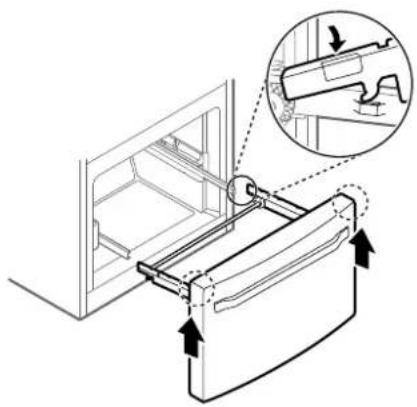

2 Grasp the drawer on each side and hook the drawer supports into the rail tabs located on both sides.

CAUTION

- Do not hold the handle when removing or replacing the drawer. The handle may come off, causing personal injury.

Technical diagram showing a refrigerator door mechanism with an inset close-up of the handle and lock mechanism.

3 Lower the door into its final position and insert the screws in the rails on both sides.

Technical diagram of a refrigerator with labeled parts and an inset magnified view showing a handle and lock mechanism.

4 Insert the drawer into the frame, and push the drawer back until it clicks into place.

Line drawing of a refrigerator drawer with an arrow indicating the interior compartment (no text or symbols present)

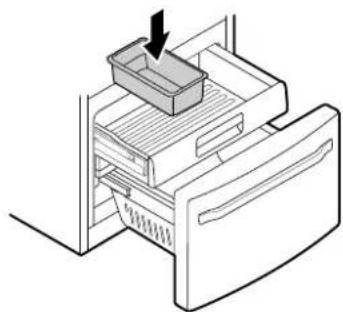

5 Replace the ice bin(s) in the drawer. Insert the Durabase basket in the rail assembly.

Line drawing of a refrigerator with an open drawer and a box on top, showing internal shelves (no text or symbols)

NOTE

- The number of ice bins may vary depending on the model.

Assembling the Right Refrigerator Door

CAUTION

• Install the right-side door first.

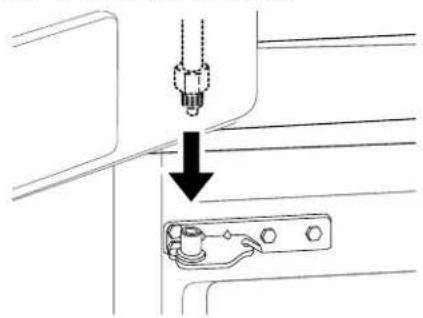

1 Make sure that the plastic sleeve is inserted in the bottom of the door. Lower the door onto the middle hinge pin as shown in the figure.

Technical diagram showing a mechanical assembly with a downward arrow indicating a process or connection (no text or symbols present)

Pure geometric diagram with intersecting lines and circles, no text or symbols present

18 INSTALLATION

2 Fit the hinge ① over the hinge lever latch ② and slot it into place. Rotate the lever ③ counterclockwise to secure the hinge.

Diagram showing a mechanical device with numbered parts and directional arrows indicating motion or assembly.

3 Connect all the wire harnesses ④. Screw in the ground wire ⑤.

Diagram showing cable routing with labeled components 4 and 5, indicating cable connections or assembly steps.

NOTE

• The number of wire harnesses may vary depending on the model.
• Ground wire is only present on some models.

Assembling the Left Refrigerator Door

CAUTION

• Install the left refrigerator door after the right door is installed.

1 Make sure that the plastic sleeve is inserted in the bottom of the door. Install the refrigerator door onto the middle hinge.

Technical diagram showing a mechanical assembly with a downward arrow indicating a process or component (no text or symbols present)

2 Fit the hinge ① over the hinge lever latch ② and slot it into place. Rotate the lever ③ clockwise and fasten the hinge.

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or force

3 Connect all the wire harnesses and the ground wire.

Diagram of a cable or connector assembly with arrows indicating direction (no text or symbols present)

4 Push the water supply lines into the hole on the top case and pull them through the backplate.

Technical line drawing of a mechanical assembly with no visible text or symbols

5 Hold the water supply connection and gently push in the collet ④ to connect the water supply lines as shown. Insert the tube at least 5/8 inch (15 mm) into the connector. Insert the clip on the joint to fasten the tubes in place.

Diagram illustrating electrical cable installation with labeled components and directional arrows indicating connection or movement.

Pure geometric diagram with intersecting lines and circles, no text or symbols present

NOTE

• Disassembling/Assembling the Water Lines

Technical diagram of a mechanical assembly with numbered components labeled 5 through 8

⑤ Collet ⑥ Tube ⑦ Insert line ⑧ Clip

• Gently press the collet and insert the tube until only one line shows on the tube.

Two diagrams showing a pipe being twisted with a circular arrow and a crossed-out ring, no text or symbols present.

Assembling the Hinge Cover

Position the hinge cover in its place. Insert and tighten the cover screws.

Technical line drawing of a metal bracket with four bolt holes (no text or symbols)

Connecting Refrigerator to Water Supply

Before Beginning

These instructions assume you have an existing water supply connection for the refrigerator. If necessary, call a qualified plumber to install a water supply line for the refrigerator.

• Turn the icemaker OFF if the refrigerator will be used before the water line is connected.
• Do not install the icemaker tubing in areas where the ambient temperatures fall below freezing.

WARNING

- Connect to potable water supply only.

CAUTION

• To prevent burns and product damage, only connect the refrigerator water line to a cold water supply.

- Wear eye protection during installation to prevent injury.

Water Pressure

You will need a cold water supply.

Water Pressure

• Models with water filter:

- 20 - 120 psi (138 - 827 kPa)

- Where reverse osmosis water filtration system is connected to a cold water supply:

- 40 - 60 psi minimum to reverse osmosis system (2.8 kgf/cm ^2 - 4.2 kgf/cm ^2 , or less than 2 - 3 seconds to fill a cup of 7 oz capacity)

If the water pressure from the reverse osmosis system is less than 20 psi or 138 kPa or 1.4 kgf/cm ^2 (takes more than 4 seconds to fill a cup of 7 oz or 198 cc capacity):

• Check to see if the sediment filter in the reverse osmosis system is blocked. Replace the filter if necessary.
• Allow the storage tank on the reverse osmosis system to refill after heavy usage.
• If the water pressure remains low, call a licensed, qualified plumber.
• All installations must be in accordance with local plumbing code requirements.

Supplies Needed

• Copper or PEX Tubing, 14 in. outer diameter, to connect the refrigerator to the water supply. Be sure both ends of the tubing are cut square. To determine how much tubing you need, measure the distance from the water valve on the back of the refrigerator to the water supply pipe. Then, add 8 feet (2.4 m). Be sure there is sufficient extra tubing (about 8 feet [2.4 m] coiled into 3 turns of about 10 in. [25 cm] diameter) to allow the refrigerator to move out from the wall after installation.
• 12 in. or adjustable wrench.
• Flat-blade and Phillips screwdrivers.
• Two 14 in. outer diameter compression nuts and 2 ferrules (sleeves) to connect the copper tubing to the shutoff valve and the refrigerator water valve. If you are using a PEX water line kit,

Pure geometric diagram with intersecting lines and circles, no text or symbols present

20 INSTALLATION

it may already have the required fittings at either end.

- If your existing copper water line has a flared fitting at the end, purchase an adapter (available at plumbing supply stores) to connect the water line to the refrigerator OR cut off the flared fitting with a tube cutter and use a compression fitting.

NOTE

• The hookup line cannot be white, plastic tubing. Licensed plumbers must use only copper tubing (NDA tubing #49595 or #49599) or Cross Link Polyethylene (PEX) tubing.
• Be sure there is sufficient extra tubing (about 8 ft. coiled into three turns of about 10 in. diameter) to allow the refrigerator to move out from the wall after installation.

Connecting Water Line to Refrigerator

1 Connect the tubing to the shutoff valve.

- Place the compression nut and ferrule (sleeve) onto the end of the copper tubing and connect it to the shutoff valve. If you are using PEX, the tubing may already have the required fittings at either end. Make sure the tubing is fully inserted into the valve. Tighten the compression nut securely.

Technical diagram showing mechanical assembly with numbered components and directional arrows indicating motion or force

①Packing Nut
②Shutoff Valve

③Compression Nut
④Ferrule (sleeve)

2 Flush out the tubing into a bucket.

- Flush out the tubing coming from the home water supply until the water is clear. Shut the water off at the water valve after about one quart of water has been flushed through the tubing.

Simple line drawing of a mechanical component with no text or symbols

NOTE

• Before making the connection to the refrigerator, be sure that the refrigerator power cord is not plugged into the wall outlet.
  3 Remove the flexible plastic cap from the water valve on the refrigerator.
  4 Place the compression nut and ferrule (sleeve) onto the end of the tubing as shown. If you are using a PEX connection kit, it may already have the required fittings.
  5 Insert the end of the copper or PEX tubing into the connection as far as possible. While holding the tubing, tighten the fitting.

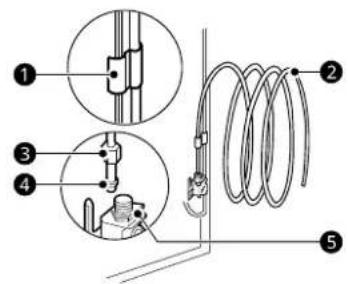

Technical diagram showing labeled components of a mechanical or electrical assembly with numbered parts and magnified views.

①Tubing Clamp
② 14 in. Tubing

Pure geometric diagram with intersecting lines and circles, no text or symbols present

③ ^1/4 in. Compression Nut
④Ferrule (sleeve)
⑤Refrigerator Connection

6 Turn the water on at the shutoff valve.

- Tighten any connections that leak.

CAUTION

• Check to see if leaks occur at the water line connections.
  • Make sure the house water valve is fully open. If it is not open completely, the icemaker and dispenser may not work properly.

Leveling and Door Alignment

Leveling

The refrigerator has two front leveling legs. Adjust the legs to alter the tilt from front-to-back or side-to-side. If the refrigerator seems unsteady, or the doors do not close easily, adjust the refrigerator's tilt using the instructions below:

1 Turn the leveling leg to the left to raise that side of the refrigerator or to the right to lower it. It may take several turns of the leveling leg to adjust the tilt of the refrigerator.

NOTE

- A flare nut wrench works best, but an open-end wrench will suffice. Do not over-tighten.

Diagram illustrating a mechanical or electrical setup with a magnified inset showing hand positioning and connection points.

2 Open both doors and check to make sure that they close easily. If the doors do not close easily, tilt the refrigerator slightly more to the rear by turning both leveling legs to the left. It

may take several more turns, and be sure to turn both leveling legs the same amount.

Door Alignment

The door alignment method may differ depending on the model.

Refrigerator Type A

Both the left and right refrigerator doors have an adjustable nut, located on the bottom hinge, to raise and lower them to align properly.

If the space between the doors is uneven even after the door bins are filled, follow the instructions below to align the doors evenly:

Use the wrench (included with the owner's manual) to turn the nut in the door hinge to adjust the height. Turn the nut to the right to raise the door or to the left to lower it.

Technical diagram showing pipe connection and valve assembly with labeled components and directional arrows

Refrigerator Type B Left Refrigerator Door

The left refrigerator door has an adjustable nut, located on the bottom hinge, to raise and lower the door for proper alignment.

If the space between the doors is uneven, follow the instructions below to align the left door:

Use the wrench (included with the owner's manual) to turn the nut in the door hinge to adjust

22 INSTALLATION

the height. Turn the nut to the right to raise the door or to the left to lower it.

Technical diagram showing a pipe joint connection with labeled components and a magnified inset view of the joint detail.

Right Refrigerator Door

The right refrigerator door does not have an adjustable nut.

If the space between the doors is uneven, follow the instructions below to align the right door:

1 Lift up both the inner and outer door sections of the right door to raise them at the middle hinge. (It may be easier to lift them with the doors open.)

2 While the door is lifted, have an assistant insert the snap ring on the middle hinge. The snap ring may differ depending on the model.

- Snap ring type A

Use pliers to insert the snap ring on the middle hinge of the inner door section as shown. Insert additional snap rings until the right door is aligned.

- Snap ring type B

Insert only one snap ring on the middle hinge of the inner door section as shown.

- If a snap ring is already inserted on the middle hinge, remove the snap ring before inserting a new snap ring.

CAUTION

- The door is heavy. To avoid injury, use two or more people to lift and align the refrigerator door.

- Small parts are a swallowing hazard for small children. Keep snap rings out of the reach of children.

- Do not insert the snap ring on the hinge of the outer door section.

Technical diagram showing a mechanical device with labeled ports and an inset magnified view of a device with circular components and a prohibition symbol.

NOTE

- The number of freezer drawers may vary depending on the model.

Turning on the Power

- After installing, plug the refrigerator's power cord into a 3-prong grounded outlet and push the refrigerator into the final position.

CAUTION

• Connect to a rated power outlet.
• Have a certified electrician check the wall outlet and wiring for proper grounding.
• Do not damage or cut off the ground terminal of the power plug.

Position the Refrigerator

- If the refrigerator is connected to water, arrange the coil of tubing so that it does not vibrate against the back of the refrigerator or against the wall. Push the refrigerator back toward the wall, leaving adequate clearance.

Start the Icemaker

- If the water line is connected, turn the icemakers on.

- To turn the icemakers on, refer to Control Panel in the Operation section.

- The icemaker will not begin to operate until it reaches its operating temperature of 15^ (-9°C) or below. It will then begin operation automatically if the icemaker has been turned ON.

Pure geometric diagram with intersecting lines and circular shapes, no text or symbols present

OPERATION

Before Use

Checklist

Clean the refrigerator.

Clean the refrigerator thoroughly and wipe off all dust that accumulated during shipping.

CAUTION

• Do not scratch the refrigerator with a sharp object or use a detergent that contains alcohol, a flammable liquid or an abrasive when removing any tape or adhesive from the refrigerator. Remove adhesive residue by wiping it off with your thumb or dish detergent.
• Do not peel off the model or serial number label or the technical information on the rear surface of the refrigerator.

Open refrigerator doors and freezer drawers to ventilate the interior.

The inside of the refrigerator may smell like plastic at first. Remove any adhesive tape from inside the refrigerator and open the refrigerator doors and the freezer drawers for ventilation.

Connect the power supply.

Check if the power supply is connected before use.

Turn off the icemaker.

Turn off the icemaker if the refrigerator is not yet connected to the water supply.

NOTE

- The icemaker water valve may buzz if the icemaker is turned on while the refrigerator is not connected to the water supply.

Wait for the refrigerator to cool.

Allow the refrigerator to run for at least two to three hours before putting food in it. Check the flow of cold air in the freezer compartment to ensure proper cooling.

CAUTION

- Putting food in the refrigerator before it has cooled could cause the food to spoil, or a bad odor to remain inside the refrigerator.

The refrigerator makes a loud noise after initial operation.

This is normal. The volume will decrease as the temperature decreases.

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

24 OPERATION

Control Panel

Depending on the model, some of the following functions may not be available.

The actual control panel may differ from model to model.

Control Panel Features

Refrigerator Control Panel

88°F -88°F Refrigerator ① Freezer ② Air Filter ③ *Filter Reset Smart Grid ④ *Wi-Fi ⑤ *In-Door Ice ⑥ Craft Ice ⑦ *Mini Cubed Ice ⑧ *Lock ⑨ *Hold 3 seconds

①Refrigerator

Indicates the set temperature of the refrigerator compartment in Celsius (°C) or Fahrenheit (°F). The default refrigerator temperature is 37 °F (3 °C). Press the Refrigerator button repeatedly to select a new set temperature from 33 °F to 43 °F (1 °C to 7 °C).

NOTE

• To change the temperature mode from °F to °C (or vice versa) press and hold the Refrigerator and Freezer buttons simultaneously for approximately five seconds. The temperature indicator on the display window switches between Celsius and Fahrenheit.
• The displayed temperature is the target temperature, and not the actual temperature of the refrigerator. The actual refrigerator temperature depends on the food inside the refrigerator.

②Freezer

Indicates the set temperature of the freezer compartment in Celsius (°C) or Fahrenheit (°F). The default freezer temperature is 0 °F (-18 °C). Press the Freezer button repeatedly to select a new set temperature from -7 °F to 5 °F (-23 °C to -15 °C).

③Air Filter

The air filter helps remove odors from the refrigerator.

NOTE

- Replace the air filter when the air filter indicator turns on. After replacing the air filter, press and hold the Air Filter button for 3 seconds to turn the indicator off. Replace the air filter approximately every six months.

④Smart Grid

Press the Smart Grid button to turn the function On/Off. When the function is on, the indicator illuminates. The function automatically turns on when the refrigerator is connected to the Wi-Fi network. The Smart Grid function is only available if your electric utility company supports the function. When the refrigerator is responding to a Demand Response (DR) message from the electric company, the indicator blinks.

⑤Wi-Fi

The Wi-Fi button, when used with the LG ThinQ app, allows the refrigerator to connect to a home Wi-Fi network. Refer to Smart Functions for information on the initial setup of the app.

The Wi-Fi indicator shows the status of the refrigerator's network connection. The indicator illuminates when the refrigerator is connected to the Wi-Fi network.

Press and hold the Wi-Fi button for 3 seconds to connect to the network. The indicator blinks while the connection is being made and then turns on once the connection is successfully made.

⑥In-Door Ice

Press and hold the In-Door Ice button for 3 seconds to turn the In-Door Ice icemaker on/off.

⑦ Craft Ice

Press the Craft Ice button repeatedly to select between the 3 ICE, 6 ICE and OFF modes.

After 5 seconds of idle time, the last mode will be saved, and the display will return to normal.

• To turn off the Craft Ice icemaker, select the OFF mode.
• To turn on the Craft Ice icemaker, select the 3 ICE or 6 ICE mode.

NOTE

- For more ice, select the 6 ICE mode. For clearer ice, select the 3 ICE mode.

⑧Mini Cubed Ice

Press and hold the Mini Cubed Ice button for 3 seconds to turn the Mini Cubed Ice icemaker on/off.

⑨Lock

The lock function disables every other button on the display.

• When power is initially connected to the refrigerator, the lock function is off.
• To lock the control panel buttons, press and hold the Lock button until the indicator appears in the display and the function is activated.
  • To disable the function, press and hold the Lock button for approximately three seconds.

NOTE

Display Mode and InstaView Display Mode (For Store Use Only)

- The Display Mode disables all cooling in the refrigerator and freezer sections to conserve energy while on display in a retail store. When activated, OFF is displayed on the control panel and the display remains on for 20 seconds.

- To deactivate/activate the Display Mode:

26 OPERATION

NOTE

Open either refrigerator door. Press the Ice Plus button 3 times while pressing and holding the Refrigerator button. The control panel beeps and the temperature settings display to confirm that Display Mode is deactivated. Use the same procedure to activate Display Mode.

• To deactivate the Display Mode at once:

Open either refrigerator door. Press the Ice Plus button 3 times while pressing and holding the Refrigerator button.

Dispenser Control Panel

Ice Plus Cubed Water Crushed 4 oz | 8 oz | 16 oz | 32 oz Measured Fill Water Filter Reset - Hold 3 seconds

①Ice Plus

This function increases both ice making and freezing capabilities.

Press the Ice Plus button to illuminate the icon and activate the function for 24 hours. The function automatically shuts off after 24 hours. Stop the function manually by pressing the button once more.

②Water & Ice Type

Select the desired dispenser mode from the buttons on the dispenser control panel. Press the dispenser switch with a glass or other container to dispense cubed ice, water or crushed ice.

③Water Filter

Replace the water filter when the Ⓞ icon turns on. After replacing the water filter, press and hold the Water Filter button for 3 seconds to turn the icon off. Replace the water filter approximately every 6 months.

④Measured Fill

The measured fill function dispenses premeasured amounts of water automatically.

NOTE

- When the refrigerator is in the Power Saving Mode, the display remains off until a door is opened or a button is pressed. Once on, the display remains on for 20 seconds.

Sabbath Mode

Using the Sabbath Mode

Sabbath mode is used on the Jewish Sabbath and Holidays.

• To turn Sabbath mode on, touch the display to activate it, then press and hold the Freezer and Wi-Fi buttons for 3 seconds until 5b appears in the display.
• To turn Sabbath mode off manually, press and hold the Freezer and Wi-Fi buttons for 3 seconds.

NOTE

• Sabbath mode automatically turns off after 96 hours.

• Once turned on, Sabbath mode is maintained even after a power outage.

• Selecting Sabbath mode automatically turns off the alarm functions.

• The dispenser and InstaView are disabled in Sabbath mode, on applicable models.

Ice and Water Dispenser

Before Using the Ice and Water Dispenser

CAUTION

- Keep children away from the dispenser. Children may play with or damage the controls.

Pure geometric diagram with intersecting lines and circular shapes, no text or symbols present

28 OPERATION

CAUTION

• Throw away the first bin full of ice (about 140-160 cubes) after installation. The first ice and water dispensed may include particles or odor from the water supply line or the water tank. This is also necessary if the refrigerator has not been used for a long time.
• Dispense and throw away 2.5 gallons of water (flush for approximately 5 minutes) after installation. Do not dispense the entire 2.5 gallon amount continuously. Press and release the dispenser pad for cycles of 30 seconds ON and 60 seconds OFF. This is also necessary if the refrigerator has not been used for a long time.
• If ice or water dispenses unexpectedly, turn off the water supply and contact a SIGNATURE KITCHEN SUITE Customer Information Center.
• Never use a glass that is exceptionally narrow or deep. Ice may jam in the ice passage and refrigerator performance may be affected.
• When dispensing ice from the dispenser, do not use a fragile container.

NOTE

• The dispenser will not operate when either of the refrigerator doors is open.
• If discolored ice is dispensed, check the water filter and water supply. If the problem continues, contact a SIGNATURE KITCHEN SUITE Customer Information Center. Do not use the water or ice until the problem is corrected.
• Dispense ice into a glass before filling it with water or other beverages. Splashing may occur if ice is dispensed into a glass that already contains liquid.
• Some dripping may occur after dispensing. Hold the cup beneath the dispenser for a few seconds after dispensing to catch all of the drops.
• Keep containers at an appropriate distance from the dispensers. Tall, narrow glasses should be held far enough from the ice outlet to prevent ice from jamming in the ice chute. A container with a very small opening should be held as close to the dispenser as possible to avoid spilling.

Using the Ice and Water Dispenser

1

Select the desired dispenser mode ①. The LED over the selected icon turns on.

①

2

Press the dispenser paddle ② with a glass or other container to dispense cubed ice, water or crushed ice.

Diagram of a 3D printer inside a container with a labeled component (no text or symbols present)

Locking the Ice and Water Dispenser

Press and hold the Lock button for three seconds to lock the dispenser and all the control panel functions. Follow the same instructions to unlock.

In-Door Ice Bin

Before Using the In-Door Ice Bin

The icemaker stops producing ice when the indoor ice bin is full. To make room for additional ice, empty the ice bin into an extra ice bin in the freezer compartment. During use, the ice may stack unevenly in the bin, causing the icemaker to misread the number of ice cubes and stop producing ice. Shaking the ice bin to level the ice within it can reduce this problem.

CAUTION

• Keep hands and tools out of the ice compartment door and dispenser chute. Failure to do so may result in damage or personal injury.
• Keep the ice compartment door closed tightly. If the ice compartment door is not closed tightly, the cold air in the ice bin will freeze food in the refrigerator compartment. This could also cause the icemaker to stop producing ice.
• When handling the ice bin, keep hands away from the icemaker tray area to avoid personal injury.

Pure geometric diagram with intersecting lines and circular shapes, no text or symbols present

• Storing cans or other items in the ice bin will damage the icemaker.
• Never use thin crystal glasses or containers to collect ice. Such containers may chip or break resulting in glass fragments in the ice.

If the icemaker is turned OFF for an extended period of time, the ice compartment will gradually warm up to the temperature of the refrigerator compartment. To prevent ice cubes from melting and leaking from the dispenser, ALWAYS empty the ice bin when the icemaker is turned OFF for more than a few hours.

The ice passage may become blocked with frost if only crushed ice is used. Remove the frost that accumulates by removing the ice bin and clearing the passage with a rubber spatula. Dispensing cubed ice can also help prevent frost buildup.

Detaching the In-Door Ice Bin

CAUTION

- Only qualified service personnel from a SIGNATURE KITCHEN SUITE service center should disassemble or repair the icemaker.

1 Gently pull the handle to open the ice compartment.

Diagram of a door handle mechanism with a hand pressing a button (no text or symbols)

2 To remove the in-door ice bin, grip the front handle, slightly lift the bottom, and slowly pull out the bin as shown.

Line drawing of an open refrigerator with a door open, showing internal compartments and a scroll inside (no text or symbols)

Assembling the In-Door Ice Bin

CAUTION

• When handling the ice bin, keep hands away from the icemaker tray area to avoid personal injury.
• Avoid touching the auto shutoff (feeler arm) when replacing the ice bin. See the label on the ice compartment door for details.

1 Carefully insert the in-door ice bin, slanting the top slightly to fit it under the icemaker.

Line drawing of an open refrigerator with a door open, showing internal compartments and a handle (no text or symbols)

2 Gently push the handle to close the ice compartment.

Automatic Icemaker

WARNING

• DO NOT place fingers in the automatic icemaker when the refrigerator is plugged in.
• Avoid contact with any moving parts of the ejector mechanism or with the heater that releases the ice cubes.

Before Using the In-Door Icemaker

NOTE

• Ice is made in the automatic in-door icemaker and sent to the dispenser. The icemaker produces 70 - 182 cubes in a 24-hour period, depending on freezer compartment temperature, room temperature, number of door openings and other operating conditions.
• It takes about 12 to 24 hours for a newly installed refrigerator to begin making ice.

Pure geometric diagram with intersecting lines and a central circular pattern (no text or symbols)

30 OPERATION

NOTE

• Ice-making stops when the in-door ice bin is full. When full, the in-door ice bin holds approximately 6 to 8 (12-16 oz.) glasses of ice.
• Foreign substances or frost on the auto shutoff (feeler arm) can interrupt ice production. Make sure the auto shutoff (feeler arm) area is clean at all times for proper operation.
  • To increase ice production, use the Ice Plus function. The function increases both ice making and freezing capabilities.

In-Door Icemaker

Technical line drawing of a mechanical device with no visible text or symbols

① Auto Shutoff (feeler arm)

Before Using the Freezer Icemaker

This feature is only available on some models. The feature may vary depending on model purchased.

CAUTION

• Store only ice in the ice bin. Do not store ice scooping tools or other items in the ice bin.
• Ice may overflow when removing or assembling the ice bin. Remove any ice in the bin area before assembling the ice bin.
• Make sure that the ice bin is assembled in the correct orientation front to back.

• Models with two ice bins in the freezer:

• The Craft Ice bin is located on the left and the Mini Cubed Ice bin is located on the right. Do not change the positions of the two ice bins.

• Do not store Craft Ice in the Mini Cubed Ice bin or Mini Cubed Ice in the Craft Ice bin.

NOTE

- Throw away the first bin full of ice after installation. This is also necessary if the refrigerator has not been used for a long time.

• The icemaker begins producing ice approximately 48 hours after the appliance is initially installed.
• The sound of ice dropping into the ice bin is normal.
- If the ice bin is completely filled with ice, ice production will stop.
- The amount and shape of ice may vary according to the environment (ambient temperature around the appliance, frequency of the door being opened, amount of food stored in the appliance, water pressure, etc.).
- In the event of a power outage, throw away the ice stored in the ice bin.

Freezer Icemaker (Cubed Ice)

This feature is only available on some models.

Technical line drawing of a mechanical assembly with no visible text or symbols

①Feeler Arm

NOTE

• This automatic freezer icemaker produces 12 cubes at a time, 50-110 pieces within a 24 hour period if conditions are favorable. This amount may vary according to the environment (ambient temperature around the appliance, frequency of the door being opened, amount of food stored in the appliance, etc.).
• Ice cubes which are stored in the ice bin for a long time may clump together and be difficult to separate. If this happens, empty the ice bin completely and clean it before reinstalling it.

Freezer Icemaker (Mini Cubed Ice)

This feature is only available on some models.

Technical line drawing of a mechanical assembly with internal components (no text or symbols)

①Feeler Arm

CAUTION

- Do not insert Mini Cubed Ice into the bin, as it can damage the ice and water dispenser.

NOTE

• This automatic freezer icemaker produces 20-30 cubes at a time, 1.3-1.7 lbs within a 24 hour period if conditions are favorable. This amount may vary according to the environment (ambient temperature around the appliance, frequency of the door being opened, amount of food stored in the appliance, etc.).
• Ice cubes which are stored in the ice bin for a long time may clump together and be difficult to separate. If this happens, empty the ice bin completely and clean it before reinstalling it.
• Depending on the water pressure or other conditions, the icemaker may produce linked cubes rather than individual pieces. The cubes easily separate when added to drinks.

Freezer Icemaker (Craft Ice™)

This feature is only available on some models.

Technical line drawing of a mechanical device with three spherical components, no text or symbols present

①Feeler Arm

CAUTION

- Do not insert round ice into the in-door ice bin, as it can damage the ice and water dispenser.

NOTE

• The icemaker begins producing ice approximately 48 hours after the appliance is initially installed. The first batches of ice may not be round and clear.
- Following installation or water filter replacement, the first few batches of ice may be semicircular or contain air bubbles.

• If the water pressure is less than 20 psi (138 kPa) or a reverse osmosis system is used, the shape -do of the ice may vary.
  • The ice may look cloudy depending on the water quality in the installation location and the operating conditions.
• Throw away any shards of ice you may find in the ice bin, as they may stick to the ice stored in the ice bin.
  • After a short-term power outage, it will take longer to make the first batch of ice, and the ice may not be round. If the power will be out for a longer period, throw away the ice stored in the ice bin.
  • The Craft Ice icemaker produces 1 batch of round ice (3 pieces) at a time.
• In 3 ICE mode, the Craft Ice icemaker produces 1 batch of round ice (3 pieces) about every 24 hours. In 6 ICE mode, the Craft Ice icemaker produces 2 batches of round ice (6 pieces total) in the same period.
• For more ice, select the 6 ICE mode. For clearer ice, select the 3 ICE mode.
• The time needed to make ice may vary according to operating conditions.
  • The ice bin stores 20 - 30 pieces of round ice.

Using the Freezer Ice Bin

This feature is only available on some models.

The ice bin stores ice from the freezer icemaker.

CAUTION

- The freezer ice bin must be placed correctly. Failure to do so can damage the ice bin and icemaker.

• Install the ice bin so that the label on the handle faces front, toward the freezer door. The rear side of the ice bin must face the inside of the freezer.

32 OPERATION

CAUTION

- If you have both Craft Ice and Mini Cubed Ice, the bin for the Craft Ice must be located on the left and the bin for the Mini Cubed Ice on the right.

Craft Ice Mini Cubed Ice

• If you are not using the icemaker, remove the ice bin to create more space inside the freezer.
• The pad attached to the bottom of the ice bin is designed to reduce the sound of the ice dropping. Do not remove the pad.

Normal Sounds You May Hear

• Keeping the power turned on to the icemaker before the water line is connected can damage the icemaker.
• The icemaker water valve buzzes as the icemaker fills with water. If the icemaker power button is in the ON position, it will buzz even if it has not yet been hooked up to water. To stop the buzzing, press the icemaker power button to turn it off.
• You will hear the sound of ice dropping into the bin and water running in the pipes as the icemaker refills.

Preparing for Vacation

Set the icemaker power button to OFF and shut off the water supply to the refrigerator.

NOTE

- The ice bin should be emptied any time the icemaker power button is turned to the OFF position.

If the ambient temperature will drop below freezing, have a qualified technician drain the water supply system to prevent serious property damage due to flooding caused by ruptured water lines or connections.

Storing Food

NOTE

• If you are leaving home for a short period, like a short vacation, the refrigerator should be left on. Refrigerated foods that are able to be frozen will stay preserved longer if stored in the freezer.
• If you are leaving the refrigerator turned off for an extended period, remove all food and unplug the power cord. Clean the interior, and leave the door open to prevent fungi from growing in the refrigerator.
• If doors are opened or closed too often, warm air may penetrate the refrigerator and raise its temperature. This can increase the running costs of the unit.

Food Storage Tips

Wrap or store food in the refrigerator in airtight and moisture-proof material unless otherwise noted. This prevents food odor and taste transfer throughout the refrigerator. For dated products, check date code to ensure freshness.

CAUTION

• Do not overfill or pack items too tightly into door bins. Doing so may cause damage to the bin or personal injury if items are removed with excessive force.
• Do not store glass containers in the freezer. Contents may expand when frozen, break the container and cause injury.

How to Store Food

• Butter or Margarine
• Keep opened butter in covered dish or closed compartment. When storing an extra supply, wrap in freezer packaging and freeze.
• Cheese
• Store in original wrapping until used. Once opened, rewrap tightly in plastic wrap or aluminum foil.
  • Milk
• Wipe milk cartons. For coldest milk, place containers on an interior shelf.

- Eggs

- Store in original carton on interior shelf, not on door shelf.

Pure geometric diagram with intersecting lines and circles, no text or symbols present

- Fruit

- Do not wash or hull fruit until it is ready to be used. Sort and keep fruit in original container in a crisper, or store in completely closed paper bag on refrigerator shelf.

- Leafy Vegetables

- Remove store wrapping, trim or tear off bruised and discolored areas, wash in cold water, and drain. Place in plastic bag or plastic container and store in crisper.

• Vegetables with skins (carrots, peppers)

- Place in plastic bags or plastic container and store in crisper.

- Fish

- Freeze fresh fish and shellfish if they are not being eaten the same day purchased. Eating fresh fish and shellfish the same day purchased is recommended.

- Leftovers

- Cover leftovers with plastic wrap or aluminum foil, or store in plastic containers with tight lids.

NOTE

- Do not store food with high moisture content towards the top of the refrigerator. The moisture could come into direct contact with the cold air and freeze.

- Wash food before storing it in the refrigerator. Vegetables should be washed, and food packaging should be wiped down to prevent adjacent foods from being contaminated.

- If the refrigerator is kept in a hot and humid place, frequent opening of the door or storing a lot of vegetables in the refrigerator may cause condensation to form. Wipe off the condensation with a clean cloth or a paper towel.

Storing Frozen Food

Check a freezer guide or a reliable cookbook for further information about preparing food for freezing or food storage times.

Freezing

Your freezer will not quick-freeze a large quantity of food. Do not put more unfrozen food into the freezer than will freeze within 24 hours (no more than 2 to 3 pounds of food per cubic foot of freezer space). Leave enough space in the freezer for air to circulate around packages. Be careful to leave enough room at the front so the door can close tightly.

Storage times will vary according to the quality and type of food, the type of packaging or wrap used (how airtight and moisture-proof) and the storage temperature. Ice crystals inside a sealed package are normal. This simply means that moisture in the food and air inside the package have condensed, creating ice crystals.

NOTE

- Allow hot foods to cool at room temperature for 30 minutes, and then package and freeze. Cooling hot foods before freezing saves energy.

Packaging

Successful freezing depends on correct packaging. When you close and seal the package, it must not allow air or moisture in or out. If it does, you could have food odor and taste transfer throughout the refrigerator and could also dry out frozen food.

Packaging Recommendations

• Rigid plastic containers with tight-fitting lids

• Straight-sided canning/freezing jars

• Heavy-duty aluminum foil

- Plastic-coated paper

• Non-permeable plastic wraps

- Specified freezer-grade self-sealing plastic bags Follow package or container instructions for proper freezing methods.

Do not use

- Bread wrappers

• Non-polyethylene plastic containers

- Containers without tight lids

- Wax paper or wax-coated freezer wrap

- Thin, semi-permeable wrap

Crisper Drawers

Using the Humidity Controlled

Crispers

This feature is only available on some models.

The crispers provide fresher tasting fruit and vegetables by letting you easily control humidity inside the drawer.

You can control the amount of humidity in the moisture-sealed crispers by adjusting the control to any setting between Vegetables and Fruit.

• Vegetables keeps moist air in the crisper for best storage of fresh, leafy vegetables.

Pure geometric diagram with intersecting lines and circular shapes, no text or symbols present

34 OPERATION

- Fruit lets moist air out of the crisper for best storage of fruit.

Technical diagram showing two circular insets labeled 'TFT1' and 'TFT2' with alignment lines, likely illustrating a mechanical or optical setup.

Removing/Assembling the Humidity Controlled Crispers

1 To remove, pull the crisper out to full extension, lift the front up, and pull straight out.

Technical line drawing of a mechanical assembly with two stacked components and an arrow indicating direction (no text or symbols)

2 Lift the front of the cover up with both hands until it detaches from the back wall of the cabinet, and pull it out.

Technical line drawing of a mechanical assembly with no visible text or symbols

3 To reassemble, insert the cover into the refrigerator with both hands and lower it onto the guides.

Technical line drawing of a mechanical assembly with no visible text or symbols

4 Slightly tilt up the front of the crisper, insert it into the frame, and push it back into place.

Technical line drawing of a mechanical assembly with layered components (no text or symbols)

Glide'N'Serve

Using the Glide'N'Serve

This feature is only available on some models.

This function provides storage space with a variable temperature control that can keep the compartment at a slightly different temperature than the refrigerator section. This drawer can be used for large party trays, deli items and beverages. (This drawer should not be used to store vegetables that require high humidity.)

Press the Select button to choose between Produce (Cold), Deli (Colder) and Meat (Coldest).

Meat Deli Produce Select

CAUTION

- Do not place any items on the Glide'N'Serve cover.

Detaching/Assembling the

Glide'N'Serve

1 To remove the Glide'N'Serve, pull out the drawer until it stops, lift the front up, and pull straight out.

Diagram of a hand pressing down on a wooden shelf with an arrow indicating motion (no text or symbols)

2 To assemble, slightly tilt up the front, insert the drawer into the frame and push it back into place.

Illustration of a hand inserting a device into a rack (no text or symbols)

Refrigerator Shelves

The shelves in the refrigerator are adjustable to meet individual storage needs.

Adjusting the shelves to fit items of different heights will make finding the exact item you want easier.

Using the Folding Shelf

This feature is only available on some models.

Store taller items, such as a gallon container or bottles, by pushing the front half of the shelf underneath the back half of the shelf. Pull the front of the shelf forward to return to a full shelf.

Diagram of a device with arrows indicating movement or force, mounted on a vertical post (no text or symbols present)

CAUTION

• Glass shelves are heavy. Use special care when removing them.
- Do not clean glass shelves with warm water while they are cold. Shelves may break if exposed to sudden temperature changes or impact.

Detaching/Assembling Shelves

CAUTION

- Do not clean glass shelves with warm water while they are cold. Shelves may break if

exposed to sudden temperature changes or impact.

1 To detach a shelf, hold the adjoining shelf so that it does not move.

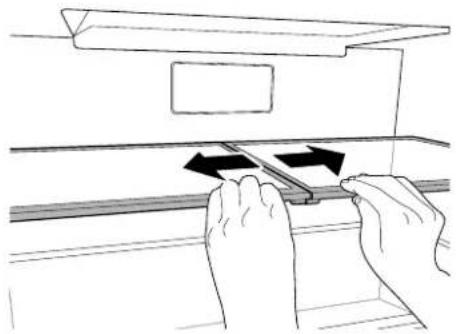

2 Pull the two shelves apart in the middle and tilt up the front of the shelf you want to remove until it's free from the other shelf.

Line drawing of hands holding a mechanical component with directional arrows indicating motion (no text or symbols)

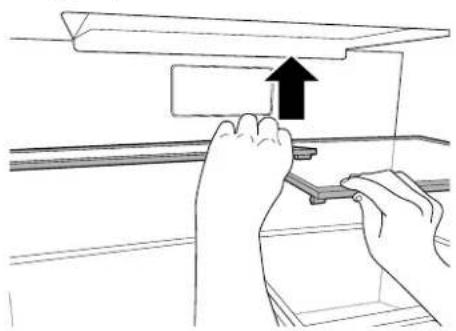

3 Support the shelf from the bottom and lift it straight up.

Line drawing of a hand holding a small object with an arrow pointing upward, no text or symbols present

4 Pull the shelf out.

Diagram of a hand holding a tray with arrows indicating motion or force direction (no text or symbols)

5 To assemble, tilt the front of the shelf up and guide the shelf hooks into the slots at a desired height.

Pure geometric diagram with intersecting lines and circular shapes, no text or symbols present

36 OPERATION

6 Lower the front of the shelf so that the hooks drop into the slots.

CAUTION

• Make sure that shelves are level from one side to the other. Failure to do so may result in the shelf falling or spilled food.

Technical diagram showing mechanical assembly with labeled components and directional arrows indicating motion or force

Door Bins

Detaching/Assembling Door Bins

The door bins are removable for easy cleaning and adjustment.

1

To remove the bin, simply lift the bin up and pull straight out.

Illustration of two hands holding a rectangular container with an upward arrow, no text or symbols present

2

To assemble the bin, slide it in above the desired support and push down until it snaps into place.

CAUTION

• Regularly detach and wash the storage bins and shelves; they can become easily contaminated by food.
• Do not apply excessive force while detaching or assembling the storage bins.
• Do not use the dishwasher to clean the storage bins and shelves.

Durabase

Using the Durabase

The Durabase divider allows you to organize the Durabase area into 2 sections. It can be adjusted from side to side to accommodate items of different sizes.

The Durabase may differ depending on the model.

Line drawing of a rectangular plastic container with internal compartments and side slots (no text or symbols)

WARNING

- If the Durabase divider is removed, there is enough open space for children or pets to crawl inside. To prevent accidental child and pet entrapment or suffocation risk, DO NOT allow children or pets to touch or go near the drawer.

CAUTION

- The front and back of the Durabase are labeled on the top. Make sure to install it so that the side with the rubber drawer stops on the top is toward the inside of the freezer.

BACK BACK FRONT FRONT

Pure geometric diagram with intersecting lines and circular shapes, no text or symbols present

SMART FUNCTIONS

LG ThinQ Application

This feature is only available on models with Wi-Fi.

The LG ThinQ application allows you to communicate with the appliance using a smartphone.

LG ThinQ Application Features

† This feature is only available on some models.

- Smart Learner ^+

- Provides a more personalized experience based on an analysis of your usage patterns.

- Smart Sabbath ^+

- Activates or deactivates the Sabbath mode and sets the schedule for the mode activation.

- Energy Monitoring ^†

- This feature keeps track of the refrigerator's power consumption and the number of door openings.

- Remote Control †

- Controls the refrigerator temperature, air filter and Ice Plus from the smartphone application.

- Push Messages ^+

- If the door remains open for more than ten minutes, you will receive a push message. When Ice Plus is finished, you will receive a push message.

- Smart Diagnosis ^TM

- This function provides useful information for diagnosing and solving issues with the appliance based on the pattern of use.

- Settings

- Allows you to set various options on the refrigerator and in the application.

NOTE

- If you change your wireless router, Internet service provider, or password, delete the connected appliance from the LG ThinQ application and connect it again.

• This information is current at the time of publication. The application is subject to change for product improvement purposes without notice to users.

Installing LG ThinQ Application and Connecting an LG Appliance

Models with QR Code

Scan the QR code attached to the product using the camera or a QR code reader application on your smartphone.

LG ThinQ

Models without QR Code

1 Search for and install the LG ThinQ application from the Google Play Store or Apple App Store on a smartphone.
2 Run the LG ThinQ application and sign in with your existing account or create an LG account to sign in.
3 Touch the add (+) button on the LG ThinQ application to connect your LG appliance. Follow the instructions in the application to complete the process.

NOTE

• To verify the Wi-Fi connection, check that the Wi-Fi indicator on the control panel is lit.
- The appliance supports 2.4 GHz Wi-Fi networks only. To check your network frequency, contact your Internet service provider or refer to your wireless router manual.
- LG ThinQ is not responsible for any network connection problems or any faults, malfunctions, or errors caused by network connection.

38 SMART FUNCTIONS

NOTE

• The surrounding wireless environment can make the wireless network service run slowly.
- If the distance between the appliance and the wireless router is too far, the signal becomes weak. It may take a long time to connect or fail to install the application.
- If the appliance is having trouble connecting to the Wi-Fi network, it may be too far from the router. Purchase a Wi-Fi repeater (range extender) to improve the Wi-Fi signal strength.
• The network connection may not work properly depending on the Internet service provider.
- The Wi-Fi may not connect or the connection may be interrupted because of the home network environment.
- If the appliance cannot be connected due to problems with the wireless signal transmission, unplug the appliance and wait about a minute before trying again.
- If the firewall on your wireless router is enabled, disable the firewall or add an exception to it.
- The wireless network name (SSID) should be a combination of English letters and numbers. (Do not use special characters.)
- Smartphone user interface (UI) may vary depending on the mobile operating system (OS) and the manufacturer.
- If the security protocol of the router is set to WEP, network setup may fail. Change the security protocol (WPA2 is recommended), and connect the product again.
• To disable the Wi-Fi function, press and hold the Wi-Fi button for 3 seconds. The Wi-Fi indicator will be turned off.
- To reconnect the appliance or add another user, press and hold the Wi-Fi button for 3 seconds to temporarily turn it off. Run the LG ThinQ application and follow the instructions in the application to connect the appliance.

Radio Equipment Specifications

To identify the RF module installed in the appliance, refer to the label attached to the appliance.

Model Name LCWB-001
Wireless LAN Frequency Range	2412 - 2462 MHz

Model Name LCWB-001
Wireless LAN Output Power (Max)	< 30 dBm
Bluetooth Frequency Range	2402 - 2480 MHz
Bluetooth Output Power (Max)	< 30 dBm

Model Name LCW-007
Wireless LAN Frequency Range	2412 - 2462 MHz
Wireless LAN Output Power (Max)	< 30 dBm

FCC Statement

The following notice covers the transmitter module contained in this product.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference and
(2) This device must accept any interference received, including interference that may cause undesired operation.

Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

FCC RF Radiation Exposure Statement

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

This equipment should be installed and operated with a minimum distance of 20 cm (7.8 inches) between the antenna and your body. Users must follow the specific operating instructions for satisfying RF exposure compliance.

Industry Canada Statement

This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada's licence-exempt RSS(s). Operation is subject to the following two conditions:

(1) This device may not cause interference.
(2) This device must accept any interference, including interference that may cause undesired operation of the device.

IC Radiation Exposure Statement

This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment.

This equipment should be installed and operated with a minimum distance of 20 cm (7.8 inches) between the antenna and your body.

NOTE

• THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER'S AUTHORITY TO OPERATE THE EQUIPMENT.

Open Source Software Notice Information

To obtain the source code that is contained in this product, under GPL, LGPL, MPL, and other open source licenses that have the obligation to disclose source code, and to access all referred license terms, copyright notices and other relevant documents, please visit https://opensource.lge.com.

SIGNATURE KITCHEN SUITE will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to [e-mail].

This offer is valid to anyone in receipt of this information for a period of three years after our last shipment of this product.

Smart Grid Function

When the refrigerator operates in Smart Grid mode, the Smart Refrigerator function can control energy usage or delay the operation of some functions to save energy during peak usage periods.

• You can override the Smart Grid function any time (using the Smart Grid button or application).
  • To use the Smart Grid function, you need to register your appliance with your electric utility company, provided that your electric utility company supports the function. In other words, the Smart Grid function will not be available if your electric utility company does not support the function or does not have the capability to support the function.

Smart Grid Application Features

• Smart Saving_Demand Response
- You can lower energy usage based on Demand Response (DR) signals from the utility company. If the refrigerator is operating in Smart Saving mode according to the DR signal, you can see a pop up.
• Seasonal Energy Savings
- Lower energy usage based on time period.

Using the Smart Grid Function

This feature responds to notification events from your utility company to run high energy consuming tasks during off-peak periods when demand is lower. These notification events are known as Demand Response signals.

If the refrigerator receives a Demand Response signal from the utility company, the refrigerator will turn on the Grid LED on the refrigerator display and control its power consumption

Pure geometric diagram with intersecting lines and circles, no text or symbols present

40 SMART FUNCTIONS

according to the signal. The refrigerator will respond to the signals received from the utility company as long as product performance is maintained.

If the refrigerator receives a Demand Response signal, the refrigerator will operate in Delay Appliance Load (DAL) or Temporary Appliance Load Reduction (TALR) mode.

Delay Appliance Load (DAL)

The refrigerator responds to a DAL signal by providing a moderate load reduction for the duration of the delay period.

This mode controls functions that consume a lot of energy such as adjusting the cooling system, running the defrost cycle, and making ice.

• When the refrigerator operates in DAL mode, the Grid LED is illuminated on the refrigerator display.
• DAL mode is automatically deactivated after the period stipulated by the DAL signal (max. 4 hours) or when you override the Smart Grid function.

Temporary Appliance Load Reduction (TALR)

The refrigerator responds to a TALR signal by aggressively reducing the load for a short time period, typically 10 minutes. This mode reduces energy consumption by stopping the compressor and controlling the functions that consume a lot of energy such as the defrost cycle and fan.

• When the refrigerator operates in TALR mode, the Grid LED is illuminated on the refrigerator display.
• TALR mode is automatically deactivated after the received duration (max. 10 minutes), or when you override the Smart Grid function. The mode is immediately deactivated and the refrigerator returns to its normal state if the door is opened or closed, or the dispenser is used.

Override Smart Grid Mode

To ignore the Demand Response signal from the utility company and override the Smart Grid function, push the Smart Grid button while the refrigerator is in Smart Grid mode.

When you override the Smart Grid function, the refrigerator ignores the Demand Response signal and is no longer controlled by the utility company until the next Demand Response signal is sent. You can also override the Smart Grid function using the smart phone app.

SIGNATURE KITCHEN SUITE Open API

You can manage Smart Grid features for the SIGNATURE KITCHEN SUITE Smart Refrigerator.

Please check the detailed specifications on the notice page on signaturekitchensuite.com.

API List

• Demand Response
• Send demand response signal
  • Power Saving
• Set saving mode
• Get schedule of DR/Delay Defrost

• Energy Monitoring

• Get door open event
• Get energy consumption

- Delay Defrost Capability

• Insert a delay defrost schedule event
• Update a delay defrost schedule event
• Delete a delay defrost schedule event
• Get the delay defrost schedule

Smart Diagnosis™ Feature

This feature is only available on models with the Ⓧ or Ⓤ logo.

Use this feature to help you diagnose and solve problems with your appliance.

NOTE

- For reasons not attributable to LGE's negligence, the service may not operate due to external factors such as, but not limited to, Wi-Fi unavailability, Wi-Fi disconnection, local app store policy, or app unavailability.

• The feature may be subject to change without prior notice and may have a different form depending on where you are located.

Using LG ThinQ to Diagnose Issues

If you experience a problem with your Wi-Fi equipped appliance, it can transmit troubleshooting data to a smartphone using the LG ThinQ application.

- Launch the LG ThinQ application and select the Smart Diagnosis feature in the menu. Follow the instructions provided in the LG ThinQ application.

Pure geometric diagram with intersecting lines and circular shapes, no text or symbols present

Using Audible Diagnosis to Diagnose Issues

Follow the instructions below to use the audible diagnosis method.

- Launch the LG ThinQ application and select the Smart Diagnosis feature in the menu. Follow the instructions for audible diagnosis provided in the LG ThinQ application.

1 Open the right refrigerator door.
2 Hold the mouthpiece of your phone in front of the speaker that is located on the right hinge of the refrigerator door.

Smart Diagnosis™

3 Press and hold the Freezer button for three seconds while continuing to hold your phone to the speaker.
4 After you hear three beeps, release the Freezer button.
5 Keep the phone in place until the tone transmission has finished. The display will count down the time. Once the countdown is over and the tones have stopped, the diagnosis will be displayed in the application.

NOTE

- For best results, do not move the phone while the tones are being transmitted.

42 MAINTENANCE

MAINTENANCE

Cleaning

WARNING

- Use non-flammable cleaner. Failure to do so can result in fire, explosion, or death.

CAUTION

• Do not use an abrasive cloth or sponge when cleaning the interior and exterior of the refrigerator.
• Do not place your hand on the bottom surface of the refrigerator when opening and closing the doors.

General Cleaning Tips

• Both the refrigerator and freezer sections defrost automatically; however, clean both sections once a month to prevent odors.
• Wipe up spills immediately.
• Unplug the refrigerator or disconnect power before cleaning.
• Remove all removable parts, such as shelves.
• Use a clean sponge or soft cloth and a mild detergent in warm water. Do not use abrasive or harsh cleaners.
• Hand wash, rinse and dry all surfaces thoroughly.

Exterior

For products with black stainless steel exterior, spray glass cleaner on a clean microfiber cloth and rub in direction of grain. Do not spray glass cleaner directly at the display panel. Do not use harsh or abrasive cleaners.

For products with a standard stainless steel exterior, use a damp microfiber cloth and rub in the direction of the grain. Dry with a paper towel to avoid streaks. For stubborn stains and fingerprints, use a few drops of liquid dish soap in water, and rinse with hot water before drying. Do not use abrasive or harsh cleaners.

To clean products with a mirrored glass door, use the microfiber cloth that came with the product. To remove stains more easily, spray the cloth with a glass cleaner and wipe the surface.

Proximity Sensor

This feature is only available on some models. A proximity sensor is installed on the bottom of the refrigerator door. If dust builds up on the proximity sensor, it may affect sensor performance. Clean the sensor regularly. Use a clean sponge or soft cloth and a mild detergent in warm water. Do not use glass cleaners, abrasive cleansers, or flammable fluids. These can scratch or damage the material. Dry with a paper towel to avoid streaks.

Inside Walls

- Allow the freezer to warm up so the cloth will not stick.

To help remove odors, wash the inside of the refrigerator with a mixture of baking soda and warm water. Mix 2 tablespoons of baking soda to 1 quart of water (26 g soda to 1 liter water.) Be sure the baking soda is completely dissolved so it does not scratch the surfaces of the refrigerator.

Door Liners and Gaskets

Use a clean sponge or soft cloth and a mild detergent in warm water. Do not use cleaning waxes, concentrated detergents, bleaches, or cleaners containing petroleum on plastic refrigerator parts.

Plastic Parts (Covers and Panels)

Use a clean sponge or soft cloth and a mild detergent in warm water. Do not use glass cleaners, abrasive cleansers, or flammable fluids. These can scratch or damage the material.

Condenser Coils

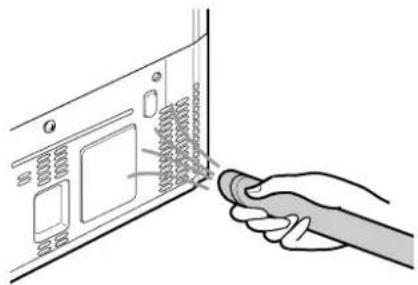

Use a vacuum cleaner with a brush or crevice attachment to clean the condenser cover and

Pure geometric diagram with intersecting lines and circles, no text or symbols present

vents. Do not remove the panel covering the condenser coil area.

Hand inserting a button into a device panel (no text or symbols visible)

Air Filter

This feature is only available on some models.

Replacing the Air Filter

Replace the Air Filter:

• Approximately every six months.
- When the Air Filter indicator lights up.
- Use replacement air filter: LT120F

1 Rotate the filter cover counterclockwise to release the tabs, and remove the cover.

Open Close

2 Remove the filter from the inside of the cover by pressing the side of the filter in and pulling the center out.

Illustration showing hands using a tool to adjust a component, with a magnified inset illustrating the process (no text or symbols present)

3 Place the new filter inside of the cover with the side that says FRONT facing outward.

Top-down architectural diagram of a room with four windows and doorways (no text or symbols)

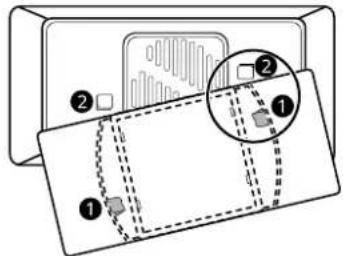

4 Align tabs ① on the filter cover with hooks ② on the refrigerator wall.

Diagram showing two labeled components (1 and 2) with dashed lines indicating paths or transitions, possibly illustrating a mechanical or electrical system.

ENGLISH

5 Rotate the air filter cover clockwise until the hooks engage and the cover locks in place.

Diagram showing a device with a circular inset view of its internal structure, illustrating a process or assembly.

6 Press and hold the Air Filter button on the control panel for 3 seconds to reset the filter sensor.

Water Filter

Before Replacing the Water Filter

WARNING

• To reduce the risk associated with choking, do not allow children under 3 years of age to have access to small parts during the installation of this product.
• To reduce the risk associated with the ingestion of contaminants, do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system.
- Use of unauthorized water filters may result in product malfunction, water leakage or water quality issues, which will not be covered under the product warranty.

CAUTION

• Read and follow Use Instructions before installation and use of this system.
  • Installation and use MUST comply with all state and local plumbing codes.

Pure geometric diagram with intersecting lines and circles, no text or symbols present

44 MAINTENANCE

CAUTION

• Do not install if water pressure exceeds 120 psi (827 kPa). If your water pressure exceeds 80 psi, you must install a pressure limiting valve. Contact a plumber if uncertain how to check your water pressure.
• Do not install where water hammer conditions may occur. If water hammer conditions exist you must install a water hammer arrester. Contact a plumbing professional if you are uncertain how to check for this condition.
• Do not install on hot water supply lines. The maximum operating water temperature of this filter system is 100 °F (37.8 °C).
• Protect filter from freezing. Drain filter when temperatures drop below 40 °F (4.4 °C).
• The disposable filter cartridge MUST be replaced every 6 months, at the rated capacity or if a noticeable reduction in flow rate occurs.
  • To protect it from freezing, remove filter cartridge when temperatures are expected to drop below 33 °F.
• Do not install systems in areas where ambient temperatures may go above 110 °F (43.3 °C).
• Where a backflow prevention device is installed on a water system, a device for controlling pressure due to thermal expansion must be installed.
• Ensure all tubing and fittings are secure and free from leaks.

Replacing the Water Filter

- Replace the water filter:

• Approximately every six months.
• When theh icon turns on.
• When the water dispenser output decreases.

• To purchase a replacement water filter:

• Visit your local dealer or distributor
• Find Parts & Accessories from Support section of signaturekitchensuite.com
• Use replacement cartridge: LT1000P-S (ADQ74793506)

1 Remove the door bin.

2 Remove the disposable water filter.

NOTE

• Replacing the water filter causes a small amount of water (around 1 oz. or 25 cc) to drain.
• Wrap a cloth around the front end of the water filter cover to collect any leaking water. Hold the water filter upright, once it is removed, to prevent any remaining water from spilling out of the water filter.

3 Replace with a new water filter. Insert the new filter into the filter head and rotate it clockwise until the arrow on the new filter lines up with the arrow on the filter head. Swing the filter back into the compartment.

Diagram of a hand inserting a component into a device (no text or symbols visible)

4 Replace the door bin.
5 After changing the filter, press and hold the Water Filter button for three seconds to reset the indicator light.
6 After the water filter is replaced, dispense 2.5 gallons of water (flush for approximately 5 minutes) to remove trapped air and contaminants from the system.

NOTE

- Do not dispense the entire 2.5 gallon amount continuously. Press and release the dispenser pad for cycles of 30 seconds ON and 60 seconds OFF.

For further assistance, call:

• 1-855-790-6655 (USA)
• 1-888-289-2802 (Canada)

46 MAINTENANCE

Performance Data Sheet

Model: LT1000P-S

NSF System Trade Name Code: MDJ64844601

The concentration of the indicated substances in water entering the system was reduced to a concentration less than or equal to the permissible limit for water leaving the system as specified in NSF/ANSI Standard 42, Standard 53 and Standard 401.

System tested and certified by NSF International against NSF/ANSI Standard 42, Standard 53 and Standard 401 for the reduction of substances listed below.

Substance Reduction	Average Influent Challenge	NSF Specified Challenge Concentration	Avg % Reduction	Average Product Water Concentration	Max Permissible Product Water Concentration	NSF Reduction Requirements
Chlorine Taste and Odor	2.0 μg/L	2.0 μg/L± 10%	>97.5%	0.050 μg/L	N/A	≥ 50.00%
Nominal Particulate Class I, , ≥ 0.5 to < 1.0 μm	12,000,000 pts/mL	At least 10,000 particles/mL	99.80% 24,000	pts/ml N/A ≥ 85.00%
Asbestos 180 MFL		10^7 to 10^8 MFL; fibers greater than 10 μg/Lin length	>99.00% < 1 M	MFL N/A ≥ 99.00%
Atrazine	8.5 μg/L	9.0 μg/L ± 10%	>94.10%	0.500 μg/L	3.0 μg/L	NA
Benzene	15.0 μg/L	15.0 μg/L ± 10%	>96.60%	0.510 μg/L	5.0 μg/L	NA
Carbofuran	74.0 μg/L	80.0 μg/L ± 10%	98.30%	1.258 μg/L	40 μg/L	NA
Lindane	1.9 μg/L	2.0 μg/L ± 10%	>99.00%	0.019 μg/L	0.2 μg/L	NA
P-Dichlorobenzene	230.0 μg/L	225.0 μg/L ± 10%	>99.80%	0.460 μg/L	75.0 μg/L	NA
2,4-D	210.0 μg/L	210.0 μg/L ± 10%	>99.90%	0.210 μg/L	70.0 μg/L	NA
Lead pH @6.5	140.0 μg/L	150.0 μg/L ± 10%	99.60%	0.560 μg/L	10.0 μg/L	NA
Lead pH @8.5	150.0 μg/L	150.0 μg/L ± 10%	>99.70%	<0.500 μg/L	10.0 μg/L	NA
Mercury @ pH6.5	5.9 μg/L	6.0 μg/L ± 10%	91.00%	0.531 μg/L	2.0 μg/L	NA
Mercury @ pH8.5	5.6 μg/L	6.0 μg/L ± 10%	92.5%	0.420 μg/L	2.0 μg/L	NA
Cyst*	100,000 cysts/L	Minimum 50,000 cysts/L	>99.99%	10 cysts/L	N/A	≥ 99.95%
Atenolol	240 ng/L	200 ± 40% ng/L	>95.50%	10.80 ng/L	30 ng/L	NA
Carbamazepine	1600 ng/L	1400 ± 40% ng/L	98.40%	25.60 ng/L	200 ng/L	NA
DEET	1600 ng/L	1400 ± 40% ng/L	97.10%	46.40 ng/L	200 ng/L	NA
Trimethoprim	170 ng/L	140 ± 40% ng/L	>96.80%	5.44 ng/L	20 ng/L	NA
Linuron	160 ng/L	140 ± 40% ng/L	>96.60%	5.44 ng/L	20 ng/L	NA
Phenytoin	200 ng/L	200 ± 40% ng/L	>94.80%	10.40 ng/L	30 ng/L	NA
Ibuprofen	400 ng/L	400 ± 40% ng/L	>94.50%	22.00 ng/L	60 ng/L	NA
Naproxen	140 ng/L	140 ± 40% ng/L	>96.10%	5.46 ng/L	20 ng/L	NA
Estrone	120 ng/L	140 ± 40% ng/L	>96.10%	4.68 ng/L	20 ng/L	NA
Bisphenol A	2000 ng/L	2000 ± 40% ng/L	>98.90%	22.00 ng/L	300 ng/L	NA
Nonyl Phenol	1600 ng/L	1400 ± 40% ng/L	>97.10%	46.40 ng/L	200 ng/L	NA

* Based on the use of Cryptosporidium parvum oocysts.

Guidelines for Application / Water Supply Parameters

Service Flow 0.5 gpm (1.9 lpm)

Water Supply Community or Private Well - Potable Water

Water Pressure 20 – 120 psi (138 – 827 kPa)

Water Temperature 33 °F – 100 °F (0.6 °C – 37.8°C)

Capacity 200 gallons (757 liters)

It is essential that the manufacturer's recommended installation, maintenance and filter replacement requirements be carried out for the product to perform as advertised.

ENGLISH

NOTE

- While the testing was performed under standard laboratory conditions, actual performance may vary.

For replacement filters, visit your local dealer or distributor or search for Parts & Accessories on the Support section of www.signaturekitchensuite.com

For further assistance, contact the SIGNATURE KITCHEN SUITE Customer Information Center.

USA: 1-855-790-6655

Canada: 1-888-289-2802

Replacement Cartridge: LT1000P-S or ADQ74793506

NSF is a trademark of NSF International.

Manufactured by LG Electronics, INC:

170, Sungsanpaechoungro, Seongsan-gu, Gyeongsangnam-do, THE REPUBLIC OF KOREA

48 TROUBLESHOOTING

TROUBLESHOOTING

FAQs

Frequently Asked Questions

Q: What are the best temperature settings for my refrigerator and freezer?

A: The default setting for the refrigerator is 37° Fahrenheit (3° Celsius). The default setting for the freezer is 0° Fahrenheit (-18° Celsius). Adjust these settings as necessary to keep food at desired temperatures. Milk should be cold when stored on the inner shelf of the refrigerator. Ice cream should be firm and ice cubes should not melt in the freezer. To switch the display from Fahrenheit to Celsius, press and hold the Freezer and Refrigerator buttons until you hear a beep and the settings in the display change.

Q: How do I set the refrigerator and freezer temperatures?

A: Continually press the Refrigerator or Freezer button on the control panel until the desired temperature appears. The numbers will cycle from highest to lowest and then return to the highest again with continuous pressing.

Q: Why do I hear a buzzing noise from my refrigerator periodically?

A: This may happen if you do not have a water source attached to your refrigerator and the icemaker is turned on. If you do not have a water source attached to the back of the refrigerator you should turn the icemaker off.

Q: Why does the icemaker tray look crooked?

A: This is a normal part of the icemaker cycle. The icemaker tray may appear level or with a slight tilt. The change in position is to assist in the freezing process.

Q: My refrigerator is powered on and the controls are working, but it's not cooling and the display shows "OFF" (see below). What is wrong?

A: The refrigerator is in Display Mode. The Display Mode disables all cooling in the refrigerator and freezer sections to conserve energy while on display in a retail store. When activated, OFF is displayed on the control panel and the display remains on for 20 seconds. With either refrigerator door opened, press the Ice Plus button 3 times consecutively while pressing the Refrigerator button. The control panel beeps and the temperature settings display to confirm that Display Mode is deactivated. Use the same procedure to activate Display Mode.

Q: My refrigerator is on and is cooling, but none of the lights are on and the buttons don't work. The display shows "Sb".

A: The Sabbath mode is activated. (Only included on some models.) To turn it off, see the Sabbath Mode section.

Before Calling for Service

Review this section before calling for service; doing so will save you both time and money.

Cooling

Problem Possible	Cause & Solution
Refrigerator is not cooling or has no power.	The refrigerator control is set to OFF (some models).Turn the control ON. Refer to the Setting the Controls section for proper temperature settings.
	Refrigerator is set to Demo Mode.Demo Mode allows the lights and control display to work normally while disabling cooling, to save energy while the refrigerator is on the showroom floor. See the FAQs section of this manual for instructions on how to disable Demo Mode.
	Refrigerator is in the defrost cycle.During the defrost cycle, the temperature of each compartment may rise slightly. Wait 30 minutes and confirm the proper temperature has been restored once the defrost cycle has completed.
	Refrigerator was recently installed.It may take up to 24 hours for each compartment to reach the desired temperature.
	Refrigerator was recently relocated.If the refrigerator was stored for a long period of time or moved on its side, it is necessary for the refrigerator to stand upright for 24 hours before connecting it to power.
Cooling system runs too much.	Refrigerator is replacing an older model.Modern refrigerators require more operating time but use less energy due to more efficient technology.
	Refrigerator was recently plugged in or power restored.The refrigerator will take up to 24 hours to cool completely.
	The door is opened often or a large amount of food / hot food was added.Adding food and opening the door warms the refrigerator, requiring the compressor to run longer in order to cool the refrigerator back down. In order to conserve energy, try to get everything you need out of the refrigerator at once, keep food organized so it is easy to find, and close the door as soon as the food is removed. (Refer to the Food Storage Guide.)
	Doors are not closed completely.Firmly push the doors shut. If they will not shut all the way, the "Doors will not close correctly or pop open" section in Troubleshooting.
	Refrigerator is installed in a hot location.The compressor will run longer under warm conditions. At normal room temperatures (70 °F or 21 °C) expect your compressor to run about 40 % to 80 % of the time. Under warmer conditions, expect it to run even more often. The refrigerator should not be operated above 110 °F (43 °C).
	Condenser / back cover is clogged.Use a vacuum cleaner with an attachment to clean the condenser cover and vents. Do not remove the panel covering the condenser coil area.
Interior moisture buildup.	Doors are opened often or for long periods of time.When the doors are opened often or for long periods of time, warm, humid air enters the compartment. This raises the temperature and moisture level within the compartment. To lessen the effect, reduce the frequency and duration of door openings.
	Doors are not closed correctly.See the "Doors will not close correctly or pop open" section.

50 TROUBLESHOOTING

Problem Possible	Cause & Solution
Interior moisture buildup.	Weather is humid.Humid weather allows additional moisture to enter the compartments when the doors are opened leading to condensation or frost. Maintaining a reasonable level of humidity in the home will help to control the amount of moisture that can enter the compartments.
	Defrost cycle recently completed.During the defrost cycle, the temperature of each compartment may rise slightly and condensation may form on the back wall. Wait 30 minutes and confirm that the proper temperature has been restored once the defrost cycle has completed.
	Food is not packaged correctly.Food stored uncovered or unwrapped, and damp containers can lead to moisture accumulation within each compartment. Wipe all containers dry and store food in sealed packaging to prevent condensation and frost.
Food is freezing in the refrigerator compartment.	Food with high water content was placed near an air vent.Rearrange items with high water content away from air vents.
	Refrigerator temperature control is set incorrectly.If the temperature is too cold, adjust the control one increment at a time and wait for the temperature to stabilize. Refer to the Control Panel section for more information.
	Refrigerator is installed in a cold location.When the refrigerator is operated in temperature below 41 °F (5 °C), food can freeze in the refrigerator compartment. The refrigerator should not be operated in temperature below 55 °F (13 °C).
Refrigerator or Freezer section is too cold.	Incorrect temperature control settings.If the temperature is too cold, adjust the control one increment at a time and wait for the temperature to stabilize. Refer to the Control Panel for more information.
Frost or ice crystals form on frozen food (inside of sealed package).	Condensation from food with a high water content has frozen inside of the food package.This is normal for food items with a high water content.
	Food has been left in the freezer for a long period of time.Do not store food items with high water content in the freezer for a long period of time.
Frost or ice crystals form on frozen food (outside of package).	Door is opened frequently or for long periods of time.When the doors are opened often or for long periods of time, warm, humid air enters the compartment. This raises the temperature and moisture level within the compartment. Increased moisture will lead to frost and condensation. To lessen the effect, reduce the frequency and duration of door openings.
	Door is not closing properly.Refer to the "Doors will not close correctly or pop open" section in the Troubleshooting.
Refrigerator or Freezer section is too warm.	Refrigerator was recently installed.It may take up to 24 hours for each compartment to reach the desired temperature.
	The air vents are blocked. Cold air circulates from the freezer to the fresh food section and back again through air vents in the wall dividing the two sections.Locate air vents by using your hand to sense airflow and move all packages that block vents and restrict airflow. Rearrange items to allow air to flow throughout the compartment.
	Doors are opened often or for long periods of time.When the doors are opened often or for long periods of time, warm, humid air enters the compartment. This raises the temperature and moisture level within the compartment. To lessen the effect, reduce the frequency and duration of door openings.

Problem Possible Cause & Solution
Refrigerator or Freezer section is too warm.	Unit is installed in a hot location.• The refrigerator should not be operated in temperatures above 110 °F (43 °C).
	A large amount of food or hot food was added to either compartment.• Adding food warms the compartment requiring the cooling system to run. Allowing hot food to cool to room temperature before putting it in the refrigerator will reduce this effect.
	Doors are not closed correctly.• See the “Doors will not close correctly or pop open” section in the Troubleshooting.
	Temperature control is not set correctly.• If the temperature is too warm, adjust the control one increment at a time and wait for the temperature to stabilize.
	Defrost cycle has recently completed.• During the defrost cycle, the temperature of each compartment may rise slightly and condensation may form on the back wall. Wait 30 minutes and confirm the proper temperature has been restored once the defrost cycle has completed.

ENGLISH

Craft Ice

Problem Possible	Cause & Solution
Icemaker is not making ice.	Refrigerator was recently installed or icemaker recently connected.The icemaker begins producing ice approximately 48 hours after the appliance is initially installed. The first batches of ice may not be round and clear.
Icemaker is not making enough ice.	In 3 ICE mode, the Craft Ice icemaker produces 1 batch of round ice about every 24 hours.For more ice, select the 6 ICE mode which produces 2 batches every 24 hours.

Ice

Problem Possible Cause & Solution
Icemaker is not making enough ice.	Demand exceeds ice production capacity.Refer to the Automatic Icemaker section for ice production capacity to check the amount of ice produced in a 24 hour period.
	House water supply is not connected, valve is not turned on fully, or valve is clogged.Connect the refrigerator to a cold water supply with adequate pressure and turn the water shutoff valve fully open. If the problem persists, it may be necessary to contact a plumber.
	Water filter has been exhausted.Replacing the water filter is recommended:- Approximately every six months.- When the water filter indicator turns on.- When the water dispenser output decreases.- When the ice cubes are smaller than normal.
	Low house water supply pressure.The water pressure must be between 20 and 120 psi (138 and 827 kPa) on models without a water filter and between 40 and 120 psi (276 and 827 kPa) on models with a water filter. If the problem persists, it may be necessary to contact a plumber.

52 TROUBLESHOOTING

Problem Possible	Cause & Solution
Icemaker is not making enough ice.	Reverse osmosis filtration system is used.• Reverse osmosis filtration systems can reduce the water pressure below the minimum amount and result in icemaker issues. (Refer to the Connecting the Water Line section.)
	Tubing connecting refrigerator to house supply valve is kinked.• The tubing can kink when the refrigerator is moved during installation or cleaning resulting in reduced water flow. Straighten or repair the water supply line and arrange it to prevent future kinks.
	Doors are opened often or for long periods of time.• If the doors of the unit are opened often, ambient air will warm the refrigerator which will prevent the unit from maintaining the set temperature. Lowering the refrigerator temperature can help, as well as not opening the doors as frequently.
	Doors are not closed completely.• If the doors are not properly closed, ice production will be affected. See the "Doors will not close correctly or pop open" section in Parts & Features Troubleshooting for more information.
	The temperature setting for the freezer is too warm.• The recommended temperature for the freezer compartment for normal ice production is 0 °F (-18 °C). If the freezer temperature is warmer, ice production will be affected.
Icemaker is not making ice	Refrigerator was recently installed or icemaker recently connected.• It may take up to 24 hours for each compartment to reach the desired temperature and for the icemaker to begin making ice.
	Icemaker is not turned on.• Locate the icemaker ON/OFF and confirm that it is turned on.
	The ice detecting sensor is obstructed.• Foreign substances or frost on the ice-detecting sensor can interrupt ice production. Make sure that the sensor area is clean at all times for proper operation.
	The refrigerator is not connected to a water supply or the supply shutoff valve is not turned on.• Connect the refrigerator to the water supply and turn the water shutoff valve fully open.
	Icemaker shutoff (arm or sensor) obstructed.• If your icemaker is equipped with an ice shutoff arm, make sure that the arm moves freely. If your icemaker is equipped with the electronic ice shutoff sensor, make sure that there is a clear path between the two sensors.
	Reverse osmosis water filtration system is connected to your cold water supply.• Reverse osmosis filtration systems can reduce the water pressure below the minimum amount and result in icemaker issues. (Refer to the Connecting the Water Line section.)
Ice has bad taste or odor.	Water supply contains minerals such as sulfur.• A water filter may need to be installed to eliminate taste and odor problems. NOTE: In some cases, a filter may not help. It may not be possible to remove all minerals/odor/taste in all water supplies.
	Icemaker was recently installed.• Ice that has been stored for too long will shrink, become cloudy, and may develop a stale taste. Throw away old ice and make a new supply.
	The food has not been stored properly in either compartment.• Rewrap the food. Odors may migrate to the ice if food is not wrapped properly.
	The interior of the refrigerator needs to be cleaned.• See the Maintenance section for more information.

Problem Possible Cause & Solution
Ice has bad taste or odor.	The ice storage bin needs to be cleaned.Empty and wash the bin (discard old cubes). Make sure that the bin is completely dry before reinstalling it.
Icemaker is making too much ice.	Icemaker shutoff (arm/ sensor) is obstructed.Empty the ice bin. If your icemaker is equipped with an ice shutoff arm, make sure that the arm moves freely. If your icemaker is equipped with the electronic ice shutoff sensor, make sure that there is a clear path between the two sensors. Reinstall the ice bin and wait 24 hours to confirm proper operation.
Ice is not dispensing.	Unable to hear the sound of ice coming out?In the control panel, select the modes for cubed ice and crushed ice alternately to dispense the ice.
	Doors are not closed completely.Ice will not dispense if any of the refrigerator doors are left open.
	Infrequent use of the dispenser.Infrequent use of the ice dispenser will cause the cubes to stick together over time, which will prevent them from properly dispensing. Check the ice bin for ice cubes clumping/sticking together. If they are, break up the ice cubes to allow for proper operation.
	The delivery chute is clogged with frost or ice fragments.Eliminate the frost or ice fragments by removing the ice bin and clearing the chute with a plastic utensil. Dispensing cubed ice can also help prevent frost or ice fragment buildup.
	The dispenser display is locked.Press and hold the Lock button for three seconds to unlock the control panel and dispenser.
	Ice bin is empty.It may take up to 24 hours for each compartment to reach the desired temperature and for the icemaker to begin making ice. Make sure that the shutoff (arm/sensor) is not obstructed. Once the ice supply in the bin has been completely exhausted, it may take up to 90 minutes before additional ice is available, and approximately 24 hours to completely refill the bin.

ENGLISH

Water

Problem Possible	Cause & Solution
Water is dispensing slowly.	Water filter has been exhausted.Replacing the water filter is recommended:- Approximately every six months.- When the water filter indicator turns on.- When the water dispenser output decreases.- When the ice cubes are smaller than normal.
	Reverse osmosis filtration system is used.Reverse osmosis filtration systems can reduce the water pressure below the minimum amount and result in icemaker issues. If the problem persists, it may be necessary to contact a plumber.
	Low house water supply pressure.The water pressure must be between 20 and 120 psi on models without a water filter and between 40 and 120 psi on models with a water filter. If the problem persists, it may be necessary to contact a plumber.

54 TROUBLESHOOTING

Problem Possible	Cause & Solution
Water is not dispensing.	New installation or water line recently connected.• Dispense 2.5 gallons of water (flush for approximately 5 minutes) to remove trapped air and contaminants from the system. Do not dispense the entire 2.5 gallon amount continuously. Depress and release the dispenser pad for cycles of 30 seconds ON and 60 seconds OFF.
	The dispenser panel is locked.• Press and hold theLockbutton for three seconds to unlock the control panel and dispenser.
	The dispenser is not set for water dispensing.• The dispenser can be set for ice or water. Make certain that the control panel is set for the proper operation.Pressthe Waterbutton on the control panel to dispense water.
	Refrigerator or freezer doors are not closed properly.• Water will not dispense if any of the refrigerator doors are left open.
	Water filter has been recently removed or replaced.• After the water filter is replaced, dispense 2.5 gallons of water (flush for approximately five minutes) to remove trapped air and contaminants from the system. Do not dispense the entire 2.5 gallon amount continuously. Depress and release the dispenser pad for cycles of 30 seconds ON and 60 seconds OFF.
	Tubing connecting refrigerator to house supply valve is kinked.• The tubing can kink when the refrigerator is moved during installation or cleaning. Resulting in reduced water flow. Straighten or repair the water supply line and arrange it to prevent future kinks.
	The house water supply is not connected, the valve is not turned on fully, or the valve is clogged.• Connect the refrigerator to the water supply and turn the water shutoff valve fully open. If the problem persists, it may be necessary to contact a plumber.
Dispensing warm water.	Refrigerator was recently installed.• Allow 24 hours after installation for the water storage tank to cool completely.
	The water dispenser has been used recently and the storage tank was exhausted.• Depending on your specific model, the water storage capacity will range from approximately 20 to 30 oz.
	Dispenser has not been used for several hours.• If the dispenser has not been used for several hours, the first glass dispensed may be warm. Discard the first 10oz.
	Refrigerator is connected to the hot water supply.• Make sure that the refrigerator is connected to a cold water pipe.WARNING: Connecting the refrigerator to a hot water line may damage the icemaker.
Water has bad taste or odor.	Water supply contains minerals such as sulfur.• A water filter may need to be installed to eliminate taste and odor problems.
	Water filter has been exhausted.• Replacing the water filter is recommended:- Approximately every six months.- When the water filter indicator turns on.- When the water dispenser output decreases.- When the ice cubes are smaller than normal.

Problem Possible Cause & Solution
Water has bad taste or odor.	Refrigerator was recently installed.Dispense 2.5 gallons of water (flush for approximately 5 minutes) to remove trapped air and contaminants from the system. Do not dispense the entire 2.5 gallon amount continuously. Depress and release the dispenser pad for cycles of 30 seconds ON and 60 seconds OFF.

Parts & Features

Problem Possible	Cause & Solution
Doors will not close correctly or pop open.	Food packages are blocking the door open.• Rearrange food containers to clear the door and door shelves.
	Ice bin, crisper cover, pans, shelves, door bins, or baskets are out of position.• Push bins all the way in and put crisper cover, pans, shelves and baskets into their correct positions. See the Operation section for more information.
	The doors were removed during product installation and not properly replaced.• Remove and replace the doors according to the Removing and Replacing Refrigerator Handles and Doors section.
	Refrigerator is not leveled properly.• See Door Alignment in the Refrigeration Installation section to level refrigerator.
Doors are difficult to open.	The gaskets are dirty or sticky.• Clean the gaskets and the surfaces that they touch. Rub a thin coat of appliance polish or kitchen wax on the gaskets after cleaning.
	Door was recently closed.• When you open the door, warmer air enters the refrigerator. As the warm air cools, it can create a vacuum. If the door is hard to open, wait one minute to allow the air pressure to equalize, then see if it opens more easily.
Refrigerator wobbles or seems unstable	Leveling legs are not adjusted properly.• Refer to the Leveling and Door Alignment section.
	Floor is not level.• It may be necessary to add shims under the leveling legs or rollers to complete installation.
Lights do not work. LED interior lighting failure.
Refrigerator has an unusual odor.	The Air Filter may need to be set to the MAX setting or replaced.• Set the Air Filter to the MAX setting. If the odor does not go away within 24 hours, the filter may need to be replaced. See the Replacing the Air Filter section for replacement instructions.

56 TROUBLESHOOTING

Problem Possible	Cause & Solution
The interior of the refrigerator is covered with dust or soot.	The refrigerator is located near a fire source, such as a fireplace, chimney, or candle.• Make sure that the refrigerator is not located near a fire source, such as a fireplace, chimney or candle.

Noises

Problem Possible	Cause & Solution
Clicking	The defrost control will click when the automatic defrost cycle begins and ends. The thermostat control (or refrigerator control on some models) will also click when cycling on and off.• Normal Operation
Rattling	Rattling noises may come from the flow of refrigerant, the water line on the back of the unit, or items stored on top of or around the refrigerator.• Normal Operation
	Refrigerator is not resting solidly on the floor.• Floor is weak or uneven or leveling legs need to be adjusted. See the Leveling and Door Alignment section.
	Refrigerator with linear compressor was jarred while running.• Normal Operation
Whooshing Evaporator	fan motor is circulating air through the refrigerator and freezer compartments.• Normal Operation
	Air is being forced over the condenser by the condenser fan.• Normal Operation
Gurgling Refrigerant flowing through the cooling system.• Normal Operation
Popping Contraction and expansion of the inside walls due to changes in temperature.• Normal Operation
Sizzling Water dripping on the defrost heater during a defrost cycle.• Normal Operation
Vibrating If the side or back of the refrigerator is touching a cabinet or wall, some of the normal vibrations may make an audible sound.• To eliminate the noise, make sure that the sides and back cannot vibrate against any wall or cabinet.
Dripping Water running into the drain pan during the defrost cycle.• Normal Operation
Pulsating or high-pitched sound	Your refrigerator is designed to run more efficiently to keep your food items at the desired temperature. The high efficiency compressor may cause your new refrigerator to run longer than your old one, but it is still more energy efficient than previous models. While the refrigerator is running, it is normal to hear a pulsating or high-pitched sound.• Normal Operation

Wi-Fi

Problem Possible	Cause & Solution
Trouble connecting appliance and smartphone to Wi-Fi network	The password for the Wi-Fi network was entered incorrectly.· Delete your home WI-FI network and begin the connection process again.
	Mobile data for your smartphone is turned on.· Turn off the Mobile data on your smartphone before connecting the appliance.
	The wireless network name (SSID) is set incorrectly.· The wireless network name (SSID) should be a combination of English letters and numbers. (Do not use special characters.)
	The router frequency is not 2.4 GHz.· Only a 2.4 GHz router frequency is supported. Set the wireless router to 2.4 GHz and connect the appliance to the wireless router. To check the router frequency, check with your Internet service provider or the router manufacturer.
	The appliance and the router are too far apart.· If the appliance is too far from the router, the signal may be weak and the connection may not be configured correctly. Move the router closer to the appliance or purchase and install a Wi-Fi repeater.
	During Wi-Fi setup, the app is requesting a password to connect to the product (on certain phones).· Locate the network name which starts with "LG" under Settings > Networks. Note the last part of the network name.- If the network name looks like LGE_Appliance_XX-XX-XX, enter lge12345.- If the network name looks like LGE_Appliance_XXXX, enter XXXX twice as your password. For example, if the network name appears as LGE_Appliance_8b92, then you would enter 8b928b92 as your password. In this instance, the password is case sensitive and the last 4 characters are unique to your appliance.

ENGLISH

Error Codes

Problem Possible	Cause & Solution
"Sb" appears on the display. Refrigerator is running but control panel is inactive.	The Sabbath mode is activated.· Some models feature a Sabbath mode for use during the Jewish Sabbath and Holidays. See the Sabbath Mode section of the manual for instructions on activating and deactivating this mode.

58 LIMITED WARRANTY

LIMITED WARRANTY

USA

TERMS AND CONDITIONS

Should your SIGNATURE KITCHEN SUITE Refrigerator ("Product") fail due to a defect in materials or workmanship under normal and proper use, during the warranty period set forth below, SIGNATURE KITCHEN SUITE will, at its option, repair or replace the Product. This limited warranty is valid only to the original retail purchaser of the Product ("You") and applies only when purchased lawfully and used within the United States including U.S. Territories.

WARRANTY PERIOD
Refrigerator/Freezer	Sealed System (Condenser, Dryer, Connecting Tube and Evaporator)	Compressor
Three (3) years from the date of original retail purchase	Five (5) years from the date of original retail purchase	Five (5) years from the date of original retail purchase	Linear / Inverter Compressor Only : Parts Only for years 6-10 from the date of original retail purchase (You will be charged for labor.)
Parts and Labor (internal/ functional parts only)	Parts and Labor Parts and	Labor

• Replacement Products and parts are warranted for the remaining portion of the original warranty period or ninety (90) days, whichever is greater.
• Replacement Products and parts may be new, reconditioned, refurbished, or otherwise factory remanufactured.
• Replaced Product or part(s) will be the property of SIGNATURE KITCHEN SUITE.
• Proof of original retail purchase specifying the Product model and date of purchase is required to obtain warranty service under this limited warranty.

EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THE PRODUCT IS LIMITED IN DURATION TO THE DURATION OF THE ABOVE LIMITED WARRANTY. UNDER NO CIRCUMSTANCES SHALL SIGNATURE KITCHEN SUITE OR ITS U.S. DISTRIBUTORS/DEALERS BE LIABLE FOR ANY INDIRECT, INCIDENTAL, CONSEQUENTIAL, SPECIAL, OR PUNITIVE DAMAGES, INCLUDING, WITHOUT LIMITATION, LOST GOODWILL, LOST REVENUES OR PROFITS, WORK STOPPAGE, IMPAIRMENT OF OTHER GOODS, COST OF REMOVAL AND REINSTALLATION OF THE PRODUCT, LOSS OF USE, OR ANY OTHER DAMAGES WHETHER BASED IN CONTRACT, TORT, OR OTHERWISE. SIGNATURE KITCHEN SUITE'S TOTAL LIABILITY, IF ANY, SHALL NOT EXCEED THE PURCHASE PRICE PAID BY YOU FOR THE PRODUCT.

SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES OR LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE EXCLUSIONS OR LIMITATIONS MAY NOT APPLY TO YOU. THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE.

THIS LIMITED WARRANTY DOES NOT COVER:

• Service trips to deliver, pick up, or install, educate how to operate, correct wiring, or correct unauthorized repairs.
• Damage or failure of the Product to perform during power failures and interrupted or inadequate electrical service.
• Damage or failure of the Product caused by leaky or broken water pipes, frozen water pipes, restricted drain lines, inadequate or interrupted water supply or inadequate supply of air.
• Damage or failure of the Product resulting from operating the Product in a corrosive atmosphere or contrary to the Product owner's manual.

- Damage or failure of the Product caused by accidents, pests and vermin, lightning, wind, fire, floods, acts of nature, or any other causes beyond the control of SIGNATURE KITCHEN SUITE.

- Damage or failure of the Product caused by unauthorized modification or alteration, or if the Product is used for other than the intended purpose, or any water leakage where the Product was not properly installed.

- Damage or failure of the Product caused by incorrect electrical current, voltage, or plumbing codes.

- Damage or failure of the Product caused by transportation, storage, and/or handling, including scratches, dents, chips, and/or other damage to the finish of the Product, unless such damage is reported within one (1) week of delivery.

- Damage or failure of the Product resulting from misuse, abuse, improper installation, repair, or maintenance. Improper repair includes the use of parts not authorized by SIGNATURE KITCHEN SUITE. Improper installation or maintenance includes installation or maintenance contrary to the Product owner's manual.

- Damage or failure of the Product caused by the use of parts, components, accessories, consumable cleaning products, or any other products or services that were not authorized by SIGNATURE KITCHEN SUITE.

- Damage or missing items to any display or open box Product.

- Refurbished Product or any Product sold "As Is", "Where Is", "With all Faults", or similar disclaimer.

- Products with original serial numbers that have been removed, altered, or cannot be readily determined.

- Increases in utility costs and additional utility expenses.

- Any noises associated with normal operation.

- Products used for other than normal and proper household use (e.g., commercial or industrial use) or contrary to the Product owner's manual.

- Costs associated with removal and reinstallation of the Product for repairs, or the removal and reinstallation of the Product if it is installed in an inaccessible location or not installed in accordance with the Product Owner's manual.

- Accessories, removable components, or consumable parts (e.g. Shelves, door bins, drawers, water/air filters, racks, light bulbs, batteries, etc., as applicable), except for internal/functional parts covered under this limited warranty.

The cost of repair or replacement under these excluded circumstances shall be borne by You.

TO OBTAIN WARRANTY SERVICE AND ADDITIONAL INFORMATION

Call 1-855-790-6655 and select the appropriate option from the menu.

Or visit our website at http://www.signaturekitchensuite.com.

Or by mail: SIGNATURE KITCHEN SUITE Customer Service P.O. Box 240007 Huntsville, AL 35813 ATTN: CIC

60 LIMITED WARRANTY

Canada

TERMS AND CONDITIONS

Should your SIGNATURE KITCHEN SUITE Refrigerator ("Product") fail due to a defect in materials or workmanship under normal and proper use, during the warranty period set forth below, SIGNATURE KITCHEN SUITE will, at its option, repair, replace or pro rate the Product upon receipt of proof of the original retail purchase. This limited warranty is valid only to the original retail purchaser of the Product and applies only to a Product distributed, purchased from an authorized retailer and used within Canada, as determined at the sole discretion of SIGNATURE KITCHEN SUITE.

WARRANTY PERIOD
Refrigerator	Sealed System (Condenser, Dryer, Connecting Tube and Evaporator)		Linear Compressor
Three (3) years from the date of original retail purchase	Three (3) years from the date of original retail purchase	Seven (7) years from the date of original retail purchase	Ten (10) years from the date of original retail purchase
Parts and Labor (Internal / functional parts only)	Parts and Labor Parts Only	(Consumer will be charged for labor)	Parts Only (Consumer will be charged for labor)

• Replacement products and parts are warranted for the remaining portion of the original warranty period or ninety (90) days, whichever is greater.
• Replacement products and parts may be new, reconditioned, refurbished, or otherwise factory remanufactured, all at the sole discretion of SIGNATURE KITCHEN SUITE.
• Proof of original retail purchase specifying the Product model and date of purchase is required to obtain warranty service under this Limited Warranty.

SIGNATURE KITCHEN SUITE'S SOLE LIABILITY IS LIMITED TO THE LIMITED WARRANTY SET OUT ABOVE. EXCEPT AS EXPRESSLY PROVIDED ABOVE, SIGNATURE KITCHEN SUITE MAKES NO, AND HEREBY DISCLAIMS, ALL OTHER WARRANTIES AND CONDITIONS RESPECTING THE PRODUCT, WHETHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OR CONDITION OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, AND NO REPRESENTATIONS SHALL BE BINDING ON SIGNATURE KITCHEN SUITE. SIGNATURE KITCHEN SUITE DOES NOT AUTHORIZE ANY PERSON TO CREATE OR ASSUME FOR IT ANY OTHER WARRANTY OBLIGATION OR LIABILITY IN CONNECTION WITH THE PRODUCT. TO THE EXTENT THAT ANY WARRANTY OR CONDITION IS IMPLIED BY LAW, IT IS LIMITED TO THE WARRANTY PERIOD SET OUT ABOVE. UNDER NO CIRCUMSTANCES SHALL SIGNATURE KITCHEN SUITE, THE MANUFACTURER OR DISTRIBUTOR OF THE PRODUCT, BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, SPECIAL, DIRECT, INDIRECT, PUNITIVE OR EXEMPLARY DAMAGES, INCLUDING, WITHOUT LIMITATION, LOSS OF GOODWILL, LOST PROFITS, LOSS OF ANTICIPATED PROFITS, LOST REVENUE, LOSS OF USE, OR ANY OTHER DAMAGE, WHETHER ARISING DIRECTLY OR INDIRECTLY FROM ANY CONTRACTUAL BREACH, FUNDAMENTAL BREACH, TORT OR OTHERWISE, OR FROM ANY ACTS OR OMISSIONS. SIGNATURE KITCHEN SUITE'S TOTAL LIABILITY, IF ANY, SHALL NOT EXCEED THE PURCHASE PRICE PAID BY YOU FOR THE PRODUCT.

This Limited Warranty gives you specific legal rights. You may also have other rights that vary from province to province depending on applicable provincial laws. Any term of this Limited Warranty that negates or varies any implied condition or warranty under provincial law is severable where it conflicts with such provincial law without affecting the remainder of this warranty's terms.

THIS LIMITED WARRANTY DOES NOT COVER:

• Service trips to i) deliver, pick up, or install or; educate on how to operate the Product; ii) correct wiring or plumbing; or iii) correct unauthorized repairs or installations of the Product;

• Damage or failure of the Product to perform during power failures and interrupted or inadequate electrical service;

• Damage or failure caused by leaky or broken water pipes, frozen water pipes, restricted drain lines, inadequate or interrupted water supply or inadequate supply of air;

• Damage or failure resulting from operating the Product in a corrosive atmosphere or contrary to the instructions outlined in the Product's owner's manual;
• Damage or failure to the Product caused by accidents, pests and vermin, lightning, wind, fire, floods, acts of God, or any other causes beyond the control of SIGNATURE KITCHEN SUITE or the manufacturer;
• Damage or failure resulting from misuse, abuse, improper installation, repair, or maintenance of the Product. Improper repair includes use of parts not authorized or specified by SIGNATURE KITCHEN SUITE. Improper installation or maintenance includes installation or maintenance contrary to the Product's owner's manual;
• Damage or failure caused by unauthorized modification or alteration of the Product, or if used for other than the intended household purpose/use of the Product, or damage or failure resulting from any water leakage due to improper installation of the Product;
• Damage or failure caused by incorrect electrical current, voltage or plumbing codes;
• Damage or failure caused by use that is other than normal household use, including, without limitation, commercial or industrial use, including use in commercial offices or recreational facilities, or as otherwise outlined in the Product's owner's manual;
• Damage or failure caused by the use of any accessories, components or cleaning products, including, without limitation, water filters, that are not approved/authorized by SIGNATURE KITCHEN SUITE;
• Replacement of the water filter cartridge due to water pressure that is outside the specified operating range or due to excessive sediment in the water supply;
• Damage or failure caused by transportation and handling, including scratches, dents, chips and/or other damage to the finish of the Product, unless such damage results from defects in materials or workmanship and is reported to SIGNATURE KITCHEN SUITE within one (1) week of delivery of the Products;
• Damage or missing items to any display, open box, refurbished or discounted Product;
• Refurbished Product or any Product sold "As Is", "Where Is", "With all Faults", or any similar disclaimer;
• Products with original serial numbers that have been removed, altered or cannot be readily determined at the discretion of SIGNATURE KITCHEN SUITE;
• Increases in utility costs and additional utility expenses in any way associated with the Product;
• Any noises associated with normal operation of the Product;
• Replacement of light bulbs, filters, fuses or any other consumable parts;
• Replacement of any part that was not originally included with the Product;
  • Costs associated with removal and/or reinstallation of the Product for repairs; and
• Racks, shelves, door bins, drawers, handle and accessories to the Product, except for internal/functional parts covered under this Limited Warranty.

All costs and expenses associated with the above excluded circumstances, listed under the heading. This Limited Warranty Does Not Cover, shall be borne by the consumer.

TO OBTAIN WARRANTY SERVICE AND ADDITIONAL INFORMATION, PLEASE CALL OR VISIT OUR WEBSITE:

• Call 1-888-289-2802 and select the appropriate option from the menu.
• Visit our website at http://www.signaturekitchensuite.com
• By mail: 20 Norelco Drive, North York, ON, M9L 2X6

en-us_main.book.book Page 62 Tuesday, June 4, 2024 10:44 AM 62 Memo

Pure geometric lines forming a crosshair symbol (no text or labels)

Pure geometric diagram with crosshair and circular shapes, no text or symbols present

6 P R E C A U C I Ó N

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Diagram of a refrigerator with numbered parts labeled 1 to 6 for identification.

①Panel de control del dispensador

Pure geometric diagram with intersecting lines and circular shapes, no text or symbols present

Interior

Labeled diagram of a refrigerator interior with numbered parts for identification

ESPAÑOL

Pure geometric diagram with intersecting lines and circles, no text or symbols present

11INSTALACIÓN

INSTALACIÓN

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and circles, no text or symbols present

14 INSTALACIÓN

Removiendo/Ensamblando Agarraderas

Diagram showing two views of a door handle mechanism with numbered annotations indicating parts of the handle.

Diagram showing two steps of a tool or device with numbered callouts indicating different states or configurations.

Pure geometric diagram with intersecting lines and circular shapes, no text or symbols present

Diagram showing two labeled parts (① and ②) illustrating a mechanical or electrical component with connection points.

Diagram showing two mechanical components with numbered callouts, illustrating assembly or disassembly steps.

Technical line drawing of a mechanical bracket with three bolt holes (no text or symbols)

Diagram illustrating cable penetration with labeled components and directional arrows indicating movement or force

Pure geometric diagram with intersecting lines and circular shapes, no text or symbols present

16 INSTALACIÓN

NOTA

Technical diagram of a mechanical assembly with numbered components labeled 2 through 5

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or movement.

Technical diagram showing mechanical assembly with numbered components and directional arrows indicating motion or force

Technical diagram showing a mechanical assembly with a bracket and a valve, no text or symbols present

Diagram showing cable installation with labeled components and directional arrows indicating movement or connection

Diagram of a robotic hand holding a device with numbered parts and directional arrows indicating motion or movement.

Technical diagram showing a mechanical assembly with a bracket and a connector, no text or symbols present

Line drawing of a refrigerator interior showing the lid and drawer (no text or symbols)

ESPAÑOL

NOTA

Line drawing of a refrigerator interior showing drawer, door, and drawer (no text or symbols)

Pure geometric diagram with intersecting lines and circles, no text or symbols present

18 INSTALACIÓN

Line drawing of a refrigerator with an open door and side arm, showing internal compartments and arrows indicating movement (no text or symbols)

Diagram showing two hands holding a tool interacting with a rectangular device (no text or symbols present)

Diagram showing two hands holding a tool inside a container with arrows indicating direction (no text or symbols)

Diagram of a refrigerator with an inset showing a hand holding a handle (no text or symbols present)

Line drawing of a refrigerator interior with a close-up inset showing a handle and lock (no text or symbols)

Line drawing of a refrigerator drawer with an arrow indicating the handle (no text or symbols)

Line drawing of a refrigerator with an open drawer and a box on top, showing a downward arrow (no text or symbols)

NOTA

Technical diagram showing a mechanical assembly with a downward arrow indicating a process or connection (no text or symbols present)

2

Diagram of a device with labeled parts and directional arrows indicating motion or assembly

3

Diagram showing cable routing with labeled components 4 and 5, indicating directional movement or connection points.

ESPAÑOL

NOTA

Technical line drawing of a mechanical assembly with a downward arrow indicating a process or component (no text or symbols present)

2

Pure geometric diagram with intersecting lines and circular shapes, no text or symbols present

20 INSTALACIÓN

Diagram of a mechanical assembly with numbered components and directional arrows indicating motion or movement

Diagram of a cable or connector assembly with arrows indicating motion direction (no text or symbols)

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Diagram illustrating electrical cable installation with labeled components and directional arrows indicating connection points

NOTA

Technical diagram of a mechanical assembly with numbered components labeled 5 through 8

Two diagrams showing a bent wire with directional arrows, one enclosed in a circle and the other with a prohibition sign (no text or symbols)

Technical line drawing of a metal bracket with three bolt holes (no text or symbols)

Pure geometric diagram with intersecting lines and circles, no text or symbols present

ADVERTENCIA

Diagram of a mechanical assembly with numbered components and directional arrows indicating motion or force

Technical diagram showing mechanical assembly with numbered components and magnified views

Diagram illustrating a mechanical or electrical setup with a magnified inset showing hand positioning and connection points.

Technical diagram showing pipe connection with magnified detail and schematic symbols

ESPAÑOL

Refrigerador Tipo B

Technical diagram showing pipe connection and valve assembly with labeled components and directional arrows

Technical diagram showing a mechanical assembly with labeled components and an inset magnified view of a device with circular features.

NOTA

Pure geometric diagram with intersecting lines and circular shapes, no text or symbols present

FUNCIONAMIENTO

Antes de Usar

Pure geometric diagram with intersecting lines and circles, no text or symbols present

26 FUNCIONAMIENTO

Panel de control

Pure geometric diagram with intersecting lines and circles, no text or symbols present

28 FUNCIONAMIENTO

NOTA

Diagram of a device with labeled components and a numbered label pointing to the component.

Pure geometric diagram with intersecting lines and circular shapes, no text or symbols present

Diagram of a door handle mechanism with a hand pressing a button (no text or symbols)

ESPAÑOL

Line drawing of an open refrigerator with a hand pointing to the door (no text or symbols)

Line drawing of an open refrigerator with a handle and lid (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical housing or enclosure component (no text or symbols)

a Brazo Sensitivo

NOTA

Technical line drawing of a mechanical assembly with internal components (no text or symbols)

a Brazo Sensitivo

PRECAUCIÓN

Pure geometric diagram with intersecting lines and circles, no text or symbols present

34 FUNCIONAMIENTO

Máquina de hielo del congelador (Craft Ice™)

Technical line drawing of a mechanical device with rollers and housing (no text or symbols)

①Brazo Sensitivo

PRECAUCIÓN

Craft Ice Mini Cubed Ice

Pure geometric diagram with intersecting lines and circles, no text or symbols present

36 FUNCIONAMIENTO

Technical diagram showing a mechanical assembly with two circular annotations labeled 'Part 1' and 'Part 2' pointing to different components.

Pure technical line drawing of a mechanical assembly with no text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with a lever and base plate (no text or symbols)

ESPAÑOL

Technical line drawing of a mechanical assembly with no visible text or symbols

Glide'N'Serve

Usando Glide'N'Serve

Meal Deli Produce Select

Pure geometric diagram with intersecting lines and circular shapes, no text or symbols present

38 FUNCIONAMIENTO

PRECAUCIÓN

Illustration of a hand inserting a rectangular object into a drawer (no text or symbols)

Illustration of a hand pressing down on a wooden drawer with a directional arrow (no text or symbols)

Diagram of a device with arrows indicating movement or force, mounted on a vertical pole (no text or symbols present)

PRECAUCIÓN

Line drawing of hands installing or adjusting a mechanical component on a shelf (no text or symbols)

Pure geometric diagram with intersecting lines and a central circular pattern (no text or symbols)

Line drawing of a hand holding a small object with an upward arrow, no text or symbols present

Diagram of a hand holding a tablet device with arrows indicating motion or force direction (no text or symbols)

Technical diagram showing mechanical assembly with labeled components and directional arrows indicating motion or force

Illustration of two hands holding a transparent container with an upward arrow (no text or symbols)

Line drawing of a rectangular plastic container with internal compartments (no text or symbols)

40 FUNCIONAMIENTO

ADVERTENCIA

Pure geometric diagram with intersecting lines and circular shapes, no text or symbols present

Pure geometric diagram with intersecting lines and circular shapes, no text or symbols present

46 MANTENIMIENTO

MANTENIMIENTO

Limpieza

ADVERTENCIA

Hand inserting a component into a device panel (no text or symbols visible)

Filtro de Aire

Open Close

Illustration of hands using a tool to adjust a component, with a magnified inset showing hand positioning (no text or symbols)

Pure architectural floor plan lines without any text, numbers, or symbols

Diagram showing two labeled components (1 and 2) with dashed lines indicating movement or flow, possibly illustrating a process or system.

ESPAÑOL

Diagram showing a door lock mechanism with an arrow indicating rotation and a magnified view of the lock structure.

Hand inserting a component into a device (no text or symbols visible)

Diagram of a refrigerator with numbered parts labeled 1 to 6 for identification.

Pure geometric diagram with intersecting lines and circular shapes, no text or symbols present

Intérieur

Labeled diagram of a refrigerator interior with numbered parts for identification

FRANÇAIS

10 APERÇU DU PRODUIT

Pure geometric diagram with intersecting lines and circles, no text or symbols present

12 INSTALLATION

Diagram showing two views of a door handle mechanism with numbered annotations indicating parts of the handle.

Diagram showing two views of a mechanical device with numbered components, likely illustrating a tool or assembly process.

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and a central circle, no text or symbols present

Diagram showing two labeled parts (① and ②) illustrating a mechanical or electrical component assembly with connection points.

Diagram showing two mechanical components with numbered callouts, illustrating assembly or alignment instructions.

Technical line drawing of a mechanical bracket with four bolt holes (no text or symbols)

Diagram illustrating electrical grounding with labeled components and directional arrows indicating movement or force

REMARQUE

Technical diagram of a mechanical assembly with numbered components labeled 2 through 5

Pure geometric diagram with intersecting lines and a central circular pattern (no text or symbols)

16 INSTALLATION

REMARQUE

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or movement.

Technical diagram showing mechanical assembly with numbered components and directional arrows indicating motion or force

Technical diagram showing a mechanical assembly with a bracket and a connector, no text or symbols present

Diagram showing cable installation with labeled components and directional arrows indicating movement or connection

Diagram of a robotic hand and mechanical device with numbered parts and directional arrows indicating motion or assembly.

Technical line drawing of a mechanical assembly with a bracket and mounting bracket (no text or symbols)

Line drawing of a refrigerator interior showing a tray with an open lid and a handle (no text or symbols)

FRANÇAIS

REMARQUE

Line drawing of a refrigerator drawer with an arrow indicating the interior space (no text or symbols)

Line drawing of a refrigerator interior showing hand positioning and mounting points (no text or symbols)

Pure geometric diagram with intersecting lines and circular shapes, no text or symbols present

18 INSTALLATION

Line drawing of a refrigerator with doors open and closed, showing internal compartments and door frame (no text or symbols)

Illustration of hands using a tool to interact with a device inside a container (no text or symbols present)

Diagram showing two hands holding a tool interacting with a rectangular device (no text or symbols present)

Diagram of a refrigerator with an inset showing a hand holding a door handle (no text or symbols present)

Line drawing of a refrigerator interior with a magnified inset showing a handle and arm (no text or symbols)

Line drawing of a refrigerator drawer with an arrow indicating the interior space (no text or symbols)

Line drawing of a refrigerator with an open drawer and a box on top, showing a downward arrow (no text or symbols)

REMARQUE

Technical diagram showing a mechanical assembly with a bracket and a hanging component, no text or symbols present

Diagram of a device with labeled parts and directional arrows indicating motion or assembly

Diagram showing cable routing with labeled components 4 and 5, indicating directional movement or connection points.

FRANÇAIS

REMARQUE

Technical line drawing of a mechanical assembly with a downward arrow indicating a process or component (no text or symbols present)

Pure geometric diagram with intersecting lines and circular shapes, no text or symbols present

20 INSTALLATION

Diagram of a mechanical assembly with numbered components and directional arrows indicating motion or force

Diagram of a cable clamp securing a connector (no text or symbols present)

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Diagram illustrating electrical cable installation with labeled components and directional arrows indicating connection points

REMARQUE

Technical diagram of a mechanical assembly with numbered components labeled 5 through 8

Two diagrams showing a pipe knot being twisted with a no-smoking symbol, no text or labels present.

Technical line drawing of a metal bracket with three bolt holes (no text or symbols)

Diagram of a mechanical device with numbered components and directional arrows indicating motion or flow.

Simple line drawing of a mechanical component with no text or symbols

REMARQUE

Technical diagram showing labeled components of a mechanical or electrical assembly with numbered parts and magnified views.

Technical diagram showing a mechanical assembly with an inset close-up of a hand holding a cylindrical component, annotated with dashed lines and a magnified detail.

Technical diagram showing pipe connection and valve assembly with magnified detail view

FRANÇAIS

Technical diagram showing pipe connection and valve assembly with labeled components and directional arrows

Technical diagram showing a mechanical assembly with labeled components and an inset magnified view of a device with no visible text or symbols.

REMARQUE

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Ice Plus Cubed Water Crushed 4 oz | 8 oz | 16 oz | 32 oz Measured Fill Water Filter Reset - Hold 3 seconds

①Ice Plus

Pure geometric diagram with intersecting lines and a circular pattern (no text or symbols)

Diagram of a door handle mechanism with hand placement and arrow indicating direction (no text or symbols)

Illustration of an open refrigerator with a hand pointing to the door (no text or symbols)

Line drawing of an open refrigerator with doors open (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Technical line drawing of a mechanical housing component with no visible text or symbols

①Levier

REMARQUE

Technical line drawing of a mechanical assembly with internal components (no text or symbols)

①Levier

MISE EN GARDE

Technical line drawing of a mechanical device with rollers and housing (no text or symbols)

①Levier

MISE EN GARDE

Craft Ice Mini Cubed Ice

Pure geometric diagram with intersecting lines and circles, no text or symbols present

36 FONCTIONNEMENT

• E u f s

Technical diagram showing a mechanical assembly with labeled components and two circular annotations indicating 'Part 1' and 'Part 2'.

Technical line drawing of a mechanical assembly with no visible text or symbols

FRANÇAIS

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with a lever and base plate (no text or symbols)

Technical line drawing of a stepped structural component with a highlighted section (no text or symbols)

Tiroir Glide N' Serve

Meat Deli Produce Select

MISE EN GARDE

Illustration of a hand inserting a device into a multi-compartment drawer (no text or symbols visible)

Illustration of a hand inserting a rectangular object into a multi-tiered drawer (no text or symbols)

Diagram of a device with arrows indicating movement or force, mounted on a vertical pole (no text or symbols present)

MISE EN GARDE

Illustration of hands using a tool to adjust or install a component on a mechanical assembly (no text or symbols visible)

Line drawing of a hand holding a tool with an upward arrow, no text or symbols present

4 Retirez-la.

Diagram of a hand holding a tray with arrows indicating motion or force direction (no text or symbols)

Technical diagram showing mechanical assembly with labeled components and directional arrows indicating motion or force

Bacs de la porte

Illustration of two hands holding a rectangular container with an upward arrow, no text or symbols present

Pure geometric diagram with intersecting lines and circular shapes, no text or symbols present

40 FONCTIONNEMENT

Durabase

Line drawing of a rectangular plastic container with internal compartments (no text or symbols)

AVERTISSEMENT

Application LG ThinQ

Hand inserting a button into a device panel (no text or symbols visible)

Filtre à air

Open Close

Illustration of hands using a tool to adjust or install a device, with a magnified inset showing the internal components (no text or symbols present)

Top-down architectural diagram of a vehicle showing front, rear, and side panels with no text or symbols

Diagram showing two labeled components (1 and 2) with dashed lines indicating alignment or movement, possibly illustrating a mechanical or electrical assembly.

Diagram showing a device with a circular arrow indicating rotation and a magnified view of the component being inserted into a housing.

Pure geometric diagram with intersecting lines and circles, no text or symbols present

48 ENTRETIEN

AVERTISSEMENT

Hand inserting a component into a device (no text or symbols visible)

fr-ca_main.book.book Page 66 Tuesday, June 4, 2024 10:53 AM

66 AIDE-MÉMOIRE

fr-ca_main.book.book Page 67 Tuesday, June 4, 2024 10:53 AM 67AIDE-MÉMOIRE

Pure geometric lines forming a crosshair symbol (no text or labels)

Pure geometric diagram with crosshair and circular shapes, no text or symbols present

fr-ca_main.book.book Page 68 Tuesday, June 4, 2024 10:53 AM

68 AIDE-MÉMOIRE

fr-ca_main.book.book Page 69 Tuesday, June 4, 2024 10:53 AM 69AIDE-MÉMOIRE

Pure geometric lines forming a crosshair symbol (no text or labels)

Pure geometric diagram with crosshair and circular shapes, no text or symbols present

fr-ca_main.book.book Page 66 Tuesday, June 4, 2024 10:53 AM

Pure geometric diagram with intersecting lines and circular shapes, no text or symbols present

SIGNATURE KITCHEN SUITE

Customer Information Center

For inquires or comments, call;

1-855-790-6655 USA, Consumer User

1-888-289-2802 CANADA, Consumer User
