WELCOME

Thank you for choosing our product. To ensure your safety and get the best results, please read this manual carefully, including the safety instructions, and keep it for future reference.

Before installing the oven note the serial number, which you might need for repairs. Check for any damage during transportation and consult a technician if you're unsure before using it. Keep packaging materials away from children.

NOTE: Please note that the oven's features and accessories may vary depending on the model you purchased.

SUMMARY

1. SAFETY INFORMATION

2. PRODUCT INTRODUCTION

2.1. Overview of the product
2.2. Accessories
2.3. Control panel
2.4. Connectivity

3. BEFORE STARTING

3.1. Information to start

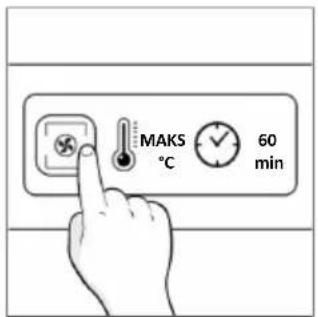

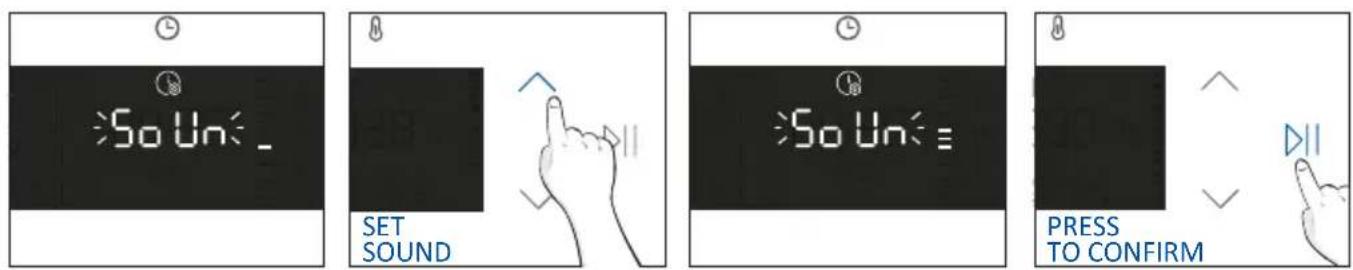

3.2. First usage

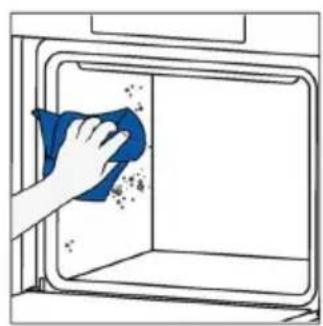

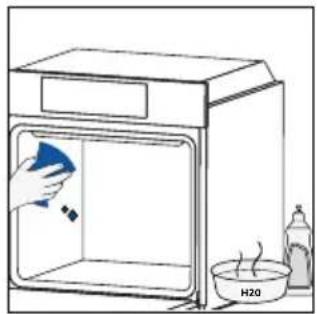

3.3. Preliminary cleaning

4. OPERATION OF PRODUCT

4.1. How the product works
4.2. Cooking functions
4.2.1. Standard functions
4.2.2. Special functions
4.2.3. Multi step feature

5. COOKING GUIDELINES

5.1. General Cooking tables
5.2. Everyday Cooking tables

6. CARE & CLEANING

6.1. General recommendations
6.2. Cleaning the oven
6.2.1. Inside the oven: cleaning functions

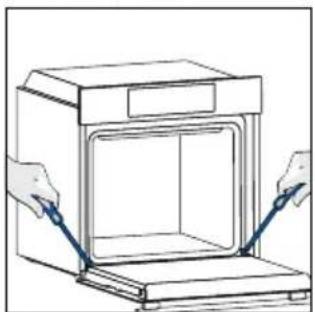

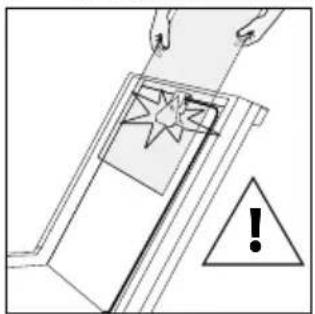

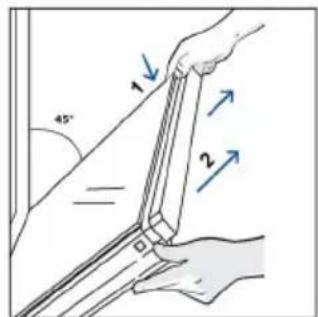

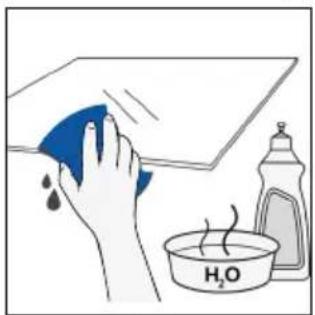

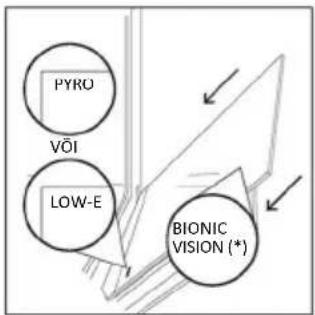

6.2.2. Outside the oven: removal and cleaning the glass door
6.3. Cleaning of accessories
6.4. Maintenance

7. TROUBLESHOOTING

8. ENVIRONMENTAL PROTECTION & DISPOSAL

8.1. Appliance disposal
8.2. Saving and respecting the environment

9. INSTALLATION

1. SAFETY INFORMATION

GENERAL WARNINGS

• Do not use a steam cleaner for cleaning operations.
• During use the appliance become hot. Care should be taken to avoid touching heating elements inside the oven.

Use in accordance with attendend use

- Only use the oven for its intended purpose, that is only for the cooking of foods: any other use, for example as a heat source, is considered improper and therefore dangerous. The manufacturer cannot be held responsible for any damage resulting from improper, incorrect or unreasonable usage.

Use limitations

• The appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and maintenance shall not be made by children without supervision.
• This appliance is not intended to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• ⚠WARNING: the appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept at away unless continuously supervised.
• ⚠ WARNING: Accessible parts may become hot during use. Young children should be kept away.

INSTALLATION WARNINGS

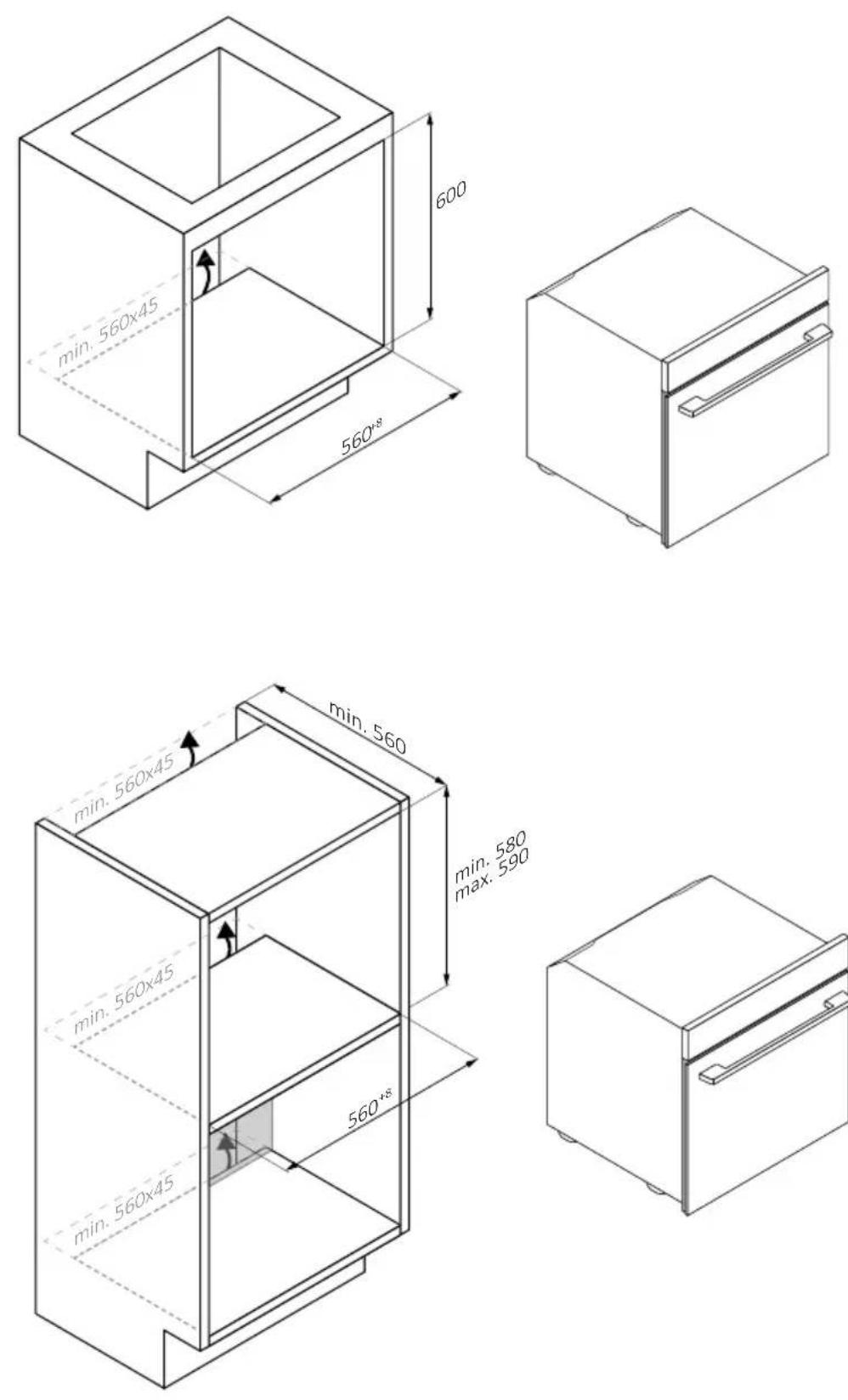

• The oven can be located high in a column or under a worktop.
• Before fixing, you must ensure good ventilation in the oven space to allow proper circulation of the fresh air required for cooling and protecting the internal parts. Make the openings specified on the illustrations according to the type of fitting. Always fix the oven to the furniture with screws provided with the appliance.
• No additional operation/setting is required in order to operate the appliance at the rated frequencies.
• The appliance must not be installed behind a decorative door in order to avoid overheating.
• During installation the oven should be disconnected from the mains to avoid overheating.
• If the assistance of the manufacturer is required to rectify faults arising from incorrect installation, this assistance is not covered by the guarantee. The installation instructions for professionally qualified personnel must be followed.
• Incorrect installation may cause harm or injury to people, animals or belongings. The manufacturer cannot be held responsible for such harm or injury.
• Installation must be carried on by a qualified technician who must know and respect the laws in force in the country of installation and the manufacturer's instruction.
• After unboxing the appliance, always check it is not damaged, in case of issue contact the customer service before installing and do not connect to the power supply.
• Remove the packaging material before operating the appliance.
• During installation do not use the oven door's handle to lift and move the oven.
• The installation furniture and the adjacent ones must with stand temperatures of 95°C.
• It is recommended to wear protective gloves during installation to avoid cut injuries.
• Do not install the product in open environments exposed to atmospheric agents.
• This appliance is designed to be used at altitude lower than 2000m.

- To remove protective films and advertisement stickers on front surface of the oven before first usage

ELECTRICAL WARNINGS

• The socket must be suitable for the load indicated on the tag and must have ground contact connected and in operation. The earth conductor is yellow-green in colour. This operation should be carried out by a suitably qualified professional.
• Connection to the power source can be made by plug or by fixed wiring placing an omnipolar breaker, with contact separation compliant to the requirements for overvoltage category III, between the appliance and the power source that can bear the maximum connected load and that is in line with current legislation.
• In case of incompatibility between the socket and the appliance plug, ask a qualified electrician to substitute the socket with another suitable type. The plug and the socket must be conformed to the current norms of the installation country.
• The yellow-green earth cable should not be interrupted by the breaker. The socket or omnipolar breaker used for the connection should be easily accessible when the appliance is installed.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. For any repairs, refer only to the Customer Care Department and request the use of original spare parts.
• Disconnect the appliance from the mains electricity supply before carrying out any work or maintenance on it.
• ⚠ WARNING: ensure that the appliance is switched off before replacing the bulb, to avoid the possibility of electric shocks.
• The oven must be switched off before removing the removable parts. After cleaning, reassemble them according the instructions.
• The use of any electrical appliance implies the observance of some fundamental rules:

- do not pull on the power cable to disconnect the appliance from the power source;

- do not touch the appliance with wet or damp hands or feet;

– in general the use of adaptors, multiple sockets and extension cables is not recommended;

– in case of malfunction and/or poor operation, switch off the appliance and do not tamper with it.

NOTE: as the oven could require maintenance work, it is advisable to keep another wall socket available so that the oven can be connected to this if it is removed from the space in which it is installed.
- Any repair, installation and maintenance not carried out correctly can seriously endanger the user.
- The manufacturing company hereby states that it does not assume any responsibility for direct or indirect damages caused by incorrect installation, maintenance, or repair work. Furthermore, it is not liable for damages caused by the absence or interruption of the grounding system (e.g., electric shock).
- CAUTION: in order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplier through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.
- The appliance is not designed to be activated by an external timer or separate remote control system.

USE & MANTEINANCE

• The dripping pan collects the residues that drip during cooking.

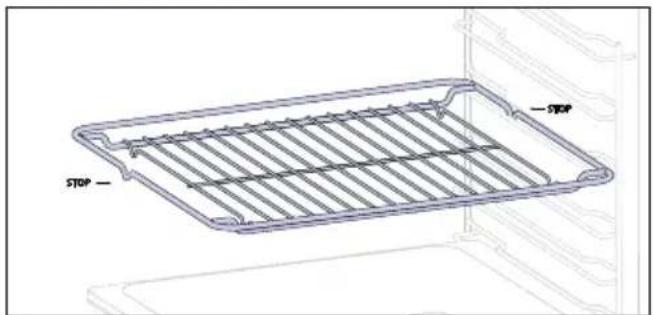

• When you place the Airfry tray or the grid on the side racks, make sure that the shorter section of the side (between the stop and the extremity) is directed towards the interior of the oven. If the grid has a decorative metal bar, pay attention to position it on the exterior of the oven so that the brand logo can be visible and readable. For the correct positioning refer also to the image in the Accessories section of this user manual.
• Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glasses, since they can scratch the surface, which may result in shattering of the glass.
• Only use the temperature probe recommended for this oven.

• During cooking, moisture may condense inside the oven cavity or on the glass of the door. This is a normal condition. To reduce this effect, wait 10-15 minutes after turning on the power before putting food inside the oven. In any case, the condensation disappears when the oven reaches the cooking temperature.

• Cook the vegetables in a container with a lid instead of an open tray.

• Avoid leaving food inside the oven after cooking for more than 15/20 minutes.
• A long power supply failure during an occurring cooking phase may cause a malfunction of the monitor. In this case contact customer service.
• WARNING: Do not line the oven walls with aluminium foil or single-use protection available from stores. Aluminium foil or any other protection, in direct contact with the hot enamel, risk melting and deteriorating the enamel of the insides.
• WARNING: Never remove the oven door seal.
• CAUTION: Do not refill the cavity bottom with water during cooking or when the oven is hot.
• Oven trays and grids are not suitable for direct contact with food. Please use suitable cookware or baking paper.
• Wash all accessories before first use with a solution of hot water and washing up liquid.

WARNINGS (\*FOR PYRO OVENS)

• Excess spillage must be removed before cleaning.
• WARNING: before initiating the automatic cleaning cycle:

- Clean the oven door;

- Remove large or coarse food residues from the inside of the oven using a damp sponge. Do not use detergents;

• Remove all accessories and the sliding rack kit (where present);

• Do not place tea towels.

• In ovens with meat probe it is necessary, before making the cleaning cycle, close the hole with the nut provided. Always close the hole with the nut when the meat probe is not used.

• During the pyrolytic cleaning process (if available), the surfaces may get hotter than usual and children should be kept away.
• If a hob has been fitted above the oven, never use the hob while the Pyrolizer is working, this will prevent the hob from overheating.

WARNINGS for WIRELESS TEMPERATURE PROBE

• This product is exclusive for oven appliances. It should only be used as described in this User Manual.
• DO NOT TOUCH Preci Probe WITH BARE HANDS JUST AFTER COOKING. Always wear oven gloves to remove Preci Probe from the food after cooking.
• To use the temperature probe correctly, it is essential to fully insert the metal bar of the probe into the food during cooking until it reaches the black-colored ceramic portion located at the tip of the probe.

Insert Preci Probe in the food up to there

Illustration of a blue-handled tool with a downward arrow pointing to it (no text or symbols)

• Do not expose the metal part of Preci Probe to the heat generated by oven directly.
• Do not use Preci Probe in another appliance except for the built-in oven.
• Do not use Preci Probe in a microwave oven.
• Preci Probe can be cleaned and washed but do not immerse it long in water.
• This product is not intended for use by persons with ages 12 and under.
• The supplier will not be liable for any damage of Preci Probe due to misuse of the device.
• Clean the Preci Probe before the use.
• Probe can work in this range of temperature: 10 °C to an internal maximum temperature of 100°C of the metal part. Ceramic part can reach 350°C.
• If the Preci Probe temperature exceeds 100^ C, cooking will stop and the Preci Probe must be removed from the oven as soon as possible, wearing gloves, to avoid damage to the probe.

2. PRODUCT INTRODUCTION

2.1. OVERVIEW OF THE PRODUCT

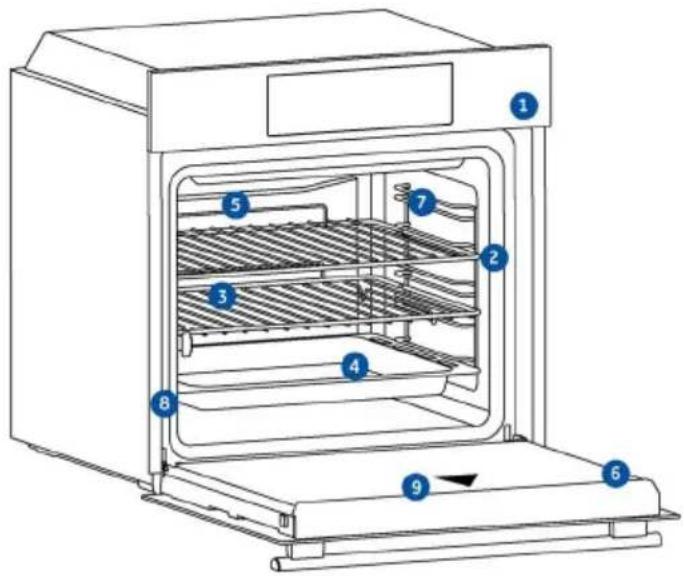

Diagram of a multi-level oven with numbered parts for identification

2.2. ACCESSORIES

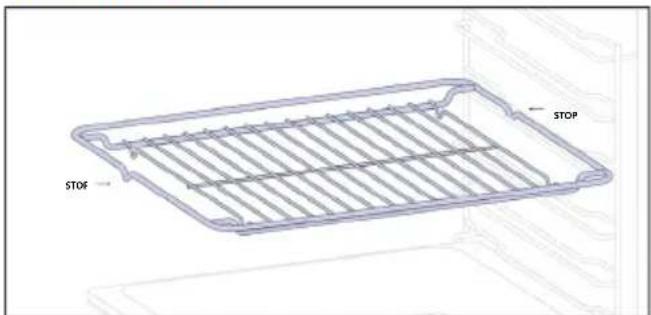

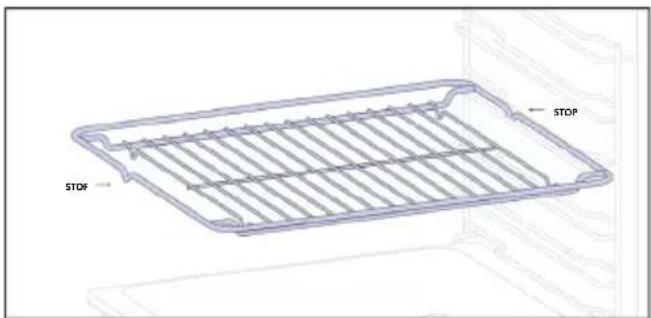

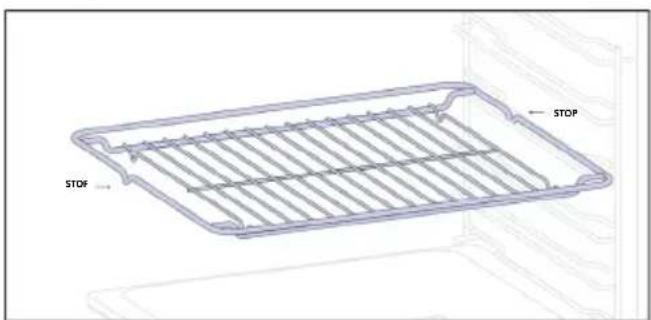

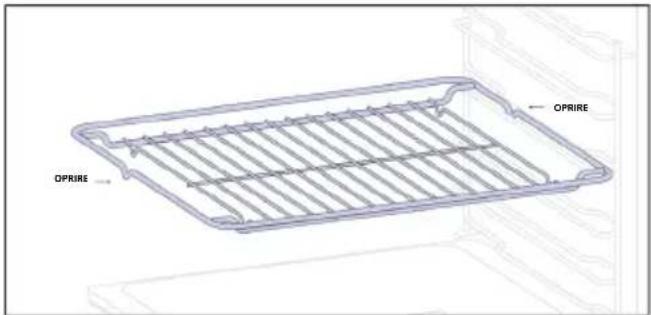

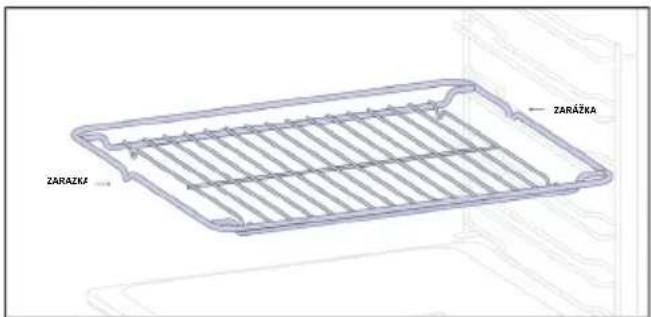

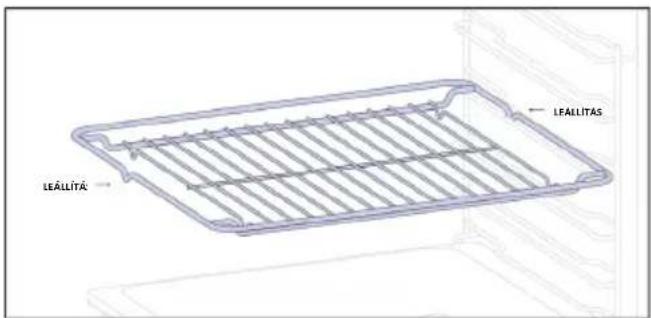

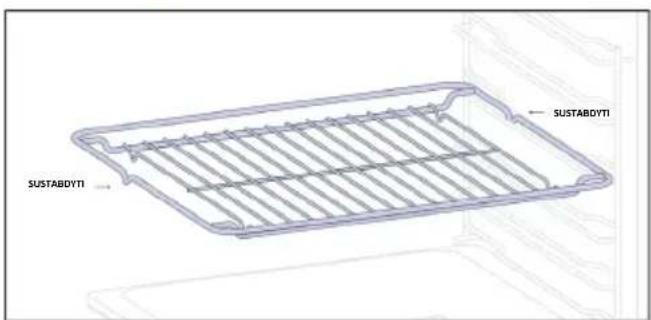

Metal grid

红砂 一红砂

A metal grid in an oven is a removable, adjustable shelf that supports cookware, ensuring even cooking, and makes cleaning easy. It can be used to hold plates and pans at different heights for various cooking needs. Trays are counted from bottom to top

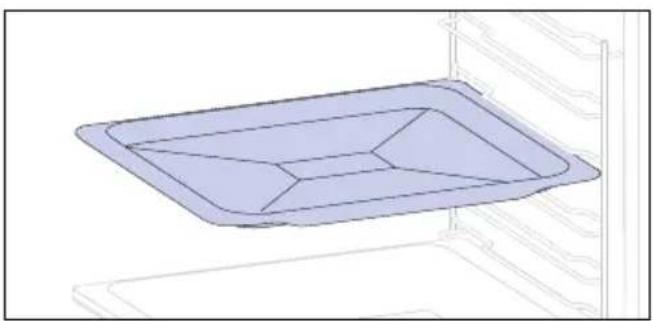

Baking tray (only if present*)

3D diagram of a rectangular tray with internal geometric lines, placed inside an oven (no text or symbols)

A baking tray is ideal for achieving even bottom browning, making it perfect for cookies and pastries due to its shallow, flat design. Additionally, placing it under a cooking grid can help collect drips and prevent messes in the oven.

1. Control panel
2. Shelf positions numbers
3. Metal grids
4. Tray
5. Fan cover
6. Oven door
7. Lateral wire grids (if present: only for flat cavity)
8. Telescopic Guides
9. Camera (only if present)
10. Partlight (only if present)
11. Serial number & QR Code

Empty white rectangle with black border (no text or symbols)

Write here your serial number for future reference.

Deeper Tray

3D diagram of a rectangular tray with internal compartments, placed inside an oven (no text or symbols)

The deeper tray is ideal for recipes with added liquids or layers, such as casseroles or roasts. Its depth is specifically designed to ensure the desired consistency of the food prepared in it.

Telescopic Guides (only if present*)

Technical line drawing of a laboratory apparatus with a round-bottom flask, mesh tray, and wall (no text or symbols)

Telescopic oven rails are shelves that can be extended, making it easier to place or remove items, without the need to reach deep inside a hot oven. They improve safety, stability, and can be adjusted at different level positions.

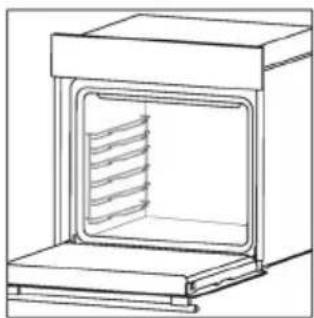

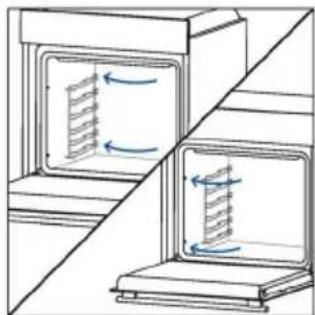

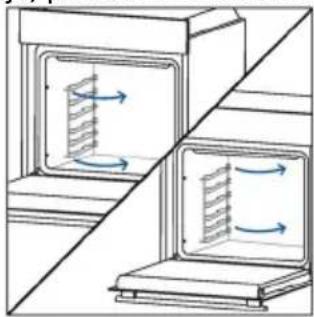

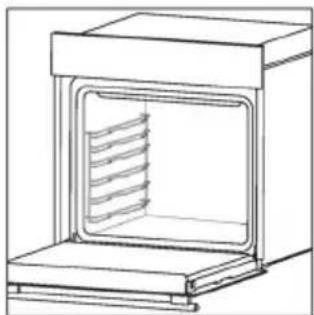

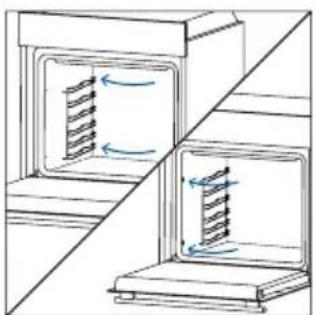

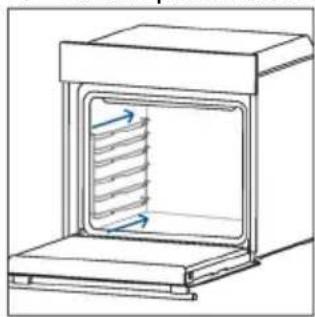

Lateral wire grids (only if present*)

Line drawing of a two-tiered dormer bed with horizontal and vertical bars (no text or symbols)

Located on both sides of the oven cavity, the side racks are designed for placing baking tray and grids during the cooking.

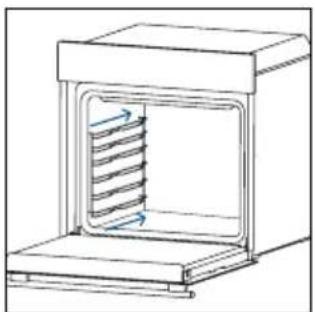

NOTE: 6 or 7 levels depending on the model.

Preci Probe (only if present*)

Two line drawings of medical or laboratory instruments: a pen and a curved tube, both without any text or symbols.

This Preci Probe is a temperature sensor that, inserted into the food and connected to the oven via cable, allows to control the inner temperature of the food during cooking. It is mainly used for fish and meat.

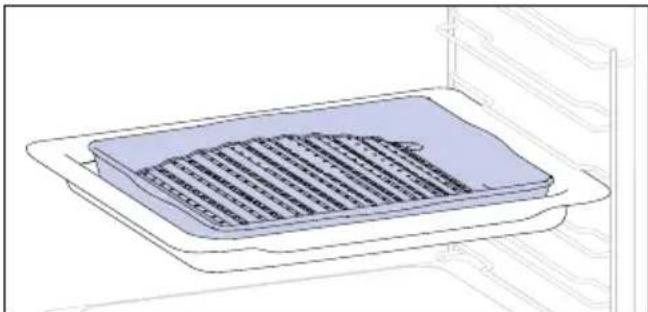

Dual tray – STEAM mode (only if present*)

Technical line drawing of a rectangular tray with internal grid pattern (no text or symbols)

The concave shape allows a correct circulation of humidity generated in cooking, keeping the food humidity rate high. According to the quantity of water inserted in the tray, a drier or more "wet" cooking will be obtained.

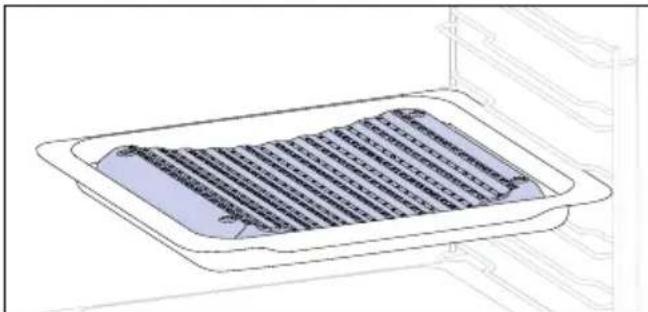

Dual tray – BBQ mode (only if present*)

Technical line drawing of a rectangular appliance with internal grating, mounted on a shelf (no text or symbols)

The convex shape is suitable for grilling in the oven at high temperature (220°) allowing a BBQ result even at home with little smoke thanks to the drainage action of the fats on the bottom of the tray.

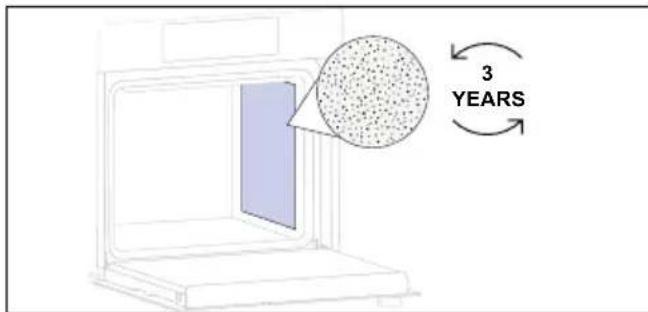

Catalytic Panels (only if present*)

3 YEARS

Special panels coated with enamel, made with a microporous structure to turn fat into gaseous elements that are easy to remove. Replace after 3 years of use (at 2/3 cooking cycles per week).

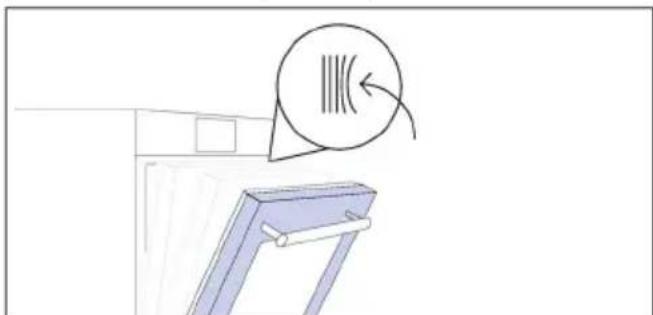

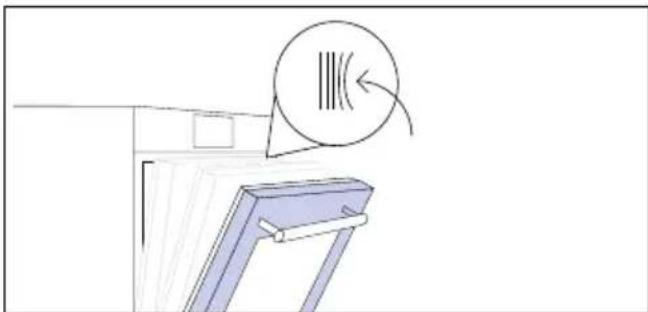

Softclose/Soft open hinges (only if present*)

Simple line drawing of a door with a circular icon and arrow, no text or symbols present

Soft close and open hinges control the door's motion, ensuring smooth movement and preventing slamming.

Turnspit (only if present*)

Line drawing of a rooster on a tray with dough and steam (no text or symbols)

The turnspit works together with the top heating element, by rotating the food can be cooked omogeniously. It is best used for medium-sized food. Ideal for rediscovering the taste of traditional roast.

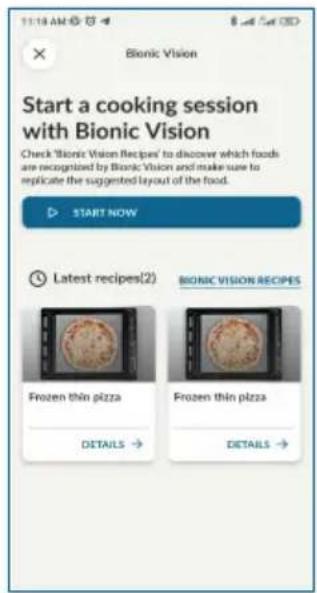

Camera (only if present*)

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

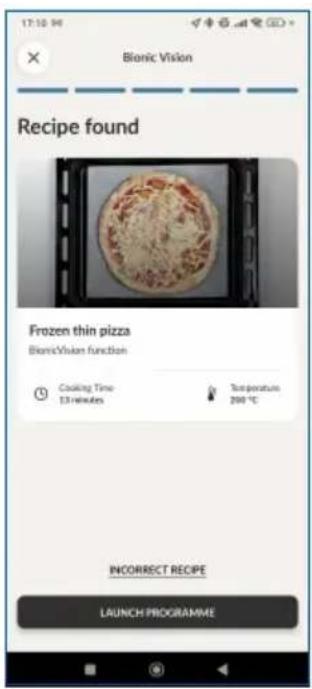

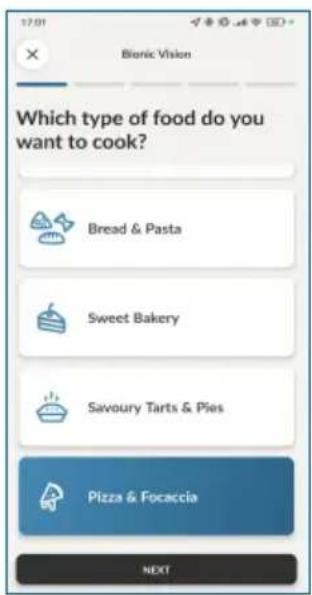

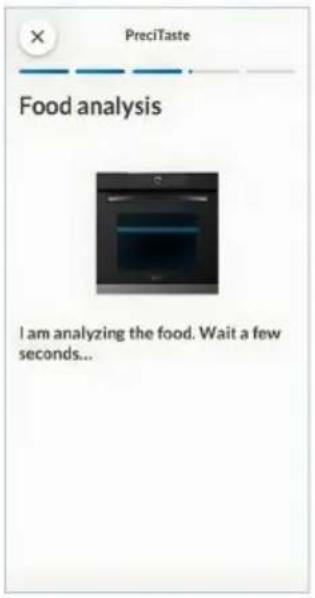

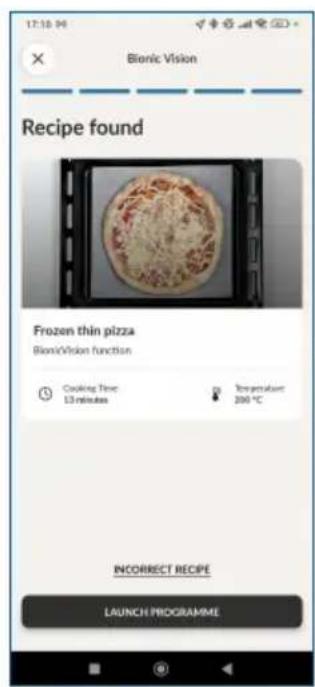

The bionic vision camera detects and recognizes the food, setting the most appropriate parameters to cook it.

Airfry tray (only if present*)

STOP

The airfry tray ensures that hot air reaches the food evenly and tridimensionally, resulting in a crispier exterior while maintaining tenderness inside. A baking tray can be optionally placed at L1 to collect juices or breadings.

Partlight (only if present*)

Simple line drawing of a rectangular box with a blue horizontal stripe at the bottom (no text or symbols)

The Partlight is a led strip that can assist you in monitoring the status of your oven from a distance.

EN: Oven trays and grids are not suitable for direct contact with food. Please use suitable cookware or baking paper

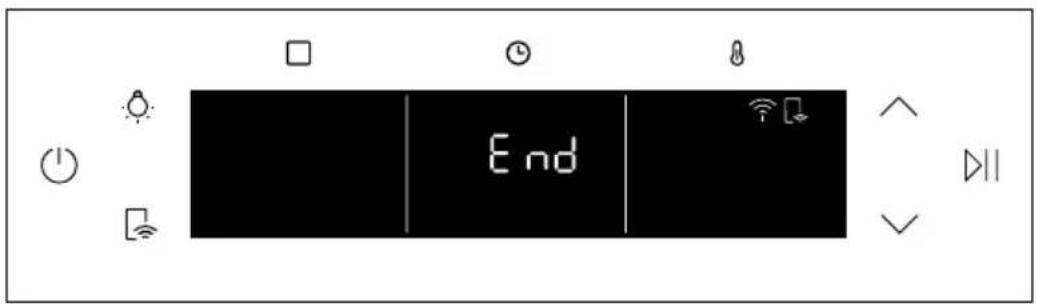

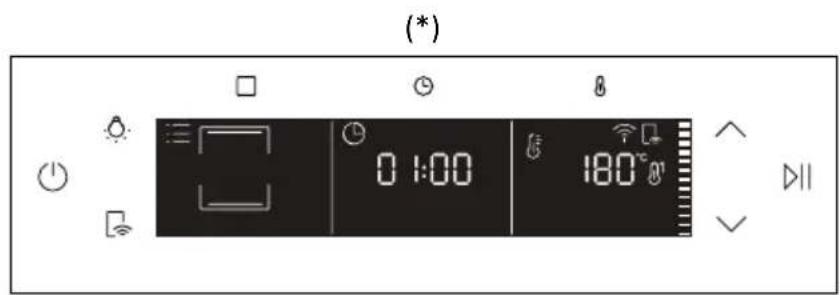

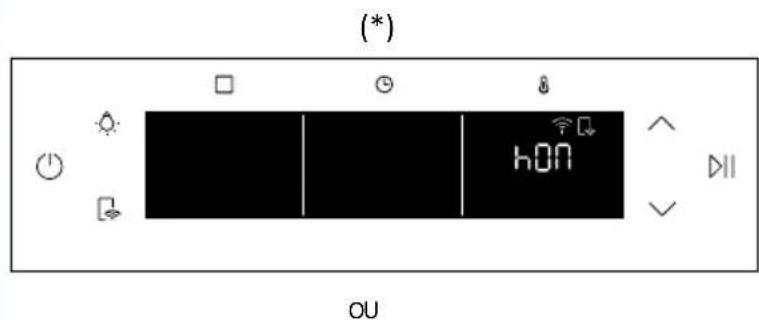

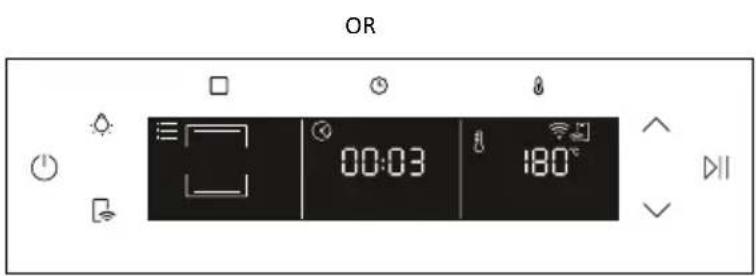

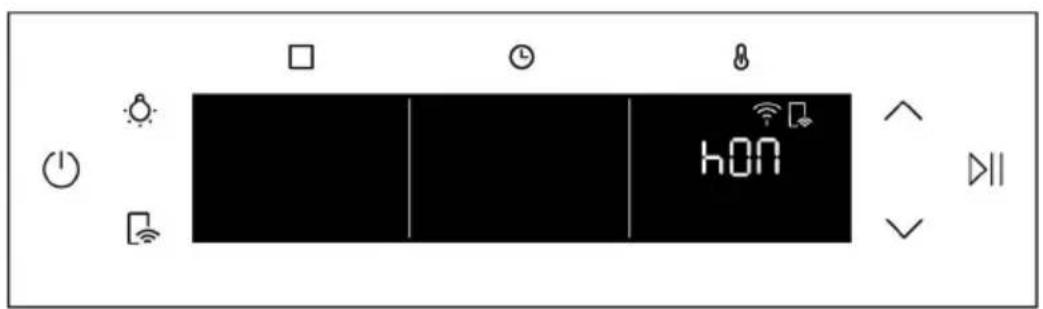

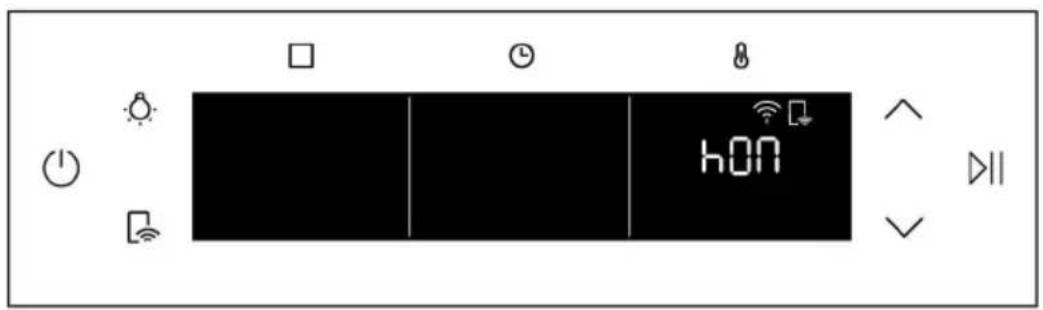

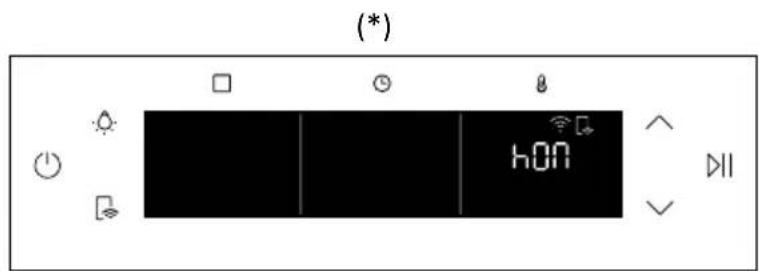

2.3. CONTROL PANEL

Functions and function ranking can be changed depending on the model.

1. On/Off
2. Remote Control
3. Lamp
4. Functions
5. Time
6. Temperature
   7/8Navigation buttons
7. Start/Pause

MAIN FUNCTIONS

The control panel has the following main functions:

On/Off Press to turn on/off the oven.

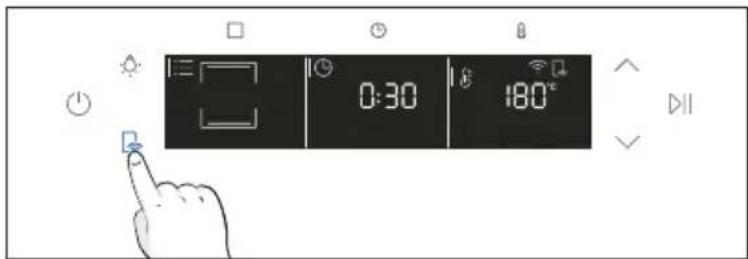

Remote Control ON/OFF

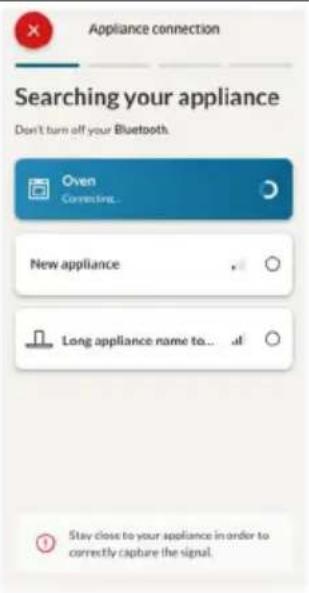

Press the button to activate remote control, after pairing the oven with the hOn app (through the application).

Light Press to turn on/off the oven cavity light

Functions	Press once to access Manual functions, twice for Everyday cooking programs, three times for Cleaning menu, and four times for WIFI menu.

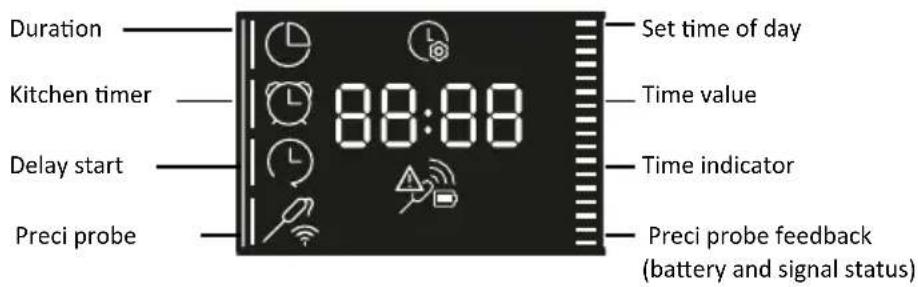

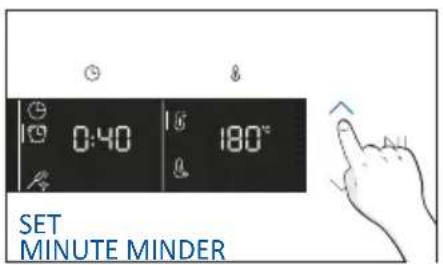

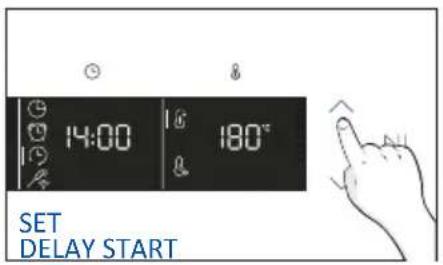

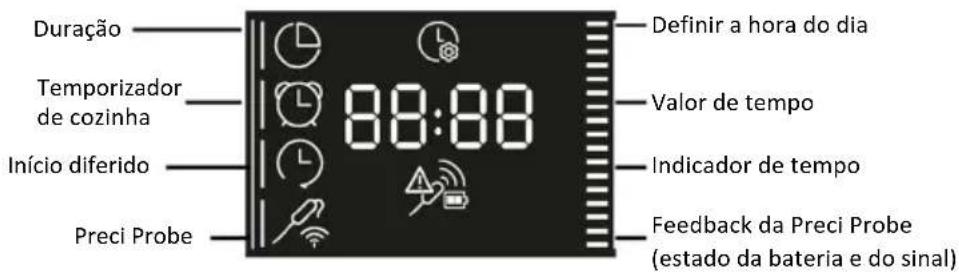

Time	Press once for cooking duration, twice for the minute minder (available in standby mode), three times for delay start. In standby mode are available the kitchen timer and, by pressing for 3 sec, the Time of day.
Temperature	Press once to check the cavity temperature, twice to activate the fastpreheating option (only available during the oven’s preheat phase).
Navigation buttons	Press Navigation buttons to scroll between function and to adjust the parameters.
Start/Pause	Press to Start/Pause cooking or to confirm the functions.

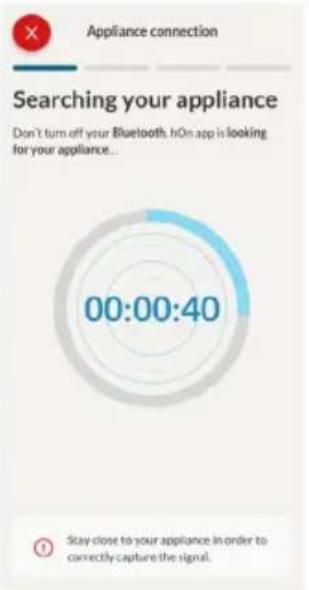

2.4. CONNECTIVITY

Wireless parameters

Technology Wi-Fi Bluetooth
Standard IEEE 802.11	b/g/n Bluetooth v4.2, BR/EDR, BLE
Frequency Band(s) [MHz]	2401 ÷2483 2402÷2480
Maximum Power [mW]	100 10

Preci probe model et180 wireless parameters

Technology Bluetooth
Standard Bluetooth v4.0 BLE
Frequency Band(s) [MHz]	2400÷2480
Maximum Power [mW]	2.5 - (4dBm)

PRODUCT INFORMATION FOR NETWORKED EQUIPMENT

Power consumption of the product in networked standby if all wired network ports are connected and all wireless network ports are activated: 2,0 W

How to activate wireless network port:

Wifi module switches on as soon as the user press the power on button.

How to deactivate wireless network port:

Wi-fi module deactivates as soon as the user presses the power off button. The wi-fi can also be deactivated when the oven is on by selecting "off" in the Wi-fi settings menu.

Hereby, Candy Hoover Group Srl declares that the radio equipment is in compliance with Directive 2014/53/EU and with the relevant statutory requirements for the UK market. The full text of the declaration of conformity is available at the following internet address: www.candy-group.com

HOW TO INTERACT WITH THE APP

Your appliance may be connected to your home wireless network and operated remotely using the app. Connect your appliance to ensure it stays up to date with the latest software and features.

NOTE

• Once the oven is turned on, the WIFI icons blinks for 30 minutes. During this period it's possible to enroll the product.
• Ensure your home Wi-Fi network is turned on.
• You will be given step by step guidance on both your appliance and mobile device.
• It may take up to 10 minutes to connect your oven.
• For further guidance and troubleshooting, please refer to the app.

Download on your smartphone.

Available on the App Store GET IT ON Google Play

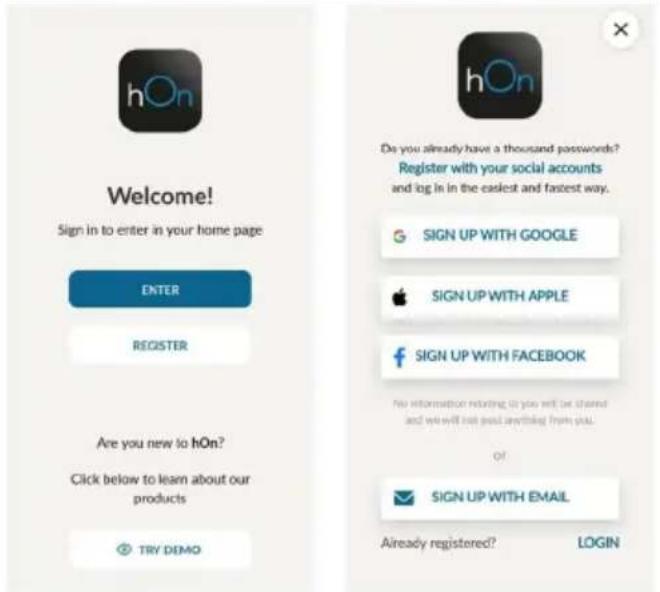

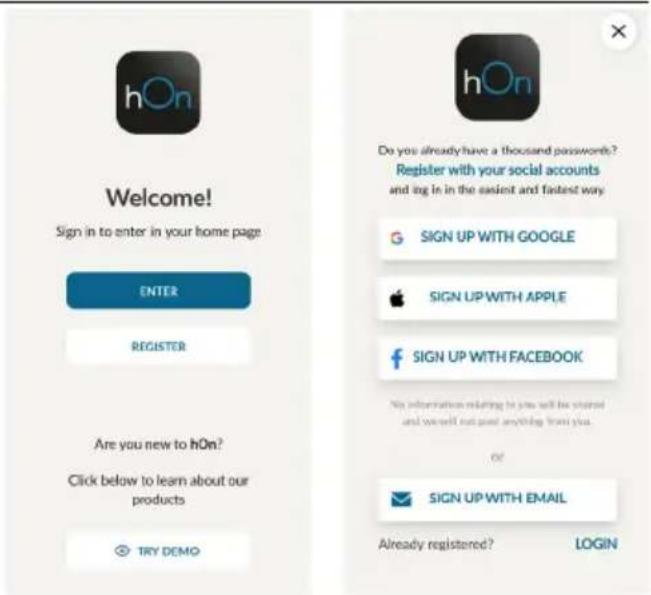

NEW USER REGISTRATION

• Click on "Register"
• You can register through social accounts or sign up with your personal email

Welcome! Sign in to enter in your home page ENTER REGISTER Are you new to hOn? Click below to learn about our products TRY DEMO hOn Do you already have a thousand passwords? Register with your social accounts and log in in the easiest and fastest way. SIGN UP WITH GOOGLE SIGN UP WITH APPLE SIGN UP WITH FACEBOOK No information relating to you will be shared and we will not add anything from you. OR SIGN UP WITH EMAIL Already registered? LOGIN

QUICK PAIR ENROLLMENT

Step 1

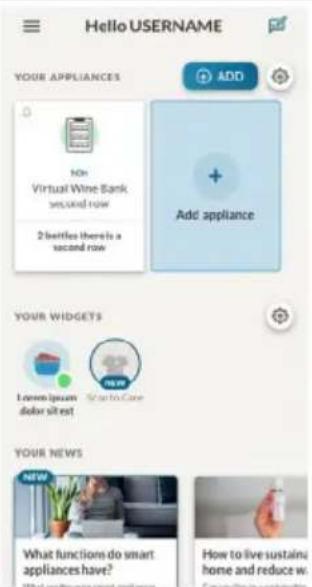

- Select "Add appliance".

Hello USERNAME YOUR APPLIANCES ADD + Add appliance YOUR WIDGETS I know I guess, delar sit out! Your NEWS What functions do smart appliances have? How to live sustain home and reduce w

Step 2

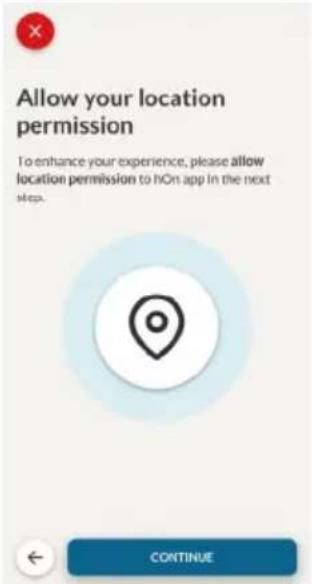

- Allow your location permission.

Step 3

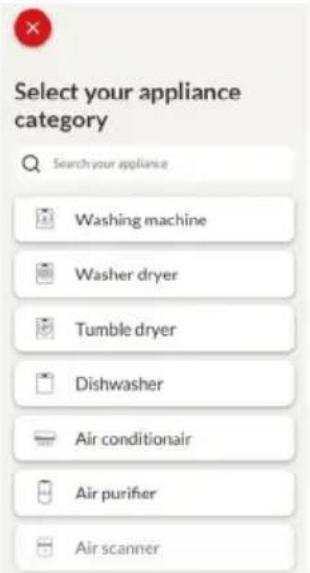

- Select oven from the appliance category.

Step 4

- Turn on your appliance; if it is already on, turn it off and on again.

Step 5

• After turning on, the hOn app will start searching for your home appliance.

Appliance connection

Searching your appliance

Don't turn off your Bluetooth. bOn app is looking for your appliance...

Stay close to your appliance in order to correctly capture the signal.

Step 6.1-6.2

- Select your home appliance, tap on "connect" and wait a few seconds.

Appliance connection

Searching your appliance

Don't turn off your Bluetooth.

Oven

New appliance

Long appliance name to...

Appliance connection

Searching your appliance

Don't turn off your Bluetooth.

Oven Connecting

New appliance

Long appliance name to...

Stay close to your appliance in order to correctly capture the signal.

Step 7

- Your Oven will be found and you can control it through hOn.

Appliance connection

Your appliance has been correctly identified!

Brand Hoover

Model 31008486-7888-1824

Serial number 17345678-1234-1234

Is this your appliance?

YESITS MY OVEN

NO IT'S NOT

HOW TO CHANGE WIFI SETTINGS

Once the appliance is connected, the user can change the WiFi settings between:

• WIFI ON: It is only possible to monitor the oven status by App.
• WIFI hOn: The oven can be used exclusively by App.
• WIFI OFF: The oven is not connected but still enrolled with network credentials saved.

• WIFI RESET: The connection is reset and a new enrollment is possible.

• Tap □ and enter in WIFI menu. On display appears "On".

• On display appears "On".
• Use the arrows until "Off" or reset setting "rSt" will be showed.

Hand interacting with a touchscreen device displaying status indicators and a timer reading '00'

CHANGE STATUS

OFF

REMOTE CONTROL

The Remote Control offers numerous advantages for users, enhancing convenience, efficiency, and the overall cooking experience, by giving the capability to control the product directly from both the appliance and hOn App.

This function allows, through your device, to enjoy various features, such as: instant or scheduled start of recipes or cooking programs already available in the app; real-time monitoring of the progress of your recipes; adjustment of the cooking parameters in use; monitoring of the cooking process using the probe; managing saved recipes using the “Jolly function” on the product (see related section). Furthermore, it is possible to receive notifications once programs or recipes are completed. The Remote Control can be activated exclusively when the product is enrolled.

NOTE: It is available for all cooking functions on the product, except for Gratin, Grill and Supergrill programs.

How to activate Remote Control:

1. Tap □ to select the WIFI mode.
2. On display appears "connect". Tap ▷11."On" will start blinking.
3. Tap √ to select the "hOn" mode and tap ▷to activate Remote Control.
4. Press □ to exit "hOn" mode.
5. Access to the App, select a program and let the cooking starts. During the process is possible to control and change the program parameters from both product and App.

Hand interacting with a digital control panel showing icons for signal, display, and confirmation

ON

hON

hON

It's also possible to activate Remote Control during cooking process by pressing related button

0:30 180°

How to stop Remote Control:

While the cooking program is in progress, it can be stopped directly from the product itself by pressing the corresponding button of Remote Control that came with your appliance.

0:30 180°C

You can also stop the cooking program remotely using the app by clicking the 'STOP' Button on display device. The oven will automatically stop the cooking.

NOTE: If the user stops the cooking in progress from the oven, simultaneously the stopped cooking will be seen in the App.

Cooking 1H:10M:LEFT ADD:5:MIN STOP Current program PROGRAMS Conventional 206°C 71 Pricet 32 M 1h:20m Officiency Post: 00%! EDIT DETAILS →

3. BEFORE STARTING

3.1. INFORMATION TO START

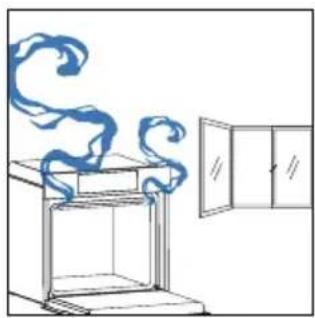

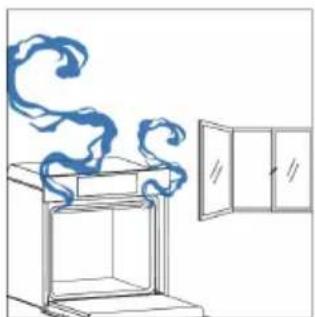

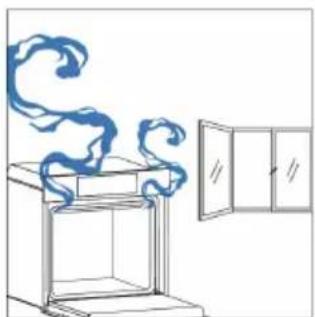

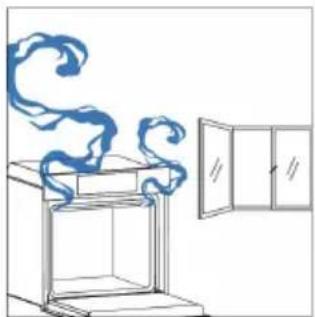

When you first turn on the oven, you might notice some smoke. Don't worry, just wait for the smoke to clear before using the oven.

How door works

During the pyrolytic cleaning process, the oven door remains locked at all times. If it's not locked, the oven will display error code 24 and pause the cleaning function.

How illumination works

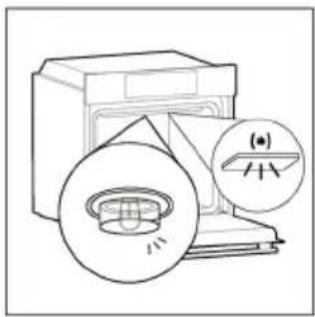

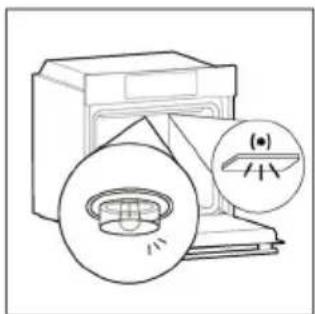

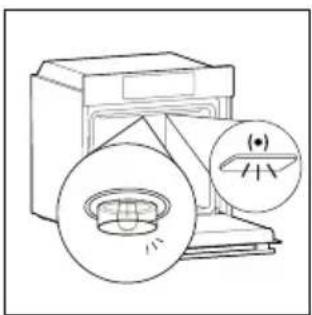

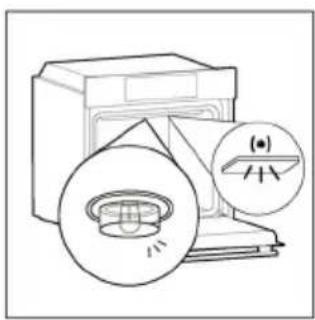

The oven cavity is illuminated by one or more light bulbs, typically activated each time a cooking function begins.

For ovens equipped with a door switch (see below), the light automatically turns on when the door is opened.

For ovens equipped with lamp button, it can also be used to activate the lighting.

If the oven door remains open for more than 10 minutes, the lights will automatically turn off.

During pyrolytic cleaning process light remains off. *

How cooling fan works

The cooling fan is responsible for dissipating the heat, keeping the oven and its surroundings from getting too hot, as well as protecting kitchen appliances from the effects of high temperatures. For this reason, the cooling fan remains audible for a period of time even after the oven is turned off. It operates during and after cooking cycle in relation to the internal temperature of the oven.

When the cooling fan is operational, it usually generates a gentle humming or whirring noise. You may also notice a warm airflow emanating from the gap between the oven door and the control panel.

During pyrolytic cleaning and when door is locked, cooling fan is switched on. *

During ECO function the light will remain off.

(*only for pyro ovens)

3.2. FIRST USAGE

When the appliance is switched On for the first time, the initial step is to set time of day, choose between 13 ampere or 16 ampere, and select sound level.

- SET THE TIME: The display will show the blinking preset time '12:00'. To modify it, hold ⏻ and use the arrows to set the current hour. Press ⏱ to confirm hours. Follow the same procedure to set the minutes. To confirm press ▷II.

PRESS

12:00

SET TIME

07:00 PRESS

07:00

SET TIME

07:00 PRESS

PRESS TO CONFIRM

- AMPERAGE: By default, the oven is set to work with higher power suitable for households with more than 3 kW (16 A). If your home has lower power, you can change this setting to ▷II 13 A. This setting affects how quickly the oven heats up. Choosing the higher option (16A) means it heats up faster (because the power absorption is increased). On the display, you'll see two choices: 13A and 16A. Select your preferred one by using the arrows. To confirm press ▷II.

16 A:

SET AMPERAGE

13:00

PRESS TO CONFIRM

NOTE: The option to set the amperage is only available during the initial installation. To modify the set amperage, please refer to the post-installation instructions.
- BRIGHTNESS: The display shows the symbol "brig". The numbers represent the level of brightness intensity, editable using the arrows. To confirm press ▷II.

6hr, 9:

SET BRIGHTNESS

br19:3

PRESS TO CONFIRM

- SOUND: The display shows the symbol "Sound". The numbers represent the level of sound intensity, editable using the arrows. To confirm press ▷II.

• POST INSTALLATION INSTRUCTION

It is possible to go back to initial settings by pressing Lamp button for 5 sec

5 SEC

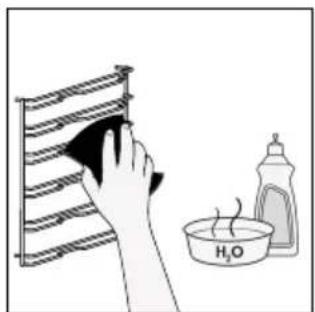

3.3. PRELIMINARY CLEANING

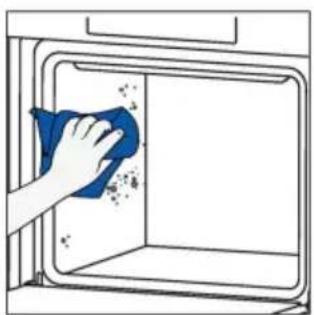

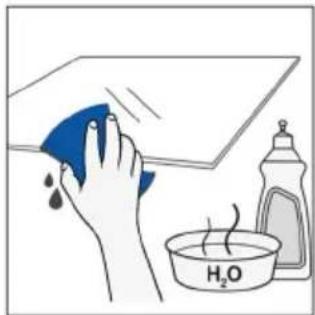

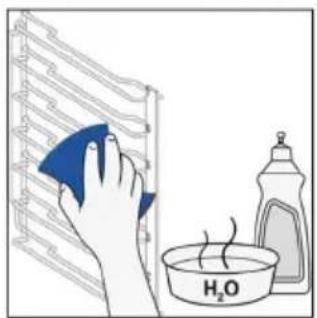

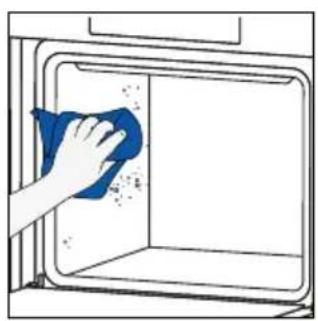

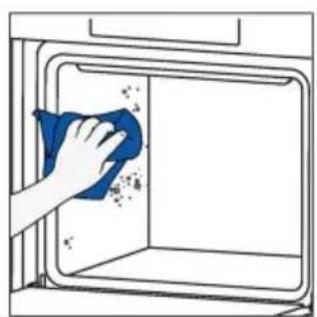

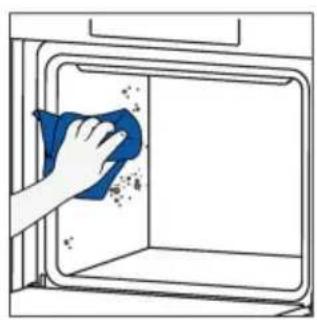

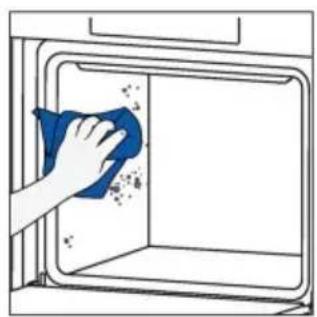

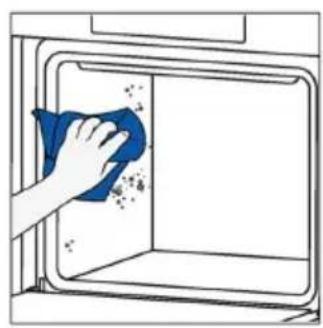

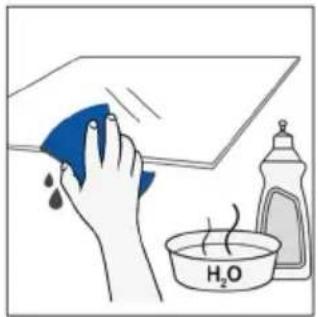

Clean the oven before using for the first time. Wipe over external surfaces with a damp soft cloth. Wash all accessories and wipe inside the oven with a solution of hot water and washing up liquid. Set the empty oven to the maximum temperature and leave on for about 1 hour, this will remove any lingering smells of newness.

Simple line drawing of a kitchen sink with a hand cleaning the interior and a water bottle nearby (no text or symbols)

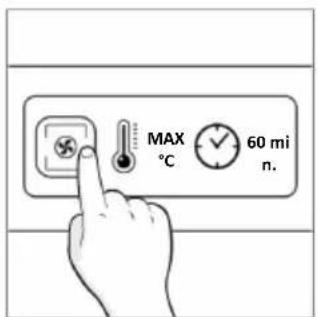

MAX 60 min C

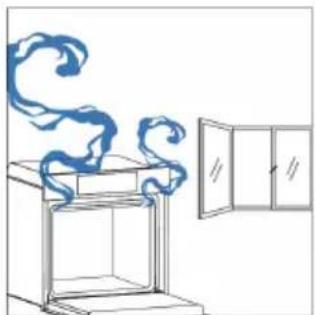

Simple line drawing of a chimney with steam rising, next to an open door (no text or symbols)

4. OPERATION OF PRODUCT

4.1. HOW THE PRODUCT WORKS

SWITCHING ON/OFF THE OVEN

To turn ON/OFF the oven, hold ⏻

Hand pointing at a circular icon with sun and Wi-Fi symbols, next to a digital interface panel (no text or labels)

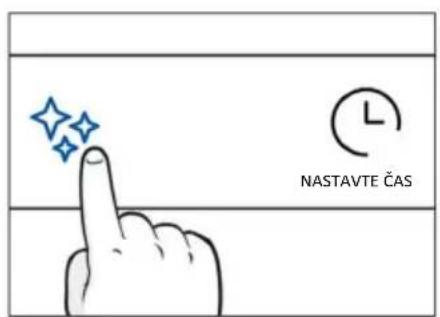

FUNCTIONS MENU

Access the Function menu by pressing □.

To navigate into tap as many times as is needed to enter in the following settings:

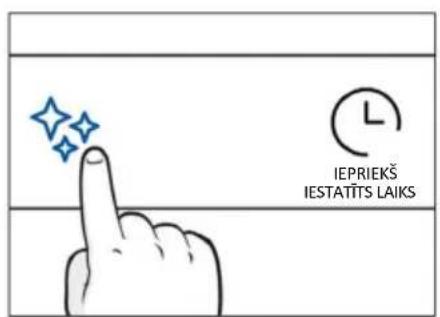

Hand interacting with a touchscreen interface displaying icons for smart devices and connectivity

Symbol Function Description
	MAIN FUNCTIONS	This function allows to select the desired cooking program by using arrows. Tap◎ and ⚠ to set time and temperature. Press ➤ to start the function. To pause the program, click again.
	FOOD CATEGORIES	In this menu you can access to 4 food cooking categories already integrated on your oven by using arrows. The display will show default time and temperature.
	WIFI	In this mode you can connect your oven to a network and enroll it with the hOn App.
	CLEANING FUNCTIONS	This function allows to choose a cleaning system available on your oven.

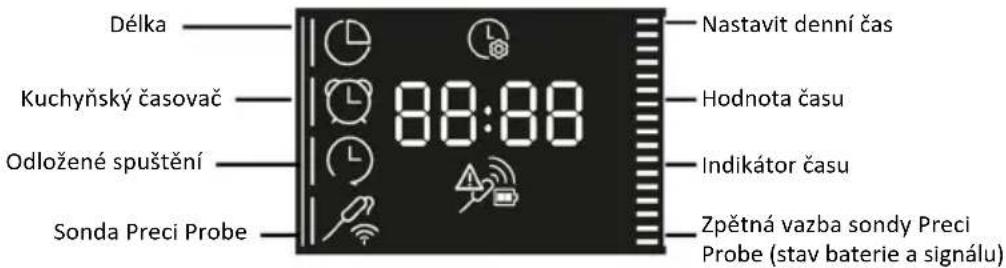

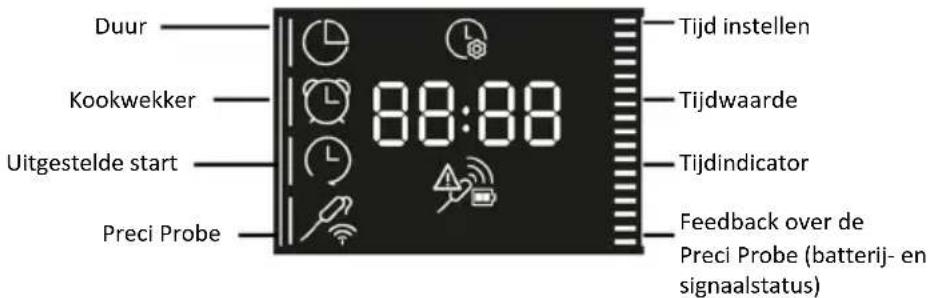

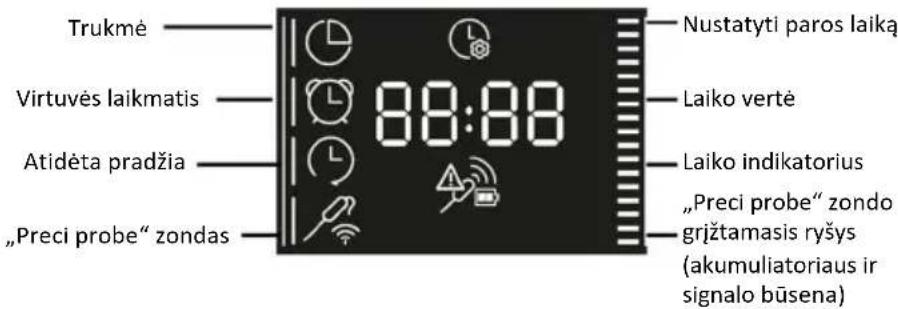

TIME MENU

After having selecting the cooking program, access Time menu by pressing Ⓤ. To navigate into tap ⏻ as many times as is needed to enter in the following settings:

88 DE

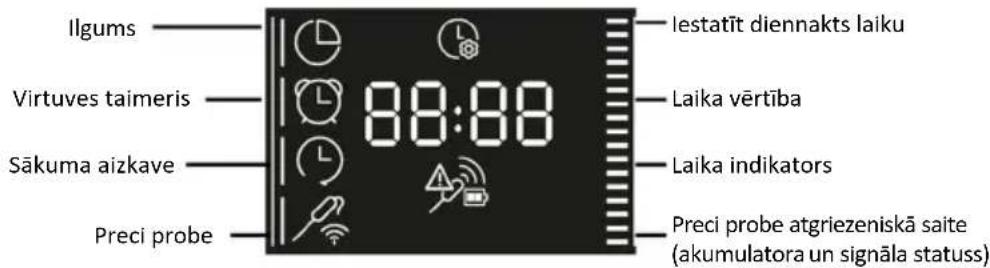

Duration Kitchen timer Delay start Preci probe 88:88 Set time of day Time value Time indicator Preci probe feedback (battery and signal status)

NOTE: several parameters cannot be set at the same time, therefore only the last set remains in the memory while the previous one is deleted.

Symbol Function Description
	a)COOKING DURATION	Allows to preset the cooking time required for the recipe chosen.Press Ⓞto enter in the Time menu. Tap ⚫as many times as you need to select “Cooking duration” function. Then use the arrows to regulate the value and pressⓍto confirm.The countdown starts at the end of preheating (if present). During cooking phase is possible to change the duration value by pressing ⚫and by using the arrows. When duration is elapsed the display shows “End” and the cooking stops.
	b)MINUTE MINDER	Allows to use the oven as alarm clock.Press ⚫to enter in the Time menu. Tap ⚫as many times as you need to select “Minute minder” function. Then use the arrows to regulate the value and pressⓍto confirm.During cooking phase is possible to change the duration value by pressing ⚫and by using the arrows. Then press ⚫to restart the cooking. When duration is elapsed, the cooking continues until manually interrupted.This function can be also set when the oven is in stand by mode by pressing ⚫When activated, the minute minder operates independently of the oven’s cooking functions.
	c)DELAY START	Allows to choose the cooking start time.Press ⚫to enter in the Time menu. Tap ⚫as many times as you need to select “Delay start” function. Then use the arrows to regulate the value and pressⓍto confirm.NOTE: Delay start is activable only after setting Cooking Duration and it is not available with grill’s functions

a. COOKING DURATION

Hand interacting with a digital kitchen control panel showing time, speed, and angle settings

1:20 16 180° SET DURATION

1:20 180°

b. MINUTE MINDER

0:0 180°

0:40 180° SET MINUTE MINDER

0:40 180°

C. DELAY START

12:2 180°

14:00 16 180° SET DELAY START

14:00 180°

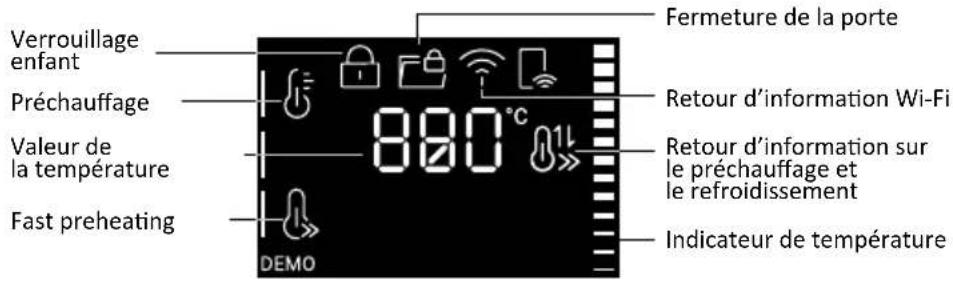

TEMPERATURE MENU

Aer having selecng the cooking program, access Temperature menu by pressing 8. To navigate into tap 8 as many times as is needed to enter in the following settings:

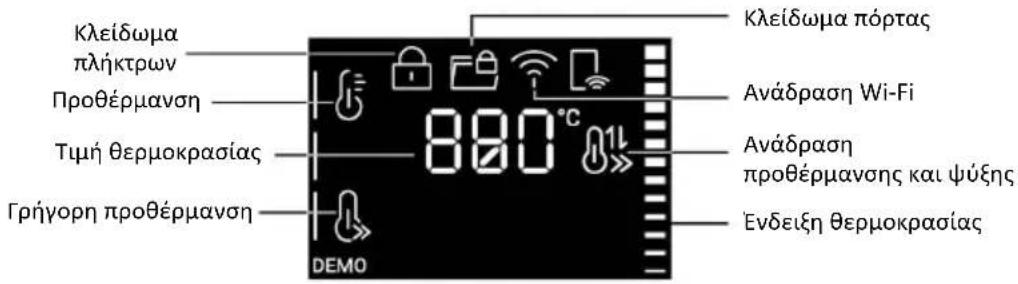

3°C 800 DEMO Key Lock Prehealing Temperature value Fast prehealing 800°C Door Lock Wi-Fi feedback Preheat and cool down feedback Tempeature indicator DEMO

Symbol Funclon Descriplon
	TEMPERATURE	Press ⚠ to set the temperature and use arrows to regulate the value.
	FAST PREHEATING	Press twice ⚠ to set the fast tempe-rature.

ADDITIONAL FUNCTION

Symbol Funclon Descriplon
	CHILD LOCK	This funclon allows you to lock the screen to prevent any unwanted use by minors. To activate it, simultaneously press the Lamp and Remote Control butons for 3 seconds.An icon with a padlock will appear on the user interface. In this condition, the oven user interface is locked, and no changes in selngs can be made.To deactivate the child lock, press the Lamp and Remote Control butons again for 3 seconds (the icon with the key will disappear).

4.2. COOKING FUNCTIONS

FAST PREHEATING OPTION

In order to accelerate preheating phase, the fast-preheating option can be selected by pressing the temperature icon for 3s after having selected cooking program and temperature. This option will activate a combination of fan and heating elements regardless of the chosen cooking function.

To save energy, when fast preheating is activated the lamp will be turned OFF until the oven reaches the desired temperature

STANDARD FUNCTIONS

NOTE: for functions that require preheating, ensure all accessories are removed during this phase. Follow instructions in the table below for what regards preheating.

"YES/FAST PREHEAT" means that preheating is required and fast preheat option is available; "NO" means that preheat is not available and foods must be inserted with cold oven.

Symbol Function		T°C default T°C range	Suggested shelf position	Preheat	Suggestions
	*Conventional	200°C 30-250°C L2/L3		YES/FAST PREHEAT	IDEAL FOR: cakes, breads, biscuits, quiches on one level using both upper and lower heating.Can be used with Preci Probe.
	Convection + fan	175°C 50-250°C	L2/L3/L4	YES/FAST PREHEAT	IDEAL FOR: roasts, casseroles, vegetables and pies with moist fillings on one level. Ideal for cooking foods with high water content.Can be used with Preci Probe.
	Multi-Level	160°C 50-250°C	L4 for single level L2+L5 for double level L2+L4+L6 for triple level	YES/FAST PREHEAT	IDEAL FOR: cakes, biscuits and pizzas on one or more levels. Ideal to cook different foods.Can be used with Preci Probe.
	Bottom heating	170°C 50-230°C	L2	YES/FAST PREHEAT	IDEAL FOR: crème caramel, puddings and bain marie on one level. This function can be also used for finishing a preparation.Can be used with Preci Probe
	Bottom heating+fan	170°C 50-230°C	L2	YES/FAST PREHEAT	IDEAL FOR: pizzas, salty cakes, tarts and foods with liquid toppings on one level.Can be used with Preci Probe.
	Grill	L5 L1-L5	L6 for thin food L5 for thicker foods	NO	IDEAL FOR: gratin, grilled meat, fish, vegetables.This function uses only the inner top heating element. Use with the door closed. Place a tray underneath to collect juices.
	**Supergrill	L5 L1-L5	L7 NO		IDEAL FOR: big quantities of sausages, steaks and toast bread.The entire area below the grill element becomes hot. Use with the door closed. Turn food two thirds of the way through cooking (If necessary).
	**Gratin	200°C 150-250°C	L4/L5	YES/FAST PREHEAT	IDEAL FOR: whole pieces of meat (roasts) or gratinated foods. Use with the door closed. Slide the drip tray under the shelf to collect juices. Turn food over halfway through cooking if needed.
	Multilevel +	200°C 150-250°C	L1+L3+L5+L7	YES/FAST PREHEAT	IDEAL FOR: complete menu cooking without odor mixing. Foods do not have to be extracted at the same cooking time
	*ECO	190°C 150-220°C	L3 NO		IDEAL FOR: cooking meat, fish or vegetablesThis function allows to save energy during cooking keeping the food moist and tender. Cavity lamp is switched off.
	Airfry	200°C 150-250°C	L4 NO		IDEAL FOR: preparing frozen foods or breaded par-cooked foods which are usually fried. Thanks to the dedicated tray, the hot air can flow evenly over the foods.
	Bread	210°C 190-220°C	L2/L3 NO		IDEAL FOR: cooking bread and bread loaves
	Jolly---				Special Function
	Pizza	300°C 200-300°C	L2/L3 NO		IDEAL FOR: all kind of pizzas without preheating the oven. Use lower temperatures for frozen items and 300°C for home-made recipes
	White meat	190°C 180-200°C	L3/L4 NO		IDEAL FOR: poultry and cuts of white meat
	Red meat	190°C 180-200°C	L3/L4 NO		IDEAL FOR: beef and cuts of red meat
	Fish	170°C 160-180°C	L3/L4 NO		IDEAL FOR: whole fish and fillets
	Veg	190°C 180-200°C	L3/L4 NO		IDEAL FOR: roasted vegetables and potatoes

4.2.2. SPECIAL FUNCTIONS

Symbol Function		T°C default T°C range	Suggested shelf position	Preheat	Suggestions
[85xG]	Jolly ---				Add to the preset list of functions your favorite one that's not already present in your oven. You canconfigure it through the hOn app.

Jolly function

Thanks to the Jolly function, this product offers a fully customizable experience, allowing you to store your personalized recipes directly on the oven. You can execute these recipes as often as you like, even without the need to log into the app.

New Jolly Function Torta ai 3 cioccolati Step 1 Preheat No > Cooking program Conventional > Temperature 100/℃ > Duration Until Note It's quick and easy to make an ice cream. It's rice supplementary (without using heavy cream), and it's plenty so ready and comforting and delicious. ADD STEP USE AS JOLLY FUNCTION SAVE RECIPE

How to Set the Jolly Function:

To set the Jolly function on your oven, open the app's recipe section, select the recipe you want to use, and click 'Use As Jolly Function'.

From this point onward, you can launch it from the product even without interaction with the app. Simply turn the function knob to the Jolly function to start the cooking process.

The display will show the preset temperature.

How to edit the Jolly function:

To edit a Jolly function, go to the app's recipe section and select the card of the recipe designated as a Jolly function. Tap the "edit" button to customize the recipe and modify the previously set settings.

A pop-up message will inform you that to save the newly modified Jolly function, you must remove the previous one. If you confirm, the previous Jolly function will be deleted, and the new parameters will be saved on the product and will be visible in the app.

Sacher Torta Torta ai tre cioccolati EEXT Single Step Preheat Yes, 100°C Cooking program & temperature Conventional, 100°C Duration 1h:55m Note It's quick and easy to make on the stavetop. It's mix and creamy (without using heavy cream), and it's always so cozy and comforting and delicious. START JOLLY FUNCTION

U-CREATE MY RECIES JOLLY FUNCTION CLEAR 1 Jolly Function DELETE Are you sure you want to delete the Jolly Function section? By doing this action all data will be free... CANCEL YES, CONFIRM

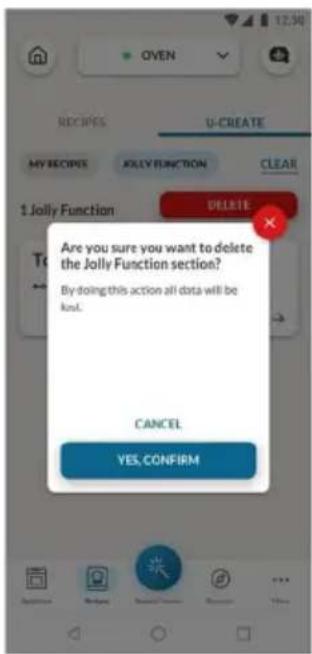

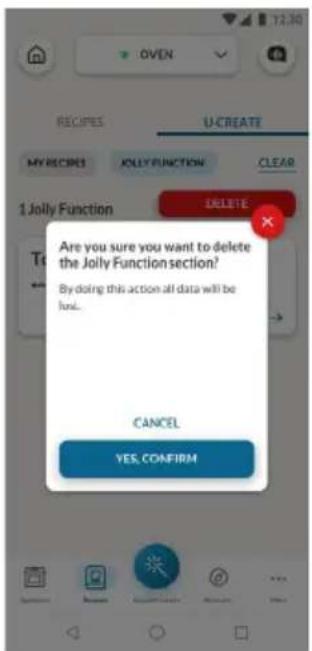

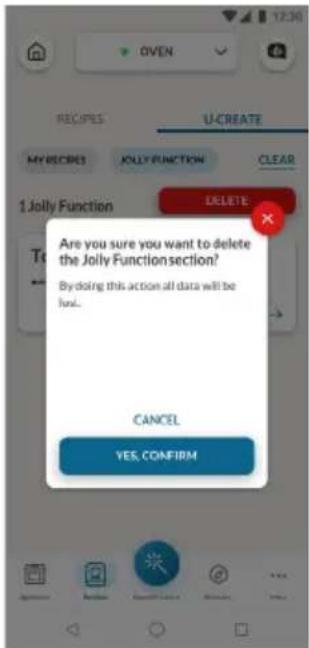

How to Delete the Jolly Function:

To remove the Jolly function from the oven's user interface, access the app's recipe section.

By tapping on the card of the recipe designated as a Jolly function, it's possible to delete it by clicking the red button 'delete button'.

A pop-up will confirm the operation, asking for your confirmation. If you proceed, the Jolly function saved on the oven will be removed, and it will no longer be available in the app.

PRECI PROBE

Before the use verify the charge of the Preci Probe:

1. Put Preci Probe into the charger and close the cover.
2. Connect the charger to a USB power source, such as USB adapter or USB socket of PC/ note - book with the USB cable. The charger may not be working properly with power bank because of its auto switch-off function.
3. LED of the charger will turn on and is flashing during charging. It will turn off when Preci Probe is fully charged.

Simple line drawing of a mechanical component with an arrow indicating rotation (no text or symbols)

Simple line drawing of a rectangular object with a curved cutout and an arrow pointing to it (no text or symbols)

CHARGING CHARGED

How to enroll and use Preci Probe:

1. Insert the Probe in the food.
2. Tap □ to select the desired function and Tap Ⓞ as many times as you need to select Probe icon.
3. After a while, the oven will recognize the Probe code. Tap ▷, and use arrows to set the target temperature.
4. Tap ▶llto confirm. From this moment, the oven will use the Probe's data to monitor the internal temperature of your food.
5. Once the desired internal temperature is reached, the alarm sounds and the oven turns off. Carefully remove the Probe from the food.

Simple line drawing of a roasted chicken with a chimney and leaf (no text or symbols)

Hand interacting with a digital control panel showing time, seconds, and icons

Hand interacting with a digital control panel showing icons and a timer, likely for app or system interaction.

180°C

180°C

180°C

Cooking tips

The Probe is equipped with a single measuring point. Insert it entirely into the food with the metal tip positioned at the centre of the food. Place this point as close as possible to the thickest (coldest) part of the food to accurately monitor the cooking process.

Illustration of a pen writing on a bone next to a cartoon dog (no text or symbols)

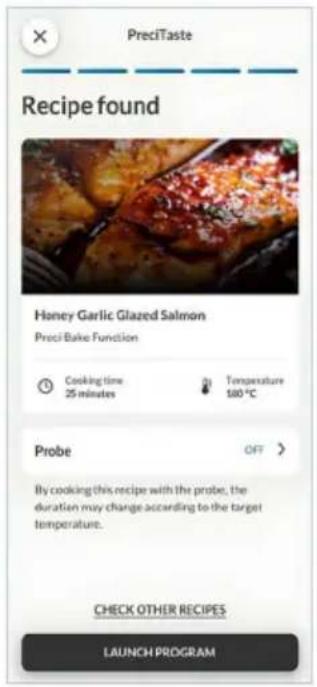

The Probe can be used with manual functions (Conventional, Conventional + Fan, Grill, Super grill, Gratin and Multilevel), with FOOD COOKING CATEGORIES (Meat, Fish and Vegetables)

Food category Suggested core T°C Suggested positioning
Roast beef 45°C
Roasted meats 55 °C / 60 °C / 65 °C
Poultry 83-85°C Into the thickest part of the breast
Fish (whole/steaks) 65°C Diagonally in the thickest part
Bread/casseroles 90°C

HOW TO USE THE CAMERA

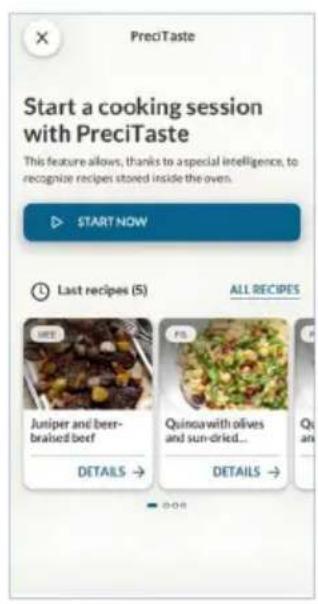

The bionic vision camera works with the Bionic Vision function available on the App. The camera can recognize the food and set the related parameters to cook it properly. You can monitor the status of the cooking process directly from the App.

The camera isn't available during pre-heating, Eco, and Pyrolysis functions.

To use the camera, the Remote Control must be active.

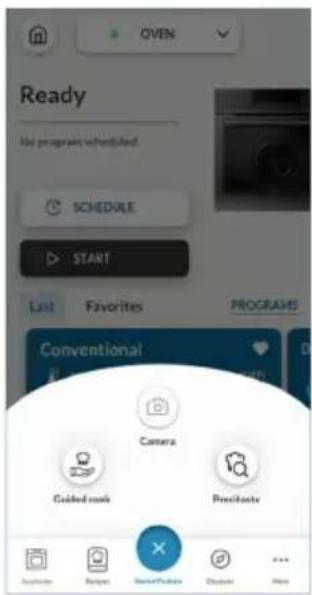

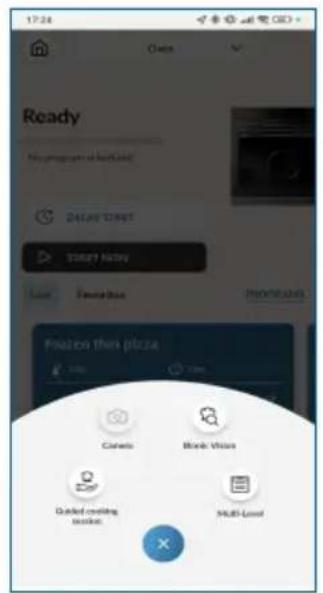

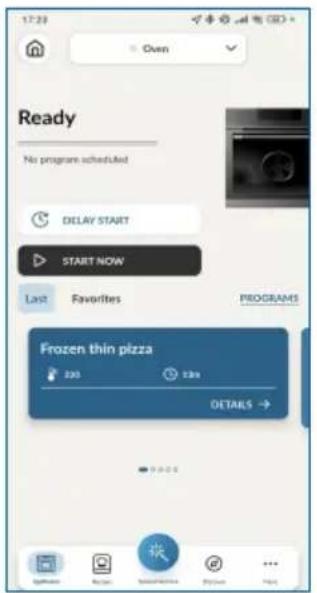

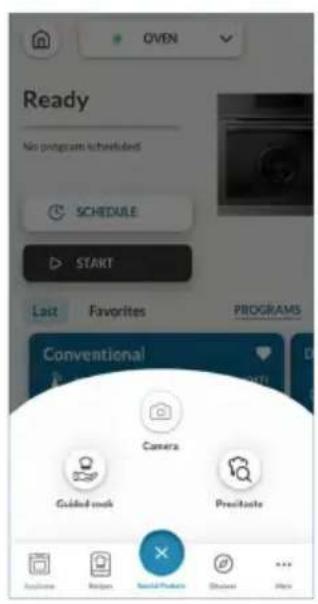

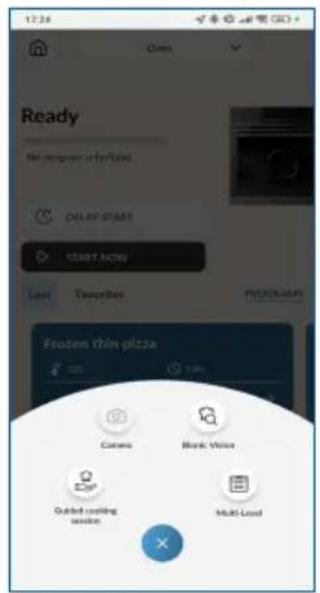

Step 1. On the App, press "Special Feature", then select "Bionic Vision" and press "Start Now".

Check 'Bionic Vision Recipes' to discover which foods are recognized by Bionic Vision and make sure to replicate the suggested layout of the food.

17:29 Open Ready No program scheduled DELAY START START NOW Last Favorites PROGRAMS Frozen thin pizza DETAILS → 0000 OK Cancel Help Finish

12:24 Options Ready No season or first time DELAY STARTS START NOW Last Favorites PRODUCTS Frozen thin pizza Camera Block Value Guided cooking session Multi-Load

Start a cooking session with Bionic Vision Check 'Bionic Vision Recipes' to discover which foods are recognized by Bionic Vision and make sure to replicate the suggested layout of the food. START NOW Latest recipes(2) BIONIC VISION RECIPES Frozen thin pizza Frozen thin pizza DETAILS → DETAILS →

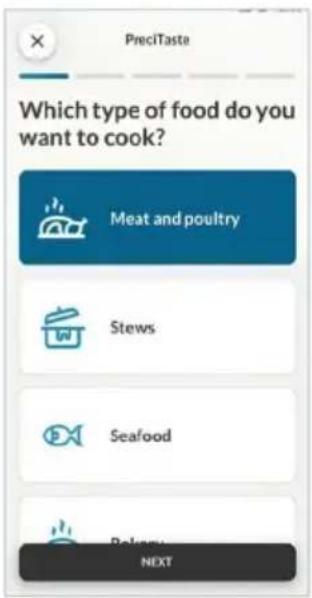

Step 2. Select the food category that you want to cook, then press "Next" to confirm.

Which type of food do you want to cook? Bread & Pasta Sweet Bakery Savoury Tarts & Pies Pizza & Focaccia NEXT

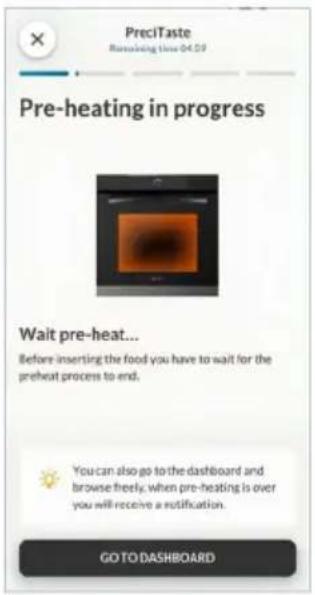

Step 3. After the Bionic Vision recipe is launched from the App, pre-heating will start. To start this function, the oven cavity must be empty. (*) During this process, the display will show the pre-heat progression bar and a generic "01:00" fixed time. You can monitor the actual pre-heating progress directly on the App.

Bionic Vision Pre-heating in progress Wait for pre-heating... Before putting in the food, you have to wait for the preheating process to end. You can also access the display screen and browse freely; you will receive a notification when pre-heating is finished. GO TO DASHBOARD

(*) 0:100 180°

Step 4. Before inserting the food, wait for the preheating process to finish. Make sure to accurately replicate the proposed layout of the food items to ensure optimal recognition.

Please note that the food should be placed on a tray with baking paper on level 3 of the oven cavity.

Close the oven door to enable the food to be detected. The oven will recognize the food through the camera and set the appropriate parameters.

After receiving confirmation from the user, the cooking process starts automatically.

(*) During this process, the right side of the display will show "hOn" or the cooking parameters of the related recipe.

The Bionic Vision camera sets the most suitable parameters to cook the detected recipe with the best results. Please do not edit the time and temperature displayed on the oven while cooking with the Bionic Vision function.

12:00 M Bionic Vision Food analysis I am analysing the food. Wait a few seconds please...

17:10:94 Bionic Vision Recipe found Frozen thin pizza BionicVision function Cooking Time 33 minutes Temperature 200 °C INCORRECT RECIPE LAUNCH PROGRAMME

(*) hON DII

OR 00:03 180°

(*) Depending on the oven model

Step 5. When cooking ends, "End" will be shown on the display. The cooking time can be extended should you prefer your food more cooked.

End

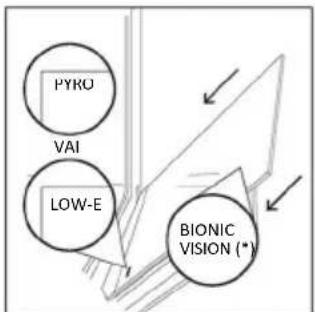

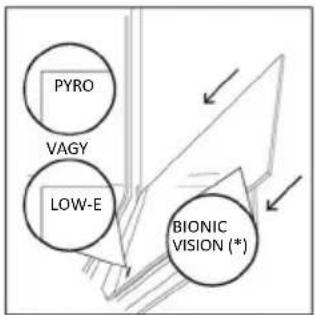

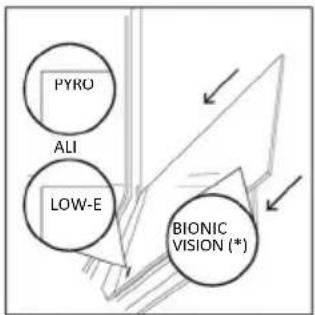

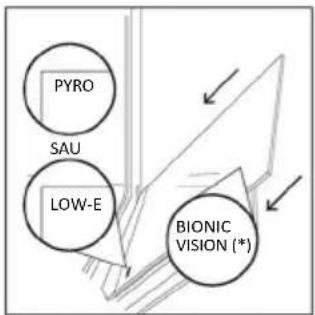

NOTE: Before operating the camera, make sure that the glass in the camera's range is clean to guarantee a clear view.

4.2.3. MULTI STEP FEATURE

The Multi Step feature allows to maintain previously set cooking parameters (temperature and time) while changing function during cooking, by pressing the □ button.

The feature is available for all the MAIN FUNCTIONS ≡ except for ECO and JOLLY programs

5. COOKING GUIDELINES

5.1. GENERAL COOKING TABLE

Category Recipe		N° of levels	Cooking program	T°C	Preheat	Cooking accessory	Shelf position	Cooking time after preheating* (min)
Sweet bakery	Small cakes /Muffins	1	Conventional Multilevel	175°C 160°C	Y	Baking tray L3		20-30 30-40
		2 Multilevel 150°C				Baking + Deeper trays	L3+L6 30-40
		3 Multilevel 140°C Baking trays L2+L4+L6 40-50
	Sponge cakes (26 cm ∅)	1	Conventional 170°C		Y	Metal grid + Cake tin	L2 30-40
			Multilevel 150°C			Metal grid + Cake tin	L3 40-50
		2 Multilevel 150°C				Metal grids + Cake tin	L3+L6 50-60
	Biscuits/Shortbreads	1	Conventional Multilevel	150°C 150°C	Y	Baking tray L3		25-30 30-40
		2 Multilevel 140°C Baking trays L3+L6 30-40
		3 Multilevel 140°C Baking trays L2+L4+L6 35-40
	Choquettes	1 Multilevel 190°C			Y	Baking tray L3	25-35
		2 Multilevel 170°C Baking tray L3+L6 25-35
	Yorkshire pudding	1	Conventional	200°C	Y	Baking tray	L3	20-30
	Meringues	1	Multilevel	90°C	Y	Baking tray	L3	90-160
	Macaron	1	Conventional	150°C	Y	Baking tray	L3	15-20
	Apple pie	1	Conventional 185°C		Y	Metal grid + Cake tin	L2 60-70
		1 Multilevel 170°C Y				Metal grid + Cake tin	L3 65-75
	Tarte tatin	1	Conventional	170°C	Y	Metal grid + Cake tin	L2 40-60
	Chocolate souffle	1	Conventional 200°C		Y	Baking tray + molds	L3 10-15
	Cheesecake 1	Conventional 150°C		Y		Metal grid + Cake tin	L2 50-65
	Frozen croissants	1	Conventional 180°C		L5 25-35	Baking tray L3	20-25
		2 Multilevel 180°C Baking trays L2+L4+L6 30-40
		3 Multilevel 160°C Baking trays L2+L4+L6 30-40
	Strudel, frozen	1	Conventional	210°C	Y	Baking tray	L3	30-45
Breads and Flatbread	Toast bread	1	Supergrill	05	N	Metal grid	L7	4-6
	Focaccia	1	Conventional	200°C	Y	Baking tray	L2/L3	25-35
	Bread, whole	1	Conventional	200°C	Y	Baking tray	L3	35-50
Category Recipe		N° of levels	Cooking program	T°C Preheat		Cooking accessory	Shelf position	Cooking time after preheating* (min)
Savory pies and casseroles	Salty cakes / Quiches (26 cm ∅)	1 Convection + Fan 180°C Y				Metal grid + Quiche tin	L3 45-60
		2 Multilevel 180°C Y				Metal grid + Quiche tin	L2+L5 50-70
	Cheese souffle	1 Conventional 200°C Y				Baking tray + molds	L3 20-35
	Lasagna, fresh	1 Conventional 200°C Y				Metal grid + ovenproof dish	L3 40-60
	Lasagna, frozen	1 Convection + Fan 180°C Y				Metal grid + ovenproof dish	L3 50-60
	Cannelloni, frozen	1 Convection + Fan 180°C Y				Metal grid + ovenproof dish	L3 45-55
	Baked pasta 1	Gratin 200°C Y				Metal grid + ovenproof dish	L4 20-30
Pizza	Pizza, fresh (Tray)	1	Conventional Pizza	250°C 300°C	Y N	Baking tray L2/L3		15-20 18-25
		2 Multilevel 180°C Y				Baking + Deeper trays	L2+L5 25-35
	Pizza, fresh (Round)	1	Conventional Pizza	250°C 300°C	Y N	Baking tray L2/L3		8-10 15-20
		2 Multilevel 180°C Y				Baking + Deeper trays	L2+L5 30-40
	Pizza, frozen (thin crust)	1	Conventional Pizza	220°C 200°C	Y N	Metal grid L3		10-15
		2	Multilevel	200°C	Y	Metal grid	L2+L5	15-25
		3 Multilevel 180°C Y		Metal grid L2+L4		L6 25-35
Meat & Poultry	Roasted whole chicken (1-1.2kg)	1 Gratin 220°C Y				Metal grid Place baking tray at L1	L4 40-60
	Chicken thighs	1	AirFry**	220°C	N	Air fry tray**	L4	30-50
	Roasted duck	1 Gratin 200°C Y				Metal grid + Ovenproof dish	L3 50-60
Category Recipe	N°of levels	Cooking program	T°C	Preheat	Cooking accessory	Shelf position	Cooking time after preheating* (min)
Meat & Poultry	Rooster 1 Gratin 220°C Y				Metal grid Place baking tray at L1	L4 20-40
	Roasted Turkey	1 Gratin 200°C Y			Metal grid + Ovenproof dish	L3 50-60
	Pork ribs (1000-1200g)	1 Conventional 200°C Y			Metal grid + Ovenproof dish	L3 80-100
	Sausages 1 Supergrill 04 Y Metal grid L5 40-50
	Beef fillet (1000-1500g)	1 Conventional 60°C N			Metal grid + Ovenproof dish	L3 60-80
	Roast beef (500g)	1 Gratin 220°C Y Baking tray		L3 20-40
	Meatloaf (1000-1500g)	1 Conventional 180°C Y Baking tray		L3 40-50
	Roasted chicken with potatoes	1 Gratin	200°C	Y	Deeper tray	L4	45-60
Fish and Seafood	Grilled seafood	1 Supergrill 04 N	Metal grid	L5 15-30
	Frozen fish sticks	1 AirFry**	200°C	N	Air fry tray**	L4	20-25
	Baked fish	1 ECO	200°C	N	Metal grid Place baking tray at L1	L3 40-60
Vegetables	Vegetable gratin	1 ECO	200°C	N	Metal grid + Ovenproof dish	L3 80-90
	Frozen french fries (300-500g)	1 AirFry**	220°C	N	Air fry tray**	L4	18-25
	Potato gratin	1 Gratin 200°C Y			Metal grid + Ovenproof dish	L4 15-25
	Roasted potatoes	1 Conventional 200°C Y Baking tray		L4 30-50

Cooking times may vary according to consumer's recipe and ingredients.

*if preheating required

** Depending on the oven model.

NOTE: For cooking cakes, quiches and other recipes that require a mold or a container on 2 levels, place the staggered: the upper tray on the left side and the lower tray on the right side.

5.2. EVERYDAY COOKING TABLE

Food category menu allows to cook a variety of recipes without preheating the oven, thanks to dedicated cooking programs tailored to each category needs.

After selecting the cooking program, the default time will be shown and can be edited by turning the right knob; cooking temperature can be changed by pressing the dedicated icon. Both parameters can be set within a limited range as shown in the table below.

Symbol	Description Preheat		Shelf position	Temperature range (°C)	Time Range (min)	Meat Probe temperature (if available)	Description
	White Meat	NO	L3/L4	180-200	40-80	70-85°C	For poultry and cuts of white meat
	Red Meat	NO	L3/L4	180-200	20-80	58-65°C	For beef and cuts of red meat
	Fish	NO	L3/L4	160-180	15-45	55-65°C	For whole fish and fillets.
	Vegetables	NO	L3/L4	180-200	30-80	70-90°C	For roasted vegetables and potatoes

NOTE: if, after turning off the oven, there is a need to continue cooking, it's recommended avoiding the use of everyday cooking programs and instead opting for standard functions.

Recipe Serving size		Cooking program	T°C	Cooking accessory	Shelf position	Cooking time (min)
Beef roast	500-800g	Red Meat	190°C	Metal grid	L3	30-40
Beef fillet	200g	Red Meat	200°C	Metal grid	L3	20-25
Meatloaf	1000-1500g	Red Meat	180°C	Metal grid	L3	40-50
Beef wellington	500g Red Meat	200°C Metal grid L3 50-80
Pot roast	800-1000g	White Meat	200°C	Metal grid	L3	40-70
Pork ribs	1000-1200g	White Meat	200°C	Metal grid	L3	80-100
Lamb rack	800-1000g	White Meat	200°C	Metal grid	L3	60-80
Lamb leg	1500-2000g	White Meat	190°C	Metal grid	L3	80-100
Salmon fillets	200-600g	Fish	170°C	Baking tray	L3	20-35
Tuna steaks	600g (app. 4 pcs)	Fish	180°C Metal grid L3 15-20
Swordfish steaks	700g (app. 4 pcs)	Fish	200°C	Baking tray	L3	15-20
Cod fillet	600g (app. 4 pcs)	Fish	150°C	Baking tray	L3	15-20
Seabream, whole	1	Fish	170°C	Baking tray	L3	35-45
Seabream, fillet	600g (app. 4 pcs)	Fish	150°C	Baking tray	L3	15-20
Seabass fillet	600g (app. 4 pcs)	Fish	150°C	Baking tray	L3	15-20
Salt baked fish	1	Fish	220°C	Baking tray	L3	30-40
Fish skewers	8 pieces	Fish	150°C	Metal grid	L3	20-30
Stuffed squid	4 pieces	Fish	180°C	Baking tray	L3	25-40
Whole bread	1	Bread	200°C	Metal grid	L3	35-50
Rye bread	1	Bread	190°C	Metal grid	L3	35-50
Sandwich loaf	1	Bread	200°C	Metal grid	L3	35-50
Frozen baguettes	1	Bread	200°C Metal grid L3 15-25
Frozen puff pastry snacks	1	Bread	190°C	Metal grid	L3	20-30
Fennels	1 tray	Vegetables	200°C	Metal grid	L3	30-40

Recipe Serving size	Cooking program	T°C	Cooking accessory	Shelf position	Cooking time (min)
Mixed vegetables	1 tray Vegetables 190°C Metal grid L3 40-45
Cauliowers	1 tray Vegetables	190°C	Metal grid	L3	40-50
Pumpkins, cubed	1 tray Vegetables 200°C Metal grid L3 30-40
Stuled peppers	1 tray Vegetables 180°C Metal grid L3 70-80
Stuled zucchini	1 tray Vegetables 190°C Metal grid L3 35-45
Carrot slicks	1 tray Vegetables 180°C Baking tray L3 35-40
Broccoli 1 tray Vegetables 190°C Baking tray L3 30-40
Ratatouille 1 tray Vegetables 190°C Metal grid L3 40-45
Vegetable lan	6 ramekins Vegetables 180°C		Baking tray + molds	L3 25-35

6. CARE & CLEANING

6.1. GENERAL RECOMMENDATIONS

Regular cleaning can extend the lifecycle of your appliance. Wait for the oven to cool before carrying out manual cleaning.

• After each use of the oven, a minimum of cleaning will help keep the oven perfectly clean.
- Do not line the oven walls with aluminum foil or single-use protection available from stores.
Aluminum foil or any other protection, in direct contact with the hot enamel, risks melting and deteriorating the enamel of the insides.
- In order to prevent excessive dirt of your oven and the resulting strong smokey smells, we recommend not using the oven at very high temperature. It is better to extend the cooking time and lower the temperature a little.
- In addition to the accessories supplied with the oven, we advise you only use dishes and baking molds resistant to very high temperatures.

6.2. CLEANING THE OVEN

6.2.1. INSIDE THE OVEN: cleaning functions

Pyrolytic cleaning (*depending on the oven model)

This process relies on the chemical process bearing the same name, which involves the decomposi -ion of complex substances through the application of heat treatment.

Once initiated, it automatically locks the oven door and swily elevates the temperature to a searing 410°C.

At the end of the cleaning cycle, food residues will leave a white coa ng on the enamel surfaces. To remove these parclles, wipe with a cloth soaked in hot soapy water and use a brush or steel wool. Suitable cleaning agents are hot soapy water or oven cleaner.

How does it work:

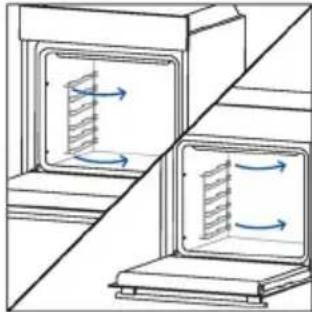

1. Remove any accessories from the oven, such as grids, side racks and side racks screw (*);

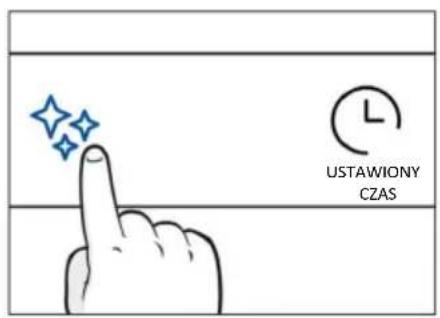

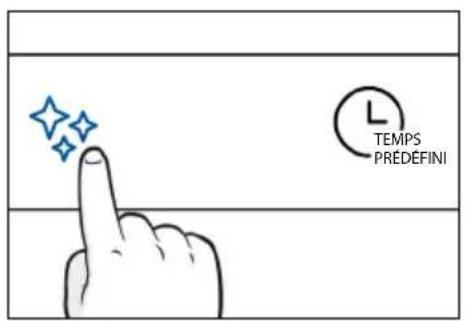

2. Turn function knob on ❖. Turn the dial control to set the Pyrolylc program;

Allow the function to operate for the preset time. During this process and the following cooling phase, the oven door will remain locked.

1. When the appliance is cool, clean the inner surfaces of the oven with a cloth.

▲ WARNING: Make sure that the appliance is cool before you touch it. Care must be taken with all hot surfaces as there is a risk of burns. Use disllled or drinkable water.

(*) only for models with 7 levels.

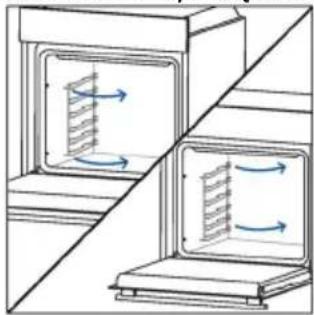

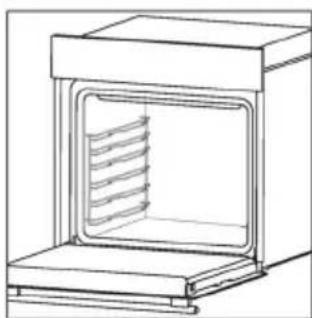

Line drawing of an oven with a rack inside, showing internal structure and airflow direction (no text or symbols)

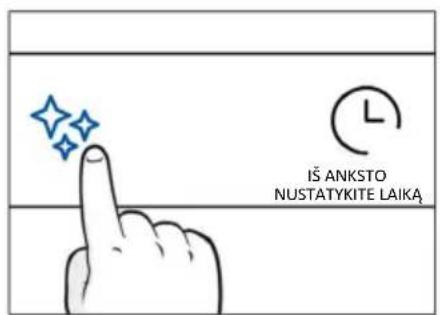

PRE SET TIME

Hand cleaning a window with a blue cloth, showing surface dust and debris (no text or symbols)

H_2O cleaning

The H_2O cleaning function is designed to effortlessly tackle light dirt and provide a quick and eco-friendly solution for cleaning your oven cavity using the power of steam.

How does it work:

1. Pour 100 ml of water with a drop of washing-up liquid into the bottom embossment of the oven.

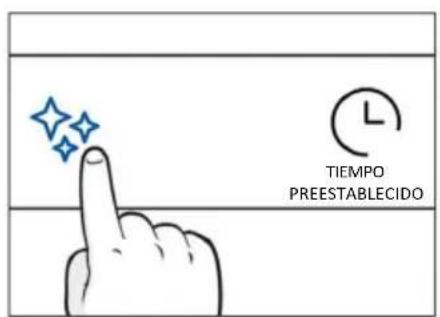

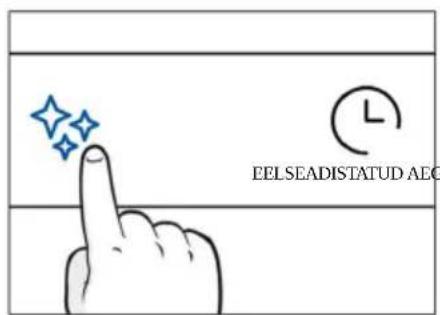

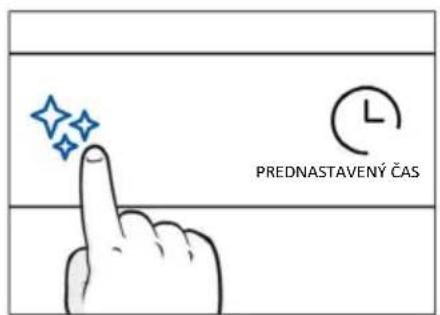

2. Turn the knob on 12 . If necessary, turn the dial control to set the Hydro clean program. Allow the function to operate for the preset time.
3. At the end of the cleaning process, allow the oven to cool down.
4. When the appliance is cool, clean the inner surfaces of the oven with a cloth.
5. ⚠ WARNING: Make sure that the appliance is cool before you touch it. Care must be taken with all hot surfaces as there is a risk of burns. Use distilled or drinkable water.
   Wipe the cooking compartment and allow it to dry completely to avoid possible corrosions.

H2O 100 ml

L PHE SET TIME

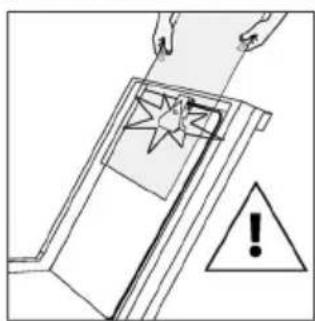

Warning symbol diagram with warning triangle, lightning bolt, and triangular warning symbol

Hand cleaning a window with a blue cloth (no text or symbols visible)

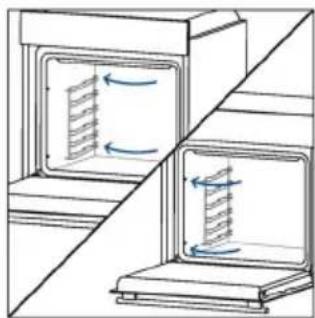

Catalytic cleaning

The Catalytic panels line the oven cavity and grant you the luxury of never having to contend with a dirty oven.

The panels are coated with a specialized enamel that boasts a microporous structure, adept at absorbing absorbs grease from splashes.

Through a catalytic chemical reaction, they efficiently convert the absorbed grease into gaseous elements when exposed to high temperatures.

Recommendation: Consider replacing the catalytic panels after approximately three years of use, especially if you use your oven for two to three cooking cycles per week. This ensures optimal performance and cleanliness.

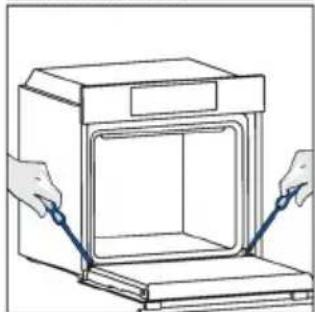

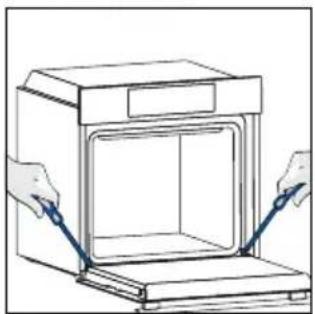

6.2.2. OUTSIDE THE OVEN: removal and cleaning the glass door

1. Position the door at 90°. Rotate the hinge locking tabs outward from the oven.

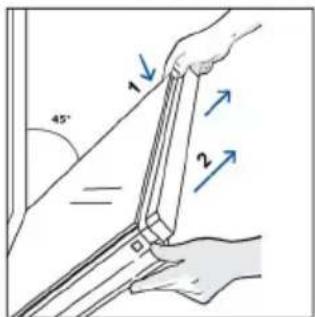

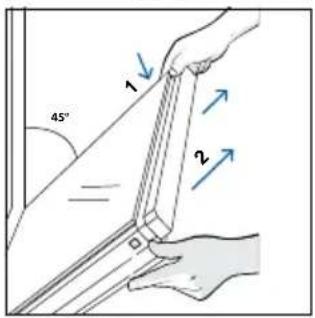

2. Position the door at 45°. Simultaneously press the two buttons on both the sides of the door's lateral shoulders and pull towards yourself to remove the upper glasses' door cover.

3. Very carefully remove the oven glass, starting with the inner one. During the procedure, firmly hold the glass with both hands and place them on a cushioned flat surface (e.g., on a fabric).

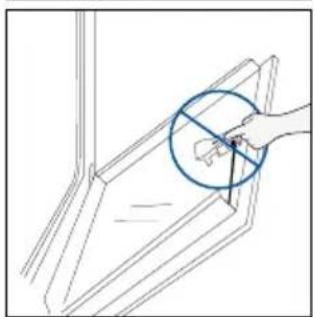

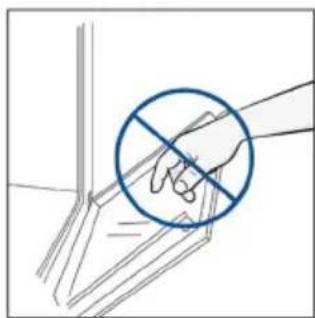

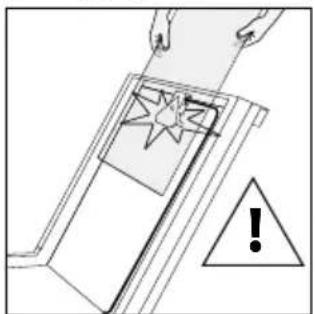

4. ⚠ WARNING: the inner and middle glasses must not hit the camera (*) during their removal or insertion.

5. ⚠ WARNING: The outer glass is not removable.

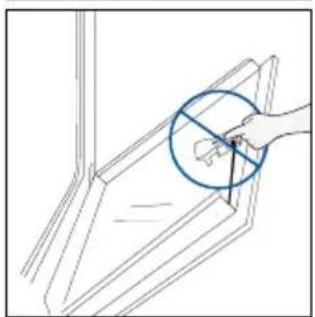

6. ⚠ WARNING: The camera (*) shall not be detached, forced, opened or removed during cleaning operations

Line drawing of hands operating a small oven with blue tool tips (no text or symbols)

Diagram showing a mechanical component with a blue arrow indicating direction, no text or symbols present

45° 1 2

Pure technical line drawing of a mechanical assembly with no text or symbols

Technical diagram showing a mechanical assembly with a star-shaped component and an explosion symbol (no text or labels)

Hand holding a hand with a blue prohibition symbol (no text or labels)

Line drawing of a hand holding a tool near a window frame, with no visible text or symbols

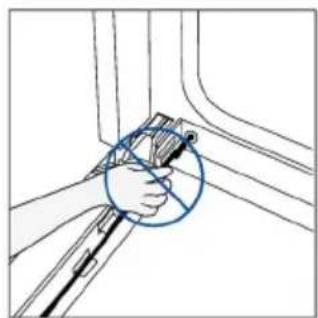

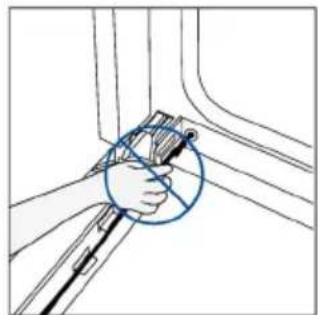

1. ⚠ WARNING: the camera shall be prevented from coming into contact with any detergents during cleaning operations.
2. Clean the glass using a soft cloth and suitable cleaning products.

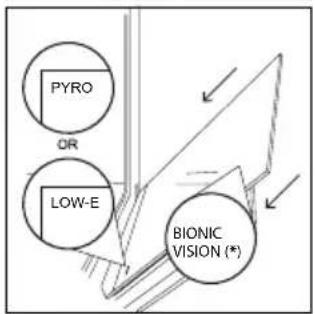

3. Insert the glass panels, making sure that the "LOW-E / PYRO" label is correctly readable and positioned on the lower left side of the door, near the left-side hinge. This way, the printed label on the first glass will remain on the inside of the door. Make sure that the "Bionic Vision" text appears as shown here, so that it is correctly readable when the oven door is open.
4. Reattach the upper glasses' door cover by pushing it inwards until you hear a click from the two side buttons.
5. Then, bring the door back to 90^ and rotate the hinge locking tabs inward towards the inside of the oven.

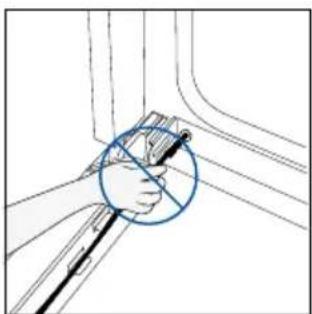

6. ⚠ WARNING: The camera (*) connectors shall not be disconnected during cleaning operations.

* only if present

Diagram showing a hand using a tool to adjust or install a component, with no visible text or symbols.

Pure diagram of a mechanical component with no text, numbers, or symbols

Illustration of a hand cleaning a blue cloth over a plate with a water bottle and beaker (no text or symbols)

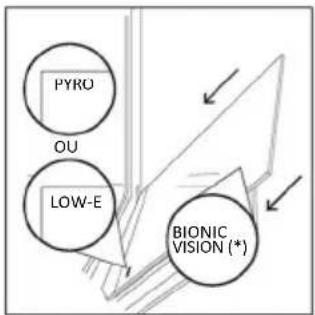

PYRO OR LOW-E BIONIC VISION (*)

Simple line drawing of a window frame with an open panel and directional arrows indicating movement (no text or symbols)

Line drawing of a kitchen oven with two hands inserting a blue tool into the opening (no text or symbols)

Diagram showing a blue tool interacting with a mechanical component, no text or symbols present

Simple line drawing of a hand holding a small object, with a blue circle highlighting the object (no text or symbols)

Line drawing of a hand holding a tool near a vehicle (no text or symbols)

6.3 CLEANING OF ACCESSORIES

Ensure that you clean the accessories thoroughly after every use and dry them using a towel. For persistent residues, consider soaking the accessories in a mixture of water and soap for approximately 30 minutes before giving them a second wash.

CLEANING OF SIDE RACKS:

- 6 levels model

1. Remove the side racks by pulling them in the direction of the arrows.

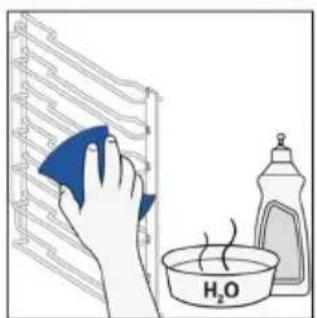

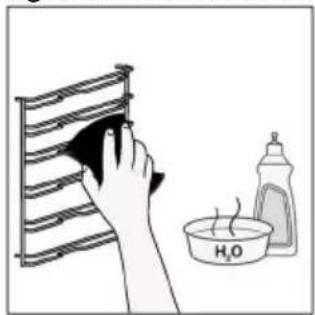

2. To clean the side racks either put them in the dishwasher or use a wet sponge, ensuring that they are dried afterwards.
3. After the cleaning process install the side racks in reverse order.

Line drawing of a laboratory oven with internal cooling ducts and airflow arrows (no text or labels)

Diagram showing two cross-sectional views of a cabinet or enclosure with internal airflow arrows (no text or symbols)

Illustration of a hand cleaning a rack with a cloth, next to a water bottle labeled H₂O (no text or symbols on the main subject)

Diagram showing two mechanical components with rotating arrows, no text or symbols present

Line drawing of a laboratory oven with internal cooling duct (no text or symbols)

- 7 levels model

1. Remove the side racks by first pulling the front part in the direction of the arrow and detaching the rear part from the screws.
2. To clean the side racks either put them in the dishwasher or use a wet sponge, ensuring that they are dried afterwards.
3. After the cleaning process install the side racks in reverse order: positioning the rear part between the screws and push the front part in the direction of the arrow.

Line drawing of a wall-mounted rack or shelf with multiple lanes, no text or symbols present

Diagram of a wall-mounted rack with numbered components and directional arrows indicating rotation (no text or symbols)

Hand holding a wall-mounted device with a 90-degree angle indicator (no text or symbols on the device itself)

H₂O

Hand holding a wall-mounted device with a 90-degree angle indicator (no text or symbols on the device itself)

Diagram of a vertical ladder structure with directional arrows indicating motion (no text or symbols)

6.4 MAINTENANCE

COMPONENTS REPLACEMENT

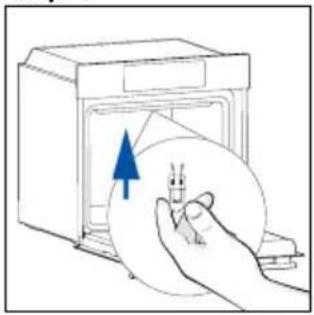

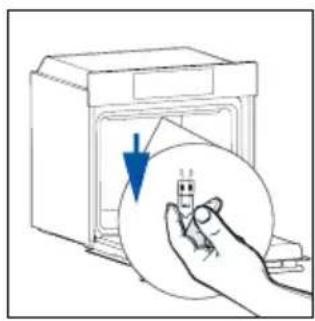

Changing the bulb on top:

1. Disconnect the oven from mains supply.

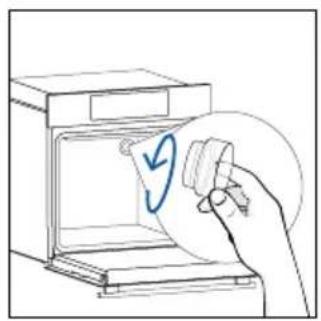

2. Remove the lamp's glass cover.

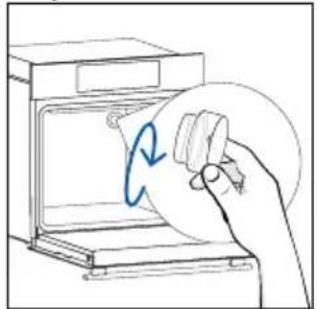

3. Disassemble the bulb.
4. Replace the bulb with a new one of the same type.
5. Relocate the lamp's glass cover.
6. Reconnect the oven from mains supply.

Step 1

Electrical diagram showing a plug, warning symbol with lightning, and OFF button labeled 'OFF'

Step 2

Hand holding a circular object with a blue checkmark inside an oven (no text or symbols visible)

Step 3

Illustration of a hand holding a circular object with a blue arrow pointing downward, next to an open refrigerator (no text or symbols)

Step 4

Illustration of a hand holding a circular object inside a washing machine, with an upward arrow indicating motion (no text or symbols)

Step 5

Line drawing of a hand holding a circular object inside an oven (no text or symbols)

Step 6

Electrical warning symbol and circuit diagram showing a plug, warning sign, and ON/OFF switch with directional arrows

Line drawing of a washing machine with two circular components, one showing internal components and the other with a handle (no text or symbols)

This product contains one or more light sources of energy efficiency class G (Lamp)

* In case of issues with this lamp, contact the customer service.

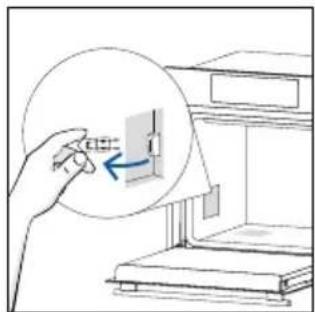

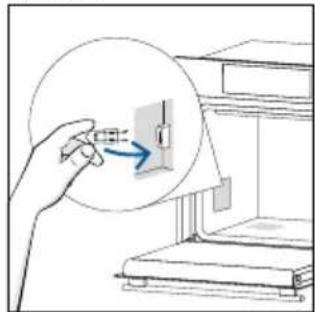

Changing the lateral bulb:

1. Disconnect the oven from mains supply.

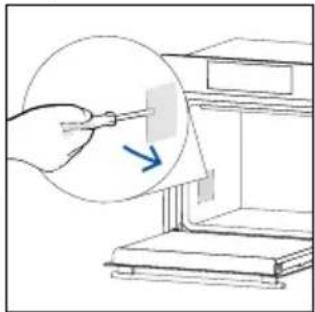

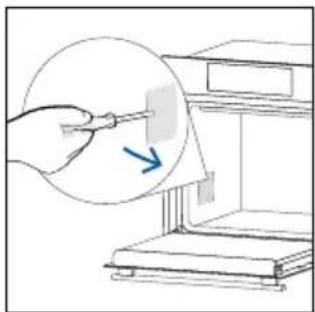

2. Use a flat-head screwdriver by positioning it to the side of the protective glass and gently apply pressure to remove it.

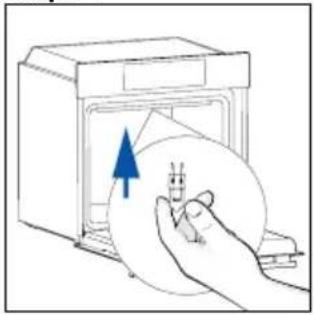

3. Carefully grasp the bulb from its base.
4. Insert the new one.
5. Reinstall the protective glass by pressing it gently until it's locked into position.
6. Reconnect the oven from mains supply.

Step 1

Diagram showing a plug connected to an ON/OFF switch with warning symbol and directional arrows

Step 2

Illustration of a hand using a tool to clean or store items, with a magnified inset showing the process (no text or symbols present)

Step 3

Illustration of a hand inserting a small component into a device, with no visible text or symbols.

Step 4

Illustration of a hand inserting a component into a device, with no visible text or symbols

Step 5

Diagram of a mechanical assembly with a magnified inset showing a component detail (no text or symbols)

Step 6

Electrical warning symbol and diagram showing a plug, ON panel, warning sign, and directional arrows

This product contains one or more light sources of energy efficiency class G (Lamp)

7. TROUBLESHOOTING

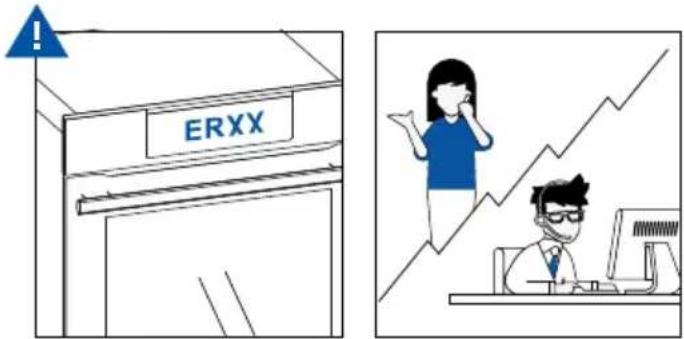

If, during oven use, an error occurs, the display will show the code "ER" followed by two digits, which will identify the error.

Proceed by turn off the oven and un-plug it, wait for a few minutes, and then reconnect it.

If the error disappears, you can resume using the oven. If it doesn't, call customer service and communicate the code (ERXX) you see on the display.

Error

ERXX

Smoke

Diagram illustrating a chemical process with an airfoil and a gas collection bottle, showing environmental hazard and product delivery.

8. ENVIRONMENTAL PROTECTION & DISPOSAL

8.1. APPLIANCE DISPOSAL

This appliance is labelled in accordance with European Directive 2012/19/EU regarding electric and electronic appliances (WEEE). The WEEE contain both polluting substances (that can have a negative effect on the environment) and base elements (that can be reused). It is important that the WEEE undergo specific treatments to correctly remove and dispose of the pollutants and recover all the materials.

Individuals can play an important role in ensuring that the WEEE do not become an envi -

ronmental problem; it is essential to follow a few basic rules:

– the WEEE should not be treated as domestic waste;
– the WEEE should be taken to dedicated collection areas managed by the town council or a registered company.

In many countries, domestic collections may be available for large WEEEs. When you buy a new appliance, the old one can be returned to the vendor who must accept it free of charge as a one-off, as long as the appliance is of an equivalent type and has the same functions as the purchased appliance.

8.2. SAVING AND RESPECTING THE ENVIRONMENT

Where possible, avoid pre-heating the oven and always try to fill it.

Open the oven door as infrequently as possible, because heat from the cavity disperses every time it is opened. For a significant energy saving, switch off the oven between 5 and 10 minutes before the planned end of the cooking time, and use the residual heat that the oven continues to generate.

Keep the seals clean and in order, to avoid any heat dispersal outside of the cavity. If you have an elec tric contract with an hourly tariff, the “delayed cooking” programme makes energy saving simpler, moving the cooking process to start at the reduced tariff time slot.

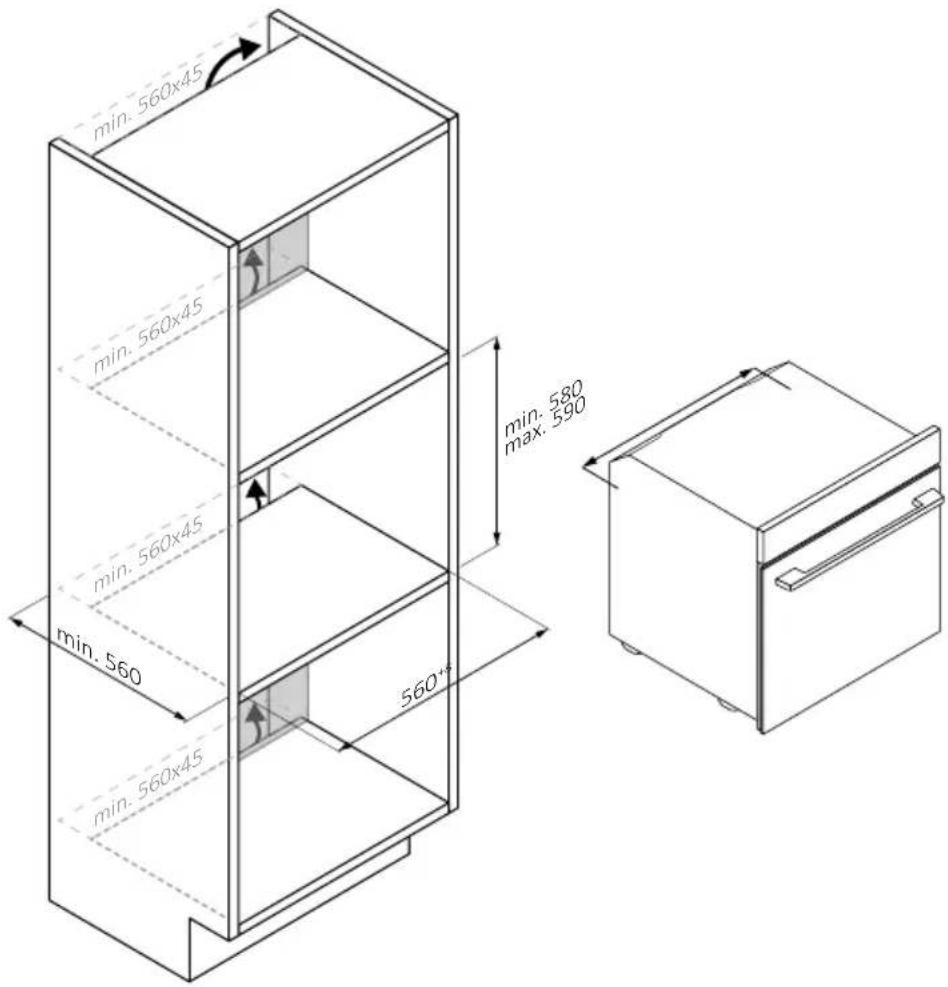

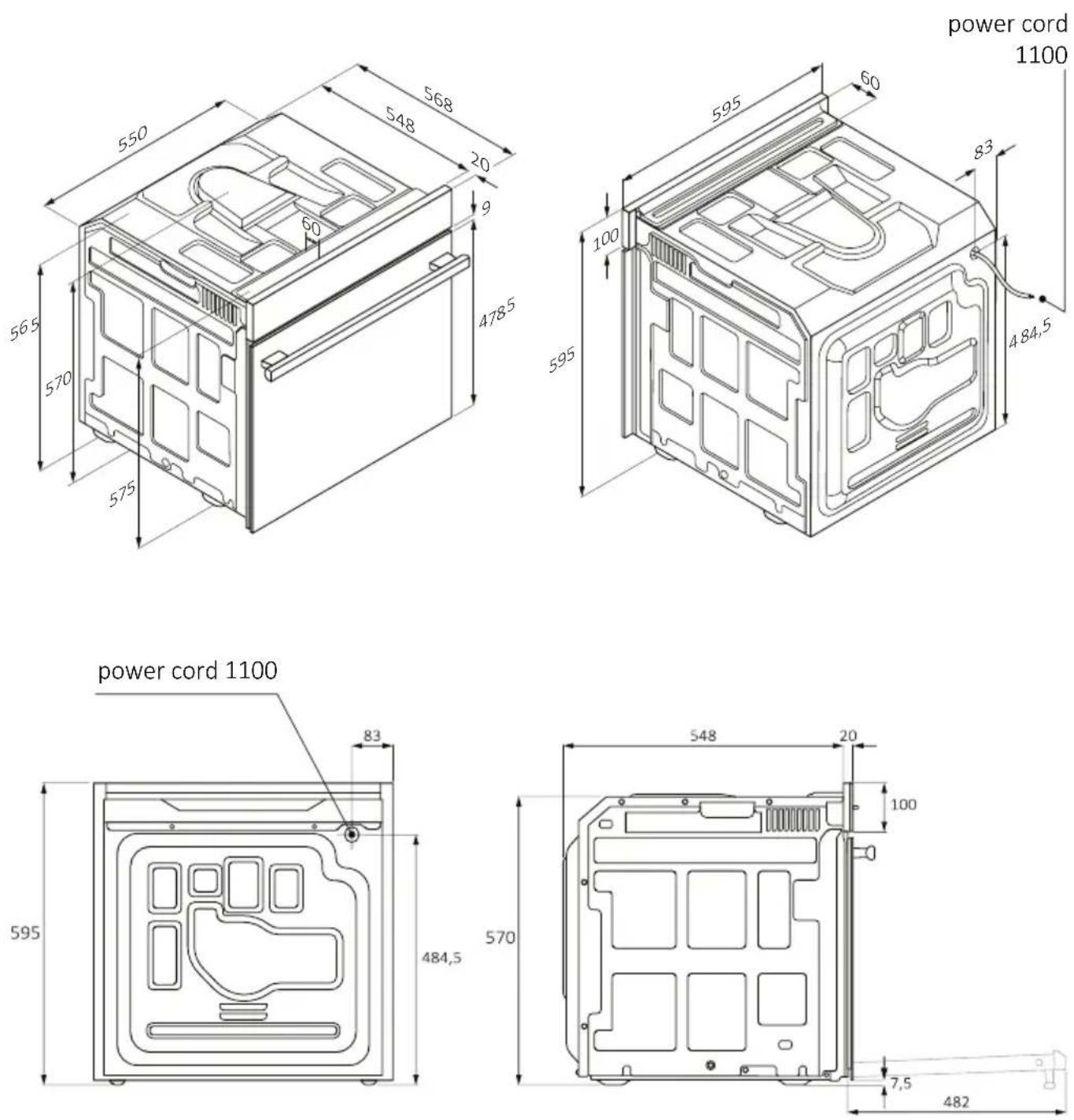

Back view Side view

Isometric line drawing of a multi-level refrigerator with drawers, shelves, and a drawer (no text or symbols)

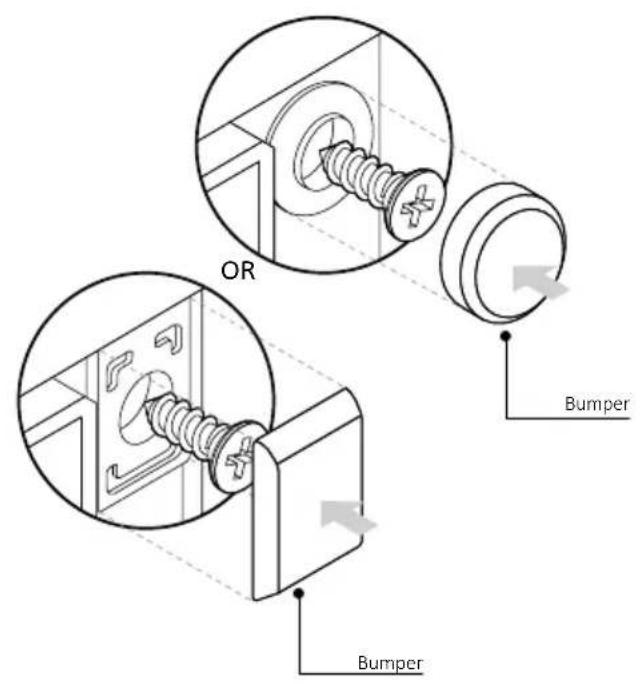

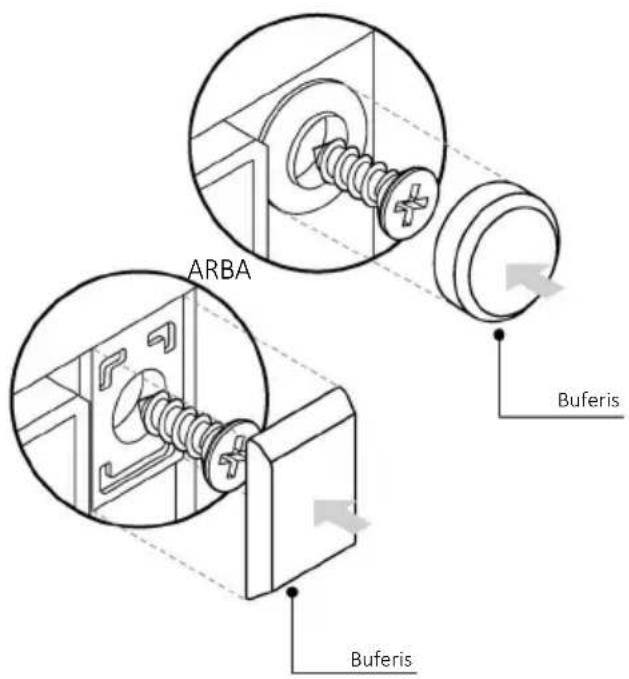

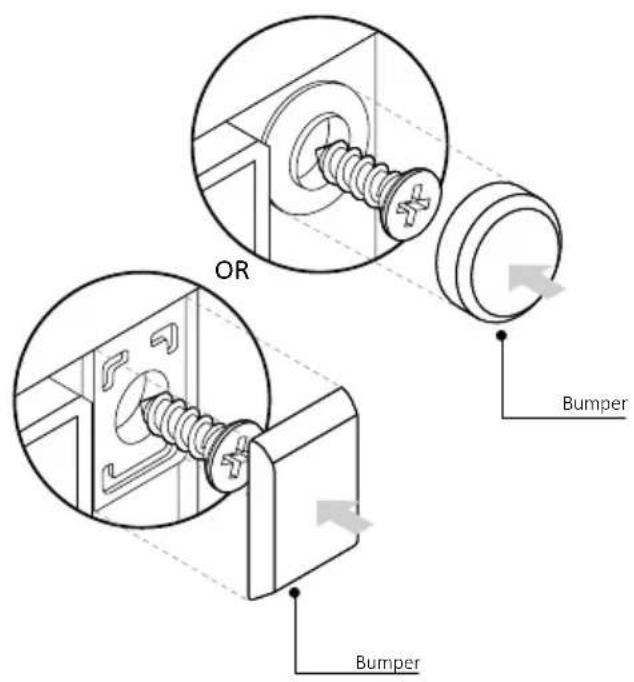

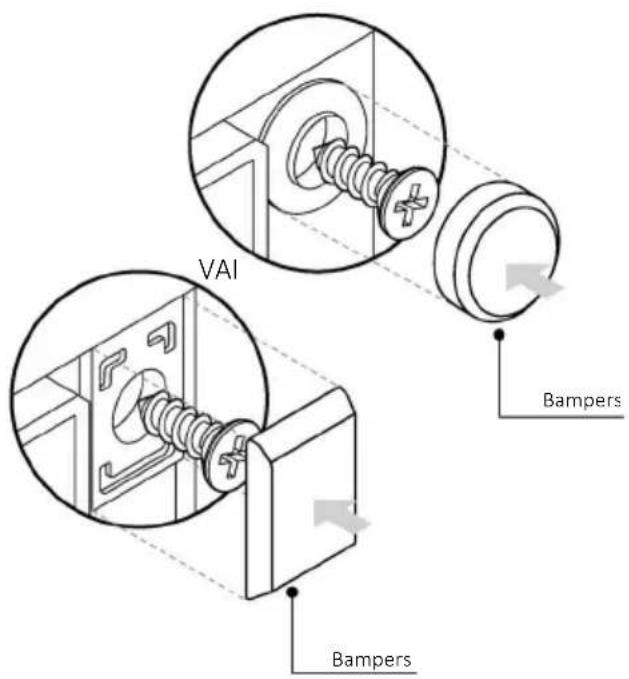

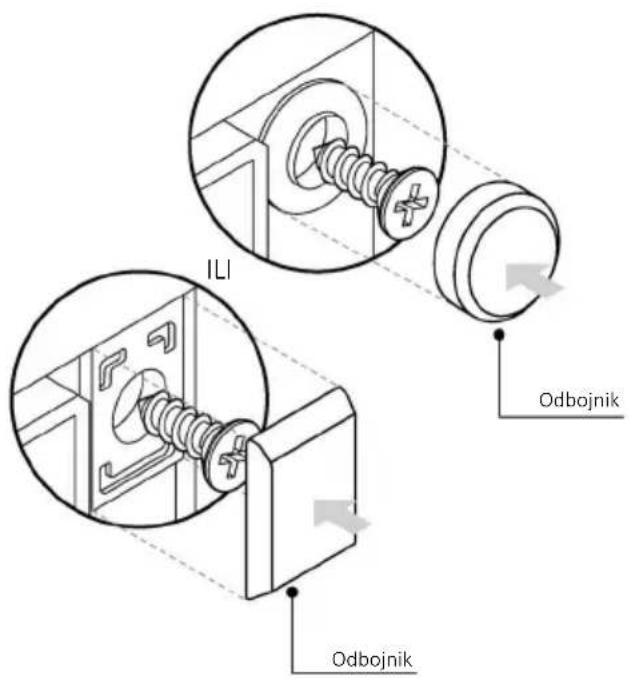

OR Bumper Bumper

WILLKOMMEN

Simple illustration of a blue-handled tool with a downward arrow pointing to it (no text or symbols)

Diagram of an oven with numbered parts for identification and assembly reference

Empty white rectangle with black border (no text or symbols)

STOPP STOPP

3D diagram of a rectangular container with internal compartments, no text or symbols present

3D diagram of a rectangular tray with internal geometric patterns, placed on a shelf (no text or symbols)

Line drawing of a two-tiered bed layout with horizontal and vertical supports (no text or symbols)

Line drawing of a rectangular tray with a grid pattern on the top surface, no text or symbols present.

Technical line drawing of a kitchen sink with a bowl, tray, and wall (no text or symbols)

Two line drawings of pen tips: one plain, one with a curved cable or wire (no text or symbols)

Diagram of a rectangular appliance with internal grid pattern, placed inside a tray (no text or symbols)

Simple line drawing of a rolling pan with dough and steam, no text or symbols present

Simple line drawing of a mechanical device with a lever and base, no text or symbols present

Simple line drawing of a kitchen appliance with a circular button and directional arrow (no text or symbols)

Simple line drawing of a cabinet or drawer with a rectangular opening and a blue horizontal bar at the bottom (no text or symbols)

Available on the App Store GET IT ON Google Play

Welcome! Sign in to enter in your home page ENTER REGISTER Are you new to hOn? Click below to learn about our products TRY DEMO hOn Do you already have a thousand passwords? Register with your social accounts and log in in the easiest and fastest way. SIGN UP WITH GOOGLE SIGN UP WITH APPLE SIGN UP WITH FACEBOOK No information relating to you will be shared and we will not past anything from you. OR SIGN UP WITH EMAIL Already registered? LOGIN

Hello USERNAME YOUR APPLIANCES Add Add appliance Hos Virtual Wine Bank second row 2 bottles there is a second row YOUR WIDGETS I own image dollar street NEW YOUR NEWS What functions do smart appliances have? How to live sustain home and reduce w

Schritt 2

Allow your location permission To enhance your experience, please allow location permission to hOn app in the next step. CONTINUE

Schritt 3

Select your appliance category Search your appliance Washing machine Washer dryer Tumble dryer Dishwasher Air conditionair Air purifier Air scanner

Schritt 4

Turn OFF and then ON your appliance In case you can't switch OFF your appliance, unplug (for at least 10 seconds) and then plug its power supply. OK. I DID IT

Schritt 5

Appliance connection Searching your appliance Don't turn off your Bluetooth. hOn app is looking for your appliance... 00:00:40 Stay close to your appliance in order to correctly capture the signal.

Schritt 6.1-6.2

Appliance connection Searching your appliance Don't turn off your Bluetooth. Oven New appliance Long appliance name to... CONNECT PRODUCT NOT FOUND

Appliance connection Searching your appliance Don't turn off your Bluetooth. Oven Connecting... New appliance Long appliance name to... Stay close to your appliance in order to correctly capture the signal.

Schritt 7

Appliance connection Your appliance has been correctly identified! Brand Hoover Model 31008486-7888-1824 Serial number 12345678-1234-1234 Is this your appliance? YES IT'S MY OVEN NO IT'S NOT

Hand interacting with a touchscreen display showing status indicators and a timer reading 'ON'

STATUS ÄNDERN

OFF

APP-BEDIENUNG

Hand interacting with a touchscreen device displaying 'CON' and control buttons, with icons for Wi-Fi and timer.

ON 8

60.00 hON

i ii hON

Cooking SH: 10M LEFT ADD: 5 MIN STOP Current program PROGRAMS Conventional 200°C Sh: 30m 10 Product (CM) Efficiency Product (DFR) EDIT DETAILS →

3. VOR DEM START

3.1. INFORMATIONEN ZUM START

Simple line drawing of a kitchen sink with a hand cleaning the interior and a water bottle labeled H2D (no text or symbols on main elements)

MAX °C 60 min

Simple line drawing of a window with a door open and swirling blue smoke or vapor rising from the chimney (no text or symbols)

Hand interacting with a touchscreen icon and a digital interface panel (no text or symbols)

MENÜ FUNKTIONEN

Hand interacting with a touchscreen display showing icons for smart devices (no text or symbols)

New Jolly Function Torta ai 3 cioccolati Step 1 Preheat No > Cooking program Conventional > Temperature 180 °C > Duration 3h45m > Note It's quick and heavy to make on the package. It's nice and creamy (without using heavy creamy) and it's always so crazy and comforting and delicious. ADD STEP USE AS JOLLY FUNCTION SAVE RECIPE

Sacher Torta Torta ai tre cioccolati EDIT Single Step Preheat Yes, 180 °C Cooking program & temperature Conventional, 180 °C Duration 1h 55m Note It's quick and easy to make on the stovetop, it's nice and creamy (without using heavy cream), and it's always so cozy and comforting and delicious. START JOLLY FUNCTION

OVEN U-CREATE MY RECIPES JOLLY FUNCTION CLEAR $1 Jolly Function DELETE Are you sure you want to delete the Jolly Function section? By doing this action all data will be kuL. CANCEL YES CONFIRM

Simple line drawing of a mechanical component with an arrow indicating rotation (no text or symbols)

Simple line drawing of a rectangular object with a blue arrow pointing to it, no text or symbols present.

WIRD GELADEN GELADEN

Simple line drawing of a chicken with a fork (no text or symbols)

Hand interacting with a digital control panel showing time, battery, and function icons

Hand interacting with a touchscreen device displaying icons and a numeric display showing 0, 1, and 2.

180°

180°C

180°C

Tipps fürs Garen

Illustration of a pen and a dog with blue handles, showing a transformation from a pen to a dog (no text or symbols present)

Ready No program scheduled SCHEDULE START Last Favorites PROGRAMS Conventional 150°C 1h 30m Fast Preheat (OFF) Probe (OFF) EDIT DETAILS → 0000 Analyze Review Social Privacy Discount Plan

Ready No program scheduled SCHEDULE START Last Favorites PROGRAMS Conventional Camera Guided cook Photo Photo

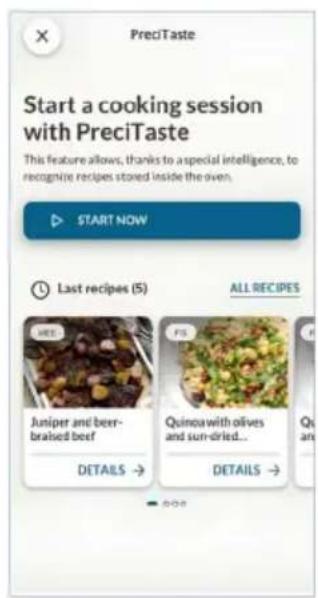

PreciTaste Start a cooking session with PreciTaste This feature allows, thanks to a special intelligence, to recognise recipes stored inside the oves. START NOW Last recipes (5) ALL RECIPES Juniaper and beer- braised beef QUinoa with olives and sun-dried... DETAILS → DETAILS → QQQ

PreciTaste Which type of food do you want to cook? Meat and poultry Stews Seafood Bento Next

PreciTaste Receiving time 04.59 Pre-heating in progress Wait pre-heat... Before inserting the food you have to wait for the preheat process to end. You can also go to the dashboard and browse freely, when pre-heating is over you will receive a notification. GO TO DASHBOARD

PreciTaste Food analysis I am analyzing the food. Wait a few seconds...

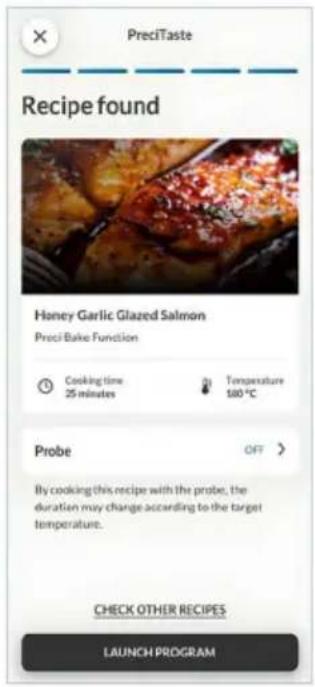

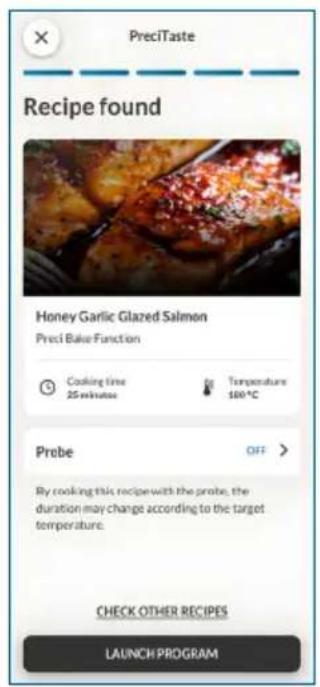

PreciTaste Recipe found Honey Garlic Glazed Salmon Preci Bake Function Cooking time 25 minutes Temperature 500 °C Probe OFF > By cooking this recipe with the probe, the duration may change according to the target temperature. CHECK OTHER RECIPES LAUNCH PROGRAM

hON

Line drawing of a laboratory oven with a blue arrow indicating airflow or movement (no text or symbols)

Illustration of a hand cleaning a window with a blue cloth (no text or symbols)

H2O Clean

Line drawing of hands operating a door with blue tool tips (no text or symbols)

Simple line drawing of a mechanical component with a blue arrow indicating downward motion (no text or symbols)

45° 1 2

Pure technical line drawing of a mechanical component with no text or symbols

Diagram showing a hand holding a star-shaped object with an exclamation mark and warning symbol (no text or labels)

Illustration of a hand holding a horizontal line with a blue circle highlighting the intersection point (no text or symbols present)

Line drawing of a hand holding a blue circle with a diagonal line, pointing at a small object on a wall (no text or symbols)

Diagram showing a hand holding a cable with a blue circle highlighting the cable (no text or symbols present)

Simple line drawing of a rectangular panel with internal lines and a dashed outline, no text or symbols present.

Illustration of a hand cleaning a tiled surface with a blue cloth and a small bowl labeled H₂O (no text or symbols on the main image)

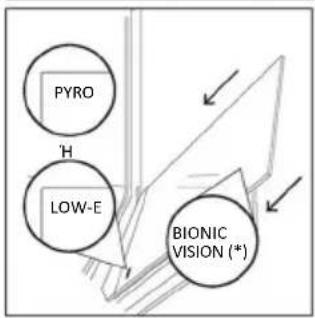

PYRO ODER LOW-E BIONIC VISION (*)

Pure technical line drawing of a mechanical assembly with no text or symbols

Line drawing of hands operating a portable oven with a lid open (no text or symbols)

Line drawing of a hand holding a small object with a blue circle highlighting the symbol (no text or labels present)

Simple line drawing of a tool interacting with a wall-mounted device (no text or symbols)

Line drawing of a hand holding a tool near a vehicle (no text or symbols)

* sofern vorhanden

Safety warning diagram showing a plug connected to an electrical outlet with a warning symbol and 'OFF' label

Schritt 2

Hand holding a circular object inside a kitchen appliance (no text or symbols visible)

Schritt 3

Illustration of a hand holding a circular object with a blue arrow pointing downward, next to an open kitchen appliance (no text or symbols)

Schritt 4

Illustration of a hand holding a circular device with an arrow pointing upward, next to a washing machine (no text or symbols)

Schritt 5

Hand holding a circular object with a blue arrow inside, next to an open oven (no text or symbols visible)

Schritt 6

Safety warning diagram showing a plug connected to an ON panel with warning symbol and blue arrows indicating current direction.

Diagram of a washing machine with a circular component and a magnified view showing internal components (no text or symbols)

Safety warning diagram showing a plug on a line with a warning symbol and OFF button

Schritt 2

Illustration of a hand using a tool to clean or store items, with a magnified inset showing the process (no text or symbols)

Schritt 3

Illustration of a hand inserting a small component into a device, with no visible text or symbols.

Schritt 4

Illustration of a hand inserting a plug into a device inside a circular frame (no text or symbols)

Schritt 5

Diagram of a mechanical assembly with a magnified inset showing a component (no text or symbols)

Schritt 6

Safety warning diagram showing a plug connected to an ON panel with a warning symbol and blue arrows indicating direction.

Diagram showing a kitchen cleaning process with a blue smokestack emitting vapor and a hand washing a clean appliance into a microwave oven.

Isometric line drawing of a multi-level refrigerator with shelves, drawers, and a drawer (no text or symbols)

Simple illustration of a blue-handled tool with a black downward arrow pointing to it (no text or symbols)

Diagram of a kitchen oven with numbered components for identification

2.2. ACCESSOIRES

Grille métallique

弹簧 —弹簧

3D diagram of a rectangular tray with internal geometric lines, placed inside a rack (no text or symbols)

Empty white rectangle with black border (no text or symbols)

3D line drawing of a rectangular tray or basin with internal partitioning, placed inside an oven (no text or symbols)

Technical line drawing of a kitchen sink with a bowl, tray, and wall (no text or symbols)

Line drawing of a two-tiered storage unit with horizontal and vertical metal racks (no text or symbols)

Diagram of a rectangular appliance with internal grid pattern, placed inside an oven (no text or symbols)

Two line drawings of medical or laboratory instruments: a pen and a curved tube (no text or symbols)

Diagram of a rectangular appliance with a grating tray and internal grid pattern, placed inside an oven (no text or symbols)

Simple line drawing of a door with a circular arrow and motion indicator (no text or symbols)

Line drawing of a rooster on a tray with dough and steam (no text or symbols)

Pure mechanical diagram showing a lever and pivot mechanism without any text or symbols

Simple line drawing of a rectangular box with a blue horizontal stripe and four small dots on top (no text or symbols)

COMMENT INTERAGIR AVEC L'APPLICATION

Download on your smartphone.

INSCRIPTION D'UN NOUVEL UTILISATEUR

- Cliquez sur "S'inscrire"

Appliance connection Searching your appliance Don't turn off your Bluetooth. bOn app is looking for your appliance... 00:00:40 Stay close to your appliance in order to correlly capture the signal.

Étape 6.1-6.2

Appliance connection Searching your appliance Don't turn off your Bluetooth. Oven New appliance Long appliance name to... CONNECT PRODUCT NOT FOUND Appliance connection Searching your appliance Don't turn off your Bluetooth. Oven Connecting... New appliance Long appliance name to... Stay close to your appliance in order to correctly capture the signal.

Étape 7

Appliance connection Your appliance has been correctly identified! Brand Hoover Model 31008486-7888-1824 Serial number 12345678-1234-1234 Is this your appliance? YES IT'S MY OVEN NO IT'S NOT

COMMENT MODIFIER LES PARAMÈTRES DU WI-FI

Hand interacting with a touchscreen device displaying status icons and a timer reading 'ON'

CHANGE STATUS

OFF

CONTRÔLE À DISTANCE

Hand interacting with a touchscreen display showing icons for Wi-Fi, buttons, and a 'CON' button

ON

hON

Hand interacting with a touchscreen device displaying status indicators and a digital display showing 'h0n'

Cooking 1H 10M LEFT AUDIO 5 MIN STOP Current program PROGRAMS Conventional 256°C 751 Protein 32 M In 20m Officiency Protein XOFFI EDIT DETAILS →

3. AVANT DE COMMENCER

3.1. INFORMATIONS POUR COMMENCER

SET SOUND

So Un

PRESS TO CONFIRM

• INSTRUCTIONS D'APRÈS INSTALLATION

Simple line drawing of a kitchen sink with a hand cleaning the interior and a water bottle labeled H20 (no text or symbols on main objects)

MAX °C 60 min

Simple line drawing of a kitchen appliance with steam rising, next to an open refrigerator (no text or symbols)

4. FONCTIONNEMENT DU PRODUIT

4.1. FONCTIONNEMENT DU PRODUIT

MISE EN MARCHE/ARRÊT DU FOUR

Hand icon demonstrating a touch screen with wireless connectivity icons and a smart lock symbol

MENU FONCTION

Hand interacting with a touchscreen device displaying icons (no text or symbols visible)

3°C 80 DEMO

New Jolly Function Torta ai 3 cioccolati Step 1 Preheat No > Cooking program Comforted > Temperature 190°C > Duration 5th 45m > Note It's again, and easy to make up the silrinics, it's nice and creamy (without using heavy cream), and it's always so crazy and comforting and delicious. ADD STEP USE AS JOLLY FUNCTION SAVE RECIPE

Sacher Torta Torta ai tre cioccolati EEXT Single Step Preheat Yes: 100 °C Cooking program & temperature Conventional: 100 °C Duration In 55cm Note It's quick and easy to make on the stavetop. It's nice and creamy (without using heavy cream), and it's always so cozy and comforting and delicious. START JOLLY FUNCTION

ARE you sure you want to delete the Jolly Function section? By doing this action all data will be fun... CANCEL YES, CONFIRM

Diagram of a mechanical component with an arrow indicating rotation (no text or symbols)

Simple line drawing of a rectangular object with a curved cutout and an arrow pointing to it (no text or symbols)

EN CHARGE CHARGÈ

Simple line drawing of a chicken with a fork and leaf (no text or symbols)

Hand interacting with a digital timer and control buttons, showing time display and icons for app functions.

Hand interacting with a digital interface showing icons for settings, navigation, and control buttons

180°C

180°C

180°C

Astuces de cuisson

17:23 Own Ready No program scheduled DELAY START START NOW Last Favorites PROGRAMS Frozen thin pizza 200 1.5m DETAILS → Upstart New Search Review Tools

17:24 Clear Ready My program at heartland CHANGE START START History Last Forward Box Properties Create this place Current Book Value Guided creating session Multi-Load

Start a cooking session with Bionic Vision Check 'Bionic Vision Recipes' to discover which foods are recognized by Bionic Vision and make sure to replicate the suggested layout of the food. START NOW Latest recipes(2) BIONIC VISION RECIPES Frozen thin pizza Frozen thin pizza DETAILS → DETAILS →

Which type of food do you want to cook? Bread & Pasta Sweet Bakery Savoury Tarts & Pies Pizza & Focaccia NEXT

17:01 Bionc Vision × Pre-heating in progress Wait for pre-heating... Before putting in the food, you have to wait for the preheating process to end. You can also access the display screen and browse freely; you will receive a notification when pre-heating is finished. GO TO DASHBOARD

(*) 0:100 180°

17:09 M Blenic Vision Food analysis I am analysing the food. Wait a few seconds please...

17:10:04 Bionic Vision Recipe found Frozen thin pizza BionicVision function Cooking Time: 13 minutes Temperature: 200 °C INCORRECT RECIPE LAUNCH PROGRAMME

(*) hON OU

00:03 180°

Line drawing of an oven with internal grating and a blue arrow indicating airflow direction (no text or symbols)

TEMPS PRÉDÉFINI

Illustration of a hand cleaning a window with a blue cloth (no text or symbols)

H2O-Clean

Line drawing of a door opening with two hands inserting a blue clip (no text or symbols)

Simple line drawing of a mechanical component with a blue arrow indicating downward motion (no text or symbols)

45° 1 2

Pure technical line drawing of a mechanical component with no text or symbols

Diagram showing a hand pressing a star-shaped object on a rectangular panel, with an exclamation mark and warning triangle (no text or symbols)

Hand holding a diagonal line with a blue circle highlighting the intersection of lines (no text or symbols present)

Line drawing of a window frame with a hand holding a tool, no text or symbols present

Diagram showing a hand using a tool to stop a cable, with no text or symbols present.

Pure diagram of a rectangular object with internal lines and a curved line, no text or symbols present

Illustration of a hand cleaning a tiled surface with a blue cloth and a water bottle labeled H₂O (no text or symbols on the main image)

PYRO OR LOW-E BIONIC VISION (*)

Simple line drawing of a window frame with an angled panel and directional arrows indicating motion (no text or symbols)

Line drawing of a kitchen appliance with two hands inserting a blue tool into the opening (no text or symbols)

Illustration of a blue tool interacting with a mechanical component, showing a downward arrow (no text or symbols)

Line drawing of a hand holding a small object with a blue circle highlighting the object (no text or symbols present)

Line drawing of a hand holding a tool near a window frame (no text or symbols)

6.3. NETTOYAGE DES ACCESSOIRES

Diagram showing electrical connections with a plug, warning symbol, and circuit breaker labeled 'ÊTEINT'

Étape 2

Hand holding a circular object with a blue checkmark inside an oven (no text or symbols visible)

Étape 3

Illustration of a hand holding a CD inside a washing machine, with a blue arrow indicating the process (no text or symbols present)

Étape 4

Illustration of a hand pressing down on a circular component with an upward arrow (no text or symbols)

Étape 5

Line drawing of a hand holding a circular object inside an oven (no text or symbols)

Étape 6

ALLUME

Diagram of a washing machine with two circular components, one showing internal structure and the other with a pointer (no text or symbols)

Electrical warning diagram showing a plug with fuse and warning symbol, alongside an electrical panel labeled 'ÉTEINT' with directional arrows.

Étape 2

Illustration of a hand using a tool to clean or store items, with a magnified inset showing the process (no text or symbols present)

Étape 3

Illustration of a hand inserting a small electrical component into a cabinet (no text or symbols)

Étape 4

Illustration of a hand inserting a component into a device (no text or symbols visible)

Étape 5

Diagram of a mechanical assembly with a magnified inset showing a component (no text or symbols present)

Étape 6

Electrical hazard warning diagram showing a plug, safety symbol, and ALLUME circuit breaker with directional arrows

Diagram illustrating a chemical process with an airfoil and a gas collection bottle, showing step-by-step steps.

8. PROTECTION DE L'ENVIRONNEMENT ET ÉLIMINATION

8.1. ÉLIMINATION DE L'APPAREIL

Isometric line drawing of a multi-level refrigerator with internal compartments and drawers (no text or symbols)

OR Bumper Bumper

BENVENUTI

Illustration of a blue-handled tool with a downward arrow indicating compression or disassembly (no text or symbols)

Diagram of a multi-level oven with numbered parts for identification

2.2 ACCESSORI

Griglia metallica

STOP STOP

3D diagram of a rectangular tray with internal geometric patterns, placed inside an oven (no text or symbols)

Empty white rectangle with black border (no text or symbols)

3D technical line drawing of a rectangular tray or basin with internal partitioning, placed inside an oven (no text or symbols)

Technical line drawing of a laboratory apparatus with a round-bottom flask, mesh chamber, and wall-mounted platform (no text or symbols)

Line drawing of a two-tiered modular bed structure with horizontal and vertical metal supports (no text or symbols)

Line drawing of a kitchen appliance with a rectangular tray and grid pattern (no text or symbols)

Two line drawings of medical or laboratory instruments: a pen and a curved tube (no text or symbols)

Diagram of a microwave oven with a tray and lid, showing internal structure without any text or symbols.

Simple line drawing of a door with a circular icon and motion arrow, no text or symbols present

Line drawing of a rooster on a cutting board with dough and steam (no text or symbols)

Pure technical line drawing of a mechanical clamp or bracket assembly without any text, numbers, or symbols

Simple line drawing of a rectangular box with a blue horizontal stripe at the bottom (no text or symbols)

Available on the App Store GET IT ON Google Play

Welcome! Sign in to enter in your home page ENTER REGISTER Are you new to hOn? Click below to learn about our products TRY DEMO

Do you already have a thousand passwords? Register with your social accounts and log in in the easiest and fastest way. SIGN UP WITH GOOGLE SIGN UP WITH APPLE SIGN UP WITH FACEBOOK No information relating to you will be shared and you will not past anything from you. Sign UP WITH EMAIL Already registered? LOGIN

Hello USERNAME YOUR APPLIANCES ADD + Add appliance YOUR WIDGETS Your NEWS What functions do smart appliances have? How to live sustain home and reduce w

Passo 2

Allow your location permission

To enhance your experience, please allow location permission to hOn app in the next step.

CONTINUE

Passo 3

Select your appliance category

Search your appliance

Washing machine

Washer dryer

Tumble dryer

Dishwasher

Air conditionair

Air purifier

Air scanner

Passo 4

Appliance connection

Turn OFF and then ON your appliance

In case you can't switch CFF your appliance, unplug (for at least 10 seconds) and then plug its power supply.

Circular icon with a blue 'Power' button surrounded by abstract geometric shapes (no text or symbols)

OK, I DID IT

Passo 5

Appliance connection Searching your appliance Don't turn off your Bluetooth. On app is looking for your appliance... 00:00:40 Stay close to your appliance in order to correlly capture the signal.

Passo 6.1-6.2

Appliance connection Searching your appliance Don't turn off your Bluetooth. Oven New appliance Long appliance name to... CONNECT PRODUCT NOT FOUND Appliance connection Searching your appliance Don't turn off your Bluetooth. Oven Connecting... New appliance Long appliance name to... Stay close to your appliance in order to correctly capture the signal.

Passo 7

Your appliance has been correctly identified! Brand and Hoover Model 31008486-7888-1824 Serial number 12345678-1234-1234 Is this your appliance? YES IT'S MY OVEN NO IT'S NOT

Hand interacting with a control panel showing icons for temperature, humidity, and sound levels

-5t CHANGE STATUS

OFF

CONTROLLO DA REMOTO

Hand interacting with a touchscreen display showing status indicators and a 'CON' button

ON

hON

hON

Cooking 1H:10M/LEFT ADD:5 MIN STOP Current programs PROGRAMS Conventional 200°C 171 (Physical [216]) 31.30m 0.5 cm/day Protein (OFF) EDIT DETAILS →

3. PRIMA DI COMINCIARE

IMPOSTARE L'ORA

07:00 PREMERE

07:00

IMPOSTARE I MINUTI

07:45

PREMERE PER CONFERMARE

PREMERE PER CONFERMARE

6hr, 9:30

PREMERE PER CONFERMARE

PREMERE PER CONFERMARE

Simple line drawing of a kitchen sink with a hand cleaning the interior and a bottle labeled H20 nearby (no text or symbols on main elements)

MAX °C 60 min

Simple line drawing of a cabinet with swirling smoke and a cabinet door (no text or symbols)

4. USO DEL PRODOTTO

Hand icon pointing at a circular button with a sun symbol, next to a digital interface panel (no text or symbols on the hand or screen)

MENU FUNZIONE

Hand interacting with a touchscreen device displaying icons (no text or symbols on the device)

Digital display screen showing a hand interacting with a numeric keypad and control icons, including clock, timer, and lock symbols.

New Jolly Function Torta ai 3 cioccolati Step 1 Preheat No > Cooking program Completed > Temperature 180°C > Duration 1h-45m > Note It's look and may be made on the stents of it's nice and creamy (without using heavy cream), and it's always so easy and comforting and delicious. ADD STEP USE AS JOLLY FUNCTION SAVE RECIPE

Sacher Torta Torta ai tre cioccolati EEXT Single Step Preheat Yes: 100 °C Cooking program & temperature Conventional: 100 °C Duration In 55m Note It's quick and easy to make on the stavetop. It's nice and creamy (without using heavy cream), and it's always so cozy and comforting and delicious. START JOLLY FUNCTION

ARE you sure you want to delete the Jolly Function section? By doing this action all data will be fun... CANCEL YES, CONFIRM

Diagram of a mechanical component with an arrow indicating rotation (no text or symbols)

Simple line drawing of a rectangular object with a curved cutout and an arrow pointing to it (no text or symbols)

IN CARICA CARICO

Simple line drawing of a chef's hat and coat (no text or symbols)

Hand interacting with a digital timer and control panel showing time, battery, and function icons

Hand interacting with a touchscreen device displaying icons and a timer, likely for digital interface control

180°C

180°C

180°C

Consigli di cottura

Illustration of a pen writing on a bone next to a cartoon dog (no text or symbols)

Ready No program scheduled SCHEDULE START Last Favorites PROGRAMS Conventional 250°C 1h 30m Fast P/heat (OFF) Probe (OFF) EDIT DETAILS → 0:00 Access Recycle Speed P/put Discover Help

Ready No program scheduled SCHEDULE START Last Favorites PROGRAMS Conventional Caners Guided cook Pre Italian Apache Maps Special Producers Discover More

PreciTaste Start a cooking session with PreciTaste This feature allows, thanks to a special intelligence, to recognize recipes stored inside the oven. START NOW Last recipes (5) ALL RECIPES Juniaper and beer- braised beef PIS Quinoa with olives and sun-dried... DETAILS → DETAILS → 000

PreciTaste Which type of food do you want to cook? Meat and poultry Stews Seafood Balance NEXT

PreciTaste Rendering Time D4.5P Pre-heating in progress Wait pre-heat... Before inserting the food you have to wait for the preheat process to end. You can also go to the dashboard and browse freely, when pre-heating is over you will receive a notification. GO TO DASHBOARD

PreciTaste Food analysis I am analyzing the food. Wait a few seconds...

PreciTaste Recipe found Honey Garlic Glazed Salmon Preci Bake Function Cooking time 25 minutes Temperature 100 °C Probe OFF > By cooking this recipe with the probe, the duration may change according to the target temperature. CHECK OTHER RECIPES LAUNCH PROGRAM

HON

Line drawing of an oven with a rack inside, showing internal structure and airflow direction (no text or symbols)

PREIMPOSTARE ORA

Hand cleaning a kitchen appliance with a blue cloth (no text or symbols visible)

H2O Clean

Warning symbol with warning triangle, lightning bolt, and triangular warning symbol in a diagram

Illustration of a hand cleaning a window with a blue cloth (no text or symbols)

Pulizia catalitica

Line drawing of an oven with a rack and cooling unit, showing internal structure without any text or symbols

MAX 30°C 10-20 min

Warning symbol diagram with warning triangle, lightning bolt, and triangular warning symbol

Simple line drawing of a kitchen sink with a hand cleaning the interior and a bottle labeled H20 nearby (no text or symbols on main elements)

6.2.2. ESTERNO DEL FORNO: SMONTAGGIO E PULIZIA DELLA PORTA IN VETRO

Line drawing of hands operating a doorbell with a lid, no text or symbols present

Pure technical diagram showing a mechanical component with a blue arrow indicating direction (no text or symbols)

45° 1 2

Pure technical line drawing of a mechanical component with no text or symbols

Diagram showing a hand pressing a star-shaped object on a mechanical component with an exclamation mark (no text or symbols present)

Hand holding a tool with a blue prohibition symbol (no text or labels)

Line drawing of a hand holding a blue circle with a diagonal line, pointing to a small object on a wooden panel (no text or symbols)

Diagram showing a hand using a tool to adjust or install a component, with no visible text or symbols.

Pure diagram of a mechanical component with no text, numbers, or symbols

Illustration of a hand cleaning a blue cloth over a plate with a water bottle and beaker labeled H₂O (no text or symbols on main objects)

PYRO OR LOW-E BIONIC VISION (*)

Simple line drawing of a window frame with an openboard and directional arrows indicating movement (no text or symbols)

Line drawing of a kitchen oven with two hands inserting a blue tool into the opening (no text or symbols)

Diagram showing a blue tool interacting with a mechanical component, no text or symbols present

Line drawing of a hand holding a small object with a blue circle highlighting the object (no text or symbols present)

Line drawing of a hand holding a tool near a window frame (no text or symbols)

6.3. PULIZIA DEGLI ACCESSORI

Safety warning diagram showing a plug connected to an electrical outlet, with warning symbol and OFF button

Passo 2

Hand inserting a paper into an oven with a circular arrow indicating rotation (no text or symbols)

Passo 3

Illustration of a hand holding a CD inside a washing machine with a blue arrow indicating the process (no text or symbols present)

Passo 4

Illustration of a hand holding a circular object inside a washing machine, with an upward arrow indicating motion (no text or symbols)

Passo 5

Line drawing of a hand holding a circular object inside an oven, with no visible text or symbols

Passo 6

Diagram showing electrical components including a plug, warning symbol, and ON/OFF switch with directional arrows

Diagram of a washing machine with two circular components and a magnified inset showing internal structure (no text or symbols)

Electrical diagram showing a plug, warning symbol, and OFF button with directional arrows

Passo 2

Illustration of a hand using a tool to clean or store items, with a magnified inset showing the process (no text or symbols present)

Passo 3

Illustration of a hand inserting a small component into a device, with no visible text or symbols.

Passo 4

Illustration of a hand inserting a component into a device (no text or symbols present)

Passo 5

Diagram of a mechanical assembly with a magnified inset showing a component detail (no text or symbols)

Passo 6

Electrical safety warning diagram showing plug, ON panel, and warning symbol with blue arrows indicating direction

Diagram of a mechanical device with blue motion lines and an arrow indicating direction (no text or symbols)

Simple line drawing of a kitchen oven with a hand cleaning the interior and a water bottle labeled H20 nearby (no text or symbols on main objects)

Isometric line drawing of a multi-level refrigerator with drawers and shelves (no text or symbols)

OR Bumper Bumper

BIENVENIDO/A

Illustration of a blue-handled pen with a downward arrow pointing to it (no text or symbols)

Diagram of an oven with numbered components for identification

2.2. ACCESORIOS

Rejilla metálica

DETENER DETENER

3D diagram of a rectangular tray with internal compartments, no text or symbols present

Empty white rectangle with a thin black border (no text or symbols)

3D rendering of a rectangular plastic tray with internal compartments (no text or symbols)

Line drawing of a kitchen sink with a bowl, tray, and wall (no text or symbols)

Line drawing of a two-tiered storage rack system with no text or symbols

Technical line drawing of a rectangular tray with internal grid pattern (no text or symbols)

Two line drawings of pen tips, one plain and one with a curved cable (no text or symbols)

Diagram of a rectangular appliance with internal grating and lid, placed inside a rack (no text or symbols)

Simple line drawing of a kitchen appliance with a circular icon showing airflow or vibration (no text or symbols)

Line drawing of a roasted chicken on a cutting board (no text or symbols)

Simple line drawing of a mechanical device with a lever and base, no text or symbols present

Simple line drawing of a cabinet or shelf with a blue horizontal bar and a rectangular top (no text or symbols)

Available on the App Store GET IT ON Google Play

Welcome! Sign in to enter in your home page ENTER REGISTER Are you new to hOn? Click below to learn about our products TRY DEMO hOn Do you already have a thousand passwords? Register with your social accounts and log in in the easiest and fastest way. SIGN UP WITH GOOGLE SIGN UP WITH APPLE SIGN UP WITH FACEBOOK No information relating to you will be shared, and we will not post anything from you. OR SIGN UP WITH EMAIL Already registered? LOGIN

REGISTRO RÁPIDO PARA EMPAREJAMIENTO

Paso 1

Hello USERNAME YOUR APPLIANCES ADD Non Virtual Wine Bank second row 2 bottles there is a second row Add appliance YOUR WIDGETS I recommend your driver website. Your NEWS What functions do smart appliances have? How to live sustaine home and reduce w.

Paso 2

Allow your location permission To enhance your experience, please allow location permission to hOn app in the next step. CONTINUE

Paso 3

Select your appliance category Search your appliance Washing machine Washer dryer Tumble dryer Dishwasher Air conditionair Air purifier Air scanner

Paso 4

Appliance connection Turn OFF and then ON your appliance In case you can't switch OFF your appliance, unplug (for at least 10 seconds) and then plug its power supply. OK. I DID IT

Paso 5

Appliance connection Searching your appliance Don't turn off your Bluetooth. hOn app is looking for your appliance... 00:00:40 Stay close to your appliance in order to correctly capture the signal.

Paso 6.1-6.2

Appliance connection Searching your appliance Don't turn off your Bluetooth. Oven New appliance Long appliance name to... CONNECT PRODUCT NOT FOUND

Appliance connection Searching your appliance Don't turn off your Bluetooth. Oven Connecting... New appliance Long appliance name to... Stay close to your appliance in order to correctly capture the signal.

Paso 7

Appliance connection Your appliance has been correctly identified! Brand Hoover Model 31008486-7888-1824 Serial number 12345678-1234-1234 Is this your appliance? YES IT'S MY OVEN NO IT'S NOT

Hand interacting with a touchscreen device displaying status indicators and a timer reading 'ON'

Hand interacting with a touchscreen device displaying 'CON' and control buttons, with icons for Wi-Fi and timer.

ON

600 hON

i ii hON

Cooking SH 10M LEFT ADD 5 MIN STOP Current program PROGRAMS Conventional 200°C 30.50m 10 Packout (PK) Efficiency Protein (PK) EDIT DETAILS →

Simple line drawing of a kitchen sink with a hand cleaning the interior and a water bottle labeled H20 (no text or symbols on main objects)

°C MÁX. 60 min

Simple line drawing of a window with a door and swirling blue smoke, no text or symbols present

Hand interacting with a touchscreen icon and a digital interface panel (no text or symbols)

MENÚ DE FUNCIONES

Hand interacting with a touchscreen device displaying various icons (no text or symbols visible)

New Jolly Function Torta ai 3 cioccolati Step 1 Preheat No > Cooking program Conventional > Temperature 100 °C > Duration 10-45cm > Note It's pickled and easy to make your place at the top of the kitchen. It's nice and creamy (without using heavy cream) and it's always so easy and comforting and delicious. ADD STEP USE AS JOLLY FUNCTION SAVE RECIPE

Sacher Torta Torta ai tre cioccolati EDIT Single Step Preheat Yes, 180 °C Cooking program & temperature Conventional, 180 °C Duration 1h 55m Note It's quick and easy to make on the stovetop. It's nice and creamy (without using heavy cream), and it's always so crazy and comforting and delicious. START JOLLY FUNCTION

OVEN U-CREATE MY RECIVES JOLLY FUNCTION CLEAR 1 Jolly Function DELETE Are you sure you want to delete the Jolly Function section? By doing this action all data will be kns. CANCEL YES, CONFIRM

Diagram of a mechanical component with an arrow indicating rotation (no text or symbols)

Simple line drawing of a rectangular object with a blue arrow pointing to it, no text or symbols present.

CARGANDO CARGADO

Simple line drawing of a chicken with a fork (no text or symbols)

Hand interacting with a digital control panel showing time, seconds, and icons

Hand interacting with a touchscreen device interface showing icons and a numeric display

180°

180°C

180°C

Consejos de cocción

Illustration showing a pen writing on a bone next to a simplified illustration of a chicken (no text or symbols present)

Ready No program scheduled SCHEDULE START Last Favorites PROGRAMS Conventional 350°C 1h 30m Fast Preheat (OFF) Probe (OFF) EDIT DETAILS → 0:00 Applicator Kitchen Digital Kitchen Dissever Main

OVEN Ready Not programs scheduled! SCHEDULE START Last Favorites PROGRAMS Conventional Camera Guided cook Precitute Customers Recipes Special Peaks Discover Help

PreciTaste Start a cooking session with PreciTaste This feature allows, thanks to a special intelligence, to recognize recipes stored inside the oven. START NOW Last recipes (5) ALL RECIPES Juniaper and beer- braised beef FIS Quinoa with olives and sun-dried... DETAILS → DETAILS → 000

PreciTaste Which type of food do you want to cook? Meat and poultry Stews Seafood Poultry NEXT

PreciTaste Rearing time 04.59 Pre-heating in progress Wait pre-heat... Before inserting the food you have to wait for the preheat process to end. You can also go to the dashboard and browse freely, when pre-heating is over you will receive a notification. GO TO DASHBOARD

PreciTaste Food analysis I am analyzing the food. Wait a few seconds...

PreciTaste Recipe found Honey Garlic Glazed Salmon Preci Bake Function Cooking time 25 minutes Temperature 500 °C Probe OFF > By cooking this recipe with the probe, the duration may change according to the target temperature. CHECK OTHER RECIPES LAUNCH PROGRAM

hON

Line drawing of an oven with a blue arrow indicating airflow or movement (no text or symbols)

TIEMPO PREESTABLECIDO

Illustration of a hand cleaning a window with a blue cloth (no text or symbols)

H₂O Cleaning

Warning symbol diagram with warning triangle, lightning bolt, and triangular warning symbol

Illustration of a hand cleaning a window with a cloth (no text or symbols)

Limpieza catalítica

Line drawing of hands operating a door with blue tool tips (no text or symbols)

Simple line drawing of a mechanical component with a blue arrow indicating downward motion (no text or symbols)

45° 1 2

Pure technical line drawing of a mechanical component with no text or symbols

Diagram showing a hand holding a star-shaped object with an arrow, next to a warning triangle (no text or symbols)

Illustration of a hand holding a horizontal line with a blue circle highlighting the intersection point (no text or symbols present)

Line drawing of a hand holding a blue circle with a diagonal line, pointing at a small object on a wall (no text or symbols)

Diagram showing a hand holding a tool with a blue circle highlighting the tool area, alongside a mechanical component (no text or symbols present)

Simple line drawing of a folded paper or sheet with a dashed outline and diagonal lines, no text or symbols present.

Illustration of a hand cleaning a blue cloth over a plate with a water bottle and bowl labeled H₂O (no text or symbols on main objects)

PYRO O LOW-E BIONIC VISION (*)

Pure technical line drawing of a mechanical component with arrows indicating direction (no text or symbols)

Line drawing of a double-bowel oven with two hands inserting blue probes (no text or symbols)

Simple line drawing of a hand holding a small object, no text or symbols present

Simple line drawing of a tool interacting with a wall-mounted device (no text or symbols)

Illustration of a hand holding a tool near a vehicle (no text or symbols visible)

Safety warning diagram showing a plug connected to an electrical outlet with a warning symbol and OFF button

Paso 2

Hand holding a circular object with a blue arrow inside, next to an open oven (no text or symbols visible)

Paso 3

Illustration of a hand holding a circular object with a blue arrow pointing downward, next to an open refrigerator (no text or symbols)

Paso 4

Illustration of a hand holding a circular object with a blue arrow pointing upward, next to an open kitchen appliance (no text or symbols)

Paso 5

Hand holding a circular object with a blue arrow inside, next to an open oven (no text or symbols visible)

Paso 6

Safety warning diagram showing a plug and fuse with hazard symbol and ON/OFF switch symbols

Diagram of a washing machine with circular components and a magnified view showing internal structure (no text or symbols)

Diagram illustrating a chemical process: before washing a stove, after cleaning it with a spray bottle.

Isometric line drawing of a multi-level cabinet or rack unit with internal compartments and structural elements (no text or symbols)

Paragolpes Paragolpes

ΚΑΛΩΣΗΡΘΑΤΕ

Simple line drawing of a blue-handled tool with a black downward arrow indicating compression or drag (no text or symbols)

Technical diagram of an oven with numbered components for identification

Blank white rectangle with a thin black border (no text or symbols)

3D rendering of a rectangular plastic tray with internal compartments (no text or symbols)

3D diagram of a rectangular tray with internal geometric patterns, placed on a shelf (no text or symbols)

Line drawing of a two-tiered bed layout with horizontal supports (no text or symbols)

Line drawing of a rectangular tray with a grid pattern on the side, placed inside a storage unit (no text or symbols)

Technical line drawing of a kitchen sink with a bowl and a circular object (no text or symbols)

Two line drawings of pen tips: one simple and one curved, both without any text or symbols.

Diagram of a rectangular appliance with internal grating pattern, no text or symbols present

Simple line drawing of a rolling pin on a rectangular plate with steam rising (no text or symbols)

Simple line drawing of a mechanical device with a lever and base, no text or symbols present

Simple line drawing of a kitchen appliance with a circular button and directional arrow (no text or symbols)

Simple line drawing of a rectangular box with a small rectangle inside and a blue horizontal line at the bottom (no text or symbols)

Available on the App Store GET IT ON Google Play

ΕΓΓΡΑΦΗ ΝΕΟΥ ΧΡΗΣΤΗ

Welcome! Sign in to enter in your home page ENTER REGISTER Are you new to hOn? Click below to learn about our products TRY DEMO hOn Do you already have a thousand passwords? Register with your social accounts and log in in the easiest and fastest way. SIGN UP WITH GOOGLE SIGN UP WITH APPLE SIGN UP WITH FACEBOOK No regularization relating to you will be shared, and we will not get anything from you. OR SIGN UP WITH EMAIL Already registered? LOGIN

Hello USERNAME YOUR APPLIANCES ADD 50% Virtual Wine Bank second row 2 bottles there is a second row Add appliance YOUR WIDGETS I am not ipsum dollar sikiest Smart lnc of new YOUR NEWS What functions do smart appliances have? How to live sustain: home and reduce w.

Βήμα 2

Allow your location permission

To enhance your experience, please allow location permission to hOn app in the next step.

CONTINUE

Βήμα 3

Select your appliance category

Search your appliance

Washing machine

Washer dryer

Tumble dryer

Dishwasher

Air conditionair

Air purifier

Air scanner

Βήμα 4

Appliance connection

Turn OFF and then ON your appliance

In case you can't switch OFF your appliance, unplug (for at least 10 seconds) and then plug its power supply.

Circular icon with a blue 'Power' button and surrounding geometric shapes, no text or symbols present.

Βήμα 5

Appliance connection Searching your appliance Don't turn off your Bluetooth. hOn app is looking for your appliance... 00:00:40 Stay close to your appliance in order to correctly capture the signal.

Βήμα 6.1-6.2

Appliance connection Searching your appliance Don't turn off your Bluetooth. Oven New appliance Long appliance name to... CONNECT PRODUCT NOT FOUND

Appliance connection Searching your appliance Don't turn off your Bluetooth. Oven Correcting... New appliance Long appliance name to... Stay close to your appliance in order to correctly capture the signal.

Βήμα 7

Appliance connection Your appliance has been correctly identified! Brand Hoover Model 31008486-7888-1824 Serial number 12345678-1234-1234 Is this your appliance? YES IT'S MY OVEN NO IT'S NOT

Hand interacting with a touchscreen device displaying status indicators and a timer reading 'ON'

Hand interacting with a touchscreen display showing status icons and 'CON' text

ON

6.288 hON

Hand interacting with a touchscreen display showing 'hON' and control icons

Cooking SH 10MLEFT ADD 5 MIN STOP Current program PROGRAMS Conventional 200°C 30.30m SH Product (DM) Efficiency Product (DFT) EDIT DETAILS →

Hand interacting with a touchscreen icon and a digital interface panel (no text or symbols)

MENOY ΛΕΙΤΟΥΡΓΙΩΝ

Hand interacting with a touchscreen display showing icons like Wi-Fi, cloud, and smart grid (no text or symbols)

3°C 80 DEMO

New Jolly Function Torta ai 3 cioccolati Step 1 Preheat No > Cooking program Conventional > Temperature 100 °C > Duration 1h-85m > Note It quick and easy to make on the stopwatch. It's nice and creamy (without using heavy cream) and it's always so noisy and comforting and delicious. ADD STEP USE AS JOLLY FUNCTION SAVE RECIPE

Sacher Torta Torta ai tre cioccolati EDIT Single Step Preheat Yes, 180 °C Cooking program & temperature Conventional, 180 °C Duration 1h 55m Note It's quick and easy to make on the stovetop, it's nice and creamy (without using heavy cream), and it's always so cozy and comforting and delicious. START JOLLY FUNCTION

OVEN U-CREATE MY RECINES JOLLY FUNCTION CLEAR 1 Jolly Function DELETE Are you sure you want to delete the Jolly Function section? By doing this action all data will be kuL. CANCEL YES CONFIRM

Simple line drawing showing a pen and a bread roll with bone structure (no text or symbols)

Ready No program scheduled SCHEDULE START Last Favorites PROGRAMS Conventional 350°C Fast Preheat (OFF) 1h 25m Probe (OFF) EDIT DETAILS → Appearance Review Special Features Preview Help Ready No program scheduled SCHEDULE START Last Favorites PROGRAMS Conventional Camera Guided cuts PreciTaste Applicator Review Special Features Preview Help Start a cooking session with PreciTaste This feature allows, thanks to a special intelligence, to recognize recipes stored inside the oven. START NOW Last recipes (5) ALL RECIPES Juniaper and beer- braised beef Quinoa with olives and sun-dried... DETAILS DETAILS → 000

PreciTaste Which type of food do you want to cook? Meat and poultry Stews Seafood NEXT

PreciTaste Remaining time 04:37 Pre-heating in progress Wait pre-heat... Before inserting the food you have to wait for the preheat process to end. You can also go to the dashboard and browse freely, when pre-heating is over you will receive a notification. GO TO DASHBOARD

PreciTaste Food analysis I am analyzing the food. Wait a few seconds...

PreciTaste Recipe found Honey Garlic Glazed Salmon Preci Bake Function Cooking time: 25 minutes Temperature 500 °C Probe By cooking this recipe with the probe, the duration may change according to the target temperature. CHECK OTHER RECIPES LAUNCH PROGRAM

HON

Line drawing of a door opening with two hands adjusting the lid (no text or symbols)

Simple line drawing of a mechanical component with a blue arrow indicating downward motion (no text or symbols)

45° 1 2

Pure technical line drawing of a mechanical component with no text or symbols

Diagram showing a hand holding a star-shaped object with an exclamation mark and warning symbol (no text or labels)

Illustration of a hand holding a horizontal line with a blue circle highlighting the intersection point (no text or symbols present)

Line drawing of a hand holding a blue circle with a diagonal line, pointing to a small object on a surface (no text or symbols)

Diagram showing a hand holding a cable with a magnified inset (no text or symbols)

Simple line drawing of a rectangular object with internal lines and a dashed outline, no text or symbols present.

Illustration of a hand cleaning a blue cloth over a plate with a water bottle and a steaming bowl labeled H₂O (no text or symbols on main objects)

PYRO H LOW-E BIONIC VISION (*)

Technical line drawing of a structural support frame with arrows indicating direction (no text or symbols)

Line drawing of hands operating a door frame with blue tool pins (no text or symbols)

Line drawing of a hand holding a small object with a blue circle highlighting the object (no text or symbols present)

Simple line drawing of a tool interacting with a small object, no text or symbols present

Line drawing of a hand holding a tool near a window, with no visible text or symbols

* μόνο αν υπάρχει

6.3. ΚΑΘΑΡΙΣΜΌΣ ΕΞΑΡΤΗΜΪΑΤΩΝ

Safety warning diagram showing a plug on a line with a warning symbol and OFF button

Βήμα 2

Illustration of a hand using a tool to clean or store items, with a magnified inset showing the process (no text or symbols)

Βήμα 3

Illustration of a hand inserting a small component into a device (no text or symbols visible)

Βήμα 4

Illustration of a hand inserting a plug into a device, with no visible text or symbols

Βήμα 5

Diagram of a cabinet or rack with an inset showing a labeled component (no text or symbols present)

Βήμα 6

Safety warning diagram showing a plug connected to an ON panel with warning symbol and directional arrows

Diagram showing a kitchen cleaning process with a warning triangle and a hand cleaning the oven, including a water bottle and dish.

Isometric line drawing of a multi-level cabinet or rack unit with internal compartments and drawers (no text or symbols)

H Профулактήρας Профулактήρας

WELKOM

2. PRODUCTINTRODUCTIE

2.1. OVERZICHT VAN HET PRODUCT
2.2. ACCESSOIRES
2.3. BEDIENINGSPANEEEL
2.4. CONNECTIVITEIT

3. VOORDAT U BEGINT

3.1. INFORMATIE OM TE BEGINNEN
3.2. EERSTE GEBRUIK
3.3. VOORAFGAANDE REINIGING

4. WERKING VAN HET PRODUCT

4.1. HOE HET PRODUCT WERKT
4.2. KOOKFUNCTIES
4.2.1. STANDAARDFUNCTIES
4.2.2. SPECIALE FUNCTIONS
4.2.3. MEERSTAPPENFUNCTIE

ALGEMENE WAARSCHUWINGEN

INSTALLATIEWAARSCHUWINGEN

Illustration of a blue-handled tool with a black downward arrow pointing to it (no text or symbols)

2. PRODUCTINTRODUCTIE

2.1. OVERZICHT VAN HET PRODUCT

Diagram of an oven with numbered parts for identification

2.2. ACCESSOIRES Metalen rooster

STOP STOP

3D diagram of a rectangular tray with internal geometric patterns, placed on a shelf (no text or symbols)

Illustration of a rectangular tray with internal compartments, placed inside a storage unit (no text or symbols)

Line drawing of a kitchen sink with a bowl, a round bed, and a side shelf (no text or symbols)

Line drawing of a two-tiered storage unit with horizontal shelves and a central shelf (no text or symbols)

Technical diagram showing a rectangular device with internal grid lines and Chinese text labels on its surface.

Two line drawings of pen tips: one with a pointed tip and the other with a curved cable (no text or symbols)

Illustration of a rectangular appliance with a grid pattern on top, placed inside a transparent housing (no text or symbols)

Simple line drawing of a kitchen appliance with a circular label and directional arrow (no text or symbols)

Line drawing of a roasted chicken on a cutting board with a rolling pin (no text or symbols)

Simple line drawing of a mechanical device with a lever and base, no text or symbols present

Simple line drawing of a rectangular box with a small rectangle inside and a blue horizontal line at the bottom (no text or symbols)

Available on the App Store GET IT ON Google Play

REGISTRATIE NIEUWE GEBRUIKER

Welcome! Sign in to enter in your home page ENTER REGISTER Are you new to hOn? Click below to learn about our products TRY DEMO hOn Do you already have a thousand passwords? Register with your social accounts and log in in the easiest and fastest way. SIGN UP WITH GOOGLE SIGN UP WITH APPLE SIGN UP WITH FACEBOOK No information relating to you will be shared, and we will not post anything from you. OR SIGN UP WITH EMAIL Already registered? LOGIN

SNELLE KOPPELING

Stap 1

Hello USERNAME YOUR APPLIANCES ADD Non Virtual Wine Bank second row 2 bottles there is a second row Add appliance YOUR WIDGETS I love you can do your website. Your NEWS What functions do smart appliances have? How to live sustain home and reduce w.

Stap 2

Appliance connection Searching your appliance Don't turn off your Bluetooth. hOn app is looking for your appliance.. 00:00:40 Stay close to your appliance in order to correctly capture the signal.

Stap 6.1–6.2

Appliance connection Searching your appliance Don't turn off your Bluetooth. Oven New appliance Long appliance name to... CONNECT PRODUCT NOT FOUND

Appliance connection Searching your appliance Don't turn off your Bluetooth. Oven Correcting... New appliance Long appliance name to... Stay close to your appliance in order to correctly capture the signal.

Stap 7

Appliance connection Your appliance has been correctly identified! Brand Hoover Model 31008486-7888-1824 Serial number 12345678-1234-1234 Is this your appliance? YES IT'S MY OVEN NO IT'S NOT

Hand interacting with a touchscreen device displaying status indicators and a timer reading 'ON'

Hand interacting with a touchscreen display showing status icons and 'CON' text

ON 8

hON

i ii hON

Cooking SH 10M LEFT ADD 5 MIN STOP Current program PROGRAMS Conventional 200°C SH 30m SH: Pricet (CM) Efficiency Pricet (DFF) EDIT DETAILS →

3. VOORDAT U BEGINT

3.1. INFORMATIE OM TE BEGINNEN

Illustration of a kitchen sink with a hand cleaning the interior and a water bottle labeled H2O (no text or symbols on main objects)

MAX °C 60 mi n.

Line drawing of a window with a swirling blue smoke rising from a cabinet (no text or symbols)

4. WERKING VAN HET PRODUCT

4.1. HOE HET PRODUCT WERKT

DE OVEN AAN-/UITZETTEN

Hand interacting with a touchscreen icon and a digital interface panel (no text or symbols)

FUNCTIEMENU

Hand interacting with a digital interface displaying a grid of icons (no text or symbols)

Digital display interface showing clock icons and numeric display with '88' and 'DE' labels

New Jolly Function Torta ai 3 cioccolati Step 1 Preheat No > Cooking program Compañited > Temperature 180 °C > Duration In-65m > Note It's quick, and easy to make on the covers. It's nice and creamy (without using heavy cream), and it's always so crazy and comforting and delicious. ADD STEP USE AS JOLLY FUNCTION SAVE RECIPE

Sacher Torta Torta ai tre cioccolati EDIT Single Step Preheat Yes, 180°C Cooking program & temperature Conventional, 180°C Duration 1h 55m Note It's quick and easy to make on the stovetop, it's nice and creamy (without using heavy cream), and it's always so cozy and comforting and delicious. START JOLLY FUNCTION

OVEN U-CREATE MY RECIPES JOLLY FUNCTION CLEAR $1 Jolly Function DELETE Are you sure you want to delete the Jolly Function section? By doing this action all data will be kuL. CANCEL YES CONFIRM

Simple line drawing of a mechanical component with an arrow indicating rotation (no text or symbols)

Simple line drawing of a rectangular object with a blue arrow pointing to it, no text or symbols present.

OPLADEN OPGELADEN

Simple line drawing of a chicken with a fork (no text or symbols)

Hand interacting with a digital control panel showing time, battery, and function icons

Hand interacting with a touchscreen device displaying icons and a numeric display showing 0, 1, and 2.

180°

180°C

180°C

Kooktips

Illustration showing a pen writing on a bone next to a simplified illustration of a chicken (no text or symbols present)

Ready No program scheduled SCHEDULE START Last Favorites PROGRAMS Conventional 350°C 1h 30m Foot Preheat (OFF) Probe (OFF) EDIT DETAILS → Appliance Review Digital Features Disperse Max

OVEN Ready Not programs scheduled! SCHEDULE START Last Favorites PROGRAMS Conventional Camera Guided audio Precipitate Customers Recipes Special Features Discover More

PreciTaste Start a cooking session with PreciTaste This feature allows, thanks to a special intelligence, to recognise recipes stored inside the oven. START NOW Last recipes (5) ALL RECIPES Juniaper and beer- braised beef FIS Quinoa with olives and sun-dried... DETAILS → DETAILS → Ques and 600

PreciTaste Which type of food do you want to cook? Meat and poultry Stews Seafood Poultry NEXT

PreciTaste Rerushing time 04.59 Pre-heating in progress Wait pre-heat... Before inserting the food you have to wait for the preheat process to end. You can also go to the dashboard and browse freely, when pre-heating is over you will receive a notification. GO TO DASHBOARD

PreciTaste Food analysis I am analyzing the food. Wait a few seconds...

PreciTaste Recipe found Honey Garlic Glazed Salmon Preci Bake Function Cooking time 25 minutes Temperature 500 °C Probe OFF > By cooking this recipe with the probe, the duration may change according to the target temperature. CHECK OTHER RECIPES LAUNCH PROGRAM

hON

Line drawing of a laboratory oven with cooling unit and side panel (no text or symbols)

VOORAF INGESTELDE TIJD

Illustration of a hand cleaning a window with a cloth (no text or symbols)

H2O Clean

Line drawing of hands operating a door-shaped oven with blue tool tips (no text or symbols)

Simple line drawing of a mechanical component with a blue arrow indicating downward motion (no text or symbols)

45° 1 2

Pure technical line drawing of a mechanical component with no text or symbols

Diagram showing a hand holding a star-shaped object with an exclamation mark and warning triangle (no text or symbols)

Illustration of a hand holding a horizontal line with a blue circle highlighting the intersection point (no text or symbols present)

Line drawing of a hand holding a blue circle with a diagonal line, pointing to a small object on a vertical surface (no text or symbols)

Diagram showing a hand holding a cable with a blue circle highlighting the cable (no text or symbols present)

Simple line drawing of a folded paper or sheet with a dashed outline and internal lines, no text or symbols present.

Illustration of a hand cleaning a tiled surface with a blue cloth and a water bottle labeled H₂O (no text or symbols on the main image)

PYRO OF LOW-E BIONIC VISION (*)

Technical line drawing of a mechanical assembly with arrows indicating motion direction (no text or symbols)

Line drawing of a door opening with hands holding blue tools (no text or symbols)

Line drawing of a hand holding a small object with a blue circle highlighting the object (no text or symbols present)

Simple line drawing of a tool interacting with a mechanical component (no text or symbols)

Line drawing of a hand holding a tool near a window frame (no text or symbols)

Safety warning diagram showing a plug connected to an electrical outlet with a warning symbol and 'OFF' label

Stap 2

Hand holding a circular object with a blue arrow inside, next to an open oven (no text or symbols visible)

Stap 3

Illustration of a hand holding a circular object with a blue arrow pointing downward, next to an open appliance (no text or symbols)

Stap 4

Illustration of a hand holding a circular device with an upward arrow, next to a washing machine (no text or symbols)

Stap 5

Hand holding a circular object with a blue arrow inside, next to an open oven (no text or symbols visible)

Stap 6

Electrical diagram showing a plug connected to a switch with warning symbol and ON/OFF indicators

Diagram of a washing machine with circular components and a magnified view showing internal components (no text or symbols)

Safety warning diagram showing a plug on a line with a warning symbol and OFF button

Stap 2

Illustration of a hand using a tool to clean or store items, with a magnified inset showing the process (no text or symbols)

Stap 3

Illustration of a hand inserting a small component into a device (no text or symbols visible)

Stap 4

Illustration of a hand inserting a plug into a device, with no visible text or symbols

Stap 5

Diagram of a cabinet or rack with an inset showing a labeled component (no text or symbols present)

Stap 6

Safety warning diagram showing a plug connected to an ON panel with warning symbol and directional arrows

Diagram illustrating a cleaning or dust removal process with labeled components and warning symbols

8.1. VERWIJDERING VAN APPARATEN

Isometric line drawing of a multi-level cabinet or rack unit with internal compartments and structural elements (no text or symbols)

Illustration of a blue-handled tool with a downward arrow indicating compression or reduction (no text or symbols)

Diagram of an oven with numbered parts for identification and assembly reference

2.2. ACESSÓRIOS

Grade metálica

PARAF PARAR

3D diagram of a rectangular tray with internal geometric patterns, placed on a shelf (no text or symbols)

Empty white rectangle with black border (no text or symbols)

Illustration of a rectangular tray with internal compartments, no text or symbols present

Line drawing of a kitchen sink with a bowl and a circular object, no text or symbols present

Line drawing of a two-tiered storage rack system with no text or symbols

Two line drawings of medical or laboratory instruments: a pen and a curved tool (no text or symbols)

Diagram of a rectangular tray with a grid pattern, no text or symbols present

Diagram of a rectangular appliance with internal grating and lid, placed inside a rack (no text or symbols)

Simple line drawing of a kitchen appliance with a circular icon and motion arrow (no text or symbols)

Line drawing of a rooster on a cutting board with steam rising (no text or symbols)

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Simple line drawing of a cabinet or shelf with a rectangular top and blue horizontal stripe at the bottom (no text or symbols)

Available on the App Store GET IT ON Google Play

Welcome! Sign in to enter in your home page ENTER REGISTER Are you new to hOn? Click below to learn about our products TRY DEMO hOn Do you already have a thousand passwords? Register with your social accounts and log in in the easiest and fastest way. SIGN UP WITH GOOGLE SIGN UP WITH APPLE SIGN UP WITH FACEBOOK No informational relating to you will be shared and we will not press anything from you. OR SIGN UP WITH EMAIL Already registered? LOGIN

Hello USERNAME YOUR APPLIANCES ADD Non Virtual Wine Bank second row 2 bottles there is a second row Add appliance YOUR WIDGETS I am empty do best sell Scan to care your news What functions do smart appliances have? How to live sustain home and reduce w.

Passo 2

Allow your location permission

To enhance your experience, please allow location permission to hOn app in the next step.

CONTINUE

Passo 3

Select your appliance category

Search your appliance

Washing machine

Washer dryer

Tumble dryer

Dishwasher

Air conditionair

Air purifier

Air scanner

Passo 4

Appliance connection

Turn OFF and then ON your appliance

In case you can't switch OFF your appliance, unplug (for at least 10 seconds) and then plug its power supply.

Circular icon with a blue 'Power' button and surrounding geometric shapes, no text or symbols present.

Passo 5

Appliance connection Searching your appliance Don't turn off your Bluetooth. hOn app is looking for your appliance... 00:00:40 Stay close to your appliance in order to correctly capture the signal.

Passo 6.1-6.2

Appliance connection Searching your appliance Don't turn off your Bluetooth. Oven New appliance Long appliance name to... CONNECT PRODUCT NOT FOUND

Appliance connection Searching your appliance Don't turn off your Bluetooth. Oven Connecting... New appliance Long appliance name to... Stay close to your appliance in order to correctly capture the signal.

Passo 7

Appliance connection Your appliance has been correctly identified! Brand Hoover Model 31008486-7888-1824 Serial number 12345678-1234-1234 Is this your appliance? YES IT'S MY OVEN NO IT'S NOT

COMO ALTERAR AS DEFINIÇÕES DE WIFI

Hand interacting with a touchscreen device displaying status indicators and a timer reading 'ON'

ALTERAR ESTADO

OFF

CONTROLO REMOTO

Hand interacting with a touchscreen display showing status indicators and 'CON' text

ON 8

hON

6hr, 9:4_

DEFINIR LUMINOSIDADE

br, 9:3

PREMIR PARA CONFIRMAR

Simple line drawing of a kitchen sink with a hand cleaning the interior and a water bottle labeled H2D (no text or symbols on main objects)

MÁX °C 60 min

Line drawing of a window with a swirling blue smoke rising from a cabinet (no text or symbols)

Hand interacting with a touchscreen icon and a digital interface panel (no text or symbols)

MENU FUNÇÕES

Hand interacting with a touchscreen device displaying various icons (no text or symbols visible)

Digital display screen showing time and weather icons with a hand pointing to the 88:00 mark

New Jolly Function Torta ai 3 cioccolati Step 1 Preheat No > Cooking program Commercial > Temperature 180 °C > Duration 5h-45m > Note In quick, and easy to make up the storystep, it's nice and creamy (all about using heavy cream), and it's always so crazy and comforting and delicious. ADD STEP USE AS JOLLY FUNCTION SAVE RECIPE

Sacher Torta Torta ai tre cioccolati EDIT Single Step Preheat Yes, 180 °C Cooking program & temperature Conventional, 180 °C Duration 1h 5pm Note It's quick and easy to make on the stovetop. It's nice and creamy (without using heavy cream), and it's always so cozy and comforting and delicious. START JOLLY FUNCTION

OVEN RECEIROS U-CREATE MY RECIPES JOLLY FUNCTION CLEAR 1 Jolly Function DELETE Are you sure you want to delete the Jolly Function section? By doing this action all data will be kxL. CANCEL YES CONFIRM

Simple line drawing of a mechanical component with an arrow indicating rotation (no text or symbols)

Simple line drawing of a rectangular object with a blue arrow pointing to it, no text or symbols present.

A CARREGAR CARREGADO

Como registar e utilizar a Preci Probe:

Simple line drawing of a chicken with a fork (no text or symbols)

Hand interacting with a digital control panel showing time, battery, and function icons

Hand interacting with a touchscreen device displaying icons and a numeric display showing 0:00

180°

180°C

180°C

Dicas de cozinha

Illustration of a pen writing on a bone next to a cartoon dog (no text or symbols)

Ready No program scheduled SCHEDULE START Last Favorites PROGRAMS Conventional 350°C 1h 30m Foot Preheat (OFF) Probe (OFF) EDIT DETAILS → Appliance Review Digital Features Dissever Max

OVEN Ready Not programs scheduled! SCHEDULE START Last Favorites PROGRAMS Conventional Camera Guided audio Precipitate Customers Recipes Special Features Discover More

PreciTaste Start a cooking session with PreciTaste This feature allows, thanks to a special intelligence, to recognise recipes stored inside the oven. START NOW Last recipes (5) ALL RECIPES Juniaper and beer- braised beef FIS Quinoa with olives and sun-dried... DETAILS → DETAILS → Ques and 600

PreciTaste Which type of food do you want to cook? Meat and poultry Stews Seafood Poultry NEXT

PreciTaste Remaining time 04:57 Pre-heating in progress Wait pre-heat... Before inserting the food you have to wait for the preheat process to end. You can also go to the dashboard and browse freely, when pre-heating is over you will receive a notification. GO TO DASHBOARD

PreciTaste Food analysis I am analyzing the food. Wait a few seconds...

PreciTaste Recipe found Honey Garlic Glazed Salmon Preci Bake Function Cooking time: 25 minutes Temperature 100 °C Probe By cooking this recipe with the probe, the duration may change according to the target temperature. CHECK OTHER RECIPES LAUNCH PROGRAM

HON

Line drawing of an oven with a blue arrow indicating airflow or movement (no text or symbols)

PRE-DEFIN A HORA

Hand cleaning a blue cloth inside a washing machine (no text or symbols visible)

H2O Clean

Warning symbol diagram with warning triangle, lightning bolt, and triangular warning symbol

Hand cleaning a blue cloth inside a kitchen appliance (no text or symbols visible)

Limpeza catalítica

Line drawing of hands operating a door with blue tool tips (no text or symbols)

Simple line drawing of a mechanical component with a blue arrow indicating downward motion (no text or symbols)

45° 1 2

Pure technical line drawing of a mechanical component with no text or symbols

Diagram showing a hand holding a star-shaped object with an exclamation mark and warning triangle (no text or symbols)

Illustration of a hand holding a horizontal line with a blue circle highlighting the intersection point (no text or symbols present)

Line drawing of a hand holding a blue circle with a diagonal line, pointing to a small object on a surface (no text or symbols)

Diagram showing a hand holding a cable with a magnified inset (no text or symbols)

Simple line drawing of a folded paper or sheet with a dashed outline and internal lines, no text or symbols present.

Illustration of a hand cleaning a tiled surface with a blue cloth and a water bottle labeled H₂O (no text or symbols on the main image)

PYRO OU LOW-E BIONIC VISION (*)

Simple line drawing of a ladder leaning against a wall, with arrows indicating direction (no text or symbols)

Line drawing of a cabinet with two hands operating it, showing internal structure and opening (no text or symbols)

Line drawing of a hand holding a small object with a blue circle highlighting the symbol (no text or symbols present)

Simple line drawing of a hand holding a tool near a small object, with no text or symbols present.

Line drawing of a hand holding a tool near a vehicle (no text or symbols)

Line drawing of a wall-mounted rack or ladder structure with no text or symbols

Diagram of a vertical ladder structure with directional arrows indicating movement (no text or symbols)

Hand placing a rectangular panel with black connectors into a corner, showing a blue directional arrow (no text or symbols)

H₂O

Hand holding a transparent rack with a 40-degree angle indicator (no text or symbols on the rack itself)

Diagram of a vertical panel with horizontal bands and directional arrows indicating movement (no text or symbols)

6.4. MANUTENÇÃO

Safety warning diagram showing a plug connected to an electrical outlet with a warning symbol and 'OFF' label

Passo 2

Hand holding a circular object with a blue arrow inside, next to an open oven (no text or symbols visible)

Passo 3

Illustration of a hand holding a circular object with a blue arrow pointing downward, next to an open refrigerator (no text or symbols)

Passo 4

Illustration of a hand holding a circular object with a blue arrow pointing upward, next to an open kitchen appliance (no text or symbols)

Passo 5

Hand holding a circular object with a blue arrow inside, next to an open oven (no text or symbols visible)

Passo 6

Safety warning diagram showing a plug and fuse with hazard symbol and ON/OFF switch symbols

Diagram of a washing machine with a circular component and a magnified view showing internal components (no text or symbols)

Safety warning diagram showing a plug on a line with hazard symbol and OFF button

Passo 2

Illustration of a hand using a tool to clean or store items, with a magnified inset showing the process (no text or symbols)

Passo 3

Illustration of a hand inserting a small component into a device, with no visible text or symbols.

Passo 4

Illustration of a hand inserting a plug into a device, with an arrow indicating the insertion direction (no text or symbols present)

Passo 5

Diagram of a cabinet or rack with an inset showing a labeled component (no text or symbols present)

Passo 6

Safety warning diagram showing a plug connected to an ON panel with warning symbol and directional arrows

Diagram illustrating a chemical process with a downward arrow and a cleaning device, showing environmental change before and after cleaning.

Isometric line drawing of a multi-level cabinet or rack unit with internal compartments and drawers (no text or symbols)

OU Rodapé Rodapé

VITAJTE

Diagram of an oven with numbered parts for identification and assembly reference

2.2. PRÍSLUŠENSTVO

Kovový rošt

STOP STOP

3D diagram of a rectangular tray with internal geometric cutouts, placed inside a storage unit (no text or symbols)

Empty white rectangle with black border (no text or symbols)

3D diagram of a rectangular container with internal compartments, no text or symbols present

Line drawing of a kitchen sink with a bowl and a round pan (no text or symbols)

Line drawing of a two-tiered storage rack or shelf system (no text or symbols)

Line drawing of a rectangular tray with a patterned lid and grid lines, no text or symbols present.

Two line drawings of pen tips: one with a pointed tip, the other with a curved cable (no text or symbols)

Illustration of a rectangular appliance with a grid pattern on the lid, placed inside a rack (no text or symbols)

Simple line drawing of a kitchen appliance with a circular diagram showing airflow or vibration (no text or symbols)

Line drawing of a roasted chicken on a cutting board with steam rising (no text or symbols)

Simple line drawing of a mechanical device with a lever and base, no text or symbols present

Simple line drawing of a rectangular frame with a central rectangle and a blue horizontal bar at the bottom (no text or symbols)

AKO KOMUNIKOVAŤ S APLIKÁCIOU

Available on the App Store GET IT ON Google Play

REGISTRÁCIA NOVÉHO POUŽÍVATELA

Welcome! Sign in to enter in your home page ENTER REGISTER Are you new to hOn? Click below to learn about our products TRY DEMO hOn Do you already have a thousand passwords? Register with your social accounts and log in in the easiest and fastest way. SIGN UP WITH GOOGLE SIGN UP WITH APPLE SIGN UP WITH FACEBOOK No information relating to you will be shared and we will not post anything from you. ! SIGN UP WITH EMAIL Already registered? LOGIN

RÝCHLE PÁROVANIE

Krok 1

Hello USERNAME YOUR APPLIANCES Add Add appliance Hos Virtual Wine Bank second row 3 bottles there is a second row YOUR WIDGETS Lemoniquem dollar street NEW YOUR NEWS What functions do smart appliances have? How to live sustain home and reduce w

Krok 2

- Povol'te lokalizáciu zariadenia.

Allow your location permission

To enhance your experience, please allow location permission to hOn app in the next step.

CONTINUE

Krok 3

• Vyberte rúru z kategórie spotrebičov.

Select your appliance category

Search your appliance

Washing machine

Washer dryer

Tumble dryer

Dishwasher

Air conditionair

Air purifier

Air scanner

Krok 4

- Zapnite spotrebič. Ak už je zapnutý, vypnite ho a znova zapnite.

Appliance connection

Turn OFF and then ON your appliance

In case you can't switch OFF your appliance, unplug (for at least 10 seconds) and then plug its power supply.

Circular icon with a blue 'Power' button surrounded by abstract geometric shapes (no text or symbols)

OK, I DID IT

Krok 5

Appliance connection Searching your appliance Don't turn off your Bluetooth. hOn app is looking for your appliance... 00:00:40 Stay close to your appliance in order to correctly capture the signal.

Krok 6.1-6.2

Appliance connection Searching your appliance Don't turn off your Bluetooth. Oven New appliance Long appliance name to... CONNECT PRODUCT NOT FOUND

Appliance connection Searching your appliance Don't turn off your Bluetooth. Oven Connecting... New appliance Long appliance name to... Stay close to your appliance in order to correctly capture the signal.

Krok 7

Appliance connection Your appliance has been correctly identified! Brand Hoover Model 31008486-7888-1824 Serial number 12345678-1234-1234 Is this your appliance? YES IT'S MY OVEN NO IT'S NOT

AKO ZMENIŠ NASTAVENIA WI-FI

Hand interacting with a touchscreen display showing status indicators and time control icons

ZMENIŠ STAV

OFF

DIALKOVÉ OVLÁDANIE

Hand interacting with a touchscreen display showing icons for Wi-Fi, buttons, and a 'CON' button

ON 8

hON

Hand interacting with a touchscreen device displaying 'hON' and control icons including Wi-Fi, alarm, and function buttons.

Cooking SH 10M LEFT ADD 5.1WIN STOP Current program PROGRAMS Conventional 200°C Sh 30m SL: Product (DM) Efficiency Product (DFR) EDIT DETAILS -4

3. PRED ZAČATÍM

3.1. INFORMÁCIE PRED SPUSTENÍM

Simple line drawing of a kitchen sink with a hand cleaning the interior and a water bottle labeled H2D (no text or symbols on main objects)

MAX °C 60 min.

Simple line drawing of a window with a door open and swirling blue smoke or vapor rising from the chimney (no text or symbols)

4. OBSLUHA SPOTREBIČA

4.1. FUNGOVANIE SPOTREBIČA

ZAPNUTIE/VYPNUTIE RÚRY

Hand interacting with a touchscreen icon and a digital interface panel (no text or symbols)

PONUKA FUNKCIÍ

Hand interacting with a touchscreen interface displaying smart grid icons and a square button

Digital display screen showing time and weather icons with a hand pointing to the 88:00 mark

New Jolly Function Torta ai 3 cioccolati Step 1 Preheat No. Cooking program Conventional Temperature 180 °C Duration In 65m Note It's quick and easy to make an offer shop. It's nice and creamy (without using heavy creams) and it's always necessary and comforting and delicious. ADD STEP USE AS JOLLY FUNCTION SAVE RECIPE

Ako nastavit funkciu Jolly:

Sacher Torta Torta ai tre cioccolati EDIT Single Step Preheat Yes, 180 °C Cooking program & temperature Conventional, 180 °C Duration 1h 55m Note It's quick and easy to make on the stovetop, it's nice and creamy (without using heavy cream), and it's always so cozy and comforting and delicious. START JOLLY FUNCTION

OVEN U-CREATE MY RECIPES JOLLY FUNCTION CLEAR $ Jolly Function DELETE Are you sure you want to delete the Jolly Function section? By doing this action all data will be kuL. CANCEL YES CONFIRM

Simple line drawing of a mechanical component with an arrow indicating rotation (no text or symbols)

Simple line drawing of a rectangular object with a curved cutout and a blue arrow pointing to it (no text or symbols)

NABÍJANIE NABITÁ

Simple line drawing of a chicken with a fork (no text or symbols)

Hand interacting with a digital control panel showing time, battery, and function icons

Hand interacting with a digital interface showing a finger pressing a button labeled '0:15' and icons for function buttons.

180°C

180°C

180°C

Tipy na varenie

Illustration showing a pen and a simplified chicken being cut (no text or symbols)

PreciTaste Which type of food do you want to cook? Meat and poultry Stews Seafood Bento Next

PreciTaste Rearing time 04.59 Pre-heating in progress Wait pre-heat... Before inserting the food you have to wait for the preheat process to end. You can also go to the dashboard and browse freely, when pre-heating is over you will receive a notification. GO TO DASHBOARD

PreciTaste Food analysis I am analyzing the food. Wait a few seconds...

PreciTaste Recipe found Honey Garlic Glazed Salmon Preci Bake Function Cooking time 25 minutes Temperature 500 °C Probe OFF > By cooking this recipe with the probe, the duration may change according to the target temperature. CHECK OTHER RECIPES LAUNCH PROGRAM

hON

Line drawing of a laboratory oven with cooling unit and side panel (no text or symbols)

PREDNASTAVENÝ ČAS

Illustration of a hand cleaning a window with a blue cloth (no text or symbols)

H2O Cleaning

Line drawing of hands operating a door-shaped oven with blue tool tips (no text or symbols)

Simple line drawing of a mechanical component with a blue arrow indicating downward motion (no text or symbols)

45° 1 2

Pure technical line drawing of a mechanical component with no text or symbols

Diagram showing a hand holding a star-shaped object with an exclamation mark and warning symbol (no text or labels)

Illustration of a hand holding a horizontal line with a blue circle highlighting the intersection point (no text or symbols present)

Line drawing of a hand holding a blue circle with a diagonal line, pointing to a small object on a surface (no text or symbols)

Diagram showing a hand holding a cable with a blue circle highlighting the cable (no text or symbols present)

Simple line drawing of a folded paper or sheet with a dashed outline and internal lines, no text or symbols present.

Illustration of a hand cleaning a tiled surface with a blue cloth and a water bottle labeled H₂O (no text or symbols on the main subject)

PYRO ALEBO LOW-E BIONIC VISION (*)

Simple line drawing of a ladder leaning against a wall, with arrows indicating direction (no text or symbols)

Illustration of hands operating a small oven with blue tool tips (no text or symbols)

Line drawing of a hand holding a small object with a blue circle highlighting the hand (no text or symbols present)

Simple line drawing of a hand holding a tool near a wall, with no text or symbols present.

Line drawing of a hand holding a tool near a vehicle (no text or symbols)

Line drawing of a oven with internal airflow arrows (no text or symbols)

Diagram of two open oven units with directional arrows indicating circulation or movement (no text or symbols)

Illustration of a hand cleaning a rack with a cloth, next to a water bottle labeled H₂O (no text or symbols on the main subject)

Diagram showing two open oven units with internal airflow arrows, no text or symbols present

Line drawing of an oven with a rack inside, showing internal structure (no text or symbols)

Line drawing of a 3D cabinet or rack unit with vertical metal panels and two black connectors (no text or symbols)

Diagram of a wall-mounted rack or shelf with a blue curved arrow indicating rotation (no text or symbols)

Hand holding a wall-mounted device with a blue arrow indicating direction (no text or symbols)

H₂O

Hand holding a transparent panel with a blue arrow pointing to it, no text or symbols present

Diagram of a vertical rack-mounted device with a blue arrow indicating rotation (no text or symbols)

6.4. ÚDRŽBA

VÝMENA KOMPONENTOV

Safety warning diagram showing a plug with three leads and a hazard symbol indicating safety risk.

Krok 2

Hand holding a circular object with a blue arrow inside, next to an open oven (no text or symbols visible)

Krok 3

Illustration of a hand holding a circular object with a blue arrow pointing downward, next to an open kitchen appliance (no text or symbols)

Krok 4

Illustration of a hand holding a circular device with a blue arrow pointing upward, next to an open appliance (no text or symbols)

Krok 5

Hand holding a circular object with a blue arrow inside, next to an open oven (no text or symbols visible)

Krok 6

Safety warning diagram showing a plug and fuse with hazard symbol and ON/OFF switch symbols

Diagram of a washing machine with a circular component and a magnified view showing internal components (no text or symbols)

Electrical hazard warning diagram showing a plug connected to a circuit breaker with a warning symbol and safety indicators.

Krok 2

Illustration of a hand using a tool to clean or store items, with a magnified inset showing the process (no text or symbols)

Krok 3

Illustration of a hand inserting a small component into a device, with no visible text or symbols

Krok 4

Illustration of a hand inserting a component into a device (no text or symbols visible)

Krok 5

Diagram of a cabinet or rack with an inset showing a labeled component (no text or symbols present)

Krok 6

Electrical warning diagram showing a plug connected to an ON panel with a warning symbol and blue arrows indicating direction.

Diagram illustrating a chemical process with a downward arrow and a cleaning device, showing removal of a bottle labeled 'K20'.

8. OCHRANA ŽIVOTNÉHO PROSTREDIA A LIKVIDÁCIA SPOTREBIČA

8.1. LIKVIDÁCIA SPOTREBIČA

Isometric line drawing of a multi-level cabinet or rack unit with internal compartments and drawers (no text or symbols)

ALEBO Nárazník Nárazník

WITAMY

Illustration of a blue-handled tool with a black downward arrow indicating compression or disassembly (no text or symbols)

Diagram of an oven with numbered parts for identification and assembly reference

Empty white rectangle with a thin border (no text or symbols)

STOP STOP

3D diagram of a rectangular container with internal compartments, no text or symbols present

3D diagram of a rectangular tray with internal compartments, no text or symbols present

Line drawing of a two-tiered storage bed layout with no text or symbols

Line drawing of a rectangular tray with a grid pattern on the top surface, placed inside a rack (no text or symbols)

Technical line drawing of a kitchen sink with a bowl and circular component (no text or symbols)

Two line drawings of medical or laboratory tools: a pen and a curved tube, both without any text or symbols.

Diagram of a rectangular appliance with internal grating and lid, placed inside an oven (no text or symbols)

Line drawing of a roasted chicken on a cutting board with dough and steam (no text or symbols)

Simple line drawing of a mechanical device mounted on a base plate (no text or symbols)

Simple line drawing of a kitchen appliance with a circular diagram showing airflow or vibration (no text or symbols)

Simple line drawing of a two-panel cabinet or rack with a blue horizontal bar at the bottom (no text or symbols)

INFORMACJE O PRODUKCIE DOT. URZĄDZEŃ SIECIOWYCH

Available on the App Store GET IT ON Google Play

Welcome! Sign in to enter in your home page ENTER REGISTER Are you new to hOn? Click below to learn about our products TRY DEMO hOn Do you already have a thousand passwords? Register with your social accounts and log in in the easiest and fastest way. SIGN UP WITH GOOGLE SIGN UP WITH APPLE SIGN UP WITH FACEBOOK No information relating to you will be shared and we will not post anything from you. OR SIGN UP WITH EMAIL Already registered? LOGIN

SZYBKA REJESTRACJA PAROWANIA

Krok 1

Hello USERNAME YOUR APPLIANCES ADD Non Virtual Wine Bank second row 2 bottles there is a second row Add appliance YOUR WIDGETS I recommend you do best sell out New to Care Your NEWS What functions do smart appliances have? How to live sustain: home and reduce w.

Krok 2

Allow your location permission To enhance your experience, please allow location permission to hOn app in the next step. CONTINUE

Krok 3

Select your appliance category Search your appliance Washing machine Washer dryer Tumble dryer Dishwasher Air conditionair Air purifier Air scanner

Krok 4

Turn OFF and then ON your appliance In case you can't switch OFF your appliance, unplug (for at least 10 seconds) and then plug its power supply. OK.I DID IT

Krok 5

Appliance connection Searching your appliance Don't turn off your Bluetooth. hOn app is looking for your appliance... 00:00:40 Stay close to your appliance in order to correctly capture the signal.

Krok 6.1-6.2

Appliance connection Searching your appliance Don't turn off your Bluetooth. Oven New appliance Long appliance name to... CONNECT PRODUCT NOT FOUND

Appliance connection Searching your appliance Don't turn off your Bluetooth. Oven Correcting... New appliance Long appliance name to... Stay close to your appliance in order to correctly capture the signal.

Krok 7

Appliance connection Your appliance has been correctly identified! Brand Hoover Model 31008486-7888-1824 Serial number 12345678-1234-1234 Is this your appliance? YES IT'S MY OVEN NO IT'S NOT

JAK ZMIENIĆ USTAWIENIA WIFI

Hand interacting with a touchscreen display showing status indicators and time control icons

ZMIEŃ STATUS

OFF

ZDALNE STEROWANIE

Hand interacting with a touchscreen device displaying 'CON' and control buttons, with icons for Wi-Fi and timer.

ON

8 hON

i ii hON

Cooking SH 10M LEFT ADD 5 MIN STOP Current program PROGRAMS Conventional 200°C Sh 30m 10 Product (CM) Efficiency Product (DFR) EDIT DETAILS →

3. PRZED URUCHOMIENIEM

3.1. INFORMACJE NA START

Simple line drawing of a kitchen sink with a hand cleaning the interior and a water bottle labeled H2O (no text or symbols on main objects)

MAKS. °C 60 min

Simple line drawing of a window with a door open and swirling cloud-like lines above (no text or symbols)

4. DZIAŁANIE PRODUKTU

4.1. JAK DZIAŁA PRODUKT

WŁĄCZANIE/WYŁĄCZANIE PIEKARNIKA

Hand interacting with a touchscreen icon and a digital interface panel (no text or symbols)

MENU FUNKCJI

Hand interacting with a touchscreen interface (no text or symbols visible)

New Jolly Function Torta ai 3 cioccolati Step 1 Preheat No. > Cooking program Conventional > Temperature 150 °C > Duration 5h45m > Note It's quick and easy to arrive on the islanding, it's nice and creamy health using heavy cream, and it's always so crazy and comforting and delicious. ADD STEP USE AS JOLLY FUNCTION SAVE RECIPE

Sacher Torta Torta ai tre cioccolati EDIT Single Step Preheat Yes, 180 °C Cooking program & temperature Conventional, 180 °C Duration 1h 55m Note It's quick and easy to make on the stovetop, it's nice and creamy (without using heavy cream), and it's always so cozy and comforting and delicious. START JOLLY FUNCTION

OVEN U-CREATE MY RECIPES JOLLY FUNCTION CLEAR $ Jolly Function DELETE Are you sure you want to delete the Jolly Function section? By doing this action all data will be kuL. CANCEL YES CONFIRM

Diagram of a mechanical component with an arrow indicating rotation (no text or symbols)

Simple line drawing of a rectangular object with a blue arrow pointing to it, no text or symbols present.

ŁADOWANIE NAŁADOWANY

Simple line drawing of a chicken with a fork (no text or symbols)

Hand interacting with a digital control panel showing time, seconds, and icons for app status or function

Hand interacting with a touchscreen device interface showing icons for settings, navigation, and control buttons

180°

180°C

180°C

Illustration showing a pen writing on a bone next to a simplified illustration of a chicken (no text or symbols present)

Ready No program scheduled SCHEDULE START Last Favorites PROGRAMS Conventional 350°C 1h 30m Fast Preheat (OFF) Probe (OFF) EDIT DETAILS → 000 Appliance Review Digital Features Dissever Max

Ready Not programs scheduled SCHEDULE START Last Favorites PROGRAMS Conventional Camera Guided cook Precitute Accessories Recipes Special Supplies Discover More

PreciTaste Start a cooking session with PreciTaste This feature allows, thanks to a special intelligence, to recognise recipes stored inside the oven. START NOW Last recipes (5) ALL RECIPES Juniaper and beer- braised beef FIS Quinoa with olives and sun-dried... DETAILS → DETAILS → 600

PreciTaste Which type of food do you want to cook? Meat and poultry Stews Seafood Poultry NEXT

PreciTaste Remaining time: 04:57 Pre-heating in progress Wait pre-heat... Before inserting the food you have to wait for the preheat process to end. You can also go to the dashboard and browse freely, when pre-heating is over you will receive a notification. GO TO DASHBOARD

PreciTaste Food analysis I am analyzing the food. Wait a few seconds...

PreciTaste Recipe found Honey Garlic Glazed Salmon Preci Bake Function Cooking time: 25 minutes Temperature $80 °C Probe By cooking this recipe with the probe, the duration may change according to the target temperature. CHECK OTHER RECIPES LAUNCH PROGRAM

HON

Line drawing of a 3D oven with internal grating and cooling unit (no text or symbols)

USTAWIONY CZAS

Hand cleaning a kitchen appliance with a blue cloth (no text or symbols visible)

H₂O cleaning

Line drawing of hands operating a door with blue tool tips (no text or symbols)

Simple line drawing of a mechanical component with a blue arrow indicating downward motion (no text or symbols)

45° 1 2

Pure technical line drawing of a mechanical component with no text or symbols

Diagram showing a hand holding a star-shaped object with an exclamation mark and warning triangle (no text or symbols)

Illustration of a hand holding a horizontal line with a blue circle highlighting the intersection point (no text or symbols present)

Line drawing of a hand holding a blue circle with a diagonal line, pointing to a small object on a surface (no text or symbols)

Diagram showing a hand holding a cable with a blue circle highlighting the cable (no text or symbols present)

Simple line drawing of a folded paper or sheet with a dashed-line pattern on the cover (no text or symbols)

Illustration of a hand cleaning a tiled surface with a blue cloth and a water bottle, no text or symbols present.

PYRO LUB LOW-E BIONIC VISION (*)

Technical line drawing of a mechanical assembly with arrows indicating motion direction (no text or symbols)

Line drawing of a door opening with hands holding blue tools (no text or symbols)

Line drawing of a hand holding a small object with a blue circle highlighting the symbol (no text or labels present)

Simple line drawing of a mechanical component with a blue tool and arrow indicating direction (no text or symbols)

Line drawing of a hand holding a tool near a window frame (no text or symbols)

Pure technical line drawing of a vertical ladder-like structure without any text, numbers, or symbols

Diagram of a wall-mounted rack with a blue curved arrow indicating rotation (no text or symbols)

Hand holding a transparent panel with a 40-degree angle indicator (no text or symbols)

H₂O

Hand holding a transparent panel with a blue arrow pointing to it, no text or symbols present

Diagram of a vertical panel mounted on a wall, with an arrow indicating rotation (no text or symbols present)

6.4. KONSERWACJA

WYMIANA KOMPONENTÓW

Safety warning diagram showing a plug connected to an electrical outlet with a warning symbol and 'OFF' label

Krok 2

Hand holding a circular object with a blue arrow inside, next to an open oven (no text or symbols visible)

Krok 3

Illustration of a hand holding a circular object with a blue arrow pointing downward, next to an open appliance (no text or symbols)

Krok 4

Illustration of a hand holding a circular object with a blue arrow pointing upward, next to an open kitchen appliance (no text or symbols)

Krok 5

Hand placing a circular object into an oven with a blue arrow indicating rotation (no text or symbols)

Krok 6

Diagram showing electrical connections with a plug, warning symbol, and ON/OFF switch symbols

Diagram of a washing machine with a circular component and a magnified view showing internal components (no text or symbols)

Safety warning diagram showing a plug connected to a circuit breaker with a warning symbol and electrical hazard symbol.

Krok 2

Illustration of a hand using a tool to clean or store items, with a magnified inset showing the process (no text or symbols)

Krok 3

Illustration of a hand inserting a small component into a device (no text or symbols visible)

Krok 4

Illustration of a hand inserting a component into a device (no text or symbols visible)

Krok 5

Diagram of a cabinet or rack with an inset showing a labeled component (no text or symbols present)

Krok 6

Safety warning diagram showing a plug connected to an ON panel with warning symbol and directional arrows

Illustration showing a kitchen cleaning process: dropping leaves from a stove to clean the oven with a hand cleaning the interior (no text or symbols)

8. OCHRONA ŚRODOWISKA I UTYLIZACJA ODPADÓW

8.1. UTYLIZACJA URZĄDZENIA

Isometric line drawing of a multi-level cabinet or rack unit with internal compartments and drawers (no text or symbols)

LUB Zderzak Zderzak

VÍTEJTE

Illustration of a blue-handled pen with a black downward arrow pointing to it (no text or symbols)

Diagram of an oven with numbered parts for identification and assembly reference

2.2. PŘÍSLUŠENSTVÍ

Kovový rošt

ZARAZKA ZARAZKJ

3D diagram of a rectangular tray with internal compartments, no text or symbols present

Empty white rectangle with black border (no text or symbols)

3D rendering of a rectangular plastic tray with internal compartments (no text or symbols)

Line drawing of a kitchen sink with a bowl and a circular object, no text or symbols present

Line drawing of a two-tiered storage room with horizontal shelves and a central platform (no text or symbols)

Line drawing of a rectangular tray with a patterned lid and grid lines, placed inside a storage unit (no text or symbols)

Two line drawings of pen tips: one plain, one with a curved cable or wire (no text or symbols)

Line drawing of a rectangular appliance with internal grating and lid, placed inside an oven (no text or symbols)

Simple line drawing of a kitchen appliance with a circular diagram showing airflow or vibration (no text or symbols)

Line drawing of a roasted chicken on a cutting board (no text or symbols)

Simple line drawing of a mechanical device with a lever and base, no text or symbols present

Simple line drawing of a cabinet or shelf with a rectangular panel and a blue horizontal bar (no text or symbols)

Available on the App Store GET IT ON Google Play

REGISTRACE NOVÉHO UŽIVATELE

Welcome! Sign in to enter in your home page ENTER REGISTER Are you new to hOn? Click below to learn about our products TRY DEMO hOn Do you already have a thousand passwords? Register with your social accounts and log in in the easiest and fastest way. SIGN UP WITH GOOGLE SIGN UP WITH APPLE SIGN UP WITH FACEBOOK No information relating to you will be shared and we will not post anything from you. ! SIGN UP WITH EMAIL Already registered? LOGIN

RYCHLÉ PÁROVÁNÍ S REGISTRACÍ

Krok 1

Hello USERNAME YOUR APPLIANCES Add Add appliance Hos Virtual Wine Bank second row 3 bottles there is a second row YOUR WIDGETS Lemoniquem darker street NEW YOUR NEWS What functions do smart appliances have? How to live sustain home and reduce w

Krok 2

Allow your location permission To enhance your experience, please allow location permission to hOn app in the next step. CONTINUE

Krok 3

Select your appliance category Search your appliance Washing machine Washer dryer Tumble dryer Dishwasher Air conditionair Air purifier Air scanner

Krok 4

Turn OFF and then ON your appliance In case you can't switch OFF your appliance, unplug (for at least 10 seconds) and then plug its power supply. OK. I DID IT

Krok 5

Appliance connection Searching your appliance Don't turn off your Bluetooth. hOn app is looking for your appliance... 00:00:40 Stay close to your appliance in order to correctly capture the signal.

Kroky 6.1–6.2

Appliance connection Searching your appliance Don't turn off your Bluetooth. Oven New appliance Long appliance name to... CONNECT PRODUCT NOT FOUND

Appliance connection Searching your appliance Don't turn off your Bluetooth Oven Correcting... New appliance Long appliance name to... Stay close to your appliance in order to correctly capture the signal.

Krok 7

Your appliance has been correctly identified! Brand Hoover Model 31008486-7888-1824 Serial number 12345678-1234-1234 Is this your appliance? YES IT'S MY OVEN NO IT'S NOT

JAK ZMĚNIT NASTAVENÍ WIFI

Hand interacting with a touchscreen device displaying status indicators and a digital display showing 'ON'.

ZMĚŇTE STAV

OFF

DÁLKOVÉ OVLÁDÁNÍ

Hand interacting with a digital control panel showing icons for Wi-Fi, timer, and output settings

ON OFF

hON

Hand interacting with a touchscreen device displaying 'hON' and control icons including Wi-Fi, alarm, and function buttons.

Cooking SH 10M LEFT ADD 5.1WIN STOP Current program PROGRAMS Conventional 200°C Sh 30m SL: Product (DM) Efficiency Product (DFR) EDIT DETAILS -4

3. NEŽ ZAČNETE

3.1. INFORMACE KE SPUŠTĚNÍ

Simple line drawing of a kitchen sink with a hand cleaning the interior and a water bottle labeled H2O (no text or symbols on main objects)

MAX. °C 60 min.

Simple line drawing of a window with a door open and swirling blue smoke or vapor rising from the cabinet (no text or symbols)

4. OVLÁDÁNÍ SPOTŘEBIČE

4.1. JAK TENTO VÝROBEK FUNGUJE

Hand interacting with a touchscreen icon and a digital interface panel (no text or symbols)

NABÍDKA FUNKCÍ

Hand interacting with a touchscreen device displaying various icons (no text or symbols visible)

Digital display screen showing time and duration controls with icons for clock, timer, and lock functions

New Jolly Function Torta ai 3 cioccolati Step 1 Preheat No > Cooking program Commissional > Temperature 180 °C > Duration 5h45m > Note It's quick and easy to make it a bunch of soft nice and crazy (without using heavy means), and It's always noisy and comforting and delicious. ADD STEP USE AS JOLLY FUNCTION SAVE RECIPE

Sacher Torta Torta ai tre cioccolati EDIT Single Step Preheat Yes, 180 °C Cooking program & temperature Conventional, 180 °C Duration 1h 55m Note It's quick and easy to make on the stovetop, it's nice and creamy (without using heavy cream), and it's always so cozy and comforting and delicious. START JOLLY FUNCTION

OVEN U-CREATE MY RECIPES JOLLY FUNCTION CLEAR $ Jolly Function DELETE Are you sure you want to delete the Jolly Function section? By doing this action all data will be kuL. CANCEL YES CONFIRM

Simple line drawing of a mechanical component with an arrow indicating rotation (no text or symbols)

Simple line drawing of a rectangular object with a blue arrow pointing to it, no text or symbols present.

NABÍJENÍ NABITO

Simple line drawing of a chicken with a fork (no text or symbols)

Hand interacting with a digital timer and control buttons, showing time display and function icons

Hand interacting with a digital control panel showing icons and a timer, likely for app or system interaction.

180°

180°C

180°C

Ready No program scheduled SCHEDULE START Last Favorites PROGRAMS Conventional 350°C 1h 30m Fast Preheat (OFF) Probe (OFF) EDIT DETAILS → 000 Appliance Repair Social Features Discover Main

Ready Not programs scheduled! SCHEDULE START Last Favorites PROGRAMS Conventional Camera Guided Creek Precitance Suppliers Updates New!/Previous Preview Help

PreciTaste Start a cooking session with PreciTaste This feature allows, thanks to a special intelligence, to recognise recipes stored inside the oven. START NOW Last recipes (5) ALL RECIPES Juniaper and beer- braised beef QUinoa with olives and sun-dried... DETAILS → DETAILS → Ques and Ques

PreciTaste Which type of food do you want to cook? Meat and poultry Stews Seafood Relway NEXT

PreciTaste Receiving time 04.59 Pre-heating in progress Wait pre-heat... Before inserting the food you have to wait for the preheat process to end. You can also go to the dashboard and browse freely, when pre-heating is over you will receive a notification. GO TO DASHBOARD

PreciTaste Food analysis I am analyzing the food. Wait a few seconds...

PreciTaste Recipe found Honey Garlic Glazed Salmon Preci Bake Function Cooking time 25 minutes Temperature $80 °C Probe OFF > By cooking this recipe with the probe, the duration may change according to the target temperature. CHECK OTHER RECIPES LAUNCH PROGRAM

hON

Line drawing of an oven with a cooling rack inside, showing airflow direction (no text or symbols)

NASTAVTE ČAS

Hand cleaning a kitchen appliance with a blue cloth (no text or symbols visible)

H₂O cleaning

Warning symbol diagram with warning triangle, lightning bolt, and triangular warning symbol

Hand cleaning a window with a cloth, showing dust and debris (no text or symbols)

Katalytické čištění

Diagram showing a hand holding a cable with a blue circle highlighting the cable (no text or symbols present)

Simple line drawing of a folded paper or sheet with a dashed outline and diagonal lines, no text or symbols present.

Illustration of a hand cleaning a tiled surface with a blue cloth and a water bottle labeled H₂O (no text or symbols on the main subject)

PYRO NEBO LOW-E BIONIC VISION (*)

Simple line drawing of a ladder leaning against a wall, with arrows indicating direction (no text or symbols)

Illustration of hands operating a small oven with blue tool tips (no text or symbols)

Simple line drawing of a hand holding a tool near a wall, with no text or symbols present.

Line drawing of a hand holding a small object with a blue circle highlighting the object (no text or symbols present)

Line drawing of a hand holding a tool near a vehicle (no text or symbols)

Safety warning diagram showing a plug connected to an ON/OFF switch with warning symbol and directional arrows

Krok 2

Hand holding a circular object with a blue arrow inside, next to an open oven (no text or symbols visible)

Krok 3

Illustration of a hand holding a circular object with a blue arrow pointing downward, next to an open appliance (no text or symbols)

Krok 4

Illustration of a hand holding a circular object with a blue arrow pointing upward, next to an open kitchen appliance (no text or symbols)

Krok 5

Hand holding a circular object with a blue arrow, next to an open oven (no text or symbols visible)

Krok 6

Electrical diagram showing a plug, warning symbol, and ON/OFF switch with directional arrows

Diagram of a washing machine with a circular component and a magnified view showing internal components (no text or symbols)

Safety warning diagram showing a plug connected to a circuit breaker with a warning symbol and safety indicators.

Krok 2

Illustration of a hand using a tool to clean or store items, with a magnified inset showing the process (no text or symbols)

Krok 3

Illustration of a hand inserting a small component into a device (no text or symbols visible)

Krok 4

Illustration of a hand inserting a component into a device (no text or symbols present)

Krok 5

Diagram of a cabinet or rack structure with an inset showing a labeled component (no text or symbols present)

Krok 6

Diagram showing electrical connections with a plug, warning symbol, and ON/OFF switch symbols

Diagram illustrating a cleaning or dust removal process with labeled components and warning symbols

8. OCHRANA ŽIVOTNÍHO PROSTŘEDÍ A LIKVIDACE

8.1. LIKVIDACE SPOTŘEBIČE

Isometric line drawing of a multi-level cabinet or rack unit with internal compartments and drawers (no text or symbols)

Illustration of a blue-handled tool with a downward arrow indicating compression or reduction (no text or symbols)

Diagram of an oven with numbered parts for identification and assembly reference

2.2. ACCESORII

Grilaj metallic

OPRIRE OPRIRE

3D diagram of a rectangular tray with internal compartments, no text or symbols present

Empty white rectangle with black border (no text or symbols)

3D rendering of a rectangular tray or container with internal compartments (no text or symbols)

Line drawing of a kitchen sink with a bowl and a circular object, no text or symbols present

Line drawing of a two-tiered storage unit with horizontal shelves and a central rack (no text or symbols)

Two line drawings of pen tips: one with a pointed tip, the other with a curved cable (no text or symbols)

Line drawing of a rectangular tray with a grid pattern on the top surface, no text or symbols present.

Diagram of a rectangular appliance with internal grating and lid, placed on a tray (no text or symbols)

Simple line drawing of a kitchen appliance with a circular diagram showing airflow or vibration (no text or symbols)

Line drawing of a rooster on a cutting board with steam rising (no text or symbols)

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Simple line drawing of a cabinet or shelf with a rectangular top and blue horizontal stripe at the bottom (no text or symbols)

Available on the App Store GET IT ON Google Play

ÎNREGISTRAREA UNUI NOU UTILIZATOR

Welcome! Sign in to enter in your home page ENTER REGISTER Are you new to hOn? Click below to learn about our products TRY DEMO hOn Do you already have a thousand passwords? Register with your social accounts and log in in the easiest and fastest way. SIGN UP WITH GOOGLE SIGN UP WITH APPLE SIGN UP WITH FACEBOOK No information relating to you will be shared, and we will not post anything from you. OR SIGN UP WITH EMAIL Already registered? LOGIN

ÎNREGISTRAREA RAPIDĂ A ASOCIERILOR

Pasul 1

Hello USERNAME YOUR APPLIANCES ADD Add appliance Hoo Virtual Wine Bank second row 2 bottles there is a second row YOUR WIDGETS Lemoniqueau dade sit est. Your NEWS What functions do smart appliances have? How to live sustaine home and reduce w.

Pasul 2

Allow your location permission

To enhance your experience, please allow location permission to hOn app in the next step.

CONTINUE

Pasul 3

Select your appliance category

Search your appliance

Washing machine

Washer dryer

Tumble dryer

Dishwasher

Air conditionair

Air purifier

Air scanner

Pasul 4

Appliance connection

Turn OFF and then ON your appliance

In case you can't switch OFF your appliance, unplug (for at least 10 seconds) and then plug its power supply.

Circular icon with a blue 'Power' button surrounded by abstract geometric shapes (no text or symbols)

OK, I DID IT

Pasul 5

Appliance connection Searching your appliance Don't turn off your Bluetooth. hOn app is looking for your appliance... 00:00:40 Stay close to your appliance in order to correctly capture the signal.

Pasul 6.1-6.2

Appliance connection Searching your appliance Don't turn off your Bluetooth. Oven New appliance Long appliance name to... CONNECT PRODUCT NOT FOUND

Appliance connection Searching your appliance Don't turn off your Bluetooth. Oven Correcting... New appliance Long appliance name to... Stay close to your appliance in order to correctly capture the signal.

Pasul 7

Appliance connection Your appliance has been correctly identified! Brand Hoover Model 31008486-7888-1824 Serial number 12345678-1234-1234 Is this your appliance? YES IT'S MY OVEN NO IT'S NOT

CUM SE SCHIMBĂ SETĂRILE WI-FI

Hand interacting with a touchscreen device displaying status indicators and a timer reading 'ON'

SCHIMBATI STATUTUL

OFF

CONTROL LA DISTANȚĂ

Hand interacting with a touchscreen device displaying 'CON' and control buttons, with icons for Wi-Fi and timer.

ON 8

60Hz hON

Hand interacting with a touchscreen device displaying 'hON' and control icons including Wi-Fi, alarm, and function buttons.

Cooking DH 100/LEFT ADD 5/100N STOP Current program PROGRAMS Conventional 200°C DL 300m 1:1 Product (DM) Efficiency Product (DFT) EDIT DETAILS →

6hr, 9:4_

SETAREA LUMINOZITĂȚII

br, 9:3

APÁSATÍ PENTRU A CONFIRMA

SETAREA SUNETULUI

So Un

8 APÄSATI PENTRU A CONFIRMA DII

• INSTRUCTIUNI DE INSTALARE ULTERIOARĂ

Simple line drawing of a kitchen sink with a hand cleaning the interior and a water bottle labeled H2D (no text or symbols on main objects)

MAX °C 60 min.

Line drawing of a window with a blue smoke rising from a cabinet (no text or symbols)

4. UTILIZAREA PRODUSULUI

4.1. CUM FUNCȚIONEAZĂ PRODUSUL

PORNIREA/OPRIREA CUPTORULUI

Hand interacting with a touchscreen icon and a digital interface panel (no text or symbols)

MENIUL FUNCTIUNI

Hand interacting with a touchscreen display (no text or symbols visible)

Digital display screen showing time and icons with 'DE' label, likely from a calendar or timer interface

New Jolly Function Torta ai 3 cioccolati Step 1 Preheat No > Cooking program Conventional > Temperature 100 °C > Duration 5h45m > Note It's wish, and easy to make on the cloverage. It's nice and creamy (without using heavy cream), and it's always so cozy and comforting and delicious. ADD STEP USE AS JOLLY FUNCTION SAVE RECIPE

Sacher Torta Torta ai tre cioccolati EDIT Single Step Preheat Yes, 180 °C Cooking program & temperature Conventional, 180 °C Duration 1h 55m Note It's quick and easy to make on the stovetop, it's nice and creamy (without using heavy cream), and it's always so cozy and conferring and delicious. START JOLLY FUNCTION

OVEN U-CREATE MY RECIPES JOLLY FUNCTION CLEAR $ Jolly Function DELETE Are you sure you want to delete the Jolly Function section? By doing this action all data will be kuL. CANCEL YES CONFIRM

Simple line drawing of a mechanical component with an arrow indicating rotation (no text or symbols)

Simple line drawing of a rectangular object with a blue arrow pointing to it, no text or symbols present.

ÎNCĂLZIRE ÎNCĂRCINAT

Simple line drawing of a chicken with a fork (no text or symbols)

Hand interacting with a digital control panel showing time, seconds, and icons

Hand interacting with a touchscreen device displaying icons and a timer, likely for app or system control.

180°

180°C

180°C

Illustration showing a pen writing on a bone next to a simplified illustration of a chicken (no text or symbols present)

Ready No program scheduled SCHEDULE START Last Favorites PROGRAMS Conventional 350°C 1h 30m Fast Preheat (OFF) Probe (OFF) EDIT DETAILS → 0:00 Applicator Kitchen Digital Kitchen Dissealer Main

Ready Not programs scheduled SCHEDULE START Last Favorites PROGRAMS Conventional Camera Guided cook Precipitate Customize Recipes Special Peaks Discover Help

PreciTaste Start a cooking session with PreciTaste This feature allows, thanks to a special intelligence, to recognize recipes stored inside the oven. START NOW Last recipes (5) ALL RECIPES Juniaper and beer- braised beef FIS Quinoa with olives and sun-dried... DETAILS → DETAILS → 000

PreciTaste Which type of food do you want to cook? Meat and poultry Stews Seafood Bento NEXT

PreciTaste Receiving time 04.59 Pre-heating in progress Wait pre-heat... Before inserting the food you have to wait for the preheat process to end. You can also go to the dashboard and browse freely, when pre-heating is over you will receive a notification. GO TO DASHBOARD

PreciTaste Food analysis I am analyzing the food. Wait a few seconds...

PreciTaste Recipe found Honey Garlic Glazed Salmon Preci Bake Function Cooking time 25 minutes Temperature 500 °C Probe OFF > By cooking this recipe with the probe, the duration may change according to the target temperature. CHECK OTHER RECIPES LAUNCH PROGRAM

hON

Line drawing of a laboratory oven with cooling unit and side panel (no text or symbols)

DURATĂ PRESETATĂ

Illustration of a hand cleaning a window with a cloth (no text or symbols)

Curățare H₂O

Warning symbol diagram with warning triangle, lightning bolt, and triangular warning symbol

Illustration of a hand cleaning a window with a cloth (no text or symbols)

Curățare catalitică

Line drawing of hands operating a door with blue tool tips (no text or symbols)

Simple line drawing of a mechanical component with a blue arrow indicating downward motion (no text or symbols)

45° 1 2

Pure technical line drawing of a mechanical component with no text or symbols

Diagram showing a hand holding a star-shaped object with an exclamation mark and warning triangle (no text or symbols)

Illustration of a hand holding a diagonal line with a blue circle highlighting the intersection point (no text or symbols present)

Line drawing of a hand holding a blue circle with a diagonal line, pointing at a small object on a wall (no text or symbols)

Diagram showing a hand holding a blue circle above a mechanical device with an arrow, no text or symbols present.

Simple line drawing of a folded paper or sheet with a dashed-line pattern on the top surface (no text or symbols)

Illustration of a hand cleaning a tiled surface with a blue cloth and a water bottle, no text or symbols present.

PYRO SAU LOW-E BIONIC VISION (*)

Technical line drawing of a mechanical assembly with arrows indicating motion direction (no text or symbols)

Line drawing of a door opening with hands holding blue tools (no text or symbols)

Line drawing of a hand holding a small object with a blue circle highlighting the symbol (no text or labels present)

Simple line drawing of a tool interacting with a mechanical component (no text or symbols)

Line drawing of a hand holding a tool near a window frame (no text or symbols)

* doar dacă există

6.3. CURĂȚAREA ACCESORIILOR

Safety warning diagram showing a plug connected to an electrical outlet with a warning symbol and 'OFF' label

Pasul 2

Hand placing a circular object into an oven with a blue arrow indicating rotation (no text or symbols)

Pasul 3

Illustration of a hand holding a circular object with a blue arrow pointing downward, next to an open kitchen appliance (no text or symbols)

Pasul 4

Illustration of a hand holding a circular device with a blue arrow pointing upward, next to an open appliance (no text or symbols)

Pasul 5

Hand holding a circular object with a blue arrow inside, next to an open oven (no text or symbols visible)

Pasul 6

Safety warning diagram showing a plug and fuse with hazard symbol and ON/OFF switch symbols

Diagram of a washing machine with a circular component and a magnified view showing internal components (no text or symbols)

Safety warning diagram showing a plug on a line with a warning symbol and OFF button

Pasul 2

Illustration of a hand using a tool to clean or store items, with a magnified inset showing the process (no text or symbols)

Pasul 3

Illustration of a hand inserting a small component into a device (no text or symbols visible)

Pasul 4

Illustration of a hand inserting a plug into a device inside a circular frame (no text or symbols)

Pasul 5

Diagram of a cabinet or rack with an inset showing a labeled component (no text or symbols present)

Pasul 6

Safety warning diagram showing a plug connected to an ON panel with warning symbol and directional arrows

Diagram illustrating a chemical process: heating a stove with a warning symbol and cleaning a kitchen oven with a water bottle.

8. PROTECTIA MEDIULUI ŞI ELIMINAREA PRODUSULUI

8.1. ELIMINAREA APARATULUI

Isometric line drawing of a multi-level cabinet or rack unit with internal compartments and drawers (no text or symbols)

Illustration of a blue-handled pen with a black downward arrow indicating compression or disassembly (no text or symbols)

Diagram of a multi-tiered oven with numbered parts for identification

2.2. TARTOZÉKOK

Fémrács

LEALLITÄ LEALLITÄS

3D diagram of a rectangular tray with internal compartments, placed on a shelf (no text or symbols)

Empty white rectangle with black border (no text or symbols)

3D wireframe diagram of a rectangular tray or container with internal compartments, placed inside a storage unit (no text or symbols)

Line drawing of a kitchen sink with a bowl, tray, and wall (no text or symbols)

Technical line drawing of a dual-tiered storage unit with horizontal shelves and a central platform (no text or symbols)

Line drawing of a rectangular tray with a patterned lid and grid lines, no text or symbols present

Two line drawings of medical or laboratory instruments, one with a pointed tip and the other with a curved tube (no text or symbols)

Illustration of a rectangular appliance with a grid-patterned lid and base tray (no text or symbols)

Simple line drawing of a kitchen appliance with a circular diagram showing airflow or motion (no text or symbols)

Line drawing of a rooster on a cutting board with steam rising (no text or symbols)

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Simple line drawing of a rectangular frame with a central rectangle and a blue horizontal bar at the bottom (no text or symbols)

Available on the App Store GET IT ON Google Play

ÚJ FELHASZNÁLÓ REGISZTRÁLÁSA

Welcome! Sign in to enter in your home page ENTER REGISTER Are you new to hOn? Click below to learn about our products TRY DEMO hOn Do you already have a thousand passwords? Register with your social accounts and log in in the easiest and fastest way. SIGN UP WITH GOOGLE SIGN UP WITH APPLE SIGN UP WITH FACEBOOK No informational relating to you will be shared and we will not press anything from you. OR SIGN UP WITH EMAIL Already registered? LOGIN

GYORS PÁROSÍTÁS

1. lépés

Hello USERNAME YOUR APPLIANCES ADD Non Virtual Wine Bank second row 2 bottles there is a second row Add appliance YOUR WIDGETS I am empty do best sell Scan to care Your NEWS What functions do smart appliances have? How to live sustain: home and reduce w.

2. lépés

Allow your location permission To enhance your experience, please allow location permission to HOn app in the next step. CONTINUE

3. lépés

Select your appliance category Search your appliance Washing machine Washer dryer Tumble dryer Dishwasher Air conditionair Air purifier Air scanner

4. lépés

Turn OFF and then ON your appliance In case you can't switch OFF your appliance, unplug (for at least 10 seconds) and then plug its power supply. OK. I DID IT

5. lépés

Hand interacting with a touchscreen device displaying status indicators and a timer reading 'ON'

ÁLLAPOT MÓDOSÍTÁSA

OFF

TÁVVEZÉRLÉS

Hand interacting with a touchscreen device displaying 'CON' and control buttons, likely for smart home control.

ON OFF

hON

Hand interacting with a touchscreen device displaying 'hON' and control icons including Wi-Fi, alarm, and function buttons.

Cooking SH 10M LEFT ADD 5.1WIN STOP Current program PROGRAMS Conventional 200°C Sh 30m SL: Product (DM) Efficiency Product (DFR) EDIT DETAILS -4

3. MIELÓTT ELKEZDENÉ

3.1. KEZDÉSHEZ SZÜKSÉGES INFORMÁCIÓK

NYOMJA MEG A BEÁLLÍTOTT

Simple line drawing of a kitchen sink with a hand cleaning the interior and a water bottle labeled H2D (no text or symbols on main objects)

MAX. °C 60 perc

Simple line drawing of a window with a swirling blue smoke rising from a cabinet (no text or symbols)

4. A TERMÉK MÜKÖDÉSE

4.1. A TERMÉK MÜKÖDÉSE

A SÜTŐ BE-/KIKAPCSOLÁSA

Hand interacting with a touchscreen icon and a digital interface panel (no text or symbols)

FUNKCIÓK MENÜ

Hand interacting with a digital interface displaying icons (no text or symbols)

Digital display screen showing time and weather icons with a hand pointing to a clock icon

3°C 80 DEMO

New Jolly Function Torta ai 3 cioccolati Step 1 Preheat No > Cooking program Conventional > Temperature 180 °C > Duration 18-5cm > Note It's quick, and easy to make up the stenosis. It's nice and creamy (without using heavy cream), and it's always so noisy and comforting and delicious. ADD STEP USE AS JOLLY FUNCTION SAVE RECIPE

Sacher Torta Torta ai tre cioccolati EDIT Single Step Preheat Yes, 180 °C Cooking program & temperature Conventional, 180 °C Duration 1h 55m Note It's quick and easy to make on the stovetop, it's nice and creamy (without using heavy cream), and it's always so cozy and conferring and delicious. START JOLLY FUNCTION

OVEN U-CREATE MY RECIPES JOLLY FUNCTION CLEAR $1 Jolly Function DELETE Are you sure you want to delete the Jolly Function section? By doing this action all data will be kuL. CANCEL YES CONFIRM

Simple line drawing of a mechanical component with an arrow indicating rotation (no text or symbols)

Simple line drawing of a rectangular object with a blue arrow pointing to it, no text or symbols present.

TÖLTÉS FELTÖLTVE

Simple line drawing of a chicken with a fork (no text or symbols)

Hand interacting with a digital control panel showing time, battery, and function icons

Hand interacting with a touchscreen device displaying icons and a numeric display showing 0, 1, and 2.

5 180° ↓ ↑ ↓

180°C

180°C

Főzési tippek

Illustration showing a pen writing on a bone next to a cartoon dog (no text or symbols)

PreciTaste Which type of food do you want to cook? Meat and poultry Stews Seafood Balance NEXT

PreciTaste Rearing time 04.59 Pre-heating in progress Wait pre-heat... Before inserting the food you have to wait for the preheat process to end. You can also go to the dashboard and browse freely, when pre-heating is over you will receive a notification. GO TO DASHBOARD

PreciTaste Food analysis I am analyzing the food. Wait a few seconds...

PreciTaste Recipe found Honey Garlic Glazed Salmon Preci Bake Function Cooking time 25 minutes Temperature 500 °C Probe OFF > By cooking this recipe with the probe, the duration may change according to the target temperature. CHECK OTHER RECIPES LAUNCH PROGRAM

hON

Line drawing of a laboratory oven with cooling unit and internal structure (no text or symbols)

ELÖRE BEÁLLÍTOTT IDŐ

Illustration of a hand cleaning a window with a blue cloth (no text or symbols)

H₂O cleaning

Warning symbol diagram with warning triangle, lightning bolt, and triangular warning symbol

Hand cleaning a window with a blue cloth, showing debris and clean material inside (no text or symbols)

Line drawing of hands operating a door frame with blue tool tips (no text or symbols)

Simple line drawing of a mechanical component with a blue arrow indicating downward motion (no text or symbols)

45° 1 2

Pure technical line drawing of a mechanical component with no text or symbols

Diagram showing a hand holding a star-shaped object with an exclamation mark and warning symbol (no text or labels)

Illustration of a hand holding a diagonal line with a blue circle highlighting the intersection point (no text or symbols present)

Line drawing of a hand holding a blue circle with a diagonal line, pointing at a small object on a wall (no text or symbols)

Diagram showing a hand holding a cable with a blue circle highlighting the cable (no text or symbols present)

Simple line drawing of a folded paper or sheet with a dashed outline and internal lines, no text or symbols present.

Illustration of a hand cleaning a tiled surface with a blue cloth and a water bottle labeled H₂O (no text or symbols on the main subject)

PYRO VAGY LOW-E BIONIC VISION (*)

Technical line drawing of a mechanical assembly with arrows indicating motion direction (no text or symbols)

Line drawing of a door opening with hands holding blue probes (no text or symbols)

Simple line drawing of a hand holding a tool over a small object, with no text or symbols present.

Simple line drawing of a hand holding a small object, no text or symbols present

Line drawing of a hand holding a tool near a window frame (no text or symbols)

Safety warning diagram showing a plug connected to an electrical outlet with a warning symbol and 'OFF' label

1. lépés


Hand holding a circular object inside a kitchen appliance (no text or symbols visible)

1. lépés


Illustration of a hand holding a circular object with a blue arrow pointing downward, next to an open kitchen appliance (no text or symbols)

1. lépés


Illustration of a hand holding a circular device with a blue arrow pointing upward, next to an open kitchen appliance (no text or symbols)

1. lépés


Hand holding a circular object with a blue arrow inside, next to an open oven (no text or symbols visible)

1. lépés


Safety warning diagram showing a plug and fuse with hazard symbol and ON/OFF switch symbols

Diagram of a washing machine with a circular component and a magnified view showing internal components (no text or symbols)

Safety warning diagram showing a plug on a line with a warning symbol and OFF button

1. lépés


Illustration of a hand using a tool to clean or store items, with a magnified inset showing the process (no text or symbols)

1. lépés


Illustration of a hand inserting a small component into a device, with no visible text or symbols

1. lépés


Illustration of a hand inserting a plug into a device inside a circular frame (no text or symbols)

1. lépés


Diagram of a cabinet or rack with an inset showing a labeled component (no text or symbols present)

1. lépés


Safety warning diagram showing a plug connected to an ON panel with warning symbol and directional arrows

Diagram illustrating a chemical process with a blue warning triangle and a hand cleaning a kitchen oven, showing environmental change.

Isometric line drawing of a multi-level cabinet or rack unit with internal compartments and drawers (no text or symbols)

Illustration of a blue-handled tool with a black downward arrow pointing to it (no text or symbols)

Diagram of a multi-tiered oven with numbered parts for identification

2.2. DODATKI

Kovinska rešetka

STOP STOP

3D diagram of a rectangular tray with internal geometric patterns, placed inside a rack (no text or symbols)

Empty white rectangle with black border (no text or symbols)

3D diagram of a rectangular tray with internal compartments, placed inside a storage unit (no text or symbols)

Line drawing of a kitchen sink with a bowl, a round pan, and a wall-mounted dish (no text or symbols)

Technical line drawing of a two-tiered storage unit with horizontal shelves and a central rack (no text or symbols)

Two line drawings of pen tips: one with a pointed tip, the other with a curved cable (no text or symbols)

Line drawing of a rectangular tray with a patterned lid and internal grid lines (no text or symbols)

Diagram of a rectangular appliance with internal grating and lid, placed on a shelf (no text or symbols)

Simple line drawing of a kitchen appliance with a circular diagram showing airflow or vibration (no text or symbols)

Line drawing of a roasted chicken on a cutting board (no text or symbols)

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Simple line drawing of a cabinet or drawer with a rectangular opening and a blue horizontal bar at the bottom (no text or symbols)

Available on the App Store GET IT ON Google Play

REGISTRACIJA NOVEGA UPORABNIKA

Welcome! Sign in to enter in your home page ENTER REGISTER Are you new to hOn? Click below to learn about our products TRY DEMO hOn Do you already have a thousand passwords? Register with your social accounts and log in in the easiest and fastest way. SIGN UP WITH GOOGLE SIGN UP WITH APPLE SIGN UP WITH FACEBOOK No information relating to you will be shared and we will not post anything from you. OR SIGN UP WITH EMAIL Already registered? LOGIN

VPIS S HITRO SEZNANITVIJO

1. korak

- Izberite »Dodaj aparat«.

Hello USERNAME YOUR APPLIANCES Add Virtual Wine Bank second row 2 better than there is a second row Add appliance YOUR WIDGETS Lower quick door sit rest What to Care Your NEWS NEW What functions do smart appliances have? How to live sustain home and reduce w

2. korak

• Dajte dovoljenje za lokacijo.

Allow your location permission To enhance your experience, please allow location permission to hOn app in the next step. CONTINUE

3. korak

- Izberite pečico v kategorijah aparatov.

Select your appliance category Search your appliance Washing machine Washer dryer Tumble dryer Dishwasher Air conditionair Air purifier Air scanner

4. korak

Turn OFF and then ON your appliance In case you can't switch OFF your appliance, unplug (for at least 10 seconds) and then plug its power supply. OK.I DID IT

5. korak

Appliance connection Searching your appliance Don't turn off your Bluetooth. hOn app is looking for your appliance... 00:00:40 Stay close to your appliance in order to correctly capture the signal.

6.1–6.2 korak

Appliance connection Searching your appliance Don't turn off your Bluetooth. Oven New appliance Long appliance name to... CONNECT PRODUCT NOT FOUND

Appliance connection Searching your appliance Don't turn off your Bluetooth Oven Correcting... New appliance Long appliance name to... Stay close to your appliance in order to correctly capture the signal.

7. korak

Appliance connection Your appliance has been correctly identified! Brand Hoover Model 31008486-7888-1824 Serial number 12345678-1234-1234 Is this your appliance? YES IT'S MY OVEN NO IT'S NOT

KAKO SPREMENITI NASTAVITVE WIFI

Hand interacting with a touchscreen device displaying status indicators and a timer reading 'ON'

SPREMEMBA STANJA

OFF

DALJINSKO UPRAVLJANJE

Hand interacting with a touchscreen device displaying 'CON' and control buttons, with icons for Wi-Fi and timer.

0 8 ON

60.00 hON

Hand interacting with a touchscreen display showing 'hON' and icons for Wi-Fi, app, and function buttons

Cooking DH 50M LEFT ADD 5 MIN STOP Current program PROGRAMS Conventional 200°C 10 Proukut (PK) DH 30m Efficiency Proukut (PKF) EDIT DETAILS →

3. PRED ZAČETKOM

3.1. INFORMACIJE ZA ZAČETEK

Simple line drawing of a kitchen sink with a hand cleaning the interior and a water bottle labeled H2D (no text or symbols on main objects)

MAKS °C 60 min

Simple line drawing of a steam rising from a window to an open door (no text or symbols)

Hand interacting with a touchscreen icon and a digital interface panel (no text or symbols)

MENI FUNKCIJ

Hand interacting with a touchscreen display showing icons for smart devices (no text or symbols)

New Jolly Function Torta ai 3 cioccolati Step 1 Preheat No > Cooking program Commercial > Temperature 100 °C > Duration Sh45in > Note It's quick and easy to make us the skinstaps. It's nice and creamy (without using heavy creams) and it's always so crazy and comforting and delicious. ADD STEP USE AS JOLLY FUNCTION SAVE RECIPE

Kako nastaviti funkcijo Jolly:

Sacher Torta Torta ai tre cioccolati EDIT Single Step Preheat Yes, 180 °C Cooking program & temperature Conventional, 180 °C Duration 1h 55m Note It's quick and easy to make on the stovetop. It's nice and creamy (without using heavy cream), and it's always so cozy and comforting and delicious. START JOLLY FUNCTION

OVEN U-CREATE MY RECIPES JOLLY FUNCTION CLEAR 1 Jolly Function DELETE Are you sure you want to delete the Jolly Function section? By doing this action all data will be kxL. CANCEL YES CONFIRM

Simple line drawing of a mechanical component with an arrow indicating rotation (no text or symbols)

Simple line drawing of a rectangular object with a blue arrow pointing to it, no text or symbols present.

POLNJENJE NAPOLNJENO

Simple line drawing of a chicken with a fork (no text or symbols)

Hand interacting with a digital control panel showing status icons and time display

Hand interacting with a touchscreen device displaying icons and a numeric display showing 0:00

180°

180°C

180°C

Nasveti za kuhanje

Illustration showing a pen writing on a bone next to a simplified illustration of a chicken (no text or symbols present)

Ready No program scheduled SCHEDULE START Last Favorites PROGRAMS Conventional 350°C 1h 30m Fast Preheat (OFF) Probe (OFF) EDIT DETAILS → 000 Appliance Review Digital Features Dissever Max

Ready Not programs scheduled SCHEDULE START Last Favorites PROGRAMS Conventional Camera Guided clock Precipet Accessories Recipes Special Supplies Discover Help

PreciTaste Start a cooking session with PreciTaste This feature allows, thanks to a special intelligence, to recognise recipes stored inside the oven. START NOW Last recipes (5) ALL RECIPES Juniaper and beer- braised beef FIS Quinoa with olives and sun-dried... DETAILS → DETAILS → 600

PreciTaste Which type of food do you want to cook? Meat and poultry Stews Seafood Poultry NEXT

1. korak Ko v aplikaciji zaženete recept Preci Taste, se začne predgrevanje. Če želite zagnati to funkcijo, mora biti prostor za peko prazen.

PreciTaste Rearing time 04.59 Pre-heating in progress Wait pre-heat... Before inserting the food you have to wait for the preheat process to end. You can also go to the dashboard and browse freely, when pre-heating is over you will receive a notification. GO TO DASHBOARD

PreciTaste Food analysis I am analyzing the food. Wait a few seconds...

PreciTaste Recipe found Honey Garlic Glazed Salmon Preci Bake Function Cooking time 25 minutes Temperature 500 °C Probe OFF > By cooking this recipe with the probe, the duration may change according to the target temperature. CHECK OTHER RECIPES LAUNCH PROGRAM

hON

Line drawing of a laboratory oven with cooling fins and a side panel, showing internal structure without any text or symbols.

PREDNASTAVLJENI ČAS

Illustration of a hand cleaning a window with a blue cloth (no text or symbols)

H₂O cleaning

Warning symbol diagram with warning triangle, lightning bolt, and three triangular icons below

Illustration of a hand cleaning a window with a cloth (no text or symbols)

Čiščenje s katalizo

Line drawing of hands operating a door with blue tool tips (no text or symbols)

Simple line drawing of a mechanical component with a blue arrow indicating downward motion (no text or symbols)

45° 1 2

Pure technical line drawing of a mechanical component with no text or symbols

Diagram showing a hand holding a star-shaped object with an exclamation mark and warning triangle (no text or symbols)

Illustration of a hand holding a diagonal line with a blue circle highlighting the intersection point (no text or symbols present)

Line drawing of a hand holding a blue circle with a diagonal line, pointing to a small object on a vertical surface (no text or symbols)

Diagram showing a hand holding a blue circle above a mechanical device with an arrow, no text or symbols present.

Simple line drawing of a folded paper or sheet with a dashed outline and internal lines, no text or symbols present.

Illustration of a hand cleaning a tiled surface with a blue cloth and a water bottle, no text or symbols present.

PYRO ALI LOW-E BIONIC VISION (*)

Technical line drawing of a mechanical assembly with arrows indicating motion direction (no text or symbols)

Line drawing of a door opening with hands holding blue probes (no text or symbols)

Simple line drawing of a hand holding a tool over a small object, with no text or symbols present.

Line drawing of a hand holding a small object with a blue circle highlighting the symbol (no text or labels present)

Line drawing of a hand holding a tool near a window frame (no text or symbols)

Line drawing of a laboratory oven with internal circulation and airflow arrows (no text or symbols)

Diagram of two open industrial cabinets with internal airflow arrows, no text or symbols present

Illustration of a hand cleaning a rack with a cloth, next to a water bottle labeled H₂O (no text or symbols on the main subject)

Diagram showing two open oven units with internal airflow arrows, no text or symbols present

Line drawing of an oven with internal cooling duct (no text or symbols)

- Model s 7 nivoji

Line drawing of a wall-mounted rack or ladder structure with two vertical connectors (no text or symbols)

Diagram of a vertical ladder structure with a curved arrow indicating rotation (no text or symbols)

Hand holding a transparent panel with a 3D coordinate axis indicator (no text or symbols on the panel itself)

H₂O

Hand holding a transparent panel with a blue arrow pointing to it, no text or symbols present

Diagram of a door with horizontal ladders and a blue arrow indicating rotation (no text or symbols)

6.4. VZDRŽEVANJE

ZAMENJAVA DELOV

Safety warning diagram showing a plug connected to an electrical outlet with a warning symbol and 'OFF' label

1. korak


Hand placing a circular object into an oven with a blue arrow indicating rotation (no text or symbols)

1. korak


Illustration of a hand holding a circular object with a blue arrow pointing downward, next to an open kitchen appliance (no text or symbols)

1. korak


Illustration of a hand holding a circular device with a blue arrow pointing upward, next to an open kitchen appliance (no text or symbols)

1. korak


Hand holding a circular object with a blue arrow inside, next to an open oven (no text or symbols visible)

1. korak


Safety warning diagram showing a plug and fuse with hazard symbol and ON/OFF switch symbols

Diagram of a washing machine with circular components and a magnified view showing internal components (no text or symbols)

Safety warning diagram showing a plug connected to a circuit breaker with a warning symbol and safety indicators.

1. korak


Illustration of a hand using a tool to clean or store items, with a magnified inset showing the process (no text or symbols)

1. korak


Illustration of a hand inserting a small component into a device (no text or symbols visible)

1. korak


Illustration of a hand inserting a component into a device (no text or symbols present)

1. korak


Diagram of a cabinet or rack structure with an inset showing a labeled component (no text or symbols present)

1. korak


Electrical warning diagram showing a plug, safety symbol, and ON/OFF switch with directional arrows

Diagram illustrating a chemical process with a downward arrow and a cleaning device, showing removal of contents from a stove.

8.1. ODSTRANJEVANJE APARATA

Isometric line drawing of a multi-level cabinet or rack unit with internal compartments and drawers (no text or symbols)

ALI Odbijač Odbijač

DOBRO DOŠLI

Illustration of a blue-handled tool with a downward arrow indicating compression or disassembly (no text or symbols)

- Ne izlažite metalni deo Preci Probe direktno toploti koju proizvodi pećnica.

- Nemojte koristiti Preci Probe u drugim uređajima već samo u ugrađenoj pećnici.

Line drawing of a two-tiered storage room layout with horizontal shelves and a central platform (no text or symbols)

Postavljene na obe strane unutrašnjosti pećnice, bočne rešetke su dizajnirane za postavljanje pleha za pečenje i rešetki tokom kuvanja.

i NAPOMENA: 6 ili 7 nivoa u zavisnosti od modela.

Dvostruki pleh – režim PARA

Line drawing of a rectangular tray with a patterned lid and internal grid lines, placed inside a kitchen appliance (no text or symbols)

Two line drawings of pen tips, one straight and one curved with a probe tip (no text or symbols)

Illustration of a rectangular tray with a grid pattern inside, placed on a shelf (no text or symbols)

Konveksni oblik je pogodan za pravljenje roštilja u pećnici na visokoj temperaturi (220°), omogućavajući rezultat roštiljanja čak i kod kuće sa malo dima zahvaljujući dejstvu ceđenja masti na dnc posude.

Šarke za lagano zatvaranje/otvaranje

(samo ako su deo opreme*)

Simple line drawing of a kitchen appliance with a circular icon and motion arrow (no text or symbols)

Line drawing of a rooster on a cutting board with steam rising (no text or symbols)

Ražanj funkcioniše zajedno sa gornjim grejnim elementom, a okretanjem se hrana može pripremati ujednačeno. Najbolje se koristi za hranu srednje veličine. Idealno za ponovno otkrivanje ukusa tradicionalnih pečenja.

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Simple line drawing of a rectangular box with a central rectangle and a blue horizontal stripe at the bottom (no text or symbols)

Available on the App Store GET IT ON Google Play

REGISTRACIJA NOVOG KORISNIKA

• Kliknite na „Registrujte se“
• Registrujte se pomoću naloga na društvenim mrežama ili ličnom imejl adresom

Welcome! Sign in to enter in your home page ENTER REGISTER Are you new to hOn? Click below to learn about our products TRY DEMO hOn Do you already have a thousand passwords? Register with your social accounts and log in in the easiest and fastest way. SIGN UP WITH GOOGLE SIGN UP WITH APPLE SIGN UP WITH FACEBOOK No information relating to you will be shared and we will not add anything from you. OF SIGN UP WITH EMAIL Already registered? LOGIN

PRIJAVLJIVANJE ZA BRZO UPARIVANJE

1. korak

Hello USERNAME YOUR APPLIANCES Add Add appliance Hos Virtual Wine Bank second row 3 bottles there is a second row YOUR WIDGETS Lemoniquem dollar street NEW YOUR NEWS What functions do smart appliances have? How to live sustain home and reduce w

2. korak

Allow your location permission To enhance your experience, please allow location permission to HOn app in the next step. CONTINUE

3. korak

Select your appliance category Search your appliance Washing machine Washer dryer Tumble dryer Dishwasher Air conditionair Air purifier Air scanner

4. korak

Turn OFF and then ON your appliance In case you can't switch OFF your appliance, unplug (for at least 10 seconds) and then plug its power supply. OK. I DID IT

5. korak

- Nakon uključivanja, aplikacija hOn počinje da traži vaš kućni uređaj.

Appliance connection Searching your appliance Don't turn off your Bluetooth. hOn app is looking for your appliance... 00:00:40 Stay close to your appliance in order to correctly capture the signal.

6.1-6.2. korak

- Izaberite kućni uređaj, dodirnite „Povezati“ i sačekajte nekoliko sekundi.

Appliance connection Searching your appliance Don't turn off your Bluetooth. Oven New appliance Long appliance name to... CONNECT PRODUCT NOT FOUND

Appliance connection Searching your appliance Don't turn off your Bluetooth Oven Correcting... New appliance Long appliance name to... Stay close to your appliance in order to correctly capture the signal.

7. korak

- Pećnica će biti otkriver kontrolišete putem aplikacije hOn.

Appliance connection Your appliance has been correctly identified! Brand Hoover Model 31008486-7888-1824 Serial number 12345678-1234-1234 Is this your appliance? YES IT'S MY OVEN NO IT'S NOT

KAKO DA PROMENITE PODEŠAVANJA WI-FI MREŽE

Kada je uređaj povezan, korisnik može da promeni W-Fi podešavanja između:

• Wi-Fi ON: Moguće je pratiti stanje pećnice samo pomoću aplikacije.
• Wi-Fi hOn: Pećnica može da se koristi samo preko aplikacije.
• Wi-Fi OFF: Pećnica nije povezana, ali je i dalje registrovana sa sačuvanim mrežnim akreditivima.
• Wi-Fi RESET: Veza se resetuje i registracija može ponovo da se izvrši.

1. Dodirnite □ i uđite u Wi-Fi meni. Na displeju se pojavljuje „On“.
2. Na displeju se pojavljuje „On“.
3. Koristite strelice dok se ne prikaže „Off“ ili resetovanje podešavanja „rSt“.

Hand interacting with a touchscreen device displaying status indicators and control buttons

PROMENA STATUS

OFF

DALJINSKO UPRAVLJANJE

Hand interacting with a digital control panel showing icons for Wi-Fi, buttons, and a 'CON' display.

ON 8

hON

Hand interacting with a touchscreen device displaying 'hON' and control icons including Wi-Fi, alarm, and function buttons.

Cooking DH 50M LEFT ADD 5 MIN STOP Current program PROGRAMS Conventional 200°C 10 - Product (3PE) DH 30m Efficiency Product (2PE) EDIT DETAILS →

3. PRE POČETKA

3.1. INFORMACIJE VEZANE ZA POČETAK

Kada prvi put uključite pećnicu, možda ćete primetiti dim. Ne brinite, pre upotrebe pećnice samo sačekajte da se dim raščisti.

Illustration of a hand cleaning a kitchen with a blue cloth and a water bottle labeled H20 (no text or symbols on the main diagram)

MAKS °C 60 min

Line drawing of a window with a swirling blue smoke rising from a cabinet (no text or symbols)

4.1. KAKO PROIZVOD RAD

UKLJUČIVANJE/ISKLJUČIVANJE PEĆNICE

Hand interacting with a touchscreen icon and a digital interface panel (no text or symbols)

MENI FUNKCIJA

Pristupite meniju Funkcija pritiskom na dugme □.

Hand interacting with a touchscreen interface (no text or symbols visible)

Digital display screen showing time and weather icons with a hand pointing to the 88:00 mark

Trajanje Kuhinjski tajmer Odloženi početak Preci probe 88:88 Podešavanje doba dana Vremenska vrednost Indikator vremena Povratne informacije o Preci probe sondi (status baterije i signala)

New Jolly Function Torta ai 3 cioccolati Step 1 Preheat No > Cooking program Conventional > Temperature 100 °C > Duration 3h45m > Note It's quick and easy to make up the cloverage. It's nice and creamy (without using heavy cream) and it's always so noisy and comforting and delicious. ADD STEP USE AS JOLLY FUNCTION SAVE RECIPE

Kako da podesite funkciju Jolly:

Da biste podesili funkciju Jolly na pećnici, otvorite odeljak sa receptima u aplikaciji, izaberite recept koji želite da koristite i kliknite na „Koristi kao Jolly funkciju“.

Od tog trenutka, možete je pokrenuti iz proizvoda čak i bez interakcije sa aplikacijom. Jednostavno okrenite funkcijsko dugme na funkciju Jolly da biste započeli proces kuvanja.

Sacher Torta Torta ai tre cioccolati EDIT Single Step Preheat Yes, 180 °C Cooking program & temperature Conventional, 180 °C Duration 1h 55m Note It's quick and easy to make on the stovetop, it's nice and creamy (without using heavy cream), and it's always so cozy and comforting and delicious. START JOLLY FUNCTION

OVEN U-CREATE MY RECIPES JOLLY FUNCTION CLEAR $1 Jolly Function DELETE Are you sure you want to delete the Jolly Function section? By doing this action all data will be kuL. CANCEL YES CONFIRM

Simple line drawing of a mechanical component with an arrow indicating rotation (no text or symbols)

Simple line drawing of a rectangular object with a blue arrow pointing to it, no text or symbols present.

PUNJENJE NAPUNJENO

Kako prijaviti i koristiti Preci Probe sondu:

1. Umetnite sondu u hranu.
2. Dodirnite □ da biste izabrali željenu funkciju i dodirnite ⓣ onoliko puta koliko vam je potrebno da izaberete ikonu sonde.
3. Nakon nekog vremena, pećnica će prepoznati šifru sonde. Dodirnite ĐII i pomoću strelica podesite željenu temperaturu.
4. Dodirnite ▶Ⅱ da biste potvrdili. Od ovog trenutka, pećnica će koristiti podatke sonde za praćenje unutrašnje temperature vaše hrane.
5. Kada se dostigne željena unutrašnja temperatura, oglašava se alarm i pećnica se isključuje. Pažljivo uklonite sondu iz hrane.

Simple line drawing of a roasted chicken with a chimney and leaf (no text or symbols)

Hand interacting with a digital control panel showing time, battery, and function icons

Hand interacting with a touchscreen device displaying icons and a numeric display showing 0, with a blue circular button highlighting the digit '0'.

5 180° ↓ ↑ ↓

180°C

180°C

Saveti za kuvanje

Ready No program scheduled SCHEDULE START Last Favorites PROGRAMS Conventional 350°C 1h 30m Fast Preheat (OFF) Probe (OFF) EDIT DETAILS → 000 AppWizard kitchen Digital Kitchen Dishwasher Max

Ready Not programs scheduled SCHEDULE START Last Favorites PROGRAMS Conventional Camera Guided clock Precipet Accessories Recipes Special Supplies Discover Help

PreciTaste Start a cooking session with PreciTaste This feature allows, thanks to a special intelligence, to recognise recipes stored inside the oven. START NOW Last recipes (5) ALL RECIPES Juniaper and beer- braised beef FIS Quinoa with olives and sun-dried... DETAILS → DETAILS → 600

1. korak Izaberite kategoriju hrane koju želite da kuvate, a zatim pritisnite „Dalje“ da biste potvrdili.

PreciTaste Which type of food do you want to cook? Meat and poultry Stews Seafood Poultry NEXT

1. korak Nakon pokretanja recepta Preci Taste iz aplikacije, počeće prethodno zagrevanje. Da biste pokrenuli ovu funkciju, šupljina pećnice mora da bude prazna.

PreciTaste Rearing time 04.59 Pre-heating in progress Wait pre-heat... Before inserting the food you have to wait for the preheat process to end. You can also go to the dashboard and browse freely, when pre-heating is over you will receive a notification. GO TO DASHBOARD

1. korak Nakon faze prethodnog zagrevanja, hrana se može staviti u šupljinu. Zatvorite vrata pećnice kako biste omogućili da se hrana detektuje. Pećnica će prepoznati hranu kroz kameru i podesiti odgovarajuće parametre. Tokom ovog procesa, na ekranu pećnice će se prikazati "hOn". Nakon dobijanja potvrđe od korisnika, proces kuvanja počinje automatski.

PreciTaste Food analysis I am analyzing the food. Wait a few seconds...

PreciTaste Recipe found Honey Garlic Glazed Salmon Preci Bake Function Cooking time 25 minutes Temperature 500 °C Probe OFF > By cooking this recipe with the probe, the duration may change according to the target temperature. CHECK OTHER RECIPES LAUNCH PROGRAM

hON

Line drawing of a laboratory oven with cooling unit and side panel (no text or symbols)

UNAPRED PODEŠENO VREME

Illustration of a hand cleaning a clean window with a blue cloth (no text or symbols)

H_2O cleaning

Funkcija H2O cleaning je dizajnirana da se bez napora uhvati u koštac sa laganom zaprljanošću i pruži brzo i ekološki prihvatljivo rešenje za čišćenje unutrašnjosti pećnice pomoću snage pare.

Kako funkcioniše:

1. Sipajte 100 ml vode s kapljicom tečnosti za pranje posuđa u donji deo pećnice.
2. Uključite dugme 🚫/». Ako je potrebno, okrenite kontrolu brojčanika da biste podesili program Hydro Clean. Funkcija će raditi tokom unapred podešenog vremena.
3. Na kraju postupka čišćenja, pustite pećnicu da se ohladi.
4. Kada se uređaj ohladi, očistite unutrašnje površine pećnice krpom.
5. ▲ UPOZORENJE: Proverite da li je uređaj ohlađen pre nego što ga dodirnete. Vodite računa o svim vrućim površinama jer postoji rizik od opekotina. Koristite destilovanu ili pijaću vodu. Obrišite odeljak za kuvanje i neka se dobro osuši kako bi se izbegla eventualna korozija.

H2O 100 ml

UNAPRED PODESENO VREME

Warning symbol diagram with warning triangle, lightning bolt, and blue triangle indicating hazard or hazard

Hand cleaning a kitchen appliance with a blue cloth (no text or symbols visible)

Katalitičko čišćenje

Katalitički paneli oblažu unutrašnjost pećnice i pružaju vam luksuz da se nikada ne borite sa prljavom pećnicom.

Paneli su obloženi specijalizovanim emajlom koji se može pohvaliti mikroporoznom strukturom koja dobro apsorbuje mast koja prska.

Katalitičkom hemijskom reakcijom oni efikasno pretvaraju apsorbovanu mast u gasovite elemente kada su izloženi visokim temperaturama.

Line drawing of hands operating a door with an open lid (no text or symbols)

Simple line drawing of a mechanical component with a blue arrow indicating downward motion (no text or symbols)

45° 1 2

Pure technical line drawing of a mechanical component with no text or symbols

Diagram showing a hand holding a star-shaped object with an exclamation mark and warning triangle (no text or symbols)

Illustration of a hand holding a diagonal line with a blue circle highlighting the intersection point (no text or symbols present)

Line drawing of a hand holding a blue circle with a diagonal line, pointing at a small object on a wall (no text or symbols)

1. ▲ UPOZORENJE: treba sprečiti da kame dođe u kontakt sa bilo kojim deterdžentom tokom čišćenja.

2. Očistite staklo mekom krpom i odgovarajućim sredstvima za čišćenje.

3. Umetnite staklene ploče, vodeći računa da oznaka „LOW-E/ PYRO“ bude ispravno čitljiva i postavljena na donjoj levoj strani vrata, u blizini leve šarke. Na taj način će štampana etiketa na prvom staklu ostati na unutrašnjoj strani vrata. Uverite se da se tekst „Bionic Vision“ (Bionički vid) pojavljuje kao što je prikazano ovde, tako d bude ispravno čitljiv kada su vrata rerne otvorena.

4. Ponovo pričvrstite poklopac vrata gornjeg stakla tako što ćete ga gurati prema unutra dok ne čujete klik dva bočna dugmeta.

5. Zatim vratite vrata na 90° i okrenite jezičke za zaključavanje šarki prema unutrašnjosti pećnice.

6. ▲ UPOZORENJE: Priključci kamere (*) se r smeju isključivati tokom čišćenja.

Diagram showing a hand holding a blue circle above a mechanical device with an arrow, no text or symbols present.

Simple line drawing of a folded paper or sheet with a dashed-line pattern on the cover (no text or symbols)

Illustration of a hand cleaning a tiled surface with a blue cloth and a water bottle, no text or symbols present.

PYRO ILI LOW-E BIONIC VISION (*)

Technical line drawing of a mechanical assembly with arrows indicating motion direction (no text or symbols)

Line drawing of a door opening with hands holding blue tools (no text or symbols)

Simple line drawing of a mechanical component with a blue tool and arrow indicating direction (no text or symbols)

Line drawing of a hand holding a small object with a blue circle highlighting the object (no text or symbols present)

Line drawing of a hand holding a tool near a window frame (no text or symbols)

* samo ako postoji

6.3. ČIŠĆENJE DODATNE OPREME

Obavezno temeljno očistite dodatnu opremu nakon svake upotrebe i osušite je peškirom. Za tvrdokorne naslage, natopite dodatnu opremu u mešavini vode i sapuna oko 30 minuta pre nego što je ponovo operete.

ČIŠĆENJE BOČNIH NOSAČA:

- Model sa 6 nivoa

1. Uklonite bočne nosače povlačenjem u pravcu strelica.
2. Da biste očistili žičane nosače, stavite ih u mašinu za pranje sudova ili koristite vlažni suđer i obavezno ih posle osušite.
3. Nakon procesa čišćenia, postavite žičane nosače obrnutim redosledom.

Line drawing of a laboratory oven with internal airflow arrows (no text or symbols)

Diagram of two open oven units with internal airflow arrows, no text or symbols present

Illustration of a hand cleaning a rack with a cloth, next to a water bottle labeled H₂O (no text or symbols on the main subject)

Diagram of two open oven units with internal airflow arrows, no text or symbols present

Line drawing of an oven with a rack inside, showing internal structure (no text or symbols)

- Model sa 7 nivoa

1. Uklonite bočne držače tako što ćete prvo povući prednji deo u smeru strelice i odvojiti zadnji deo od vijaka.
2. Da biste očistili žičane nosače, stavite ih u mašinu za pranje sudova ili koristite vlažni suđer i obavezno ih posle osušite.
3. Nakon postupka čišćenja postavite bočne nosače obrnutim redosledom: postavite zadnji deo između vijaka i gurnite prednji deo u smeru strelice.

Line drawing of a wall-mounted rack or shelf with multiple parallel bars, no text or symbols present

Diagram of a wall-mounted rack with a directional arrow indicating rotation (no text or symbols)

Hand holding a transparent panel with a blue arrow indicating downward motion (no text or symbols)

H₂O

Hand holding a transparent panel with a blue arrow pointing to it, no text or symbols present

Diagram of a vertical panel with horizontal bands and a blue arrow indicating rotation (no text or symbols)

6.4. ODRŽAVANJE

ZAMENA KOMPONENTI

Safety warning diagram showing a plug connected to an electrical outlet with a warning symbol and OFF button

1. korak


Hand holding a circular object with a blue arrow inside, next to an open oven (no text or symbols visible)

1. korak


Illustration of a hand holding a CD inside a washing machine with a blue arrow indicating downward motion (no text or symbols)

1. korak


Illustration of a hand holding a circular device with a blue arrow pointing upward, next to an open kitchen appliance (no text or symbols)

1. korak


Hand holding a circular object with a blue arrow inside, next to an open oven (no text or symbols visible)

1. korak


Safety warning diagram showing a plug and fuse with hazard symbol and ON/OFF switch symbols

Diagram of a washing machine with circular components and a magnified view showing internal structure (no text or symbols)

Ovaj proizvod sadrži jedan ili više izvora svetlosti energetske efikasnosti klase G (lampa)
* U slučaju problema sa ovom lampom, obratite se korisničkoj službi.

Safety warning diagram showing a plug on a line with a warning symbol and OFF button

1. korak


Illustration of a hand using a tool to clean or store items, with a magnified inset showing the process (no text or symbols)

1. korak


Illustration of a hand inserting a small component into a device, with no visible text or symbols.

1. korak


Illustration of a hand inserting a plug into a device, with no visible text or symbols

1. korak


Diagram of a cabinet or rack with an inset showing a labeled component (no text or symbols present)

1. korak


Safety warning diagram showing a plug connected to an ON panel with warning symbol and directional arrows

Illustration showing a kitchen cleaning process with a warning triangle and a hand cleaning a cabinet, accompanied by a close-up of the interior.

8. ZAŠTITA ŽIVOTNE SREDINE I ODLAGANJE NA OTPAD

8.1. ODLAGANJE UREĐAJA NA OTPAD

Isometric line drawing of a multi-level cabinet or rack unit with internal compartments and structural elements (no text or symbols)

ILI Odbojnik Odbojnik

SVEIKI

Simple illustration of a blue-handled pen with a downward arrow pointing to it (no text or symbols)

Diagram of a multi-tiered oven with numbered parts for identification

2.2. PRIEDAI

Metalinès grotelès

SUSTABOYTI SUSTABOYTI

3D diagram of a rectangular tray with internal compartments, no text or symbols present

3D rendering of a rectangular plastic tray with internal compartments (no text or symbols)

Line drawing of a kitchen sink with a bowl and a circular object, no text or symbols present

Technical line drawing of a two-tiered storage unit with horizontal shelves and a central tray (no text or symbols)

Line drawing of a rectangular tray with a patterned lid and grid lines, no text or symbols present.

Two line drawings of pen tips, one plain and one with a curved cable (no text or symbols)

Diagram of a rectangular appliance with internal grating and lid, placed inside a rack (no text or symbols)

Simple line drawing of a kitchen appliance with a circular diagram showing airflow or vibration (no text or symbols)

Line drawing of a rooster rolling out dough on a cutting board (no text or symbols)

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Simple line drawing of a cabinet or drawer with a rectangular opening and a blue horizontal bar at the bottom (no text or symbols)

Available on the App Store GET IT ON Google Play

NAUJO NAUDOTOJO REGISTRACIJA

Welcome! Sign in to enter in your home page ENTER REGISTER Are you new to hOn? Click below to learn about our products TRY DEMO hOn Do you already have a thousand passwords? Register with your social accounts and log in in the easiest and fastest way. SIGN UP WITH GOOGLE SIGN UP WITH APPLE SIGN UP WITH FACEBOOK No information reducing to you will be shared and we will not valid anything from you. OF SIGN UP WITH EMAIL Already registered? LOGIN

SPARČIOJO SUSIEJIMO REGISTRACIJA

1 veiksmas

Hello USERNAME YOUR APPLIANCES Add Add appliance Hos Virtual Wine Bank second row 3 bottles there is a second row YOUR WIDGETS Lemoniqueum dokar street NEW YOUR NEWS What functions do smart appliances have? How to live sustain home and reduce w

2 veiksmas

Allow your location permission To enhance your experience, please allow location permission to hOn app in the next step. CONTINUE

3 veiksmas

Select your appliance category Search your appliance Washing machine Washer dryer Tumble dryer Dishwasher Air conditionair Air purifier Air scanner

4 veiksmas

Turn OFF and then ON your appliance In case you can't switch OFF your appliance, unplug (for at least 10 seconds) and then plug its power supply. OK.I DID IT

5 veiksmas

Hand interacting with a touchscreen device displaying 'hON' and control icons including Wi-Fi, alarm, and function buttons.

Cooking DH 10M LEFT ADD 5 MIN STOP Current program PROGRAMS Conventional 200°C 10: Product ENG DH 30m Efficiency Product(ETF) EDIT DETAILS →

3. PRIEŠ PRADEDANT

3.1. INFORMACIJA PRADEDANT

4.1. KAIP GAMINYS VEIKIA

ORKAITĖS IJUNGIMAS / IŠJUNGIMAS

Kad jjungtumete / išjungtumete orkaitę, palaikykite (!)

Hand interacting with a touchscreen icon and a digital interface panel (no text or symbols)

FUNKCIJŲ MENIU

Atidarykite funkciju meniu paspausdami.

Hand interacting with a digital interface displaying a grid of icons (no text or symbols)

Digital display screen showing time and duration metrics with icons for clock, timer, lock, and directional indicators

New Jolly Function Torta ai 3 cioccolati Step 1 Preheat No. > Cooking program Conventional > Temperature 580 °C > Duration 1h-45m > Note It's quick and easy to make us the cookings. It's nice and creamy (without using heavy cream), and it's always so busy and comforting and delicious. ADD STEP USE AS JOLLY FUNCTION SAVE RECIPE

Sacher Torta Torta ai tre cioccolati EDIT Single Step Preheat Yes, 180°C Cooking program & temperature Conventional, 180°C Duration 1h 55m Note It's quick and easy to make on the stovetop, it's nice and creamy (without using heavy cream), and it's always so cozy and comforting and delicious. START JOLLY FUNCTION

OVEN U-CREATE MY RECIPES JOLLY FUNCTION CLEAR $ Jolly Function DELETE Are you sure you want to delete the Jolly Function section? By doing this action all data will be kuL. CANCEL YES CONFIRM

Illustration showing a pen writing on a bone next to a simplified illustration of a chicken (no text or symbols present)

Ready No program scheduled SCHEDULE START Last Favorites PROGRAMS Conventional 250°C 1h 30m Fast Preheat (OFF) Probe (OFF) EDIT DETAILS → Accessories Review Special Features Discount Plan

Ready No program scheduled SCHEDULE START Last Favorites PROGRAMS Conventional Camera Guided audio Preciscope Accessories Recipes Social Features Discover Help

PreciTaste Start a cooking session with PreciTaste This feature allows, thanks to a special intelligence, to recognise recipes stored inside the oves. START NOW Last recipes (5) ALL RECIPES Juniaper and beer- braised beef QUinoa with olives and sun-dried... DETAILS → DETAILS → 008

PreciTaste Which type of food do you want to cook? Meat and poultry Stews Seafood Baking NEXT

PreciTaste Rearing time 04.59 Pre-heating in progress Wait pre-heat... Before inserting the food you have to wait for the preheat process to end. You can also go to the dashboard and browse freely, when pre-heating is over you will receive a notification. GO TO DASHBOARD

PreciTaste Food analysis I am analyzing the food. Wait a few seconds...

PreciTaste Recipe found Honey Garlic Glazed Salmon Preci Bake Function Cooking time 25 minutes Temperature 500 °C Probe OFF > By cooking this recipe with the probe, the duration may change according to the target temperature. CHECK OTHER RECIPES LAUNCH PROGRAM

hON

Line drawing of a microwave oven with cooling unit and side panel (no text or symbols)

IŠ ANKSTO NUSTATYKITE LAIKA

Illustration of a hand cleaning a window with a blue cloth (no text or symbols)

„H₂O cleaning“

Warning symbol with warning triangle, lightning bolt, and triangular warning symbol in a diagrammatic layout

Hand cleaning a window with a blue cloth, showing debris and clean material inside (no text or symbols)

Line drawing of hands operating a door-shaped oven with blue tool tips (no text or symbols)

Simple line drawing of a mechanical component with a blue arrow indicating downward motion (no text or symbols)

45° 1 2

Pure technical line drawing of a mechanical component with no text or symbols

Diagram showing a hand holding a star-shaped object with an exclamation mark and warning triangle (no text or symbols)

Illustration of a hand holding a horizontal line with a blue circle highlighting the intersection point (no text or symbols present)

Line drawing of a hand holding a blue circle with a diagonal line, pointing to a small object on a surface (no text or symbols)

Diagram showing a hand holding a cable with a magnified inset (no text or symbols)

Simple line drawing of a folded paper or sheet with a dashed outline and internal lines, no text or symbols present.

Illustration of a hand cleaning a tiled surface with a blue cloth and a water bottle labeled H₂O (no text or symbols on the main subject)

PYRO ARBA LOW-E BIONIC VISION (*)

Simple line drawing of a ladder leaning against a wall, with arrows indicating direction (no text or symbols)

Illustration of hands operating a small oven with blue tool tips (no text or symbols)

Simple line drawing of a person using a tool to cut or mark a wall, with no text or symbols present.

Line drawing of a hand holding a small object with a blue circle highlighting the object (no text or symbols present)

Line drawing of a hand holding a tool near a vehicle (no text or symbols)

* tik jei yra

6.3. PRIEDU VALYMAS

Line drawing of a laboratory oven with internal circulation and airflow arrows (no text or symbols)

Diagram of two open industrial cabinets with internal airflow arrows, no text or symbols present

Illustration of a hand cleaning a rack with a cloth, next to a water bottle labeled H₂O (no text or symbols on the main subject)

Diagram of two open oven units with internal airflow arrows, no text or symbols present

Line drawing of an oven with internal cooling duct (no text or symbols)

- 7 lygių modelis

Line drawing of a vertical ladder structure with two black connectors, no text or symbols present

Diagram of a vertical panel with horizontal bars and a curved arrow indicating rotation (no text or symbols)

Hand holding a transparent panel with a blue angle indicator (no text or symbols)

H₂O

Hand holding a wall-mounted device with a blue arrow indicating direction (no text or symbols)

Diagram of a vertical ladder structure with directional arrows indicating motion (no text or symbols)

6.4. PRIEŽIŪRA

KOMPONENTŲ KEITIMAS

Safety warning diagram showing a plug connected to an electrical outlet with a warning symbol and 'OFF' label

2 veiksmas

Hand holding a circular object with a blue arrow inside, next to an open oven (no text or symbols visible)

3 veiksmas

Illustration of a hand holding a circular object with a blue arrow pointing downward, next to an open kitchen appliance (no text or symbols)

4 veiksmas

Illustration of a hand holding a circular device with a blue arrow pointing upward, next to an open kitchen appliance (no text or symbols)

5 veiksmas

Hand holding a circular object with a blue arrow, next to an open oven (no text or symbols visible)

6 veiksmas

Safety warning diagram showing a plug connected to an ON panel with warning symbol and directional arrows

Diagram of a washing machine with a circular component and a magnified view showing internal components (no text or symbols)

Safety warning diagram showing a plug connected to a circuit breaker with a warning symbol and safety indicators.

2 veiksmas

Illustration of a hand using a tool to clean or store items, with a magnified inset showing the process (no text or symbols)

3 veiksmas

Illustration of a hand inserting a small component into a device (no text or symbols visible)

4 veiksmas

Illustration of a hand inserting a component into a device (no text or symbols visible)

5 veiksmas

Diagram of a cabinet or rack structure with an inset showing a labeled component (no text or symbols present)

6 veiksmas

Safety warning diagram showing a plug connected to an ON panel with warning symbol and directional arrows

Diagram illustrating a kitchen cleaning process with a warning sign and a hand cleaning a cabinet, showing text labels and instructions.

8. APLINKOS APSAUGA IR ATLIEKŲ ŠALINIMAS

8.1. PRIETAISO ŠALINIMAS

Isometric line drawing of a multi-level cabinet or rack unit with internal compartments and drawers (no text or symbols)

ARBA Buferis Buferis

TERE TULEMAST!

Illustration of a blue-handled tool with a black downward arrow pointing to it (no text or symbols)

Diagram of an oven with numbered parts for identification and assembly reference

2.2. TARVIKUD

Metallrest

STOP STOP

3D diagram of a rectangular tray with internal geometric patterns, placed inside a rack (no text or symbols)

Empty white rectangle with a thin black border (no text or symbols)

3D diagram of a rectangular tray with internal compartments, no text or symbols present

Line drawing of a kitchen sink with a bowl, a round pan, and a side shelf (no text or symbols)

Line drawing of a two-tiered storage unit with horizontal shelves and a central rack (no text or symbols)

Two line drawings of pen tips, one upright and one curved with a plug (no text or symbols)

Line drawing of a rectangular tray with a patterned lid and grid lines, no text or symbols present.

Illustration of a rectangular appliance with a grid pattern on the lid, placed inside a rack (no text or symbols)

Simple line drawing of a kitchen appliance with a circular diagram showing airflow or ventilation (no text or symbols)

Line drawing of a rooster on a cutting board with a rolling pin (no text or symbols)

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Simple line drawing of a cabinet or drawer with a rectangular opening and a blue horizontal bar at the bottom (no text or symbols)

Available on the App Store GET IT ON Google Play

UUE KASUTAJA REGISTREERIMINE

Welcome! Sign in to enter in your home page ENTER REGISTER Are you new to hOn? Click below to learn about our products TRY DEMO hOn Do you already have a thousand passwords? Register with your social accounts and log in in the easiest and fastest way. SIGN UP WITH GOOGLE SIGN UP WITH APPLE SIGN UP WITH FACEBOOK No information relating to you will be shared and we will not pick anything from you. OR SIGN UP WITH EMAIL Already registered? LOGIN

KIIRÜHENDAMINE

1. samm

Hello USERNAME YOUR APPLIANCES Add Add appliance Hos Virtual Wine Bank second row 3 bottles there is a second row YOUR WIDGETS Lower prices door sites YOUR NEWS What functions do smart appliances have? How to live sustain home and reduce w

2. samm

Allow your location permission To enhance your experience, please allow location permission to hOn app in the next step. CONTINUE

3. samm

Select your appliance category Search your appliance Washing machine Washer dryer Tumble dryer Dishwasher Air conditionair Air purifier Air scanner

4. samm

Turn OFF and then ON your appliance In case you can't switch OFF your appliance, unplug (for at least 10 seconds) and then plug its power supply. OK.I DID IT

5. samm

Appliance connection Searching your appliance Don't turn off your Bluetooth. hOn app is looking for your appliance... 00:00:40 Stay close to your appliance in order to correctly capture the signal.

6.1–6.2. samm

Appliance connection Searching your appliance Don't turn off your Bluetooth. Oven New appliance Long appliance name to... CONNECT PRODUCT NOT FOUND

Appliance connection Searching your appliance Don't turn off your Bluetooth. Oven Connecting... New appliance Long appliance name to... Stay close to your appliance in order to correctly capture the signal.

7. samm

Appliance connection Your appliance has been correctly identified! Brand Hoover Model 31008486-7888-1824 Serial number 12345678-1234-1234 Is this your appliance? YES IT'S MY OVEN NO IT'S NOT

KUIDAS WIFI-SEADEID MUUTA

Hand interacting with a touchscreen device displaying status indicators and a timer reading 'ON'

MUUTKE OLEKUT

OFF

KAUGJUHTIMISPULT

Hand interacting with a touchscreen device displaying 'CON' and control buttons, with icons for Wi-Fi and timer.

ON

hON

Hand interacting with a touchscreen device displaying 'hON' and control icons including Wi-Fi, alarm, and function buttons.

Cooking SH 10M LEFT ADD 5.4WN STOP Current program PROGRAMS Conventional 200°C Sh 30m SL: Product (DM) Efficiency Product (DFR) EDIT DETAILS -4

3. ENNE ALUSTAMIST

3.1. TEAVE ALUSTAMISEKS

Simple line drawing of a kitchen sink with a hand cleaning the interior and a water bottle labeled H20 (no text or symbols on main objects)

MAX °C 60 min

Simple line drawing of a window with a door open and swirling blue smoke or vapor rising from the window (no text or symbols)

4. TOOTE KASUTAMINE

4.1. KUIDAS TOODE TOIMIB

AHJU SISSE-/VÄLJALÜLITAMINE

Hand interacting with a touchscreen icon and a digital interface panel (no text or symbols)

FUNKTSIOONIDE MENÜÜ

Hand interacting with a touchscreen interface (no text or symbols visible)

Digital display screen showing time and weather icons with a hand pointing to the 88:00 mark

New Jolly Function Torta ai 3 cioccolati Step 1 Preheat No > Cooking program Commercial > Temperature 180 °C > Duration 5h45m > Note It's quick and easy to make up the storings. It's nice and creamy breadth using heavy cream, and it's always so busy and comforting and delicious. ADD STEP USE AS JOLLY FUNCTION SAVE RECIPE

Sacher Torta Torta ai tre cioccolati EDIT Single Step Preheat Yes, 180°C Cooking program & temperature Conventional, 180°C Duration 1h 55m Note It's quick and easy to make on the stovetop, it's nice and creamy (without using heavy cream), and it's always so cozy and comforting and delicious. START JOLLY FUNCTION

OVEN U-CREATE MY RECIPES JOLLY FUNCTION CLEAR $1 Jolly Function DELETE Are you sure you want to delete the Jolly Function section? By doing this action all data will be kuL. CANCEL YES CONFIRM

Diagram of a mechanical device with a curved arrow indicating rotation or movement (no text or symbols)

Simple line drawing of a rectangular object with a curved cutout and a blue arrow pointing to it (no text or symbols)

LAETAKSE LAETUD

Simple line drawing of a chicken with a fork (no text or symbols)

Hand interacting with a digital control panel showing time, icons, and status indicators

Hand interacting with a touchscreen device interface showing icons for settings, navigation, and control buttons

180°

180°C

180°C

Diagram showing a pen tip transforming into a whole chicken with bone structure, illustrating the process of feeding.

PreciTaste Which type of food do you want to cook? Meat and poultry Stews Seafood Bento Next

PreciTaste Rearing time 04.59 Pre-heating in progress Wait pre-heat... Before inserting the food you have to wait for the preheat process to end. You can also go to the dashboard and browse freely, when pre-heating is over you will receive a notification. GO TO DASHBOARD

PreciTaste Food analysis I am analyzing the food. Wait a few seconds...

PreciTaste Recipe found Honey Garlic Glazed Salmon Preci-Bake Function Cooking time 25 minutes Temperature $80 °C Probe OFF > By cooking this recipe with the probe, the duration may change according to the target temperature. CHECK OTHER RECIPES LAUNCH PROGRAM

hON

Line drawing of a 3D oven with cooling unit and side panel (no text or symbols)

EELSEADISTATUD AEC

Illustration of a hand cleaning a window with a blue cloth (no text or symbols)

H₂O cleaning

H₂O 100 ml

EELSEADISTATUD AEG

Warning symbol diagram with warning triangle, lightning bolt, and triangular warning symbol

Illustration of a hand cleaning a window with a cloth (no text or symbols)

Line drawing of hands operating a door-shaped oven with blue tool tips (no text or symbols)

Simple line drawing of a mechanical component with a blue arrow indicating downward motion (no text or symbols)

45° 1 2

Pure technical line drawing of a mechanical component with no text or symbols

Diagram showing a hand holding a star-shaped object with an exclamation mark and warning symbol (no text or labels)

Illustration of a hand holding a horizontal line with a blue circle highlighting the intersection point (no text or symbols present)

Line drawing of a hand holding a blue circle with a diagonal line, pointing at a small object on a wall (no text or symbols)

Diagram showing a hand holding a cable with a magnified inset (no text or symbols)

Simple line drawing of a folded paper or sheet with a dashed outline and internal lines, no text or symbols present.

Illustration of a hand cleaning a blue cloth over a surface with a water bottle and label 'H₂O' (no text or symbols on main objects)

PYRO VõI LOW-E BIONIC VISION (*)

Simple line drawing of a ladder leaning against a wall, with arrows indicating direction (no text or symbols)

Line drawing of a double-bowel oven with hands inserting a cable (no text or symbols)

Line drawing of a hand holding a small object with a blue circle highlighting a defect or issue (no text or symbols present)

Simple line drawing of a mechanical component with a blue arrow indicating direction (no text or symbols)

Line drawing of a hand holding a tool near a vehicle (no text or symbols)

Line drawing of a laboratory oven with internal circulation and airflow arrows (no text or symbols)

Diagram of two open oven units with directional arrows indicating flow or movement (no text or symbols)

Illustration of a hand cleaning a rack with a cloth, next to a water bottle labeled H₂O (no text or symbols on the main subject)

Diagram of two kitchen units with heat exchangers and airflow arrows, no text or symbols present

Line drawing of an oven with internal cooling ducts (no text or symbols)

- 7 tasemega mudel

Line drawing of a vertical ladder structure with two black connectors, no text or symbols present

Diagram of a vertical rack structure with a blue curved arrow indicating rotation (no text or symbols)

Hand holding a transparent panel with a blue arrow indicating direction (no text or symbols)

H₂O

Hand holding a wall-mounted device with a blue arrow indicating direction (no text or symbols)

Diagram of a vertical panel mounted on a wall, with an arrow indicating rotation (no text or symbols present)

6.4. HOOLDUS

KOMPONENTIDE VAHETAMINE

Lambipirni vahetamine:

Safety warning diagram showing a plug connected to an electrical outlet with a warning symbol and 'OFF' label

1. samm


Hand holding a circular object inside a kitchen appliance (no text or symbols visible)

1. samm


Illustration of a hand holding a circular object with a blue arrow pointing downward, next to an open kitchen appliance (no text or symbols)

1. samm


Illustration of a hand holding a circular device with a blue arrow pointing upward, next to an open kitchen appliance (no text or symbols)

1. samm


Hand holding a circular object with a blue arrow, next to an open oven (no text or symbols visible)

1. samm


Safety warning diagram showing a plug connected to an ON panel with warning symbol and directional arrows

Diagram of a washing machine with a circular component and a magnified view showing internal components (no text or symbols)

Safety warning diagram showing a plug on a line with a warning symbol and OFF button

1. samm


Illustration of a hand using a tool to clean or store items, with a magnified inset showing the process (no text or symbols present)

1. samm


Illustration of a hand inserting a small component into a device (no text or symbols visible)

1. samm


Illustration of a hand inserting a plug into a device, with no visible text or symbols

1. samm


Diagram of a cabinet or rack with an inset showing a labeled component (no text or symbols present)

1. samm


Safety warning diagram showing a plug connected to an ON panel with warning symbol and directional arrows

Diagram showing a kitchen cleaning process with a warning triangle and a washing machine, accompanied by a close-up of the oven.

8. KESKKONNAKAITSE JA KÖRVALDAMINE

8.1. SEADME KÖRVALDAMINE

Isometric line drawing of a multi-level cabinet or rack unit with internal compartments and drawers (no text or symbols)

Võl Pörkeraud Pörkeraud

LAIPNI LÜDZAM

Illustration of a blue-handled pen with a black downward arrow pointing to it (no text or symbols)

2.1. PRODUKTA PÄRSKATS

Diagram of an oven with numbered parts for identification and assembly reference

Empty white rectangle with black border (no text or symbols)

APTURET APTURET

3D diagram of a rectangular tray with internal compartments, no text or symbols present

3D diagram of a rectangular tray with internal geometric pattern, no text or symbols present

Line drawing of a two-tiered bed layout with horizontal and vertical supports (no text or symbols)

Technical diagram of a tray with printed text and a blue tab, likely indicating a technical or operational document.

Line drawing of a kitchen sink with a bowl and a round head (no text or symbols)

Two line drawings of pens: one with a pointed tip and the other with a curved cable (no text or symbols)

Diagram of a rectangular appliance with internal grating, placed inside a rack (no text or symbols)

Line drawing of a round pan with dough and steam, no text or symbols present

Simple line drawing of a mechanical device mounted on a rectangular base (no text or symbols)

Simple line drawing of a kitchen counter with a circular icon and arrow indicating motion (no text or symbols)

Simple line drawing of a cabinet or shelf with a rectangular top and blue horizontal stripe at the bottom (no text or symbols)

Available on the App Store GET IT ON Google Play

JAUNA LIETOTĀJA REGISTRĀCIJA

Welcome! Sign in to enter in your home page ENTER REGISTER Are you new to hOn? Click below to learn about our products TRY DEMO hOn Do you already have a thousand passwords? Register with your social accounts and log in in the easiest and fastest way. SIGN UP WITH GOOGLE SIGN UP WITH APPLE SIGN UP WITH FACEBOOK No information relating to you will be shared and we will not post anything from you. OR SIGN UP WITH EMAIL Already registered? LOGIN

ĀTRĀ PĀRA REGISTRĀCIJA

1. darbība

- Atlasiet "Pievienot ierīci".

Hello USERNAME YOUR APPLIANCES Add Virtual Wine Bank second row 2 better than there is a second row Add appliance YOUR WIDGETS Lower quick door sit rest What to Care Your NEWS NEW What functions do smart appliances have? How to live sustain home and reduce w

2. darbība

Allow your location permission To enhance your experience, please allow location permission to hOn app in the next step. CONTINUE

3. darbība

Select your appliance category Search your appliance Washing machine Washer dryer Tumble dryer Dishwasher Air conditionair Air purifier Air scanner

4. darbība

Turn OFF and then ON your appliance In case you can't switch OFF your appliance, unplug (for at least 10 seconds) and then plug its power supply. OK. I DID IT

5. darbība

Appliance connection Searching your appliance Don't turn off your Bluetooth. hOn app is looking for your appliance... 00:00:40 Stay close to your appliance in order to correctly capture the signal.

6.1-6.2. darbība

- Atlasiet savu sadzīves tehniku, pieskarieties pie "Savienot" un uzgaidiet dažas sekundes.

Appliance connection Searching your appliance Don't turn off your Bluetooth. Oven New appliance Long appliance name to... CONNECT PRODUCT NOT FOUND

Appliance connection Searching your appliance Don't turn off your Bluetooth Oven Correcting... New appliance Long appliance name to... Stay close to your appliance in order to correctly capture the signal.

7. darbība

Your appliance has been correctly identified! Brand Hoover Model 31008486-7888-1824 Serial number 12345678-1234-1234 Is this your appliance? YES IT'S MY OVEN NO IT'S NOT

WI-FI IESTATIJUMU MAINA

Hand interacting with a touchscreen device displaying status indicators and a timer reading 'ON'

MAINIT STATUSU

OFF

TĀLVADĪBA

Hand interacting with a touchscreen device displaying icons for settings, buttons, and status bar

ON 8

HON

Hand interacting with a touchscreen display showing 'hON' and icons for Wi-Fi, app, and function buttons

Cooking DH 10M LEFT ADD 5 MIN STOP Current program PROGRAMS Conventional 200°C 10 Proukut (PK) DH 30m Efficiency Proukut (PKF) EDIT DETAILS →

3. PIRMS SĀKŠANAS

3.1. INFORMĀCIJA, LAI SĀKTU

Simple line drawing of a kitchen sink with a hand cleaning the interior and a water bottle labeled H2O (no text or symbols)

MAKS. °C 60 min

Simple line drawing of a window with a door open and swirling blue smoke or vapor rising from the window (no text or symbols)

4. PRODUKTA DARBIBA

4.1. KÄ PRODUKTS DARBOJAS

CEPEŠKRĀSNS IESLĒGŠANA/IZSLĒGŠANA

Hand interacting with a touchscreen icon and a digital interface panel (no text or symbols)

FUNKCIJU IZVĚLNE

Hand interacting with a touchscreen device displaying various icons (no text or symbols visible)

Digital display screen showing time and duration settings with icons for clock, timer, lock, and directional indicators

New Jolly Function Torta ai 3 cioccolati Step 1 Preheat No. Cooking program Conventional Temperature 580 °C Duration 1h45m Note It's english and easy to make on the skewbox, it's nice and creamy (without using heavy cream), and it's always so crazy and comforting and delicious. ADD STEP USE AS JOLLY FUNCTION SAVE RECIPE

Sacher Torta Torta ai tre cioccolati EDIT Single Step Preheat Yes, 180 °C Cooking program & temperature Conventional, 180 °C Duration 1h 55m Note It's quick and easy to make on the stovetop, it's nice and creamy (without using heavy cream), and it's always so cozy and comforting and delicious. START JOLLY FUNCTION

OVEN U-CREATE MY RECIPES JOLLY FUNCTION CLEAR $1 Jolly Function DELETE Are you sure you want to delete the Jolly Function section? By doing this action all data will be kuL. CANCEL YES CONFIRM

Simple line drawing of a mechanical component with an arrow indicating rotation (no text or symbols)

Simple line drawing of a rectangular object with a blue arrow pointing to it, no text or symbols present.

UZLÄDE UZLÄDETS

Simple line drawing of a chicken with a fork (no text or symbols)

Hand interacting with a digital control panel showing time, battery, and function icons

Hand interacting with a touchscreen device displaying a numeric keypad and control buttons

180°

180°C

180°C

Illustration showing a pen writing on a bone next to a simplified illustration of a chicken (no text or symbols)

Ready No program scheduled SCHEDULE START Last Favorites PROGRAMS Conventional 350°C 1h 30m Fast Preheat (OFF) Probe (OFF) EDIT DETAILS → 000 Appliance Review Digital Features Disperse Max

Ready Not programs scheduled SCHEDULE START Last Favorites PROGRAMS Conventional Camera Guided clock Precipet Accessories Recipes Special/Fpsilon Discover Help

PreciTaste Start a cooking session with PreciTaste This feature allows, thanks to a special intelligence, to recognise recipes stored inside the oven. START NOW Last recipes (5) ALL RECIPES Juniaper and beer- braised beef FIS Quinoa with olives and sun-dried... DETAILS → DETAILS → Ques and 600+

PreciTaste Which type of food do you want to cook? Meat and poultry Stews Seafood Poultry NEXT

PreciTaste Rearing time 04.59 Pre-heating in progress Wait pre-heat... Before inserting the food you have to wait for the preheat process to end. You can also go to the dashboard and browse freely, when pre-heating is over you will receive a notification. GO TO DASHBOARD

PreciTaste Food analysis I am analyzing the food. Wait a few seconds...

PreciTaste Recipe found Honey Garlic Glazed Salmon Preci Bake Function Cooking time 25 minutes Temperature 500 °C Probe OFF > By cooking this recipe with the probe, the duration may change according to the target temperature. CHECK OTHER RECIPES LAUNCH PROGRAM

hON

Line drawing of a kitchen oven with a blue arrow indicating airflow or cooling direction (no text or symbols)

IEPRIEKŠ IESTATITS LAIKS

Illustration of a hand cleaning a window with a blue cloth (no text or symbols)

H₂O cleaning

Warning symbol diagram with warning triangle, lightning bolt, and triangular warning symbol

Hand cleaning a cleanroom with a blue cloth, showing surface dust and spray (no text or symbols)

Line drawing of hands operating a door with blue tool tips (no text or symbols)

Simple line drawing of a mechanical component with a blue arrow indicating downward motion (no text or symbols)

45° 1 2

Pure technical line drawing of a mechanical component with no text or symbols

Diagram showing a hand holding a star-shaped object with an exclamation mark and warning symbol (no text or labels)

Illustration of a hand holding a horizontal line with a blue circle highlighting the intersection point (no text or symbols present)

Line drawing of a hand holding a blue circle with a diagonal line, pointing to a small object on a surface (no text or symbols)

Diagram showing a hand holding a cable with a blue circle highlighting the cable (no text or symbols present)

Simple line drawing of a folded paper or sheet with a dashed outline and internal lines, no text or symbols present.

Illustration of a hand cleaning a tiled surface with a blue cloth and a water bottle labeled H₂O (no text or symbols on the main subject)

PYRU VAI LOW-E BIONIC VISION (*)

Simple line drawing of a ladder leaning against a wall, with arrows indicating direction (no text or symbols)

Line drawing of a double-bowel oven with hands operating it (no text or symbols)

Line drawing of a hand holding a small object with a blue circle highlighting the object (no text or symbols present)

Simple line drawing of a hand holding a tool near a wall, with no text or symbols present.

Line drawing of a hand holding a tool near a vehicle (no text or symbols)

* (tikai, ja ir)

6.3. PIEDERUMU TİRİŞANA

Safety warning diagram showing a plug connected to an electrical outlet with a warning symbol and 'OFF' label

1. darbība


Hand holding a circular object with a blue arrow inside, next to an open oven (no text or symbols visible)

1. darbība


Illustration of a hand holding a circular object with a blue arrow pointing downward, next to an open kitchen appliance (no text or symbols)

1. darbība


Illustration of a hand holding a circular device with a blue arrow pointing upward, next to an open kitchen appliance (no text or symbols)

1. darbība


Hand holding a circular object with a blue arrow inside, next to an open oven (no text or symbols visible)

1. darbība


Safety warning diagram showing a plug and fuse with hazard symbol and ON/OFF switch symbols

Diagram of a washing machine with a circular component and a magnified view showing internal components (no text or symbols)

Illustration showing a kitchen cleaning process: one with a warning triangle and swirling lines, the other with a hand cleaning a oven and a water bottle.

8.1. IERİCES UTILIZÄCIJA

Isometric line drawing of a multi-level cabinet or rack unit with internal compartments and drawers (no text or symbols)

VAI Bampers Bampers

ДОБРЕ ДОШЛИ

Illustration of a blue-handled tool with a downward arrow indicating compression or disassembly (no text or symbols)

Diagram of an oven with numbered components for identification

3D rendering of a rectangular plastic tray with internal compartments (no text or symbols)

3D diagram of a rectangular tray with internal geometric patterns, placed on a shelf (no text or symbols)

Line drawing of a two-tiered storage unit with horizontal shelves and a central rack (no text or symbols)

Line drawing of a rectangular tray with a grid pattern on the top surface, placed inside a rack (no text or symbols)

Line drawing of a kitchen sink with a bowl and a circular object, no text or symbols present

Two line drawings of medical or laboratory instruments: a pen and a curved tube (no text or symbols)

Illustration of a rectangular tray with a grid pattern inside, placed on a shelf (no text or symbols)

Line drawing of a rolling pin on a cutting board with steam rising (no text or symbols)

Simple line drawing of a mechanical device mounted on a base plate (no text or symbols)

Simple line drawing of a kitchen appliance with a circular diagram showing airflow or vibration (no text or symbols)

Simple line drawing of a cabinet or shelf with a rectangular panel and a blue horizontal bar at the bottom (no text or symbols)

Available on the App Store GET IT ON Google Play

Welcome! Sign in to enter in your home page ENTER REGISTER Are you new to hOn? Click below to learn about our products TRY DEMO hOn Do you already have a thousand passwords? Register with your social accounts and log in in the easiest and fastest way. SIGN UP WITH GOOGLE SIGN UP WITH APPLE SIGN UP WITH FACEBOOK No information relating to you will be shared, and we will not post anything from you. OR SIGN UP WITH EMAIL Already registered? LOGIN

Hello USERNAME YOUR APPLIANCES ADD Add appliance Hoo Virtual Wine Bank second row 2 bottles there is a second row YOUR WIDGETS Lemoniparam duke sit est. YOUR NEWS What functions do smart appliances have? How to live sustaine home and reduce w.

Стъпка 2

Allow your location permission

To enhance your experience, please allow location permission to hOn app in the next step.

CONTINUE

Стъпка 3

Select your appliance category

Search your appliance

Washing machine

Washer dryer

Tumble dryer

Dishwasher

Air conditionair

Air purifier

Air scanner

Стъпка 4

Appliance connection

Turn OFF and then ON your appliance

In case you can't switch OFF your appliance, unplug (for at least 10 seconds) and then plug its power supply.

Circular icon with a blue 'Power' button surrounded by abstract geometric shapes (no text or symbols)

OK, I DID IT

Стъпка 5

Hand interacting with a touchscreen device displaying status indicators and a timer reading 'ON'

ПРОМЯНА НА СЪСТОЯНИЕТО

OFF

Hand interacting with a touchscreen display showing icons for Wi-Fi, buttons, and a 'CON' button

ON 7-20 8

hON

Simple line drawing of a kitchen sink with a hand cleaning the interior and a water bottle labeled H2D (no text or symbols on main elements)

MAKC. 60 MIN

Line drawing of a steam rising from a chimney to a cabinet (no text or symbols)
