| Product type | Cordless electric kettle |
| Brand | Gorenje |
| Model | K17DS |
| Capacity | 1.7 L (max) |
| Body material | Plastic (not specified, assumed heat-resistant) |
| Base | Original base with cord storage |
| Power | Not specified (standard ~2000-2400 W) |
| Voltage | Suitable for local mains voltage (check label) |
| Main features | Automatic on/off, dry boil protection, power-on light ring |
| Water level indicator | Yes, transparent with markings |
| Descaling filter | Yes, removable for cleaning |
| Lid opening | Push-button (easy opening) |
| Pour spout | With integrated anti-scale filter |
| Safety | Dry boil protection, automatic shut-off after boiling, hot outer surface (caution) |
| Care and cleaning | Do not immerse; clean filter under running water or in dishwasher; descale with white vinegar or descaler |
| Recommended descaling | Every 3 months (soft water) or every month (hard water) |
| Dimensions (approx.) | Not provided (estimate: height ~25 cm, width ~20 cm, depth ~15 cm) |
| Weight (approx.) | Not provided (estimate ~1 kg) |
| Warranty | Gorenje worldwide warranty (contact customer service) |
| Certifications | CE, WEEE (compliant with directive 2012/19/EU) |
Frequently Asked Questions - K17DS GORENJE
User questions about K17DS GORENJE
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Kettle in PDF format for free! Find your manual K17DS - GORENJE and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. K17DS by GORENJE.
USER MANUAL K17DS GORENJE
Device type
- Select the device according to the instructions for selecting the device.
- Fill the bottle with water. Fill the bottle through the opening for filling or through the top opening with the cap open.
- Close the cap. Check that the cap is well closed to prevent the bottle from leaking.
- Place the bottle on the base.
- Plug the power cord into the electrical outlet.
- Turn the switch "ON/OFF" to the "I" position.
The indicator light on the front indicates that it is on and the bottle begins to heat.
The bottle automatically turns off when the water reaches the boiling point.
Cleaning and maintenance
Before cleaning, always unplug the device from the outlet.
Do not use abrasive agents to clean the bottle.
Never immerse the bottle and the base in water.
The kettle is ready to use.
The appliance is not intended for use by persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

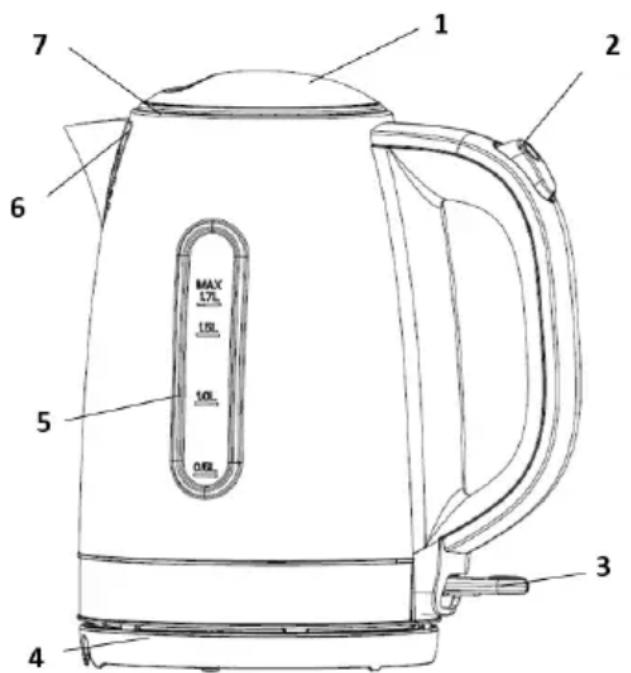

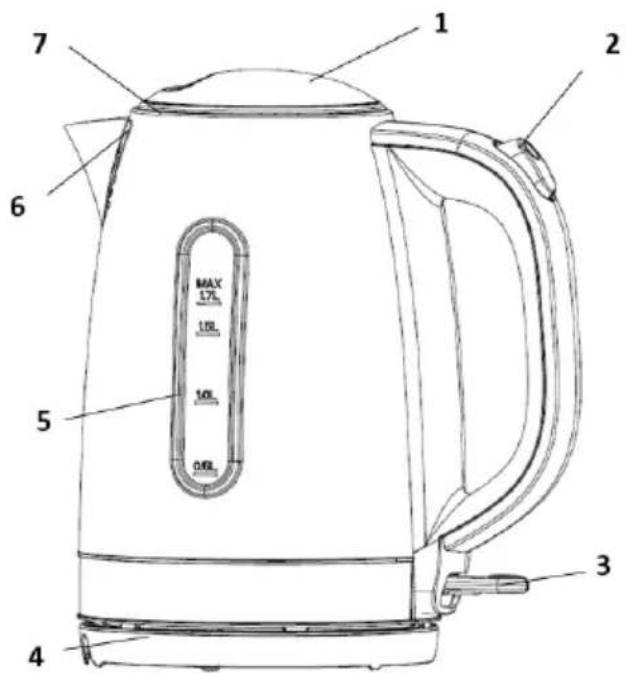

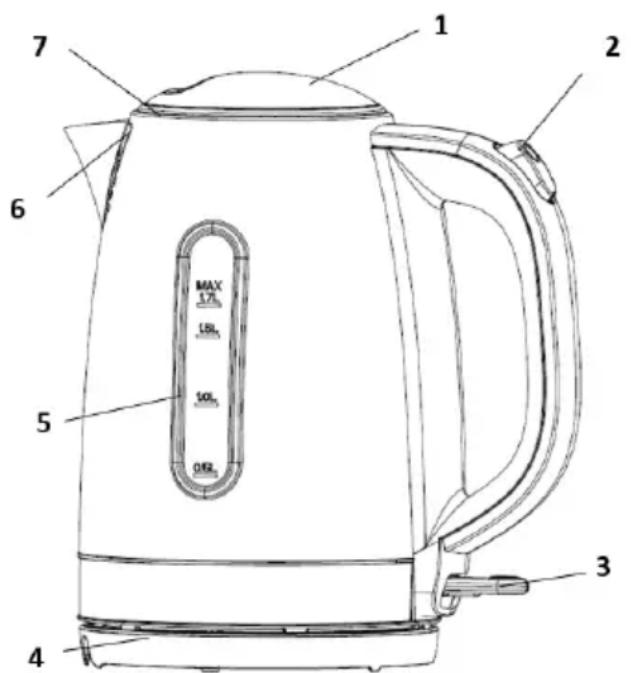

- Lid
- Lid release button
- On/off switch
- Base
- Water level indicator
- Spout
- Anti-scale filter
Important
Read these instructions for use carefully before using the appliance and save them for future reference.
Check if the voltage indicated on the base of the kettle corresponds to the local mains voltage before you connect the appliance.
Only use the kettle in combination with its original base.
Always place the base and the kettle on a dry, flat and stable surface.
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe
way and understand the hazards involved.
Children shall not play with the appliance.
Cleaning and maintenance shall not be made by children unless they are older than 8 and supervised.
Keep the appliance and its cord out of the reach of children. Do not let the mains cord hang over the edge of the table or worktop. Excess cord can be stored in the base of the appliance.
Keep the cord, the base and the appliance away from hot surfaces.
Do not use the appliance if the mains cord, the plug, the base or the appliance itself is damaged.
If the mains cord is damaged, it must always be replaced by Gorenje, a service centre authorised by Gorenje or similarly qualified persons in order to avoid a hazard.
Do not immerse the appliance or the base in water or any other liquid.
The kettle is only meant for boiling water. Do not use it to heat up soup or other liquids or jarred, bottled or tinned food. Boiling water can cause serious burns. Be careful when the kettle contains hot water.
Never fill the kettle beyond the maximum level indication. If the kettle has been overfilled, boiling water may be ejected from the spout and cause scalding.
Do not open the lid while the water is boiling. Be careful when you open the lid immediately after the water has boiled: the steam coming out of the kettle is very hot.
Avoid touching the body of the kettle, as it gets very hot during use.
Always lift the kettle by its handle.
Always make sure the water in the kettle at least covers the bottom of the kettle to prevent the kettle from boiling dry.
Some condensation may appear on the base of the kettle. This is perfectly normal and does not mean that the kettle has any defects.
Depending on the hardness of the water in your area, small spots may appear on the heating element of your kettle when you use it. This phenomenon is the result of scale build-up on the heating element and on the inside of the kettle over time. The harder the water, the faster scale will build up. Scale can occur in different colours. Although scale is harmless, too much scale can influence the performance of your kettle. Descale your kettle regularly by following the instructions given in the chapter 'Descaling'.
Electromagnetic fields (EMF)
This Gorenje appliance complies with all standards regarding electromagnetic fields (EMF). If handled properly and according to the instructions in this user manual, the appliance is safe to use based on scientific evidence available today.
This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE).
This guideline is the frame of a European-wide validity of return and recycling on Waste Electrical and Electronic Equipment.
Boil-dry protection
This kettle is equipped with boil-dry protection. This device will automatically switch the kettle off if it is accidentally switched on when there is no water or not enough water in it. The on/off switch will stay in 'on' position, but the power-on light ring will go out. Set the on/off switch to 'off' and let the kettle cool down for 10 minutes. Then lift the kettle from its base to reset the boil-dry protection. The kettle is now ready for use again.
Before first use
- Remove stickers, if any, from the base or kettle.
- Place the base on a dry, stable and flat surface.
- Rinse the kettle with water.
- Fill the kettle with water up to the maximum level and let it boil once (see 'Using the appliance').
- Pour out the hot water and rinse the kettle once more.
Using the appliance
- Open the lid by pressing the lid release button.
- Fill the kettle with water.
You can fill the kettle either through the spout or through the open lid.
- Close the lid.
Make sure that the lid is properly closed to prevent the kettle from boiling dry.
- Place the kettle on its base.
- Put the plug in the wall socket.
- Set the on/off switch to 'I'.
The power-on light ring goes on and the kettle starts heating up.
The kettle switches off automatically when the water has reached boiling point.
Cleaning and descaling
Always unplug the appliance before cleaning it. Do not use any abrasive cleaning agents, scourers etc. to clean the kettle.
Never immerse the kettle or its base in water.
Cleaning the filter
Scale is not harmful to your health but it may give your drink a powdery taste. The antiscale filter prevents scale particles from ending up in your drink and has a mesh that attracts scale from the water. Clean the anti-scale filter regularly.
The anti-scale filter can be cleaned as follows:
- Take the filter out of the kettle.
- Clean the mesh by squeezing and rotating it under a running tap.
- Gently clean the filter with a soft nylon brush.
You can also leave the filter in the kettle when descaling the whole appliance (see 'Descaling the kettle'). You can also take the filter out of the kettle and clean it in the dishwasher. 4. After cleaning the filter under the tap or in the dishwasher, put it back into the kettle by sliding it behind the brackets.
Descaling the kettle
Regular descaling will prolong the life of the kettle. In case of normal use (up to 5 times a day), the following descaling frequency is recommended:
- Once every 3 months for soft water areas (up to 18 dH). Once every month for hard water areas (more than 18 dH).
- Fill the kettle with water up to three-quarters of the maximum level and bring the water to the boil.
- After the kettle has switched off, add white vinegar (8% acetic acid) to the maximum level.
- Leave the solution in the kettle overnight.
- Empty the kettle and rinse the inside thoroughly.
- Fill the kettle with clean water and boil the water.
- Empty the kettle and rinse it with clean water again.
Repeat the procedure if there is still some scale in the kettle.
You can also use an appropriate descaler. In that case, follow the instructions on the package of the descaler.
Environment
Do not throw away the appliance with the normal household waste at the end of its life, but hand it in at an official collection point for recycling. By doing this, you help to preserve the environment.
Guarantee & service
If you need information or if you have a problem, please contact the Gorenje Customer Care Centre in your country (you find its phone number in the worldwide guarantee leaflet). If there is no Customer Care Centre in your country, go to your local Gorenje dealer or contact the Service department of Gorenje domestic appliances.
GORENJE WISHES YOU A LOT OF PLEASURE WHEN USING YOUR APPLIANCE
We reserve the right to any modifications!
- Cleaning and descaling the kettle
Important
Before using the appliance, read this instruction manual carefully and keep it for future reference. Before connecting the appliance to the mains, check that the voltage indicated on the rating plate matches the voltage of your local electricity supply.
Use the appliance only with its original base. This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities, or
lack of experience and knowledge, if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
Keep the appliance and its cord out of reach of children. Do not let the cord hang over the edge of a table or worktop. The excess cord can be stored in the base of the appliance.
Keep the cord, base and appliance away from hot surfaces. Do not use the appliance if the cord, plug, base or the appliance itself is damaged.
If the supply cord is damaged, it must be replaced by Gorenje, an authorized Gorenje service center or a similarly qualified person, in order to avoid a hazard. Never immerse the appliance or its base in water or any other liquid.
The kettle is intended only for boiling water. Do not use it for heating up milk or other liquids, or for preserving or boiling food.
Boiling water may cause severe burns. Be careful when there is hot water in the kettle.
Never fill the kettle above the maximum level. If the kettle is overfilled, boiling water may be ejected from the spout and cause burns. Do not open the lid while the water is boiling. Be careful when opening the lid immediately after the water has boiled, as the steam coming out of the kettle is very hot. Avoid touching the body of the kettle, as it becomes very hot during operation. Always hold the kettle by the handle.
Always make sure that the water in the kettle covers at least the minimum level, to prevent the kettle from boiling dry.
Condensation may appear on the base of the kettle. This is quite normal and does not mean that the kettle has any defect. Depending on the hardness of the water in your area, white spots may appear on the heating element and on the inside surface of the kettle during use. This is due to the formation of limescale over time on the heating element and the inner surface of the kettle. The harder the water, the faster limescale will form. Limescale may appear in different colors. Although limescale is harmless, too much limescale can impair the efficient operation of the kettle. Clean it regularly from limescale, following the instructions given in
the section "Cleaning and descaling the kettle".
This device is marked in accordance with European Directive 2012/19/EU on waste electrical and electronic equipment (WEEE).
This directive regulates the rules for the return and recycling of old appliances.
Electromagnetic emissions (EMF)
This Gorenje device complies with all standards regarding electromagnetic emissions (EMF). If used correctly and in accordance with the instructions in the user manual, the device is safe for use according to current scientific knowledge.
Protection against overheating
This appliance is equipped with protection against overheating. The device will automatically switch off if it is accidentally turned on while there is no water or insufficient water in it. The On/Off switch will remain in the "On" position, but the indicator light for heating will go out. Move the On/Off switch to the "Off" position and let the appliance cool for 10 minutes. Then unplug the appliance from the mains to reset the overheating protection. The appliance is ready for use again.
Never immerse the appliance or its base in water.
Cleaning the appliance
Clean the outside of the appliance with a soft, damp cloth moistened with warm water and a little mild detergent.
Cleaning the filter
Limescale deposits are not harmful to your health, but they can give your drink an unpleasant taste. The anti-scale filter prevents limescale particles from getting into your drink and keeps it clear when the water is boiled.
Clean the anti-scale filter regularly.
The anti-scale filter can be cleaned as follows:
- Remove the filter from the appliance.
- Rinse it under running water while gently squeezing and twisting it.
- Carefully remove the filter from the kettle. You can leave the filter in the kettle until you descale it (see "Descaling the kettle"). You can also remove the filter from the kettle and wash it in the dishwasher.
- After cleaning the filter with warm water in the dishwasher, you can put it back in the kettle by pressing it into place.
Descaling the kettle
Regular descaling removes limescale from the kettle.
With normal use (up to 5 times a day), descaling is recommended at the following intervals:
- Every 3 months for areas with soft water (up to 18 gr. hardness). - Every month for areas with hard water (over 18 gr. hardness).
- Fill the kettle with water up to three quarters of the maximum level and boil the water.
- After the kettle has switched off, add the descaling agent (8% acetic acid) up to the maximum level.
3. Leave the solution to soak in the kettle overnight.
4. Empty the kettle and rinse it thoroughly. 5. Fill the kettle with clean water and boil the water. 6. Empty the kettle and rinse it again with clean water.
Repeat the procedure if the kettle has heavy limescale.
You can also use the appliance to boil water. In this case, follow the instructions on the appliance packaging.
Storage
You can safely wind the cable by turning the cable storage compartment at the base in the direction of the arrow.
Never fill the kettle above the maximum mark. If the kettle is overfilled, boiling water may splash out of the spout and cause burns.
Do not open the lid while the water is boiling. Be careful when lifting the lid immediately after the water has boiled, as the steam coming out of the kettle is very hot.
Do not touch the kettle body, as it becomes very hot during use.
Always hold the kettle by the handle. To prevent water from spilling out of the kettle, always check that the water level covers the bottom. Condensation may appear on the kettle platform. This is normal and does not indicate a defect.
Depending on the hardness of the water in your area, small stains may appear on the heating element during use of the kettle. This is due to the formation of scale on the heating element and inside the kettle, which occurs over time. The harder the water, the more scale builds up. Scale can be removed with descaling agents. If you want to remove it completely, regularly descale the kettle. Regularly descale the kettle according to the instructions in the "Descaling" section.
This appliance is marked in accordance with the European Directive 2012/19/EU regarding electrical and electronic equipment (waste electrical and electronic equipment - WEEE). The Directive determines the framework for the return and recycling of used appliances as applicable throughout the European Union.
Electromagnetic compatibility (EMI)
This Gorenje appliance complies with all standards regarding electromagnetic fields (EMI).
According to the latest scientific research, the appliance is safe for use when operated correctly in accordance with the instructions provided in this user manual.
Protection against heating without water
The kettle is protected against boiling without water. The automatic switch-off turns off the kettle if it is accidentally switched on when there is insufficient or no water.
Switch. The switch remains in the "ON" position, and the indicator light indicates that the appliance is on.
Install the switch to the "ON" position and let the device run for 10 minutes. Remove the device from the platform to protect it from damage. The device is now ready for use.
Before first use
- Remove the labels, if any, from the platform or the device.
- Place the platform on a dry, stable, and level surface.
- Rinse the device with water.
- Fill the device with water to the maximum level and then close it (see "Using the device").
- Pour out the water and rinse the device once more.
Using the device
- Open the lid by pressing the lid release button.
- Pour water into the device. The device can be filled with water through the spout or through the open lid.
- Close the lid.
To prevent water from leaking out of the device, make sure the lid is closed properly.
- Place the device on the platform.
- Insert the plug into the wall socket.
- Set the switch to the "ON" position.
The kettle with a humidity indicator begins to heat.
The kettle turns off automatically when the water reaches the boiling point.
Descaling
Before descaling, unplug the kettle from the outlet. Do not use abrasive agents, metal scrapers, or similar. Never immerse the kettle in water.
Descaling
Clean the outside of the kettle with a soft, damp cloth moistened in warm water with a mild detergent.
Descaling the filter
Scale is not harmful to health, but it can give the drink a powdery taste. The anti-scale filter is necessary to prevent scale particles from getting into the drink and has a mesh that traps scale from the water. Clean the anti-scale filter regularly. The anti-scale filter can be cleaned as follows:
- Remove the filter from the kettle.
- Rinse the filter under running water and brush it with a soft brush.
- To clean the mesh, soak it and then place it back under the tap. 4. The filter can also be cleaned with a non-abrasive sponge.
After removing the kettle from the base, you can also rinse the filter (see "Removing the kettle from the base"). You can also remove the filter from the kettle and wash it in the dishwasher. 5. After cleaning the filter under the tap, place it back into the kettle, turning it slightly.
Removing scale from the kettle
Regularly remove scale according to the kettle's service life.
With normal use (about 5 times a day), it is recommended to remove scale with the following frequency:
Fill the tank with water (up to 18 liters). - Then, pour the water out (after 18 liters).
- Fill the tank with water to the brim and let it sit for a while.
- When the water is drained, add vinegar (8% acetic acid) up to the maximum level.
- Leave the solution in the tank overnight.
- Drain the water from the tank and rinse it thoroughly inside.
- Fill the tank with clean water and rinse it.
- Drain the water from the tank and rinse it with clean water. If any residue remains in the tank, repeat the procedure.
You can also use a suitable descaling agent. In that case, follow the instructions on the packaging.
Storage
The device can be easily stored by turning it upside down on the base plate with the cord wrapped around it.
Environment
Do not dispose of the device with household waste; instead, take it to an official collection point for recycling. In this way, you help protect the environment.
Warranty and service
If you need any information or encounter a problem, contact the Gorenje customer care center in your country (the phone number can be found on the warranty card). If there is no customer care center in your country, contact the local dealer or the Gorenje Domestic Appliances technical service department.
FOR HOUSEHOLD USE ONLY!
GORENJE wishes you a lot of pleasure using your new appliance!
We reserve the right to make any changes.
Description
- Lid
- Lid opening button
- On/Off switch
- Base
- Water level indicator
- Spout
- Anti-scale filter
IMPORTANT SAFETY INSTRUCTIONS
Carefully read the instructions to use the appliance correctly. Be sure to keep the instructions and, when passing the appliance to a new owner, do not forget to hand over the instructions as well. Before plugging in, check that the voltage indicated on the appliance matches the actual mains parameters. Use the appliance only with the base supplied with the appliance.
Place the base and the appliance only on a dry, flat, and stable surface.
This appliance can be used by children aged 8 and above and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
Make sure that children do not play with the appliance.
Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
The appliance and its cord must be kept out of reach of children. Ensure that the cord does not hang over the edge of a table or work surface on which the appliance is placed. Excess cord can be stored inside the cord storage compartment or wound around the base of the appliance.
The power cord, the base of the appliance, and the appliance itself must be at a sufficient distance from hot surfaces.
Do not use the appliance if the power cord, plug, base, or the appliance itself is damaged. Replacement of a damaged power cord must be carried out only by a specialist of an authorized service center.
It is forbidden to immerse the appliance and its base in water or other liquids.
The appliance is intended only for boiling water. Do not use it to heat soup or other liquids, as well as canned products.
Boiling water can cause severe burns. Be careful!
It is forbidden to fill the appliance with water above the maximum level mark.
Otherwise, boiling water may splash out of the spout, and you can get scalded.
It is forbidden to open the lid of the heating appliance. Be especially careful if you open the lid immediately after the appliance has boiled: the steam coming out of the appliance is very hot.
Do not touch the body of the appliance during operation and immediately after heating: it is very hot.
The anti-scale filter of prolonged action prevents scale from getting into the water and has a mesh that removes scale particles from the water.
The filter must be cleaned regularly as follows:
- Rinse the kettle.
- Remove the filter from the kettle and take out the mesh.
- Rinse the mesh under running water.
- Carefully clean the filter with a soft nylon brush under running water. The filter can also be left in the kettle during descaling (see section "Descaling").
- The filter can be washed in a dishwasher.
- After rinsing the filter under running water or in the dishwasher, install it back in the kettle.
Descaling
Regular descaling extends the service life of the kettle.
With normal use (up to 5 times a day), the following frequency of descaling is recommended:
- Once every three months, if the water is soft (10–18 dH).
- Once a month, if the water is hard (more than 18 dH).
- Fill the kettle with water to three-quarters of the maximum volume and bring the water to a boil.
- After the kettle switches off, add white vinegar (8% acetic acid) to the mark of the maximum level.
- Dissolve the tablet in a glass of water.
- Pour the water out of the glass and thoroughly rinse it with clean water.
- Pour clean water into the glass and let it sit for a while.
- Pour the water out of the glass and rinse it again with clean water.
If there is still scale in the glass, repeat the procedure.
You can also use special descaling agents. In this case, follow the descaling instructions on the product packaging.
STORAGE
The cable is best stored in a special compartment at the bottom of the unit. When winding, turn the reel to the right.
WARRANTY AND SERVICE
If a malfunction occurs, contact an authorized service center. You can find a list of authorized service centers in the brochure "Warranty Obligations".
Environmental care
The used product must not be disposed of as household waste. For more detailed information on disposal, please contact your local authorities, the waste collection and disposal service, or the store where you purchased the product. By following the disposal rules, you can help prevent
potential harm to the environment and human health.
Environmental protection
After the end of its service life, do not throw the device away with household waste. Hand it over to a specialized collection point for recycling. By doing so, you will help protect the environment.
Maintenance and service
FOR HOUSEHOLD USE ONLY! THE MANUFACTURER RESERVES THE RIGHT TO MAKE CHANGES!
Importer: LLC "Gorenje BT" 119180, Moscow, Yakimanskaya nab., 4, bldg. 1
GORENJE WANTS TO ENSURE THAT USING THE APPLIANCE BRINGS YOU SATISFACTION!
THE MANUFACTURER RESERVES THE RIGHT TO MAKE CHANGES.
Description
- DEVICE TYPE
- CLEANING AND MAINTENANCE
- THE KETTLE IS READY TO USE
- IMPORTANT
- ELECTROMAGNETIC FIELDS (EMF)
- BOIL-DRY PROTECTION
- BEFORE FIRST USE
- USING THE APPLIANCE
- CLEANING AND DESCALING
- CLEANING THE FILTER
- DESCALING THE KETTLE
- ENVIRONMENT
- GUARANTEE & SERVICE
- GORENJE WISHES YOU A LOT OF PLEASURE WHEN USING YOUR APPLIANCE
- ELECTROMAGNETIC EMISSIONS (EMF)
- PROTECTION AGAINST OVERHEATING
- CLEANING THE APPLIANCE
- STORAGE
- ELECTROMAGNETIC COMPATIBILITY (EMI)
- PROTECTION AGAINST HEATING WITHOUT WATER
- USING THE DEVICE
- DESCALING
- DESCALING THE FILTER
- REMOVING SCALE FROM THE KETTLE
- WARRANTY AND SERVICE
- GORENJE WISHES YOU A LOT OF PLEASURE USING YOUR NEW APPLIANCE
- DESCRIPTION
- IMPORTANT SAFETY INSTRUCTIONS
- ENVIRONMENTAL CARE
- ENVIRONMENTAL PROTECTION
- MAINTENANCE AND SERVICE
Brand : GORENJE
Model : K17DS
Category : Kettle
