USER MANUAL P100 Majority

What's In the Box? 3

Controls And Functions.... 4

Instructions Guide.... 6

Basic Operation....6

Control Buttons Functionality.... 7

Bluetooth Mode 8

SD Card (TF) Mode 8

USB Playback Mode 8

FM Radio Mode....9

Troubleshooting & Support.... 10

Specification.... 11

Warranty.... 11

Safety Information.... 12

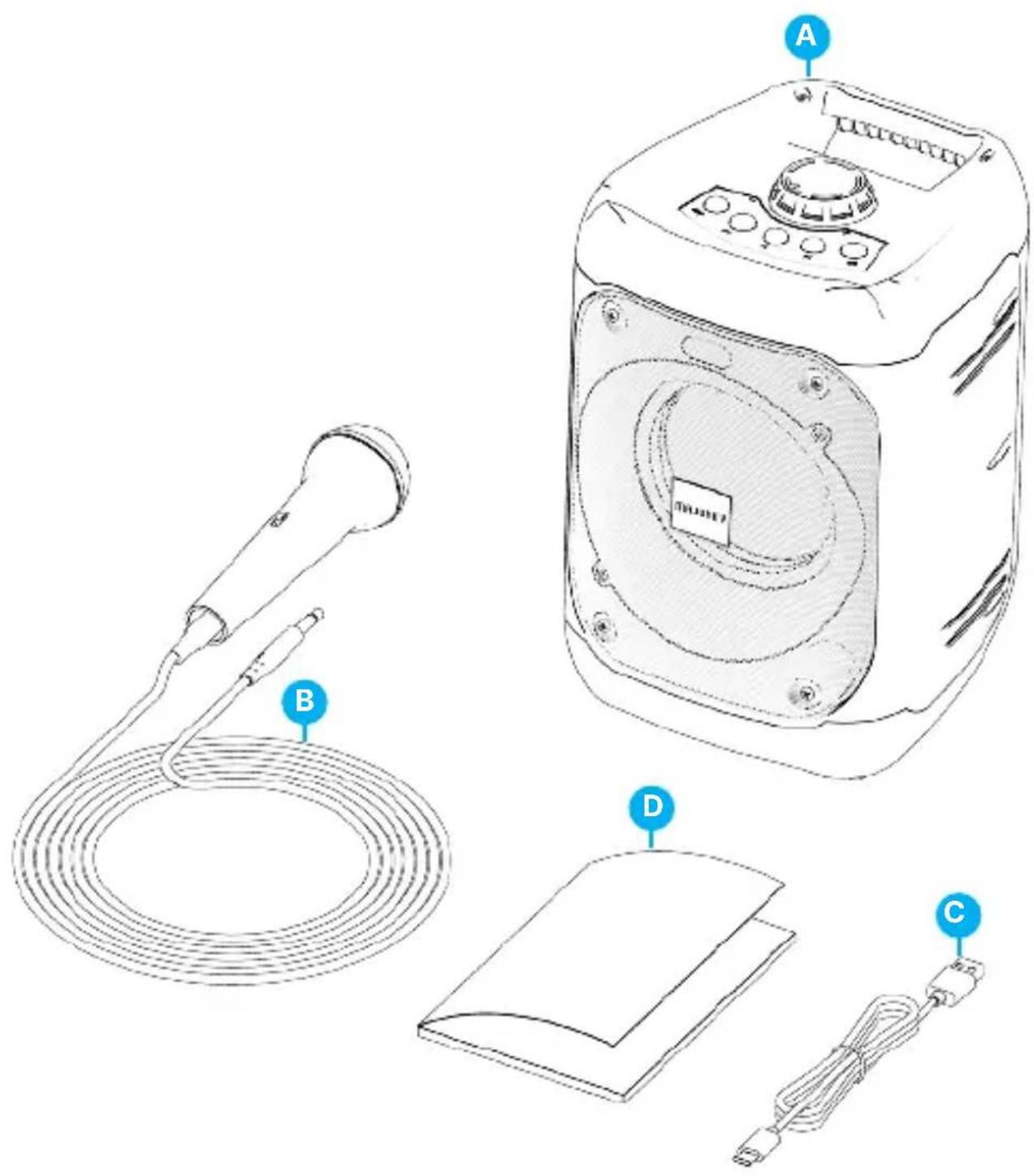

What's in the Box?

A. The Majority P100 Party Speaker

B. Wired Microphone

C. USB Type-C Charging Cable

D. User Manual

Technical diagram showing labeled components of a device with parts A, B, C, and D, including a microphone and coiled cable.

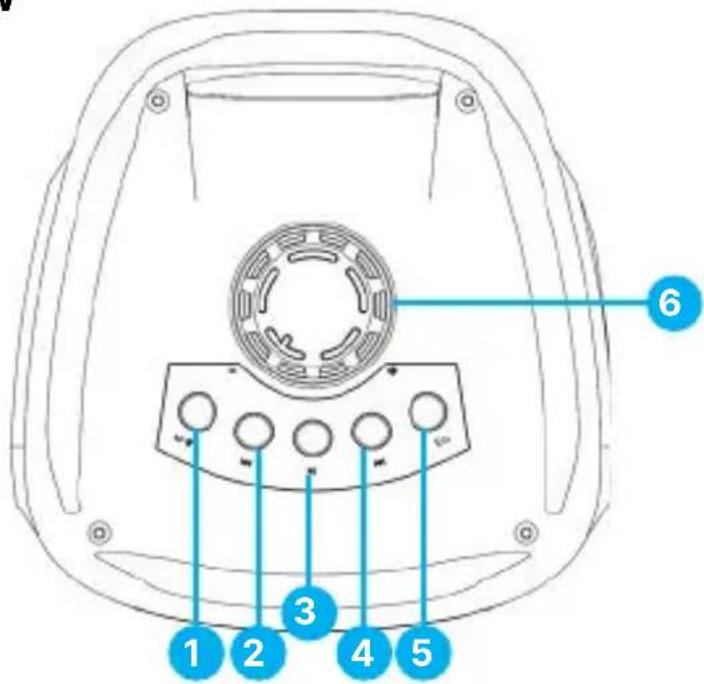

Front & Top View

1 2 3 4 5 6

Technical line drawing of a square mechanical component with concentric circular features and mounting holes (no text or symbols)

1. Mode/Lighting

2. Next

3. Previous

4. EQ

5. Play/Pause/TWS

6. Volume +/-

Back View

MIC ON/OFF TF DC5V USB 7 8 9 10 11 12

1. Charging LED light
2. Microphone Port

3. Switch ON/OFF

4. TF Card Playback Port

5. USB Type-C Charging Port (DC5V)
6. USB Playback Port

Please note that the instructions within this user manual will refer to the button number on the speaker (Ref 'number'), in accordance with the diagrams from pages 4-5.

Basic Information

Remove the packaging and prepare your Majority P100 Party Speaker for use.

Charging Time

Insert the USB-C type cable at the back of the unit (Ref.11) and connect with a plug (DC5V) to the mains for charging. The charging LED light (Ref.7) will show a red light. It takes up to 8 hours to fully charge the Majority P100. The charging LED light will switch off when the battery is fully charged. When you have finished charging, disconnect the party speaker from the power source and take advantages of its portability.

Please Note: It is recommended to charge the P100 when not in use for longer battery life.

Playtime

The Majority P100 has an internal rechargeable battery. Once fully charged, the speaker can be used on battery power for up to 7 hours.

Please Note: The playtime may vary based on the volume level and lighting modes usage while operating on battery power.

Microphone

Insert the wired microphone included in the box into 'MIC' port (Ref.8) at the back of the unit. The microphone can be used in all modes: Bluetooth, TF Crad, USB or FM Radio.

Power ON/OFF

Slide the 'Switch' button (Ref.9) to the left or the right to power on/off the Majority P100.

Party LED Lighting:

Press and hold the 'Mode/Lighting' button (Ref.1) for 2-3 seconds to change the Light Mode. There are four lighting modes available to choose from which can be used in all modes: BT, FM radio, USB & SD.

'Mode/ Lighting' Button (Ref.1)

Press this button repeatedly to change the Party Speaker Modes: Bluetooth, TF Card, USB or FM Radio.

Press and hold this button for 2-3 seconds to change the Party Speaker Lighting Modes.

'Previous' Button (Ref.2)

Press to skip and play the previous audio track in Bluetooth, TF Card or USB Playback Mode.

Press this button in FM Radio Mode to play the previous FM radio station listened to.

Play/Pause/TWS Button (Ref.3)

Press the 'Play/Pause/TWS' button (Ref.3) to play or pause music.

Press and hold for 2-3 seconds to process an automatic radio stations scan while in FM Mode.

The 'TWS' function can only be used with two Majority P100 Party Speakers which you can connect and use as two Bluetooth party speakers.

Please note: Each package contains one Majority P100 Party Speaker.

To connect two Majority P100 Party Speaker's you should first ensure that both speakers are powered on and not paired individually with other devices via Bluetooth. Press the 'TWS' button (Ref.3) twice on one of the speakers, and both will connect wirelessly with each other. A voice-prompted message will then be heard. Once both Majority P100's are connected, switch on the Bluetooth connectivity on your phone, and then search for the 'Majority P100'. Select and pair with the speakers. You can now play audio on both party speakers. To disconnect, press the 'TWS' button (Ref.3) twice on one speaker.

'Next' Button (Ref.4)

Press the 'Next' button (Ref.4) to skip and play the next audio track while in Bluetooth, TF Card or USB Playback Mode.

Press to play the next radio station while in 'FM Radio' Mode.

EQ button (Ref.5)

Press the 'EQ' button (Ref.5) to toggle in between equalisers sound modes for more bass or treble as per your preferences. There are 6 equalisers modes in total.

Volume rotary knob (Ref.6)

Control the volume level -/+ by rotating the 'Volume' knob to the left or to the right.

Bluetooth Mode

The Majority P100 can be paired via Bluetooth with a phone or a tablet to play audio from via your party speaker.

Press the 'MODE' button at the top of the speaker (Ref.1) repeatedly to change the speaker mode to Bluetooth. A voice-prompted message will prompt the speaker mode.

Once in Bluetooth mode the speaker is ready to pair. Activate Bluetooth on your device and search for 'Majority P100'. Select the speaker to pair with your device.

Once connected, you can start playing audio from your device via your party speaker.

Please Note: The Majority P100 cannot be paired with Bluetooth earbuds or earphones.

USB Playback Mode

Press the 'Mode' button (Ref.1) repeatedly to change into USB Mode. A voice message will be prompted confirming the mode.

The USB stick size should be of up to 32GB and must be formatted in FAT32 before adding audio files on it, in supported formats MP3 or WAV.

Insert the USB stick into the USB port (Ref.12), and the Majority P100 will automatically start playing audio from it.

Please note: The Majority P100 USB port cannot be used as a connection port with other devices as this is just for playback.

TF Playback Mode

Press the 'MODE' button (Ref.1) at the top of the unit repeatedly to change the speaker mode to 'TF'. A voice-prompted message will prompt this mode.

The TF Card should be of up to 32GB, which must be formatted in FAT 32 before adding audio files in supported formats MP3 or WAV.

Insert the TF card into its port (Ref.10) at the back of the speaker.

The Majority P100 will then start playing audio form your TF card.

FM Radio Mode

Press the 'MODE' button (Ref.1) at the top of the unit repeatedly to change the speaker mode in 'FM Radio'. A voice message will prompt this mode.

Press and hold the 'Play/Pause/TWS' button (Ref.3) for 2-3 seconds to start processing an automatic scan for the FM radio stations available at your location.

Once the search has been completed, the FM radio stations found will be automatically saved and the party speaker. The Majority P100 will then start playing the first FM radio station found.

Press the 'PREVIOUS' (Ref.2) or 'NEXT' (Ref.4) buttons to play the next or the previous stored FM radio station.

Observation Potential Cause/Solution
No power/function	Check the switch button on the back of the speaker and make sure is set to 'ON'.Ensure the speaker battery is fully charged.
No sound	Increase the volume using the rotary on the speaker. If paired via Bluetooth with other device and there is no sound, increase the volume level from your device at maximum, and then increase the volume on your speaker as well.
Bluetooth not connecting	Ensure the Majority P100 is not paired with other devices and is set into Bluetooth Mode.Ensure your device has Bluetooth activated and search for the 'Majority P100'. Select and connect. You will now play audio via your party speaker.

Support

If you require further assistance with your Majority product, please contact our support team on the Majority website: www.majority.co.uk/support

Specification & Warranty

Specification

Power Supply DC5V (50W)
Bluetooth Version V 5.0
Bluetooth Operating Distance 10 Metres
Supported audio formats (TF,USB) MP3, WAV.
FM Frequency Range FM 87.5-108MHZ
USB Playback Port Use a USB stick of up to 32 GB
Weight 1.2 Kg
Dimensions 18.3 x18.9 x 25.5 cm.

Warranty

Register your product within 30 days of purchase at www.majority.co.uk to activate your extended warranty. Terms and conditions apply.
