Product Type	Built-in Column Freezer
Brand	Monogram
Model	ZIF241NBRII
Dimensions (approx.)	Width 24 in, Depth 24 in, Height 84 in
Power Supply	115 V AC, 60 Hz, 15 or 20 A, grounding plug
Freezer Temperature Range	-6 °F to +4 °F (-21 °C to -16 °C)
Automatic Ice Maker	7 ice cubes per cycle, approximately 15 cycles per 24 h
Water Filter	XWF or XWFE cartridge, replace every 6 months or 170 gallons
Water Filter Capacity	170 gallons (643.5 liters)
Water Pressure Required	40 to 120 psi (275 to 827 kPa)
Wi-Fi Connection	Yes, via Monogram app (United States and Canada)
Sabbath Mode	Yes, activation by pressing (+) and DOOR ALARM
Door Alarm	Yes, adjustable (volume high/low/off)
Interior Lighting	LED, replacement by after-sales service
Exterior Material	Stainless Steel
Maintenance and Cleaning	Use mild detergent, avoid abrasive cleaners, air filter every 6 months
Limited Warranty	2 years parts and labor, 5 years sealed system, 6-12 years sealed system parts
Weight (approx.)	Approximately 1200 lb (545 kg) fully loaded
Refrigerant	Isobutane (R600a), flammable
Number of Drawers	Multiple pull-out drawers (details in user manual)

Frequently Asked Questions - ZIF241NBRII Monogram

What to do if my freezer does not work?

First check that the freezer is plugged in and the circuit breaker has not tripped. Make sure the temperature control is not set to OFF. If the interior light does not come on, the appliance may not be powered. Wait 24 hours after first startup. If Sabbath mode is activated, deactivate it.

Why is my ice maker not producing ice?

Check that the ice maker switch is set to ON and the water supply is connected and open. Water pressure should be between 40 and 120 psi. The freezer may be too warm; wait 24 hours for it to cool. Ensure the ice bin is not jammed with stacked ice.

How to change the water filter?

The water filter (model XWF or XWFE) is located at the top of the appliance. Open the cover, remove the old filter by turning 1/4 turn counterclockwise, then insert the new filter by aligning the arrow and turning 1/4 turn clockwise. After installation, run 2 gallons of water to purge air, then reset the indicator by holding the '+' key for 3 seconds.

Why does the displayed temperature not match the actual temperature?

The actual temperature may vary due to frequent door opening, adding hot food, or the defrost cycle. Allow 24 hours for the system to stabilize. Check that the door is properly closed and the temperature settings are correct.

How to activate Sabbath mode?

To activate Sabbath mode, press and hold the (+) and DOOR ALARM keys simultaneously until the display shows SABBATH MODE. This mode disables displays, alarms, and lighting, and turns off the ice maker and auto-fill pitcher. It deactivates automatically after 4 days or by repeating the procedure.

How to adjust the door alarm?

Press the DOOR ALARM key to turn the alarm on or off. To change the volume, press and hold DOOR ALARM until the display shows the level, then press again to cycle through VOLUME HIGH, VOLUME LOW, or VOLUME OFF.

What to do if moisture forms inside the freezer?

Interior moisture is often due to frequent or prolonged door openings, especially in humid weather. Use an air conditioner to control ambient humidity. Check that the door closes properly and the gaskets are in good condition.

How to clean the interior of the freezer?

Cut power supply. Use a solution of warm water and baking soda (1 tablespoon per liter of water). Clean surfaces, rinse and dry. Do not clean glass shelves with hot water when cold. The pitcher and its lid are dishwasher safe.

Why do ice cubes have a strange taste or odor?

Discard old ice cubes and wash the ice bin. Ensure food in the freezer is properly sealed. Clean the interior of the freezer. If the problem persists, replace the water filter, as a bad water taste may be the cause.

How to remove a drawer from the freezer?

Pull the drawer fully outward, then lift the front while releasing from the slides. Continue lifting and pulling forward to release the hooks. To replace, place the rear hooks into the slots on the slides, then lower the front until the positioning pins click into place.

USER MANUAL ZIF241NBRII Monogram

Au Canada: Prodsupport.mabe.ca/crm/Products/ProductRegistration.aspx

SERVICE DE RÉPARATION

Garant: GE Appliances, a Haier company, Louisville KY, 40225

Au Canada,Garant: MC Commercial, Burlington, ON, L7R 5B6

NOTES

NOTES

49-1000529 Rev.3

03-24

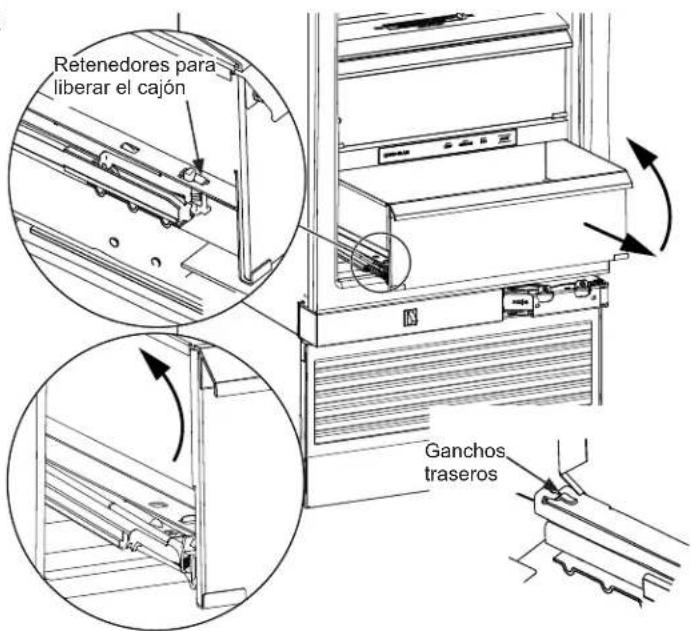

Drawers in the refrigerator will stop before coming all the way out, to help prevent contents from spilling onto floor.

To remove a drawer: Pull the drawer out and press the snaps at the front of both sides to release the drawer. Lift the front of the drawer up while pulling forward to move the pan free of the back slide hooks.

To replace a drawer: Place the back of the pan under the hooks on the back of the slides. Rotate the drawer down until the front snaps are securing the front of the pan.
