ZIF181NBRII - Freezer Monogram - Free user manual and instructions

Product Type	Built-in Column Freezer
Brand	Monogram
Model	ZIF181NBRII
Width	18 inches (45.7 cm)
Depth	Approximately 24 inches (61 cm)
Height	Approximately 84 inches (213 cm)
Weight	Approximately 150 kg
Power Supply	115 V, 60 Hz, 15 A or 20 A, grounded
Water Connection	Potable water, pressure 40-120 psi (275-827 kPa)
Freezing Capacity	Not specified, but designed for domestic use
Temperature Range	-21 °C to -16 °C (-6 °F to +4 °F)
Ice Maker	Automatic, 7 ice cubes per cycle, approx. 15 cycles/24h
Water Filter	XWF or XWFE, capacity 643 L (170 gal), replace every 6 months
Air Filter	Yes, replace every 6 months
Connectivity	Wi-Fi (compatible with Monogram app)
Sabbath Mode	Yes, disables displays and alerts for 96 h
Door Alarm	Yes, volume adjustable
Lighting	Interior LED
Exterior Material	Stainless steel
Refrigerant	R600a (isobutane)
Warranty	2 years parts and labor, 5 years sealed refrigeration system, 12 years sealed system parts (6-12 years)

Frequently Asked Questions - ZIF181NBRII Monogram

What to do if my freezer is not cooling enough?

Check that the temperature control is not set to OFF or to a too warm setting. Wait 24 hours after installation or adding food. Ensure the door is properly closed and the gasket is clean. If the problem persists, contact Monogram customer service.

How to install the water filter?

Open the top compartment, align the blue arrow on the XWF/XWFE filter, insert it and turn it a quarter turn clockwise. Use the extraction tool if necessary. After installation, purge the air by running 8 liters of water through the pitcher or discarding the first ice cubes.

Why is the ice maker not producing ice?

Check that the ice maker switch is set to ON and the water supply is connected. Production may take 12 to 24 hours after installation. Ensure the ice bin is not too full and the feeler arm can move freely. Also check that the water filter is not clogged.

How to activate Sabbath mode?

Press and hold the (+) and DOOR ALARM buttons simultaneously until the display shows 'SABBATH MODE'. The mode lasts 96 hours and disables displays, alarms, and lighting. To deactivate, repeat the operation or wait for automatic end.

How to clean the interior of the freezer?

Unplug the appliance or turn off the circuit breaker. Use a solution of warm water and baking soda (15 ml per liter). Clean the walls, shelves, and drawers. Rinse and dry. Do not wash plastic parts in the dishwasher. Leave the door open after cleaning if you go on vacation.

What to do if the door alarm sounds?

The alarm sounds if the door is left open for more than 2 minutes. Press any button to stop it. If it sounds again after 5 minutes, close the door. You can disable the alarm by pressing DOOR ALARM (the OFF indicator lights up).

How to connect my freezer to Wi-Fi?

Press the WI-FI button on the control panel. The symbol flashes during connection. Use the Monogram app on your phone to complete setup. The 'Connected Appliance Information' label is located behind the lowest door bin or inside the front cover.

How to change the temperature display from °F to °C?

Press and hold the (-) button until the display changes from °F to °C. To return to °F, repeat the operation.

Why is there frost on frozen food?

This may be due to a door left open, incomplete closing, or frequent openings. Check that nothing blocks the door and the gasket is in good condition. A little frost inside packages is normal.

How to remove the freezer drawers for cleaning?

Pull the drawer all the way out, then lift the front while pulling to disengage the rear hooks. To replace, place the rear hooks into the slots, then lower the front until the front rods engage into the slides.

USER MANUAL ZIF181NBRII Monogram

SOUTIEN AU CONSOMMATEUR....3

RENSEIGNEMENTS CONCERNANT LA SÉCURITÉ....4

COMMANDES....6

MACHINE À GLAÇONS AUTOMATIQUE (MODÈLES CONGÉLATEUR)....7

FILTRE À EAU 8

FILTRE À AIR (MODÈLES RÉFRIGÉRATEUR)....9

COMMUNICATION AVEC LES ÉLECTROMÉNAGERS....10

PICHET À REMPLISSAGE AUTOMATIQUE ....11

TIROIRS / ÉTAGÈRES / BACS 12

MODE SABBAT 14

ENTRETIEN ET NETTOYAGE....14

PRÉPARATIONN 16

DÉPANNAGE....17

FICHE TECHNIQUE DE PERFORMANCE ....20

GARANTIE LIMITÉE DE MONOGRAM....21

RENSEIGNEMENTS CONCERNANT LE MODÈLE

NUMÉROS DE MODÈLES

ZIF181, ZIF241, ZIF301 et ZIF361

Au Canada: Prodsupport.mabe.ca/crm/Products/ProductRegistration.aspx

SERVICE DE RÉPARATION

Architectural floor plan of a multi-level kitchen or storage unit with no visible text or labels

Diagram of a door lock mechanism showing clockwise rotation and valve placement (no text or labels)

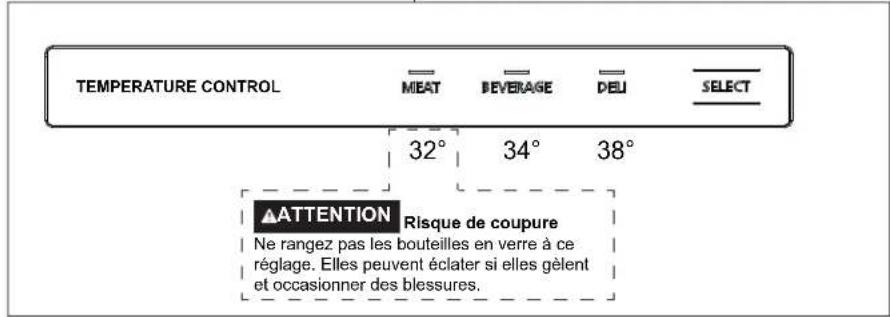

ATTENTION

Technical line drawing of a mechanical assembly with a cylindrical component and a magnified inset showing internal components (no text or symbols)

Diagram of a door handle mechanism with a knob and scroll arrow (no text or symbols)

Line drawing of a hand holding a wrist with a finger pointing to the wrist area (no text or symbols)

Line drawing of a hand inserting a grid into a device (no text or symbols)

Hand inserting a grid into a device panel (no text or symbols visible)

Illustration of a hand holding a wrist with a finger, showing a finger movement (no text or symbols)

Technical line drawing of a front panel with internal components and mounting brackets (no text or symbols)

Diagram showing two mechanical assembly steps with arrows indicating motion direction (no text or symbols)

BALCONNETS

Technical line drawing of a cabinet or rack assembly with an inset detail showing a wall-mounted door (no text or symbols present)

MODE SABBAT

Garant: GE Appliances, a Haier company, Louisville KY, 40225

Au Canada, Garant: MC Commercial, Burlington, ON, L7R 5B6

NOTES

NOTES

49-1000529 Rev. 3

03-24

Architectural floor plan of a multi-level kitchen or storage unit with no visible text or labels

Diagram of a mechanical device with a rotating shaft and housing, showing directional arrows (no text or symbols)

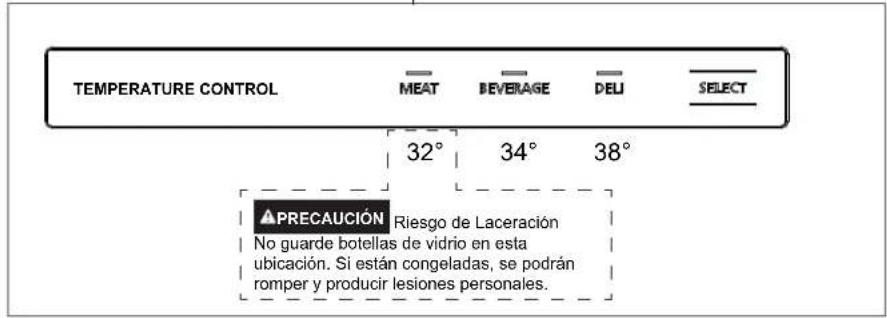

▲PRECAUCIÓN

Line drawing of a hand holding a wrist with an arrow indicating motion (no text or symbols)

Line drawing of a hand inserting a device into a device panel (no text or symbols)

Line drawing of hands inserting a card into a device (no text or symbols)

Line drawing of a hand holding a wrist with a finger, showing motion direction (no text or symbols)

RESET AIR FILTER HOLD 3 SEC

Technical line drawing of a mechanical or electrical component assembly (no text or symbols)

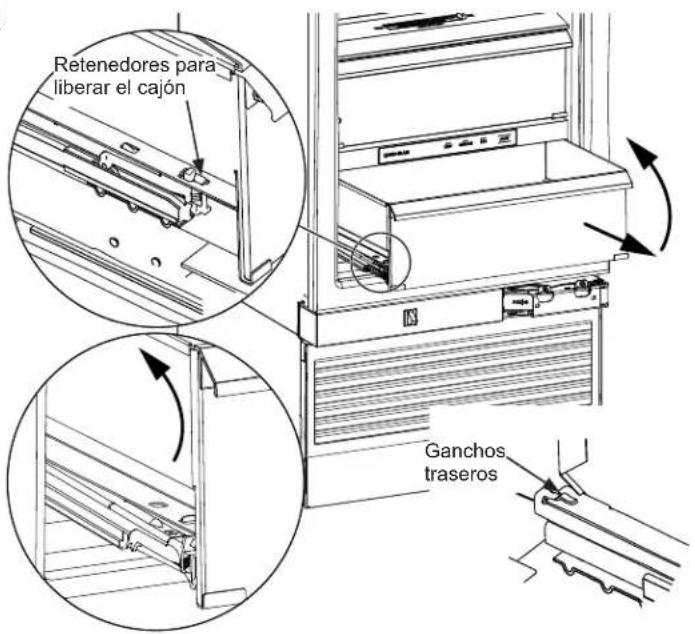

Drawers in the refrigerator will stop before coming all the way out, to help prevent contents from spilling onto floor.

To remove a drawer: Pull the drawer out and press the snaps at the front of both sides to release the drawer. Lift the front of the drawer up while pulling forward to move the pan free of the back slide hooks.

To replace a drawer: Place the back of the pan under the hooks on the back of the slides. Rotate the drawer down until the front snaps are securing the front of the pan.

Technical line drawing showing two views of a mechanical assembly with arrows indicating direction (no text or symbols)

Technical line drawing of a cabinet or rack assembly with a magnified inset showing a door detail (no text or symbols present)

MODO SABÁTICO
