Product Type	Built-in Column Freezer
Brand	Monogram
Model	ZIF361NBRII
Dimensions (W x H x D)	91.4 cm (36 in) wide, height and depth vary by installation
Electrical Supply	115 V AC, 60 Hz, 15-20 A, grounded outlet
Refrigerant	Isobutane (R600a), flammable
Water Pressure Required	40-120 psi (275-827 kPa) - cold drinking water
Automatic Ice Maker	Yes, 7 ice cubes per cycle, approx. 15 cycles/24h
Water Filter	XWF or XWFE cartridge, capacity 170 gallons (643.5 L), replace every 6 months
Air Filter	Yes, replace every 6 months (refrigerator models)
Wi-Fi Connectivity	Yes, Monogram app compatible
Temperature Display	Electronic, switchable °F/°C
Freezer Temperature Range	-21°C to -16°C (-6°F to +4°F)
Door Alarm	Yes, adjustable (high/low/off)
Sabbath Mode	Yes, activate by pressing (+) and DOOR ALARM, disables displays and alarms
Drawers	Removable, with stop before full extension
Tempered Glass Shelves	Yes, adjustable height
Interior Lighting	LED, replacement by authorized service
Limited Warranty	2 years parts and labor, 5 years sealed system, 6-12 years sealed system parts
Recommended Cleaner	Warm water + baking soda (15 ml/L) for interior; approved stainless steel cleaner for exterior
Safety	Anti-tip, grounding required, flammable refrigerant (R600a)

Frequently Asked Questions - ZIF361NBRII Monogram

How to adjust the freezer temperature?

Press the (+) or (-) buttons on the control panel to select the desired temperature. The range is -21°C to -16°C (-6°F to +4°F). It may take up to 24 hours to reach the set temperature.

What to do if the ice maker does not produce ice?

Check that the ice maker switch is set to ON. Ensure the water supply is connected and pressure is between 40 and 120 psi. Wait 12-24 hours after installation. If the problem persists, check the water filter.

How to replace the water filter?

Open the upper compartment cover, turn the filter 1/4 turn counterclockwise using the extraction tool, then pull it out. Insert the new filter aligning the blue arrow, turn 1/4 turn clockwise. Reset the indicator by holding the + button for 3 seconds.

How to activate Sabbath Mode?

Press and hold the (+) and DOOR ALARM buttons simultaneously until the display shows SABBATH MODE. The mode will deactivate automatically after 96 hours or by repeating the procedure.

Why is there frost on frozen foods?

This may be due to a door not closed properly, too frequent or prolonged openings, or packaging blocking the closure. Check the door gasket and limit openings.

How to clean the freezer interior?

Unplug the appliance. Use a solution of warm water and baking soda (15 ml per liter). Rinse and dry thoroughly. Do not clean cold glass with hot water.

The door does not close properly, what to do?

Check that no packaging is blocking the closure. Inspect the door seal and ensure the appliance is level. Refer to installation instructions for clearances.

How to switch the display from Fahrenheit to Celsius?

Press and hold the (-) button on the control panel until the display switches to °C. Repeat to return to °F.

How to disable the door alarm?

Press the DOOR ALARM button once, the OFF indicator lights up. To reactivate, press again.

How to connect Wi-Fi?

Press the Wi-Fi button on the control panel. The symbol flashes during connection, then stays on once connected. Visit monogram.com/connect for the app.

USER MANUAL ZIF361NBRII Monogram

SOUTIEN AU CONSOMMATEUR....3

RENSEIGNEMENTS CONCERNANT LA SÉCURITÉ....4

COMMANDES....6

MACHINE À GLAÇONS AUTOMATIQUE (MODÈLES CONGÉLATEUR)....7

FILTRE À EAU 8

FILTRE À AIR (MODÈLES RÉFRIGÉRATEUR)....9

COMMUNICATION AVEC LES ÉLECTROMÉNAGERS....10

PICHET À REMPLISSAGE AUTOMATIQUE ....11

TIROIRS / ÉTAGÈRES / BACS 12

MODE SABBAT 14

ENTRETIEN ET NETTOYAGE....14

PRÉPARATIONN 16

DÉPANNAGE....17

FICHE TECHNIQUE DE PERFORMANCE ....20

GARANTIE LIMITÉE DE MONOGRAM....21

RENSEIGNEMENTS CONCERNANT LE MODÈLE

NUMÉROS DE MODÈLES

ZIF181, ZIF241, ZIF301 et ZIF361

Au Canada: Prodsupport.mabe.ca/crm/Products/ProductRegistration.aspx

SERVICE DE RÉPARATION

Architectural floor plan of a multi-level kitchen or storage unit with no visible text or labels

Diagram of a door lock mechanism showing clockwise rotation and valve assembly (no text or labels)

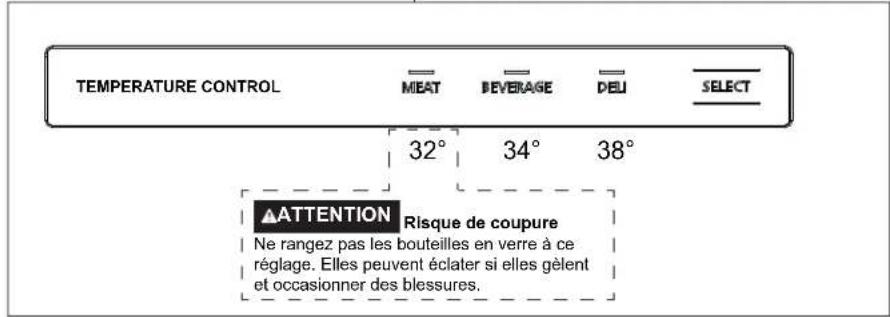

ATTENTION

Technical line drawing of a mechanical assembly with a cylindrical component and a magnified inset showing internal components (no text or symbols)

Diagram of a door handle mechanism with a knob and scroll arrow (no text or symbols)

Line drawing of a hand holding a wrist with a finger, showing motion direction (no text or symbols)

Line drawing of a hand inserting a grid into a device (no text or symbols)

Hand inserting a grid into a device component (no text or symbols visible)

Illustration of a hand holding a wrist with a finger, showing a finger movement (no text or symbols)

Technical line drawing of a double door frame with internal compartments and ventilation slots (no text or symbols)

Diagram showing two mechanical assembly steps with arrows indicating motion direction (no text or symbols)

BALCONNETS

Technical line drawing of a cabinet or rack assembly with an inset detail showing a wall-mounted door (no text or symbols present)

MODE SABBAT

Garant: GE Appliances, a Haier company, Louisville KY, 40225

Au Canada, Garant: MC Commercial, Burlington, ON, L7R 5B6

NOTES

NOTES

49-1000529 Rev. 3

03-24

Architectural floor plan of a multi-level kitchen or storage unit with no visible text or labels

Diagram of a mechanical device with a rotating knob and directional arrow (no text or symbols)

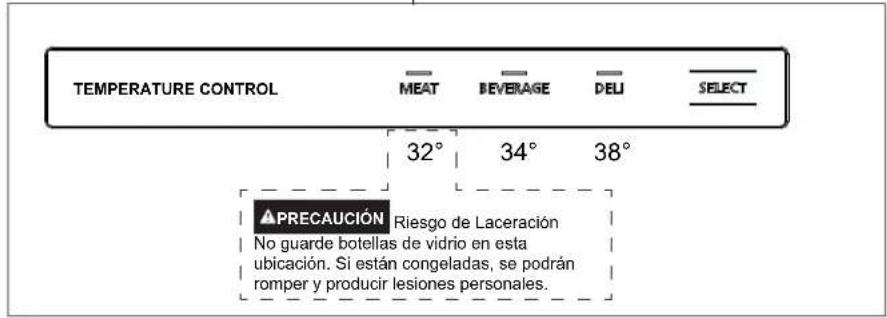

▲PRECAUCIÓN

AIR FILTER HOLD 3 SEC

Line drawing of a hand holding a wrist with an arrow indicating motion (no text or symbols)

Line drawing of a hand inserting a device into a device panel (no text or symbols)

Line drawing of hands inserting a card into a device (no text or symbols)

Line drawing of a hand holding a wrist with a finger, showing motion direction (no text or symbols)

RESET AIR FILTER HOLD 3 SEC

Technical line drawing of a mechanical or electrical component assembly (no text or symbols)

Drawers in the refrigerator will stop before coming all the way out, to help prevent contents from spilling onto floor.

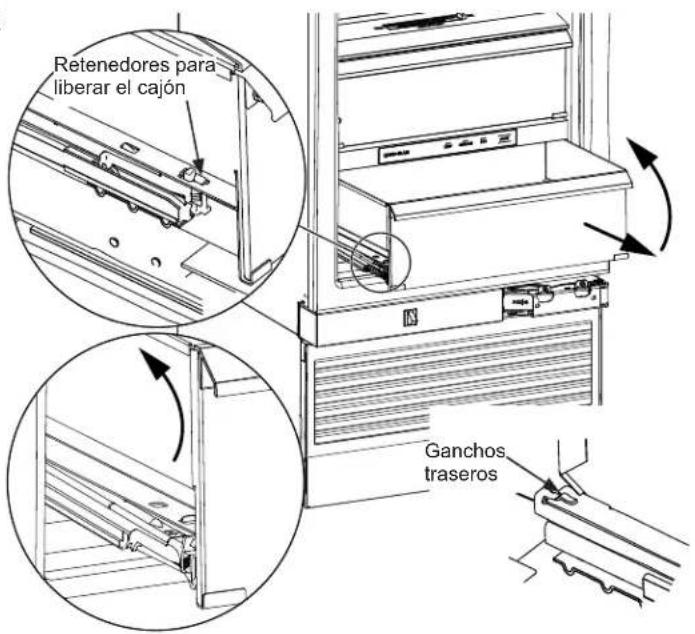

To remove a drawer: Pull the drawer out and press the snaps at the front of both sides to release the drawer. Lift the front of the drawer up while pulling forward to move the pan free of the back slide hooks.

To replace a drawer: Place the back of the pan under the hooks on the back of the slides. Rotate the drawer down until the front snaps are securing the front of the pan.

Technical line drawing showing two views of a mechanical assembly with arrows indicating direction (no text or symbols)

Technical line drawing of a cabinet or rack assembly with an inset detail showing a door opening (no text or symbols present)
