ZIF361NPRII - Freezer Monogram - Free user manual and instructions

Product Type	Built-In Column Freezer
Brand	Monogram
Model	ZIF361NPRII
Dimensions (W x H x D)	91.4 cm x 213.4 cm x 61 cm (36 in x 84 in x 24 in)
Weight (approx.)	Approximately 250 kg (550 lb)
Net Capacity (approx.)	Approximately 0.57 m³ (20 ft³)
Power Supply	115 V, 60 Hz, 15-20 A, grounded
Refrigerant	R600a (isobutane), flammable
Freezer Temperature Range	-21 °C to -16 °C (-6 °F to +4 °F)
Automatic Ice Maker	Yes, 7 ice cubes per cycle, up to 15 cycles/24h
Water Filter	XWF or XWFE, capacity 170 gal (644 L), replace every 6 months
Air Filter	Yes, replace every 6 months
Wi-Fi Connection	Yes, via Monogram app (compatible US and Canada)
Control Panel	Digital with temperature display, door alarm, Sabbath mode
Shelves	Tempered glass, adjustable
Drawers	Removable, with safety stop
Exterior Material	Stainless steel
Interior Cleaning	Warm water and baking soda solution (15 mL/L)
Stainless Steel Cleaning	Monogram approved cleaner or mild detergent
Warranty	2 years parts and labor, 5 years sealed system, 12 years sealed system parts
After-Sales Service	Monogram: monogram.com or 800.444.1845 (U.S.), 800.561.3344 (Canada)

Frequently Asked Questions - ZIF361NPRII Monogram

How to adjust the freezer temperature?

Use the (+) and (-) buttons on the control panel to select the desired temperature between -21 °C and -16 °C. Wait 24 hours for the temperature to stabilize. To display in °C, press and hold the (-) button.

How to activate Sabbath mode?

Press and hold the (+) and DOOR ALARM buttons simultaneously until the display shows 'SABBATH MODE'. The mode deactivates automatically after 96 hours or by repeating the procedure.

Why is the ice maker not working?

Check that the ice maker switch is turned ON, that the water supply is connected, and that water pressure is between 40 and 120 psi. The freezer must be sufficiently cold (wait 12-24 h after installation). Ensure the ice bucket is not too full.

How to replace the water filter?

Open the filter compartment in the upper part of the appliance. Turn the filter 1/4 turn counterclockwise to remove it. Insert the new filter aligning the blue arrow, then turn 1/4 turn clockwise. Purge the air by running 2 gallons of water. Reset the indicator by holding the '+' button for 3 seconds.

How to clean the interior of the freezer?

Unplug the appliance or cut off power. Use a solution of warm water and baking soda (15 mL per liter). Clean the walls, shelves, and drawers. Rinse and dry. Do not wash plastic parts in the dishwasher.

What to do if the door does not close properly?

Check that no packaging is blocking closure. Ensure the gasket is properly in place. Verify the appliance is level. If the problem persists, adjust the door panel clearances.

How to connect the freezer to Wi-Fi?

Press the WI-FI button on the control panel. The symbol will blink during connection. Download the Monogram app and follow the instructions. Make sure your Wi-Fi network is compatible (2.4 GHz). For more help, visit monogram.com/connect.

Why do the ice cubes have a bad taste?

Old ice cubes should be discarded. Clean the ice bucket. Unsealed food can transfer odors. Replace the water filter if the water taste is questionable. Clean the interior of the freezer.

How to prepare the freezer for vacation?

Remove food. Turn the ice maker switch to OFF and shut off water supply. Set the control to OFF. Clean the interior with a baking soda solution. Leave the door open to prevent odors.

What is the warranty for the Monogram ZIF361NPRII freezer?

Limited warranty: 2 years parts and labor in-home, 5 years for the sealed refrigeration system (compressor, condenser, etc.), and from the 6th to the 12th year, sealed system parts are free (labor charged). The water filter cartridge is warranted for 30 days.

USER MANUAL ZIF361NPRII Monogram

SOUTIEN AU CONSOMMATEUR....3

RENSEIGNEMENTS CONCERNANT LA SÉCURITÉ....4

COMMANDES....6

MACHINE À GLAÇONS AUTOMATIQUE (MODÈLES CONGÉLATEUR)....7

FILTRE À EAU 8

FILTRE À AIR (MODÈLES RÉFRIGÉRATEUR)....9

COMMUNICATION AVEC LES ÉLECTROMÉNAGERS....10

PICHET À REMPLISSAGE AUTOMATIQUE ....11

TIROIRS / ÉTAGÈRES / BACS 12

MODE SABBAT 14

ENTRETIEN ET NETTOYAGE....14

PRÉPARATIONN 16

DÉPANNAGE....17

FICHE TECHNIQUE DE PERFORMANCE ....20

GARANTIE LIMITÉE DE MONOGRAM....21

RENSEIGNEMENTS CONCERNANT LE MODÈLE

NUMÉROS DE MODÈLES

ZIF181, ZIF241, ZIF301 et ZIF361

Au Canada: Prodsupport.mabe.ca/crm/Products/ProductRegistration.aspx

SERVICE DE RÉPARATION

Architectural floor plan of a multi-level kitchen or storage unit with no visible text or labels

Diagram of a mechanical device with a rotating knob and directional arrow (no text or symbols)

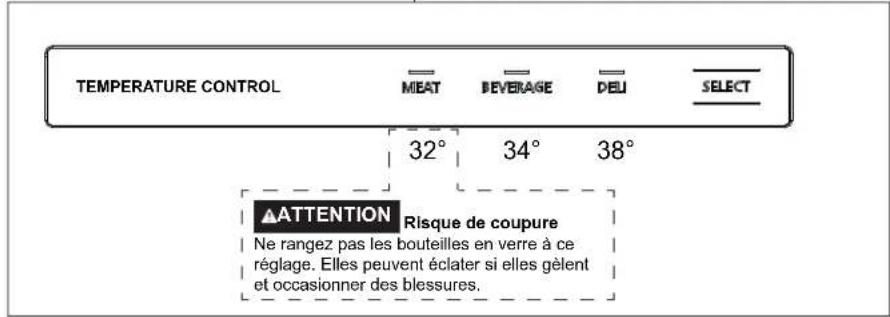

ATTENTION

Technical line drawing of a mechanical assembly with a cylindrical component and a small inset showing a cross-section (no text or symbols)

Diagram of a door handle mechanism with a curved arrow indicating rotation (no text or symbols)

Line drawing of a hand holding a wrist with a finger pointing to the wrist area (no text or symbols)

Line drawing of a hand inserting a grid into a device (no text or symbols)

Hand inserting a grid into a device component (no text or symbols visible)

Illustration of a hand holding a wrist with a finger, showing a finger movement (no text or symbols)

Technical line drawing of a front panel with internal components and mounting brackets (no text or symbols)

Two technical diagrams showing a mechanical assembly with arrows indicating motion or force direction (no text or symbols present)

BALCONNETS

Technical line drawing of a cabinet or rack assembly with an inset detail showing a wall-mounted door (no text or symbols present)

MODE SABBAT

Garant: GE Appliances, a Haier company, Louisville KY, 40225

Au Canada, Garant: MC Commercial, Burlington, ON, L7R 5B6

NOTES

NOTES

49-1000529 Rev. 3

03-24

Architectural floor plan of a multi-level kitchen or storage unit with no visible text or labels

Diagram of a mechanical device with a rotating shaft and housing (no text or symbols)

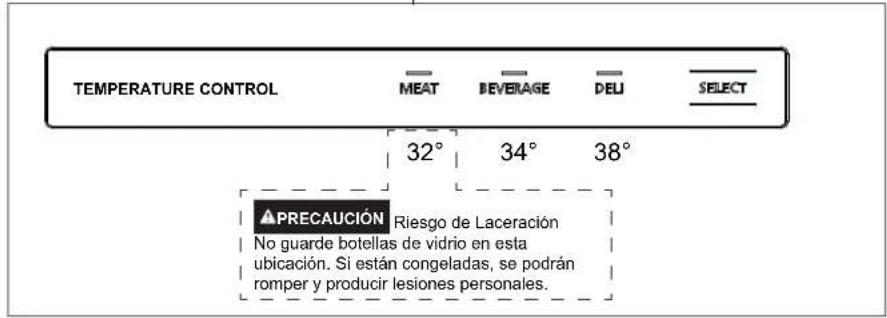

▲PRECAUCIÓN

AIR FILTER HOLD 3 SEC

Line drawing of a hand holding a wrist with an arrow indicating motion (no text or symbols)

Line drawing of a hand inserting a device into a device panel (no text or symbols)

Line drawing of hands inserting a card into a device (no text or symbols)

Line drawing of a hand holding a wrist with a finger, showing motion direction (no text or symbols)

RESET AIR FILTER HOLD 3 SEC

Technical line drawing of a mechanical or electrical component assembly (no text or symbols)

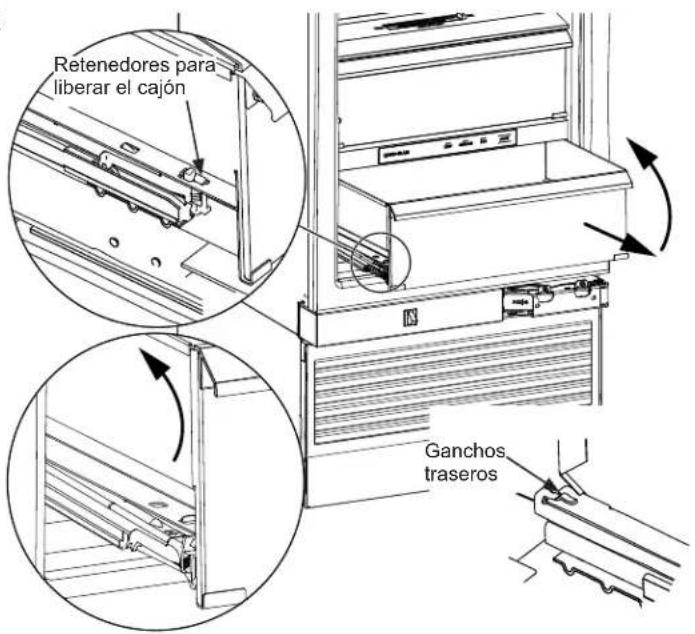

Drawers in the refrigerator will stop before coming all the way out, to help prevent contents from spilling onto floor.

To remove a drawer: Pull the drawer out and press the snaps at the front of both sides to release the drawer. Lift the front of the drawer up while pulling forward to move the pan free of the back slide hooks.

To replace a drawer: Place the back of the pan under the hooks on the back of the slides. Rotate the drawer down until the front snaps are securing the front of the pan.

Technical line drawing showing two views of a mechanical assembly with arrows indicating motion (no text or symbols)

Technical line drawing of a cabinet or enclosure with an inset detail showing a door opening (no text or symbols present)

MODO SABÁTICO
