Product type	Built-in dishwasher (integratable)
Brand	Koenic
Model	KDW 60131 A2 BU
Capacity	14 standard place settings
Energy class	A++
Annual energy consumption	266 kWh/year (based on 280 standard cycles)
Annual water consumption	2800 L/year (based on 280 standard cycles)
Energy consumption per cycle (ECO)	0.93 kWh
Water consumption per cycle (ECO)	10 L
ECO program duration	195 minutes
Electrical power	1760 - 2100 W
Voltage / Frequency	220 - 240 V ~ 50 Hz
Water pressure	0.4 - 10 bar (0.04 - 1 MPa)
Airborne noise	47 dB(A)
Dimensions (W x H x D)	Approx. 60 x 85 x 60 cm (standard built-in)
Wash programs	Auto, Normal, Intensive, Glass, ECO, 90 min, Rapid
Special functions	Delay start (1-24 h), child lock, rinse zone selection
Baskets	Upper basket adjustable in height, cutlery basket, lower basket
Safety	Automatic stop, overflow protection (code E4)
Installation	Connection to cold or hot water (max 60 °C), drainage, electrical supply
Maintenance	Regular cleaning of filters, spray arms and seals
Warranty	Manufacturer's warranty (see warranty card)

Frequently Asked Questions - KDW 60131 A2 BU Koenic

How to install the dishwasher?

Place the appliance near a water supply, a drain and an electrical outlet. Use new hoses for the water supply (3/4 in) and drainage. Connect to cold or hot water (max 60 °C). Plug in the power cord. Level and secure with the provided screws.

How to add regenerating salt?

Remove the lower basket, unscrew the cap of the salt container. Before first use, pour 1 L of water, then add about 1 kg of special dishwasher salt using the funnel. Screw the cap back on tightly. Immediately start a quick program to avoid corrosion.

How much detergent to use?

Fill the main compartment (30 g) and optionally the pre-wash compartment (5 g) depending on the program. Only use special dishwasher detergent. Close the lid until it clicks.

How to adjust the rinse aid?

Open the rinse aid compartment, pour up to the mark (max 110 ml). The dosage is adjustable to 6 levels (default 4). Use a coin to turn the selector.

What to do if the appliance does not start?

Check the electrical supply, that the door is properly closed, and that the water tap is open. If the water inlet indicator flashes, the pressure is insufficient or the tap is closed.

How to interpret error codes?

E1: filling time too long (check tap and pressure). E4: overflow (possible leak, check connections). Consult the code table in the manual.

How to clean the filters?

Turn the filter cap counterclockwise, remove the assembly. Rinse the filters under running water. Reassemble in reverse order. Never operate without filters.

What is the maximum capacity?

14 standard place settings. Do not overload to ensure effective washing. Follow the loading instructions in the manual.

The dishwasher makes noise during washing, is this normal?

Banging noises may come from improperly placed dishes. Rearrange items. A rattling sound may come from moving dishes. If noises persist, check that the spray arms rotate freely.

How to use the delay start?

After selecting the program, press the \u25b3 or \u25bd buttons several times to set a delay of 1 to 24 hours. Then press Start/Pause. The cycle will start after the set delay.

USER MANUAL KDW 60131 A2 BU Koenic

Technical diagram illustrating a mechanical assembly or assembly process with labeled steps and directional arrows indicating movement.

Intron GmbH Wakshu-Ben EUC Ingelbner L. Tung 50% EUC Bens 50% EUC Bens

M. <DW00180 A2 BU_10C607_904 CE

KO≡NIC

Built-In Dishwasher

1. Bebrauchstare sang
2. Then normal
3. Manual re-imper. crumbe
4. Weak ring
5. Manusle dellustence
6. Cattanlava-ramang

Exterior view of a stainless steel kitchen appliance (no visible text or symbols)

Chinese 1-12 English 18 32 Spanish 1-67 French 48 52 Italy 2003-77 European 27-40

Technical diagram of a washing machine with labeled components and exploded view

Technical diagram showing various kitchen and equipment components with numbered labels and annotations

Technical diagram illustrating mechanical assembly steps with labeled components and directional arrows

Sicherheitshinweise

• This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are being supervised or have received instructions concerning use of the appliance in a safe way and understand the hazards involved.
  • Children shall not play with the product.
• Cleaning and user maintenance shall not be carried out by children without supervision.
• This product is designed for washing a maximum of 14 place settings.
• The door shall not be left in the open position since this could present a tripping hazard.
• Follow the instructions on how to load the dishwasher.
  Warning! Knives and other utensils with sharp points must be loaded in the basket with their points down or placed in a horizontal position.

Safety instructions

• The product is designed for the processing of normal household quantities in the home, or in household-like, non-commercial environments. Household-like environments include staff kitchens in shops, offices, agricultural and other small businesses or for use by guests at bed-and-breakfast establishments, small hotels and similar residential facilities.
• The dishwasher has ventilation openings in the base. These openings must not be obstructed (e.g. by carpet).
• If the supply cord has been damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Follow the instructions in the chapter Cleaning and Care.

English

Safety instructions

• Read this user manual thoroughly before first use and pass it on with the product. Pay attention to the warnings on the product and in this user manual. It contains important information for your safety as well as for the use and maintenance of the product.
• Use the product only for its intended purpose and with recommended accessories and components. Improper use or wrong operation may lead to hazards.
• Never leave the product unsupervised while it is switched on.
• Do not under any circumstances attempt to repair the product yourself (e.g. damaged power cord, product has been dropped during installation etc.). For servicing and repairs, please consult an authorised service agent.
• The mains voltage must match the information on the rating label of the product.
• Avoid damages to the power cord that may be caused by kinks or contact with sharp corners.
• Keep this product including power cord and power plug away from all heat sources such as ovens, hot plates and other heat-producing products/objects.

• Only unplug from the power socket by the plug itself. Do not pull on the cord.
  • Unplug the product ...

• when the product is not being used,

• in case of malfunctions,
• before attaching / detaching accessories and

• before cleaning the product.

• Use this product in dry indoor areas only and never outdoors.

• This product is not intended for commercial use. It is designed for household use only.
• Follow the supplied instructions for installation.

- This product is connected to the water mains. Consider minimum and maximum permitted inlet water pressure, see chapter

Technical Data. Consider all instructions about the installation of detachable hose-sets. Use new hose-sets for installation. Do not reuse old hose-sets.

English

Congratulations!

Thank you for your purchase of a KOENIC product. Please read this manual carefully and keep it for future reference.

Intended use

This product is only intended for cleaning dishes and cutlery which are dishwasher proof or suitable for dishwashers. Any other use may result in damages to product or injuries. This product is designed for household use only and not intended for commercial use.

The Imtron GmbH assumes no liability for damage to the product, for property damage or for personal injury due to careless or improper usage of the product, or usage of the product which does not meet the manufacturer's specified purpose.

Before first time use

Carefully remove the product and accessories from the original packaging. It is recommended to keep the original packaging for storage. If you wish to dispose of the original packaging, please observe applicable legal provisions. Should you have any questions regarding proper disposal, contact your local waste management center.

Inspect the delivery contents for completeness and damages. Should the delivery contents be incomplete or damaged, contact your sales outlet immediately.

After unpacking, please refer to chapter

Cleaning and care.

Do not dispose of this product as unsorted municipal waste. Return it to a designated collection point for the recycling of WEEE.

By doing so, you will help to conserve resources and protect the environment. Contact your retailer or local authorities for more information.

Content

1 x Dishwasher

1 x User manual

1 x warranty card

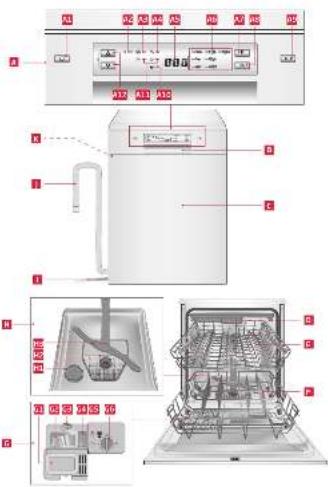

Controls and Components

A Control panel

A1 On/Off button

A2 Rinse aid indicator

A3 Softener (salt) indicator

A4 Water connection indicator

A5 Digital display

A6 Program display

A7 Program selection button P

A8 Rinse zone selection button

A9 ▶11 Start/Pause Button

A10 Child lock indicator

A11 Rinse zone indicators

A12 Timer buttons

B Handle

c Door

D Cutlery tray

E Upper dish basket

F Lower dish basket

G Fill compartment

Detergent tab/powder compartment

G1 Cover

G2 Compartment for main washing

G3 Lock

G4 Compartment for pre-washing

Rinse aid compartment

G5 Fill indicator

G6 Rinse aid container

H Inside

H1 Salt container

H2 Water outlet with filter set

H3 Upper and lower spray arms

Backside

Power cord with plug

J Waste water hose (pre-assembled)

K Hose for water inlet (pre-assembled)

Accessories

Funnel (not shown)

English

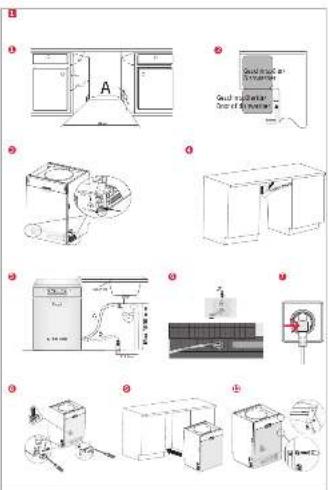

Installation

Fig. 1 The dishwasher must be installed in sufficient proximity of water, sewage and electrical connection.

Caution

After unpacking open the door and remove all transport protections from the baskets and spray arms. Ensure that the spray arms can rotate freely.

Note:

Please check the included mounting material, brackets, screws and Velcro strip for attaching the decorative panel, etc.

① Observe the installation dimensions.

• A location near the sink is recommended to allow for an easier connection of the dishwasher to water and sewage connections
• At the back of one or both lateral cupboards, recesses of size 80 x 100 mm must be fitted for water, sewage and electrical connection (A).

2 If the dishwasher is installed in a corner, a minimum clearance of 50 mm between the opened door and surrounding cabinets must be respected.
3 The springs of the dishwasher door were pre-set at the factory.

- Twist the adjusting screws on both sides to increase/decrease the spring force. Please refer to the illustration next to the screws.

- The spring force is adjusted correctly when the fully opened door remains in a horizontal position and can be moved up all the way by slightly pulling on it.

4 Fasten the condensation strip below the worktop. Make sure that it aligns with the front edge of the countertop.

5 The dishwasher must be connected to drainage.

1. The drainage hose is already connected to the waste water outlet. Cut the straps and unwind the hose.
2. Connect the end to a drainpipe (Option A or B). Consider the max. height of the outlet of drainage hose.

Note:

A suitable hose holder is available as optional accessory.

6 Connect the water inlet to tap water supply (3/4") using the pre-assembled hose and make sure it is fastened tightly. It is possible to connect the dishwasher to a warm water supply. When doing so, please ensure, that the max. temperature does not exceed 60°C. Higher temperature might impair the cleaning result.

Note:

If the water pipes are new or have not been used for an extended period of time, let the water run to make sure that the water is clear and free of impurities. If this precaution is not taken, there is a risk that the water inlet can get blocked and damage the appliance.

English

7 Connect the power plug to the mains.
8 The dishwasher must be placed in the installation position so that it is absolutely level.

• The rear stands can be adjusted in height by turning the middle Phillips screw (Pos. A). Please refer to the figure next to the screw (UP: rear is raised, DOWN: rear is lowered).
• The front feet can be adjusted by turning by hand.
• Check the horizontal stand with a spirit level on horizontal or vertical surfaces in the interior of the dishwasher and the door.

9 Place the dishwasher into its final position.
10 The dishwasher must be fastened with screws in the mounting position.

I. Wood Countertop: Insert the mounting bracket on top of the cut-outs. Now screw the mounting bracket to the underside of the countertop.

II. Natural stone countertop: Remove the plastic caps of the side walls of the dishwasher (door open). Fasten the dishwasher laterally with the screws through the openings of the cabinets left and right from the dishwasher.

Note:

Before using the product for the first time, make sure, that all hydrophilic connections of the product are correctly sealed and connected to both the device as well as the water mains. Check all connections periodically to avoid possible leakage.

Preparation

Filling salt into the salt container

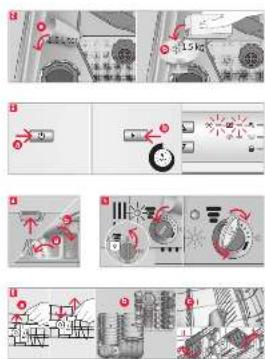

Fig. 2 Depending on your tap water hardness (hardness degree) use additional salt (water softener). Always consider the instructions provided with the salt.

• Remove the basket and then unscrew and remove the cap from the salt container.
• Pour 1.5 lt. of water in the salt container of your machine.
• Place the end of the funnel (supplied) into the hole and pour in about 1.5 kg of salt. It is normal for a small amount of water to come out of the salt container.
  • After filling the container, screw the cap tightly back clockwise.
• Immediately after filling the salt into the salt container, a washing program should be started (rapid program suggested). Otherwise the filter system, pump or other important parts of the machine may be damaged by salty water which will void the warranty.

Note:

Depending on how fully the salt dissolves, the salt warning light may still be on even though the salt container has been filled.

English

Warning

• Only use salt specifically designed for use in dishwashers! All other types of salt not specifically designed for use in a dishwasher, especially table salt, will damage the dishwasher. In case of damages caused by the use of unsuitable salt the manufacturer does not give any warranty nor is liable for any caused damages.
• If salt has been spilled a soak or a rapid program should be run to remove the excess salt.
• Only fill with salt right before starting one of the complete washing programs. This will prevent any grains of salt or salty water, which may have been spilled, remaining on the bottom of the machine for any period of time, which may cause corrosion.
• The salt container must only be refilled when the salt warning light in the control panel comes on.

Adjusting salt consumption

Fig. 3 Activate the setup mode: Close the door within 60 seconds after power ON, press the button and hold it for 5 seconds, the machine will enter the setting mode which is indicated by the alternatingly blinking indicator lights of and

Adjust the level of salt

consumption: Press the button to select the proper setting according to your local environment. Follow table below to find correct setting.

Water Hardness level		Setting
^^1)	mmol/ I^2)
0-5 0-0.9	4 H1
6-11 1.0-2	0 H2
12-17 2.1-3	0 H3*
18-22 3.1-4	0 H4
23-34 4.1-5	0 H5
35-55 6.1-9	8 H6

The product will exit the setup mode automatically 5 seconds after the last setting/operation of the switch.

Note:

1) German measurement for the degree of water hardness
2) Millimol, international unit for water hardness
*) Factory setting
Contact your local water board for information on the hardness of your water supply.

English

Adding detergent

Fig. 4 The dispenser must be refilled before the start of each wash cycle.

For the correct amount follow the instructions provided with the detergent.

• Press the release button of the detergent tab. The lid springs open.
  • Always add the detergent just before starting each wash cycle, otherwise it could get damp and will not dissolve properly.
• If the dishes are heavily soiled, place an additional detergent dose in the pre-wash detergent chamber. This detergent will take effect during the pre-wash phase.

Consider the difference of the two compartments:

a) Compartment for detergent for main wash cycle.
b) Compartment for detergent for pre-wash cycle.

- Close the lid and press it down until it locks in place.

Note:

Only use detergent specifically made for use in dishwashers. Keep your detergent fresh and dry.

Filling the rinse aid dispenser

Fig. 5 Your dishwasher is designed to use liquid rinse aids which are released during the final rinse to prevent water from forming droplets on your dishes.

- Open the cap and pour the rinse aid into the dispenser until the level indicator turns completely black. The volume of the rinse aid container is about 110 ml.

• To open the dispenser, turn the cap to the "open" (left) arrow and lift it out.
• Pour the rinse aid into the dispenser, being careful not to overfill it.

Indicator Status
	Full
	34 full
	12 full
	14 full
	Empty

- Seal the cap by inserting it aligned with the "open" arrow and turning it to the "closed" (right) arrow.

Note:

Never fill the rinse aid dispenser with any other substances (e.g. dishwasher cleaning agent, liquid detergent). This would damage the appliance.

• Rinse aid is automatically added during the last rinse, ensuring thorough rinsing, and spot and streak free drying.
  • If the rinse aid dispenser is empty the rinse aid signal lamp will turn on.

Adjusting the dosage of rinse aid

The dosage can be adjusted in 6 levels. Default level is 4. This setting is a recommendation.

Note:

• Set the dosage level higher, if stains remain on the dishes.
• Set the dosage lower, if clouds or streaks remain on the dishes.
  • Use a coin to change the setting.

English

Loading the dishwasher basket

• Only wash dishes and cutlery which are dishwasher proof or suitable for dishwashers. Follow instructions of manufacturers.
• Scrape off any large amounts of leftover food. Soften remnants of burnt-in food e.g. in pans It is not necessary to rinse the dishes under running water.

• Place objects in the dishwasher in the following way:

• Items such as cups, glasses, pots/ pans face down, so that water can run off.

• Curved items, or those with recesses, should be loaded at a slant so that water can run off.
• All utensils must be stacked securely to prevent them from tipping over.
• All utensils must be placed in a way that the spray arms can rotated freely during washing.
• Arrange small dishes in the upper basket, e.g. lightweight and delicate items such as saucers, cups, glasses, dessert bowls etc.
• Arrange large and heavy parts in the lower basket, such as plates, platters, pots, bowls etc.

Note:

Very small items should not be washed in the dishwasher as they could easily fall out of the basket.

Warning

• Long bladed knives stored in an upright position are a potential hazard.
• Do not let any item extend through the bottom of the basket.
  • Always load sharp utensils with the sharp points down!
• Do not overload your dishwasher as this will impair the results.

Adjusting the upper basket

Fig. 6a In order to create more space in the upper or lower basket to make room for taller pieces of crockery, you can load the upper basket in 2 positions. Pull up the upper basket to move it up. Push the handles on both sides to move the basked down.

Fig. 6b Observe the general plan for placing dishes and cutlery into the basket. See table below for possible part designations.

Cups	Saucers
Glasses	Small serving bowl
Medium serving bowl	Large bowl
Dinner plates	Dessert dishes
Soup plates	Oval platter

Fig. 6c Additional supports can be popped up at the lower basket (l).

Additional trays can be lowered at the upper basket (II).

English

Fig. 7a Observe the plan for placing cutlery into the cutlery basket. See table below for possible part designations.

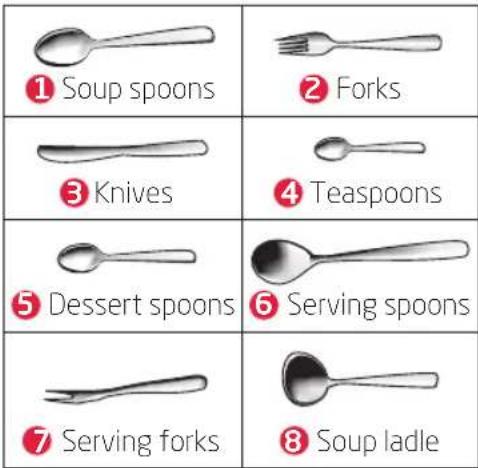

① Soup spoons ② Forks ③ Knives ④ Teaspoons ⑤ Dessert spoons ⑥ Serving spoons ⑦ Serving forks ⑧ Soup ladle

Fig. 7b The cutlery tray can be adjusted according to your needs.

I. standard position, both halves inclined
II. left side flat, right half inclined
III. both halves flat, right half increased
IV. left flat, right open, right half moved over the left half
V. left flat, right open, right half removed

Operation

Washing dishes

Fig. 8 Consider following steps to start the washing process:

1. Prepare the dishwasher. Load the dishwasher basket.
2. Add detergent or rinse aid. Make sure the water-tap/water supply is open, the appliance is connected to the mains and the door is closed correctly.
3. Push the on/off switch to turn on the dishwasher.
4. Choose your program, referring to chapter Choosing Program.

Note:

If only one basket is used you can switch off the unused rinsing zone. Press the rinse zone selection button to select the desired rinse zone. Observe the indicators or

1. Push the ▶11 button. To stop the process push the ▶button again.

2. To start the washing process at a later time, press the timer or buttons and by pressing them several times set the hours by which the start is to be delayed. 1-24 hours (1 hour steps) start time delay can be set. Then press the Start/Pause button. The dishwasher starts the washing cycle when the preset time has elapsed.

Note:

The program lights show the state of the dishwasher:

• Program light on: standby or pause.

1. When the wash cycle has finished, the buzzer of the dishwasher will sound for 8 seconds, then stop.

- Turn off the appliance using the on/off button and shut off the water supply.

- Open the door of the dishwasher.

Warning

It is dangerous to open the door during an ongoing cycle, because the hot water may scald you.

- Wait a few minutes before unloading the dishwasher to avoid handling the dishes and utensils while they are still hot. They will also dry better.

- Unload the dishwasher.

Modifying the washing program

You can modify the washing program when the dishwasher has only been running for a short time. Otherwise, the detergent may have already been released, and the appliance may have already drained the wash water.

• Press the button, the machine will switch to the stand by state.
• Press the Programm selection button P for more than three seconds. Change the program to the desired cycle setting.
• Press the button again to continue the washing process.

Note:

If you open the door during an ongoing cycle, the machine will pause. When you close the door, the machine will continue working after 10 seconds.

Pausing the washing cycle

• If you forgot a dish you can pause the process and add it, but make sure the detergent compartment has not already opened.
• Open the door a little to pause the washing process.
• After the spray arms came to a halt, you can open the door completely.
• Add forgotten dishes.
• Close the door and the dishwasher will continue after 10 seconds.

Child lock

• The child lock can be activated when the dishwasher is running or has been started with the start time delay.
• Press the timer buttons simultaneously for 3 seconds. All keys of the dishwasher are locked and the corresponding indicator light is on. To deactivate child lock, press the two buttons again for 3 seconds.

English

Fig. 9 Choosing program

Consider below table to choose the correct program according your needs.

Program	Information and purpose	Description of cycle	Detergent Pre/Main	Running time in min	Energy cons. in kWh	Water cons. in litre	Rinse aid
Auto	Auto sensing wash, lightly, normally or heavily soiled crockery, with or without dried-on food.	Pre-wash (45 °C) Autowash (45-55 °C) Rinse Rinse (65 °C) Drying	5/30 g (or 2 piece)	150 0.9	-1.3 11-15		★
(xDX4) Normal	For normally soiled loads such as pots, plates, glasses and lightly soiled pans.	Pre-wash 45 °C Wash 55 °C Rinse Rinse 65 °C Drying	5/30 g (or 2 piece)	185 1.3	13.5		★
(SWXH) Intensive	For heavily soiled crockery, and nor-mally soiled pots, pans, dishes, etc. with dried on soiling.	Pre-wash 50 °C Wash 60 °C Rinse Rinse Rinse 70 °C Drying	5/30 g (or 3 in 1)	175 1.6	17.5		★
(CTKC) Glass	For lightly soiled crockery and glass.	Pre-wash Wash (45 °C) Rinse (65 °C) Drying	5/30 g (or 2 piece)	130 0.9	13		★
(AYYY) (*EN50242) (Öko)	This is the standard programme; It is suitable to clean normally soiled tableware and it is the most efficient program in terms of its combined energy and water consumption for that type of tableware.	Pre-wash Wash 45 °C Rinse 65 °C Drying	5/30 g (or 2 piece)	195 0.93	10		★
(C72W) 90 min.	For normally soiled loads that need a quick wash.	Wash (65 °C) Rinse Rinse (65 °C) Drying	35 g (or 1 piece)	90 1,35	12,5		★
(KYHO) Rapid	A quick rinse for lightly soiled loads without drying.	Rinse 45 °C Rinse 50 °C Rinse 55 °C	25 g 30	0,75 11 -

Legal note:

* EN 50242: This program is the test cycle. The information for comparability test in accordance with EN 50242, is as following:

• Capacity: 14 setting
• Upper basket: top wheels on rail.
• Rinse aid setting: 6
• The power consumption of: off-mode is 0.45 W
  left-on mode is 0.49 W

Left-on mode duration: Power will be cut off automatically 30 min. after a program has ended.

English

Cleaning and care

Warning

• When cleaning, never use solvents or abrasive materials, hard brushes, metallic or sharp objects. Solvents are harmful to human health and can attack plastic parts, while abrasive cleaning mechanisms and tools may scratch the surface(s).
• Clean the exterior surfaces of the product with a slightly damp cloth and dry them well. Make sure that no water enters the product interior (e.g. at the switches).
• Clean the edge around the door using a soft, warm and damp cloth only. To avoid penetration of water into the door lock and electrical components, do not use a spray cleaner of any kind.

Cleaning the filter assembly

The filter prevents larger remnants of food or other objects from getting inside the pump. Inspect the filters for blocking every time the dishwasher has been used.

Fig. 10 The filter system consists of a coarse filter, a flat (main filter) and a micro filter (fine filter).

• Main filter A: Food and soil particles trapped by this filter are pulverized by a special jet on the spray arm and washed down to drain.
• Fine filter B: This filter holds soil and food residue in the sump area and prevents it from being spread out over the dishes during a wash cycle.
• Coarse filter C: Larger items, such as pieces of bones or glass that could block the drain are trapped in the coarse filter. To remove the items caught by the filter, gently squeeze the tap on the top of this filter and lift it up.

Disassemble and clean the filter according to the following steps:

• Turn the filter cap (filter C) counterclockwise and take off whole filter assembly.
  • Take out filters B and C.
• Wash filters under running water.
• Reassembling is done in reverse order. Make sure the filter system is installed correctly.

Warning

Do not use the dishwasher if the filter system is not installed.

Cleaning the spray arms

Fig. 11 To prevent possible clogging, the spray arms can be easily removed for periodic cleaning of the nozzles.

• Grasp the middle of the spray arm, pull it upwards to remove it.
• Wash the arms under a jet of running water.
• Return them carefully to their seat and make sure that the spray arms are installed correctly and can turn freely.

English

Error codes

Code Meaning Possible causes
€1 Longer inlet time		Faucets not openedWater intake is restrictedWater pressure is too low
€4 Overflow • Some component of the dishwasher leaks

Troubleshooting

If there are any problems during operation, please refer to the following table. If problems cannot be solved as indicated under Solution, please contact your manufacturer.

Problem Possible causes Solution
Product does not work	Interrupted power supply	Check the power supply
	Water pressure is too low	Check whether water supply is connected properly and water is turned on
	Dishwasher door is not closed properly	Ensure door is properly closed
Water is not pumped out of the dishwasher	Kink in drain hose Check the drain hose
	Filter is clogged Check and clean the coarse filter
	Kitchen sink is clogged Check whether the kitchen sink is draining well or call a service agent for help
Sud in the tub Improper detergent	Only use special dishwasher detergent
	Spilled rinse aid	Wipe up rinse-aid spills
Sud tub interior	Detergent with colourant was used	Only use detergent without colourant
White film on inside surface	Hard water minerals	Clean the interior with a damp sponge regularly
Rust stains on cutlery	Cutlery are not corrosion resistant	Do not wash these items in dishwasher
	A programme was not run after refilling salt	Always run a quick programme after adding salt
	Softener lid is loose Check and tighten it
Knocking noise in the cabinet	Spray arm is knocking against an item in the basket	Interrupt the program and re-arrange the items
Rattling noise Items of crockery	Items of crockery are loose in the cabinet

English

Problem Possible causes Solution
Knocking noise in water pipes	• Caused by on- site installation or cross section of the piping	• This has no influence in the dishwasher function
Dishes are not clean	• Dishes not loaded correctly	• Re-arrange the dishes
	• Spray arms are blocked
	• Not enough detergent • Add more detergent
	• Program was not powerful enough	• Choose another program
	• Filter is dirty or not correctly inserted	• Clean the filter and ensure it is assembled correctly
Cloudiness on glassware	• Too much detergent	• Use less detergent and choose shortest cycle for cleaning glasses
Black or grey marks on dishes	• Aluminum utensils have rubbed against dishes	• Use a mild abrasive cleaner
Detergent left in dispenser cups	• Detergent cups are blocked	• Re-arrange the dishes
Dishes are not drying • Improper loading
		• Rinse-aid level is too low • Increase the rinse-aid level
		• Dishes removed too soon • Do not removed the dishes immediately after washing.

Technical Data

Power consumption 1760 - 2100	W
Rated voltage / frequency	220 - 240 V ~ 50 Hz
Water pressure (flow pressure)	0.4 - 10 bar (0.04 - 1 MPa)

• This is a Dishwasher.
- Erp-testing was done according to EN50242:2008+A11, Directive(EU)1016/2010, Directive(EU)1059/2010.
- See website below for detailed technical information or ask your vendor for specification sheet. www.koenic-online.com.
