USER MANUAL SKSUW2401P SIGNATURE

SIGNATURE KITCHEN SUITE

OWNER'S MANUAL

BUILT-IN WINE COOLER

Read this owner's manual thoroughly before operating the appliance and keep it handy for reference at all times.

ENGLISH

SKSUW2401P

MFL70339832

Rev.00_052821

www.signaturekitchensuite.com (USA)

www.signaturekitchensuite.ca (CANADA)

Copyright © 2021 Signature Kitchen Suite. All Rights Reserved.

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and a central circle, no text or symbols present

2

TABLE OF CONTENTS

3 IMPORTANT SAFETY INSTRUCTIONS

3 READ ALL INSTRUCTIONS BEFORE USE

3 W A R N I N G 5 C A U T I O N

7 OPERATION

7 B e f o r e U s e

8 Product Features

9 Control Panel

11 Sabbath Mode

11 Storing Wine

12 Storage Racks

14 SMART FUNCTIONS

14 SIGNATURE KITCHEN SUITE Application

16 Smart Diagnosis

18 MAINTENANCE

18 Cleaning

19 TROUBLESHOOTING

19 FAQs

20 Before Calling for Service

24 LIMITED WARRANTY

24 USA

26 Canada

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

IMPORTANT SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USE

Safety Messages

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and follow all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or injure you and others. All safety messages will follow the safety alert symbol and either the word WARNING or CAUTION.

These words mean:

WARNING

You may be killed or seriously injured if you do not follow instructions.

CAUTION

You may be injured or cause damage to the product if you do not follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what may happen if the instructions are not followed.

WARNING

WARNING

• To reduce the risk of explosion, fire, death, electric shock, scalding or injury to persons when using this product, follow basic precautions, including the following:

Operation

• This appliance is intended to be used in household and similar applications such as:
- staff kitchen areas in shops, offices and other working environments;
- farm houses and by clients in hotels, motels and other residential type environments;
- bed and breakfast type environments;
- catering and similar non-retail applications.
- This product is not to be used for special purposes such as the storage of medicine or test materials or for use on ships, etc.
- DO NOT allow children to climb, stand, or hang on the refrigerator doors or on the shelves in the refrigerator. They could damage the refrigerator and seriously injure themselves.
- Do not allow children to climb into the refrigerator. They could be trapped and suffocated.
• Children should be supervised to ensure that they do not play with the refrigerator.
- Keep fingers out of pinch point areas; clearances between the doors and cabinets are necessarily small. Be careful closing doors when children are nearby.
- An individual properly grounded branch circuit or circuit breaker must be used in case the product must be disconnected after installation.
- Do not use an adapter plug or plug the power plug into a multi-outlet extension cord.
- If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

Pure geometric diagram with intersecting lines and circular shapes, no text or symbols present

4 IMPORTANT SAFETY INSTRUCTIONS

• Do not operate the refrigerator or touch the power cord with wet hands.
• Do not modify or extend the power cord.
• Do not use an uncertified power outlet. Do not plug appliance into a damaged wall outlet.
• Do not put hands, feet or other objects into the air vents or bottom of the refrigerator. Doing so could result in personal injury or electric shock.
• In the event of a gas leak (propane/LPG), ensure the area is adequately ventilated and contact an authorized service center before resuming use. Do not touch the refrigerator or power button of the refrigerator.
• Turn off power to the appliance immediately and contact an authorized service center if there is a strange noise, odor, or smoke coming from the appliance.
• Do not use any fuse (such as copper, steel wire, etc.) other than a standard fuse.
• Do not place or use an electrical appliance inside the refrigerator, unless it is of a type recommended by the manufacturer.
• Do not put animals inside the appliance.
• If connected to a circuit protected by fuses, use time delay fuse.
• Do not damage the refrigerant circuit.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
• An individual properly grounded branch circuit or circuit breaker must be used in case of requiring disconnect after installation.

Maintenance

• Do not use a hair dryer to dry the inside of the refrigerator.
• Do not light a candle to remove odors in the refrigerator.
• In the event of a refrigerant leak, move flammable objects away from the refrigerator. Ensure the area is adequately ventilated and contact an authorized service center.
• Keep flammable materials and vapors, such as gasoline, away from the refrigerator.
• This appliance is intended to be used in household and similar applications such as staff kitchen areas in shops, offices and other working environments; farm houses and by clients in hotels, motels and other residential type environments; bed and breakfast type environments; catering and similar non-retail applications.
• Turn off power before cleaning or repairing the refrigerator.
• The refrigerator compartment lights are interior LED lighting, and service should be performed by a qualified technician.
• Turn off power immediately in the event of a blackout or thunderstorm.
• Turn the power off if water or dust penetrates into the refrigerator. Call a service agent.
• Do not store, disassemble or repair the appliance yourself or allow unqualified personnel to do so.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• If the electrical supply cord is damaged, it must only be replaced by the manufacturer or its service agent or a similar qualified person in order to avoid a hazard.
• Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

Disposal

- Junked or abandoned refrigerators are dangerous, even if they are sitting for only a few days. When disposing of the refrigerator, remove the packing materials from the door or take off the doors but leave the shelves in place so that children may not easily climb inside.

• If disposing of a refrigerator, make sure the refrigerant and insulation foam are removed for proper disposal by a qualified servicer. If you release the refrigerant or throw away the insulation foam, you may be fined or imprisoned in accordance with the relevant environmental law. Insulation foam contains flammable blowing gas.
• The refrigerant and insulation blowing gas used in the appliance require special disposal procedures. When disposing, please consult with service agent or a similarly qualified person.

Grounding Instructions

• Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or service personnel if you are in doubt whether the appliance is properly grounded. Do not modify the plug provided with the appliance; if it will not fit the outlet, have a proper outlet installed by a qualified electrician.
• Have a certified electrician check the wall outlet and wiring for proper grounding.

Risk of Fire and Flammable Materials

This appliance contains a small amount of isobutane refrigerant (R600a), which is combustible. When transporting and installing the appliance, care should be taken to ensure that no parts of the refrigerating circuit are damaged. Refrigerant squirting out of the pipes could ignite or cause an eye injury. If a leak is detected, avoid any naked flames or potential sources of ignition and air out the room in which the appliance is standing for several minutes.

In order to avoid the creation of a flammable gas air mixture if a leak in the refrigerating circuit occurs, the size of the room in which the appliance may be sited depends on the amount of refrigerant used. The room must be 10.8 square feet (1 square meter) in size for every 8g of R600a refrigerant inside the appliance. The amount of refrigerant in your particular appliance is shown on the identification plate inside the appliance. Never start up an appliance showing any signs of damage. If in doubt, consult your dealer.

CAUTION

CAUTION

- To reduce the risk of minor or moderate injury to persons, malfunction, or damage to the product or property when using this product, follow basic precautions, including the following:

Installation

• Do not install the refrigerator where there may be a danger of the unit falling.
• The refrigerator must be properly installed in accordance with the Installation Instructions.

Operation

• Do not use aerosols near the refrigerator.
• This appliance is intended to be used only in domestic and similar applications.
• Do not strike or apply excessive force to any glass surface. Do not touch glass surfaces if they are cracked or broken.
• Do not overfill the appliance with wine bottles. Doing so may cause personal injury or property damage.

Maintenance

- Do not use strong detergents like wax or thinners for cleaning. Clean with a soft cloth.

us_main.book.book Page 6 Friday, May 28, 2021 8:34 AM

6 IMPORTANT SAFETY INSTRUCTIONS

• Remove foreign objects (such as dust and water) off the prongs of the power plug and contact areas. Do not use a wet or damp cloth when cleaning the plug.
• Do not spray water directly on the inside or outside of the appliance.
• Do not clean glass shelves or covers with warm water when they are cold. They may break if exposed to sudden temperature changes.

SAVE THESE INSTRUCTIONS

OPERATION

Before Use

Checklist

Clean the refrigerator.

Clean the refrigerator thoroughly and wipe off all dust that accumulated during shipping.

CAUTION

• Do not scratch the refrigerator with a sharp object or use a detergent that contains alcohol, a flammable liquid or an abrasive when removing any tape or adhesive from the refrigerator. Remove adhesive residue by wiping it off with your thumb or dish detergent.
• Do not peel off the model or serial number label or the technical information on the rear surface of the refrigerator.

Open refrigerator door to ventilate the interior.

The inside of the refrigerator may smell like plastic at first. Remove any adhesive tape from inside the refrigerator and open the refrigerator door for ventilation.

Connect the power supply.

Check if the power supply is connected before use.

Wait for the refrigerator to cool.

Allow the refrigerator to run for at least two to three hours before storing wine bottles in it.

The refrigerator makes a loud noise after initial operation.

This is normal. The volume will decrease as the temperature decreases.

8 OPERATION

Product Features

The appearance or components of the appliance may differ from model to model.

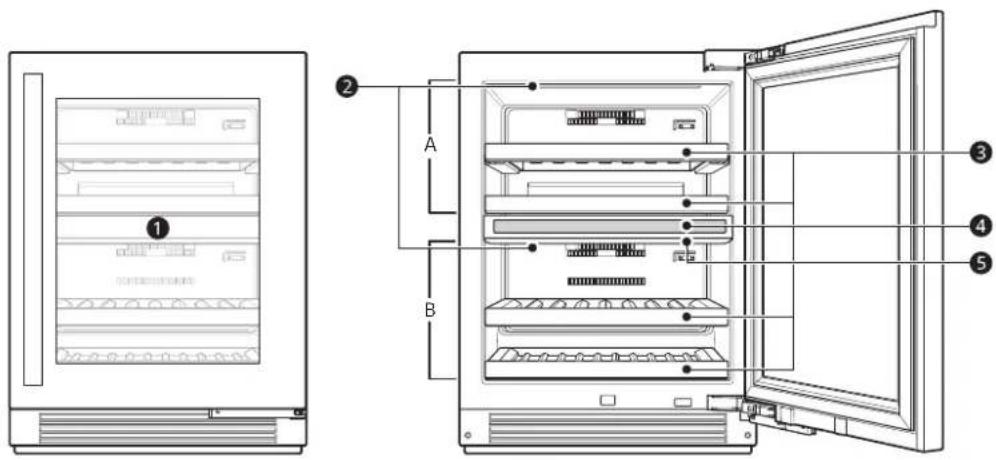

Exterior and Interior

Technical diagram of a refrigerator internal structure with labeled components and exploded view

①Door Glass

The door glass has a UV resistant coating to help prolong the storage time and quality of wine.

②LED Interior Lighting

Lights up the inside of the refrigerator.

③Storage Rack

Racks slide out to help you keep wines organized and easy to find. Wine bottles are stored on their sides for best long-term storage.

④Control Panel

Sets the refrigerator temperature and controls the humidity function.

⑤Zone Divider

Helps maintain separate temperature zones.

NOTE

A: Upper, B: Lower

- The temperature of each zone can be controlled separately. Set the temperature for best long-term storage or for convenient serving.

• The door alarm will sound every 30 seconds if the door remains open longer than one minute.

Product Specifications

The appearance and specifications listed in this manual may vary due to constant product improvements.

Electrical requirements: 115 V, 60 Hz

Model Description Net weight
SKSUW2401P Undercounter Built-in 24" Wine Storage Refrigerator 148 lb (67 kg)

Control Panel

The actual control panel may differ from model to model.

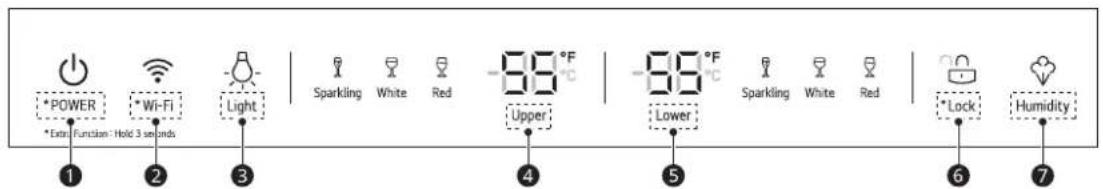

Control Panel Features

*POWER *Extra Function - Hold 3 seconds *Wi-Fi Light Sparkling White Red -88 °F Upper -88 °F Lower Sparkling White Red *Lock Humidity

ENGLISH

①POWER

This turns the power on and off. Press the POWER button for 3 seconds or longer. The control panel lights, and the power is on.

Turn off the power when you are not using the appliance. When you press the POWER button to turn off the appliance, the appliance is no longer operating. Turn it off only when you are not using the appliance.

②Wi-Fi

The Wi-Fi button, when used with the SIGNATURE KITCHEN SUITE smartphone app, allows the refrigerator to connect to a home Wi-Fi network. Refer to the Smart Functions section for information on the initial setup of the application.

The 📋 icon shows the status of the refrigerator's network connection. The icon illuminates when the refrigerator is connected to the Wi-Fi network.

Press and hold the Wi-Fi button for 3 seconds to connect to the network. The 📋 icon blinks while the connection is being made, then turns on once the connection is successfully made.

NOTE

- This product will be included in the SIGNATURE KITCHEN SUITE 2.0 smartphone app once the app is released.

③Light

The light function keeps the LED inside the refrigerator on at all times for presentation purposes.

• To activate the function, press the Light button to turn on the indicator light.

- To disable the function, press the Light button again to turn off the indicator light. When disabled, the LED lighting only turns on when the door is opened.

4 Upper

Indicates the set temperature of the upper zone in Celsius (°C) or Fahrenheit (°F).

The default refrigerator temperature is 55^ F ( 13^ C). Press the Upper button repeatedly to select a new set temperature from 41^ F to 64^ F ( 5^ C to 18^ C).

⑤Lower

Indicates the set temperature of the lower zone in Celsius (°C) or Fahrenheit (°F).

The default refrigerator temperature is 55 °F (13 °C). Press the Lower button repeatedly to select a new set temperature from 41 °F to 64 °F (5 °C to 18 °C).

⑥Lock

The lock function disables every other button on the display.

- When power is initially connected to the refrigerator, the lock function is on.

10 OPERATION

• To lock the control panel buttons, press and hold the Lock button until the 🔊 icon appears in the display and the function is activated.
• To disable the function, press and hold the Lock button for approximately three seconds.
• When the door is opened and closed, the control panel buttons are locked.

⑦ Humidity

Press the Humidity button to raise the humidity in all temperature zones.

CAUTION

Display Mode (For Store Use Only)

• The Display Mode disables all cooling in the refrigerator to conserve energy while on display in a retail store. When activated, OFF is displayed on the control panel and the display remains on for 20 seconds.
  • To deactivate / activate:

- With the refrigerator door open, press and hold the Lower and Wi-Fi buttons at the same time for five seconds. The control panel beeps and the temperature settings display to confirm that Display Mode is deactivated. Use the same procedure to activate Display Mode.

NOTE

• When the refrigerator is in the Power Saving Mode, the display remains off until a door is opened or a button is pressed. Once on, the display remains on for 20 seconds.
• The control panel automatically turns off for energy saving.
• If there is any finger or skin contacts to the control panel while cleaning it, the button function may operate.
• This appliance incorporates an earth connection for functional purposes only.

Sabbath Mode

This feature is only available on some models.

Using the Sabbath Mode

Sabbath mode is used on the Jewish Sabbath and holidays.

• To turn Sabbath mode on, touch the display to activate it, then press and hold the Wi-Fi and Lock buttons for 3 seconds until 5b appears in the display.
  • To turn Sabbath mode off manually, press and hold the Wi-Fi and Lock buttons for 3 seconds.

NOTE

• Sabbath mode automatically turns off after 96 hours.
• Once turned on, Sabbath mode is maintained even after a power outage.
• Selecting Sabbath mode automatically turns off the Light and Alarm functions.
• The interior display stays on during Sabbath mode, but only 5b and the Wi-Fi and Lock buttons are displayed.
  • The refrigerator temperature setting remains at the last temperature set and cannot be changed until Sabbath mode is turned off.

Storing Wine

CAUTION

- Do not overfill or pack items too tightly onto storage racks. Doing so may cause damage to the rack or personal injury if items are removed with excessive force.

NOTE

• If you are leaving home for a short period, like a short vacation, the appliance should be left on.
• If you are leaving the appliance turned off for an extended period, remove all contents and turn off the power. Clean the interior, and leave the door and drawers open or slightly ajar to prevent fungi from growing in the appliance.
• If the appliance is kept in a hot and humid place, frequent opening of the door may cause condensation to form. Wipe off the condensation with a clean cloth or a paper towel.
• If the wine compartment door is opened and closed too often, warm air may penetrate the

appliance and raise its temperature. This can increase the running costs of the unit and shorten the storage life of stored wines.

- Do not install the wine cooler near heat sources or where it will be exposed to direct sunlight.

Storage Temperature

In general, all wine should be stored at a temperature range of 53 °F to 57 °F (12 °C to 14 °C). For this reason, the default temperature setting for all zones is 55 °F (13 °C). If planning to store wines for longer than 6 months, set the zone's temperature within this range and leave it.

Serving Temperature

If you plan to serve a wine within a few weeks, you may want to set one zone to store the wine at its recommended serving temperature. This does not preserve the quality of the wine as well long-term, but allows you to serve the wine without having to chill it or let it stand to bring it to the correct serving temperature. Serve wines kept at serving temperature within a few months. Check the label or consult a guide for the recommended serving temperature for specific wines.

• 41 °F to 45 °F (5 °C to 7°C)
- Non-vintage Champagne and Sparkling Wines
- Cava, Asti, Prosecco, Sekt
• 43 °F to 46 °F (6 °C to 8°C)
- Sweet White Wines
• 45 °F to 50 °F (7 °C to 10°C)
- Vintage Champagne, Light White and Rosé Wines
- Muscat, Rosé, Riesling, Pinot Grigio, Sauvignon Blanc, Semillon

• 50 °F to 55 °F (10 °C to 13°C)
• Full-Bodied White Wines and Light Red Wines
• Chardonnay, Viognier, White Burgundy, Chablis, Pinot Noir, Beaujolais, Barbera, Grenache

- 54 °F to 61 °F (12 °C to 16 °C)

- Tawny Port

- 58 °F to 64 °F (14 °C to 18 °C)

- Medium- or Full-Bodied Red Wines, Aged Reds

- Zinfandel, Chianti, Red Burgundy, Cabernet Sauvignon, Merlot, Malbec, Shiraz, Syrah, Bordeaux

• 64 °F to 68 °F (18 °C to 20 °C)

- Vintage Port

Pure geometric diagram with intersecting lines and circles, no text or symbols present

12 OPERATION

Storage Capacity

The wine storage compartment of this product is designed to store only wine, so it is not recommended for storing other liquor, beverages or foods.

A B C D E

List Dimension

A ∅ 1 3/32" (∅ 27.5 mm)

B 2 1/2" (63 mm)

C 6 1/4" (158.5 mm)

D ∅ 3" (∅ 76.1 mm)

E 11 27/32" (300.5 mm)

NOTE

- Stagger the fronts and backs of the bottles on the racks for safer storage.

Illustration of a tray with cylindrical objects and two parallel arrows (no text or symbols)

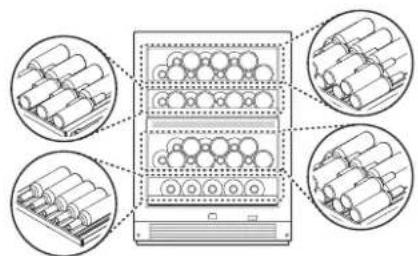

Wine Storage Compartment

Max. storage capacity: 41 bottles

Diagram of a multi-level rack system with four circular insets showing different arrangements of cylindrical objects (no text or labels)

Storage Racks

The sliding racks help keep bottles organized and easy to reach.

CAUTION

• The storage racks are heavy. Always use two hands when removing or assembling the racks to avoid product damage or personal injury. Always empty racks before removing them.
• Always open the door completely before removing or assembling the racks.
- As a natural product, the wood used for the racks can vary in color and grain, including the presence of knots.
- Due to the nature of the wood, spilled wine and other liquids may stain or discolor the racks.

Removing/Assembling Racks

The sliding racks help keep bottles organized and easy to reach.

1

Pull the rack out until it stops. Empty all contents out of the rack before removing it.

Diagram of a metal shelf or rack structure with an arrow indicating direction (no text or symbols present)

2

Lift the empty rack slightly to remove it from the rails.

Diagram of a structural support frame with an arrow indicating upward motion (no text or symbols present)

3

To assemble, pull out the rack support rails until they stop. Angle the storage rack into the space and set it on the rails.

Technical line drawing of a mechanical assembly with a magnified inset showing a cylindrical component (no text or symbols)

Pure geometric diagram with intersecting lines and circular shapes, no text or symbols present

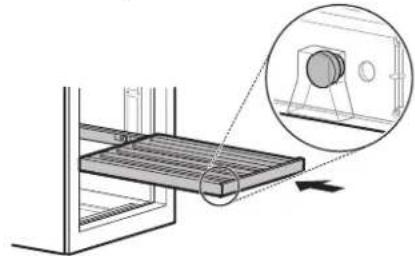

4 Slide the storage rack back until it lowers into place on the rails. Slide the assembled rack into the compartment.

Diagram of a rack-mounted device with an inset showing a cylindrical component (no text or symbols present)

CAUTION

• The storage racks are heavy. Always use two hands when removing or assembling the racks to avoid product damage or personal injury. Always empty racks before removing them.
  • Always open the door completely before removing or assembling the racks.
• As a natural product, the wood used for the racks can vary in color and grain, including the presence of knots.
• Due to the nature of the wood, spilled wine and other liquids may stain or discolor the racks.

Pure geometric diagram with intersecting lines and circles, no text or symbols present

14 SMART FUNCTIONS

SMART FUNCTIONS

SIGNATURE KITCHEN SUITE Application

This feature is only available on models with Wi-Fi.

The SIGNATURE KITCHEN SUITE application allows you to communicate with the appliance using a smartphone.

SIGNATURE KITCHEN SUITE Application Features

• Energy Monitoring (on Some Models)

- This feature keeps track of the refrigerator's power consumption and the number of door openings.

- Push Messages

- If the door remains open for more than ten minutes, you will receive a push message.

- Smart Diagnosis™

- This function provides useful information for diagnosing and solving issues with the appliance based on the pattern of use.

- Settings

- Allows you to set various options on the refrigerator and in the application.

NOTE

- If you change your wireless router, Internet service provider, or password, delete the registered appliance from the SIGNATURE KITCHEN SUITE application and register it again.

- This information is current at the time of publication. The application is subject to change for product improvement purposes without notice to users.

Before Using SIGNATURE KITCHEN SUITE Application

1 Use a smartphone to check the strength of the wireless router (Wi-Fi network) near the appliance.

- If the distance between the appliance and the wireless router is too far, the signal becomes weak. It may take a long time to register or fail to install the application.

2 Turn off the Mobile data or Cellular Data on your smartphone.

3 Connect your smartphone to the wireless router.

NOTE

• To verify the Wi-Fi connection, check that 📞 icon on the control panel is lit.
• The appliance supports 2.4 GHz Wi-Fi networks only. To check your network frequency, contact your Internet service provider or refer to your wireless router manual.
  • SIGNATURE KITCHEN SUITE is not responsible for any network connection problems or any faults, malfunctions, or errors caused by network connection.
  • The surrounding wireless environment can make the wireless network service run slowly.
• If the appliance is having trouble connecting to the Wi-Fi network, it may be too far from the router. Purchase a Wi-Fi repeater (range extender) to improve the Wi-Fi signal strength.
  • The network connection may not work properly depending on the Internet service provider.
• The Wi-Fi may not connect or the connection may be interrupted because of the home network environment.
• If the appliance cannot be registered due to problems with the wireless signal transmission, turn off the router and wait about a minute before trying again.
• If the firewall on your wireless router is enabled, disable the firewall or add an exception to it.
• The wireless network name (SSID) should be a combination of English letters and numbers. (Do not use special characters.)
• Smartphone user interface (UI) may vary depending on the mobile operating system (OS) and the manufacturer.

- If the security protocol of the router is set to WEP, network setup may fail. Change the security protocol (WPA2 is recommended), and register the product again.

Installing the SIGNATURE KITCHEN SUITE Application

Search for the SIGNATURE KITCHEN SUITE application from the Google Play Store or Apple App Store on a smartphone. Follow instructions to download and install the application.

Connecting to Wi-Fi

The Wi-Fi button, when used with the SIGNATURE KITCHEN SUITE application, allows the appliance to connect to a home Wi-Fi network. The 📋 icon shows the status of the appliance's network connection. The icon illuminates when the appliance is connected to the Wi-Fi network.

- Initial Appliance Registration

Run the SIGNATURE KITCHEN SUITE application and follow the instructions in the application to register the appliance.

• Re-registering the Appliance or Registering Another User

Press and hold the Wi-Fi button for 3 seconds to temporarily turn it off. Run the SIGNATURE KITCHEN SUITE application and follow the instructions in the application to register the appliance.

NOTE

- To disable the Wi-Fi function, press and hold the Wi-Fi button for 3 seconds. The 🔊 icon will be turned off.

Wireless LAN Module Specifications

Frequency Range	2412 MHz ~ 2462 MHz
Output Power (Max)	< 30 dBm

FCC Notice

The following notice covers the transmitter module contained in this product.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference and
(2) This device must accept any interference received, including interference that may cause undesired operation.

Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

FCC RF Radiation Exposure Statement

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

This equipment should be installed and operated with a minimum distance of 20 cm (7.8 inches) between the antenna and your body. Users must follow the specific operating instructions for satisfying RF exposure compliance.

Pure geometric diagram with intersecting lines and circular shapes, no text or symbols present

16 SMART FUNCTIONS

Industry Canada Statement

This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada's licence-exempt RSS(s). Operation is subject to the following two conditions:

(1) This device may not cause interference.
(2) This device must accept any interference, including interference that may cause undesired operation of the device.

IC Radiation Exposure Statement

This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment.

This equipment should be installed and operated with a minimum distance of 20 cm (7.8 inches) between the antenna and your body.

NOTE

• THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER'S AUTHORITY TO OPERATE THE EQUIPMENT.

Open Source Software Notice Information

To obtain the source code under GPL, LGPL, MPL, and other open source licenses, that is contained in this product, please visit https://opensource.signaturekitchensuite.com. In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download.

Signature Kitchen Suite will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to [e-mail]. This offer is valid for a period of three years after our last shipment of this product. This offer is valid to anyone in receipt of this information.

Smart Diagnosis

This feature is only available on models with the 😊 or 😊 logo.

Use this feature to help you diagnose and solve problems with your appliance.

NOTE

• For reasons not attributable to LGE's negligence, the service may not operate due to external factors such as, but not limited to, Wi-Fi unavailability, Wi-Fi disconnection, local app store policy, or app unavailability.
  • The feature may be subject to change without prior notice and may have a different form depending on where you are located.

Using SIGNATURE KITCHEN SUITE to Diagnose Issues

If you experience a problem with your Wi-Fi equipped appliance, it can transmit troubleshooting data to a smartphone using the SIGNATURE KITCHEN SUITE application.

- Launch the SIGNATURE KITCHEN SUITE application and select the Smart Diagnosis feature in the menu. Follow the instructions provided in the SIGNATURE KITCHEN SUITE application.

Using Audible Diagnosis to Diagnose Issues

Follow the instructions below to use the audible diagnosis method.

- Launch the SIGNATURE KITCHEN SUITE application and select the Smart Diagnosis feature in the menu. Follow the instructions for audible diagnosis provided in the SIGNATURE KITCHEN SUITE application.

1 Hold the Lock button for three seconds.
- If the display has been locked for over five minutes, you must deactivate the lock and then reactivate it.
2 Open the refrigerator door.

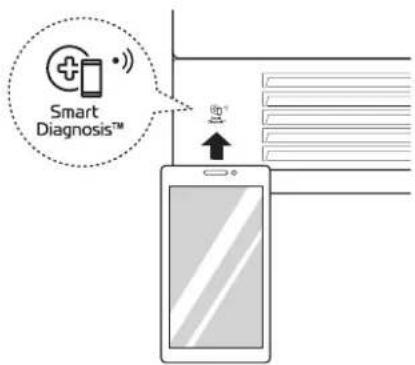

3 Hold the mouthpiece of your phone in front of the speaker that is located on the filter cover of the refrigerator.

Smart Diagnosis™

ENGLISH

4 Press and hold the Upper button for three seconds while continuing to hold your phone to the speaker.
5 After you hear three beeps, release the Upper button.
6 Keep the phone in place until the tone transmission has finished. The display will count down the time. Once the countdown is over and the tones have stopped, the diagnosis will be displayed in the application.

NOTE

- For best results, do not move the phone while the tones are being transmitted.

18 MAINTENANCE

MAINTENANCE

Cleaning

WARNING

- Use non-flammable cleaner. Failure to do so can result in fire, explosion, or death.

CAUTION

• Do not use an abrasive cloth or sponge when cleaning the interior and exterior of the refrigerator.
• Do not place your hand on the bottom surface of the refrigerator when opening and closing the doors.

Door Liners and Gaskets

Use a clean sponge or soft cloth and a mild detergent in warm water. Do not use cleaning waxes, concentrated detergents, bleaches, or cleaners containing petroleum on plastic refrigerator parts.

Storage Racks and Plastic Parts (Covers and Panels)

Use a clean sponge or soft cloth and a mild detergent in warm water. Do not use glass cleaners, abrasive cleansers, or flammable fluids. These can scratch or damage the material.

General Cleaning Tips

• The refrigerator defrost automatically; however, clean both sections once a month to prevent odors.
• Wipe up spills immediately.
- Unplug the refrigerator or disconnect power before cleaning.
- Remove all removable parts, such as racks.
- Use a clean sponge or soft cloth and a mild detergent in warm water. Do not use abrasive or harsh cleaners.
- Hand wash, rinse and dry all surfaces thoroughly.
- When cleaning the inside or outside of the appliance, do not wipe it with a rough brush, toothpaste, or flammable materials. Do not use cleaning agents containing flammable substances.
- Doing so may cause discoloration or damage to the appliance.
- Flammable substances: alcohol (ethanol, methanol, isopropyl alcohol, isobutyl alcohol, etc.), thinner, bleach, benzene, flammable liquid, abrasive, etc.

Inside Walls

To help remove odors, wash the inside of the refrigerator with a mixture of baking soda and warm water. Mix 2 tablespoons of baking soda to 1 quart of water (26 g soda to 1 liter water.) Be sure the baking soda is completely dissolved so it does not scratch the surfaces of the refrigerator.

TROUBLESHOOTING

FAQs

Frequently Asked Questions

Q: What are the best temperature settings for my refrigerator?

A: The default temperature for all compartments is 55 °F (13 °C). For long-term storage of wine, keep the compartment at a constant temperature between 53 °F to 57 °F (12 °C to 14 °C). If serving wine within a few weeks, you may store it at its serving temperature instead. See the Storing Wine section for more information. Check the label or consult a wine guide for recommended serving temperatures for specific wines. To switch the display from Fahrenheit (°F) to Celsius (°C), press the Upper button first to wake the display then press and hold the Upper and Light buttons until you hear a beep and the settings in the display change.

Q: How do I set the refrigerator temperature?

A: The temperature of each zone can be set separately. Continually press the Upper or Lower button on the control panel until the desired temperature appears. The numbers will cycle from highest to lowest and then return to the highest again with continuous pressing.

Q: My refrigerator is powered on and the controls are working, but it's not cooling and the display shows "OF" (see below). What is wrong?

A: The refrigerator is in Display Mode. This mode disables cooling to save energy while the appliance is on display in a store. To restore normal operation, press Upper or Lower button first to wake the display then press and hold the Upper and Humidity buttons until you hear a beep and the temperature setting appears on the display. Use the same procedure to return the refrigerator to Display Mode, if desired.

20 TROUBLESHOOTING

Before Calling for Service

Cooling

Problem Possible	Cause & Solution
Refrigerator is not cooling or has no power.	A fuse in your home may be blown or the circuit breaker tripped. Or the appliance is connected to a GFCI (Ground Fault Circuit Interrupter) outlet, and the outlet's circuit breaker has tripped.Check the main electrical box and replace the fuse or reset the circuit breaker. Do not increase fuse capacity. If the problem is a circuit overload, have it corrected by a qualified electrician.Reset the circuit breaker on the GFCI. If the problem persists, contact an electrician.
	The refrigerator control is set to OFF (some models).Turn the control ON. Refer to the Storing Wine section for proper temperature settings.
	Refrigerator is set to Display Mode.Display Mode allows the lights and control display to work normally while disabling cooling, to save energy while the refrigerator is on the showroom floor. See the FAQs section of this manual for instructions on how to disable Display Mode.
	Refrigerator was recently installed.It may take up to 24 hours for each compartment to reach the desired temperature.
	Refrigerator was recently relocated.If the refrigerator was stored for a long period of time or moved on its side, it is necessary for the refrigerator to stand upright for 24 hours before connecting it to power.
Cooling system runs too much.	Refrigerator is replacing an older model.Modern refrigerators require more operating time but use less energy due to more efficient technology.
	Refrigerator was recently plugged in or power restored.The refrigerator will take up to 24 hours to cool completely.
	The door is opened often or many wine bottles were added.Adding wine bottles and opening the door warms the refrigerator, requiring the compressor to run longer in order to cool the refrigerator back down. In order to conserve energy, try to get everything you need out of the refrigerator at once, keep wine bottles organized so they are easy to find, and close the door as soon as the wine bottle is removed. (Refer to the Storing Wine section.)
	Doors are not closed completely.Firmly push the doors shut. If they will not shut all the way, the "Doors will not close correctly or pop open" section in Troubleshooting.
	Refrigerator is installed in a hot location.The compressor will run longer under warm conditions. At normal room temperatures (70 °F or 21 °C) expect your compressor to run about 40 % to 80 % of the time. Under warmer conditions, expect it to run even more often. The refrigerator should not be operated above 100 °F (38 °C).

Problem Possible Cause & Solution
Interior moisture buildup.	Doors are opened often or for long periods of time.When the doors are opened often or for long periods of time, warm, humid air enters the compartment. This raises the temperature and moisture level within the compartment. To lessen the effect, reduce the frequency and duration of door openings.
	Doors are not closed correctly.See the "Doors will not close correctly or pop open" section.
	Weather is humid.Humid weather allows additional moisture to enter the compartments when the doors are opened leading to condensation or frost. Maintaining a reasonable level of humidity in the home will help to control the amount of moisture that can enter the compartments.
Refrigerator or Freezer section is too cold.	Incorrect temperature control settings.If the temperature is too cold, adjust the control one increment at a time and wait for the temperature to stabilize. Refer to the Control Panel for more information.
Refrigerator is too warm.	Refrigerator was recently installed.It may take up to 24 hours for each compartment to reach the desired temperature.
	The air vents are blocked.Locate air vents by using your hand to sense airflow and move all packages that block vents and restrict airflow. Rearrange items to allow air to flow throughout the compartment.
	Doors are opened often or for long periods of time.When the doors are opened often or for long periods of time, warm, humid air enters the compartment. This raises the temperature and moisture level within the compartment. To lessen the effect, reduce the frequency and duration of door openings.
	Unit is installed in a hot location.The refrigerator should not be operated in temperatures above 100 °F (38 °C).
	A large amount of wine bottles were added to the refrigerator at once.Adding wine bottles warms the refrigerator, requiring the cooling system to run.
	Doors are not closed correctly.See the "Doors will not close correctly or pop open" section in the Troubleshooting.
	Temperature control is not set correctly.If the temperature is too warm, adjust the control one increment at a time and wait for the temperature to stabilize.

ENGLISH

Parts & Features

Problem Possible	Cause & Solution
Doors will not close correctly or pop open.	The doors were removed during product installation and not properly replaced.• Remove and replace the doors according to the installation instructions.
	Refrigerator is not leveled properly.• See Door Alignment in the installation instructions to level refrigerator.

22 TROUBLESHOOTING

Problem Possible Cause & Solution
Doors are difficult to open.	The gaskets are dirty or sticky.• Clean the gaskets and the surfaces that they touch. Rub a thin coat of appliance polish or kitchen wax on the gaskets after cleaning.
	Door was recently closed.• When you open the door, warmer air enters the refrigerator. As the warm air cools, it can create a vacuum. If the door is hard to open, wait one minute to allow the air pressure to equalize, then see if it opens more easily.
Refrigerator wobbles or seems unstable.	Floor is not level.• It may be necessary to add shims under the leveling legs or rollers to complete installation.
Lights do not work. LED interior lighting failure.
The interior of the refrigerator is covered with dust or soot.	The refrigerator is located near a fire source, such as a fireplace, chimney, or candle.• Make sure that the refrigerator is not located near a fire source, such as a fireplace, chimney or candle.

Noises

Problem Possible Cause & Solution
Clicking	The defrost control will click when the automatic defrost cycle begins and ends. The thermostat control (or refrigerator control on some models) will also click when cycling on and off.· Normal Operation
Rattling	Rattling noises may come from the flow of refrigerant, the water line on the back of the unit, or items stored on top of or around the refrigerator.· Normal Operation
	Refrigerator is not resting solidly on the floor.· Floor is weak or uneven or leveling legs need to be adjusted. See the Leveling and Door Alignment section in the installation instructions.
	Refrigerator with linear compressor was jarred while running.· Normal Operation
Whooshing Evaporator fan	motor is circulating air through the refrigerator compartment.· Normal Operation
	Air is being forced over the condenser by the condenser fan.· Normal Operation
Gurgling Refrigerant flowing	through the cooling system.· Normal Operation
Popping Contraction and expansion of the inside walls due to changes in temperature.· Normal Operation
Vibrating If the side or back	of the refrigerator is touching a cabinet or wall, some of the normal vibrations may make an audible sound.· To eliminate the noise, make sure that the sides and back cannot vibrate against any wall or cabinet.
Dripping Water running into	the drain pan during the defrost cycle.· Normal Operation

Problem Possible	Cause & Solution
Pulsating or high-pitched sound	Your refrigerator is designed to run more efficiently to keep wine at the desired temperature. The high efficiency compressor may cause your new refrigerator to run longer than your old one, but it is still more energy efficient than previous models. While the refrigerator is running, it is normal to hear a pulsating or high-pitched sound.• Normal Operation

ENGLISH

Wi-Fi

Problem Possible	Cause & Solution
Trouble connecting appliance and smartphone to Wi-Fi network	The password for the Wi-Fi network was entered incorrectly. · Delete your home Wi-Fi network and begin the registration process again.
	Mobile data for your smartphone is turned on. · Turn off the Mobile data on your smartphone and register the appliance using the Wi-Fi network.
	The wireless network name (SSID) is set incorrectly. · The wireless network name (SSID) should be a combination of English letters and numbers. (Do not use special characters.)
	The router frequency is not 2.4 GHz. · Only a 2.4 GHz router frequency is supported. Set the wireless router to 2.4 GHz and connect the appliance to the wireless router. To check the router frequency, check with your Internet service provider or the router manufacturer.
	The distance between the appliance and the router is too far. · If the appliance is too far from the router, the signal may be weak and the connection may not be configured correctly. Move the router closer to the appliance or purchase and install a Wi-Fi repeater.

24 LIMITED WARRANTY

LIMITED WARRANTY

USA

TERMS AND CONDITIONS

Should your SIGNATURE KITCHEN SUITE Refrigerator ("Product") fail due to a defect in materials or workmanship under normal and proper use, during the warranty period set forth below, SIGNATURE KITCHEN SUITE will, at its option, repair or replace the Product. This limited warranty is valid only to the original retail purchaser of the Product ("You") and applies only when purchased lawfully and used within the United States including U.S. Territories.

WARRANTY PERIOD
Refrigerator/Freezer	Sealed System (Condenser, Dryer, Connecting Tube and Evaporator)	Compressor
Three (3) years from the date of original retail purchase	Five (5) years from the date of original retail purchase	Five (5) years from the date of original retail purchase	Linear / Inverter Compressor Only : Parts Only for years 6-10 from the date of original retail purchase (Consumer will be charged for labor)
Parts and Labor (internal/ functional parts only)	Parts and Labor Parts and Labor

• Replacement Products and parts are warranted for the remaining portion of the original warranty period or ninety (90) days, whichever is greater.
• Replacement Products and parts may be new, reconditioned, refurbished, or otherwise factory remanufactured.
• Replaced Product or part(s) will be the property of SIGNATURE KITCHEN SUITE.
• Proof of original retail purchase specifying the Product model and date of purchase is required to obtain warranty service under this limited warranty.
• Warranty start date will be ninety (90) days from manufacture date absent valid proof of purchase.

EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THE PRODUCT IS LIMITED IN DURATION TO THE DURATION OF THE ABOVE LIMITED WARRANTY. UNDER NO CIRCUMSTANCES SHALL SIGNATURE KITCHEN SUITE OR ITS U.S. DISTRIBUTORS/DEALERS BE LIABLE FOR ANY INDIRECT, INCIDENTAL, CONSEQUENTIAL, SPECIAL, OR PUNITIVE DAMAGES, INCLUDING, WITHOUT LIMITATION, LOST GOODWILL, LOST REVENUES OR PROFITS, WORK STOPPAGE, IMPAIRMENT OF OTHER GOODS, COST OF REMOVAL AND REINSTALLATION OF THE PRODUCT, LOSS OF USE, OR ANY OTHER DAMAGES WHETHER BASED IN CONTRACT, TORT, OR OTHERWISE. SIGNATURE KITCHEN SUITE'S TOTAL LIABILITY, IF ANY, SHALL NOT EXCEED THE PURCHASE PRICE PAID BY YOU FOR THE PRODUCT.

SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES OR LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE EXCLUSIONS OR LIMITATIONS MAY NOT APPLY TO YOU. THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE.

THIS LIMITED WARRANTY DOES NOT COVER:

• Service trips to deliver, pick up, or install, educate how to operate, correct wiring, or correct unauthorized repairs.
• Damage or failure of the Product to perform during power failures and interrupted or inadequate electrical service.
• Damage or failure of the Product caused by leaky or broken water pipes, frozen water pipes, restricted drain lines, inadequate or interrupted water supply or inadequate supply of air.
• Damage or failure of the Product resulting from operating the Product in a corrosive atmosphere or contrary to the Product owner's manual.
• Damage or failure of the Product caused by accidents, pests and vermin, lightning, wind, fire, floods, acts of nature, or any other causes beyond the control of SIGNATURE KITCHEN SUITE.
• Damage or failure of the Product caused by unauthorized modification or alteration, or if the Product is used for other than the intended purpose, or any water leakage where the Product was not properly installed.
• Damage or failure of the Product caused by incorrect electrical current, voltage, or plumbing codes.
• Damage or failure of the Product caused by transportation, storage, and/or handling, including scratches, dents, chips, and/or other damage to the finish of the Product, unless such damage is reported within one (1) week of delivery.
• Damage or missing items to any display, open box, or discounted Product.
  • Refurbished Product or any Product sold "As Is", "Where Is", "With all Faults", or similar disclaimer.
• Products with original serial numbers that have been removed, altered, or cannot be readily determined.
• Increases in utility costs and additional utility expenses.
• Any noises associated with normal operation.
• Products used for other than normal and proper household use (e.g., commercial or industrial use, offices, and recreational facilities or vehicles) or contrary to the Product owner's manual.
  • Costs associated with removal and reinstallation of the Product for repairs.
• Replacement of light bulbs, filters, or any consumable parts.
• Damage or failure of the Product resulting from misuse, abuse, improper installation, repair, or maintenance. Improper repair includes the use of parts not authorized by SIGNATURE KITCHEN SUITE. Improper installation or maintenance includes installation or maintenance contrary to the Product owner's manual or installation manual.
• Damage or failure of the Product caused by the use of parts, components, accessories (e.g., water filters, etc.), consumable cleaning products, any other products, or services that are not authorized by SIGNATURE KITCHEN SUITE.
• Racks, shelves, door bins, drawers, handle and accessories, except for internal/functional parts covered under this limited warranty.

The cost of repair or replacement under these excluded circumstances shall be borne by the consumer.

TO OBTAIN WARRANTY SERVICE AND ADDITIONAL INFORMATION

Call 1-855-790-6655 and select the appropriate option from the menu.

Or visit our website at http://www.signaturekitchensuite.com.

Or by mail: SIGNATURE KITCHEN SUITE Customer Service P.O. Box 240007 Huntsville, AL 35813 ATTN: CIC

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and a central circular pattern (no text or symbols)

26 LIMITED WARRANTY

Canada

TERMS AND CONDITIONS

Should your SIGNATURE KITCHEN SUITE Refrigerator ("Product") fail due to a defect in materials or workmanship under normal and proper use, during the warranty period set forth below, SIGNATURE KITCHEN SUITE will, at its option, repair or replace the Product upon receipt of proof of the original retail purchase. This limited warranty is valid only to the original retail purchaser of the Product and applies only to a Product distributed, purchased and used within Canada, as determined at the sole discretion of SIGNATURE KITCHEN SUITE.

WARRANTY PERIOD
Refrigerator/Freezer	Sealed System (Condenser, Dryer, Connecting Tube and Evaporator)	Compressor
Three (3) years from the date of original retail purchase	Five (5) years from the date of original retail purchase	Five (5) years from the date of original retail purchase	Linear / Inverter Compressor Only : Parts Only for years 6-10 from the date of original retail purchase (Consumer will be charged for labor)
Parts and Labor (internal / functional parts only)	Parts and Labor Parts and	Labor

• Replacement products and parts are warranted for the remaining portion of the original warranty period or ninety (90) days, whichever is greater.
• Replacement products and parts may be new, reconditioned, refurbished, or otherwise factory remanufactured, all at the sole discretion of SIGNATURE KITCHEN SUITE.
• Proof of original retail purchase specifying the Product model and date of purchase is required to obtain warranty service under this Limited Warranty.

SIGNATURE KITCHEN SUITE'S SOLE LIABILITY IS LIMITED TO THE LIMITED WARRANTY SET OUT ABOVE. EXCEPT AS EXPRESSLY PROVIDED ABOVE, SIGNATURE KITCHEN SUITE MAKES NO, AND HEREBY DISCLAIMS, ALL OTHER WARRANTIES AND CONDITIONS RESPECTING THE PRODUCT, WHETHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OR CONDITION OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, AND NO REPRESENTATIONS SHALL BE BINDING ON SIGNATURE KITCHEN SUITE. SIGNATURE KITCHEN SUITE DOES NOT AUTHORIZE ANY PERSON TO CREATE OR ASSUME FOR IT ANY OTHER WARRANTY OBLIGATION OR LIABILITY IN CONNECTION WITH THE PRODUCT. TO THE EXTENT THAT ANY WARRANTY OR CONDITION IS IMPLIED BY LAW, IT IS LIMITED TO THE WARRANTY PERIOD SET OUT ABOVE. UNDER NO CIRCUMSTANCES SHALL SIGNATURE KITCHEN SUITE, THE MANUFACTURER OR DISTRIBUTOR OF THE PRODUCT, BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, SPECIAL, DIRECT, INDIRECT, PUNITIVE OR EXEMPLARY DAMAGES, INCLUDING, WITHOUT LIMITATION, LOSS OF GOODWILL, LOST PROFITS, LOSS OF ANTICIPATED PROFITS, LOST REVENUE, LOSS OF USE, OR ANY OTHER DAMAGE, WHETHER ARISING DIRECTLY OR INDIRECTLY FROM ANY CONTRACTUAL BREACH, FUNDAMENTAL BREACH, TORT OR OTHERWISE, OR FROM ANY ACTS OR OMISSIONS. SIGNATURE KITCHEN SUITE'S TOTAL LIABILITY, IF ANY, SHALL NOT EXCEED THE PURCHASE PRICE PAID BY YOU FOR THE PRODUCT.

This Limited Warranty gives you specific legal rights. You may also have other rights that vary from province to province depending on applicable provincial laws. Any term of this Limited Warranty that negates or varies any implied condition or warranty under provincial law is severable where it conflicts with such provincial law without affecting the remainder of this warranty's terms.

THIS LIMITED WARRANTY DOES NOT COVER:

- Service trips to i) deliver, pick up, or install or; educate on how to operate the Product; ii) correct wiring or plumbing; or iii) correct unauthorized repairs or installations of the Product;

• Damage or failure of the Product to perform during power failures and interrupted or inadequate electrical service;
• Damage or failure caused by leaky or broken water pipes, frozen water pipes, restricted drain lines, inadequate or interrupted water supply or inadequate supply of air;
• Damage or failure resulting from operating the Product in a corrosive atmosphere or contrary to the instructions outlined in the Product's owner's manual;
• Damage or failure to the Product caused by accidents, pests and vermin, lightning, wind, fire, floods, acts of God, or any other causes beyond the control of SIGNATURE KITCHEN SUITE or the manufacturer;
• Damage or failure resulting from misuse, abuse, improper installation, repair, or maintenance of the Product. Improper repair includes use of parts not authorized or specified by SIGNATURE KITCHEN SUITE. Improper installation or maintenance includes installation or maintenance contrary to the Product's owner's manual;
• Damage or failure caused by unauthorized modification or alteration of the Product, or if used for other than the intended household purpose/use of the Product, or damage or failure resulting from any water leakage due to improper installation of the Product;
• Damage or failure caused by incorrect electrical current, voltage or plumbing codes;
• Damage or failure caused by use that is other than normal household use, including, without limitation, commercial or industrial use, including use in commercial offices or recreational facilities, or as otherwise outlined in the Product's owner's manual;
• Damage or failure caused by the use of any accessories, components or cleaning products, including, without limitation, water filters, that are not approved/authorized by SIGNATURE KITCHEN SUITE;
• Replacement of the water filter cartridge due to water pressure that is outside the specified operating range or due to excessive sediment in the water supply;
• Damage or failure caused by transportation and handling, including scratches, dents, chips and/or other damage to the finish of the Product, unless such damage results from defects in materials or workmanship and is reported to SIGNATURE KITCHEN SUITE within one (1) week of delivery of the Products;
• Damage or missing items to any display, open box, refurbished or discounted Product;
  • Refurbished Product or any Product sold "As Is", "Where Is", "With all Faults", or any similar disclaimer;
• Products with original serial numbers that have been removed, altered or cannot be readily determined at the discretion of SIGNATURE KITCHEN SUITE;
• Increases in utility costs and additional utility expenses in any way associated with the Product;
  • Any noises associated with normal operation of the Product;
• Replacement of light bulbs, filters, fuses or any other consumable parts;
• Replacement of any part that was not originally included with the Product;
  • Costs associated with removal and/or reinstallation of the Product for repairs; and
• Racks, shelves, door bins, drawers, handle and accessories to the Product, except for internal/functional parts covered under this Limited Warranty.
• Coverage for "in Home" repairs, for products in-warranty, will be provided if the Product is within a 150 km radius from the nearest authorized service center (ASC), as determined by SIGNATURE KITCHEN SUITE Canada. If your Product is located outside a 150 km radius from a ASC, as determined by SIGNATURE KITCHEN SUITE Canada, it will be your responsibility to bring the Product, at your sole expense, to the ASC for in-warranty repair.

All costs and expenses associated with the above excluded circumstances, listed under the heading. This Limited Warranty Does Not Cover, shall be borne by the consumer.

TO OBTAIN WARRANTY SERVICE AND ADDITIONAL INFORMATION, PLEASE CALL OR VISIT OUR WEBSITE:

• Call 1-888-289-2802 and select the appropriate option from the menu.
• Visit our website at https://www.signaturekitchensuite.ca
  • By mail: 20 Norelco Drive, North York, ON, M9L 2X6

us_main.book.book Page 28 Friday, May 28, 2021 8:34 AM 28 Memo

Pure geometric lines forming a crosshair symbol (no text or labels)

Pure geometric diagram with crosshair and circular elements, no text or symbols present

SIGNATURE KITCHEN SUITE

MANUAL DEL PROPIETARIO

Copyright © 2021 Signature Kitchen Suite. All Rights Reserved.

Pure geometric diagram with intersecting lines and circular shapes, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

2

ÍNDICE

5 P R E C A U C I Ó N

7 FUNCIONAMIENTO

7 A n t e s d e U s a r

Technical diagram of a refrigerator internal structure with labeled components and exploded view

Pure geometric diagram with intersecting lines and circles, no text or symbols present

*POWER *Extra Function - Hold 3 seconds *Wi-Fi Light Sparkling White Red -88°F Upper -88°F Lower Sparkling White Red *Lock Humidity

① POWER

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

12 FUNCIONAMIENTO

Modo Sabbath

Illustration of a row of cylindrical objects on an abacus with two directional arrows indicating movement (no text or symbols)

Diagram of a multi-level rack system with four circular insets showing different arrangements of cylindrical objects (no text or labels)

Diagram of a window with a metal shelf and an arrow indicating direction (no text or symbols)

Diagram of a structural support frame with an arrow indicating upward motion (no text or symbols present)

Technical diagram of a mechanical device with an inset showing a cylindrical component (no text or symbols present)

Technical diagram of a mechanical assembly with a magnified inset showing a component detail (no text or symbols present)

PRECAUCIÓN

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circular shapes, no text or symbols present

Copyright © 2021 Signature Kitchen Suite. All Rights Reserved.

Pure geometric diagram with intersecting lines and circles, no text or symbols present

2

TABLE DES MATIÈRES

3 CONSIGNES DE SÉCURITÉ IMPORTANTES

3 LISEZ TOUTES LES CONSIGNES AVANT L'UTILISATION

3 AVERTISSEMENTS

6 MISES EN GARDE

7 FONCTIONNEMENT

Pure geometric diagram with intersecting lines and circles, no text or symbols present

CONSIGNES DE SÉCURITÉ IMPORTANTES

LISEZ TOUTES LES CONSIGNES AVANT L'UTILISATION

Technical diagram of a refrigerator internal structure with labeled components and exploded view

①Verre de la porte

Pure geometric diagram with intersecting lines and a central circular pattern (no text or symbols)

Panneau de commande

Pure geometric diagram with intersecting lines and circles, no text or symbols present

10 FONCTIONNEMENT

⑥Lock

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Mode Sabbat

Illustration of a tray with cylindrical objects and two parallel arrows indicating direction (no text or symbols)

Diagram of a multi-level rack system with four circular insets showing cylindrical components (no text or labels)

Diagram of a window with a wooden shelf and an arrow indicating direction (no text or symbols)

Diagram of a structural support frame with a roller being lifted by an arrow (no text or symbols)

Technical line drawing of a mechanical assembly with an inset showing a cylindrical component (no text or symbols)

Technical diagram of a mechanical assembly with a magnified inset showing a component detail (no text or symbols present)

MISE EN GARDE

Pure geometric diagram with intersecting lines and circular shapes, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric lines and shapes without any text, numbers, or symbols

18 ENTRETIEN

ENTRETIEN

Nettoyage

AVERTISSEMENT

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

20 DÉPANNAGE

Pure geometric diagram with intersecting lines and circles, no text or symbols present

fc_main.book.book Page 27 Friday, May 28, 2021 8:40 AM 27AIDE-MÉMOIRE

Pure geometric lines forming a crosshair symbol (no text or labels)

Pure geometric diagram with crosshair and circular elements, no text or symbols present

fc_main.book.book Page 28 Friday, May 28, 2021 8:40 AM

28 AIDE-MÉMOIRE

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

fc_main.book.book Page 29 Friday, May 28, 2021 8:40 AM 29AIDE-MÉMOIRE

Pure geometric lines forming a crosshair symbol (no text or labels)

Pure geometric diagram with crosshair and circular shapes, no text or symbols present

fc_main.book.book Page 32 Friday, May 28, 2021 8:40 AM

SIGNATURE KITCHEN SUITE

Customer Information Center

For inquires or comments, call;

1-855-790-6655 USA, Consumer User

1-888-289-2802 CANADA, Consumer User

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and circular shapes, no text or symbols present
