USER MANUAL KRA-TR 815324 Koenic

In millions of dollars

Happ S####

U.S. (the field

www.cindasc.com

7670.19-8.20\^*** \203

(1) A 的 10%

MURTR813824_240324_A2_B_705

KOENIC

Get ready for compliments

Raclette Grill

Exterior view of a modern kitchen grater with multiple panes and a flat top (no visible text or symbols)

|A| = |1| + 1

108-4-14

B.10:5 22

47085/1+2

Heng 27 31

ta no 3-3

bavlenkar in 2017

Bcsd(4-45

Exploded view diagram of a toaster with labeled parts including tray, front panel, and interior compartments

Technical diagram illustrating a mechanical assembly process with labeled steps and directional arrows indicating movement.

Sicherheitshinweise

The temperature of accessible surfaces may be high when the appliance is operating.

• Do not operate the product by means of an external timer or separate remote control system.
• This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are supervised or have received instructions concerning use of the product in a safe way and understand the hazards involved.
• Children shall not play with the product. Cleaning and user maintenance shall not be carried out by children unless they are old than 8 and supervised.
• Keep this product and its power cord out of reach of children under the age of 8.
• A damaged power cord may only be replaced by the authorised service agent in order to avoid hazards.
• The product is designed for the preparation of normal household quantities in the home, or in household-like, non-commercial environments. Household-like environments include staff kitchens in shops, offices, agricultural and other small businesses or for use by guests at bed-and-breakfast establishments, small hotels and similar residential facilities.
• Clean the product and all other accessories after each use.
• Follow the instructions in the chapter Cleaning and care.

English

Safety instructions

• Read this manual thoroughly before first use. It contains important information for your safety as well as for the use and maintenance of the equipment.
• Keep this manual for future reference and pass it on with the product.
• Pay particular attention to the warnings on the product and in this manual.
• Use the product only for its intended purpose. Improper use may lead to hazards.
• In the event of improper use or wrong operation, we do not accept any liability for resulting damages.
• The use of accessories and components not expressly recommended by the manufacturer may result in injuries or damages and voids the warranty.
• Never leave the product unsupervised while it is switched on.
• Do not place any objects on top of the product.
• Never immerse electrical parts of the product in water or any other fluid during cleaning or operation. Never hold the product under running water.
• Do not under any circumstances attempt to repair the product yourself. For servicing and repairs, please consult an authorised service agent.
• The mains voltage must match the information on the rating label of the product.
• The power plug is used as the disconnect device. Please be sure that the power plug is in operable condition.
• Only unplugging from the power socket can separate the product completely from the mains.
• Avoid damages to the power cord that may be caused by kinks or contact with sharp corners.

• Keep this product including power cord and power plug away from all heat sources such as ovens, hot plates and other heat-producing devices/objects.

• Only unplug from the power socket by the plug itself. Do not pull on the cord.

• Unplug the product ...
• when the product is not being used,
• in case of malfunctions,
• before attaching / detaching accessories and
• before cleaning the product.
• If the power cord or the casing of the product are damaged or if the product has been dropped, the product may not be used before it is examined by an authorised service agent.
• Use this product in dry indoor areas only and never outdoors.
• Protect this product from extreme heat and cold as well as from direct sunlight and dust.
• In order to reduce the risk of fire and electric shock, do not expose the product to fire (fireplace, grill, candles, cigarettes and so on) or water (water drops, water splashes, vases, tubs and so on).
• Warning! Do not use this product near water or heavy moisture; e.g. in a damp basement or beside a swimming pool or bathtub.
• Use this product in temperate latitudes only. Avoid tropical and especially humid climatic regions.
• Protect this product from all moisture including spray water and humidity.
• The product may not come into contact with or be covered by highly flammable materials, such as curtains, textiles, wall-paper, etc. Please make sure that sufficient safety clearance is kept to flammable materials.
• Do not insert any objects into the product.
• This product is not suitable for commercial use. It is designed for household use only.
• Use heat-proof or wooden spatulas with the product to prevent damage to the grill plates nonstick coating. Make sure that the spatulas used do not have any pointy or sharp edges.

Safety instructions

• Do not place the product on hotplates (gas, electric, coal stoves, etc.). Keep the product away from all open flames. Operate the product on an even, stable, clean, fireproof and dry surface.
• Fire hazard! Bread, fat and other foodstuffs can burn! Never leave the product unattended while it is switched on.
• Risk of burning! Do not touch the product's hot surfaces. Touch the product only by its handle or temperature dial.
• The grill plate and other product parts become very hot. Let the product cool down well before cleaning or storing.
• Important! Check to ensure that the product is in a serviceable condition before use. The product shall not be used if it shows any signs of damage or if it's suspected to be defect.

English

Congratulations!

Thank you for your purchase of a KOENIC product. Please read this manual carefully and keep it for future reference.

Intended use

This product is suitable for preparing foods only. This product is designed for household use only and not intended for commercial use. Any other use may result in damage to the product or injuries.

Imtron GmbH assumes no liability for damage to the product, for property damage or for personal injury due to careless or improper usage of the product, or usage of the product which does not meet the manufacturer's specified purpose.

Before first time use

Carefully take the product and its accessories out of the original packaging. Retain the original packaging in case you would like to store the product away or transport it at a later date. If you choose to dispose of the original packaging, then please do so according to the applicable legal regulations.

Check the packaging contents for completeness and damages. Should the contents in the packaging not be complete or be damaged, do not use the product. Return it to your retail outlet immediately.

After unpacking, please refer to chapter

Cleaning and care.

During manufacturing, parts of the product are coated with a thin oil film for their protection.

To remove this production residue, run the product for approx. 10 minutes without foodstuffs. Make sure there is sufficient ventilation as a slight odor and some smoke may occur. This is harmless and will disappear shortly.

Delivery content

1 x Raclette grill

1 x Grill plate

1 x Stone plate

8 x Pans

8 x Spatulas

1 x User manual

1 x Warranty card

Technical Data

Rated voltage : 220-240 V\~; 50/60 Hz

Rated input power : 1500 W

Protection class : I

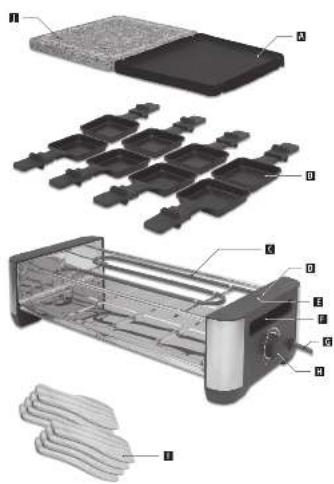

Controls and components

A Grill plate, 2 sides

B Non-stick pans with handle (8 pcs.)

C Heating element

D Temperature control light

E Operation control light

F Handle

G Power cord with plug

H Temperature control knob

1 Spatulas (8 pcs.)

Stone plate

English

Use

Caution

The product will become very hot during operation. Therefore, place the product on a fireproof surface. The surface must be level and slip-resistant.

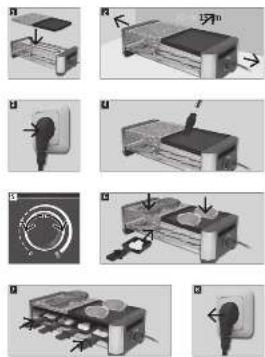

Fig. 1 Select the desired side and place the grill plate on the device. Place the stone plate on the device next to the grill plate with the fat groove facing upwards. The grill plate is suitable for grilling, the stone plate is suitable for roasting.

Note

The stone plate may change its color slightly over time. This is normal and does not affect functionality

Fig. 2 Set up the device in a suitable location. Minimum distance to other objects: 15 cm.

Fig. 3 Connect the power plug to a suitable socket outlet. The power indicator lights up red.

Note

Remember that cooking results will be better if the product is preheated first. Consider, that it takes longer to pre-heat the stone plate.

Caution

The grill plate and parts below will become very hot during operation.

Fig. 4 Coat the grill plates thinly with cooking oil.

Fig. 5 Adjust the grill temperature. Preheat for approx. 15 minutes.. The temperature control lamp lights up green while it is heating up and turns off when the set temperature is reached.

Fig. 6 Place the food on the grill plate / in the pans.

Fig. 7 Place the pans in the cooking zones. Make sure, that the food in the pans doesn't touch the heating element.

Hints

• Do not fry or grill ingredients that can easily burn.
• Cut meat or sausages into small pieces or slices.
• Turn the food to be grilled regularly with a wooden or plastic spatula. Do not use metal cutlery. This could damage the non-stick coating of the grill plate and the pans.

Fig. 8 To switch off, set the temperature control to position 0 and disconnect the device from the mains.

Note

• During the grilling process, the temperature control light turns on and off from time to time. This indicates that the heating element is switched on and off to maintain the set temperature.
• Monitor the cooking process now and then. The cooking time depends on the type of food and on your personal taste. Before eating, make sure, that the food is fully cooked.

English

Caution

If you want to use the other side of the grill plate during usage, the used side has to be cleaned before turning it over. Fat or oil might ignite if it drips onto the heating element.

Cleaning and care

Caution

Unplug the product and let it cool down completely before cleaning. Never immerse electrical parts of the product in water during cleaning or operation. Never hold the product under running water. When cleaning, never use solvents or abrasive materials, hard brushes, metallic or sharp objects. Solvents are harmful to human health and can attack plastic parts, while abrasive cleaning products and tools may scratch the surface(s).

Remove excess grease with a paper towel before detaching the grill plates.

Clean the grill plate, pans and the spatulas with a soft cloth or sponge and hot water.

Fig. 9 Use a damp cloth or a soft sponge and warm water with a little dish-washing detergent to clean the product's housing.

After each cleaning, dry all surfaces thoroughly before further use of the product.

Place the dried grill plate on the device and the pans on the designated surface.

Note

It is possible to clean the grill plate and spatulas in a dishwasher.

Troubleshooting

If there are any problems during operation, please refer to the following table. If the problems cannot be solved as indicated under Solution, please contact your sales agent.

Problem Possible causes Solution
Product does not work	Interrupted power supplyConnection is incorrectly connectedThermostat is not set	Check the power supplyCheck the connectionCheck the thermostat controls
Food in the pans touch the heating element	Burned smell Do no overfill pans
