Product type	Crane outrigger pad (4 units)
Model	CP-400-12 (MSW-CP-400-12)
Dimensions (L x W x H)	400 x 400 x 40 mm
Total weight (set of 4)	25.44 kg
Unit weight	Approx. 6.36 kg
Max. load capacity	12 t
Product color	Multicolor
Handle color	Green
Material	High-density polyethylene (HDPE) or robust composite
Quantity per set	4 pads
Intended use	Securing, stabilizing machines (cranes, excavators, trucks) on demanding surfaces
Minimum contact surface	At least 1/3 of the pad surface with the stabilizer foot
Cleaning	Soft cloth or sponge; avoid metal objects, acids, solvents
Maintenance	Regular inspection for cracks or damage; store dry, cool, out of sunlight
Safety	Use on flat, stable surface; center pad under foot; do not overload; keep away from children
Storage conditions	Dry, cool place, away from moisture and direct sunlight
Repairability	Not repairable; replace if damaged
Warranty	Legal conformity warranty (consult dealer)
Standards	Complies with high quality standards (manufacturer)

Frequently Asked Questions - CP-400-12 MSW

What is the weight of each pad in the CP-400-12 set?

Each pad weighs approx. 6.36 kg, the set of 4 weighs 25.44 kg.

What is the maximum load capacity of the CP-400-12 pad?

The maximum load capacity is 12 tons (12,000 kg).

Can I use these pads for something other than cranes?

Yes, they are also suitable for excavator stabilizers, trucks or any machine requiring stabilization on demanding ground.

How to clean the outrigger pads?

Clean with a soft cloth or sponge. Do not use metal objects, acids, solvents, or fuel.

Can I stack multiple pads to increase height?

No, stacking is not recommended. Use an outrigger pad suitable for the required load capacity.

Are the pads delivered with a fixing system?

No, the pads are designed to be placed freely under the stabilizer feet. They must be centered and in good contact with the support.

What color are the handles of the CP-400-12 pads?

The handles are green.

Can I use the pads on unstable ground?

No, they must be placed on a flat and stable surface. Loose or uneven ground may compromise safety.

Are the pads UV resistant?

It is recommended to store the pads away from direct sunlight to prevent premature degradation. Prolonged exposure may damage the material.

How to check that the pads are in good condition before use?

Perform a visual inspection for cracks, deformation, or abnormal wear. Do not use if damaged.

USER MANUAL CP-400-12 MSW

Exterior view of a yellow and blue industrial machine labeled 'Igo 36' at an indoor exhibition, with people walking nearby (no readable text beyond label)

1. General Description

The instruction manual is intended to assist in safe and reliable use. The product is designed and manufactured strictly according to technical specifications using the latest technology and components and maintaining the highest quality standards.

PLEASE CAREFULLY READ AND UNDERSTAND THIS INSTRUCTION MANUAL BEFORE OPERATION,

To ensure long and reliable operation of the unit, make sure to operate and maintain it properly in accordance with the guidelines in this instruction manual. The technical data and specifications contained in this instruction manual are up to date. The manufacturer reserves the right to make changes in order to improve the quality.

Explanation of symbols

Please read the instructions before use.

CAUTION! The illustrations in this instruction manual are for reference only and may differ from the actual product in some details.

The original instruction manual is in the German language version. Other language versions are translations from German.

2. Safety of use

CAUTION! Read all safety warnings and all instructions. Failure to follow warnings and instructions could result in serious injury or even death.

The term "appliance" or "product" in the warnings and in the description of the instructions refers to the CRANE PADS – 4PCS.

2.1. Safety

a) Keep the work area tidy and well lit. Disorder or poor lighting can lead to accidents. Be foresighted, watch what you are doing and use common sense when using the unit.

b) If damage is found, contact the manufacturer's service department.

c) No children or unauthorized persons are allowed in the work area. (Inattention may result in loss of control of the unit.)

d) Keep these instructions for use for future reference. If the unit is to be passed on to a third party, the operating instructions must also be handed over together with the unit.

e) Do not operate this unit if you are tired, ill or under the influence of alcohol, drugs or medication that could impair your ability to operate the unit.

f) The product may be operated by persons who are physically fit, capable of operating it and appropriately trained, and who have read this instruction manual and have been trained in occupational safety and health.

g) The product is not intended to be used by persons (including children) with reduced mental, sensory or intellectual functions or persons who lack experience and/or knowledge unless they are supervised or have been instructed by a person responsible for their safety on how to operate the machine.

h) The unit may be operated by persons who are physically fit, capable of operating it and appropriately trained, and who have read this instruction manual and have been trained in occupational safety and health.
i) Use caution and common sense when operating this appliance. A moment's inattention during operation may result in serious personal injury.
j) Do not overestimate your capabilities. Maintain body balance and equilibrium at all times during operation. This allows for better control of the machine in unexpected situations.
k) Keep unused equipment out of the reach of children and out of the reach of anyone unfamiliar with the unit or this instruction manual. These units is dangerous in the hands of inexperienced users.
I) Keep the unit in good working condition. Inspect before each operation for damage (cracks or any other condition that may affect the safe operation of the unit).
m) Clean the unit regularly to prevent permanent dirt build-up.
n) Keep the unit away from sources of fire and heat.
o) Do not overload the unit.
p) Exceeding the maximum allowable user weight may result in product damage.

CAUTION! Although the product has been designed to be safe, with adequate safeguards, and despite the additional safety features provided to the user, there is still a slight risk of accident or injury when handling the unit. You are advised to use caution and common sense when using this product.

3. Rules of use

The product is used to immobilize, secure, stabilize machinery on a demanding surface.

It is designed for stabilizer feet of cranes, excavators, trucks, etc.

The user is responsible for any damage resulting from misuse.

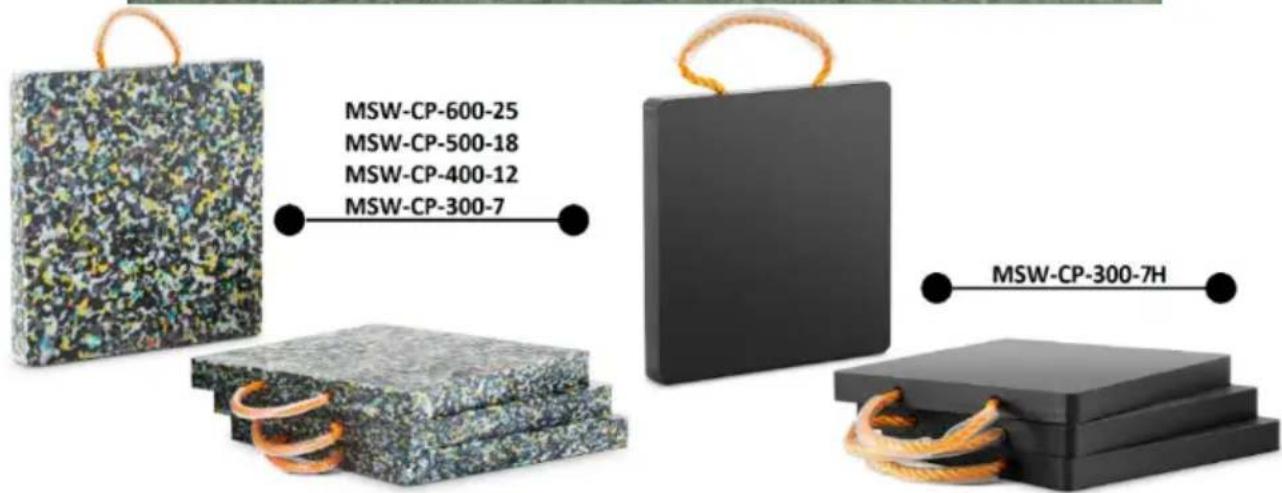

3.1. Description

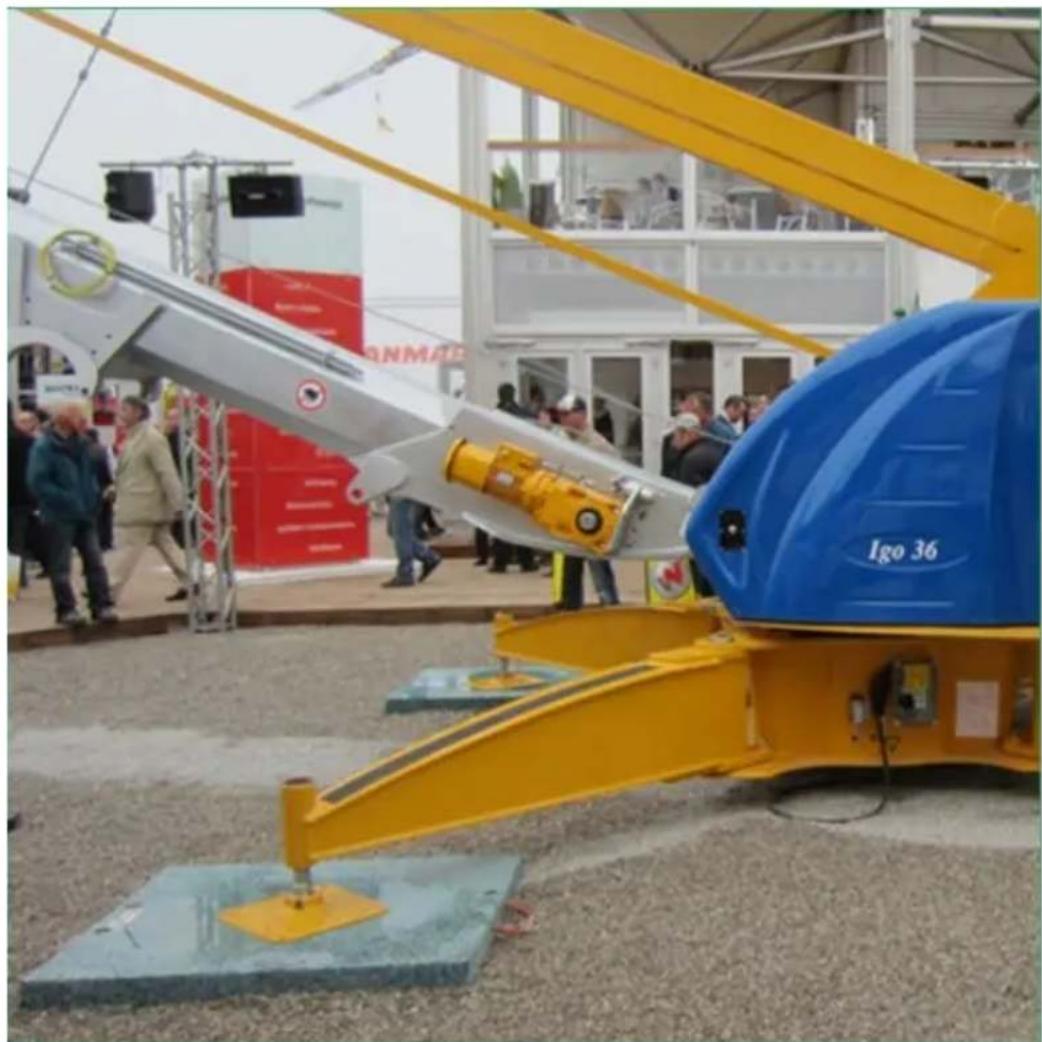

Exterior view of a large industrial machine with yellow and blue components, no visible text or symbols

3.2. Preparation for operation POSITIONING OF THE UNIT

The device should always be used on a level, stable surface, ensuring that the underlay adheres to the substrate with its entire surface.

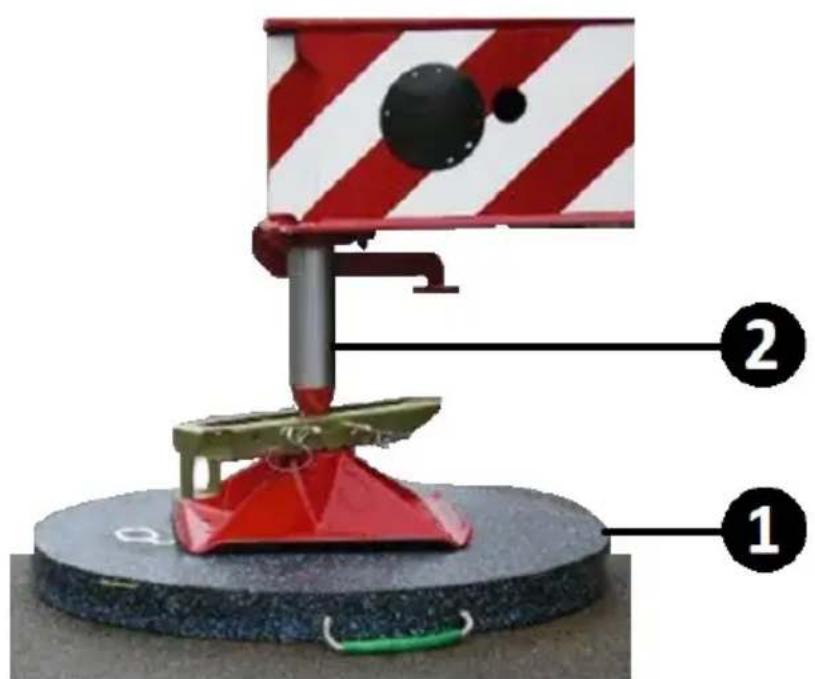

The load-bearing capacity of the pads is guaranteed by maintaining the design proportions. The contact area between the stabilizer foot (2) and the pad (1) must not be less than 1/3 of the pad area.

The pad underneath the stabilizer legs must be centered.

CAUTION! Always select the base plate according to the load capacity of the unit!

The sub-floor under the base plate must be checked especially during heavy rainfall.

3.3. Cleaning and maintenance

a) After each cleaning, all the parts should be dried well before the unit is used again.

b) Store the unit in a dry and cool place protected from moisture and direct sunlight.

c) Perform regular inspections of the unit checking technical fitness and any damages.
d) Use a soft cloth for cleaning.
e) Do not use sharp and/or metal objects (e.g. a wire brush or metal spatula) for cleaning, as these may damage the surface of the material from which the unit is made.
f) Do not clean the unit with acidic substances, medical products, diluent, fuel, oil or other chemicals as this may cause damage to the unit.

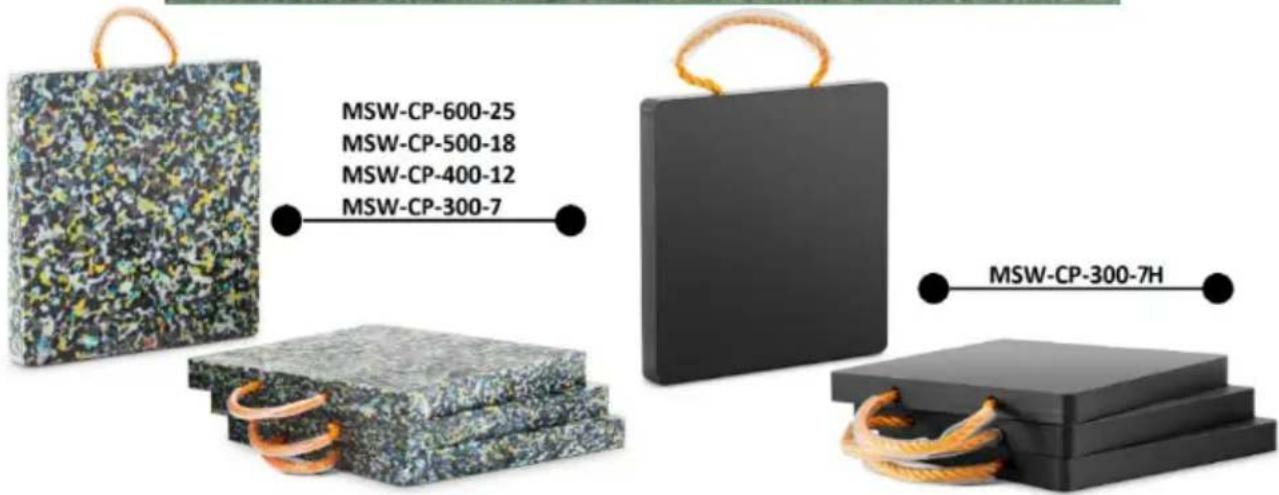

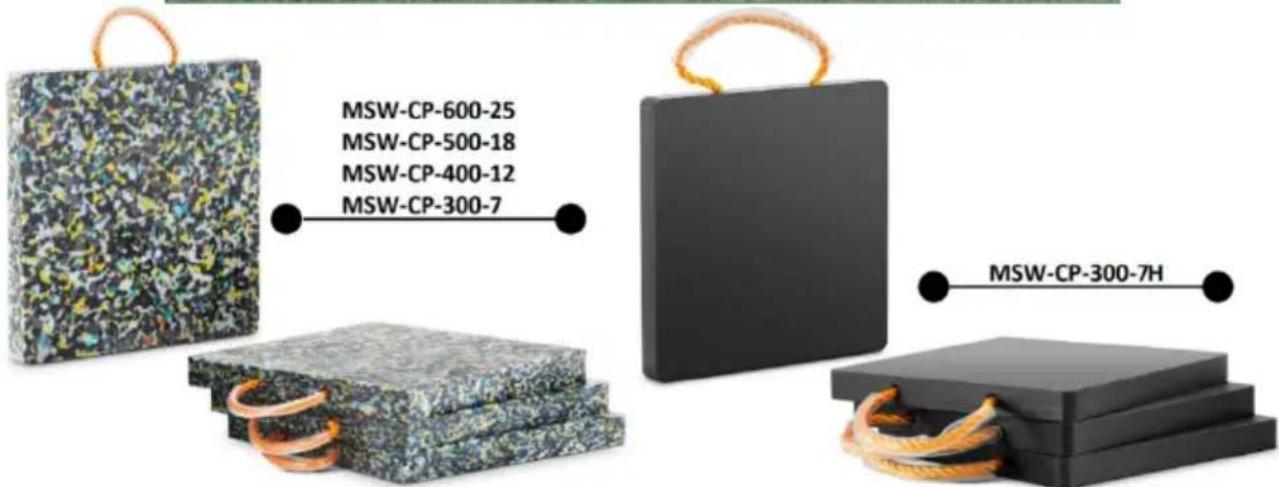

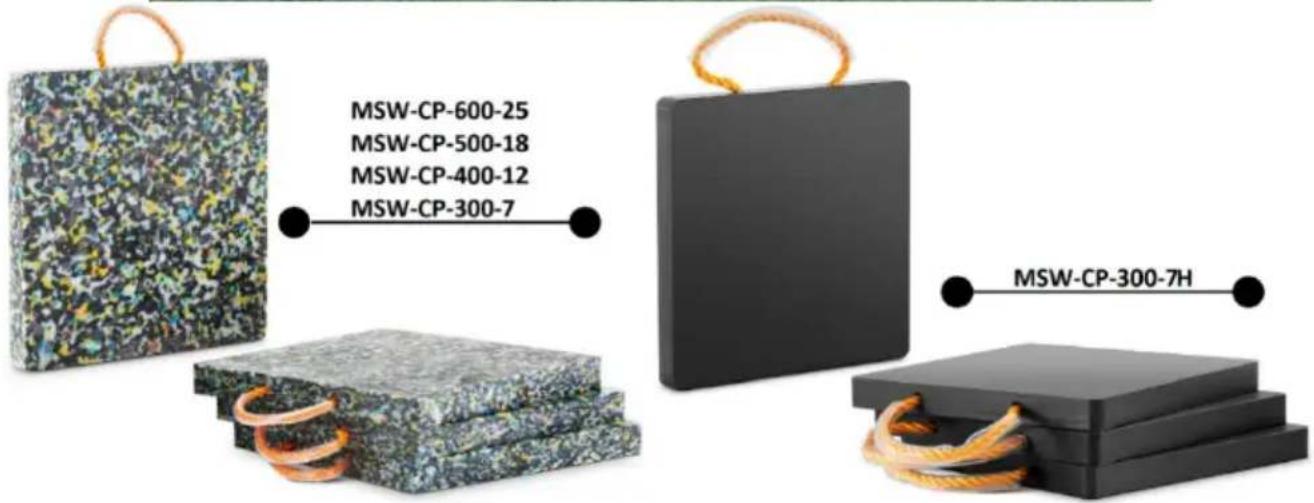

Dane techniczne

Exterior view of a yellow and blue industrial machine labeled 'Igo 36' at an indoor exhibition, with people walking nearby (no readable text beyond label)

Exterior view of a modern industrial machine with yellow and blue components, displayed at an exhibition (no signage)

Exterior view of a yellow and blue industrial machine labeled 'Igo 36' at an indoor exhibition, with people walking nearby (no readable text beyond label)

Exterior view of a yellow and blue industrial machine labeled 'Igo 36' at an indoor exhibition, with people walking nearby (no readable text beyond label)

Exterior view of a yellow and blue industrial machine labeled 'Igo 36' at an indoor exhibition, with visitors in the background (no readable text beyond label)

Exterior view of a yellow and blue industrial machine labeled 'Igo 36' at an indoor exhibition, with people walking nearby (no readable text beyond label)

APPARATETS PLACERING
