CP-300-7H - Motorized device accessory MSW - Free user manual and instructions

Product type	Accessory for motorized equipment - Shimming plate for crane
Brand	MSW
Model	CP-300-7H
Dimensions (L x W x H)	300 x 300 x 30 mm
Total weight	10,28 kg
Maximum load capacity	7 tons
Product color	Black
Handle color	Green
Number of units per lot	4 plates
Intended use	Immobilization, securing and stabilization of machines (cranes, excavators, trucks) on demanding surface
Required contact surface	At least 1/3 of the plate surface
Recommended positioning	Plate centered under the stabilizer foot, on a flat and stable surface
Safety precautions	Read the manual before use; do not overload; check for damage; use on stable ground; keep children away
Cleaning	Soft cloth or sponge; avoid sharp objects, chemicals (acids, thinners, oils)
Maintenance	Regular inspections; dry after cleaning; store dry, away from moisture and sunlight
Storage	Dry, cool place, away from direct sunlight and moisture
Repairability	Contact after-sales service in case of damage; no user repair
Important safety instructions	Do not use when tired, under influence; keep out of reach of children; respect the load capacity

Frequently Asked Questions - CP-300-7H MSW

How to use the MSW CP-300-7H shimming plate?

Place the plate on a flat and stable surface, ensuring it adheres to the ground over its entire surface. Center the machine's stabilizer foot on the plate. The contact surface between the foot and the plate must be at least 1/3 of the plate surface. Do not exceed the load capacity of 7 tons.

What is the maximum load capacity of the CP-300-7H?

The maximum load capacity is 7 tons. Never exceed this limit to avoid any risk of damage or accident.

Can I use the plate on uneven ground?

No, the plate must be used on a flat and stable surface. Uneven ground may compromise the stability and safety of the machine. In case of heavy rain, inspect the support under the plate.

How to clean and maintain the shimming plate?

Clean with a soft cloth or sponge. Do not use sharp or metal objects, or chemicals (acids, thinners, oils). Dry all components after cleaning. Store in a dry, cool place, away from moisture and sunlight.

What are the essential safety precautions?

Read the manual carefully before use. Ensure the work area is tidy and well-lit. Do not overload the plate. Check for damage before each use. Keep children away. Do not use if tired or under influence.

How many plates are supplied in the lot?

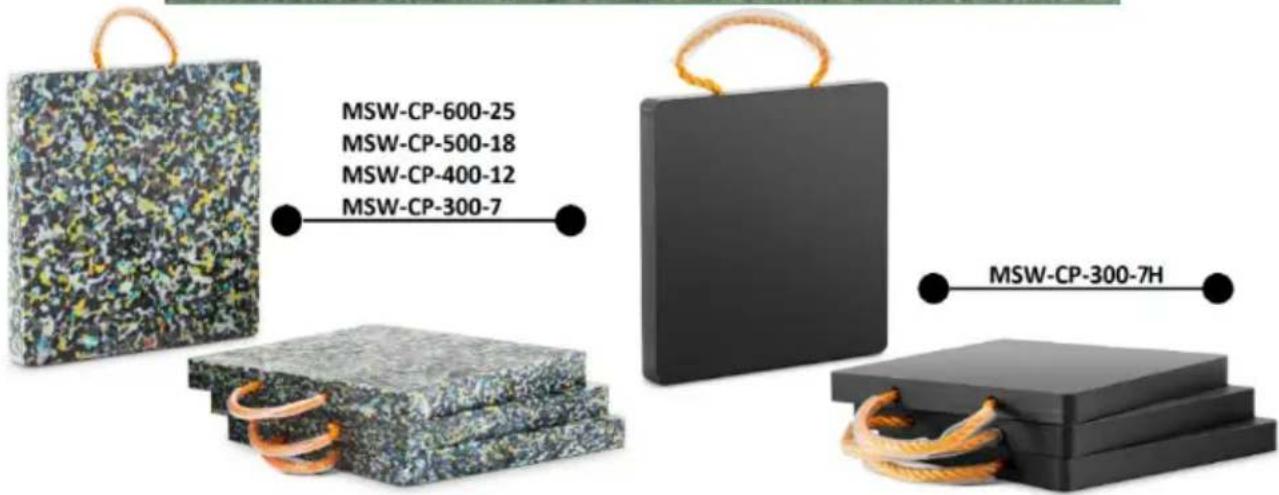

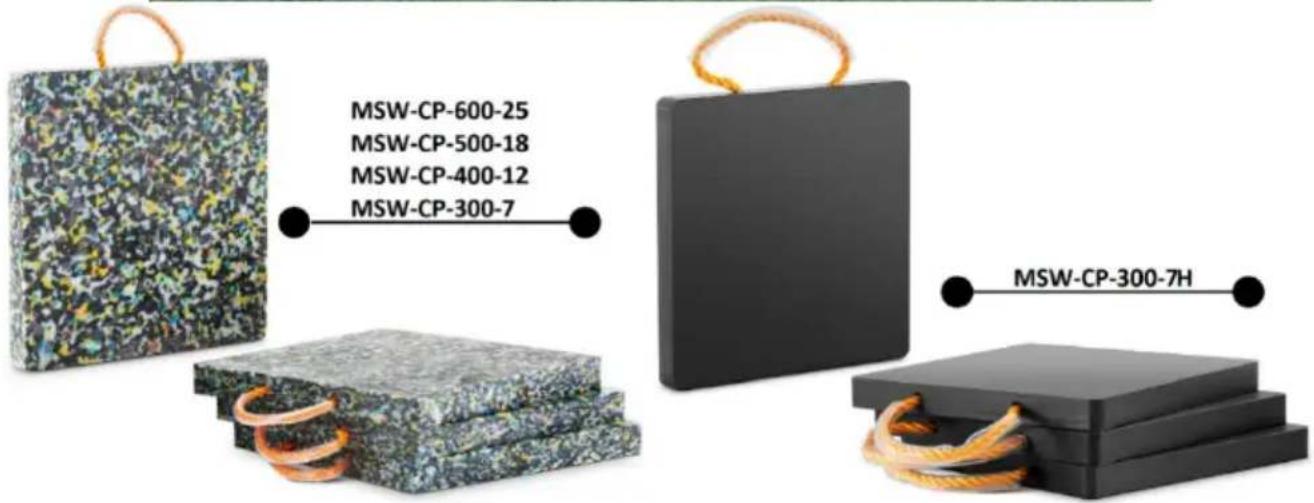

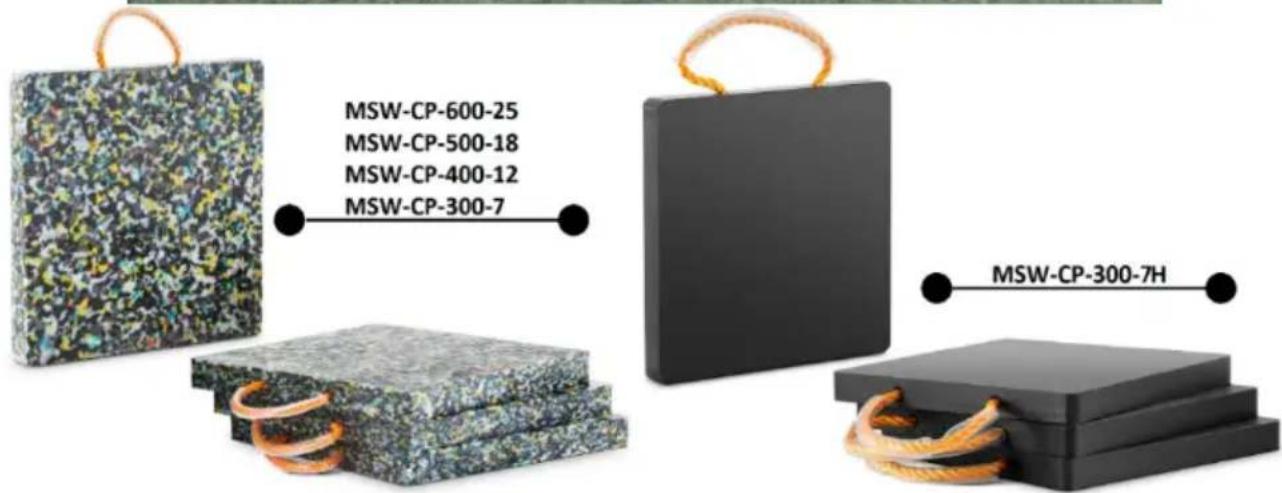

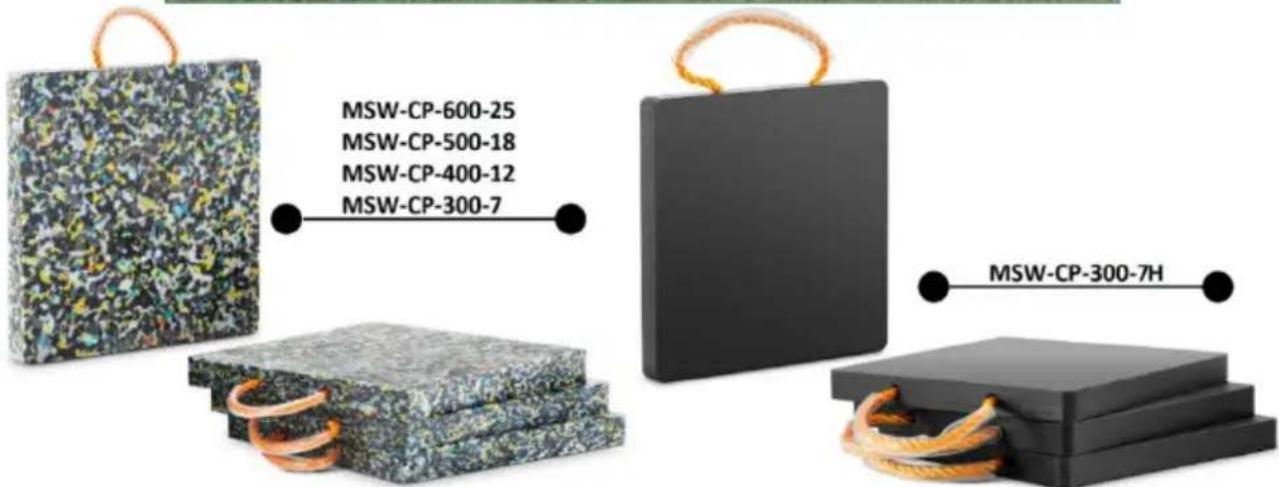

The product is sold in lots of 4 plates. The CP-300-7H model is part of a series also including models CP-600-25, CP-500-18, CP-400-12.

Where should I store the plate when not in use?

Store the plate in a dry, cool place away from moisture and direct sunlight. A clean, dry storage area is ideal.

How to choose the right shimming plate for my crane?

Select the plate according to the load capacity of your machine. For a maximum load of 7 tons, the CP-300-7H is suitable. Refer to the technical specifications table for other models.

What to do if the plate is damaged?

If you detect damage (cracks, deformations), stop using immediately and contact the manufacturer's after-sales service. Do not attempt to repair yourself.

Is the plate compatible with all stabilizers?

The plate is designed for stabilizers of cranes, excavators and trucks. For safe use, ensure the contact surface of the stabilizer foot covers at least 1/3 of the plate surface and that the plate is centered.

USER MANUAL CP-300-7H MSW

Exterior view of a yellow and blue industrial machine labeled 'Igo 36' at an indoor exhibition, with people observing (no readable text beyond label)

1. General Description

The instruction manual is intended to assist in safe and reliable use. The product is designed and manufactured strictly according to technical specifications using the latest technology and components and maintaining the highest quality standards.

PLEASE CAREFULLY READ AND UNDERSTAND THIS INSTRUCTION MANUAL BEFORE OPERATION,

To ensure long and reliable operation of the unit, make sure to operate and maintain it properly in accordance with the guidelines in this instruction manual. The technical data and specifications contained in this instruction manual are up to date. The manufacturer reserves the right to make changes in order to improve the quality.

Explanation of symbols

Please read the instructions before use.

CAUTION! The illustrations in this instruction manual are for the only and may differ from the actual product in some details.

The original instruction manual is in the German language version. Other language versions are translations from German.

2. Safety of use

CAUTION! Read all safety warnings and all instructions. Failure to follow warnings and instructions could result in serious injury or even death.

The term "appliance" or "product" in the warnings and in the description of the instructions refers to the CRANE PADS – 4PCS.

2.1. Safety

a) Keep the work area tidy and well lit. Disorder or poor lighting can lead to accidents. Be foresighted, watch what you are doing and use common sense when using the unit.

b) If damage is found, contact the manufacturer's service department.

c) No children or unauthorized persons are allowed in the work area. (Inattention may result in loss of control of the unit.)

d) Keep these instructions for use for future reference. If the unit is to be passed on to a third party, the operating instructions must also be handed over together with the unit.

e) Do not operate this unit if you are tired, ill or under the influence of alcohol, drugs or medication that could impair your ability to operate the unit.

f) The product may be operated by persons who are physically fit, capable of operating it and appropriately trained, and who have read this instruction manual and have been trained in occupational safety and health.

g) The product is not intended to be used by persons (including children) with reduced mental, sensory or intellectual functions or persons who lack experience and/or knowledge unless they are supervised or have been instructed by a person responsible for their safety on how to operate the machine.

h) The unit may be operated by persons who are physically fit, capable of operating it and appropriately trained, and who have read this instruction manual and have been trained in occupational safety and health.
i) Use caution and common sense when operating this appliance. A moment's inattention during operation may result in serious personal injury.
j) Do not overestimate your capabilities. Maintain body balance and equilibrium at all times during operation. This allows for better control of the machine in unexpected situations.
k) Keep unused equipment out of the reach of children and out of the reach of anyone unfamiliar with the unit or this instruction manual. These units is dangerous in the hands of inexperienced users.
I) Keep the unit in good working condition. Inspect before each operation for damage (cracks or any other condition that may affect the safe operation of the unit).
m) Clean the unit regularly to prevent permanent dirt build-up.
n) Keep the unit away from sources of fire and heat.
o) Do not overload the unit.
p) Exceeding the maximum allowable user weight may result in product damage.

CAUTION! Although the product has been designed to be safe, with adequate safeguards, and despite the additional safety features provided to the user, there is still a slight risk of accident or injury when handling the unit. You are advised to use caution and common sense when using this product.

3. Rules of use

The product is used to immobilize, secure, stabilize machinery on a demanding surface.

It is designed for stabilizer feet of cranes, excavators, trucks, etc.

The user is responsible for any damage resulting from misuse.

3.1. Description

Exterior view of a large industrial machine with yellow and blue components, no visible text or symbols

3.2. Preparation for operation POSITIONING OF THE UNIT

The device should always be used on a level, stable surface, ensuring that the underlay adheres to the substrate with its entire surface.

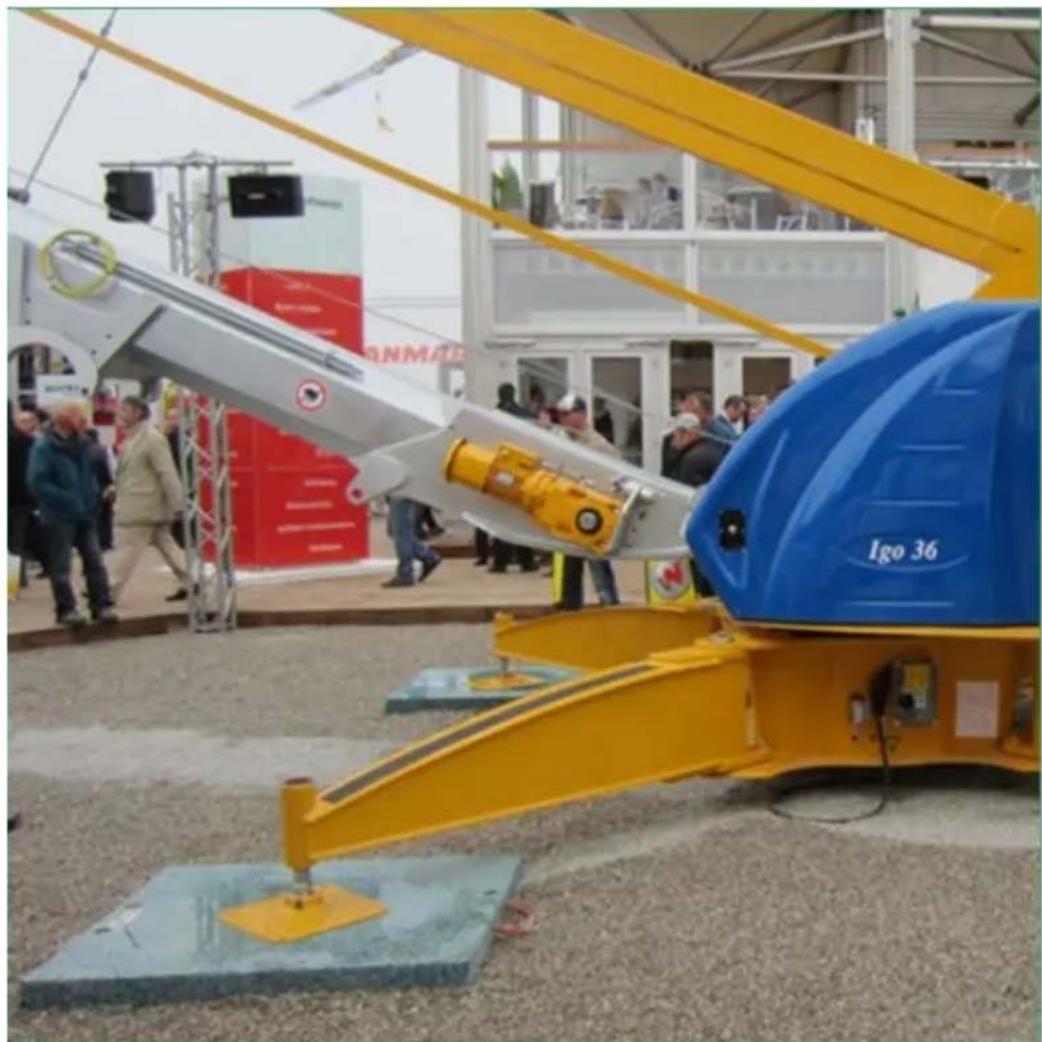

The load-bearing capacity of the pads is guaranteed by maintaining the design proportions. The contact area between the stabilizer foot (2) and the pad (1) must not be less than 1/3 of the pad area.

The pad underneath the stabilizer legs must be centered.

CAUTION! Always select the base plate according to the load capacity of the unit!

The sub-floor under the base plate must be checked especially during heavy rainfall.

3.3. Cleaning and maintenance

a) After each cleaning, all the parts should be dried well before the unit is used again.

b) Store the unit in a dry and cool place protected from moisture and direct sunlight.

c) Perform regular inspections of the unit checking technical fitness and any damages.
d) Use a soft cloth for cleaning.
e) Do not use sharp and/or metal objects (e.g. a wire brush or metal spatula) for cleaning, as these may damage the surface of the material from which the unit is made.
f) Do not clean the unit with acidic substances, medical products, diluent, fuel, oil or other chemicals as this may cause damage to the unit.

Dane techniczne

Exterior view of a yellow and blue industrial machine labeled 'Igo 36' at an indoor exhibition, with people walking nearby (no readable text beyond label)

Exterior view of a modern industrial machine with yellow and blue components, displayed at an exhibition (no signage)

Exterior view of a yellow and blue industrial machine labeled 'Igo 36' at an indoor exhibition, with people walking nearby (no readable text beyond label)

Exterior view of a yellow and blue industrial robotic arm labeled 'Igo 36' at an indoor exhibition, with visitors in the background (no readable text beyond label)

Exterior view of a yellow and blue industrial machine labeled 'Igo 36' at an indoor exhibition, with people observing (no readable text beyond label)

Exterior view of a yellow and blue industrial machine labeled 'Igo 36' at an indoor exhibition, with visitors in the background (no readable text beyond label)

Exterior view of a yellow and blue industrial machine labeled 'Igo 36' at an indoor exhibition, with people observing (no readable text beyond label)

APPARATETS PLACERING
