USER MANUAL RCBC-5V3 Royal Catering

Silhouette of a lion-like creature on a blue background (no text or symbols)

DE	Produktname	KUTTER & GEMÜSESCHNEIDEMASCHINE
EN	Product name	BOWL CUTTER
PL	Nazwa produktu	KUTER-WILK
CZ	Název výrobku	STOLNÍ KUTR
FR	Nom du produit	CUTTER DE TABLE
IT	Nome del prodotto	TRITATUTTO
ES	Nombre del producto	TRITURADORA DE ALIMENTOS
HU	Termék neve	KUTTER
DA	Produktnavn	INDUSTRIBLENDER
FI	Tuotteen nimi	PÖYTÄKUTTERI
NL	Productnaam	SNIJMACHINE
NO	Produktnavn	FOODPROSESSOR
SE	Produktnamn	MATBEREDARE
PT	Nome do produto	MÁQUINA DE CORTAR ALIMENTOS
SK	Názov produktu	STOLOVÁ REZAČKA
DE	Modell	RCBC-5V3
EN	Product model
PL	Model produktu
CZ	Model výrobku
FR	Modèle
IT	Modello
ES	Modelo
HU	Modell
DA	Model
FI	Tuotteen malli
NL	Productmodel
NO	Produktmodell
SE	Produktmodell
PT	Modelo do produto
SK	Model
DE	Hersteller	expondo Polska sp. z o.o. sp. k.
EN	Manufacturer
PL	Producent
CZ	Výrobce
FR	Fabricant
IT	Produttore
ES	Fabricante
HU	Termelő
DA	Producent
FI	Valmistaja
NL	Producent
NO	Produsent
SE	Tillverkare
PT	Fabricante
SK	Výrobca
DE	Anschrift des Herstellers	ul. Nowy Kisielin – Innowacyjna 7, 66-002 Zielona Góra | Poland, EU
EN	Manufacturer Address
PL	Adres producenta
CZ	Adresa výrobce
FR	Adresse du fabricant
IT	Indirizzo del produttore
ES	Dirección del fabricante
HU	A gyártó címe
DA	Producentens adresse
FI	Valmistajan osoite
NL	Adres producent
NO	Produsentens adresse
SE	Tillverkarens adress
PT	Endereço do fabricante
SK	Adresa výrobcu

White industrial mixing machine with labeled parts (1, 2, 3) and control panel (no readable text or symbols beyond labels)

Close-up of a white ceramic bowl with labeled parts (2, 3, 4), no visible text or symbols beyond labels

Close-up of a stainless steel mixing machine with labeled parts (no readable text or symbols)

Two-panel image showing a hand operating a metallic mechanical component, with arrows indicating rotation or assembly (no text or symbols present)

Two-panel image showing a person using a mechanical tool on a metal workpiece, and another close-up of a mechanical component with black arrows indicating direction (no text or symbols)

Close-up of industrial machinery components with arrows indicating rotation or adjustment (no visible text or symbols)

Technical diagram showing six-step assembly of a mechanical component with numbered steps and a 2mm dimension annotation.

This User Manual has been translated for your convenience using machine translation. Reasonable efforts have been made to provide an accurate translation; however, no automated translation is perfect nor is it intended to replace human translators. The official User Manual is the English version. Any discrepancies or differences created in the translation are not binding and have no legal effect for compliance or enforcement purposes. If any questions arise related to the accuracy of the information contained in the User Manual, please refer to the English version of those contents which is the official version.

Technical data

Parameter description Parameter value
Product name	Bowl cutter
Model	RCBC-5V3
Rated voltage [V~] / frequency [Hz]	230/50
Rated power [W]	550
Capacity [l]	5
Dimensions [width x depth x height; mm]	520 x 420 x 530
Weight [kg]	51

1. General description

The user manual is designed to assist in the safe and trouble-free use of the device. The product is designed and manufactured in accordance with strict technical guidelines, using state-of-the-art technologies and components. Additionally, it is produced in compliance with the most stringent quality standards.

DO NOT USE THE DEVICE UNLESS YOU HAVE THOROUGHLY READ AND UNDERSTOOD THIS USER MANUAL.

To increase the product life of the device and to ensure trouble-free operation, use it in accordance with this user manual and regularly perform maintenance tasks. The technical data and specifications in this user manual are up to date. The manufacturer reserves the right to make changes associated with quality improvement. The device is designed to reduce noise emission risks to a minimum, taking into account technological progress and noise reduction opportunities.

Legend

CE	The product satisfies the relevant safety standards.
	Read instructions before use.
	The product must be recycled.
	WARNING! or CAUTION! or REMEMBER! Applicable to the given situation.(general warning sign)
	Wear protective gloves.
	Use an adjustable guard.
	ATTENTION! Electric shock warning!
	ATTENTION! Hand crush hazard!
	Only use indoors.
	Class I protection.
	ATTENTION! Hot surface, risk of burns!

PLEASE NOTE! Drawings in this manual are for illustration purposes only and in some details may differ from the actual product.

2. Usage safety

ATTENTION! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury or even death.

The terms "device" or "product" are used in the warnings and instructions to refer to:

Bowl cutter

2.1. Electrical safety

a) The plug must fit the socket. Do not modify the plug in any way. Using original plugs and matching sockets reduces the risk of electric shock.
b) Avoid touching earthed elements such as pipes, heaters, boilers and refrigerators. There is an increased risk of electric shock if the earthed device is exposed to rain, comes into direct contact with a wet surface or is operating in a damp environment. Water getting into the device increases the risk of damage to the device and of electric shock.
c) Do not touch the device with wet or damp hands.
d) Use the cable only for its designated use. Never use it to carry the device or to pull the plug out of a socket. Keep the cable away from heat sources, oil, sharp edges or moving parts. Damaged or tangled cables increase the risk of electric shock.
e) If using the device in a damp environment cannot be avoided, a residual current device (RCD) should be applied. The use of an RCD reduces the risk of electric shock.
f) Do not use the device if the power cord is damaged or shows obvious signs of wear. A damaged power cord should be replaced by a qualified electrician or the manufacturer's service centre.
g) To avoid electric shock, do not immerse the cord, plug or device in water or other liquids. Do not use the device on wet surfaces.

2.2. Safety in the workplace

a) Make sure the workplace is clean and well lit. A messy or poorly lit workplace may lead to accidents. Try to think ahead, observe what is going on and use common sense when working with the device.
b) If you discover damage or irregular operation, immediately switch the device off and report it to a supervisor without delay.
c) Only the manufacturer's service centre may make repairs to the product. Do not attempt to make repairs yourself!
d) In case of fire, use a powder or carbon dioxide (CO2) fire extinguisher (one intended for use on live electrical devices) to put it out.
e) Children or unauthorised persons are forbidden to enter a work station. (A distraction may result in loss of control over the device).
f) Regularly inspect the condition of the safety labels. If the labels are illegible, they must be replaced.
g) Please keep this manual available for future reference. If this device is passed on to a third party, the manual must be passed on with it.
h) Keep packaging elements and small assembly parts in a place not available to children.
i) Keep the device away from children and animals.

j) If this device is used together with another equipment, the remaining instructions for use shall also be followed.

Remember! When using the device, protect children and other bystanders.

2.3. Personal safety

a) Do not use the device when tired, ill or under the influence of alcohol, narcotics or medication which can significantly impair the ability to operate the device.
b) The machine may be operated by physically fit persons who are able to handle the machine, are properly trained, who have reviewed this operating manual and have received training in occupational health and safety.
c) When working with the device, use common sense and stay alert. Temporary loss of concentration while using the device may lead to serious injuries.
d) To prevent the device from accidentally switching on, make sure the switch is on the OFF position before connecting to a power source.
e) Do not overestimate your abilities. When using the device, keep your balance and remain stable at all times. This will ensure better control over the device in unexpected situations.
f) Do not wear loose clothing or jewellery. Keep hair, clothes and gloves away from moving parts. Loose clothing, jewellery or long hair may get caught in moving parts.
g) Remove all adjusting tools or spanners before turning the device on. A tool or spanner left in the revolving part of the device may cause injury.
h) The device is not a toy. Children must be supervised to ensure that they do not play with the device.

2.4. Safe device use

a) Do not use the device if the ON/OFF switch does not function properly (does not switch the device on and off). Devices which cannot be switched on and off using the ON/OFF switch are hazardous, should not be operated and must be repaired.
b) Make sure the plug is disconnected from the socket before attempting any adjustments, accessory replacements or before putting the device aside. Such precautions will reduce the risk of accidentally activating the device.
c) When not in use, store in a safe place, away from children and people not familiar with the device who have not read the user manual. The device may pose a hazard in the hands of inexperienced users.
d) Keep the device in perfect technical condition. Before each use check for general damage and especially check for cracked parts or elements and for any other conditions which may impact the safe operation of the device. If damage is discovered, hand over the device for repair before use.
e) Keep the device out of the reach of children.
f) Device repair or maintenance should be carried out by qualified persons, only using original spare parts. This will ensure safe use.
g) When transporting and handling the device between the warehouse and the destination, observe the occupational health and safety principles for manual transport operations which apply in the country where the device will be used.
h) Avoid situations where the device stops working during use due to excessive loading. This may result in overheating of the drive elements and damage to the device.
i) Do not move, adjust or rotate the device in the course of work.
j) Do not leave this appliance unattended while it is in use.
k) C lean the device regularly to prevent stubborn grime from accumulating.
I) The specified vibrations emission was measured using standard measurement methods. Vibrations emissions may change if the device is used in different surroundings.
m) Do not work on two workpieces at the same time.
n) T he device is not a toy. Cleaning and maintenance may not be carried out by children without supervision by an adult person.
o) It is forbidden to interfere with the structure of the device in order to change its parameters or construction.
p) Keep the device away from sources of fire and heat.
q) Do not overload the device.

EN

r) In order to prevent injuries, always pay due care when carrying out maintenance on the device, and in particular when handling the cutting disks.
s) Never press comestible products to the blade with a hand or other body part, use a pusher.
t) Do not operate the device without the pusher when a small piece of meat remains to be sliced.
u) Do not take dangerous positions, the blade may cause injury.

ATTENTION! Despite the safe design of the device and its protective features, and despite the use of additional elements protecting the operator, there is still a slight risk of accident or injury when using the device. Stay alert and use common sense when using the device.

3. Use guidelines

The product is designed to slice vegetables, fruit and fresh, unfrozen, boneless meat.

The user is liable for any damage resulting from unintended use of the device.

3.1. Device description

Control Panel:

POWER RUN START STOP

Power indicator light.

Working indicator light.

Start button.

Stop button. When the switch is pressed, the power is disconnected and the button is locked in the specified position. To unlock it, turn it in the direction of the arrows.

3.2. Preparing for use

APPLIANCE LOCATION

The temperature of environment must not be higher than 40^ C and the relative humidity should be less than 85%. Ensure good ventilation in the room in which the device is being used. There should be at least 10 cm distance between each side of the device and the wall or other objects. The device should always be used when positioned on an even, stable, clean, fireproof and dry surface, and be out of the reach of children and persons with limited mental and sensory functions. Position the device such that you always have access to the power plug. The power cord connected to the appliance must be properly grounded and correspond to the technical details on the product label.

Disassemble the device and all its components and clean them before the first use.

3.3. Assembling the device

PLEASE NOTE: all procedures related to assembly, disassembly or maintenance should be performed only with the device turned off, with the plug disconnected from the power source! Carry out maintenance work on or with the knife with care – there is a risk of injury! Protective gloves are recommended.

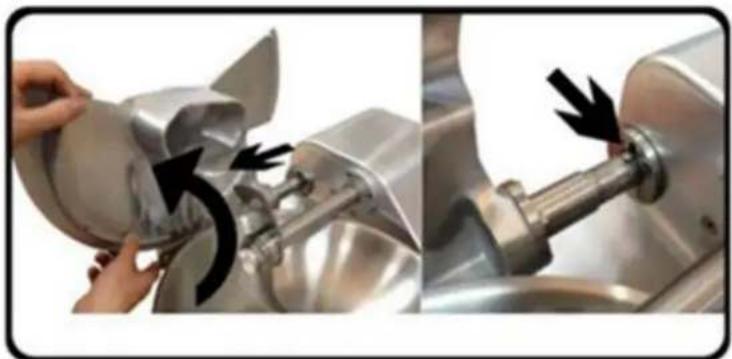

Assembly/disassembly of the dish cover

Close-up of a kitchen mixer with metal components and black arrows indicating rotation (no text or symbols)

Using the black lever, open the dish cover lifting it to the vertical position; then carefully pull it away so that the pin on its axis passes smoothly through the holes. When reassembling it, make sure that its axis is fully inserted and it can be easily lifted to the vertical position.

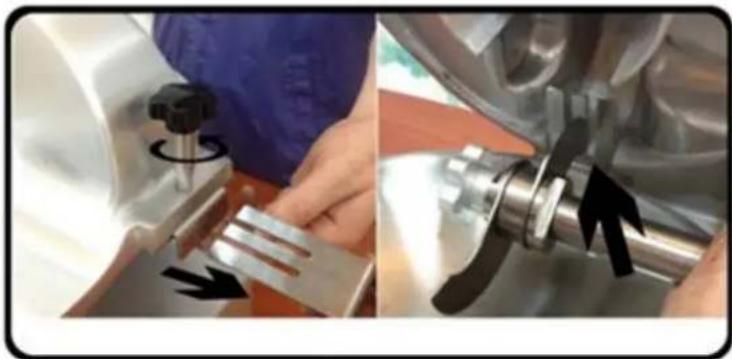

Assembly/disassembly of the blocking partition

Two-panel image showing a person using a mechanical tool on a metal component, with arrows indicating motion or movement (no visible text or symbols)

Unscrew the knob which secures the locking partition, then pull the partition out. When attaching it, make sure that the partition is tilted downward and that it is fully inserted. Then fix it in place with the knob. When you have finished, make sure that the knife blade passes smoothly through the slots in the partition - i.e. nothing grinds against it or blocks it.

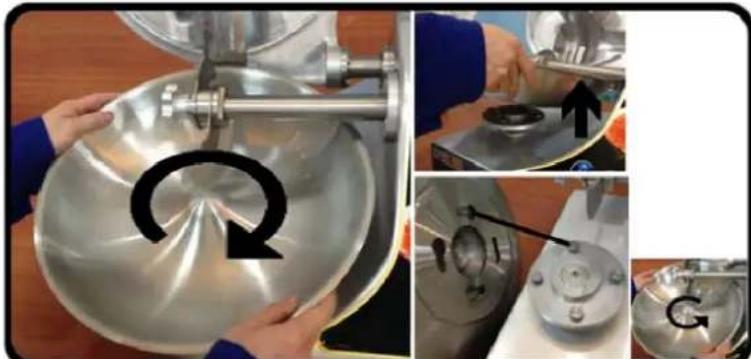

Assembly/disassembly and positioning of the dish

Close-up of a metal mixing machine with a rotating knob and mechanical components, showing step-by-step assembly (no text or symbols visible)

Open the dish cover, then turn the dish clockwise at an angle until it feels loose. Then lift it up a little and pull it out. When refitting it, make sure that it snaps into the mount by turning it counterclockwise until it cannot be turned any further.

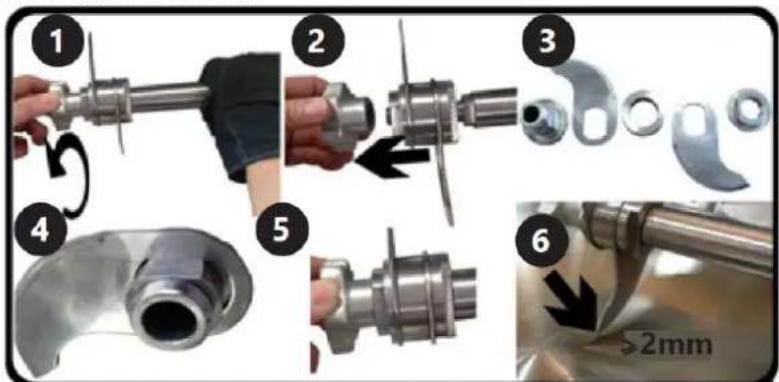

Knife assembly/disassembly and setting

Technical diagram showing six-step assembly of a mechanical component with numbered parts and a 2mm dimension annotation.

First, open the dish cover and, if necessary, remove the dish itself (see above). Block the knife shaft using your hand or a tool. Unscrew the knife shaft holder and remove the knife components from its base. If it is necessary to set the distance between the knife and the dish, use a tool to loosen the nut. The correct distance between the knife blades and the disc should be equal to/ or greater than 2 mm. When properly installed, there should be no space between the knife base and its main shaft.

3.4. Device use

Open the cover, make sure the blade is properly installed.

Put the products to be chopped in the bowl and do not exceed the capacity of the bowl.

Close the cover.

Connect the device to the power supply (the device power indicator will light up).

Start the device pushing the green START button, (the device working indicator will light up), the tray will rotate counterclockwise, and the knife will turn clockwise. The machine should operate smoothly without any abnormal sound. If an abnormal sound is heard, immediately turn off the unit and unplug.

Before each operation, ensure that only food ingredients are in the bowl, this is to prevent damage to the blades or other parts.

If it is necessary to chop the produce finer, extend the operating time of the device until the desired result is obtained.

After chopping is finished, turn off the device by pressing the red STOP button.

To remove the chopped product, remove it from the dish using a spoon. The leftovers of the accumulated produce can also be removed using the partition or (if necessary) by disassembling the dish by first turning the device off with the red STOP button. When you don't use the device for a long time, disconnect the plug from the power source.

If the device vibrates during operation and/or chops inaccurately, turn it off and check the condition of the blades, and replace them if necessary. If the device stops during operation, switch it off immediately with the STOP button and diagnose the cause of jamming. Only after the problem has been remedied, it is safe to continue to use the device.

The cover must be closed before the engine is turned on.

Wash the device after each use.

3.5. Cleaning and maintenance

a) Unplug the mains plug and allow the device to cool completely before each cleaning, adjustment or replacement of accessories, or if the device is not being used.

• Wait for the rotating elements to stop.

b) Use only non-corrosive cleaners to clean the surface.

c) Use only mild, food-safe detergents to wash the device.

d) After cleaning the device, all parts should be dried completely before using it again.

e) Store the unit in a dry, cool place, free from moisture and direct exposure to sunlight.

f) Do not spray the device with a water jet or submerge it in water.

g) Do not allow water to get inside the device through vents in the housing of the device.

h) Clean the vents with a brush and compressed air.

i) The device must be regularly inspected to check its technical efficiency and spot any damage.

j) Use a soft, damp cloth for cleaning.

k) Do not use sharp and/or metal objects for cleaning (e.g. a wire brush or a metal spatula) because they may damage the surface material of the appliance.

I) Do not clean the device with an acidic substance, agents of medical purposes, thinners, fuel, oils or other chemical substances because it may damage the device.

DISPOSING OF USED DEVICES:

Do not dispose of this device in municipal waste systems. Hand it over to an electric and electrical device recycling and collection point. Check the symbol on the product, instruction manual and packaging. The plastics used to construct the device can be recycled in accordance with their markings. By choosing to recycle you are making a significant contribution to the protection of our environment.

Contact local authorities for information on your local recycling facility.

Exterior view of a white industrial mixing machine with control panel and no visible text or symbols on the device itself.

Close-up of a white industrial mixing machine with labeled parts (2, 3, 4), no visible text or symbols beyond labels.

Close-up of a mechanical mixing device with a bowl and rotating shaft (no visible text or symbols)

Two-panel image showing a metal mixing machine with black arrows indicating rotation or adjustment (no text or symbols present)

Close-up of a hand operating a mechanical tool with a rotating knob and directional arrows indicating motion (no text or symbols visible)

Four-panel image showing a metal mixing bowl being handled with a tool, with arrows indicating rotation and movement (no text or symbols)

Technical diagram illustrating a mechanical assembly with numbered steps and a 2mm dimension annotation.

White industrial mixing machine with labeled parts (1, 2, 3) and control panel (no readable text or symbols beyond labels)

Close-up of a white industrial mixing bowl with labeled parts (2, 3, 4), no visible text or symbols beyond labels.

Close-up of a mechanical mixing device with labeled parts (2, 3, 4, 5), no readable text or symbols beyond labels.

RUN START STOP

Kontrolka provozu.

Tlačítko Start.

Close-up of a metallic kitchen tool being adjusted for a blade, showing mechanical components and motion arrows (no text or symbols)

Two-panel image showing a person operating a mechanical device and a close-up of a mechanical component being processed (no visible text or symbols)

Close-up of a metal mixing machine with a rotating knob and mechanical components, showing step-by-step assembly (no text or symbols visible)

Technical diagram showing six-step assembly of a mechanical component with numbered steps and a 2mm dimension annotation.

White industrial mixing machine with labeled parts (1, 2, 3) and control panel (no readable text or symbols beyond labels)

Close-up of a white ceramic bowl with labeled parts (2, 3, 4), no visible text or symbols beyond labels

Close-up of a mechanical mixing device with labeled parts (2, 3, 5), no readable text or symbols beyond labels

Close-up of a kitchen mixer with black arrows indicating rotation direction (no text or symbols)

Two-panel image showing a person using a mechanical tool on a metal workpiece, and another close-up of a mechanical component with black arrows indicating direction (no text or symbols)

Close-up of a metal mixing machine with a rotating knob and mechanical components, showing step-by-step assembly (no text or symbols visible)

Technical diagram showing six-step assembly of a mechanical component with numbered steps and a 2mm dimension annotation.

White industrial mixing machine with labeled parts (1, 2, 3) and control panel (no readable text or symbols beyond labels)

Close-up of a white ceramic bowl with labeled parts (2, 3, 4), no visible text or symbols beyond labels

Close-up of a mechanical mixing device with labeled parts (2, 3, 5), no readable text or symbols beyond labels

Close-up of a mechanical device with arrows indicating rotation or assembly (no visible text or symbols)

Two-panel image showing a person using a mechanical tool on a metal component, with arrows indicating direction of movement (no text or symbols present)

Close-up of industrial machinery components with arrows indicating rotation or adjustment (no visible text or symbols)

Technical diagram showing six-step assembly of a mechanical component with numbered steps and a 2mm dimension annotation.

White industrial mixing machine with labeled parts (1, 2, 3) and control panel (no readable text or symbols beyond labels)

Close-up of a white ceramic bowl with labeled parts (2, 3, 4), no visible text or symbols beyond labels

Close-up of a stainless steel mixing machine with labeled parts (no readable text or symbols)

Two-panel image showing a hand operating a metallic mechanical component, with arrows indicating rotation or assembly (no text or symbols present)

Two-panel image showing a person using a mechanical tool on a metal workpiece, and another close-up of a mechanical component with black arrows indicating direction (no text or symbols)

Close-up of industrial machinery components with arrows indicating rotation or adjustment (no visible text or symbols)

Technical diagram showing six-step assembly of a mechanical component with numbered steps and a 2mm dimension annotation.

Close-up of a kitchen mixer with metal components and black arrows indicating rotation (no text or symbols)

Two-panel image showing a person using a mechanical tool on a metal component, with arrows indicating motion or movement (no visible text or symbols)

Close-up of a metal mixing machine with a rotating knob and mechanical components, showing step-by-step assembly (no text or symbols visible)

Technical diagram showing six-step assembly of a mechanical component with numbered steps and a 2mm dimension annotation.

White industrial mixing machine with labeled parts (1, 2, 3) and control panel (no readable text or symbols beyond labels)

Close-up of a white industrial machine with labeled parts (2, 3, 4), no visible text or symbols beyond labels

Close-up of a mechanical device with labeled parts (2, 3, 5), showing internal components and no readable text or symbols.

RUN START STOP

APPARATETS PLACERING

Close-up of a mechanical device being processed with arrows indicating motion (no text or symbols visible)

Two-panel image showing a person using a mechanical tool on a metal component, with arrows indicating direction of movement (no text or symbols present)

Close-up of a metal mixing machine with a rotating knob and mechanical components, showing step-by-step assembly (no text or symbols visible)

Technical diagram showing six-step assembly of a mechanical component with numbered parts and a 2mm dimension annotation.

Two-panel image showing a kitchen mixer with rotating blades and black arrows indicating motion (no text or symbols)

Two-panel image showing a person using a mechanical tool on a metal component, with arrows indicating motion or movement (no visible text or symbols)

Close-up of a metal mixing machine with a rotating knob and mechanical components, showing step-by-step assembly (no text or symbols visible)

Technical diagram showing six-step assembly of a mechanical component with numbered parts and a 2mm dimension annotation.

White industrial mixing machine with labeled parts (1, 2, 3) and control panel (no readable text or symbols beyond labels)

Close-up of a white ceramic bowl with labeled parts (2, 3, 4), no visible text or symbols beyond labels

Close-up of a stainless steel mixing machine with labeled parts (no readable text or symbols)

PLAATS VAN HET APPARAAT

Two-panel image showing a hand operating a metallic mechanical component, with arrows indicating rotation or assembly (no text or symbols present)

Close-up of a hand operating a mechanical component with a tool, showing motion and assembly (no visible text or symbols)

Close-up of a metal mixing machine with hand operating controls, showing three sequential steps (no text or symbols visible)

Technical diagram showing six-step assembly of a mechanical component with numbered parts and a 2mm dimension annotation.

White industrial mixing machine with labeled parts (1, 2, 3) and Royal logo, no readable text or symbols beyond labels

Close-up of a white industrial mixing bowl with labeled parts (2, 3, 4), no visible text or symbols beyond labels.

Close-up of a stainless steel mixing machine with labeled parts (no readable text or symbols)

Close-up of a kitchen mixer being adjusted for a knife, showing tool path and motion (no text or symbols visible)

Two-panel image showing a person operating a mechanical device and a close-up of a mechanical component being processed (no visible text or symbols)

Close-up of a metal mixing machine with a rotating knob and mechanical components, showing step-by-step assembly (no text or symbols visible)

Technical diagram showing six-step assembly of a mechanical component with numbered steps and a 2mm dimension annotation.

White industrial mixing machine with labeled parts (1, 2, 3) and Royal branding (no readable text beyond labels)

Close-up of a white ceramic bowl with labeled parts (2, 3, 4), no visible text or symbols beyond labels

Close-up of a mechanical device with labeled parts (2, 3, 5), no readable text or symbols beyond labels

APPARATENS PLACERING

Two-step industrial process showing a metal mixing machine with rotating components and black arrows indicating motion (no text or symbols)

Two-panel image showing a person operating a mechanical device with a tool, and another close-up of a metal tool being inserted (no visible text or symbols)

Close-up of a metal mixing bowl with rotating components, showing steps of turning and mounting (no text or symbols visible)

Technical diagram showing six-step assembly of a mechanical component with numbered parts and a 2mm dimension annotation.

White industrial mixing machine with labeled parts (1, 2, 3) and control panel (no readable text or symbols beyond labels)

Close-up of a white ceramic bowl with labeled parts (2, 3, 4), no visible text or symbols beyond labels

Close-up of a stainless steel mixing machine with labeled parts (no readable text or symbols)

Close-up of a kitchen mixer with metal components and black arrows indicating motion (no text or symbols)

Two-panel image showing a person using a mechanical tool on a metal workpiece, with arrows pointing to the component (no visible text or symbols)

Three-panel image showing a metal mixing machine with a rotating knob, before and after assembly (no text or symbols visible)

Technical diagram showing six-step assembly of a mechanical component with numbered parts and a 2mm dimension annotation.

White industrial mixing machine with labeled parts (1, 2, 3) and control panel (no readable text or symbols beyond labels)

Close-up of a white industrial machine with labeled parts (2, 3, 4), no visible text or symbols beyond labels.

Close-up of a mechanical mixing device with labeled parts (2, 3, 5), no readable text or symbols beyond labels

RUN START STOP

Pracovná kontrolka.

tlačidlo Štart.

Tlačidlo Stop. Po stlačení spínača sa napájanie odpojí a tlačidlo sa zablokuje v určenej polohe. Ak ho chcete odomknút, otočte ho v smere šípok.

Close-up of a mechanical device being processed with arrows indicating motion (no text or symbols visible)

Two-panel image showing a person using a mechanical tool on a metal component, with arrows indicating motion or movement (no visible text or symbols)

Close-up of a metal mixing machine with a rotating knob and mechanical components, showing step-by-step assembly (no text or symbols visible)

Technical diagram showing six-step assembly of a mechanical component with numbered parts and a 2mm dimension annotation.

For the disposal of the device please consider and act according to the national and local rules and regulations.

CONTACT

expondo Polska sp. z o.o. sp. k.
