1. General Description

The instruction manual is intended to assist in safe and reliable use. The product is designed and manufactured strictly according to technical specifications using the latest technology and components and maintaining the highest quality standards.

PLEASE CAREFULLY READ AND UNDERSTAND THIS INSTRUCTION MANUAL BEFORE OPERATION,

To ensure long and reliable operation of the appliance, make sure to operate and maintain it properly in accordance with the guidelines in this instruction manual. The technical data and specifications contained in this instruction manual are up to date. The manufacturer reserves the right to make changes in order to improve the quality. Taking the technical progress and the possibility of reducing noise into account, the appliance is designed and built in such a way so that risks resulting from noise emissions are reduced to the lowest possible level.

CE	The product complies with applicable safety standards.
	Please read the instructions before use.
	Recyclable product.
	CAUTION! or WARNING! or REMINDER! describing a situation. (general warning sign).
	Use the safety cover.
	CAUTION! Warning of electric shock!
	CAUTION! Spinning elements!
	For indoor use only.
	CAUTION! Sharp edges!

CAUTION!

The illustrations in this instruction manual are for reference only and may differ from the actual product in some details.

The original instruction manual is in the German language version. Other language versions are translations from German.

2. Safety of use

CAUTION! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or severe personal injury or death.

The term "appliance" or "product" in the warnings and in the description of the instructions refers to the Ice crusher

2.1. Electrical safety

a) The plug of this appliance must fit into the outlet. Do not modify the plug in any way. Original plugs and matching outlets reduce the risk of electric shock.
b) Avoid touching grounded parts, such as pipes, heaters, ovens, and refrigerators. There is an increased risk of electric shock if your body is grounded and touches the appliance exposed to direct rain, wet pavement, and operation in a humid environment. Avoid touching grounded parts, such as pipes, radiators, stoves, and refrigerators. There is an increased risk of electric shock if your body is grounded and touches the appliance exposed to direct rain, wet pavement, and operation in a humid environment. Water entering the appliance increases the risk of damage to the appliance and electric shock.
c) Do not touch the appliance with wet or damp hands.
d) Do not use the cord in an unintended manner. Never use it to carry the appliance or to pull the plug out of the socket. Keep the cord away from heat sources, oil, sharp edges or moving parts. Damaged or tangled cords increase the risk of electric shock.
e) Do not use the appliance if the power cord is damaged or shows signs of wear. A damaged power cord should be replaced by a qualified electrician or the manufacturer's service department.
f) To avoid electric shock, do not immerse the cable, plug, or appliance itself in water or other liquid. Do not use the appliance on wet surfaces.
g) CAUTION - THREAT TO LIFE! When cleaning or using the appliance, never immerse it in water or other liquids.
h) Do not use the appliance in rooms with very high humidity / in the immediate vicinity of water tanks!
i) Do not allow the machine to get wet. Risk of electric shock!

2.2. Safety in the workplace

a) Keep the work area tidy and well lit. Disorder or poor lighting can lead to accidents. Be foresighted, watch what you are doing and use common sense when using the appliance.
b) Do not use the appliance in an explosive area, for example in the presence of flammable liquids, gases or dust. The appliance produces sparks that can ignite dust or fumes.
c) If you find any damage or irregularities in the operation of the appliance, immediately turn it off and report it to an authorized person.
d) If you have any doubts as to whether the product is working properly or if it is damaged, contact the manufacturer's service department.
e) Only the manufacturer's service department may repair the product. Do not carry out repairs yourself!
f) If you have any doubts as to whether the appliance is working properly or if it is damaged, contact the manufacturer's service department.
g) Only the manufacturer's service department can repair the appliance. Do not carry out repairs yourself!
h) In case of open flames or fire, use only dry powder or snow (CO2) fire extinguishers to extinguish the live equipment.
i) No children or unauthorized persons are allowed in the work area. (Inattention may result in loss of control of the appliance.)
j) Use the appliance in a well-ventilated area.
k) Check the condition of the safety stickers regularly. Replace them if they are illegible.
I) Keep these instructions for use for future reference. If the appliance is to be passed on to a third party, the operating instructions must also be handed over together with the appliance.
m) Keep the packaging and small assembly parts out of the reach of children.
n) Keep the appliance away from children and animals.
o) When using this machine together with other machines, also follow the other instructions for use.

Please note! Keep children and other bystanders safe while operating the appliance.

2.3. Personal safety

a) Do not operate this product if you are tired, ill or under the influence of alcohol, drugs or medication that could impair your ability to operate the product.
b) The appliance may be operated by persons who are physically fit, capable of operating it and appropriately trained, and who have read this instruction manual and have been trained in occupational safety and health.
c) Use caution and common sense when operating this appliance. A moment's inattention during operation may result in serious personal injury.
d) Do not overestimate your capabilities. Maintain body balance and equilibrium at all times during operation. This allows for better control of the machine in unexpected situations.
e) Do not wear loose clothing or jewelry. Keep hair, clothing, and gloves away from moving parts. Loose clothing, jewelry, or long hair can be caught in moving parts.
f) Do not place your hands or any objects inside the running appliance!

2.4. Safe use of the appliance

a) Do not overload the appliance. Use tools that are suitable for the application. A correctly selected appliance will do a better and safer job for which it was designed.
b) Do not use the appliance if the ON/OFF switch does not function properly (does not turn on and off). appliances that cannot be controlled by the switch are unsafe, cannot operate, and must be repaired.
c) Disconnect the appliance from the power supply before adjusting, cleaning, or servicing. This precaution reduces the risk of accidental start-up.
d) Keep unused equipment out of the reach of children and out of the reach of anyone unfamiliar with the appliance or this instruction manual. These appliances is dangerous in the hands of inexperienced users.
e) Keep the appliance in good working condition. Check before each use for general damage or damage to moving parts (cracks in parts and components or any other condition that may affect the safe operation of the appliance). If damaged, have the appliance repaired before use.

f) Keep the appliance out of the reach of children.

g) Repairs and maintenance should be carried out by qualified personnel using only original spare parts. This will ensure the safety of use.

h) To ensure the designed operational integrity of the appliance, do not remove factory-installed covers or loosen screws.

i) When transporting or moving the appliance from storage to the place of use, observe the health and safety rules for manual handling applicable in the country where the appliance is used.

j) Avoid situations in which the machine stops under heavy loads during operation. This can cause overheating of the drive elements and consequent damage to the equipment.
k) Do not touch any moving parts or accessories unless the appliance is unplugged.
I) Do not move, shift, or rotate the machine while in operation.
m) Do not leave the appliance switched on unattended.
n) Clean the appliance regularly to prevent permanent dirt build-up.
o) The appliance is not a toy. Cleaning and maintenance must not be performed by children without adult supervision.
p) Do not start up an empty machine.
q) Do not tamper with the appliance to alter its performance or design.
r) Keep the appliance away from sources of fire and heat.
s) Do not overload the appliance.
t) Do not block the ventilation openings of the appliance!
u) Do not misuse the appliance. Never use this appliance for anything other than crushing ice cubes. Any other use is dangerous. The preferred size of ice cubes should be smaller than 25X25X25 mm.
v) The appliance is equipped with a safety interlock to prevent the end user from touching moving parts.

CAUTION! Although the product has been designed to be safe, with adequate safeguards, and despite the additional safety features provided to the user, there is still a slight risk of accident or injury when handling the appliance. You are advised to use caution and common sense when using this product.

CAUTION! Do not attempt to bypass the safety interlock.

3. Rules of use

This appliance is used to crush ice used in beverages or foods that require refrigeration.

The user is responsible for any damage resulting from misuse.

3.1. Description

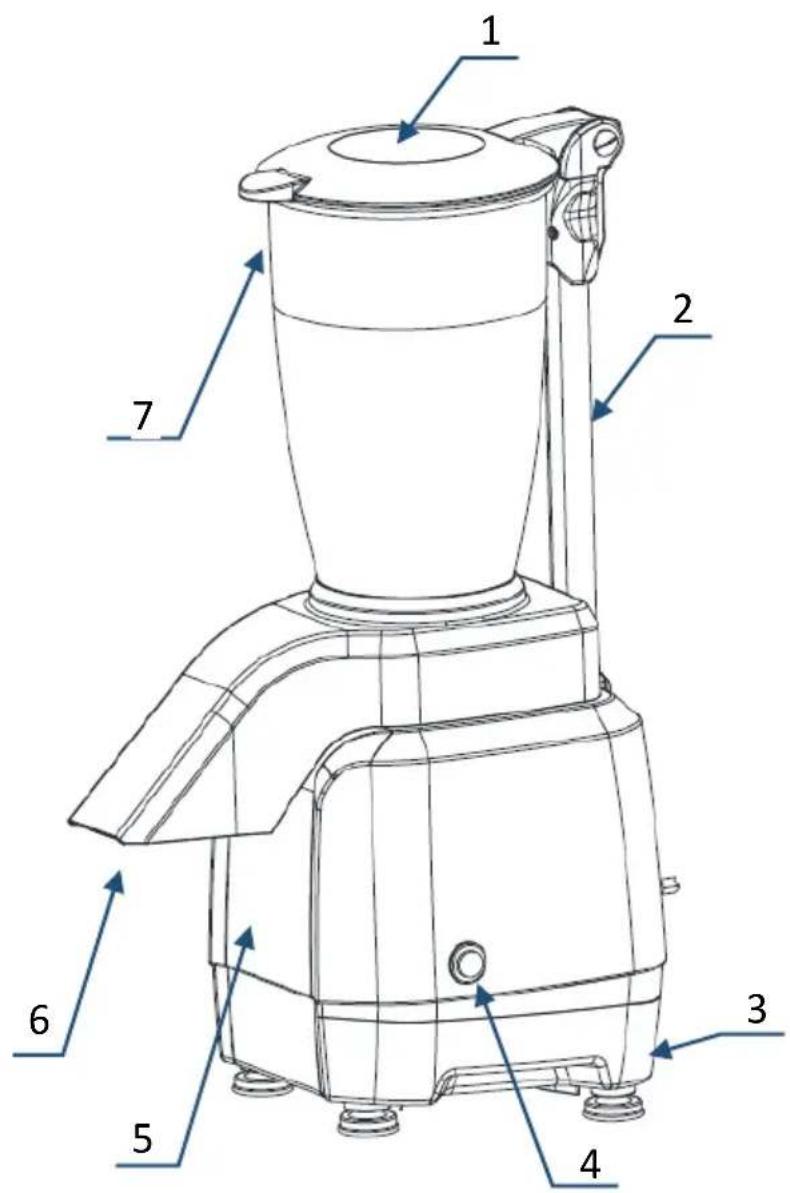

Technical diagram of a blender with numbered parts labeled 1 through 7

1. Lid
2. Safety arm
3. Base
4. ON-OFF switch
5. Drive
6. Outlet chute
7. Container

3.2. Preparation for operation

POSITIONING OF THE APPLIANCE

The ambient temperature must not exceed 40^ C and ambient humidity should not exceed 85%. Place the appliance in a way that ensures good air circulation. Maintain a minimum clearance of 10 cm from any wall of the appliance. Keep the appliance away from any hot surfaces. Always operate the appliance on a level, stable, clean, fireproof and dry surface and out of the reach of children and persons of impaired mental, sensory and intellectual functions. Place the appliance in such a way that the mains plug can be reached at any time. Ensure that the power supply to the appliance corresponds to that specified on the identification plate!

ASSEMBLY OF THE APPLIANCE

Observe the safety instructions indicated above and carry out the installation as follows:

1. Make sure that the power supply parameters are as indicated on the identification plate.
2. Install the appliance in a DRY location, PROTECTED from unauthorized access and away from splashing water, heat sources, open flame and flammable substances.

Place the appliance on a flat, level, stable surface where it cannot tip over.

1. Make sure the switch on the appliance is in the OFF position and plug it into an outlet protected by a fuse.

2. Do not connect the appliance to extension cords or shared electrical outlets.

3.3. Working with the appliance

HANDLING

1. Make sure the ON-OFF switch is in the OFF position.

2. Clean the container before use.

3. Place ice cubes in the container.

4. Cover the container lid so that the magnetic sensor is in contact with the end of the safety arm.

Any attempt to bypass the safety interlock and use the machine without the lid may result in personal injury and/or damage to the machine.

1. Start the motor by pushing the ON-OFF switch to the ON position.

Run the appliance to crush the ice in the container (it takes approximately 30 seconds to crush ice cubes in a full container).

1. Turn off the motor by pressing the ON-OFF switch again.

CAUTION! Always wait until all parts of the appliance have come to a complete stop before opening the lid.

3.4. Cleaning and maintenance

a) Cleaning

and

maintenance

Pull the mains plug and let the appliance cool down completely before cleaning, adjusting or replacing accessories and when the appliance is not in use.

- Wait until the rotating parts stop.

b) Pull out the mains plug before each cleaning and when the appliance is not in use.

c) Use only non-corrosive cleaning agents for cleaning the surfaces.

d) Only mild detergents designed for cleaning food contact surfaces may be used to clean the appliance.
e) After each cleaning, all the parts should be dried well before the appliance is used again.
f) Store the appliance in a dry and cool place protected from moisture and direct sunlight.
g) Do not spray the appliance with a stream of water or immerse it in water.
h) Make sure that no water enters through the ventilation openings in the casing.
i) Clean the ventilation openings with a brush and compressed air.
j) Perform regular inspections of the appliance checking technical fitness and any damages.
k) Use a soft, damp cloth for cleaning.
I) Do not use sharp and/or metal objects (e.g. a wire brush or metal spatula) for cleaning, as these may damage the surface of the material from which the appliance is made.
m) Do not clean the appliance with acidic substances, medical products, diluent, fuel, oil or other chemicals as this may cause damage to the appliance.
n) To clean the motor casing, unplug the appliance from the power supply and clean with a damp cloth or alcohol, or use a general detergent spray. Dry with a dry cloth.
o) To clean the container and spout, unplug the appliance from the power supply and clean the inside of the container with a damp sponge and warm water and dishwashing liquid. Rinse with a cold and damp sponge.
p) The blades are sharp. Clean with care!

DISPOSAL OF USED APPLIANCES.

At the end of its useful life, this product should not be disposed of with normal household waste but should be taken to a collection point for the recycling of electrical and electronic equipment. This is indicated by the symbol on the product, operating instructions or packaging. The materials used in this appliance are recyclable according to their marking. You will be making an important contribution to protecting our environment by reusing, recycling or otherwise disposing of used appliances.

Your local administration will provide you with information about the appropriate disposal point for used appliances.

TROUBLESHOOTING

Problem	Possible cause	Action
The ice crusher does not start.	No power connection.	Make sure the appliance is connected to the power supply.Make sure the circuit breaker is closed.Make sure the switch on the machine is in the ON position.
	Motor overheating after prolonged use.	Wait at least 30 minutes and restart the machine.Placing the appliance in a cool place will reduce the waiting time.

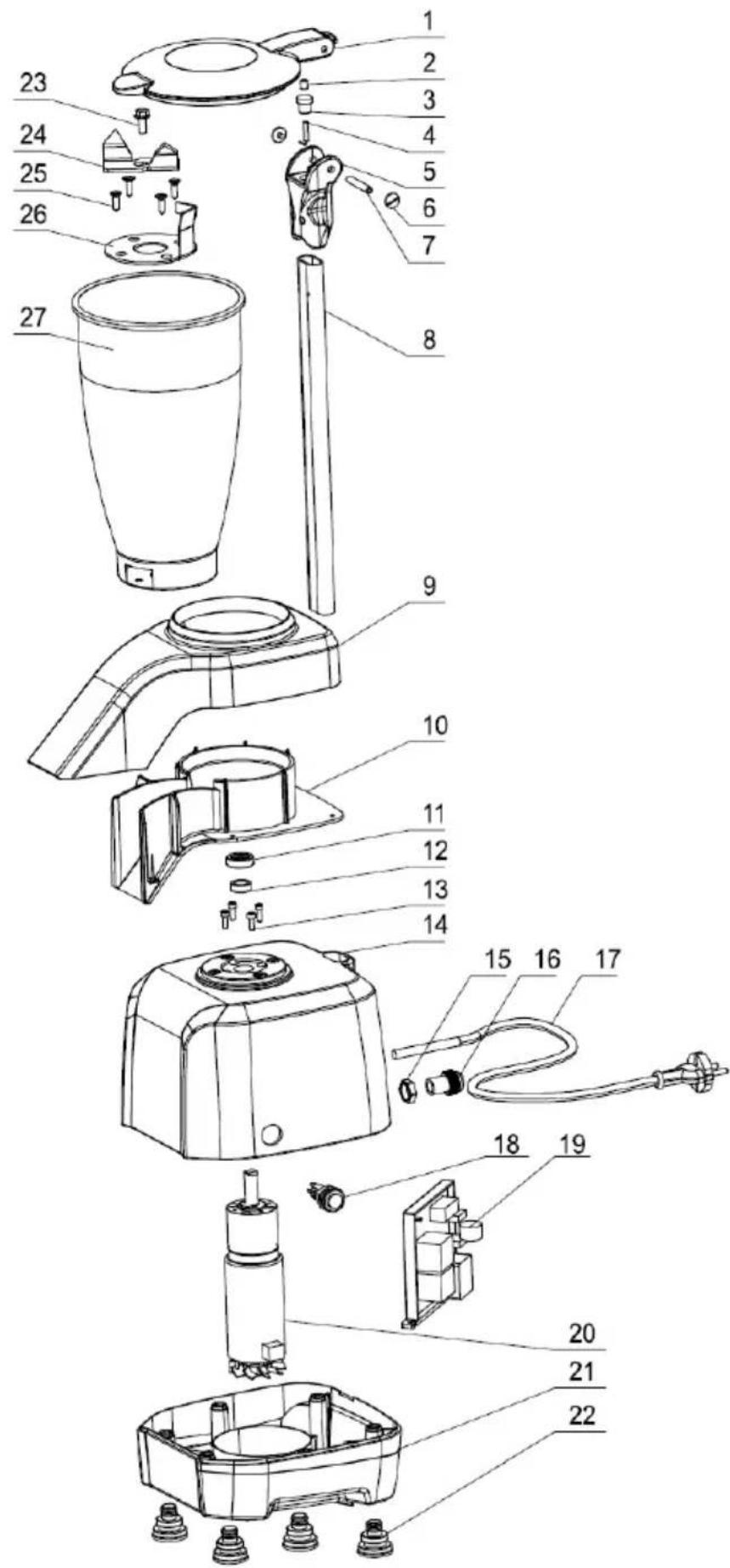

Assembly Drawings:

Exploded view diagram of a blender with numbered parts for identification

No.	Name
1	Lid
2	Magnet
3	Cover
4	Microswitch
5	Handle
6	Screw
7	Sleeve
8	Safety arm
9	Upper part of outlet chute
10	Outlet chute
11	Oil seal
12	Steel shield
13	Screw
14	Upper motor cover
15	Cable gland nut
16	Cable joint
17	Power cord
18	ON/OFF switch
19	Printed circuit board (PCB)
20	Motor
21	Base
22	Rubber feet
23	Screw
24	Blade
25	Screw
26	Partition
27	Container
