Omada Pro L3 Managed Switch Datasheet

S7500-26XF6Y

Omada Pro 26-Port 10G Stackable L3 Managed Aggregation Switch with 6 25G Slots

• 26×10 Gbps SFP+ slots and 6×25 Gbps SFP28 slots
  • Physical stacking for built-in redundancy and performance
  • L3 Features: OSPF, BGP, IS-IS, VRRP, PIM-SM/PIM-DM/PIM-SSM, ECMP, PBR
  • Security Strategies: Secure Boot, RADSEC, IMPB, SFTP, 802.1X, Port Security
• Highly available with two field-replaceable power supplies, VRRP, ERPS, and BFD
• Easy O&M: NETCONF, Configuration Rollback, Hot Patching, and RSPAN
• Centralized cloud management via the web or the Omada app ^†

Product Pictures

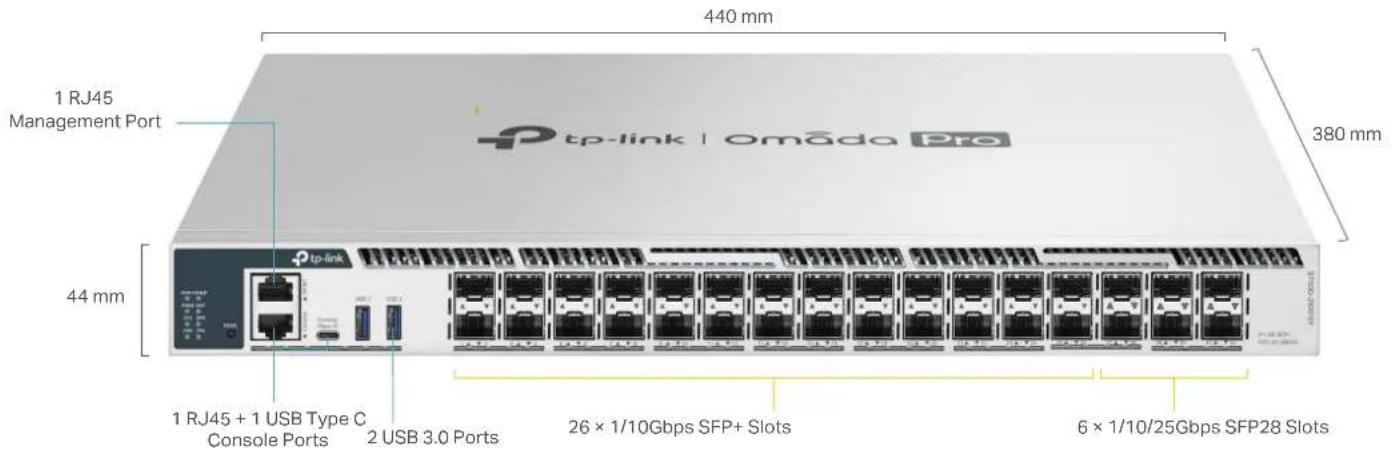

440 mm 1 RJ45 Management Port 380 mm 44 mm 1 RJ45 + 1 USB Type C Console Ports 2 USB 3.0 Ports 26 x 1/10Gbps SFP+ Slots 6 x 1/10/25Gbps SFP28 Slots

Omada Pro Solution

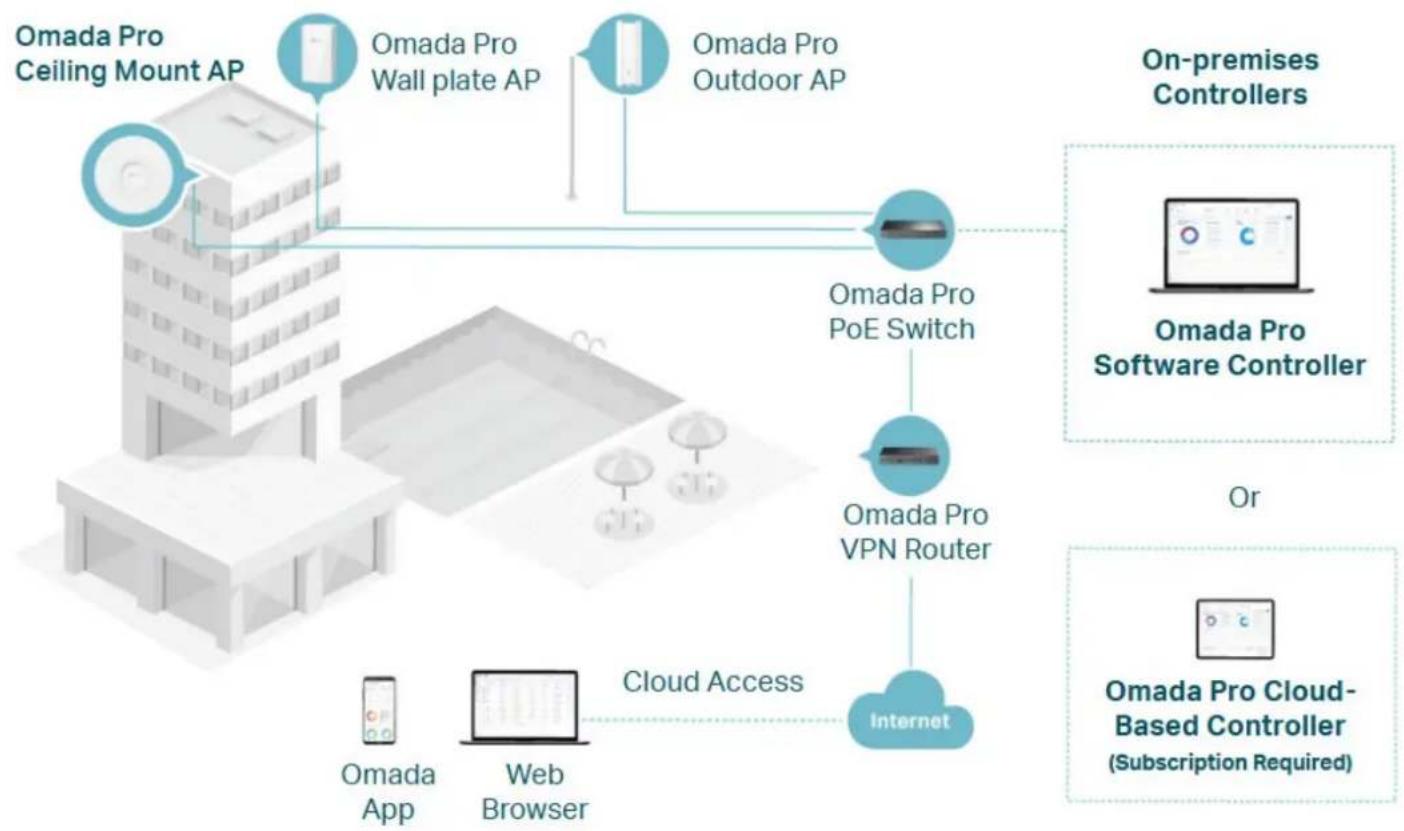

Omada Pro is an intelligent cloud solution for enterprise networking, offering enterprise-grade product line designed to meet the high-capacity, security, and management needs of various industries, such as MDUs, hospitality, K-12 education, public works, and more.

MDUs

Hospitality

Public Works

Catering

Manufacturing

Retail

Specifications

Hardware Features & Performance

Model S7500-26XF6Y
General	Interface	26 × 1/10Gbps SFP+ Slots*6 × 1/10/25Gbps SFP28 Slots
	Console Ports 1 × RJ45 + 1 × USB Type C
	Management Port 1 × RJ45
	USB Ports 2 × USB 3.0
	Flash 2×4 MB Nor + 8 GB EMMC
	DRAM 8GB DDR4
	Processor Quad-Core ARM @1.2GHz CPU
Performance	Switching Capacity 820 Gbps
	Forwarding Bandwidth 410 Gbps
	Packet Forwarding Rate 610.1 Mpps
	MAC Address Table 128 K
	Packet Buffer 8 MB
	Stacking Port 25G SFP28 slot (all uplink ports can be used as stacking ports)**
	Stacking Bandwidth Up to 300 Gbps (6 stacking ports)
	Max Stacking Number	12 in standalone mode, 4 in Omada controller mode
	Compatible Models for Stacking	S7500-26XF6Y
	Transmission Method	Store and Forward
	Jumbo Frame	9 KB
Physical & Environmet	Power Supply	100-240 V ~50/60 Hz
	Redundant Power Supply	Max 2 hot swappable power supply module, N+1 redundant (shipping with one PSM550-AC module by default)***
	Suitable Power Supply Module	PSM550-AC
	Max Power Consumption	86.7 W (110 V/60 Hz)
	Max Heat Dissipation	295.85 BTU/hr (110 V/60 Hz)
	Standby Power Consumption	31.4 W (220 V/50 Hz)
	Noise	1× PSM550-AC power supply module:Min: 34.9 dBA @ 1m 25 °CMax: 61.7 dBA @ 1m 25 °C
	Fan Quantity	4 hot swappable fan modulesN+1 redundant
	Airflow	Front-to-back
	Surge Protection	Service port: ±6 kV in common modePower port: ±4 kV in differential mode; ±4 kV in common mode
	ESD Protection	Air: ±15 kV, Contact: ±8 kV
	MTBF	632,865 h @ 25 °C
	Dimensions (W x D x H)	17.3 × 15.0 × 1.7 in (440 × 380 × 44 mm)
	Installation	Rackmount
	Operating Temperature & Altitude	-5 °C to 50 °C (23 °F to 122 °F) @ 300 meters-5 °C to 45 °C (23 °F to 113 °F) @ 2,000 meters-5 °C to 40 °C (23 °F to 104 °F) @ 3,000 meters****
	Storage Temperature	-40 °C to 70 °C (-40 °F to 158 °F)
	Operation Humidity	10% to 90% RH, non-condensing
	Storage Humidity	5% to 90% RH, non-condensing
	Certification	CE, FCC, RoHS

*No more than six 10G RJ45 SFP+ modules are supported. And it is recommended to have one column interval between every two 10G RJ45 SFP+ modules.
**The 25G SFP28 slots support stacking only through 25G DAC/25G SFP28 modules rather than 10G DAC/10G SFP+ modules.
***An additional power supply module needs to be purchased separately.
^**** The supported altitude is sea level to 5000 m. It should be noted that when the altitude is above 2000 m, for every 220 meters of altitude increase, the maximum operating temperature will drop by 1°C (1.8°F).

Software Features*
Model S7500-26XF6Y
System	System Info	Device Description- Name- Location- System ContactSystem Time- Manual- Synchronize with PC's Clock- SNTP ClientDST- Predefined Mode- Recurring Mode- Date Mode	LED- LED on/offSystem IP- Static IP/DHCP/BOOTPSystem IPv6- Link-local Address Config- Global Address Autoconfig via RA Message- Global Address Autoconfig via DHCPv6 Server- Add a Global Address Manually
	User Management	User SettingsAccess Level: 4 levels	Password Recovery Settings
	System Tools	Config Restore/Backup- Web: HTTP- CLI: TFTP/Flash/USBFirmware Upgrade- Web: HTTP- CLI: TFTP/Flash/USB	System RebootSystem ResetBoot Config (Dual Image)Reboot ScheduleConfig RollbackHot Patch
	Access Security	Access Control Config- IP-based- MAC-based- Port-based- IPv6-basedHTTP Config- Enable/Disable- Session Config- Access User Number- Port SettingSSL Config- SSLv3/TLSv1 Enable/Disable- CipherSuite Config- IPv6 SSL	SSH Config- Enable/Disable-v2- Encryption Algorithm- Data Integrity Algorithm- Port Setting- IPv6 SSHTelnet Config- Enable/Disable- Port Setting- IPv6 TelnetConsole Port- Baud Rate setting
	Stack	Stack SettingStack-port LAG: up to 6 groups, each group supports a maximum of all stackable-ports	Stackable Devices: up to 12 devicesStack MAC Address Switching Delay
	SDM Template	Default Template- IPv4 ACL Rules: 900 entries- MAC ACL Rules: 900 entries- Combined ACL: 900 entries- IPv4 Source Guard: 899 entriesIPv4 Access- IPv4 ACL Rules: 0 entries- MAC ACL Rules: 900 entries- Combined ACL: 1500 entries- IPv4 Source Guard: 1024 entries	IPv6 Access- IPv4 ACL Rules: 0 entries- MAC ACL Rules: 600 entries- IPv6 ACL: 750 entries- IPv6 Source Guard: 749 entriesOmada- IPv4 ACL Rules: 0 entries- MAC ACL Rules: 0 entries- Combined ACL: 1800 entries- IPv6 ACL: 450 entries- IPv4 Source Guard: 0 entries
	Time Range	Time Range Config	Holiday Config
	File System	File OperationFTP SFTP	SCP TFTP USB Storage
Software Features ^
Model S7500-26XF6Y
L2 Features	Port	• Port config- Status- Speed and Duplex- Flow Control(802.3x)- Jumbo Frame: 1518-9216 KB• Port Mirror- Ingress (Many to One)- Egress (Many to One)- RSPAN	• Port Security- Learn mode: Dynamic/Static/Permanent/Sticky- Port Max Learned MAC: 64- Current Learned Number- Status- Exceed Max Learned Trap• Port Isolation• Loopback Detection- Alert- Port Based- VLAN Based
	DDM
	LAG	• Hash Algorithm: SRC MAC/DSTMAC/SRC MAC +DST MAC/SRC IP/DST IP/SRC IP +DST IP	• Static LAG: Up to 120 groups, up to 8 ports per group• LACP(802.3ad)
	Traffic Monitor	• TX Packets/Bytes• RX Packets/Bytes• TX Unicast/Multicast/Broadcast• RX Unicast/Multicast/Broadcast	• TX Errors• RX Errors• RX Packet Size Analysis
	MAC Address	• MAC Address Table: 128K entries• IVL/SVL: IVL• Create Static Unicast Address	• Bind Dynamic Address• Create Filtering Address• MAC Notification Settings
	VLAN	• 802.1Q VLAN(802.1q): 4K VLANs• MAC VLAN: 200 entries• Protocol VLAN- 16 Protocol VLAN Template- 12 Protocol VLAN Group	• QinQ(VLAN VPN): 256 entries• Private VLAN• GVRP
	Multicast	• Max Multicast Groups: 4K (IPv4,IPv6)• IGMP Snooping- IGMP V1/V2/V3- Report Message Suppression- Fast Leave- Unknown Multicast Discard- Static Multicast Groups- IGMP Snooping Querier- IGMP Packet Statistics- IGMP Authentication- Multicast Filtering: 256 profiles and 16 entries per profile- Router Port Setting: Static Router Port/Forbidden Router Port• MVR	• MLD Snooping- MLD V1/V2- Report Message Suppression- Unknown Multicast Discard- Fast Leave- Static Multicast Groups- MLD Snooping Querier- MLD Packet Statistics- Multicast Filtering: 256 profiles and 16 entries per profile- Router Port Setting: Static Router Port/Forbidden Router Port• Multicast Table- IPv4 Multicast Table- IPv6 Multicast Table
	STP	• STP(802.1d)• RSTP(802.1w)• MSTP(802.1s)• MSTI entries: 64	• STP Security- Loop Protect- Root Protect- TC Protect- BPDU Protect- BPDU Filter
	LLDP (802.1ab)	• Enbale/Disable• Local Info• Neighbor Info• Statistic Info	• LLDP-MED- Local Info- Neighbor Info
	L2PT • Layer 2 Protocol Tunneling
	PPPoE ID Insertion	• Circuit-ID Type- IP- MAC- UDF- UDF-ONLY	• Remote-ID
	ERPS • Ring: 64
	Virtual MAC
	Sticky MAC
Software Features*
Model S7500-26XF6Y
L3 Features	L3 INTERFACE: 256(IPv4,IPv6)
	STATIC ROUTE: 2048 IPv4, 1024 IPv6
	IPv4 Host Router entries + IPv6 Host Router entries: 15300
	IPv4 Network Router entries: 102400 (shared with IPv6 Network Router entries)IPv6 Network Router entries: 51200 (shared with IPv4 Network Router entries)
	ECMP	• ECMP entries: 256• MAX-PATH: 32
	ARP	• Static ARP: 1024• Dynamic ARP: 24576
	ND: 7680
	DHCP	• DHCP Server- IP Pool: 64- IP MAX entries: 8000- Manual Binding: 1000- Excluded IP Range: 100	• DHCP Relay• DHCP L2 Relay• DHCPv6 Relay• DHCPv6 L2 Relay
	VRRP	• VRRP V2/V3• VRRP Instance: 64• VRRP Virtual IP: 32 per instance
	OSPF	• OSPFv2- OSPF Instance: 16- Network entries: 256 entries- Area entries For Stub Or NSSA: 16 per instance- AreaRange entries: 16 per instance- Virtual-link entries: 16 per instance- Redistribute: conneted/static/RIP/OSPF/IS-IS/BGP- Graceful Restart- OSPFv2 BFD	• OSPFv3- Area entries For Stub Or NSSA: 16 per instance- AreaRange entries: 16 per instance- Redistribute: conneted/static/RIPng/IS-IS- OSPFv3 BFD
	RIP	• RIPv1/v2- Network entries: 256- Redistribute entries: 20- Redistribute: BGP/connected/OSPF/IS-IS/static	• RIPng- Redistribute: connected/OSPFv3/IS-IS/static
	IS-IS	• IS-IS Interfaces: 128• IS-IS Area Numbers: 3• Redistribute: BGP/connected/OSPF/OSPFv3/RIP/static/RIPng	• Max Redistribute Configs: 10• IS-IS IPV6• IS-IS BFD
	BGP	• Redistribute: IS-IS/connected/OSPF/RIP/static	• Max Redistribute Configs: 20
	PIM	• PIM DM• PIM SM• PIM SSM	• IP Multicast Route entries: 1K• PIM Neighbors: 256• Max PIM Interfaces: 128
	IGMP • Version: v1/v2/v3 • IGMP Multicast Groups: 2K
	BFD • Template Numbers: 16 • Session Numbers: 8
	PBR
	uRPF
QoS	Class of Service	• Priority Queues: 8 Queues• Port Priority• 802.1P Priority• DSCP/ToS Priority	• Priority Schedule Mode: SP/WRR per Queue• Queue Weight Config: For WRR/SP+WRR Mode
	Bandwidth Control	• Rate Limit- Ingress Rate Limit- Egress Rate Limit- Rate Limit Grade: 64kbps	• Storm Control- Control Mode: kbps/ratio- Broadcast- Multicast- Unknown Unicast
	Voice VLAN • Supported OUI Numbers: 64
	WRED • WRED profile: 64
	IP-MAC Binding	Binding entries: 1024 entriesManual Binding	ARP ScanningDHCP Snooping
	IPv6-MAC Binding	Binding entries: 1024 entriesManual Binding	DHCPv6 SnoopingND Snooping
	ARP Inspection	ARP Detect entries: 1024 entriesARP Detect	ARP DefendARP Statistics
	ND Detection	ND Detection entries: 1024 entriesND Detect	ND Statistics
	IP Source Guard	IP Source Guard entries- Default SDM Template: 899- IPv4 SDM Template: 1024- IPv6 SDM Template: 0	Security Type- Source IP- Source IP + Source MAC
	IPv6 Source Guard	IPv6 Source Guard entries- Default SDM Template: 0- IPv4 SDM Template: 0- IPv6 SDM Template: 749	Security Type- Source IPv6- Source IPv6 + Source MAC
	RA Guard: 30 entries
	DoS Defend	Scan SYNFINXmascanNULL Scan	SYN sPort less 1024Ping FloodingSYN/SYN-ACK Flooding
	DHCP Filter	DHCPv4 Filter- Legal Server entries: 200	DHCPv6 Filter- Legal Server entries: 200
	802.1x	Control Type- Port Based- MAC BasedAuth Method: PAP/EAP-MD5/EAP-TLS/EAP-TTLS/EAP-PEAP	Radius AuthenticationRadius AccountingRadius Server Load BalancingRADSECGuest VLAN
	AAA
	ACL	Time-Range- Time Slice- Week Time-Range- Absolute Time-Range- HolidayMAC ACL- Source MAC- Destination MAC- VLAN ID- EtherType- User PriorityIP ACL- Source IP- Destination IP- IP Protocol- TCP Flag- TCP/UDP Source Port- TCP/UDP Destination Port- DSCP/IP ToSCombined ACLIPv6 ACLRule Operation- Permit- DenyPolicy Action- Mirror- Rate Limit- Redirect- QoS RemarkBinding- Port Binding- VLAN Binding	Default Template- IPv4 ACL Rules: 900 entries- MAC ACL Rules: 900 entries- Combined ACL: 900 entriesIPv4 Access- IPv4 ACL Rules: 0 entries- MAC ACL Rules: 900 entries- Combined ACL: 1500 entriesIPv6 Access- IPv4 ACL Rules: 0 entries- MAC ACL Rules: 600 entries- IPv6 ACL: 750 entriesOmada- IPv4 ACL Rules: 0 entries- IPv6 ACL Rules: 450 entries- MAC ACL Rules: 0 entries- Combined ACL: 1800 entries- IPv4 Source Guard: 0 entries
	Secure Boot
Virtualization IP Tunnel		IPv6 over IPv4IPv6 over IPv4 GRE	IPv4 over IPv4 GRETunnel entries: 100

Software Features ^
Model S7500-26XF6Y
	System Monitor	CPU MonitorMemory Monitor
Maintenance	sFlow
	OAM	EFM- Link Monitoring- Remote Failure Indication Config- Statistics
	DLDP
	SNMP	SNMP Version: v1/v2c/v3SNMP Config- Global Config-SNMP View-SNMP Group-SNMP User-SNMP CommunityNotification- Trap: IPv4/IPv6-Inform: IPv4/IPv6-RMON v1/v2Public MIBsPrivate MIBs
	MIBs	MIB II (RFC1213)Interface MIB (RFC2233)Ethernet Interface MIB (RFC1643)Bridge MIB (RFC1493)P/Q-Bridge MIB (RFC2674)RMON MIB (RFC2819)RMON2 MIB (RFC2021)RADIUS Accounting Client MIB (RFC2620)RADIUS Authentication Client MIB (RFC2618)Remote Ping, Traceroute MIB (RFC2925)Support TP-Link Private MIB
	NETCONF
	DHCP Auto Install
	Log	Display/FilteringSeverity LevelSave to FlashRemote HostBackup Log
	Network Diagnostics	PingIPv6 PingTracertIPv6 Tracert
Others	Index
	Show running config	Use the show running config command to view device's running status via telnet.Configuration File: Import/Export/Edit
Omada SDN Controller	Omada Pro SDN controller

Ordering Information

Host Switch

Model Description

S7500-26XF6Y Omada Pro 26-Port 10G Stackable L3 Managed Aggregation Switch with 6 25G Slots

Power Supply Module

Model Description
PSM550-AC	550 W AC Power Supply Module

SFP/SFP+/SFP28 Module

Model Description
SM311LS Gigabit	SFP module, Single-mode, LC interface, Up to 20km distance
SM311LM Gigabit	SFP module, Multi-mode, LC interface, Up to 550m distance
SM321A Gigabit	WDM Bi-Directional SFP Module, single-mode, LC connector, TX: 1550 nm/RX: 1310 nm, 20 km
SM321A-2 Gigabit	WDM Bi-Directional SFP Module, single-mode, LC connector, TX: 1550 nm/RX: 1310 nm, 2 km
SM321B Gigabit	WDM Bi-Directional SFP Module, single-mode, LC connector, TX: 1310 nm/RX: 1550 nm, 20 km
SM321B-2 Gigabit	WDM Bi-Directional SFP Module, single-mode, LC connector, TX: 1310 nm/RX: 1550 nm, 2 km
SM5110-LR 10GBase-LR SFP+ LC Transceiver, single-mode, LC connector, 1310nm, 10 km
SM5110-SR 10GBase-SR SFP+ LC Transceiver, multi-mode, LC connector, 850nm, 300 m
SM6110-SR 25GBase-SR SFP28 LC Transceiver, MMF (Multimode fiber), LC connector, 850 nm, 100 m
SM6110-LR 25GBase-LR SFP28 LC Transceiver, SMF (Single-mode fiber), LC connector, 1310 nm, 10 km

Direct Attach Cable

Model Description
SM6220-1M	1 Meter 25G SFP28 Direct Attach Cable
SM5220-1M	1 Meter 10G SFP+ Direct Attach Cable
SM5220-3M	3 Meter 10G SFP+ Direct Attach Cable

RJ45 SFP/SFP+ Modules

Model Description

SM331T 1000BASE-T RJ45 SFP Module

SM5310-T 10GBASE-T RJ45 SFP+ Module

MC Series Media Converter

Model Description
MC210CS Gigabit	Single-Mode Media Converter, up to 20 km, chassis mountable
MC200CM Gigabit	multi-mode SC SFP Transceiver, up to 550 m, chassis mountable
MC200L Gigabit	SFP slot supporting mini-GBIC modules, chassis mountable
MC1400 14-slot	power supply chassis for TP-LINK MC Series Media Converter, 19-inch rack-mountable

FC Series Media Converter

Model Description
FC311A-2 Gigabit	Single-Mode WDM Media Converter, up to 2 km, TX:1550nm, RX:1310nm, chassis mountable
FC311B-2	Gigabit Single-Mode WDM Media Converter, up to 2 km, TX:1310nm, RX:1550nm, chassis mountable
FC311A-20 Gigabit	Single-Mode WDM Media Converter, up to 20 km, TX:1550nm, RX:1310nm, chassis mountable
FC311B-20	Gigabit Single-Mode WDM Media Converter, up to 20 km, TX:1310nm, RX:1550nm, chassis mountable
FC1400	14-slot power supply chassis for TP-LINK FC Series Media Converter, 19-inch rack-mountable
