USER MANUAL Omada Pro S650024MPP4Y TP-LINK

Omada Pro L3 Managed Switch Datasheet

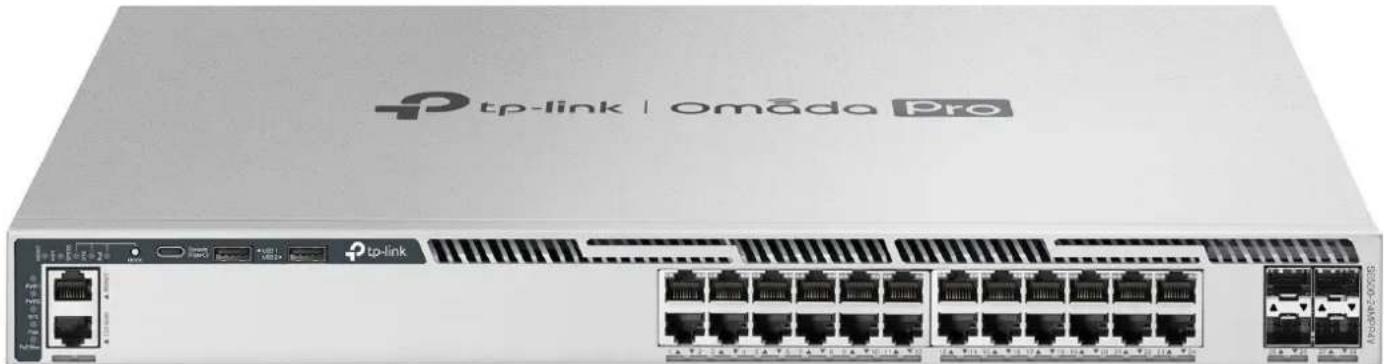

S6500-24MPP4Y

Omada Pro 24-Port 2.5G Stackable L3 Managed PoE++ Switch with 4 25G Slots

Highlights

• 24 × 2.5GbpsPoE + + RJ45 ports (up to 60 W PoE out per port)
• 4 × 25 Gbps SFP28 slots
• Up to 1440 W total PoE budget*
  Physical stacking for built-in redundancy and performance
  L3 Features: OSPF, BGP, IS-IS, VRRP, PIM-SM/PIM-DM/PIM-SSM, ECMP, PBR
• Security Strategies: MACsec, Secure Boot, RADSEC, IMPB, SFTP, 802.1X, Port Security
• Highly available with two field-replaceable power supplies**, VRRP, ERPS, and BFD
• Easy O&M: NETCONF, Configuration Rollback, Hot Patching, and RSPAN
• Centralized cloud management via the web or the Omada app

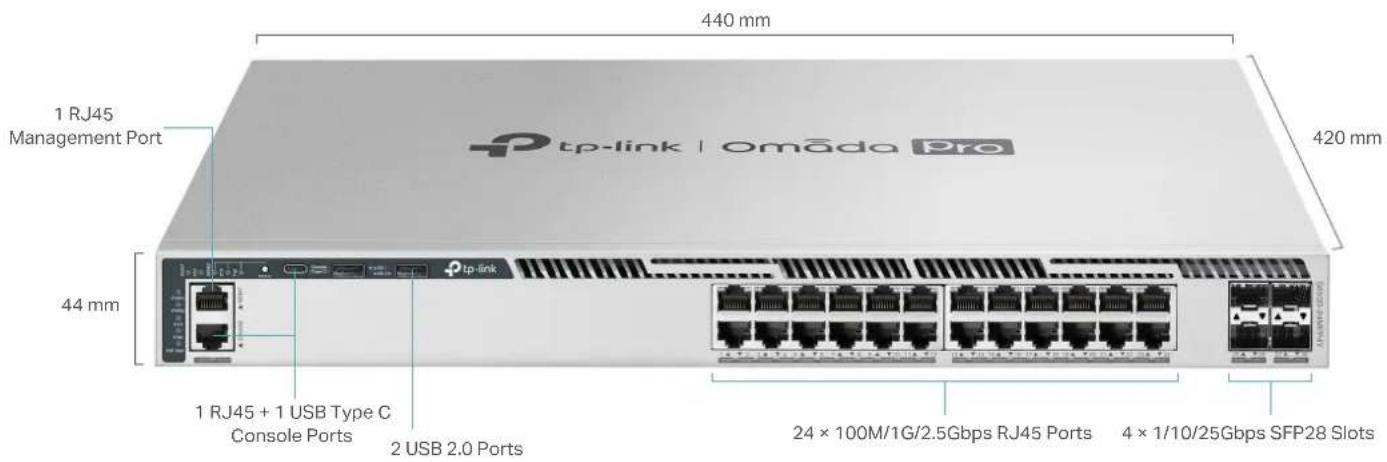

Product Pictures

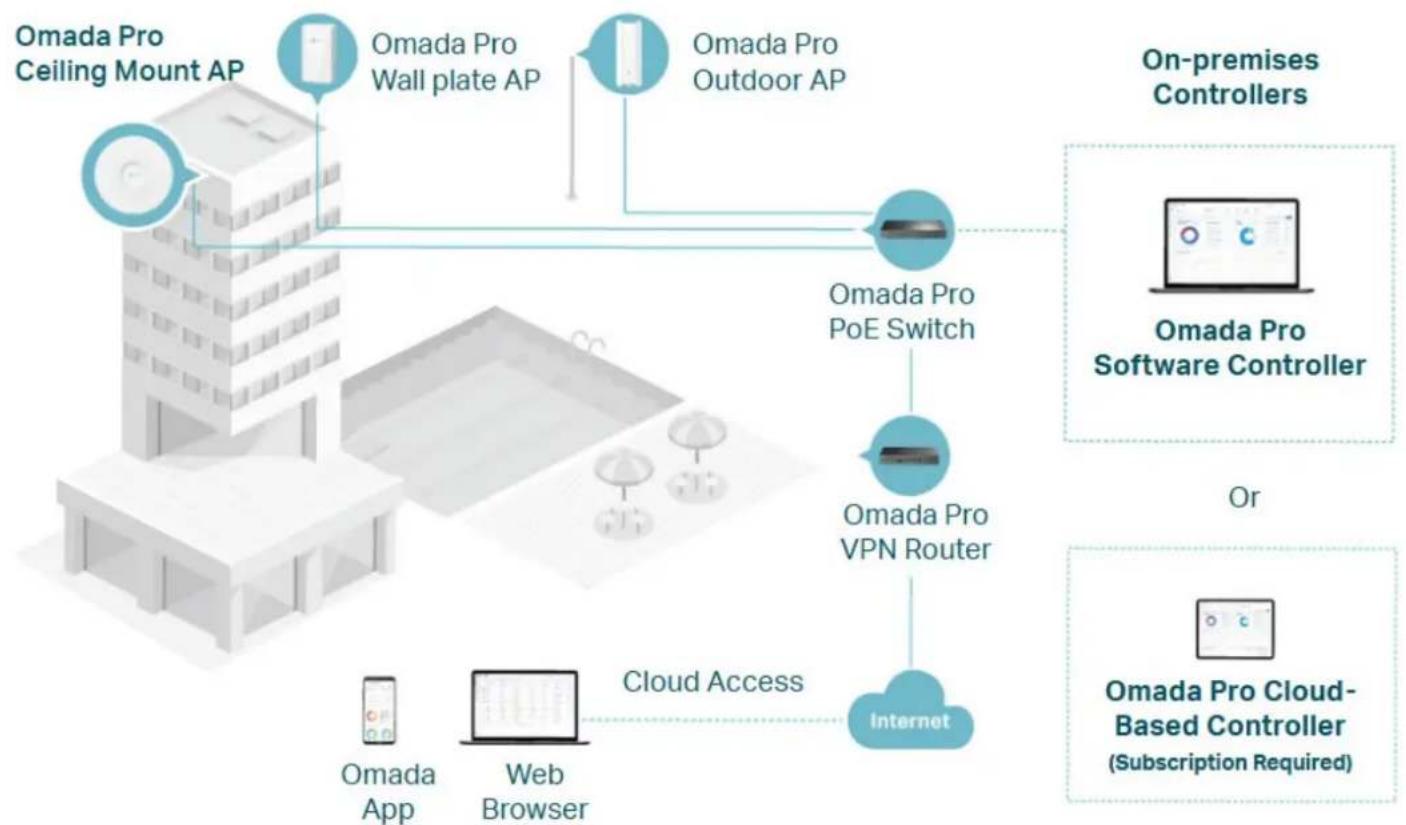

Omada Pro Solution

Omada Pro is an intelligent cloud solution for enterprise networking, offering enterprise-grade product line designed to meet the high-capacity, security, and management needs of various industries, such as MDUs, hospitality, K-12 education, public works, and more.

MDUs

Hospitality

Public Works

Catering

Manufacturing

Retail

Specifications

Hardware Features & Performance

Model 56500-24MPP4Y
General	Intertace	24 × 100M/1G/2.5 Gbps RJ45 Ports4 × 1/10/25Cbps SFP28 Slots*
	Console Ports 1 × RJ45 + 1 × USB Type C
	Management Port 1 × RJ45
	USB Ports 2 × USB 2.0
	Flash 2×4 MB Nor | 8 GB EMVC
	DRAM 4GB DDR4
	Processor Dual-Core ARM @1.5GHz CPU
PoE	PoE Standard IEEE 802.3af/af/bt
	PoE Ports 24, max 60W port
	PoE Power Budget	751 W (with 1*PSM900-AC, by default)378 W (with 1*PSM500-AC)802 W (with 2*PSM500-AC)1168 W (with 1*PSM500-AC and 1*PSM900-AC)1440 W (with 2*PSM900-AC)
	Fast PoE Yes
	Perpactual PoE Yes
Performance	Switching Capacity 320 Gbps
	Forwarding Bandwidth 160 Gbps
	Packet Forwarding Rate	238.1 Mpps
	MAC Address Table	32 K
	Packet Buffer	3 MB
	Stacking Port	25G SFP28 slot (all uplink ports can be used as stacking ports)**
	Stacking Bandwidth	Up to 200 Gbps (4 stacking ports)
	Max Stacking Number	12 in standalone mode, 4 in Omega controller mode
	Compatible Models for Stacking	S6500-24M4Y, S8500-24MPP4Y, S8500-48M6Y, S8500-48MPP6Y
	Transmission Method	Store and Forward
	Jumbo Frame 9 KB
Physical & Environment	Power Supply 100-240 V -50/60 Hz
	Redundant Power Supply	Max 2 hot swappable power supply module, N+1 redundant (shipping with one PSM900-AC module by default),**
	Suitable Power Supply Module	PSM500-AC, PSM900-AC
	Max Power Consumption	94.8 W (110 V/60 Hz) (With no PD connector)1745.5 W (110 V/60 Hz) (With 1440W PD connected and powered by 2× PSM900-AC)
	Max Heat Dissipation	323.3 BTU/hr (110 V/60 Hz) (With no PD connected)5952.2 BTU/hr (110 V/60 Hz) (With 1440W PD connected and powered by 2× PSM900-AC)
	Standby Power Consumption	64.4 W (220 V/50 Hz)
	Noise	1× PSM900-AC power supply module:Min: 38.4 dBA @1m 25 °CMax: 49.9 dBA @1m 25 °CMax: 49.9 dBA @1m 25 °CMax: 49.6 dBA @1m 25 °CMax: 52.3 dBA @1m 25 °CMax: 52.3 dBA @1m 25 °CMax: 52.3 dBA @1m 25 °CMax: 52.3 dBA @1m 25 °CMax: 52.3 dBA @1m 25 °CMax: 52.3 dBA @1m 25 °CMax: 50°C (-40°C (-40°C (-40°C (-40°C (-40°C (-40°C (-40°C (-40°C (-40°C (-40°C (-40°C (-40°C (-40°C (-40°C (-40°C (-40°C (-40°C (-40°C (-40°C (-40°C (-40°C (-40°C (-40°C (-40°C (-40°C (-		Fan Quantity	4 hot swappable fan modulesN+1 redundant
	Airflow	Front-to-back
	Surge Protection	Service port: ±6 kV in common modePower port: 16 kV in differential mode; 16 kV in common mode
	ESD Proection	Air: ±15 kV, Contact: ±8 kV
	MTBF	284,863 h @ 25 °CMax: 17.3 × 16.5 × 1.7 in (440 × 420 × 44 mm)
	Dimensions (W x D x H)	17.3 × 16.5 × 1.7 in (440 × 420 × 44 mm)
	Installation	Rockmount
	Operating Temperature & Altitude	-5 °C to 45 °C (23 °F to 113 °F) @ 2,000 meters-5 °C to 40 °C (23 °F to 104 °F) @ 3,000 meters
	Storage Temperature	-40 °C to 70 °C (-40 °F to 158 °F)
	Operation Humidity	10% to 90% RH, non-condensing
	Storage Humidity	5% to 90% RH, non-condensing
	Certification	CE, FCC, RoHS

Software Featuresa
Model S6500-24MPP4Y
System	System Info	• Device Description - Name - Location - System Contact - System Time - Manual - Synchronize with PC's Clock - SNMP Client - DST - Predefined Mode - Recurring Mode - Date Mode
	User Management	• User Settings • Access Level: 4 levels
	System Tools	• Config Restore/Backup - Web: HTTP - CLI: TFTP/Flash/USB • Firmware Upgrade - Web: HTTP - CLI: TFTP/Flash/USB
	Access Security	• Access Control Config - IP-based - MAC-based - Port-based - IPv6-based • HTTP Config - Enable/Disable - Session Config - Access User Number - Port Selling • SSL Config - SSLv3/TLSv1 Enable/Disable - CipherSuite Config - IPv6 SSL
	Stack	• Stack Setting • Stack-port LAG: up to 6 groups, each group supports a maximum of all stackable-ports
	SDM Template	• Default Template - IPv4 ACL Rules: 300 entries - MAC ACL Rules: 300 entries - Combined ACL Rules: 300 entries - IPv6 ACL Rules: 0 entries - IPv4 Source Guard: 299 entries - IPv6 Source Guard: 0 entries • IPv4 Access - IPv4 ACL Rules: 0 entries - MAC ACL Rules: 300 entries - Combined ACL Rules: 500 entries - IPv6 ACL Rules: 0 entries - IPv4 Source Guard: 499 entries - IPv6 Source Guard: 0 entries
	Time Range	• Time Range Config
	File System	• File Operation • FTP • SFTP
L2 Features	Port	• Auto Negotiation/Auto MDI/MDIX • Port Security • Port config - Speed and Duplex - Flow Control(802.3x) - Jumbo Frame: 1518-9216 KB • Port Mirror - Ingress (Many to One) - Egress (Many to One) - RSPAN - Loopback Detection - Alert - Port Based - VLAN Based
	DDM
	LAG	• Hash Algorithm: SRC MAC/DST MAC/SRC MAC + DST MAC/SRC IP/ DST IP/SRC IP + DST IP - Static LAG - LACP (802.3ad) - Up to 64 LAGs, up to 8 ports per LAG
	Traffic Monitor	• TX Packets/Bytes • RX Packets/Bytes • TX Unicast/Multicast/Broadcast • RX Unicast/Multicast/Broadcast
	MAC Address	• MAC Address Table: 32K entries • IVL/SVL: IVL • Create Static Unicast Address - MAC Notification Settings
	VLAN	• 802.1Q VLAN: 4K VLANs • MAC VLAN: 200 entries • Protocol VLAN - 16 Protocol VLAN Template - 12 Protocol VLAN Group
	L2 Multicast	• Max Multicast Groups: 4K (IGMP Snooping & MLD Snooping & MVR) • IGMP Snooping - IGMP V1/V2/V3 - Report Message Suppression - Fast Leave - Unknown Multicast Discard - Static Multicast Groups - IGMP Snooping Querier - IGMP Packet Statistics - IGMP Authentication - Multicast Filtering: 256 profiles and 16 entries per profile - Router Port Setting: Static Router Port/Forbidden Router Port • MVR
	STP	• STP(802.1d) • RSTP(802.1w) • MSTP(802.1s) • MSTI instances: 16 - Loop Protect - Root Protect - TC Protect - BPDU Protect - BPDU Filter
	LLDP (802.1ab)	• Local Info • Neighbor Info - Statistic Info - LLDP-MED
	L2PT
	PPPoe ID Insertion • Circuit-ID Type • Remote-ID
	PoE	• PoE Power Budget (Max): 1440W • PoE Profile Config • PoE Auto Recovery
		• Port Config - PoE Status: Enabled/Disabled - PoE Priority: Low/Middle/High - Power Limit - Time Range - PoE Profile
	ERPS • Ring: 16
	Virtual MAC
	Sticky MAC
Software Features*
Model S6500-24MPP4Y
L3 Features	IPv4 Interfaces: 256(shared with IPv6 Interfaces)
	IPv6 Interfaces: 256(shared with IPv4 Interfaces)
	IPv4 Static Routes: 1024 (shared with IPv6 Static Routes)
	IPv6 Static Routes: 512 (shared with IPv4 Static Routes)
	IPv4 Host Routes: 6100 (shared with IPv4 Host Routes)
	IPv6 Host Routes: 6100 (shared with IPv6 Host Routes)
	IPv4 Network Routes: 10240 (shared with IPv6 Network Routes)
	IPv6 Network Routes: 5120 (shared with IPv4 Network Routes)
	ECMP	• Max ECMP Routes: 256 • Max ECMP Nexhops per Destination: 32
	ARP	• Static ARP: 512 • Dynamic ARP: 12288
	ND: 12288
	DHCP	• DHCP Scrver - IP Pools: 64 - Max Leases: 8000 - Manual Binding Entries: 1000 - Exclude IP range Entries: 100
	VRRP	• VRRP V2/V3 • VRRP Instance: 64 • VRRP Virtual IP: 32 per instance
	OSPF	• OSPFv2 - OSPF Process: 16 - Graceful Restart - OSPFv2 BFD
	RIP • RIPv1/V2 • RIPng
	IS-IS	• IS-ISv4 • IS-ISv6
	BGPv4
	PIM	• PIM-DM (IPv4) • PIM-SM (IPv4) • PIM-SSM (IPv4)
	IGMP • Version: v1/v2/v3 • IGMP Groups: 2048
	BFD • Template Numbers: 16 • Session Numbers: 8
	PBR
	uRPF
QoS	Class of Service	• Priority Queues: 8 Queues • Port Priority • 802.1P Priority • DSCP/ToS Priority
	Bandwidth Control	• Rate Limit - Ingress Rate Limit - Egress Rate Limit - Rate Limit Grade: 64kbps
	Voice VLAN • OUI entries: 64
	WRED • WRED profile: 16
Software Featuresa
Model S6500-24MPP4Y
Network Security	IP-MAC Binding	• Binging entries: 1024 entries • Manual Binding • DHCP Snooping
	IPv6-MAC Binding	• Binding entries: 1024 entries • Manual Binding • DHCPv6 Snooping • ND Snooping
	ARP Inspection	• ARP Detect entries: 1024 entries • ARP Detect • ARP Statistics
	ND Detection	• ND Detection entries: 1024 entries • ND Statistics
	IP Source Guard	• IP Source Guard entries - Default SDM Template: 299 - Source IP - IP4 SDM Template: 499 - Source IP + Source MAC
	IPv6 Source Guard	• IPv6 Source Guard entries - Default SDM Template: 0 - Source IPv6 - Source IPv6 + Source MAC
	RA Guard: 30 entries
	DoS Defend	• Scan SYNFIN - Syn sPort less 1024 - Ping Flooding - SYN/SYN-ACK Flooding
	DHCP Filter	• DHCPv4 Filter - Legal Server entries: 200 • DHCPv6 Filter - Legal Server entries: 200
	802.1x	• Control Type - Port Based - MAC Based - Auth Method: PAP/EAP-MD5/EAP-TLS/EAP-TTLS/EAP-PEAP - Radius Authentication - Radius Accounting - Radius Server Load Balancing - RADSEC - Guest VLAN - VLAN Assignment - MAB
	AAA
	ACL	• Time-Range - Time Slice - Wcc Time-Range - Absolute Time-Range - Holiday - MAC ACL - IP ACL - Combined ACL - IPv6 ACL - Rule Operation - Permit - Deny - Policy Action - Mirror - Rate Limit - Redirect - QoS Remark - Binding - Port Binding - VLAN Binding
	MACSec (gcm-aes-128, gcm-aes-256)
	Secure boot
Virtualization IP Tunnel		• IPv6 over IPv4 • IPv6 over IPv4 GRE • Tunnel entries: 100
Software Features*
Model S6500-24MPP4Y
Maintenance	System Monitor	CPU MonitorMemory Monitor
	sFlow
	OAM	EFM- Link Monitoring- Remote Failure Indication Config- Statistics
	DLDP
	SNMP	SNMP Version: v1/v2c/v3 - NotificationSNMP ConfigTrap: IPv4/IPv6- Global ConfigInform: IPv4/IPv6- SNMP ViewRMON v1/v2- SNMP GroupPublic MIBs- SNMP UscrPrivate MIBs- SNMP Community
	MIBs	- MIB II (RFC1213) - RADIUS Accounting Client MIB(ROCF2620)- Ethernet Interface MIB (RFC1643) - Bridge MIB (RFC1493) - P/Q-Bridge MIB (RFC2674) - Remote Ping, Traceroute MIB(RFC2925)- RMON2 MIB (RFC2021) - Support TP-Link Private MIB
	NETCONF
	IEEE 802.3az Energy Efficient Ethernet (EEE)
	DHCP Auto Install
	Log	- Display/Filtering- Remote Host- Severity Level- Backup Log
	Device Diagnostics • Cable Test
	Network Diagnostics	- Ping- Tracert- IPv6 Ping- IPv6 Tracert
Others	Index
	Show running config	- Use the show running config command to view device's running status via telnet.- Configuration File: Import/Export/Edit
Omada SDN Controller	Omada Pro SDN controller

Ordering Information

Host Switch

Model Description

S6500-24MPP4Y Omada Pro 24-Port 2.5G Stackable L3 Managed PoE++ Switch with 4 25G Slots

Power Supply Module

Model Description

PSM500-AC 500 W AC Power Supply Module

PSM900-AC 900 W AC Power Supply Module

SFP/SFP+/SFP28 Module

Model Description

SM311LS Gigabit SFP module, Single-mode, LC interface, Up to 20km distance

SM311LM GigabitSFP module, Multi-mode, LC interface, Up to 550m distance

SM321A Gigabit WDM Bi-Directional SFP Module, single-mode, LC connector, TX: 1550 nm/RX: 1310 nm, 20 km

SM321A-2 Gigabil WDM Bi-Directional SFP Module, single-mode, LC connector, TX: 1550 nm/RX: 1310 nm. 2 km

SM3218 Gigabit WDM Bi-Directional SFP Module, single-mode, LC connector, TX: 1310 nm/RX: 1550 nm, 20 km

SM321B-2 Gigabit WDM Bi-Directional SFP Module, single-mode, LC connector, TX: 1310 nm/RX: 1550 nm, 2 km

SM5110-LR 10GBase-LR SFP+ LC Transceiver, single-mode, LC connector, 1310nm, 10 km

SM5110-SR 10GBase-SRP+LC Transceiver, multi-mode, LC connector, 850nm, 300 m

SM6110-SR 25GBase-SRP28 LC Transceiver, MMF (Multimode fiber), LC connector, 850 nm, 100 m

SM6110-LR 25GBase-LR SFP28 LC Transceiver, SMF (Single-mode fiber), LC connector, 1310 nm, 10 km

Direct Attach Cable

Model Description

SM6220-1M 1 Meter 25G SFP28 Direct Attach Cable

SM5220-1M 1 Meter 10G SFP+ Direct Attach Cable

SM5220-3M 3 Meter 10G SFP+ Direct Attach Cable

RJ45 SFP/SFP+ Modules

Model Description

SM331T 1000BASE-TRJ45 SFP Module

SM5310-T10CBASE-TRJ45 SFP+Module

MC Series Media Converter

Model Description

MC210CS Gigabit Single-Mode Media Converter, up to 20 km, chassis mountable

MC200CM Gigabit multi-mode SC SFP Transceiver, up to 550 m, chassis mountable

MC200L Gigabit \ \mathrm{{FP}}$ slot supporting mini-GBIC modules, chassis mountable

MC1400 14-slot power supply chassis for TP-LINK MC Series Media Converter, 19-inch rack-mountable

FC Series Media Converter

Model Description

FC311A-2 Gigabit Single-Mode WDM Media Converter, up to 2 km, TX:1550nm, RX:1310nm, chassis mountable

FC311B-2 Gigabit Single-Mode WDM Media Converter, up to 2 km, TX:1310nm, RX:1550nm, chassis mountable

FC311A-20 Gigabil Single-Mode WDM Media Converter, up to 20 km, TX:1550nm, RX:1310nm, chassis mountable

FC311B-20 Gigabit Single-Mode WDM Media Converter, up to 20 km, TX:1310nm, RX:1550nm, chassis mountable

FC1400 14-slot power supply chassis for TP-LINK FC Series Media Converter, 19-inch rack-mountable

These functions require the use of the Omada Pro SDN Controller, Zero-Touch Provisioning requires the use of the Omada Pro Cloud-Based Controller.

Some models featured in this guide may be unavailable in your country or region. Visit TP-Link website for local sales information: www. tp-link.com.

Specifications are subject to change without notice. All the brands and product names are trademarks or registered trademarks of their respective holders. © 2024 TP-Link
