| Caractéristiques Techniques | Détails |
|---|---|
| Type de Commutateur | Commutateur Ethernet |
| Nombre de Ports | 26 ports |
| Ports SFP+ | 6 ports SFP+ |
| Vitesse de Transmission | 10 Gbps |
| Norme Ethernet | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ae |
| Alimentation | Alimentation redondante |
| Dimensions | 440 x 220 x 44 mm |
| Poids | 3.5 kg |
| Utilisation | Idéal pour les réseaux d'entreprise et les environnements à forte densité de trafic |
| Maintenance | Gestion via interface web, SNMP, et CLI |
| Sécurité | Contrôle d'accès basé sur les ports, VLAN, et authentification 802.1X |
| Garantie | Garantie limitée de 2 ans |
FOIRE AUX QUESTIONS - S7500-26XF6Y TP-LINK
Comment réinitialiser le commutateur TP-LINK S7500-26XF6Y aux paramètres d'usine ?
Pour réinitialiser le commutateur, localisez le bouton de réinitialisation à l'arrière de l'appareil. Appuyez et maintenez ce bouton pendant environ 10 secondes jusqu'à ce que les LED clignotent, puis relâchez-le. Le commutateur redémarrera et reviendra aux paramètres d'usine.
Pourquoi mon commutateur ne s'allume-t-il pas ?
Vérifiez d'abord si le câble d'alimentation est correctement connecté et si la prise fonctionne. Essayez de brancher le commutateur à une autre prise pour exclure un problème d'alimentation.
Comment configurer les VLAN sur le TP-LINK S7500-26XF6Y ?
Accédez à l'interface de gestion via un navigateur en entrant l'adresse IP du commutateur. Connectez-vous avec vos identifiants, puis naviguez vers 'VLAN' dans le menu pour créer et configurer vos VLAN selon vos besoins.
Le commutateur ne détecte pas certains appareils connectés, que faire ?
Assurez-vous que les câbles Ethernet sont correctement connectés et fonctionnels. Testez avec d'autres câbles ou ports. Vérifiez également que les appareils sont allumés et configurés pour utiliser le réseau.
Comment mettre à jour le firmware du TP-LINK S7500-26XF6Y ?
Téléchargez la dernière version du firmware depuis le site officiel de TP-LINK. Accédez à l'interface de gestion du commutateur, allez dans 'Système' puis 'Mise à jour du firmware', et suivez les instructions pour télécharger le fichier et mettre à jour le système.
Que faire si les ports du commutateur ne fonctionnent pas correctement ?
Vérifiez si les ports sont activés dans l'interface de gestion. Assurez-vous également que les appareils connectés ne dépassent pas le nombre de ports disponibles et qu'ils sont compatibles avec le commutateur.
Comment surveiller l'utilisation du réseau sur le TP-LINK S7500-26XF6Y ?
Accédez à l'interface de gestion et recherchez la section 'Statistiques' ou 'Monitoring'. Vous y trouverez des informations sur l'utilisation de la bande passante, le trafic des ports et d'autres métriques réseau.
Le commutateur est lent, comment améliorer la performance ?
Vérifiez la configuration des VLAN et assurez-vous qu'il n'y a pas de boucles de réseau. Assurez-vous également que le trafic n'est pas trop chargé pour le commutateur. Envisagez de segmenter le réseau ou d'ajouter des commutateurs supplémentaires si nécessaire.
Comment activer le QoS sur le TP-LINK S7500-26XF6Y ?
Connectez-vous à l'interface de gestion, allez dans la section 'QoS' et activez-le. Configurez les règles selon vos besoins pour prioriser le trafic important sur votre réseau.
Questions des utilisateurs sur S7500-26XF6Y TP-LINK
0 question sur cet appareil. Repondez a celles que vous connaissez ou posez la votre.
Poser une nouvelle question sur cet appareil
Aucune question pour l'instant. Soyez le premier à en poser une.
Téléchargez la notice de votre Commutateur au format PDF gratuitement ! Retrouvez votre notice S7500-26XF6Y - TP-LINK et reprennez votre appareil électronique en main. Sur cette page sont publiés tous les documents nécessaires à l'utilisation de votre appareil S7500-26XF6Y de la marque TP-LINK.
MODE D'EMPLOI S7500-26XF6Y TP-LINK

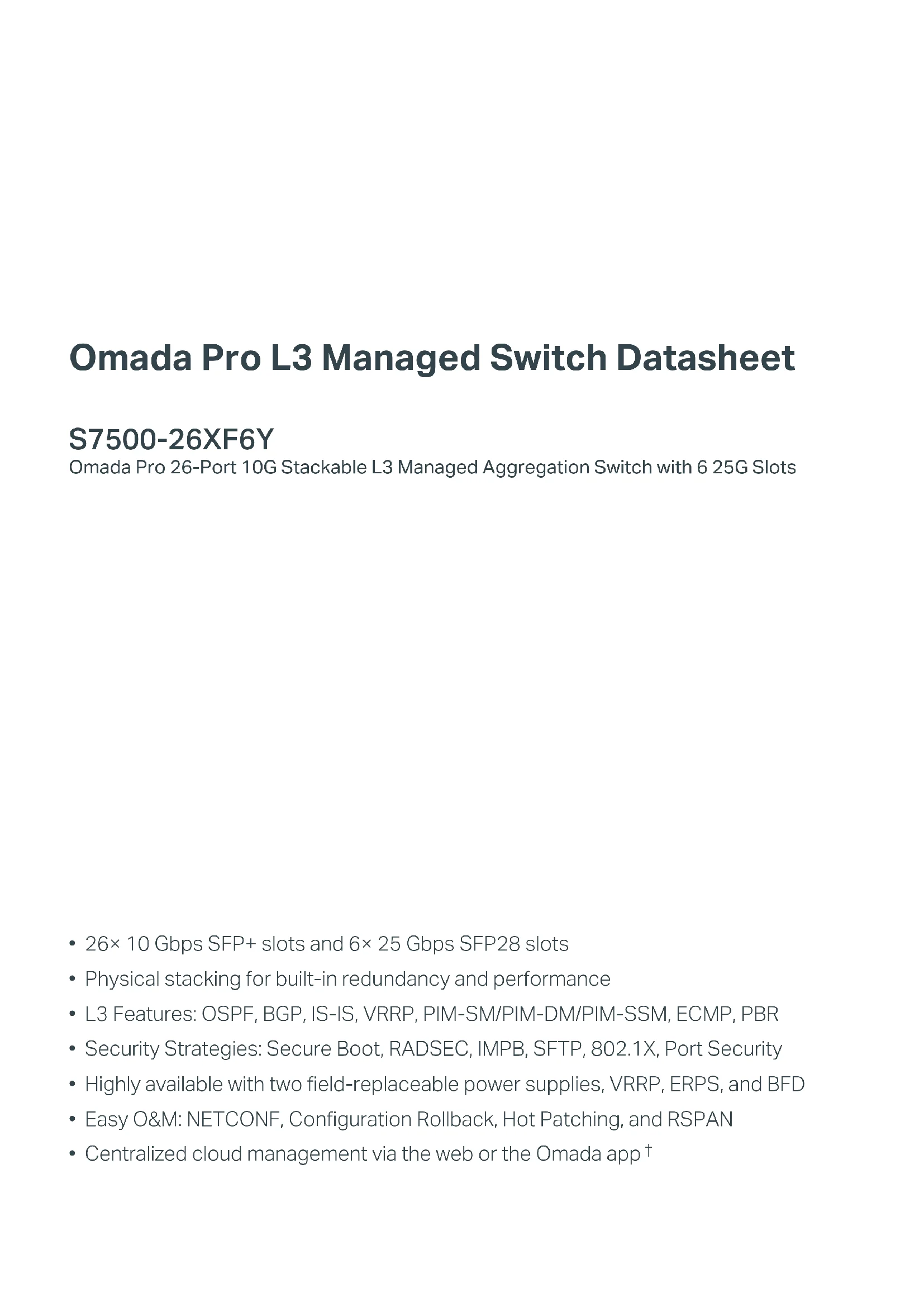

Omada Pro L3 Managed Switch Datasheet
S7500-26XF6Y
Omada Pro 26-Port 10G Stackable L3 Managed Aggregation Switch with 6 25G Slots
- 26×10 Gbps SFP+ slots and 6×25 Gbps SFP28 slots
• Physical stacking for built-in redundancy and performance
• L3 Features: OSPF, BGP, IS-IS, VRRP, PIM-SM/PIM-DM/PIM-SSM, ECMP, PBR
• Security Strategies: Secure Boot, RADSEC, IMPB, SFTP, 802.1X, Port Security - Highly available with two field-replaceable power supplies, VRRP, ERPS, and BFD
- Easy O&M: NETCONF, Configuration Rollback, Hot Patching, and RSPAN
- Centralized cloud management via the web or the Omada app ^†
Product Pictures
Omada Pro is an intelligent cloud solution for enterprise networking, offering enterprise-grade product line designed to meet the high-capacity, security, and management needs of various industries, such as MDUs, hospitality, K-12 education, public works, and more.
MDUs
Hospitality
Public Works
Catering
Manufacturing
Retail
Specifications
Hardware Features & Performance
| Model S7500-26XF6Y | ||
| General | Interface | 26 × 1/10Gbps SFP+ Slots*6 × 1/10/25Gbps SFP28 Slots |
| Console Ports 1 × RJ45 + 1 × USB Type C | ||
| Management Port 1 × RJ45 | ||
| USB Ports 2 × USB 3.0 | ||
| Flash 2×4 MB Nor + 8 GB EMMC | ||
| DRAM 8GB DDR4 | ||
| Processor Quad-Core ARM @1.2GHz CPU | ||
| Performance | Switching Capacity 820 Gbps | |
| Forwarding Bandwidth 410 Gbps | ||
| Packet Forwarding Rate 610.1 Mpps | ||
| MAC Address Table 128 K | ||
| Packet Buffer 8 MB | ||
| Stacking Port 25G SFP28 slot (all uplink ports can be used as stacking ports)** | ||
| Stacking Bandwidth Up to 300 Gbps (6 stacking ports) | ||
| Max Stacking Number | 12 in standalone mode, 4 in Omada controller mode | |
| Compatible Models for Stacking | S7500-26XF6Y | |
| Transmission Method | Store and Forward | |
| Jumbo Frame | 9 KB | |
| Physical & Environmet | Power Supply | 100-240 V ~50/60 Hz |
| Redundant Power Supply | Max 2 hot swappable power supply module, N+1 redundant (shipping with one PSM550-AC module by default)*** | |
| Suitable Power Supply Module | PSM550-AC | |
| Max Power Consumption | 86.7 W (110 V/60 Hz) | |
| Max Heat Dissipation | 295.85 BTU/hr (110 V/60 Hz) | |
| Standby Power Consumption | 31.4 W (220 V/50 Hz) | |
| Noise | 1× PSM550-AC power supply module:Min: 34.9 dBA @ 1m 25 °CMax: 61.7 dBA @ 1m 25 °C | |
| Fan Quantity | 4 hot swappable fan modulesN+1 redundant | |
| Airflow | Front-to-back | |
| Surge Protection | Service port: ±6 kV in common modePower port: ±4 kV in differential mode; ±4 kV in common mode | |
| ESD Protection | Air: ±15 kV, Contact: ±8 kV | |
| MTBF | 632,865 h @ 25 °C | |
| Dimensions (W x D x H) | 17.3 × 15.0 × 1.7 in (440 × 380 × 44 mm) | |
| Installation | Rackmount | |
| Operating Temperature & Altitude | -5 °C to 50 °C (23 °F to 122 °F) @ 300 meters-5 °C to 45 °C (23 °F to 113 °F) @ 2,000 meters-5 °C to 40 °C (23 °F to 104 °F) @ 3,000 meters**** | |
| Storage Temperature | -40 °C to 70 °C (-40 °F to 158 °F) | |
| Operation Humidity | 10% to 90% RH, non-condensing | |
| Storage Humidity | 5% to 90% RH, non-condensing | |
| Certification | CE, FCC, RoHS | |
*No more than six 10G RJ45 SFP+ modules are supported. And it is recommended to have one column interval between every two 10G RJ45 SFP+ modules.
**The 25G SFP28 slots support stacking only through 25G DAC/25G SFP28 modules rather than 10G DAC/10G SFP+ modules.
***An additional power supply module needs to be purchased separately.
^**** The supported altitude is sea level to 5000 m. It should be noted that when the altitude is above 2000 m, for every 220 meters of altitude increase, the maximum operating temperature will drop by 1°C (1.8°F).
| Software Features* | |||
| Model S7500-26XF6Y | |||
| System | System Info | Device Description- Name- Location- System ContactSystem Time- Manual- Synchronize with PC's Clock- SNTP ClientDST- Predefined Mode- Recurring Mode- Date Mode | LED- LED on/offSystem IP- Static IP/DHCP/BOOTPSystem IPv6- Link-local Address Config- Global Address Autoconfig via RA Message- Global Address Autoconfig via DHCPv6 Server- Add a Global Address Manually |
| User Management | User SettingsAccess Level: 4 levels | Password Recovery Settings | |
| System Tools | Config Restore/Backup- Web: HTTP- CLI: TFTP/Flash/USBFirmware Upgrade- Web: HTTP- CLI: TFTP/Flash/USB | System RebootSystem ResetBoot Config (Dual Image)Reboot ScheduleConfig RollbackHot Patch | |
| Access Security | Access Control Config- IP-based- MAC-based- Port-based- IPv6-basedHTTP Config- Enable/Disable- Session Config- Access User Number- Port SettingSSL Config- SSLv3/TLSv1 Enable/Disable- CipherSuite Config- IPv6 SSL | SSH Config- Enable/Disable-v2- Encryption Algorithm- Data Integrity Algorithm- Port Setting- IPv6 SSHTelnet Config- Enable/Disable- Port Setting- IPv6 TelnetConsole Port- Baud Rate setting | |
| Stack | Stack SettingStack-port LAG: up to 6 groups, each group supports a maximum of all stackable-ports | Stackable Devices: up to 12 devicesStack MAC Address Switching Delay | |
| SDM Template | Default Template- IPv4 ACL Rules: 900 entries- MAC ACL Rules: 900 entries- Combined ACL: 900 entries- IPv4 Source Guard: 899 entriesIPv4 Access- IPv4 ACL Rules: 0 entries- MAC ACL Rules: 900 entries- Combined ACL: 1500 entries- IPv4 Source Guard: 1024 entries | IPv6 Access- IPv4 ACL Rules: 0 entries- MAC ACL Rules: 600 entries- IPv6 ACL: 750 entries- IPv6 Source Guard: 749 entriesOmada- IPv4 ACL Rules: 0 entries- MAC ACL Rules: 0 entries- Combined ACL: 1800 entries- IPv6 ACL: 450 entries- IPv4 Source Guard: 0 entries | |
| Time Range | Time Range Config | Holiday Config | |
| File System | File OperationFTP SFTP | SCP TFTP USB Storage | |
| Software Features ^ | |||
| Model S7500-26XF6Y | |||
| L2 Features | Port | • Port config- Status- Speed and Duplex- Flow Control(802.3x)- Jumbo Frame: 1518-9216 KB• Port Mirror- Ingress (Many to One)- Egress (Many to One)- RSPAN | • Port Security- Learn mode: Dynamic/Static/Permanent/Sticky- Port Max Learned MAC: 64- Current Learned Number- Status- Exceed Max Learned Trap• Port Isolation• Loopback Detection- Alert- Port Based- VLAN Based |
| DDM | |||
| LAG | • Hash Algorithm: SRC MAC/DSTMAC/SRC MAC +DST MAC/SRC IP/DST IP/SRC IP +DST IP | • Static LAG: Up to 120 groups, up to 8 ports per group• LACP(802.3ad) | |
| Traffic Monitor | • TX Packets/Bytes• RX Packets/Bytes• TX Unicast/Multicast/Broadcast• RX Unicast/Multicast/Broadcast | • TX Errors• RX Errors• RX Packet Size Analysis | |
| MAC Address | • MAC Address Table: 128K entries• IVL/SVL: IVL• Create Static Unicast Address | • Bind Dynamic Address• Create Filtering Address• MAC Notification Settings | |
| VLAN | • 802.1Q VLAN(802.1q): 4K VLANs• MAC VLAN: 200 entries• Protocol VLAN- 16 Protocol VLAN Template- 12 Protocol VLAN Group | • QinQ(VLAN VPN): 256 entries• Private VLAN• GVRP | |
| Multicast | • Max Multicast Groups: 4K (IPv4,IPv6)• IGMP Snooping- IGMP V1/V2/V3- Report Message Suppression- Fast Leave- Unknown Multicast Discard- Static Multicast Groups- IGMP Snooping Querier- IGMP Packet Statistics- IGMP Authentication- Multicast Filtering: 256 profiles and 16 entries per profile- Router Port Setting: Static Router Port/Forbidden Router Port• MVR | • MLD Snooping- MLD V1/V2- Report Message Suppression- Unknown Multicast Discard- Fast Leave- Static Multicast Groups- MLD Snooping Querier- MLD Packet Statistics- Multicast Filtering: 256 profiles and 16 entries per profile- Router Port Setting: Static Router Port/Forbidden Router Port• Multicast Table- IPv4 Multicast Table- IPv6 Multicast Table | |
| STP | • STP(802.1d)• RSTP(802.1w)• MSTP(802.1s)• MSTI entries: 64 | • STP Security- Loop Protect- Root Protect- TC Protect- BPDU Protect- BPDU Filter | |
| LLDP (802.1ab) | • Enbale/Disable• Local Info• Neighbor Info• Statistic Info | • LLDP-MED- Local Info- Neighbor Info | |
| L2PT • Layer 2 Protocol Tunneling | |||
| PPPoE ID Insertion | • Circuit-ID Type- IP- MAC- UDF- UDF-ONLY | • Remote-ID | |
| ERPS • Ring: 64 | |||
| Virtual MAC | |||
| Sticky MAC | |||
| Software Features* | |||
| Model S7500-26XF6Y | |||
| L3 Features | L3 INTERFACE: 256(IPv4,IPv6) | ||
| STATIC ROUTE: 2048 IPv4, 1024 IPv6 | |||
| IPv4 Host Router entries + IPv6 Host Router entries: 15300 | |||
| IPv4 Network Router entries: 102400 (shared with IPv6 Network Router entries)IPv6 Network Router entries: 51200 (shared with IPv4 Network Router entries) | |||
| ECMP | • ECMP entries: 256• MAX-PATH: 32 | ||
| ARP | • Static ARP: 1024• Dynamic ARP: 24576 | ||
| ND: 7680 | |||
| DHCP | • DHCP Server- IP Pool: 64- IP MAX entries: 8000- Manual Binding: 1000- Excluded IP Range: 100 | • DHCP Relay• DHCP L2 Relay• DHCPv6 Relay• DHCPv6 L2 Relay | |
| VRRP | • VRRP V2/V3• VRRP Instance: 64• VRRP Virtual IP: 32 per instance | ||
| OSPF | • OSPFv2- OSPF Instance: 16- Network entries: 256 entries- Area entries For Stub Or NSSA: 16 per instance- AreaRange entries: 16 per instance- Virtual-link entries: 16 per instance- Redistribute: conneted/static/RIP/OSPF/IS-IS/BGP- Graceful Restart- OSPFv2 BFD | • OSPFv3- Area entries For Stub Or NSSA: 16 per instance- AreaRange entries: 16 per instance- Redistribute: conneted/static/RIPng/IS-IS- OSPFv3 BFD | |
| RIP | • RIPv1/v2- Network entries: 256- Redistribute entries: 20- Redistribute: BGP/connected/OSPF/IS-IS/static | • RIPng- Redistribute: connected/OSPFv3/IS-IS/static | |
| IS-IS | • IS-IS Interfaces: 128• IS-IS Area Numbers: 3• Redistribute: BGP/connected/OSPF/OSPFv3/RIP/static/RIPng | • Max Redistribute Configs: 10• IS-IS IPV6• IS-IS BFD | |
| BGP | • Redistribute: IS-IS/connected/OSPF/RIP/static | • Max Redistribute Configs: 20 | |
| PIM | • PIM DM• PIM SM• PIM SSM | • IP Multicast Route entries: 1K• PIM Neighbors: 256• Max PIM Interfaces: 128 | |
| IGMP • Version: v1/v2/v3 • IGMP Multicast Groups: 2K | |||
| BFD • Template Numbers: 16 • Session Numbers: 8 | |||
| PBR | |||
| uRPF | |||
| QoS | Class of Service | • Priority Queues: 8 Queues• Port Priority• 802.1P Priority• DSCP/ToS Priority | • Priority Schedule Mode: SP/WRR per Queue• Queue Weight Config: For WRR/SP+WRR Mode |
| Bandwidth Control | • Rate Limit- Ingress Rate Limit- Egress Rate Limit- Rate Limit Grade: 64kbps | • Storm Control- Control Mode: kbps/ratio- Broadcast- Multicast- Unknown Unicast | |
| Voice VLAN • Supported OUI Numbers: 64 | |||
| WRED • WRED profile: 64 | |||
| IP-MAC Binding | Binding entries: 1024 entriesManual Binding | ARP ScanningDHCP Snooping | |
| IPv6-MAC Binding | Binding entries: 1024 entriesManual Binding | DHCPv6 SnoopingND Snooping | |
| ARP Inspection | ARP Detect entries: 1024 entriesARP Detect | ARP DefendARP Statistics | |
| ND Detection | ND Detection entries: 1024 entriesND Detect | ND Statistics | |
| IP Source Guard | IP Source Guard entries- Default SDM Template: 899- IPv4 SDM Template: 1024- IPv6 SDM Template: 0 | Security Type- Source IP- Source IP + Source MAC | |
| IPv6 Source Guard | IPv6 Source Guard entries- Default SDM Template: 0- IPv4 SDM Template: 0- IPv6 SDM Template: 749 | Security Type- Source IPv6- Source IPv6 + Source MAC | |
| RA Guard: 30 entries | |||
| DoS Defend | Scan SYNFINXmascanNULL Scan | SYN sPort less 1024Ping FloodingSYN/SYN-ACK Flooding | |
| DHCP Filter | DHCPv4 Filter- Legal Server entries: 200 | DHCPv6 Filter- Legal Server entries: 200 | |
| 802.1x | Control Type- Port Based- MAC BasedAuth Method: PAP/EAP-MD5/EAP-TLS/EAP-TTLS/EAP-PEAP | Radius AuthenticationRadius AccountingRadius Server Load BalancingRADSECGuest VLAN | |
| AAA | |||
| ACL | Time-Range- Time Slice- Week Time-Range- Absolute Time-Range- HolidayMAC ACL- Source MAC- Destination MAC- VLAN ID- EtherType- User PriorityIP ACL- Source IP- Destination IP- IP Protocol- TCP Flag- TCP/UDP Source Port- TCP/UDP Destination Port- DSCP/IP ToSCombined ACLIPv6 ACLRule Operation- Permit- DenyPolicy Action- Mirror- Rate Limit- Redirect- QoS RemarkBinding- Port Binding- VLAN Binding | Default Template- IPv4 ACL Rules: 900 entries- MAC ACL Rules: 900 entries- Combined ACL: 900 entriesIPv4 Access- IPv4 ACL Rules: 0 entries- MAC ACL Rules: 900 entries- Combined ACL: 1500 entriesIPv6 Access- IPv4 ACL Rules: 0 entries- MAC ACL Rules: 600 entries- IPv6 ACL: 750 entriesOmada- IPv4 ACL Rules: 0 entries- IPv6 ACL Rules: 450 entries- MAC ACL Rules: 0 entries- Combined ACL: 1800 entries- IPv4 Source Guard: 0 entries | |
| Secure Boot | |||
| Virtualization IP Tunnel | IPv6 over IPv4IPv6 over IPv4 GRE | IPv4 over IPv4 GRETunnel entries: 100 | |
| Software Features ^ | ||
| Model S7500-26XF6Y | ||
| System Monitor | CPU MonitorMemory Monitor | |
| Maintenance | sFlow | |
| OAM | EFM- Link Monitoring- Remote Failure Indication Config- Statistics | |
| DLDP | ||
| SNMP | SNMP Version: v1/v2c/v3SNMP Config- Global Config-SNMP View-SNMP Group-SNMP User-SNMP CommunityNotification- Trap: IPv4/IPv6-Inform: IPv4/IPv6-RMON v1/v2Public MIBsPrivate MIBs | |
| MIBs | MIB II (RFC1213)Interface MIB (RFC2233)Ethernet Interface MIB (RFC1643)Bridge MIB (RFC1493)P/Q-Bridge MIB (RFC2674)RMON MIB (RFC2819)RMON2 MIB (RFC2021)RADIUS Accounting Client MIB (RFC2620)RADIUS Authentication Client MIB (RFC2618)Remote Ping, Traceroute MIB (RFC2925)Support TP-Link Private MIB | |
| NETCONF | ||
| DHCP Auto Install | ||
| Log | Display/FilteringSeverity LevelSave to FlashRemote HostBackup Log | |
| Network Diagnostics | PingIPv6 PingTracertIPv6 Tracert | |
| Others | Index | |
| Show running config | Use the show running config command to view device's running status via telnet.Configuration File: Import/Export/Edit | |
| Omada SDN Controller | Omada Pro SDN controller | |
Ordering Information
Host Switch
| Model Description | |
| S7500-26XF6Y Omada Pro 26-Port 10G Stackable L3 Managed Aggregation Switch with 6 25G Slots |
Power Supply Module
| Model Description | |
| PSM550-AC | 550 W AC Power Supply Module |
SFP/SFP+/SFP28 Module
| Model Description | |
| SM311LS Gigabit | SFP module, Single-mode, LC interface, Up to 20km distance |
| SM311LM Gigabit | SFP module, Multi-mode, LC interface, Up to 550m distance |
| SM321A Gigabit | WDM Bi-Directional SFP Module, single-mode, LC connector, TX: 1550 nm/RX: 1310 nm, 20 km |
| SM321A-2 Gigabit | WDM Bi-Directional SFP Module, single-mode, LC connector, TX: 1550 nm/RX: 1310 nm, 2 km |
| SM321B Gigabit | WDM Bi-Directional SFP Module, single-mode, LC connector, TX: 1310 nm/RX: 1550 nm, 20 km |
| SM321B-2 Gigabit | WDM Bi-Directional SFP Module, single-mode, LC connector, TX: 1310 nm/RX: 1550 nm, 2 km |
| SM5110-LR 10GBase-LR SFP+ LC Transceiver, single-mode, LC connector, 1310nm, 10 km | |
| SM5110-SR 10GBase-SR SFP+ LC Transceiver, multi-mode, LC connector, 850nm, 300 m | |
| SM6110-SR 25GBase-SR SFP28 LC Transceiver, MMF (Multimode fiber), LC connector, 850 nm, 100 m | |
| SM6110-LR 25GBase-LR SFP28 LC Transceiver, SMF (Single-mode fiber), LC connector, 1310 nm, 10 km | |
Direct Attach Cable
| Model Description | |
| SM6220-1M | 1 Meter 25G SFP28 Direct Attach Cable |
| SM5220-1M | 1 Meter 10G SFP+ Direct Attach Cable |
| SM5220-3M | 3 Meter 10G SFP+ Direct Attach Cable |
RJ45 SFP/SFP+ Modules
| Model Description |
| SM331T 1000BASE-T RJ45 SFP Module |
| SM5310-T 10GBASE-T RJ45 SFP+ Module |
MC Series Media Converter
| Model Description | |
| MC210CS Gigabit | Single-Mode Media Converter, up to 20 km, chassis mountable |
| MC200CM Gigabit | multi-mode SC SFP Transceiver, up to 550 m, chassis mountable |
| MC200L Gigabit | SFP slot supporting mini-GBIC modules, chassis mountable |
| MC1400 14-slot | power supply chassis for TP-LINK MC Series Media Converter, 19-inch rack-mountable |
FC Series Media Converter
| Model Description | |
| FC311A-2 Gigabit | Single-Mode WDM Media Converter, up to 2 km, TX:1550nm, RX:1310nm, chassis mountable |
| FC311B-2 | Gigabit Single-Mode WDM Media Converter, up to 2 km, TX:1310nm, RX:1550nm, chassis mountable |
| FC311A-20 Gigabit | Single-Mode WDM Media Converter, up to 20 km, TX:1550nm, RX:1310nm, chassis mountable |
| FC311B-20 | Gigabit Single-Mode WDM Media Converter, up to 20 km, TX:1310nm, RX:1550nm, chassis mountable |
| FC1400 | 14-slot power supply chassis for TP-LINK FC Series Media Converter, 19-inch rack-mountable |
