USER MANUAL S6500-48G6XF TP-LINK

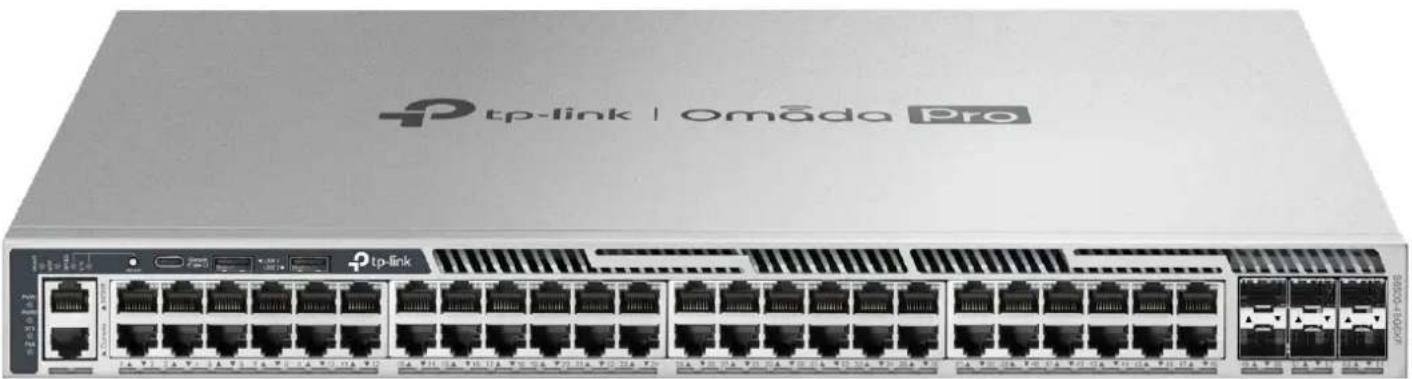

Omada Pro L3 Managed Switch Datasheet
S6500-48G6XF
Omada Pro 48-Port Gigabit Stackable L3 Managed Switch with 6 10G Slots
Highlights
- 48 × Gigabit RJ45 ports and 6 × 10 Gbps SFP+ slots
Physical stacking for built-in redundancy and performance
L3 Features:OSPF,BGP,IS-IS,VRRP,PIM-SM/PIM-DM/PIM-SSM,ECMP,PBR - Security Strategies: MACsec, Secure Boot, RADSEC, IMPB, SFTP, 802.1X
- Highly Available with two internal fixed power supplies, VRRP, ERPS, and BFD
- Easy O&M: NETCONF, Configuration Rollback, Hot Patching, and RSPAN
- Centralized cloud management via the web or the Omada app†
1 RJ45 Management Port
380 mm
44 mm
1 RJ45 + 1 USB Type C
ConsolePorts
2 USB 2.0 Ports
48× 10 / 100 / 1000Mbps RJ45 ports
6× 1 / 10 Gbps SFP+ Slots
Omada Pro is an intelligent cloud solution for enterprise networking, offering enterprise-grade product line designed to meet the high-capacity, security, and management needs of various industries, such as MDUs, hospitality, K-12 education, public works, and more.
Specifications
Hardware Features & Performance
| Model S6500-48G6XF | ||
| General | Interface | 48 × 10/100/1000Mbps RJ45 ports 6 × 1/10Gbps SFP+ Slots* |
| Console Ports 1 × RJ45 + 1 × USB Type C | ||
| Management Port 1 × RJ45 | ||
| USB Ports 2 × USB 2.0 | ||
| Flash 2×4 MB Nor + 8 GB EMMC | ||
| DRAM 4GB DDR4 | ||
| Processor Dual-Core ARM @1.5GHz CPU | ||
| Performance | Switching Capacity 216 Gbps | |
| Forwarding Bandwidth 108 Gbps | ||
| Packet Forwarding Rate 160.7 Mpps | ||
| MAC Address Table 32 K | ||
| Packet Buffer 3 MB | ||
| Stacking Port 10G SFP+ slot (all uplink ports can be used as stacking ports)** | ||
| Stacking Bandwidth Up to 120 Gbps (6 stacking ports) | ||
| Max Stacking Number | 12 in standalone mode, 4 in Omada controller mode | |
| Compatible Models for Stacking | S6500-24G4XF, S6500-48G6XF, S6500-24GP4XF, S6500-48GP6XF | |
| Transmission Method | Store and Forward | |
| Jumbo Frame | 9 KB | |
| Physical & Environmet | Power Supply | 100-240 V ~50/60 Hz |
| Redundant Power Supply | 2 internal fixed power supply modules | |
| Max Power Consumption | 39.8 W (220 V/50 Hz) | |
| Max Heat Dissipation | 135.81 BTU/hr (220 V/50 Hz) | |
| Standby Power Consumption | 16.2 W (220 V/50 Hz) | |
| Noise | Min: 14.8 dBA @1m 25 °CMax: 40.7 dBA @1m 25 °CM | |
| Fan Quantity | 4 internal fixed fans | |
| Airflow | Front-to-back | |
| Surge Protection | Service port: ±6 kV in common mode Power port: ±4 kV in differential mode; ±4 kV in common mode | |
| ESD Protection | Air: ±15 kV, Contact: ±8 kV | |
| MTBF | 547,093 h @ 25 °C | |
| Dimensions (W x D x H) | 17.3 × 15.0 × 1.7 in (440 × 380 × 44 mm) | |
| Installation | Rackmount | |
| Operating Temperature & Altitude | -5 °C to 50 °C (23 °F to 122 °F) @ 300 meters -5 °C to 45 °C (23 °F to 113 °F) @ 2,000 meters -5 °C to 40 °C (23 °F to 104 °F) @ 3,000 meters | |
| Storage Temperature | -40 °C to 70 °C (-40 °F to 158 °F) | |
| Operation Humidity | 10% to 90% RH, non-condensing | |
| Storage Humidity | 5% to 90% RH, non-condensing | |
| Certification | CE, FCC, RoHS | |
| Software Features* | ||
| Model S6500-48G6XF | ||
| System | System Info | ·Device Description -Name -Location -System Contact -System Time -Manual -Synchronize with PC's Clock -SNTP Client -DST -Predefined Mode -Recurring Mode -Date Mode |
| User Management | ·User Settings ·Access Level: 4 levels | |
| System Tools | ·Config Restore/Backup -Web: HTTP -CLI: TFTP/Flash/USB ·Firmware Upgrade -Web: HTTP -CLI: TFTP/Flash/USB | |
| Access Security | ·Access Control Config -IP-based -MAC-based -Port-based -IPv6-based ·HTTP Config -Enable/Disable -Session Config -Access User Number -Port Setting ·SSL Config -SSLv3/TLSv1 Enable/Disable -CipherSuite Config -IPv6 SSL | |
| Stack | ·Stack Setting ·Stack-port LAG: up to 6 groups, each group supports a maximum of all stackable-ports | |
| SDM Template | ·Default Template -IPv4 ACL Rules: 300 entries -MAC ACL Rules: 300 entries -Combined ACL: 300 entries -IPv4 Source Guard: 299 entries ·IPv4 Access -IPv4 ACL Rules: 0 entries -MAC ACL Rules: 300 entries -Combined ACL: 500 entries -IPv4 Source Guard: 499 entries | |
| Time Range | ·Time Range Config | |
| File System | ·File Operation -FTP -SFTP | |
| Software Featuresa | ||
| Model S6500-48G6XF | ||
| L2 Features | Port | • Auto Negotiation/Auto MDI/MDIX • Port Security • Port config - Status - Speed and Duplex - Flow Control(802.3x) - Jumbo Frame: 1518-9216 KB • Port Mirror - Ingress (Many to One) - Egress (Many to One) - RSPAN |
| DDM | ||
| LAG | • Hash Algorithm: SRC MAC/DST MAC/SRC MAC + DST MAC/SRC IP/ DST IP/SRC IP + DST IP | |
| Traffic Monitor | • TX Packets/Bytes • RX Packets/Bytes • TX Unicast/Multicast/Broadcast • RX Unicast/Multicast/Broadcast | |
| MAC Address | • MAC Address Table: 32K entries • IVL/SVL: IVL • Create Static Unicast Address | |
| VLAN | • 802.1Q VLAN(802.1q): 4K VLANs • MAC VLAN: 200 entries • Protocol VLAN - 16 Protocol VLAN Template - 12 Protocol VLAN Group | |
| Multicast | • Max Multicast Groups: 4K (IPv4,IPv6) • IGMP Snooping - IGMP V1/V2/V3 - Report Message Suppression - Fast Leave - Unknown Multicast Discard - Static Multicast Groups - IGMP Snooping Querier - IGMP Packet Statistics - IGMP Authentication - Multicast Filtering: 256 profiles and 16 entries per profile - Router Port Setting: Static Router Port/Forbidden Router Port • MVR | |
| STP | • STP(802.1d) • RSTP(802.1w) • MSTP(802.1s) • MSTI entries: 16 | |
| LLDP (802.1ab) | • Enbale/Disable • Local Info • Neighbor Info • Statistic Info | |
| L2PT • Layer 2 Protocol Tunneling | ||
| PPPoe ID Insertion | • Circuit-ID Type - IP - MAC - UDF - UDF-ONLY | |
| ERPS • Ring: 16 | ||
| Virtual MAC | ||
| Sticky MAC | ||
| Model S6500-48G6XF | ||
| L3 Features | L3 INTERFACE: 256(IPv4,IPv6) | |
| STATIC ROUTE: 1024 IPv4, 512 IPv6 | ||
| IPv4 Host Router entries + IPv6 Host Router entries: 6100 | ||
| IPv4 Network Router entries: 10240 (shared with IPv6 Network Router entries) | ||
| IPv6 NetworkRouter entries: 5120 (shared with IPv4 NetworkRouter entries) | ||
| ECMP | • ECMP entries: 256 • MAX-PATH: 32 | |
| ARP | • Static ARP: 512 • Dynamic ARP: 7680 | |
| ND: 7680 | ||
| DHCP | • DHCP Server - IP Pool: 64 - IP MAX entries: 8000 - Manual Binding: 1000 - Excluded IP Range: 100 | |
| VRRP | • VRRP V2/V3 • VRRP Instance: 64 • VRRP Virtual IP: 32 per instance | |
| OSPF | • OSPFv2 - OSPF Instance: 16 - Network entries: 256 entries - Area entries For Stub Or NSSA: 16 per instance - AreaRange entries: 16 per instance - Virtual-link entries: 16 per instance - Redistribute: conneted/static/RIP/OSPF/IS-IS/BGP - Graceful Restart - OSPFv2 BFD | |
| RIP | • RIPv1/v2 - Network entries: 256 - Redistribute entries: 20 - Redistribute: BGP/connected/OSPF/IS-IS/static | |
| IS-IS | • IS-IS Interfaces: 128 • IS-IS Area Numbers: 3 • Redistribute: BGP/connected/OSPF/OSPFv3/RIP/static/RIPng | |
| BGP | • Redistribute: IS-IS/connected/OSPF/RIP/static | |
| PIM | • PIM DM • PIM SM • PIM SSM | |
| IGMP • Version: v1/v2/v3 • IGMP Multicast Groups: 2K | ||
| BFD • Template Numbers: 16 • Session Numbers: 8 | ||
| PBR | ||
| uRPF | ||
| QoS | Class of Service | • Priority Queues: 8 Queues • Port Priority • 802.1P Priority • DSCP/ToS Priority |
| Bandwidth Control | • Rate Limit - Ingress Rate Limit - Egress Rate Limit - Rate Limit Grade: 64kbps | |
| Voice VLAN • Supported OUI Numbers: 64 | ||
| WRED • WRED profile: 16 | ||
| Software Features | ||
| Model S6500-48G6XF | ||
| Network Security | IP-MAC Binding | ·Binding entries: 1024 entries ·ARP Scanning ·Manual Binding ·DHCP Snooping |
| IPv6-MAC Binding | ·Binding entries: 1024 entries ·DHCPv6 Snooping ·Manual Binding ·ND Snooping | |
| ARP Inspection | ·ARP Detect entries: 1024 entries ·ARP Defend ·ARP Detect ·ARP Statistics | |
| ND Detection | ·ND Detection entries: 1024 entries ·ND Statistics | |
| IP Source Guard | ·IP Source Guard entries ·Security Type -Default SDM Template: 299 ·Source IP -IPv4 SDM Template: 499 ·Source IP + Source MAC | |
| IPv6 Source Guard | ·IPv6 Source Guard entries ·Security Type -Default SDM Template: 0 ·Source IPv6 -IPv4 SDM Template: 0 ·Source IPv6 + Source MAC | |
| RA Guard: 30 entries | ||
| DoS Defend | ·Scan SYNFIN ·SYN sPort less 1024 ·Xmascan ·Ping Flooding ·NULL Scan ·SYN/SYN-ACK Flooding | |
| DHCP Filter | ·DHCPv4 Filter -Legal Server entries: 200 ·DHCPv6 Filter -Legal Server entries: 200 | |
| 802.1x | ·Control Type -Port Based -MAC Based ·Auth Method: PAP/EAP-MD5/EAP-TLS/EAP-TTLS/EAP-PEAP ·Radius Authentication ·Radius Accounting ·Radius Server Load Balancing ·RADSEC ·Guest VLAN | |
| AAA | ||
| ACL | ·Time-Range -Time Slice -Week Time-Range -Absolute Time-Range -Holiday ·MAC ACL -Source MAC -Destination MAC -VLAN ID -EtherType -User Priority ·IP ACL -Source IP -Destination IP -IP Protocol -TCP Flag -TCP/UDP Source Port -TCP/UDP Destination Port -DSCP/IP ToS ·Combined ACL ·IPv6 ACL ·Rule Operation -Permit -Deny ·Policy Action -Mirror -Rate Limit -Redirect -QoS Remark ·Binding -Port Binding -VLAN Binding | |
| MACSec (-128, -256) | ||
| Secure boot | ||
| Virtualization IP Tunnel | ·IPv6 over IPv4 ·IPv4 over IPv4 GRE ·IPv6 over IPv4 GRE ·Tunnel entries: 100 | |
| Software Featuresa | ||
| Model S6500-48G6XF | ||
| Maintenance | System Monitor | CPU MonitorMemory Monitor |
| sFlow | ||
| OAM | EFM- Link Monitoring- Remote Failure Indication Config- Statistics | |
| DLDP | ||
| SNMP | SNMP Version:v1/v2c/v3 - NotificationSNMP ConfigTrap: IPv4/IPv6- Global Config- Inform: IPv4/IPv6- SNMP View- RMON v1/v2- SNMP Group- Public MIBs- SNMP User- SNMP Community | |
| MIBs | - MIB II (RFC1213)- Interface MIB (RFC2233)- Ethernet Interface MIB (RFC1643)- Bridge MIB (RFC1493)- P/Q-Bridge MIB (RFC2674)- RMON MIB (RFC2819)- RMON2 MIB (RFC2021) - Support TP-Link Private MIB | |
| NETCONF | ||
| IEEE802.3az Energy Efficient Ethernet (EEE) | ||
| DHCP Auto Install | ||
| Log | - Display/Filtering- Remote Host- Severity Level- Backup Log | |
| Device Diagnostics • Cable Test | ||
| Network Diagnostics | - Ping- Tracert- IPv6 Ping- IPv6 Tracert | |
| Others | Index | |
| Show running config | - Use the show running config command to view device's running status via telnet.- Configuration File: Import/Export/Edit | |
| Omada SDN Controller | Omada Pro SDN controller | |
Ordering Information
Host Switch
Model Description
S6500-48G6XF Omada Pro 48-Port Gigabit Stackable L3 Managed Switch with 6 10G Slots
SFP/SFP+ Modules
Model Description
SM311LS Gigabit SFP module, Single-mode, LC interface, Up to 20km distance
SM311LM Gigabit SFP module, Multi-mode, LC interface, Up to 550m distance
SM321A Gigabit WDM Bi-Directional SFP Module, single-mode, LC connector, TX: 1550~nm / RX : 1310~nm 20km
SM321A-2 Gigabit WDM Bi-Directional SFP Module, single-mode, LC connector, TX: 1550 nm/RX: 1310 nm, 2 km
SM321B Gigabit WDM Bi-Directional SFP Module, single-mode, LC connector, TX: 1310 nm/RX: 1550 nm, 20 km
SM321B-2 Gigabit WDM Bi-Directional SFP Module, single-mode, LC connector, TX: 1310nm / RX : 1550 nm, 2 km
SM5110-LR 10GBase-LR SFP+ LC Transceiver, single-mode, LC connector, 1310nm, 10 km
SM5110-SR 10GBase-SRP+ LC Transceiver, multi-mode, LC connector, 850nm 300m
Direct Attach Cable
Model Description
SM5220-1M
1 Meter 10G SFP+ Direct Attach Cable
SM5220-3M
3 Meter 10G SFP+ Direct Attach Cable
RJ45 SFP/SFP+ Modules
Model Description
SM331T 1000BASE-T RJ45 SFP Module
SM5310-T 10GBASE-T RJ45 SFP+ Module
MC Series Media Converter
Model Description
MC210CS Gigabit Single-Mode Media Converter, up to 20km , chassis mountable
MC200CM Gigabit multi-mode SC SFP Transceiver, up to 550m chassis mountable
MC200L Gigabit SFP slot supporting mini-GBIC modules, chassis mountable
MC1400 14-slot power supply chassis for TP-LINK MC Series Media Converter, 19-inch rack-mountable
FC Series Media Converter
Model Description
FC111A-20 100Mbps Single-Mode WDM Media Converter, up to 20km TX:1550nm RX:1310nm chassis mountable
FC111B-20 100Mbps Single-Mode WDM Media Converter, up to 20 km, TX:1310nm, RX:1550nm, chassis mountable
FC311A-2 Gigabit Single-Mode WDM Media Converter, up to 2 km, TX:1550nm, RX:1310nm, chassis mountable
FC311B-2 Gigabit Single-Mode WDM Media Converter, up to 2 km, TX:1310nm, RX:1550nm, chassis mountable
FC311A-20 Gigabit Single-Mode WDM Media Converter, up to 20 km, TX:1550nm, RX:1310nm, chassis mountable
FC311B-20 Gigabit Single-Mode WDM Media Converter, up to 20 km, TX:1310nm, RX:1550nm, chassis mountable
FC1400 14-slot power supply chassis for TP-LINK FC Series Media Converter, 19-inch rack-mountable
These functions require the use of the Omada Pro SDN Controller. Zero-Touch Provisioning requires the use of the Omada Pro Cloud
Based Controller.
The model featured in this guide may be unavailable in your country or region. Visit TP-Link website for local sales information: www.tp
link.com.
Specifications are subject to change without notice. All the brands and product names are trademarks or registered trademarks of their
respective holders. © 2024 TP-Link
